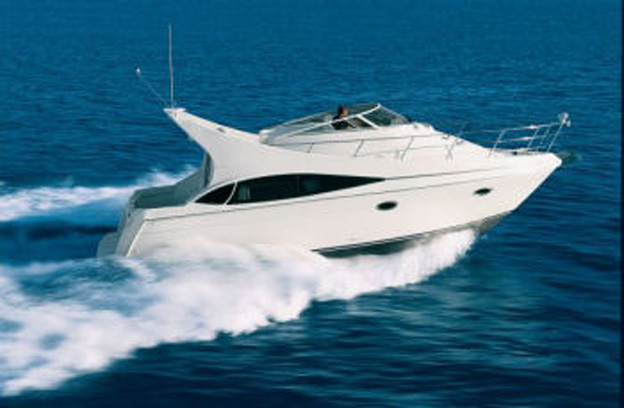

36 Carver Mariner 2007

Source: Alex Julian, Topspeed.com

The Carver 36 Mariner is a blend between a sports cruiser with the advantages of a fly-bridge. A spacious luxury yacht that offers lots of features that will make your trips on the water a real pleasure.

Engine

The 36 Mariner can be powered by one of these engines: Crusader® 5.7 MPI – 330 hp, Crusader® 6.0 MPI – 375 hp, Volvo Penta® 5.7 GXI – 315 hp and Yanmar Marine® 6LPA-STP – 315 hp (diesel). The access to the engine room is made raising the stairs in the salon whit a hydraulic lift. Gas-assisted shocks help you access the engine room from the cockpit area when needed. The engine room is completely gel coated white for a clean look and easy clean up. The wires are labeled and tied back and out of the way.

Exterior

The hull of the 36 Mariner has a running surface with a fine entry, rounded sections forward, offset chines aft, an eight-degree transom deadrise and a 14-inch deep, 3/4-length keel for improved tracking. The solid fiberglass hull is laid-up with mat and woven roving, plus considerable overlap for the keel and chines, while the deck and superstructure are comprised of end-grain balsa for stiffness and plywood for hardware backing. By the design of the hull, Carver intended to offer high performance at lower speeds and planning ability at higher speeds.

Interior

The Carver 36 Mariner has a spacious cockpit from which you can access the spacious bridge and the molded-in swim platform with integrated fold-out ladder on the port side. On the bridge you can find a wet bar with cold water tap and optional ice maker, and the deck hatch in the floor allows you to pass your favorite snack up from the galley to the bridge.

At the helm you’ll find split shifters, Teleflex gauges, stereo remote, and room for all of your favorite electronics.

Salon

On the port side of the salon is an L-shaped lounge that allows you to relax in while you watch the standard 20 inch flat screen TV with DVD player. The dinette is located on the starboard side of the salon. The cherry wood table can be dropped down for additional sleeping berth. In the galley located on the starboard side of the boat you will find a built-in microwave, two-burner electric stove, coffeemaker, abundant amount of storage, a refrigerator and ice maker.

In the cabin is a queen-sized berth with two steps on either side for easy access. A deck hatch allows fresh air and sunlight to fill the room.

Test drive

Testing the 36 Mariner you’ll find that it can reach a maximum speed of 31.7 mph at 5000 rpm. With a full tank you can cruise for about 355 miles at 22 mph. The special design of the hull makes it easy to handle the 36 Mariner in all types of water.

Conclusion

With a roomy cockpit and a bridge built for entertainment, the Carver 36 Mariner will make your water trips a real pleasure.

Boat Specification: 36 Carver Mariner 2007

36 Mariner

Standard

Construction
Cherry wood bulkheads, cabinetry, & trim throughout cabin, with high-gloss finish
Hand-laid, molded fiberglass components featuring composite laminate hullsides, decks, & cabintops
Molded fiberglass stringer system
Solid fiberglass hull bottoms with Knytex substrates & vinylester barrier coat
Structural engine mountings – reinforced stringer mountings with gusseted, angle steel plates
Tinted, tempered safety glass frameless window systems
Unitized deck, cockpit, & cabintop construction

Mechanical
Air conditioning – 2-zone, 19,000 BTU; with reverse cycle heat; dedicated shore power connector
Carver Docking System™
Cutlass bearings – synthetic rubber composite
Dripless shaft logs
Exhaust mufflers – engines, generator
Fuel tanks – welded, baffed 5052 aluminum
Hydraulic steering
Internal seawater strainers
Propellers – manufacturer certified
Propeller shafts – Aquamet®
Rudders & struts – 421 manganese bronze
Trim tabs – stainless steel, hydraulic

Electrical
AC/DC distribution panels with magnetic circuit breakers & integral bilge blower controls; AC voltmeters; AC ammeters
Batteries (4) – deep cycle, marine (12V)
Battery chargers (2) electronic, AC-DC converters
External connectors – CATV, telephone
Generator – 7.3 kW Kohler®, gasoline
Ground Fault Circuit Interrupt (GFCI) protection – all electrical outlets
Shore power connectors (2) – 30 amp
Shore power cords (2) – 50 ft.
Wiring system – tinned copper strand wire, harnessed, color-coded, labeled, meets or exceeds ABYC standards

Water & Holding Systems
Fresh water system – pressurized (12V), with large-capacity filter
Fresh water storage tank – polyethylene
Fresh water tank level monitor
Handshower – fresh water, hot & cold, on transom
Shore water connection with pressure-reduction valve
Shower sump pump – automatic/manual operation
Waste holding tank – with filtered vent & dockside pumpout
Waste tank level monitor
Water & waste lines – constructed of molecularly cross-linked polyethylene
Water heater – 11 gallons

Safety & Navigation
65-5-5-5 marine grade bronze seacocks for all underwater thru-hulls
Anodes – zinc, sacrificial
Battery master disconnect switches
Battery restraint brackets & boxes
Bilge alarm – high water
Bilge blowers (12V)
Bilge pumps (4) – 1500 gph each, 3 automatic/manual operation, 1 automatic operation only
CO detectors in salon & stateroom
Compass – illuminated, dualread
Engine alarms – temperature & oil pressure
Fire suppression system – automatic, FE241
Galvanic isolator/zinc saver
Horn – air/electric (12V), trumpet
Internal bonding system
Molded nonskid surfaces on all walk decks
Navigation lights (COLREGS)
Spotlight
Windlass package – with 35 lb. anchor & 150 ft. of 5/16 in. chain

Decks
Beverage holders (2) – foldout, on sunpad
Bow rail – 1.0 in. O.D., lineal buffed, welded stainless steel, with additional intermediate rail forward
Bow rail stanchions – doublewelded stainless steel, anchored to aluminum backing plates laminated into deck
Cleats – 10 in. stainless steel: anchor (1), bow (2), spring (2), stern (2) – bolted through aluminum backing plate
Deck toe rail
Lounge – double-wide, converts to sunpad
Over-the-stem anchor roller
Rub rail molding – heavyduty, stainless steel insert

Boarding Platform
18 sq. ft. approx., integral to hull & deck
Boarding ladder – telescoping, with handhold inset in deck & stainless steel grab rail on transom, recesses in boarding platform
Grab rail – stainless steel, on top of transom
Storage lockers (2) – in transom

Engine Room
Bilges coated with white, low-VOC gelcoat
Insulation – acoustical & thermal, vinyl vapor barrier

Cockpit
29 sq. ft. approx., integral to hull & deck, self-draining
Bolsters – padded, on port & starboard weatherboards
Carpet – exterior-grade, snaps in place
Hatches (3) – guttered, provide engine room access
Lights (4) – courtesy, recessed, with exteriormounted switch
Overhead sun/weather protection – 19 in. from cabin toward stern
Side deck stairways (2) – integral to deck with stainless steel grab rail
Transom door – fiberglass, secures open & closed, stainless steel hardware

Command Bridge
Beverage holders (10) – recessed, integral, selfdraining
Canvas – Prestige full canvas enclosure with carpet
Carpet – exterior-grade, snaps in place
Electronics arch – custom aluminum with acrylic polyurethane surface coating & UV protection
Electronics arch access plates (5) – corrosion-resistant polymer attached with noncorroding screws & waterproof sealant
Hatch – translucent, lockable, pass-through to salon
Lights (3) – courtesy, recessed, with exteriormounted switch
Lounge (3) – two triplewide, on port & starboard, with storage beneath; one aft, accommodates 5 adults
Self-draining walk surface
Wet bar – self-draining sink, 2 preparation surfaces, stainless steel grab rail on front
Windshield – wraparound, painted stainless steel frame, side vents

Helm
Access panel – behind lounge, provides access to helm wiring
Accessory space – for installing navigation equipment
Adapter – 12V
Beverage holders (3) -recessed, self-draining
Companion helm seat – adjustable, pedestal base, high-quality marine-grade upholstery, embroidery stitching
Dash – molded fiberglass with brushed aluminum accents
DC circuit breaker panel for helm electronics
Helm seat – adjustable, pedestal base, high-quality marine-grade upholstery, embroidery stitching, self-storing arms
Gauges – synchronizer; rudder angle; tachometer with digital hourmeter (1 per engine); oil pressure, engine temperature, engine battery voltage, fuel level (multi-gauge, 1 per engine)
Light – courtesy
Rocker switch controls
Stereo speakers (2)
Storage locker
Tilt steering wheel

Salon
Carpet – tufted cut pile, 65 oz., crush-resistant, 100% nylon
Countertops – cherry wood with raised edge
Curtains – décor-matched
DC distribution panel – 12V safety systems
Designer décor
Electrical outlet
Entertainment group – 20 in. LCD TV & DVD, AM/FM/CD stereo, Sirius® satellite radio system with 6 month trial subscription
Entrance door – tinted glass, aluminum frame, sliding, secures open & closed, with interior screen
Entry stairway – carpeted with solid cherry risers, electrically-actuated to provide access to forward engine room
Grab rail – stainless steel, over entry stairway
Lights (6) – halogen, overhead, recessed
Lounge – L-shaped, converts to single berth, with storage beneath
Mirrors (3) – beveled, with cherry wood frames, on forward bulkhead
Rocker light switch
Stereo speaker
Storage cabinets (2)
Window bolsters – décormatched fabric over batting height

Galley
Coffee maker
Countertops – solid surface
Designer décor
Electrical outlet
Flooring – wood plank
Hatch – translucent, lockable, pass-through to bridge
Hull portlight – with screen
Lights (5) – halogen, overhead, recessed
Light – fluorescent, over sink
Microwave oven – built-in
Range – electric, 2-burner, smooth top
Refrigerator/freezer – upright
Rocker light switch
Sink – full-size, undermounted stainless steel
Sofft – cherry wood with mirrored bottom
Storage cabinets (5)
Storage drawers (2)

Dinette
AC & DC main distribution panels
Bench seats (2) – curved, convert to double berth
Carpet – tufted cut pile, 65 oz., crush-resistant, 100% nylon
Curtains – décor-matched
Designer décor
Fresh air fan
Lights (2) – halogen, overhead, recessed
Rocker light switch
Stereo speaker
Table – sapele pommele top with raised cherry wood trim, aluminum base, adjustable height
Telephone connector
Window bolsters – décormatched fabric over batting

Stateroom
Access panel – mirrored, on forward bulkhead, provides access to anchor chain locker
Berth – queen, pillowtop, innerspring mattress, island
Berth endtables (2) – cherry wood
Berth step-ups (2) – carpeted
Carpet – tufted cut pile, 65 oz., crush-resistant, 100% nylon
Curtains – décor-matched
Designer décor
Electrical outlets
Entrance door – solid cherry wood, secures open & closed, stainless steel hardware
Hanging lockers (2) – carpeted, automatic light
Hull portlights (2) – with screen
Lights (3) – halogen, overhead, recessed
Lights (2) – halogen, sconces, directable for reading
Overhead hatch – tinted, lockable, inside screen
Private head access
Rocker light switch
Sheet set embroidered with Carver® logo – fitted sheet, flat sheet, two pillow cases
Storage cabinets (7)
Storage drawers (2)
Telephone connector

Head
Electrical outlet
Entrance doors (2) – one to stateroom & one to galley, solid cherry wood, secure closed, stainless steel hardware
Head fan
Lights (3) – halogen, overhead, recessed
Medicine cabinet – mirrored doors, 2 shelves
Nonskid sole
Rocker light switch
Toilet – vacuum flush, pedestal
Toilet paper holder
Towel ring
Towel set – bath towel, hand towel, washcloth
Vanity – solid surface top, integral sink, cabinet beneath with 2 doors
Shower Stall
Bench seat – integral
Hull portlight – privacy glass, with screen
Lights (3) – halogen, overhead, recessed
Nonskid sole
Shower door – clear acrylic in aluminum frame with matching sidelights, bi-fold, secures closed
Shower head – removable for use as hand-shower
Storage cabinet – mirrored doors, 2 shelves

Optional:

Propulsion
Gasoline Engines
Crusader® 5.7 MPI – 330 hp
(includes fresh water cooling)
Crusader® 6.0 MPI – 375 hp
(includes fresh water cooling)
Volvo Penta® 5.7 GXI – 315 hp
Fresh water cooling
(available for Volvo 5.7)
Diesel Engine
Yanmar Marine® 6LPA-STP – 315 hp

Mechanical
Engine oil change system

Electrical
Generator
Kohler® 5.0 kW – diesel
Kohler® 7.3 kW* – gasoline
Westerbeke® 5.0 kW – diesel
Westerbeke® 7.6 kW – diesel

Water & Holding Systems
Grey water holding system
Overboard discharge system
Transom Washdowns
Both fresh & seawater
Fresh water only
Seawater only

Safety & Navigation
Spare propellers & shaft
Navigation Electronics Package
Bridge Package – E80 multifunction unit, Raymarine® 240 VHF (hand set), 125 WASS GPS sensor, DSM 300 sonar, E66056 transducer

Amenities
Boot Stripe (painted)
Black
Blue
Bridge Wet Bar (choice of one)
Icemaker
Refrigerator

Exterior
Bridge cover
Bridge lounge slip covers & pillows
Bridge table
Helm & seat covers

Salon
Central vacuum system
Pillow set – decorator, 6-piece
Stereo addition: remotemounted 6-disc CD player

Stateroom
15 in. LCD TV, drop-down

Décor
Canvas Color
Black Sunbrella®
Cadette Grey
Captain’s Navy
Charcoal Tweed
Toast
White Stamoid

Ensemble
Aegean (blue/green tones) Interior Seating: Diplomat Cocoa OR Diplomat Snow
Belize (beige/neutral tones)* Interior Seating: Diplomat Brandy OR Diplomat Sand
Caspian (black & ivory tones) Interior Seating: Diplomat Black OR Diplomat Sand

Boat Specification: 36 Carver Mariner 2007

LOA (w/platform): 36 ft. & 7 in. (11.15 m)
Beam: 12 ft. & 9 in. (3.89 m)
Draft: 37 in. (0.94 m)
Holding Tank: 31 gal (117 l)
Bridge Clearance w/arch: 14 ft. & 2 in. (4.32 m)
Weight (w/fuel & water): 19,500 lbs (8,845 kg)
Water System: 75 gal (284 l)
Fuel System: 250 gal (946 l) – Gas or Diesel Twin V-drive Inboards
Cabin Headroom: 6 ft. & 3 in. (1.91 m)
Sleeps: 5
Engine Option:

• Crusader® 5.7 MPI – 330 hp
• Crusader® 6.0 MPI – 375 hp
• Volvo Penta® 5.7 GXI – 315 hp
• Yanmar Marine® 6LPA-STP – 315 hp (diesel)

Max. Speed: 27.6 knots (31.7 mph)
