Off Market
ORIGINAL OWNER VESSEL
RECENTLY UPDATED ELECTRONICS - STATE OF THE ART ( see full specs).
THREE STATEROOM MODEL – Includes large Master Forward w/Island Queen Berth
Well Maintained by Knowledgeable Owner - -In Excellent Condition
Large Spacious Salon with 360 Degree Panoramic Views
Preferred Caterpillar Engines – Electronically controlled - LOW HOURS
Fast Trawler – Capable of 20 Knot Speed
Galley “UP” Allows Cook to Be Part of the Guest Activities, and Provides Excellent View to Waterway, Sliding windows

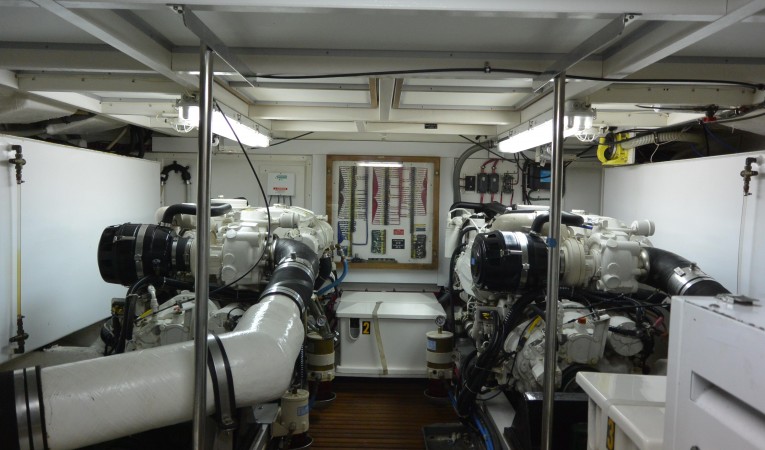

Dual- Interior and Exterior Access to Spacious Engine Room with Twin Caterpillar Drives
Fully Equipped – Five zone Air Conditioning ( 48,000 BTU), Generator, Bow Thruster,
Large Covered Aft Deck - Double Doors to Saloon – Covered Side Decks – Working Foredeck
Two Lazerettes - Large Mechanical Room - Aft Storage Room - Crash Bulkhead
Huge Flybridge w/Upper Helm – Guest Seating Area – Tender Storage w/Davit - New Bimini
If you are looking for a fantastic cruising boat that is exceptionally well equipped and in excellent condition, this will be your vessel of choice. We believe she is the finest 46 Europa on the market. Her original owner has lovingly maintained this vessel, and the care and attention shows.
Please call the listing broker immediately to make an appointment to see her.
LOA – 52 ft …………………………… 15.85 meters
Length on Deck 47 ft 1 in ……………………… 14.35 meters
LWL 44 ft 10 in ……………………. 13.66 meters
Draft 4 ft 5 in ……………………… 1.35 meters
Beam 14 ft 9 in …………………….. 4.5 meters
Min Bridge Clearance 15 ft (mast lowered) …… 4.57 meters
Max Bridge Clearance 23 ft 2 in ……………….. 7.06 meters
Displacement 43,000 lbs ............................ 19,504 Kilo
Engines: Twin Caterpillar 3126-B Diesel -450 HP each ( 590 hours)
Gen Onan MDKAB 13.5 KW ( 538 hrs)
TANKAGE:
Fuel – 630 gals ( in 2 tanks) ………. 2,385 liters
Water – 300 gals ( in 2 tanks) …….. 1,136 liters
Waste – 50 gals ( in 2 tanks) ……… 189 liters
erator: Onan MDKAB 13.5 KW ( 270 hours)
Rare model featuring 3 cabins forward,with the master at the most forward, and private, part of the accommodations. Moving aft, a comfortable guest cabin is to Port with 2 lower berths, and a second guest cabin is to Starbd with upper and lower berths. The master has an en-suite private head & shower, and the guest cabins share a head & shower which is located on the Starbd side of the companionway.

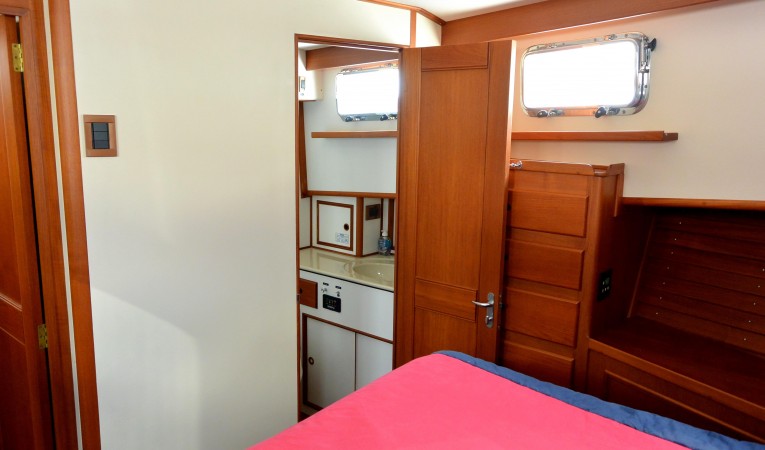

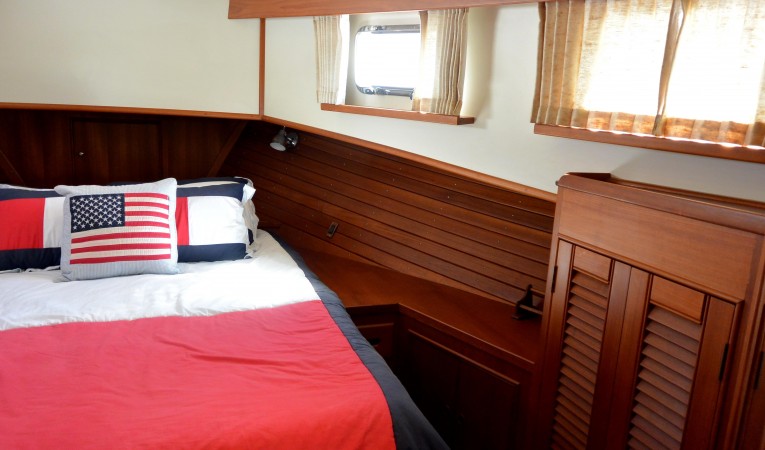

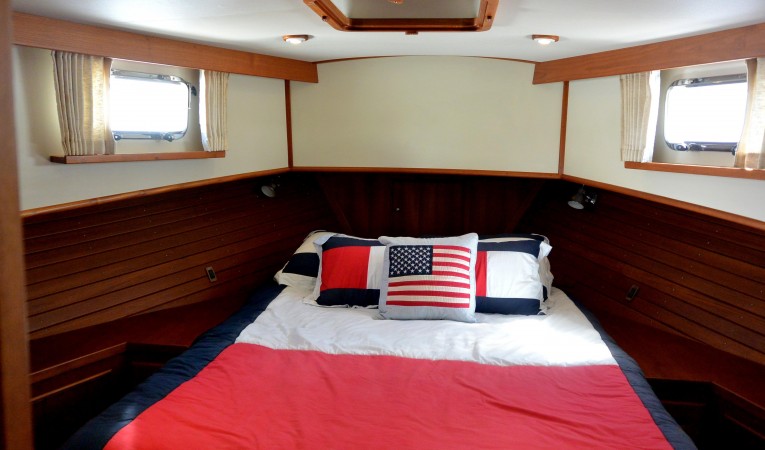

MASTER CABIN: The master cabin is forward with a centerline queen berth and private en-suite head w/enclosed shower
Centerline Queen berth w/memory foam matress
4 Opening, screened ports
overhead opening hatch, and emergency exit
Storage under Queen berth
Storage on Port & Starbd sides of berth
Bureau w/6 drawers
All teak woodwork
Full Length make up mirror
hanging locker - cedar lined closet
reading lamps
LED lighting overhead
Air conditioning w/ fan speed control
CO2 detector
Master Head: Mirrors, , opening porthole, Storage lockers, Exhaust blower, Indicator light for holding tank, Teak Shower Gratings w/ drain pump, Shower stall separate w/ bi-fold door, Sink/countertop, cultured marble, Toilet, Marine, vacuflush, Grohe faucets

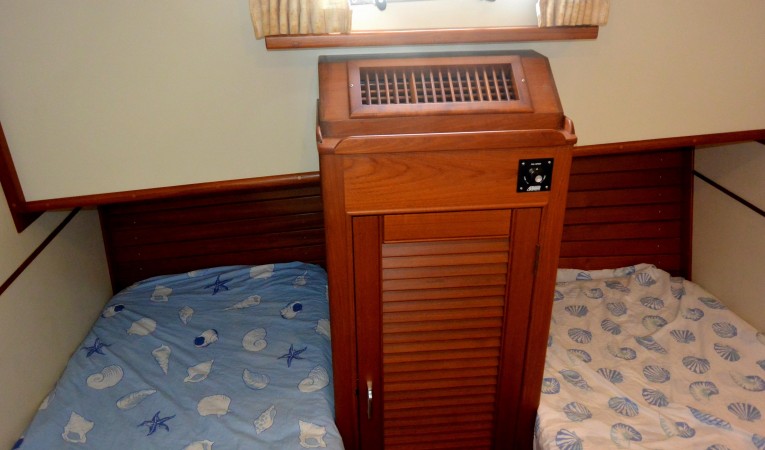

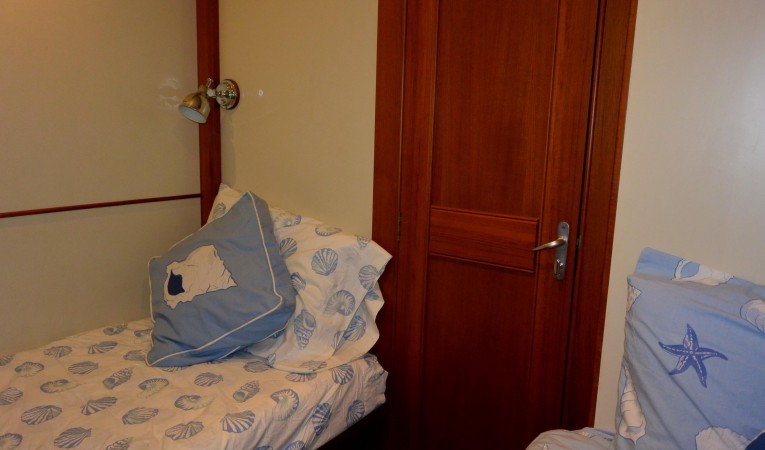

GUEST CABIN -1 Port Side
2 Single berths
3 Drawers under each berth
Custom A/C Fan speed control
Teak door panels
Overhead lights
Teak hanging locker, cedar lined
Screened opening port
GUEST CABIN-2 on Starbd side - Ideal for children, nanny or crew
Separate AC control

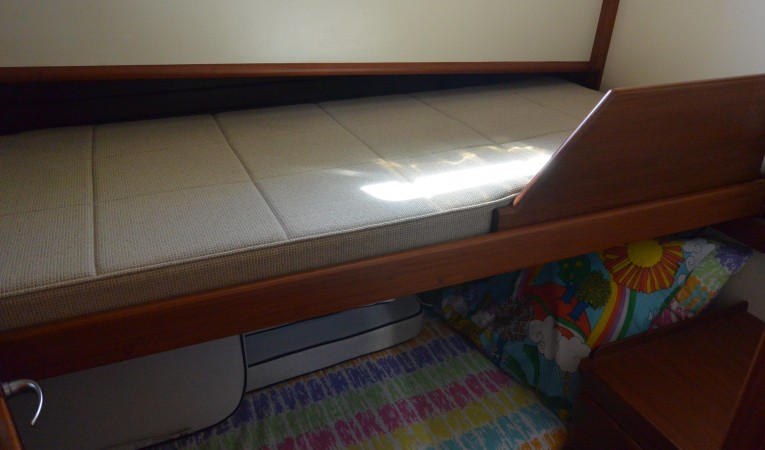

Over & Under berths,
Screened opening port
reading lights
Hanging locker
Mirror
Bureau

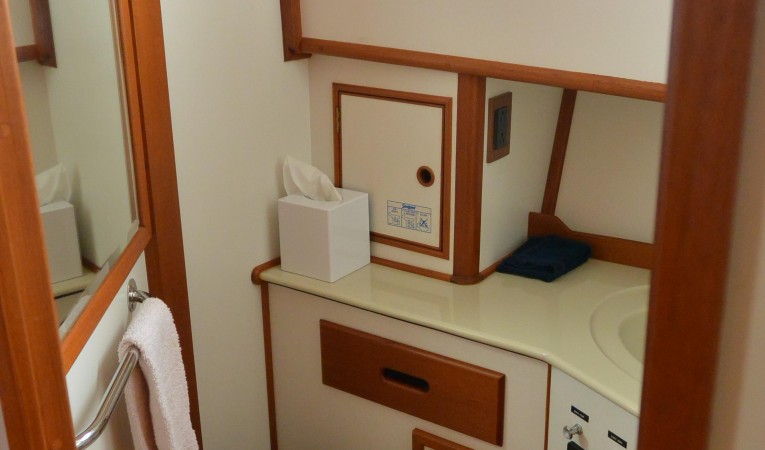

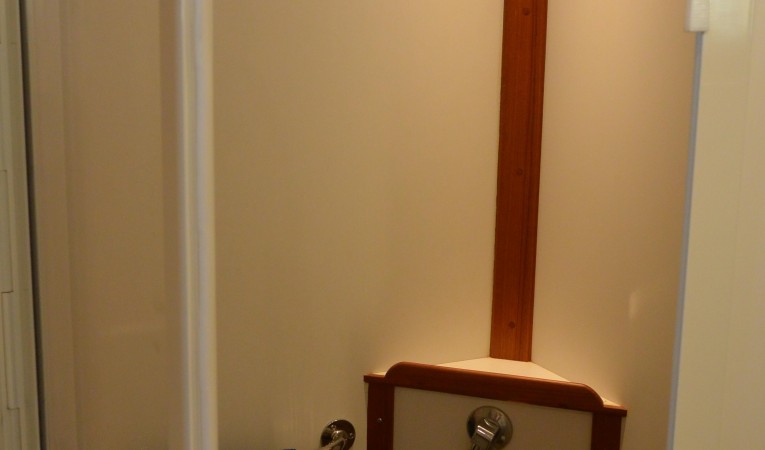

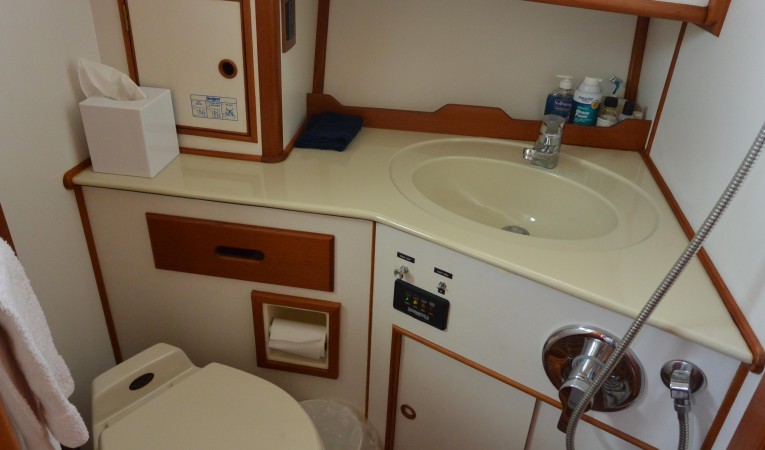

GUEST HEAD: Mirrors, Opening porthole, Storage lockers, exhaust blower, Indicator light for holding tank, Gratings, teak, Shower w/ drain pump, Sink/countertop, cultured marble, Toilet - Marine Vacuflush
EXTERIOR: Vessel may be boarded from either side through opening gates in the SS railing, or from the stern swim platform w/ teak steps to the main deck. There is a huge aft cockpit with access to wide protected walk ways on both sides of the vessel. The aft deck and sides are protected by an overhang from the flybridge.
Mechanical lazerette and aft lazerette are accessed via hatches in aft cockpit.

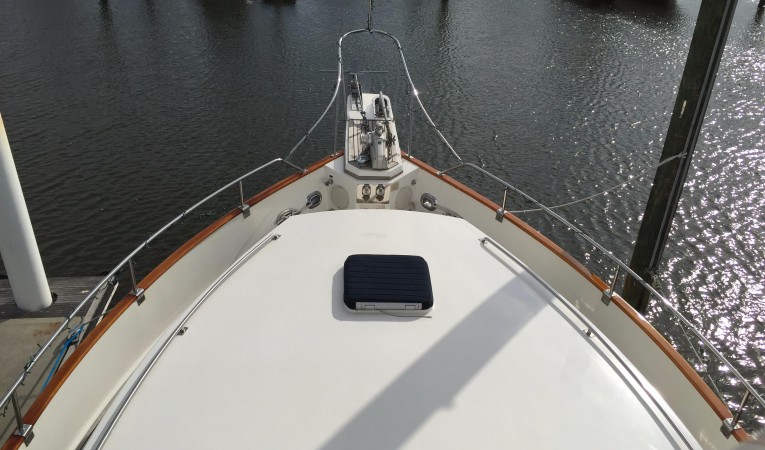

There is plenty deck space at the bow for handling lines. One particular feature of this vessel is the complete 360 degrees of walk around deck, and protection by a high bulwark and SS rail around the entire vessel.
The Flybridge is accessed from an easy to ascend molded fiberglass stairway (no ladders), with teak steps and SS rail on either side. There is a very large L-shaped guest seating area and table , and complete helm with double seat, and a second double seat facing forward under the Bimini ( seating 8). Aft of the guest area is a dedicated tender storage area with davit, and folding radar mast. A Frigibar unit provides convenient cold storage for this deck. Dry storage is provided under the console and seats, and teak grates line all under-seat storage.

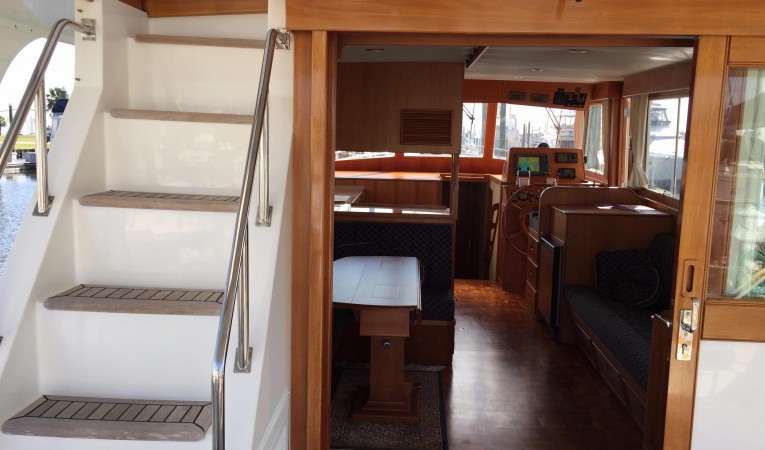

INTERIOR: Vessel is entered from large double doors on the covered aft deck. Or can also be entered from the door on the Starbd side at the lower helm station.

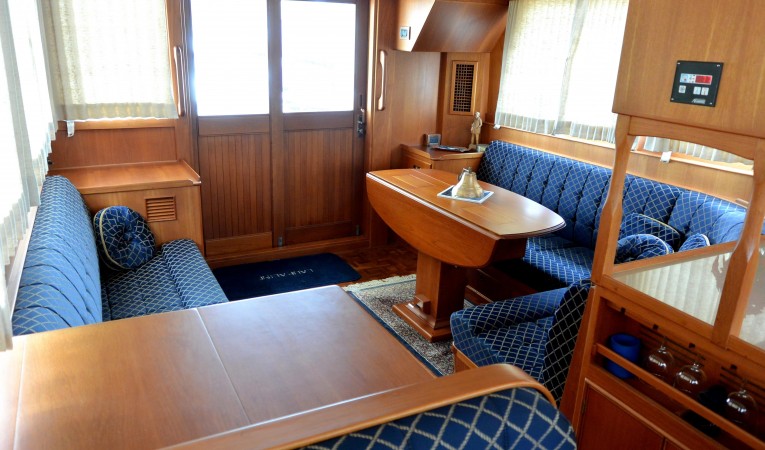

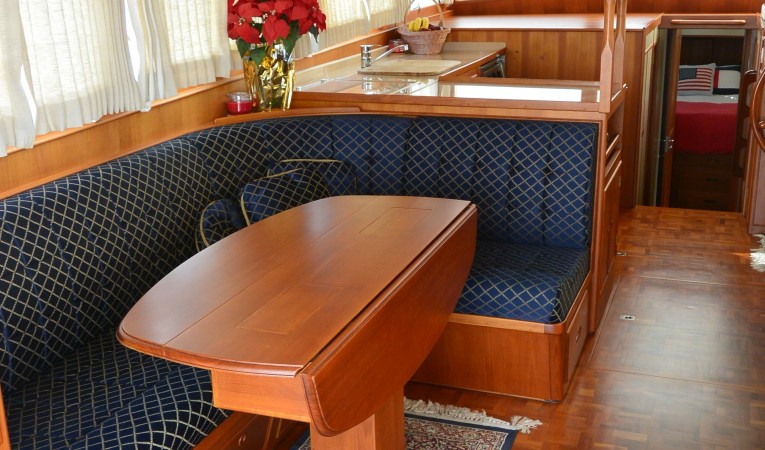

Upon entering the salon from the aft deck, there is an L-shaped Settee to Port, with a dining table, and a straight settee to Starbd. Forward on the Port side is a large galley and to Starbd is the lower helm station. This is all on one level and has large glass windows on all sides for excellent visibility and light. Full length curtains and LED valence lights provide privacy and warm lighting.
Moving forward, down a few stairs there is a guest cabin to port w/two lower berths. To Starbd, is a second guest cabin with upper and lower berths. A full head and shower serve these cabins and is accessed from the central companionway on Starbd side.
Forward on this level is the large Master stateroom w/Private head and shower
There are opening ports on both sides of the exterior cabin house which is raised above the deck, for light and ventilation to all cabin and bath areas.
A Teak Parquet sole is throughout the vessel w/ Matte finish
Salon and Galley are on the main level with easy access from the aft cockpit, through double opening doors, or side door on Starbd side ( at the helm). There are large windows forward, sliding windows to the sides, and fixed aft windows for a bright and airy interior.

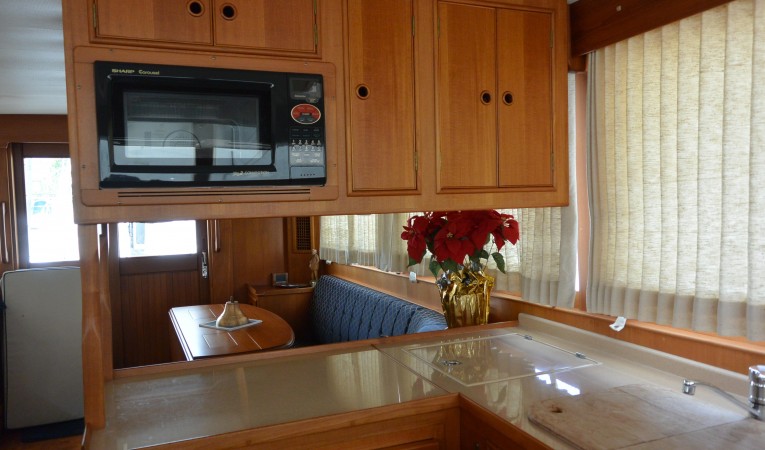

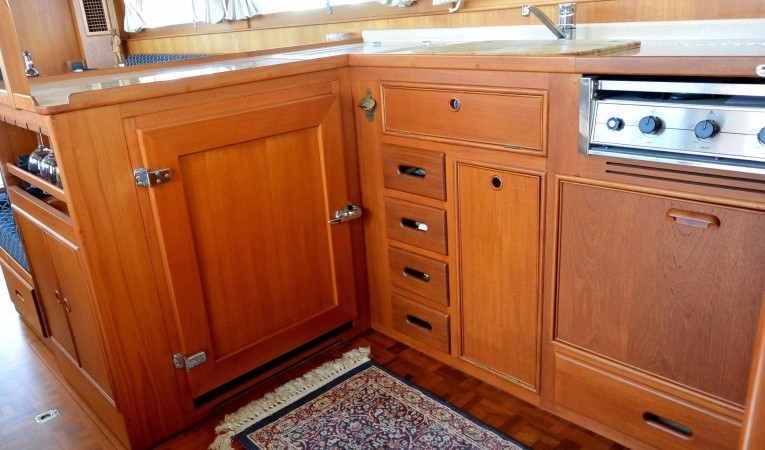

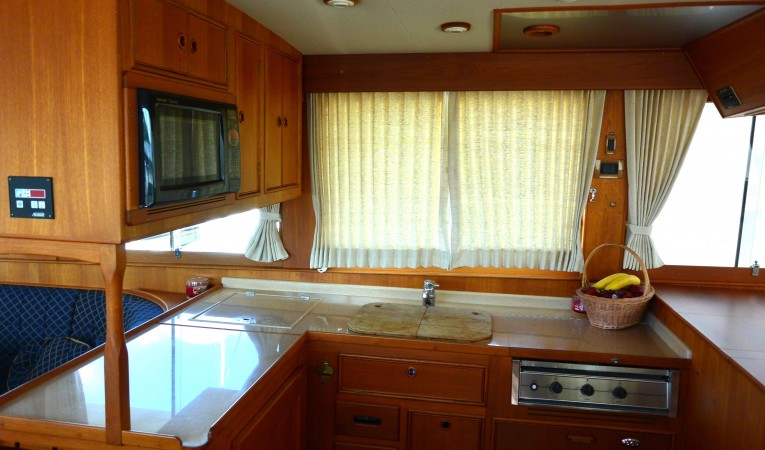

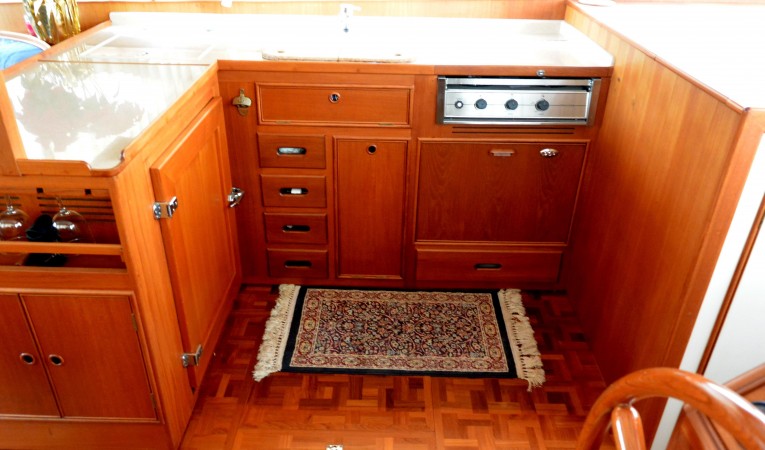

Galley: The galley is located forward on the port side, and has Beige Corian countertops, and molded Corian sink. There is extra under counter storage with convenient lift up counter top panels along the forward section of the galley for dishware and cutlery.

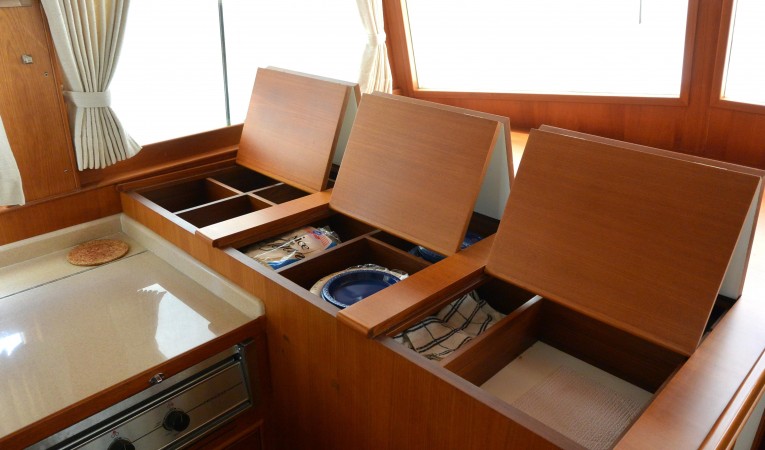

A practical divider separates the Galley from the Salon, and houses the microwave oven and additional storage cabinets. More storage cabinets are overhead, forward, and a custom pantry and liquor cabinet is built in to the cabin stairwell to Port
Refrigerator – Norcold DE441
Gas Cooktop - Seaward (3 burner) w/Corian counter cover - propane tank storage is on the Flybridge.
Fisher and Paykel Dishwasher
Microwave Convection oven - Sharp R-820BK
Icemaker/fridge Combo – U-Line ULN-C029B-00

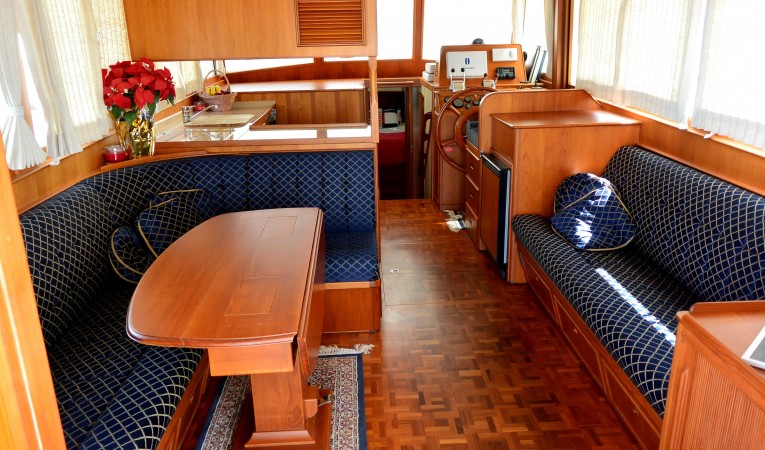

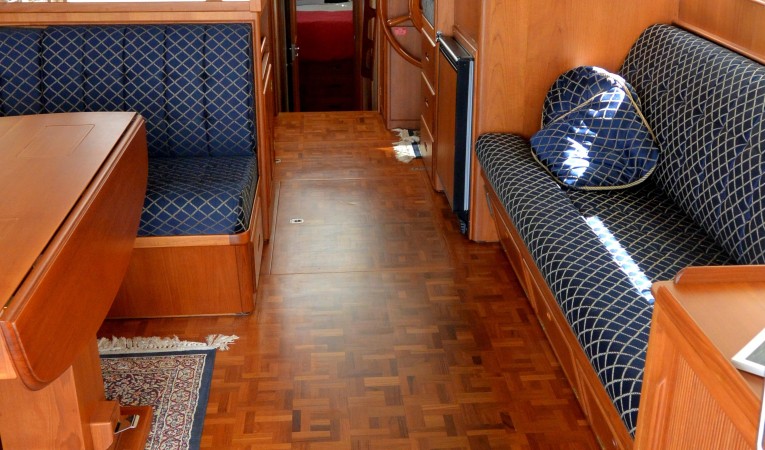

SALON:
Teak parquet floor throughout
Opening side windows

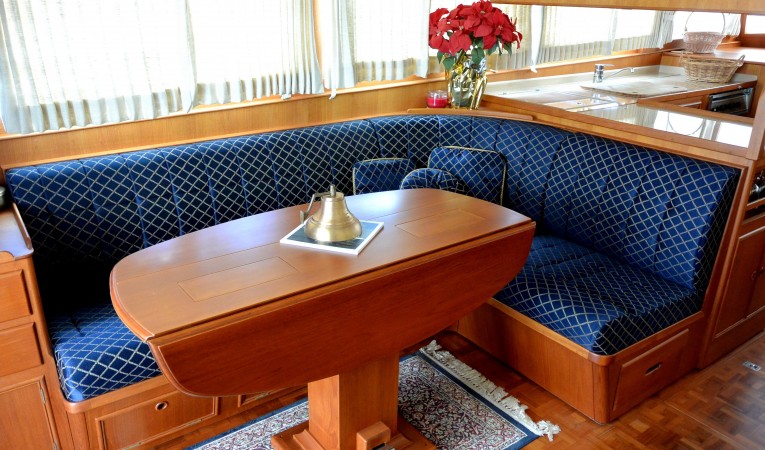

L-shaped Settee to Port with Teak High/Low- gas cylinder assist - table for dining ( oval folding leaf opens to seat 8 or more)
Storage under settee
Straight settee to Starbd doubles as additional berth
Storage and entertainment cabinets flank the rear exit doors- Stereo system cabinet to Starbd.
LED overhead lighting, Full curtains,Valence lighting
Overhead teak grab rails - and teak hand rails at stairs
Storage cabinet with ice maker and bar behind helm seat

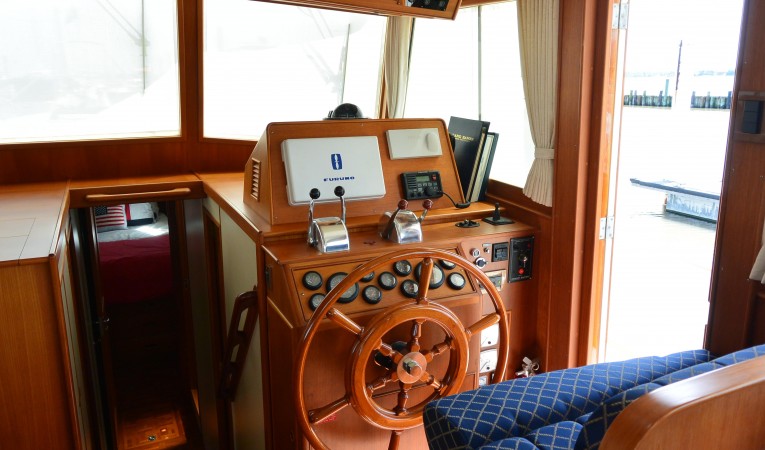

Lower Helm: Lower helm has a fixed seat and is open to the Salon. A door leads from the helm to the Starbd side deck for easy deck access. Instrument panel at the helm and overhead instrument panel provide a complete instrument package. There is excellent visibility through 3 large windows forward, and the side and aft window areas. Main AC and DC breaker panel is in a lit cabinet to Port of the helm. A custom teak "Himalaya Box" houses the Furuno console, VHF and Simrad auto pilot displays
50 amp 220V shore cable with optional forward and aft yacht connections
Mastervolt Charge master 12/50-3 charger ( new 2014)
Engine start batteries: (2) Mastervolt 12/225 8D AGM ( new Jan 2014)
Generator Start battery – Mastervolt ER 34 AGM

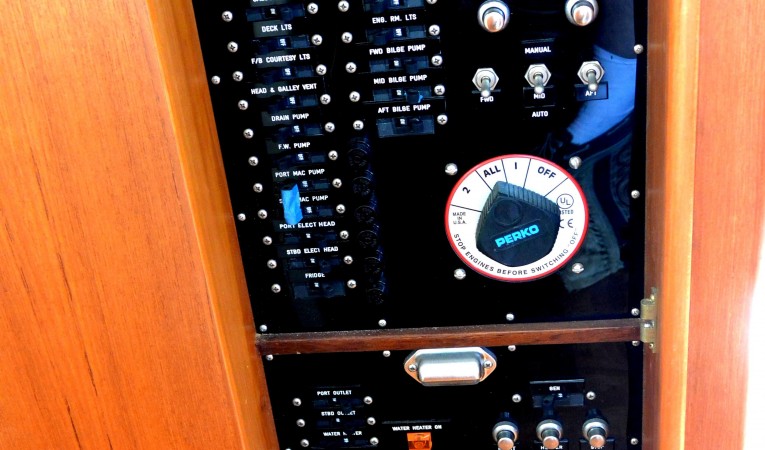

Complete electric breaker panel for AC and DC functions - Master DC junction panel in Engine Room, AC/DC meters monitoring voltage and current functions next to helm. AC junctions available at concealed panel in 3rd cabin behind the helm
Navigation and Digital Systems
Navigation and Radar Upgraded: Furuno TZTouch2 MFD and NXT solid-state Doppler Radar
All digital state-of-the-art NMEA2000 fully integrated Sensor Systems with 12.1” high-brightness display on Flying Bridge (FB) and 15.6” HD display in salon;
Hi-Def, high-brightness, touch screen Multi-Function Displays (MFD), Icon-driven controls, internal GPS
Sleek, edge-to-edge glass screens, intuitive operation with touch gestures and pull-down menus, WI-FI compatible,
PC interface, Camera Interface
Navigation System:
Point Plotter supported by 128GB SD-card with NOAA Raster and Vector, C-MAP and Navionics Vector, and entire MapMedia Library for all of North, Central and South America, C-MAP Bahamas. . Touch-and-Go route entry; Satellite photo overlays for most US areas
All-Digital Radar System:
Furuno DRS4D-NXT high-discrimination, solid-state radar enables Target Analyzer, Fast Target tracking features utilizing Doppler technology
Dual-Range, Guard zone, ARPA, AIS, CPA (closest point of approach), TCPA (Time to CPA) anti-collision alarms and tracking of all vessels in proximity with course intercept display
Fish Finder System and Sounders:
Furuno Rez-Boost digital bottom discriminator and internal ACCU-Fish-finder utilizing dual-frequency digital transducer to provide Enhanced-Mode digital analysis and processing of bottom details and fish characteristics
Engine and Performance Displays:
Customizable Instrument Display on TZTouch2 MFDs via Maretron NMEA2000 to CAT J1939 CAN bus bridges
Full Digital display of engine functions, GPS statistics, fuel levels and fuel consumption and range on-screen
Maretron TLM100 ultrasonically sensed fuel tank monitor
Video Displays:
Lorex video back-down camera, engine room camera, both displayed at Furuno upper helm station
Wi-Fi, IOS, Compatibility:
TZTouch2 MFDs are Wi-Fi capable, can connect to open or protected Wi-Fi hotspots, IPads, iOS, and Android
Furuno MFD supports widescreen PC monitors, USB and Ethernet interconnectivity, FLIR M-series night vision cameras, SiriusXM Weather functionality, Active Captain POI database, weather, tide and wave data
Video Displays:
Lorex video back-down camera, engine room camera, both displayed at Furuno upper helm station
Wi-Fi, IOS, Compatibility:
TZTouch2 MFDs are Wi-Fi capable, can connect to open or protected Wi-Fi hotspots, IPads, iOS, and Android
Furuno MFD supports widescreen PC monitors, USB and Ethernet interconnectivity, FLIR M-series night vision cameras, SiriusXM Weather functionality, Active Captain POI database, weather, tide and wave data
Autopilot, Other Systems, Documentation:
Simrad AP-22 Autopilot RPU160 with remote controller, RFC35 rate compass upgrade, control panels at both helms.
Independent VDO rudder angle indicators at each station
Dual I-Com VHF stations and handheld VHF for dingy
Backup Systems consist of two calibrated Ritchie 4.5” magnetic compasses for analog headings. Dual standalone GPS and sounder/temp information are repeated from non-networked sensors on 4.5” Furuno LCD displays at both helms.
Operator’s manuals (eGuide) and documentation are online in TZTouch2 displays
CAT Engine and Generator System Displays:

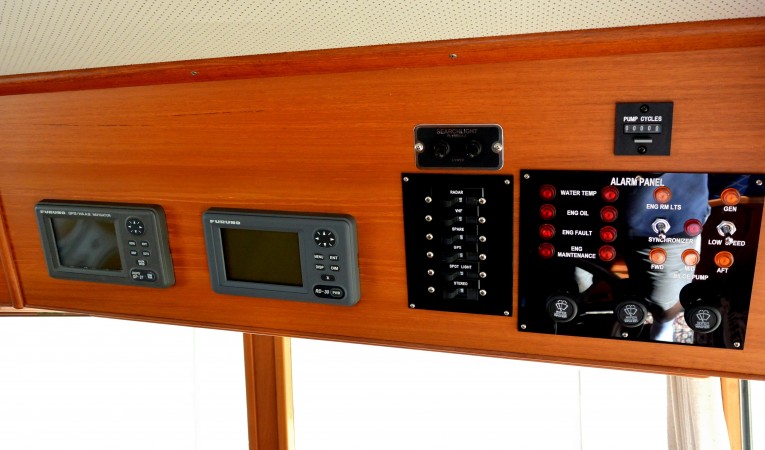

B. CAT service panels at both helms with fault-light indicators and alarm for oil pressure, temperature, engine fault and engine maintenance indicator.. Flash-codes present 24 diagnostic engine fault indications including transmission oil pressure and temperature. Engines will electronically self de-rate depending on the severity of the indication. CAT start-stop controls at upper panel and main electrical panel. Blowers at main panel.
C. Engine synchronizer and low-speed switch control at both helms
D. Generator status lights at both upper and lower service panels
E. Full set of CAT service and maintenance manuals
Controls and Monitors at Both Helm Stations:
A. Bennett trim-tab rocker switches
B. CAT start and stop buttons, synchronizers and slow speed switch
C. Horn and dual-beam Jabsco searchlight controls
D. Lofrans winch for dual anchors, also controlled at bow
E. Panish throttle and gearshift, low-friction cables (2014)
F. Vetus bow-thruster joysticks
Lower Helm
A. Exhaust gas temperature monitor (pyrometers) for turbochargers
B. Full complement of AC and DC voltage and current monitoring, Battery and Gen. status on panel to starboard of lower helm
C. Bilge pump cycle counter (3 main pumps)

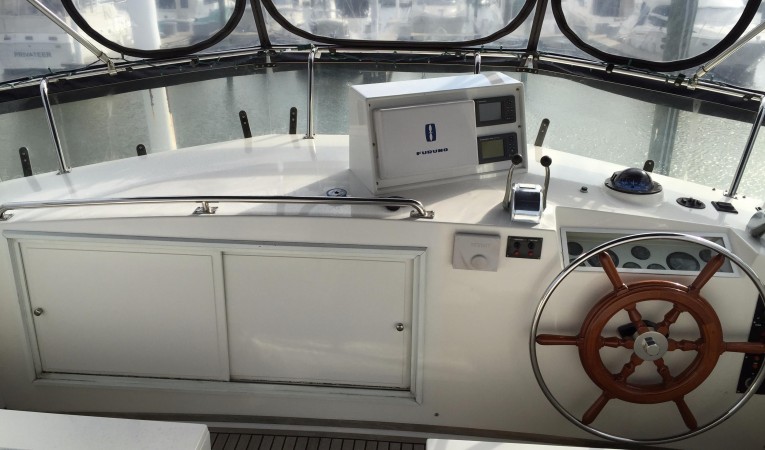

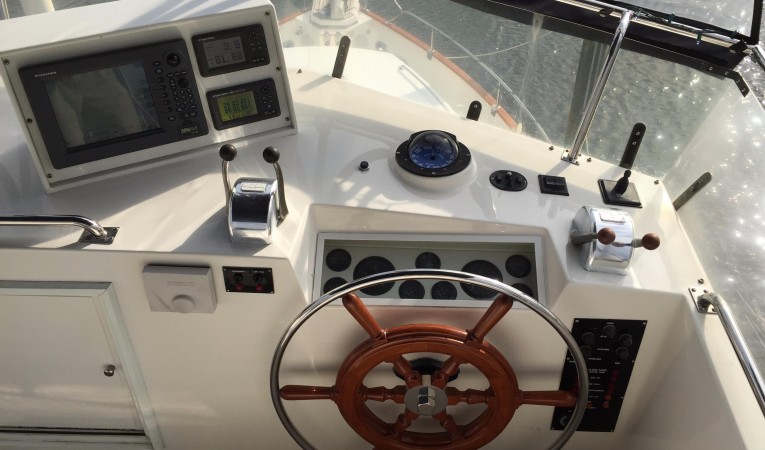

Upper helm
A. Lorex video camera Navnet Display: engine room and back-down cameras
B. Stereo: New AM, FM, CD Bluetooth with Babb waterproof speakers
General Electrical, Generator, DC Power:
A Sealand VacuFlush heads with tank monitors
B. Full complement of AC and DC voltage and current monitors at lower helm station
C. Battery and Charger monitoring panel - Generator status monmitor on panels at lower helm
D. NEW main 8-D AGM engione and house bateries - Feb 2019 ( 5 year warranty)
E. Lorex engine room and back-down cameras - disply on upper helm
ENTERTAINMENT SYSTEMS
Flying Bridge Stereo: New AM, FM, CD Bluetooth with Babb waterproof speakers
Salon Stereo – Sony CDX-3600 w/CD with Pre-wired speakers in Salon and Master Suite, Samsung digital TV

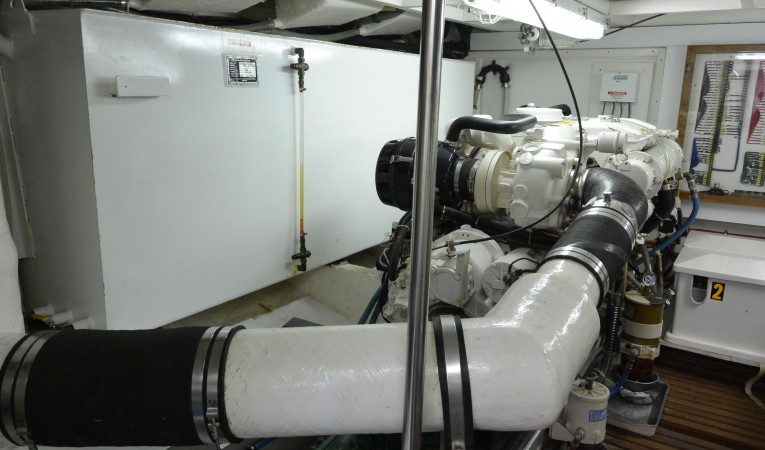

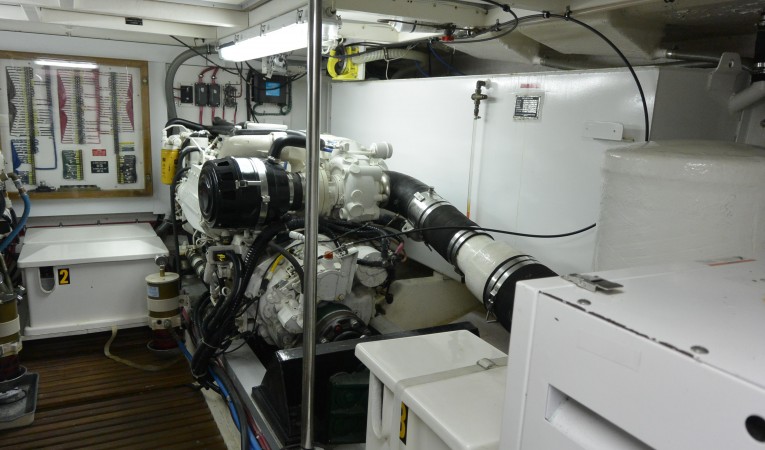

ENGINES: Twin Caterpillar 3126B ( 450 hp) – 590 hours
Transmissions: Twin Disc MG-5075A ( 2.53:1 gear ratio)
Propellers: 4 blade 28” - 28.5” pitch - CJR Propulsion - bronze
Aquadrive Anti-vibration engine couplings w/Durmax dripless shaft seals
Prop Shafts – 2” SS ( Aquamet 22 alloy)
Racor fuel filters – 900MA w/vacuum gauges
Oil change kit – Groco BMX 3-60 - (Engines and generator)
Engine Room Blowers – Peck Vehicles PVH
NEW DRIPLESS SHAFT SEALS INSTALLED 2019
Generator – Onan MDKAB 13.5 KW - upgrade from standard - ( 538 hours)
Generator filter – Racor 500 MA
Air Conditioning – Marine Air System (reverse Cycle) - Custom Five-zone reverse-cycle AC system, control panels in forward cabin, galley and salon, totaling 48,000 BTU, 3-compressors in mechanical lazarette aft of engine room :
A. 16,000 BTU Marine-Air installed for forward and starboard cabins with 12k BTU air-handler below forward bed, and second 6k BTU air-handler with fan control for guest cabin
B. 16,000 BTU Marine-Air unit split for forward Salon/galley area and port cabin with 12k BTU air handler in FB console, 6k BTU handler with fan control under aft port bunk
C. Dedicated 16,000 BTU main-salon AC system with air handler under port settee

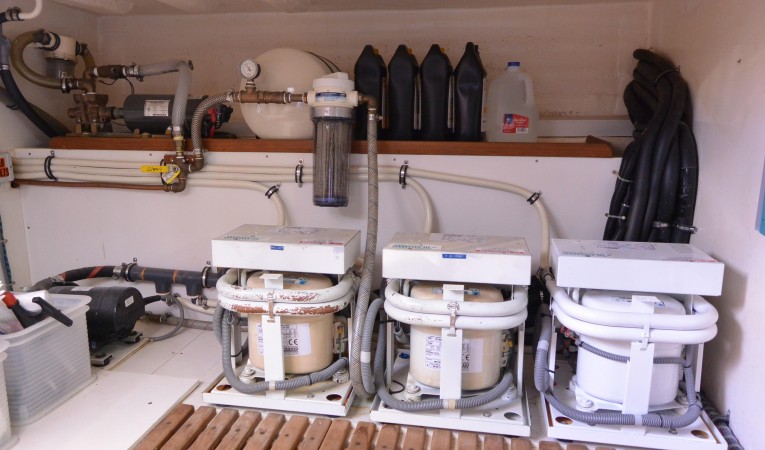

D. All 3 compressors are installed in the mechanical lazarette for easy access and service
E. Spare AC cooling water pump – direct factory replacement
Exhaust/water separator – Centex Industries
Bow Thruster – Vetus 24V 7.0 KW (9.5HP) bow thruster, factory installed tube - Two dedicated GR 3112V Marine batteries., Guestpro 2620 charger under fwd. berth. New joysticks.
Windlass - Lofrans Tigress 1200W windlass – w/ Dual helm-station windlass controls
Fresh water heater – Seaward S1900 ( AC or engine heated)
Fresh water pump - Paragon senior PSR – w/ Groco Accumulator tank - 3 way valve to provide dockside supply option ( spare pump on-board)
Sea water pump -= Flojet 4325-143 w/ Jabsco accumulator tank - at anchor station
Electric Bilge pumps – (3) Rule 2000 GPH
Shower drain pumps – Rule 500 GPH
Hand bilge pump - Whale Gusher 10 MK3
Toilets – Sealand Vacum Flush System – 508 – w/ Sealand 12v macerator
Factory installed hook-up for water maker and washer/dryer in Mechanical Lazerette
Teak decks - (well maintained) - Teak caprail - Teak overlay on transom

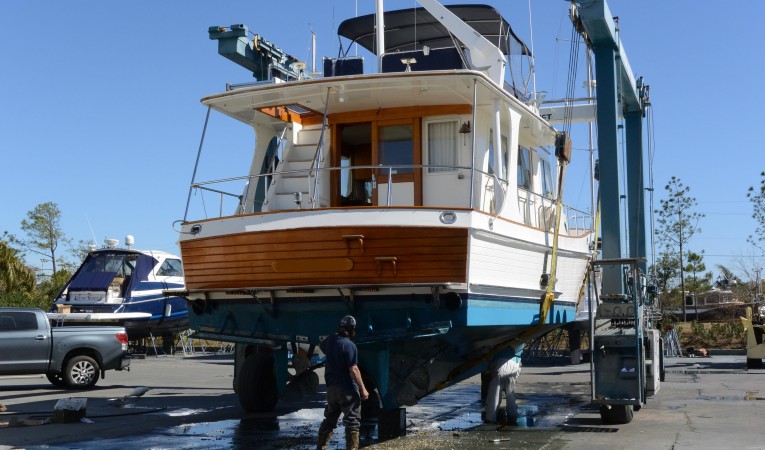

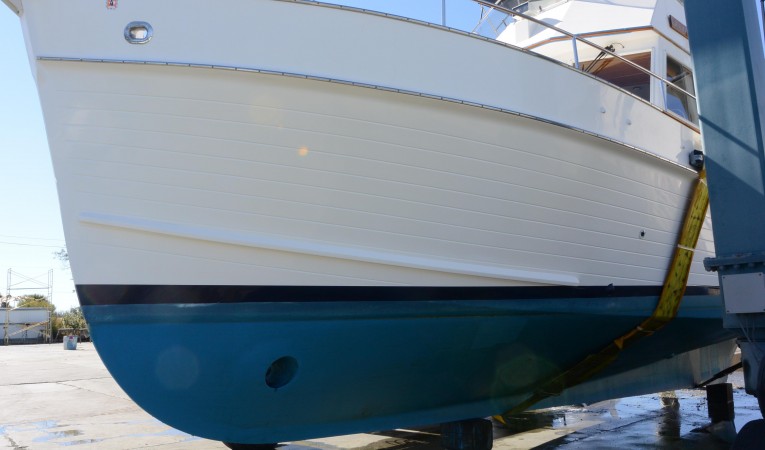

Hull undercoat – Epiglass Epiguard 199 w/Epoxy Primer/Interlux Micron CSC ( 3 coats)
Custom teak swim platform and SS brackets (new 2012),
Factory transom hot and cold swim shower w/Grohe fixtures
Optional Fiberglass spray rails forward at waterline
SS rail guards full length of all side rails
Anchoring: FRP Bow Sprit w/ SS-anchor roller assy. Incl. 35lb. Danforth and 250ft. 5/8 nylon rode and 66lb SL plow with 250ft. 3/8 galv. Chain, Lofrans Tigress 1200W windlass. Spare Fortress 40 lb. with 250ft. rode. Winch control at both helms and forward station.
Eight 10” SS mooring cleats on inside bulwark
Raw water wash-down pump system at windlass station.
Windshield wiper motors – Exalto 223BD
Airhorn Trumpet – Kahlenberg S-0A
Sun covers on forward windows and side windows
Inventory of spare lines, floats, bumpers, power cords
Main Deck
This vessel employs 2 Port and Starbd access doors , and 1 access door at transom, to enhance boarding convenience and safety. Sturdy stainless steel handrails line side decks. The teak decks are in superb condition, and the meticulous maintenance this boat has enjoyed is clearly evident. The varnished joiner work and the vessel’s overall condition is Bristol. The overhanging upper deck begins forward of the deckhouse and covers the side and aft decks. The Grand Banks hawsepipes and cleats are massive, and noticeably sturdy. The ships electrical service can be supplied fore or aft. Forward, on the anchor pulpit is a Lofrans windlass and two stainless steel anchor rollers. Aft, a large hatch with gas lifts accesses the mechanical lazarette, laundry and engine room. The main cabin entrance is through double sliding teak and glass doors that pocket to the starboard, and there is a door immediately outboard of the lower helm, accessing the starboard side deck.. One climbs to the flybridge via a molded FRP stairway with sturdy hand rails and teak treads. An aft lazerette for storage and steering gear is separated from the engine room by a crash bulkhead.
Aft Deck
Teak decking, large covered outside seating area on main level ( Salon level)

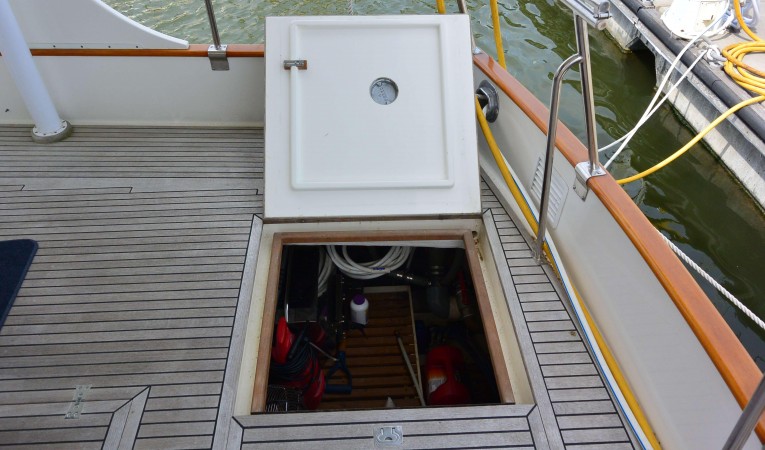

Hatch, Pneumatic cylinder assisted w/ lock - ladder to lazarette area and engine room
Stairway to fly bridge, molded fiberglass - Storage locker below stairs
Rail gate and teak Salon doors, LED courtesy lights
Sliding hatch, teak frame
Transom boarding steps, teak
Power and freshwater connections molded into transom
TANKAGE:
Fuel – 630 gals ( in 2 tanks) ………. 2,385 liters
Water – 300 gals ( in 2 tanks) …….. 1,136 liters
Waste – 50 gals ( in 2 tanks) ……… 189 liters

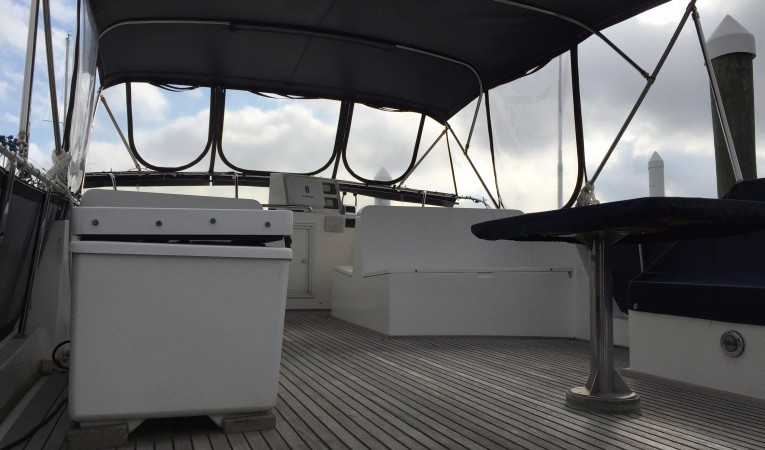

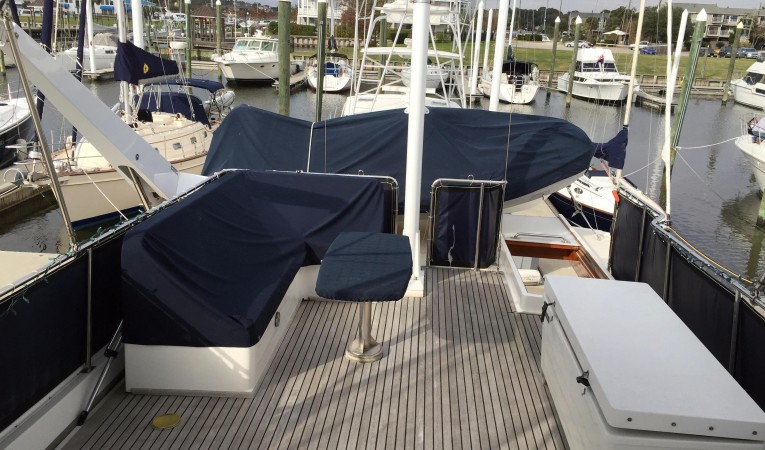

Flybridge is accessed by a molded fiberglass stairway from the aft deck. A hatch protects the aft deck in inclement weather. It is large and divided into a comfortable guest seating area, and tender storage is aft. The flybridge upper helm is set up for complete control of the vessel with all navigation and monitoring equipment. There are 2 forward facing seats. A double helm seat, and double companion seat. The forward half of the flybridge is protected by a Bimini top and Isinglass enclosure, with easy opening windows forward for ventilation. All seats have storage under - with teak grates
Davits: Brower systems 110V 800lb Davit with 4” steel support extending to main deck
Bimini, Weather Curtains and Side Cloths: Stamoid Navy and Regalite (3M) Glass New-6/ 2015
Settee cushions and cover, Teak-Grate style table cover; 7 cushions for bench seats
Frigibar 5.5 cu.ft. Refrigerator freezer offers convenient cold storage on the Flybridge
Yacht-Mast with tilting-base - Radar antenna, GPS antenna, deck lights - 23’2” clearance up, 14’ 7” down
Rail mounted Magma SS gas grill and cooker
All USCG safety equipment and PFD’s. Inspected April, 2015.
Electrical, water and vent factory installed for washer dryer in mechanical lazarette
Electrical, plumbing and through-hull factory installed for water maker in lazarette
Emergency tiller arm in aft lazarette
Custom dockside water option with 3-way valve and filters
Six fenders and four ball floats
Sunscreens on forward windshields and exposed side windows
Extensive inventory of spare parts, replacement pumps, belts, filters,zincs
Full set of Caterpillar manuals
Plus manuals for other equipment - Air conditioning, Plumbing, and Grand Banks manuals
Owner’s personal effects
No tender available
----------------------------------------------------------------------------------------------------
Item 1. Brightwork:
1.2 Teak transom stripped and varnished Jan. 2020
Item 2. Exterior Cabins and Detailing, Protection
Item 3. Lazarettes and Engine Room Paint and detailed
3.1 Aft lazarette stripped, painted Feb. 2020
3.2 Under-stair cabinet stripped, painted Jan. 2020
3.6 FB Ising glass screens and saloon windows polished August 2020
Item 4. Teak Decks = cleaned, coated Feb. 2020
Item 5. Mechanical
5.1 All AC units serviced, cooling lines de-calcified June 2020
Item 6. Deck and Anchors
6.3 Lofrans Tigress 1200 W dual capstan winch
6.4 Fortress 40 lb. spare anchor with 250 ft. line in lazarette
Major Service Items, Features, Upgrades: (2019-2020)
Item 1. Engines, Transmissions:
Item 2: Generator and Spares: (estimated total hours less than 300)
Water pump, belt, filters replaced (Aug. 2019)
Heat exchanger pulled, cleaned (Aug. 2019)
2.4 Spares: engine zincs, engine and gen. oil and fuel filters, belts
Item 3: DC Sytems and Light
Item 4: House Water Supply, Pumps and Plumbin
4.4 Factory installed washer dryer hookup, power, in mechanical lazarette
When most people discuss trawler yachts, the first name that comes to mind is Grand Banks. The company has been building these excellent cruising yachts since 1963, and has been successful in selling these fine yachts in all types of market segments. With their classic seaworthy lines, and warm teak trim, Grand Banks vessels always stand out in a crowd.

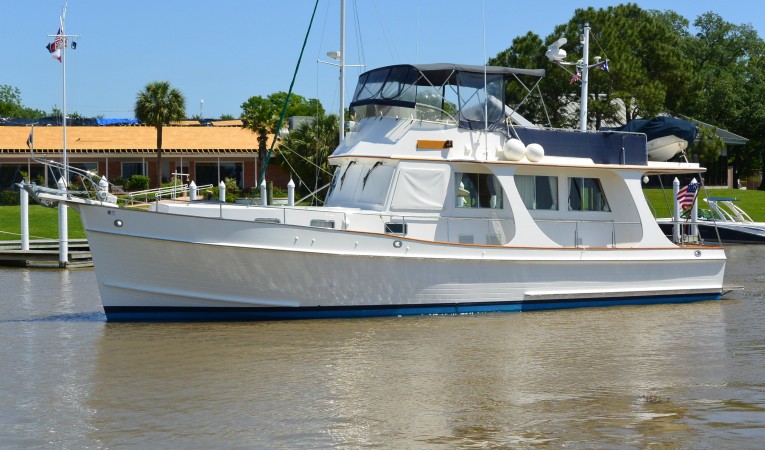

The Grand Banks 46 Europa is built on the same semi-displacement, hard chined hull as the GB-46 classic, but her flybridge is extended over the aft deck, and covers the walk around side decks with adequate space for dingy and davit. One of the many advantages of this arrangement is the shade and protection afforded to the aft deck. And with the double wide doors leading to the Salon – the aft deck becomes an extension of the interior on pleasant days, and a protected area in inclement days. It also affords much more seating space on the flybridge.

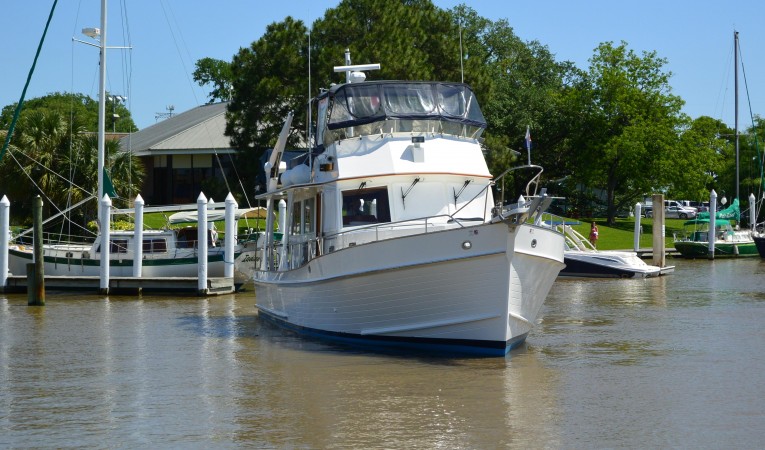

Although the hull is built of fiberglass, the Europa-46 has the classic planking lines of a wooden vessel. She also has a traditional plumb bow with hard chines and optional lower spray rails that send spray out and away from the boat, providing a comfortable and dry ride. The transom is covered in teak, in the traditional Grand Banks style, and there is a teak swim platform, and teak steps, for easy boarding from the water.
There are several layouts available, and this vessel has the desirable 3 cabin design. She is also equipped with many exterior options, including: full SS railings around the entire vessel, Teak caprails and accent around the flybridge, opening stern rail gate and side gates, full rub rails, FRP Bow Sprit, tilting mast, and much more.
Denison Yacht Sales offers the details of this yacht in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of this boat for sale. A yacht buyer should instruct his yacht broker, or his boat surveyors, to investigate such details as the buyer desires validated. This yacht for sale is offered subject to prior sale, price change, or withdrawal without notice.
English
Español
Français
Italiano
