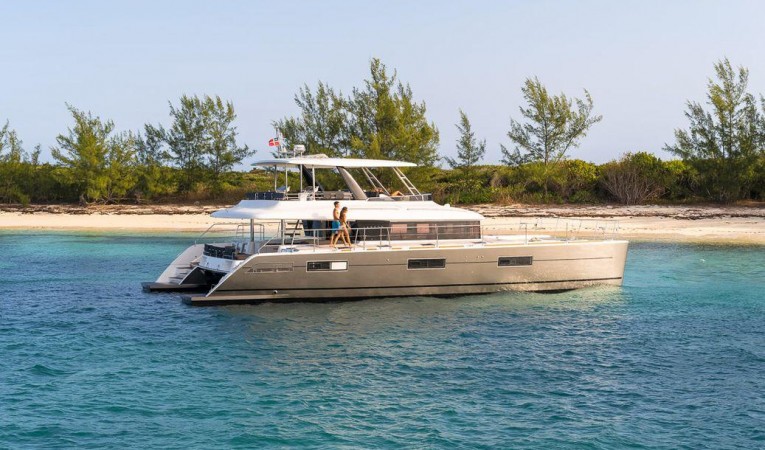

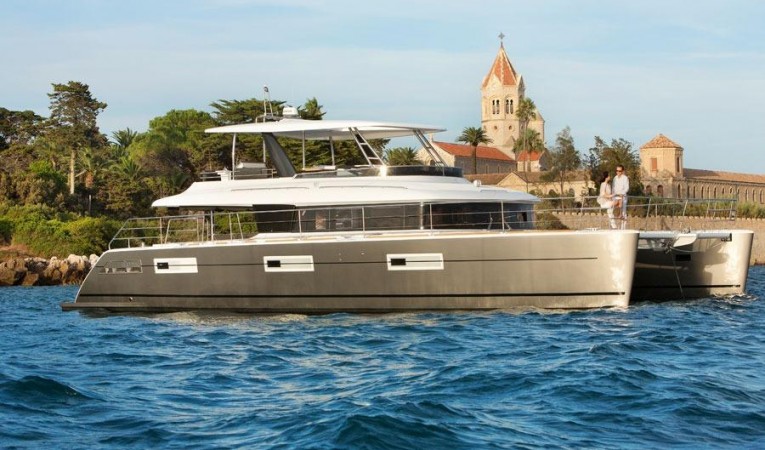

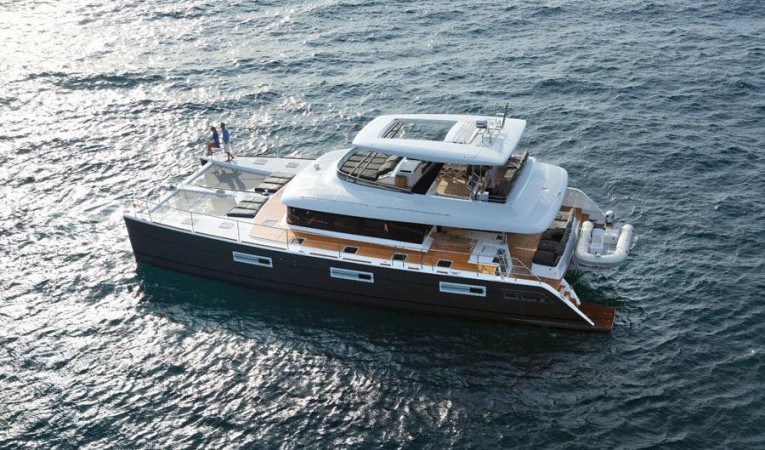

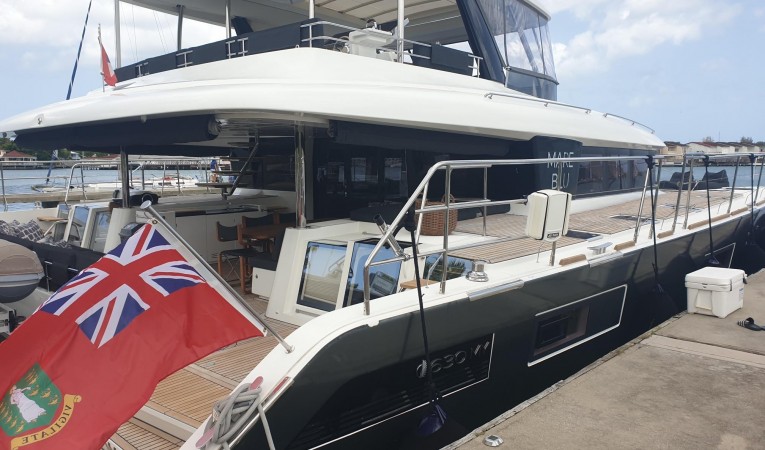

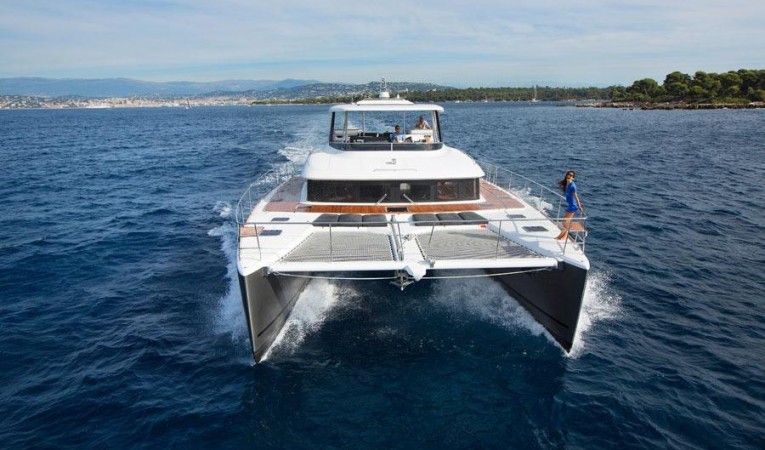

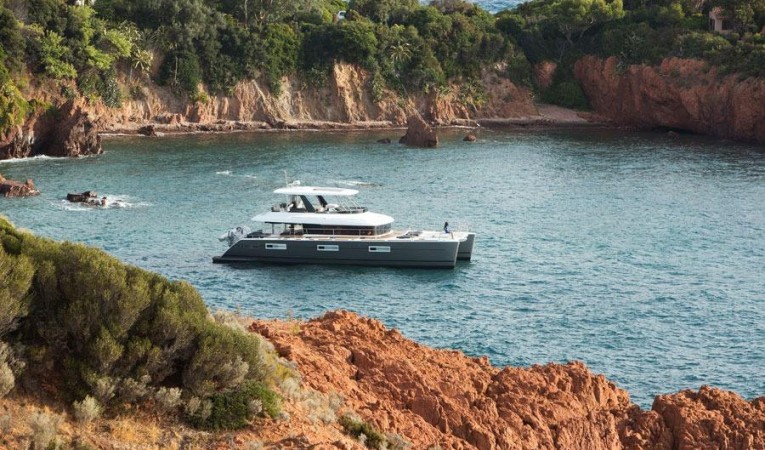

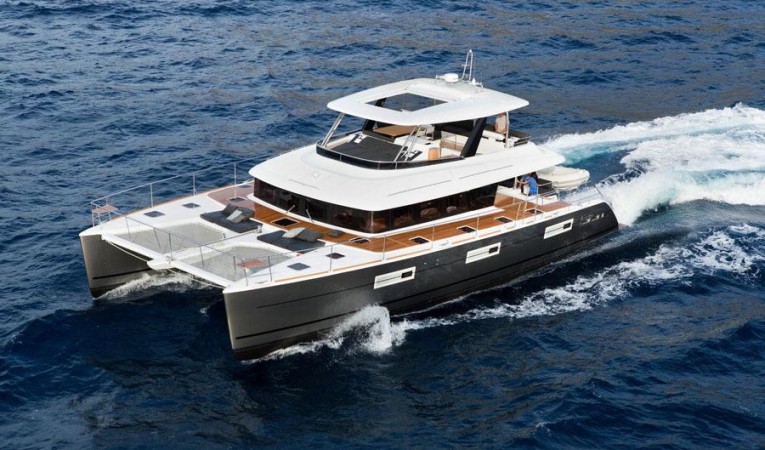

63' Lagoon 2018 MARE BLU

This 2018 Lagoon 63MY is the newest model available on this side of the Atlantic. (Mare Blu) has the preferred 5 cabin 5 head arrangement for a large family or for a very successful charter platform. She is a full loaded vessel that is ready to enjoy. This is a factory white hull vessel with silver/bronze vinyl wrap. Annual shipyard period completed Oct/Nov 2021 including new bottom paint, teak sanding, full engine and generator services.

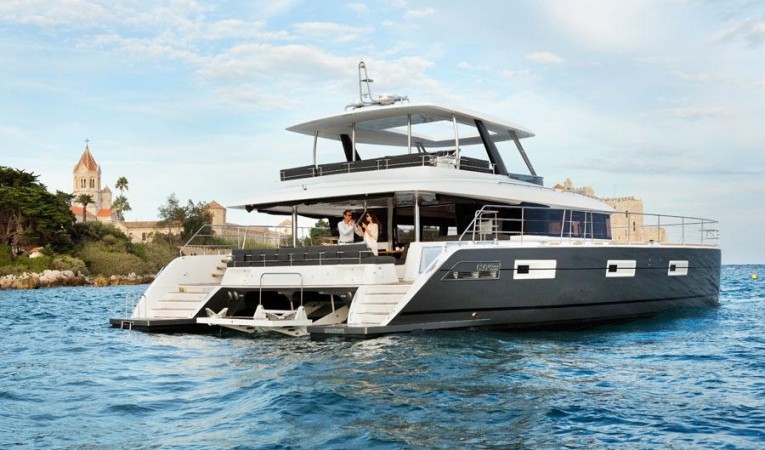

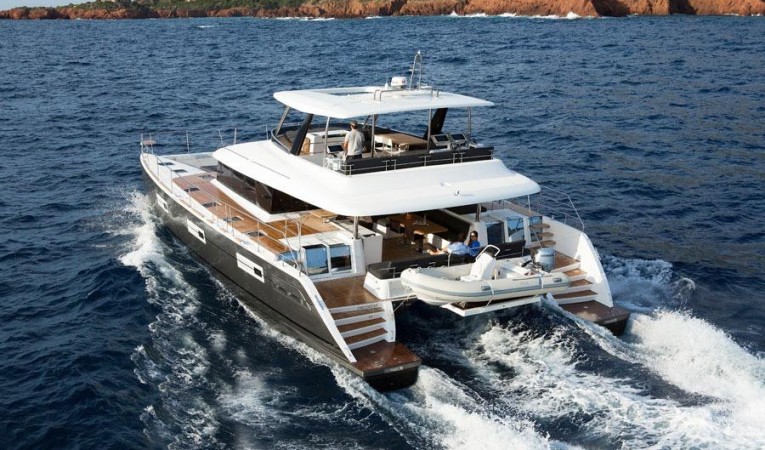

How can you combine the requirements of offshore cruising with the high standards of a luxury motor yacht? Lagoon has come up with the 630 Motor Yacht to do just that. Yachtsmen have long wanted to expand their horizons with a long range, good performance motor yacht in total comfort and serenity.
And so the 630 Motor Yacht was born! This yacht has a double personality – it has inherited the widely renowned marine qualities of the Lagoon 620, and is also the result of work by talented VPLP architects and from Nauta Design and Lagoon’s own engineers. You can count on long distance blue water as well as coastal cruising aboard a luxurious residence.

Builder: LAGOON

Designer: VPLP

Flag of Registry: BVI

Hull Shape: Catamaran

Dimensions

LOA: 63 ft 11 in

Beam: 32 ft 10 in

LWL: 61 ft 2 in

Minimum Draft: 4 ft 3 in

Displacement: 90450 lbs Full Load

Bridge Clearance: 21 ft 4 in

Headroom: 6 ft 9 in

Dry Weight: 74750 lbs

Engines

Total Power: 600 HP

Engine 1:

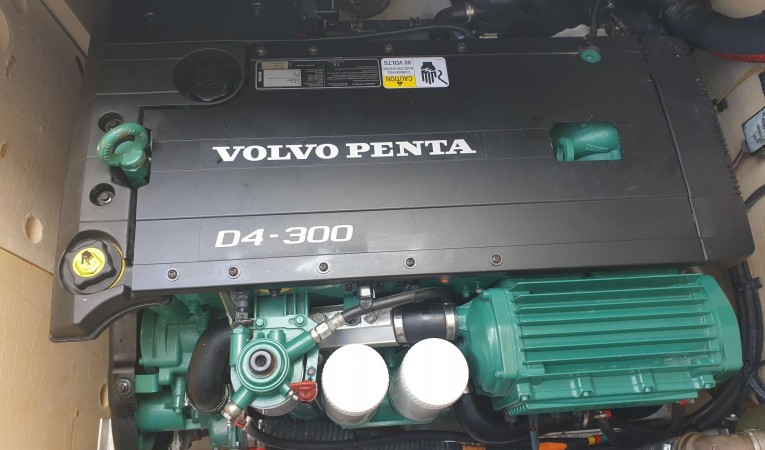

Engine Brand: VOLVO PENTA

Year Built: 2018

Engine Model: D4-300

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Port

Engine Power: 300 HP

Hours- (1,630) as of 5/31/21

Engine 2:

Engine Brand: VOLVO PENTA

Year Built: 2018

Engine Model: D4-300

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Starboard

Engine Power: 300 HP

Hours- (1,638) as of 5/31/21

Cruising Speed: 12 knots @ 2800 RPM

Maximum Speed: 17 knots

Tanks

Fresh Water Tanks: Plastic (254 Gallons)

Fuel Tanks: Aluminum (793 Gallons)

Holding Tanks: 5 x (19 Gallons)

Accommodations

Number of twin berths: 2

Number of double berths: 4

Number of cabins: 5

Number of heads: 5

Electronics

Compass

Log-speedometer

VHF

Depth sounder

Repeater(s)

Navigation center

Radar

DVD player

Autopilot

Plotter

TV set

Radio

Cockpit speakers

CD player

GPS

Inside Equipment

Fresh water maker

Bow thruster

Deep freezer

Sea water pump

Air conditioning

Electric bilge pump

Refrigerator

Microwave oven

Washing machine

Battery charger

Oven

Hot water

Electric head

Manual bilge pump

Electrical Equipment

Shore power inlet

Generator

Inverter

Outside Equipment/Extras

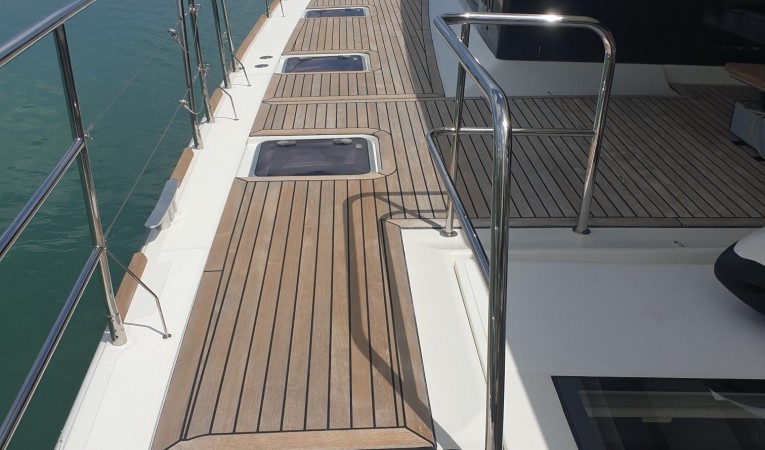

Teak side decks

Cockpit shower

Cockpit cushions

Davits

Radar reflector

Hydraulic gangway

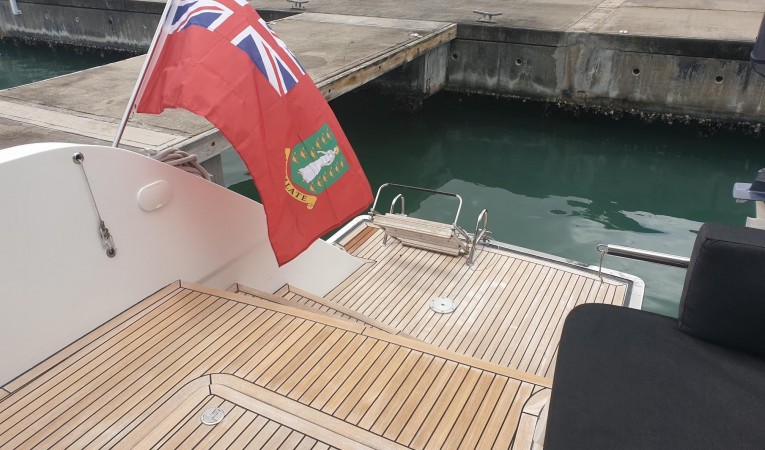

Teak cockpit

Tender

Gangway

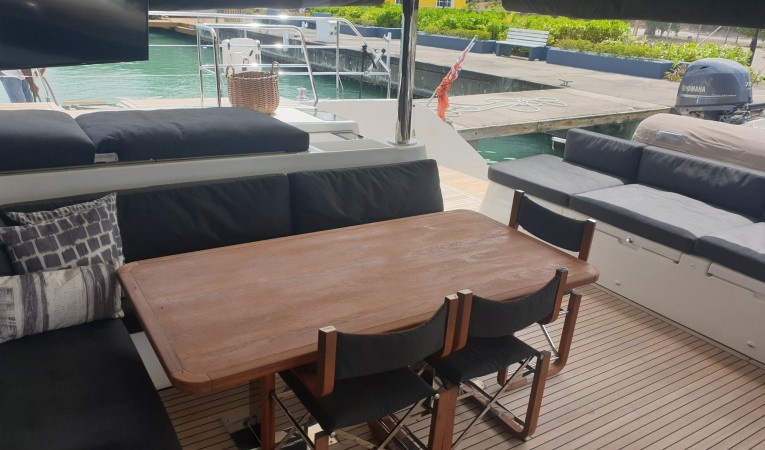

Cockpit table

Swimming ladder

2 x Liferaft’s

Total Liferaft Capacity: 12

Electric windlass

Tender registered as 11 person life raft as well

New Bridge 3/4 weather enclosure 6/2021

Covers

Bimini Top

FACTORY OPTIONS

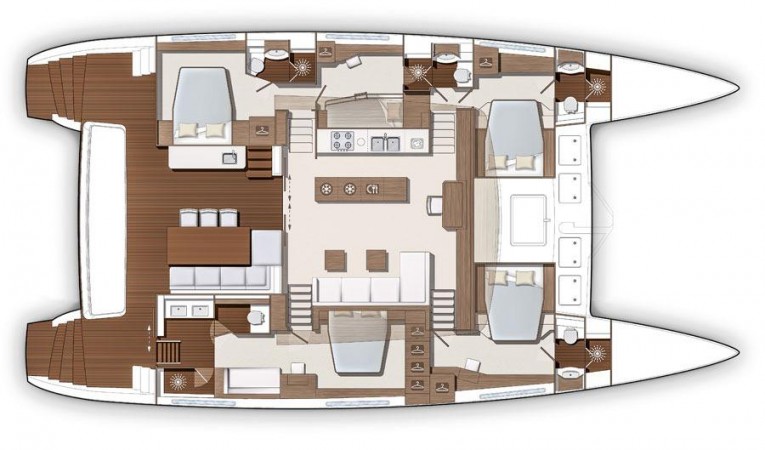

LAGOON 630 MY | 5 CABINS, 5 HEADS-CENTRAL GALLEY,

EXTRA FOR INTERIOR WOOD IN GREY ALPI OAK WITH WENGE FLOOR

UPHOLSTERY/CURTAINS

FITTED CARPETS IN THE-CABIN (Orion)- 5 CABIN CENTRAL GALLEY

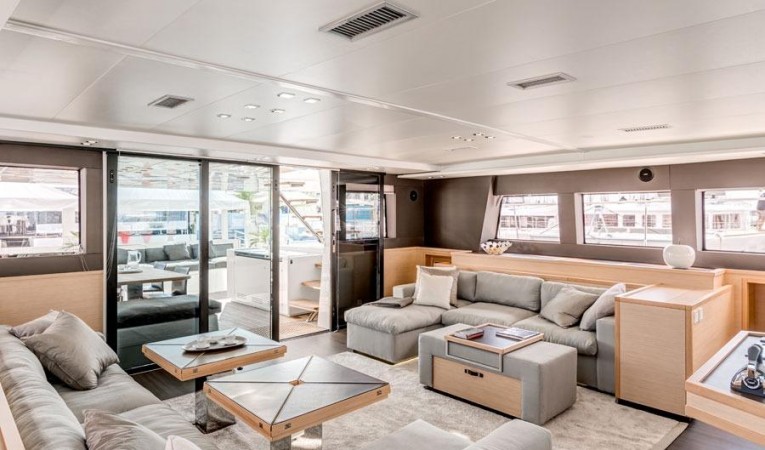

SPECIAL UPHOLSTERY CHALK (salon & settees)- 5 CABINS CENTRAL GALLEY

EXTRA FOR ELECTRICAL PLEATED BLINDS IN THE SALON

SUNLOUNGING AREA CUSHIONS ON FLYBRIDGE – DARK GREY

AFT COCKPIT AND AFT BEAM CUSHIONS + LOUNGER WITH ADJUSTABLE BACKREST

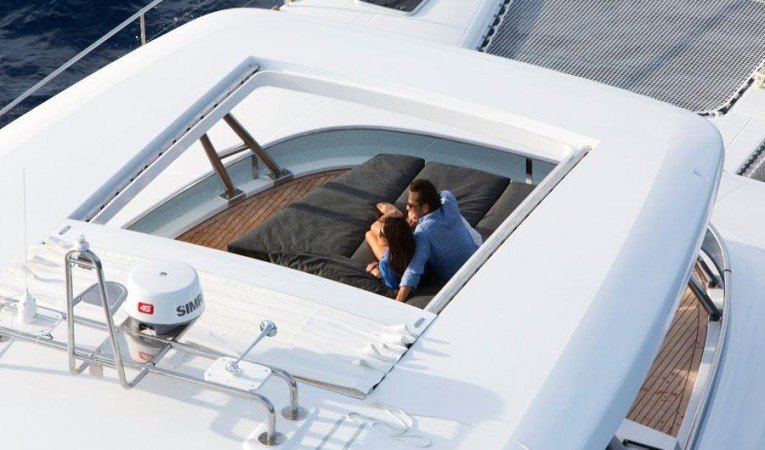

SUNLOUNGER PADS FOR FOREDECK- DARK GREY

FLYBRIDGE SALON CUSHIONS- DARK GREY

COVERS FOR DECK CUSHIONS

KIT OF COVERS- GRAPHITE

COCKCKPIT WITH WINDOWS & CURTAINSPIT SIDES & AFT SUN CANVAS+ SIDES AROUND AFT CO

DECK GEAR

2 MOORING CAPSTANS 1000W AFT PORT & AFT STBD

2 LED LIGHTS IN AFT BEAM

4 UNDER WATER BLUE SPOT LIGHTS

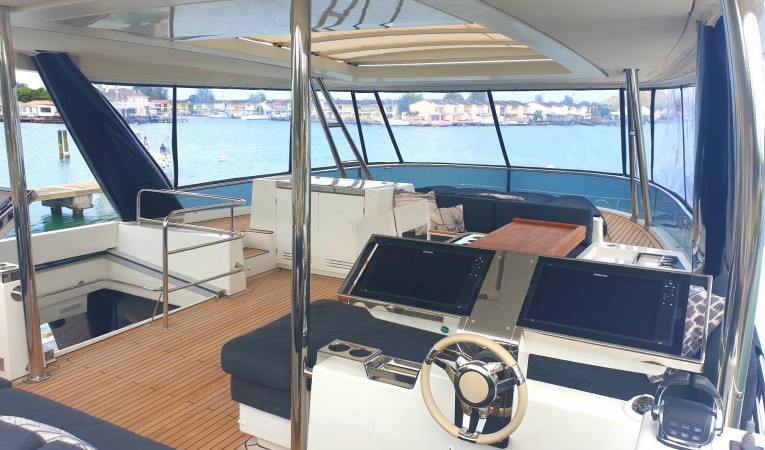

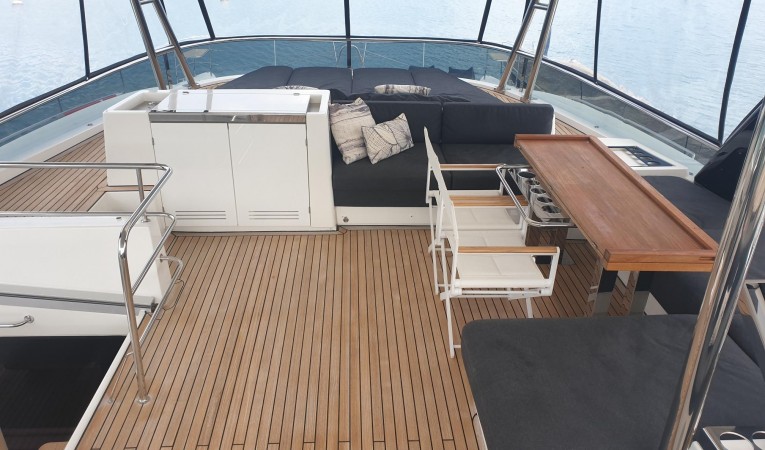

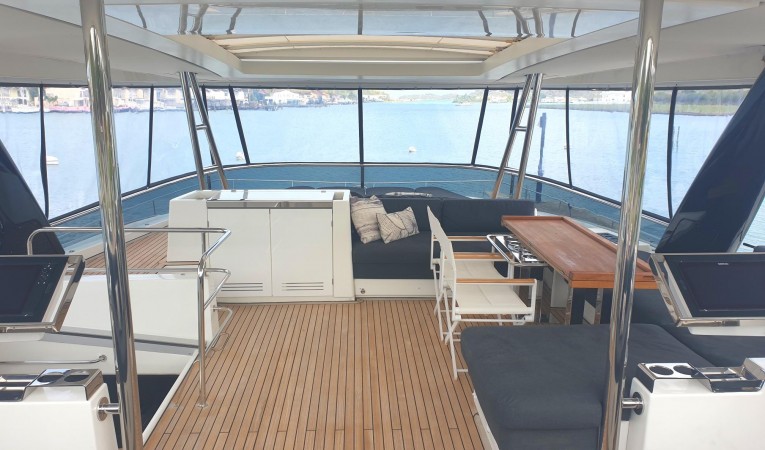

FLYBRIDGE HARD TOP WITH OPENING TOP + SUN SHADE ALL AROUND

FLYBRIDGE 65% ENCLOSED WITH EISENGLASS (NEW)

SIDES

BOARDING LADDER

DECK COURTESY LIGHTS IN COCKPIT, TRANSOMS AND FLYBRIDGE

ELECTRICAL FLYBRIDGE DOOR

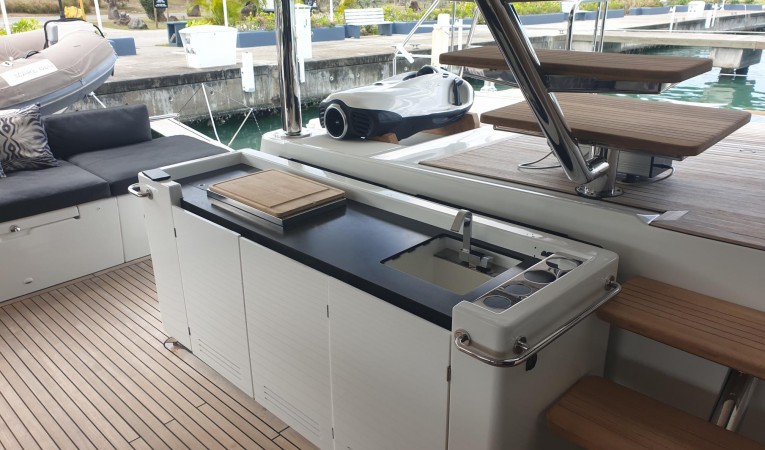

ELECTRICAL S/STEEL GRILL 220V IN COCKPIT LOCKER

ICE MAKER 220V IN COCKPIT

RETRACTABLE HYDRAULIC GANGPLANK 2,7m/8.20ft ON PORT TRANSOM

TEAK FORWARD PLATFORM (in lieu of standard net)

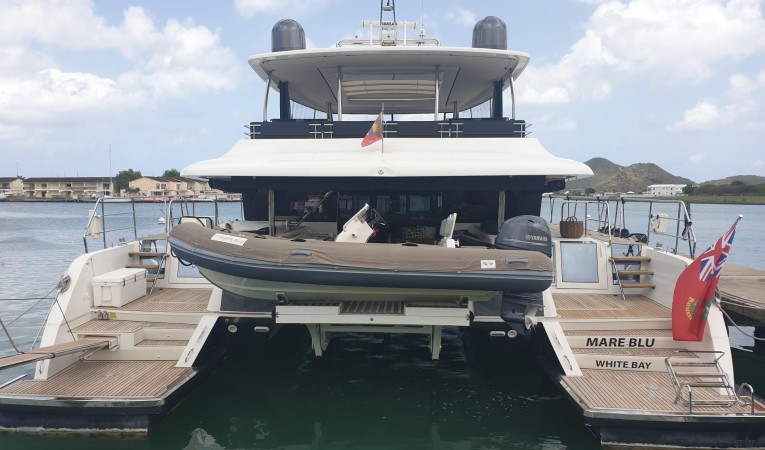

TENDERLIFT XL HYDRAULIC PLATFORM WITH REMOTE

FORWARD DECK SEA/FRESH WATER WASH PUMP & AFT DECK FRESH WATER WASH PUMP

220V WATERPROOF SOCKET IN COCKPIT FURNITURE

FLYBRIDGE FRIDGE (50L/13 US Gal)

HULL STICKER- GLOSS METALLIC GREY

TEAK ON FLYBRIDGE SUNLOUNGER PAD

ENGINE

DOUBLE DIESEL FILTER WITH ALARM

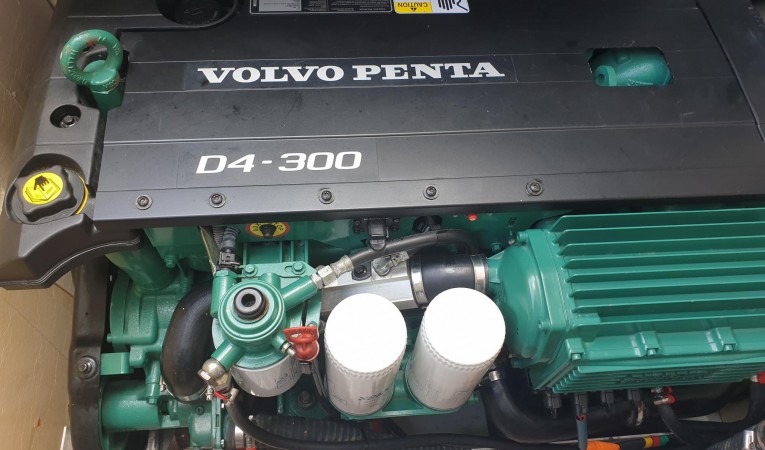

ENGINES 2 x 300 HP (Volvo Penta D4-300)

ELECTRICAL BOW THRUSTER AT STBD 24V 200KGF (2 JOYSTICKS)

EXTRA FOR ENGINE THROTTLES AT STARBOARD HELM STATION+ NAV. STATION- VOLVO 300HP

ELECTRICAL CIRCUIT

PACK FOR 2 BATTERY CHARGERS 220V 100 Amp EACH

PACK OF 2 INVERTERS 5000 VA 24/220V- 50 HZ

EXTRA FOR ONAN GENSET 19 KVA 1500rpm 220V/50Hz + COCOON+ FUEL TRANSFER PUMP

SHAVER SOCKET 220V IN AFT PORT HEAD- CENTRAL GALLEY

SHAVER SOCKET 220V IN OWNER´S HEAD

USB SOCKETS IN CABINS- 5 CABIN VERSION WITH CENTRAL GALLEY

ADDITIONAL SURGE PROTECTION

WATER CIRCUIT

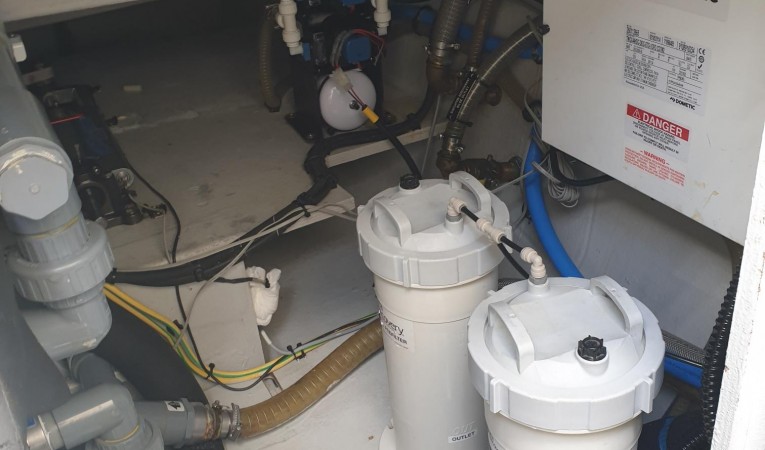

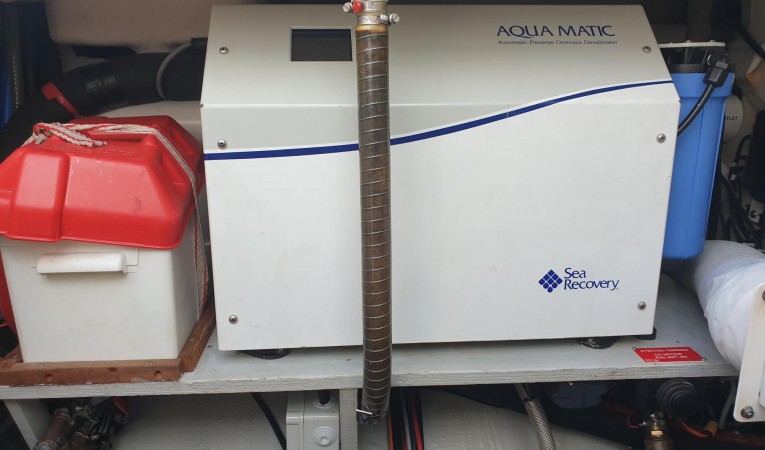

WATERMAKER 280L/H (74USGal/H) SEA RECOVERY AQUAMATIC 220V

INTERIOR EQUIPMENT

CREW CABIN IN PORT BOW COMPARTMENT (berth, sink, shower, toilet)

REVERSE CYCLE CHILLED WATER AIR CONDITIONING 96000 BTU 220V- 5 CABIN CENTRAL GALLEY

ADDITIONAL S/STEEL FREEZER FOR CENTRAL GALLEY

MICROWAVE OVEN AND GRILL 220V- CENTRAL GALLEY

WASHER/ DRYER MIELE 5kg/ 11 Lbs 220V- CENTRAL GALLEY

DOOR FOR DAYHEAD ACCESS TO PORT MIDDLE BATHROOM- MIDDLE PORT BUNK BEDS GREY ALPI

6 X ADDITIONAL CHALK STOOL (per unit)

8 X FANS IN CABINS, GALLEY AND SALON

HI-FI/ELECTRONICS

2 X CAMERAS UNDER FLYBRIDGE

1X WIND VANE SIMRAD

RR ANTENNA (TV, VHF, AM-FM)

FUSION RADIO DVD/CD MP3 PLAYER+ 2 LOUDSPEAKERS IN MIDDLE PORT CABIN CENTRAL GALLEY

AIS 500 SIMRAD WITH ANTENNA COUPLING

ATOLL HIFI MEDIA CENTER IN SALON &TV 40" ON

ELECTRIC LIFT- CENTRAL GALLEY, GREY OAK

RUDDER JOYSTICK AT NAV. STATION

SIMRAD NAVIGATION PACK 2017/2018

RADAR SIMRAD 4G HALO

AUTOPILOT REMOTE SIMRAD

TV LED 23" PAL/SECAM IN PORT AFT CABIN

TV LED 23" PAL/SECAM IN PORT FORWARD CABIN

TV LED 23" PAL/SECAM IN STARBOARD FORWARD CABIN

TV LED 23" PAL/SECAM IN MIDSHIP CABIN CENTRAL GALLEY

TV LED 23" PAL/SECAM IN OWNERS CABIN

VHF SIMRAD RS90 DOUBLE HANDSET WITH DSC

ACCESORIES:

HIGHFIELD DL460 GREY w/YAMAHA ENGINE 70HP FOUR STROKE

EXTRAS

LEATHERETTE FINISHINGS BROWN / CABINS CENTRAL GALLEY

TOP ROOF LINENS SILVERTEX MACADAMIA

EXTRA FOR BED FRAME: LINEN CHALK 10151

EXTRA FOR BERTH HEADBOARD AND OUTBOARD SHELF SEPIA 10100

BLACK ANTIFOULING

YACHT SOLUTIONS

2 X INFLATABLE FENDERS (Fendertex S80 #4507), plus additional fenders

TENDER NAVIGATION LIGHTS (Led navigation lights #5708)

DINGHY COVER ON TUBES -TT Mare Blu

BARCELONA

KARTCHER FIXATION IN FRONT BOW COMPARTMENT

INSTALLATION KVH6 TV + DOMMES OVER BIMINI HARD

TOP FOR ALL TV

DINGHY COVER + ENGINE COVER

EX -FACTORY OPTIONS

BEDDING

Bed linen x 2 sets for each Bed PLUS EXTRA

Bed pillows x 4 per Bed

Duvet x 1 per Bed

Blanket x 1 per Bed

Bath towels large x 20                 Bath hand towels x 20                   Bath floor mats x2 to each bathroom                            Cushions x 2 to each bedroom

KITCHEN

Toaster

Kettle

Nescafé coffee machine

Plates large x12

Plates small x 12

VARIETY OF ADDITIONAL PLATES X 12

Large and small salad bowls

Coffee cups large and small

Drinking cups large and small

Wine glasses x 30

Champagne, bawlers and cocktail glasses x 12

Knife and forks plus additional

Large amount of kitchen utensils

Large amount of carving knives

Large Magic Mix

Baking dishes x 3

Kitchen Aid

Vitamix

CUSHIONS

Approximately 20 out side cushions for sun lounges, 6 indoor cushions,

2 extra large Bean bages

SPORTING EQUIPMENT

Full set of Dive equipment plus 2 tanks

Water ski, Wake board, knee board, 3 person Tube, 8 person island, variety or blow up water toys

Ski life jackets x 4

SEABOB F5S ($14500)

Pen Fishing rods and reals x2

Gaff x1

Fishing rod holders x2

2 x inflatable SUP’s Stand up paddle boards

MOORING EQUIPMENT

Fendertex blowup Fenders with covers x 6

Fenders x 8

Round fenders large with covers x 8

Electric Fender pump

Extra mooring lines x 4

Mooring springs stainless steel x 2

20m Floating mooring line to tie back to shore

CLEANING EQUIPMENT

Large array of cleaning/ mopps, brunch’s

hoses x 3

Karcher Hi Pressure cleaner plumbed build into boat

SPARES

Large fresh water pump

Gray water pump

Oils for all needs

Spare hull sticker large amount

Spare prop for Tender

Huge variety of spares for offshore cruising

ELECTRICAL ITEMS

Advanced wifi system with 2 large antennas, Duo Pepwave Router, VSAT

2 Wifi IPTV units ( which allows you to watch TV using wifi Netflix etc )

3 Sat TV units (which allows you to watch satellite free to air TV on 3 TV units)

Extra TV installed in cockpit

Sat phone

Extra shore power fittings and leads Euro and USA

HP printer M181 Lazer jet colour printer

COVERS

Inflatable pontoon cover to Tender

Cover for motor on Tender

Cover to cover hole of Tender

Extra covers for sun lounger

Covers for front teak of boat

SAFETY EQUIPMENT

2 x 6 person inflatable life rafts

Flares kit

Life jackets x 15

1 x  EPIRB

OTHER ITEMS

All cleats on boat have been reinforced with backing plates as well as stainless steel

Schaffer plates to all cleats.

Stainless Steel protection plating to transit deck ( which stops Tender damage )
