Off Market
After being purchased by her current owner in 2016 CARTOUCHE underwent a $4MM USD refit from 2016-17 in Palma, Mallorca which essentially transformed her into a completely new vessel.
A full overview of all work completed are outlined in the brochure & an itemized work list is available upon request.
A few key items completed during this refit include (but not limited to):
If you are looking for a turn key large catamaran then CARTOUCHE offers that platform.
CARTOUCHE comfortably sleeps 8 guests in 4 cabins and up to 6 crew in two cabins which includes a separate captain's cabin + cabin with queen berth and bunks.
After being purchased by her current owner in 2016, CARTOUCHE underwent a $4MM USD refit from 2016-17 in Palma, Mallorca which essentially transformed her into a completely new vessel.
A full overview of all work completed are outlined in the brochure & an itemized work list is available upon request.
Listed below are a selection of upgrades from the refit:
CARTOUCHE was just hauled out in Palma in November 2019 where she completed her annual maintenance & received a new bottom job. All maintenance & service records are up to date and current.
If you are looking for a turn key large catamaran then CARTOUCHE offers that platform.
Initial Work:
Extras:
RSB - Remove all jarcias, remove mast with crane, transport to the area of revisions in the dock, check all the pitches capes and pulleys, take out crosses and boom, check botavara, assemble jarcia systems, assemble stick, transport the ship, monitor crane and assembly, connectall hydraulic and mechanical systems of jarcias and and wiring. Repeat the whole process of removing/putting mast again to facilitate complete paint and new repairs on the mast.

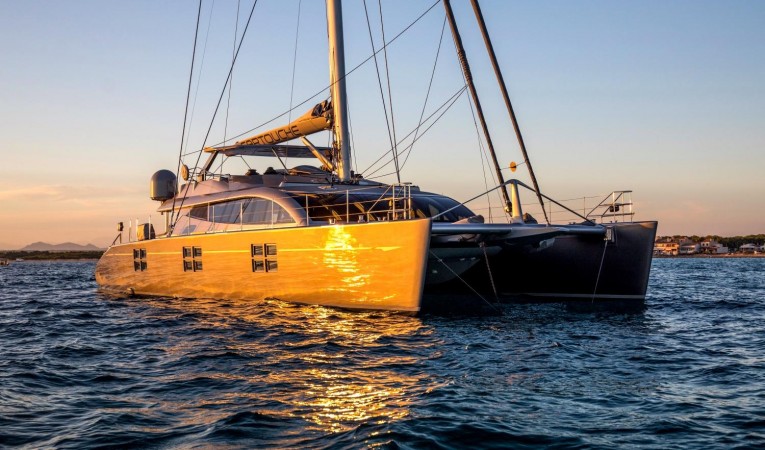

The Blue Coast 95’ yacht CARTOUCHE is built of high tech composite, well known for their light weight, strength and extreme durability.
The construction process combines the infusion of epoxy resin / Glass fiber/Carbon fiber and PU foam core. The vessel is then subdivided into smaller individual modules, including two full beam carbon fiber composite bulkheads bonded into a single symmetrical arrangement. All structural elements (bulkheads, frames, roof and decks) are carefully integrated with the interior.
Only few shipyards are capable of handling the technology and processes necessary for the construction of a composite maxi catamaran : H2X SHIPYARDS, in South of France, is one of the leading experts in this single infusion technology.
All structural elements made using the “one shot” vacuum bagging system. It is a delicate procedure that requires experience, precision and know-how.
During construction, the weight was continuously monitored and compared with studied estimates. Each separate structural component has been approved by laboratory testing.
The yacht has been built in a weather protected and temperature controlled construction hall, as per BUREAU VERITAS specifications.

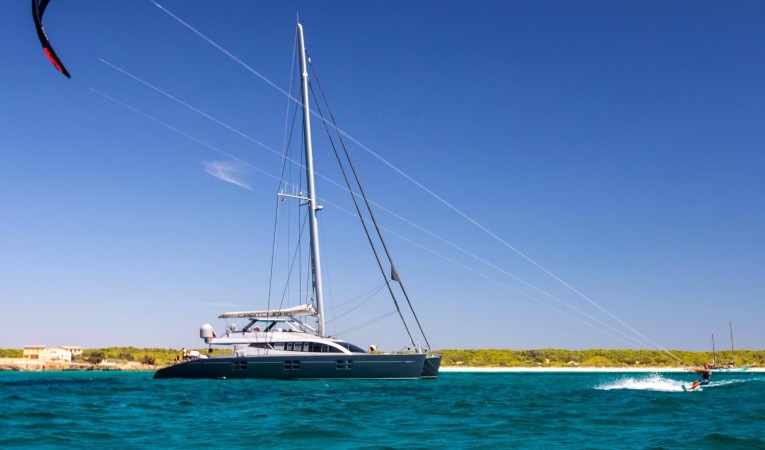

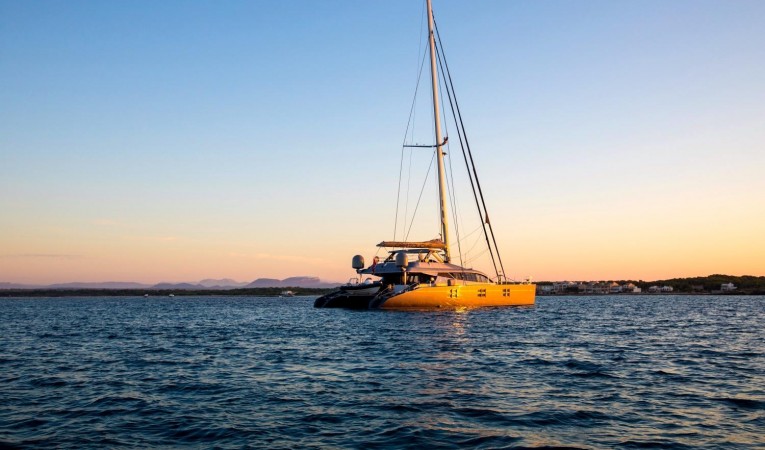

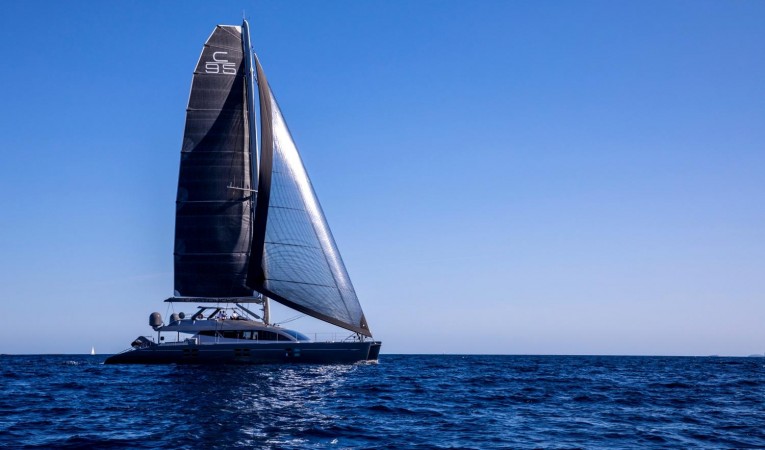

The sailing yacht Cartouche, the Blue Coast 95’ catamaran, was designed by the renowned naval architectural office of COSTE DESIGN & PARTNERS and heralds a new generation of high tech opulent sailing yachts.
She is undoubtedly one of the most elegant luxury catamarans ever built, while offering premium performance and superior comfort combining modern styling with refined aerodynamic lines.
The well-known catamaran’s stability is such that rolling and heeling are reduced to the minimum at anchoring and while sailing in rough conditions, thanks to her long narrow hulls. The hulls’ shallow draft enables anchoring and cruising close to shore, an option not possible on many monohull sailing yachts.
The Blue Coast 95’ is built to be manned by a minimum crew. All the sails and mooring commands are operated from the helm station at the fly bridge, even the styled hydraulic furling boom, fitted with an automatic bagging system to protect the sails. This allows a very safe and easy sail reduction and open new perspectives in the maneuvering of giant sailing catamarans .
Sailing yacht CARTOUCHE, the Blue Coast 95’s exterior lines are the result of hydro & aerodynamic research, speed performance, comfort, ergonomics and the owner’s particular aesthetic wishes ... The entire deck is recovered with teak, all hatches are flush, the solid stainless steel rigging secure the easy passage all around the deck...

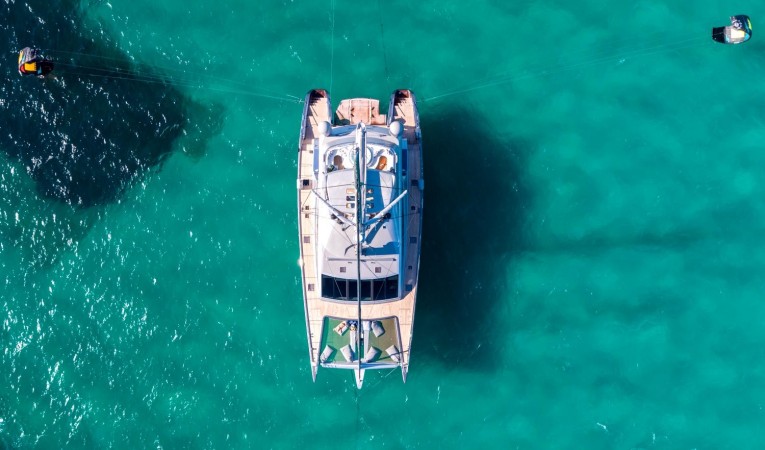

Forward deck:

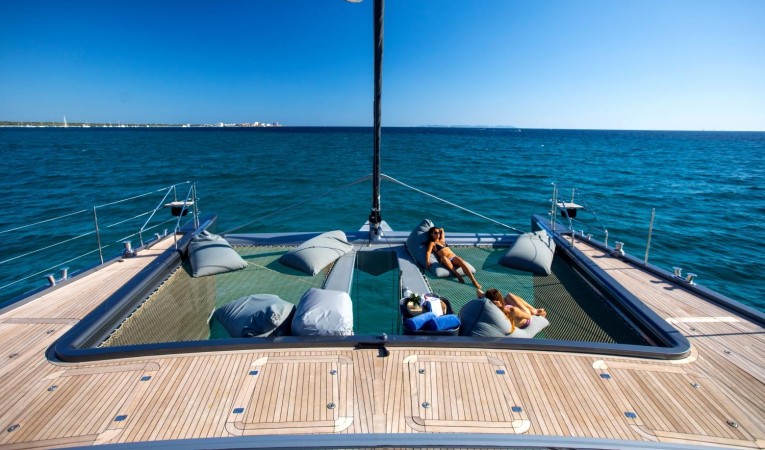

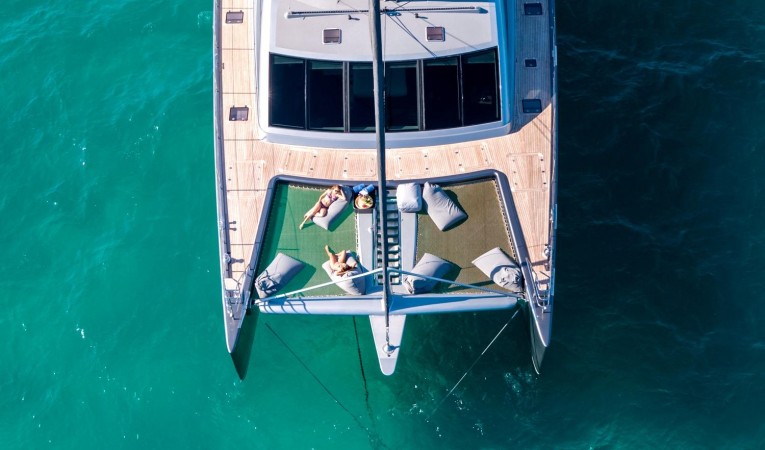

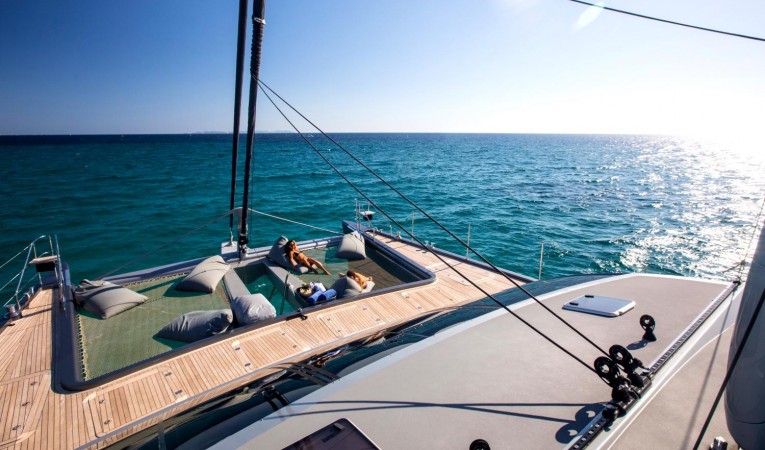

The spacious fore deck invites to enjoy time seated on the two forward pulpits seats or simply to lounge on the large nets, while admirating the complete sails out ... The anchoring and running rigging equipment has been incorporated seamlessly into the deck’s layout, for an easy secure passage everywhere. A central foldable ladder will also invite you to go to swim from the front ...
• 2 anchors of 120 kg CQR with chain Studlink diam 16 mm with 110m of chain each
• 2 windlasses Lewmar V8 hydraulic
• 2 capstans C5 Lewmar for docking lines
• Central longitudinal plateform for mooring and access to front beam with incorporated ladder
• Front transversal beam in carbon
• 2 forward pulpits with teak seats
• 2 large trampolines nets
• Several storage lockers
• Full teak cover on fore deck
• Flush hatches high class from Solimar

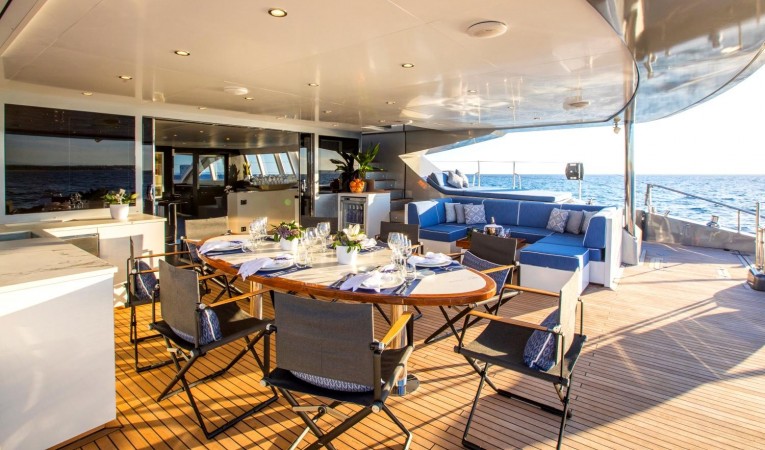

Aft salon and access to transoms:

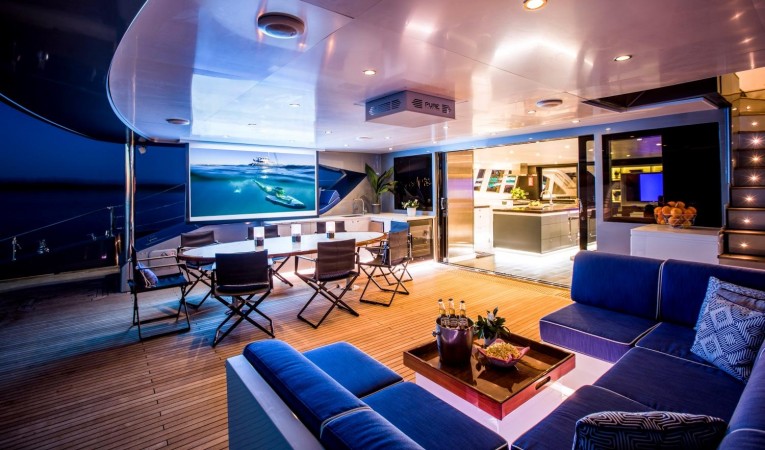

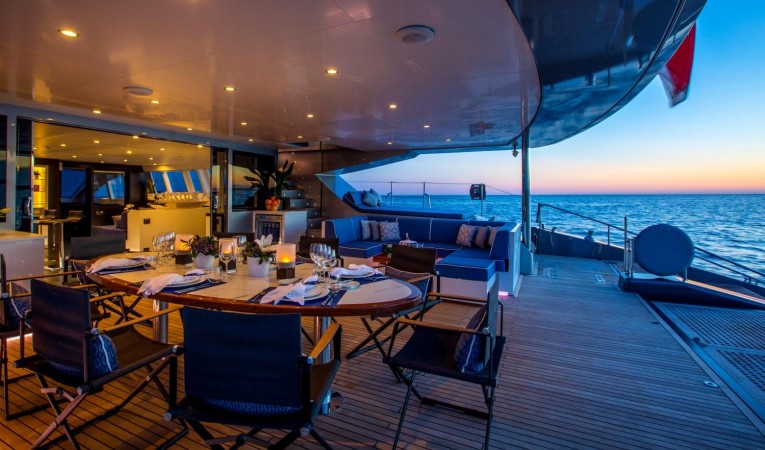

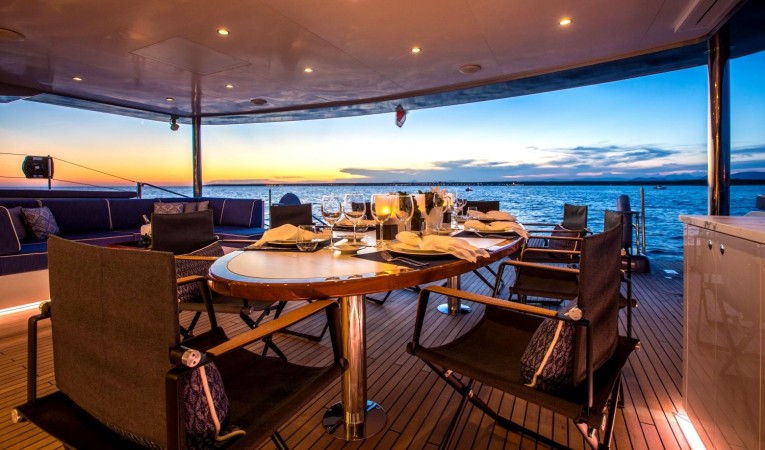

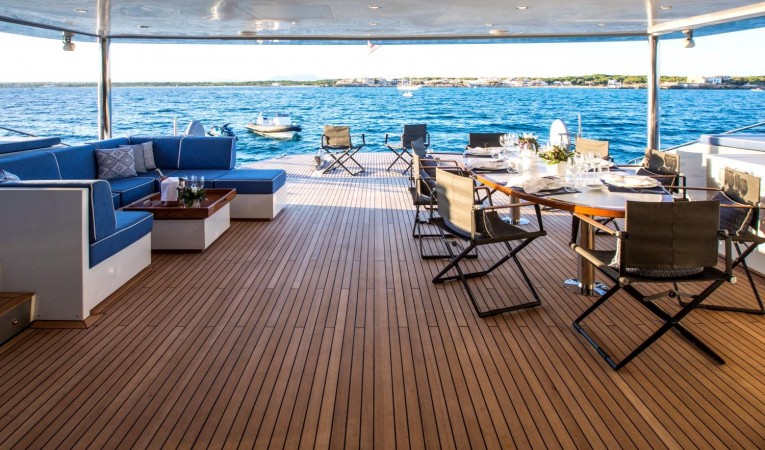

The exterior aft salon offers shaded lounging with unobstructed panoramic views and is separated from the large interior salon by a wide sliding door. The aft stairs pertaining to each hull lead to Lazarette compartments and down to the transom where one can store personal watercrafts, scuba diving equipment and other water sport toys.
• Lounge area with salon equipped by Royal Botania
• Dining area with a long table for 10 with extensions and chairs
• Large storage lockers in cockpit floor
• 2 large sun mats displayed on each side of the cockpit
• Bar arrangement with fridge, sink

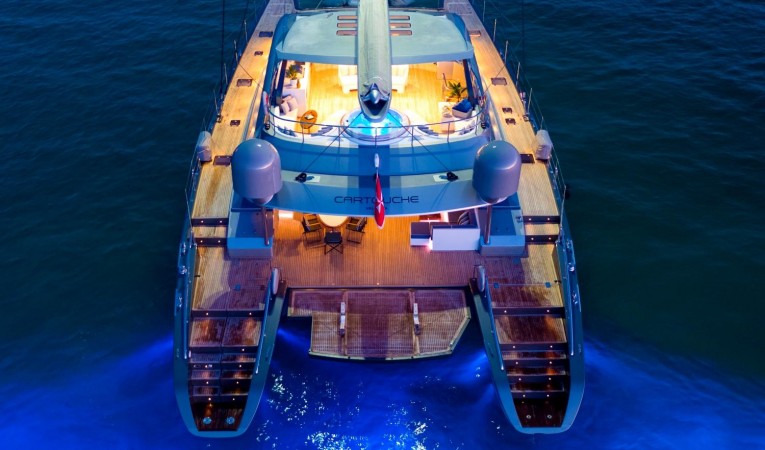

Hydraulic aft plateform and transoms:

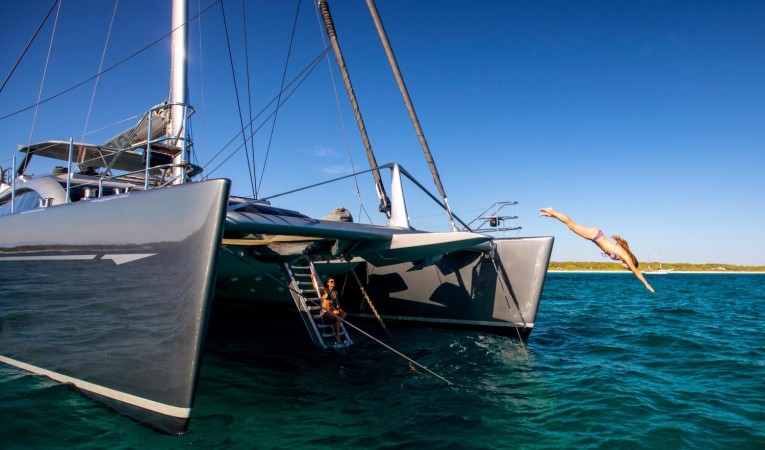

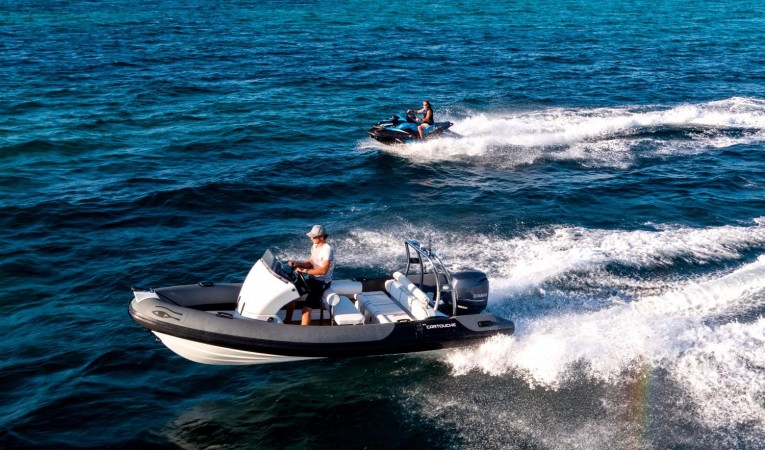

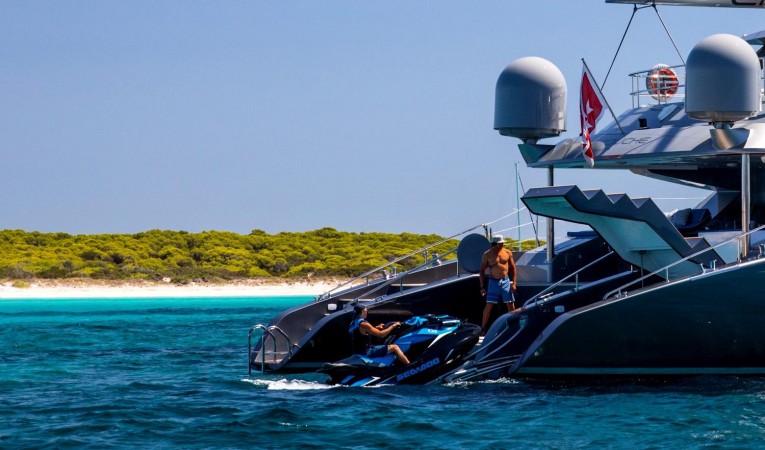

CARTOUCHE is also equipped with a hydraulic swim platform that drops 60cm below water level to facilitate the launching of the main tender. This platform can also be used as a sunbathing deck and is the perfect support to water sports. On each hull a swim ladder grants direct access to the water.
• Hydraulic plateform in aluminium with teak
• 2 long transoms with swim ladder incorporated
• Fresh water shower hot/cold on each transom
• Access to both technical rooms
• Hydraulic boarding gangway 3,50m long

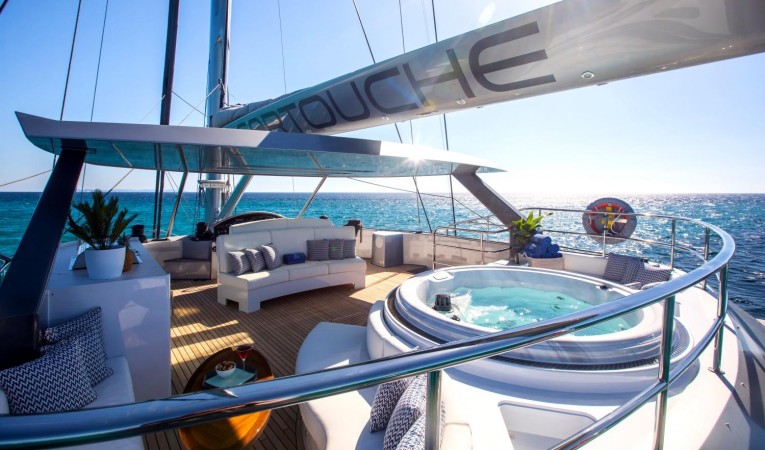

Flying bridge and helm station:

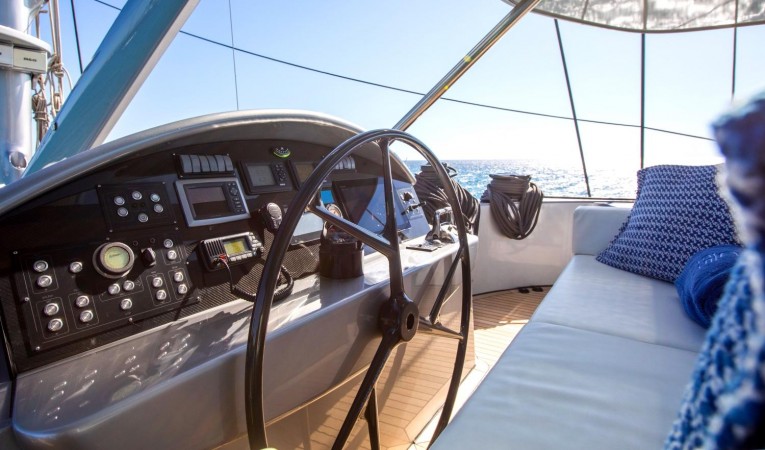

From the aft one reaches the fly bridge via a comfortable stairway to starboard. The helm station is amidships and the rigging equipment is located to port and starboard for ultimate control and ease of handling.

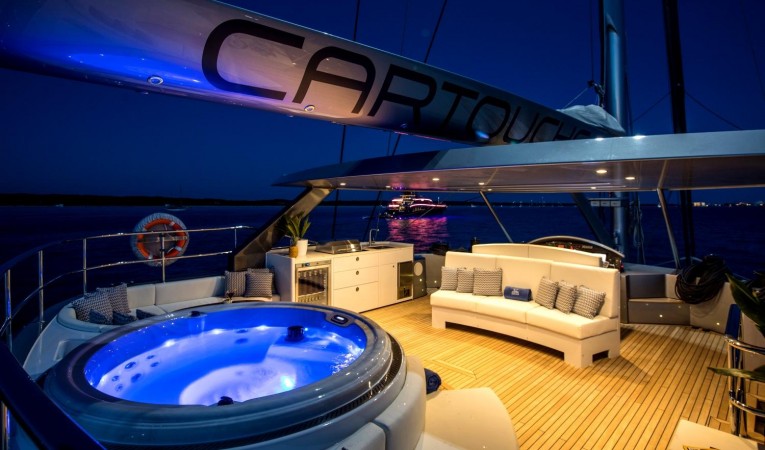

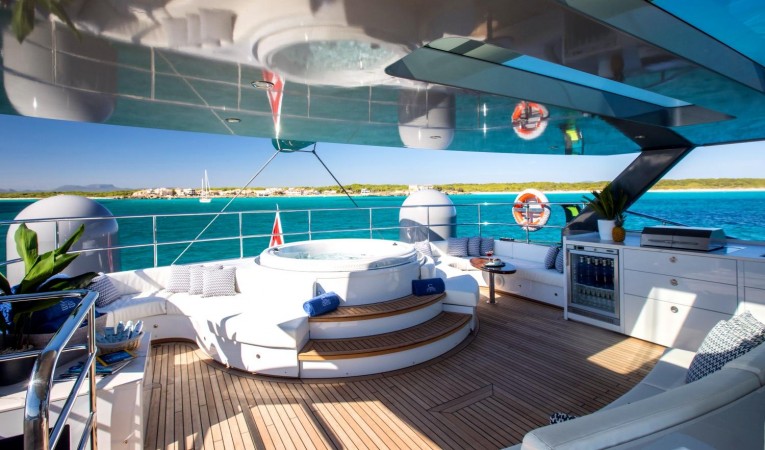

A second, vast sunbathing area is located on either side of a Spa Pool and amidships there is a dining area where guests can enjoy remarkable views with sofa and bar. A dumbwaiter has been installed to bring food directly up from the galley.
• Double comfortable bench at helm station
• Dining area with table and chairs
• Carbon steering
• Large protection windshield
• Engines and bow thruster controls
• Electronics screens
• All controls for winches and sails

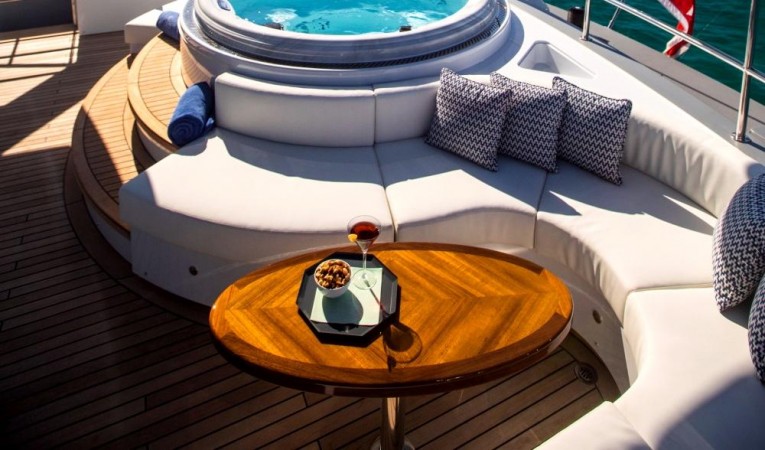

• SPA pool at the rear of the flying bridge
• Comfortable and adjustable sun mats all around
• Teak cover at the complete flying bridge
• Large hardtop with view on rigging
• Bar with sink, fridge, plancha, grill and lift
Technical rooms are located at the back side of each hull with a large opening hatch accessible by the deck ; organization is optimized, and space allows an easy access for all maintenance requirements for the crew. All pumps, systems and fire extinguishing process are certified and approved by BUREAU VERITAS.
Engines:
Speed - Max 12 knots (13L/H per engine at 9 knots)
Propellers - 2 x MaxProp 3 blade auto fathering 29’
Bow thrusters - 2 Lewmar 250 hydraulic (connected on PTO from generator) of 20hp each
Plumbing and hydraulic
Fuel Capacity - 2,115 gal (8,000 liters)
Range - long range, Transatlantic possible
Water Capacity - 792 gal (3,000 liters)
Black waters - 2 tanks for a total of 264 gal (1,000 liters)
Grey waters - 2 tanks for a total of 264 gal (1,000 liters)
Steering gear - Tenderlift hydraulic
Hydraulic station - 24V - 380V - PTO (power-take-off) system
Watermaker - 2 x Sea Recovery 280L/H each
Waterboilers - 2 x 150L
Pressurized water system - 2 units Headhunter
Toilets - Tecma fresh water Silence plus
Electricals
Generators:
A/C:
Chargers:
Inverter - 2 x 3KW Victron
House batteries - 1200A gel batteries in 24V
Engines batteries - 2 x 115A
Backup batteries - 140A / 24V
CARTOUCHE is equipped with the best equipment and allows a lot of enjoyment on board.
• Large flat screen TV Samsung 55’ in main salon with DVD player
• Bose system Lifestyle 5.1 with speakers in salon and cockpit
• Sound system at the flying bridge
• TV antenna KVH M9
• TV Samsung 32’ + DVD player Bose 123 GSX in Master cabin
• TV Samsung 32’ + DVD player + Bose station in each cabin
Navigation equipment is complete and optimized thank’s to the choice done on Brookes & Gatehouse.

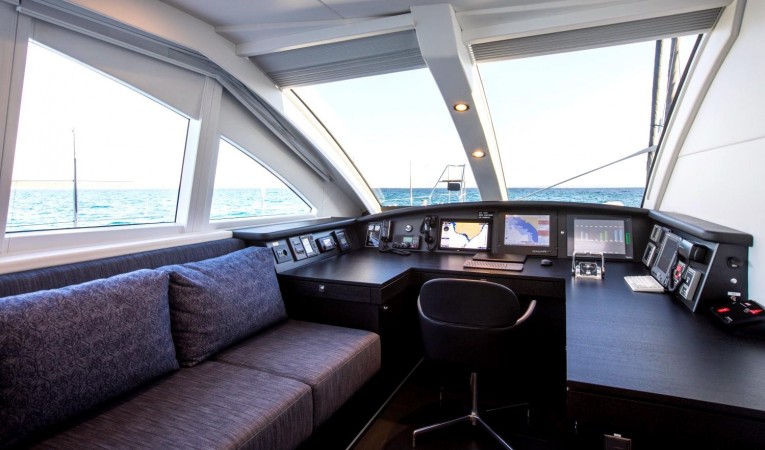

At helm station inside :
• Navigation station B&G H3000 Hercules
• Autopilot B&G H3000 with control GPD
• Remote control wireless for autopilot with receiver
• Compass Halcyon 3D gyro
• Computer with MaxSea software and Timezero explorer and AIS Maxsea module
• AIS transmitter / receiver
• Radar 2 screens 17’’ LCD
• Satellite compass SC30 with interface NMEA
• Navtex with antenna active
• VHF Icom 603 ASN
• GPS Furuno GP32
• Beacon Sarsat
• Inmarsat Fleet Broadband 250 Sailor
• Inmarsat Mini C with security alert system
• Horn
At flying bridge :
• Navigation station B&G H3000 Hercules
• Autopilot B&G H3000 with control GPD
• Module black box NavNet 3D Furuno wit keyboard
• Repeater screen for computer
• Radar 2 screens 17’’ TFT with antenna 4 kw
• Camera FLIR thermic
• VHF
• Transponder Sart
In crew quarters and Master cabin :
• Repeater multifunction B&G H3000 Hercules

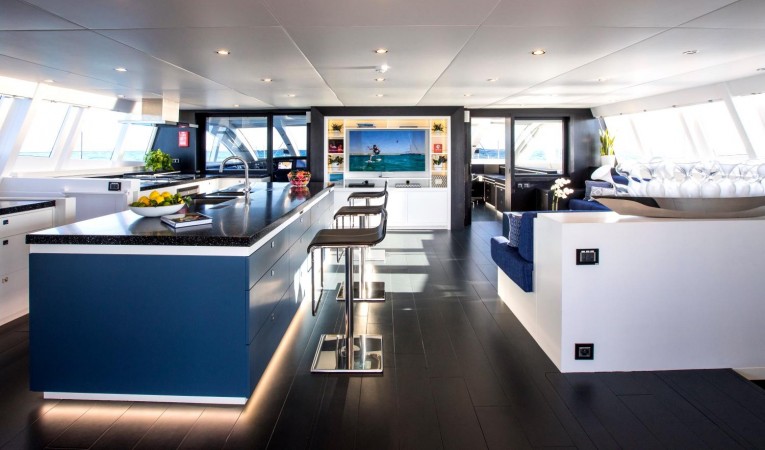

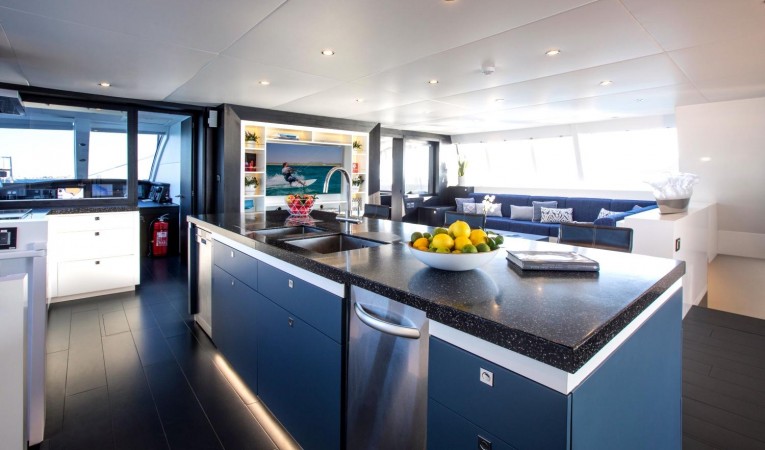

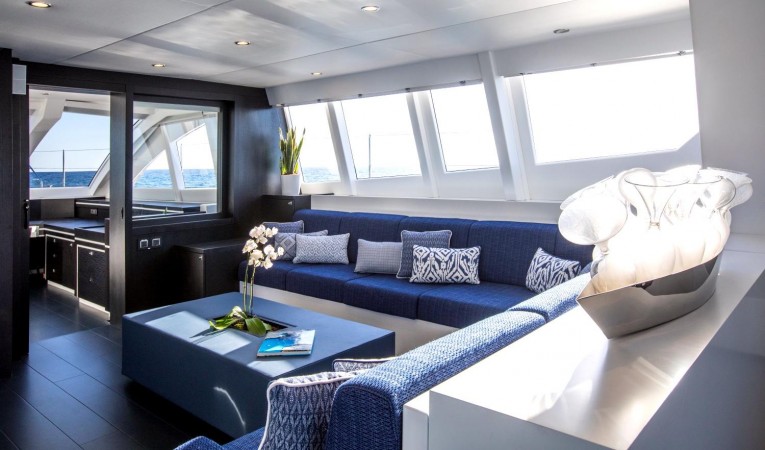

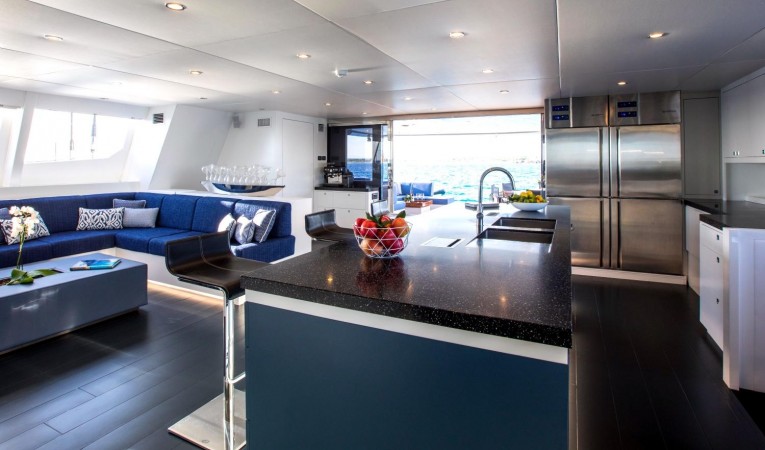

The Blue Coast 95’s interior accommodations and decor meet the latest standards in comfort and luxury using lightweight materials and state of the art craftsmanship. The choice of the owners was to create a unique living space where the modern galley is designed for being part of the spirit of the yacht.

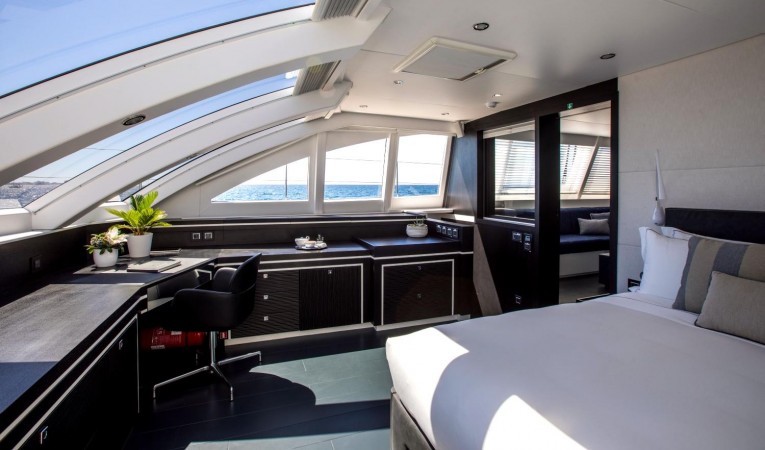

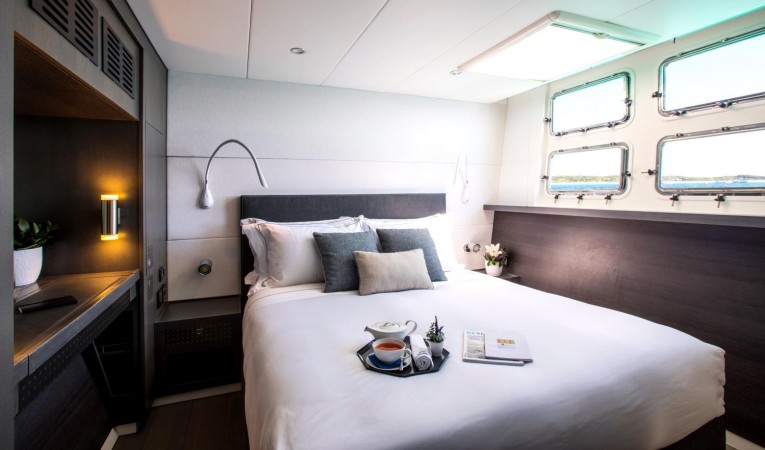

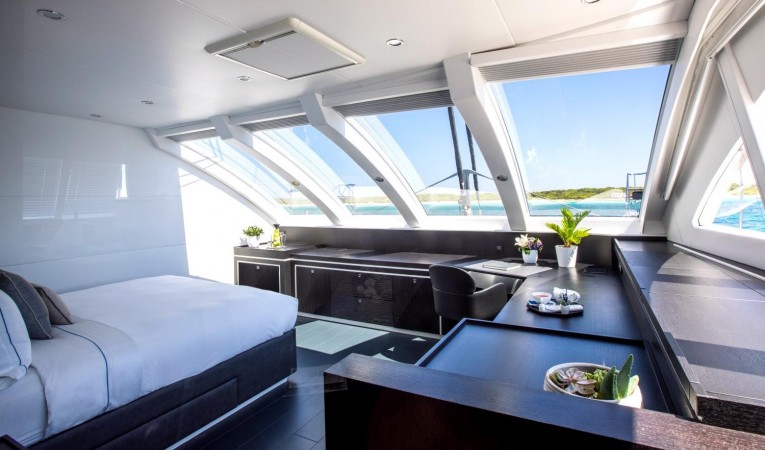

The master cabin is located on the main deck, with an incredible view on the front while other guests cabins are displayed in both hulls.

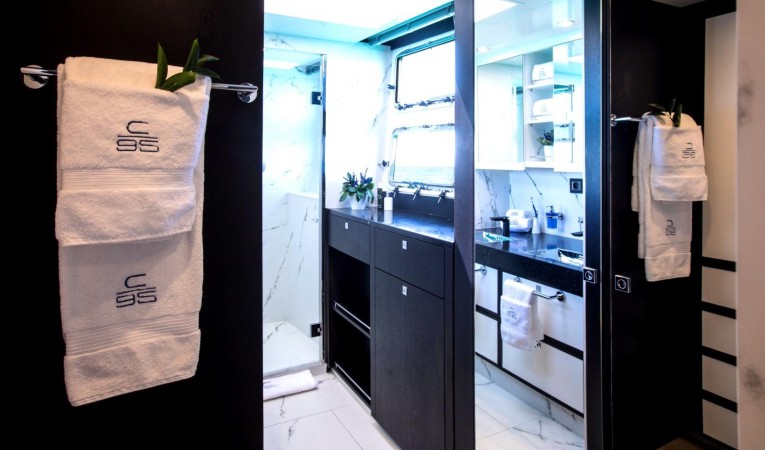

Each space has his own identity, black and white are signing this very elegant and pure interior. Carpentry is treated with refined grey oak, as well as floors on a light sandwich structure; the highest names are signing the benches and bar tools (Roche Bobois and Bonaldo), comfortable chairs (Bo Concept), but also the bathrooms (Fratelli Fratini and Jandelle), the different lights (Diesel, Kartell and Foscarini) ... Swarovski and Antilo are giving a precious touch to the bedrooms, each area inspires to serenity and refinement.
MAIN DECK
STARBOARD HULL
PORT HULL
Denison Yacht Sales offers the details of this yacht in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of this boat for sale. A yacht buyer should instruct his yacht broker, or his boat surveyors, to investigate such details as the buyer desires validated. This yacht for sale is offered subject to prior sale, price change, or withdrawal without notice.
