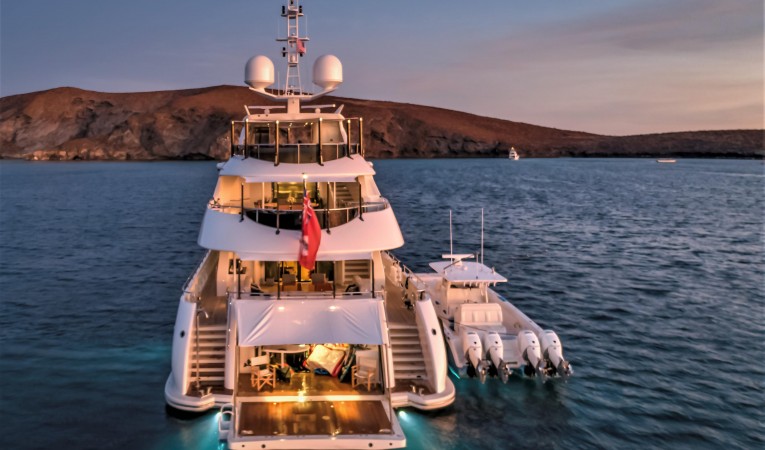

154' Heesen 2012 ODYSSEA

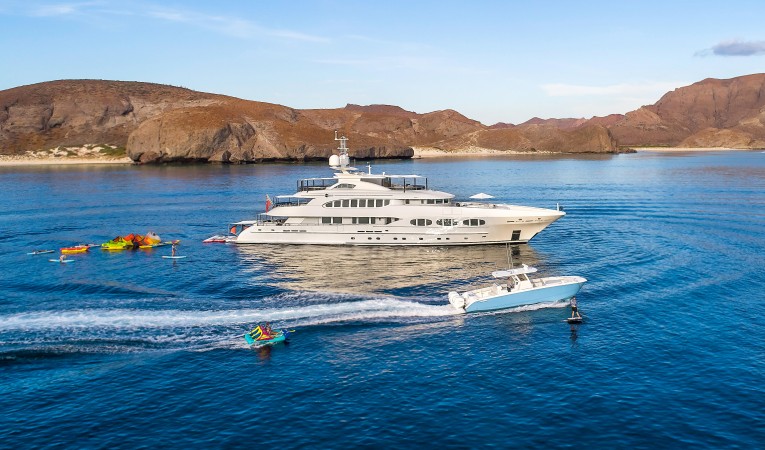

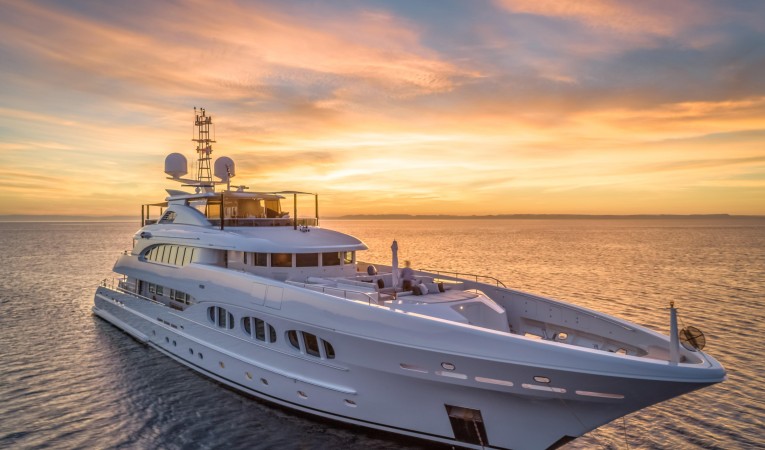

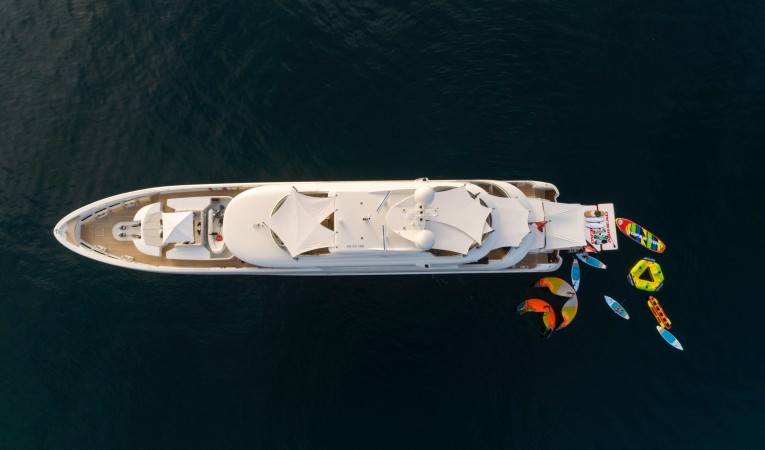

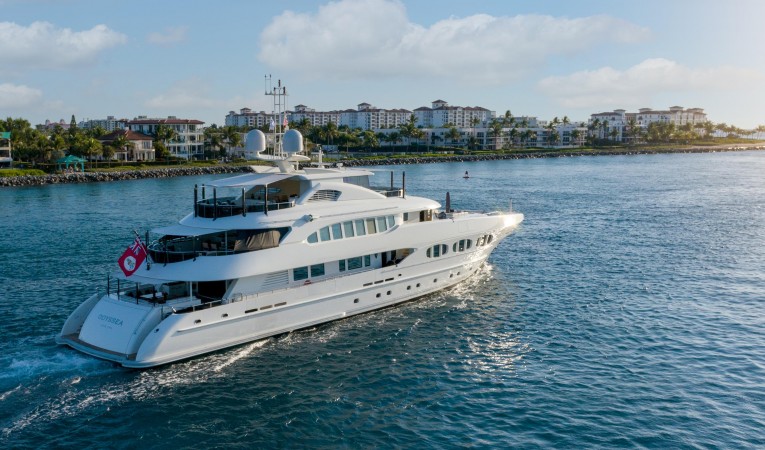

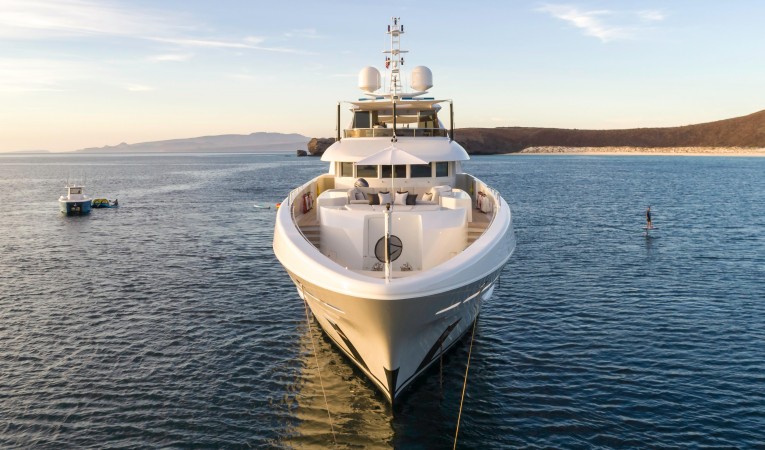

ODYSSEA, a 154’ Heesen, was custom-built in 2012 for Frans Heesen, the founder of Heesen Yachts. A sleek exterior design by Omega Architects and an inviting interior designed by Bannenberg and Rowell showcase high-end luxurious finishes and meticulous craftsmanship. ODYSSEA is home to a plethora of state-of-the-art amenities. Spend your time together at meals on her vast bridge deck aft, relax on the sundeck in the spacious lounge areas or jacuzzi, then enjoy a movie in her impressive full-beam cinema after a full day of playing on your favorite water toys. Designed as a family yacht, she accommodates up to twelve guests in six staterooms. Heesen always represents individuality and quality in a world where the two are often compromised. Designed as a family yacht, she accommodates up to twelve guests in six staterooms. Heesen always represents individuality and quality in a world where the two are often compromised.
She is in the Free Trade Zone (FTZ) at Pier 66.

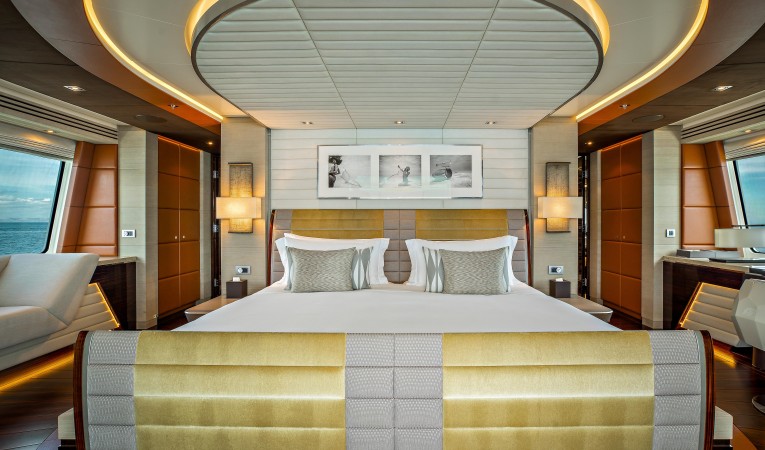

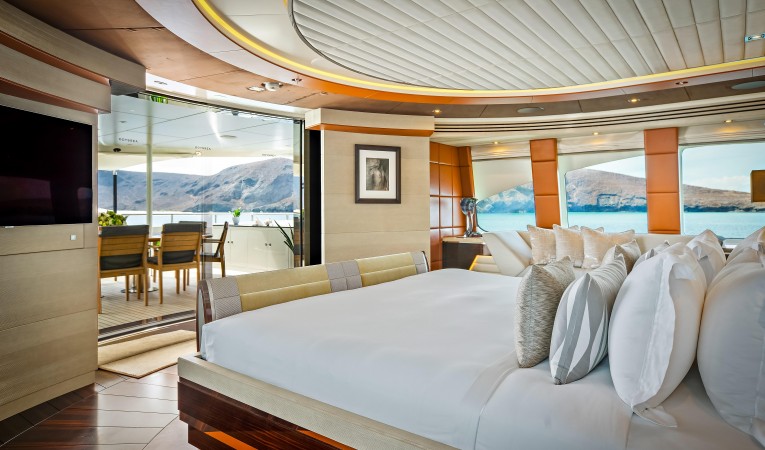

• Panoramic views can be enjoyed from the vast, luxurious owner's suite or adjoining private terrace which occupies a majority of the aft bridge deck and benefits from various sumptuous seating arrangements. Aside from a king-size bed facing aft, the stateroom benefits from an oversized walk-in wardrobe, his & hers marble bathroom, steam shower featuring opaque backlighting, plus a secluded and elegant breakfast room.

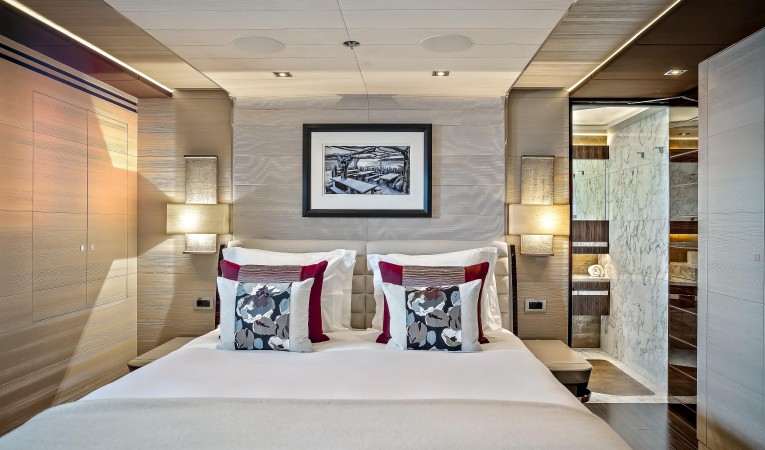

• This main-deck stateroom, located just off the starboard foyer, has two twin beds and an ensuite bathroom.

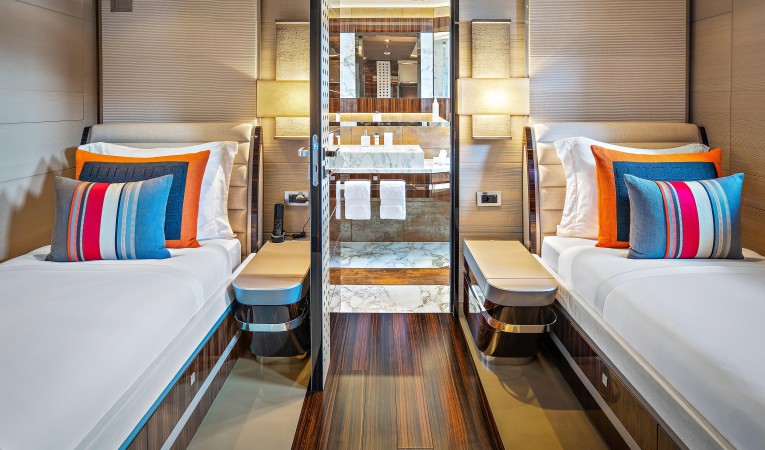

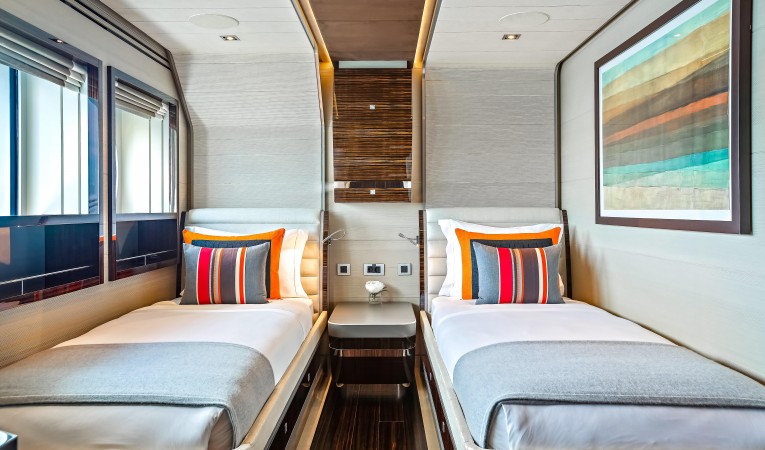

• On the lower deck you will find four guest staterooms: two doubles and two twins, each benefiting from the creativeness of a soft and sumptuous décor and natural light.

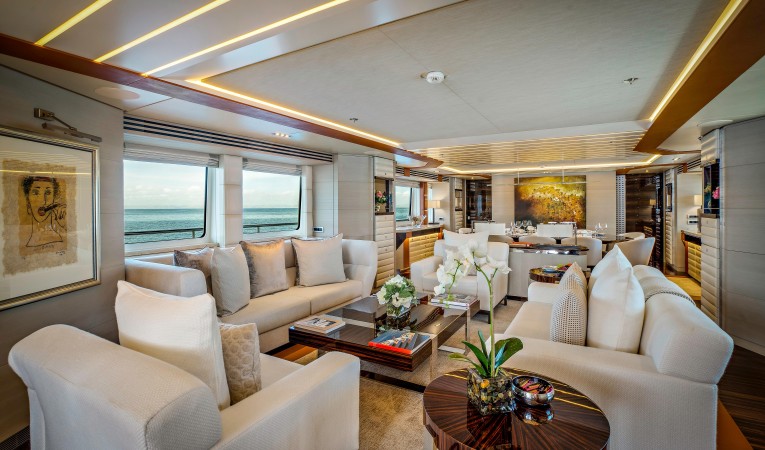

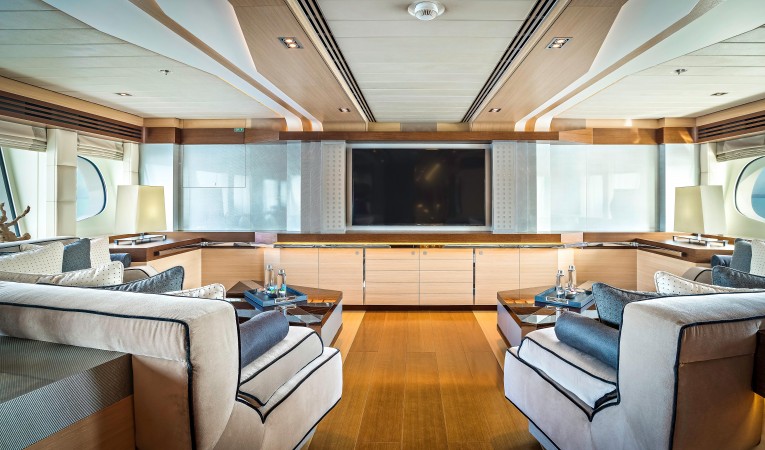

• The main saloon offers a comfortable seating area with Macassar ebony tables, brushed spruce paneling, and beige leather with tan accents. A high gloss Macassar ebony dining table seats ten guests.

• With the master suite on the upper deck, the main deck has space for a full-beam
media lounge. Custom-built furniture in silver oak, angled sofas, a heavily stepped ceiling, and wall panels create a sophisticated atmosphere. A 65-inch screen is connected to the Kaleidescape entertainment system. Set behind this unusual open-plan cinema is a study with space for a treadmill.

• Freezer: 3 x Foster Pro

• Garbage Freezer: Foster (tender garage)

• Refrigerator: 5 x Foster Pro

• Wine Fridge: 2 x Eurocave

• Oven: Miele H5081BP, replaced 2021

• Microwave/Grill/Oven: 3 x Miele H5080BM

• Induction Cooktop: 3 x Bosch - 2 zones

• Deep Fat Fryer: Gaggenau

• Icemaker: 2 x Hoshizaki (for drinking ice, 2 additional icemakers for coolers/fishing)

• Dishwasher: 3 x Miele

• Double sink

• Washing Machine: 2 x Miele PW 6065 Plus

• Dryer: 2 x Miele PT7136

• The crew quarters sleep nine in five staterooms forward with ensuite shower rooms and crew lounge.

• The captain’s cabin has a double bed, ensuite shower room, and desk located behind the pilothouse.

10-Year Survey
• The Lloyds 10-year survey was completed in June and July of 2021. It includes all through-hull valve survey, crane load testing, servicing and mega testing of all critical pumps (bilge fire, etc), propeller and shaft survey, tankage survey, mega testing of all electrical equipment, thermal testing of all electrical panels, gearbox service, rudder survey, and vibration analysis. Complete list available upon request.


Additional Upgrades
• Full paint job in 2019

• Paint job: Hull below rub rail and stern door (2021)

• Main engines - 6,000-hour service (RPM Diesel): valve adjustments, coolant system service (coolant flush, heat exchanger service), alarm and shutdown testing, regular oil and filter change.

• Generators - Full rebuild at 13,000 hours and service of all the sub-systems at 19,000 hours: heat exchangers service, aftercoolers service, fuel injectors replaced, fuel pumps replaced with re-man units, DC Alternators serviced, turbo's serviced, raw water pumps replaced, crank-shaft and vibration and torsion dampers pulleys replaced.

• She boasts one of the largest deck and interior volumes, comprising of some 240sqm over three decks while remaining under 500 gross tons. Designed by Omega Architects for varied family use and entertainment, she features various interchangeable deck configurations, alfresco dining areas, together with a giant jacuzzi and wet granite bar plus multiple all-weather sofas under awnings on the sun deck.

• Windlass System: 2 x Staalart CAS 23-19 ED Electric

• Anchors: 2 x Danforth

• Chains: 2 x 5-shackles (27.5m) 19mm

• Aft Deck Capstans: 2 x Staalwart CAS 2319 ED

• Crane: 1 x Hydromar 550kg (independent battery bank)

• Rescue Tender: Zodiac DL 700- 40hp Yamaha

• 2 Jetski's - Yamaha EX 2021

• EBIRB: 1

• SART: 2

• Life Rafts: 4 x Zodiac Amec Xtreme 12 pax

• Life Jackets: 27 x Solas inflatable + 4 child

• CCTV Cameras: 5 x gangway, Aft + Port/Starboard, and Engine Room

• CCTV Monitors: Interfaced A/V system, Crew Mess, Bridge & Engine Room

• Underwater Lights: 6 x Sea Vision metal halide white underwater effect

• Side Boarding Ladder: 1 x Hydromar, starboard (recessed inside bulwark)

• Side Boarding Ladder: 1 x Marquit, manual

• Swim Ladder: Electric flush stow ladder (stainless and teak)

• Main Deck Gangway: 1 x Hydromar telescopic

• Deck Awnings: 1 x (aft, main deck), 1 x (aft, bridge deck), 2 x (forward, sundeck), 2 x (aft, sundeck)

• Wind Shade: 2 x Port/Starboard side, aft bridge deck

• Flexible Mountings: Main engines, gearboxes, generators (all pumps)

• Elastic Coupling: Between engine and gearbox

• Exhaust Lines: Water-cooled, stainless steel pipes, composite, rubber compensators bypass through the transom

• Engine Monitoring System: MTU Blue Vision

• Engine Controls: Bridge, 2 wing stations, Blue Vision screen in the engine room

• Steering: Sperry Marine Systems

• Back-Up Steering: Located in the garage, includes rudder indicator and intercom

• Propellers: Schaffran 5-blade fixed pitch 1.600mm

• Gearbox: ZF BW460 Series

• Bow Thruster: HRP 1001TT (90kW) Hydraulic output

• Zero Speed Stabilizers: Naiad Dynamics, type 621

• Fuel Transfer Pump: Sterling SIHI 24V DC electric 6,500 lt/hr

• Fuel Transfer Pump: Sterling SIHI 400V 3-phase fuel lines electric fuel counter

• Fuel Filters: 4 x Racor per engine

• Fuel Filters: 2 x Racor per generator

• Drip trays under filters and pumps

• Electric level indicators with readout through ship LAN

• Bilgewater Separator: RWO capacity 500 lt/hr 400VAC (50Hz)

• Bilge Floating System: 17 x Kubler

• Generator: 2 x Kilopak Marine 99kW 60685 FM75 (50Hz, 3 phase 230/400 volts (1500rpm)

• Generator Engines: John Deere Turbocharged (4 stroke, 6 cyl)

• Consumption: 300 lt/day

• Generator Hours: Port - 19,787, Starboard - 18,917 (February 2022)

• Generator Paneling: Deiff Automatic synchronization & load sharing

• Outgoing Circuits: Merlin Gerin

• Frequency: 60 Hz

• Frequency Converter: Marpower SPC 88 120 Interface Module IM2H

• Frequency Converter: Exendis PCM30 kW 4 (Input 2 phase 170520V) (3 phase 4070Hz)

• Voltage: 240V

• Switch Board: RAL 9010 (control room)

• Shore Power Converter: Asea Power Systems

• Shore Telephone: 2 x Marinco PH6595

• 3 Phase shore connection: 180540V/50/60Hz

• Shore Cable: 2 x 150amp, 40mt (male and female plug)

• Shore Receiver Cable: 2 x Telephone 30mt

• Shore Receiver Connecting Cable: TV, 30mt

• Starting Batteries: 8 x 12VDC-50Ah (engine room)

• Service Battery Set: Sonneschein 24V-600Ah, gel, Navigation lights, and 24DC lighting

• Batteries: 6 x 12VDC-200Ah (engine room)

• Emergency Batteries: 1 x Sonneschein 24VDC-400Ah, gel radio emergency service

• Emergency Batteries: 4 x 12 VDC-200Ah located under the foredeck

• GMDSS: Sonneschein 24V-55Ah, gel, 2 x 12VDC-55Ah (bridge)

• 1 x Mastervolt - Type 24/75A 24 VDC-75A

• 1 x Mastervolt - Type 24/25Z 24 VDC-25A

• 1 x Mastervolt - Type 24/50A 24 VDC-50A

• 1 x Mastervolt - Type 24/15A 24VDC-15A

• 2 x Idromar ML55/1600 reverse osmosis desalinization systems, modular version (capacity 12,000lt/day)

• 8 membranes

• Fresh Water Softener: Idromar Idrofast 9100

• UV Sterilizer: Idromar SH 8000 UV, Idormar Silverion Dosing Sterilizer

• Deck wash pump

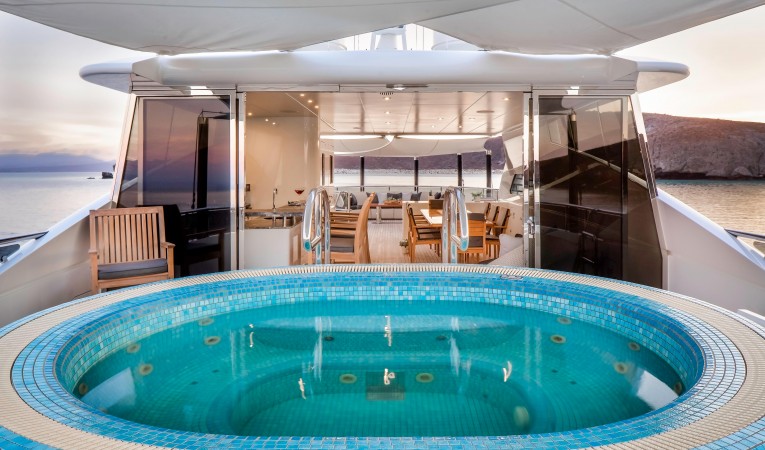

• Jacuzzi: 2,000lt heats in 25 min.

• The hydraulics from the davit on the bow run on hydraulic oil supplied from a central closed-loop reservoir in the engine room. This reservoir has an integrated oil cooling system.

• 2 x Rotor 22kW electric motors that supply oil to the stabilizers

• 1 x Rotor 7.5 kW electric motor that supplies oil to the hydraulic auxiliaries, stern door, side boarding ladder, aft boarding ladder and hydraulic winches

• 2 x PTO's, one off each main engine gearbox

• The davit on the bow is for the emergency tender and is completely stand-alone, running off 220V supplied from the boat or 24V battery

• Fuel: 64,000 ltrs

• Lubrication Oil: 532 ltrs

• Dirty Lube Oil: 1023 ltrs

• Fresh Water: 20,000 ltrs

• Grey Water: Combined with Black

• Black Water: 3,100 ltrs

• 1 x electric Hydrophore Lowara

• 3 x pumps Lowara Hyrophore

• 2 x electric boilers

• 2 x Wilo Z25 50W hot & cold water circulation pump

• Hamann-Miniframe 5,400 lt/day IMO approved

• Toilet: 2 Jets pump vacuum system for 13 bowls

• 6 x showers and washbasins to greywater

• Fuel Separator: Westfalier

• Air Conditioning: Heinen & Hopman

• Waste Water Treatment: Hamman

• Oily Water Separator: RWGOmgH Marine Water Technology

• Toilet Systems: Jets

• Boilers: Nibe

Antenna & Receivers
• 2 x Sailorman 900 KU units VSATS (2021)

• 2 x Central networked server (refit 2020)


Guest Accommodations
• 4 x 32" LCD TV screens

• 4 x Kaleidescape

• 4 x DVD

• 4 x Logitech remotes

• 4 x Denon receiver AVR 3310

• 4 x Phonic amplifier

• 20 x Built-in speakers

• 4 x Subwoofers


Crew Mess
• 1 x iPod docking station

• 1 x 32" LCD TV

• 1 x DVD

• 1 x Programmable remote control

• 1 x Audio receiver

• 2 x Built-in speakers


Laundry
• 1 x Radio/CD player

• 2 x Built-in speakers


Main Saloon
• 1 x 60" plasma popup TV

• 1 x iPod docking station

• 1 x Kaleidescape

• 1 x DVD player

• 1 x Logitech remote

• 1 x Denon receiver

• 1 x Phonic amplifier

• 5 x Built-in speakers

• 1 x Subwoofer


Dining
• 1 x Amplifier connected to the saloon

• 2 x Built-in speakers

• 1 x iPod docking station

• 1 x Logitech remote


Aft Main Deck
• 1 x Amplifier

• 2 x Built-in speakers


Galley
• 1 x Radio/CD player

• 2 x Built-in speakers


Owner's Stateroom
• 1 x 50" Samsung TV (wall mounted)

• 1 x Logitech remote

• 1 x iPod docking station

• 1 x Denon receiver AVR 3310

• 1 x Phonic amplifier

• 1 x Kaleidescape

• 5 x Built-in speakers

• 1 x Subwoofer


Owner's Bath
• 1 x Amplifier connected to owner's room

• 2 x Kef Built-in speaker type Ci 130 Qr


Owner's Office
• 1 x Amplifier connected to owner's room

• 3 x Built-in speakers


Cinema Room
• 1 x 65" Samsung TV

• 1 x Kaleidescape

• 1 x iPod docking station

• 1 x Denon receiver AVT 3310

• 1 x Phonic amplifier

• 5 x Built-in speakers

• 1 x Subwoofer


Bridge Aft Deck
• 1 x Amplifier

• 2 x Built-in speakers

• 1 x Kaleidescape

• 1 x iPod docking station


Captain's Cabin
• 1 x 40' LCD TV

• 1 x DVD player

• 1 x Kaleidescape

• 1 x iPod docking station

• 1 x Receiver

• 5 x Built-in speakers


Bridge
• 1 x Radio/CD player

• 1 x Built-in speaker


Sundeck
• 1 x iPod docking station

• 5 x Built-in speaker

Navigation
• Display Screens: 5 x Hatteland interfaced flat touch

• MPA Monitoring System: Tijssen Elektro

• Vessel Management Software: Triton

• Magnetic Compass: C Plath Venus

• Gyro Compass: Sperry Navigat X MK II, replaced 2020

• Log: Furuno Doppler Speed Log DS-80

• Depth Sounder: Furuno FE-700

• Autopilot: Sperry Marine Navipilot 4000

• Navtex: Furuno FE-700

• Radar: 2 x Furuno FAR 2117B

• Electronic Chart System: Transas ECS 4000, 2 units

• Electronic Chart System: Timezero

• GPS: Simrad MS512

• GPS: SAAB R4

• AIS: SAAB R4

• BNWAS: Net Logic

• Wind Speed Direction: Garmin WXT 520

• Speed Log: Furuno DS-80 Doppler

• Video Sounder: Furuno FE-700

• Computer: NS-3000/Pentium 300 MHz, 64Mb RAM, 2Mb

• VRAM hard disk minimal 1.2 GB, Windows NT

• Search Lights: ACR

• Horn: Kahlenberg M-511 C/D


Communication
• Inmarsat: 2 x Thrane & Thrane TT6110

• Navtex: Furuno NX700A

• Fleet 77: Thrane & Thrane FBB250

• Broadband Internet: VSAT Sailorman 900 KU, 2 units (2021)

• Inmarsat: C-Fleet broadband, Thrane & Thrane/Sailor

• SATCOM: Inmarsat F terminal - Thrane & Thrane/type F-33

• VHF: Thrane & Thrane RT6222

• VHF: Furuno FM 2721

• VHF Handheld: 3 x JotrunTR20

• Intercom: Panasonic KX-DT333

• Telephone: 9 x Siemens wireless phones

• Antenna: FM/AMTV - Naval - Type Mark 22CA

Bilge Fire Fighting System
• Sterling/SIHI self-priming bilge pump 400V, 15,000 lt

• Sterling/SIHI electric self-priming firefighting pump 400V, 15,000 lt

• Yanmar diesel-driven self-priming bilge/firefighting pump

• Marioff Hi-Fog fire suppression sprinkler system throughout the vessel.


Hydrant
• 1 x Engine Room

• 1 x Garage & fixed spray nozzle

• 1 x Foredeck

• 3 x Main Deck

• 2 x Bridge Deck

• 1 x Sundeck

• Engine Room: Novec 1230 gas nozzle sprayed

• Dry Pipe Sprinkler: Garage tender and Bosuns locker

• Co2 Bottle and Nozzle: Extracting ducting, Gally hood

• Extinguishers: 45 x including galley, engine room, tender garage

• Fireman Gear: 4 x with breathing apparatus

• Compressed Air System: Atlas Copco Compressor LE2210 150lt/min

• Air Conditioning: Heinen & Hopman - HH Salor chilled water system

• Chilled Water Unit, Chilled Water Pumps, Seawater Pumps

• 39 x fan coil units, cooling capacity 672K BTU

• Fridge/Freezer Compressor: (4) Fridge, (5) Freezer

• Fresh Air System: Salor T2 ROI225, 65kW (25m3/hour pp)
