Off Market

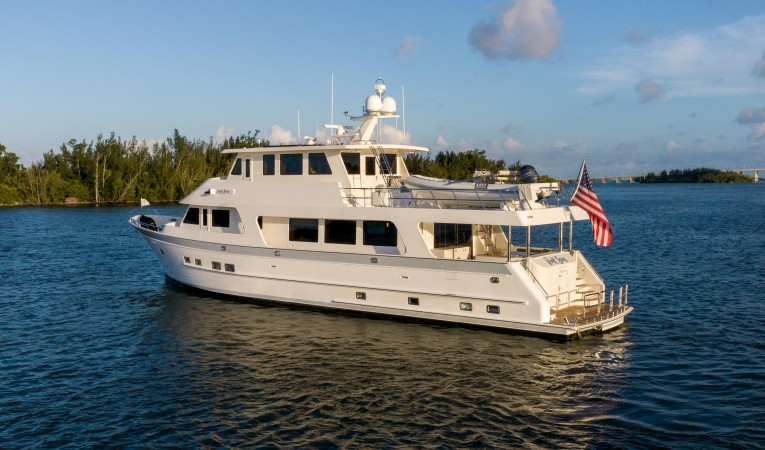

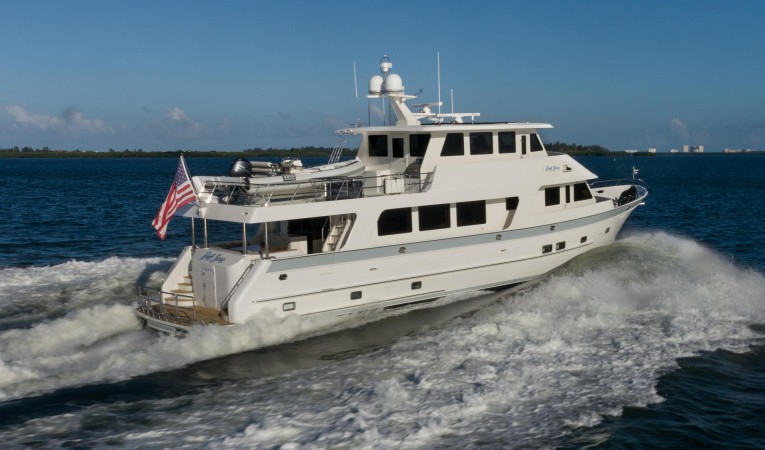

"RUFF SEAS" is the BEST Outer Reef ever produced by the factory. Her owner has owned 40+ yachts and built many of them. This is his 4th Outer Reef build, so every attention to detail has been met and exceeded. She's "One of those boats" that you come off of and are truly impressed with. She's absolutely like new and is kept at megayacht standards.
Factoring a new build (time and higher material cost), she's a very reasonable value. Be sure to see the full specs as well as the detailed Video Walkthrough.
Here is a shortlist of some Key Features of the yacht:

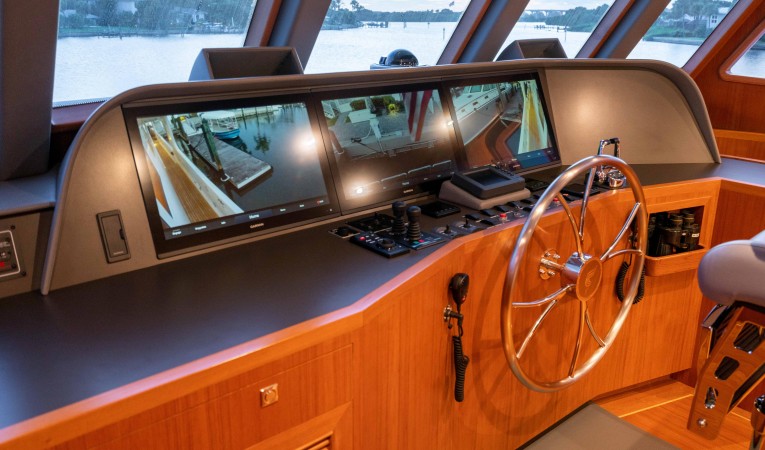

NAVIGATION
ENTERTAINMENT AND AUDIOVISUAL
MECHANICAL
ABT Trac 55hp hydraulic bow and stern thrusters
ABT Trac 300 Star Zero Speed system stabilizers with 9.0 sq. ft. fins and 15hp 230v AC hydraulic pump
Underwater exhaust system with bypass and FRP mufflers
Copper bonding system to all underwater fittings with zinc anodes
Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
Prop coat barnacle barrier application on props, struts, rudders, grills, and thruster prop
Humphree automatic trim tabs
Rigid fresh water pipes and color-coded copper fuel lines
Stainless steel struts with bearings
Headhunter 24v DC and Mach-5 115v AC freshwater pumps with accumulator tanks
Two (2) 24v DC automatic shower sump systems with an external pump
Accessible wiring raceway throughout
Aqualuma 6 series underwater LED lights
Valved pipe connection between port and starboard fuel tanks permitting refueling from one side of the boat

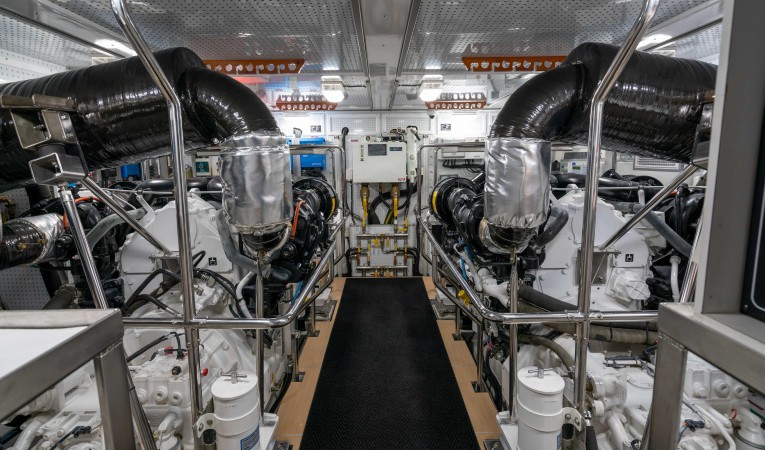

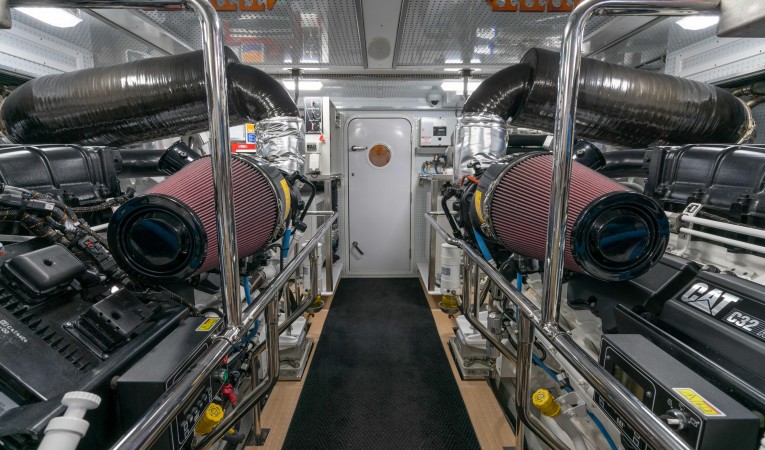

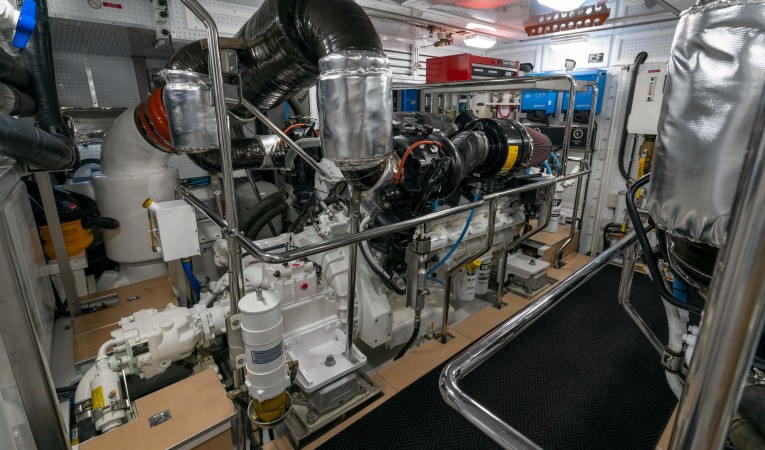

ENGINE ROOM
Acoustically insulated stand-up engine room lined with sound-absorbing material
Edura beige coin dot flooring

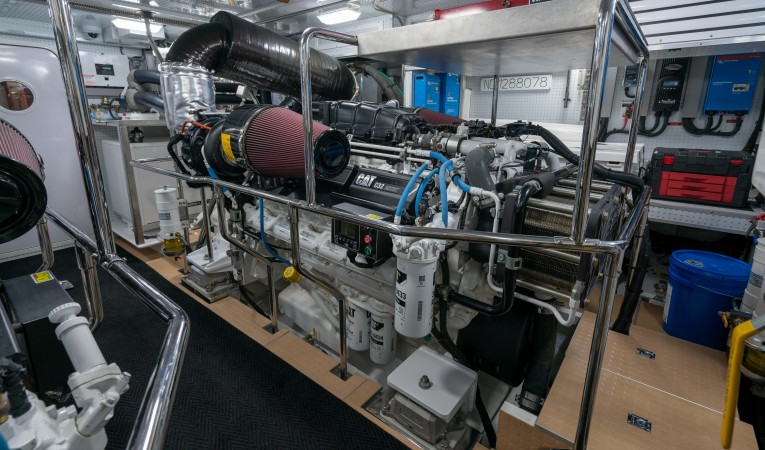

UPGRADED Twin Caterpillar C-32 1,600hp diesel engines with ZF transmissions and electronic instruments (1320 hours)
Start/stop and oil pressure gauges on engines
Stainless steel removable workbenches over engines
Fiberglass drip pans under engines.

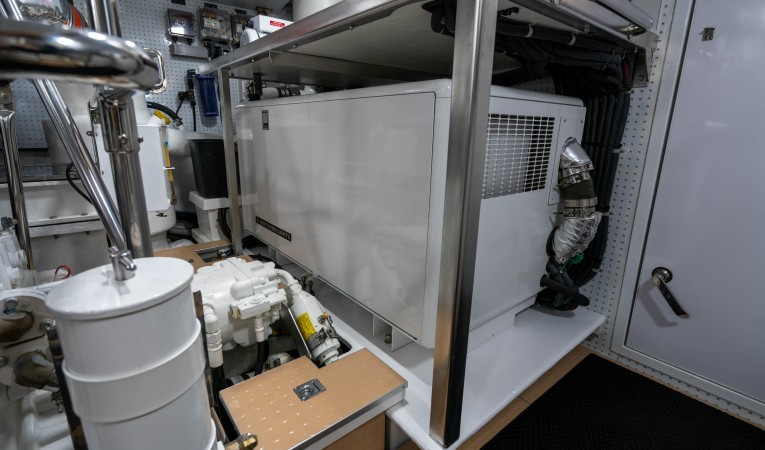

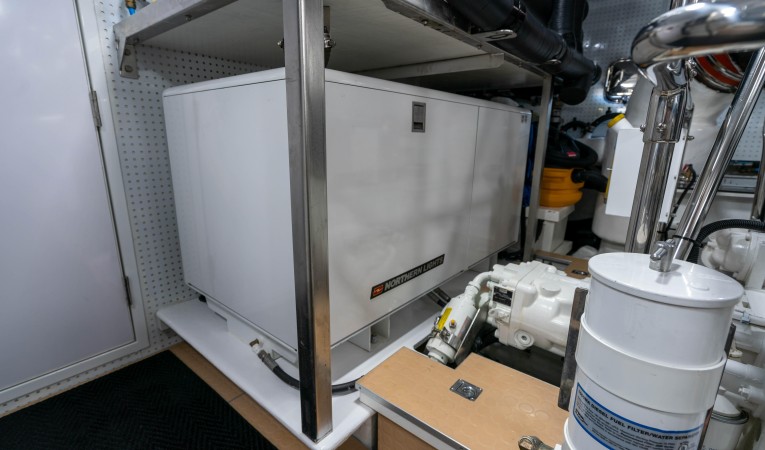

Two (2) Northern Lights 30kw (60hz) generators with sound shields (1800 hours)

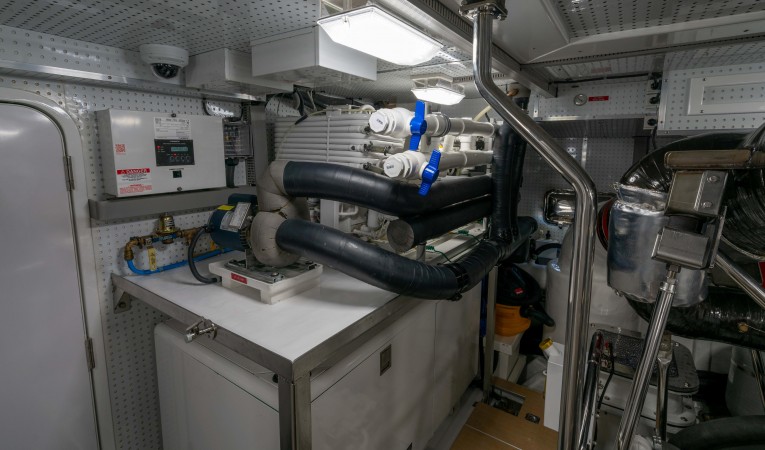

Marine Air chilled water air conditioning system with back up raw water cooling pump
Two (2) sea chests
Ball-valve bronze seacocks on all through-hulls below waterline located in sea chests
Oil change system for engines, transmissions, and generators
Two (2) prop shaft brushes
Two (2) 3 kW Victron inverters/chargers
One (1) Victron 120/240 100 amp autotransformer
Two (2) Racor 75/1000 max dual fuel filters with gauges for main engines
Two (2) Racor 75/1000 max single fuel filters for generators

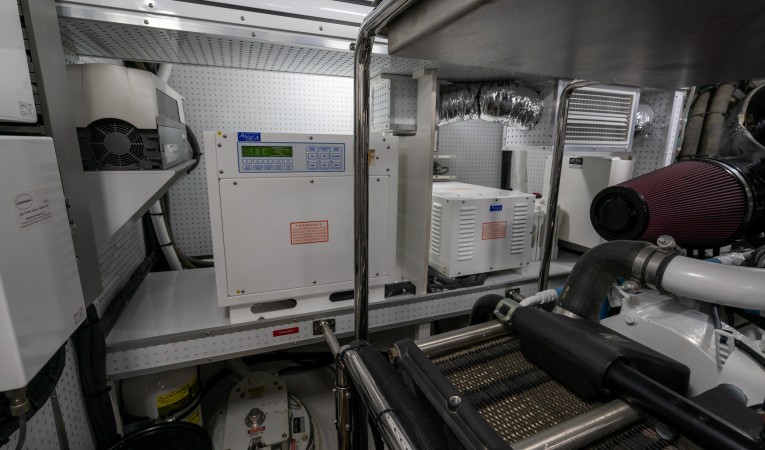

ASEA 36kVA power converter
Fuel polishing system
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
Four (4) automatic bilge pumps 24v DC and emergency bilge suction on the engine.
Fire system and bilge high-water alarm system with a warning panel
Fresh cold water faucet
AGM (Absorbed Glass Matt) batteries in FRP boxes: two (2) engine banks with two (2) 8D batteries for each bank, one (1) house bank with twelve (12) 8D batteries, two (2) generator banks with one (1) battery each
Two (2) Blue Sea automatic battery switches
One (1) 24v and one (1) 12v battery charger
Two (2) 20-gallon water heaters with heat exchanger off one main engine with hot water recirculating pump
Additional 18,000 BTU air handler
Four (4) 24v DC blowers
DRSA Pacific Utility LED lights
110v AC GFI outlets with waterproof covers
316 stainless steel safety rails around engines
Workbench space
Two watertight bulkheads
Watertight aluminum engine room doors with sight windows
PLUMBING AND TANKAGE
One (1) holding tank with a capacity of 300 US gallons with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy.
One (1) stainless steel water tank with a max capacity of 700 US gallons
Three (3) aluminum fuel tanks with a total capacity of 3,500 US gallons
Lexan sight gauges on all tanks
Inspection and cleaning ports on all tanks
Fuel fills built into house sides in FRP cabinet
1,800 GPD FCI Max Q water maker with a UV system
3M Aqua-Pure whole boat water filtration system
Reverse Osmosis system plumbed to separate faucet in the galley sink.
Custom shore power setup:
ASEA power converter 36kVA 3-phase or 1-phase input; 1-phase output. Single, 3 Phase cord can accept power from almost any source, including INPUT: Single or 3 Phase 170-520VAC, 40-70HZ. OUTPUT: 36KVA, Single Phase, 50Hz or 60Hz, 150A at 240VAC.
This yacht has adaptors to accept a single 50AMP cord, 2-50AMP Cords, 1-100VAC Single Phase, 1-3Phase 240VAC, and 1-3Phase 480VAC, providing her worldwide power options.
This is typically seen only on much larger yachts.

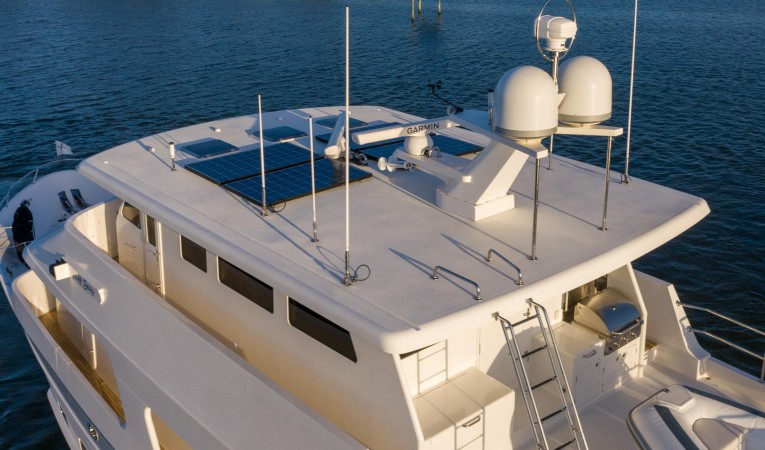

UPPER DECK

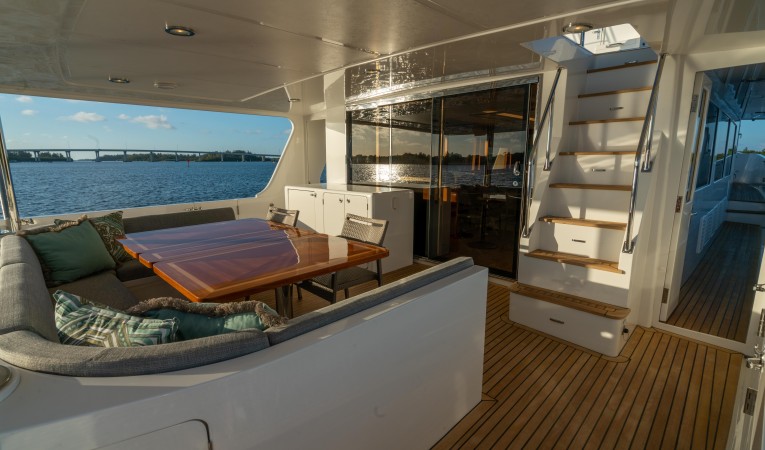

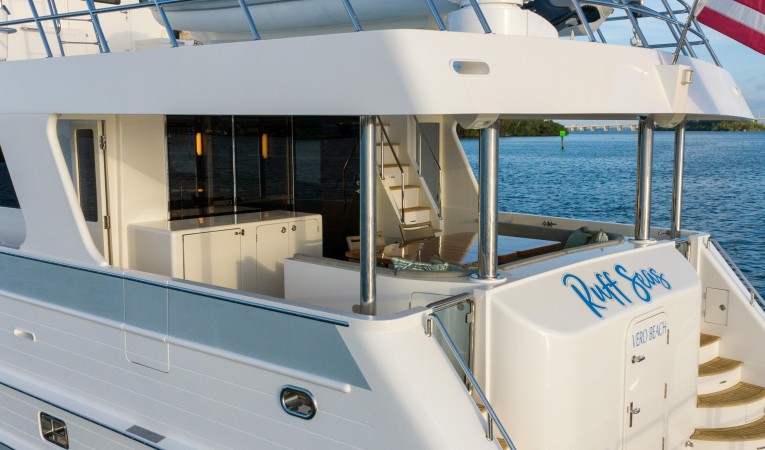

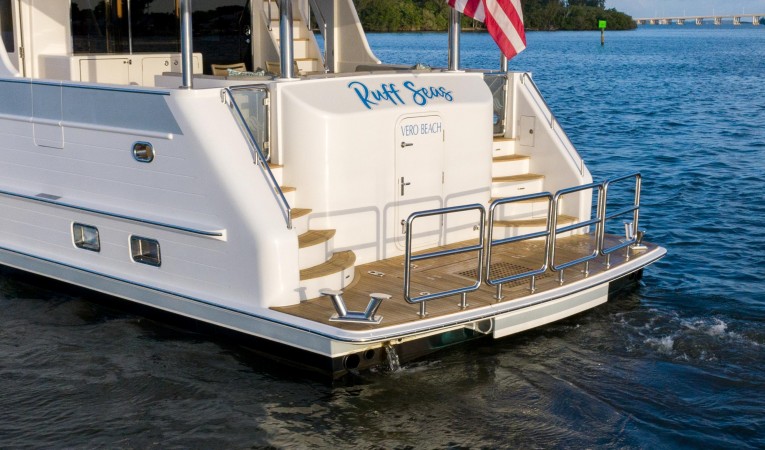

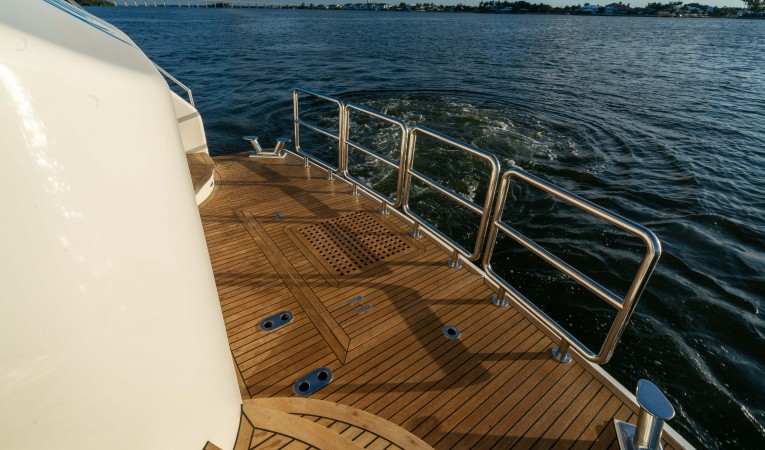

AFT DECK AREA
SIDE DECKS
LOWER PORTUGUESE BRIDGE

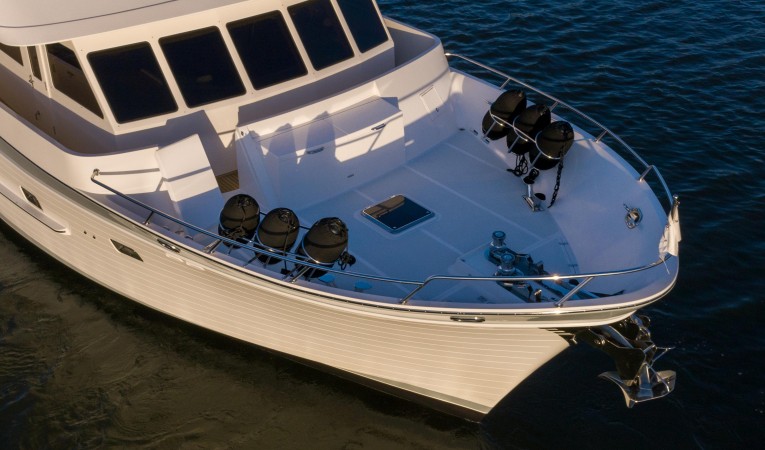

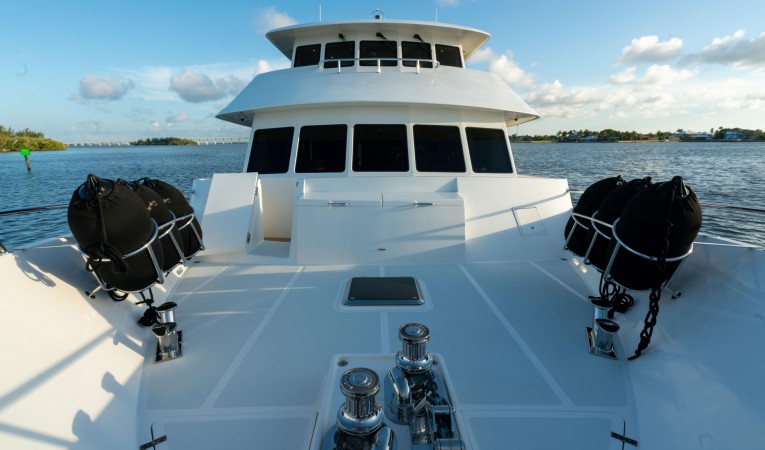

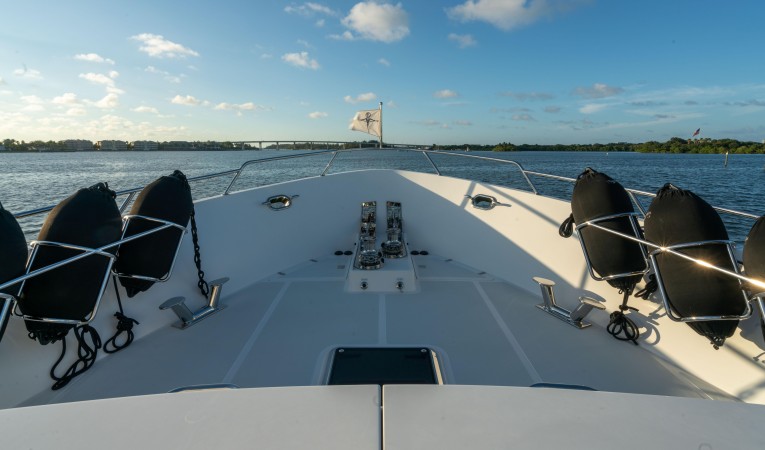

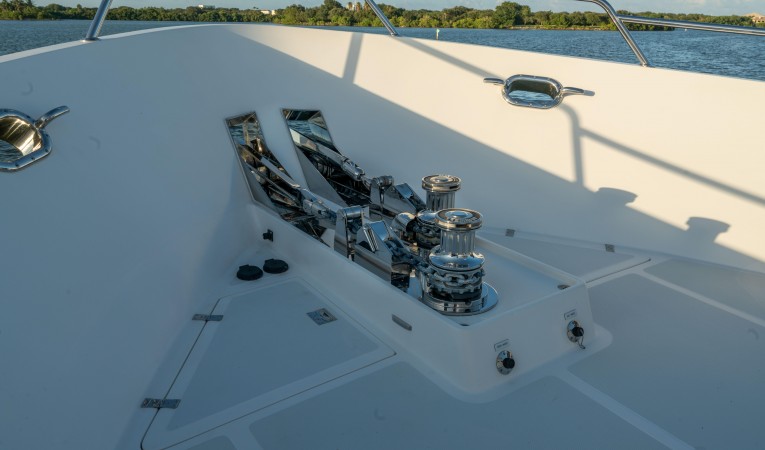

FOREDECK

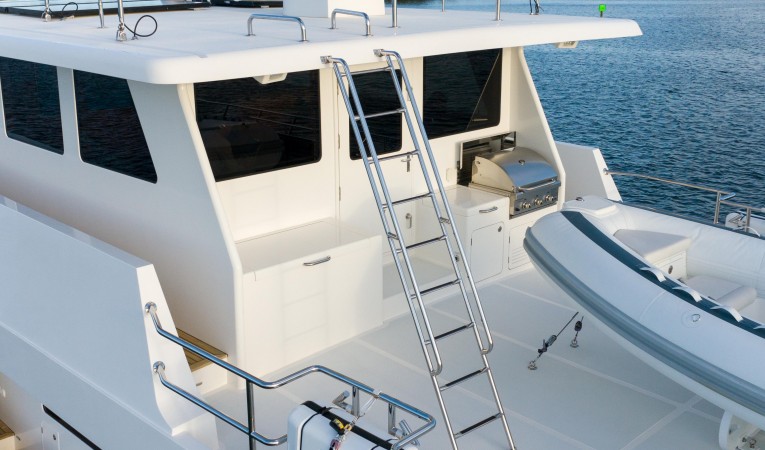

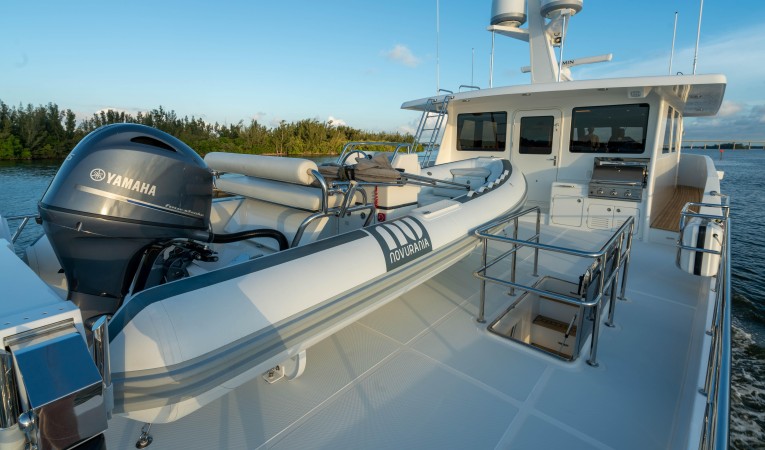

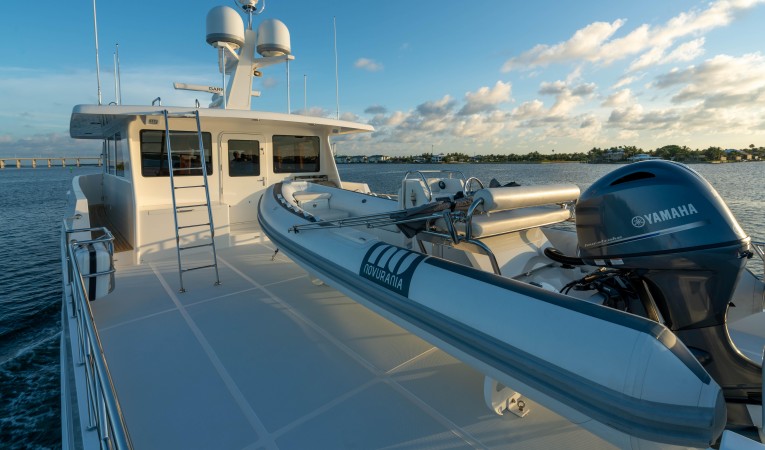

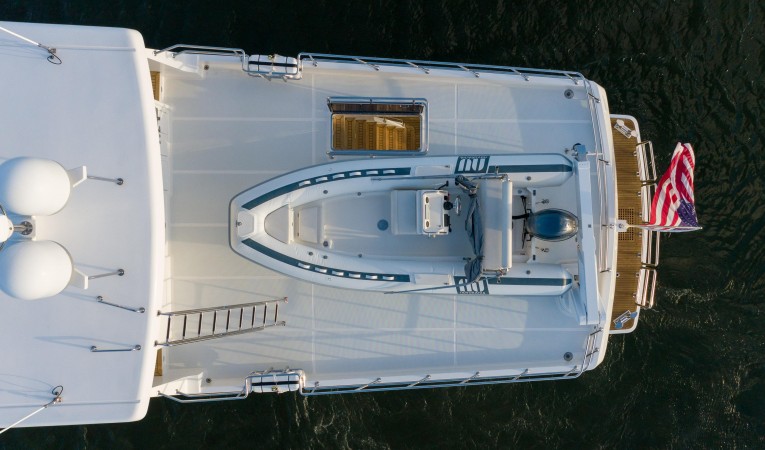

BOAT DECK
INTERIOR

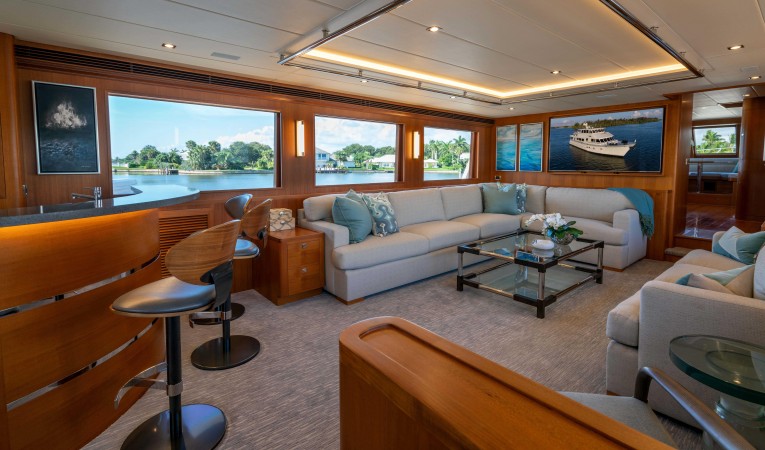

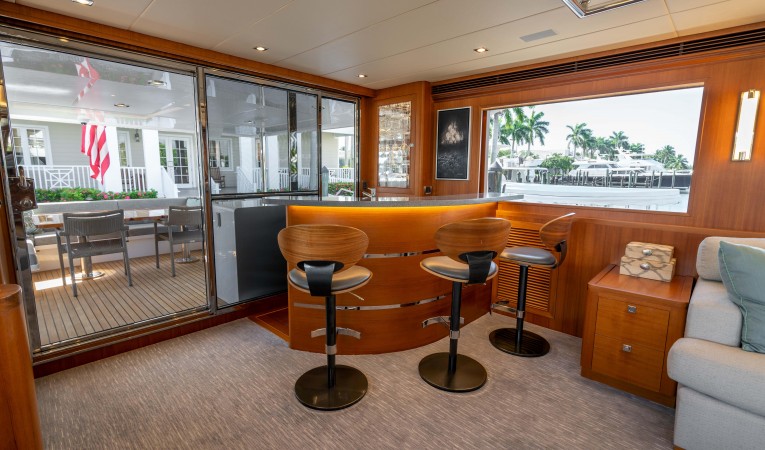

SALON

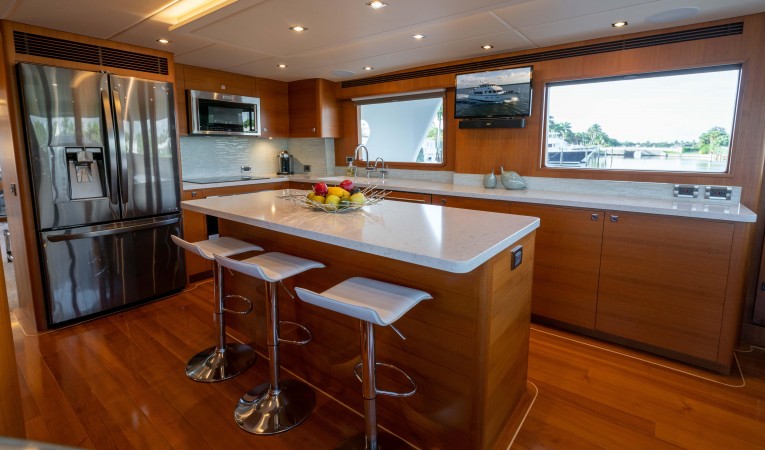

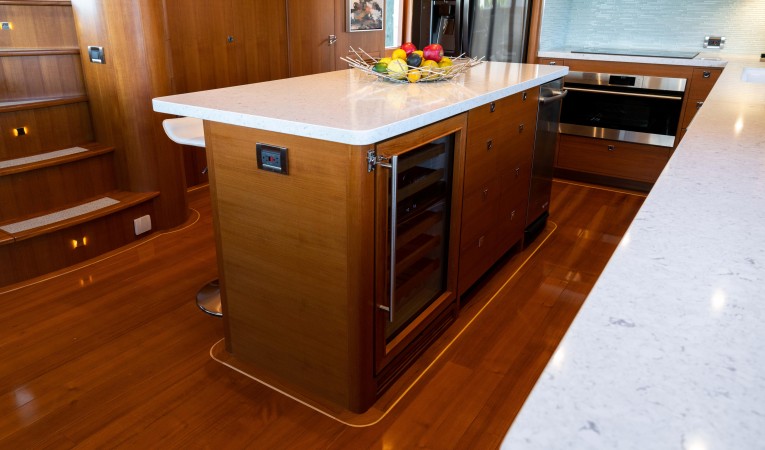

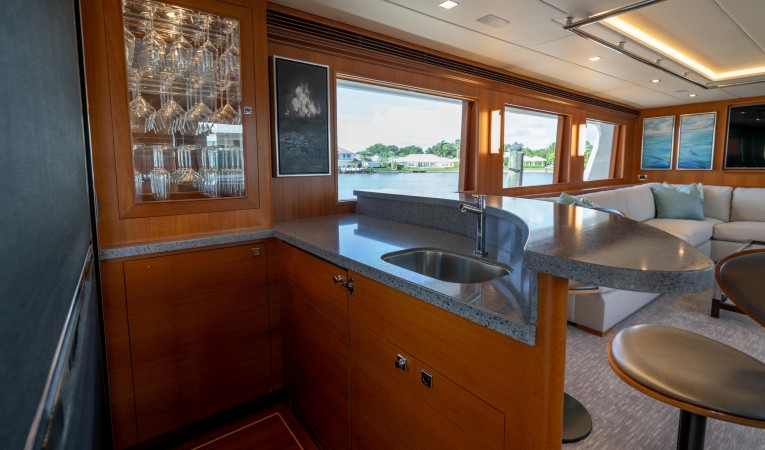

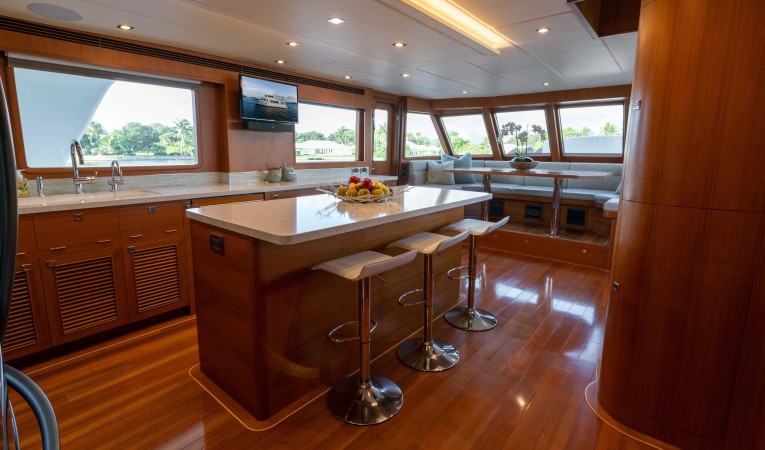

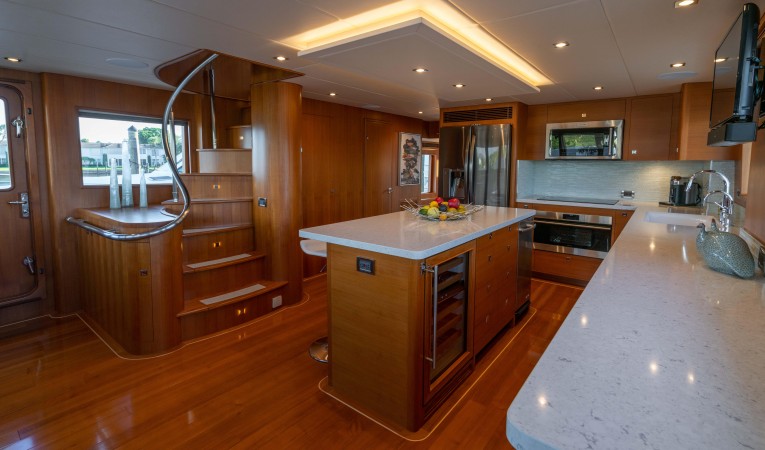

GALLEY
MAIN DECK DAY HEAD

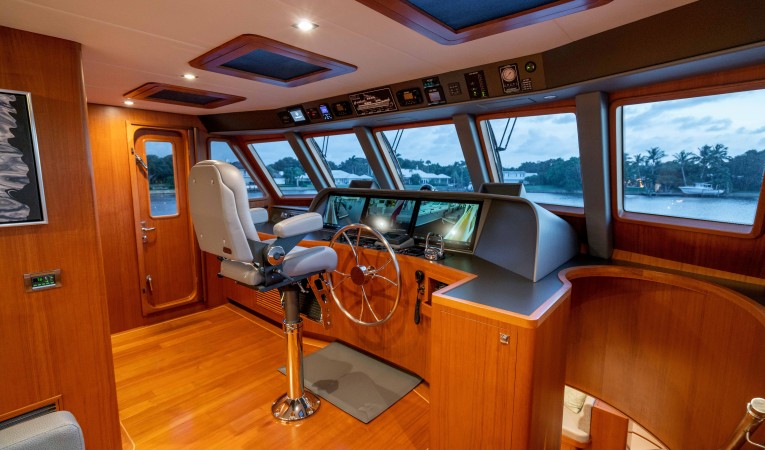

DELUXE BRIDGE SKY LOUNGE
SKYLOUNGE DAY HEAD

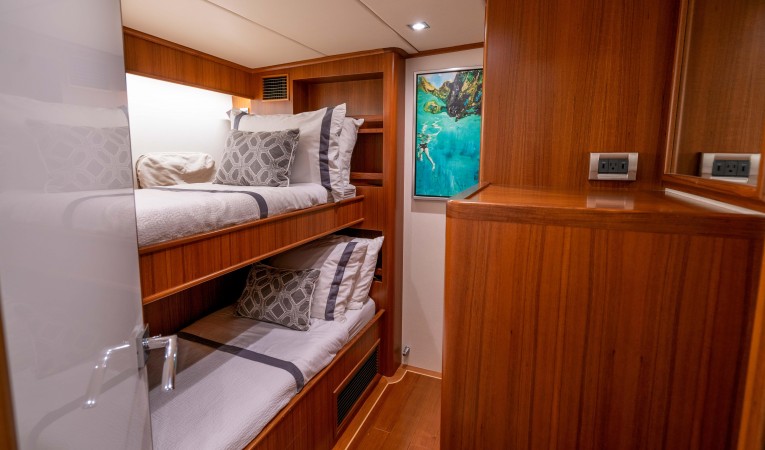

SEPARATE CREW CABINS (AFT)
CREW HEAD
CREW DAY HEAD

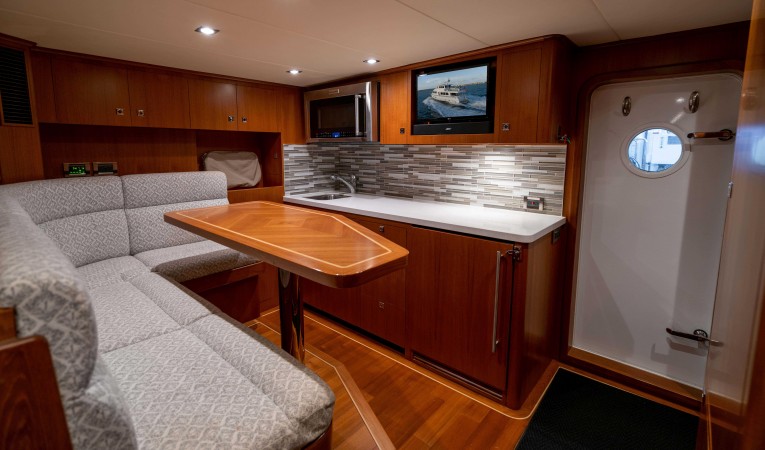

CREW GALLEY / LOUNGE

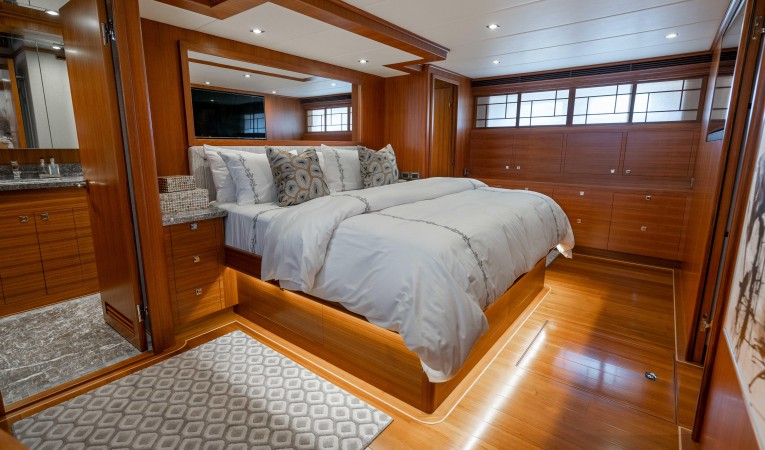

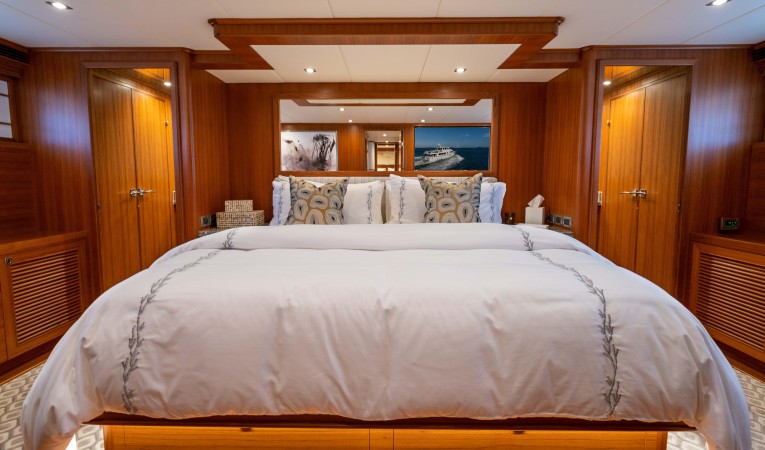

MASTER STATEROOM (FULL BEAM MIDSHIP)

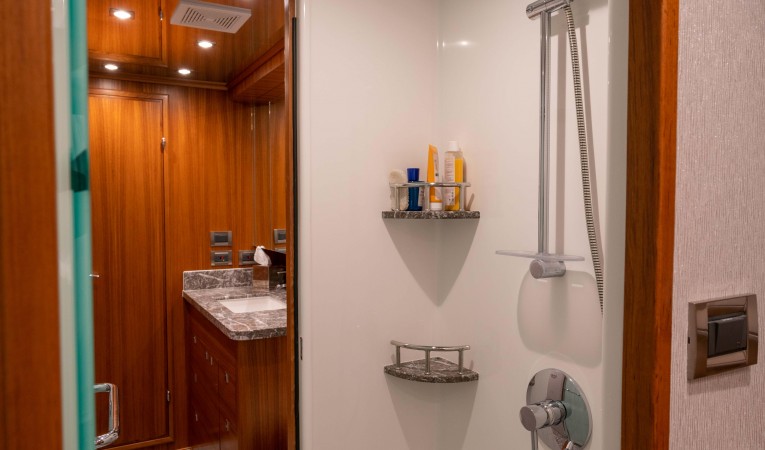

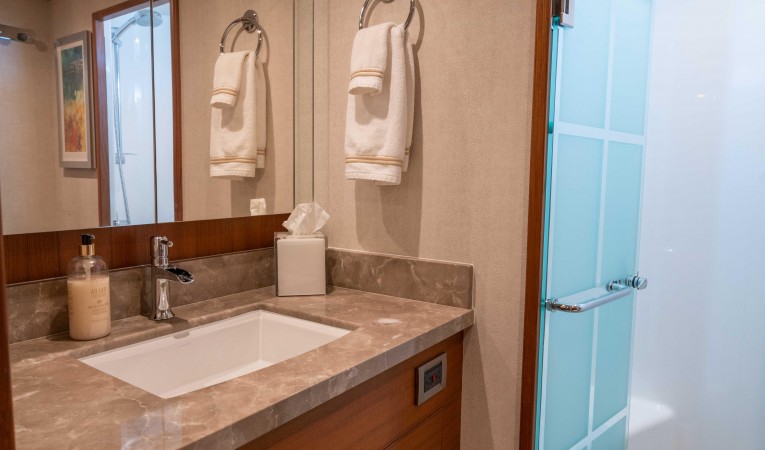

HIS AND HER MASTER BATH (ENSUITE)
VIP STATEROOM FORWARD
VIP HEAD (ENSUITE)
PORT GUEST STATEROOM
PORT GUEST HEAD (ENSUITE)
STARBOARD GUEST STATEROOM
Denison Yacht Sales offers the details of this yacht in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of this boat for sale. A yacht buyer should instruct his yacht broker, or his boat surveyors, to investigate such details as the buyer desires validated. This yacht for sale is offered subject to prior sale, price change, or withdrawal without notice.
