105' Broward 1993 STELLA MARIS

La Paz, Mexico

Previously Asking $1,350,000

105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
105 Broward
1/186

Off Market

Description

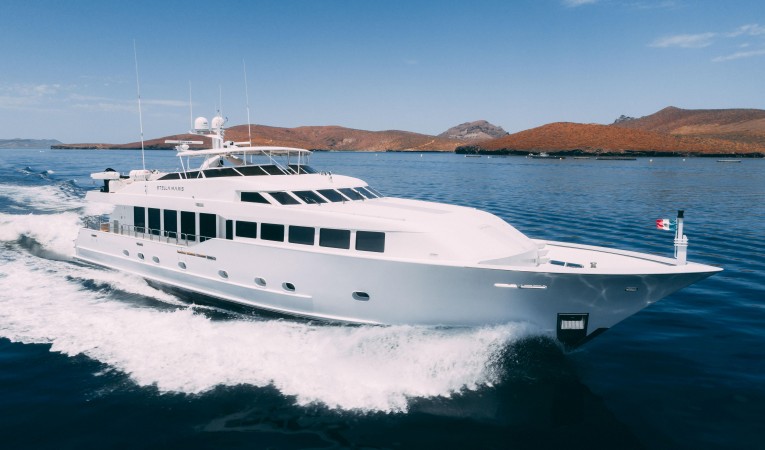

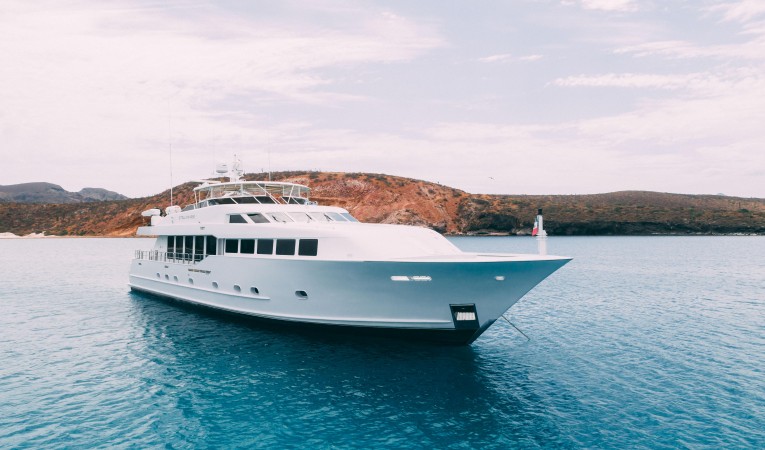

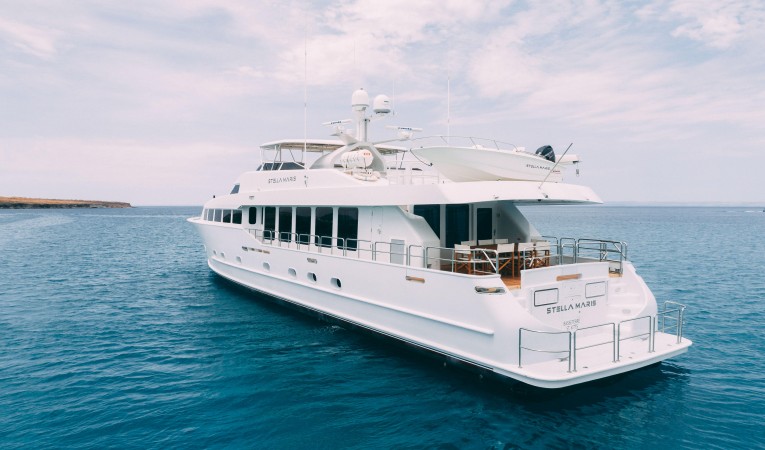

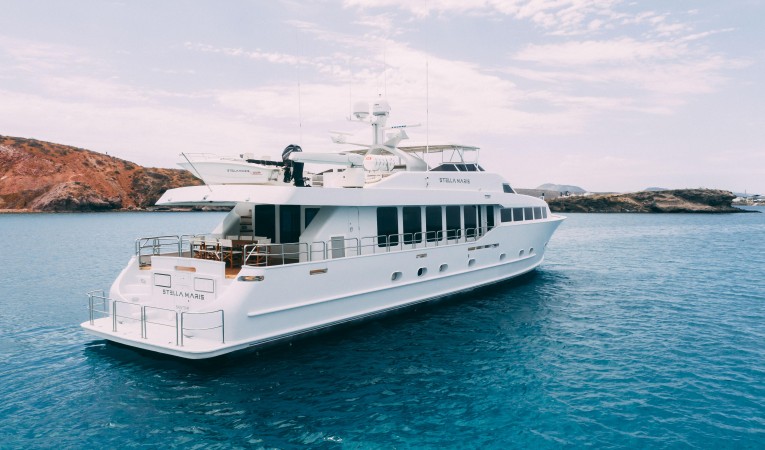

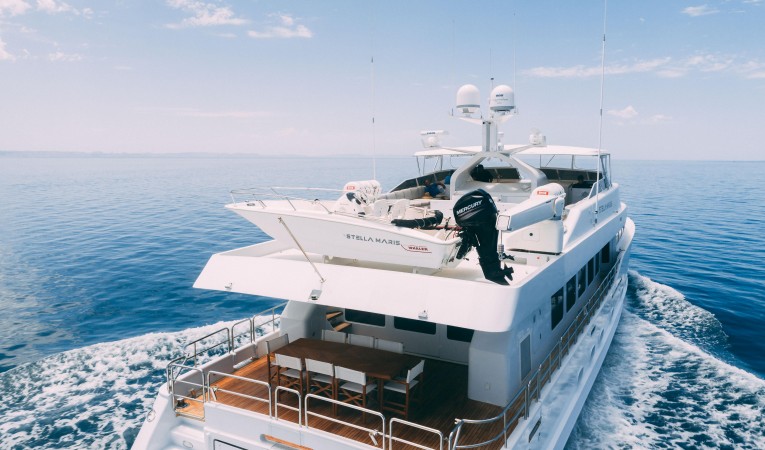

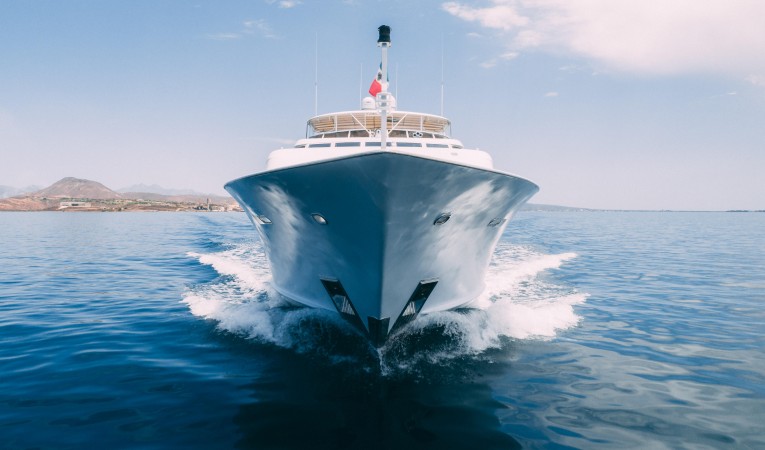

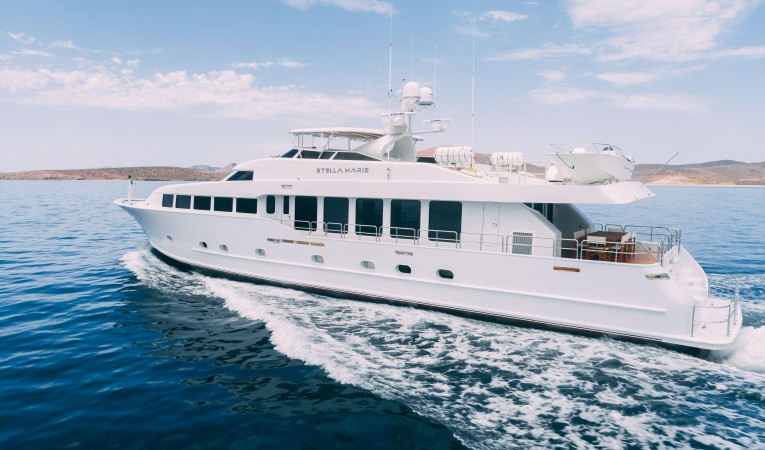

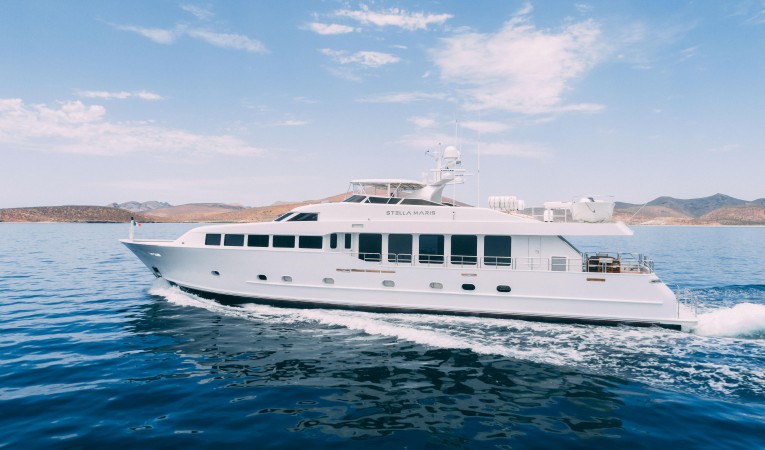

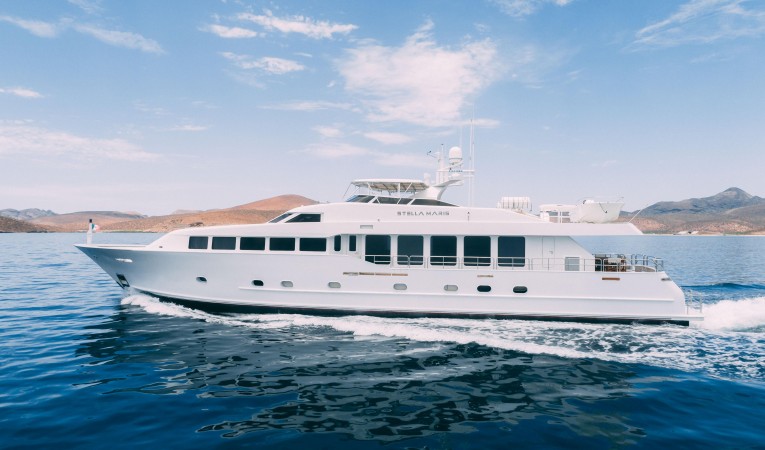

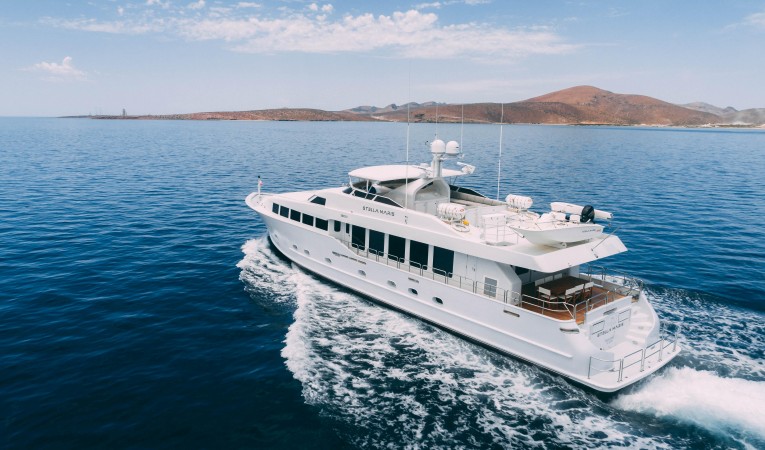

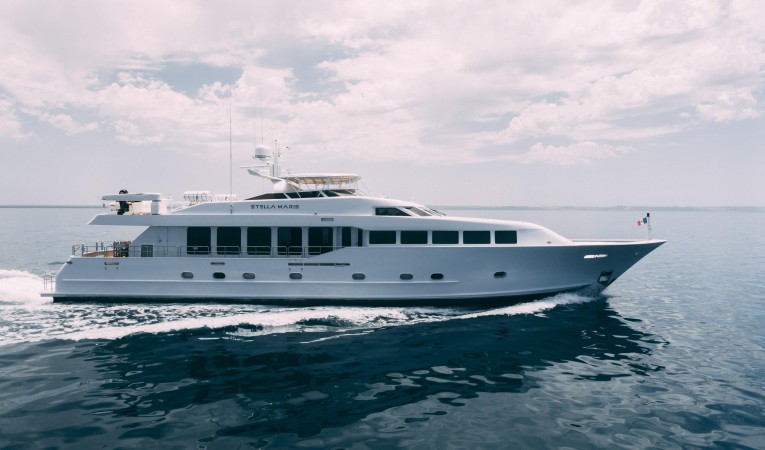

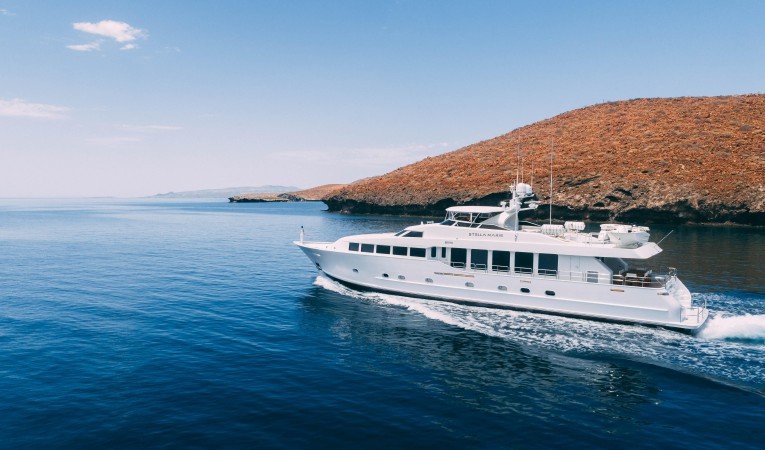

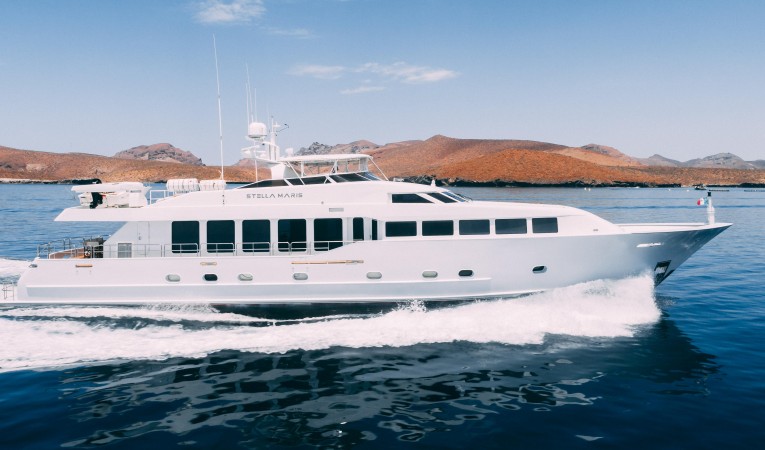

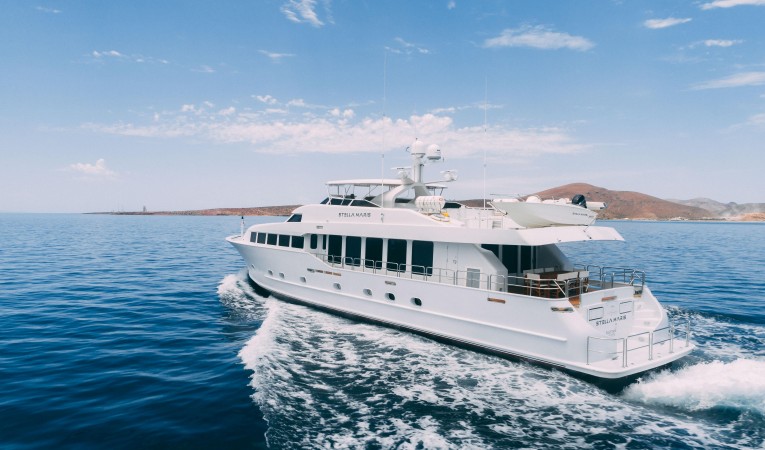

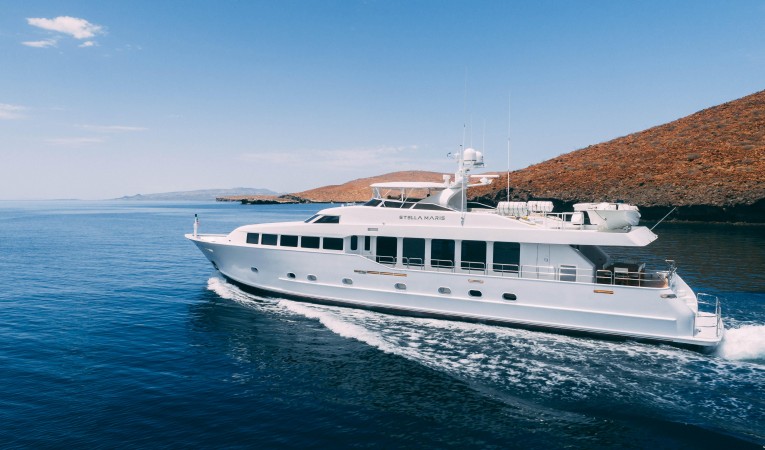

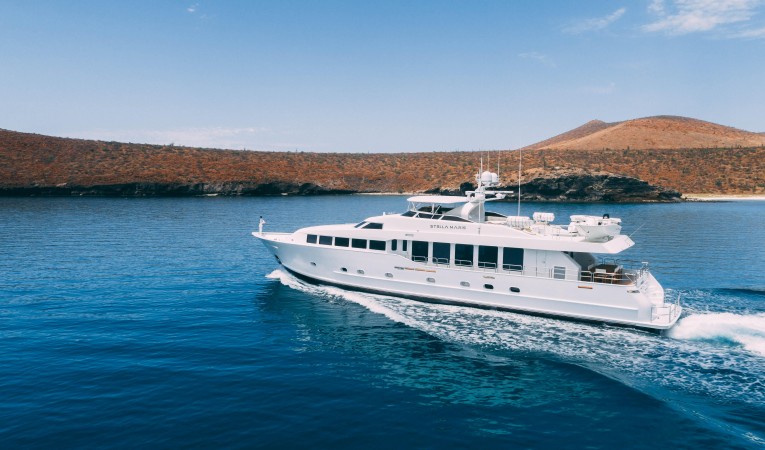

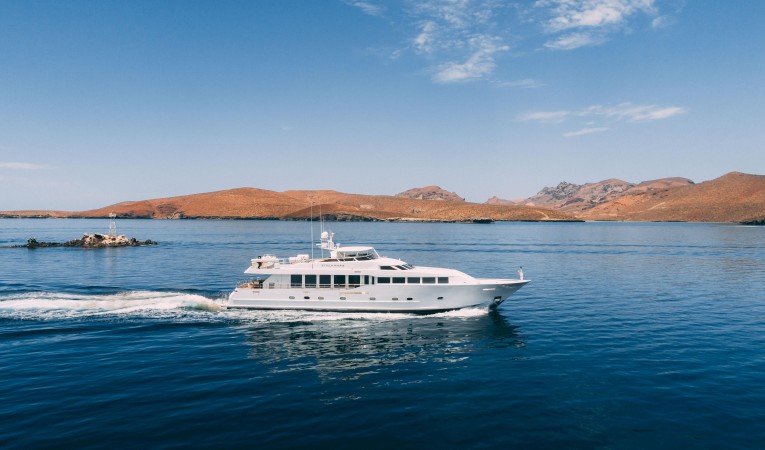

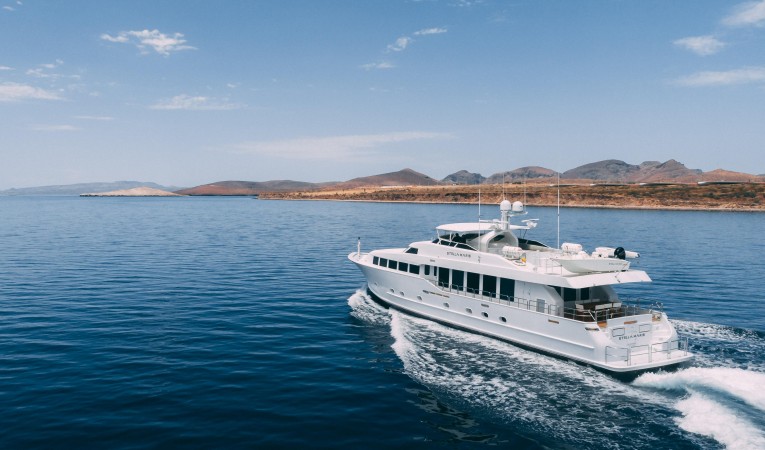

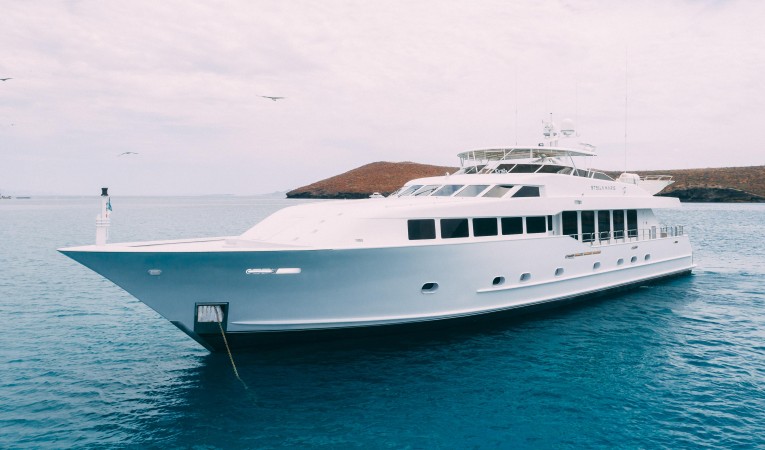

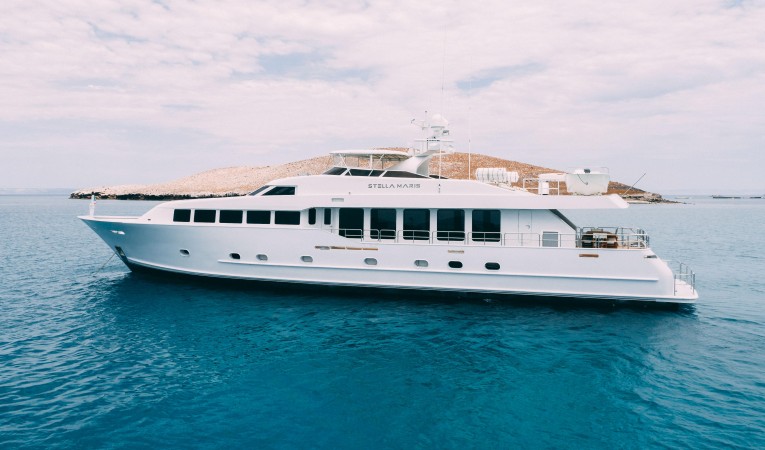

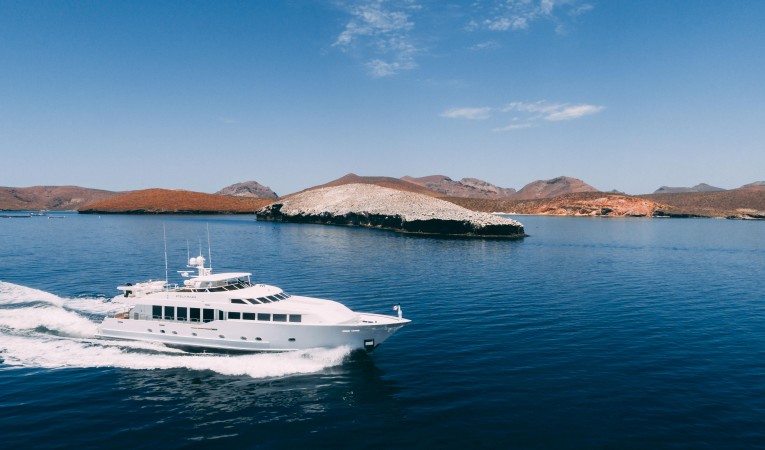

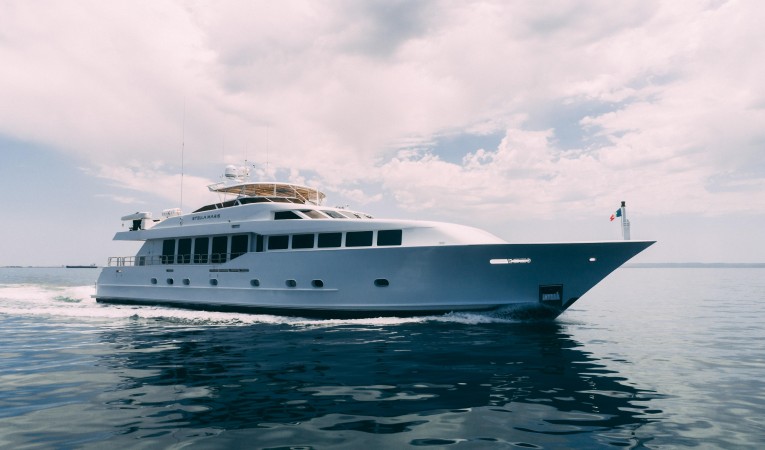

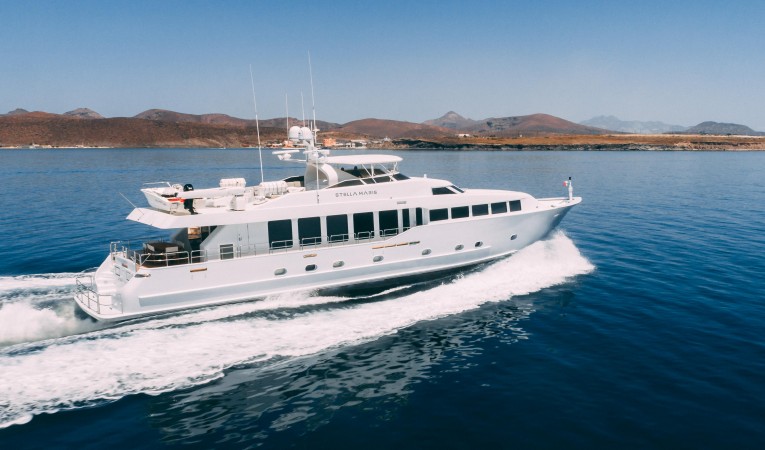

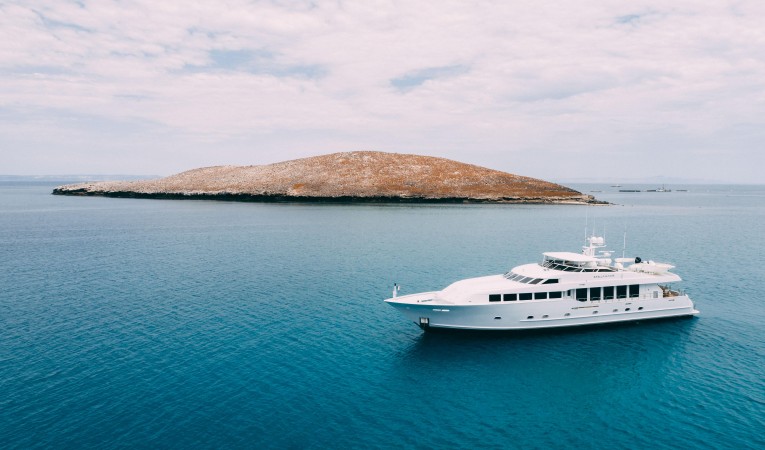

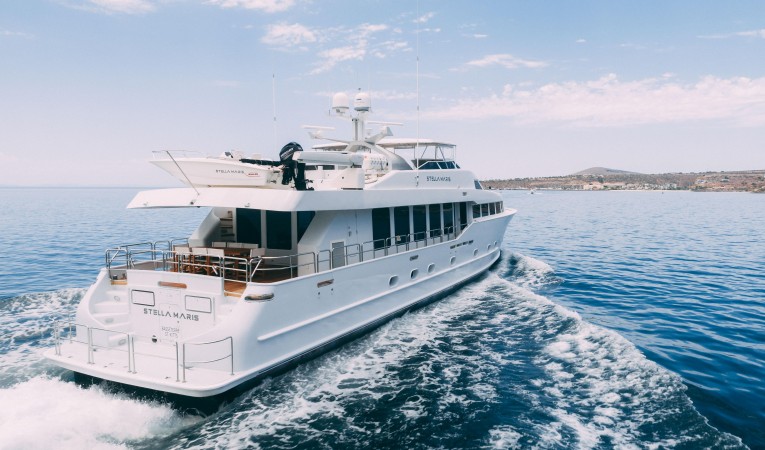

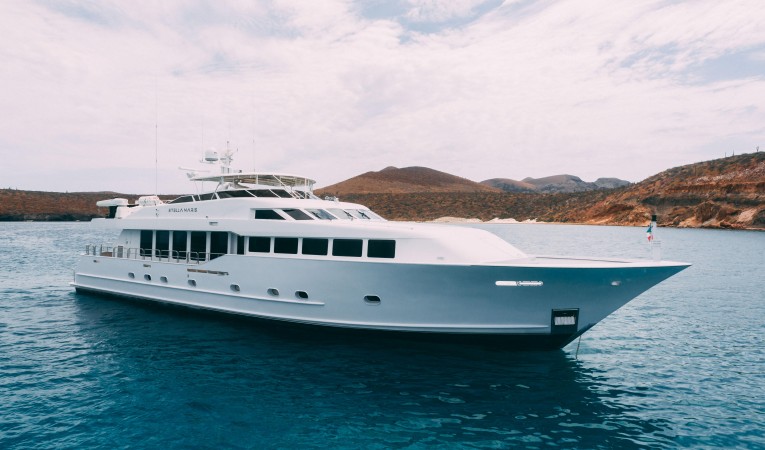

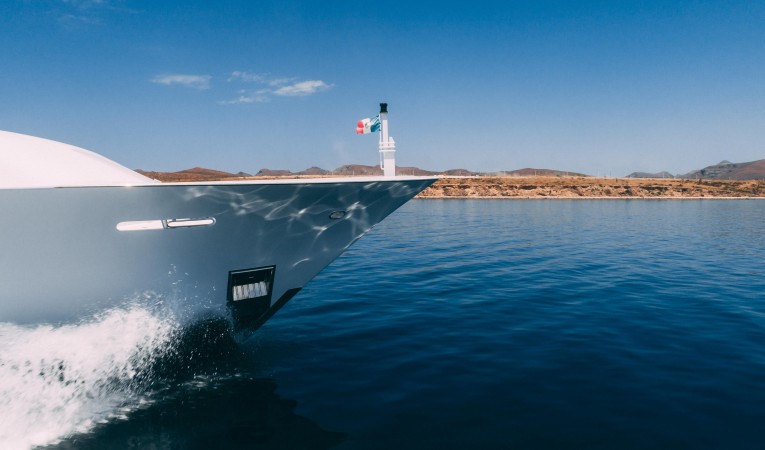

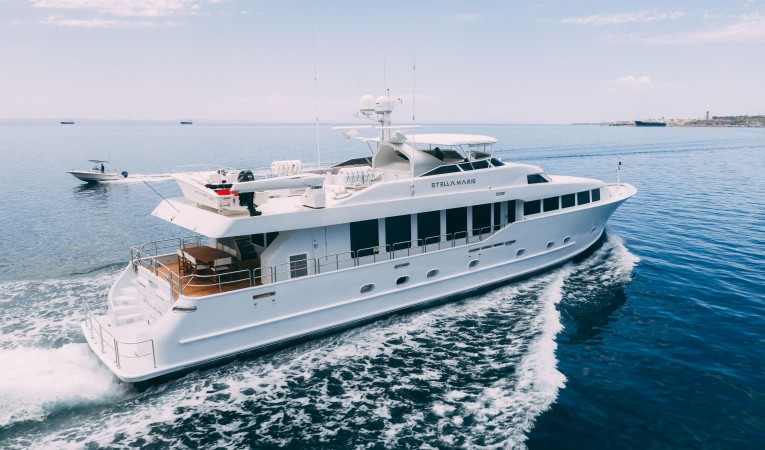

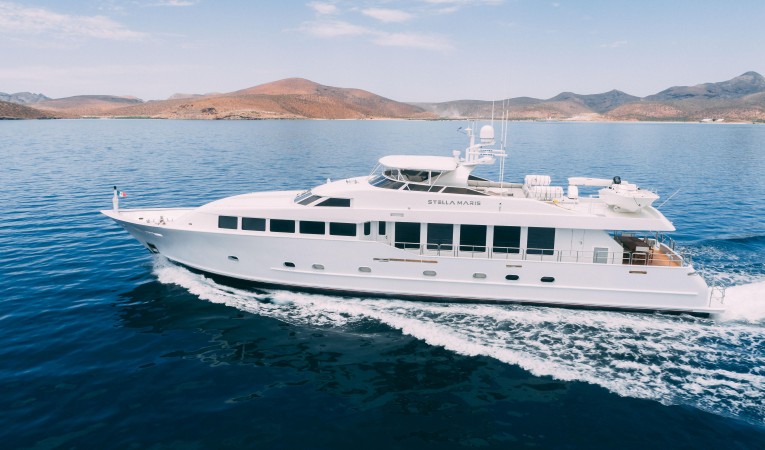

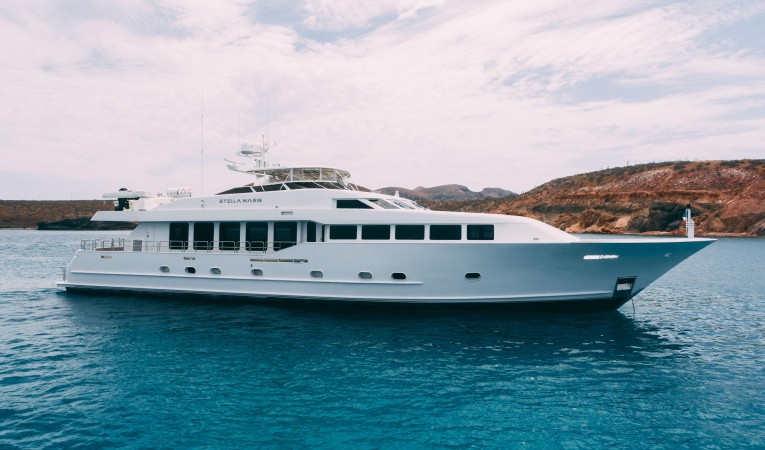

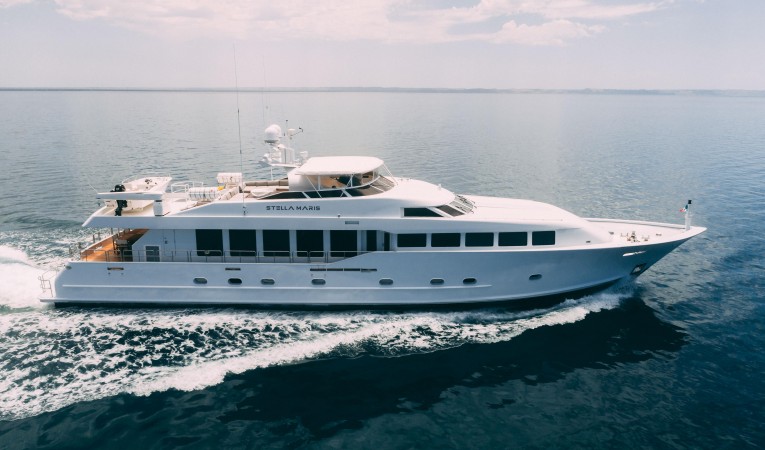

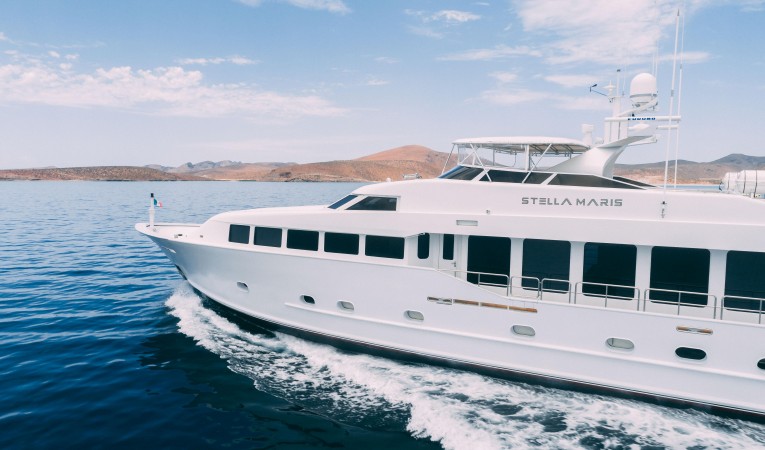

STELLA MARIS represents a 105' x 23' beam Series Broward offering spacious deck spaces, great interior volume along with her five staterooms accommodating ten guests plus crew quarters. The floor-to-ceiling windows offer spectacular views and her custom interior designed with cherry wood, granite throughout along with a formal dining area for ten.

Powered by DDEC 12V92's with Ulstein forward-facing drives give a 17-knot cruising speed and 21-knot max. Equipped with all the large yacht options to include Twin Gens, Twin Watermakers, Stabilizers, Bow Thruster, Tender, etc.

Yacht Overview


  • Yacht Details 105' Broward 1993
  • Location La Paz, Mexico
  • Engines
  • Beam 23'
  • Draft 6' 11''
  • Staterooms 5
Request information

Specifications

  • Cruising Speed: 17 kn
  • Maximum Speed: 21 kn
  • Beam: 23'
  • Hull Material: Aluminum
  • Max Draft: 6' 11''
  • Fuel Tank: 1 x 8000|gallon
  • Fresh Water: 1 x 1000|gallon
  • Cabins: 5
  • Heads: 6

Engine & Amp Mechanical Equipment


  • (3) Marine Air 10-ton A/C chillers (new '15) (2) Watermakers, 1500 GPD
  • Rolls Royce Ulstein fixed-pitch drivers ('06) Naiad Stabilizers
  • Hydra power 16" bow thruster
  • (3) Racor 2020 fuel filters
  • Halon FM200 system
  • Raw water-cooled w/risers exhaust system (3) Bilge blowers
  • (2) Bronze raw water strainers
  • Sea-Fire automatic emergency fire suppression (2) Bilgewater high alarms
  • Rule bilge pumps w/Rule-A-Matic float switches

Electrical Equipment

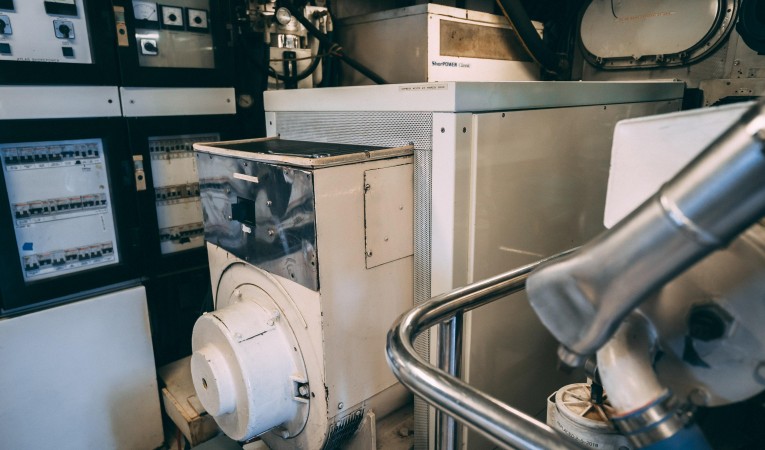

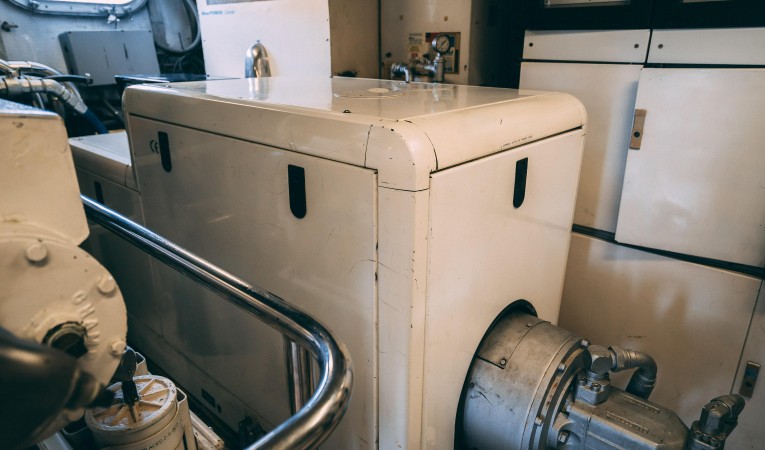

  • John Deere Northern Lights 60KW Generator (overhauled '15 - 22,738 hrs.)
  • Kohler 65 KW Generator (overhauled in '15 - 29,771 hrs.)
  • Atlas shore power converter
  • Xantrex Sine Wave inverter 1000
  • (4) Power Tech A6 acid batteries
  • Charles 5000 P 12v/50-amp battery & 12v charger
  • Charles 5000P 24v/60-amp battery & 24v charger (2) Vanner 60-amp battery equalizers

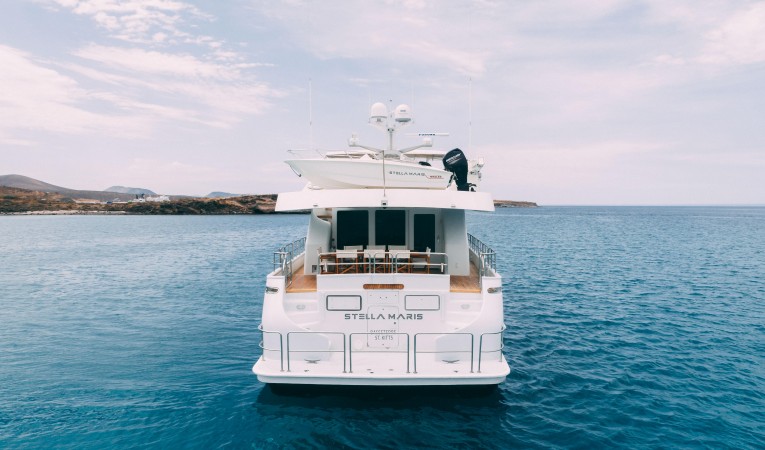

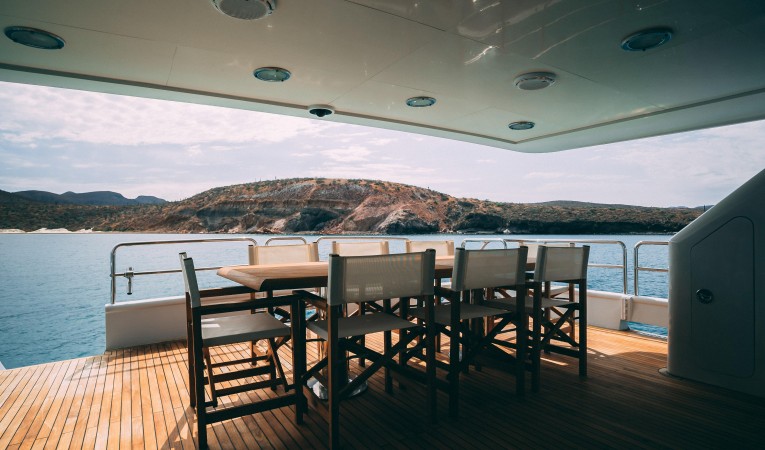

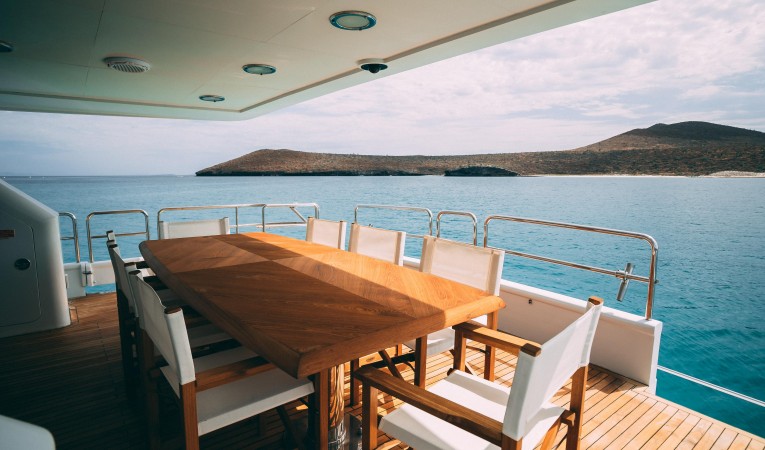

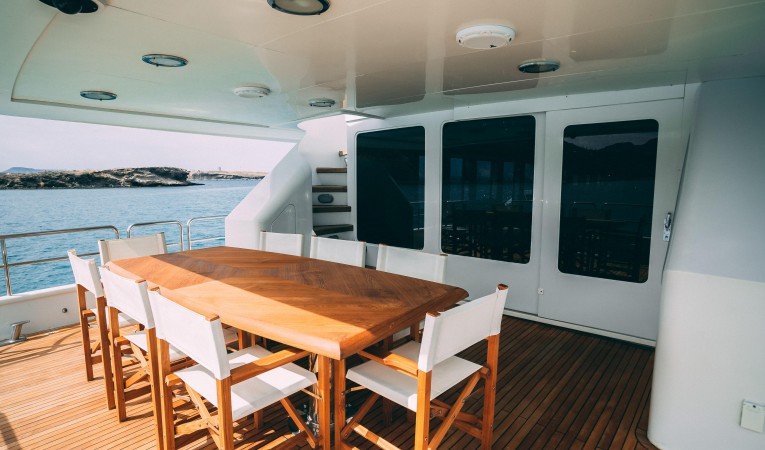

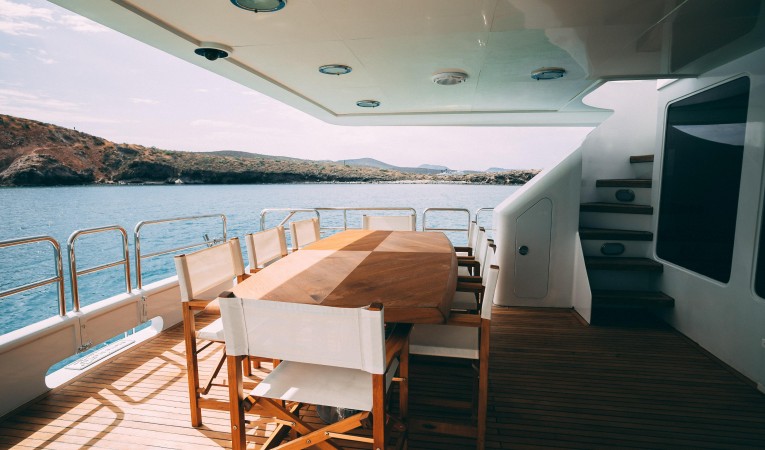

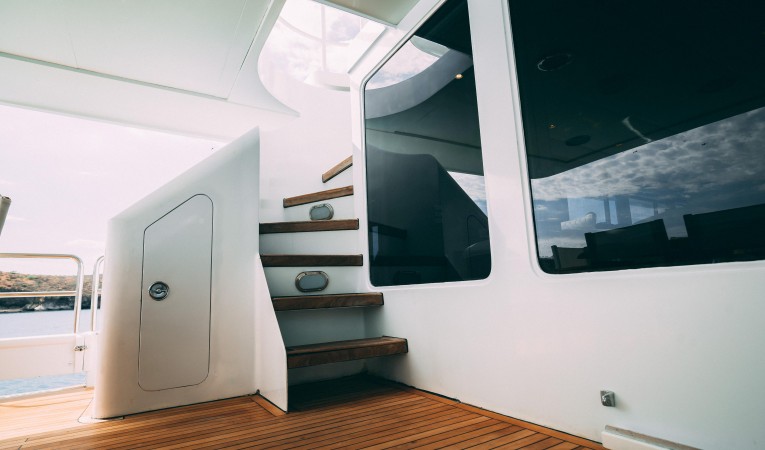

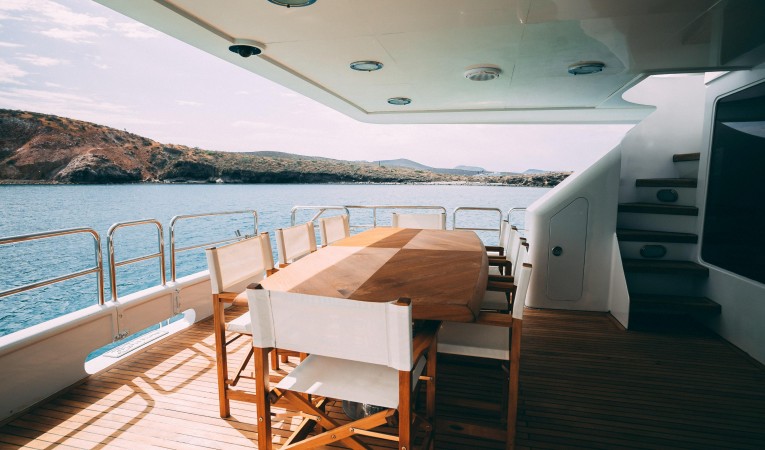

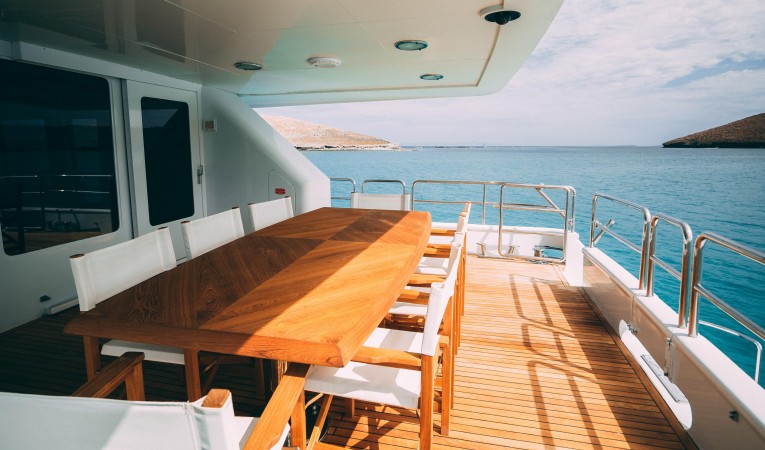

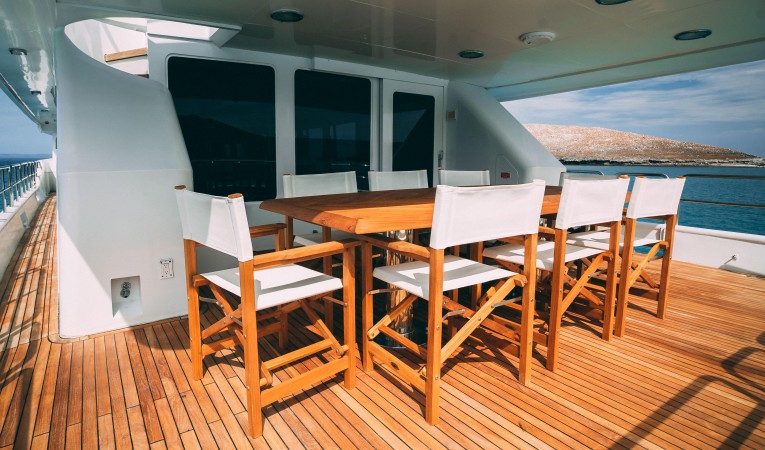

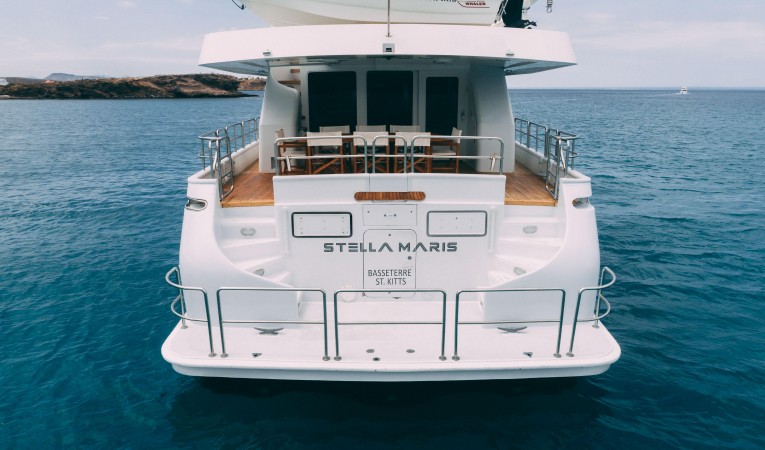

Aft Deck Equipment

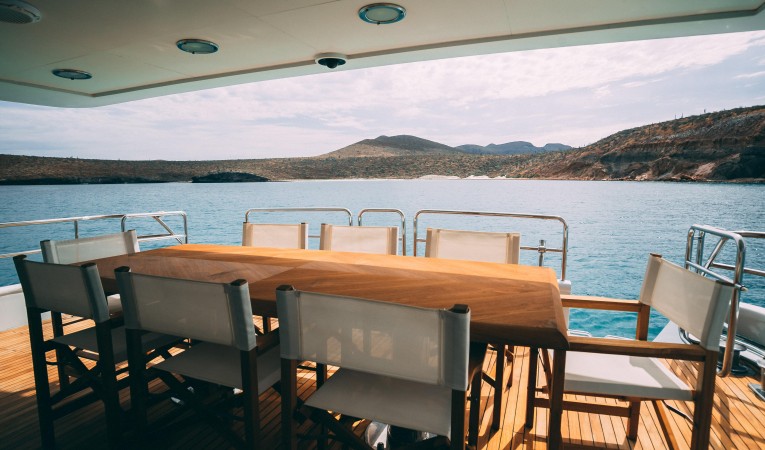

  • Teak dining table w/loose dining chairs & cover (2) Ideal aft warping capstans
  • (2) Boarding gates, port & starboard
  • (2) Bollard cleats
  • (6) Overhead lights
  • (2) JL stereo speakers
  • Centerline boarding gate for passerelle Stainless steel handrails
  • 110v outlet

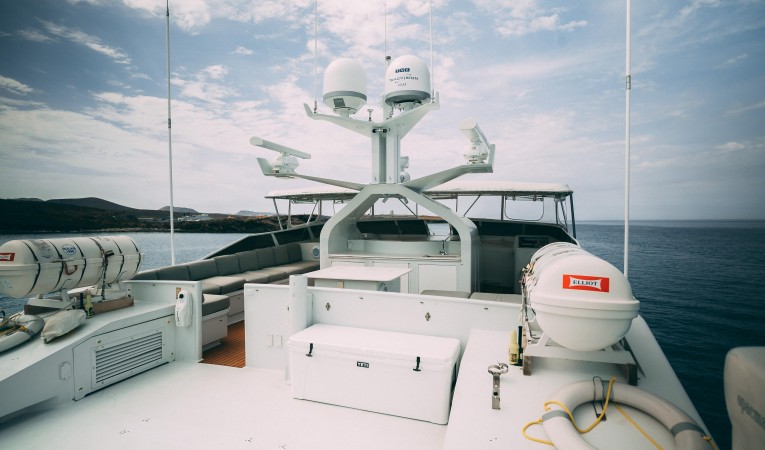

Deck Equipment And Tenders

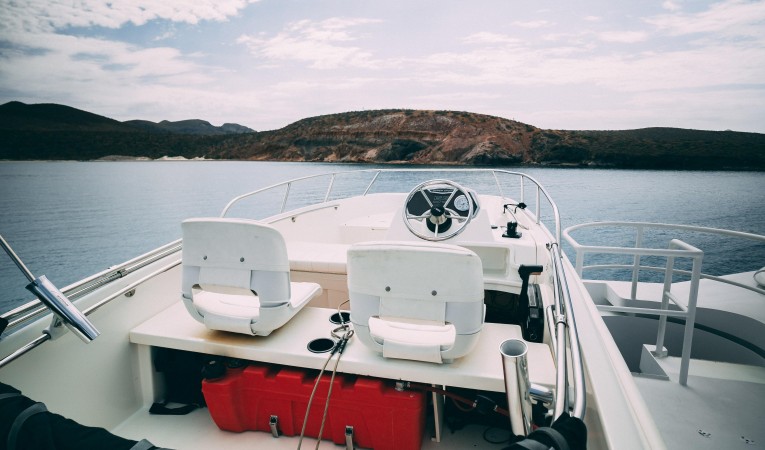

  • 15' Nautica Tender w/Yamaha 90HP O/B
  • Dive Compressor Swim platform w/shower

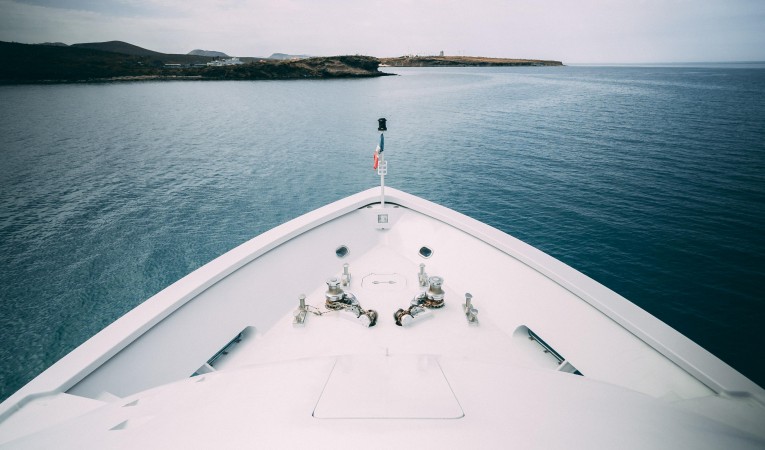

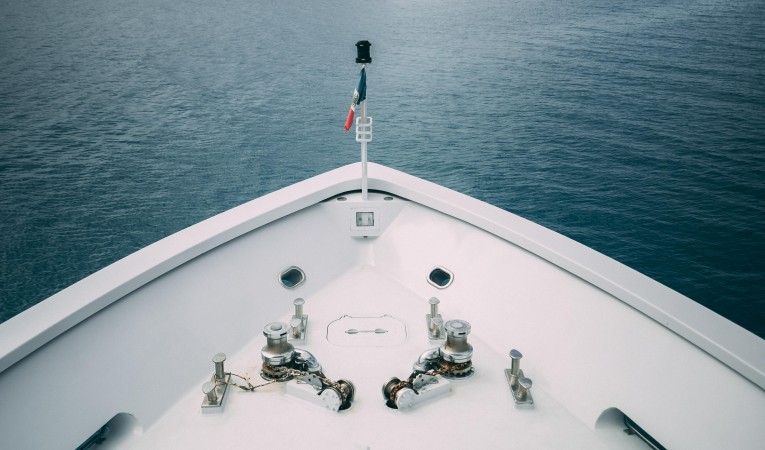

  • (2) Anchors & Fortress FX85 spare anchor BBQ on Sun Deck Mediterranean stern boarding passerelle Maxwell 5000lb anchor windlass system
  • (2) Switlik 8-man life rafts

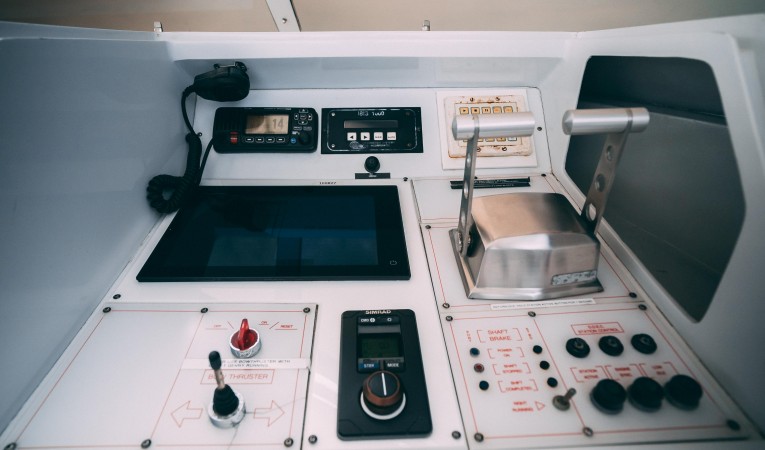

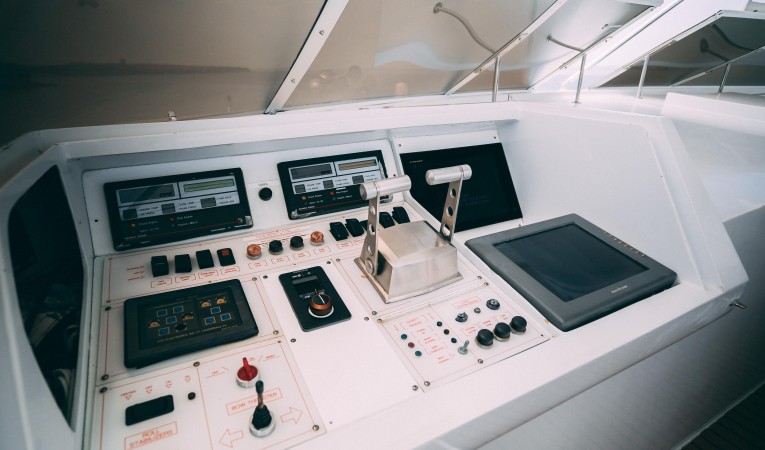

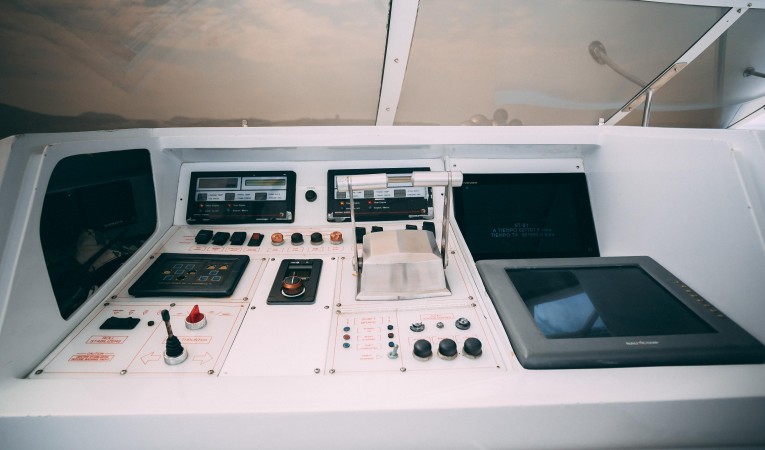

Flybridge Electronics:


  • Furuno Navet 12" TZ multi-function display for Chart plotter/ Radar / Fishfinder
  • Simrad FU80 joystick for AP70 autopilot
  • Ritchie compass
  • (2) Detroit Diesel electronic panels
  • Icom IC-4246 GPS VHF

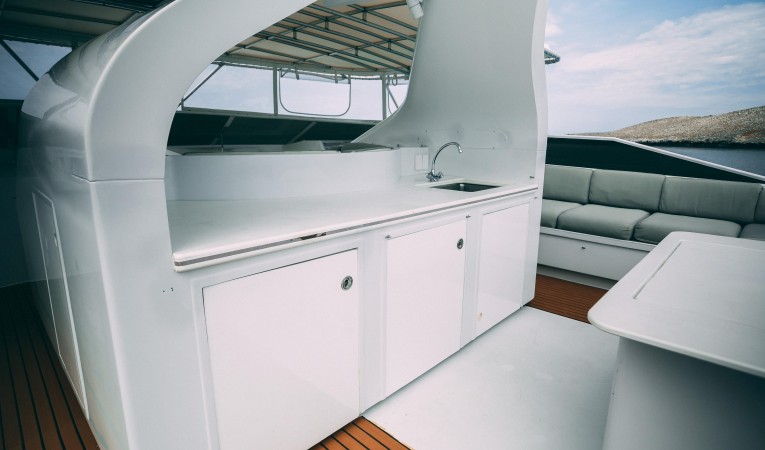

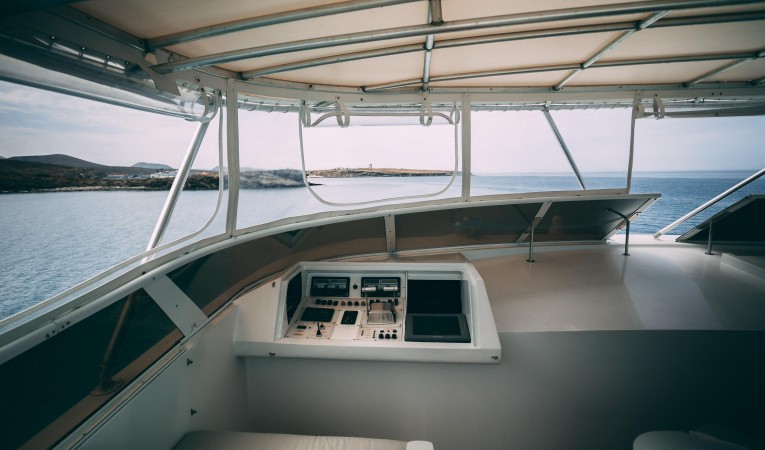

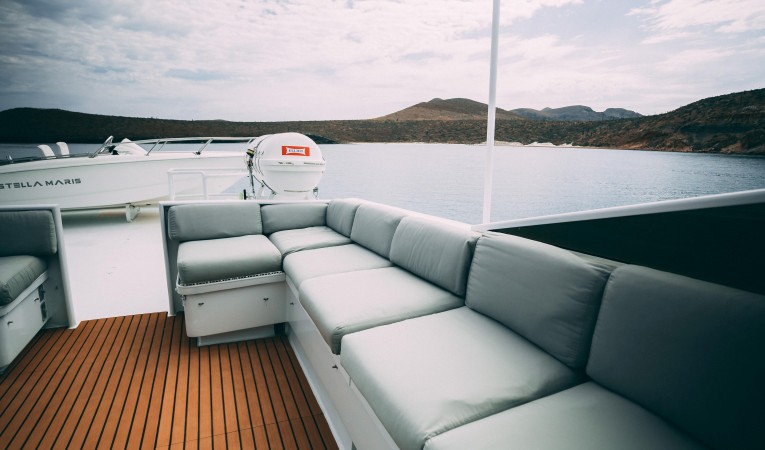

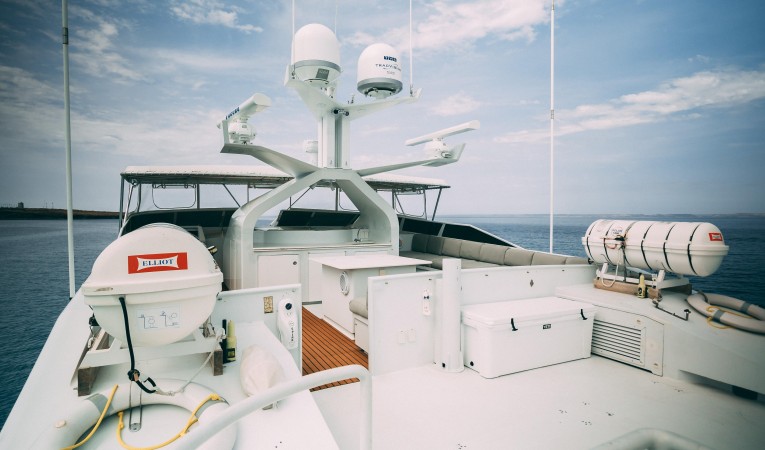

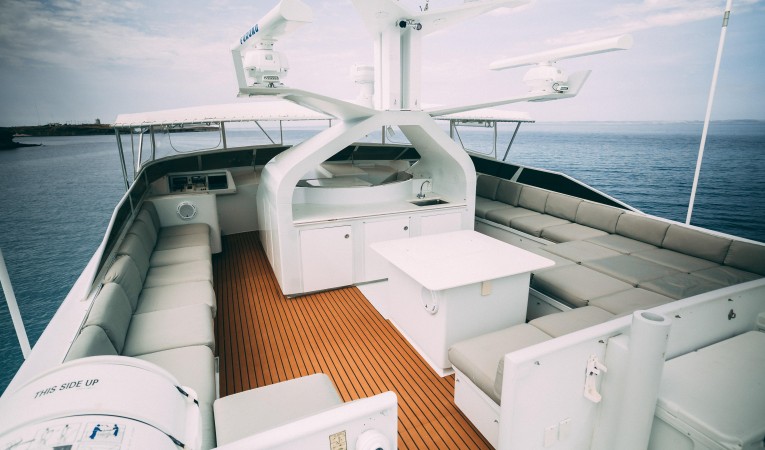

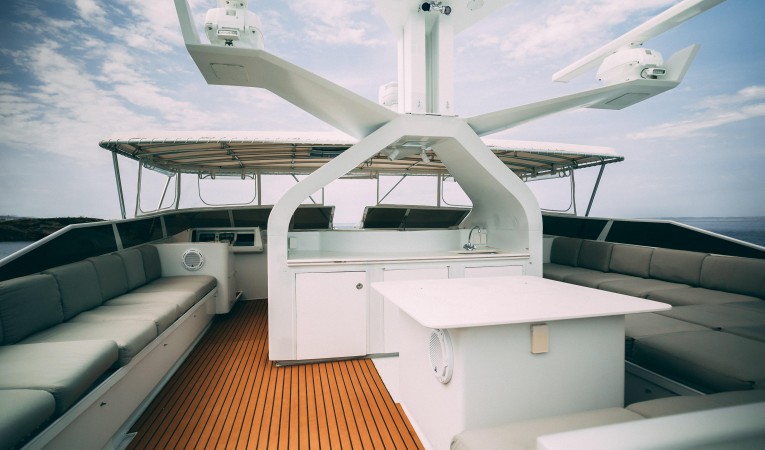

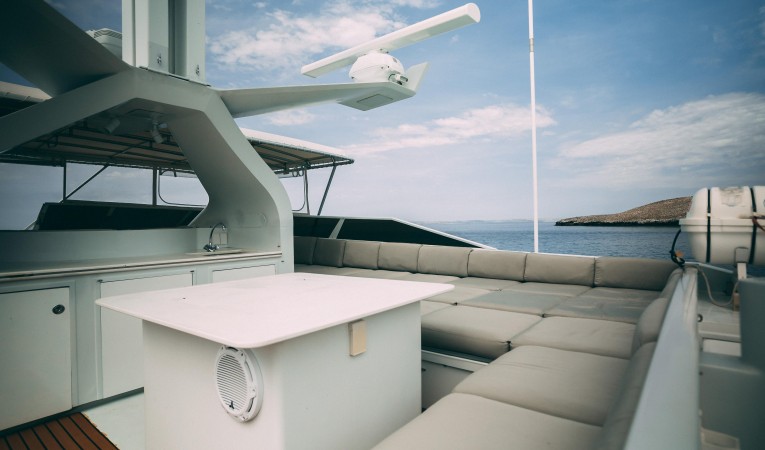

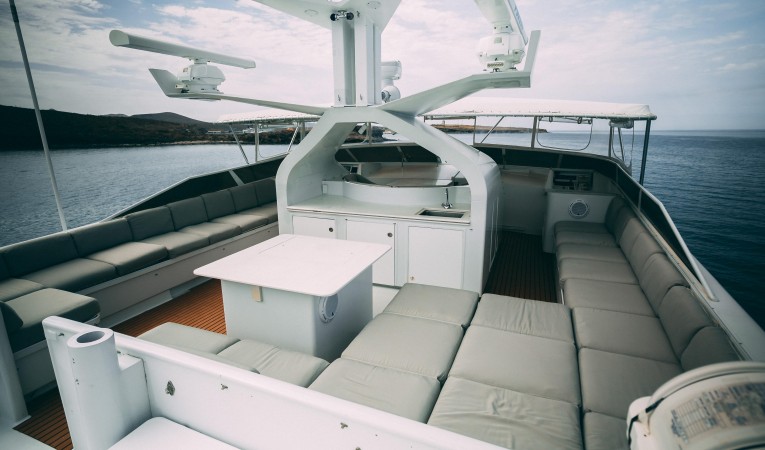

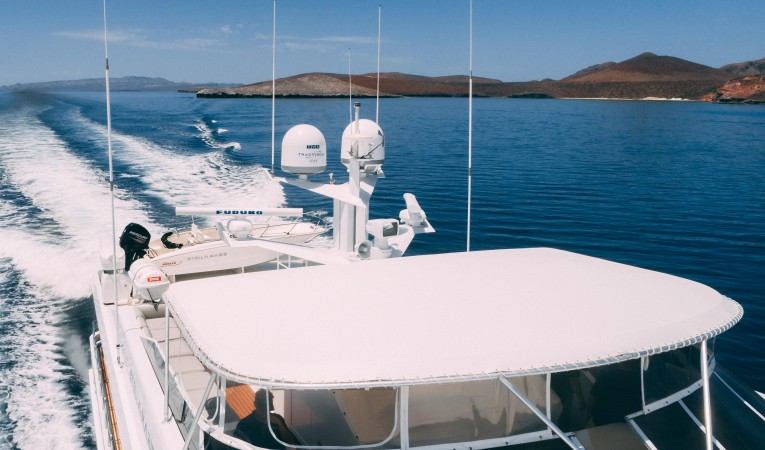

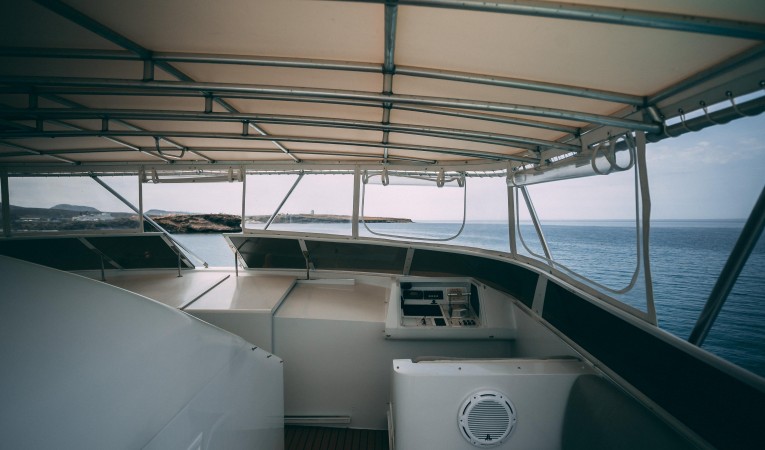

Flybridge Electronics And Amp Equipment

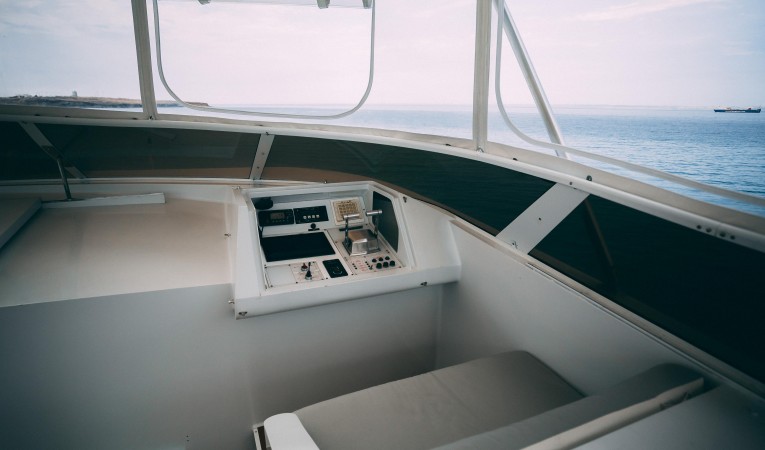

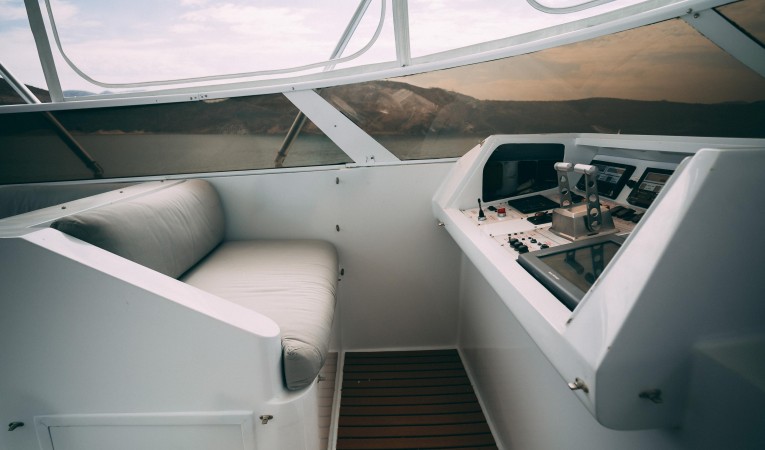

  • Main helm station to port, wing station to starboard

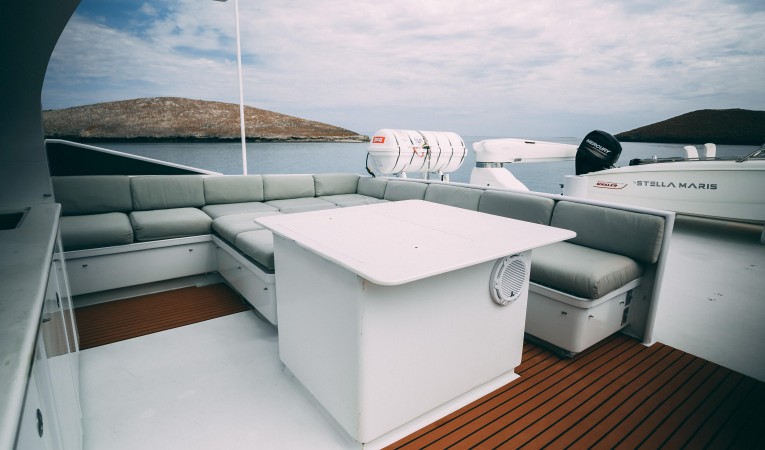

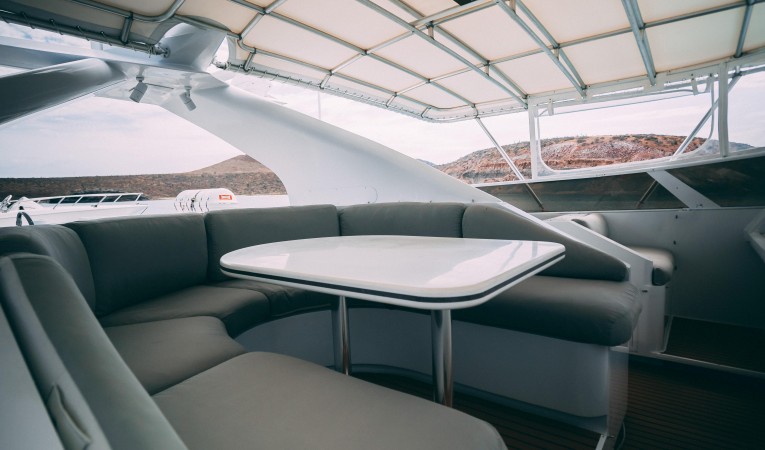

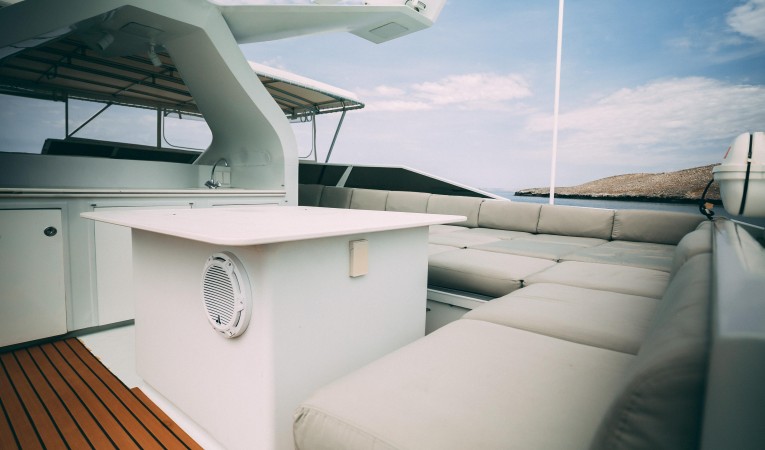

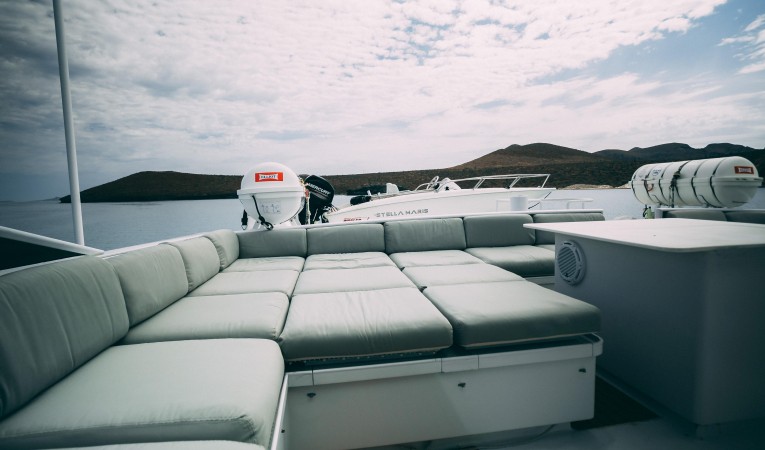

  • L-shaped bench seating, port & starboard with a table. Built-in lounge sun pads, aft

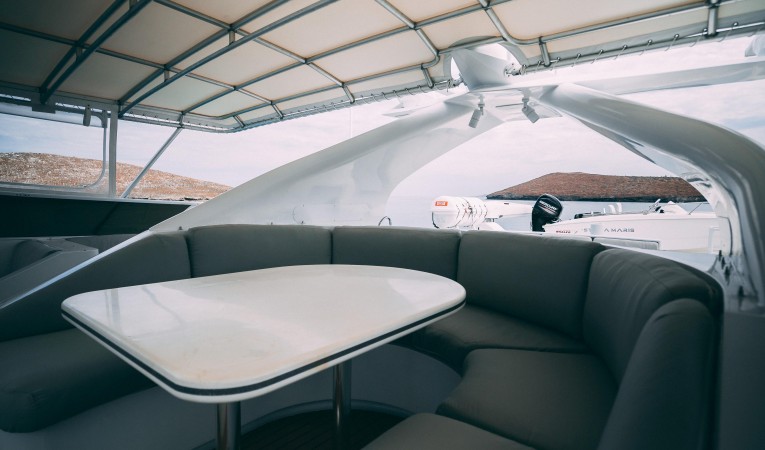

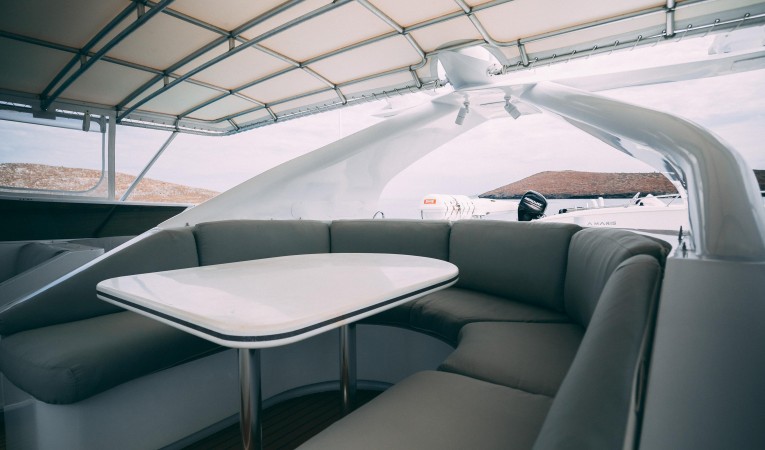

  • Built-in u-shaped seating w/table centerline Fixed aluminum top w/canvas cover

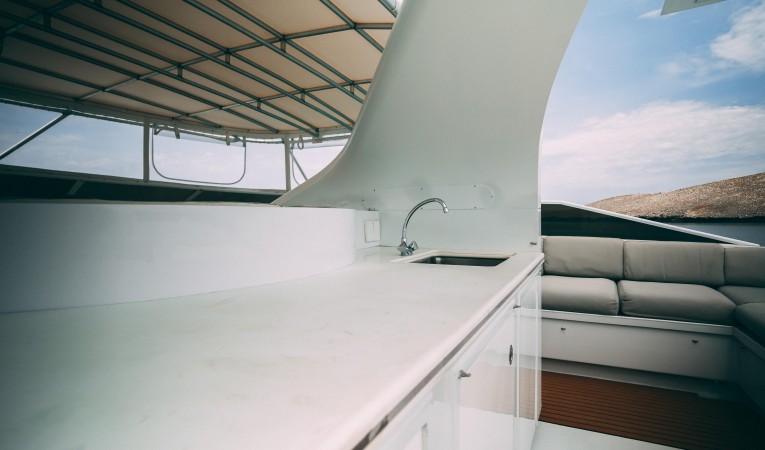

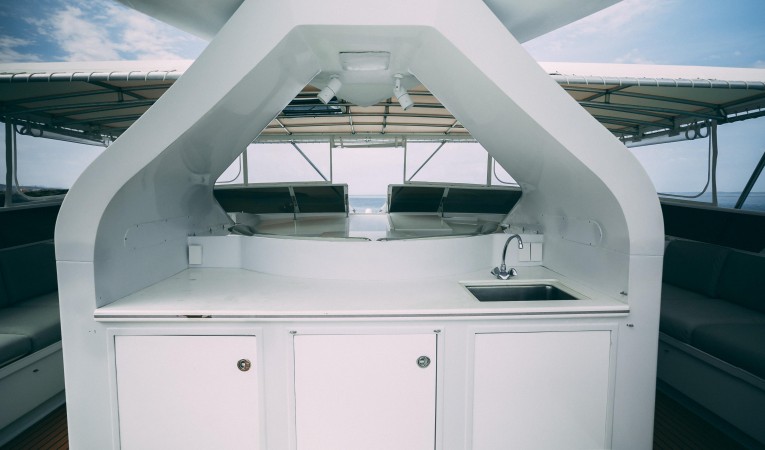

  • Wet bar

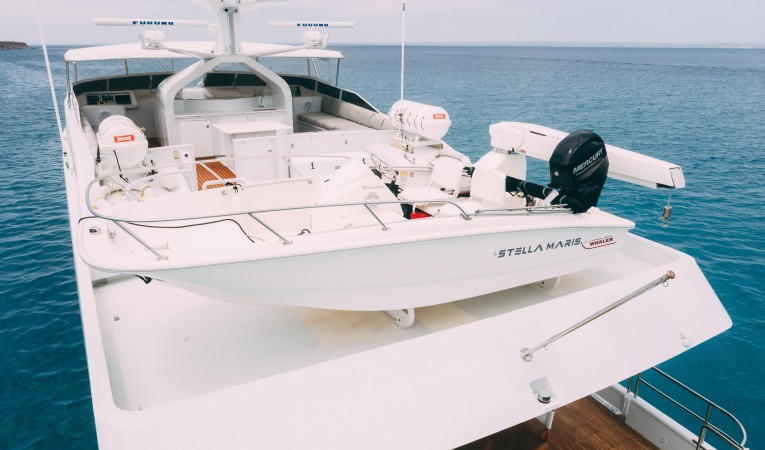

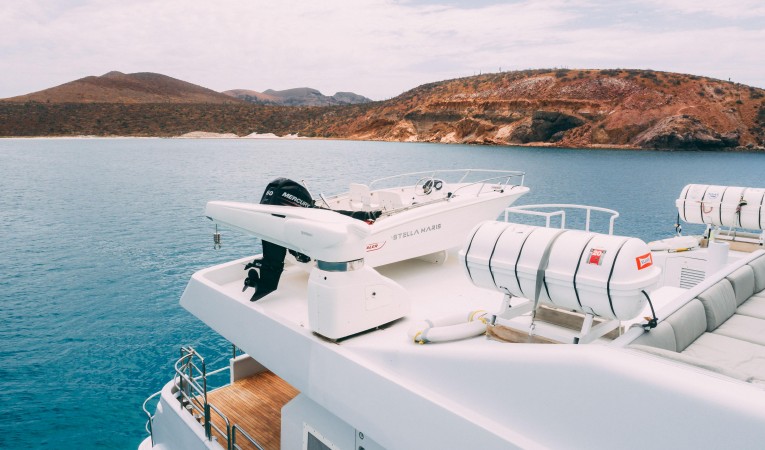

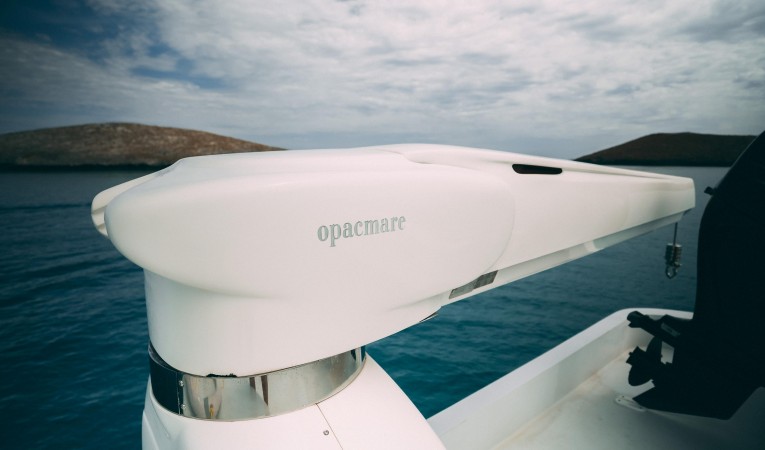

  • Opacmare 1700lb tender crane

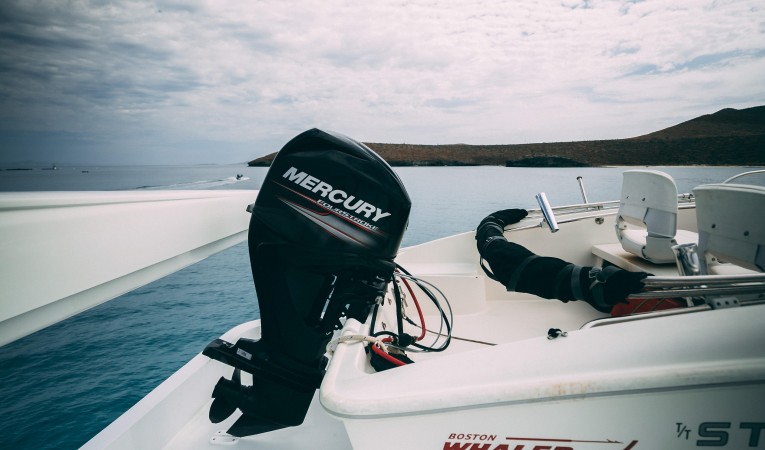

  • 15' Boston Whalers tender w/Mercury O/B (2) Canister life rafts
  • (2) Chocks for wave runners
  • ACR EPIRB

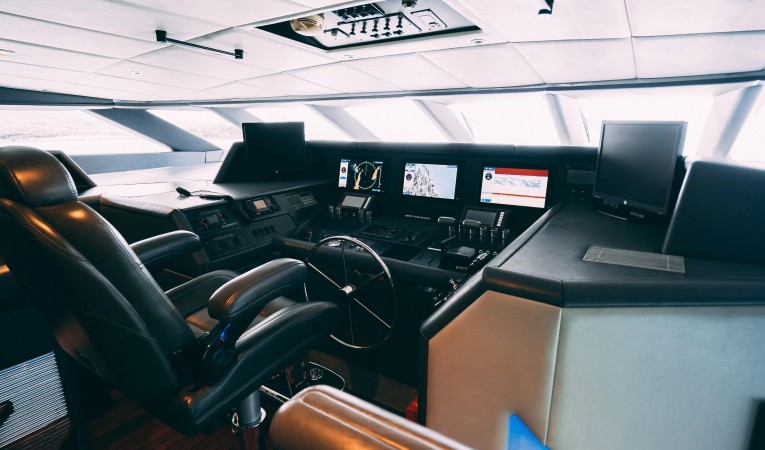

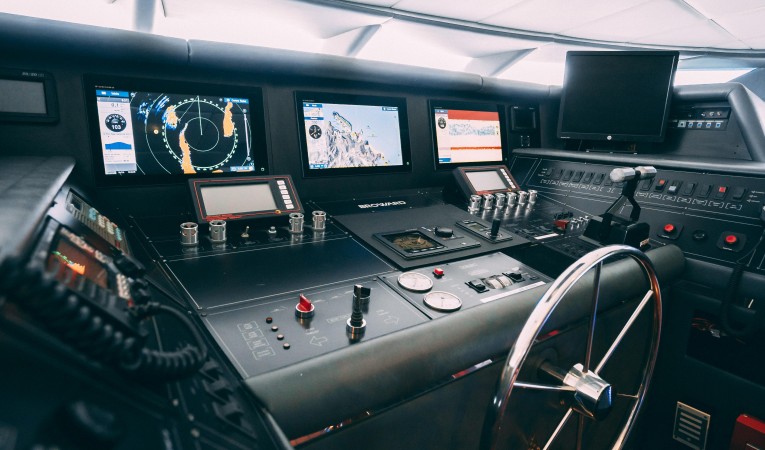

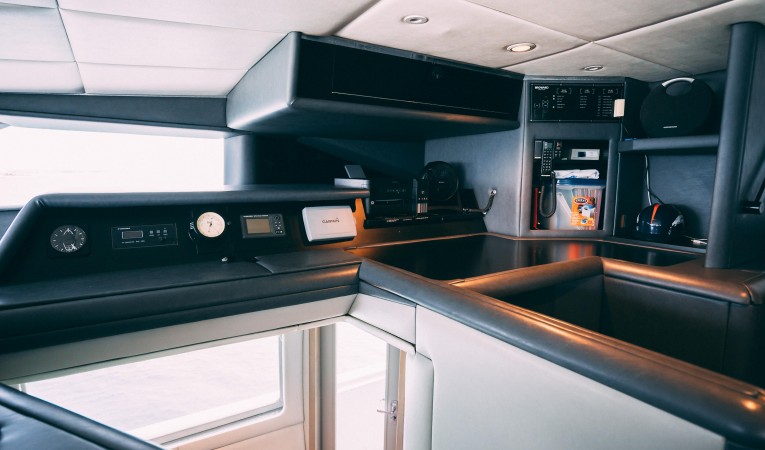

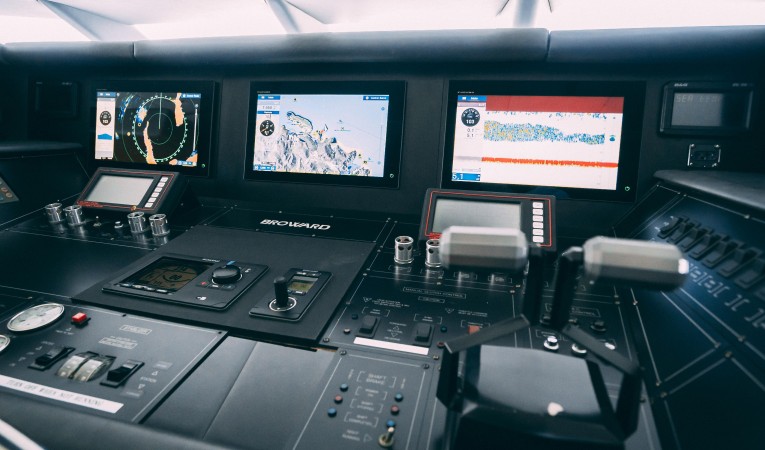

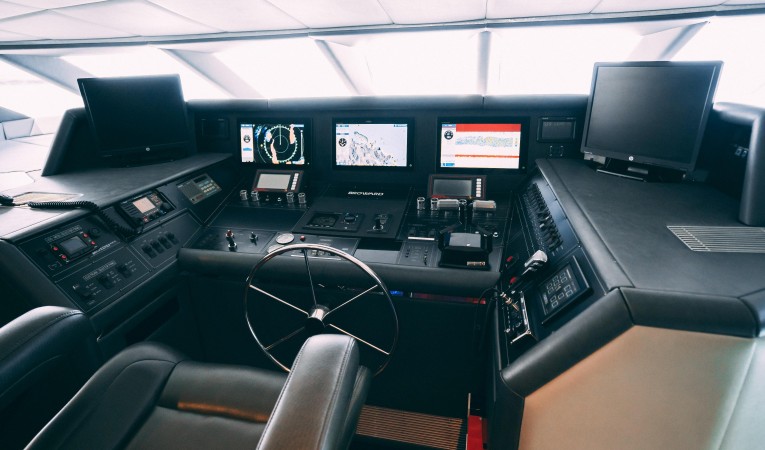

Electronics / Navigational Equipment


  • Garmin GPS Map 720
  • AP70 Autopilot w/QS80 joystick ('14)
  • (2) Furuno 15" Navnet TZ 2-touch multi-function displays for Chart plotter/ Radar/ Fish Finder Central Furuno 15" Navnet TZ 2-touch multi-function display for GPS
  • (2) Detroit Diesel electronic displays
  • Detroit Diesel marine power throttles
  • Isis 700B Monitoring system
  • Sea 157 VHF w/remote mic
  • (2) C-Plath magnetic compass
  • C Plath gyro compass
  • B&G depth sounder
  • B&G Speedo
  • AIS w/new transmitter '18
  • (5) Icom M72 handheld VHF's
  • Furuno depth sounder
  • Naiad stabilizer control
  • Bow thruster control
  • (2) Shipmate RS 8110 VHF
  • Icom M506 VHF radio
  • Broward safety system monitor

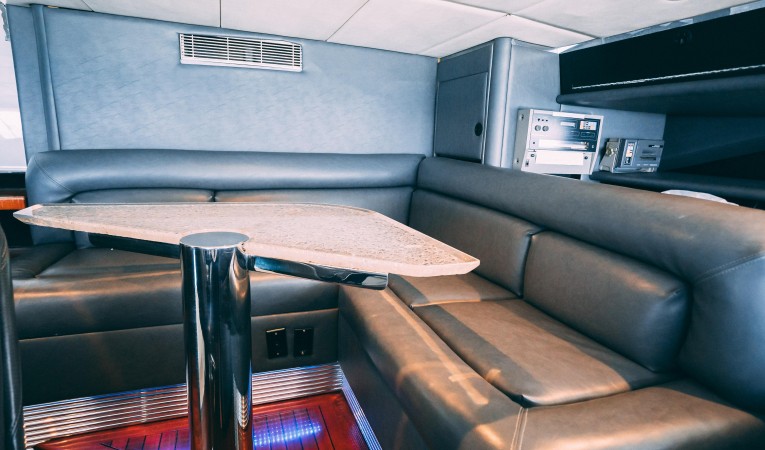

  • L-shaped settee w/ Plexi table

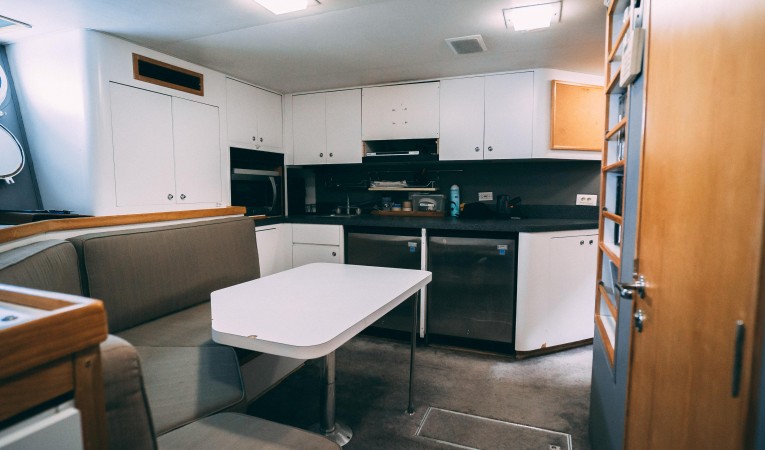

Crew Quarters

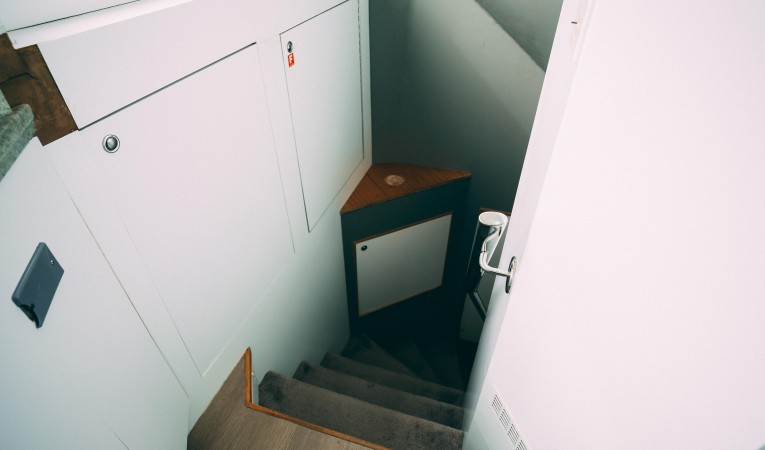

  • The crew quarters are accessed from the port side forward of the galley.
  • Captain's cabin w/queen berth & private bath
  • (2) Crew cabins forward and have over/under berths, port & starboard crew lounge with bench seating, phone & intercom system

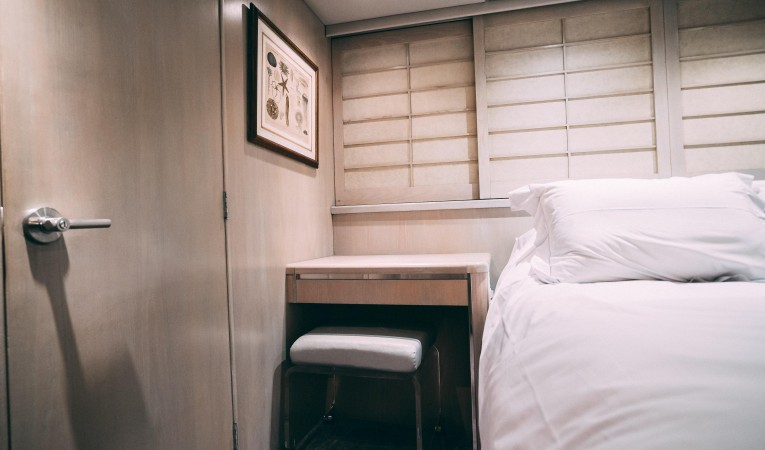

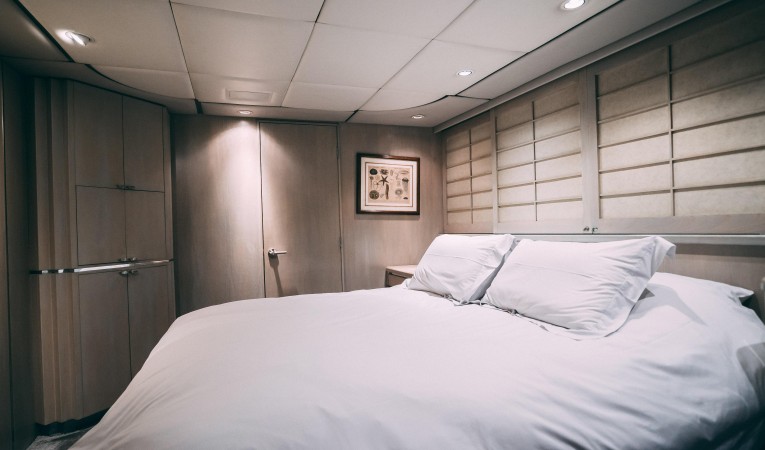

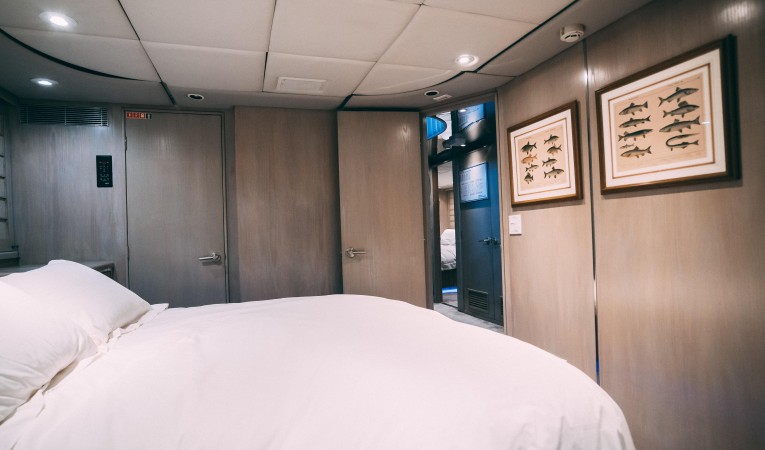

(5) Guest Staterooms

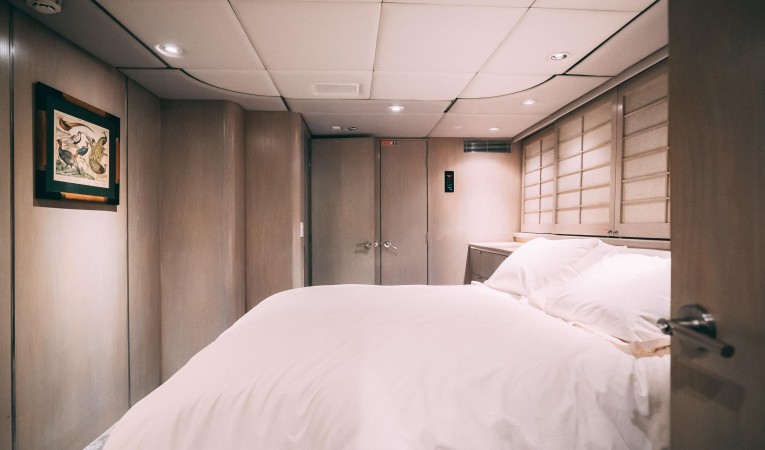

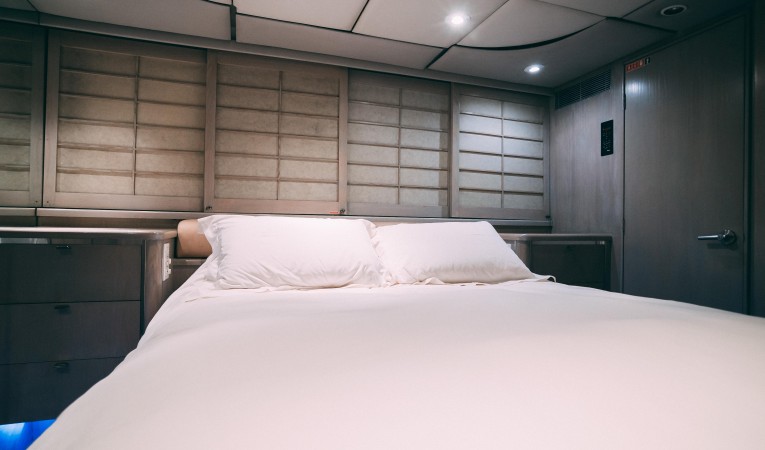

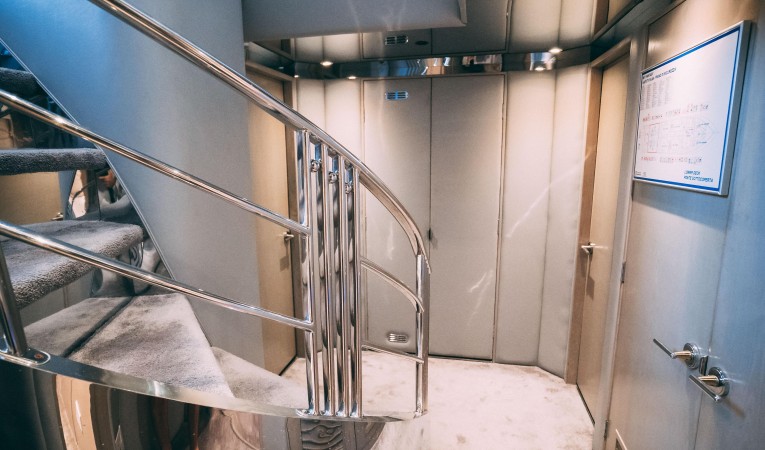

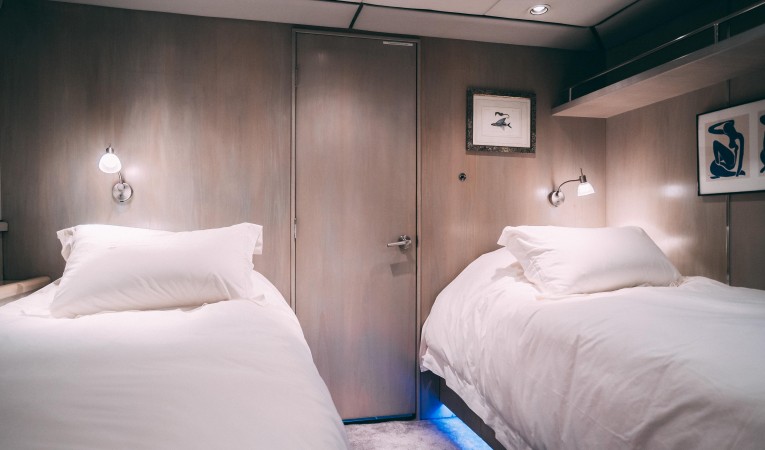

(4) Guest staterooms are below deck. Those staterooms are accessed from the starboard foyer. (3) Staterooms have a queen-sized bed and one stateroom has twin beds.



All staterooms equipped with:

  • Double dressers
  • Shoji screen window treatment
  • Bookshelves & custom headliners

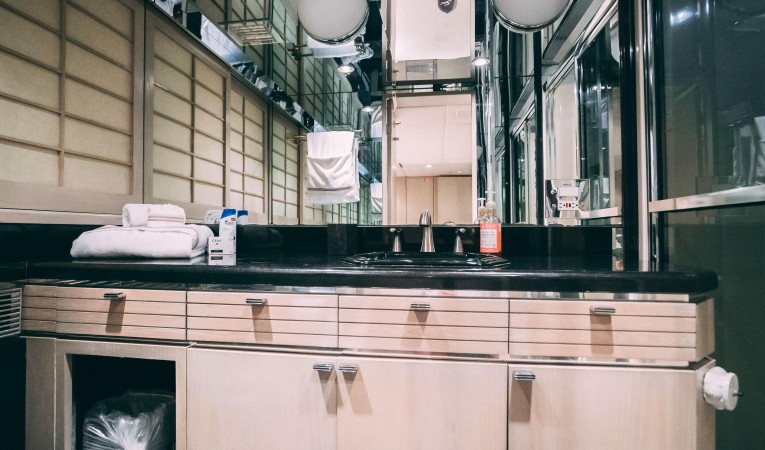

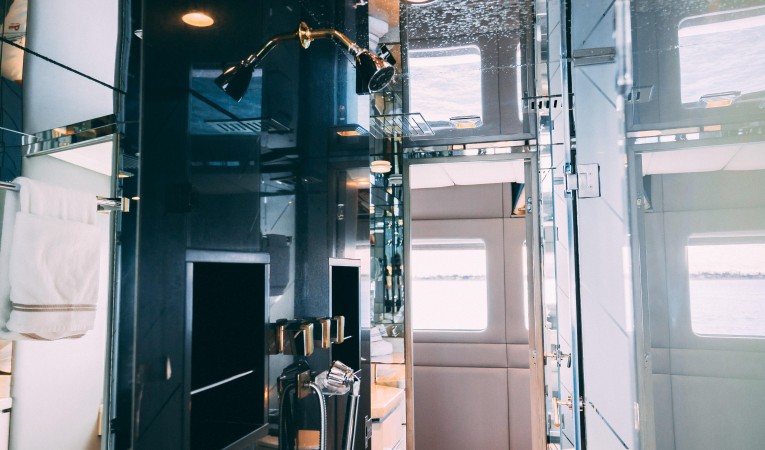

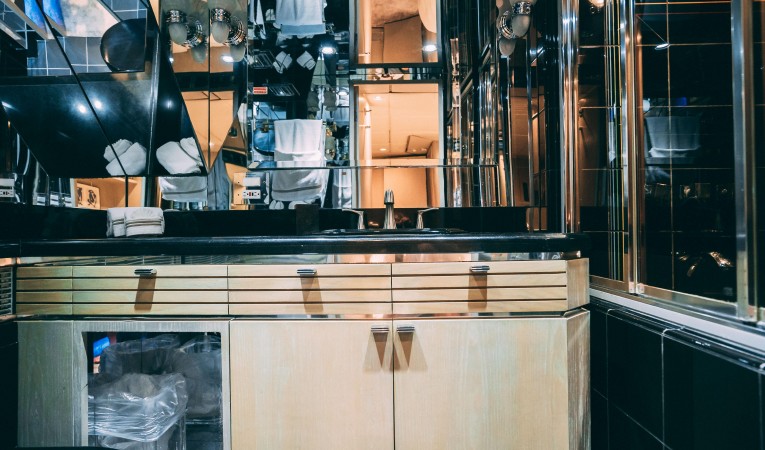

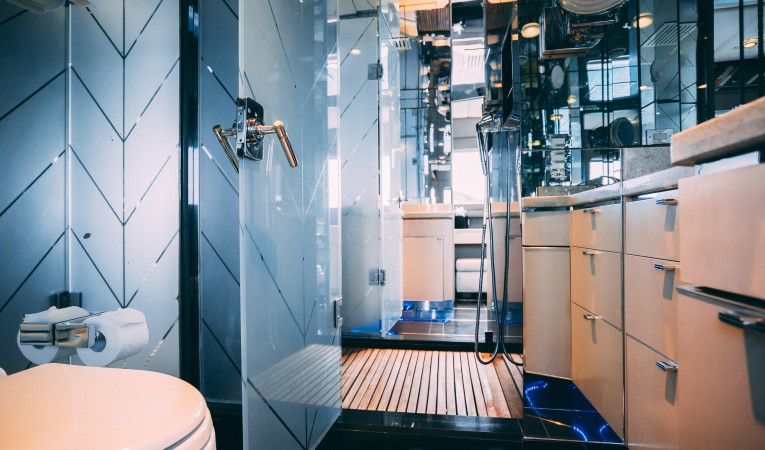

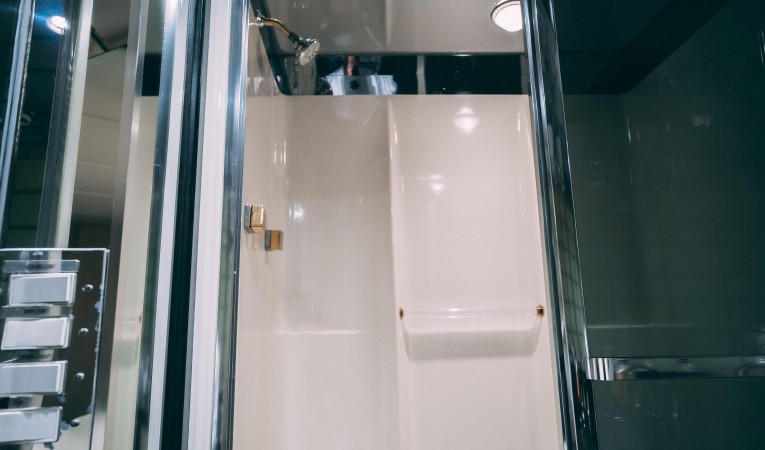

  • Ensuite bath w/full shower

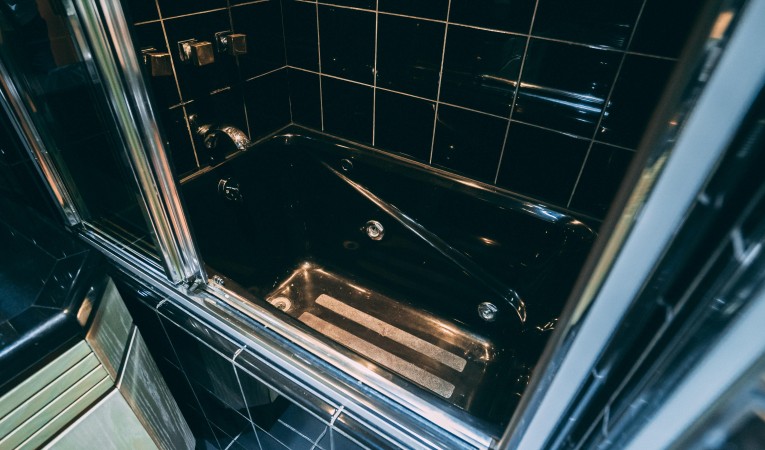

  • Twin stateroom has an ensuite head with Jacuzzi tub
  • Custom paneling and recessed lighting Intercom, phone systems.

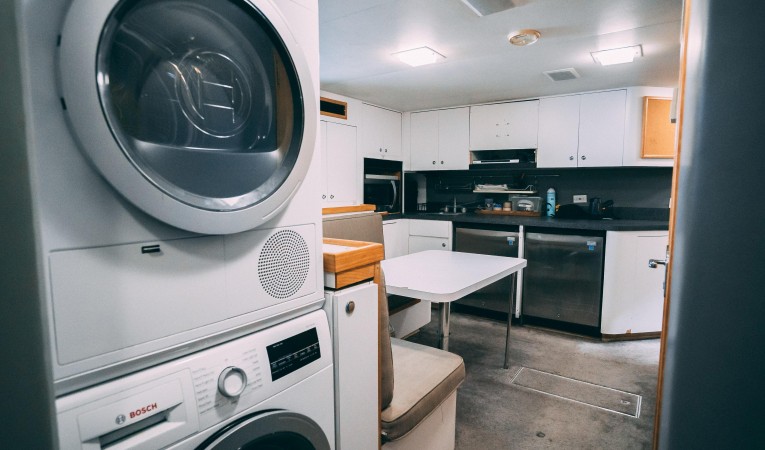

  • Utility closet in the foyer w/ Maytag washer & dryer

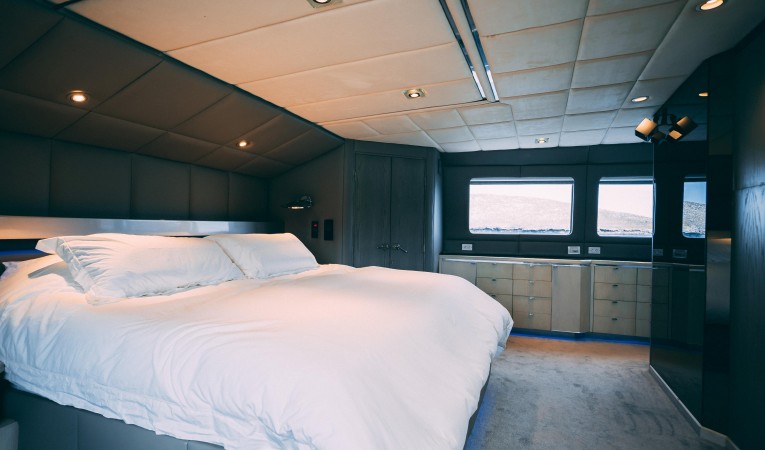

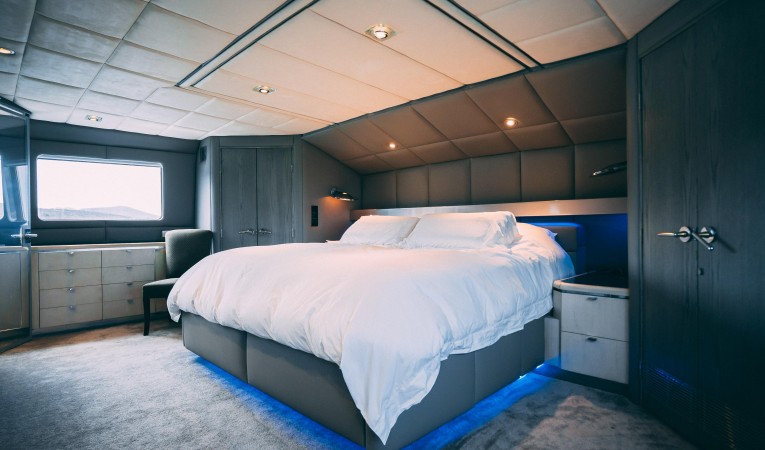

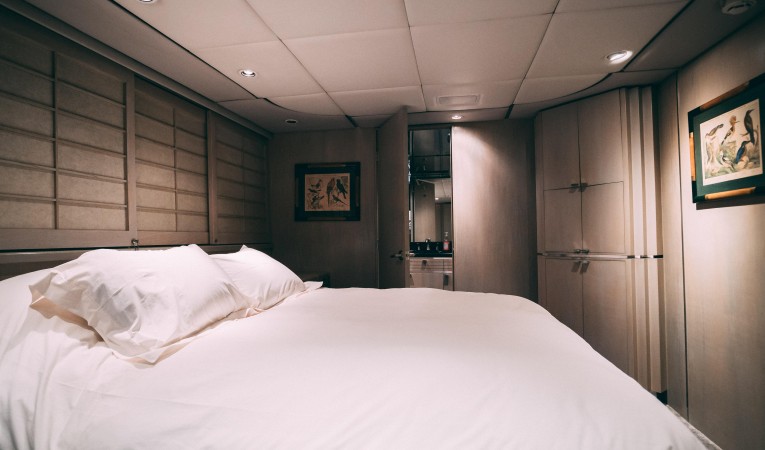

Master Stateroom


  • King size berth on centerline
  • Built-in dressers, port & starboard
  • (3) Built-in cedar-lined hanging lockers

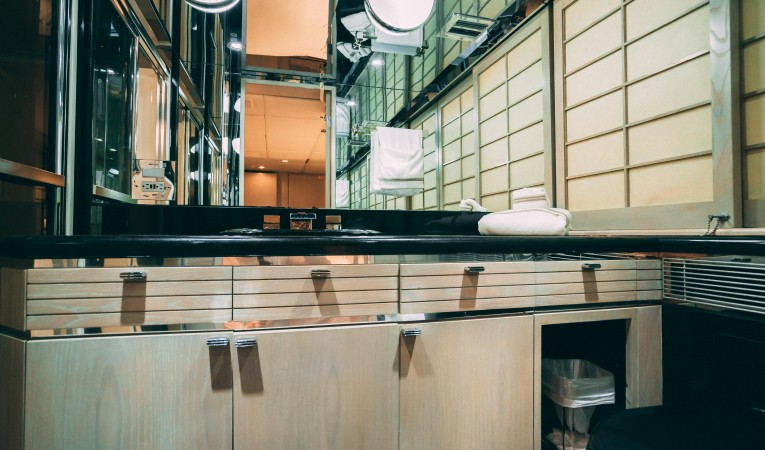

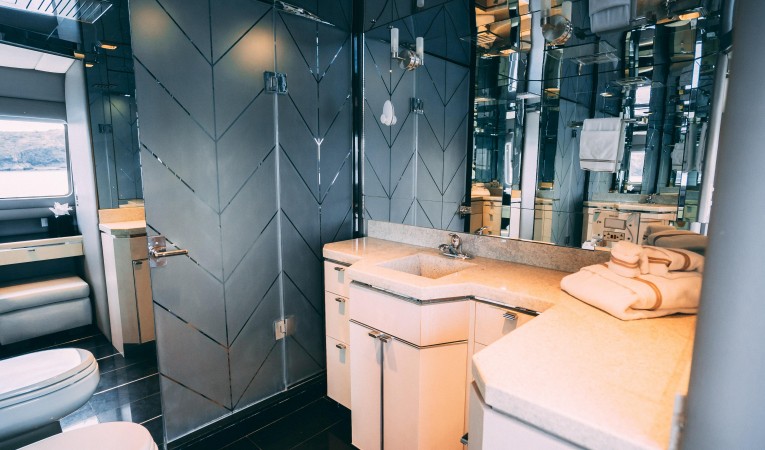

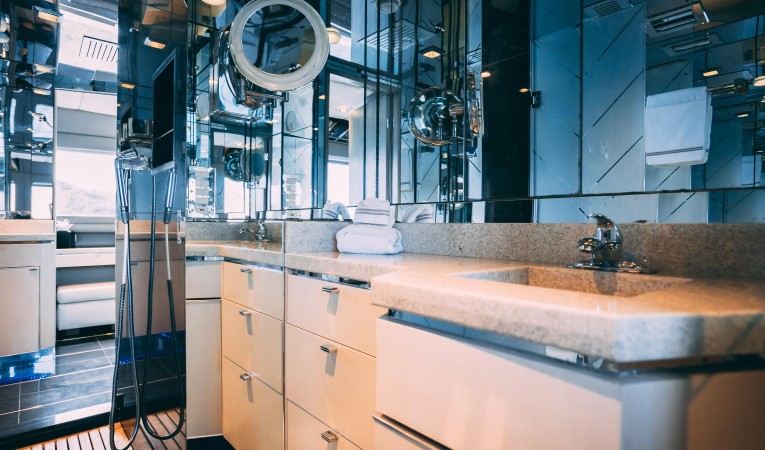

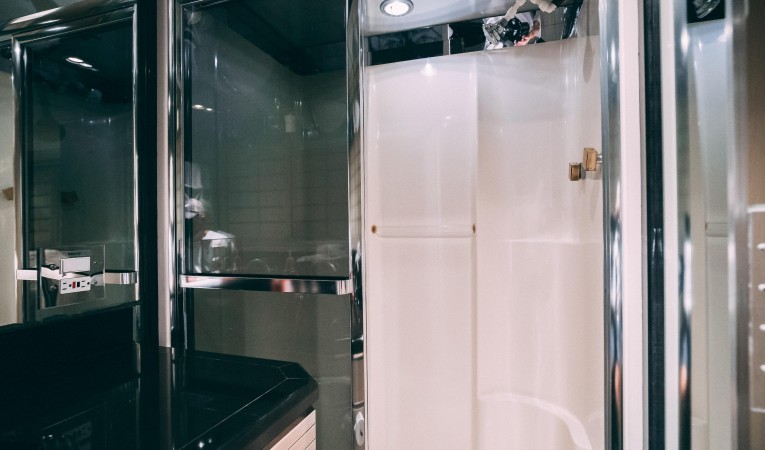

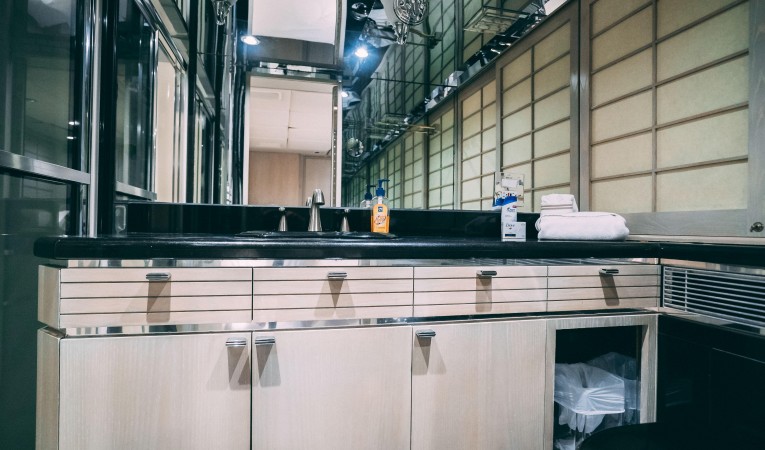

  • His & Her master bath w/shower
  • Custom vanities w/ translucence sink & custom Kohler fixtures Microphor heads
  • Kholer bidet
  • Granite flooring

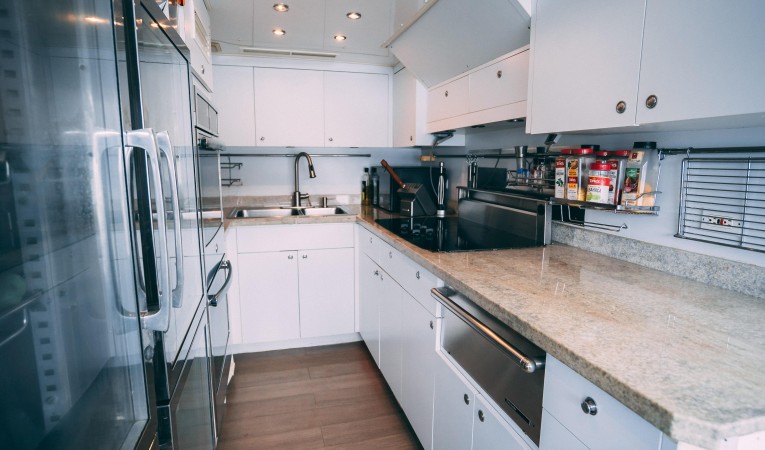

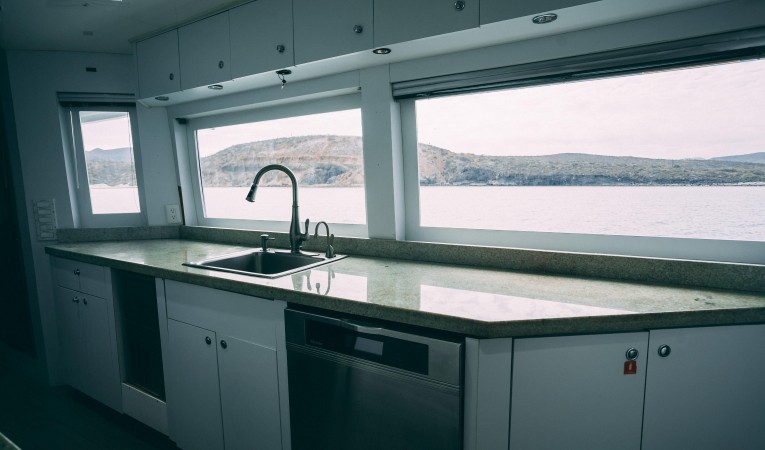

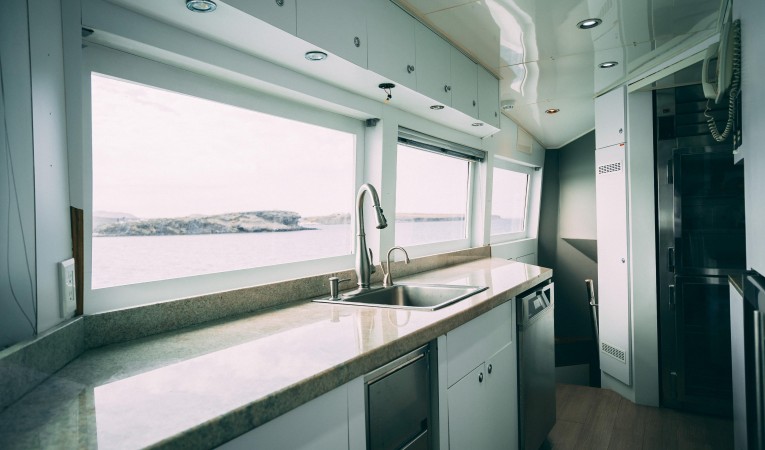

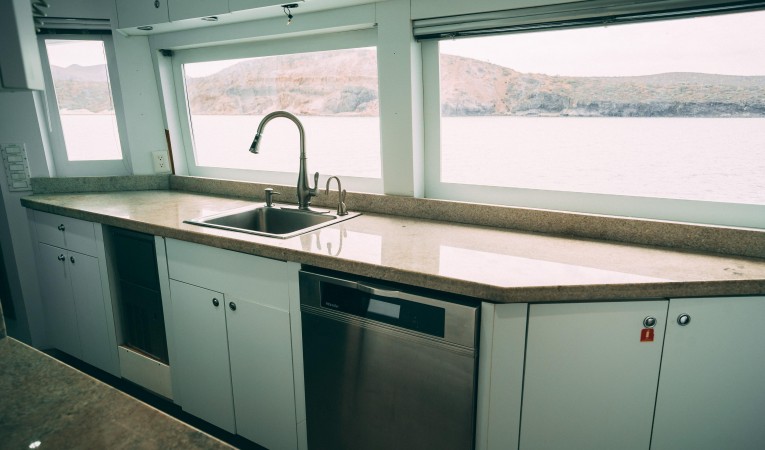

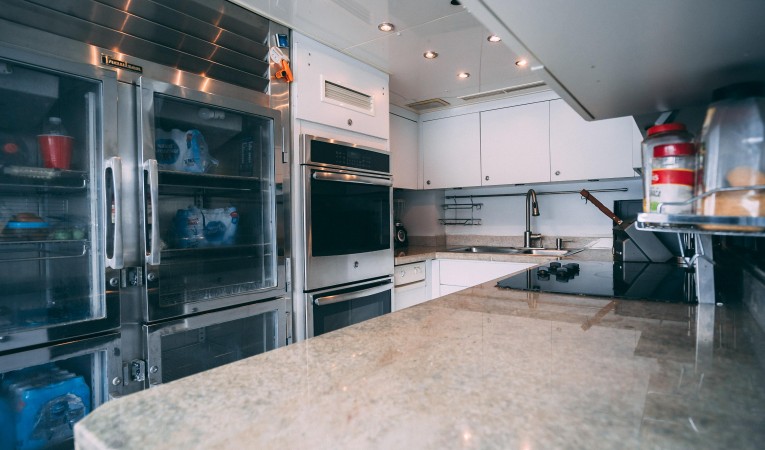

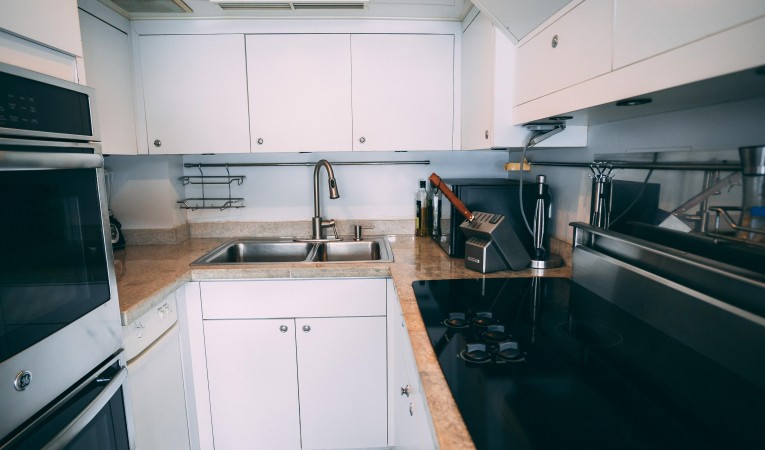

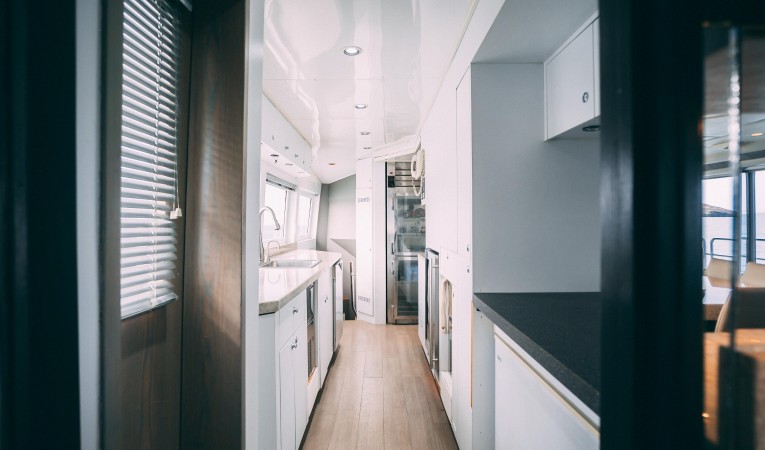

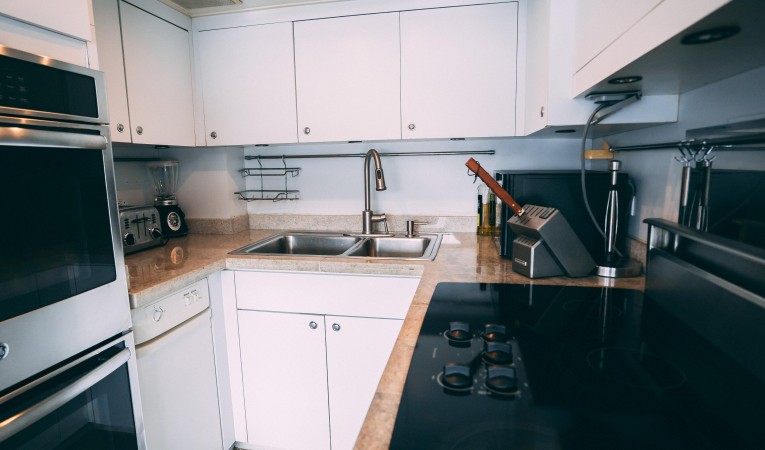

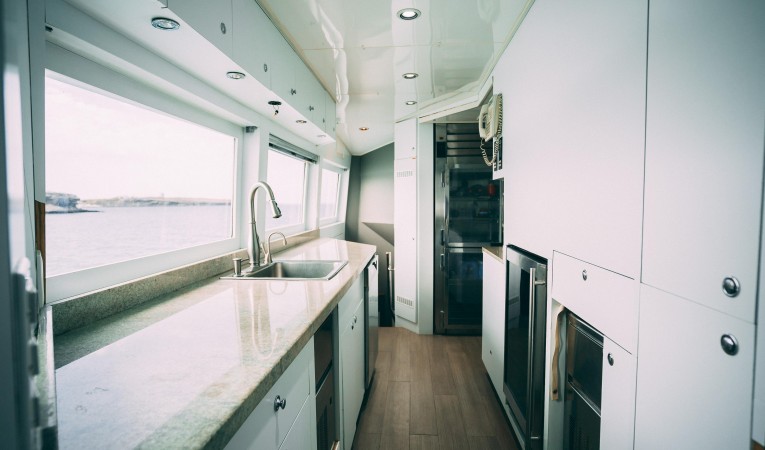

Galley


  • (2) Traulsen stainless steel refrigerators w/glass panels
  • Thermador 5-burner cooktop (2) Isotherm ice makers Sub-Zero icemaker
  • GE top loader freezer
  • Information and Photos
  • Miele dishwasher
  • Thermador warming tray
  • U-line wine cabinet w/custom glass Stainless steel wine cooler
  • Double stainless-steel sink
  • Kitchen Aid trash compactors
  • Capresso coffee makers
  • Kenmore Elite stainless-steel microwave

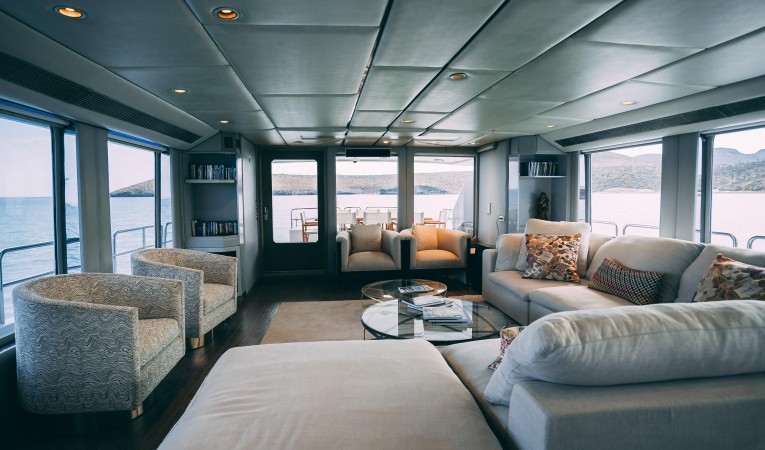

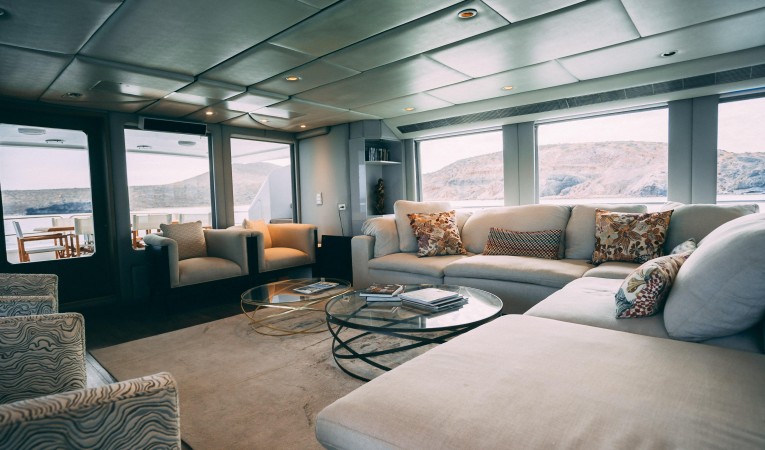

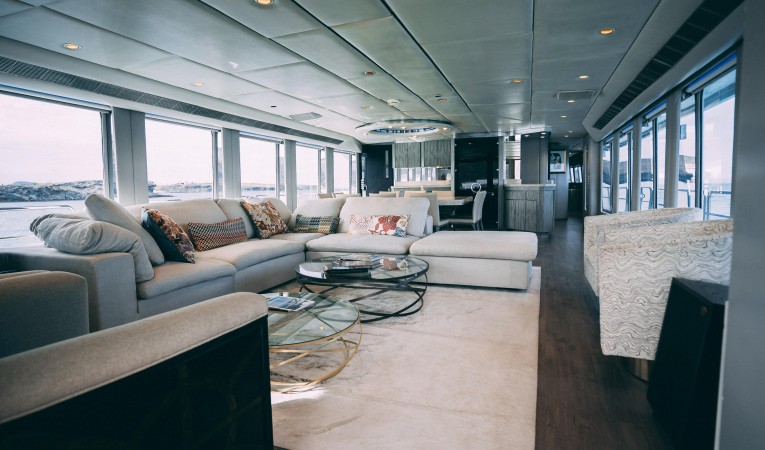

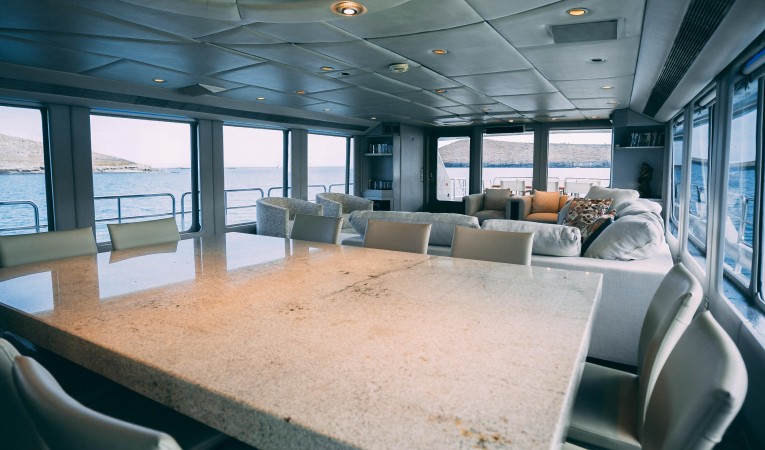

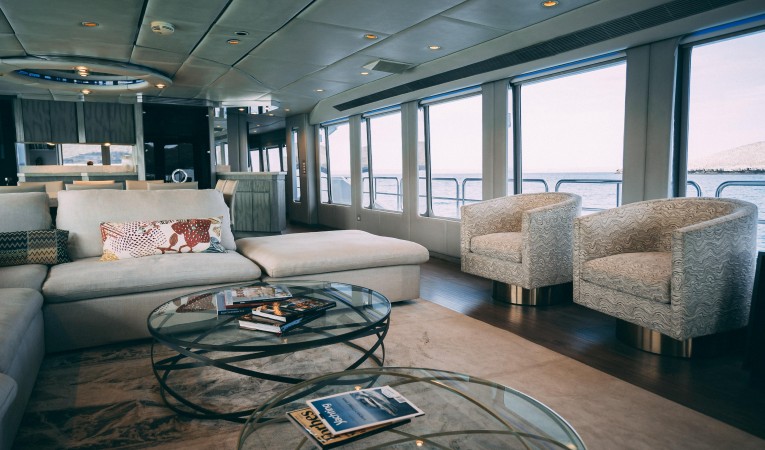

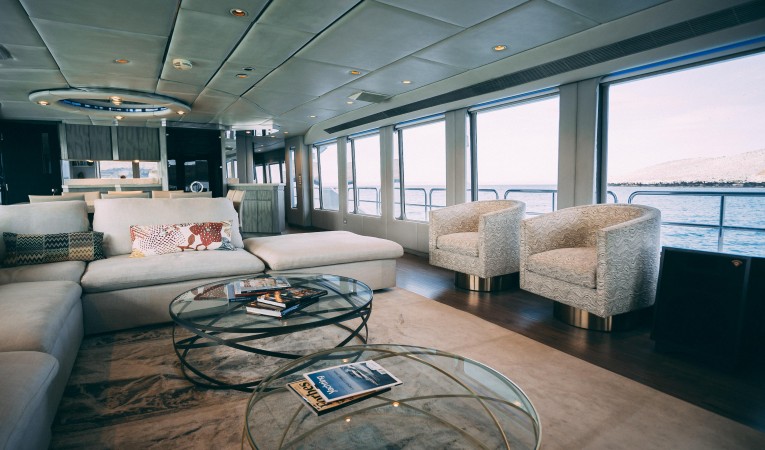

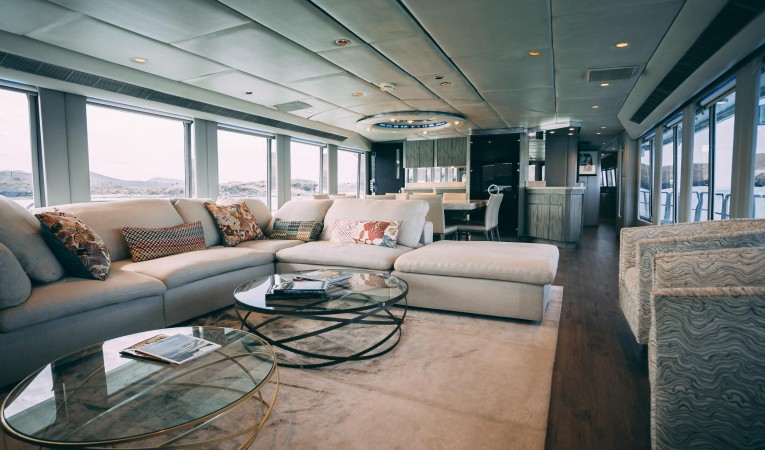

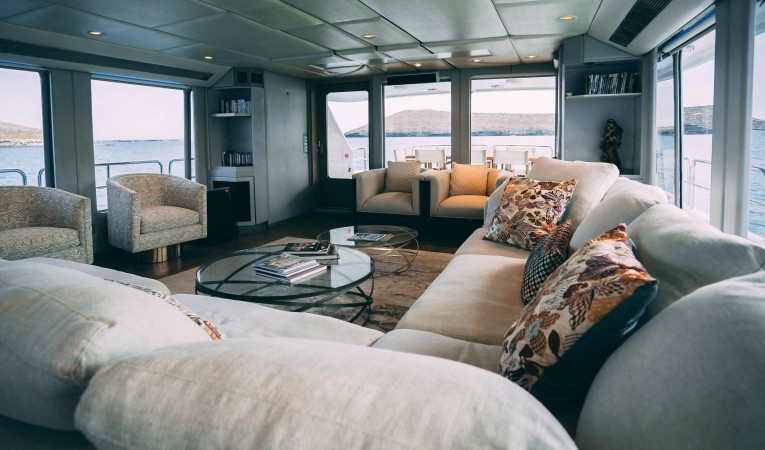

Main Salon And Dining


  • Custom U-shaped sectional sofa
  • Circular glass cocktail table w/stone base
  • Storage cabinets w/bottle & glass storage, port & starboard
  • (3) Swivel occasional chairs
  • (2) Ottomans
  • Sit down bar located aft w/ (3) chairs
  • U-line refrigerator w/ icemaker & storage

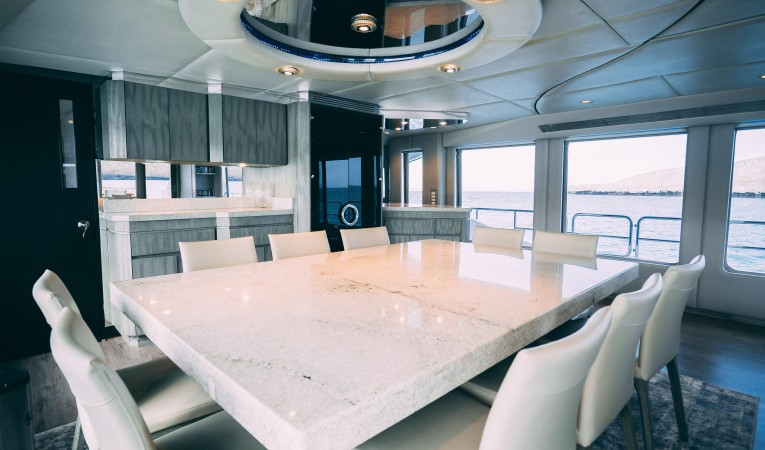

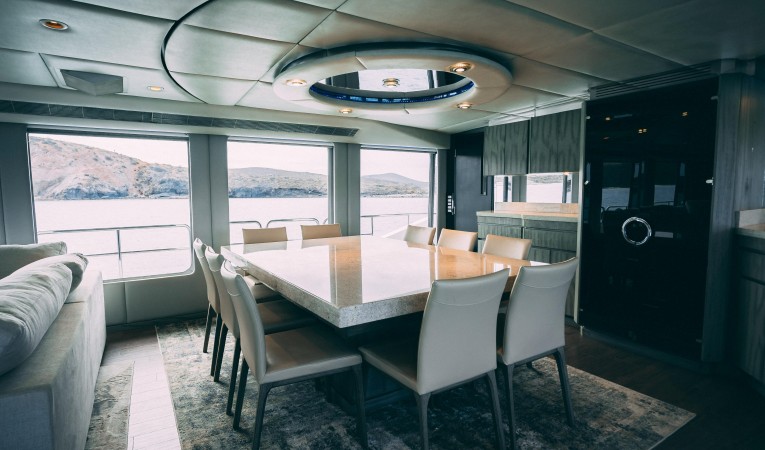

  • Custom 60" round dining table w/leaf extensions & dining chairs
  • Marble flooring w/custom inlay in the dining area
  • Leather upholstered overhead panels and bulkheads
  • Oversized windows to port & starboard
  • (2) Tuners, 200-disc multi-player CD's; 200 DVD video multiplayer w/full library Main deck foyer w/custom granite flooring

On Deck Head:

  • Mirrored bulkhead
  • Mirrored overhead
  • Custom vanity w/black sink & custom fixtures

Accommodations


  • STELLA MARIS was built as "Fantasy" in 1993 by Broward Marine which illustrated a progressive vision of elegance combined with the most elaborate interior of that time period. She was built as a "study of firsts" most notably the builder's new Euro-style hull design and space configuration.

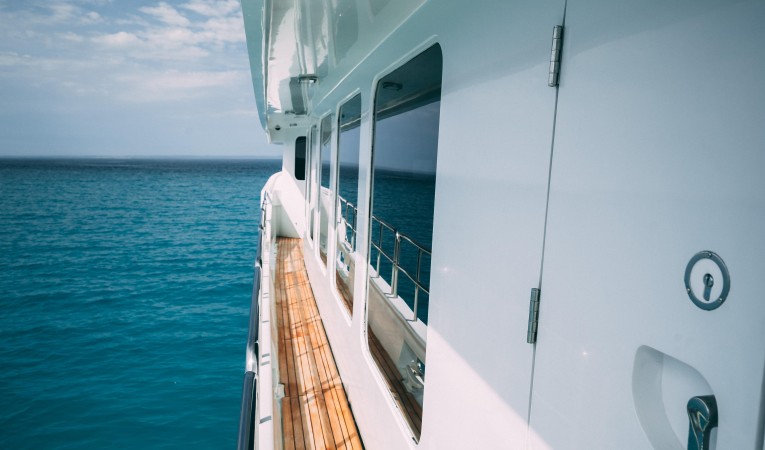

  • Her immense interior volume is equal to the space found on much larger yachts. Her ample 23' beam provides the extra-large staterooms and affords the convenience and privacy of two-thirds walk-around side decks without compromising the main salon's volume.
  • From both inside and outside, the yacht's enormous floor-to-ceiling main salon windows are her most distinctive feature offering unobstructed panoramic views. Her formal dining area is located forward of the main salon with seating for up to ten. Cherry wood, granite, and strategic lights are used throughout the vessel.
  • The on-deck master stateroom is tastefully appointed and features His and Her baths. Each of the yacht's four guest staterooms located on the lower deck was designed with its own distinct theme and features private baths and a full entertainment center.

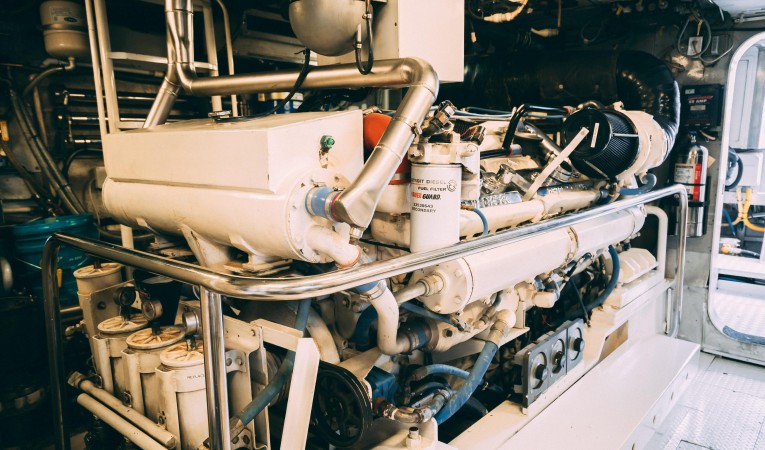

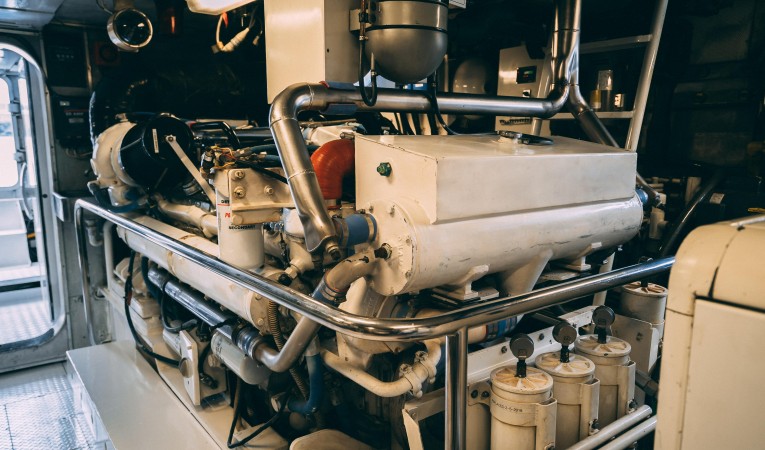

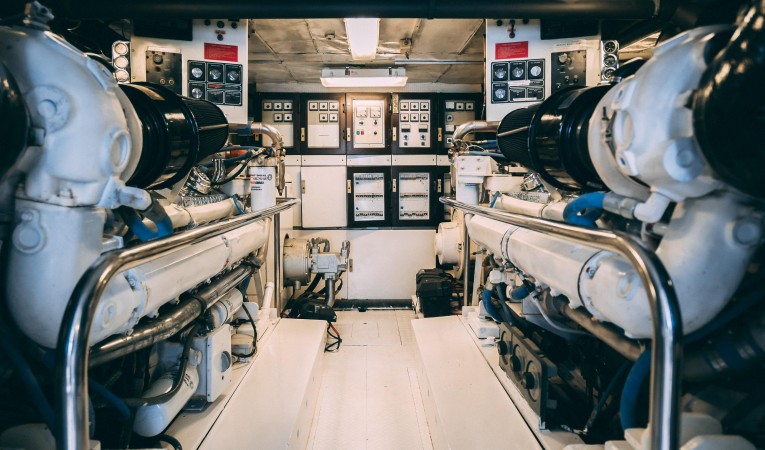

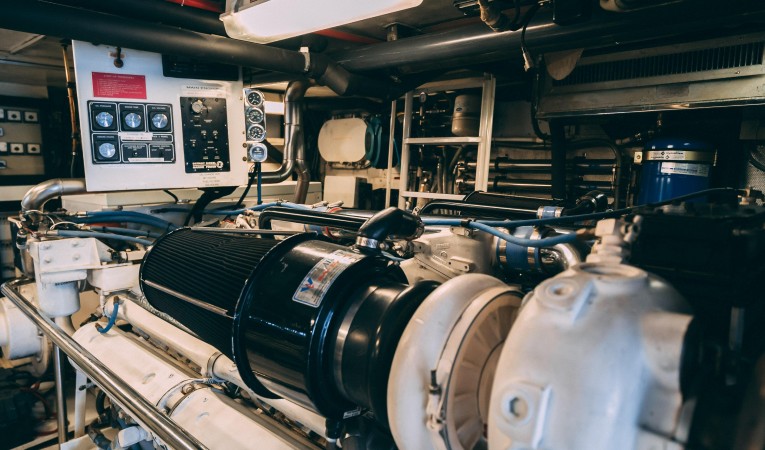

  • STELLA MARIS aft engine room houses twin 16V92TA's equipped with Detroit Diesel electronic console monitoring system coupled to Ulstein tractor-style drives. This impressive power package pushes to an 18-knot continuous cruise. Her pilothouse features Isis ship's monitoring system and a full array of navigational and communications electronics.
