*PREVIOUS NAME RESERVED Boat for Sale

• Beam: 15' 1''
• Hull Material: Fiberglass
• Max Draft: 7' 10''
• Displacement: 33,070 lb
• Cabins: 4
• Heads: 2

OVERVIEW:

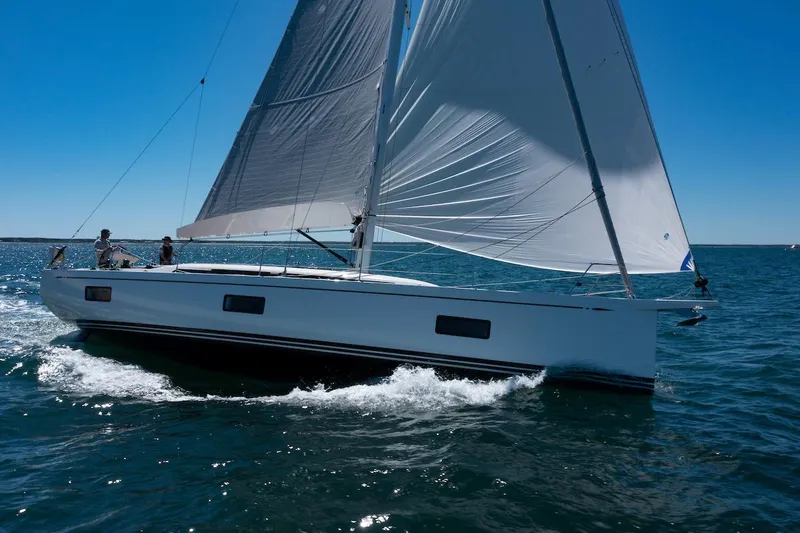

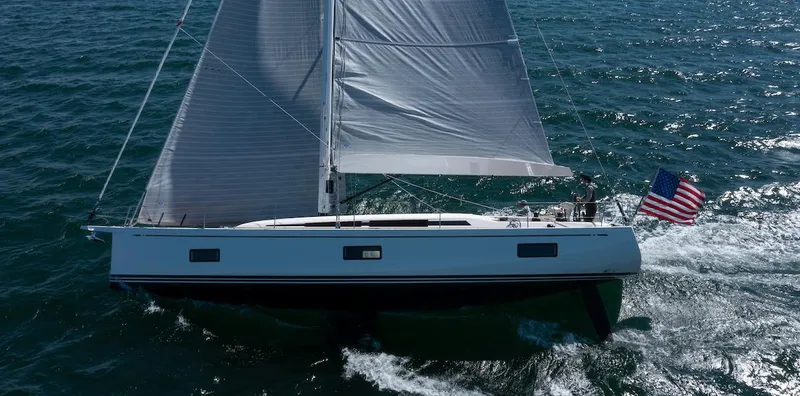

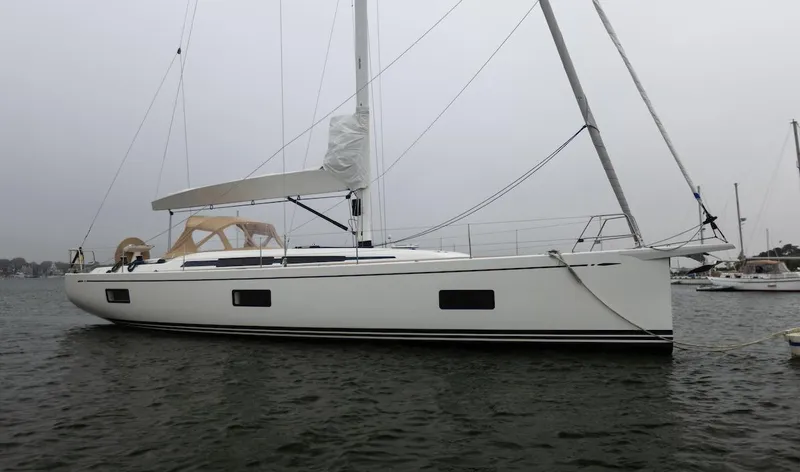

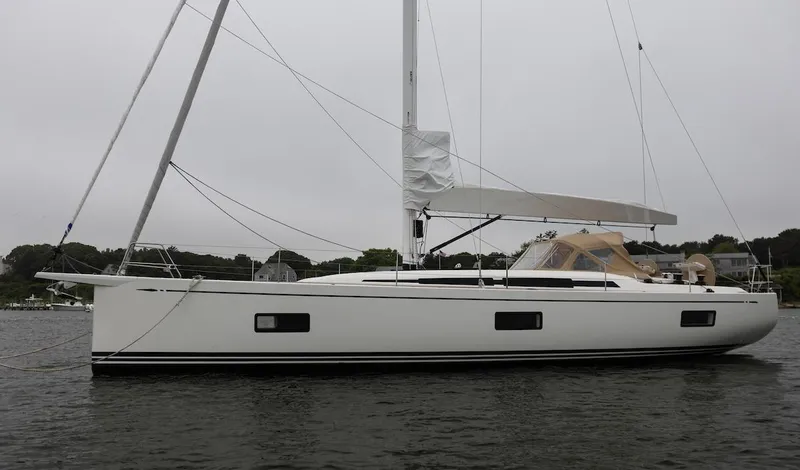

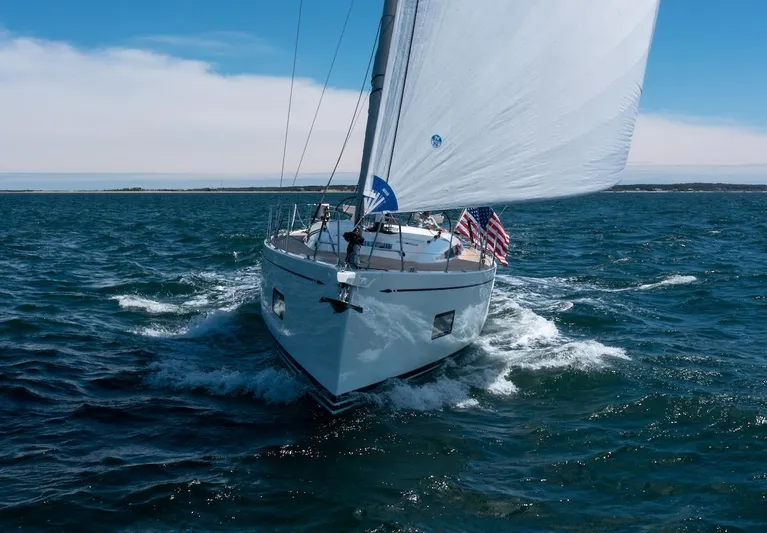

The Swan 48 is a luxurious vessel with an expansive cockpit, open, unobstructed decks, and a stunning interior.

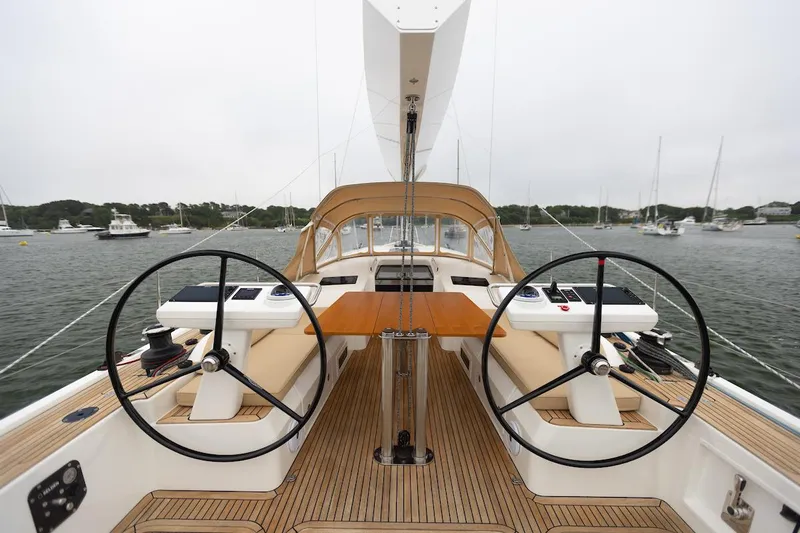

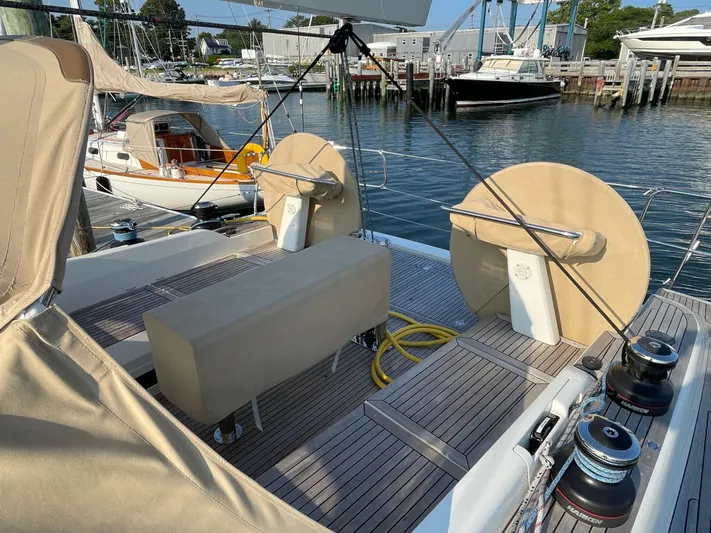

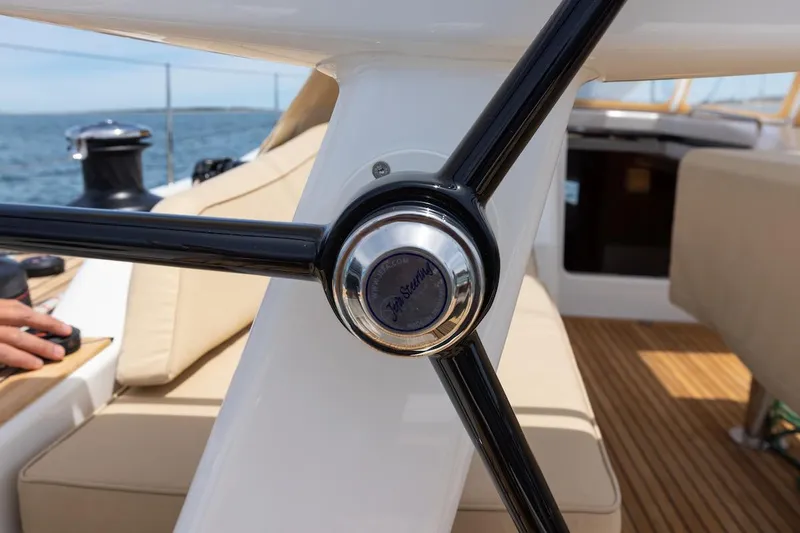

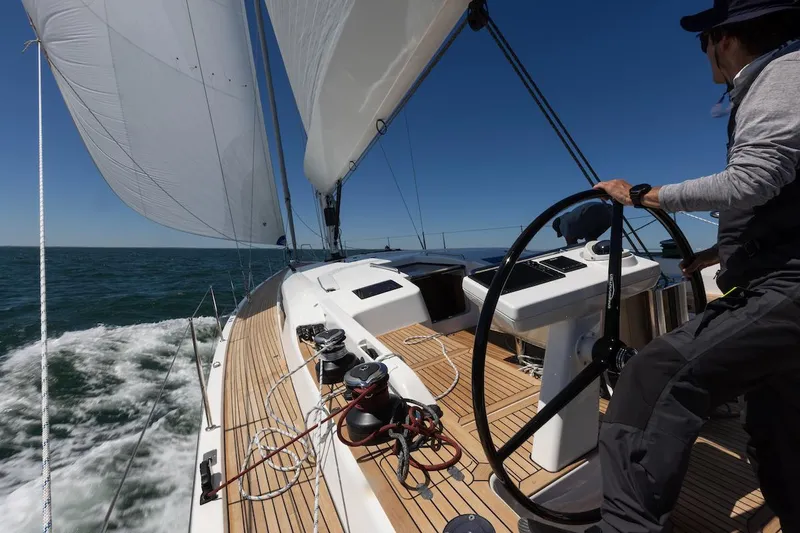

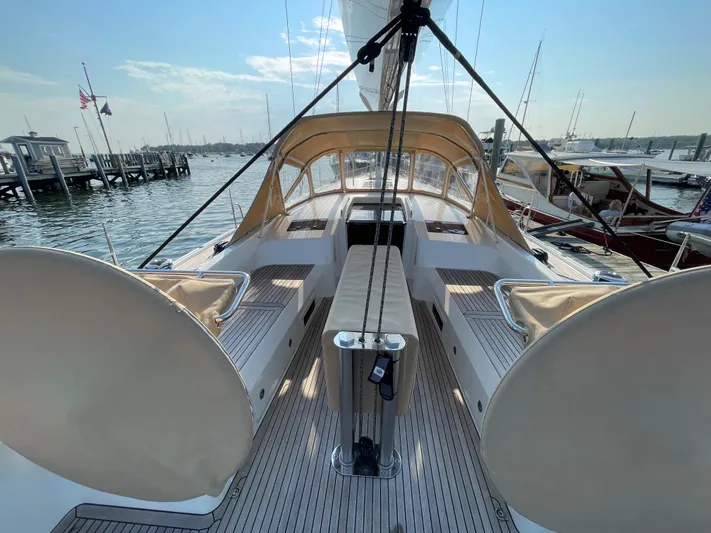

The cockpit is huge - bring all your friends!  There are two helm positions aft, with a large aft deck area aft and between them.  There are pop-up deck areas to create foot holds while sailing. All sail handling controls are led to the winches which are adjacent to the helms.

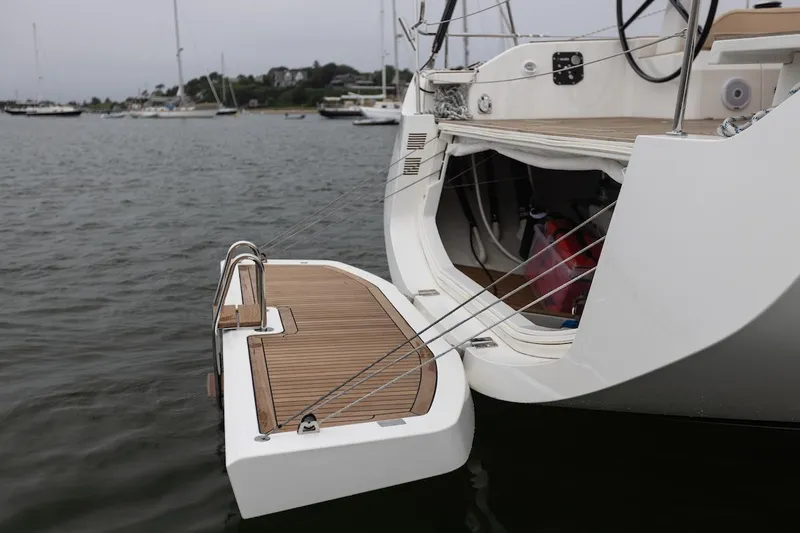

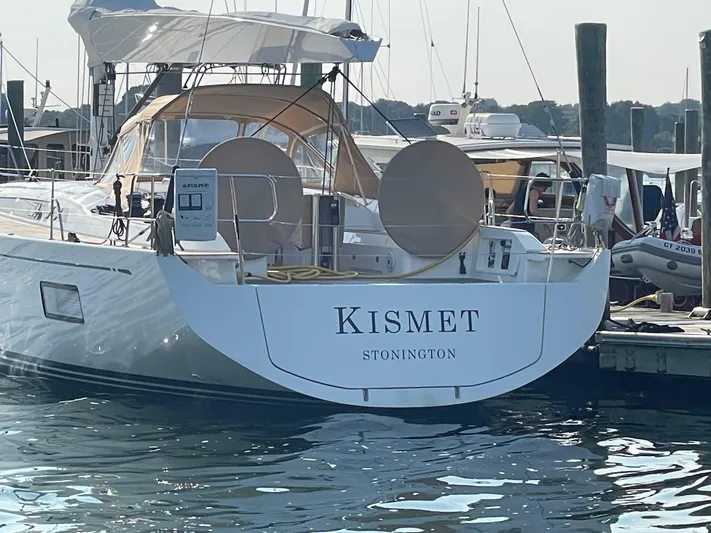

Under the aft section of the cockpit is a large "garage", accessible either from deck, or via the large opening transom.  Once opened, the transom acts as a large swim deck.  This garage is large enough to store a dinghy and many other items as well.

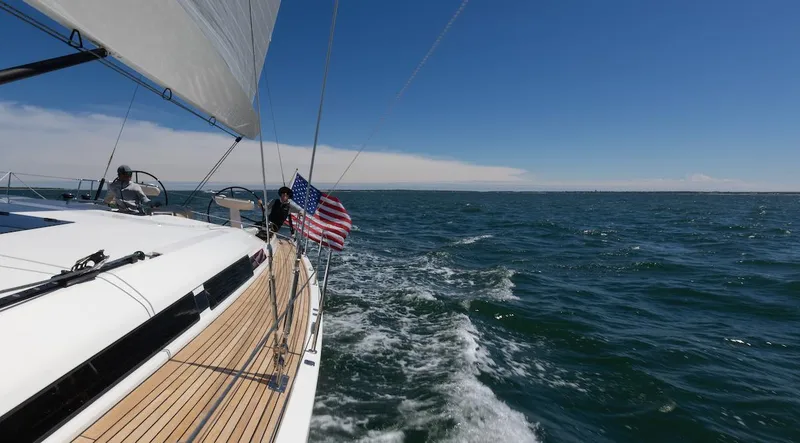

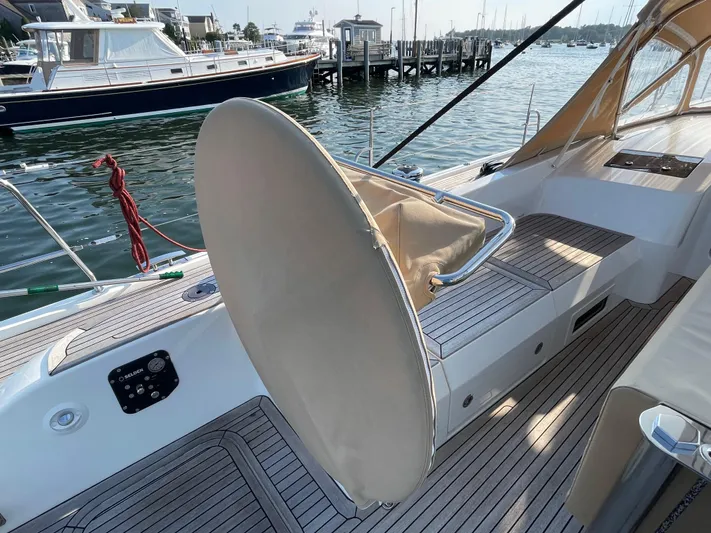

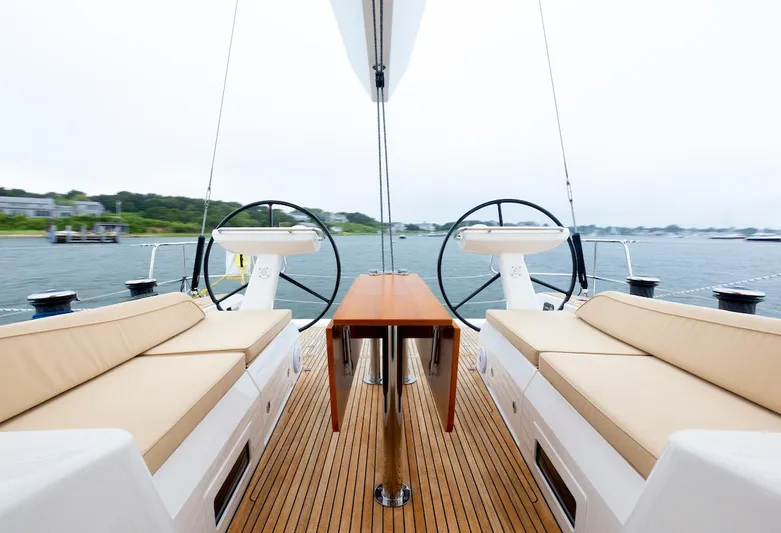

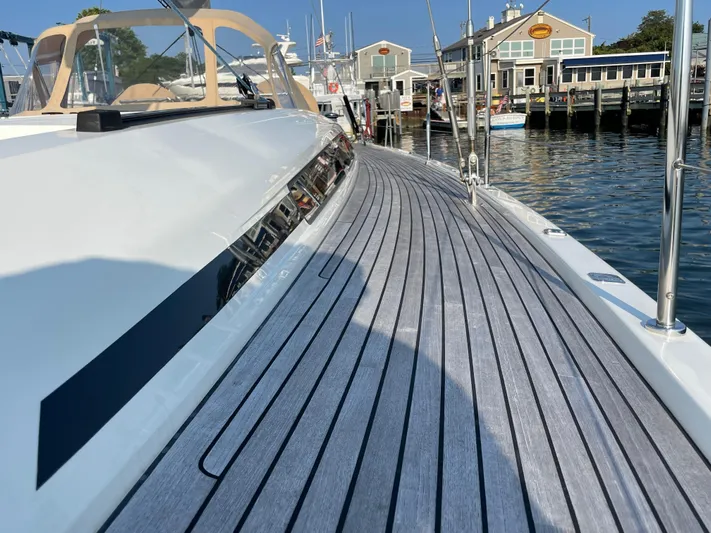

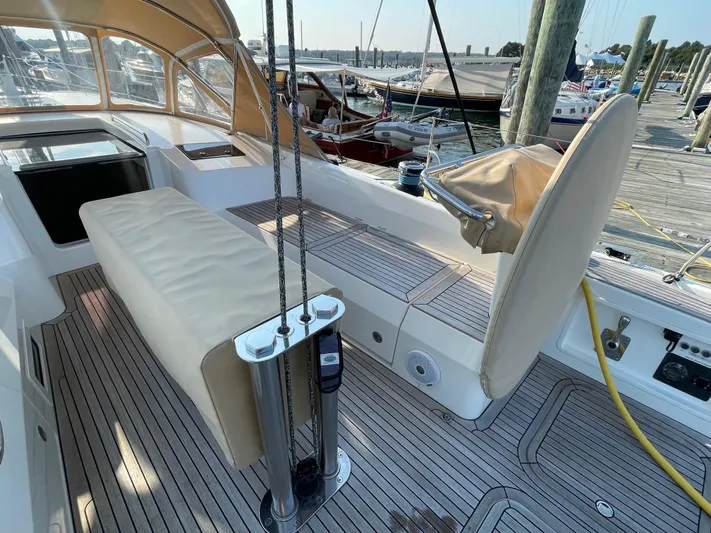

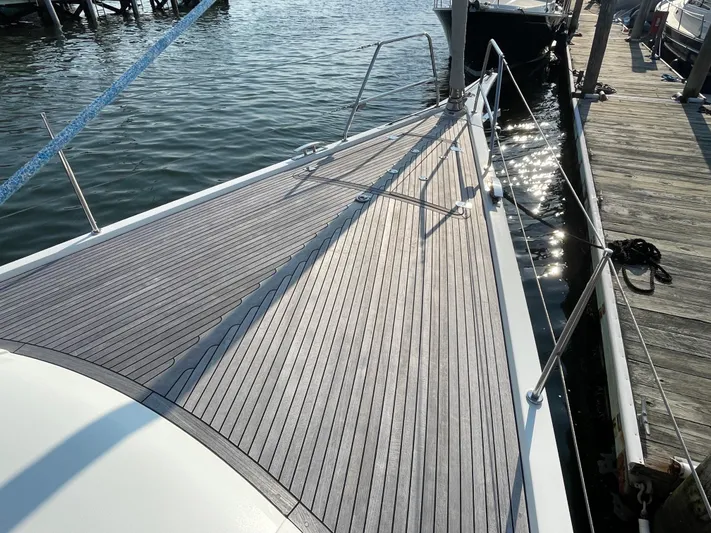

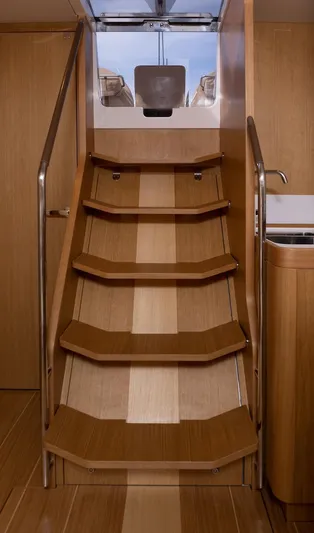

The main portion of the cockpit has port and starboard bench seats, with a large centerline table with drop leaves.  The cockpit sole and seating surfaces are teak, as are the side decks.  The forward section is protected by a lovely dodger.  If desired, this dodger can be stowed into a recessed area, from side to side wrapping around the companionway.  Even the companionway s clever - the companionway "board" drops into a recess - no more lifting them out and finding a place to store them.

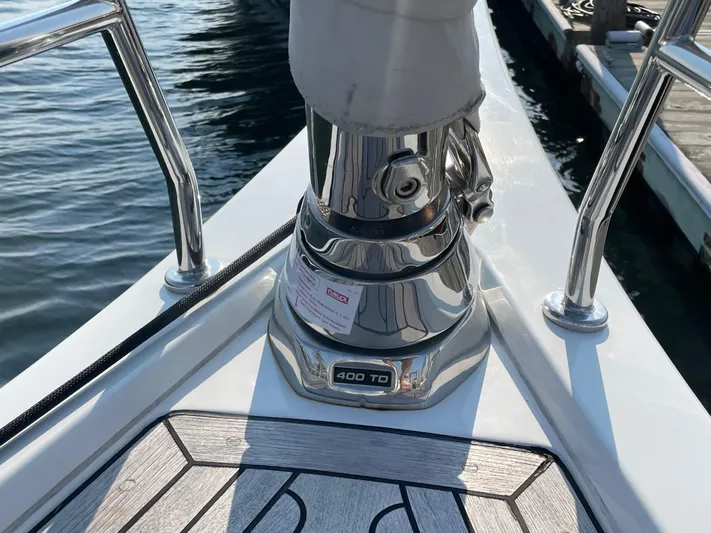

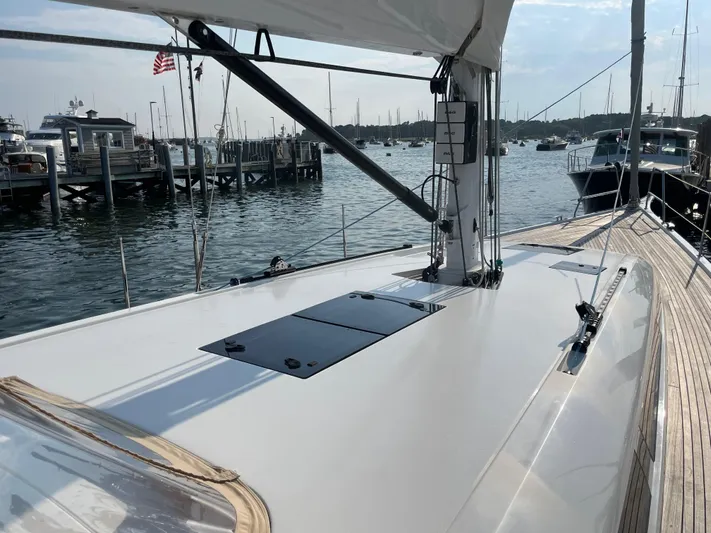

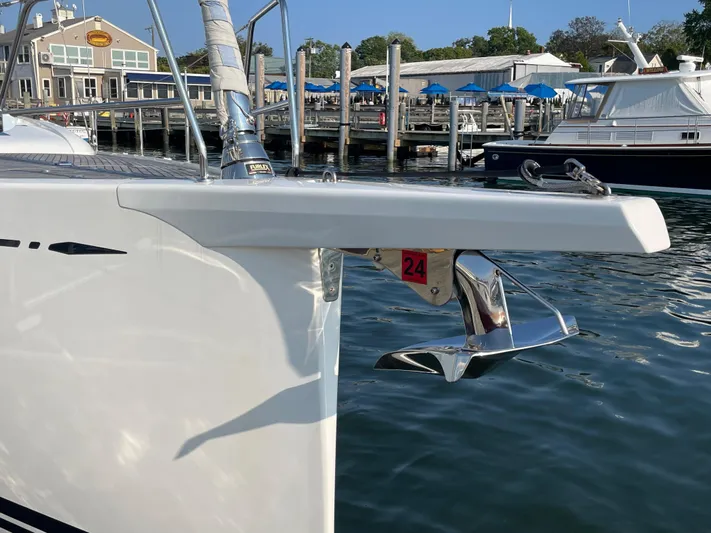

There is a large still locker forward, and an exceptional centerline anchor storage system, below the bow sprit.  This provides the best possible lead for the anchor without fouling the sprit. There is also a centerline wash down outlet below the anchor roller for washing the ground tackle as it is retrieved.

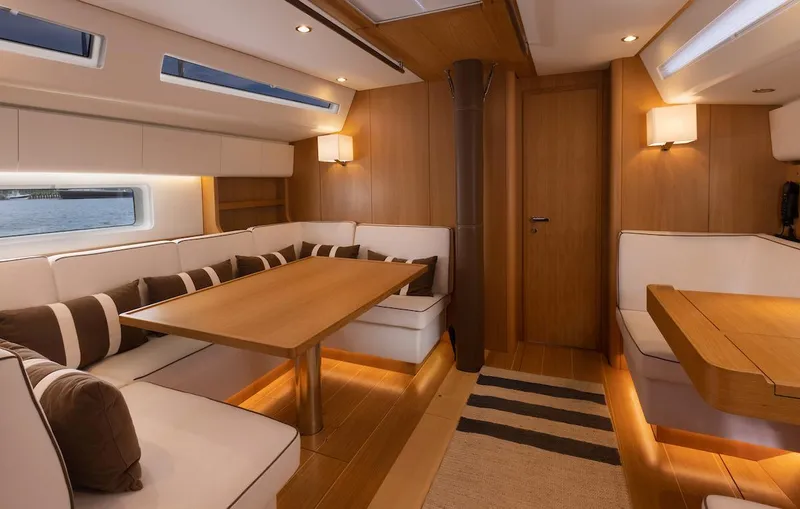

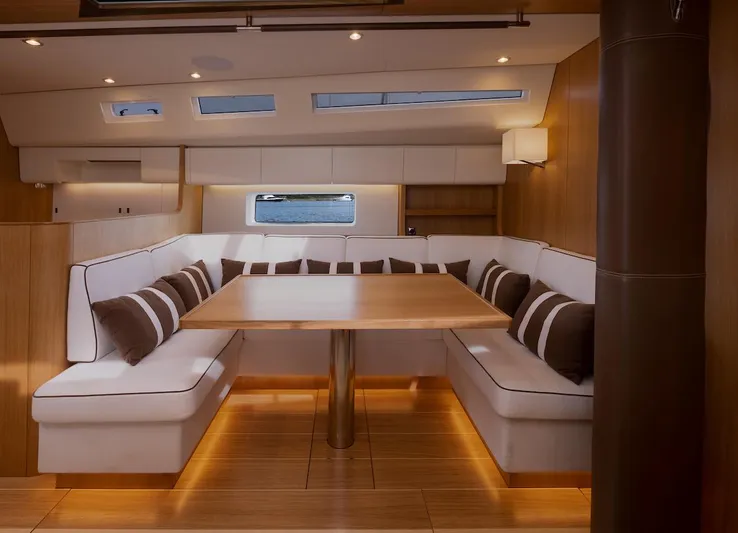

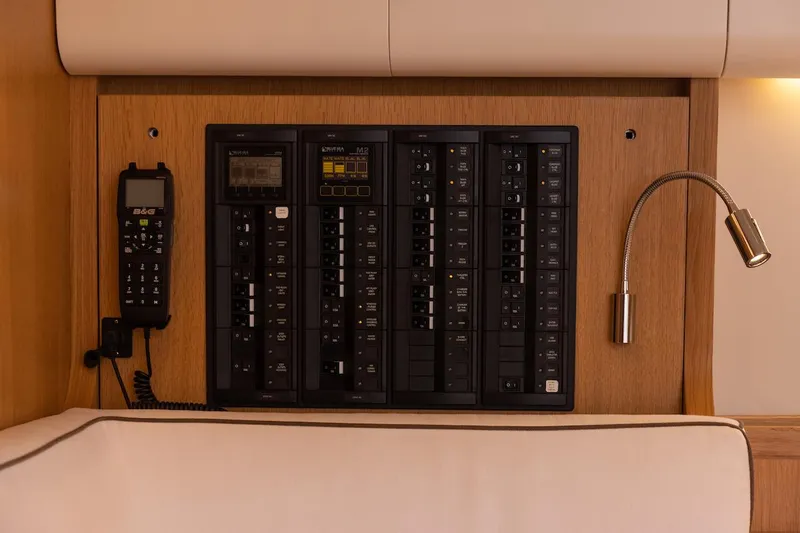

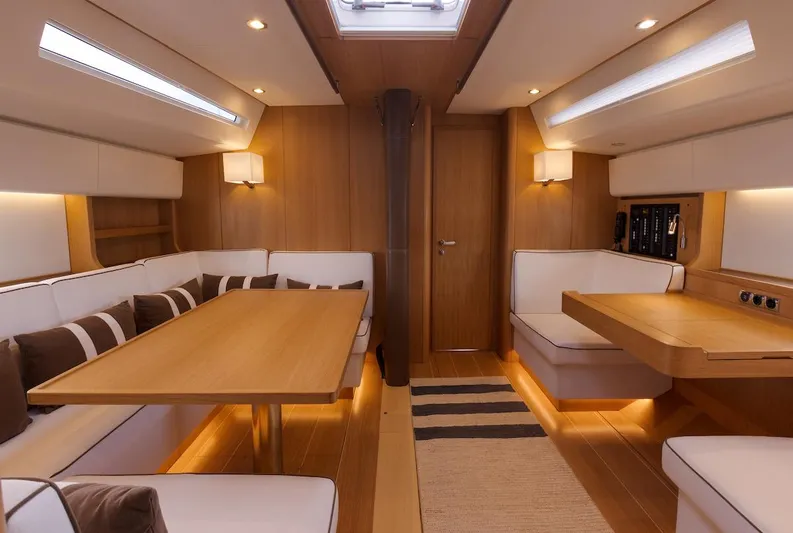

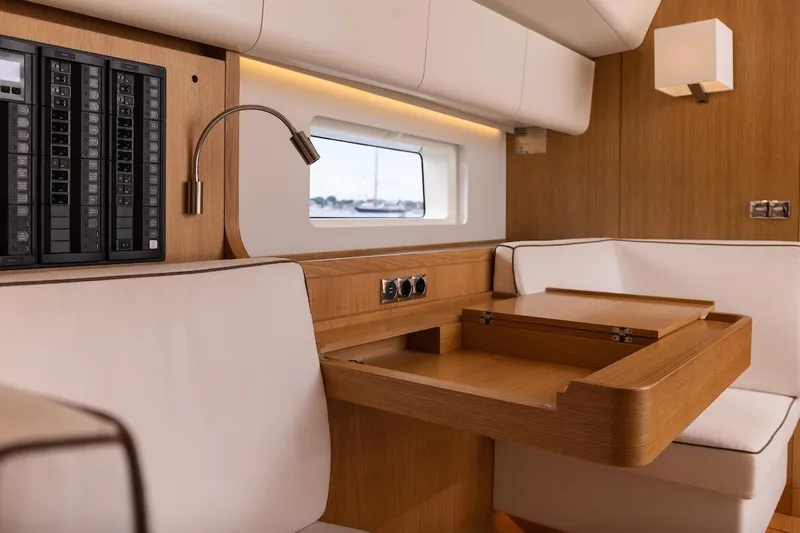

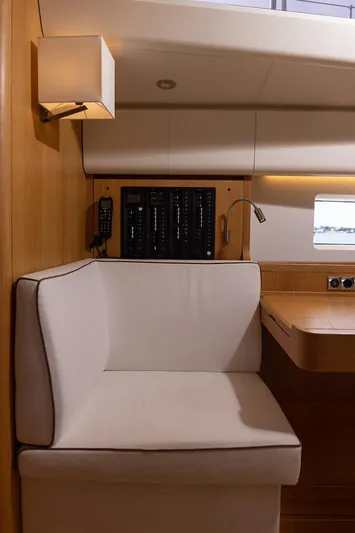

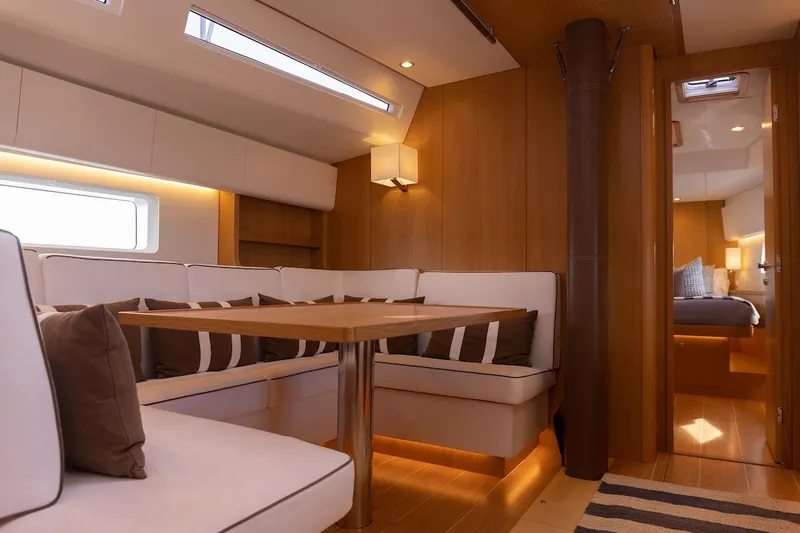

Down below is spectacular,  The light Scandinavian wood interior is gorgeous.  And talk about comfort!  The cabins are generous, and the salon is huge.  There is even room for the two Nautor captain' chairs, which can be used at the salon table (note - the chairs have never ben used).  A large u-shaped settee surrounds the table.  To starboard are two seats with a table between them.. This area acts as the nav station as well, and all electrical controls are adjacent to the forward seat.

This salon is super bright when desired - hull ports, overhead portiights and hatches - and designer lighting all contribute to the feeling of spaciousness and comfort. Bilge access is excellent, and the bilge is super dry and clean, and features an Arid bilge vacuum/drying system.

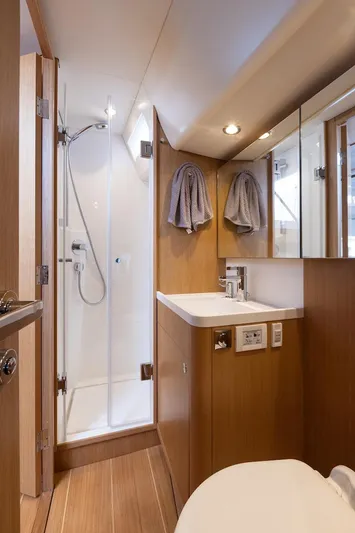

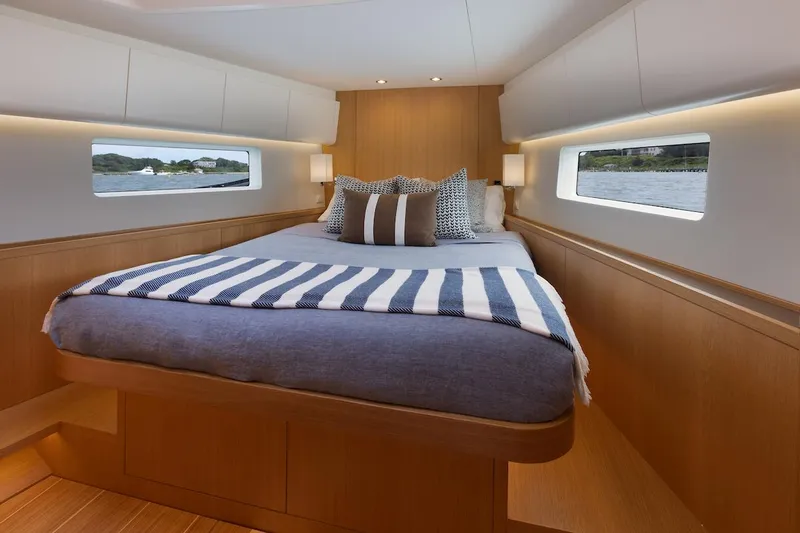

Going forward, the primary stateroom has a wonderful center line berth.  There is great light here, too, especially with the optional hull ports.  The head is large, private to the forward cabin, and includes a separate stall shower.  There is excellent storage throughout.

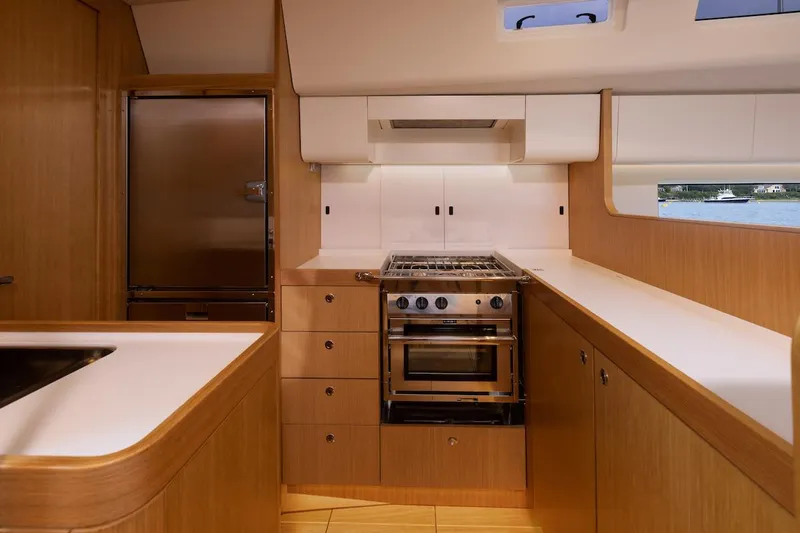

Aft of the salon, to port, one finds the smart galley with aa very functional layout for use both at rest and underway.  The stainless sinks are near the centerline, as one would expect.  There is a stainless fridge and freezer, stove with oven, microwave, and many lockers.

Aft of the galley is a large aft cabin with a double berth, lockers, ventilation and light (including another optional hull port).  This is a very nice cabin for guests - I would be shocked if anyone complained when assigned to this cabin!

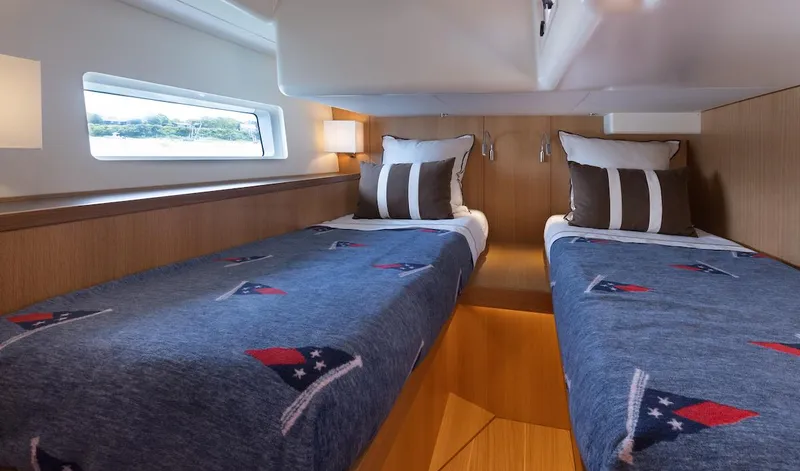

To starboard of the companionway is another aft cabin.  This one has two single berths which can be converted to a double with the filler pieces.  These singes are quite useful ion many situation, making this cabin arrangement very practical.  This cabin has it's own access to the aft head, which is just forward.

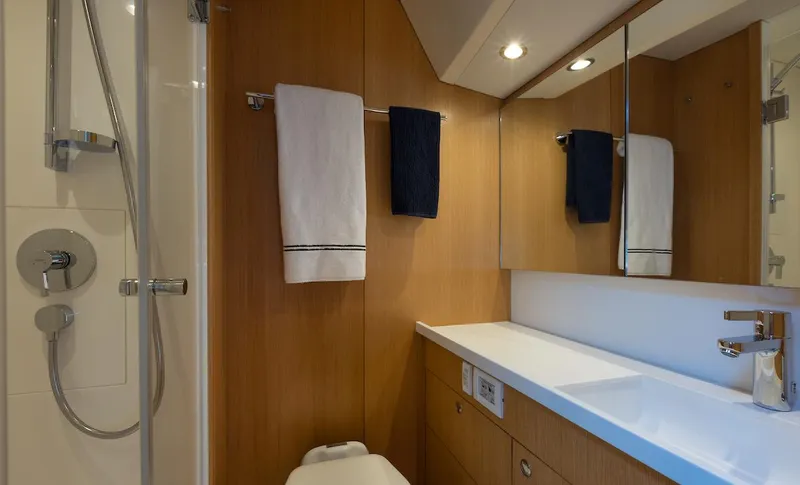

The aft head also acts as the day head.  It is aft of the salon and forward of the aft cabin.  There is an entry directly from the base of the companionway, so this is a great head for uses while sailing and acts as the "day head" under all conditions.  It also has a door to the aft cabin, and a separate shower stall.

This particular Swan 48 has the following factory options:

MAST, RIG, SAIL HANDLING:

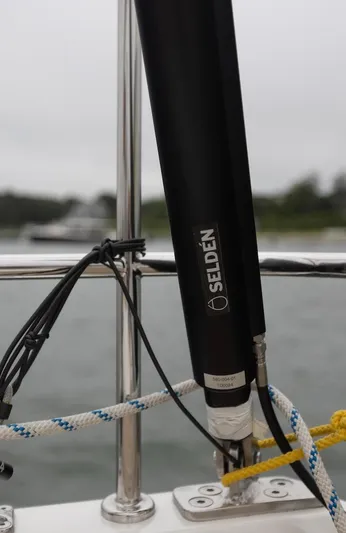

• Selden carbon fiber mast with carbon fiber V-boom, both painted white

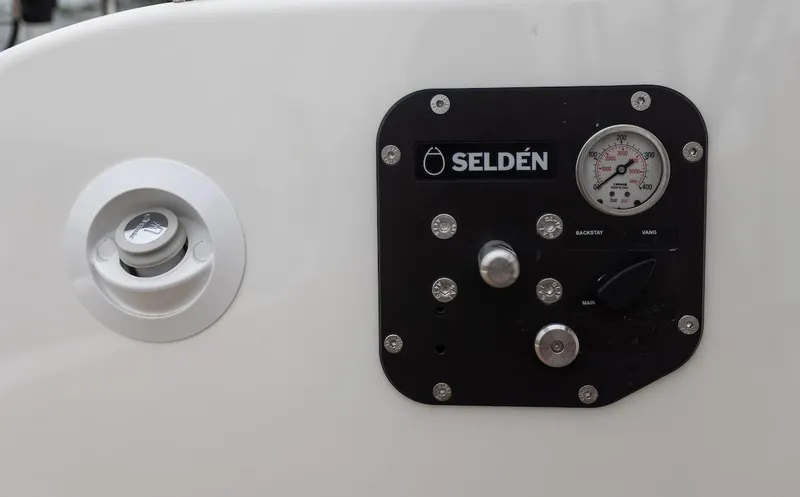

• Hydraulic system upgrade to include outhaul and boom vang (includes upgraded four function hydraulic pumps in cockpit)

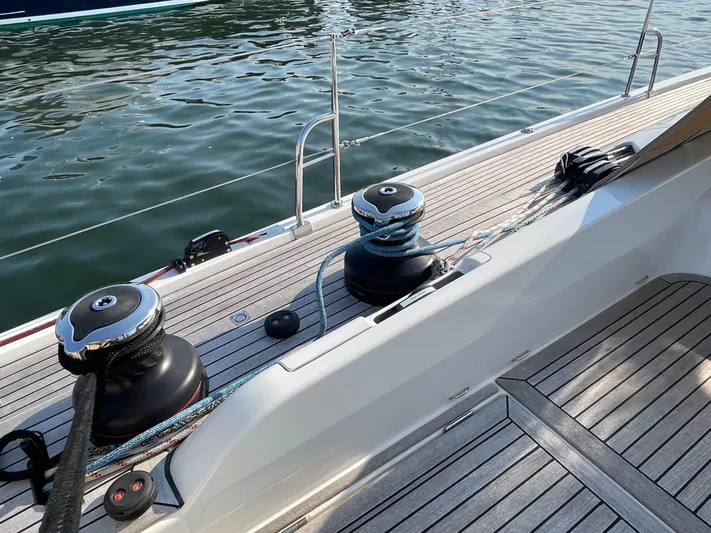

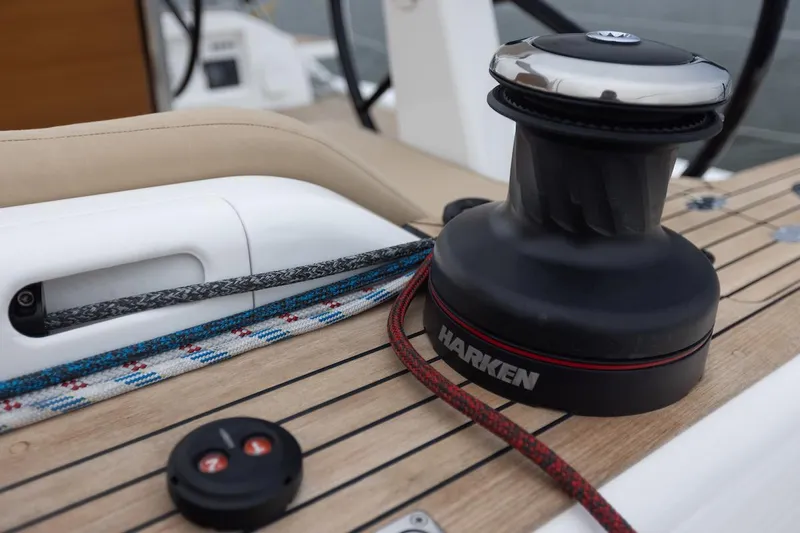

• Electric winches (four), Harken 60.2 STEA, 2 speed self tailing

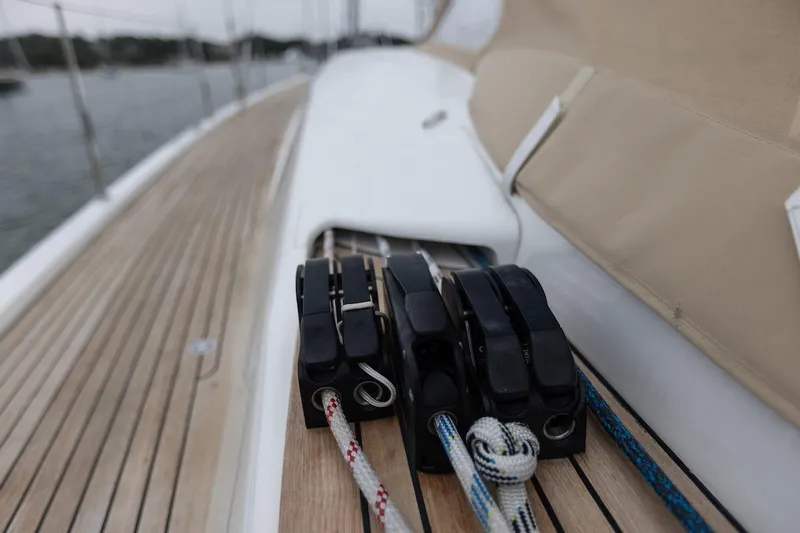

• NOTE:  This is one of the simplest boats to sail - all lines are led internally to a location on the port or starboard cockpit comings, with two pair of two-speed electric winches adjacent to all lines - super easy and very impressive!

HULL FEATURES:

• Additional hull windows, 1 pair, in owner's cabin, with manually operated blinds
• Additional hull windows, 1 pair, in aft cabins with manually operated blinds
• Dinghy garage (with nautor improved/updated operational design)
• Four layers of epoxy Barrier coat below waterline
• Seasmart B240X folding stainless steel cleats in lieu of fixed

CANVAS WORK:

• Cockpit Cushions with backrest forward of steering wheels

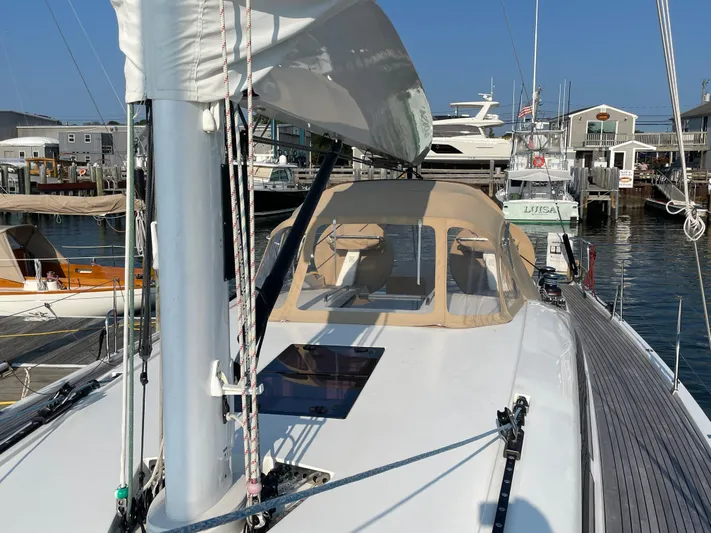

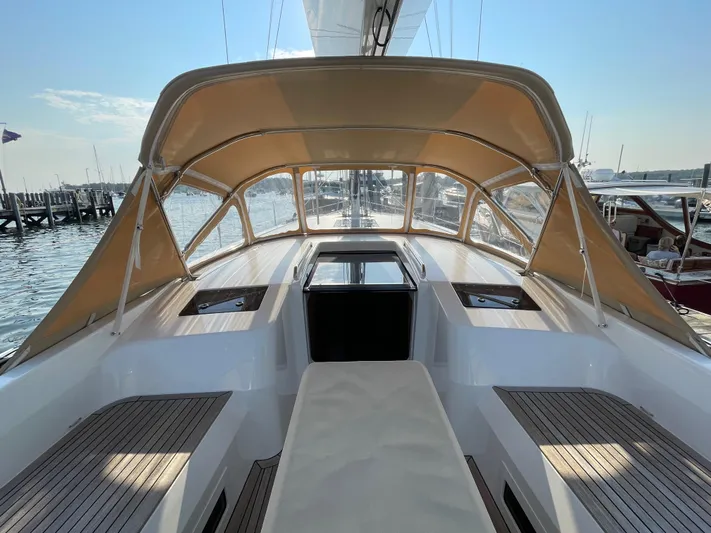

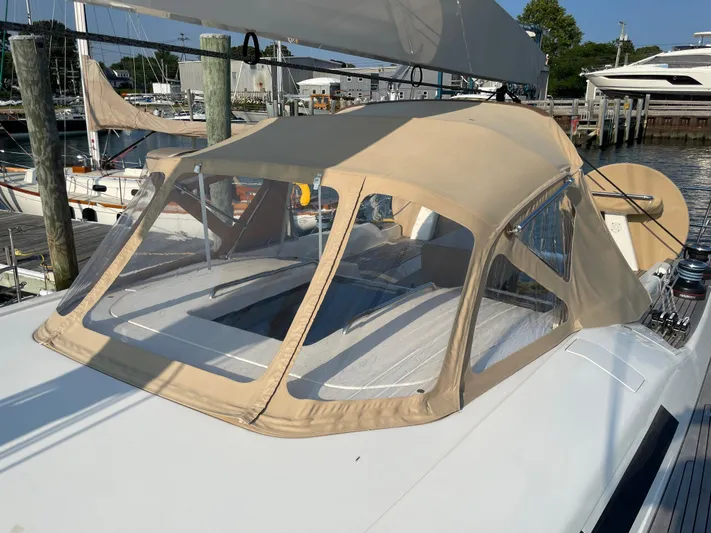

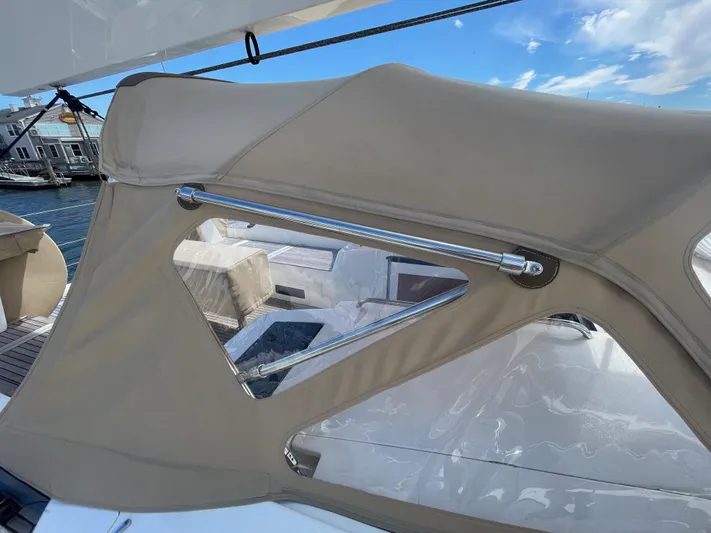

• Dodger over forward end of cockpit, frame divided for easy storage
• Forward cockpit bimini (frame only, never used)
• Padded canvas cover for cockpit tabe
• Canvas covers for steering wheels
• Canvas covers for instrument panels
• All above canvas is Sunbrella Dune 5026

INTERIOR:

• Mood 1, Swan Soul
• Bulkheads, Furniture and cabin sole in Oak, satin varnished
• Leather Pockets: 1 in salon
• Leather wrapping on overhead and main companionway handrails
• Additional Leather wrapped handrail on aft head bulkhead
• Leather wrapping for mast
• Leather wrapped top surfaces for: Forward cabin (outboard, P&S), Salon (outboard, P&S), Starboard aft cabin (outboard, starboard, and bedside table), Port aft cabin (outboard)
• Nautor throw pillows, 11
• Piping for Salon sofas and seats
• Two captain's chairs
• Starboard Cabin filler to convert single berths to a double

SYSTEMS:

• Bow thruster, Side Power SRLP100-24IP, Proportional, swing type (retracting). Includes separate 24v/75ah battery bank.  battery charging from service battery bank with a 24v 16a battery charger (DC to DC).
• Thruster joystick control at starboard control panel
• Deck wash, fresh water, quick connect outlet in anchor/windlass locker
• Jabsco Quiet flush 24v DC toilet with electric flush in forward head, in lieu of manual
• Jabsco Quiet flush 24v DC toilet with electric flush in aft head, in lieu of manual

ELECTRICAL:

• Diesel generator, Whisper Power M-GV8 PICCOLO, 230v, 50 hz, 6kw (8kVA) in engine room.  Touch panel full color 5" screen, generator starter battery charged by additional 12v, 5A charger supplied by the 230v system.  Approximately 250 hours.
• Isolation Transformer, 7kVA, on 230v shore power inlet line.  NOTE:  This allows the yacht to connect to both European and American 230v systems (both 50 hz and 60 hz). This also isolates the yacht's AC system from the shore AC system.  Output voltage and frequency the same as input voltage and frequency. When the yacht is in 60 hz (US) areas, frequency sensitive equipment will automatically disconnect from the AC bus if the incoming frequency is more than 53 hz.
• Separate battery charger (50A) and Inverter (3000VA) for the US market, in lieu of combined charger/inverter.  This allows inverter output while charging in 60 hz areas.
• Microwave in galley
• Boom light, 1 piece

ELECTRONICS:

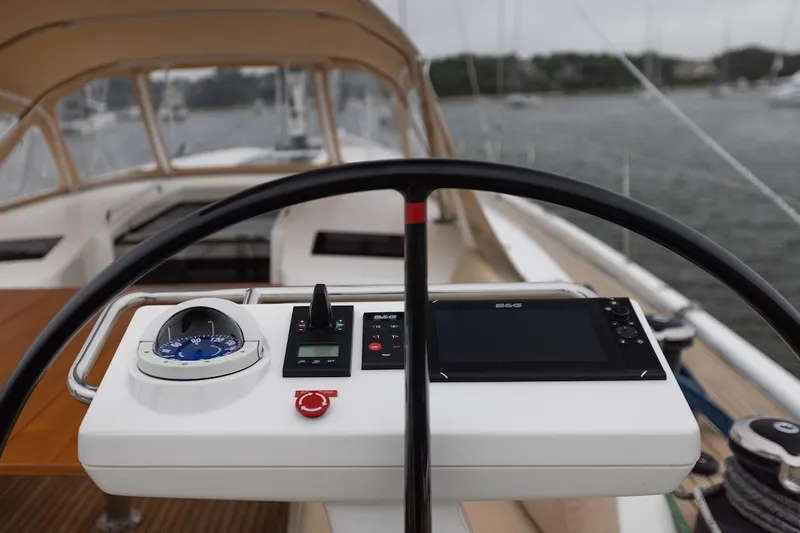

• B&G  ZEUS 9" multifunction displays, two, one on each steering pedestal in cockpit.  Includes larger pedestals
• B&G autopilot for Triton system controller located on port pedestal
• B&G/Simrad Halo 20+ Radar (new 2022), with mast mount

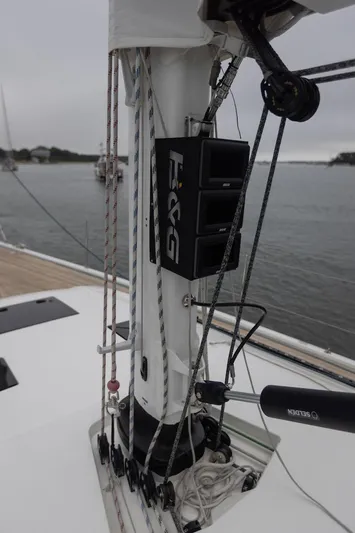

• B&G Triton /H5000 20/20 HV displays, 3, located on Mast, with Selden mast bracket
• B&G Triton 2 4.1" digital displays in cockpit, two
• B&G WS310 wind sensor, on masthead
• B&G DST800 combined speed, depth and sea temperature sensor,
• B&G Precision 9 compass
• B&G ZG1000 GPS antennae on port pushpit lower rail
• B&G NAIS-500 AIS Transponder including NSPL-500 VHF Antennae splitter and GPS-500 antennae. System is connected to Zeus and VHF antennae.
• GPS antennae located on pushpit
• B&G V90S VHF radio at chart table
• B&G H50 VHF Wireless handset positioned in the cockpit
• AC Marine CX4 VHF antennae, mounted on masthead
• B&G NEP-2 network expansion port, located at chart table

ENTERTAINMENT:

• Fusion MS-RA770 Marine stereo (AM/FM, Wifi Streaming, Bluetooth, USB and optical connections).
• NMEA2000 interface between Fusion and B&G bus to allow control from cockpit MFD's
• B&W CCM-362 ceiling speaker in salon, 1 pair

NOTE:  MOST OF THE ABOVE FEATURES ARE FACTORY OPTIONS

SAIL INVENTORY:

• All sails built by North Sails, 2020:
• Mainsail, Endurance 3DI, full battens, square top, with gaff batten.

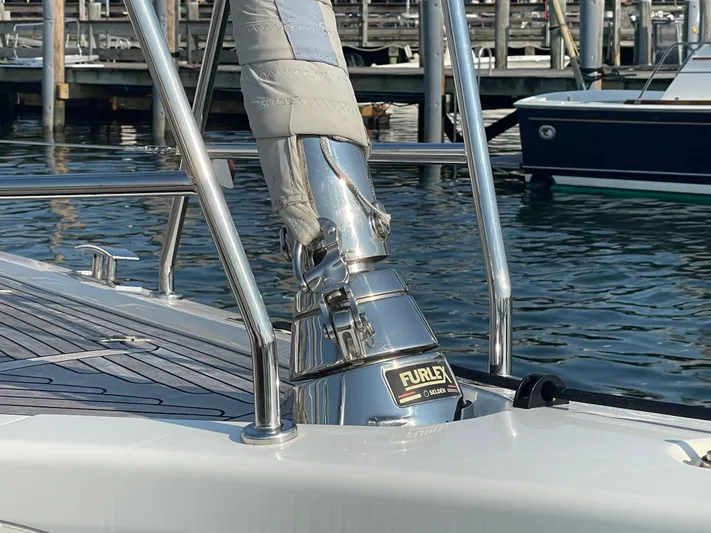

• Jib, Endurance 3DI, 105%, furling, with vertical battens
• Code 65, 3 oz polyester, with UBI Maior FR200RWm furler and torsional cable

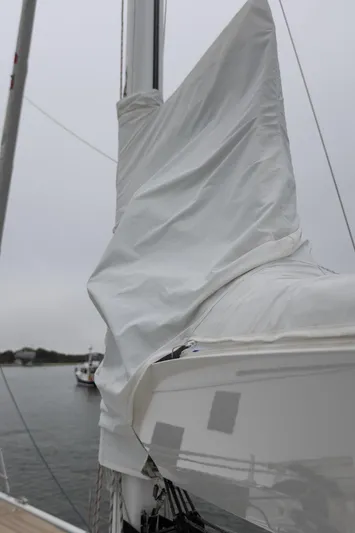

• White sail cover for V-boom, custom built for the mainsail.

RECENT ADDITIONS:

• Custom mattress for owner's cabin
• Microwave in Galley
• Arid bilge drying system (works great!)
• Electric Horn on Mast
• Radar (see electronics section)
• Exterior SS grab rails on dodger, port and starboard
• Lifelines modified to allow a large "gate" for boarding from a launch or at the dock.

TANK CAPACITIES:

• Fuel, 95.1 gallons, in two tanks
• Water, 132 gallons, in two tanks
• Black water (holding), 26.4, gallons, in two tanks
• Hot water, 10.6 gallons

NOTE:  KISMET is US Duty paid and USCG documented.
