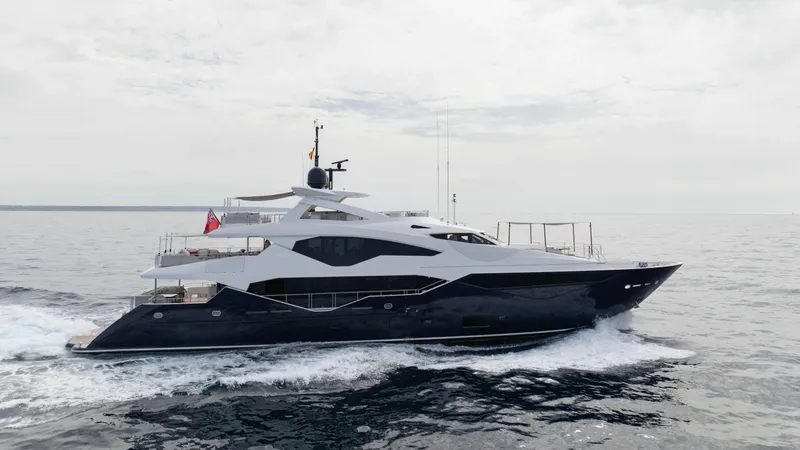

TC Yacht for Sale

• Cruising Speed: 12 kn
• Maximum Speed: 22 kn
• Beam: 26' 7''
• Hull Material: Fiberglass
• Max Draft: 8' 9''
• Fuel Tank: 1 x 7555|gallon
• Fresh Water: 1 x 1374|gallon
• Holding: 1 x 330|gallon
• Cabins: 10
• Heads: 12

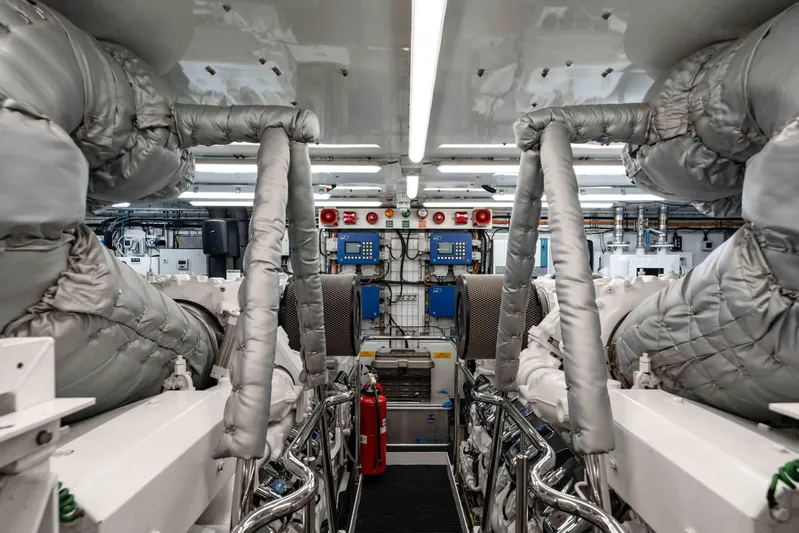

• Main Engines: 2x 2020 MTU 12V 4000 M93 3,1401hp Diesel Engines
  • Engine Hours (04/24): Port - 1175 hours | Starboard - 1175 hours
• Shafts: 2x 139mm straight shaft supported by one (1) strut per side. TIDESMARINE raw water lubricated dripless shaft seals
• Propellers: 2x ROLLA five (5) blades NiBrAl – 1473mm Diam. x 1597 Pitch
• Engine Controls: MTU electronic control. Main control is in wheelhouse. Secondary controls located at port and STBD wing stations
• Gear Boxes: ZF - ZF7600A
• Gear Ratio: 3.286:1
• Stabilizers: ABT-TRAC 440 digital Fin stabilization system. 20X Fin
• Bow Thruster: hydraulic bow thruster system 100HP ABT.TRAC 20 20.25" - 513mm GRP tunnel
• Stern Thruster: hydraulic stern thruster system 65HP ABT.TRAC 16 16.25" - 412mm GRP tunnel
• Steering System: Electro-hydraulic system  by WILLS RIDLEY with dual pumps (1) 220V three phase and (1) 24V DC
• Ventilation & Blower: one (1) aspirating blower and one (1) intake blower per side (two (2) in total located in the mid of the E/R

• Generators: 2x Kohler 80kw 400/230V 3 Phase 50Hz - 80EFOZDJ with sound shields
  • Engine Hours: (04/24): Port -  4000 hours | Starboard - 4000 hours
• Electricity: 24v DC electrical system with full circuit-breaker protection
• Shore Power:
  • 1x 125A plugged flexible 20M cable on an electric reeling system
  • 1x 125A plugged loose, flexible 20M cable via a fixed inlet
  • Connected to a shore power converter Atlas 90 kVA-SPA-II Series 50Hz
  •  Input 180-530V single or three phase up to 90kVA.
  • Output 230/400V 50Hz 3 phase 90kVA
• Semi-automatic AC power management
• Batteries:
  • 6x 12V model: 31-AGM batterie connected in series and parallel to provide 24V to service battery bank – located under port side technical room floor
  • 4x 12V type: M135 batteries connected in series and parallel to provide 24V to port engine battery bank
  • 4x 12V type: M135 batteries connected in series and parallel to provide 24V to STBD engine battery bank
  • 4x 12V LIFELINE AGM batteries connected in series and parallel to provide 24V to the emergency radio battery bank inside the FWD garage
  • 6x 12V LIFELINE AGM batteries connected in series and parallel to provide 24V to the emergency bank in aft upper deck, STBD side underneath stairs to fly
• Emergency Batteries & UPS:
  • Starter batteries 24v DC
  • Domestic batteries 24v DC
  • Emergency batteries 24v DC
  • Independent battery backup for VHF radio
  • 2x domestic service battery charger for 24v circuits
  • 2x engine battery charger for 24v circuits
  • 1x emergency battery charger
  • 1x radio battery charger

• Fuel Capacity: 7,555 USG / 28,600 LT - in three tanks
  • FWD 1,506 USG / 5,700LT
  • Mid-ship 5,019 USG / 19,000LT
  • Day tank 1,030 USG / 3,900LT
• Tender diesel fueling station w/ transfer pump from day tank and fuel hose reel in tender garage
• Fresh Water Capacity: 1,374 USG / 5,200 LT - in two tanks
• Grey Water: 330 USG / 1,340 LT
• Black Water: 330 USG / 1,340 LT
• Clean Lube Oil:  76 USG
• Dirty Lube Oil: 76 USG

• Air Conditioning: Marine Air chilled water air DC handler
  • Upper Deck/Upper Lounge: 1 x AU24DC - 24,000 BTU & 2x AU36DC - 72,000 BTU
  • Upper Deck Captain’s Cabin: 1 x AU24DC - 24,000 BTU

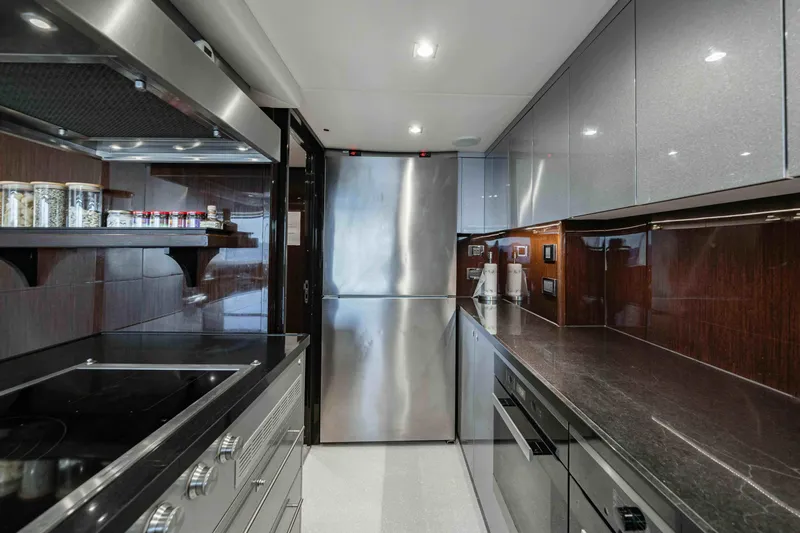

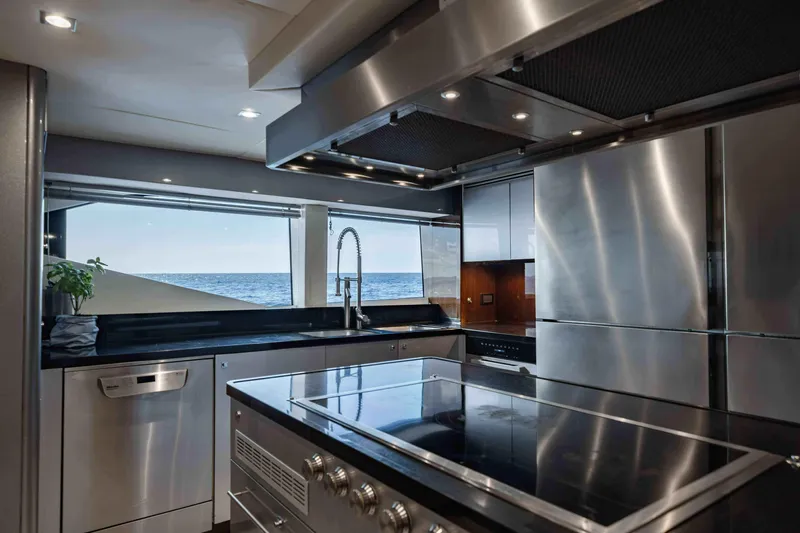

  • Main Deck Galley:  2x AU18DC - 36,000 BTU
  • Main Deck Pantry: 1x AU9DC - 9,000 BTU
  • Main Deck Primary Suite: 2x AU24DC - 48,000 BTU
  • Lower Deck Cabins: 2x AU18DC - 18,000 BTU; 1 in each room
• A/C Sea Water Pumps: SCOT MOTOR PUMP
• Circulation Pumps: SCOT MOTOR PUMP
• Fresh Water Purification: Fresh Water UV sterilizer system TECNICOMAR TC5000
• Water Heaters:  2x SURECAL – model: T12-11/RTS PLUS A – 230-240Vac
• Water Makers: 2x IDROMAR - (1) located in tender garage & (1) located in crew bilge
• Water Softener: Octo Marine Compact Water Softener
• Fuel Filters: two (2) per engine (four (4) total) PARKER RACOR 78202
• Fuel Polishing: ALFA LAVAL model: MIB303S 13/33
• Fuel Transfer Pumps: GIANNESCHI model: ACB331
• Fire/Bilge Systems:
  • Gianneshi self-priming centrifugal 400V 3 Phase 50Hz 7.5kW and a secondary 1 ST Gianneshi self-priming centrifugal pump powered by an independent diesel engine located in the pump room.
  • Both are coupled to bilge manifold valve blocks, which are connected to the strum boxes throughout the boat
  • Fire Hydrant hose station is located in the pump room.
  • MTU fitted engine direct bilge pump with strum box.
• Oil Changing System: ADAM PUMPS model: E2200ING 230Vac; Two tanks for dirty and clean oil 76gal each
• Sewage Treatment System: TECNICOMAR model: ECOMAR 32S
• Grey Water Transfer Pump: GIANNESCHI 24V
• Toilet System: Tecma 24v
• Under Water Lights 15x Lumishore white LED lights - 5 across transom and 5 on either side
• Power Management System: Tijssen Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring and control system.
  • Tijssen Master MPA 19" touchscreen display in the Wheelhouse.
  • Tijssen Master MPA 17" touchscreen display in the Tech Room.
  • Tijssen Master MPA 15" touchscreen display in the Crew Mess.
  • Tijssen Slave MPA 15" touchscreen display in the Engine Room.
  • The above touchscreen interfaces allow the control of the following systems:
  • AC Electrical system power monitoring and display.
  • Status monitoring and control of AC switch gear.
  • Display of the main generator parameters.
  • DC System Power monitoring and display.
  • Monitoring and display of DC switch gear status.
  • Monitoring of Diesel fuel, fresh water, grey water, black water, and oil tank levels
  • Control and monitoring of all major fluid pumps (Fuel Transfer, Black and Grey)
  • Monitoring status of all the main circuit breakers
  • Monitoring and control of navigation lights.
  • Monitoring of Portlight and Hatch Status
  • Monitoring of Hydraulic systems tank levels and status.
  • Monitoring via a single float switch of bilge water level in five bilge compartments.
  • Provide control and monitoring of engine room ventilation.
  • Provide exhaust temperature monitoring.
  • Remote Access via internet VPN for Tijseen Elektro factory (captain approves access only)
  • Fire Alarm Monitoring. Pop-up alarm in the event of active fire alarm
  • Tijssen MPA Generator Control and Monitoring System Upgrade - Additional feature allowing complete control and monitoring of generator parameters and alarms via the Tijssen Touch Screen

Lifesaving

• International running light: green, red, white navigation lights, 360 white anchor light – NUC and towing lights
• Personal Floatation Device (PFD): Twenty-one (21) self-inflatable adult size
• Throwable Devices: Four (4) x donut throwable with floating line
• Sound Signals: Bell in the bow area, Horn
• Visual Distress Signals: flares kit
• Vapor Detector, Gasoline, Propane, Carbon Monoxide, etc. in every cabin, engine room, anchor locker, technical department in the aft deck, STBD, garage
• Life Raft/ Floats: four (4) x OCEAN SAFETY 10 people( Exp January 2025)
• 2x EPIRB: (1) 3Si Guardian EPI 1045 (1) SmartFind AIS G8
• SART: SafeSea S100

Fire Suppression and Detection

• Class-approved fire detection system with sensors in all cabins and monitoring beside the main helm
• Sea-Fire FM-200 H-Series fixed machinery space fire extinguishing system
• Fireboy-Xintex Fire Alarm Detection System Model 90900 control panel with dedicated Apollo Smoke/heat detectors in all accommodation areas; connected to the MPA system to repeat alarm
• The fire suppression water system has hose connections in the main deck (STBD side midship corridor, STBD FWD deck next to the garage, aft upper deck, and anchor locker). Pump GIANNESCHI
• YANMAR DIESEL air-cooled motor pump for fire and dewatering system
• CO-P2 fire escape hoods in each cabin

Alarms

• 1x STBD Acc. Bilge
• 1x Collision compartment bilge
• 1x Crew acc. Bilge; Port Acc. Bilge
• 1x E/R aft bilge, Tender garage bilge
• 1x Laundry/Garage bilge, Pumproom bilge

Security System

• Tijssen 8x CCTV camera system with eight dedicated cameras. CCTV recording facility for all cameras with motion sensing and zoom.
  • Camera 1 Aft Cockpit is viewing towards the stern entry point.
  • Camera 2 Engine room (viewing aft)
  • Camera 3 Engine room (viewing forward)
  • Camera 4 Port Main deck side deck (viewing aft)
  • Camera 5 Starboard Main deck side deck (viewing aft)
  • Camera 6 Tender Garage
  • Camera 7 Upper Deck Aft Cockpit
  • Camera 8 Sky Deck.

Classification

• Built to RINA Rules for the Classification of Yachts Designed for Commercial Use 2013
• MCA Large Yacht Code (LY3) with the following operational Class notation.
• Pleasure Vessel- RINA: C + HULL MACH Y Unrestricted navigation EFP (Enhanced fire protection)

• SAT C System: Iridium Lo Thrane LT 3100S
• VHF System:
  • Sailor 74224 Class A DSC
  • Handheld Portable VHFs. 2x Icom GM1600E GMDSS VHF
• MF Radio: Sailor 6301 MF/HF 150W Radio Telephone
• Navtex Receiver: Furuno NX700B
• Telephone Exchange: Bridge to Emergency Steering Position

Network and Communications System

• Satellite Communication System: Sailor 9110 VSAT 103cm (8W BUC, 2 x MB LNB - Housed in a matching Dome)
• Satellite Television System: Seatel 100 TVHD 3 Axis Global, including nine DirecTVHD decoders
• Terrestrial Communications and Control: Pepwave MAX HD2 LTE 3G/4G ship-to-shore Wi-Fi Router
• 2x Pepwave Max BR2 5G Internation Data Communications
• 1x Starlink RV Antenna
• 1x Starlink Maritime Antenna
• K4 Edge Data Magament Server
• Rucus Network Management Server
• Wi-Fi Data Communications (linked to Marina Network)
• User ability to select data method depending on availability.
• Wireless network coverage throughout the boat.
• Plex Movie Server with 4TB of storage

• Radar: Furuno FAR1518-BB X-Band 9GHz 12Kw with 6.5' Open Scanner with Furuno processor RPU-24 and Furuno keyboard RCU- 028
• Second Radar: Furuno FAR1518-BB High speed X-Band 9GHz 12kW with 4' Open Scanner with Furuno processor RPU-24 and Furuno keyboard RCU-028
• Electronic Chart System: Transas Navi-Sailor 4000 ECDIS & Time Zero Professional
• Magnetic Compass: Ritchie Compass Helmsman HF-743
• Satellite GYRO Compass: Hemisphere GNSS V103.
• Auto Pilot: Simrad AP70, including follow-up levers on wing stations.
• Log: Sperry Naviknot 350E with FNFII through hull sensor
• Echosounder: Furuno FE800 Echo Sounder 200KHz with 200B-8B Transducer
• GPS: Furuno GP170 GPS Navigator with GPS antenna.
• Display: FT Nav-vision Navigation data display with trackball and wireless keyboard.
• AIS: Furuno FA170 Class A AIS Transponder with GPS and VHF antenna.
• Bridge Navigational Watch Alarm: Furuno BR510
• Rudder Angle Indicator: Simrad RF45X
• Sonar: WASSP F3i Multi-Beam Sonar System located forward in the hull
• Nightvision Camera: Omnisense

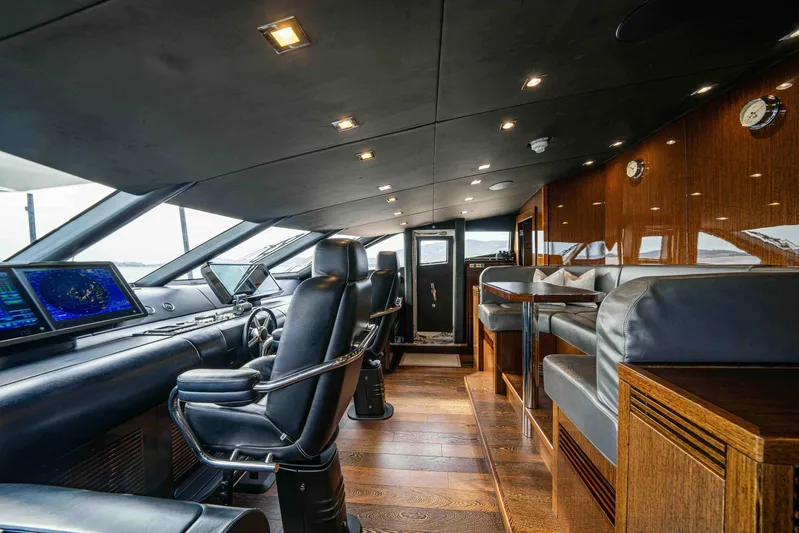

Wheelhouse:

• Second helm seat fitted in Wheelhouse
• Wing Station Control – Port and Starboard of Wheelhouse
• MTY RCS Engine Propulsion Control Levers
• MTU Stop/Start Operating panel per engine
• Sleipner Thruster control
• Simrad Steering Lever FU80
• Horn Button
• Depth and depth alarms to be provided at each Bridge Wing Station
• AV Equipment – 4 x Sonance VP65R XT Extreme Speakers with Sonos Connect and Amplifier
• Vimar ByMe Exterior Lighting is controlled via an internal Touch screen in Black Chrome with a Grey switch or Bezel
• Fireboy-Xintex Fire alarm detection system. Model 90900 control panel with dedicated Apollo Smoke/heat detectors in all accommodation areas.
• MTU BlueVision Basic New Generation ships automation systems.
• MFD display per engine.
• LOP-14 Local operating panel with display in engine room per engine.
• MTU RCS Engine propulsion control levers.
• MTU Stop/start operating panel per engine.
• Iridium 9555 Satellite Phone system with docking station and external passive antenna.
• Five x Hatteland Series X 19" Maritime multi Displays for Radar, Plotter, and central navigation (Sixth standard Tijssen display is for the Tijssen monitoring system and Tijssen CCTV)
• IP PBX telephone exchange Yealink W52P Dect Phone handset
• Tijssen Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring, and control system. Tijssen Master MPA 19" touchscreen console display.
• Tijssen SMS Paging facility allows MPA alarms to be sent to up to five GSM accounts

• Anchors: Two (2) x Pool style  Manson Kedge 210Kg galvanized bow anchors
• Anchor Chains: Upgraded anchor chain to 2 x 165 meter 19mm Galvanised Chains and the associated windlass equipment; Each Anchor chain marked every 27 meters - R.Y.B.W.G; .
• Windlasses: Two (2) x Hydraulic Vertical LEWMAR windlasses
• Capstans:  Two (2) x Hydraulic LEWMAR capstans
• Passerelle: Electro-hydraulic BESENZONI 150Kg
• Swim Platform: Electro-hydraulic PHOENIX MARINE SOLUTION
• Garage Door: Electro-hydraulic BESENZONI
• Boarding Ladder: Manual in SS and teak, stored inside the garage
• Boat Crane/Davits: The tender slide and winch are in the aft tender, and the HARKEN davit arm is stored in the FWD garage. The davit can be positioned on both the port and STBD side supports next to the garage to embark/disembark the tender on either side of the vessel. The davit's winch can be operated electrically or manually with a lever.
• Ground Tackle:
  • Cleats: four (4) at bow
  • One (1) per side (total four (2) at midship)
  • Two (2) per side (total four (4) aft cockpit)
  • One (1) per side (total two (2)) swim platform
  • One (1) LEWMAR capstan per side (total of two (2) in the cockpit)
• Spotlight: ACR Model: UP102

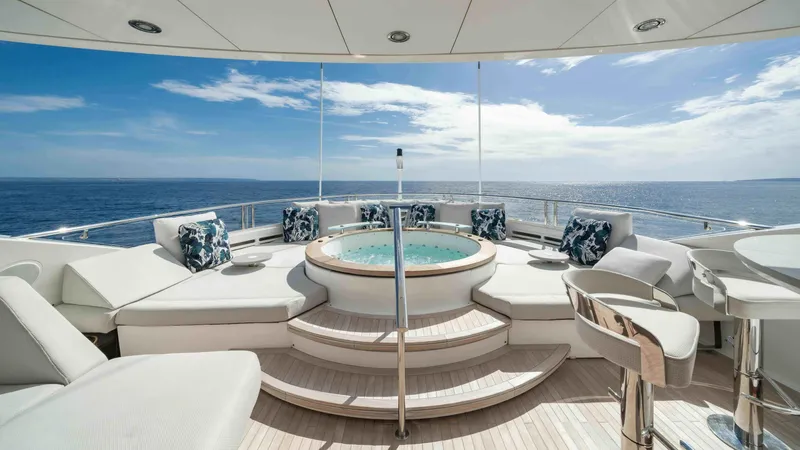

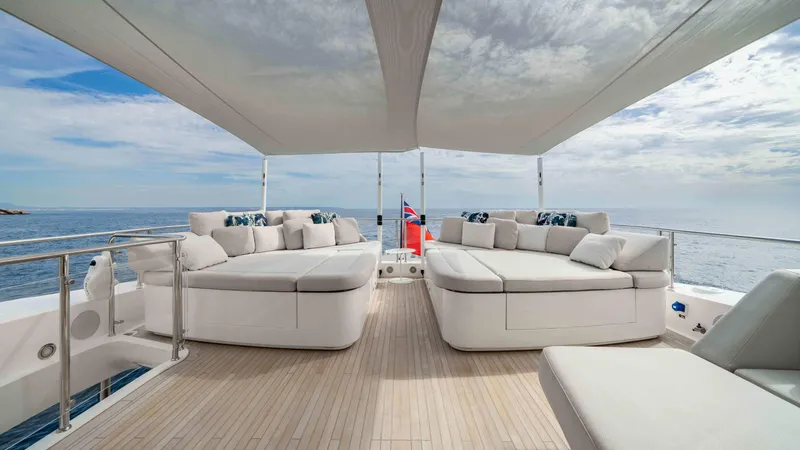

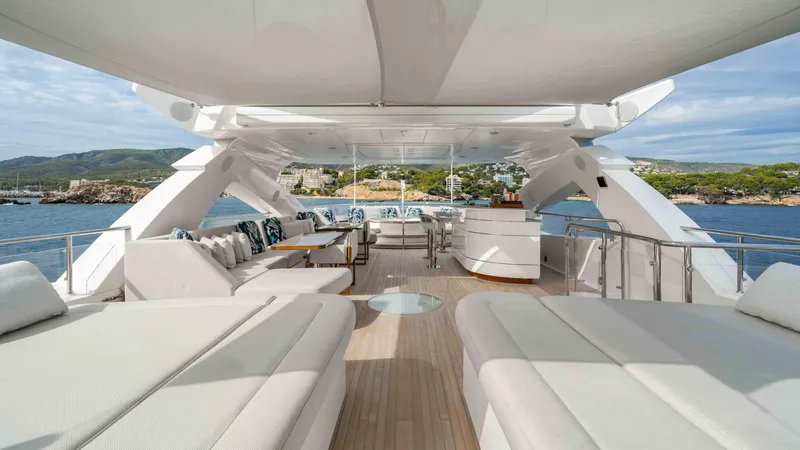

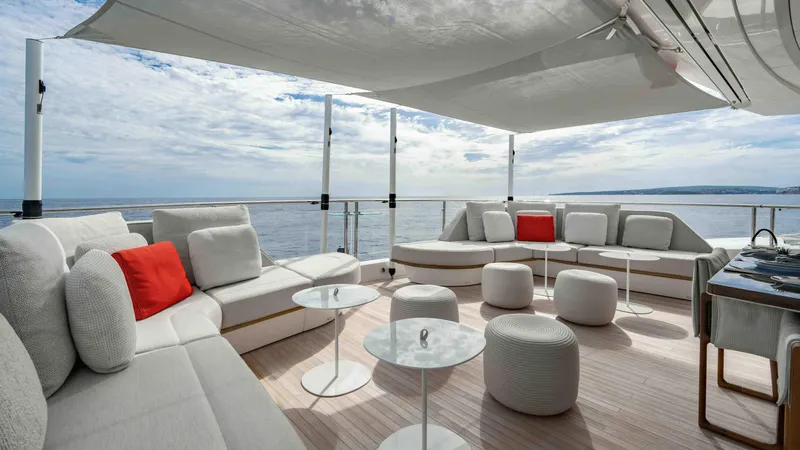

Skydeck

• Built-in seating area on port side with tables
• Raised sunbathing area with cushion
• Jacuzzi
• Wetbar in GRP finish with worktop and storage
• 3x Barstools
• Refrigerator
• Icemaker
• Sink
• Staircase leading to upper deck aft cockpit
• Radar arch structure
• Ensign staff in carbon fiber
• High-level spotlights
• Low-level spotlights
• Non-slip deck finish
• Marine speakers
• Stainless steel safety rails around the top of the stairs
• Stainless steel aft and side safety rails

Foredeck

• 2nd pair of Mooring Bollards on Foredeck
• Fresh water deck wash system outlet
• Seawater pressure washing of chain with outlet in each hawse pipe
• Ventilation fan system to be installed in the Forepeak - anchor locker
• Vimar ByMe Exterior Lighting is controlled via an internal Touch screen in Black Chrome with a Grey switch or Bezel
• Foredeck – U Shape Seating and Table in front of the Sunbather emergency tender garage

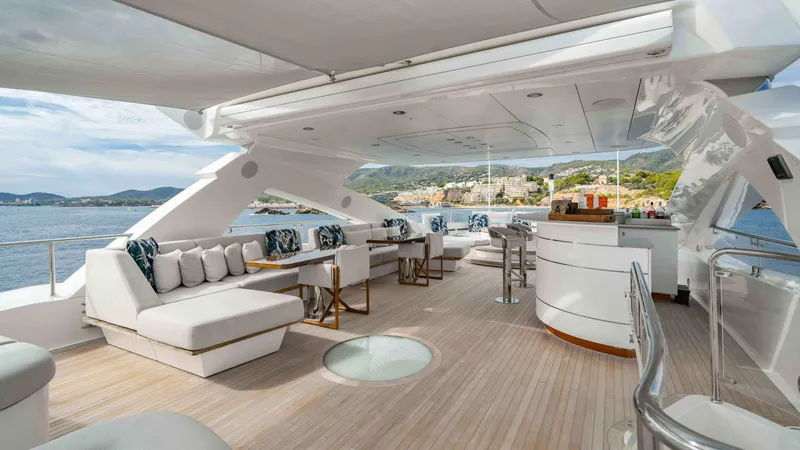

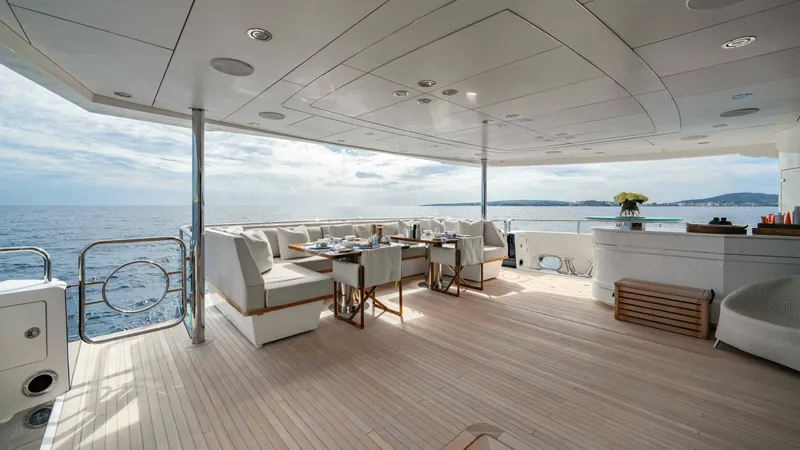

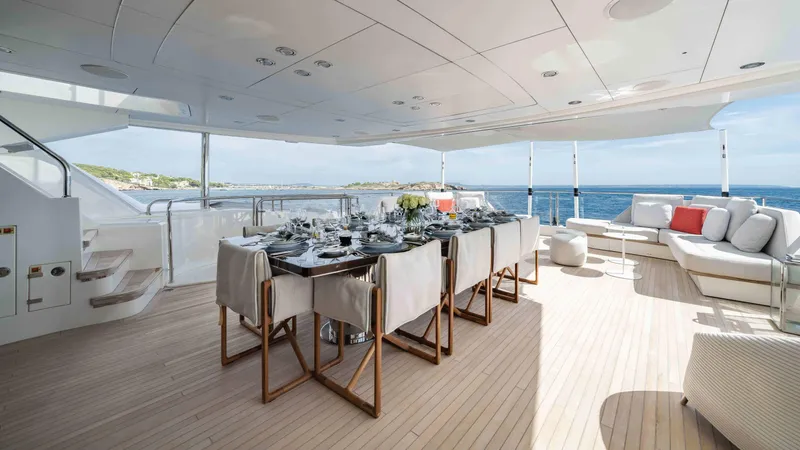

Bridge Deck Aft Cockpit

• Rectangular dining table with seating for up to 10
• Sliding doors to bridge deck sky lounge
• Port Side Serving Area
• Steps leading to main deck aft cockpit
• Staircase leading to sky deck High-level spotlights
• Teak deck
• Marine speakers
• Stainless steel safety rails around the top of stairs
• Stainless steel side and aft safety rails

Main Deck Aft Cockpit and Swim Platform

• Hydraulic rise and tilt platform with a maximum capacity of 4409 LBS / 2000 KG
• 8-step side mount stairway with hull fittings port and starboard with dedicated stowage
• Hand-held  Whale Twist deck shower
• Fresh water deck wash system outlet in the buttress coaming locker
• Four Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier
• Stern capstan winches - two Lewmar C10 Hydraulic fitted port and starboard
• Vimar ByMe Exterior Lighting is controlled via an internal Touch screen with dimming of overhead lights in Black Chrome with a Grey switch or Bezel
• Stainless steel stern fairleads for towing hawsers run from the Main Deck Aft Cockpit

Tender Garage

• Synthetic teak floor covering in tender garage sole in lieu of GRP finish
• Tender recovery system with Hydraulic recovery winch
• Jet Ski overhead crane and chock system for Wave Runner
• Tijssen CCTV camera system for Tender Garage
• Tender diesel fuelling station with transfer pump from day tank and fuel hose reel
• Fresh water marina connection pressure regulator
• Octo Marine Compact Water Softener
• VHF and speaker (with volume control) installed in the Tender garage door aperture - Sailor 6204 connected to Bridge Sailor 6222 Primary VHF

There are accommodations for up to 12 guests in 5 adaptable cabins and 8 crew in 5 cabins, accessed from the galley.

Bridge Deck

• Skylounge & Bar
• Pantry
• Day head
• Pilothouse
• Captain’s Cabin on Bridge Deck (double) with Ensuite

Main Deck

• Main Salon
• Dining Room
• Galley
• Pantry
• Day Head
• Full Beam Primary Suite & Ensuite

Lower Deck

• 2x Twin Cabins with + Pullman - Port & Stbd Forward
• 2x Queen VIP Cabins - Port & Stbd Aft

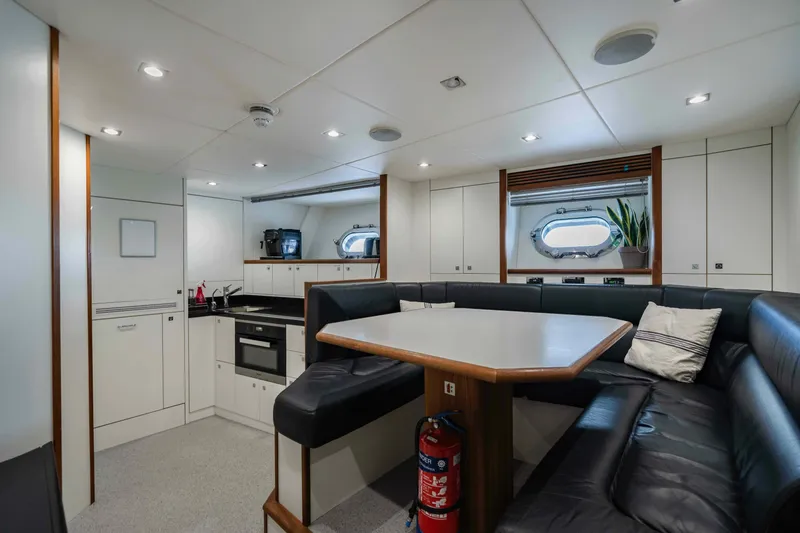

• Crew
  • Crew Mess
  • 4x Crew Cabins with Ensuite

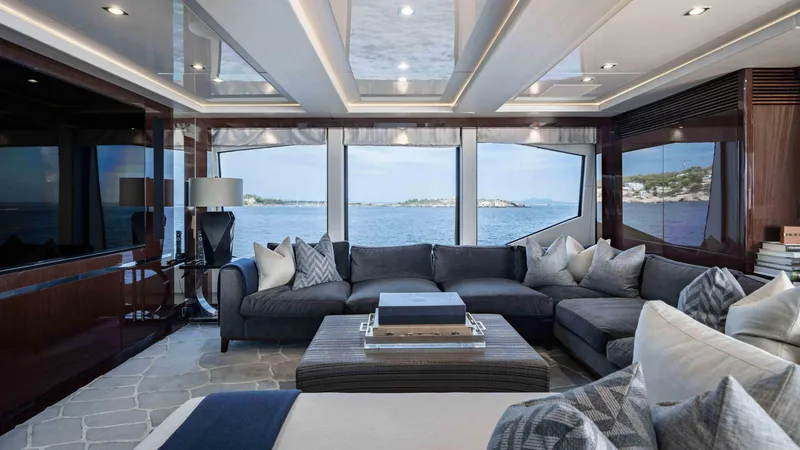

Bridge Deck Skylounge

• L-shaped sectional sofa
• Ottoman/coffee table
• Stone countertop bar with 4 barstools
• Refrigerator
• Icemaker
• Cocktail cabinet with glass stowage
• Overhead lighting with dimmers
• Carpet
• Large side windows with electrically operated Roman blinds in Z and R Mondo 10793594 fabric
• Lacquered bulkheads
• 82” Samsung Smart 4K Ultra HD HDR QLED TV Blu-ray player - QE82Q70RATXXU
• Sonos Amp connecting TV with 4 x B&W built-in Speakers and a B&W Sub-Woofer
• 4K Apple TV
• Satellite Television System. Seatel 100 TVHD 3 Axis Globa, including NineDirecTV HD decoders
• IP PBX telephone exchange Yealink W52P Dect Phone handset
• Vimar ByMe Touch screen control by patio door with dimming and scene control for interior Upper Saloon lighting and control of exterior lights on Sky Deck, Upper Deck Aft Cockpit, and Main Deck Aft Cockpit in Black Chrome with Grey switch or Bezel
• Tecnoinox electric sliding doors leading to the upper deck cockpit area

Captains Cabin

• 32” Samsung HD LED Television. Fusion DVD/CD/FM Tuner with Bluetooth
• Fusion Speakers x 2
• Apple TV
• Vimar ByMe Interior Lighting
• IP PBX telephone exchange Yealink W52P Dect Phone handset
• Blackout Roller Blinds
• Ensuite including shower, Tecma toilet, heated towel rail and sink

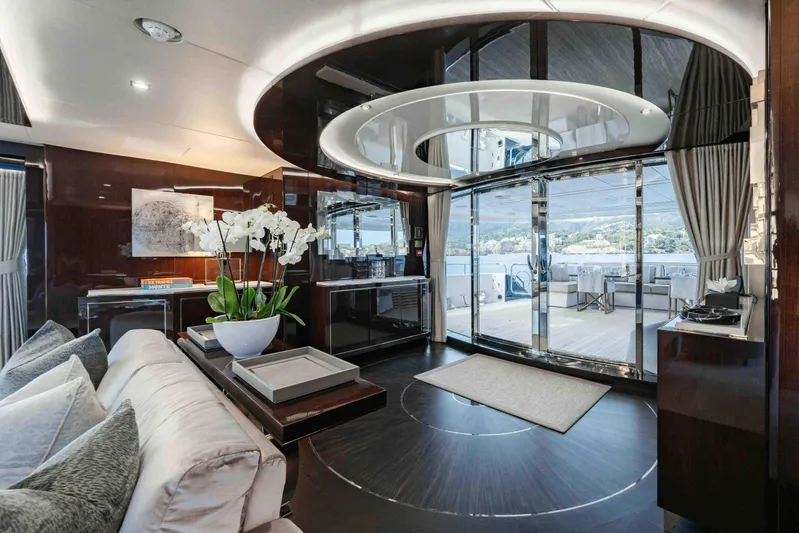

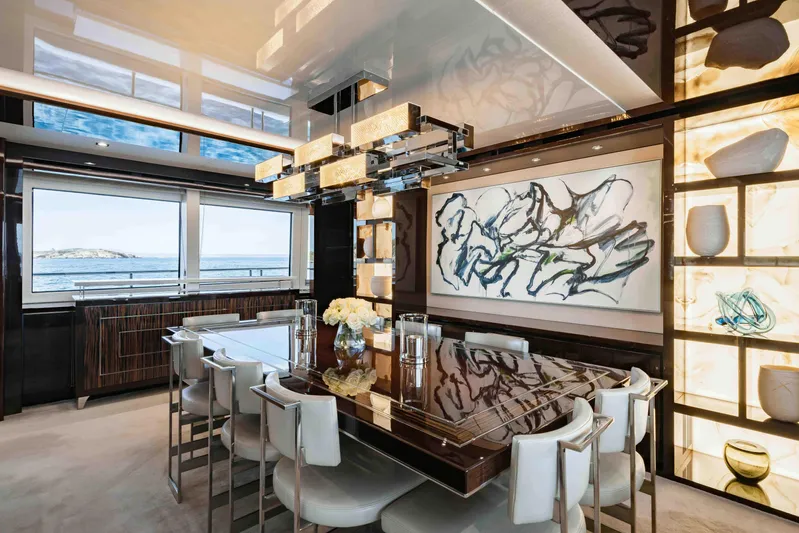

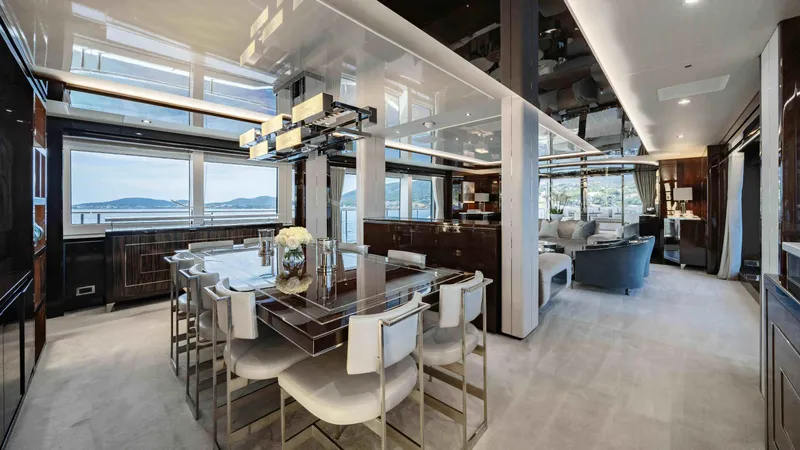

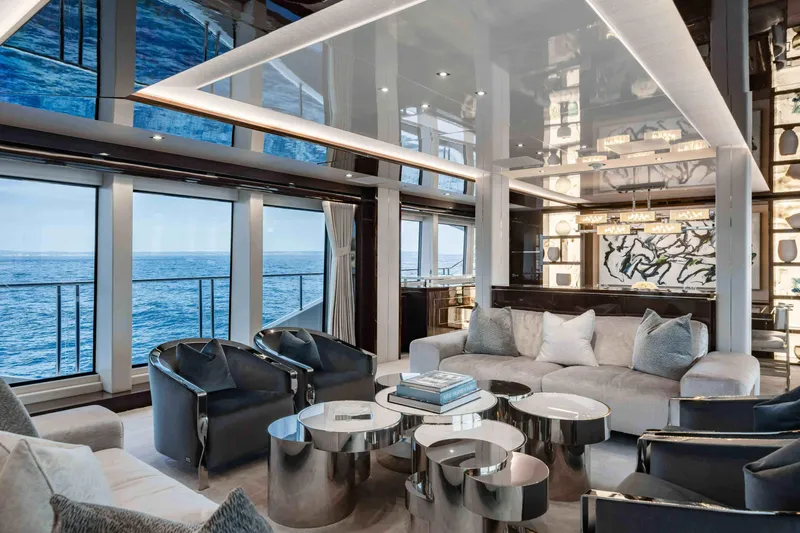

Main Salon/Dining Area

• 2x Sofa, 4x accent chairs and coffee table
• 55” Samsung QLED Smart 4K Television (lift TV) and UHD 4K Blu-ray player.
• Sonos Amp connecting TV with 4 x B&W built in Speakers and a B&W Sub-Woofer.
• Apple TV 4K
• Formal dining table with seating for 8 guests
• Built-in cabinetry and storage
• Vimar ByMe Lighting
• Port and Stbd full-height windows fitted with electric black-out Roman blinds

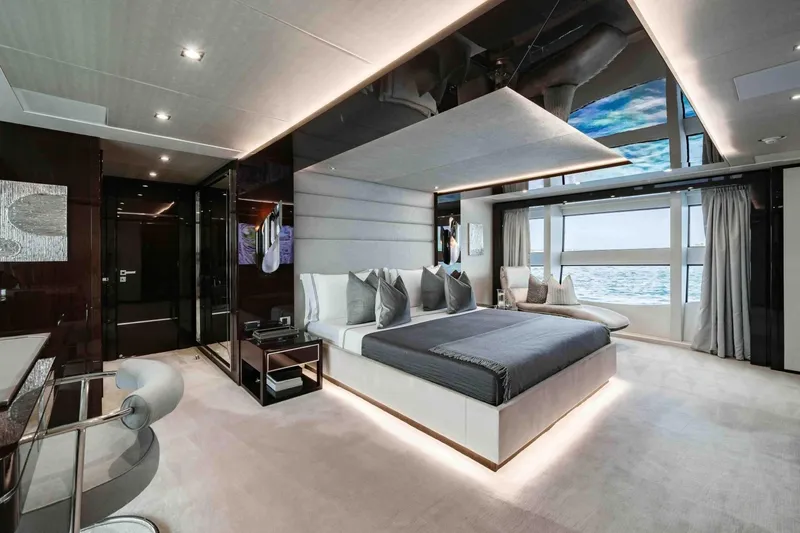

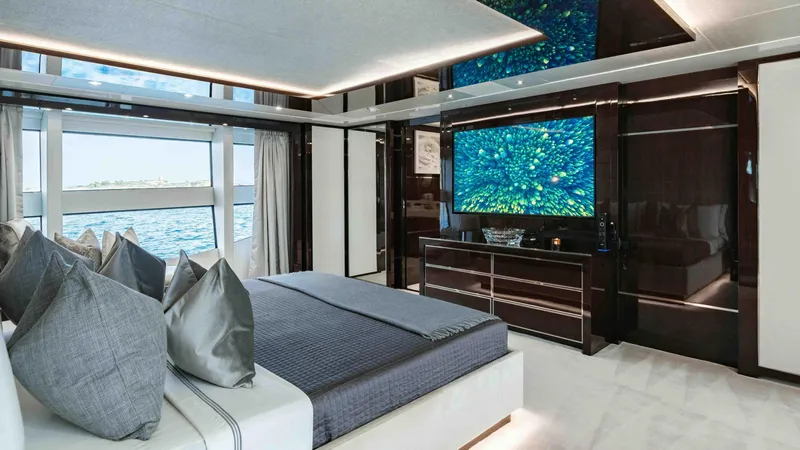

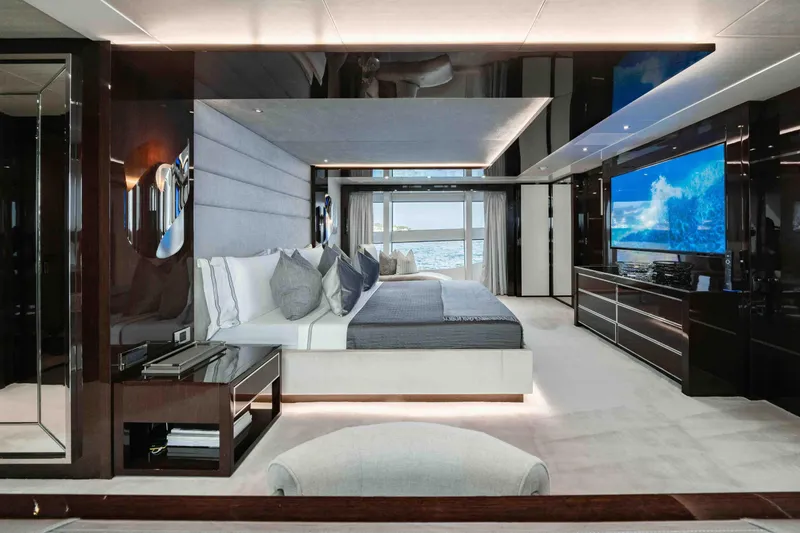

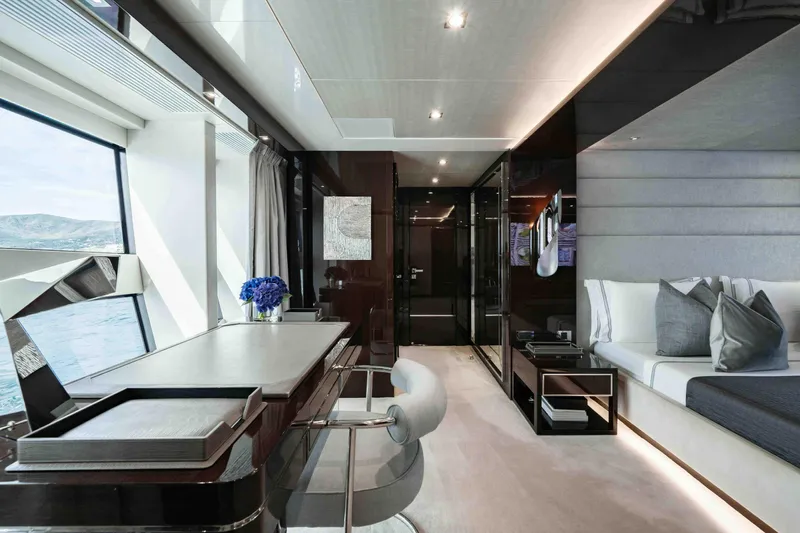

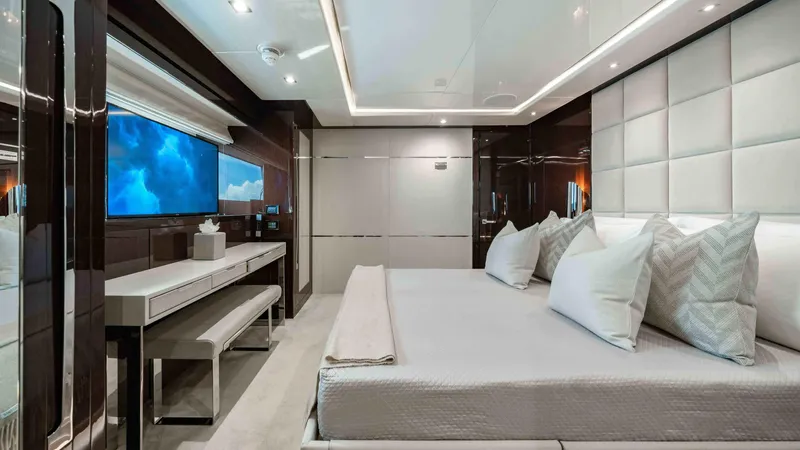

Primary Suite

• Full beam primary suite located on the main deck  with king-size bed
• Office Desk/Vanity Table
• Walk in Wardrobe with Key Lock
• Floor-to-ceiling windows
• 55” Samsung QLED Smart 4K Television. UHD 4K Blu-ray player
• Sonos Amp connects TV with 4 x B&W built-in speakers and a B&W sub-woofer.
• Apple TV 4K
• IP PBX telephone exchange Yealink W52P Dect Phone handset
• Satellite Television System. Seatel 100 TVHD 3 Axis Global
• Dometic HiPro Mini-Bar
• Vimar ByMe Lighting
• 6x floor-to-ceiling windows fitted with electric blackout roller blinds and six electric Roman blinds

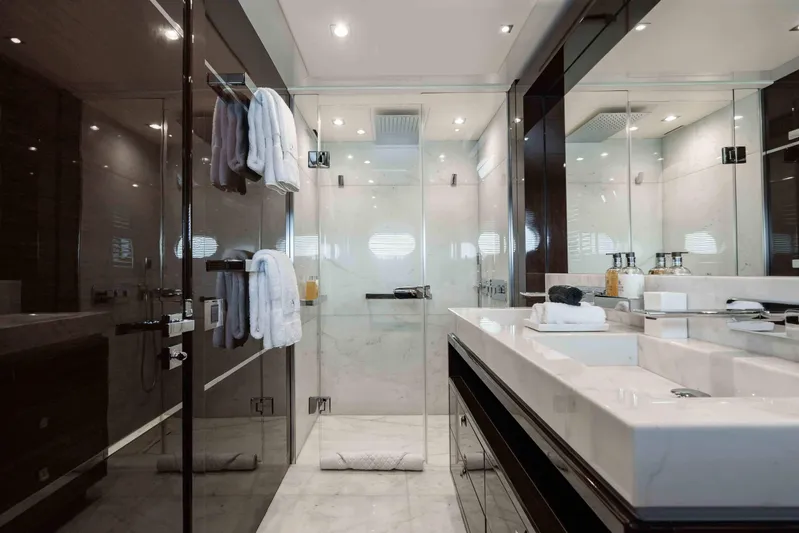

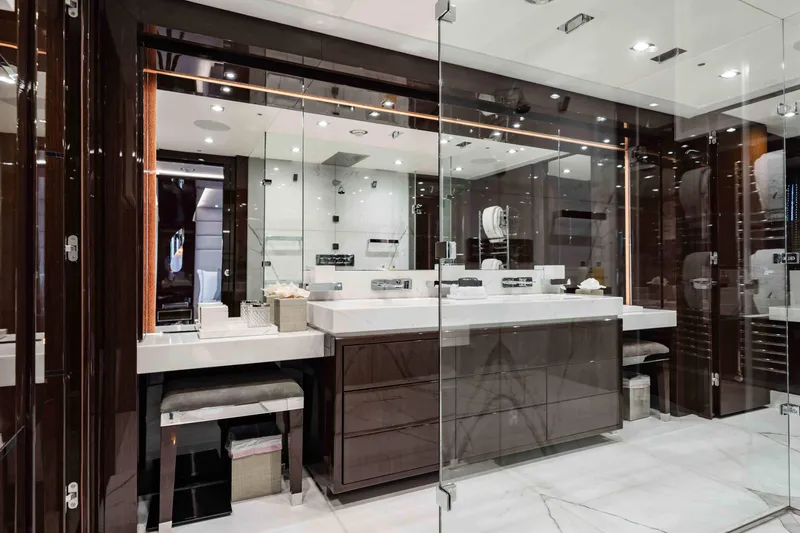

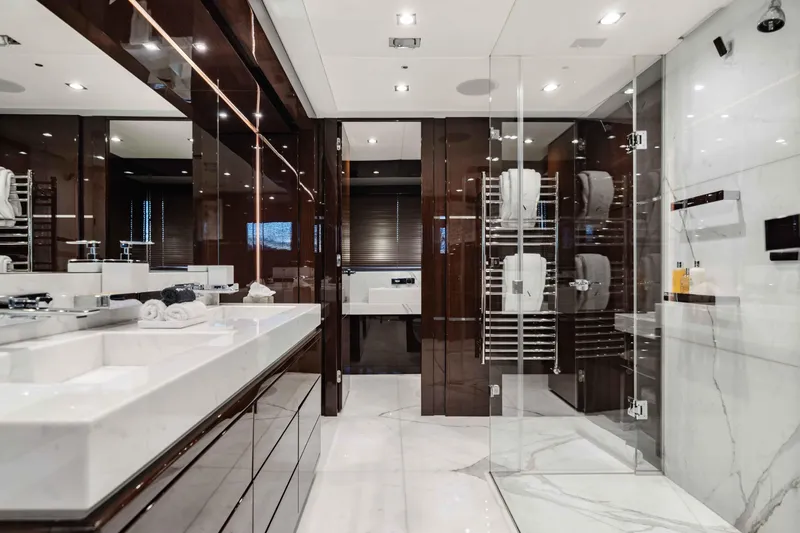

• Bathroom with central bath and port side walk-in shower
• Ensuite Tecma Silent Plus 220Volt AC macerating toilet and bidet

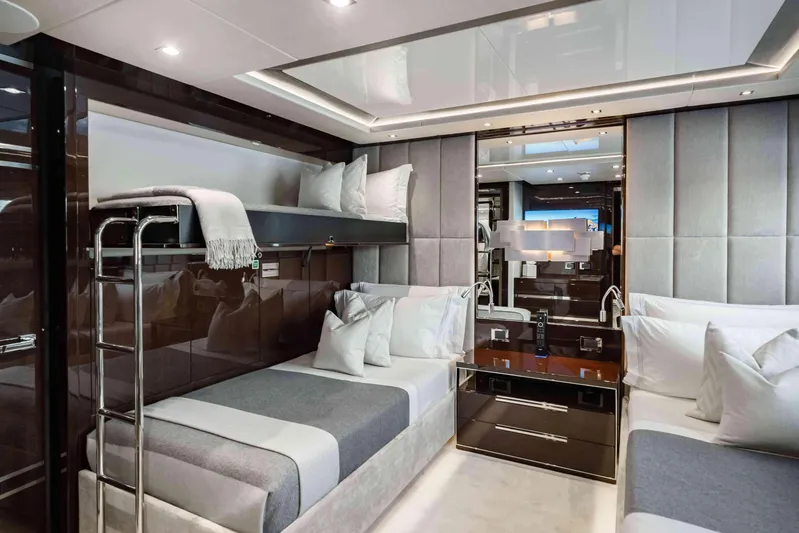

Port & Starboard Forward Twin Guest Cabin

• 2x twin beds
• Pullman berth
• 43” Samsung QLED Smart 4K Television
• Sonos Amp connecting TV with 2x B&W built-in speakers and an Arison Sub-Woofer
• Apple TV 4K for streaming from your Apple device
• Satellite Television AV output (none control) from Main Deck Saloon decoders
• Vimar ByMe Lighting
• Electric blackout roller blinds and electric Roman blinds are controlled via switches
• Dometic Safe MD281
• IP PBX telephone exchange Jacob Jensen T1 fixed Phone handset

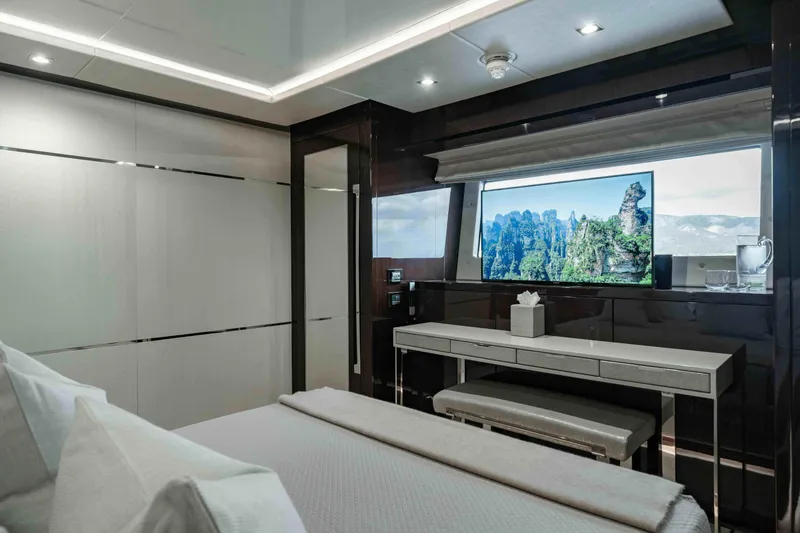

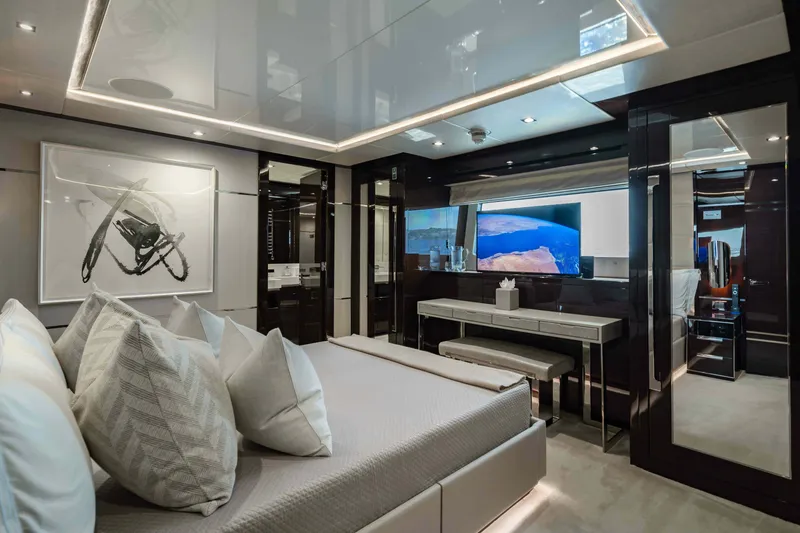

Port & Starboard Aft VIP Guest Cabin

• Queen Bed
• 43” Samsung QLED Smart 4K Television
• Sonos Amp connecting TV with 2x B&W built-in speakers and an Arison Sub-Woofer
• Apple TV 4K for streaming from your Apple device
• Satellite Television AV output (none control) from Main Deck Saloon decoders
• Vimar ByMe Interior Lighting
• Electric blackout roller blinds and electric Roman blinds are controlled via switches
• Dometic Safe MD281
• IP PBX telephone exchange Jacob Jensen T1 fixed Phone handset

• Cooktop: Miele KM6879 Induction Cooktop
• Oven:  2x Miele H6460BP single convection ovens
• Refrigeration/Freezer: Four (4) FRIGOBOAT side-by-side stainless steel refrigerators, Two (2) FRIGOBOAT Stainless steel Deep Freezer, One (1) FRIGOBOAT Crew refrigerator
• Microwave: Miele M7240TC microwave oven
• Extraction fan: Systemair KE 50-25-4 - 230V 1 Phase 50Hz with Actionair AirShield control damp
• Dishwasher: Miele PG8056
• Stone Countertop
• IP PBX telephone exchange Jacob Jensen T1 fixed Phone handset
• Fusion CD/FM Tuner with Bluetooth function and 2x Fusion Speakers
• Vimar ByMe Interior Lighting

Gallery Pantry

• Coffee Machine: Nespresso Krups XN730T

Laundry (Professional Appliances)

• Washing Machine: 2x Miele PW6065 PLUS
• Dryer: 2x Miele Tumble dryer PT7135 C PLUS

Bridge Deck Pantry

• Under-counter Refrigerator: Miele K9122UI GB
• Icemaker: Victrifrigo Ice Maker Classic HYDRO PFT - 220V
• Microwave: Miele M2234 SC

Bridge Deck Bar

• Wine Cooler: 2x Miele KWT6321UG built-in wine cooler - 34 bottles

• Tenders: Williams Jet Tender 16’ 505
• Watersports/Equipment:
• 2x Sea-Doo GTX 300 Jetskis
• 2x SeaBobs F5
• 2x Flite V2 e-foils
• 2x Paddleboards
• 2x Wakeboards
• 2x Kneeboards
• 2x Inflatable Towed Intertubes
• 2x Inflatable lounge chairs
• 2x Inflatable kayaks
• 1x Sensational Waterslide
• 1x SportsStuff Bandwagon towable
• 1x Aquabana cabana with tent -  and designed specifically for TC—seats up to 10 around a table
• 1x Aquabana inflatable dock with extensions
• 1x Fun Air Gladiator water joust
• Fishing Equipment
• Snorkeling gear
• Beach set up
• Pop-up tent
• Chairs & Table
• Umbrellas

• 45' Ocean Alexander Tender
• Owners Personal Effects

A detailed list of exclusions will be provided upon request.
