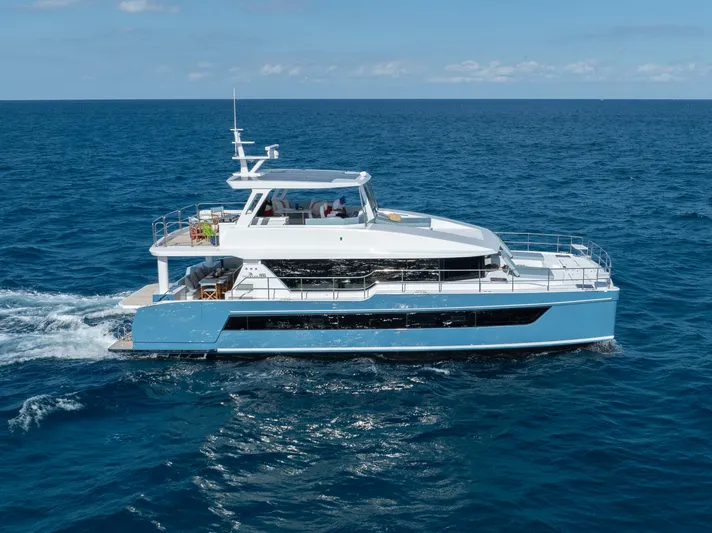

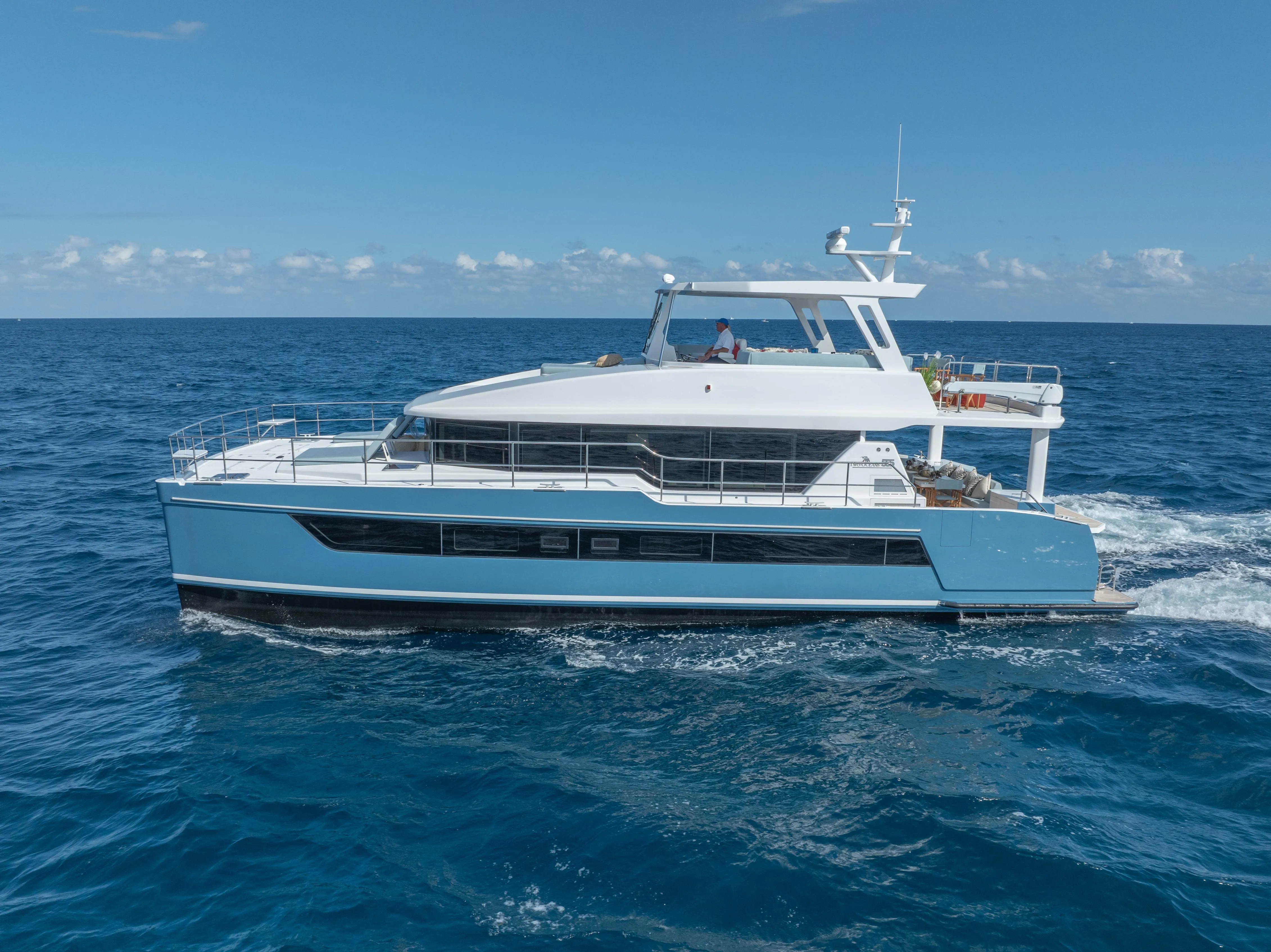

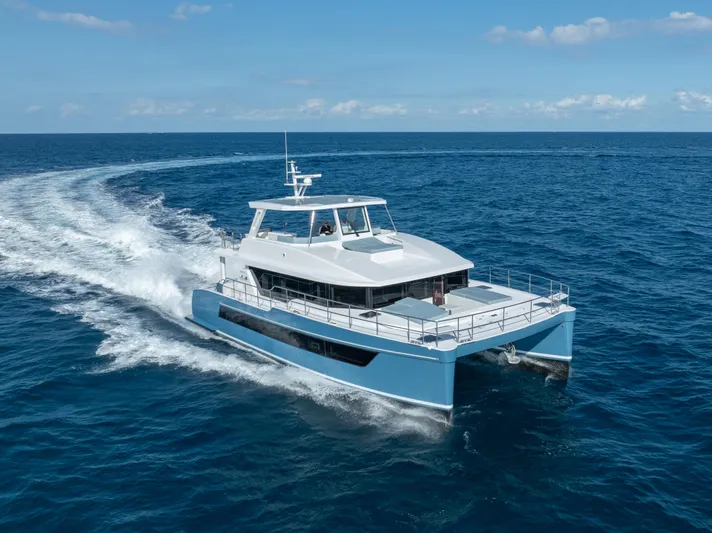

2024 TWO OCEANS 555 - 003 Boat for Sale

• Beam: 25' 0''
• Hull Material: Composite
• Max Draft: 3' 6''
• Displacement: 49,600 lb
• Fuel Tank: 1 x 770|gallon
• Fresh Water: 1 x 200|gallon
• Cabins: 4
• Heads: 4

Manufacturing Materials

• Hulls, decks, and coach roof are constructed from composite with a gel coated outer layer, Vinylester barrier coat for underwater protection and polyester resin combined with a high-performance E-Glass laminate PVC foam core. Interior joinery work and floorboards are all cored panels to provide stiffness at low weight. All exterior surfaces are gel coated and or sprayed and painted with gloss coat. Interior and below deck surfaces will be painted with Marine Flo Coat.
• One-piece hull lamination.
• High-density foam cored construction using vacuum bag technology.
• Carbon fiber reinforced structural components.

Appendages

• Protective Keels Bonded to hulls.
• 2 Composite rudders using high-lift laminar flow foil section mounted with solid 2205 stainless-steel shafts running in Jefa bearings.
• Humphree electrically actuated conical trim tab on each hull.

Exterior Finish

• The entire above water line exterior of the boat is gel coated/spray-painted, standard color white with two tone top sides and super structure.
• Walking areas to be non-skid finished, standard color white, contrasting color option available.
• Epoxy Barrier Coat, Primer Coat, and Anti-fouling Paint Factory Applied, Color of Choice. 4" boot stripe.

Interior Finish

• The interior will be finished in accordance with client's choice from one of the three available factory options. Custom carpentry and high-quality marine hardware.
• All interior flooring is lightweight and durable.
• Headliner detail throughout all interior accommodations.

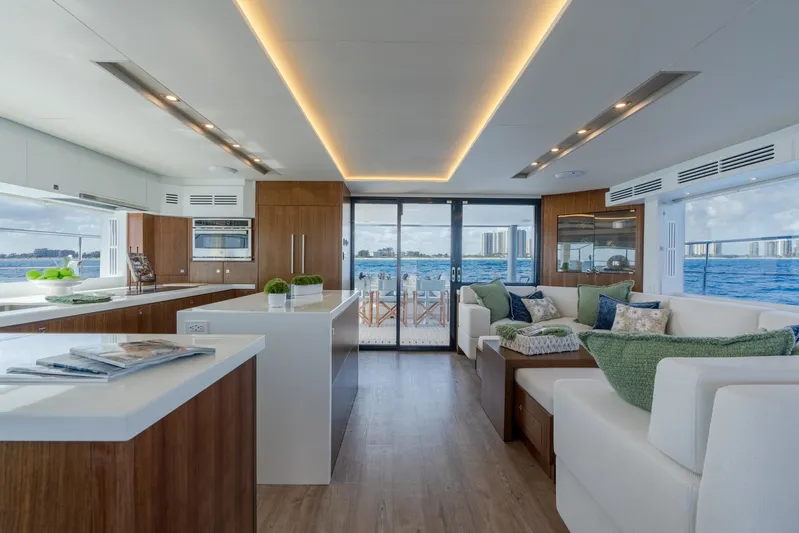

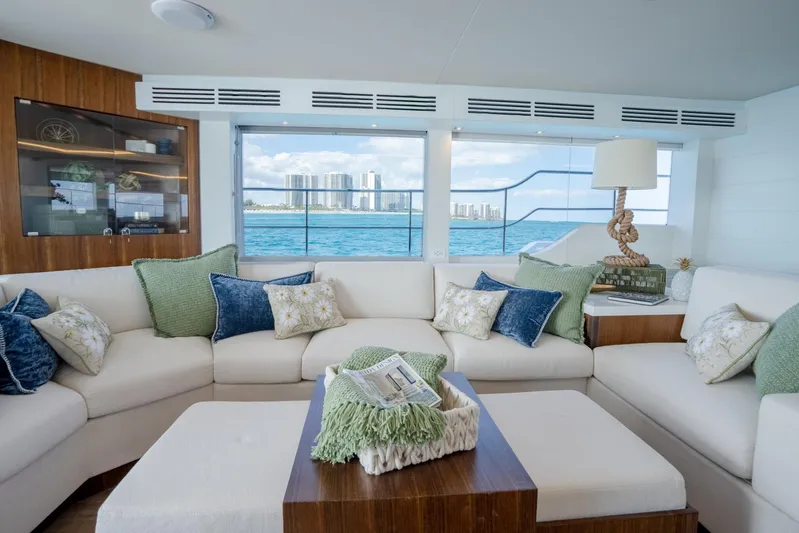

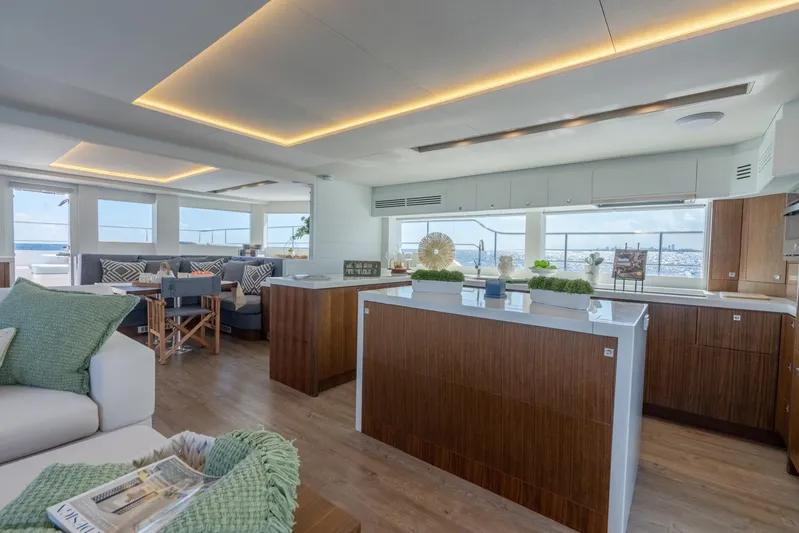

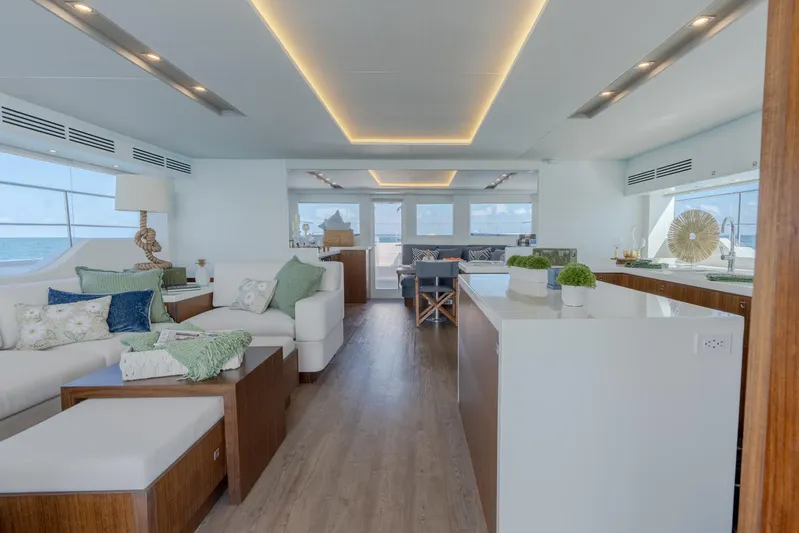

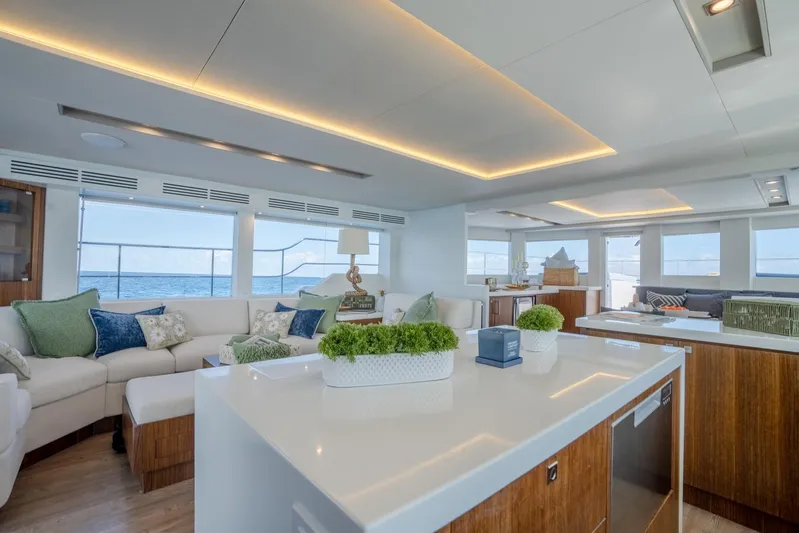

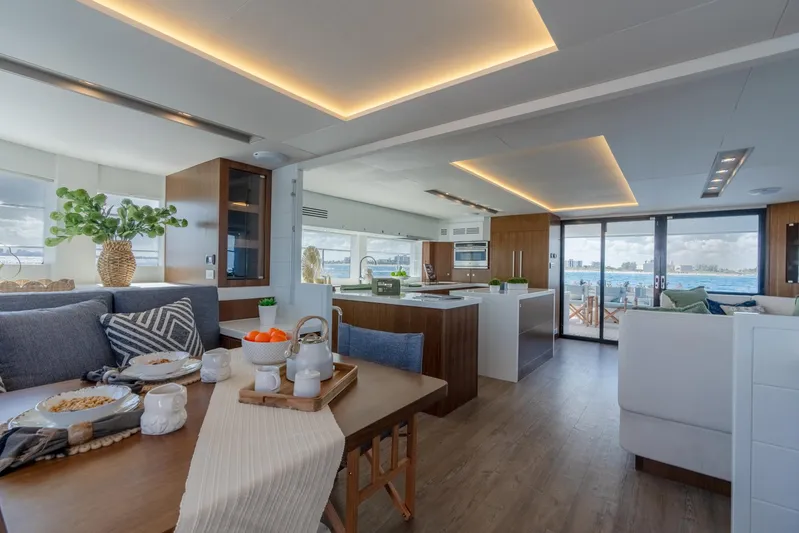

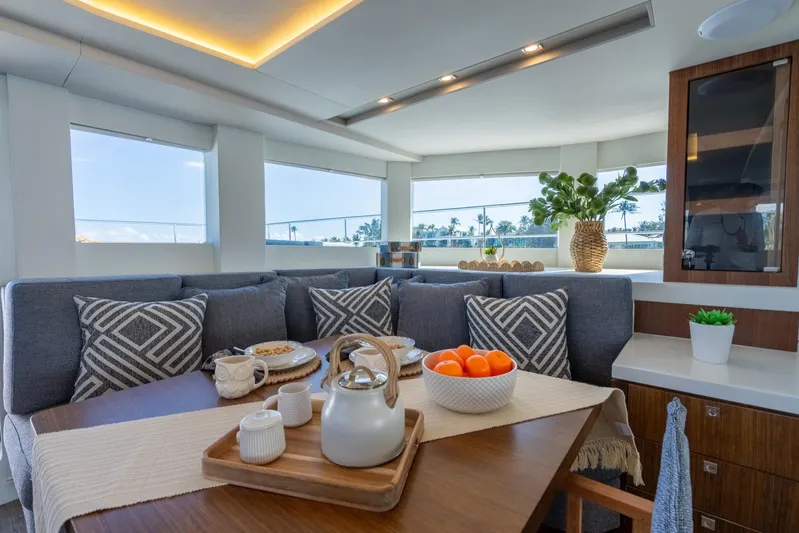

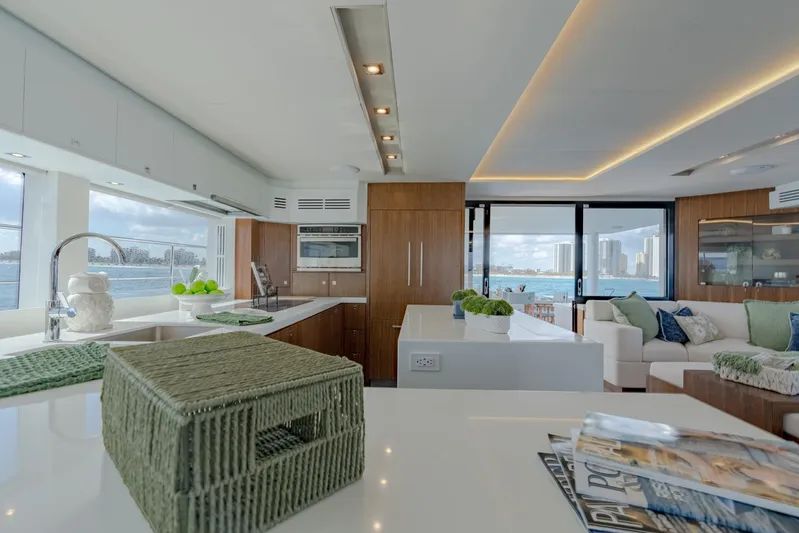

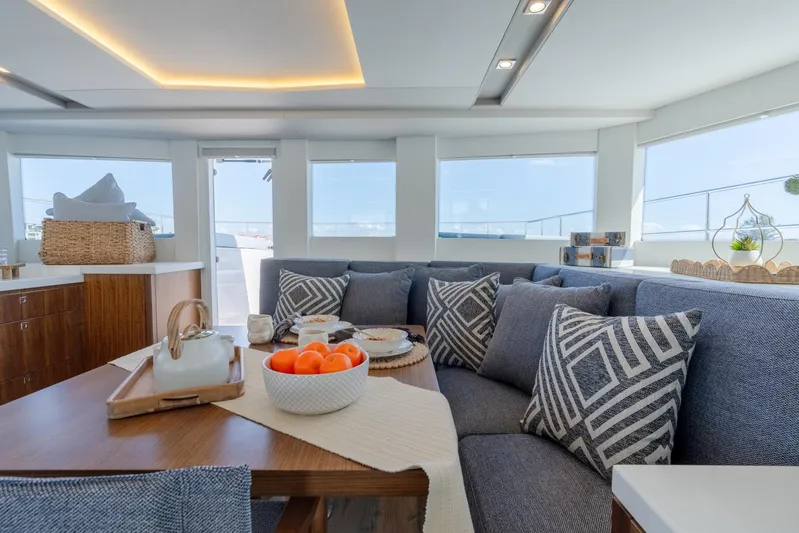

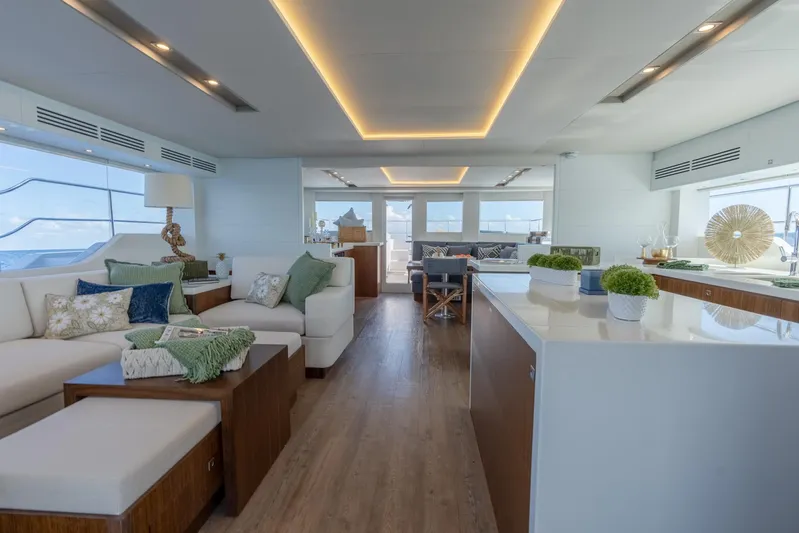

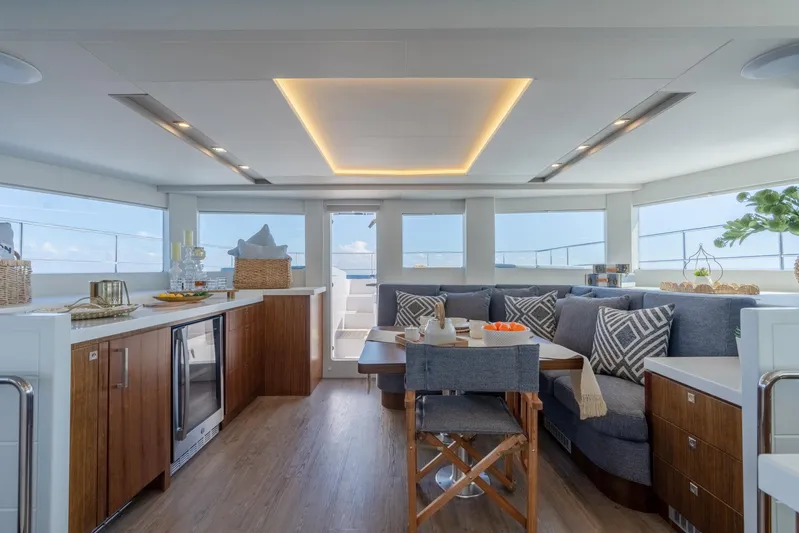

Saloon

• Saloon to have plush fabric seating and table or ottoman, as per general arrangement.

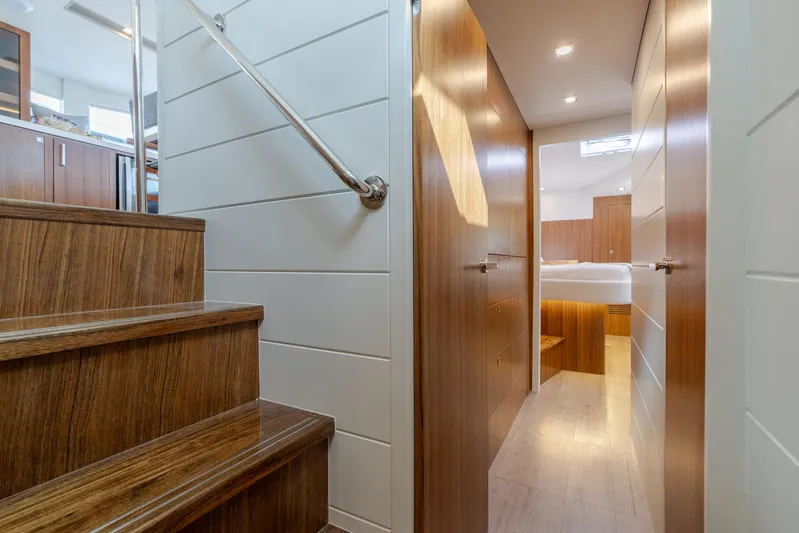

• Access stairs to lower hull cabin areas port and starboard.
• 50" Samsung LED Television on power lift with Samsung audio system.
• Custom Aluminum sliding aft door with flush deck transition between Aft Deck and Saloon.
• Storage unit for bottles and glassware.

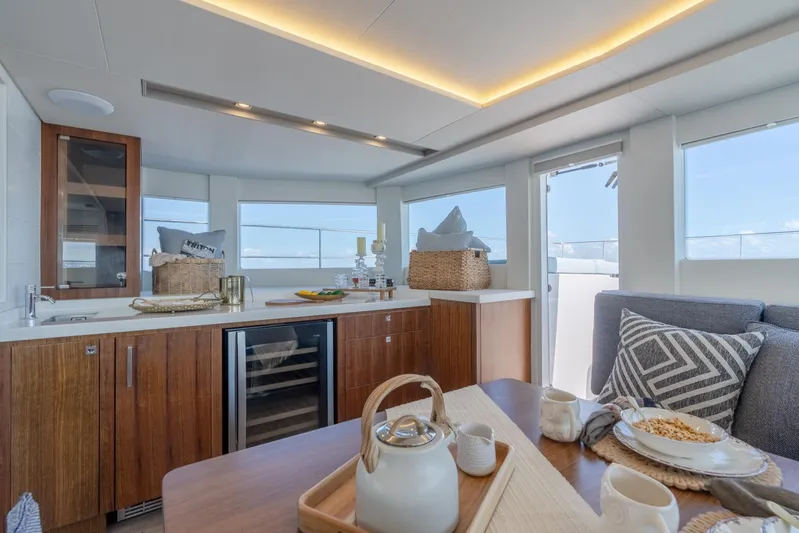

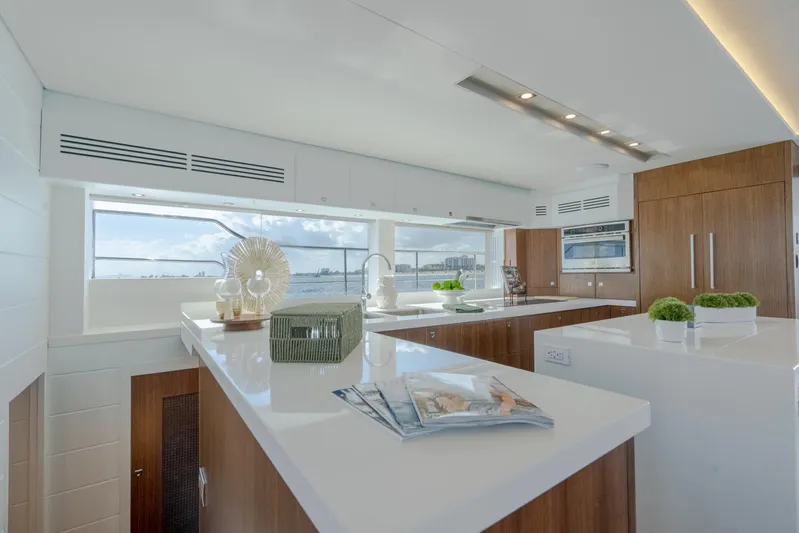

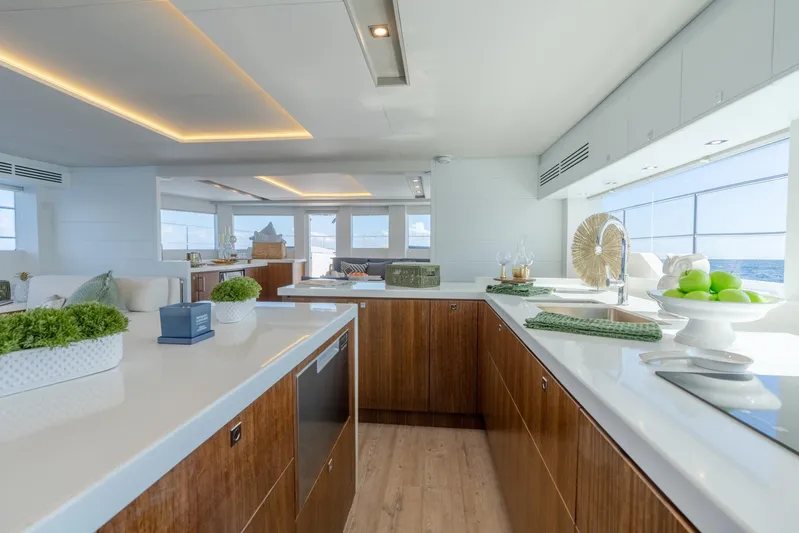

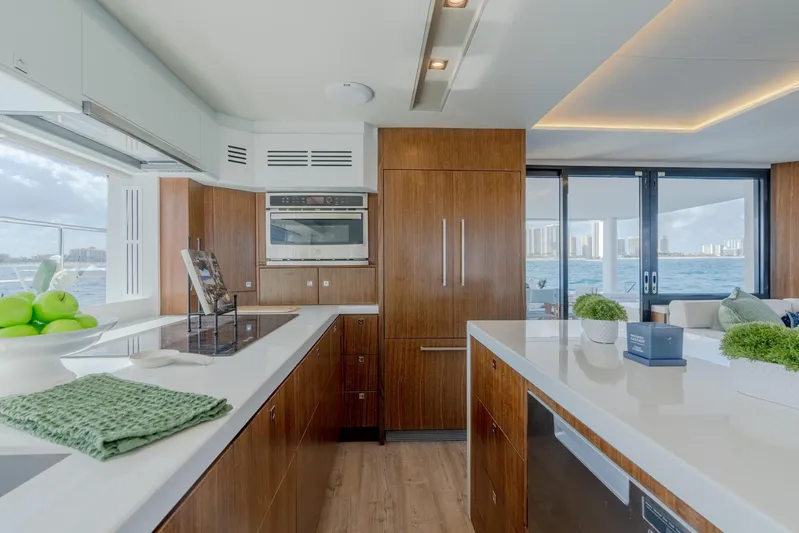

Galley

• Acrylic counter tops.
• Island with storage and television lift.
• FRP modules for galley cupboards and counters.
• 4 burner cook top. Power ventilation above cook top.
• Convection microwave oven.
• Refrigerator/freezer.
• Cutlery and crockery drawers.
• Pot drawer and spice drawers.
• Double sinks with garbage disposal.
• Under counter trash drawer.
• Custom accent wood carpentry.

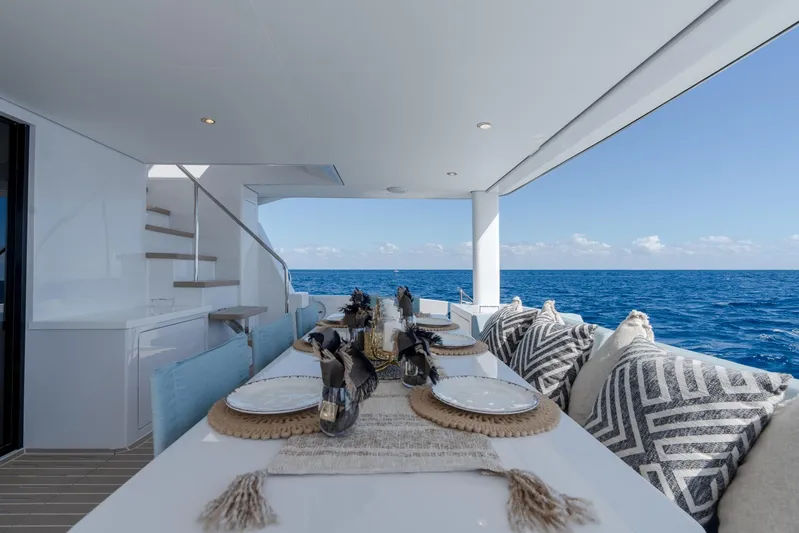

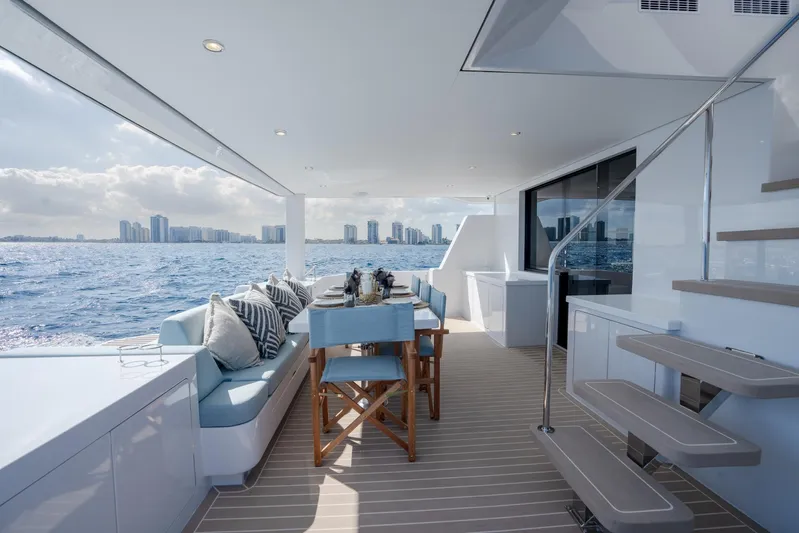

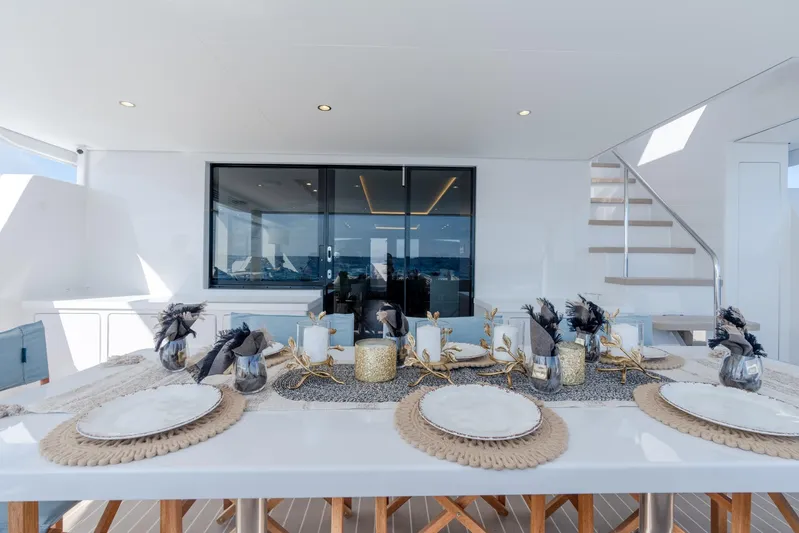

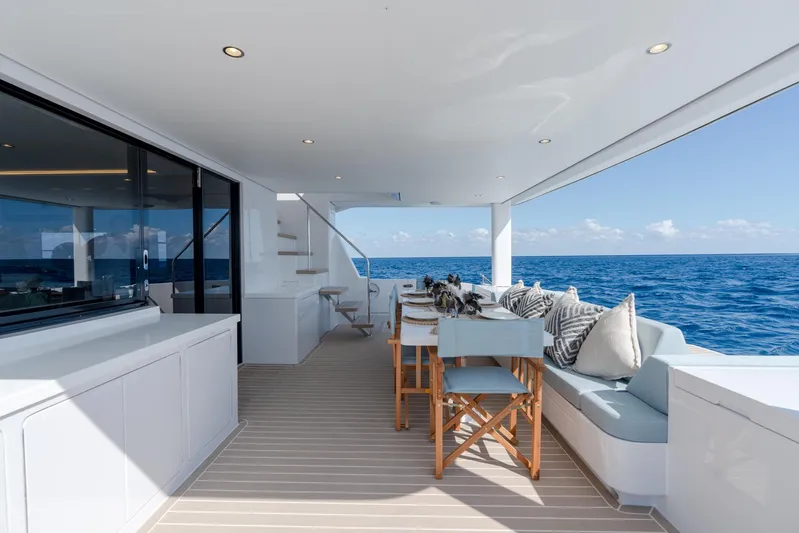

Aft Main Deck

• Seating arrangement - Various options to suit client's needs.
• (4”) thick EZ- Dry foam cockpit cushions covered in Sunbrella.
• Cockpit table with wooden top.
• Storage cabinets and full height locker.
• Stairs to Flybridge.
• Engine access hatches.
• Access doors.

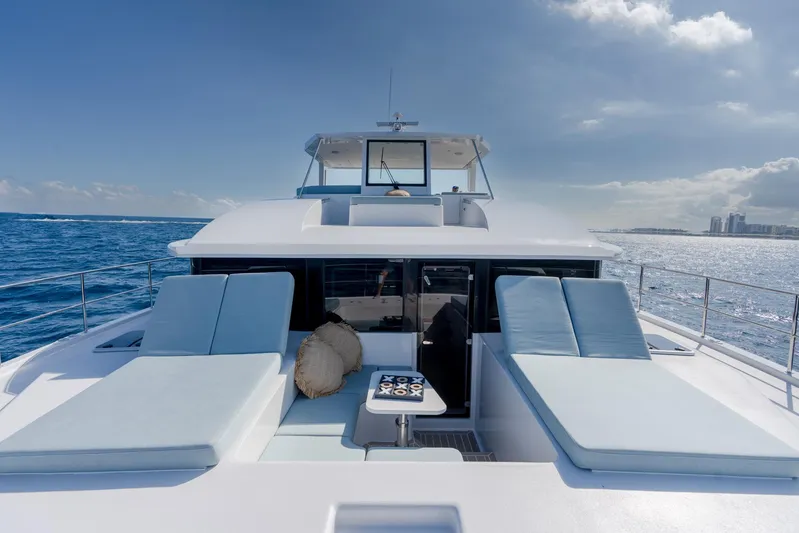

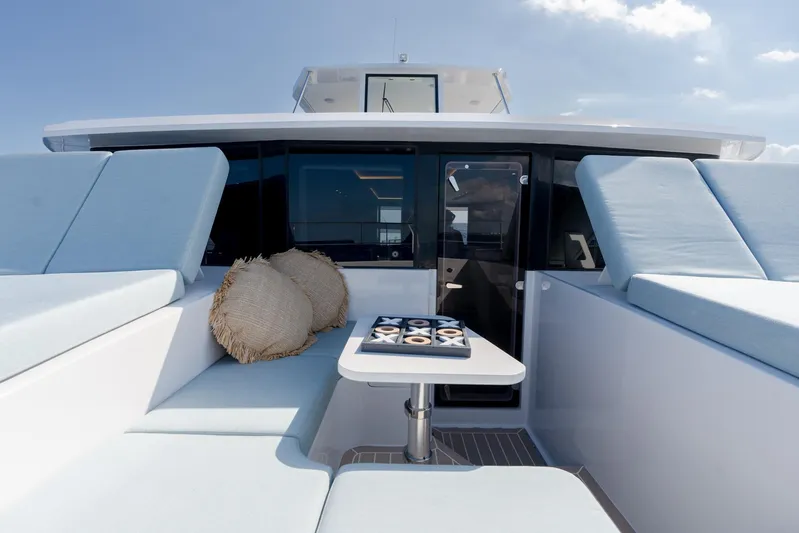

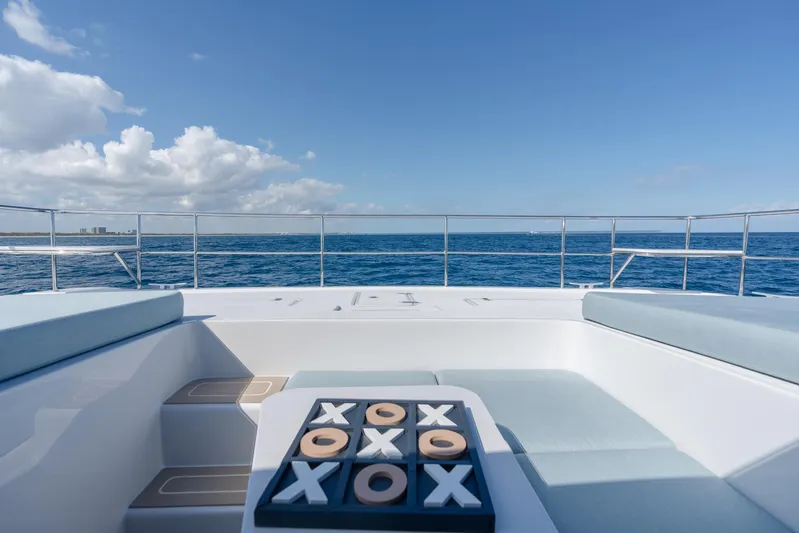

Forward Lounge

• Custom door opening into Saloon/Master cabin area.
• U-shaped seating - storage within.
• Composite table on fixed base.
• Access to windlass.
• 4" Ez-Dry foam with Sunbrella covering.

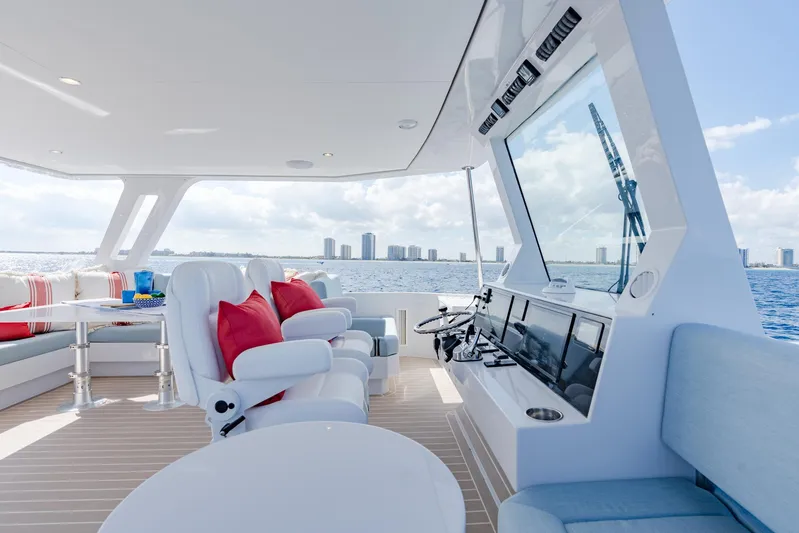

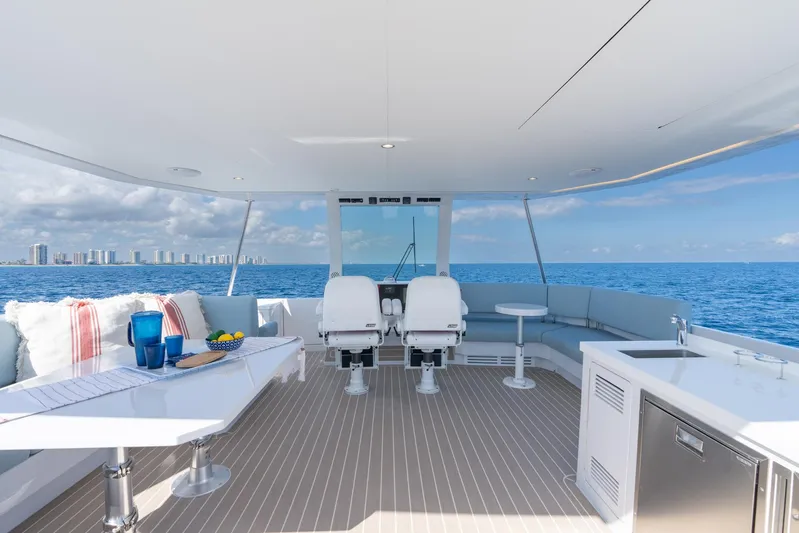

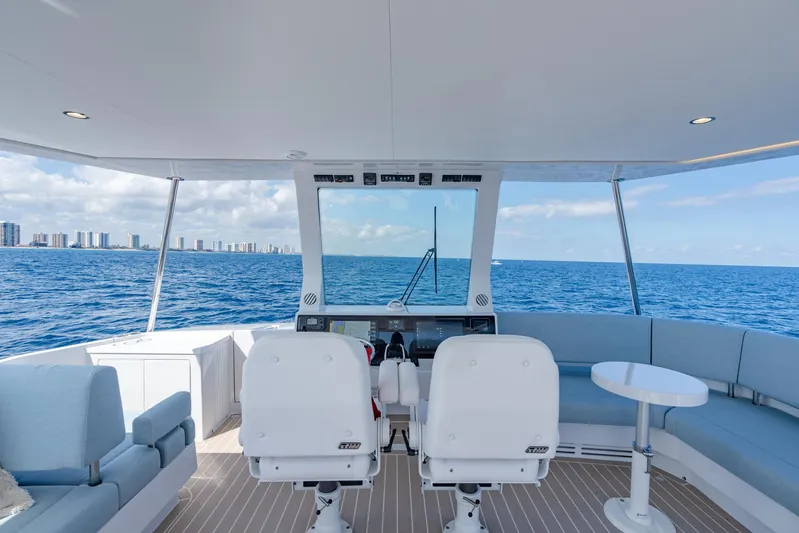

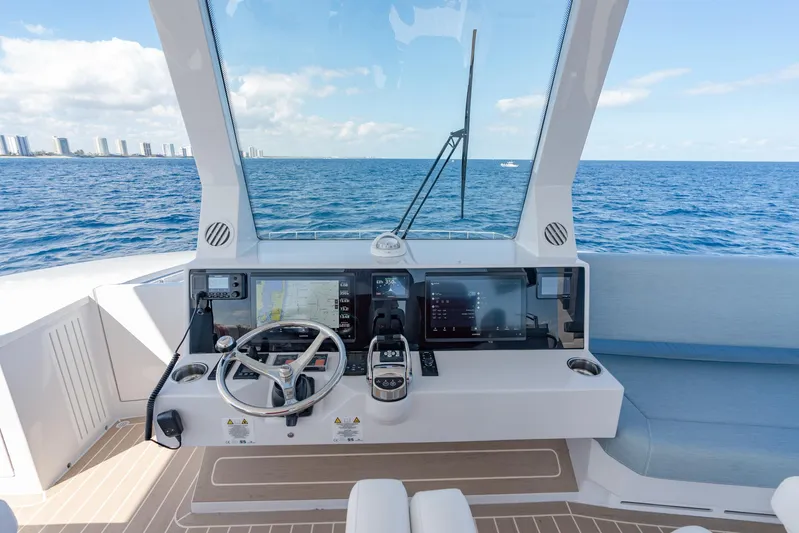

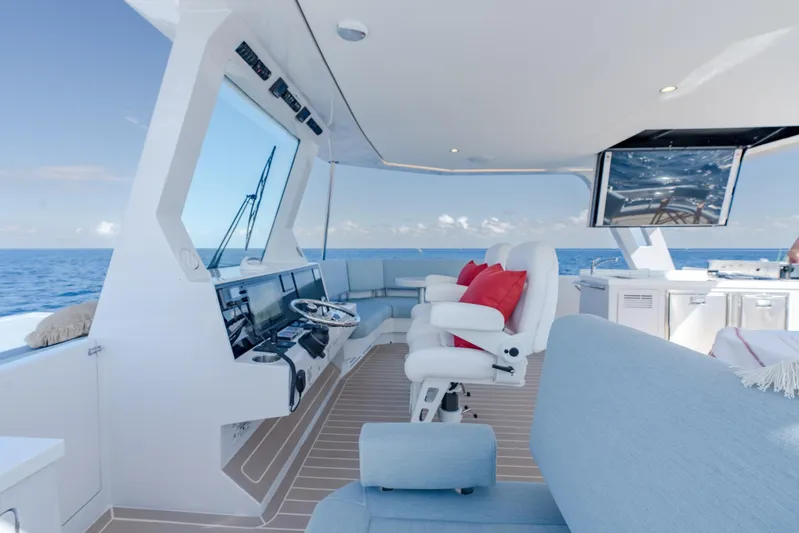

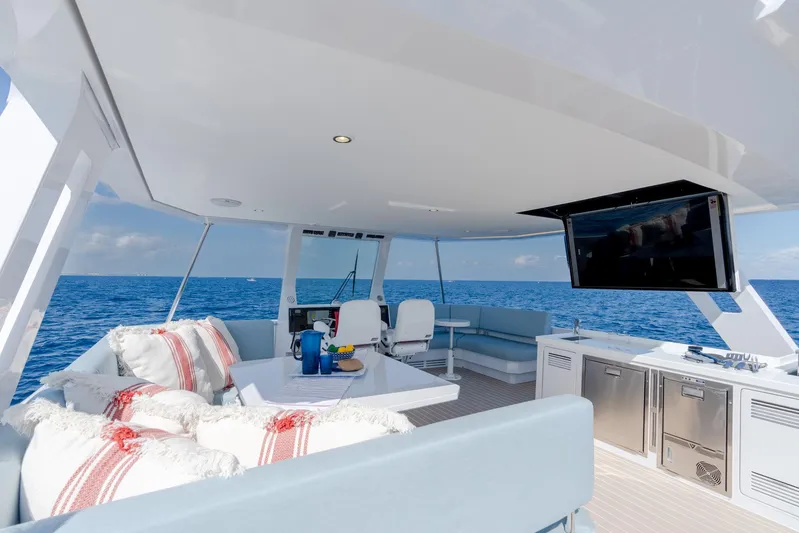

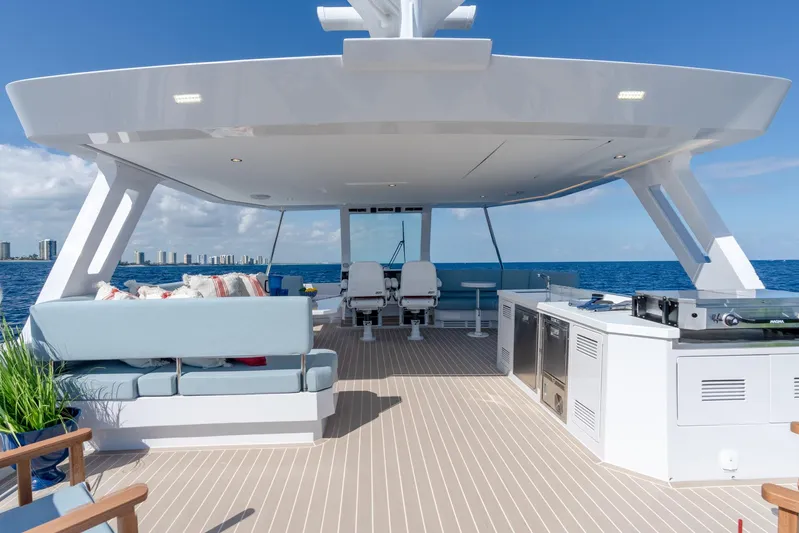

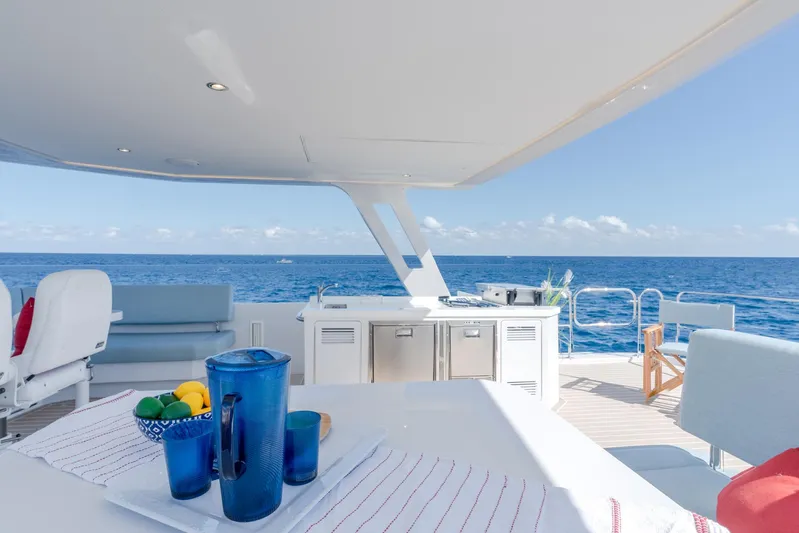

Flybridge Helm Station and Seating

• Helm Station with console.
• Glass windscreen with wiper and washer.
• Engine instrument panels, gear shift/throttle control and cruising instruments located within easy reach of the wheel position.
• Plastimo Offshore 115 compass located at Helm position.
• Double Bench Seat at Helm.
• Stainless steel steering wheel.
• Emergency tiller.
• Steering system with power assist.
• Storage lockers.

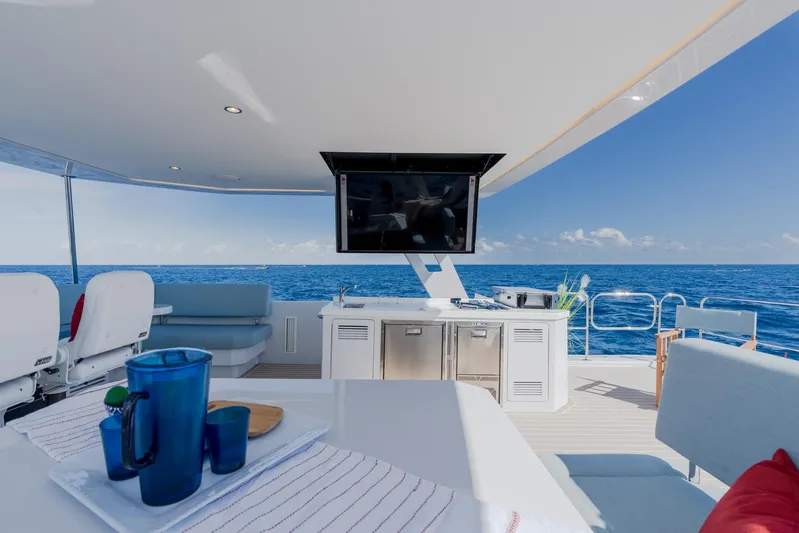

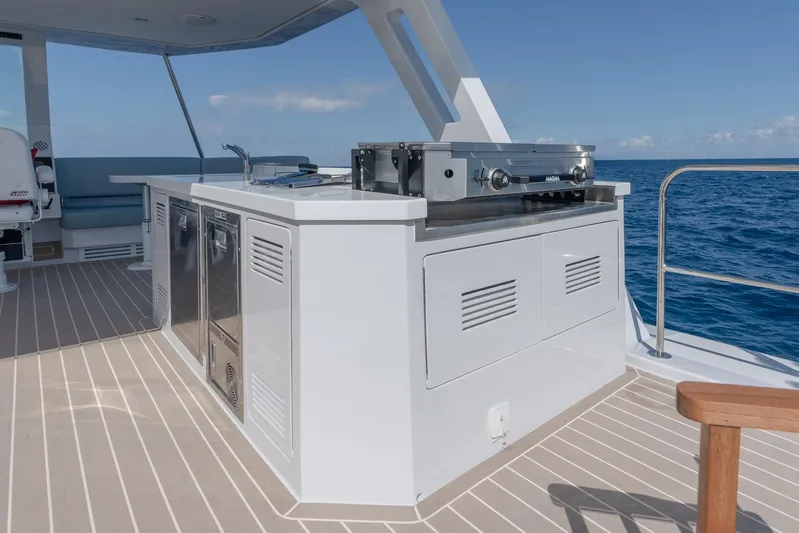

• Flybridge wet bar unit with sink and drinks fridge.
• Flybridge seating and table as per general arrangement.

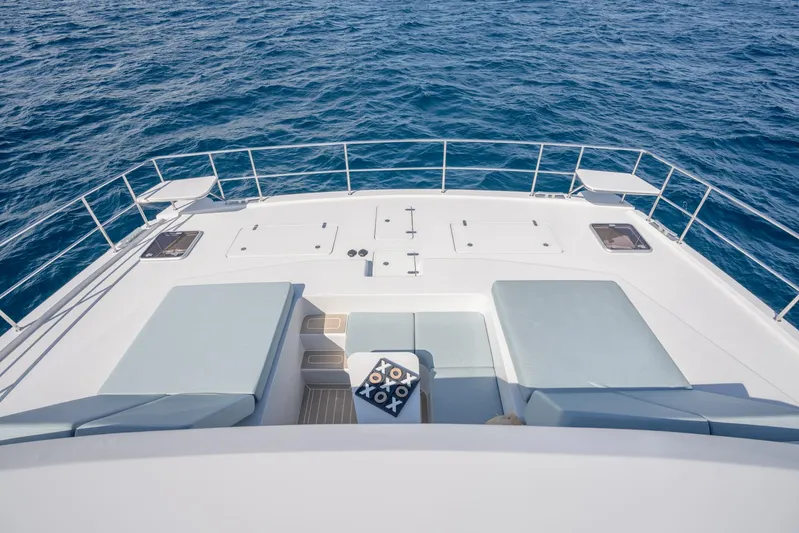

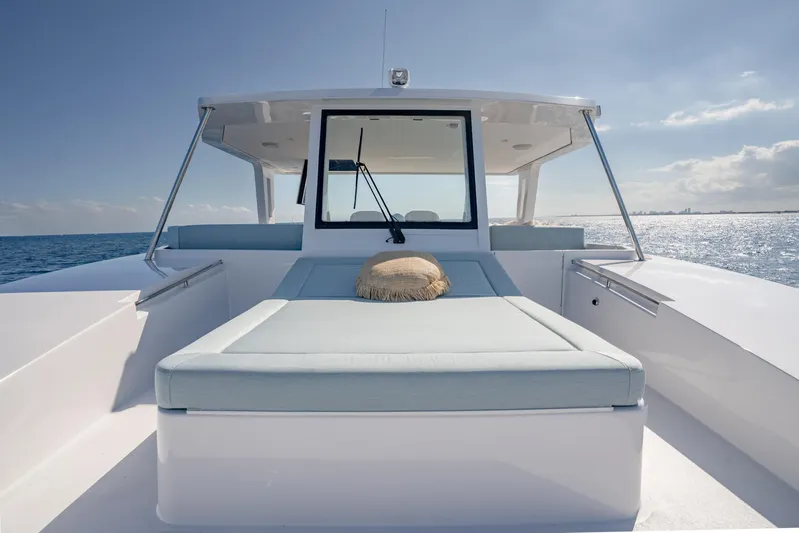

• Door leading forward to sun lounge area with 4” EZ-Dry foam cushions and Sunbrella fabrics.
• Fresh water outlet to flush tender.

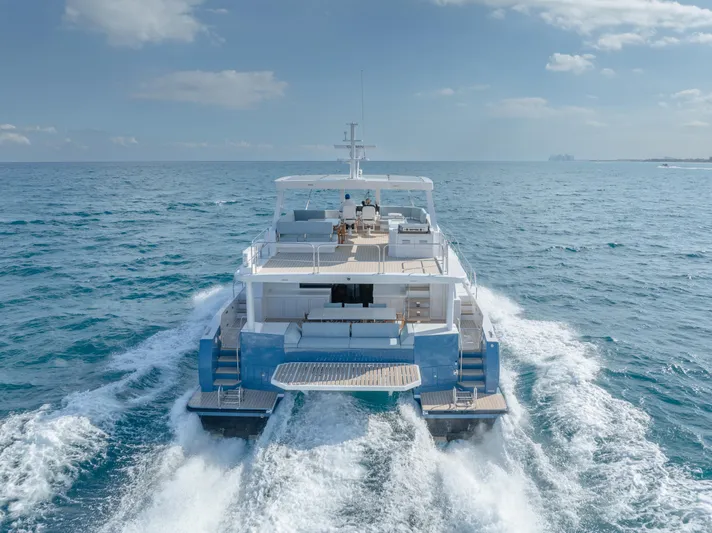

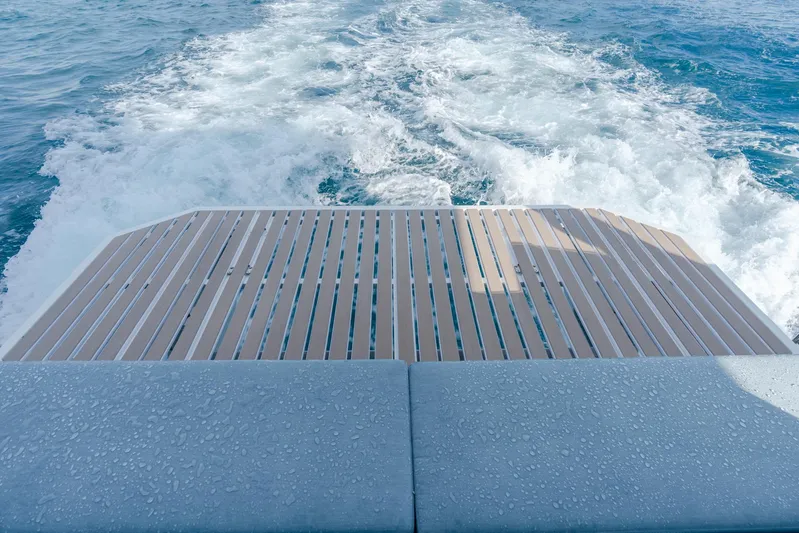

Transoms

• Custom aluminum swim ladder on starboard Hull.
• Starboard side transom; shower with pressurized fresh water hot and cold.
• Handrails.
• Access to the emergency tiller (port & starboard).
• Access doors to storage areas for dive and fishing gear.

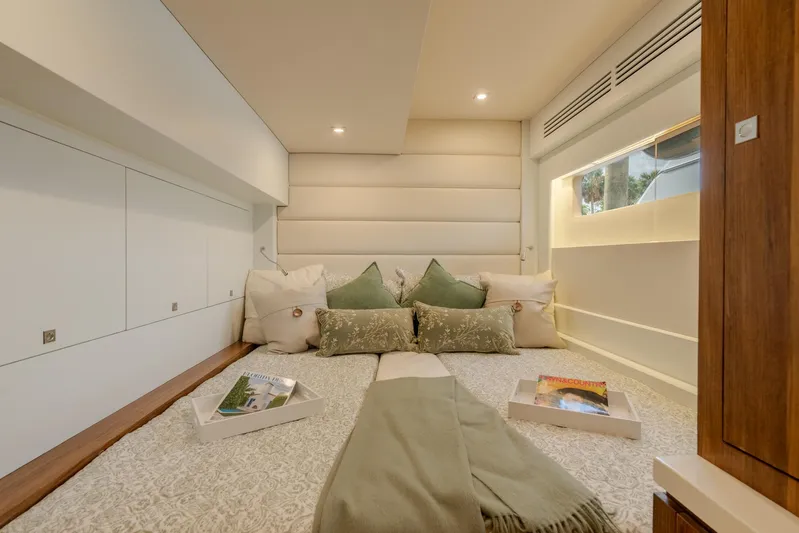

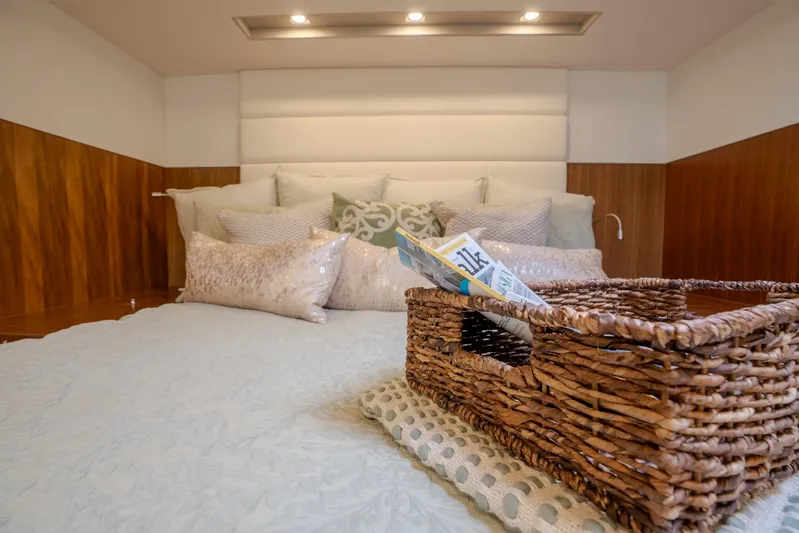

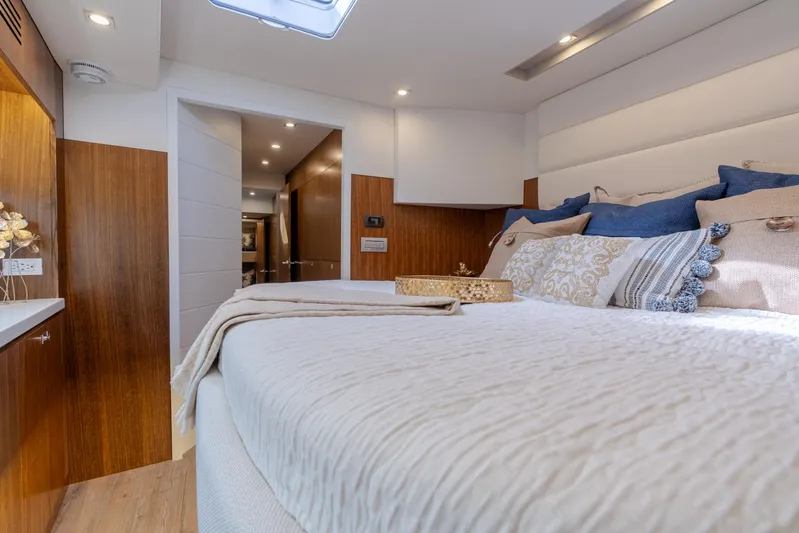

Master Stateroom

• FRP modules.
• Custom carpentry.
• King size bed, walk around.
• Reading lights and cabin lights.
• Nightstands with light switches and outlets.
• Headliner with recessed led lights.
• Dressing area with full height closets.
• Port lights for ventilation inset into large hull-side windows.
• Blind over large window
• Tecma/Planus freshwater toilet.
• Separate shower cubicle.
• Mirror.
• Storage.
• Outlets.

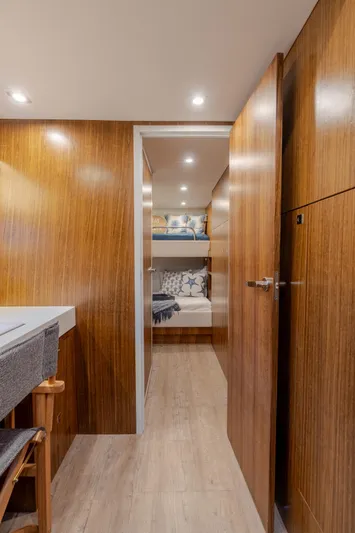

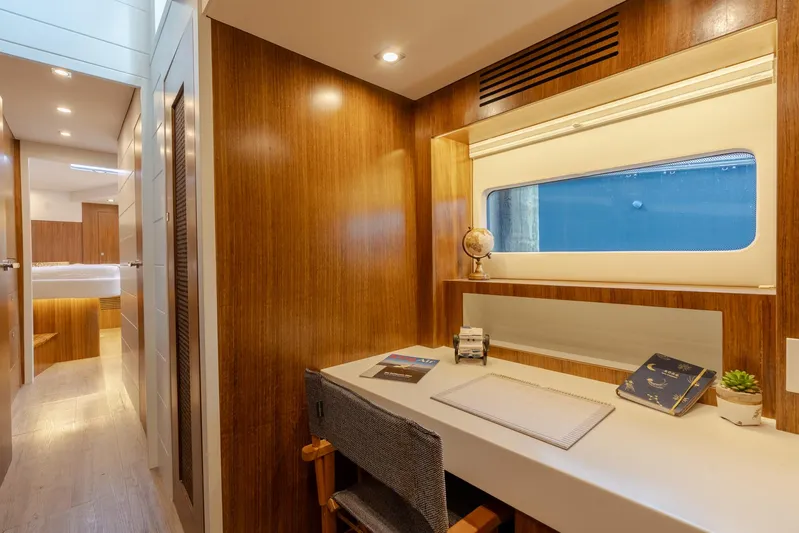

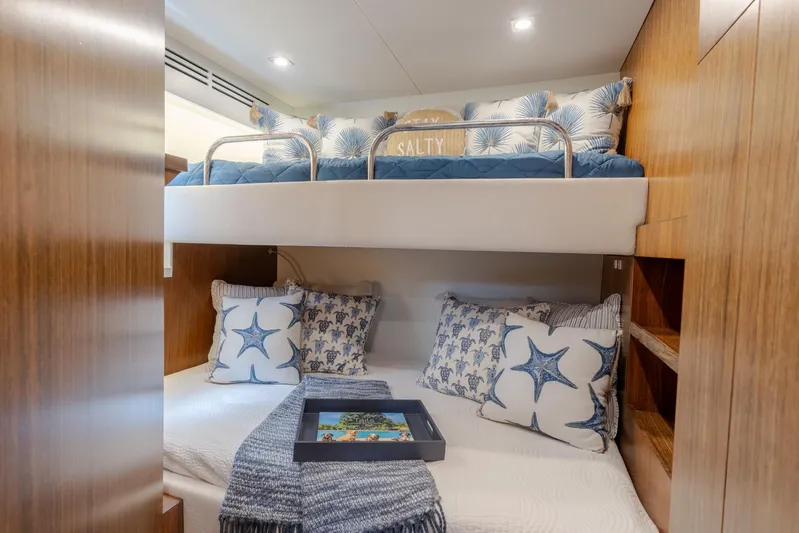

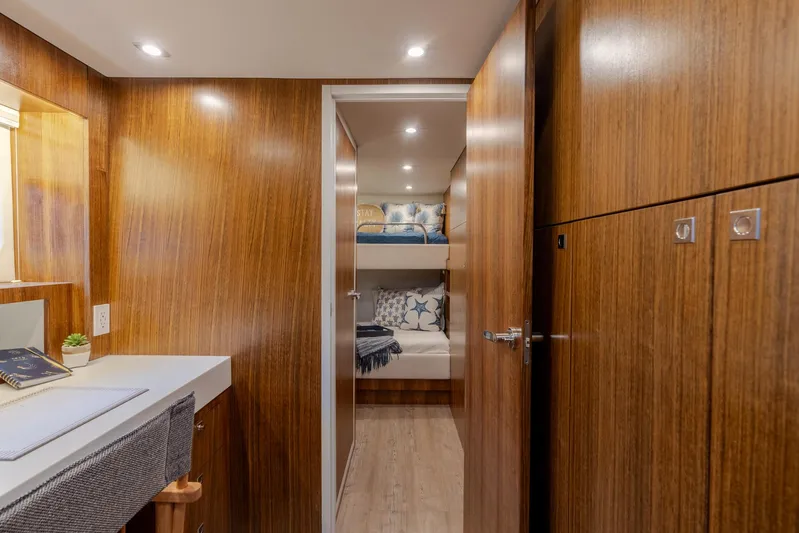

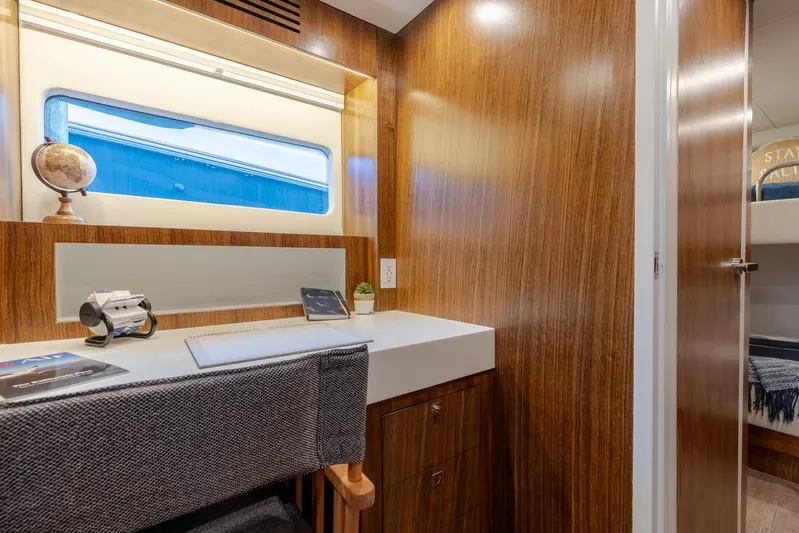

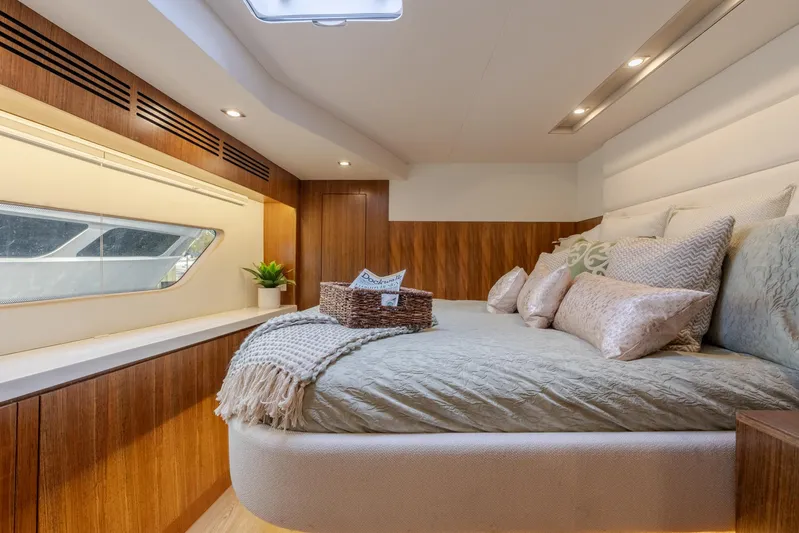

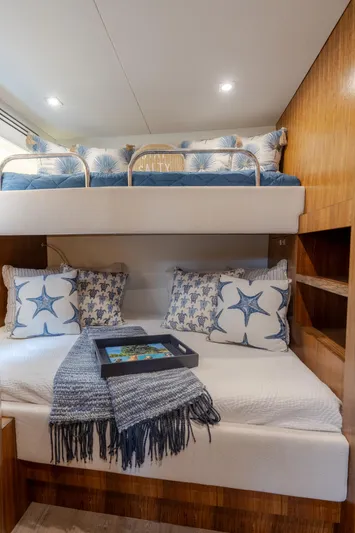

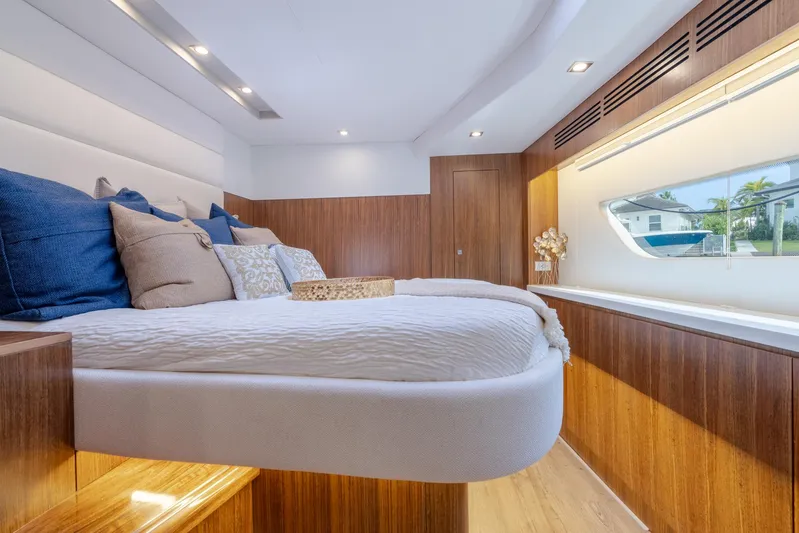

All Guest Cabins

• FRP modules.
• Queen bed.
• Soft furnishings.
• Custom wood accent carpentry.
• Reading lights, cabin lights.
• Opening port light in hull side.
• Nightstands with light switches and outlets.
• Closet.
• Fabric headliner with recessed led lights.

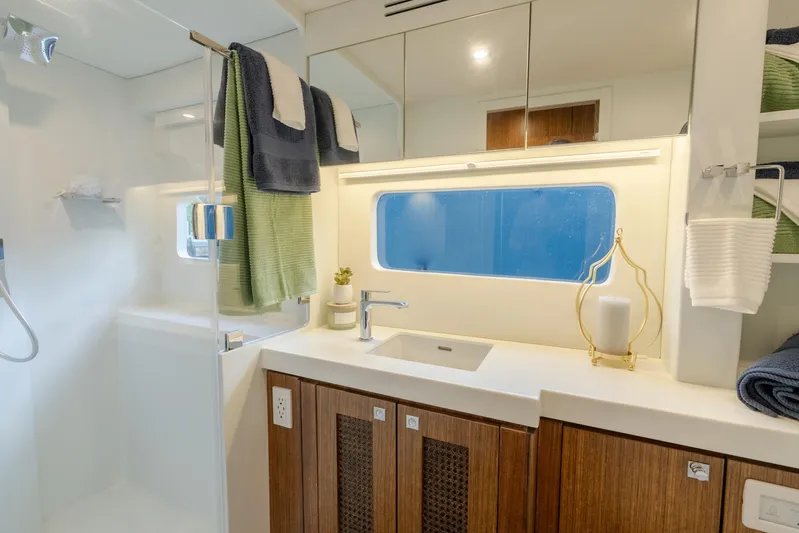

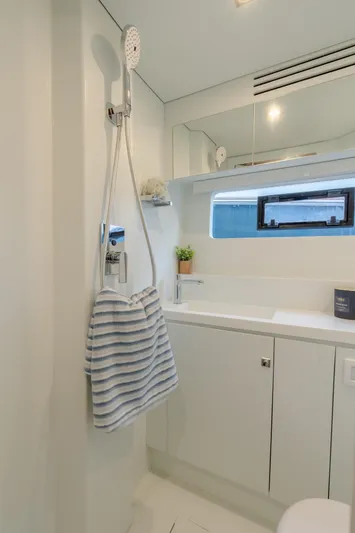

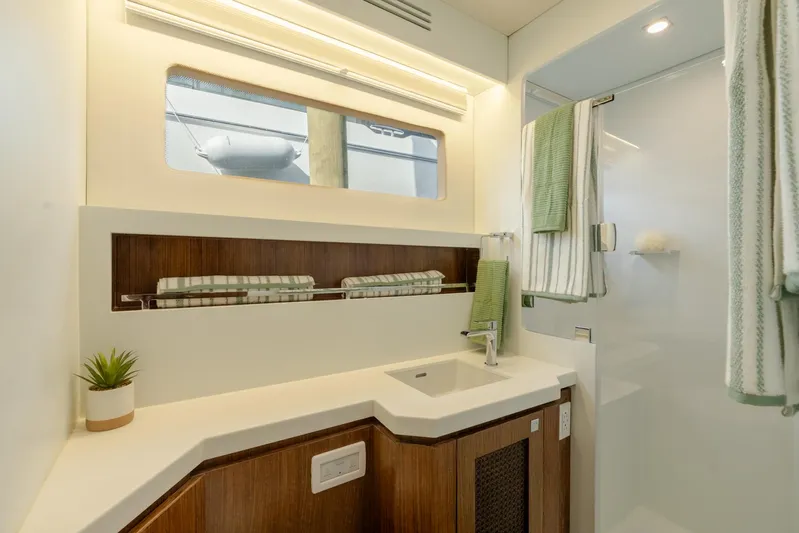

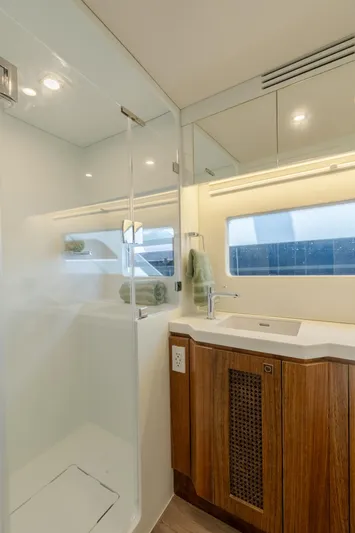

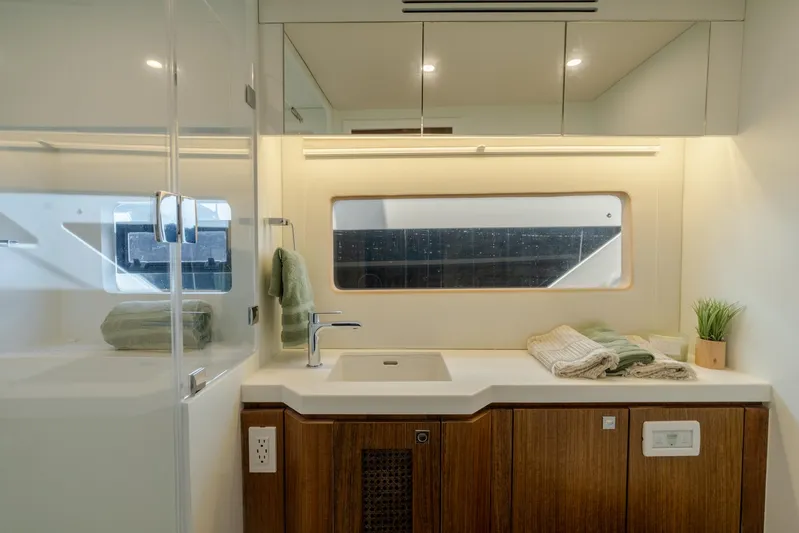

• En-suite bathroom with separate walk-in shower, head, and basin.
• Deck hatch in forward cabins only.
• Blind over large window.
• Tecma/Planus freshwater toilets.
• Separate shower cubicle.
• Mirror.
• Storage.
• Outlets.

The mechanical and systems hardware is distributed in the boat so as to concentrate weight as low as possible and to balance the vessel whilst allowing for easy access to hardware for inspection and maintenance. The main engines are in their own dedicated compartments aft between the aftermost bulkhead and the transom.

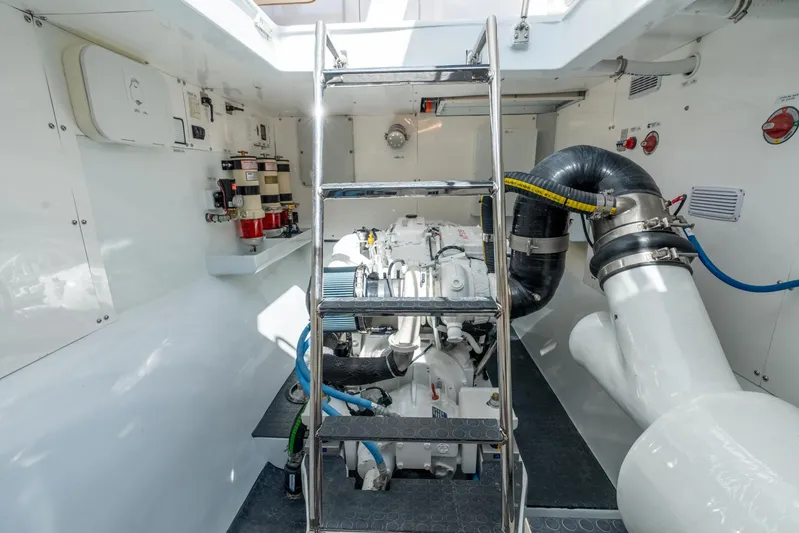

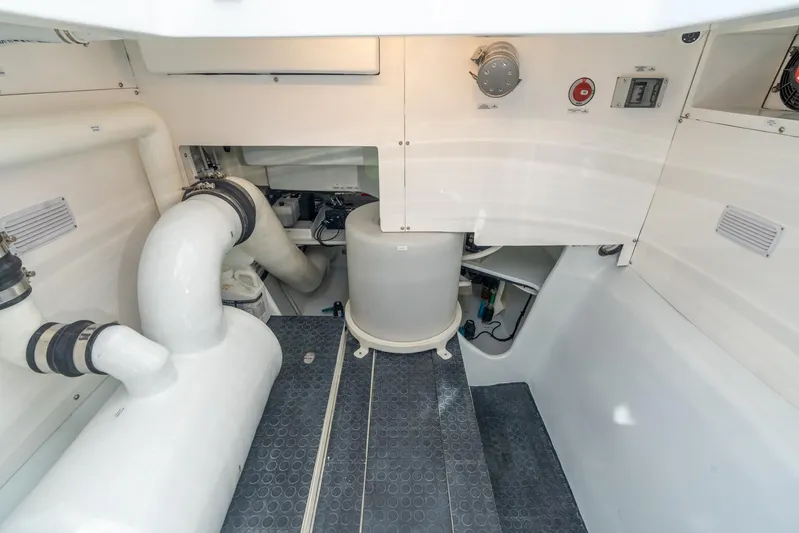

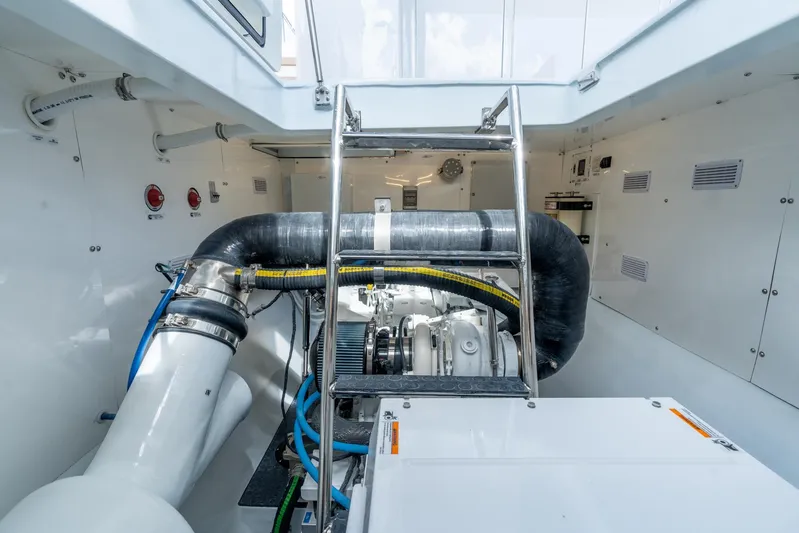

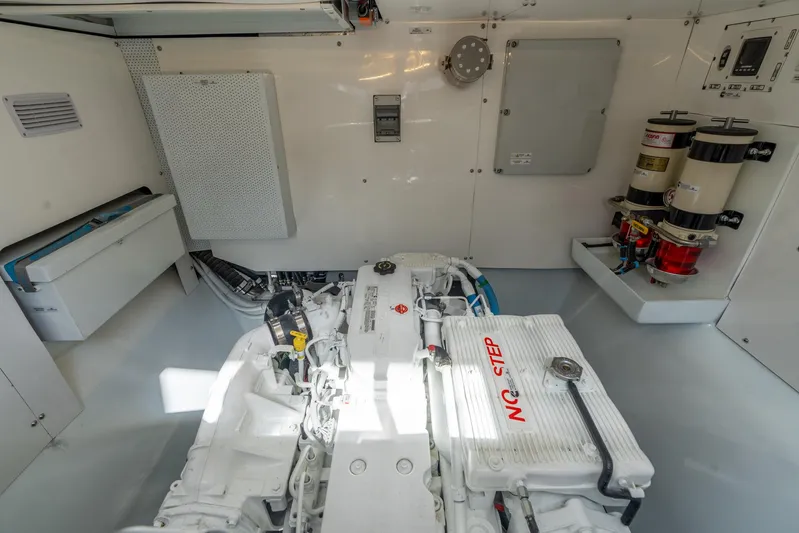

Engines

• 2 x Cummins QSB6.7 550 HP diesel motors coupled to KMH52 gearboxes, Temmet 25 shafts and fixed propellers with flex couplings
• Cummins standard electronic engine controls and instrumentation panels at helm console
• 24v high amp alternators to charge house bank.
• Centek underwater exhaust system to keep noise levels as low as possible.
• Dual Racor fuel filters for each motor.
• Fireport in each Engine Room
• Main Engine ventilation system: via remote operated fans and fire shut off system
• Sea Fire system to both engine room spaces

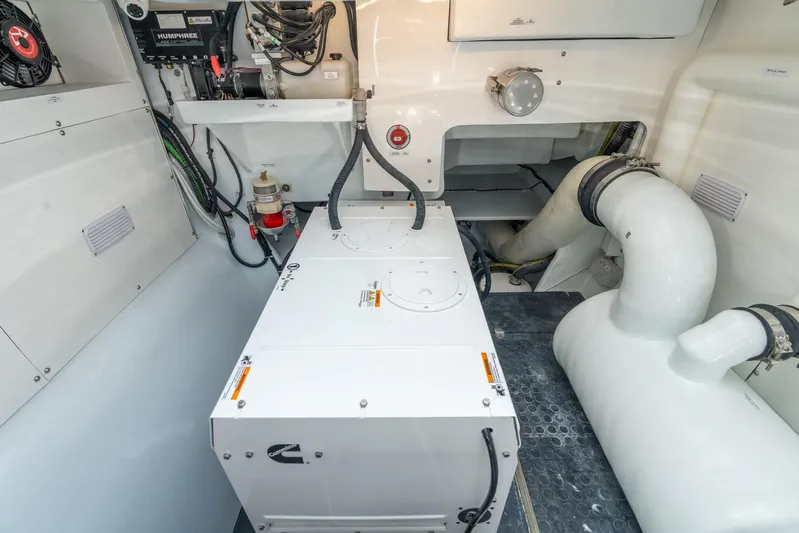

• 1 x Onan 21.5KW MDKDV Generator with sound shield, waterlock and underwater exhaust
• LED lighting in each Engine Room.
• White paint finish below waterline on the interior of the boat and service areas.
• Sound seal for both engine compartments.
• Main Engine Delta T ventilation system: via remote operated fans and fire shut off system.
• Power assisted hydraulic steering system with emergency override.

Bow Thruster

• Sidepower Variable speed bow thruster with integral tube.

Plumbing

• 1 x 200-gal water tank with deck fill and vent, tank level display gauge on electric panel.
• 2 x freshwater pumps with accumulator tanks.
• Plumbing piping and fittings to be John Guest Speedfit®.
• 2 x 137L Vetus black water holding tanks with gauge, buzzer, and visual alarm.
• Black tank pump out for at sea or by deck drain for shore side pumping; breathers to have coal filters.
• Tecma/Planus silent electric freshwater toilets in each hull, as per layouts.
• Fresh water outlet for anchor/deck wash down.
• Cold water outlets at transom – salt and fresh
• 4 x Rule bilge pumps 1300GPH with mechanical float switches and auto/man alarms.
• 2 x Whale bilge pump Titan BP4410 manual bilge pump; located in Cockpit for emergency pumping.

Electric System

• Service voltages: 24 VDC and 110V 60Hz.
• Service Batteries – 400a/h @ 24V capacity.
• Engine Start Batteries – 90a/h capacity, 2 x 12 Volt 90a/h.
• Main electrical distribution panels 12V,24V and 110V.
• One custom made electrical control and display panel.
• All service areas: LED service lights, switched at main panel.
• Mastervolt 3500w inverter charger.
• 100-amp charger only.

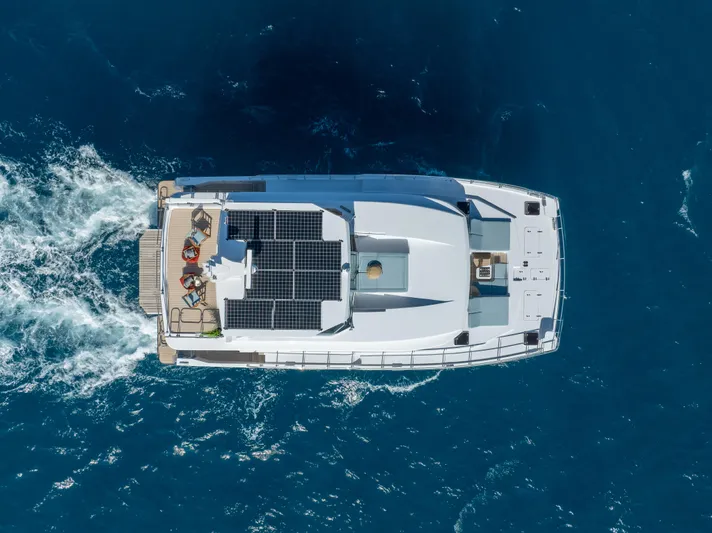

• 8x 400w solar panels on Flybridge hard top.
• Mastervolt easy view battery management system.
• 110v plugs in all accommodation spaces, Saloon, Galley and Flybridge.
• USB points in all accommodation spaces.
• Air Conditioning system to all cabins and Saloon/Galley.
• 60 ft. 50 Amp Shore power cable.

Lighting

• All Lighting LED Marine grade.
• LED lighting to heads and below deck accommodation spaces.
• LED low level lighting in cabins, Saloon, Cockpit and Flybridge.
• 2 x LED aft deck spotlights.
• Courtesy lights (blue)
• Aft deck transom steps x 1 on each step.
• Courtesy LED light on each step on port and starboard hull companionway.
• Service area – Dura LED, white (switched from main panel, 1 switch): 1 in each Engine Room

Navigation Lights

• All navigation lights LED (port, starboard, anchor and stern)

General

• 1 Seat on each pulpit.
• Handrails on Transom coaming and aft Cockpit, as per general arrangement.
• Stainless steel stanchions 28” high, on outer bulwark.
• Stainless steel guard rails with wire intermediate.
• 9 Alloy mooring cleats - Goiot 340mm , 4 port, 4 starboard, 1 at anchor locker.
• 2 Goiot 260mm cleat at stern.
• Access to storage areas in port and starboard forward hulls through Lewmar or equivalent size 70 deck hatch.

Anchor Handling

• Anchor windlass; Maxwell, part no. HRC10 non-capstan version; with foot switches on the foredeck and remote switch on Flybridge helm.
• Custom self-launching bow roller.
• Self-bailing lockers for self-stowing chain and rope.
• 1 Ø24 mm Nylon bridle fitted to Stainless Pad Eyes on inboard hull sides.
• Fresh water wash-down.

Ground Tackle

• Primary anchor, Delta Type on 50m (164’) of 10mm (3/8”) G4 chain and 50m of Rode.

Hull and Deck Ventilation

• All port lights and hatches to have blinds.
• Port lights and hatches for light and ventilation (standard layout).
• Hull portholes.
• Port Hull Side: Lewmar Flush Mitre portlight, Size 3, x2
• Starboard Hull Side: Lewmar Flush Mitre portlight, Size 3, x2
• Deck Hatches: Lewmar Medium profile, Size 60, x4

Navigation and Instrumentation System

• 2x Garmin gpsmap 8616 16” chart plotter with GPS antenna.
• Garmin Auto pilot with version 2 smart pump.
• Garmin 4'open Array GMR Phantom 54 radar.
• 1 kw Airmar B175 Depth transducer.
• VHF 215 AIS on Flybridge.
• Fusion Sound system with 3 zones - 4 speakers to Saloon, 2 to Cockpit and 2 to Flybridge.
• 1x Garmin camera in each Engine Room and 1x camera on Aft Deck bulkhead with view of Cockpit.

Vessel Layout Upgrade Options

• Option D - Open plan main deck with wet bar forward. 4 staterooms and 4 heads on lower deck, Master Stateroom Starboard.

Optional Exterior Upgrade Options

• 4 x blue underwater lights

Optional Galley Upgrade Options

• Dishwasher - Fisher and Paykel DD2SAX9N

Optional Flybridge Upgrade Options

• Dual Stidd flybridge helm chair upgrade
• Ice maker - Vitifrigo IMREFIXN1-S
• Air Conditioning / Heat 2x 16,000 BTU

General Optional Upgrade Options

• Composite Cockpit Seat upgrade with storage lockers & cushions - "Yacht Seat"
• Retractable shore power lead glendining cable master 50A 75ft cable
• Remote motorized SPOT LIGHT on mast
• FLOOD LIGHTS: Hella Marine 2X AFT ECK AND 2X FLYBRIDGE
• Boat Sat TV System - Prewire STARLINK HDMI cables to all TV's, wire for antenna
• Additional Transom Ladder and Shower

Optional Lifts, Tender and Transom Options

• Steelhead (ES1100 Upgrade - See extras below)
• Tender lift on lower deck with custom platform

Engine Upgrade Options

• 2 x Cummin QSB6.7 550 HP diesel motors coupled to KMH52 gearboxes, Temmet 25 shafts and fixed propellers with flex couplings
• Cummins standard electronic engine controls and instrumentation panels at helm console
• 24v high amp alternators to charge house bank on each motor
• Water locks and exhaust system to keep noise levels as low as possible
• Dual Racor fuel filters for each motor
• Fireport in each engine room
• Grey paint finish below waterline on the interior of the boat and service areas
• Sound seal for both engine compartments
• Main Engine ventilation system: via remote operated fans and fire shut off system
• Sea Fire system to both engine room spaces
• Power assisted hydraulic steering system with emergency override
• 1 x Onan 21.5kw MDKDV Generator with sound shield, waterlock and underwater exhaust

Go Greener Upgrade

• 2x 9kw Integrel Generators coupled to main Engine via flex shaft off PTO
• Upgrade of battery bank to 48v lithium Ion 26000w total- (10x 24v 5200w batteries)
• Upgrade to 2x 110v 5kw inverter chargers and 1x 220v 5kw inverter charger
• 9x 400w solar panels to foredeck (note no day bed on foredeck flybridge with this option)
• Aircon system to be self contained 48v units capable of running through night off batteries in eco mode in cabins
• Windlass upgraded to 48v
• All other electric components will be upgraded to 48v as they become available
• Generator to remain Engine Upgrade Package, Delete Solar on Foredeck, Lounger Remains

• GE Oven GE PSB9100SF
• GE Cooktop GE PHP9036DJ
• Icemaker in Wet Bar GE UCC15NJII
• Wine Cooler in Wet Bar GE PWS06DSPSS
• Custom Cabinet for Miele Washer WWB020WCSS
• Custom Cabinet for Miele Dryer TWB120WP with WTV Stacking Kit

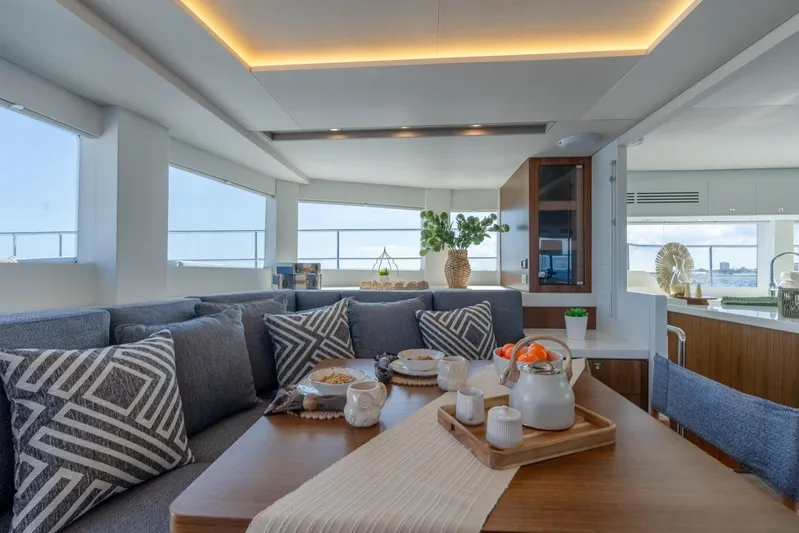

• Salon forward Dinette on Starboard is convertible to bed with height adjustable pedestals.
• Flybridge table is convertible to bed with height adjustable pedestals
• Custom cocktail table on flybridge starboard
• Custom stainless steel gates on port and starboard transom companionways
• Main salon settee ottoman with storage within 2x drawers & cushion on top
• Flybridge stainless rail weldment, middle starboard side aft opening gate, not removable
• Helm Binnacle located to port CL of helm seat, throttle to starboard side of helm
• Additional 110V outlet in cabinet opposite starboard hull custom desk
• Generator installed from engine upgrade package
• Custom hull modifications (Interior)
• Large port salon settee depth 32" - same as starboard forward settee
• Installed safe in owners cabin locker
• Forward salon area top locker shelves mounted on runners
• Forward exterior cockpit loungers have lifting headrests
• Gas locker under BBQ recess is vented
• Stainless steel liner in BBQ recess
• Non-skid on starboard flybridge side gated rail
• Installed TV's / TV lifts in both forward staterooms
• Locker in galley next trash bin has two doors with one shelf
• Wet bar in galley smaller cutlery drawer and two larger drawers underneath
• Anti-foul (black)
• Drop down TV facility on flybridge, drop down with to 55" Smart TV
• AC outlet in starboard and port cockpit locker to facilitate fridge/freezer installation
• Pre-plumbed and wired for watermaker installation

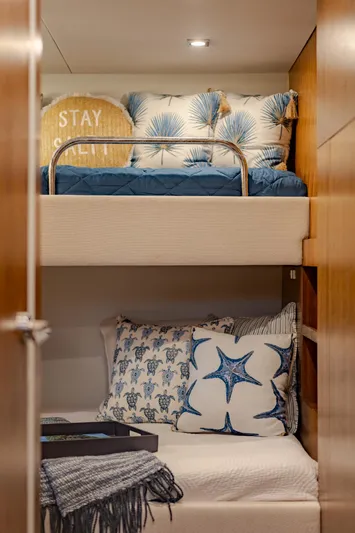

• Starboard aft cabin features custom transverse full bed with overhead bunk bed
• Intergral insulated ice chest in port aft cockpit seat with hinged lid

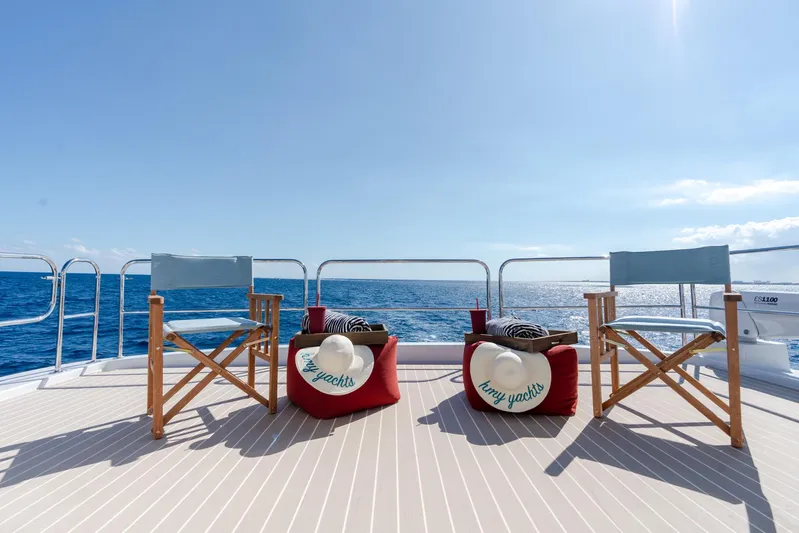

• Classic padded fold up directors chairs  - fabric is mineral blue chine
• Hulls transom and back of yacht seating painted 'Stars & Stripes' blue with white bootstripe - topsides white
• No non-skid on transom, stairs, cockpit, gunnel stairs & entire flybridge
• Built removable filler for twin bed stateroom
• Added shelf next to top bunk in starboard aft cabin
• Custom wood table over ottoman
• Salon ottoman constructed with African Olive finish, no soft top 1" lip around top with storage within 2x drawers  and cushion on top
• Custom aluminum inserts for swim platform to accept Flexiteak installation
• Plasdeck
• Washer-Dryer and TV's
