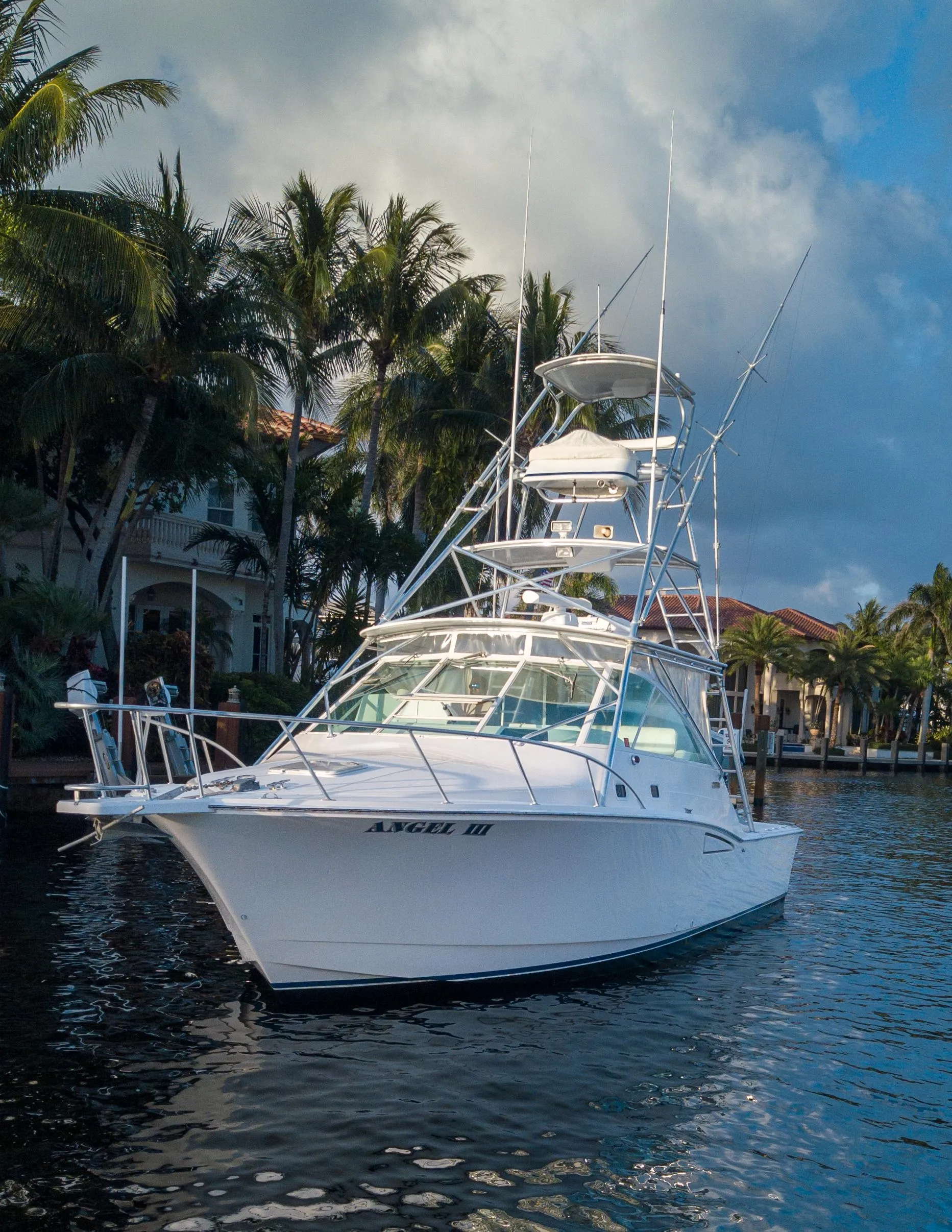

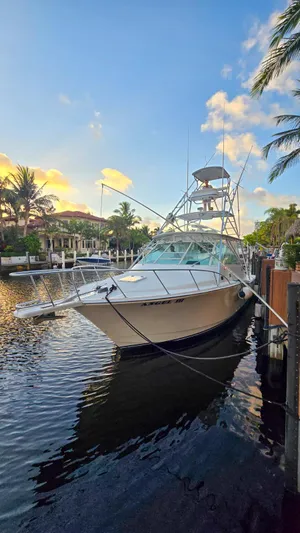

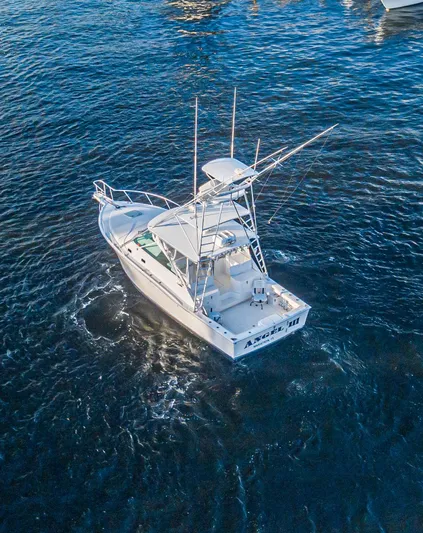

35 Cabo 2003 Boat For Sale

• Beam: 13' 0''
• Hull Material: Fiberglass
• Fuel Tank: 1 x 400|gallon
• Fresh Water: 1 x 100|gallon
• Cabins: 1
• Heads: 1

Made by fisherman for fisherman, the 35 Flybridge's offshore prowess is profession grade. Accommodating up to four stand-up anglers, the cockpit measures an astounding 130 sq.ft. Tackle and gear are easily organized and she boasts a pair of large, macerator-equipped fish boxes that lie flush with the sole, as well as both fresh and salt water washdown. To minimize intrusion into the boat's valuable cockpit space, the 40-gallon bait tank is located in the transom, and port and starboard cabinets run nearly the length of the cockpit, providing convenient storage for gaffs and bait nets.

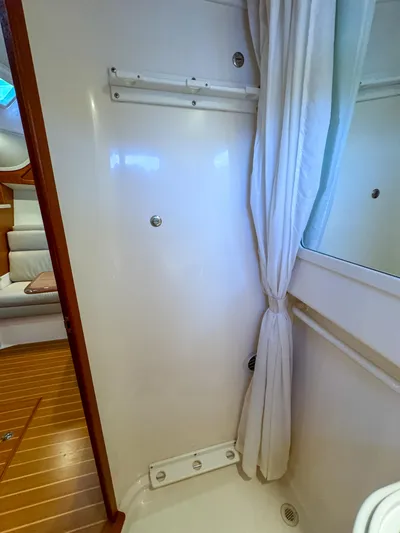

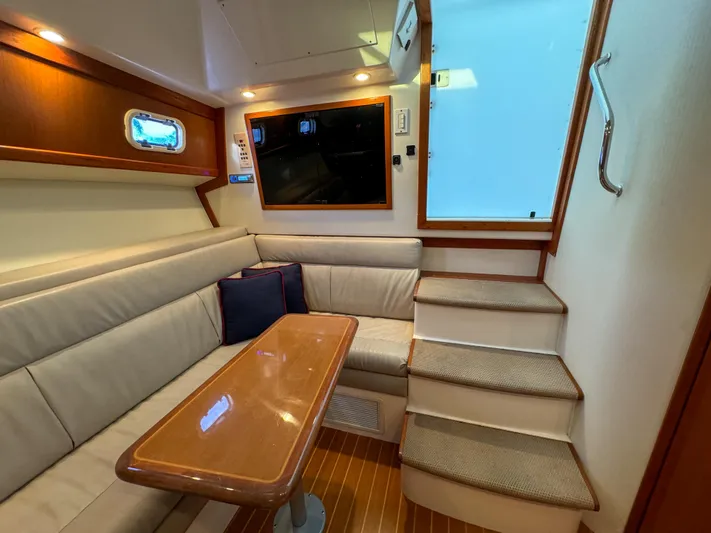

Sleeps 4-6, forward is master stateroom with full size centerline berth with storage below, hanging locker, rod storage lockers and TV, directly aft is guest stateroom with upper and lower berths plus hanging locker, directly across is private head with stall shower, steps up to salon with galley, large U-shaped convertible dinette starboard side and settee port side. The interior has LED lighting throughout, Corian counter tops, and Teak and Holly flooring.

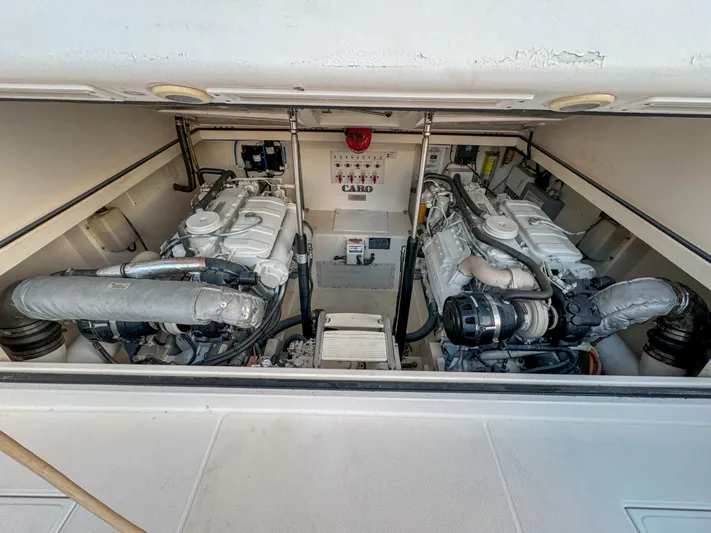

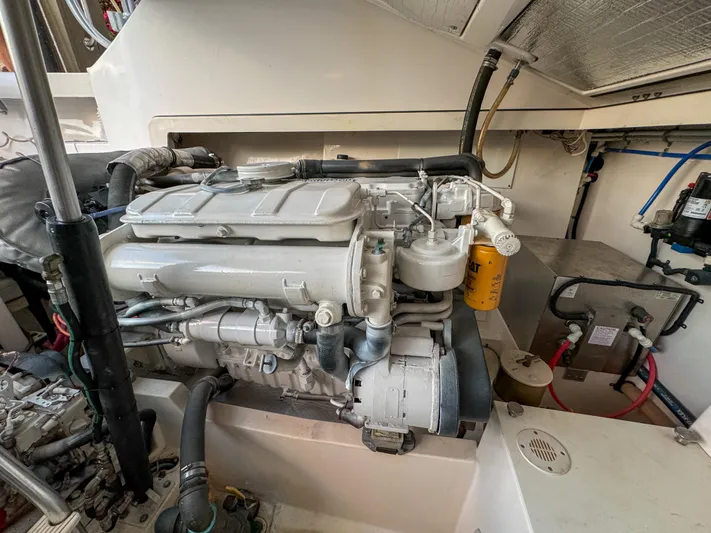

• Main Engines: Two (2) Yanmar, 5.8 liters, model 6LY3-ETA, water-cooled diesel engine,24 valve, 4 stroke, maximum power 462 hp (345 kW) @ 3300 rpm, six (6) cylinders in line, direct injection combustion system, turbocharged aspiration with seawater cooled intercooler, 12 volts electric starting, 12 volts/80 amps alternator, fresh water cooling system by centrifugal fresh water pump and rubber impeller seawater pump. The suction line of the starboard engine has a cut-off valve so that the auxiliary pump operates as bilge for the engine room in case of emergencies.
  Transmissions: Two (2) ZF Marine, model ZF 280-1, gearbox ratio 2 to 1.

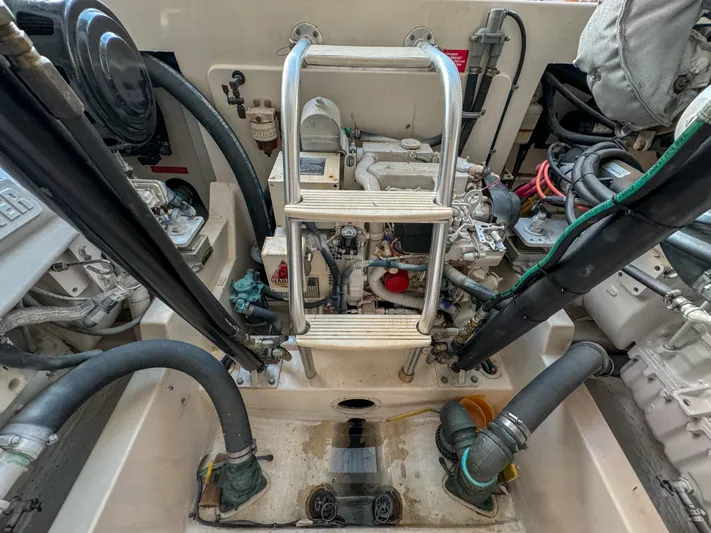

• Generation System: One (1) Westerbeke, model 7.6BTD, maximum power 7.6 kW @ 1800 rpm, 120/240 volts, 63/31.6 amps; 1634 hours.
• Air induction ventilation system from each side of the machine room (Entry and extraction).

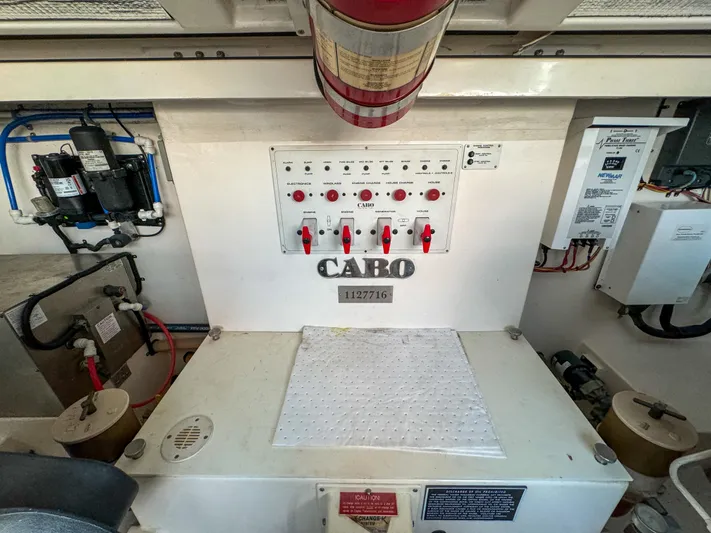

• Auxiliary control panel for engines and other machineries. Electronic controller for engines.
• 12 volts pumping and filtering system for fuel.
• Fixed fire extinguisher, self-activated and/or through remote handle in the bridge.
• Danfoss freezing system for the plates installed in the fishwells enabled in the stern deck.
• CMT air conditioning unit, model CX-16, 16,000 BTU

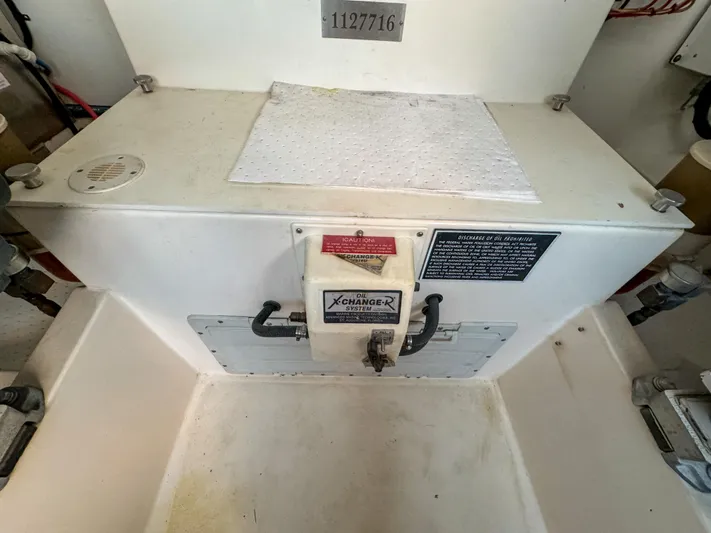

• X-change-R pumping system for engines oil change.
• Sumps for bilge water in the engine room. Underwater smoke exhaust system.

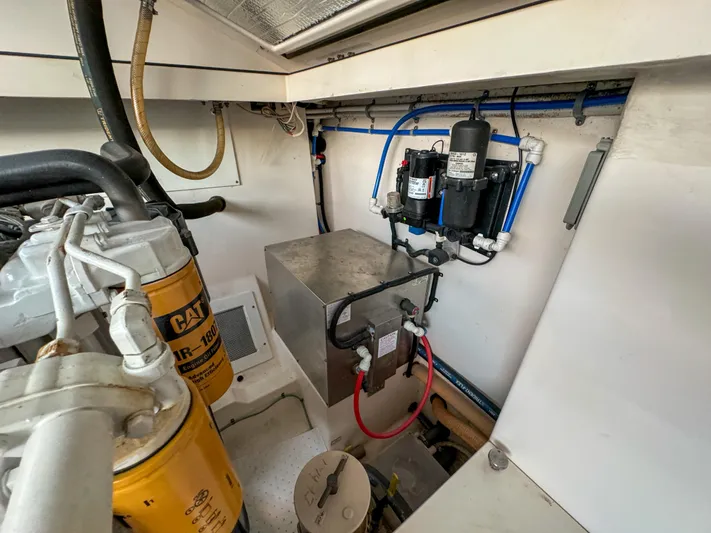

• Seaward water heater, model S-1200-E, with a capacity of 11 gallons.
• Three (3) distributed automatic bilge pumps.
• Two (2) pumps, for fresh water and sewage.
• Two (2) stainless steel drive shafts, two (2) Nibral propellers (Nickel-Bronze-Aluminum)
• 12 volts incandescent lighting in engine compartment

• Electric Systems: In addition to generator, each engine has its 12 volts/80 amps
  alternators, two (2) batteries of 24 volts each and other five (5) batteries of 12 volt each, are assigned to engines/generator starting, and yacht general services. All batteries are arranged to receive charge from two (2) automatic battery chargers (24 volts Promariner Pro Sport and 12 volts Phase Three PT-70)
• Two (2) battery chargers: Promariner Pro Sport (24 volts) and Phase-Three PT-70 (12 volts)

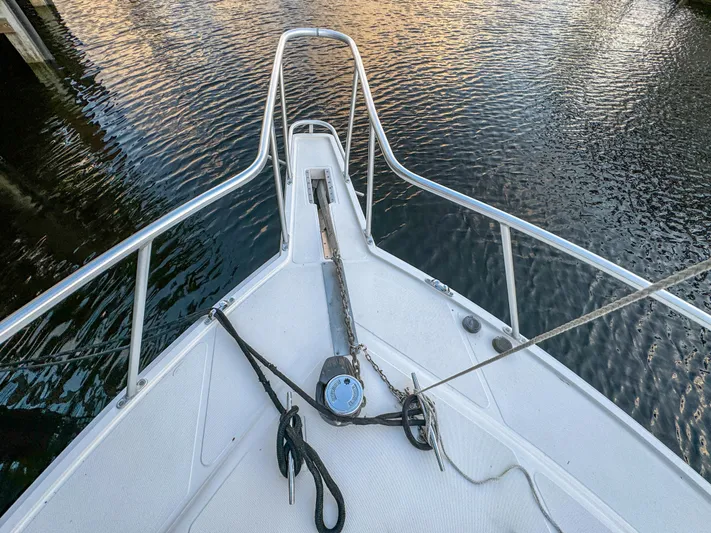

• A 10 pounds aluminum anchor Fortress FX-16. Chain locker.

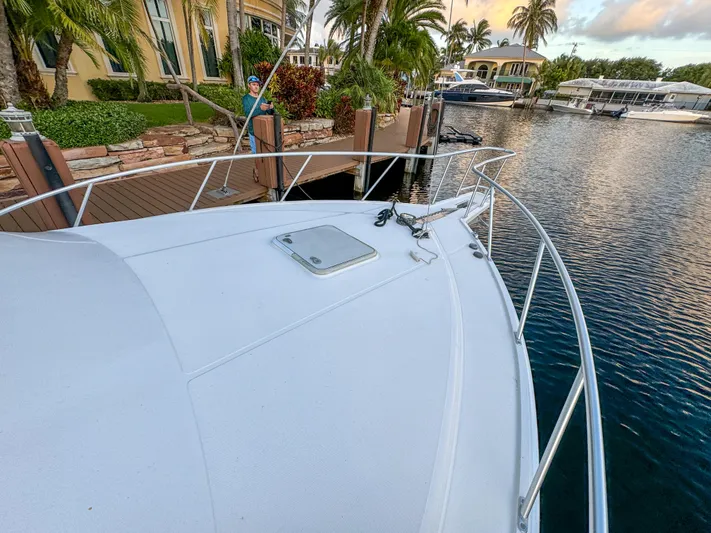

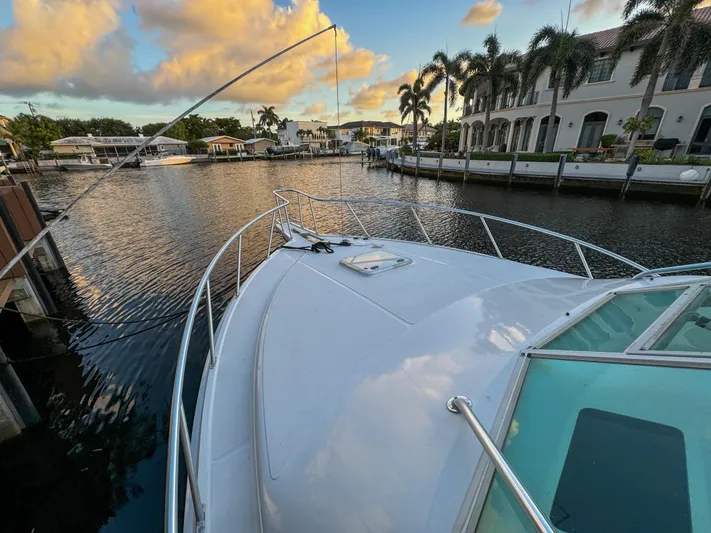

• Anodized aluminum handrails bordering the foredeck.
• Handrails and outriggers on each side of the superstructure.
• Stainless steel nozzles to supply fuel and fresh water. Sewage collection nozzle.
• At least four (4) fender for yacht docking tasks.
• Six (6) stainless steel cleats. Underwater lights.
• External drive devices: Part of the shafts, outriggers, propellers and rudder blades.

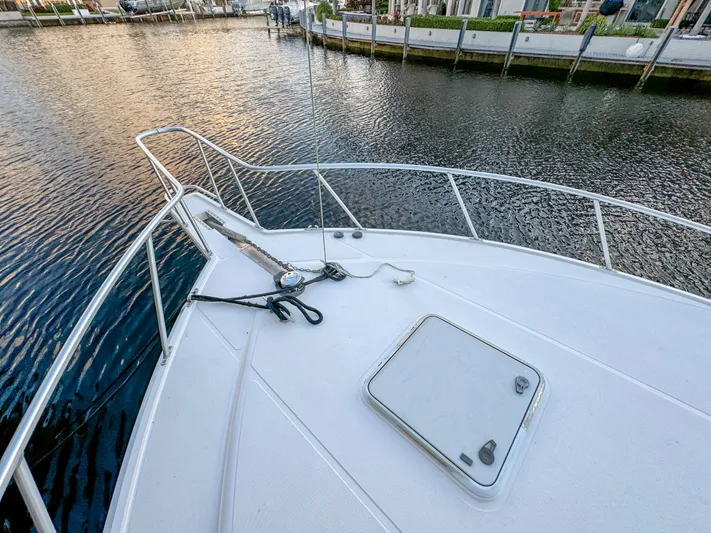

• One (1) foredeck hatch and four (4) portholes enabled for the accommodations.
• Trim tabs.

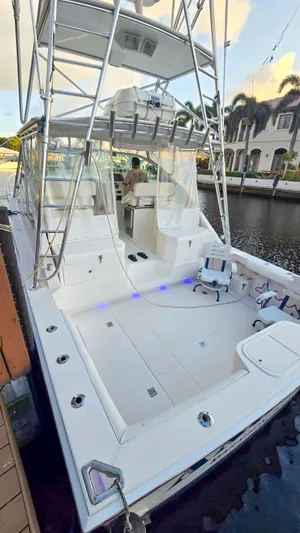

• Molded transom walkthrough with starboard hinged transom door. Swim platform.
• Three (3) tuna tubes enabled with seawater circulation system.

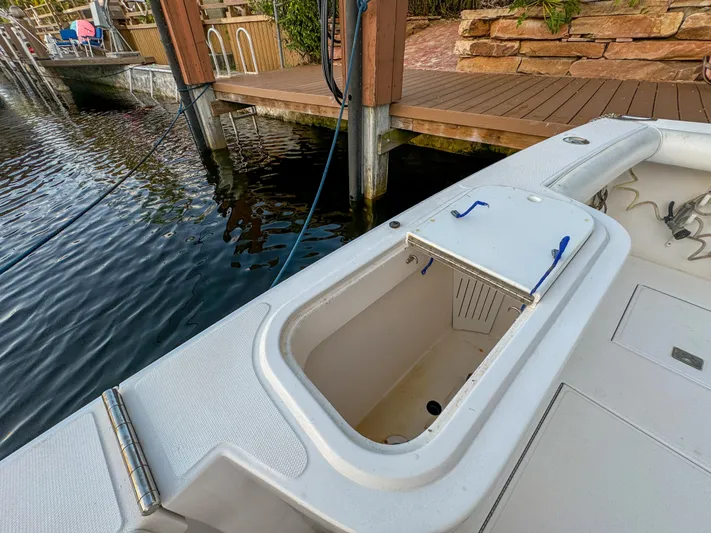

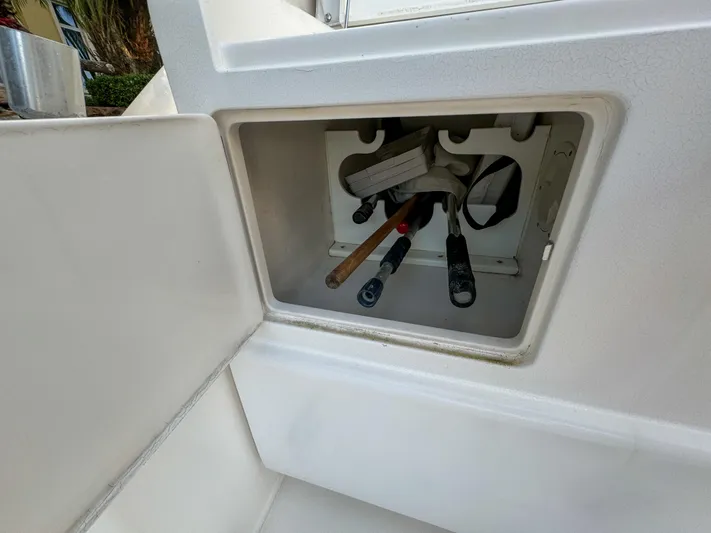

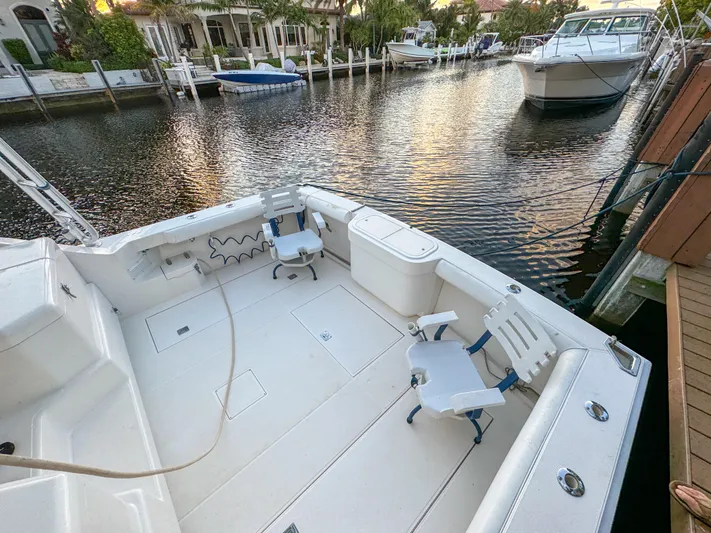

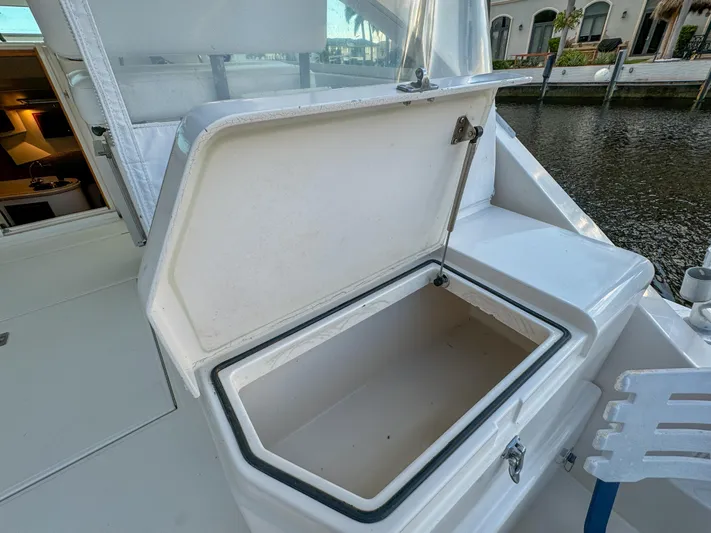

• Three (3) compartments on stern deck soil: Two (2) for fishboxes with freezing plates and one (1) that allows access to bilge, fuel tank and auxiliary machineries. Pedestal table. Six (6) rod holders scattered on the rail. Compartments on each side for storage of fishing tackle. (Rail)

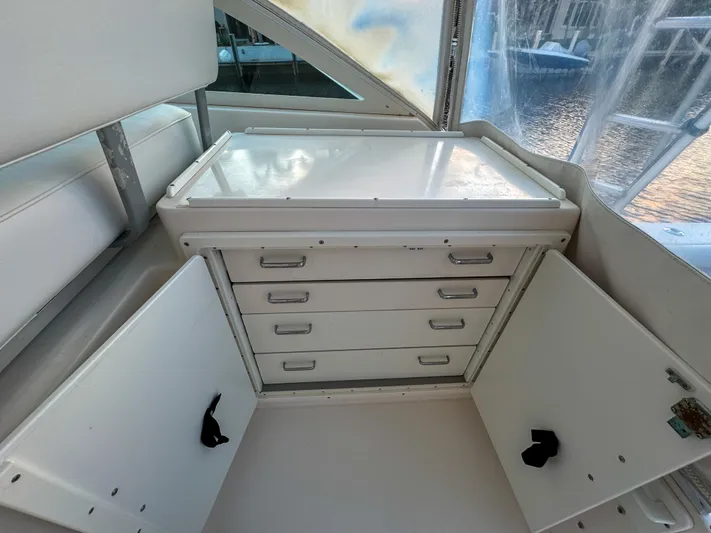

• The cockpit was provided with insulated main engine hood (Each). Cabin access door and modules with drawers for storage fishing tackle.

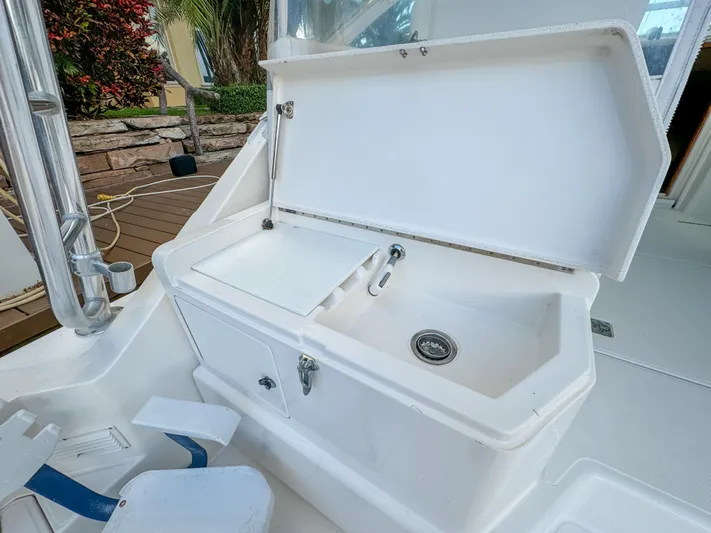

• Stern rail enabled with a baitwell with seawater circulation system. Salt and fresh water washdowns.
• Two (2) 30 amp shore power inlets and 120 volts electric outlets.

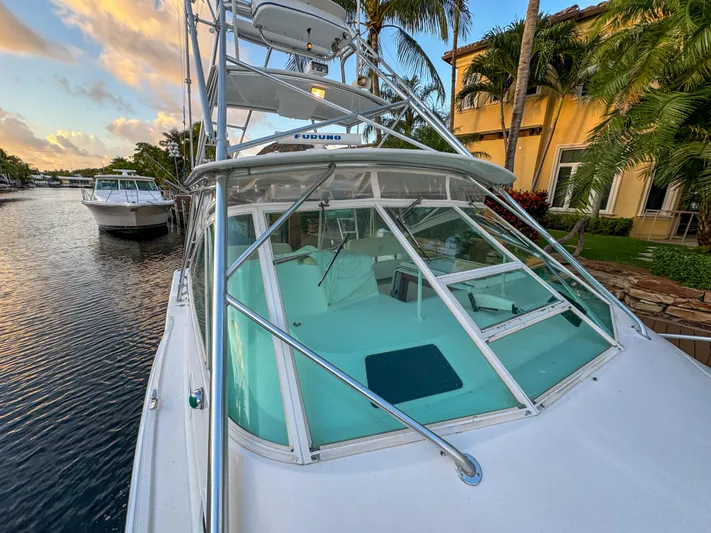

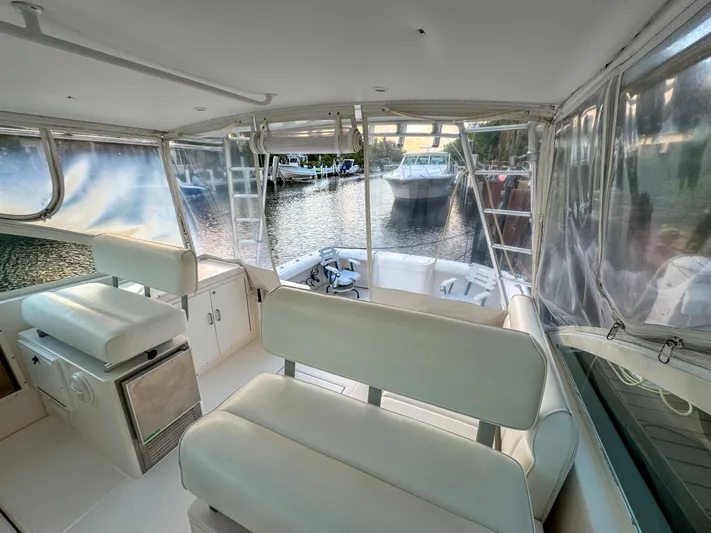

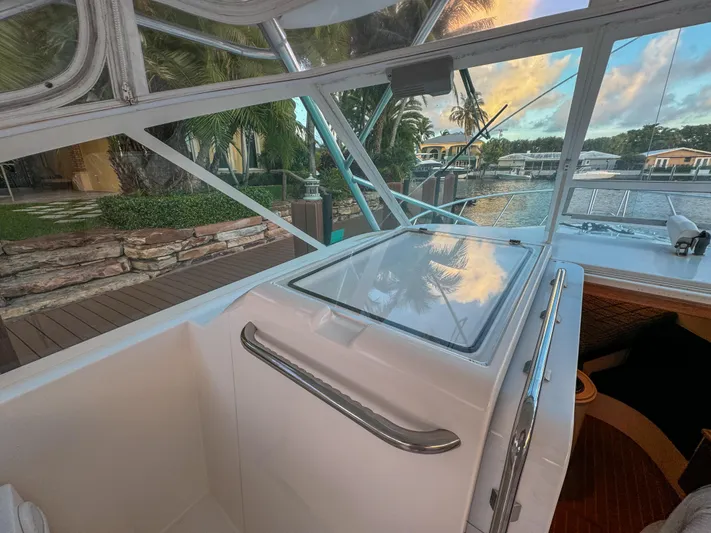

• Three side enclosures: Front provided with makrolon polycarbonate sheets and both sides with strataglass clear vinyl sheets, and zippers, all supported by anodized aluminum tubes structure, rod holders integrated to this structure.

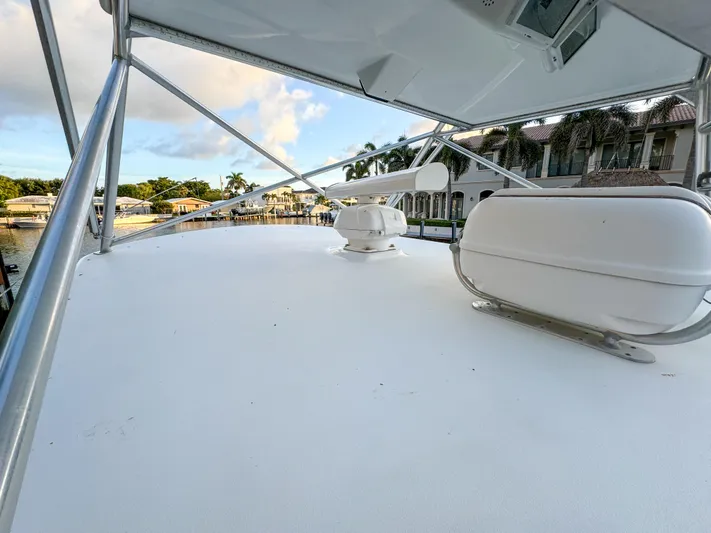

• Fiberglass roof. On the roof are found the Simrad radar and GPS dome, VHF radio antennas, navigation/position lights and ACR mechanized searchlight, horn.

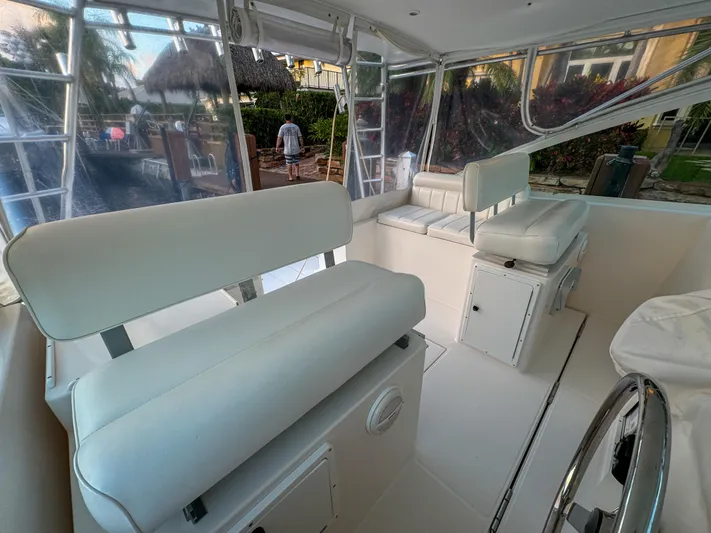

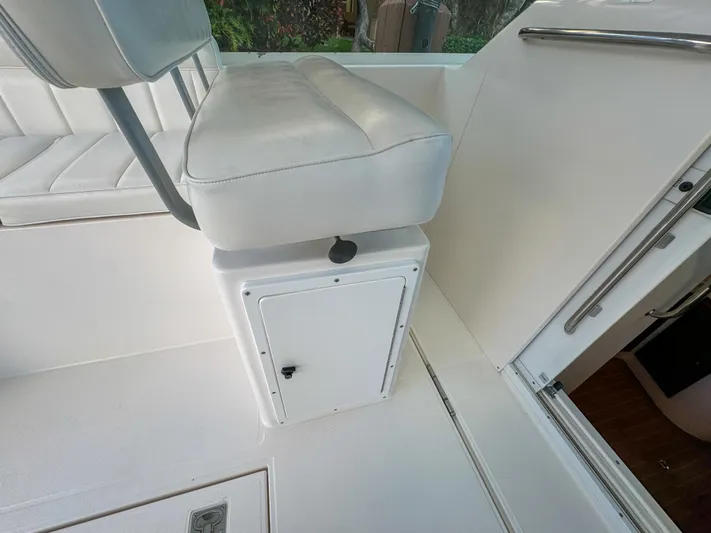

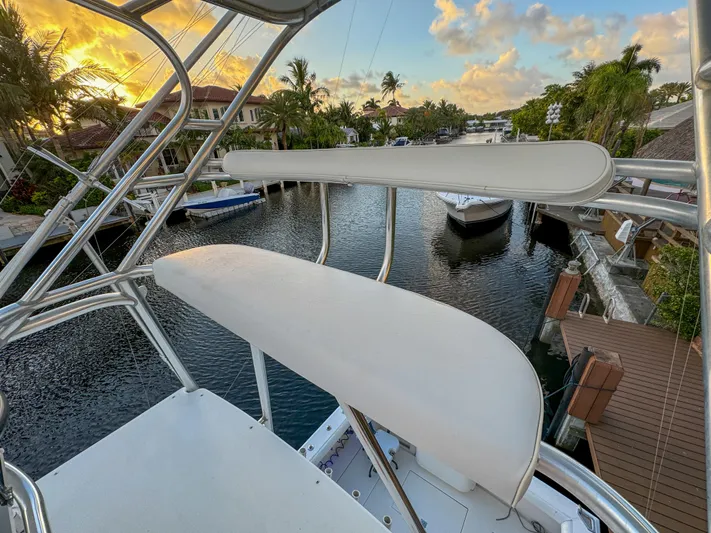

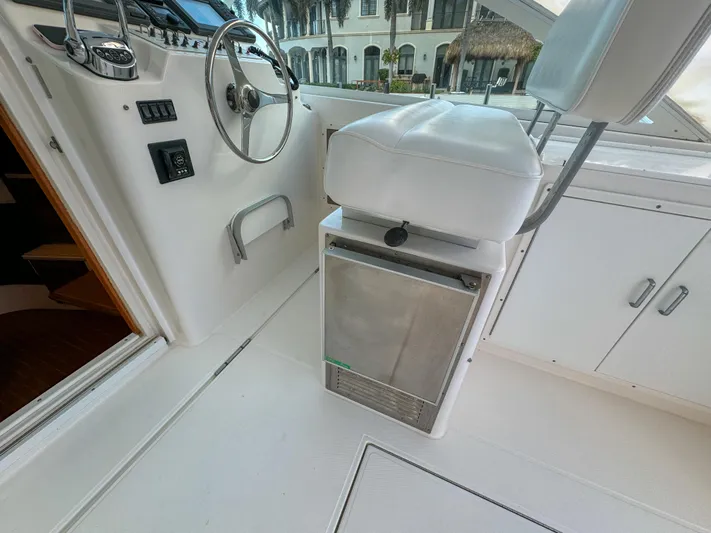

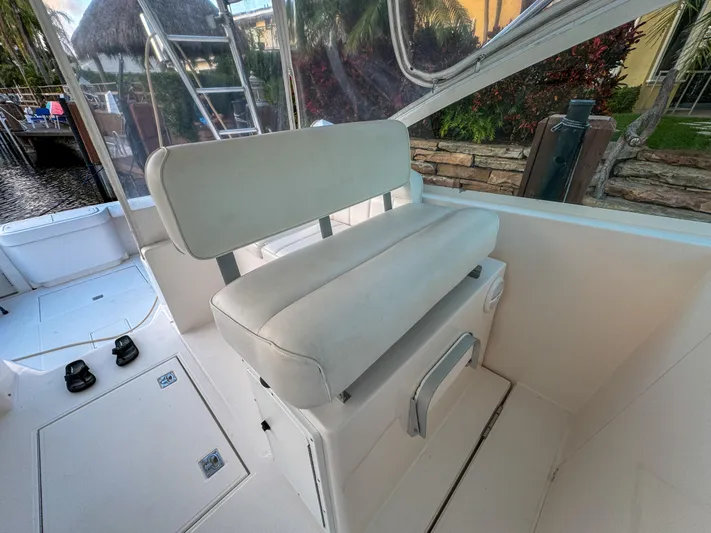

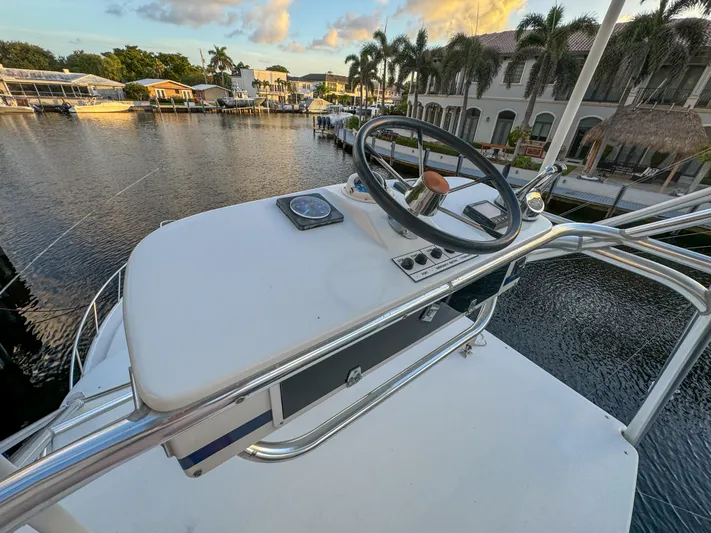

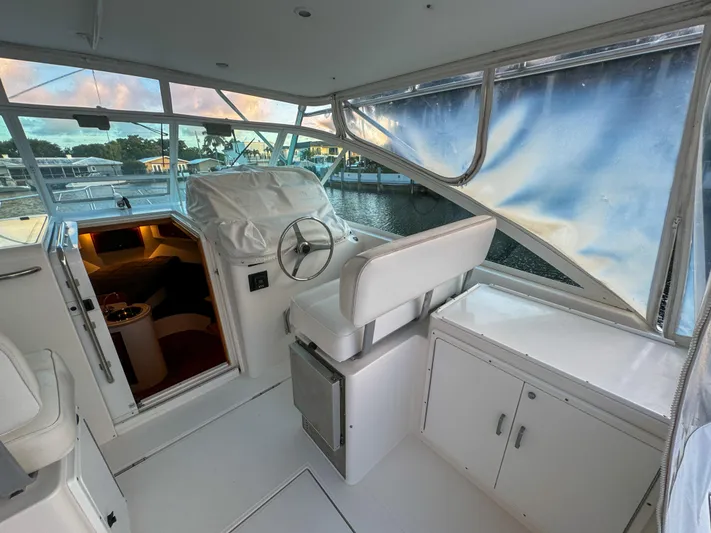

• Bridge provided with devices for control, communications and location. Two (2) pedestal chairs for piloting the yacht.

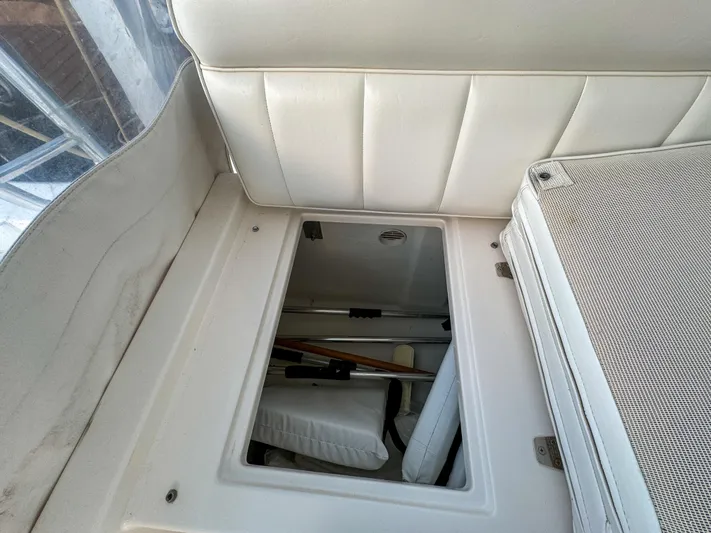

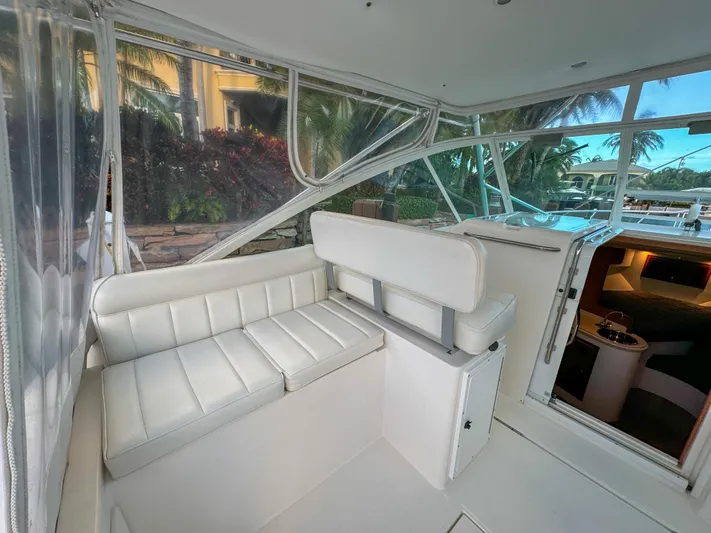

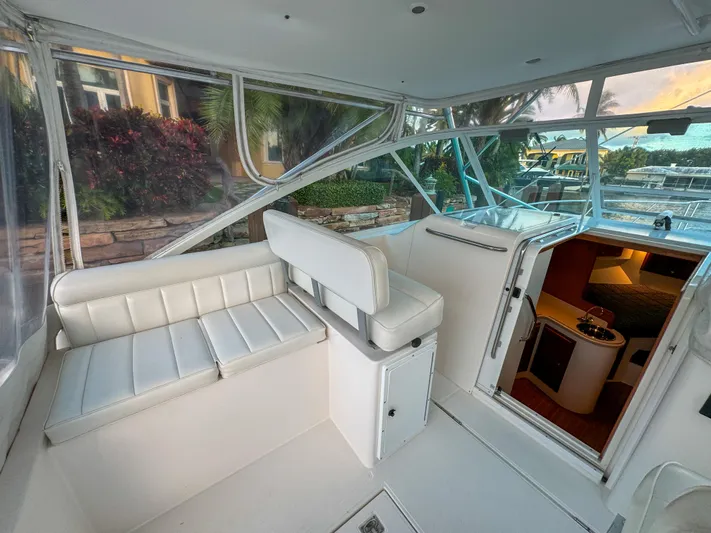

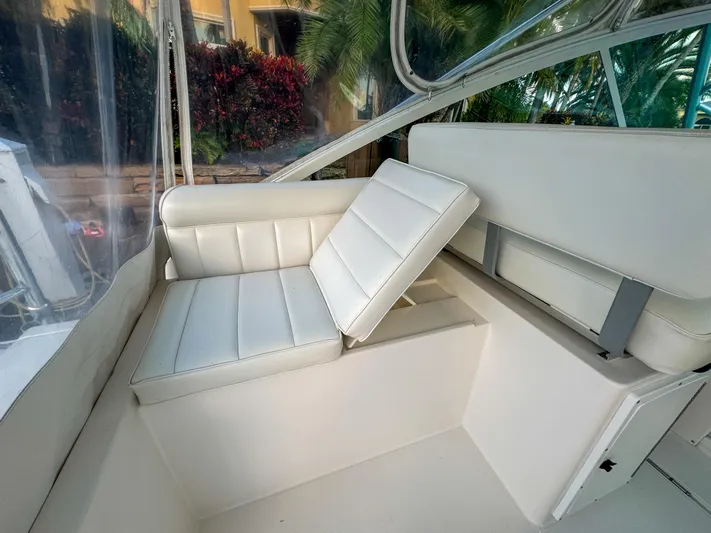

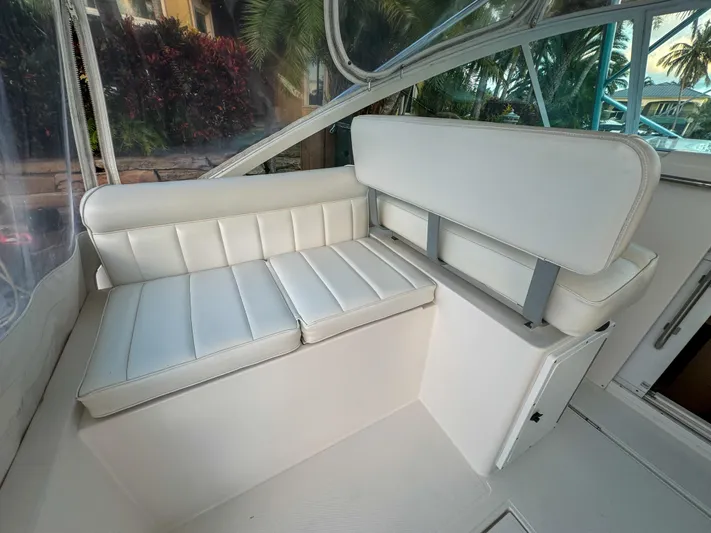

• Cushioned seat towards the front of the bridge with storage space bellow. Scattered audio speakers.
• Courtesy lighting. Access ladder from port aft deck.

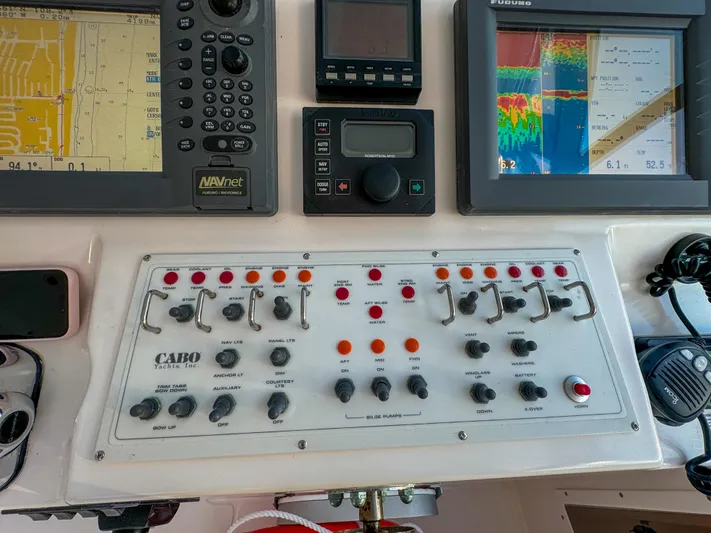

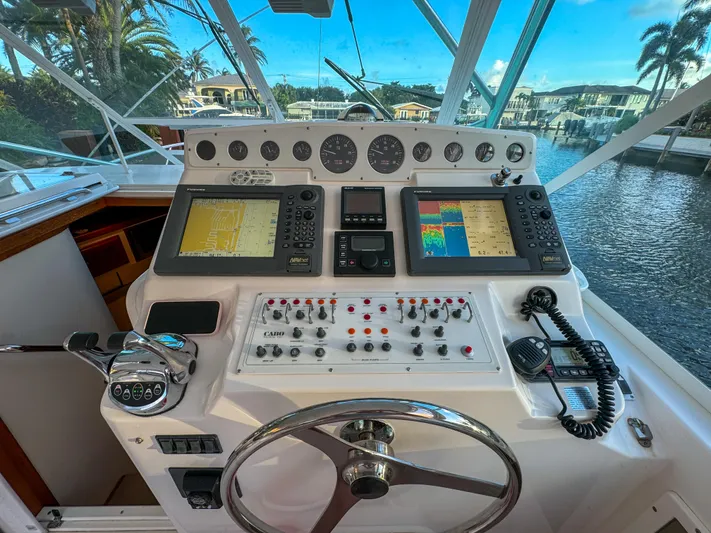

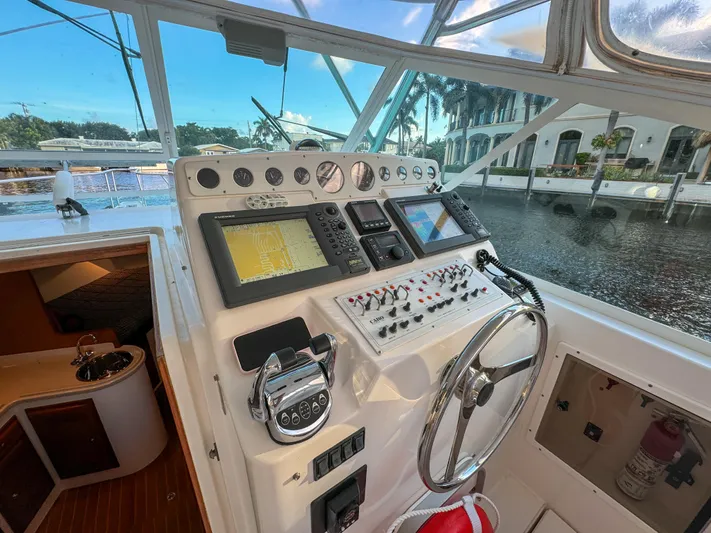

• Two (2) multifunction displays Simrad NSS12 and Simrad EVO3S (Touch screen) – Radar / GPS / Echosounder, among other navigation data.
• Icom IC-M506 VHF Radio.
  • Simrad autopilot system panel.
• Two (2) Yanmar i5601E multifunction LCD displays that registry operative data of the engines, such as: RPM, speed, fuel consumption, operated hours, maintenance and diagnosis messages.
• Yanmar throttle control. Danforth analogic compass.
• Trim tabs control panel. 12 volts equipment control panel.

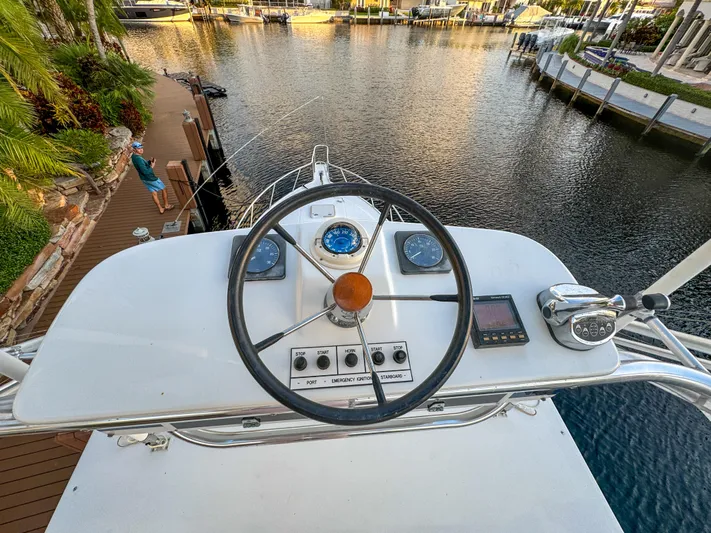

• Anodized steel hydraulic steering wheel.
• ACR RLC-100 searchlight control.
• Fireboy emergency shutdown engines control and fire suppression system.
• Marine digital media receiver Fusion MS-RA70NSX (Multiple audio formats), two (2) JL Audio Marine amplifiers, scattered audio speakers.

• Hinged door to access the cabin from the aft deck. Gate to access the engine room (Floor).
• Wooden floor with running carpet, vinyl finished ceiling with handrail, wooden furniture sliding drawers and lockers. Both sides fixed glass windows.
• On port side, L-shaped and cushioned sofa with storage bellow. On starboard side, dinette with C-shaped and cushioned sofa with storage bellow.
• 42” LCD TV Nisato over dinette.

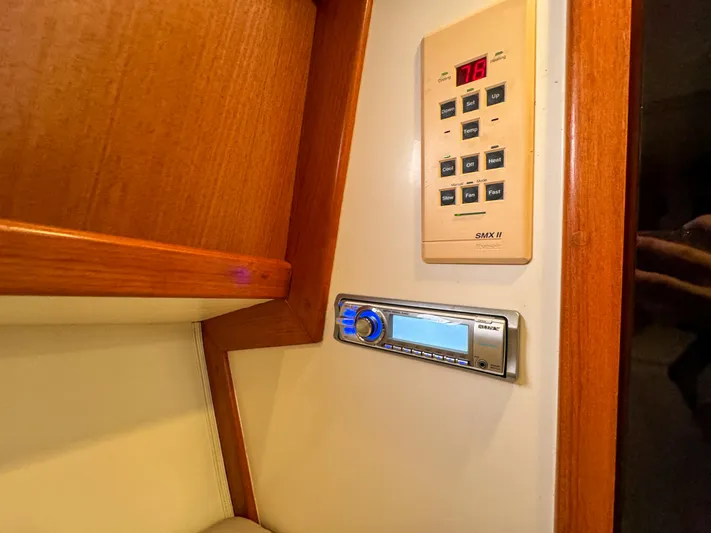

• Temperature control and diffusers for air conditioning flow.

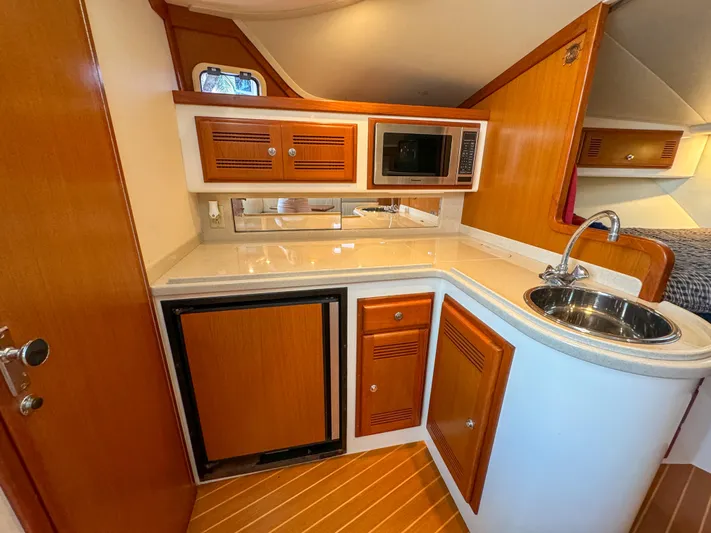

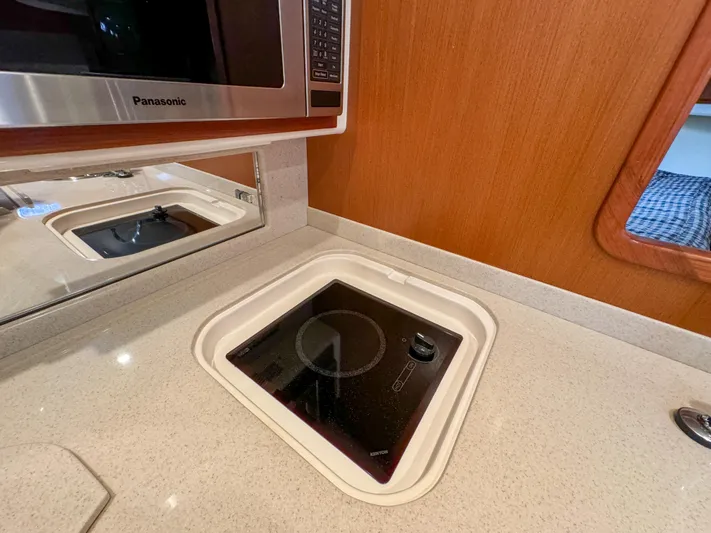

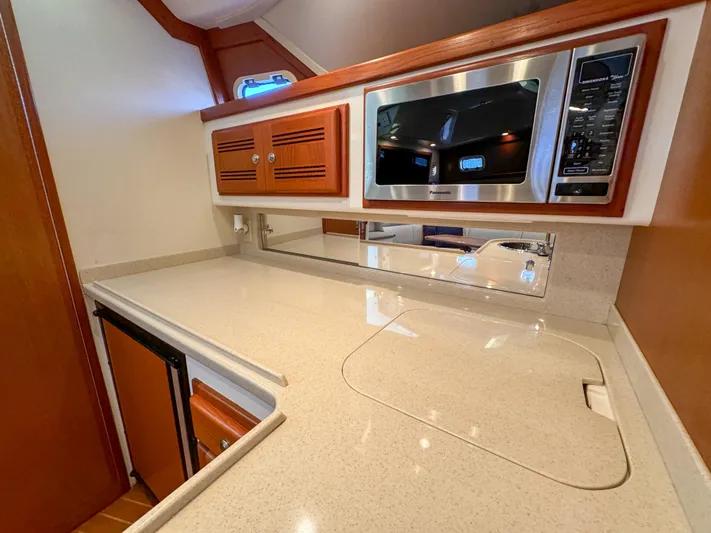

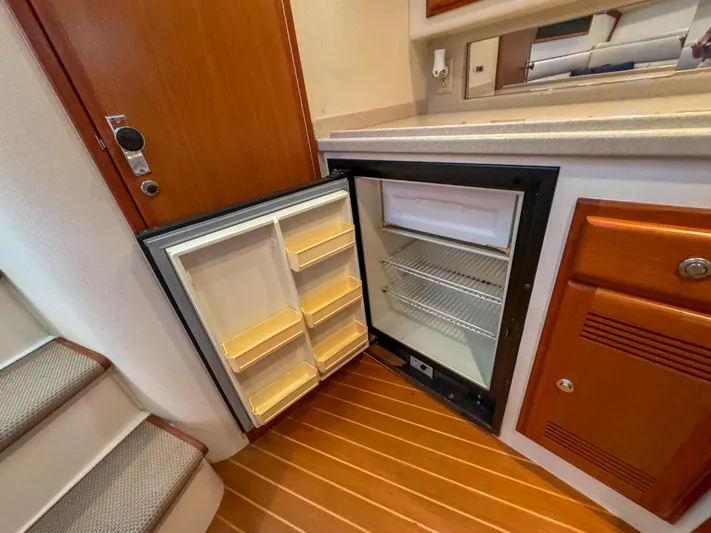

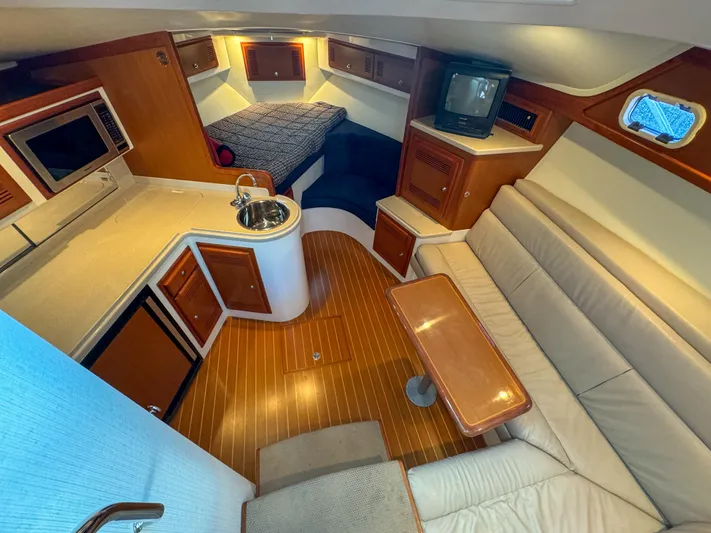

• Galley with wooden floor and cabinet/drawers for storage, Corian counter top, Whirlpool microwave oven, 9 cubic feet Nisato refrigerator, Kenyon two (2) burner stove, stainless steel sink.

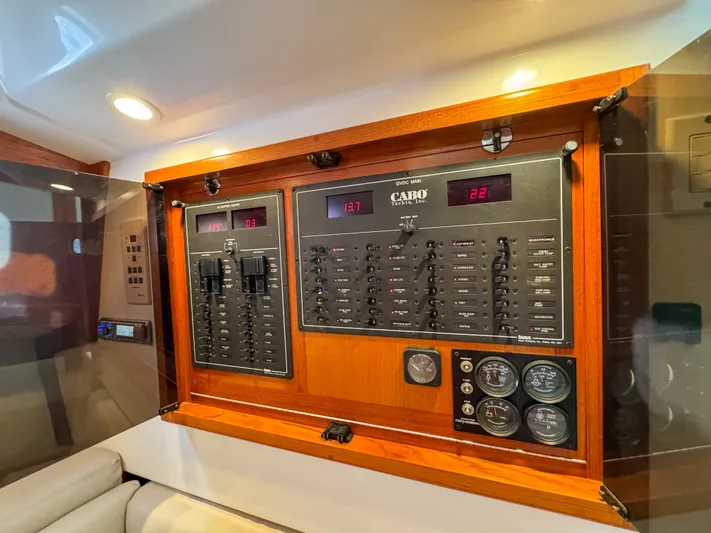

• Main electric panel with controls for the generator and devices that they consume 12, 24 and 120 volts. 120 volts electric outlets.

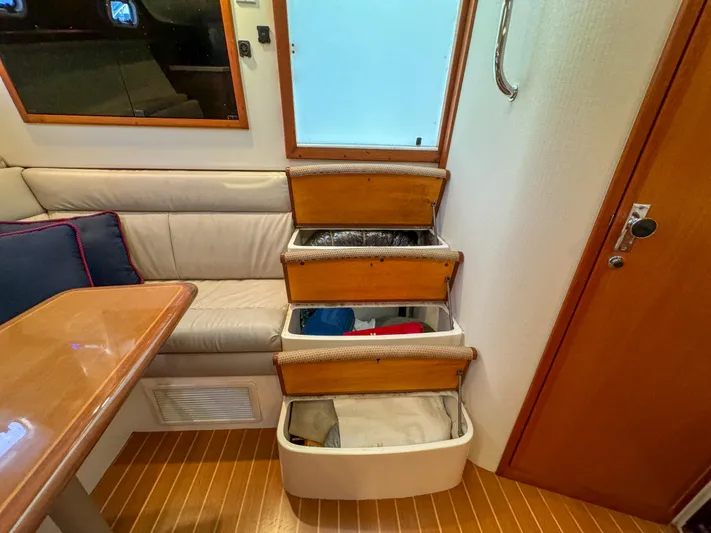

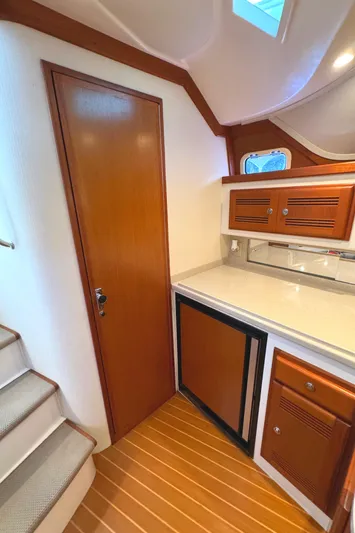

• Stairs that leading to the accommodations.

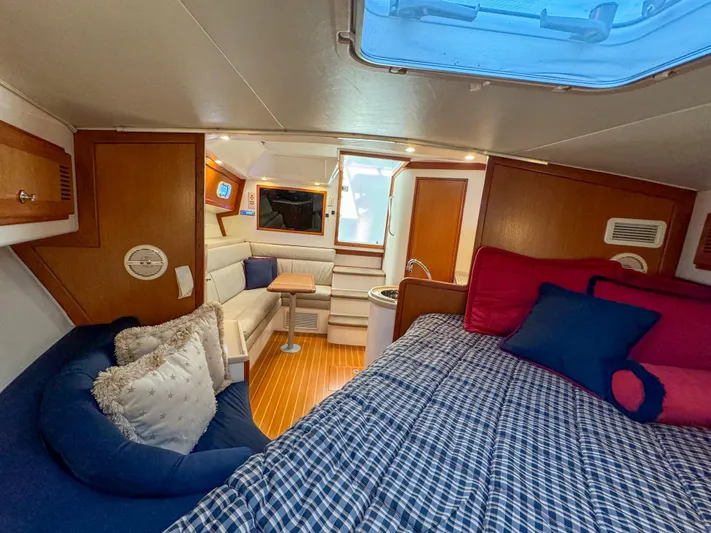

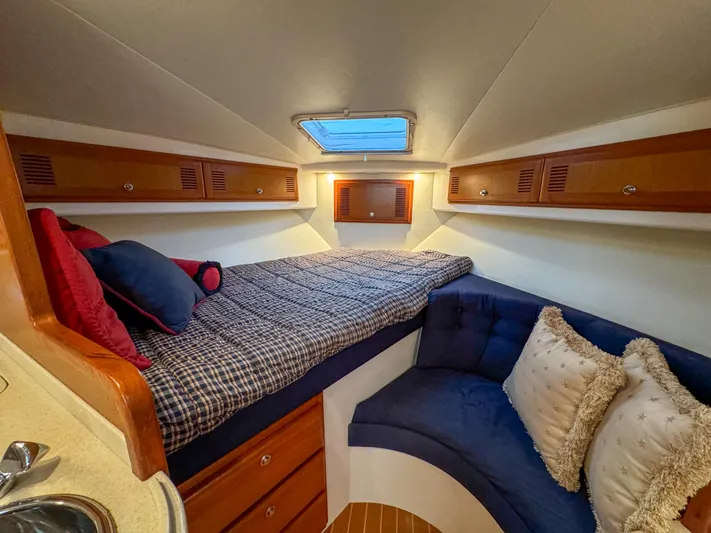

MASTER STATEROOM (FOREPEAK)

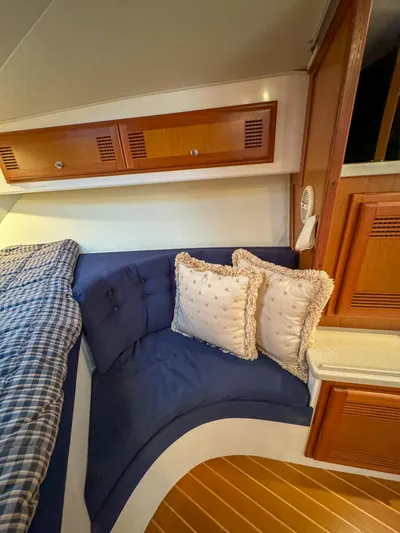

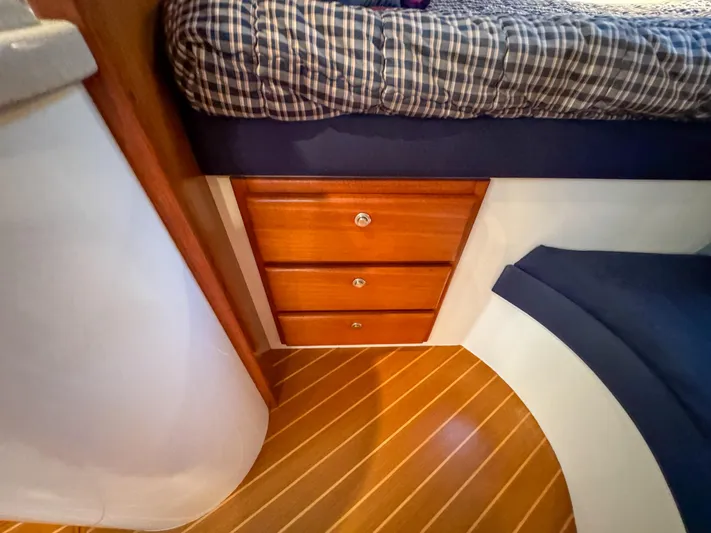

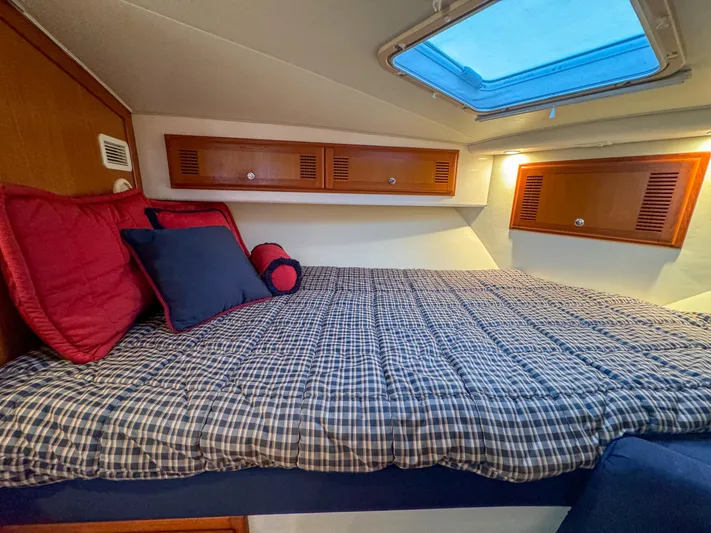

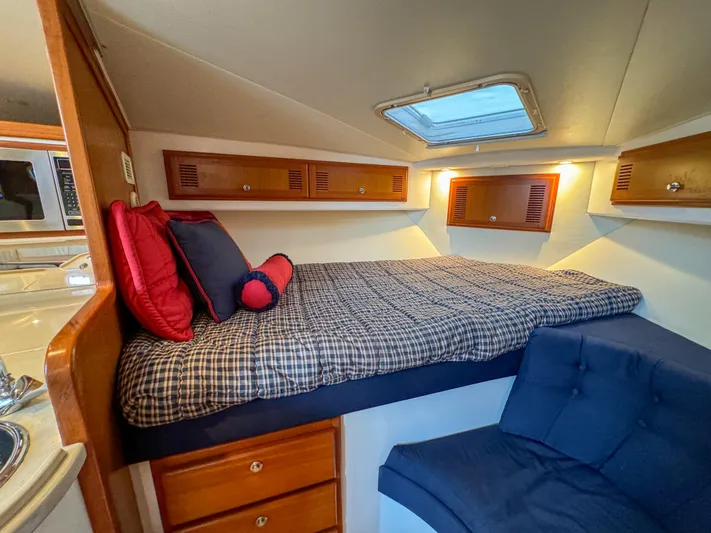

• A walk-around queen size berth with large storage bellow.

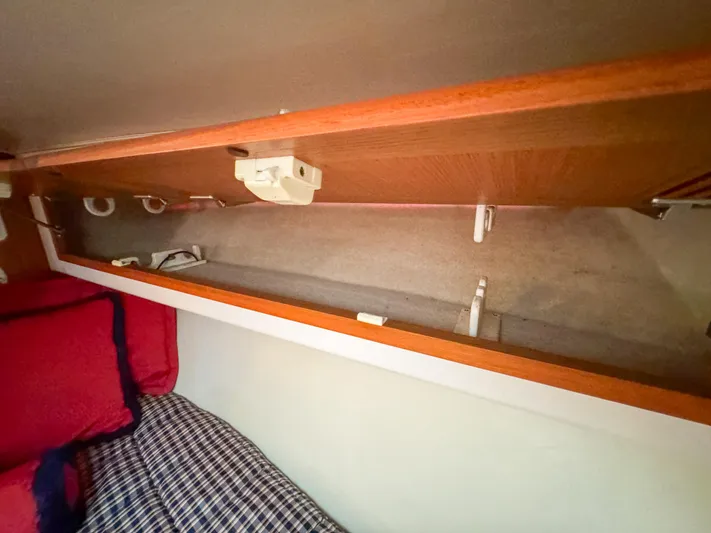

• Reading lamps and additional wooden hanging locker.
• Carpeted floor, roof and walls with vinyl finish. Ceiling skylight hatch with cover.
• 18” LCD TV Nisato.

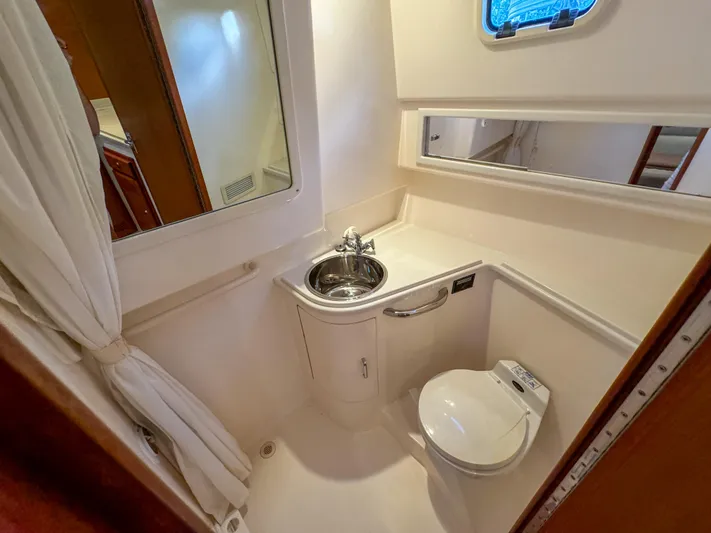

• Head on stardoard side with shared access from the corridor.

SECONDARY STATEROOM (PORT)

• Two (2) 3⁄4 type bunks arranged one on top of the other.
• Wooden furniture. 18” LCD TV Nisato.
• Carpeted floor, porthole, roof and walls with vinyl finish.

• Three (3) multipurpose portable fire extinguishers. Fixed fire extinguisher
• At least twelve (12) lifejackets.
• Pyrotechnics articles. First aid kit.
• One (1) inflatable liferaft with capacity for six (6) passengers.
