Specifications
-
Cruising Speed:
29.55 kn
-
Maximum Speed:
39.97 kn
-
Beam:
12' 0''
-
Hull Material:
Fiberglass
-
Max Draft:
3' 3''
- Fuel Tank: 1 x
388|gallon
-
Fresh Water:
1 x
50|gallon
-
Holding:
1 x
22|gallon
-
Cabins:
1
-
Heads:
1
Manufacturer Provided Description
The OS 355 encompasses the winning formula you’ve come to expect from Pursuit. A single-piece optically clear windshield, exterior fabrics and finishes with exciting seating arrangements give you every reason to dive into a Pursuit Offshore. Standard triple Yamaha F300 engines give you the power you’ve been looking for. The increased natural light through stylish hull-side windows, stainless-steel refrigerator and electrically actuated convertible berth/dinette are a few of the cabin features elevating this model with yacht-caliber appointments.
Hull
Pursuit® Protection Plan: 5-year hull/deck structural warranty 5-year blister-free warranty 2-year limited warranty Pursuit Fresh White Gelcoat Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System Foam Filled Structural Grid Bronze Thru Hull Fittings Below Water Line Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line Bronze Garboard Drain Trim Tabs, Lenco Electric with Auto-Retract Bow Eye, 5/8" 316L Stainless Steel Integrated Transom Platform Extensions Outboard of Engines Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform Anchor System, Integrally Molded Thru-Stem Horn, Electric, with Oval Stainless Steel Cover Bow Thruster, 3.0 HP (2.2 kW) with Group 31 AGM Battery, Switch and Fuse Molded Hull Side Frameless Tempered Glass Windows Dedicated Transducer Location Forward Hull One (1) 1100 GPH Bilge Pump with Automatic Float Switch
Deck
Hull and Deck Joint: Mechanically Fastened and Includes Aluminum Backing Plates At Cleat Locations Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert Transom Cap, 316L Stainless Steel Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area Flush Mounted Integral Anchor Locker with Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker 316L Stainless Steel through Stem Anchor Roller with 8" Mooring Cleat, Chain Binder 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200’ Rode (1/2" 8 Plait including 20’ of ¼" G4 Chain) Cleats, 316 Stainless Steel, 10" Pop Up (2) Stern, 10" Fixed Spring (2) and (2) Bow Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch Self-Draining Cockpit with Bronze Ball Valve at Hull Side Bow Rail, one-piece, welded 316L Stainless Steel, with 1 1/4" Top Rail and 1" Stanchions Foredeck Hand Rails, 316L Stainless Steel Transom Grab Rails, 316L Stainless Steel, (port & starboard) Navigation Lights, LED, 2 mile Molded Non-Skid Steps in Splashwell for Athwartship Access Foredeck Hatch, 17" x 17", Flush with Adjuster and Screen Opening Port Lights (5) with Screen and Stainless Steel Frame Port and Starboard Pantographic Windshield Wipers with Fresh Water Washer System
Cockpit
Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing Captain’s Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment and Flip-up Bolster Molded Port Bridge Lounge Seating with Large Backrest, Folding Arm, Molded Footrest & Port Articulating Armrest Pursuit Cockpit JL Audio Entertainment System: 12V Bluetooth® Compatible Stereo System, JL Speakers (7 Total, 4 in Hardtop, 2 Interior, & Subwoofer), Amplifier, Remote at Helm & Ext Antenna Molded Entertainment Center with Sink, Hot/Cold Mixing Faucet, Electric Grill, Cutting Board, 120v Outlet with GFI Protection and Hinged Fiberglass Lid and Doors Molded Port and Starboard Aft Facing Seats with Insulated Storage Below 1.3 cu. ft. Bridgedeck Refrigerator/Freezer with Fiberglass Lid Folding Transom Seat with Patented Adjusting Backrest Three (3) 316L Stainless Steel Drink Holders on Bridges Lounge, Two (2) Acrylic Drink Holders at Helm and Two (2) 316L Stainless Steel in Gunwale Cockpit Machinery Access Hatch Fresh Water Wash with Hot/Cold Mixing Valve and Chrome over Brass Pull-out Sprayer at Transom Door Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose LED Cockpit Accent Lights (7) with Waterproof Switch in Cockpit 316L Stainless Steel Foredeck Grab Rails (Port and Starboard)
Fishing Features
Rod Holders (4), Stainless Steel, in Gunwale Lighted Oceana Blue 28 Gallon Recirculating Livewell Under Gunwale Rod Storage (port & starboard) Fish Boxes, Insulated, and Diaphragm Pumps with Overboard Discharge (port & starboard) Cockpit Tackle Center
Hardtop And Windshield
Molded Fiberglass Hardtop Integrated Visor Powder Coated Aft Structural Hardtop Supports with Rod Holders (4) Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings Four (4) Tri Color LED Lights Aft Facing Spreader Light 316L Stainless Steel Fore/Aft Underside Grab Rails 316L Stainless Steel Fore/Aft Topside Grab Rails Integrated Stereo Speakers (4) 60 mil Strataglass™ Side Curtains 3 Piece Drop Curtain Integrated Life Jacket Storage Integrated Port & Starboard Overhead Glove Boxes Horn, Dual Trumpet Port and Starboard Ventilation Hatches with Screens Fiberglass Hardtop with Dedicated Radar, Antenna and Outrigger Locations
Helm
Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Footrest / Platform and Safety Lanyard Molded Acrylic Access Door with Secondary Framed Screen Door and 316L Stainless Steel Locking Latch 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm 12V Panel with Illuminated Carling® Rocker Switches Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control Compass Trim Tab Control Panel and Indicator Bow Thruster Joy Stick Control Waterproof Stereo Remote with Full Function Display Two 12V Outlets (2) and Dual USB Charger (1) Helm Drink Holders (2) in Side Panel Helm Fire Extinguisher Yamaha® Command Link Plus Display
Cabin
Molded Acrylic Access Door with Secondary Framed Screen Door and 316L SS Locking Latch Cabin Entry Steps with Custom Handrail and Wood Treads Molded Cabin Hull Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation Molded Cabin Deck Liner with Sound Damping Insulation 240V/60 Cycle Interior Air Conditioning W/ Reverse Cycle Heat and Sound Shield. 16,000 BTU Pursuit Digital Media Ready Entertainment Center with 28” LED TV and Dedicated, Amplified TV Audio System JL Audio Stereo Speakers (2) Electrically Actuated Custom V-Berth Seating with Fixed Cushions that Converts into Queen size Berth Solid Wood Table with Power Adjustable Pedestal Forward Hardwood Framed Accent Mirror Hull Side Windows Port and Starboard in Forward Berth with Curtains Forward Gunwale Storage Shelves Port and Starboard Forward Outboard Storage Compartments Port and Starboard 7.5 cu. ft. In Floor Storage with Solid Wood Hatch Cedar Lined Hanging Locker with Automatic LED Light Flush Mounted Opening Foredeck Hatch with Screen 316L Stainless Steel Opening Port Lights (3) with Screen Mid-berth Recessed, Wood Framed, Full-size 6” Innerspring Mattress with Filler Cushion Mid-berth Hanging Locker and Storage to Portside Mid-berth Horizontal Rod Storage for (4) Rods 12V Outlet (1) and Dual USB Charger (1) Six Switch Panel with LED Floor Accent Light (2), Overhead Dinette Lights (3), Fwd Reading Lights (2), Overhead Galley Lights (2), Dedicated Galley Surface Light (1) and Table Actuator CO Monitor
Galley
Corian® Galley Counter Top with Backsplash and LED Cabinet Surface Lighting Stainless Steel Sink with Cutting Board Cover, Overboard Drain and Stainless Clad Composite Thru Hull Fitting Pressurized Hot/Cold Mixing Valve and Faucet Galley Lower Storage Cabinet with Maple Drawers (3), Dedicated Storage and Trash Can Galley Pantry Storage Locker with Storage Shelves and Hardwood Keepers Galley Upper Cabinet Storage with Doors 12V, 4.6 cu. ft. Stainless Steel Refrigerator 12V LED Overhead Light (2) 240V Dual Burner Glass Cook Top with Touch Controls and Pop-up Pot Holders 120V 1.1 cu. ft. Stainless Steel Faced Microwave Oven 120V Outlet with GFI Protection (1) Fire Extinguisher 316L Stainless Steel Opening Port Light with Screen
Head
Fiberglass Enclosed Head Compartment with Non-Skid Pattern Area Custom 1 1/4” Wood Framed Entrance Door with Custom Latch and Full Length Mirror Corian® Countertop with Storage Cabinet Below Designer Sink with Pressurized Hot/Cold Faucet Vacuum Flush Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock Fiberglass Toilet Seat Cover Full Height Linen Closet with Shelves and Acrylic Bi-Fold Shower Divider 316L Stainless Steel Opening Port Light with Screen Vanity Storage Cabinet with Shelves and Vanity Mirror Toilet Tissue Holder Grab Rail / Towel Rack Shower with Hot/Cold Mixing Valve, Shower Wand and Adjustable Height Bar Shower Sump Box Drain with Automatic Discharge Pump Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1) 120V Outlet with GFI Protection (1)
Electrical
UL® Rated Fully Tinned, Color Coded Copper Wire Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables Custom In-House Built, One-Piece Electrical Harness with Water Proof Connectors and Chafe Protection Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain Six Battery System: Port Engine (1), Center Engine (1), Starboard Engine (1), Bow Thruster (1) (AGM) and House (2) (AGM) Single 240V 50 Amp 60 Cycle Dockside Power Connection 240V 50 Amp 50’ Dockside Power Cord with Wireless/Switch Operated Electric Cord Retract Reel Isolation Transformer One (1) 40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries One (1) 20 Amp Battery Charger for Engine Cranking Batteries One Grounding Bus Bar Electronics Fuse Block
Mechanical

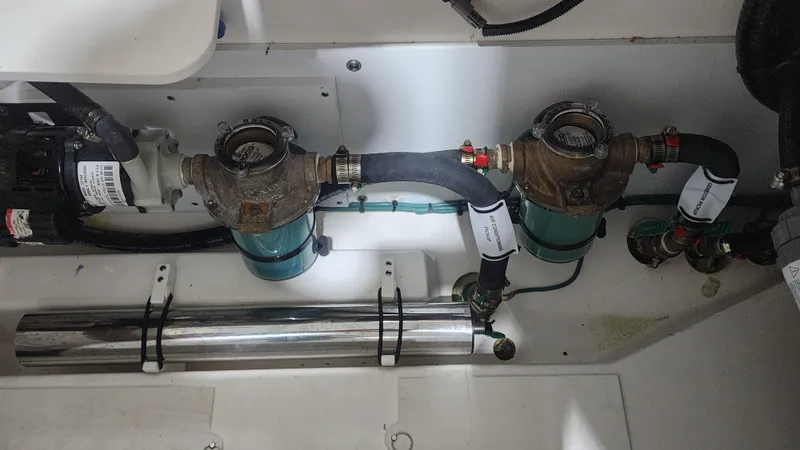

Molded Interior White Gel Coat Molded Hatch with Gasket and Stainless Steel Gas Spring Molded Bilge Sump Area Mechanical Space Access Step One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH Bilge Pump with High Water Float Switch and Alarm w/ SS Clad Composite Thru Hull Fittings Fresh Water Pump with Filter Raw Water Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting Livewell Cyclone Pump with Bronze Sea Strainer Dedicated Fishbox Diaphragm Evacuation Pumps Teleflex Power Steering Pump
Generator
240V/60 Cycle 8.0 kW Fischer Panda® Diesel Generator with Sound Shield and Service Slide EPA Compliant Lined 24 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valves, Digital Level Indicator, Water Separating Fuel Filter and 316L Stainless Steel Deck Fill Plate Fire Suppression System
Fuel
EPA Compliant Lined 388 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates Custom Built Fuel Lines with Mechanically Crimped Fittings Yamaha® Water Separating Fuel Filter with Primer Bulbs for each Engine
Water
50 Gallon Water Tank with Level Indicator and 316L Stainless Steel Deck Fill Plate Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends Pressure Sensing/Variable Speed Pump Fresh Water Distribution Manifold with Dedicated Valves Dockside Fresh Water Inlet with Pressure Regulator 6 Gallon Stainless Steel Water Heater, 240V/60 Cycle Cockpit Shower with Hot/Cold Mixing Valve
