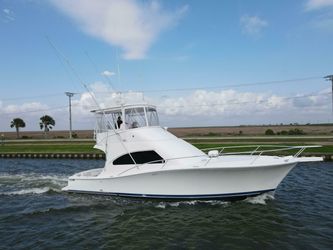

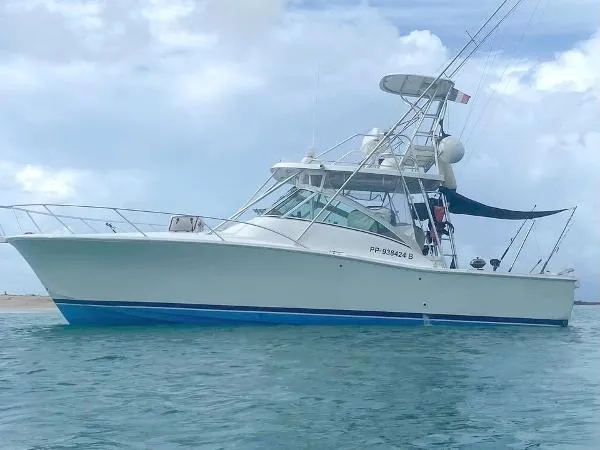

39 Luhrs 2008 Boat For Sale

• Beam: 13' 10''
• Hull Material: Fiberglass
• Max Draft: 3' 5''
• Fuel Tank: 1 x 400|gallon
• Fresh Water: 1 x 94|gallon
• Heads: 1

ADDITIONAL PARTICULARS:

Combined estimated Brake Horse Power: 960

Estimated Speed of Ship: 30MPH

Name & Address of Owner: N/A

Hull Construction:

• Hand laid, moulded fibreglass reinforced fabric.

• Hard chine hull with (2) lifting strakes per side in hull with moulded spray chine.

• Hull is stiffened by longitudinal stringers with transverse bulkheads and floors.

• A PVC and plastic stainless-steel rub rails.

Superstructure:

• Cored GRP

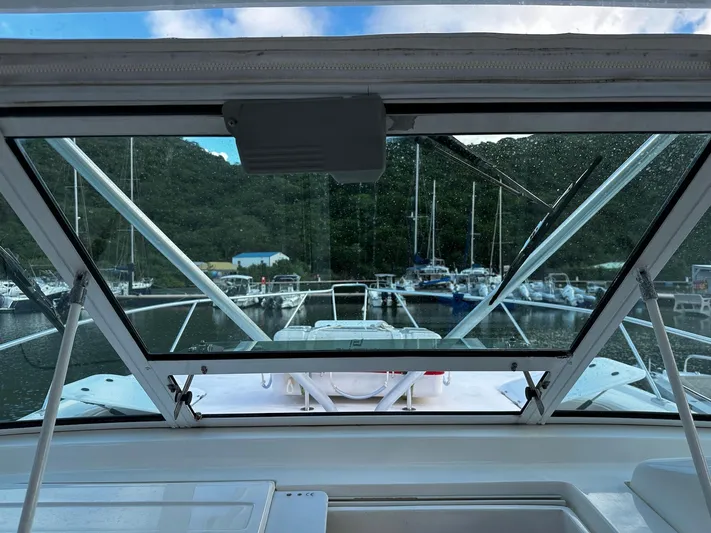

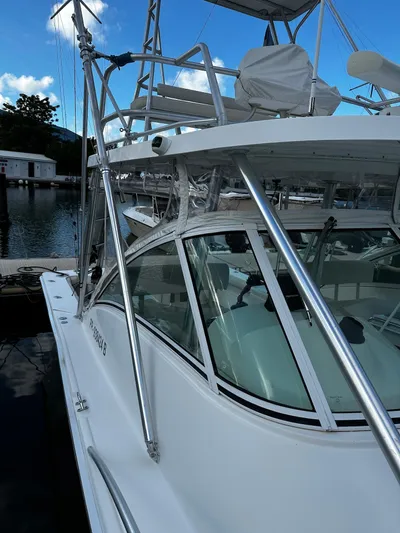

• Fixed glass and stainless-steel framed windows.

• There are (3) opening hatches in the superstructure.

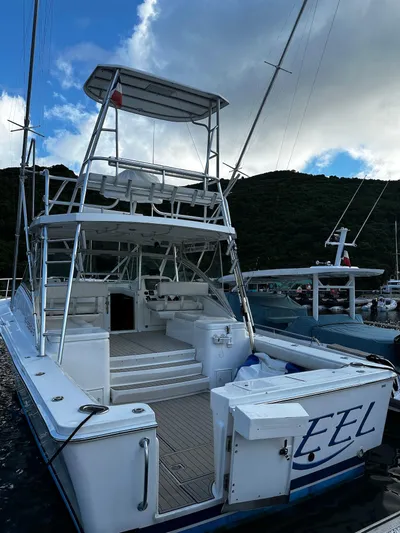

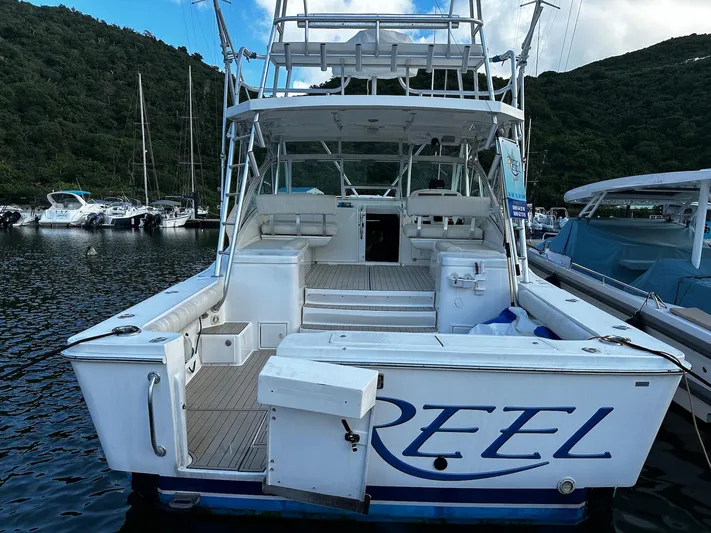

• An overhead aluminium tube structure supporting a GRP ‘Tuna tower’ structure

and helm station above.

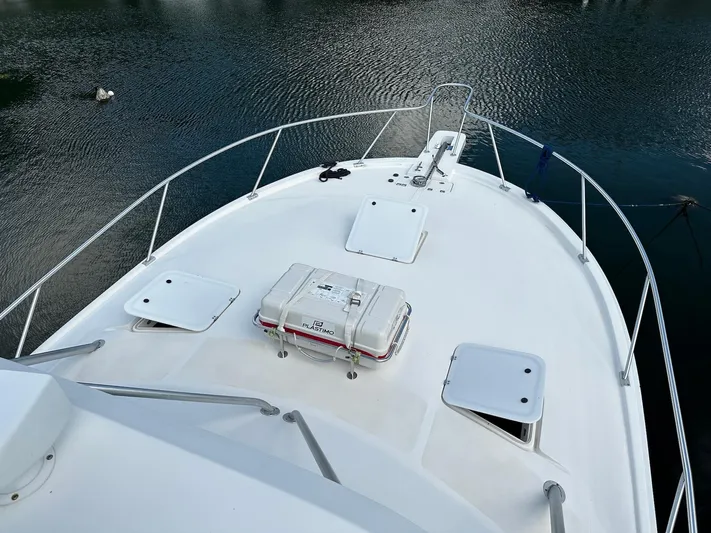

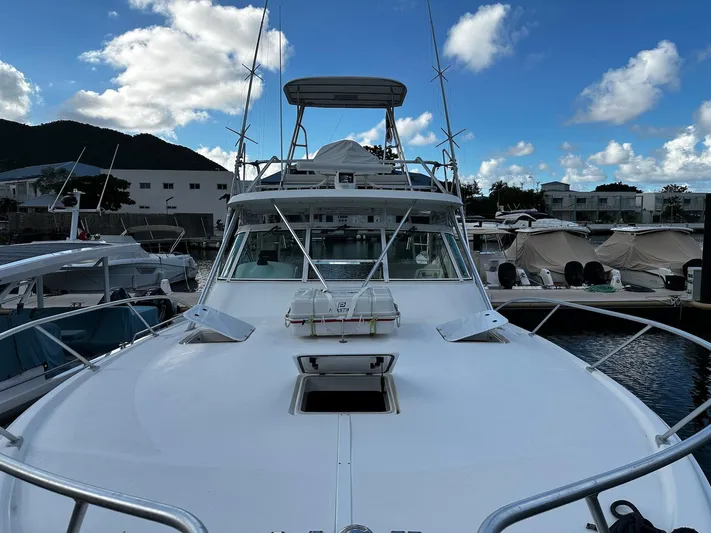

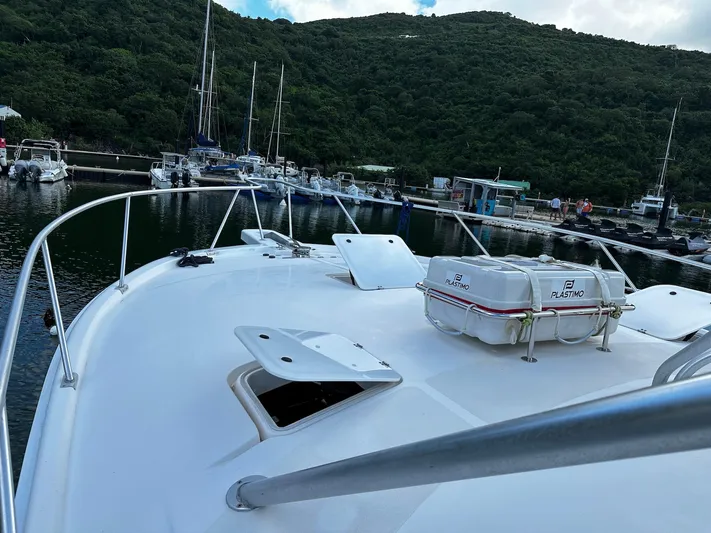

Decks:

• Cored GRP

• A non-skid deck tread pattern.

• Anchor chain locker at the bow drains through hull topsides.

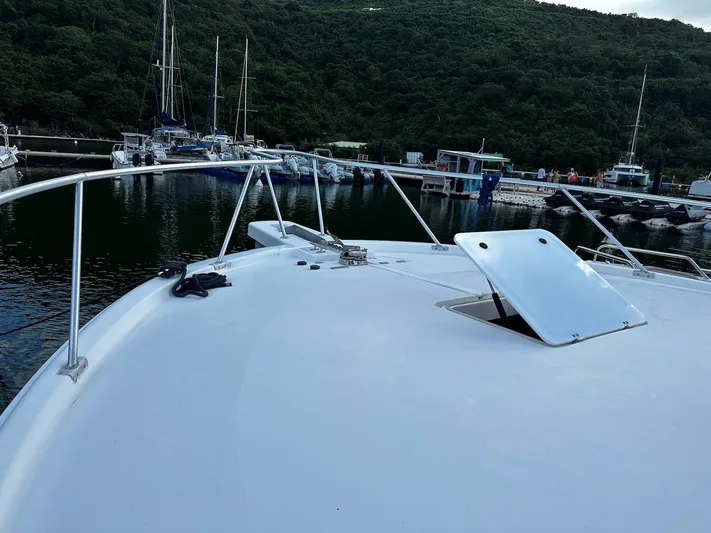

• There are (4) deck hatches opening into the accommodation below.

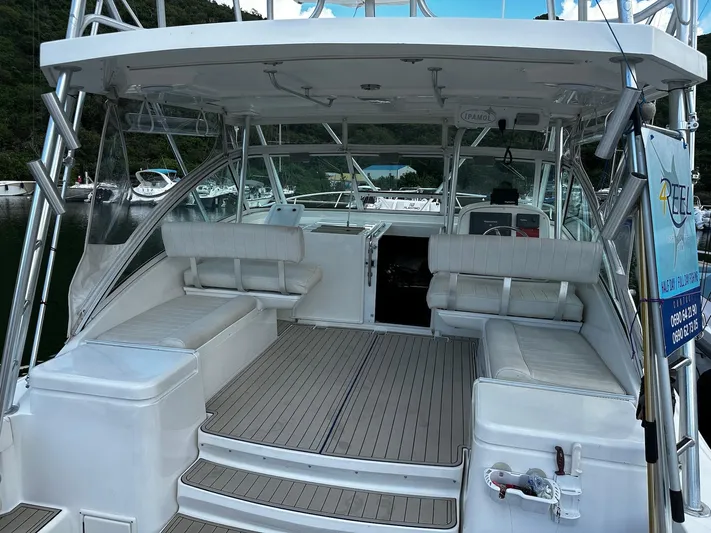

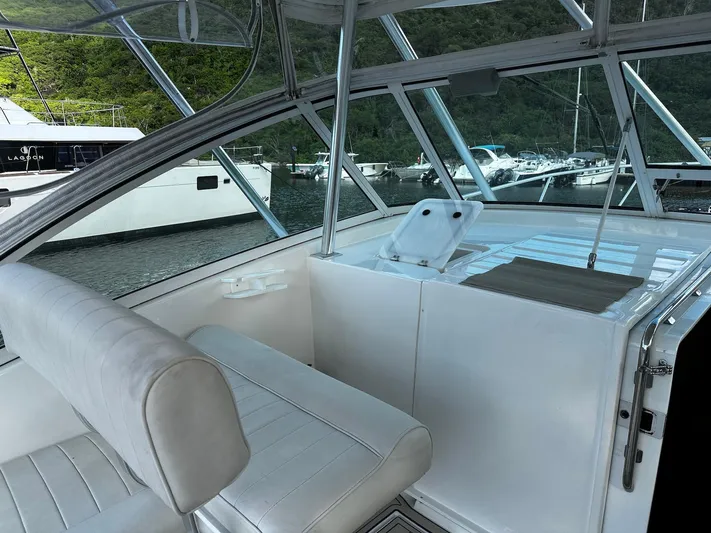

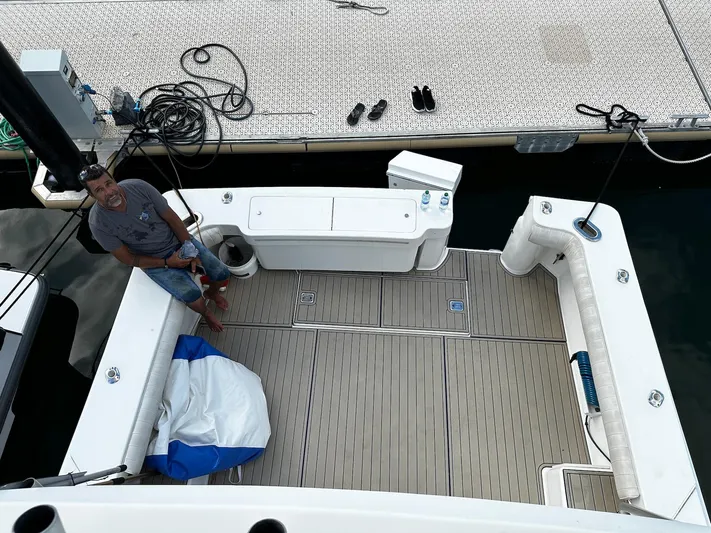

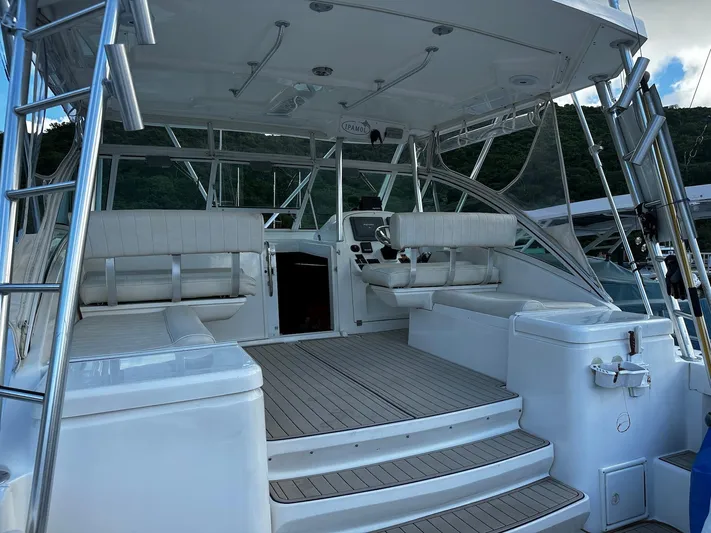

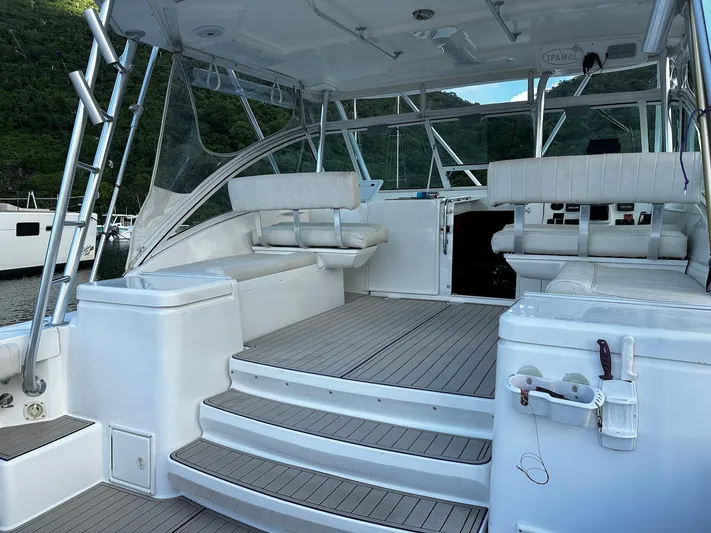

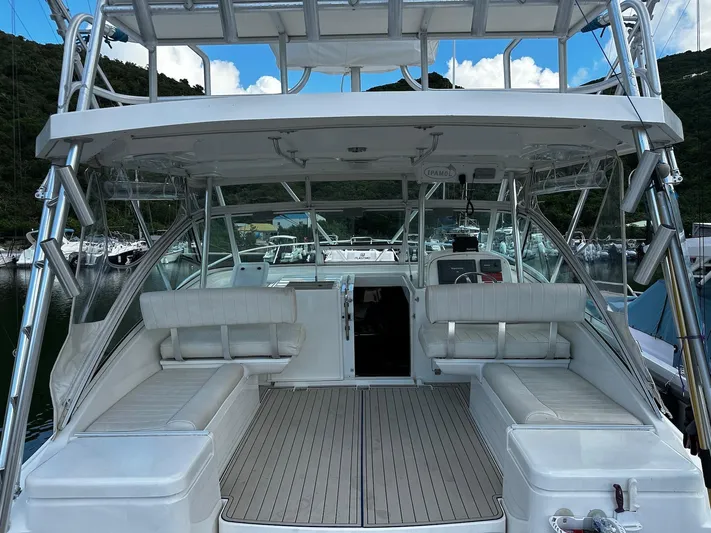

Cockpit:

• The cockpit floor is cored with local reinforcement.

• An athwartships hatch for access into the engine. The power operated hatch

operated without fault

TANKS:

Fuel: Total capacity: 400 US gallons.

No. of tanks: 1 x 400 gals.

Location: Beneath the aft cockpit floor.

Construction: Aluminium.

Filling, venting monitoring: Fuel level gauges are located at the helm station in the

console display. Fuel tank vent is aft below the fuel fill in the hull topsides. Fuel filling

station is on the side deck. Fuel fill hose is approved USCG B1 grade and doubled

clamped.

Fuel system: Fuel fill and fuel line connection clamps to engines and generator are

approved USCG grade A1. The main engines are supplied via individual ‘Cpar’

water/fuel separators. Manually operated valves are on top of the tanks.

Fresh Water Tanks & System:

Total capacity: 94 US gallons.

No. of tanks: 2 x 47 gals

Tank construction: Polyethylene, located port and starboard outboard of the engine

room.

Filling, venting & monitoring: A water level gauge is located aft in the cabin. Water fill

stations are port and starboard on the cockpit side decks. Venting is below the decks in

the hull topsides.

Fresh water system: A ‘Jabsco’ Par Max 12-volt DC freshwater pressure pump and

accumulator. An ‘Attwood’ 120volt AC 6gal hot water boiler is located forward on the

starboard side of the engine room. The pump and boiler were test operated without

faults.

Plumbing piping and faucets: Red and blue press fit plastic non-toxic, well run and

supported.

Grey Water System:

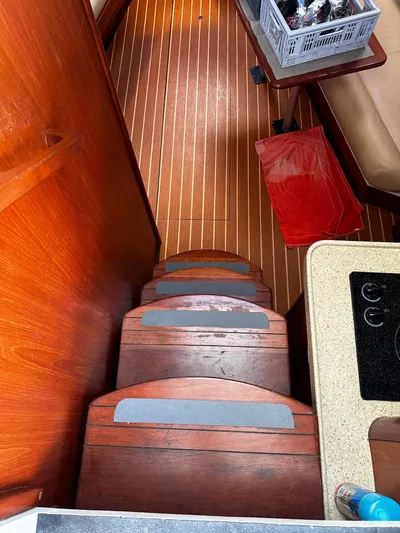

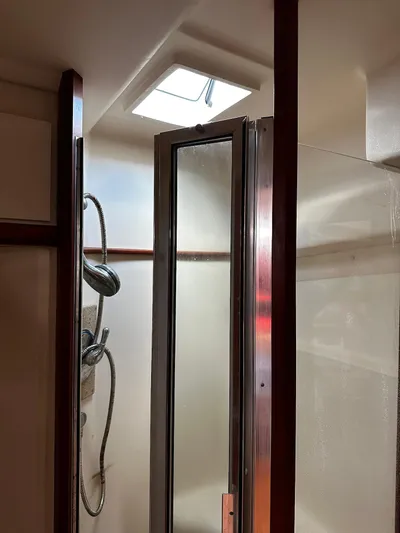

Type: Gravity drains from the shower and the air -conditioning condensate into an

‘Attwood’ plastic collection box beneath the floor in the cabin bilge under the companion

way steps. The pump out system has a ‘Rule’ submersible 12volt DC pump and

automatic float switch. The system was test operated without faults.

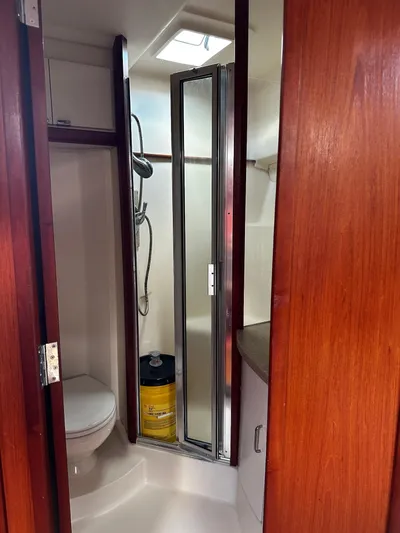

Holding Tank & System:

No of tanks: 1

Construction: Plastic/Nylon

Capacity: 30 US gallons

Location: Center bilge in the engine room.

Venting: Vents through the hull topsides.

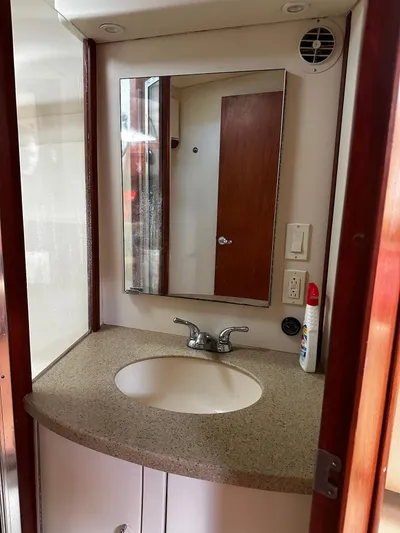

Head type: ‘Sealand’ 12-volt electric vacuum flush system, test operated without faults.

Number of Heads: (1) The vacuum tank is located port side in the engine room above

the engine and operated without faults.

Discharge: A 12 -volt ‘Pentair’ macerator pump discharges the holding tank directly

over board from a 3-way valve. (Closed, overboard or to waste tank) The pump was test

operated from a switch on the main switch board (MSB) without faults.

Bilge Arrangement & pumps:

The yacht has (3) bilge compartments, all protected by ‘Rule’ 12-volt DC submersible

pumps with automatic float switches.

Locations: Aft of the engine room on centreline. Forward of the engine room behind the

bulkhead and beneath the companionway stairs. All pumps were test operated from

their automatic float switches and from the helm console manual switches.

Bilge alarms: An audible high bilge water level alarm installed aft in the engine room

was test operated.

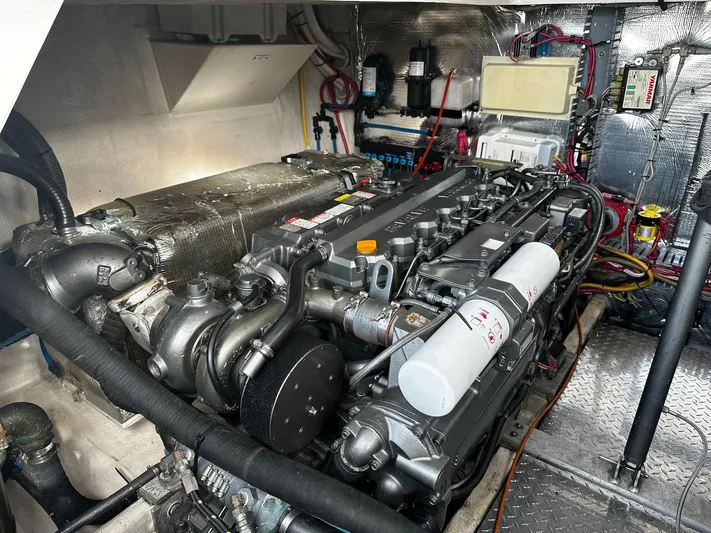

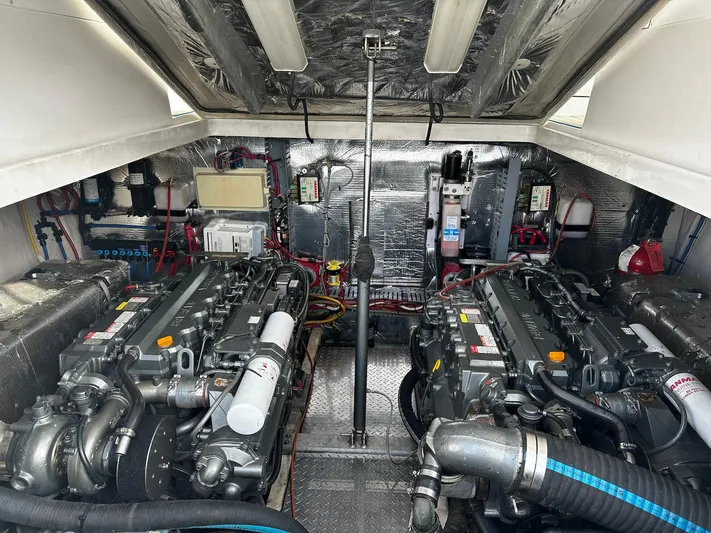

MAIN ENGINES &

EXHAUSTS:

Engine manufacturer:

Yanmar

Hours: Port: 248

Starboard: 250

Model: Both engines

are 6LY3-ETP

Serial Nos: Port

M60820 and M60827

starboard

Power: Both engines

are rated at 480HP@

3800 rpm

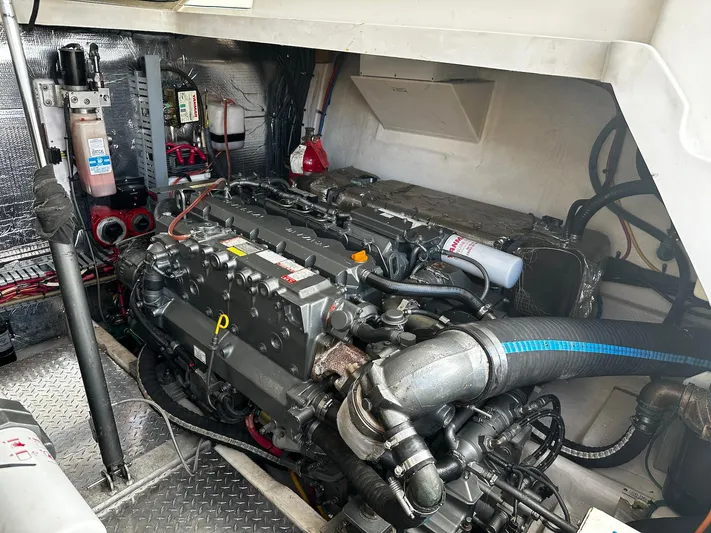

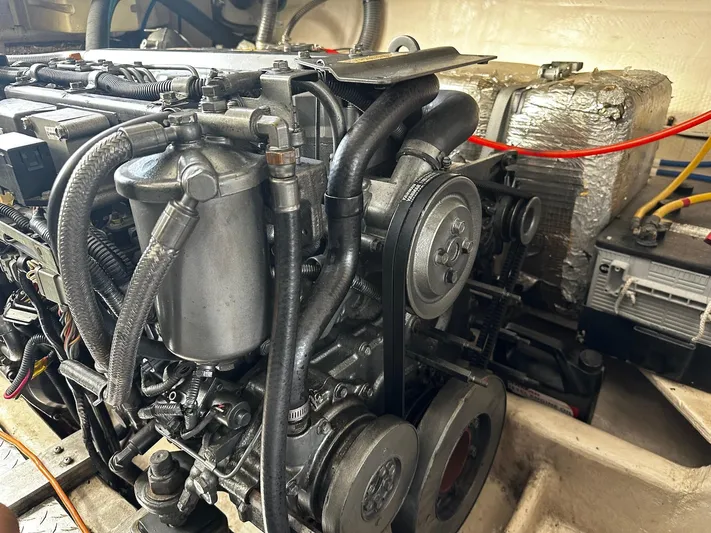

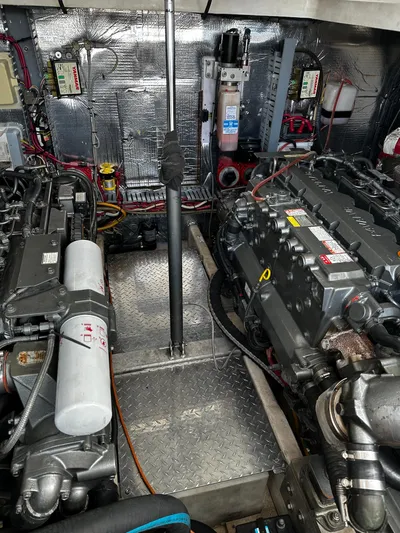

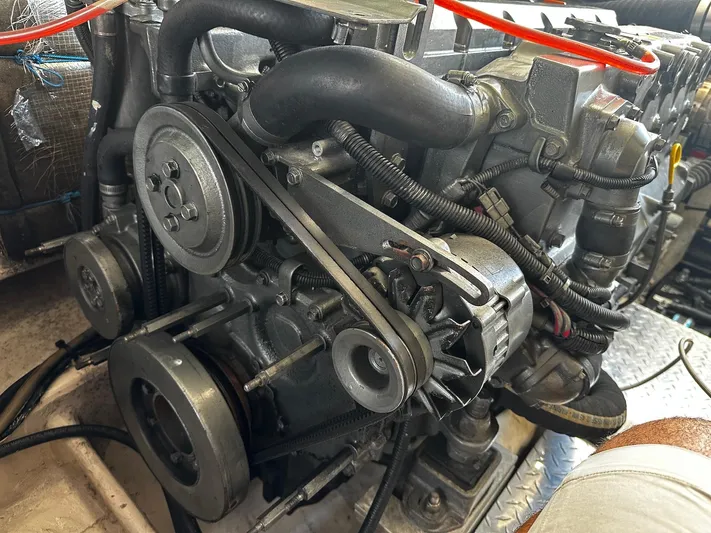

The engines are 4-point resilient mounted forward and aft and connected directly to the

gear boxes.

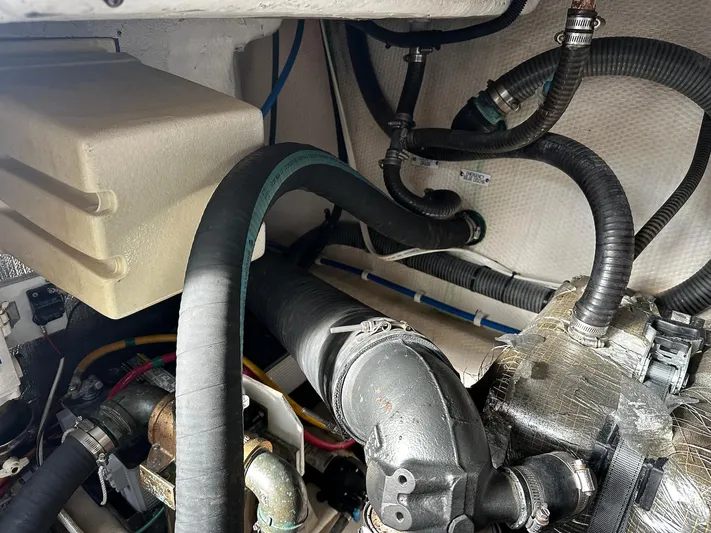

Main Engine Exhausts: 5” reinforced rubber hoses connected to the water-cooled

engine turbo elbows run aft and exit port and starboard in the transom. The system was

seen without any signs of deterioration, restrictions or leaks.

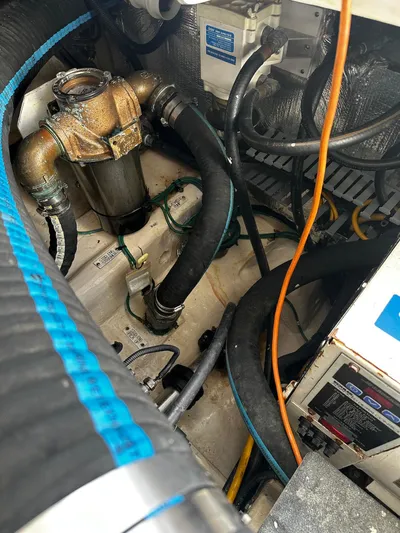

Engine cooling system: Bronze Sea strainers with baskets connected to through hull

valves, supply the raw water through 2” reinforced rubber hoses that were seen without

any signs of deterioration, restrictions or leaks.

Main Engine Controls: Yanmar electronic throttle, twin lever combined throttle and

shift units located at both of the helm stations that were seen operating without faults.

Engine appearance and operation: The engines were seen in a maintained condition.

They started easily, idled smoothly without interruption and at maximum revolutions

both were without faults. See Sea Trial.

GEAR BOXES:

Manufacturer: ZF Hurth Marine

Type: Direct drive model: 85A -2.5

Serial numbers: Port:29015R Starboard:29017R

Gear shift: Yanmarelectronic.

Gearbox appearance and operation: Both boxes were seen in a maintained condition.

They operated without faults during the sea trial.

RUNNING GEAR

Propeller shafts: 2 1/4” stainless steel that did not hold a magnet.

Shaft seals. Water cooled dripless seals that both displayed 890 F when underway and

did not show any signs of leaking.

Steering: Hydraulic ‘Sea Star’ with wheels at both lower and upper stations.

Rudder shaft seals: Packed seals on 2” stainless steel shafts that were seen without

any signs of leaking.

Tillers and connecting bars: The rudder tillers and connecting bar are stainless steel

operated by a bronze hydraulic ram. Ther connections were seen secure, without

restrictions or excessive wear and operated without fault.

TRIM TABS

Manufacturer: ‘Bennett’

Type: Electro hydraulic

Operation: The tabs were seen operating correctly during the sea trial.

AUXILIARY MACHINERY

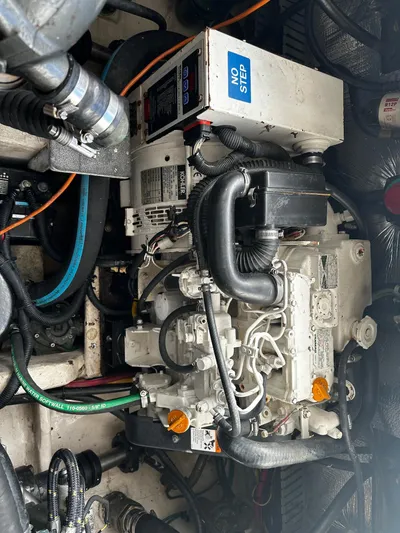

Generators & Exhausts: No. of sets: (1)

Manufacturer: Kohler diesel with a Yanmar (3) cylinder diesel engine.

Location: Aft of the engine room on centre line.

Model: 9EOZD

Serial No: 2120968

KW: 8.5KW/60Hz 120VAC

Generator Exhausts: Gas and water mixed in a ‘Sentek Aqualift’ GRP mixer and

muffler system installed in the bilge in front of the generator. A 2” rubber reinforced

hose takes the water and gas aft. The system was seen without restrictions,

deterioration or leaks.

Air Conditioning

Manufacturer: ‘Marine Air’

Type: Reverse cycle

Capacity: A 16,000BTU combined chiller and air-handler located under the forward

berth. It was seen in a maintained condition.

Operation: From the control panel starboard side aft of the forward berth, the system

was operated without fault. With the control set at 680 F a temperature of 540F was

displayed on a hand-held meter tested on the cooling discharge vent.

The110-volt raw water-cooling pump located in the engine room forward was seen

operating without fault. It is supplied from a bronze sea strainer connected from below.

ELECTRICAL & ELECTRONICS

AC shore power electrical system

Type: 1 x 125 Volt AC 50AMP inlet connection.

Source: Supplied via 1 x 50amp shore power cord that connects starboard side aft of

the cockpit.

Protection: There is 1 x 50amp breaker above the connection that was test operated.

Distribution System: Directly to the main switch board (MSB) located above the

companionway aft in the main salon that displays voltage supply and amperage load.

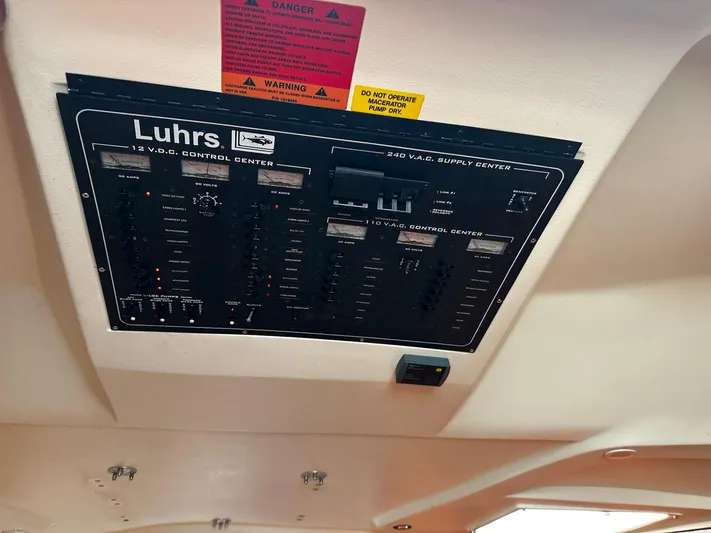

Power management system panel: The single electric power panel with associated

breakers located in the starboard side aft of the main cabin provides both AC and DC

current overload protection and monitoring.

Operation: On shore power the breakers and supply were seen displayed correctly.

The breakers were tested for heat using a hand -held thermometer and did not show

any ‘hotspots’ Using generator power the same was seen. All power outlets in the cabin

were test operated.

DC Systems:

Primary voltage: 12-volt DC

Battery Banks: (3) banks. Batteries were seen with dates at 8/21 and 6/21

• Service and engines are 12-volt AGM (absorbed glass mat)

• Generator is 12-volt AGM

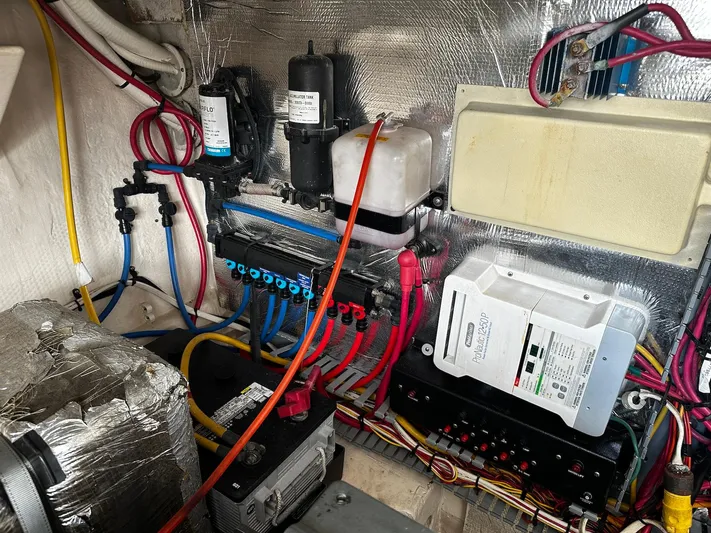

The batteries are located in the engine room and sit in plastic side and bottom enclosed

battery boxes. They were seen in a maintained condition with secure cables and

connections.

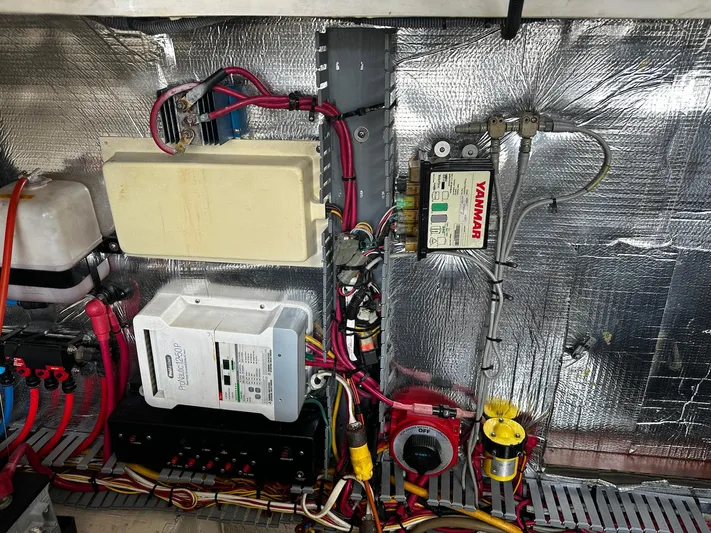

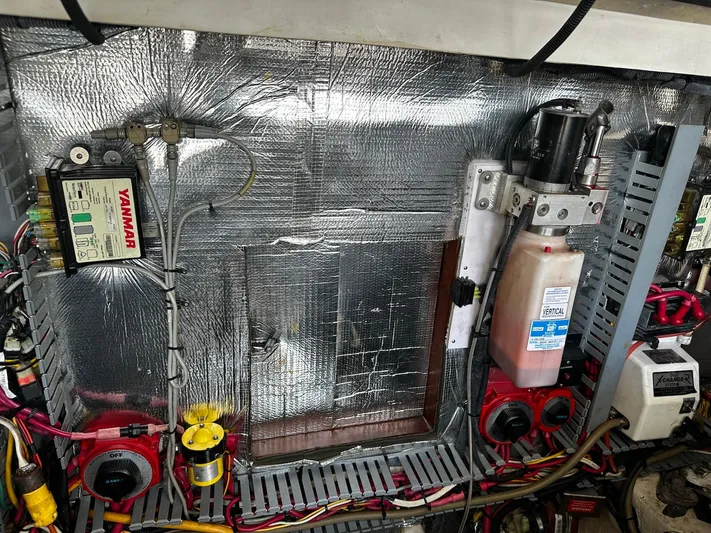

Battery isolation switches: The switches are installed on the forward engine room

bulkhead and can be accessed through the door behind the stairway. They were test

operated without fault.

Distribution: The supply is connected to a set of fuses starboard side forward in the

engine room and on the MSB. Using a hand held thermometer, no ‘hotspots’ were

detected on any of the DC system.

Battery Charging System: 120-volt AC charger operating from shore or generator

power.

Make: ‘Promariner’

Model 120-Volt AC 50amp/12-Volt DC charging capability.

Engine Charging: 2 x 12-volt 80amp DC alternators charge engine start and house

batteries. 1x 12-Volt DC generator driven alternator assists charging the house battery.

Battery charge rate from the engine alternators was seen at 14.4 volts with the engines

running.

Yachts preventative corrosion system: All through hull fittings below the waterline

were seen connected to a central connection on the transom.

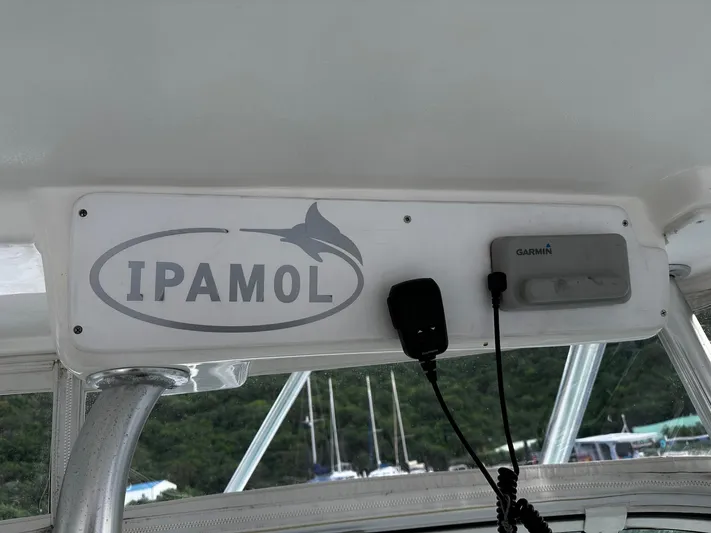

Communications, Navigation & Electronics

Equipment listed below was seen operating unless stated.

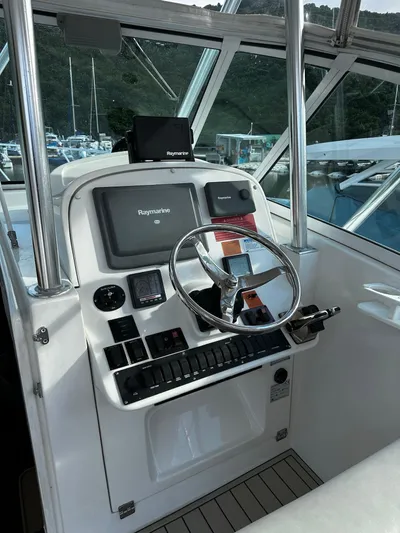

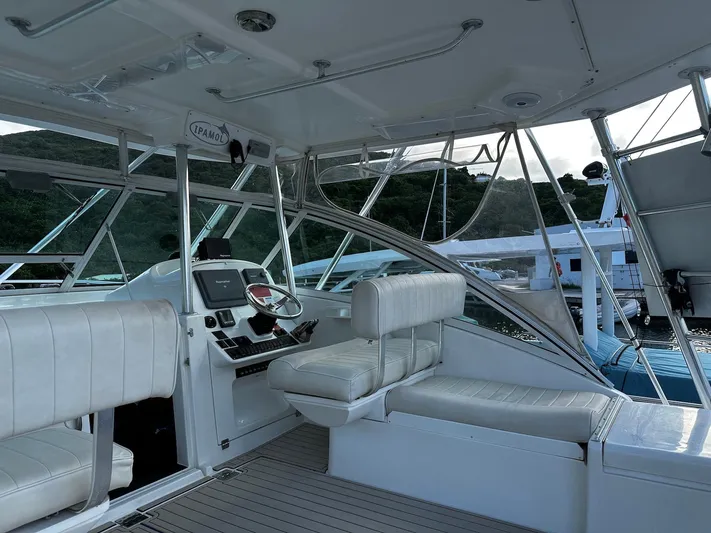

Lower helm station:

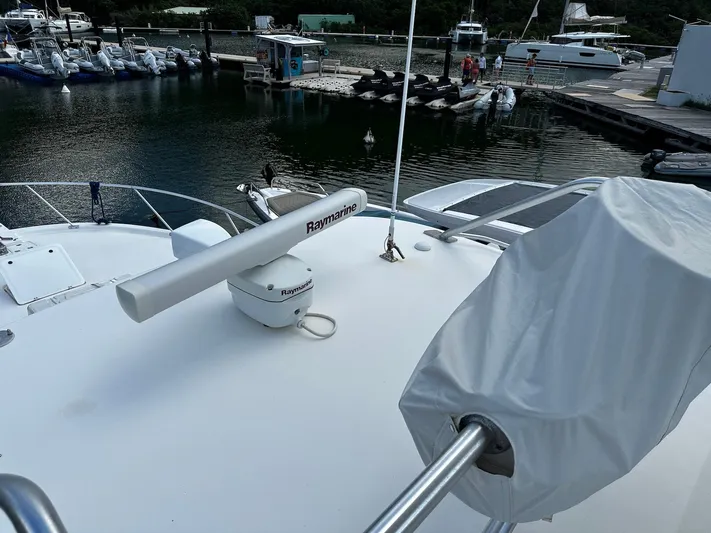

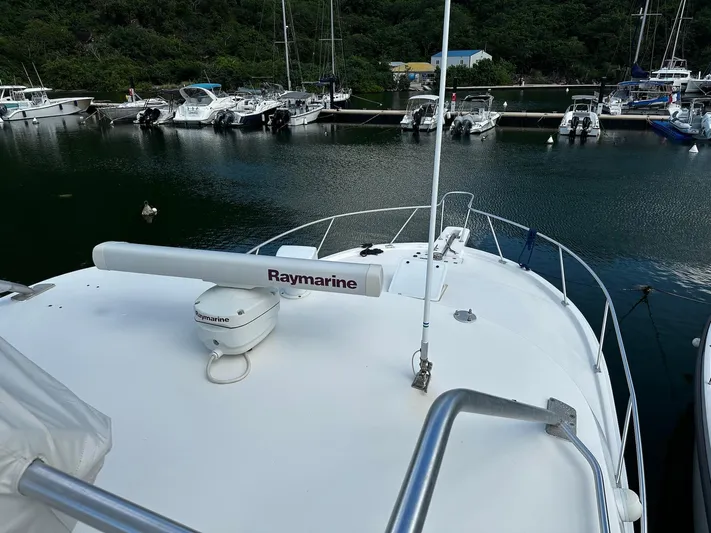

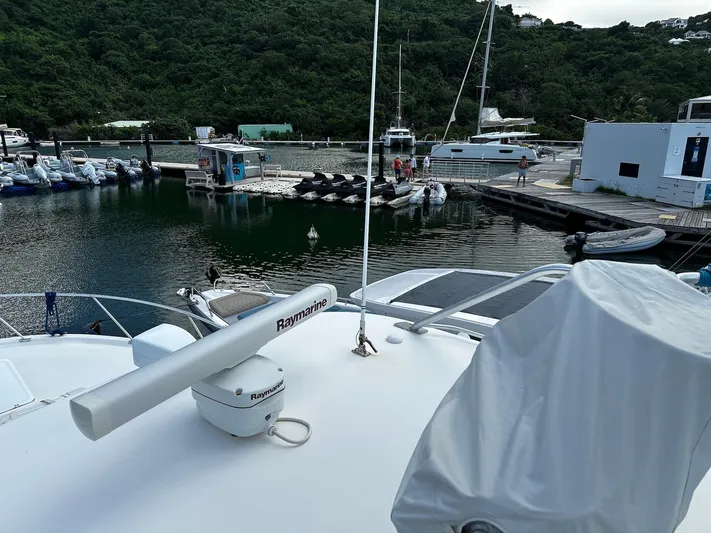

• Raymarine radar.

• Raymarine depth sounder.

• Raymarine chart plotter.

• Raymarine GPS.

• Magnetic compass.

• Navigation lights.

• Raymarine VHF radio.

• Yanmar engine data displays.

• Exterior and interior lights.

• Raymarine autopilot.

• Benett trim tabs.

AV & Entertainment

JVC stereo and Fusion speakers.

OUTFITTING

Ground Tackle & Mooring Equipment

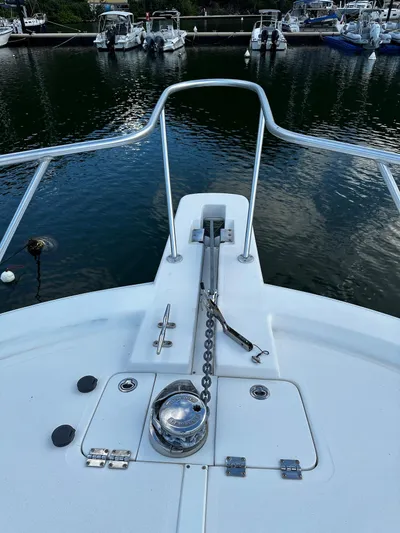

Ground Tackle: Anchor on a roller and chain on a windlass.

Anchor: 1 x 25lb galvanized Fortress.

Chain or Warp: 3/8” galvanized chain.

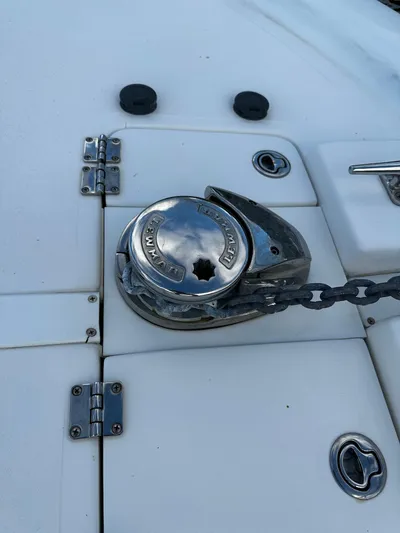

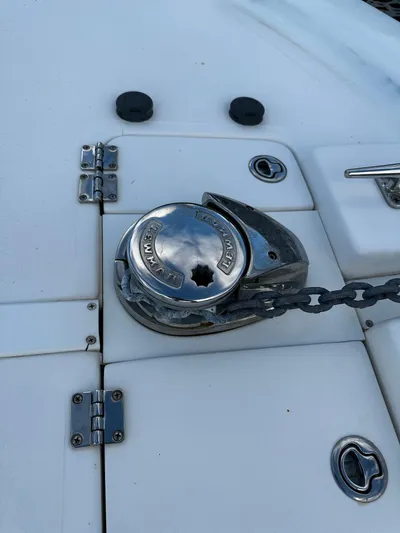

Windlass: ‘Lewmar’ 12- Volt DC. Test operated.

Cleats & Fairleads: A total of (8) stainless steel double T type cleats. (4) to port and

starboard.

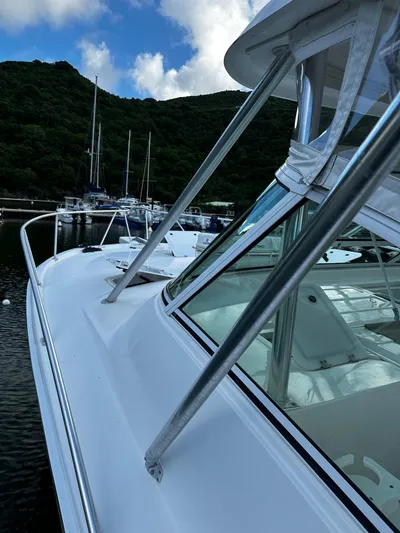

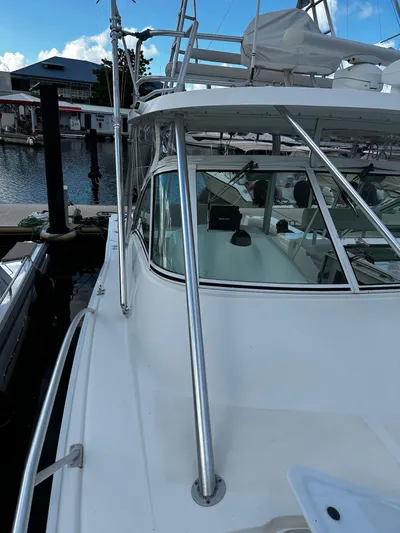

Handrails: Bow and hand rails are welded aluminum tube with screw fastened round

bases that were seen secure and without signs of stress, movement or corrosion.

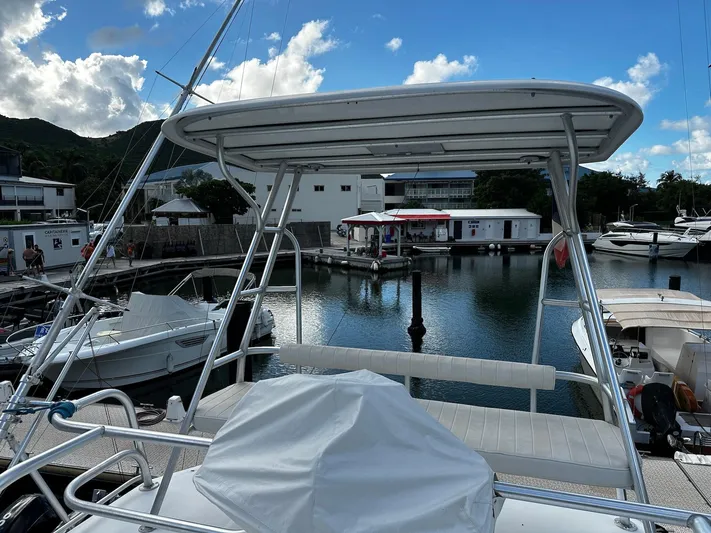

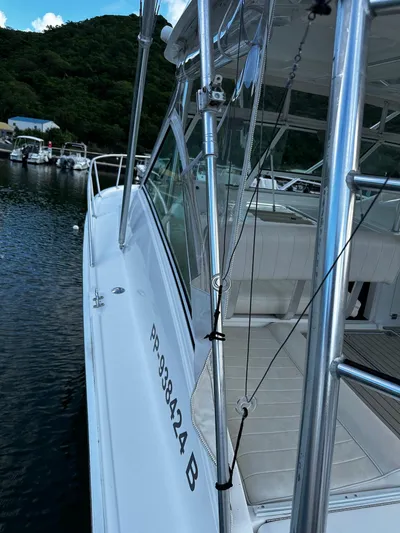

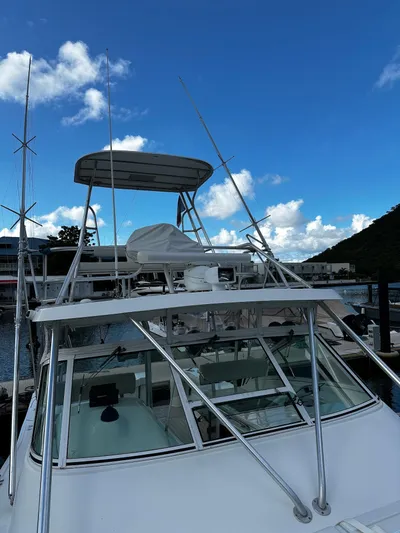

Tuna tower: The tower is constructed of anodized aluminum tube with flat plate

mounting bases that were seen without signs of stress, movement or corrosion.

Canvas & Covers

Isinglass enclosures surrounding the cockpit and helm station were seen in a new

condition. Seat cushions and back rests were seen without UV or moisture damage and

in usable condition.

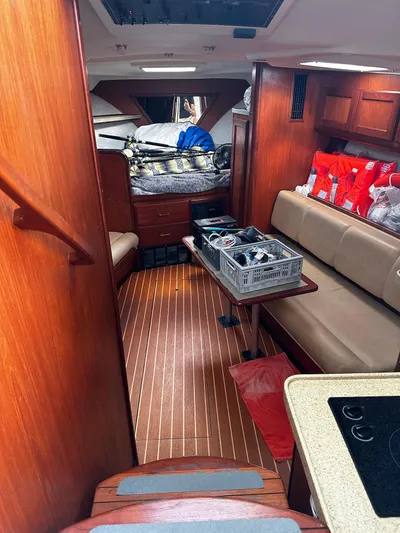

Interior:

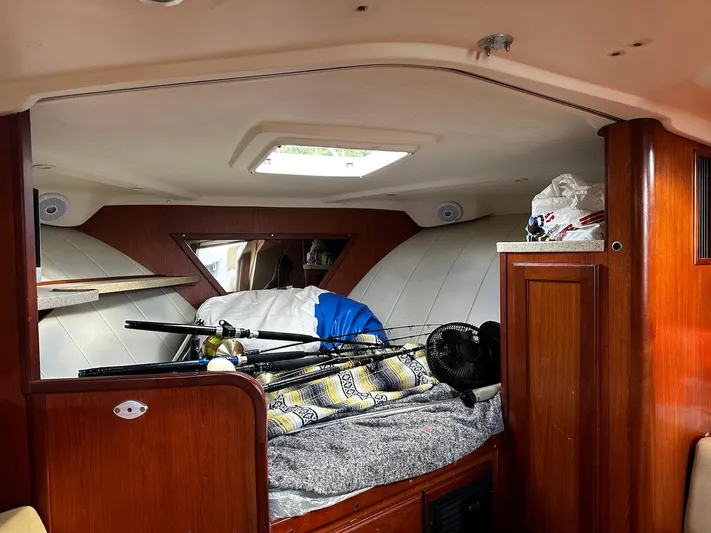

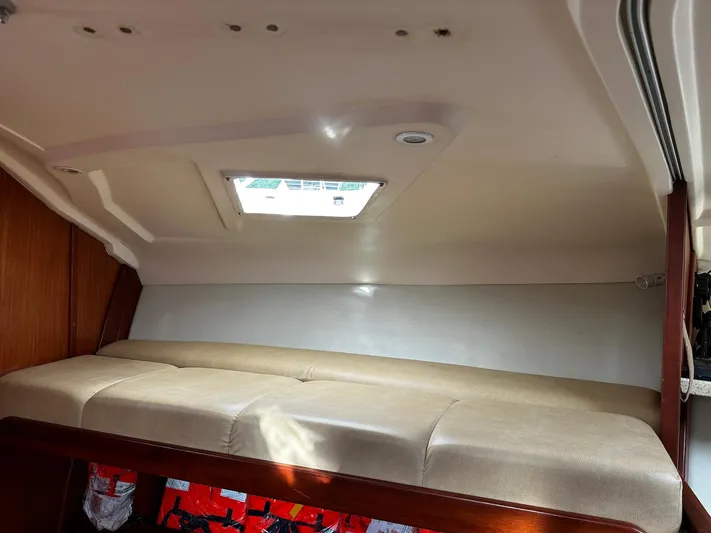

Mattress, seat cushions, back rests and curtains were seen in usable condition.

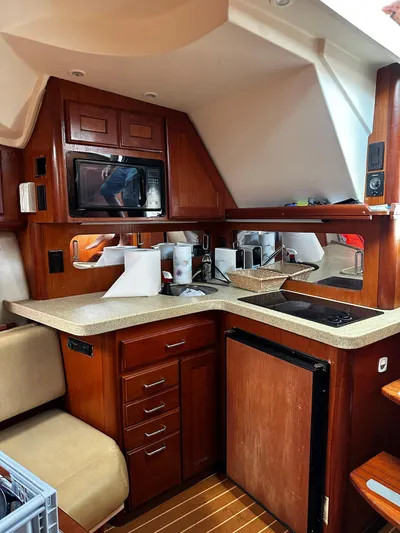

Appliances.

•

‘Euro Kera’ Princess120-volt AC 2 element stove top test operated.

•

‘Nova cool’ 12/120volt DC and AC refrigerator with ice box test operated.

• 120-volt AC ‘Tappan’ Micro wave oven test operated.
