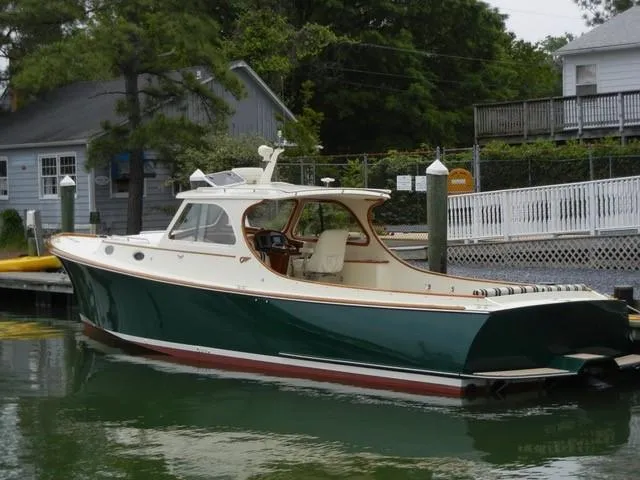

3RD HORIZON Boat for Sale

• Cruising Speed: 24 kn
• Maximum Speed: 27 kn
• Beam: 10' 0''
• Hull Material: Composite
• Max Draft: 1' 6''
• Displacement: 11,500 lb
• Fuel Tank: 2 x 82|gallon
• Fresh Water: 1 x 35|gallon
• Holding: 1 x 27|gallon
• Cabins: 1
• Heads: 1

HULL AND DECK:

Construction of the hull is Kevlar E-glass hybrid and balsa core, SCRIMP® with vinylester resin. Deck and cockpit is E-glass and balsa core, molded with polyester resin. The deck and cockpit sole have a molded-in nonskid pattern.

• Jade Mist Green Awlgrip topsides
• Light Cream gelcoat cabin house and deck
• Light Cream single boot stripe
• Red bottom paint
• Heavy duty fiberglass swim platform with teak insert treads, stainless steel brackets and half-round rubrail, and a stainless steel telescoping 3-step folding swim ladder
• ACR spotlight mounted on mast with remote control pad mounted in helm station. Spotlight painted to match deck.

DECK FEATURES:

• Rounded, tapered, varnished teak toerail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Four (4) elliptical ports on house sides; two (2) openings with screens
• Hinckley pilothouse mast with spotlight and 18” Radome painted to match deck
• Three (3) low profile opening aluminum hatches with screens
• Stainless steel half round on fiberglass molded rub rail
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and spring line 316L stainless steel mooring cleats
• Padeyes with chafe strips to hang fenders
• Bow, stern and spring line 316L stainless steel mooring cleat

COCKPIT:

• Engine box has removable 2 position cushioned seatback
• Seat cushion and seatback covered in Almond Sunsure fabric with an Ivory color weather cover
• Varnished teak engine box drink table with four cupholders
• Engine box is hinged on side for easy access to engine
• Aft: full-width settee with back and seat cushions finished in matching Sunbrella Forest Ant. Beige Natural Stripe #SB5665 fabric; Ivory color weather cover. Settee can be easily removed.

COCKPIT FEATURES:

• Direct overboard drainage scuppers
• Varnished teak cockpit coaming cap
• Side teak boarding step and stainless steel cockpit step with teak treads; mounts port or starboard with stainless steel brackets
• Full Ivory color cockpit cover (mooring cover) attached to pilothouse roof edge; snaps around the outside of cockpit coaming
• Cockpit shower with mixing valve located under starboard deck

PILOTHOUSE:

• Insulated white overhead has two (2) acrylic opening hatches with screens
• Additional illumination provided by overhead low voltage halogen lights
• (4) pilothouse windows include: (2) sliding side windows and (2) fixed forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Interior finished in Light Cream gelcoat with gloss varnished teak accents, including pod and interior window frames
• Cockpit coamings finished with varnished teak coaming cap
• Teak locking companionway door
• Two varnished teak handrails under aft ends of pilothouse cabin top
• Ivory color drop curtains with windows provide a fully enclosed pilothouse
• Ivory color interior window sun covers for all four pilothouse windows
• Forward pilothouse has Pompanette pedestal-style helm and passenger seats on powder-coated pedestals, finished in Duratouch Sand Ultra-Leather. Height and fore/aft are adjustable and swivel; stainless steel footrests.
• Forward port passenger area has a varnished teak integral handrail/cup holder on the forward bulkhead

HELM STATION (STARBOARD):

• Varnished teak instrument pod with GPS, radar and engine gauges
• Stainless steel 14” steering wheel with varnished wood rim
• JetStick®
• ACR spotlight remote control pad
• Top-opening locker with stainless steel hold open spring arm and chart storage
• 12-volt outlet in chart pocket and remote switches to spotlight
• Two (2) cupholders

HELM ELECTRONICS AND NAVIGATION EQUIPMENT:

• Raytheon Raymarine ST-6001X Autopilot with 120 GPS rate sensor
• Northstar 952X color GPS/Chart Plotter
• Raytheon RL-72C color LCD 7” radar display interfaced with GPS
• Raytheon 210 VHF
• GPS antenna painted to match deck
• Spectrum GX2350 VHF radio/loud hailer with DSC interfaced with GPS
• Raytheon ST-60 multi-function display with depth, water temperature and speed indicator
• Back and bottom cushions covered in Sunbrella Forest Ant. Beige Natural Stripe #SB5665 fabric
• Two (2) opening hatches with screens over the pilothouse area

INTERIOR BELOW:

This Picnic Boat Classic sleeps two comfortably forward in a V-berth arrangement and includes a separate head with a hand-held shower and full galley. The interior is finished in satin-vanished cherry, including forward v-berth hull side sheathing. The cabin sole is varnished teak and holly and has a cabin sole cover.

• Opening overhead hatch and two opening ports below (head and galley) with removable screens and two fixed ports
• Five (5) Frigast stainless steel 12-volt lamps
• AM/FM tuner; CD player
• Two (2) Hella fans on forward bulkhead in cabin, port and starboard facing aft

V-BERTH (FORWARD):

• Adapter with cushion forms double berth
• Cushions upholstered in Chat Laurel BR 960-3614 fabric
• Storage under the v-berth with shelf and easy access cherry drop-front door
• Storage and access to the anchor in forepeak behind louvered cherry door
• Hanging locker to starboard, just aft of v-berth

HEAD (STARBOARD):

Head is aft of hanging locker with a solid cherry door.

• Varnished cherry countertop has an under-mounted white porcelain sink
• Grobe faucet/handheld shower provides hot and cold pressure water
• Vacu-flush marine head
• Mirror on the forward bulkhead with cherry frame
• 110-volt outlet
• Opening port with screens
• Two (2) Frigast 12- volt lights
• Storage: cherry-faced lockers above and outboard the vanity; drawer with cherry-face next to marine head; locker under vanity

GALLEY (PORT):

Antique White Formica countertop has a stainless steel sink with Grohe fixtures, spray nozzle, and hot and cold pressure water. The stove is set in the countertop forward and has a custom wood stove cover/cutting board that adds to the already ample counter space surrounding the sink. The refrigeration is mounted aft of the sink and is accessed by a lift-up top.

• Adler Barbour refrigeration: 12-volt cold plate refrigerator in a self-draining box
• Force 10 two burner stove with remote propane shut-off and wood cover
• Pull-out under counter garbage receptacle
• Three (3) Cherry pullout drawers
• 110-volt outlet
• 12-volt outlet
• Red step light
• Opening port with screen

ELECTRICAL SYSTEM:

12-volt DC Electrical System:

• Three (3) 12-volt batteries; total of 540 amps
• 80-amp battery alternator
• Heavy duty battery parallel switch also allows emergency starting

110-volt 30-amp AC Electrical System:

• Heart Freedom 10 inverter
• AC electrical panel and DC sub-panel
• One (1) 110-volt shore power inlet for house service
• One (1) 30-amp shore cord
• 110-volt outlets at head and galley
• Low resistance, heavy copper and zinc anode electrical bonding system

MECHANICAL EQUIPMENT:

• 2002 Yanmar 6LYA-STP 440hp diesel engine with just over 400 hours
• Hamilton 292 Jet Drive
• ZFIRM220PL transmission
• Vetus 7” 12-volt bow thruster
• Hinckley Custom JetStick® control system integrated with bow thruster
• Accu-point heater with outlets in pilothouse, main cabin and head
• Yanmar fuel filter/water separator
• Tachometer with engine hours gauge
• Fuel, oil pressure and water temperature gauges
• High engine temperature alarm
• Low oil pressure alarm
• Water jet nozzle direction indicator
• Custom wet exhaust muffler system
• Oil transfer pump for engine and transmission
• Manual hydraulic steering pump
• Two (2) electric 1500 GPH 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted in cockpit locker
• Cockpit shower with mixing valve
• Two (2) 2.5# dry chemical fire extinguishers
• 35-gallon custom freshwater tank
• 27-gallon aluminum holding tank with overboard discharge
• (2) 82-gallon aluminum fuel tank
• 10-gallon stainless steel hot water heater – shore power and engine heated
• In-line 12-volt automatic sump pump
• Engine room sound insulation
• Engine box forced air blower

ADDITIONAL EQUIPMENT:

• Bow varnished burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole and socket
• Bell
• Dock lines
• Fenders with covers
• Life jackets
• Handheld flare kit
• Dual 12-volt trumpet horn with switch on dash
• Masthead and running lights
