Yacht for Sale | 40 Hinckley Yachts Oxford, MD

Additional Specs, Equipment and Information:

Builder/Designer

Builder: Hinckley Designer: Bill Tripp

Dimensions

LOA: 40' 9" LWL: 28' 10" Beam: 11' 9"

Displacement: 20000 Draft: 4'6"/8'9" Ballast: 6500

Engines

Engine(s): Westerbeke Engine(s) HP: 40 Engine Model: 4-108

Tankage

Fuel: 48 gal Water: 80 gal in 2 Tanks Holding: 14 gal

Accommodations

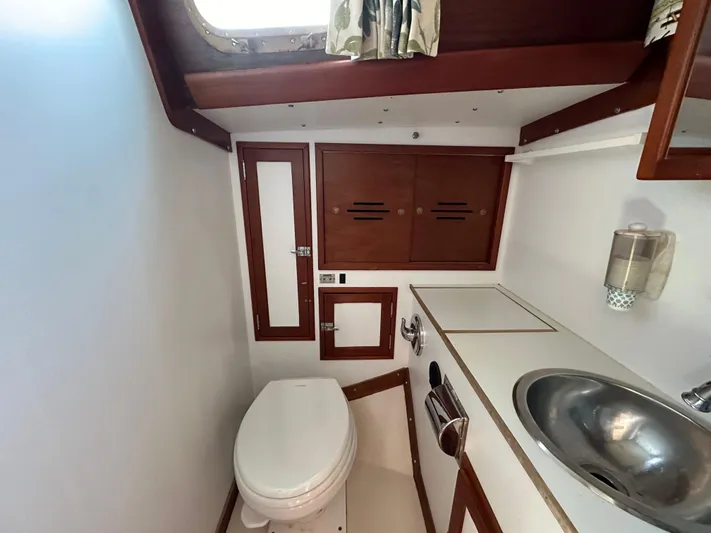

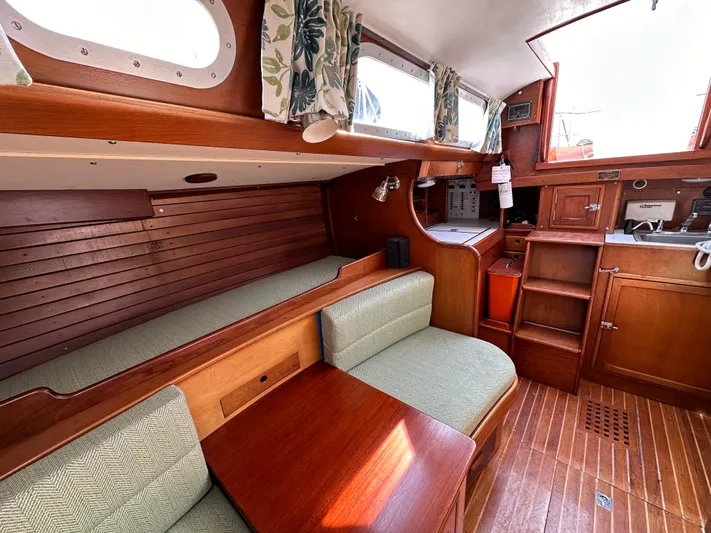

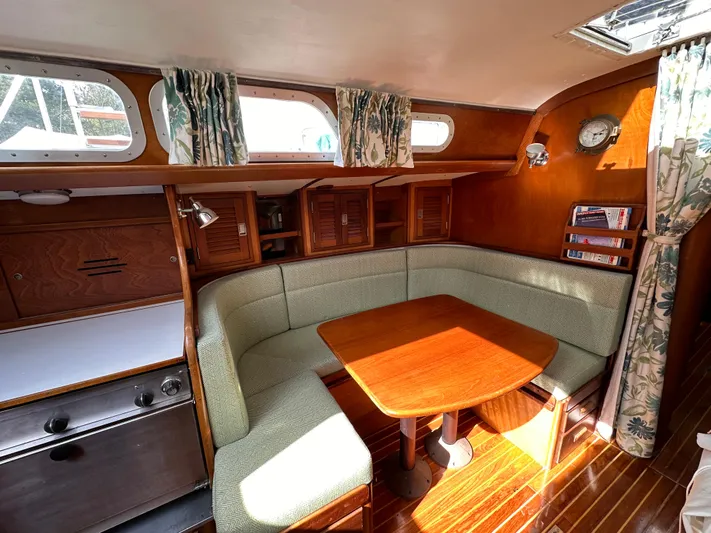

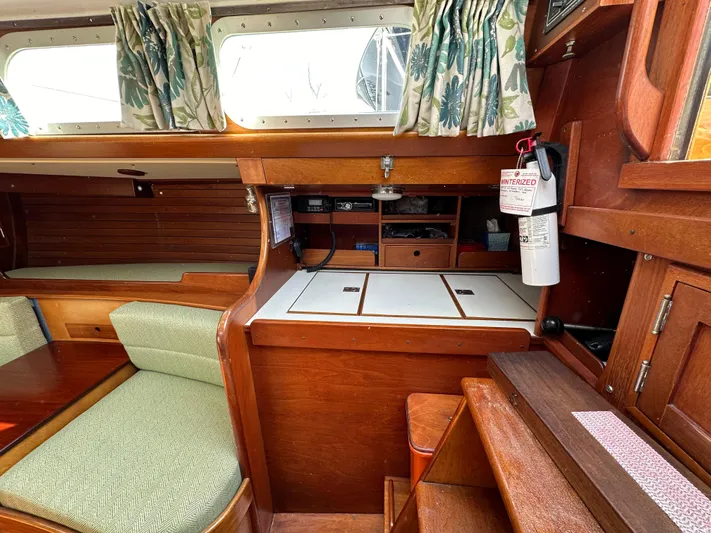

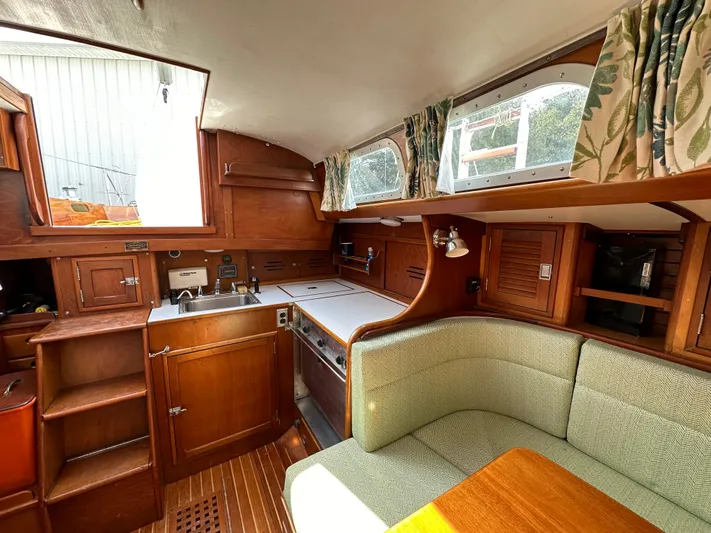

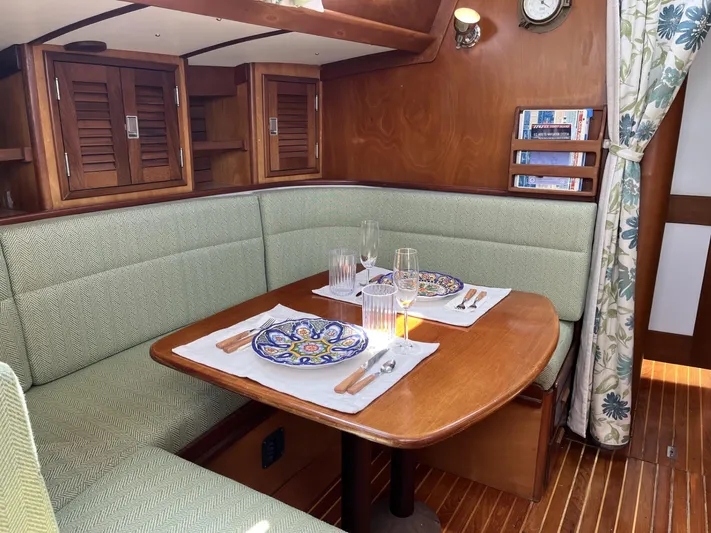

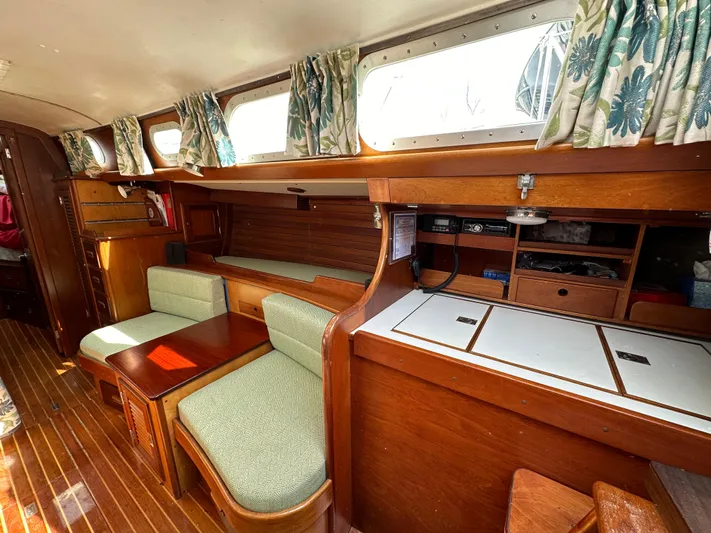

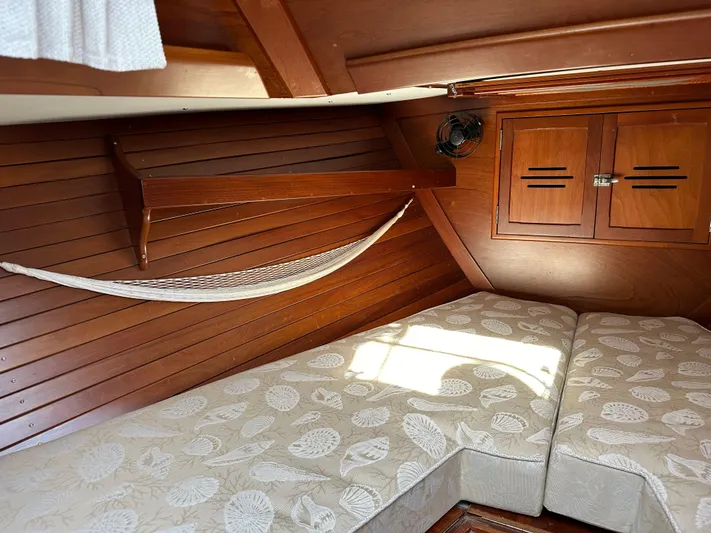

Sleeps Five in two cabins. Foward stateroom has "V" berths with a seat between, adaptor to double berth , hanging locker, bureau and bookshelves, Head is next aft to port with hot shower, SS sink. The main salon has a U shaped dinette arrangement to port which drops down to double berth . There are two custom seats with liquor cabinet between starboard along with a Single berth The galley is to port of the companionway , gimballed Shipmate 3 burner stove w/ oven, SS sink , hot & cold pressure water and salt water hand pump. Refrigeration is to starboard combined with navigation station.

Hull
The Bermuda 40 has a hand-laid solid fiberglass hull that is molded in one piece. The exterior skin is a layer of 1 1/2oz mat and unidirectional glass with vinylester resin.
The 6500 lb external lead ballast was cast at the Hinckley yard with 3% antimonial lead and secured to the hull with 1" silicon bronze bolts. The foil-shaped centerboard is a single casting of solid bronze, and is controlled by a hydraulic driven worm gear.

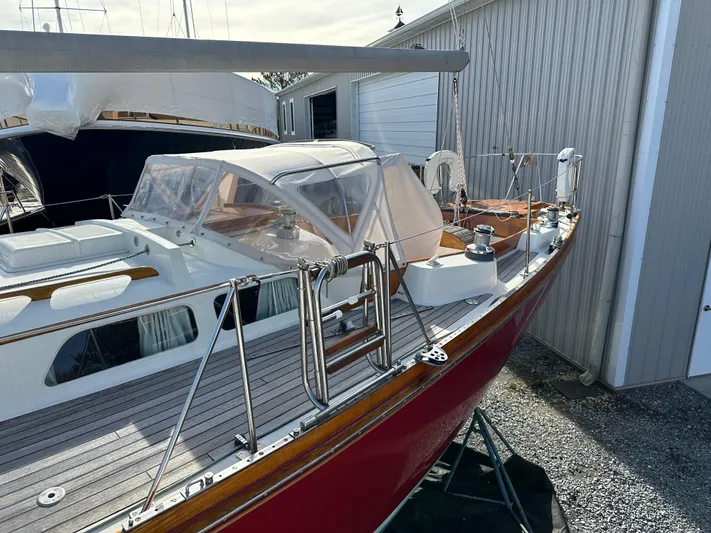

Stainless steel bow pulpit and stern pulpit.
Stainless steel stanchions and double life lines.

Oyster White Awlcraft Cabin top , sides and glass portion of decks

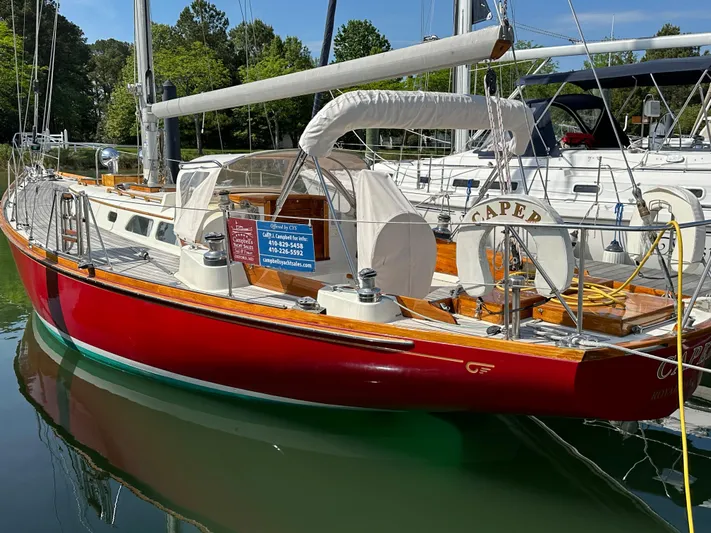

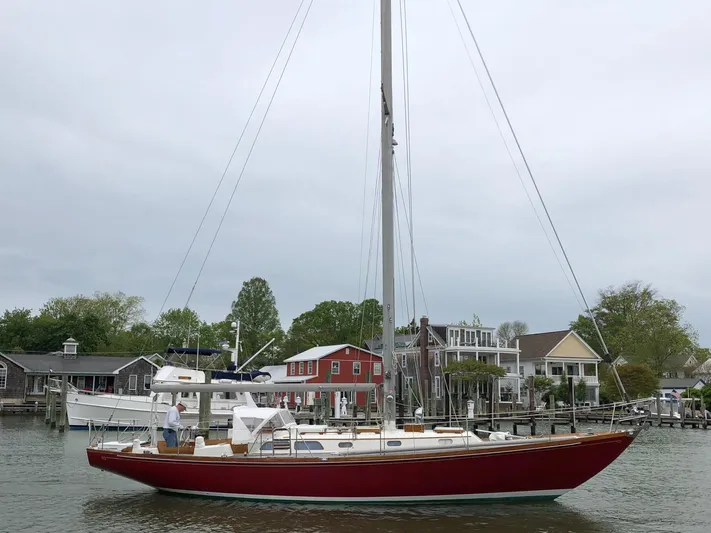

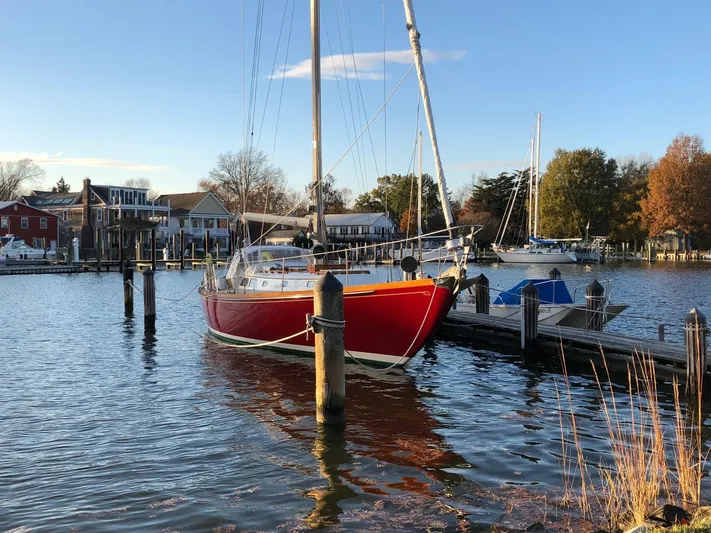

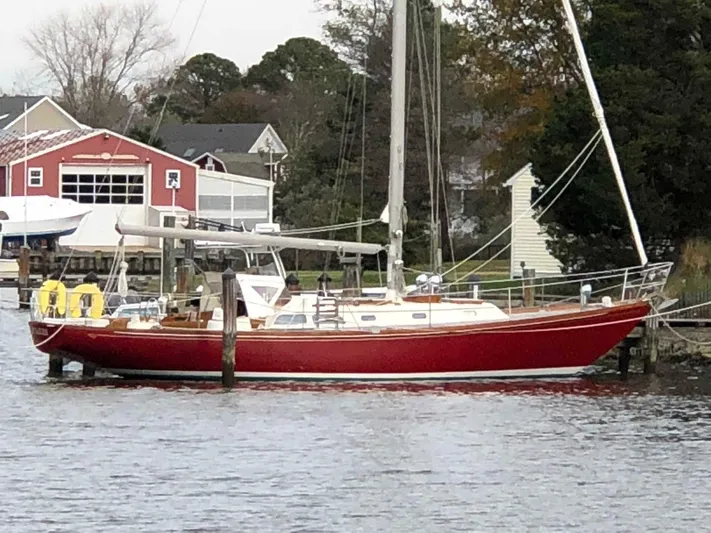

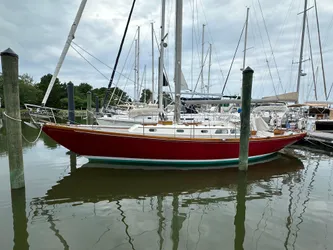

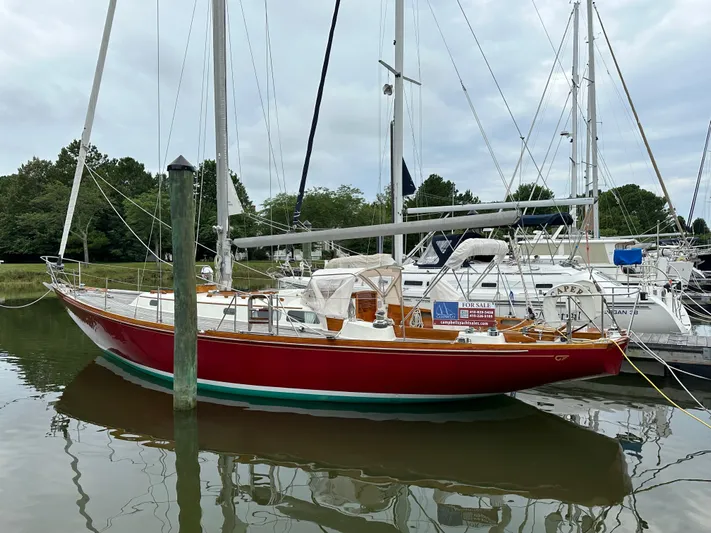

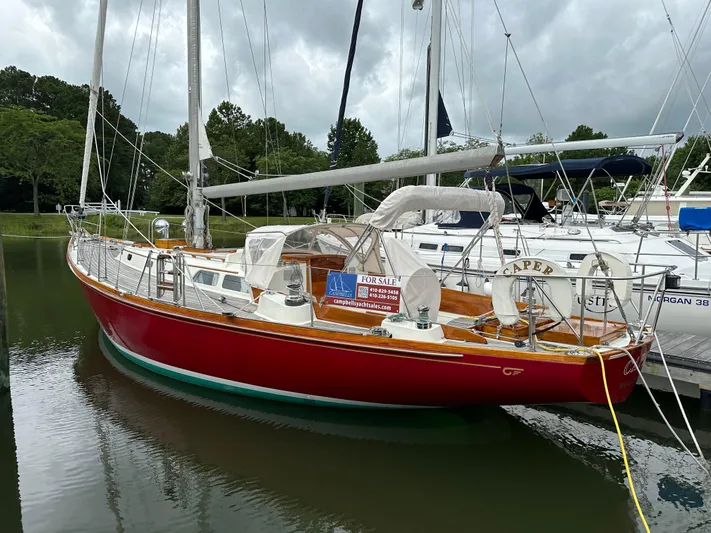

Vivid Red Awlgrip Hull.

Electronics

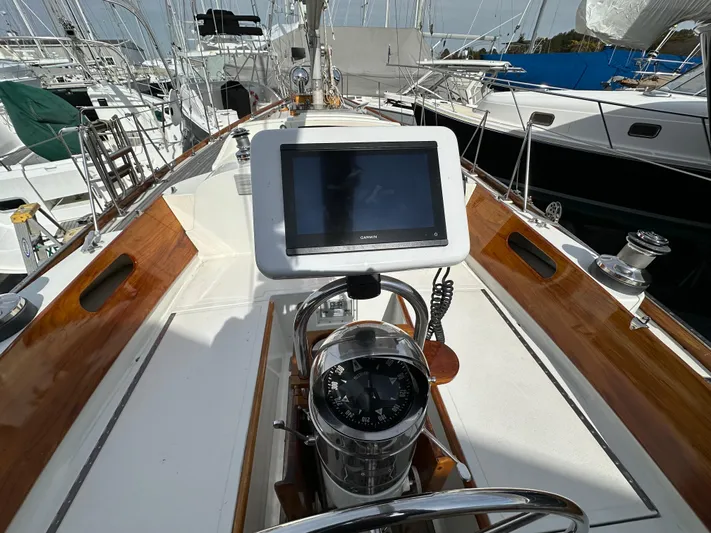

Garmin Electronics with Radar
Icom VHF.
Wind instruments and depth.
JVS Stereo and speakers.
Ritchie Compass
Robertson Auto Pilot

Sails/Rigging
Main sail and Genoa are in Excellent condition.

Two Barient 32 winches
Two Barient 28 winches.
Main - In Mast Power Furling System
Jib furling system-Harken
New Jenkin Sales - Main,Jib and Spinnaker

Deck

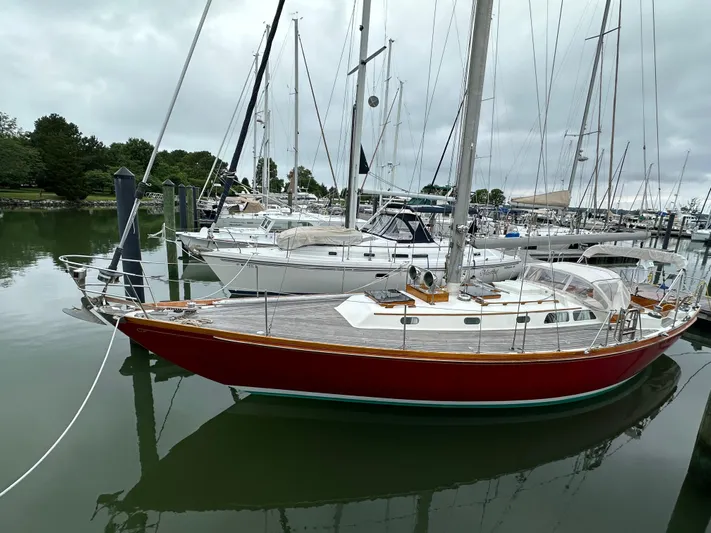

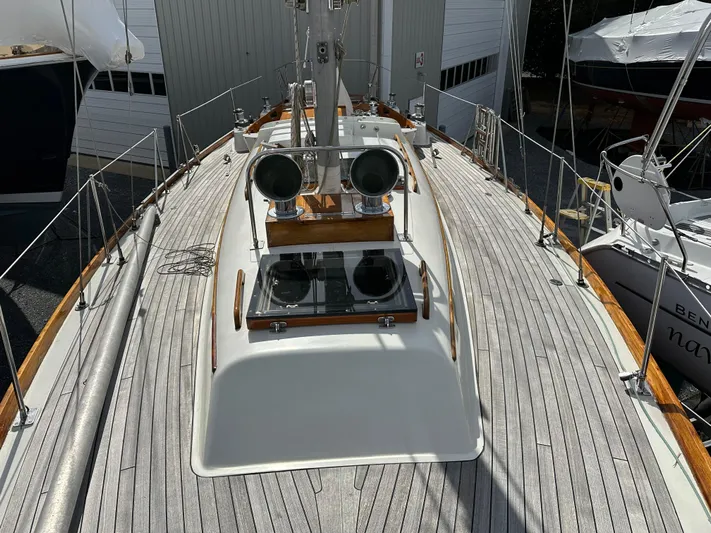

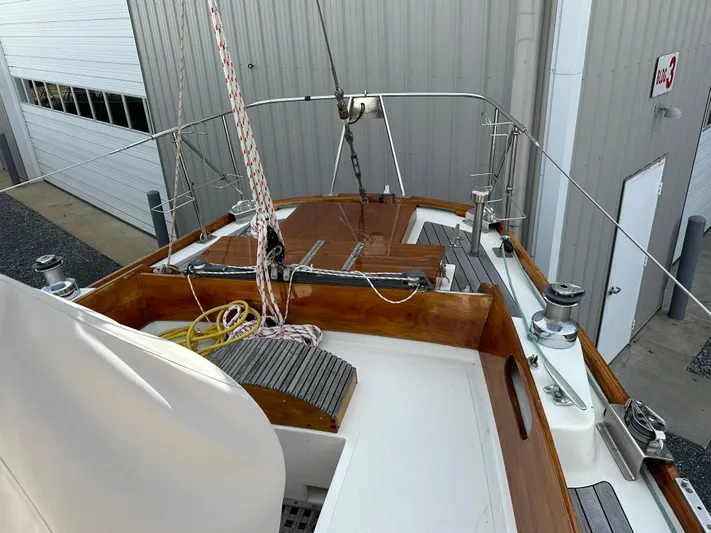

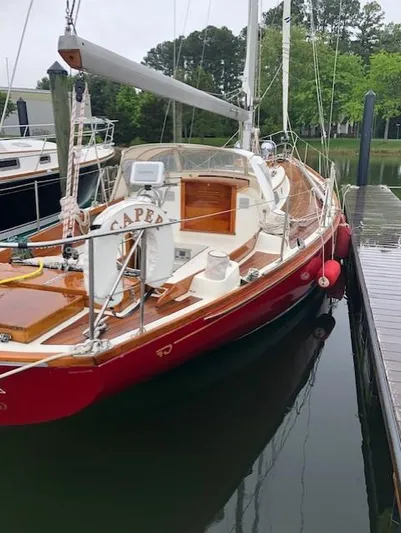

Teak Decks .Deckhouse and cockpit are molded in one piece with integral fiberglass and cored with 3/4" cross linked closed cell PVC foam? Deck scuppers are recessed with outlets at the boottop. The deck is bonded with fiberglass to a 6" hull flange and through-bolted with the toe-rail fasteners on 8" centers. All deck trim, hatches, rails,and coamings are varnished teak. Main and foward hatches are Hinckley built of teak and translucent plexiglass.

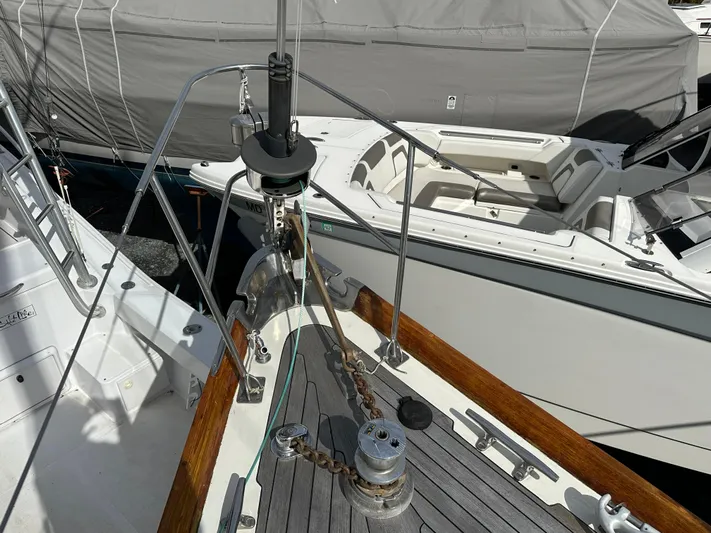

Simpson-Lawrence Windlass.

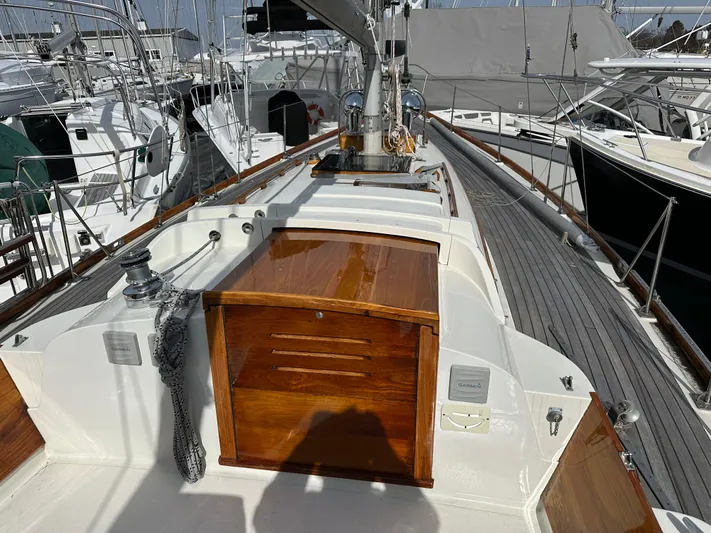

Varnished teak hatch boxes, hand rails and exterior trim.
Varnished Cockpit Table
CQR Anchor
Danforth Anchor

Recent Upgrades

Topsides painted Awlgrip Vivid Red 2017
Cabin top , sides and glass portion of deck painted Awlcraft Oyster White 2017
All stainless and other deck fittings removed and re bedded 2017
Dodger with safety grab bars.
Retractable Bimini
House Batteries.
Solid State onboard charger.
High pressure wash down pump.

Espar heating and wiring with fans in forward cabin .
Icom VHF
New Winter Covers
