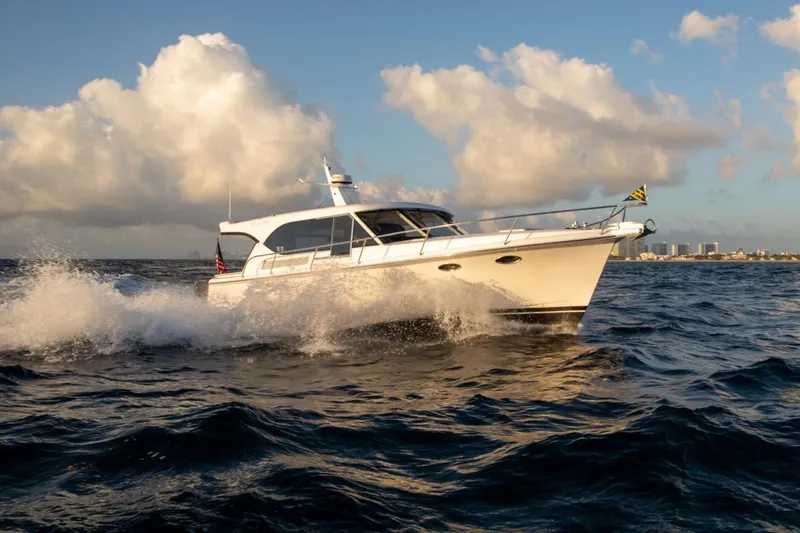

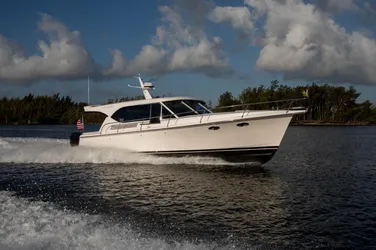

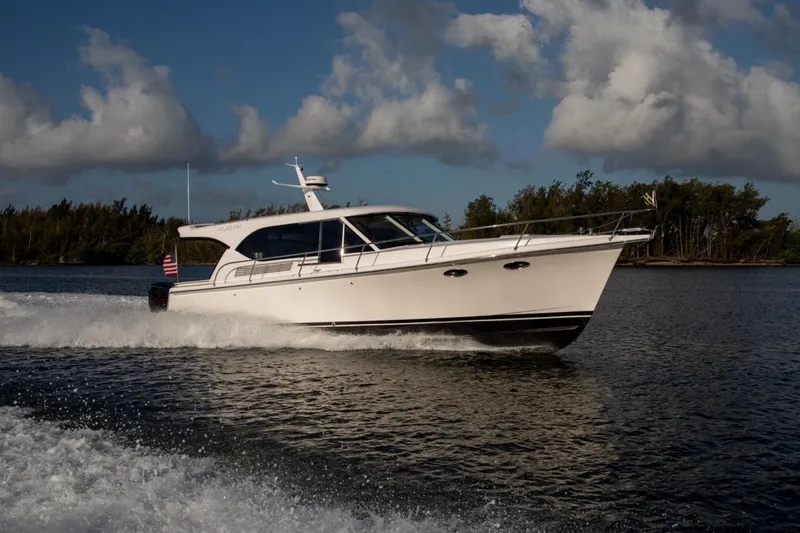

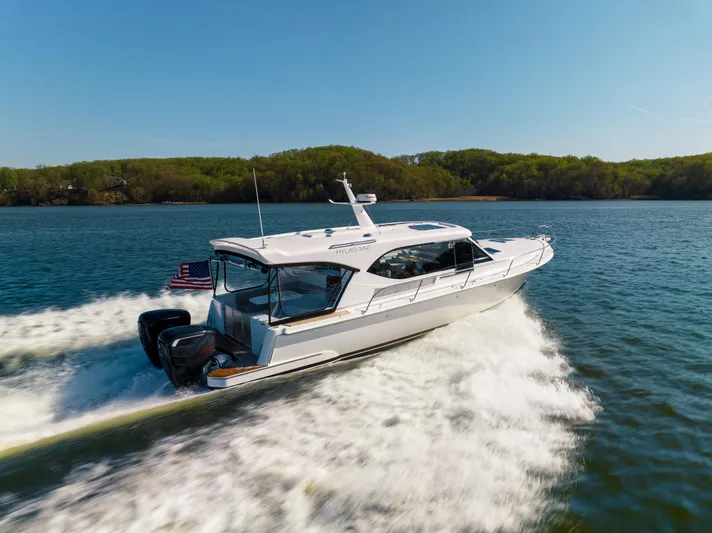

Yacht for Sale | 47 Hylas Yachts Annapolis, MD

Cruising Speed: 22 kn
Maximum Speed: 30 kn
Beam: 13' 6''
Hull Material: Fiberglass
Max Draft: 2' 0''
Displacement: 21,500 lb
Fuel Tank: 2 x 475|gallon
Fresh Water: 2 x 190|gallon
Holding: 1 x 27|gallon
Cabins: 2
Heads: 1

A Layout Designed for Cruisers

Built for extended cruising, the M47's interior is designed with the practical needs of passagemakers in mind, offering the perfect balance of luxury, efficiency, and functionality.

Two-Cabin, One-Head Layout: The master stateroom features a centerline queen berth with ample storage, while the guest cabin offers a convertible queen with a Pullman bunk, ideal for accommodating extra crew or guests.
Offshore-Ready Galley: The aft galley includes a 4-burner propane cooktop, broiler, oven, and generous refrigeration/freezer space, ensuring sailors transitioning to power cruising don't compromise on meal prep. A large pass-through window enhances the connection between the galley and aft cockpit.
Spacious Salon with 360° Visibility: The salon features a wraparound settee for six, with a convertible dining table that lowers into an additional berth. Large, tinted single-pane wraparound windows offer unobstructed views while keeping sound levels below 70 decibels underway, perfect for relaxed conversations at sea.
Seaworthy Performance & Easy Handling
Ergonomic Helm: The custom-built helm seat allows for comfortable standing or seated operation, with direct side-deck access via a large sliding window, ideal for single or short-handed docking.
Expansive Outdoor Living Spaces: Nearly 30 feet of uninterrupted space from the swim platform through the cockpit and into the salon provides multiple areas for relaxation and entertaining.

Main Salon

Forward windows constructed of heat treated and tempered glass designed for clear visibility in both day and night.
Exalto windshield wipers with freshwater washdown
Tinted single piece side windows.
Two large overhead sliding hatches for excellent ventilation and easy access to the coachroof
Large settee to starboard featuring two drawers below
Large U-shaped settee to part enabling seating for six around the table.
Varnished solid teak table with adjustable stainless-steel pedestal enabling the table to convert into a double berth with cushion insert.
Pullout liquor cabinet under the helm seat
Black textaline window covers for the salon windows.
Two 3" solar vent fans

Galley

LPG stove with oven and broiler
Meganite countertops with fiddles
Full height, pull-out pantry with shelves
Large cabinet under galley sink
Stainless-steel framed full height window, which opens with an assisted gas strut and secure top licking latch. Enables the galley and main salon to conjoin with the aft cockpit for ideal entertaining space.
Corner cabinet ideally built for galleyware.
Tray and towel cabinet next to stove
Pullout rubbish bin with fiberglass liners
Double basin stainless-steel galley sink with single lever pullout faucet.
Large, heavily insulated 12v top loading freezer integrated into countertop.
Eight soft close drawers lined with felt.
Two pullout drawer style 12v refrigerators
Microwave
Seagull water filtration system with separate tap

Helm Station

Custom two-person helm seat
Integrated map and chart storage below helm seat
Dark Black FRP console with leather wrap
Full size sliding window for easy access to side decks

Master Stateroom

Queen size centerline island berth with custom mattress
Opening deck hatch with blackout shade and screen
Large cedar lined hanging locker with drawer below
Three large drawers located beneath the foot of the berth.
Reading lights mounted to the bulkhead on either side of the berth.

Guest Cabin

Two single berths that convert to a queen with included insert.
Single Pullman style berth located over the outboard lower berth.
Custom mattress cushions
Opening deck hatch with blackout shade and screen
Reading lights above each lower berth
Bank of drawers

Head

Sealand electric flush toilet with salt or freshwater flush
Head base finished in white fiberglass.
Meganite acrylic countertops with fiddled edges
Raised wash basin with Ambassador Stasis faucet.
Molded fiberglass cabinet beneath sink with teak door.
Sliding double door teak cabinets with shelves above the sink.
Molded non-skid fiberglass floor.
Opening deck hatch with blackout shade and screen
Retractable shower door
Ambassador shower slide bar and Stasis shower head.
Ventilated extractor fan in shower
Stainless towel rail, hook and ring

Aft Cockpit and Transom

Fiberglass cockpit table with stainless-steel adjustable base which converts the table into a lounge bed with insert cushion.
Fiberglass overhead customizable rod locker
Portside locker with saltwater washdown connection
Handheld hot and cold shower
Bonded ½" solid teak decking
Outdoor handwash basin
Fabric seatbacks and cushions
Large full beam lazarette with central deck hatch and additional access under both settees
Sunbrella cockpit enclosures with strataglass panels
Stainless steel and Perspex bifold boarding gate.
Removable folding stainless-steel swim ladder.

Hull

The hull of the M47 is constructed of hand laid multiaxial e-glass fiberglass laminate, end-grain balsa core and vinyl-ester resins. In areas of high stress, the core is replaced with solid single skin laminate.
Limber holes are installed throughout the hull to promote proper draining to the bilge sump.
All thru-hulls, sea-cocks and valves below the water line are high-quality metallic fittings integrated with the yachts bonding system.
Thru-hulls for raw-water intakes are fitted with grills.
Five coats of epoxy barrier coat finished with a two-part epoxy tie-coat.
Two coats of Micron Extra 2 black bottom paint.

Deck

The deck of the M47 is constructed of solid hand-laid e-glass fiberglass laminate.
Hull to deck joint constructed with a substantial inboard recessed flange reinforced with multiaxial fiberglass laminate and chemically bonded with high performance adhesive.
Molded white fiberglass non-skid.
Hylas signature 316L stainless-steel pulpit and bow rails.
Stainless-steel handrail on aft cockpit roof.

Ground Tackle and Mooring

Maxwell RC10-8 vertical windlass with foot controls at the bow and chain counter at the helm.
Rocna 33lbs. galvanized fixed shank scoop anchor with 50m of 8mm hot dipped galvanized chain.
8" stainless-steel samson post
Six stainless-steel deck cleats and two fairleads with backing plates and solid laminate into the deck.
Stainless-steel stemhead fitting with self-launching anchor receiver and roller.
Chain and rode locker in the bow with direct overboard drain and saltwater washdown point.

Engines

Twin Cox CXO300 300hp 4.4L twin-turbocharged common rail diesel outboards - 80 hours
25" shaft length
Sharrow Marine Performance Props

Mechanical

Seastar Optimus Steering System
Electronic throttle control
Zipwake Series E 400mm automatic trim tab system
Northern Lights 6kw Generator with dedicated AGM start battery - 185 hours.
CruiseAir reverse cycle air conditioning system with digital controls. 18k BTU unit in the salon and 12k BTU unit in the staterooms.

Navigation Equipment

Raymarine Axiom 12" Pro-S with HybridTouch MFD with Navionics Coastal US Charts
High CHIRP conical sonar
Raymarine Quantum 2 Q24D doppler 18" radar
Raymarine Smart Pilot EV-1 sensor core, ACU-400 autopilot computer and P70R control head at the helm.
Raymarine Raystar GA150 72 channel 10hz GPS receiver

Communication Equipment

Raymarine Ray53 VHF radio with AIS receiver at DSC
Raymarine AIS 700 receiver and transmitter - Class B AIS with antenna splitter

Entertainment Equipment

Hylas spec Fusion RA60 stereo system
Two interior and two exterior speakers
Pre-wiring for 24" TV on Starboard bulkhead aft of the settee in the main salon

Engine Fuel System

475 gallons in two high quality 316L stainless-steel fuel tanks featuring threaded inspection ports for quick access, large maintenance ports and sight gauges.
BEP DCSM digital tank monitoring system
Emergency fuel shut-off.
Raycor model 500fg fuel filter
Cox Marine fuel filters for each engine

Freshwater System

190 gallons in two high quality 316L stainless steel water tanks.
Shurflo freshwater pump
Torrid stainless-steel 17gallon 110v and engine driven hot water heater
Rain catchment system from coachroof to water tanks with valve shutoff under cockpit settees.

Black and Gray Water System

Sealand 27gallon polypropylene holding tank with dedicated macerator pump, overboard discharge and deck pump out.
Shower drain pump with automatic float switch.
Dometic Sealand holding tank ventilation filter.

Bilge System

Three rule 2000 independent bilge pumps each with automatic float switches, manual override and highwater alarms
Audible and visual highwater alarms
Bilge pump switches located at helm station.

General Configuration

The Hylas M47 features a highly organized electrical architecture which utilizes high quality tinned copper wire specifically for minimal voltage drop. Each wire is numerically labeled and traced from the source to the load. Each Hylas is delivered with a custom wiring diagram for reference.

DEI galvanic isolator GI-50/60A-FSM
50-amp shore power inlet at the transom with 25' power cord
1" copper grounding strip running the length of both sides of the hull and integrated to the yachts bonding system

Battery Banks and Charging System

Two 400Ah Mastervolt MLI Ultra 12/5500 Lithium-Ion house batteries
Mastervolt digital display at the helm station
Maxwell windlass powered by house bank.
Two dedicated Lifeline AGM GPL-31XT 12v/125A engine start batteries
Mastervolt CombiMaster 12/2000-100 12v 2000 watt 100-amp combination battery charger and inverter

Power Distribution and Electrical Panels
