Additional Specs, Equipment and Information:
Specs
Builder: Ocean Alexander
Designer: Ed Monk
Hull Shape: Displacement
Dimensions
LOA: 52 ft 8in
Beam: 14 ft 8 in
LWL: 42 ft 2 in
Maximum Draft: 4 ft 2 in
Displacement: 42,500lbs. Dry Load
Bridge Clearance: 19 ft 5 in
Engine
Single/John Deere/6068SFM50/Diesel with 1,850 hours
Year Built: 2007
ZF Mathers controls pilothouse and flybridge
Drive Type: Direct Drive
Power: 300 HP
Cruising Speed: 8.0 knots @ 1,750 RPM/Top 11.0 knots @ 2,600 RPM
Range: 1,400 miles approximately at cruise speed – 7.8 knots
Tanks
- Fresh Water Tanks: 2 Stainless Steel Tanks (200 Gallons Total)
- Fuel Tanks: 700 gallons (Four Aluminum Tanks) 2-230 gallon and 2-120 gallon
- Holding Tank: 1 (60 Gallon)
Accommodations
- Number of cabins: 2
- Number of heads: 2

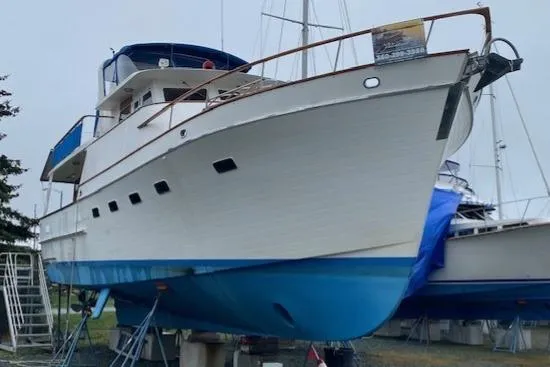

Hull, Superstructure and On-Deck Details

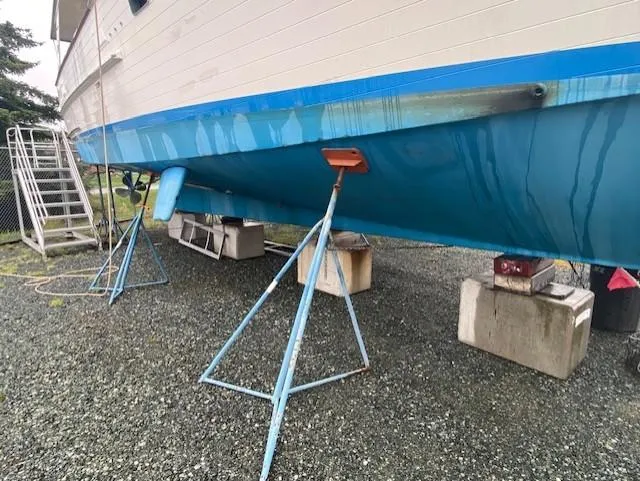

- Solid, hand-laid gel coated fiberglass hull bottom
- Detailed carbon fiber reinforced structural stringers in engine room and lazarette

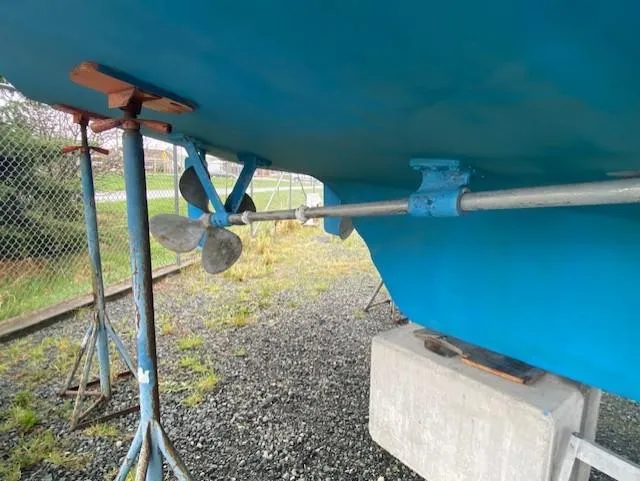

- Strut w/cutlass bearing
- Stainless Steel skeg protected propeller & rudder
- Bronze through hull fittings
- White vinyl rub rail with Stainless Steel insert
- Black bottom paint, antifouling
- Emergency rudder tiller
- White non-skid fiberglass decks (Awlgrip Griptex)
- Teak Flooring & Cap rail in Cockpit
- AL-600 core on superstructure and hull topsides
- Stainless Steel hardware, Bow Pulpit, Teak bow and stern flag staffs
- Fresh and sea water wash down in cockpit & foredeck

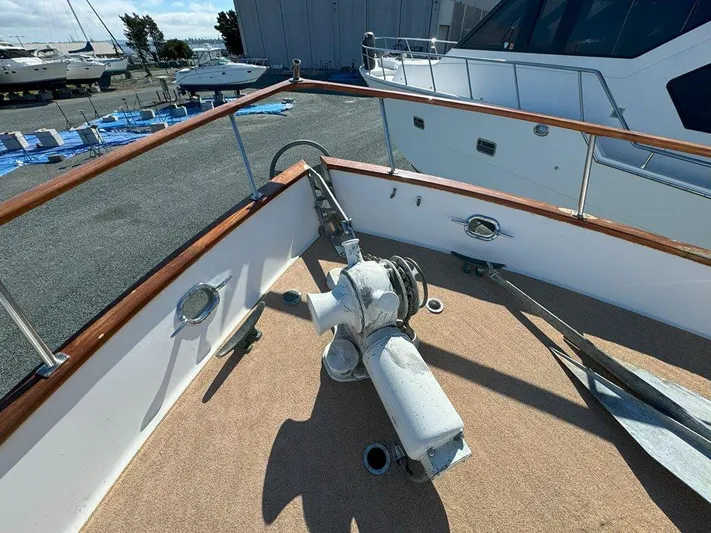

- Horizontal windlass HR2500 dual anchoring system w/fiberglass
- Rocna Anchor Main/Additional spare SS CQR anchor 45lbs.
- Skylight hatch on foredeck and pilothouse top
- 1-1/4” Stainless Steel handrails & stanchions
- Portuguese bridge with two lockers with settee/lockers under
- Diamond Sea-Glaze sliding door from cockpit to salon & PH
- Tempered dark tinted window glass
- Boarding gates Starboard cockpit and Transom
- Windshield on Flybridge, Lexan
- Todd flybridge helm seat (one double wide unit)
- Fiberglass mast w/radar platform and hinged base
- 800 Lbs Dinghy Davit
- Remote operated lockable cockpit hatch
- Aft deck shower, dock side water and TV phone inlet
- Fiberglass swim platform w/swim ladder
- Isolated propane tank locker (2 tanks)

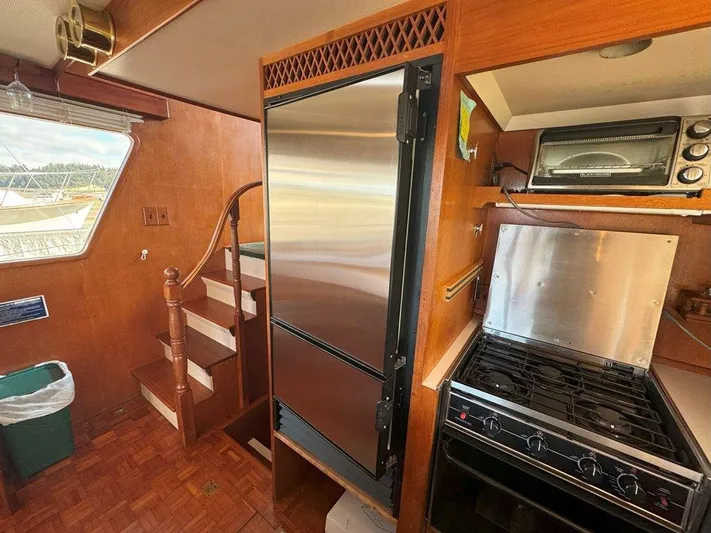

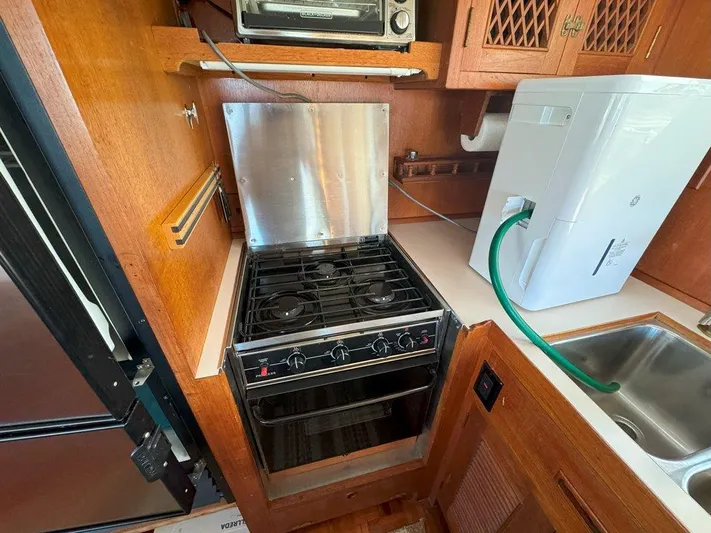

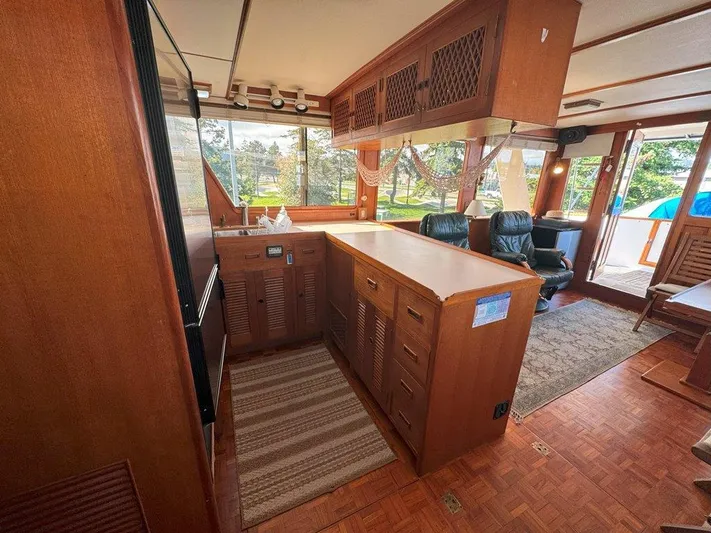

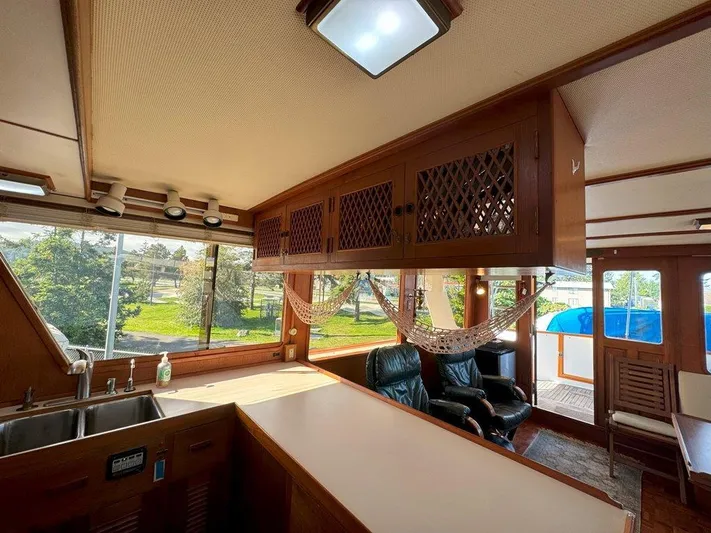

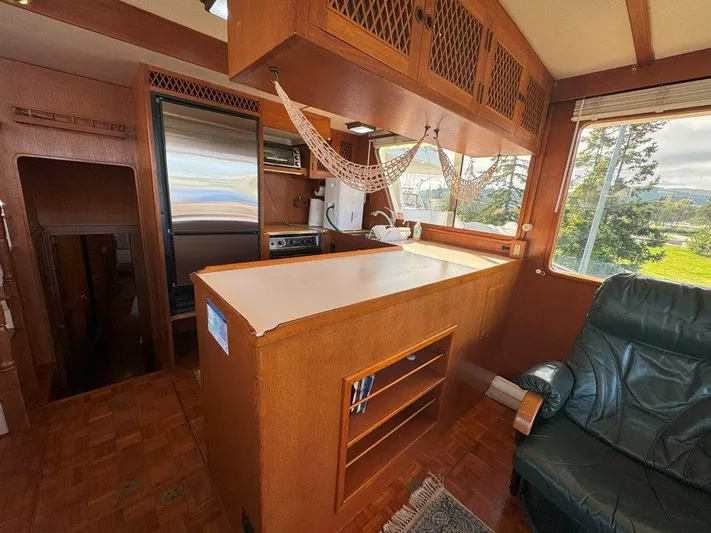

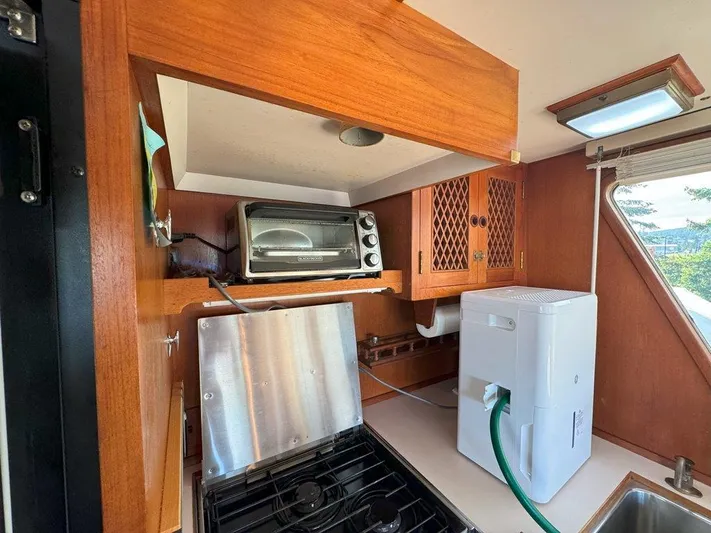

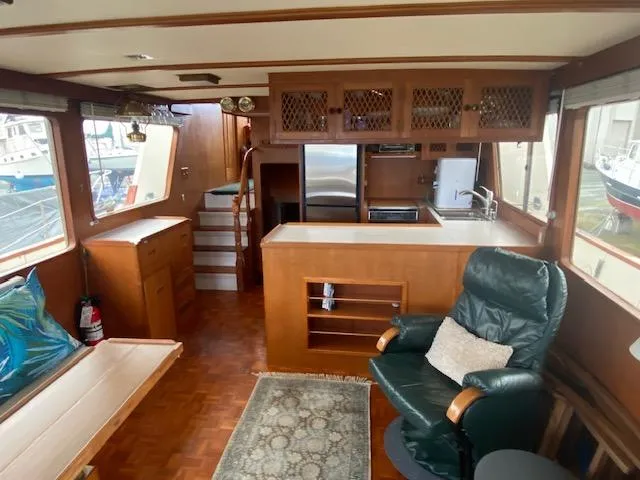

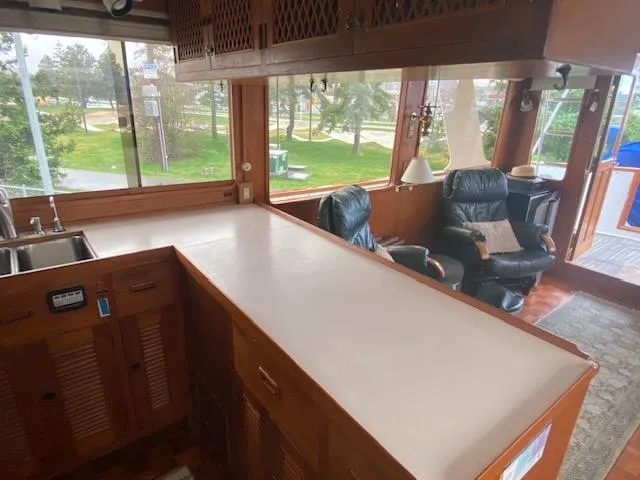

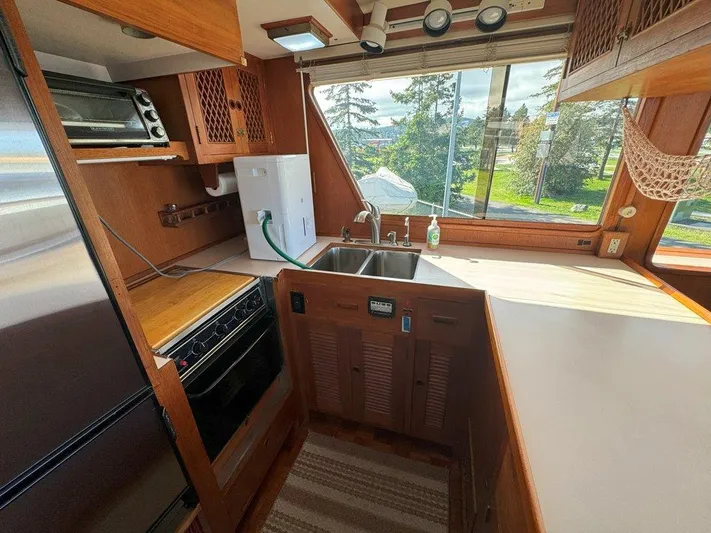

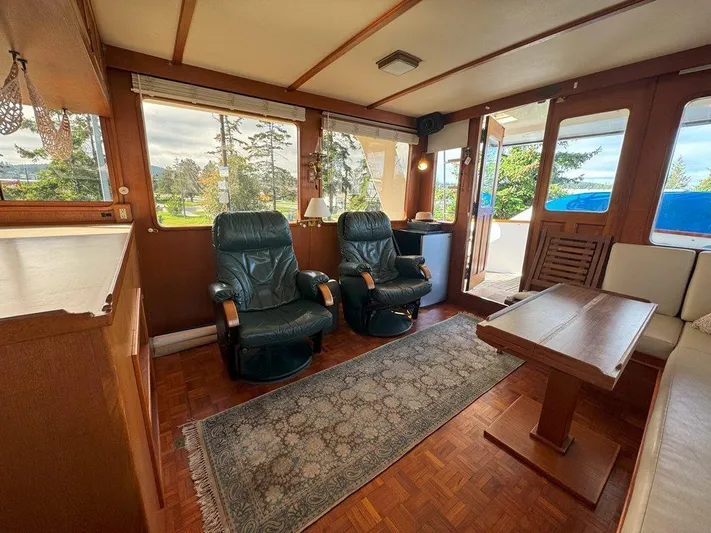

Salon/Galley
- LED lights throughout
- Teak panel and cabinetry
- Franke Sink w/tap
- Vitrifrigo Refrigerator/Freezer
- Force-10 three burner stove and oven
- Overhead microwave convection oven with exhaust blower (outside exit)
- GFI (110V only) AC outlet
- GE Disposal
- Entertainment center and storage cabinet at port side
- Cruisair evaporator/blower for central air conditioner, 24K BTU
- Webasto Heat Control Panel
- Watertight sliding door to cockpit
- Teak grab rail on ceiling
- Teak and Senwood flooring in salon
- Hi-low teak top table

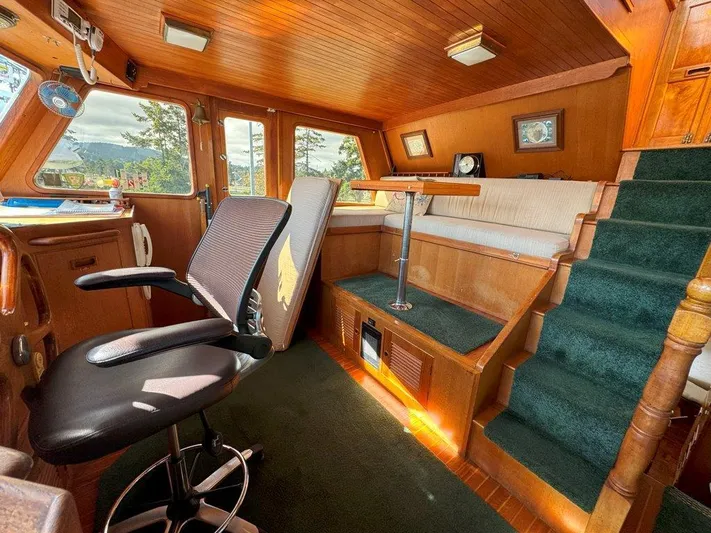

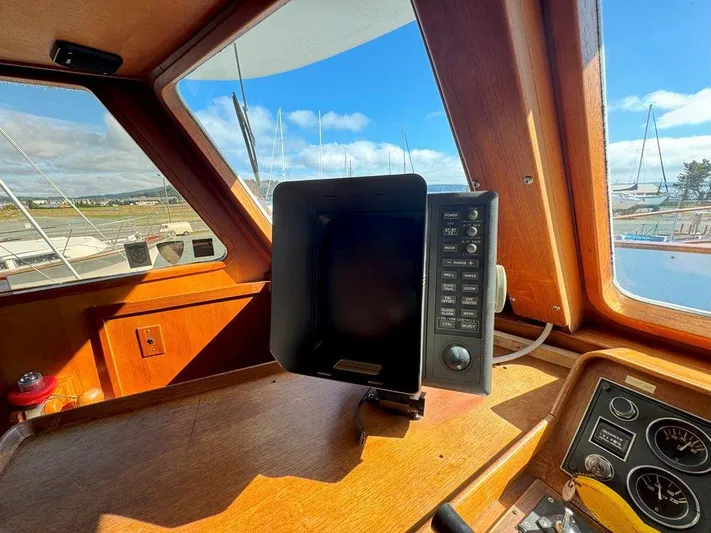

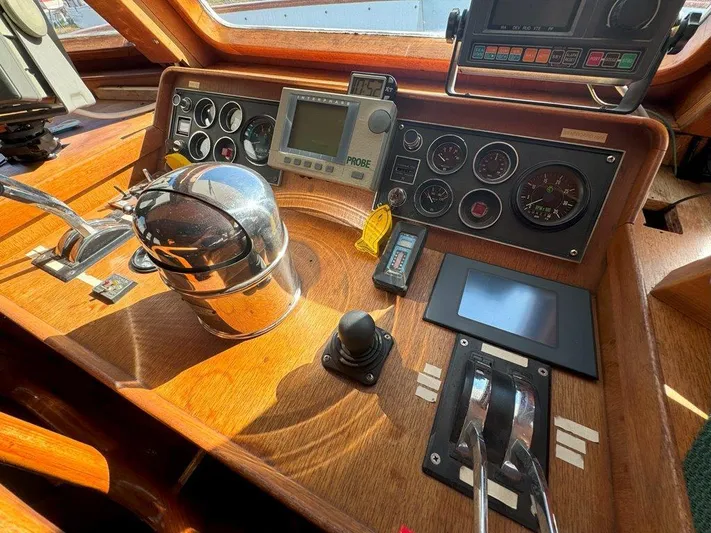

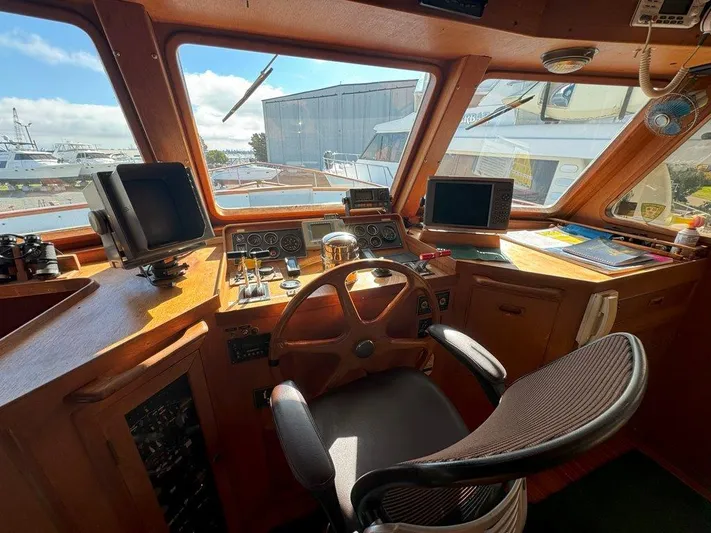

Pilothouse
Up a few steps from the Galley you enter the spacious Pilothouse where you’ll appreciate the great visibility and easy access to the protective Portuguese bridge, foredeck, boat deck and flybridge. The well laid out features give the Pilothouse a serious ship-like feel refined with sophisticated finishes and appointments.
- Diamond Sea Glaze Dutch watertight sliding doors port and starboard
- Teak and Senwood Flooring
- Cushioned Bench Settee with storage under
- Teak top dinette Table modified to position forward and back
- Teak electronics mounting panel overhead
- Stidd Helm chair with leather and chrome
- Cushioned Long-range pilot berth or storage area behind the settee
- Cruisair evaporator/blower for central AC, 24K BTU for PH & guest head
- Cruisair SMXHT Vimar style control panel
- Webasto Heat Contol Panel
- John Deere engine instrument package in pilothouse and flybridge
- Active fin stabilizer control panel
- Bow and Stern thruster joystick controls in pilothouse and flybridge

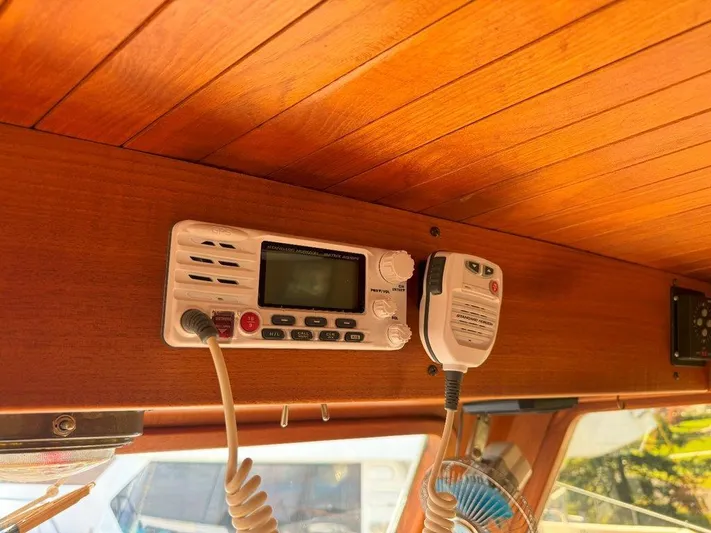

- Standard Horizon Radio-GX2150 pilothouse/Raymarine VHF Radio 218 flybridge
- Tank Tender Display (for fuel and water tank levels)
- Tank Watch 4 (for holding tank levels)

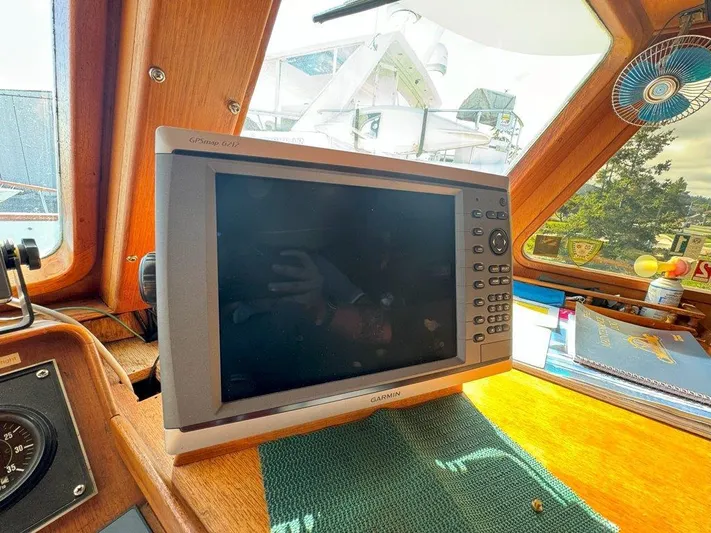

- Simrad NSS Evo 3 Chart Plotter
- Simrad Forward Scan Sonar
- Yacht controller 2.2
- Watchmate vision 2 AIS
- Raymarine E120 Display chart Plotter pilothouse and flybridge
- Raymarine DSM300 digital Sounder
- Raymarine Smart Pilot ST6002, Smart Pilot Controller
- Raymarine SR100 Weather System
- Raymarine Raystar 125 GPS Receiver
- Raymarine Tridata Display ST60+ pilothouse and flybridge
- Pathfinder Radar 48”
- Lighted stairway to fore cabin
- LED lighting
- Breaker Control Panel with light
- Red overhead light for night navigation
- Overhead hatch

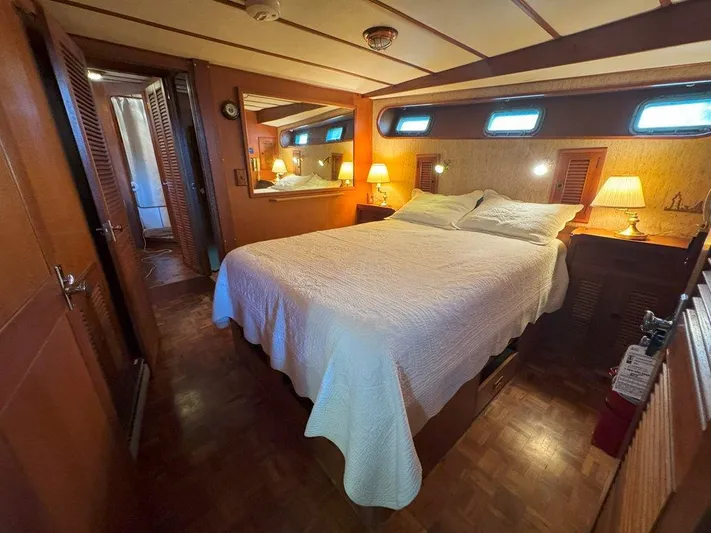

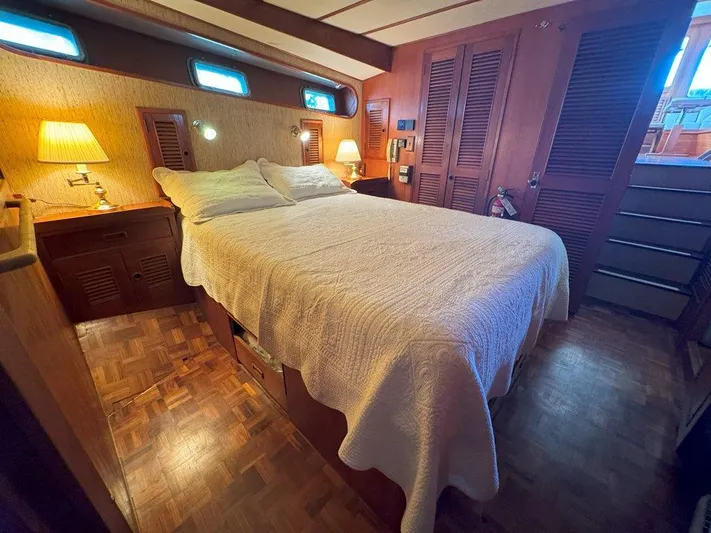

Master Stateroom
- Queen size walk-around berth, w/flip up storage underneath
- Cruisair SMXHT Vimar style control panel
- Webasto Heat Control Panel
- Three Cedar lined hanging lockers w/auto lighting
- Storage lockers and drawers throughout the stateroom
- S/S square port lights
- LED Lighting

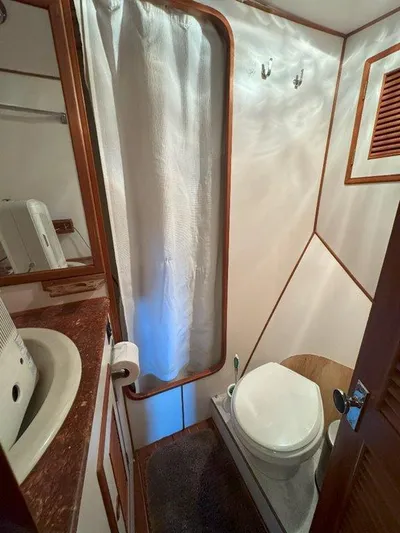

Master Head
- Fiberglass molded countertop with Granite Indian Black upgrade
- Teak walls and cabinets
- Mirror headliner
- Stall shower w/one piece glass door
- Grohe faucet for sink and shower
- Mirrored medicine cabinet
- Led Lighting
- S/S square port light w/ screen (2)
- Tecma fresh water toilet
- GFI (110V only) AC outlet

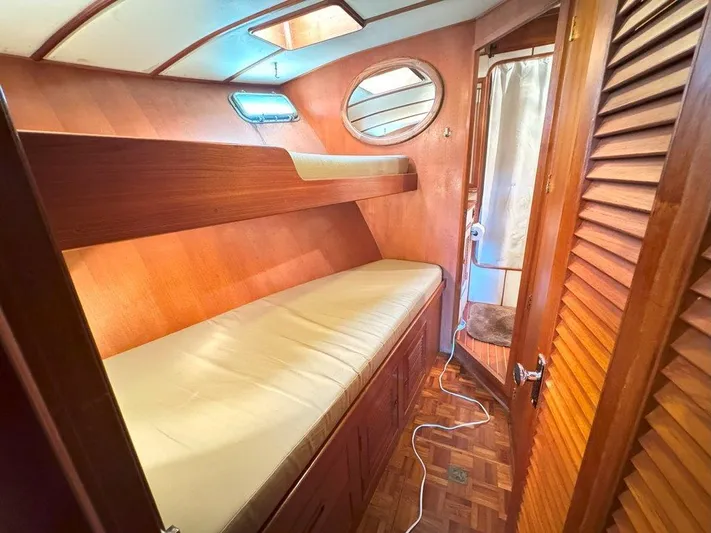

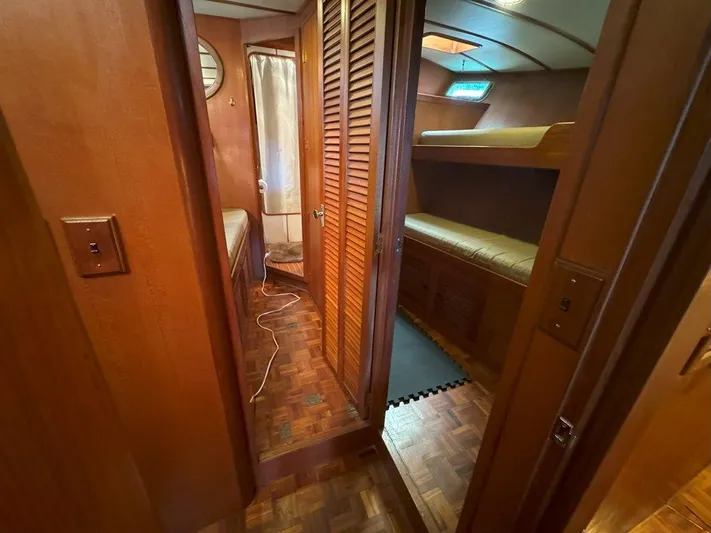

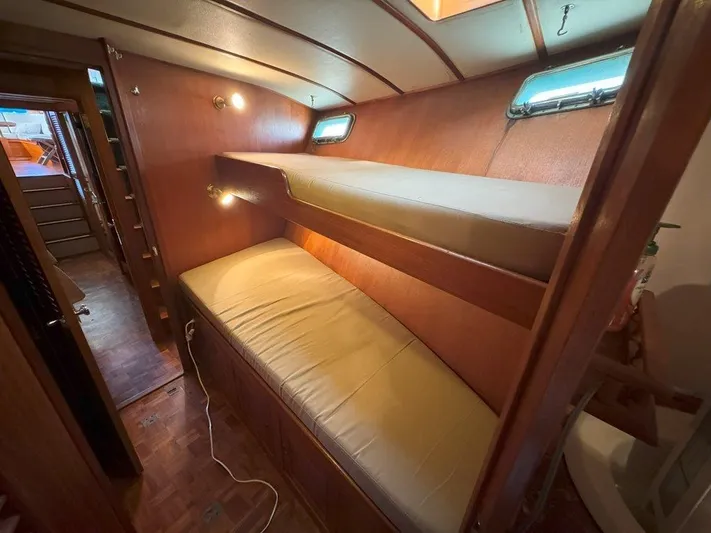

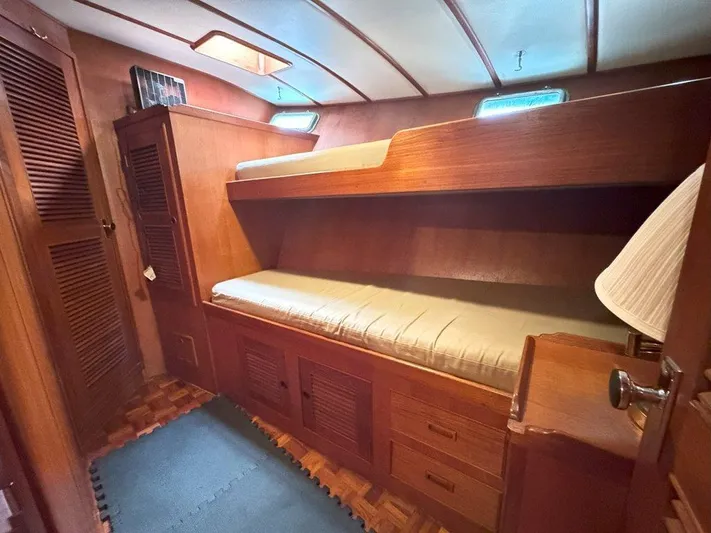

Guest Stateroom
The guest stateroom is in the bow with an over-under bed arrangement. There is plenty of storage in hanging locker and drawers. All closets and shelfs are cedar lined and there is a full-size washer and dryer in hallway to forward guest cabin.
- A/C ducted from SJR & guest head ducted from PH
- Webasto Heat Control Panel
- Cedar lined hanging locker w/auto lighting
- Dressing mirror behind door
- S/S square port lights
- Overhead hatch with roller shade and screen
- LED Lighting
Guest Head
- Fiberglass molded countertop with Granite Indian Black upgrade
- Wet head shower arrangement
- S/S square port light w/screen
- Tecma head
- GFI (110V only) AC outlet

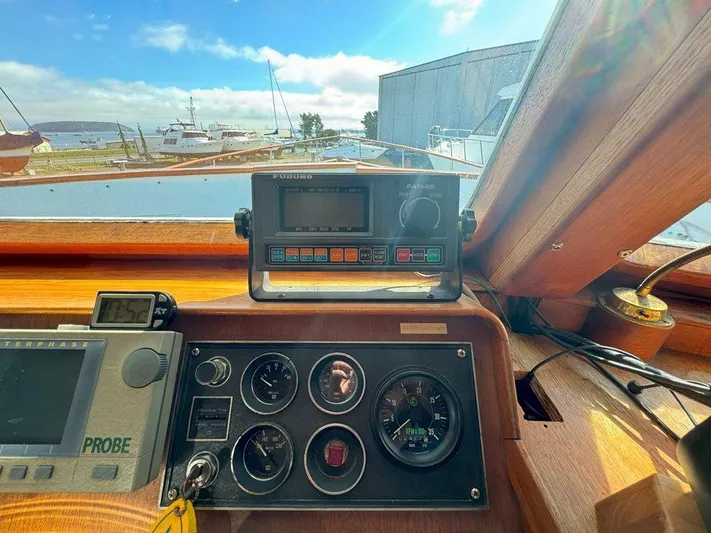

Electronics & Navigation

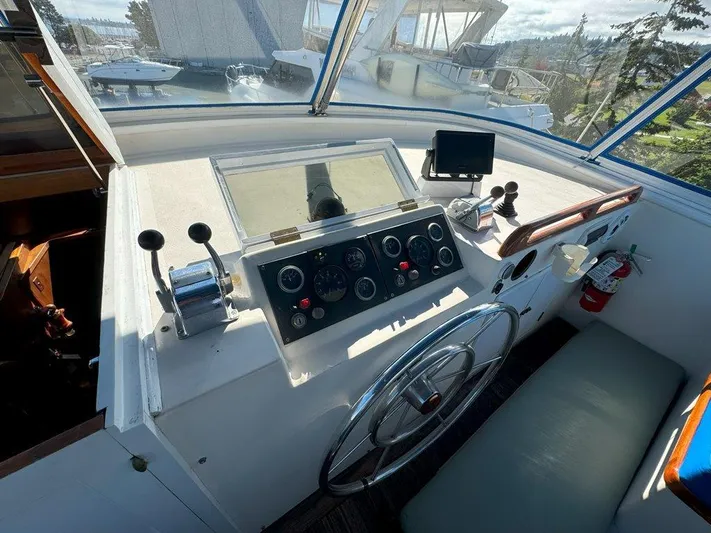

- Dual control stations – Pilothouse & Flybridge
- Complete engine instrumentation system
- Kahlenberg single trumpet air horn
- Hydraulic steering system
- Battery paralleling system w/control switch
- Engine alarm system, audio oil, temperature and hour meter
- Service battery switch
- AC outlets throughout
- LED Lighting
- AC/DC distribution panel with magnetic circuit breakers Volt and Amp meters

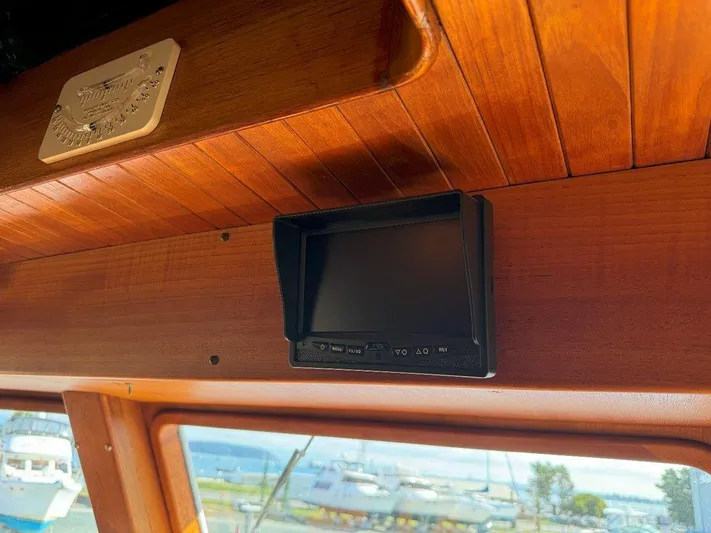

- 2 Cameras in Cockpit, 2 Cameras in Engine Room for Viewing at Helm

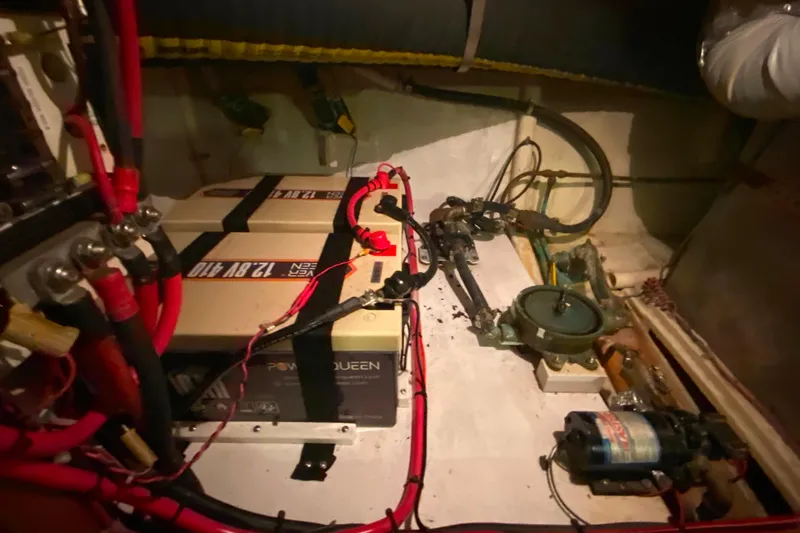

Electrical
- (3) AGM 8-D House Batteries (New August 2024)
- (1) AGM 8-D Main Engine Start Battery (New August 2024)
- (1) AGM 4-D Onan Generator (New August 2024)
- (8) AGM Group 34 Thruster Batteries (New August 2024)
- Inverter Xantrex -3 Stage 2500 watt charger (2023)
- BALMAR 210 Amp alternator Series 95 with programmable regulator plus one spare
- Shore Power Cords (50 Amp and 30 Amp)
- Shore Power Receptables (2) 50 Amp, 120/240V - one on the portside bow and one starboard midship

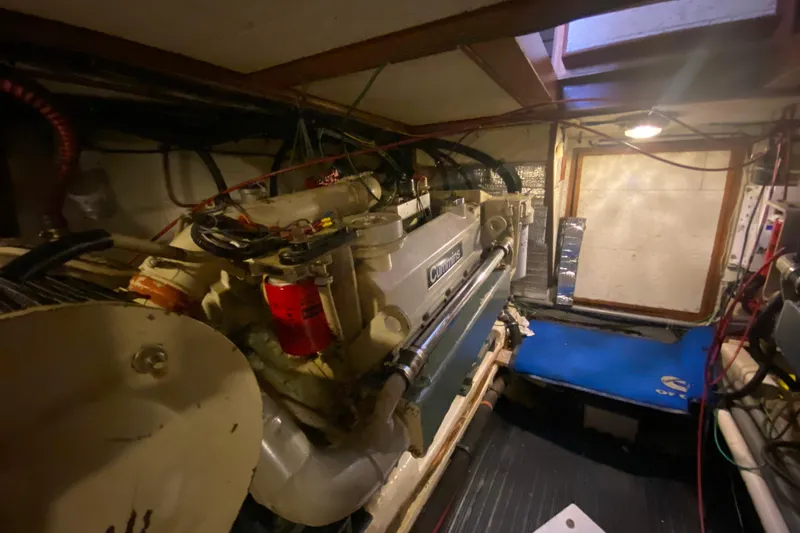

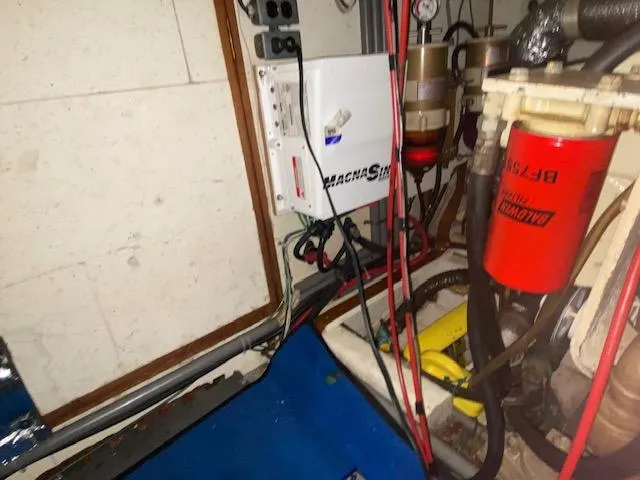

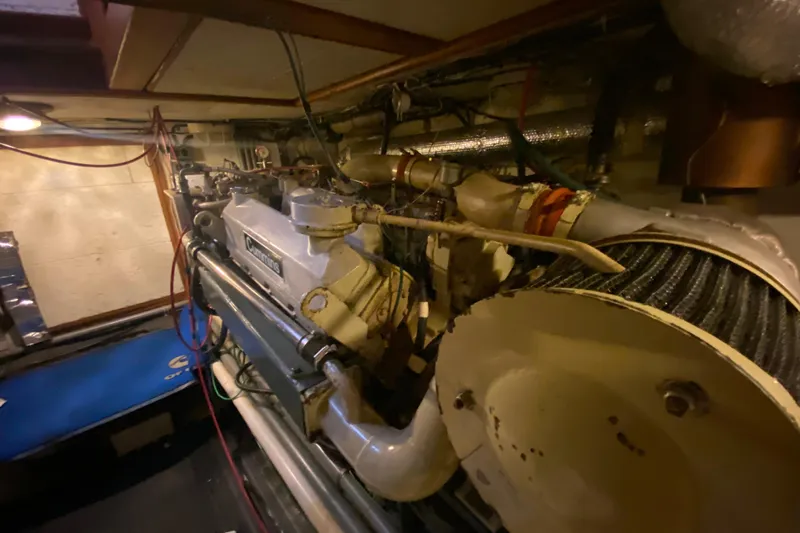

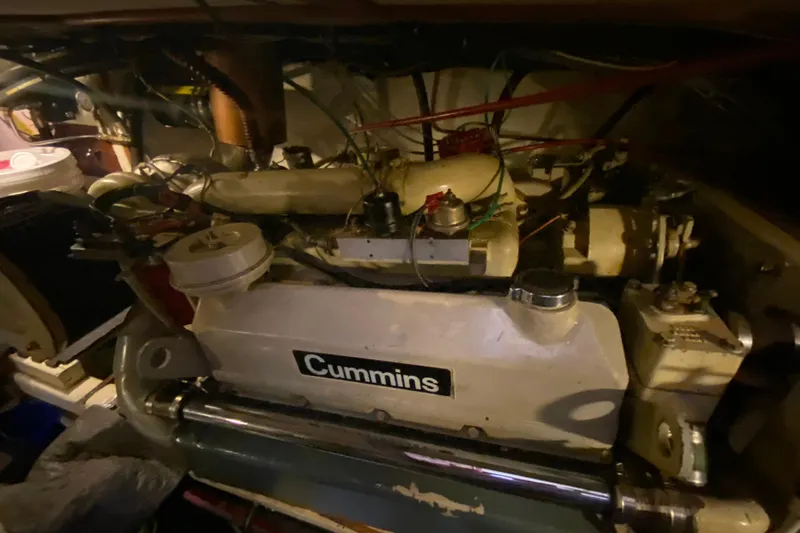

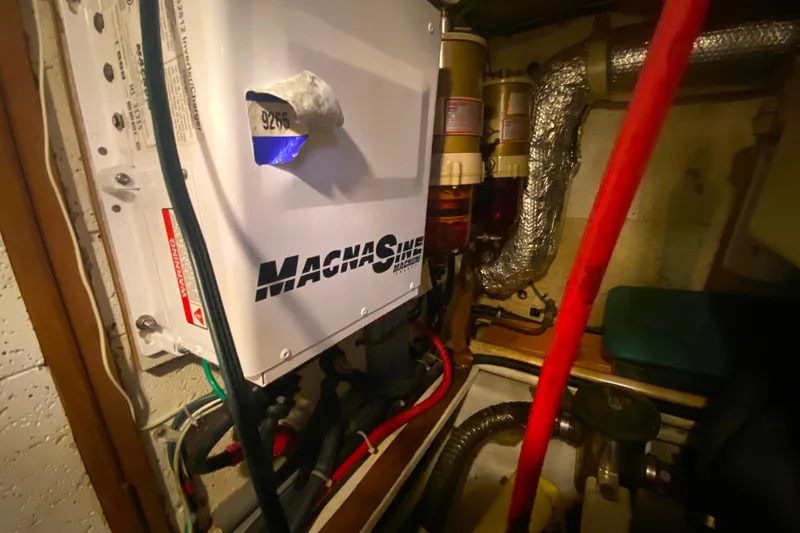

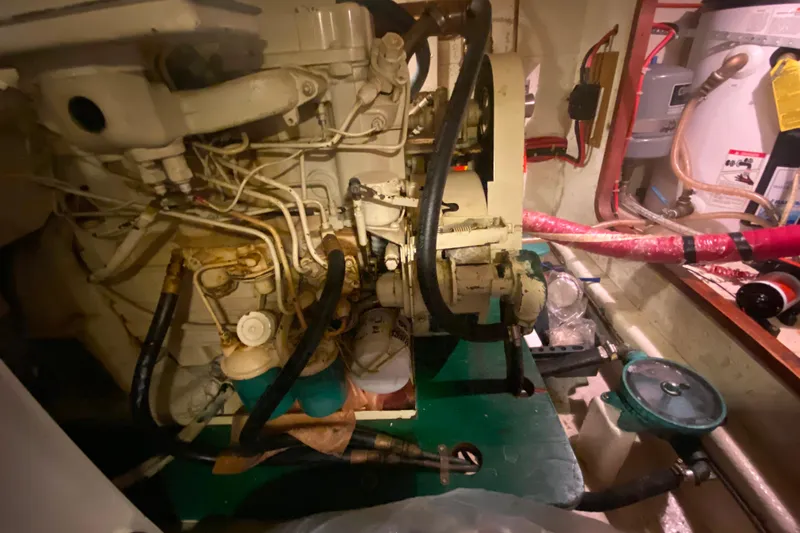

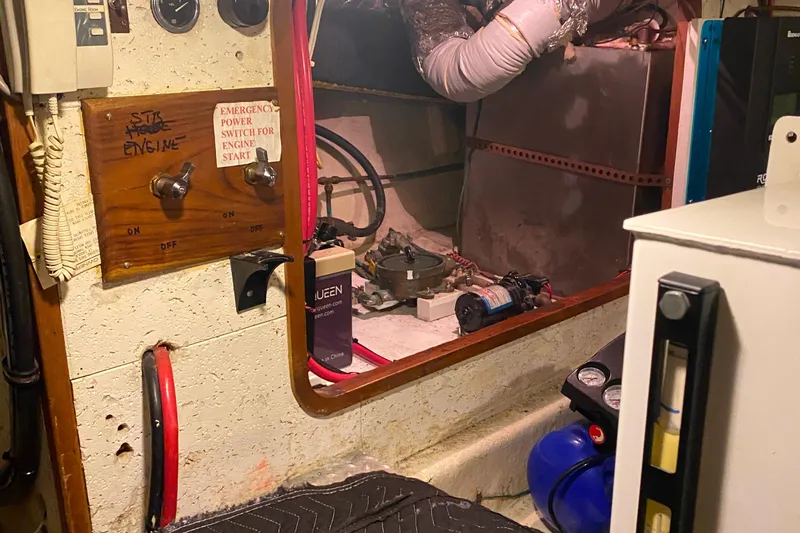

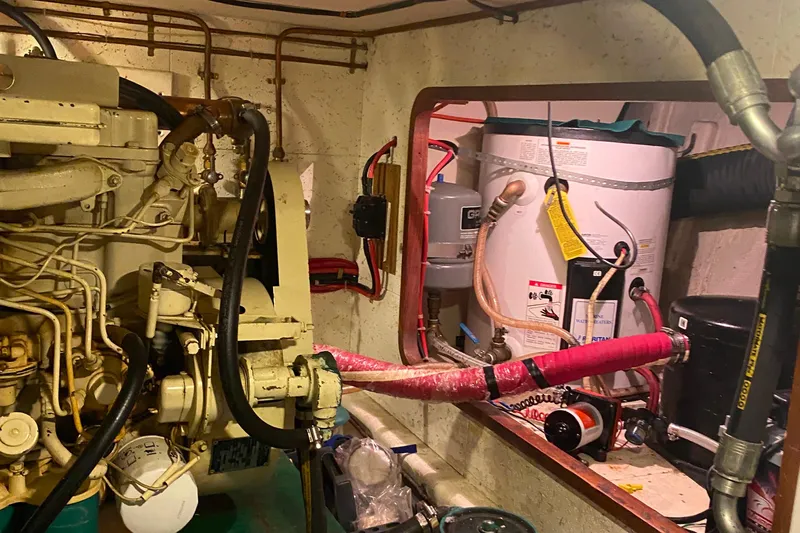

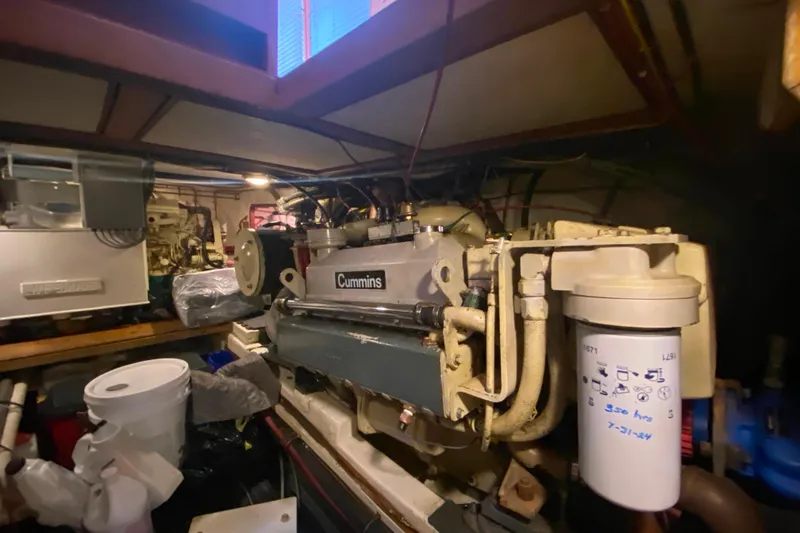

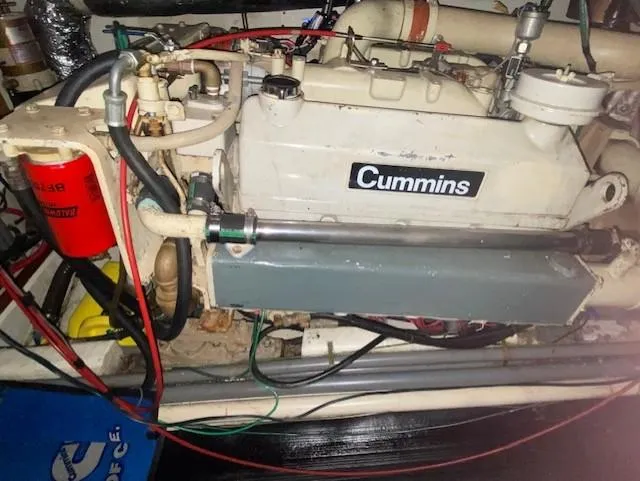

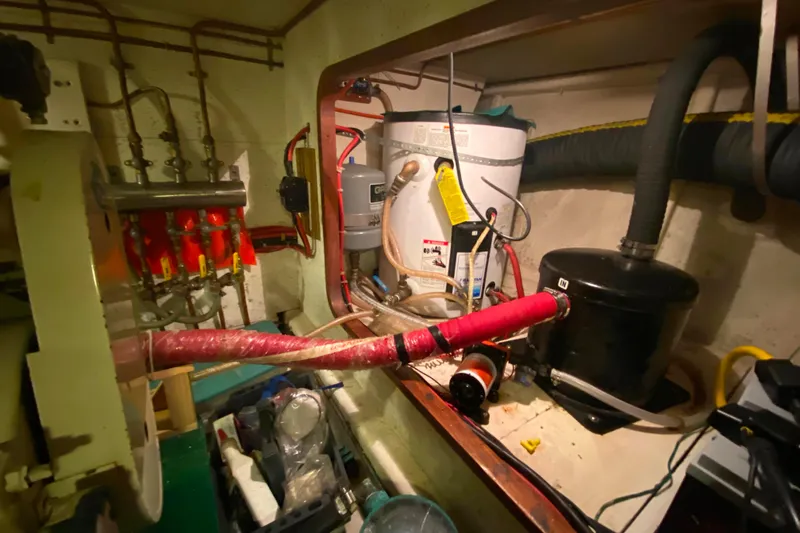

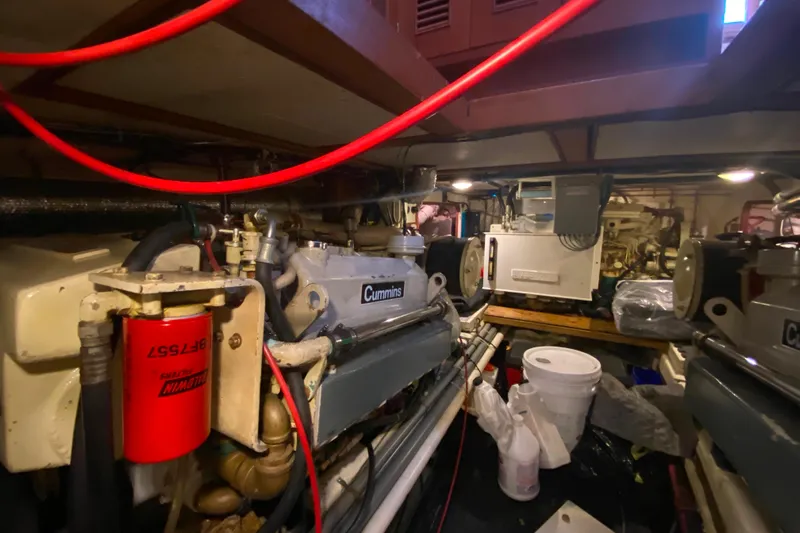

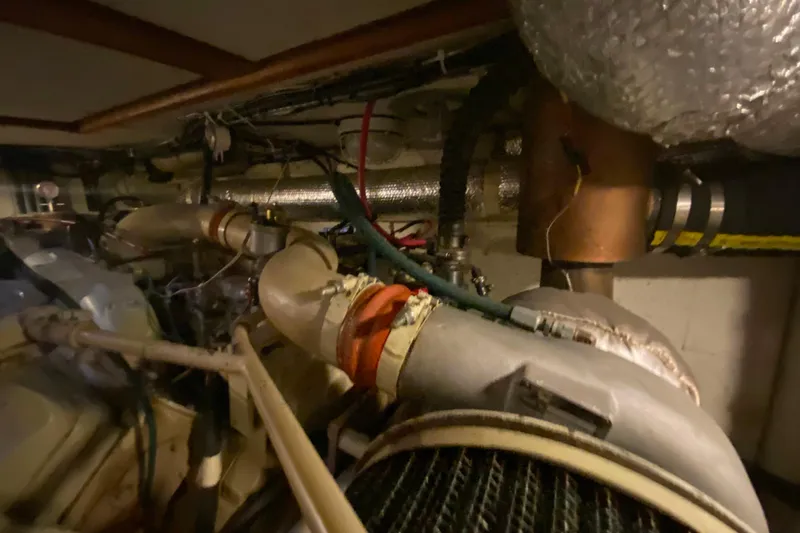

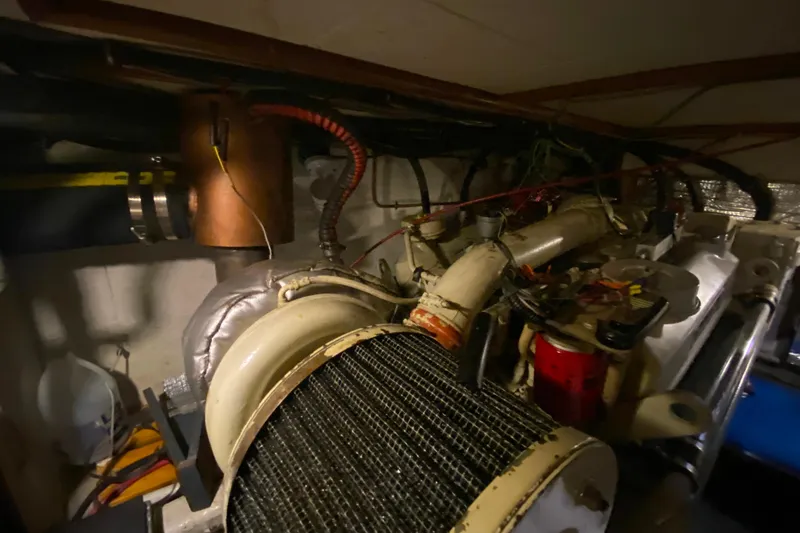

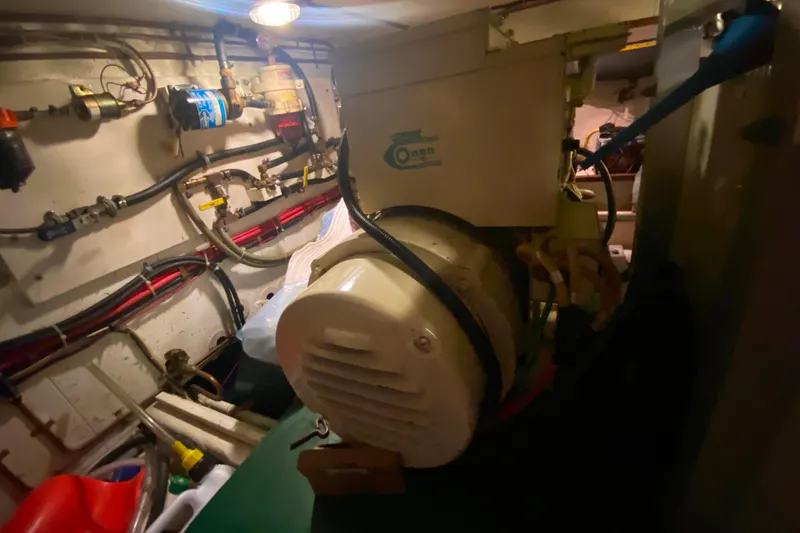

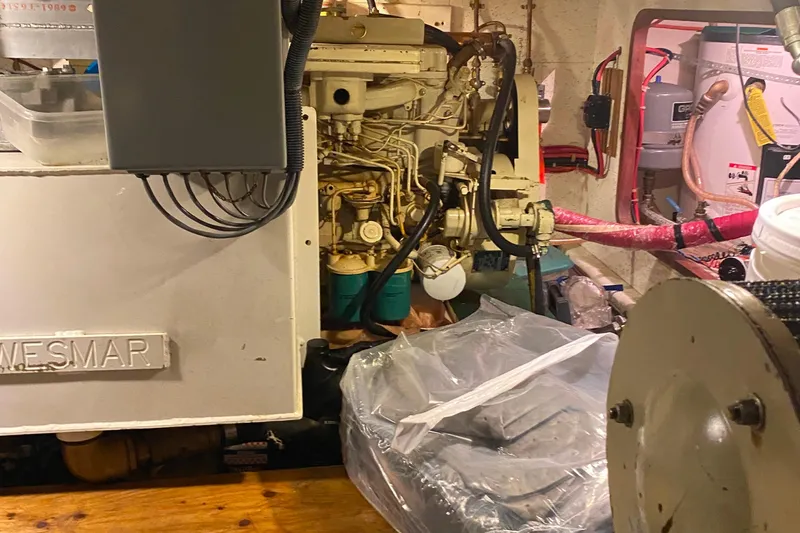

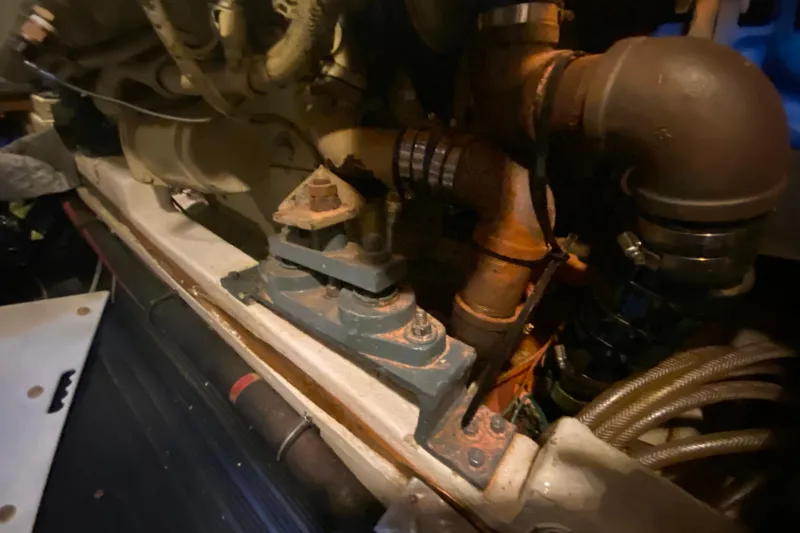

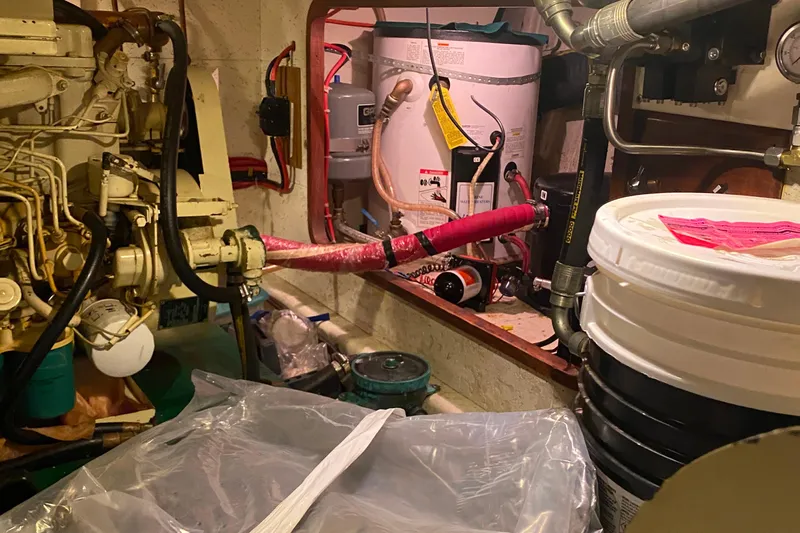

Engine Room
- John Deere 6068SFM 300 HP Diesel
- ZF 301A transmission with 2.90:1 ration
- Onan Generator 13kW (1,902 Hours)
- Flojet pressure freshwater system
- Johnson pressure sea-water system

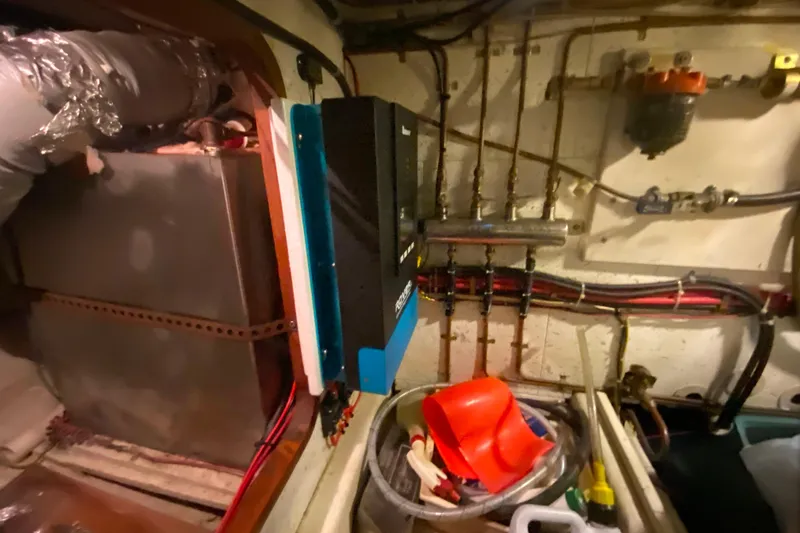

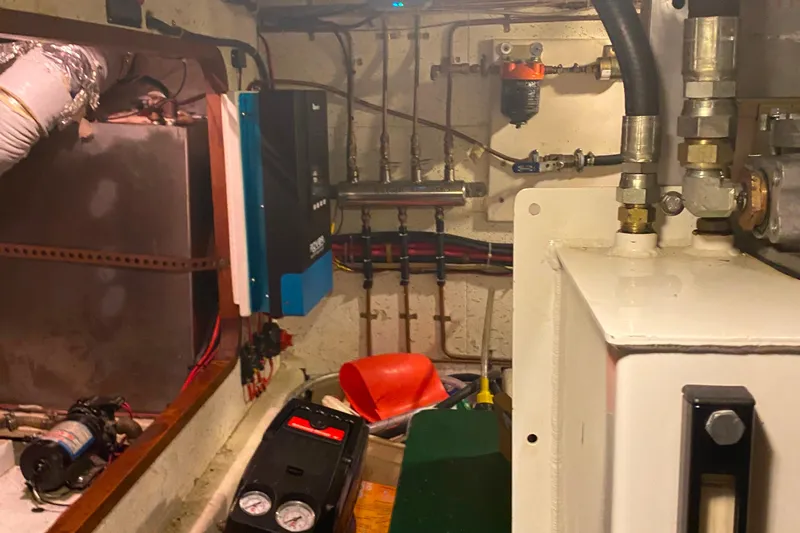

- Fuel manifold distribution system
- One manual bilge pump

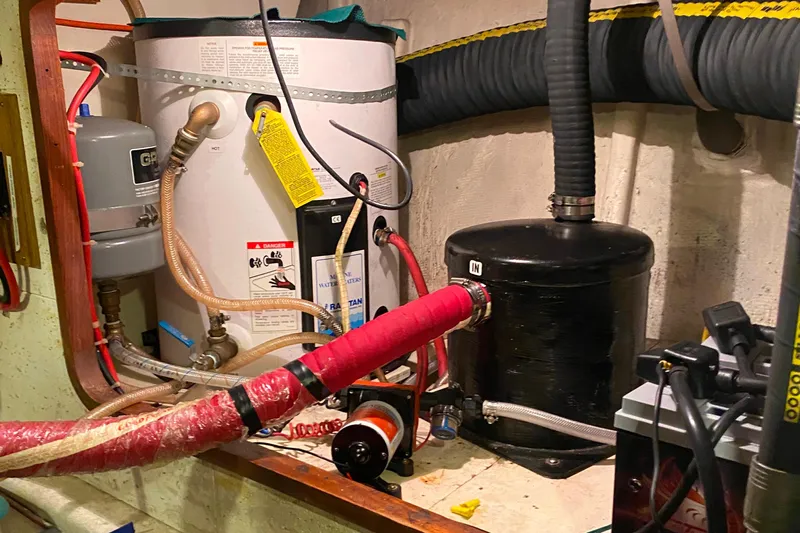

- Water heater, 20 gallon
- Aluminum fuel tanks w/sight gauges
- Five electric bilge pumps 12V auto & manual bilge switch, sumped when available
- 12V shower sump pump
- High water bilge alarm engine room
- Holding tank plumbed dockside or overboard discharge
- Bronze sea cocks and raw water strainers on all intakes
- Oil changing system for engine and generator
- Racor fuel/water separator for engine & generator
- LED Lighting
- Heavy duty military grade fuel polishing system
- Dripless engine shaft seal log, dripless seal for rudder post
Additional Equipment
Luxury Package
- Sunbrella Berenson Tuxedo fabric on outside cushions except FB helm seat
- Salon settee with storage inside settee
- Ultraleather (Brisa Distressed Chamois on salon settee and pilothouse settee)
- LCD 20” TV w/pop-up in salon
- LCD 20” TV in master stateroom
- Air-Conditioning/Generator
- Cruisair central air conditioner with ECU control (Total of 56k BTU capacity)
- Dual Racor fuel filters w/Y-valve

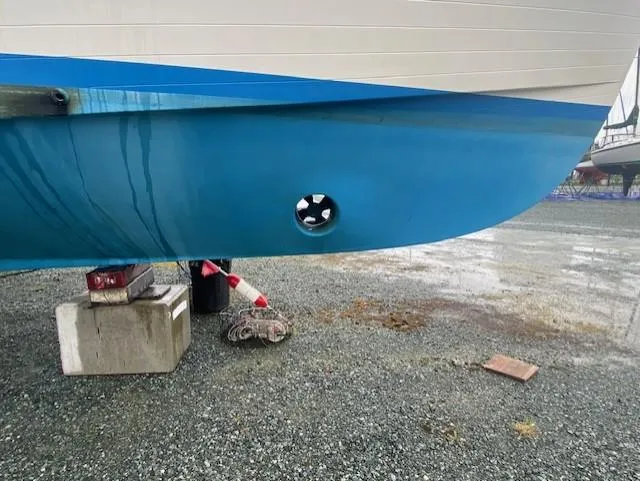

- Electric Vetus bow thruster 9.6 HP
- Electric Vetus stern thruster 9.6 HP
- Fireboy Fire extinguisher system w/engine shut down system
- Stainless steel CQR anchor 45 lbs.
- Tank Tender for 6 tanks
- Steelhead 800 lbs. electric davit
- Seagull water purifier
- Water Maker preparation (seacock, strainer and wiring)
- Full Height Maytag washer/dryer
- Granite (Indian Black) countertop for galley and heads
- Teak flooring on cockpit
- Teak/Holly interior floor throughout
- U-Line BI-95 ice maker in portside cabinet of salon
ADDITIONS/UPGRADES/IMPROVEMENTS SINCE NEW

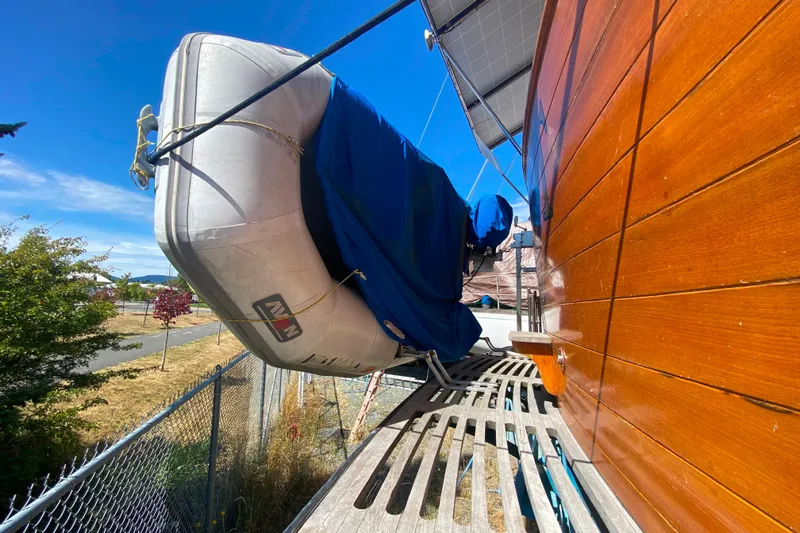

- Novurania 335DL with 4-stroke Honda 30HP
- Removable chock to facilitate on deck dining
- HRO watermaker Model 10/1300LX, with UV sterilizer, Freshwater Flush, Remote control in PH (currently decommissioned)
- BALMAR 210 Amp alternator Series 95 with programmable regulator plus one spare
- ProMariner Isocharge distribution system and power-share
- Replaced dryer venting system (Added fan and filter catch)
- Reconfigure pilothouse table to be configured to move in/out
- Added anchor chain to 400’
- YACHTCONTROLLER wireless remote control
- WAVE ROGUE Pro series WiFi Extender, Cradle Point MBR Router
- MARETRON WSP 100 with new antenna mast
- NMEA 200 backbone
- SeaTalk Converter
- SHAKESPEARE cell booster
- Satellite TV
- WEBASTO diesel furnace with engine heat exchanger
- KEYPOWER stabilizers with kelp cutters
- Hydraulic PTO off transmission for stabilizers
- Bimini and Brow Sunshade
- Staple rail on swim platform
- Fish table on staple rails and grill mount
- Jabsco reversible oil change pump
- Viking black water pump and hoses
- New GE Garbage Disposal (2021)
- New Vitrifigo Refrigerator (2021)
- Replaced sink faucet – Galley (2023)
- 5.2 Channel Amplifier/Bluetooth – Salon (2023)
- Samsung 27” 4K Monitor-Salon (2023)
- Sony Blu-ray DVD-3D Wi-Fi-Salon (2023)
- Rule shower pump – master shower (2023)
- Xantrex Inverter-3 Stage 2500 watt charger (2023)
- Simrad Chartplotter (2021)
- Simrad Forward Scan transducer (2021)
- Navionics Plus charts card (2021)
- Johnson 2200 Bilge Pump – Engine Room (2023)
- Johnson Electronic Float Switch (2023)
- Vesper-WatchMate 850 AIS (2020)
- Victron Battery Monitor-House batteries (2021)
- New Fuel Pump August 2024
- New AGM Batteries August 2024 including Start, House and Thrusters
