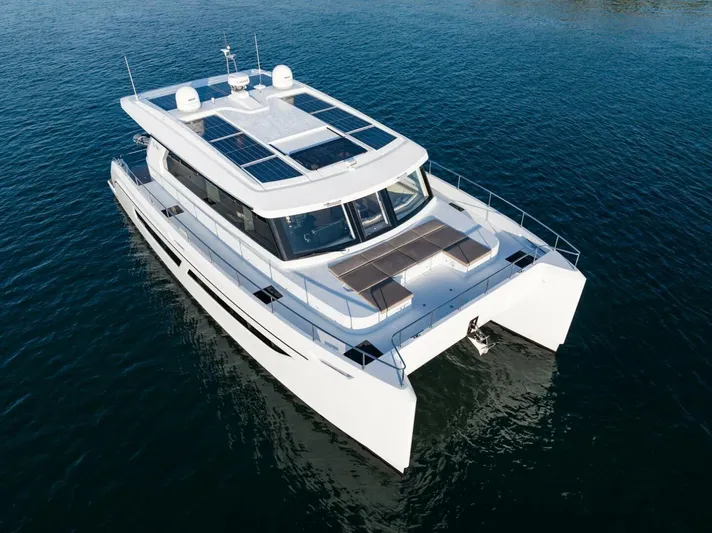

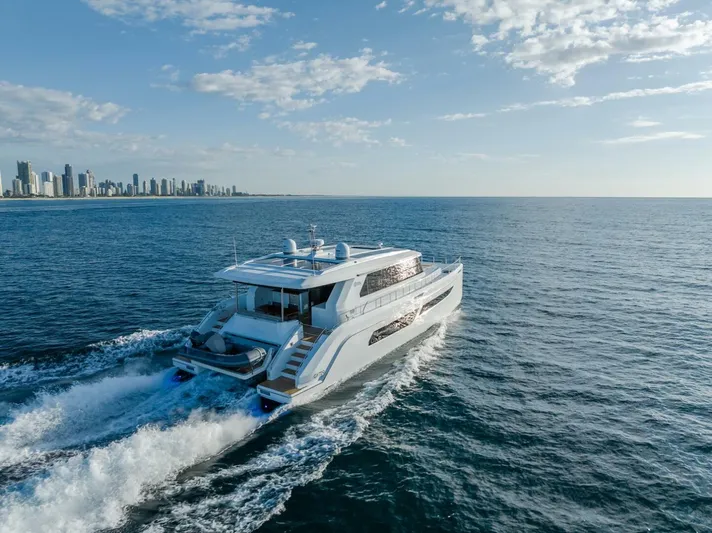

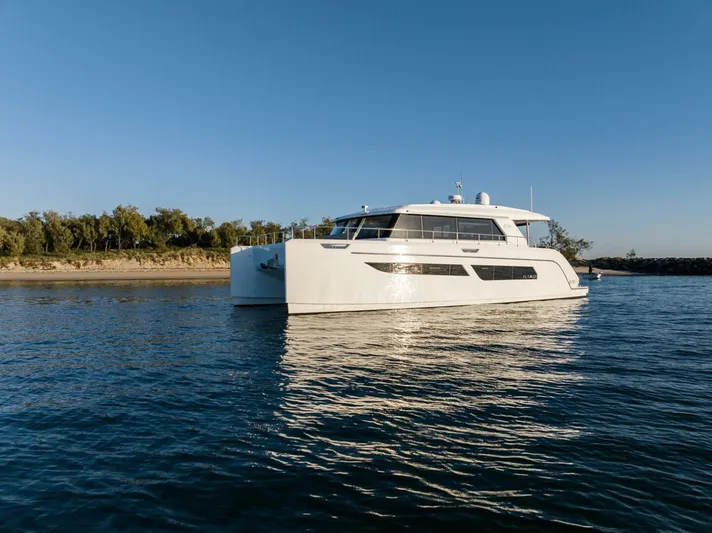

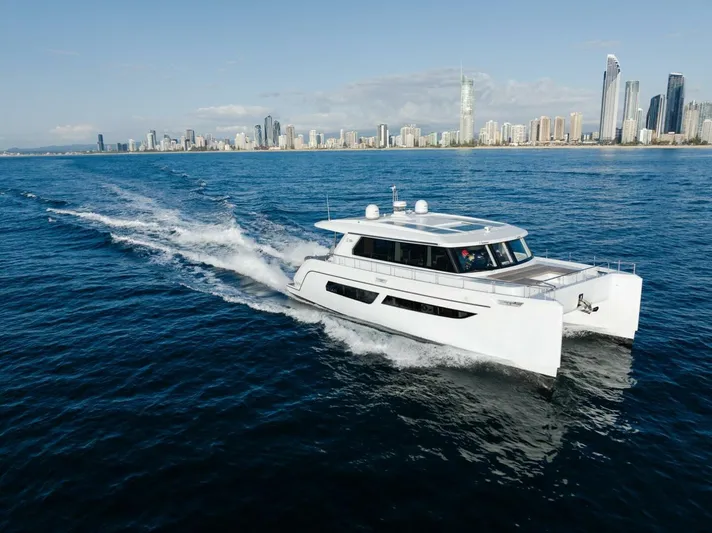

53S ILIAD 2025 Boat for Sale

• Beam: 25' 0''
• Hull Material: Fiberglass
• Max Draft: 4' 0''
• Displacement: 57,320 lb
• Fuel Tank: 1 x 925|gallon
• Fresh Water: 1 x 211|gallon
• Holding: 1 x 66|gallon
• Cabins: 3
• Heads: 3

• Hull bottom and sides in sandwich of GRP and PVC core (density 80-100 kg/m3).

• Main deck and deckhouse in sandwich of GRP and PVC core (density 60 kg/m3).

• Hull lamination all in vinylester resin.

• All other laminates in polyester isophtalic resin.

• Construction of main laminates by infusion.

• GRP stiffeners laminated on PVC formers by hand lay-up directly to the shell laminates.

• DSM gelcoat, white colour.

• Lower deck structural cabin sole in GRP sandwich.

• Watertight and structural bulkheads in in sandwich of GRP and PVC core (density 80 kg/ m3). Partition bulkheads in marine plywood. Bulkheads fastened to shell by lamination.

• Independent fuel tanks in aluminium 5052.

• Independent freshwater tanks in aluminium 5052.

• Grey and black water tanks in aluminium 5052.

• 2 X 440HP Yanmar or Volvo engines.

• Bow thruster (1).

• Onan 13.5 KW generator includes muffler and gas water separator.

• Air conditioning 65,000 BTU Climma CWS (with inverter).

• Engine rooms with access from hatch on main deck.

• ER insulation materials Pyrotek Sorberbarrier.

• Bonding by copper strip 4 x 32 mm.

• 2 x shaft drive gearboxes.

• 2 x shafts in stainless duplex steel. GRP sterntube.

• 2 x rudders in stainless steel 316L.

• 2 x propellers (Cu3), 4 fixed blades.

• Sea Star hydraulic helm.

• Mufflers for main engines and generator.

• 2 x ER air inlets with moisture eliminators.

• 2 x automatic fire-suppression system, Seafire. With heat sensor and alarm.

• 2 x air blowers for ER forced ventilation.

• 4 x fire dampers with remote shut-off. 2 x engine fuel filters.

• Genset fuel filter.

• Fuel transfer pump.

• Fuel hose, Trident 365.

• 8 x bilge pumps throughout the boat, with highwater alarm.

• 1 x 60lts/16gal water heater.

• 2 x freshwater pumps.

• 3 x grey water sump pumps and tank.

• Grey water macerator pump.

• Black water macerator pump.

• 2 x deck wash points (cockpit, bow).

• 2 x ER cameras.

• 1 x docking camera.

• Autopilot, with control head (Raymarine P70).

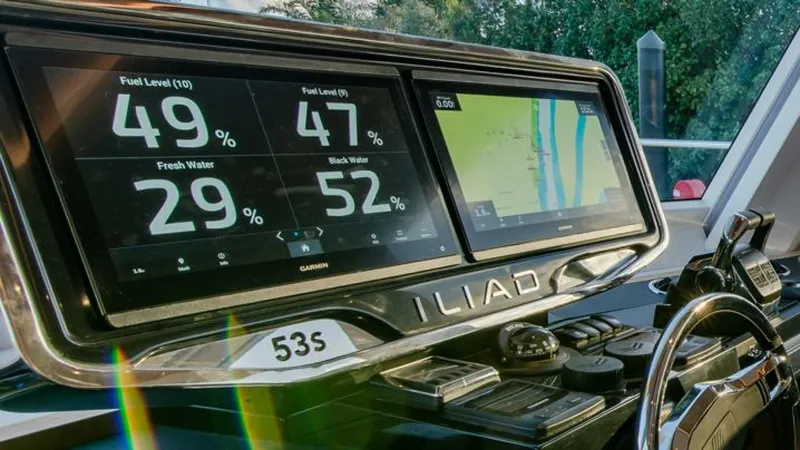

• 2 x multifunctional display Raymarine Axoim Pro 16” (1 x flybridge and 1 x main deck helm).

• Raymarine i70, echo sounder, GPS RS 130, including Raymarine backbone and cables.

• AIS (with antenna) VHF (with antenna).

• Raymarine fish-finder sensor CP 100 + CPT 120.

• Raymarine Radar FLIR Quantum Q24C.

• Chain counter.

• Solar panels 2600w with regulating/charging system.

• Bonded electrical system with ground plate.

• 24VDC, 220/110VAC ship systems.

• 2 x engine AGM gel-type start batteries, 150 Ah.

• 1 x generator AGM gel-type start battery, 150 Ah.

• 24V 600 ah lithium house bank.

• Inverter/Charger Victron Multiplus 24/5000/120.

• Converter Victron Orion 24/12-40.

• Vimar switches.

• Circuit breakers and fuses BEP.

• Quick Spa interior/exterior LED lights.

• Hella Marine navigation and anchor lights.

• Main distribution switchboard panels AC/DC.

• 2 x shore power cord 50A (Marinco).

• 220V/110V sockets (Vimar) throughout.

• Aft cockpit folding-edge table in teak.

• Horn 24V.

• Searchlight with remote dash-mount control.

• TV antenna, Glomex.

• Fenders and mooring lines x 6.

• Primer coat, antifouling (black).

• Propspeed paint to shafts and propellors.

• Hull structural keel.

• Hull portlights Lewmar flush Mitre size 1.

• S/S cap rub-rail on hull side.

• Deck hatches Lewmar Mitre flush hatch size 44.

• Large windshield hatch on main deck.

• S/S mooring cleats 13”, 2 x S/S bollards 15”.

• Vertical windlass Quick, 2000W 24V, with deck switches.

• S/S 316L handrails.

• Cockpit sern gates in stainless steel.

• 2 x hot/cold shower faucets, fitted at port and starboard transom steps.

• Swissway swim ladder with Carina railing telescopic 3 +2 in transom hidden and flush mounted.

• 2 x stainless steel bow pulpits with teak seats.

• All outdoor cushions in Sunbrella fabric.

• All GRP non-skid areas molded into the laminate.

• GRP hard-top with S/S navigation mast.

• Synthetic teak (cockpit, stairs and boarding platform).

• Lewmar anchor (DTX 40kgs/88lbs) with 60m/196ft x 10mm/3’8” short link chain.

• Stainless steel davit lifting system with electric winch (250kgs).

• Cockpit cabinet with storage.

• 37L stainless steel bin in cockpit cabinet.

• Stainless steel electric grill with hatch, in cockpit cabinet.

• Cockpit dining table in teak timber.

• 6 x Aqualuma underwater lights (blue or white).

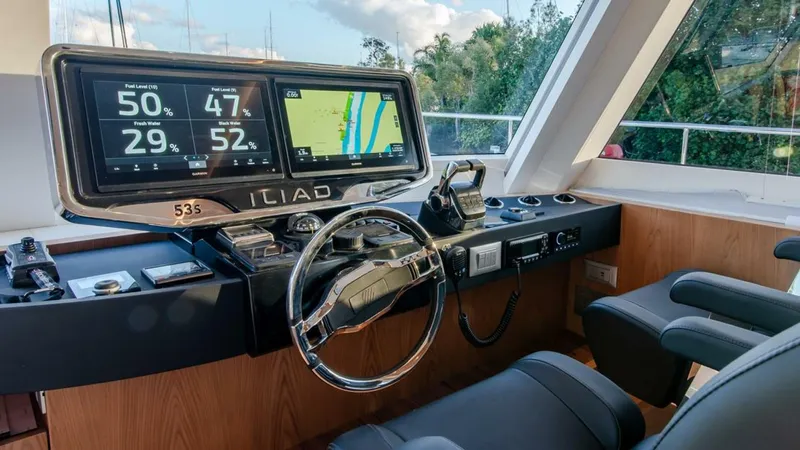

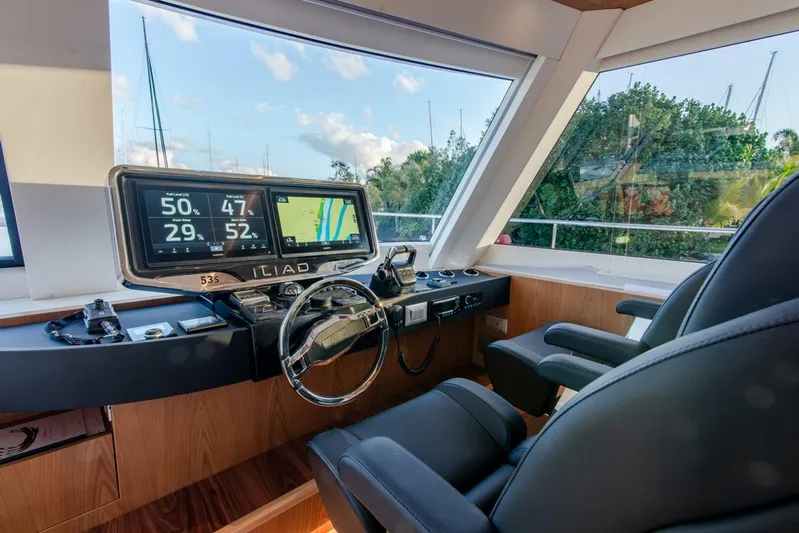

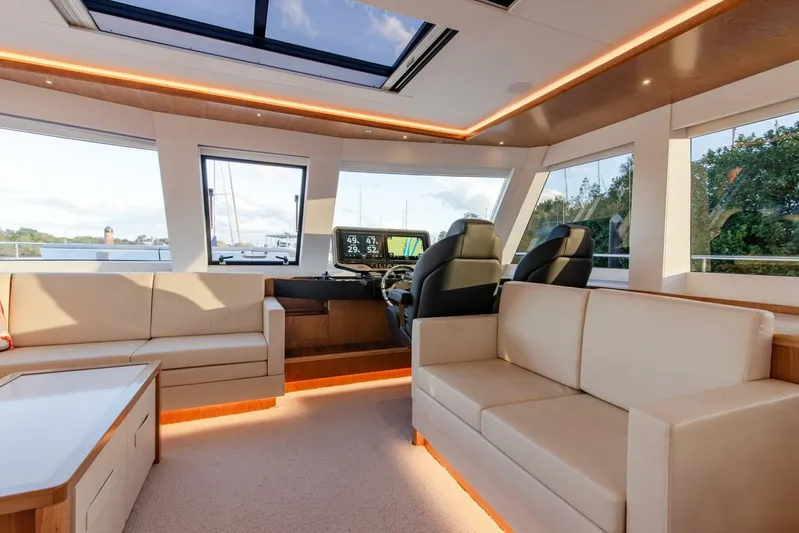

• Main deck helm station with engine instrumentation, windscreen wiper and a double Besenzoni Dragonfly adjustable helm seat (fore and aft adjustment).

• Helm station engine controls and displays.

• Tilt mechanism steering wheel.

• Magnetic compass.

•Side shelf/office desk.

• Windscreen wiper.

• Fusion entertainment system (2 speakers in saloon and cockpit with remote, amplifier and subwoofer.

• TV electric lift in saloon (suitable for 50” TV, not standard).

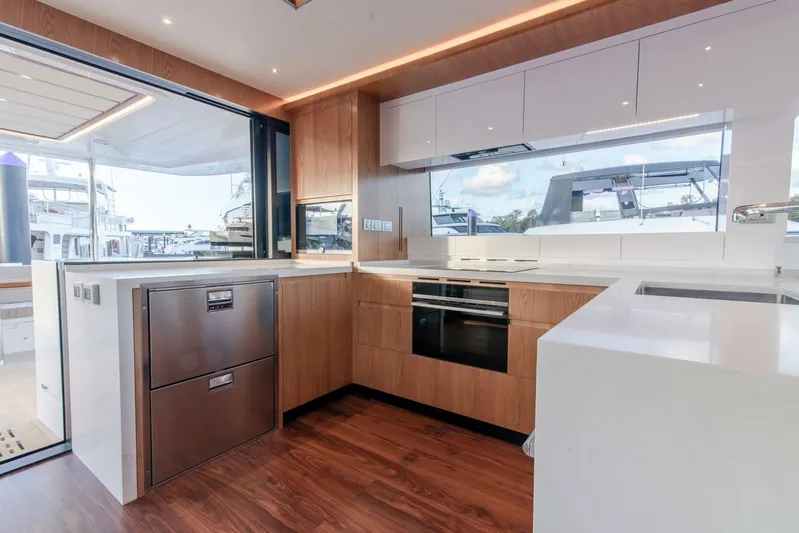

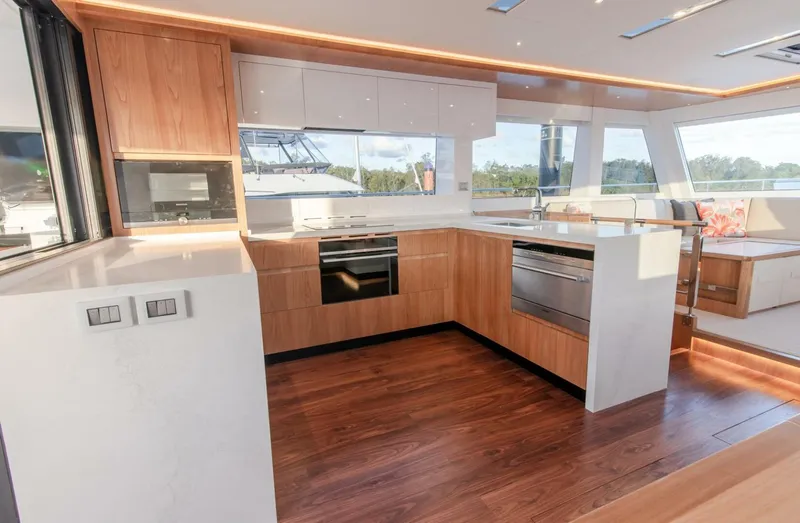

• Fridge-freezer.

• Induction cooktop hob.

• Oven-microwave combination (galley).

• Draw fridge in cockpit.

• S/S 316L interior handrails.

• Solid Surface galley and bathroom countertops (LG HI-MACS).

• BLUM drawer systems and cabinet hinges.

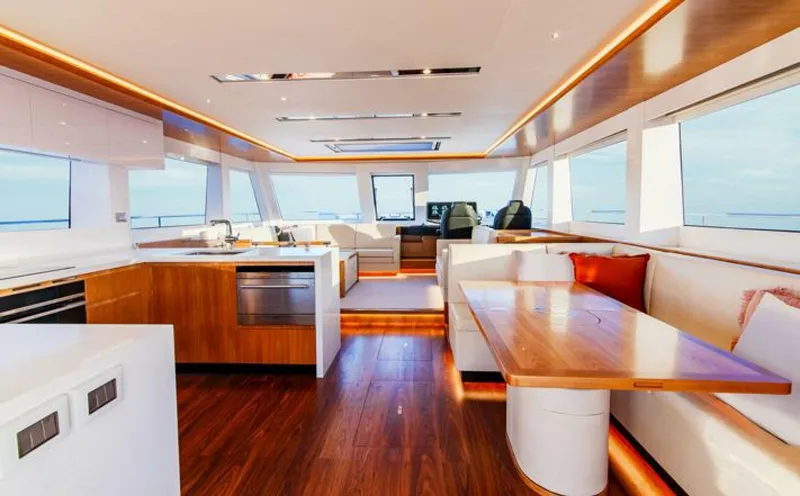

• Parquet laminate flooring on main deck galley/ dinette area.

• Teak flooring in all bathrooms.

• Timber veneer furniture and interior decorations.

•Ceiling and wall panels in synthetic leather fabric.

• Sofas and seats upholstery in synthetic leather (Ultraleather by Ultrafabrics).

• Saloon coffee table with two ottomans.

• Dinette table with two stools. Drawer storage beneath dinette sofa.

• Liquor cabinet fitted into galley counter (if choosing Galley Option A).

• Dark leather at main deck helm station and above TV cabinet.

• Manual blinds on all hull windows.

• Electric blinds on main deck windows (excludes sliding door to cockpit).

• Memory foam mattresses.

• Galley SS sink with water faucet (hot/cold).

• Hood above hob. • Air extraction fans in all bathrooms.

• Planus electric toilets with macerator.

• Ceramic washbasins.

• Bathroom and shower fixtures (Kohler).

• Combination washer/dryer.

• Separate shower stall with teak grating in each bathroom.

• Carpet in lower decks and main deck forward saloon.

• Transport cradles.

• Launching & export formalities.

• Shrink wrapping in preparation for shipping.

• Owner’s Manual.
