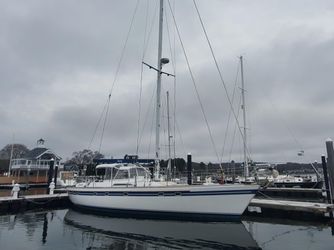

55 Tayana 1984 Boat For Sale

• Beam: 16' 0''
• Hull Material: Fiberglass
• Cabins: 3
• Heads: 3

Gorgeous teak hatch boards welcome you to the main salon.  Steps from the cockpit out you right at the navigation station to port.  This is a VERY spacious main salon with custom solid teak table to starboard behind the nav station.  The table was built larger to fold out to add seating for meals.

To Starboard is the additional settee and 32 inch Samsung salon tv, Sony AM/FM CD Player with 10 disc CD changer which feeds speakers in Main Salon and Cockpit.

The vessel features 3 cabins, 3 heads.  Lee cloths for offshore passages are fitted to berths.

The Starboard Cabin is laid out with lower berth and an upper berth outboard.

The Port Cabin has a double berth and head situated forward. A custom chart storage was built to accommodate paper charts along the inboard bulkhead of the Port Cabin.

Sail locker is forward of this, as well as access in the bow for the anchor locker.

The Galley is along the starboard side passage just aft and a step down from the Main Salon.

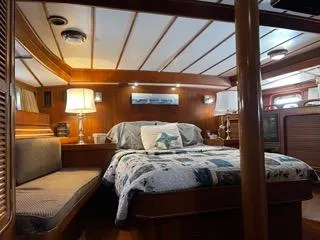

Owner's Stateroom is a gorgeous centerline berth, full beam just aft of the Galley.  It also includes a sea berth/settee to starboard as you enter the stateroom and counter space along the port side.

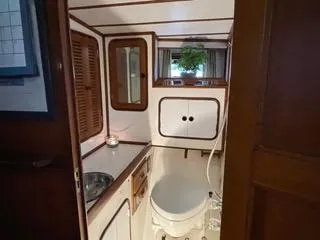

To port forward of the double berth is the ensuite head and shower.

Lockers surrounding the stateroom provide excellent storage for extensive cruising.

The Galley was upgraded in 2011 with granite counters that match the oval table in the salon.  Cold plate storage for food as well as crisper and fresh food storage is abundant.  The owner is a keen operator in keeping his refrigeration and freezer capacity in top shape and has a spare tank of refrigerant aboard for any service.

Fridge-Freezer system - Grunert 115v with holding plates.  Additionally, a complete set of spare holding plates is included with the vessel.   This includes pressure gauges and spare bottle of refrigerant to top up your system.

Fresh water making capability is provided by the Village Marine 400 gallon per day system.

Double sink, bright port lights, stainless counter over the aft galley counter.  The aft end of the Galley Counter houses the freezer below the stainless counter top.  Additional insulation for the cold locker below counter helps improve performance.

• The 8ft.+ cockpit is well protected by a dodger and bimini providing  protection from the sun and elements.
• Bimini is affixed aft to a custom 2" stainless steel roll bar which provides a secure additional hand hold/support.
• Leather covered 36" steering wheel, engine controls and instrumentation with two ICOM VHF command mikes, a Probe forward scanning sonar/depth sounder.
• 36 mile Furuno Radar Plotter in a custom enclosure provide full instrumentation over companionway hatch.
• Cushioned seating on both port and starboard sides completes the cockpit.
• The port seats lift up giving access to the standup engine room below decks.
• Covers for winches.

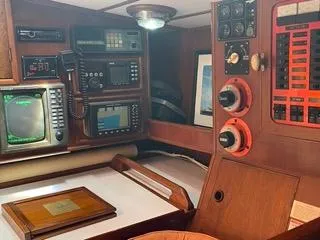

Main Salon Navigation Station

Located on the aft bulkhead of the Port Side Salon. The Nav Desk allows you to access the Main Electrical Panel, Nav Computer, Nav Repeaters, Main Electrical Breakers, and Onan Remote Start Panel, Radios and monitor batteries.  The Nav Station seats you comfortably and has access to the computer under the desk, drawers, and keyboard drawer beneath.

RayNav Multi Repeater display for wind/depth/speed.

Icom M802 SSB radio with Pactor III e-mail modem.

Kenwood 602 Ham Radio.

Simrad color AIS Class B transponder (new late 2022).

Remote 7" display for Furuno Radar/Plotter.

2 Furuno 394 GPS units with remote display in cockpit and 1 Garmin GPS at nav station (Total of 5 GPS units aboard).

2 Amp hour meters for monitoring four banks of T -145 Trojan six volt house batteries .

Icom MA-510TR AIS - (2023).

Remote controller/monitor for Xantrex 2000 watt inverter.  (also has spare inverter/charger) .

Bilge pump switch with counters, High and Low water - Engine room.

Ac & DC panels with breakers.

Built in Dell Computer with 18 inch flat screen display. Comes with 23,000+ C-Map electronic Charts of the world.

Electrical Panel - Orange color denotes AC circuits, Red color denotes DC circuit.

In Cockpit:

Autohelm wind, depth speed and remote GPS display instrument system with remote at nav station below.

Furuno 1834C 36mile color Radar/Plotter mounted in custom lockable aluminum enclosure in cockpit -  centerline over companionway facing aft to the helm.

Probe Forward Scanning Depth Sounder in cockpit.

Two Simrad autopilots with spare hydraulic ram with control heads in cockpit and at nav station.

Icom M601 VHF radio with command mike in cockpit.

Icom M403 VHF radio with command mike in cockpit.

Note- 4 new Raymarine instruments at the helm electronics pod.

Ritchie compass with new glass.  This was rebuilt in 2020 - looks new!

Heavy duty Dacron  by Rolly Tasker Thailand:  120 genoa, staysail and 11oz mainsail with three reef points with Harken Bat car system.  A spare North blast reacher is used for up wind passages.  In addition there are two tri-radial spinnakers: a 1 &3/4 oz  and a 1oz for downwind running.

Note:  Brand new set of Sails since 2021.  Main, Jib, Staysail

Winches: 12 total

Cockpit = 7:

2 Lewmar ST65 Genoa.

2 Lewmar 48ST Secondaries.

2 Lewmar 48ST Main Sheet (new in 2000) and 1 Lewmar 43ST traveler winch.

Mast = 5:

2 Lewmar 43 self-tailers.

2 Lemar 40.

Lemar 40 self-tailing reefing winch.

Running Rigging:   All running rigging is in very good condition.  Running back stays are secured forward when not in use by line controls from the cockpit.

In 2001 the original teak decks were removed and replaced with brand new  5/8 inch teak planking rather than the standard 1/2 inch. The teak is sealed into the fiberglass without the use of screws to prevent leaks.  Current condition is very good.

Sail handling equipment:

• Aluminum spinnaker pole and an aluminum Forespar whisker pole mounted on deck.
• Spinnaker reaching strut is mounted on the stanchions.
• ProFurl Nl52 and a LCI42 and standing rigging were installed during the major refit in 2000-2001 of the Cutter Rig's 2 roller curlers.
• Rigging terminals are Staylock type.
• Split back stay is insulated and serves as the SSB and Ham radio antenna.

Mounted on the aft deck are two large fiberglass/teak deck boxes; the 8 person Avon life raft canister and two igloo ice chests.  All these item have their own Sunbrella covers.  2 deck hatches open.

Two fender boards are secured in stainless steel mounts on the aft starboard stanchions. These mounts are suitable for carrying a surfboard/paddle board as well.

On the aft port side is a radar pole/outboard hoist for the two outboards:

• 2012, 9.9hp Mercury - with hour meter - 50 hrs+ reported.
• 2000 15hp Yahama which are mounted on the stern rail. Less than 30 hrs reported - with hour meter.

On the fore deck is the 10' Westmarine RIB inflatable mounted in its own custom teak cradle. The RIB has a custom 5 gallon aluminum fuel tank in its bow.

Aft Deck Locker - this hatch centerline houses dive tank storage and room for additional storage of lines, etc.

Note - Stern shower on swim step.

Hatches   All eight deck hatches are Guiot cast aluminum with Lexan lenses replaced in 2001.  1 fore hatch opens to the sail locker; 2 hatches open into each forward stateroom; 2 hatches open into the main salon: 2 hatches open into the aft master state room and 1 large hatch opens into the aft lazarette.

Portlights   The hull & cockpit have 17 Guiot portlights which are equipped with one half inch Lexan storm cover lenses in addition to the original lenses producing an exceptional sea worthy watertight system.

The Engine room is accessed from the cockpit ladder.  A small work bench provides space to tackle service.

The dive compressor is outboard.

Stand-up engine room to the port side of the engine.

Service Access - Port side of the engine is serviceable from the engine room. Starboard side is accessed behind the pantry. Forward side access is available from the panels behind the main salon stairs. Aft access is from the Owners stateroom.

Domestic hot water can be heated from the engine, or generator power.

Onan 8kw generator is below the work bench.  This has a new starter and fuel solenoid.  In addition a spare starter and fuel pump is in spares as well.

The Perkins 130 hp engine has been serviced - and documented very well - by the owners.  They have tremendous experience and a deep knowledge of this engine and how to keep it in top shape.  They have literally traveled around the world with their Tayana 55 and the main engine is paramount to keep in top shape.  Their documentation shows this attention to detail and the extensive spares list allows a new owner to learn these parts early on and have on hand if service is needed without hunting manuals for part numbers and sourcing them.  Experience matters: new owners will benefit from this very tangible set of assets included with the yacht.

This is a Direct Drive shaft and propeller with 3 blade MaxProp (Serviced 2021) and Aquadrive for a smooth turn of the shaft.

The genset aboard is an Onan 8Kw unit with sound shield.  Start-up is on the unit itself in the engine room with remote start panel in at the Nav Station outboard behind the ships chart monitor. Main Battery breakers are also located at the Nav Station, as well as Shore to Generator switch.

A Xantrex 2000 Inverter is located at the Nav Station.  Included is a spare 2000 watt inverter/battery charger.

DC System: T-145 deep cycle batteries (8) for 1,000 amp hours in four independent banks.

200 amp hour start battery.

Charging for batteries is shore power, the (2) 120 amp engine alternators, or the Onan 8kw genset.

AC System:  Shore power 110v or the 8kw genset provides power. For international voyages a 3Kva step-down transformer 220V to 110V is located in the aft lazarette for marinas with 220/50 cycle service.

Both AC and DC panels are mounted at the Nav Station. A smaller remote panel to indicator resides in view for the Starting battery condition in the Owner's Stateroom next to the berth

• Full Set of Sails - Main, Job, Staysail (2023).
• Rocha Anchor - Galvanized 73 lb.
• 3.5-gal Alum Fuel Tank under dingy seat (2023).
• Fuel filter in dingy to engine.
• New Bimini (2021)and Dodger (2022)- with windshield covers.
• Onan generator service 2024.
• New Fuel Solenoid in 2024 - with spare.
• Icom 510 AIS in 2022 integrated with Chart Plotter and computer displays.
• Deck Paint in 2020- shows very well.
