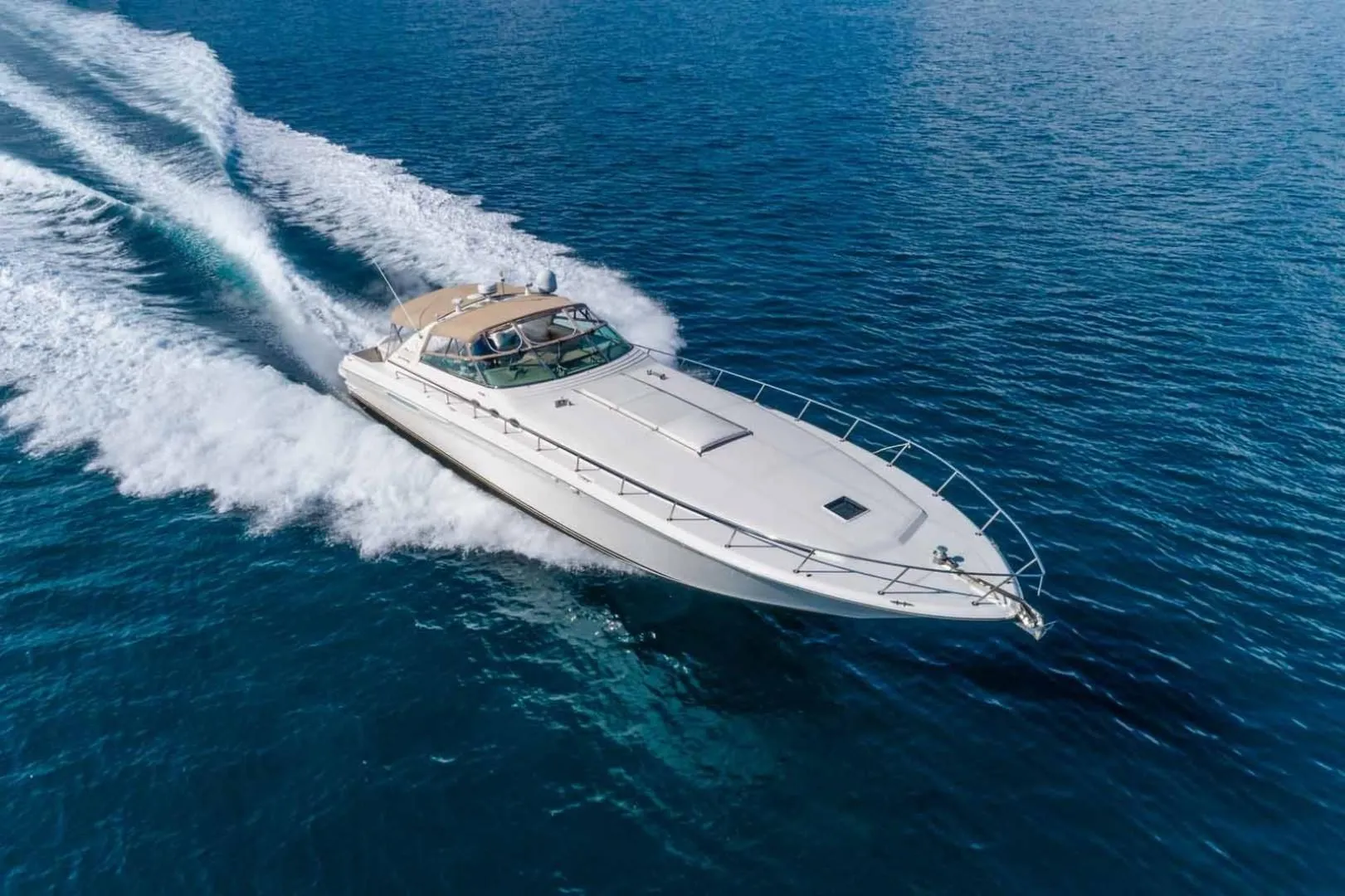

63 Sea Ray 1993 Yacht for Sale

• Beam: 15' 10''
• Hull Material: Fiberglass
• Max Draft: 5' 0''
• Fuel Tank: 1 x 800|gallon
• Fresh Water: 1 x 200|gallon
• Holding: 1 x 70|gallon
• Heads: 2

Sea Ray 630 Super Sun Sport Specifications – Mfr. Original 1993 Standard Equipment List

Hull and Deck

• 316 stainless steel deck rails
• 316 stainless steel high-profile bow rail
• 4-bolt stainless steel cleats (10)
• Boot stripes
• Bottom paint with epoxy primer
• Fiberglass diamond plate flooring in bilge
• Fiberglass swim platform with stainless steel ladder
• Foam-filled under-floor areas
• Gelcoat (Arctic white)
• Gelcoated bilge area
• High-performance vinylester resin
• Insulated engine compartment
• Integral swim platform
• Meets applicable USCG and ABYC standards –
• Navigation lights
• NMMA certification
• PVC rub rail with stainless steel insert
• Rod holders (2)
• Stainless steel deck fill plates
• Stainless steel deck runners
• Stainless steel hull and deck portlights
• Translucent deck hatch with locks and sky screen cover
• Windlass
• Deck anchor hatch with freshwater washdown and hose
• Lofrans Albatross (chain) with foot switches
• Stainless steel anchor chute with stainless steel plow anchor

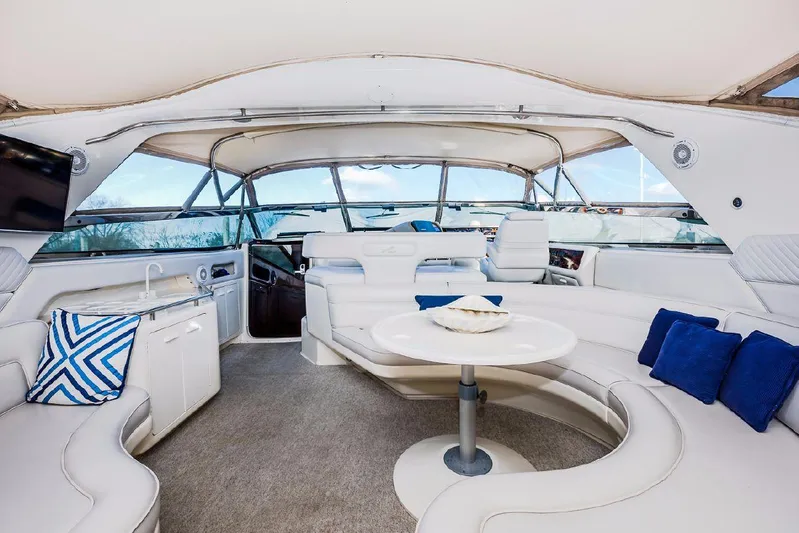

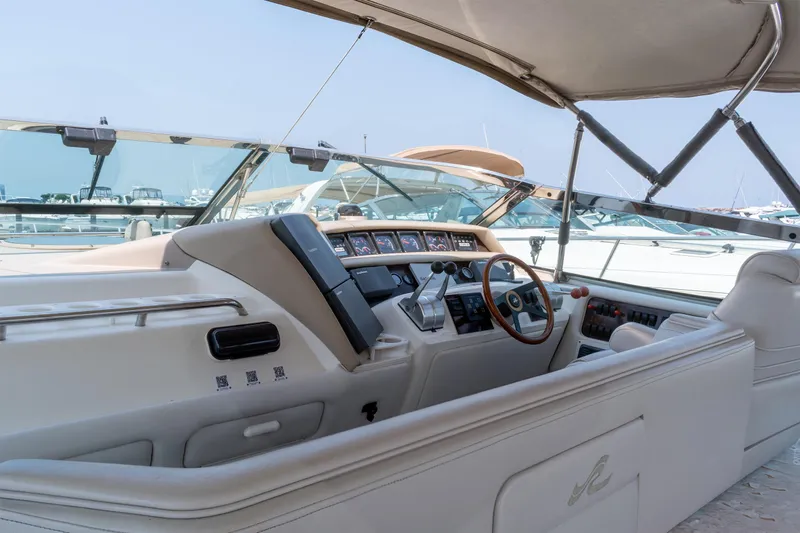

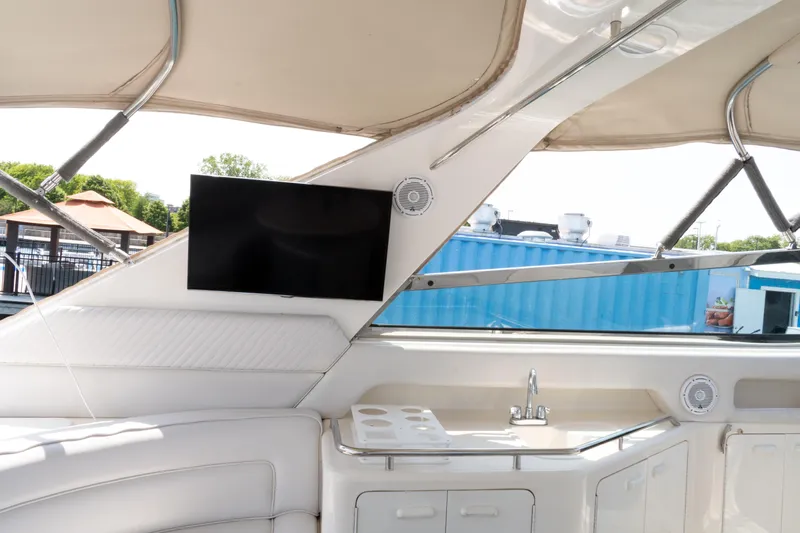

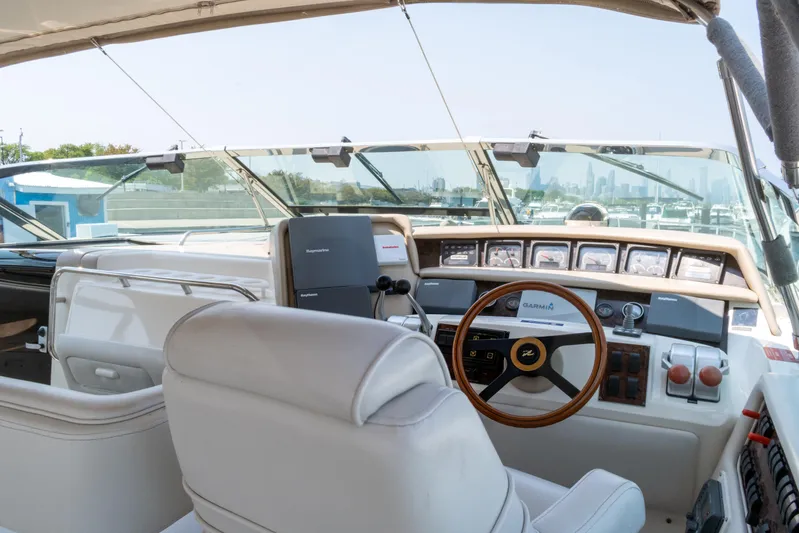

Cockpit

• Burl instrument pane
• Circular cockpit seating with storage
• Circular raised deluxe sun pad with headrest

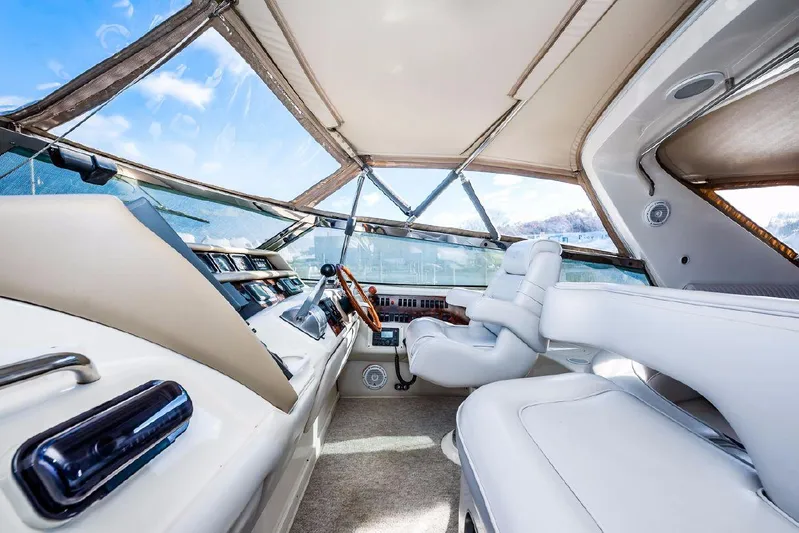

• Custom slide and swivel helm seat with flip-up thigh-rise bolster and companion bench seat
• Fiberglass sport spoiler with stainless steel grab rails and overhead lighting
• High-low fiberglass cockpit table
• Indirect cockpit lighting
• Molded deck access steps
• Molded fiberglass entertainment center with wet bar and storage cabinet
• Self-bailing fiberglass cockpit with bilge service hatches and stainless-steel bilge ladder
• Snap-in carpet liner
• Snap-in cockpit carpet
• Transom doors (2)
• Two aft-facing wrap-around lounge seats with storage and access to fuel transfer valves
• Wood-accent steering wheel
• Clarion AM-FM digital cassette stereo with 6-disc CD changer, subwoofer, amplifier, 4 speakers and cockpit remote control
• Icemaker
• Refrigerator

Forward Accessory Room

• Flush cockpit hatches
• 12 - 24V DC distribution panel
• Battery switches
• Water system components

Crew Quarters (aft under transom, access via cockpit sunpad)

• 12V Clarion AM-FM compact disc player with 2 speakers
• 120V outlets
• 24V - 120V lighting
• 240V air conditioning and heating (7,000 BTU)
• Beam system with hose and accessories
• Full-length mirror
• Head, shower, power vent and shower sump (24V)
• Twin berths
• Color TV / VCR / Radio with antenna (120V - 60 cycle) or (220V - 50 cycle)

Crew Cabin

• 120V outlets (GFI protected)
• 24V - 120V directional lighting with dimmers
• 24V indirect lighting with dimmer
• Acrylic cabin door
• Acrylic handrails
• Corian countertops (Aurora or Sandstone)
• Custom curtains
• Deep-pile stain-resistant floor carpeting with padding
• Floor storage
• Interior Sunbrella carpet runners
• Stacking washer and dryer (120V - 60 cycle) or (220V - 50 cycle)
• Throw pillows

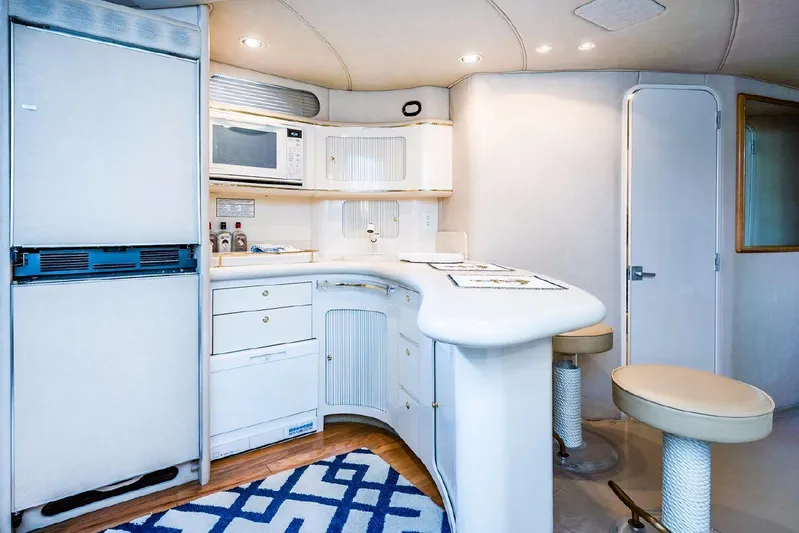

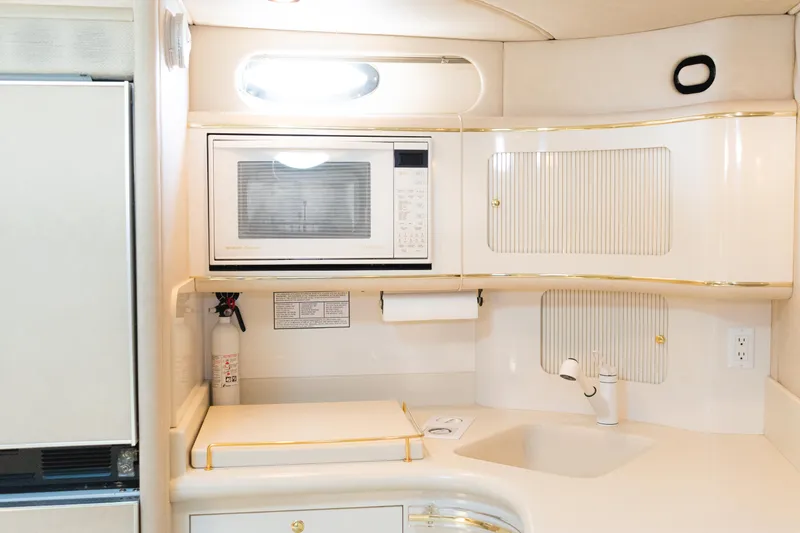

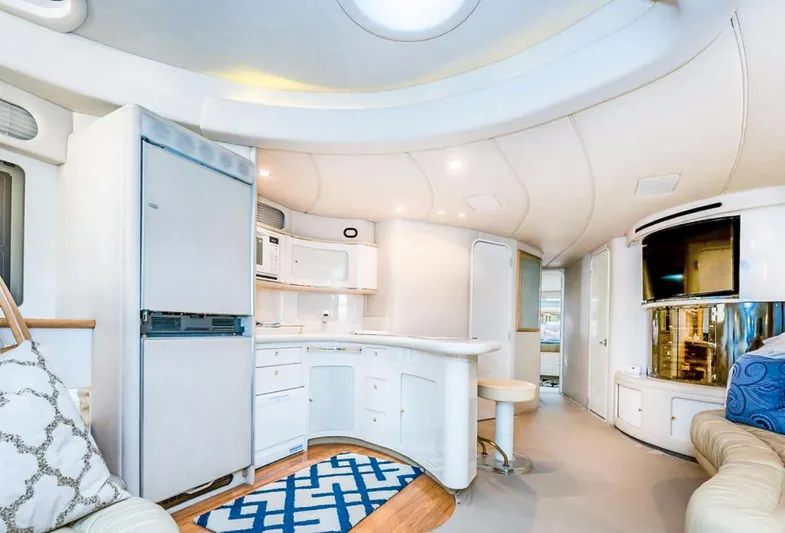

Galley

• 120V microwave/convection oven
• 120V Sub Zero refrigerator and freezer with ice maker
• 240V custom four-burner electric stove
• Bar stools (2)
• Breakfast bar
• Custom Corian countertop with Corian sink and single-lever Grohe faucet
• Galley storage drawers
• Glass and dish storage racks
• Power vent
• Stainless steel stove rail
• Wood floor
• Galley convenience package (120V - 60 cycle) or (220V - 50 cycle) includes Spacemaker coffee maker and trash compactor

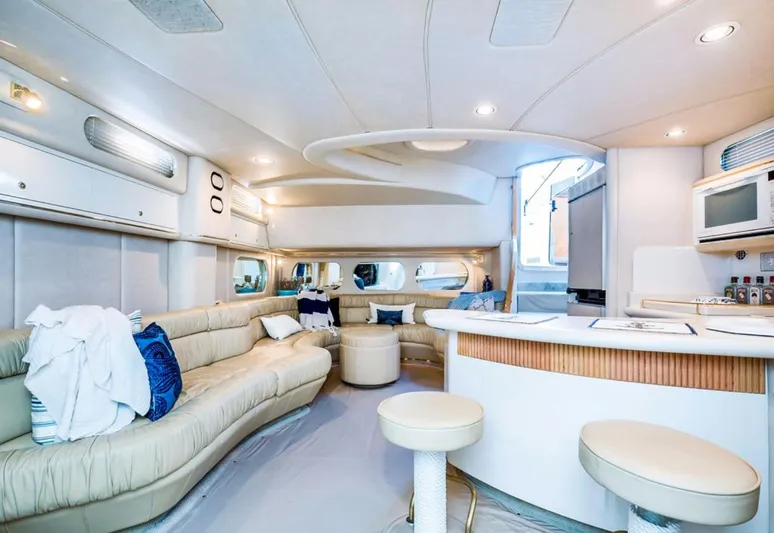

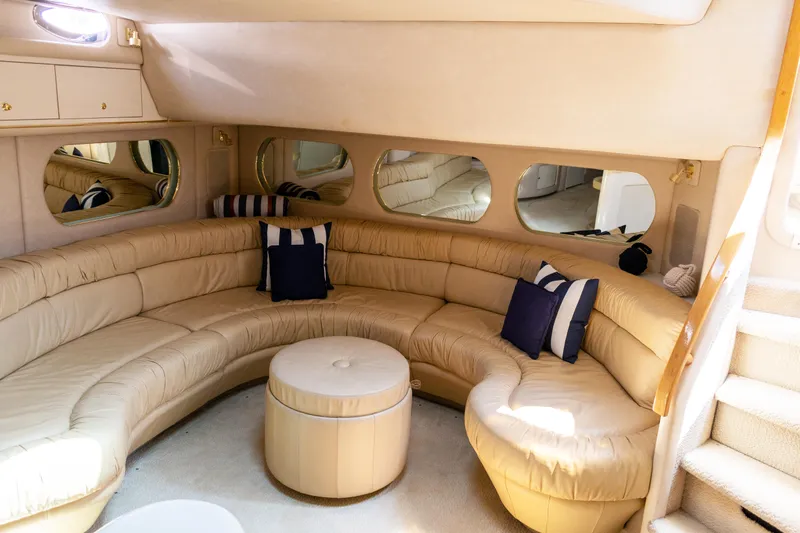

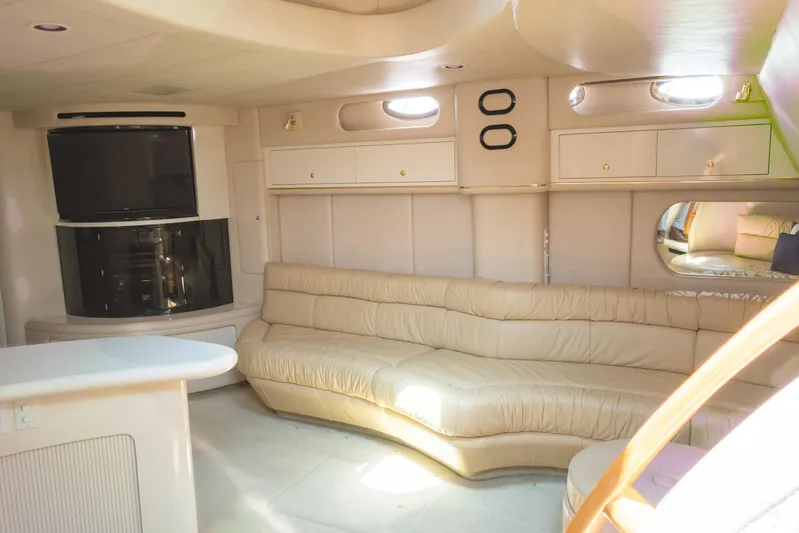

Salon

• Accent mirrors with indirect lighting
• Built-in storage
• High-low dining table
• Leather sofa with electrically operated slide-out bed
• Skylight
• Throw pillows
• Antenna and TV coaxial cable to dockside
• Bose Lifestyle 20 Stereo with Jewel Cube Speakers (2) and LS Bass Module
• Color television
• Television cord with inlet
• VCR with remote

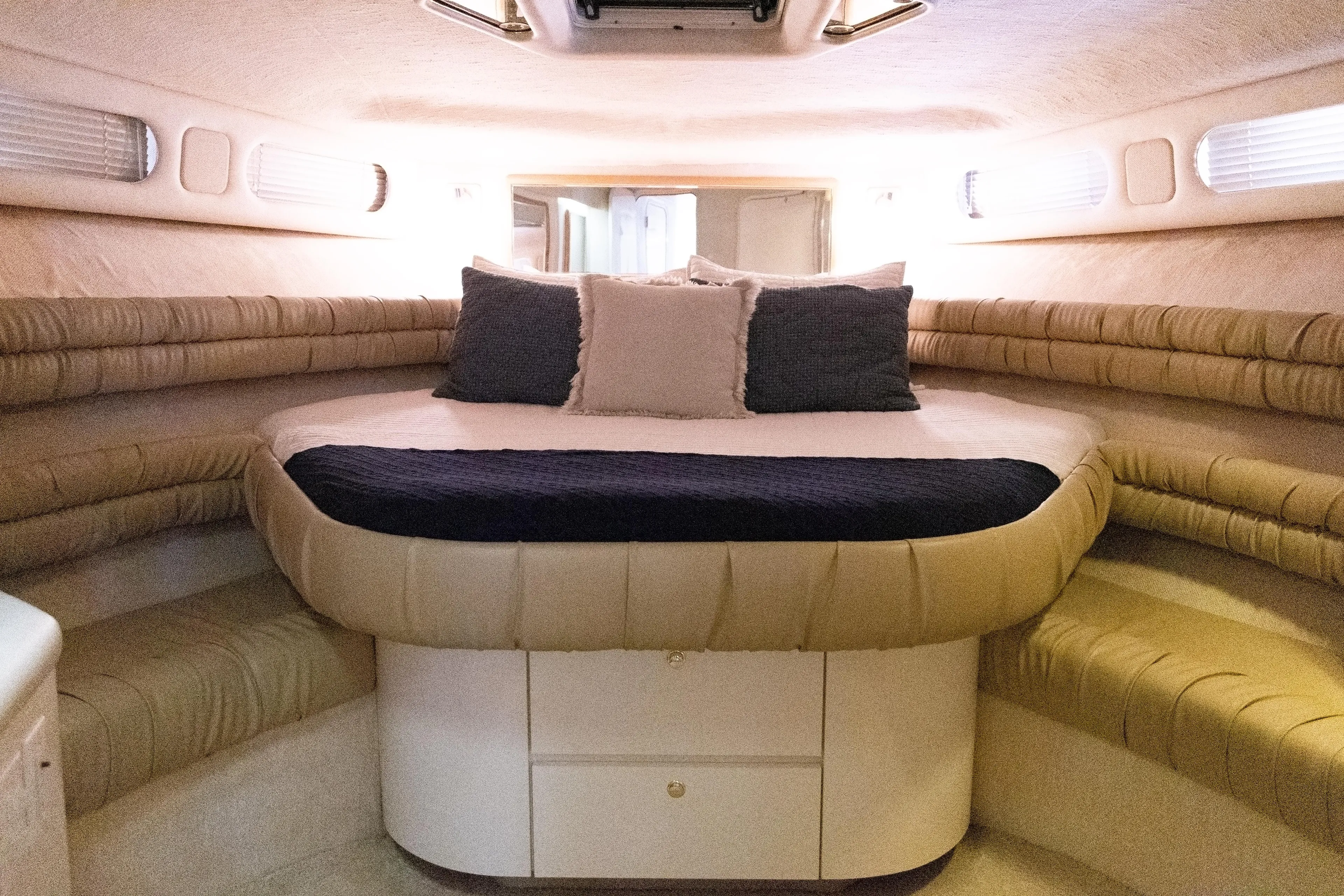

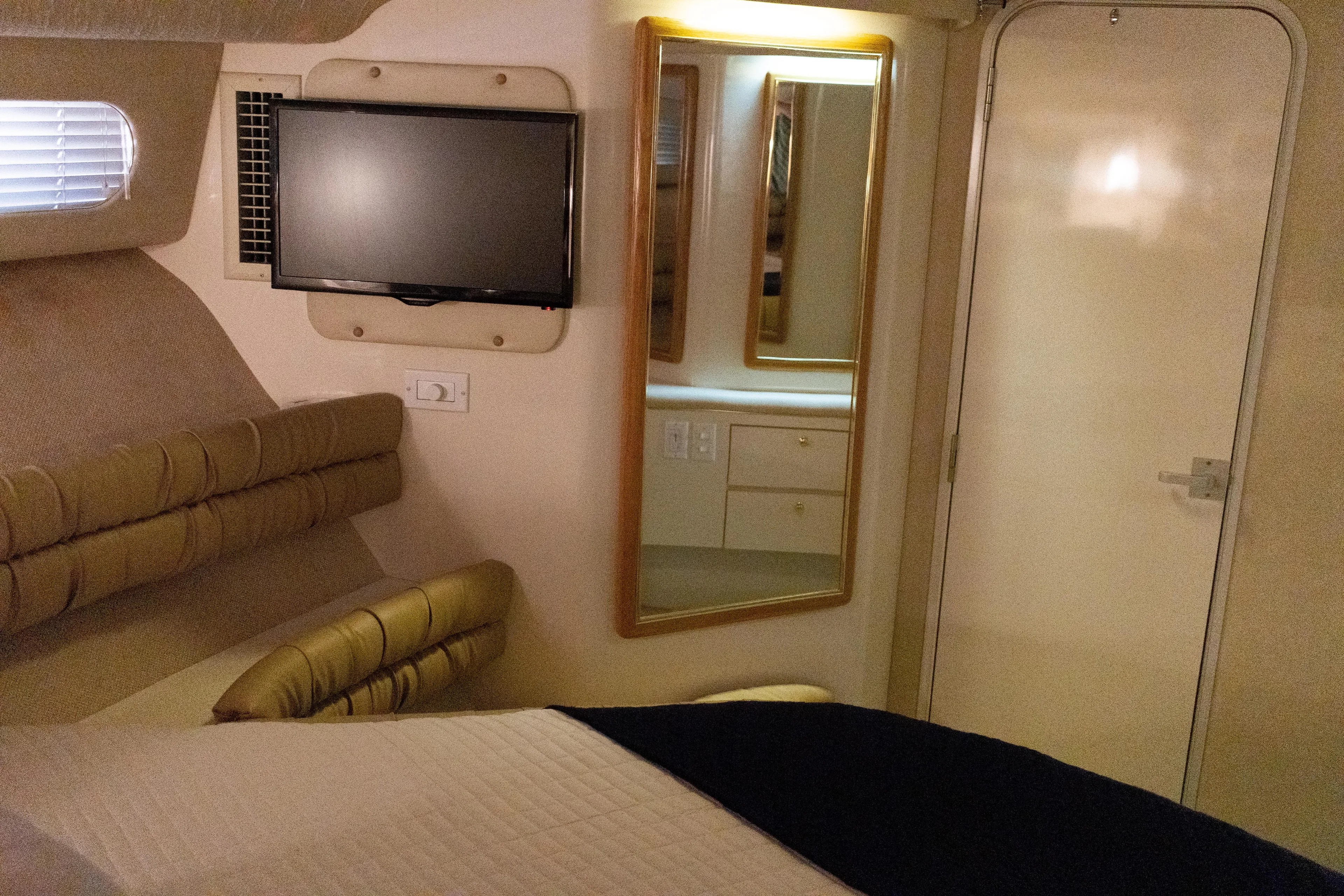

Master Stateroom

• Cedar-lined hanging lockers with lights and mirrored doors (2)
• Floor storage
• Queen-size bed with inner-spring mattress, pillows, sheets and spread
• Vanity with mirrors and built-in seating
• Bose Acoustimass with 3 speakers and remote control
• Color TV / VCR / radio combination with antenna

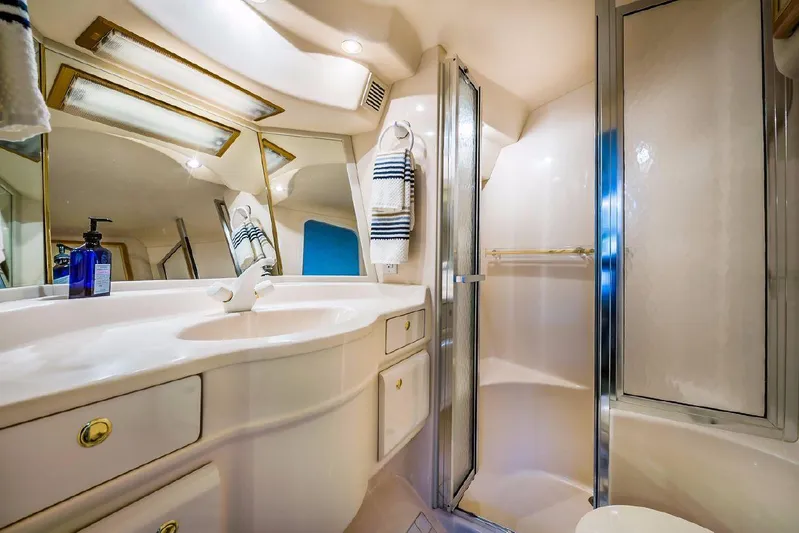

Master Head

• Acrylic accessories
• Acrylic handrails
• Cultured marble floor
• Grohe faucet
• Medicine cabinet with mirror
• Molded vanity with porcelain sink, mirrors and storage below
• Privacy door
• Shower with seat, adjustable shower wand and bifold door
• VacuFlush head

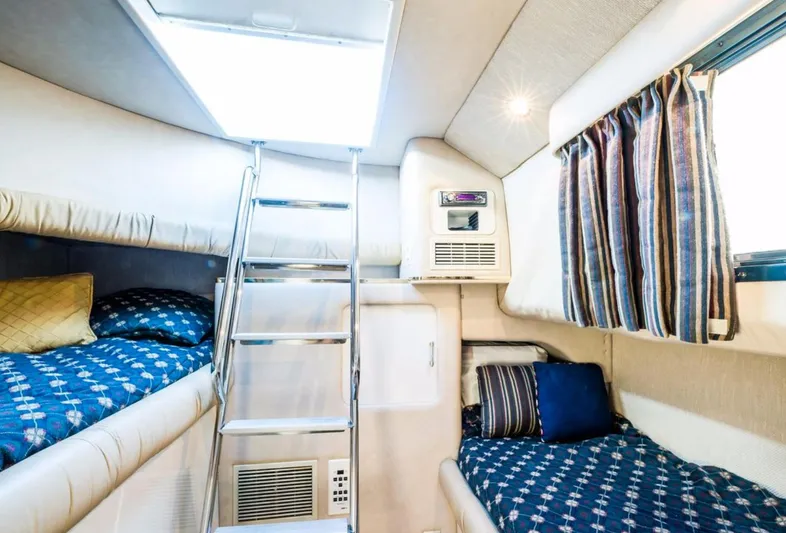

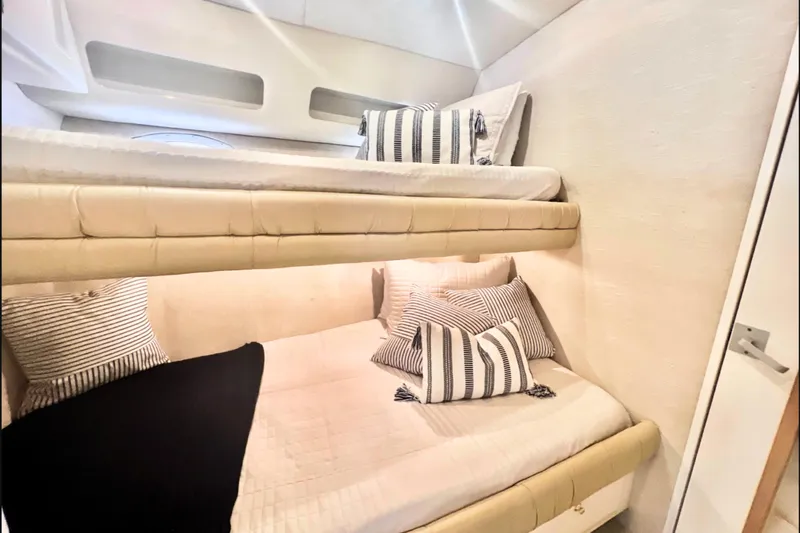

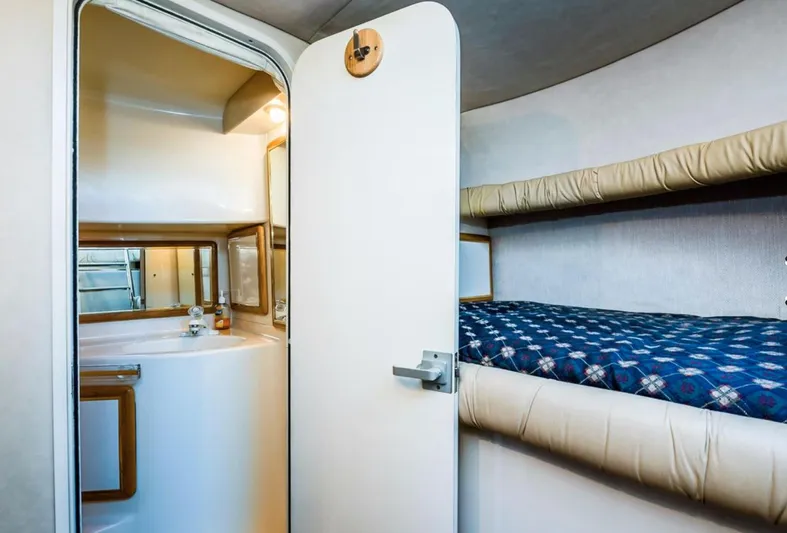

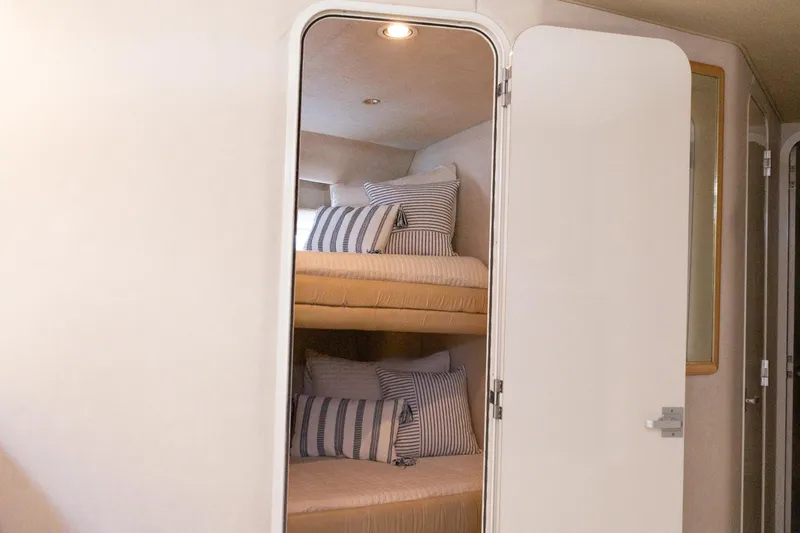

Starboard Guest Stateroom

• Cedar-lined hanging locker with light
• Drawers under bunk
• Portlights
• TV / VCR combo
• Upper and lower bunks with pillows, sheets and coordinated spread

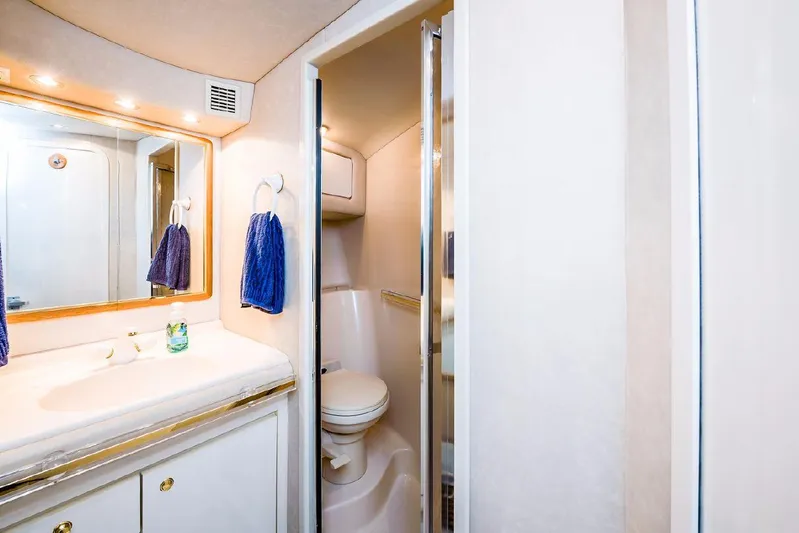

Port Guest Head

• Acrylic accessories
• Cultured marble floor
• Full-length mirror
• Grohe faucet
• Medicine cabinet with mirror
• Molded vanity with sink and storage
• Privacy door
• Shower with adjustable shower wand
• VacuFlush head

Windshield and Canvas

• Aft sunshade
• Stainless steel tri-section tinted glass windshield with electric front vent
• Sunbrella Bimini top with vertical top storage
• Windshield wipers with stainless steel washer system
• Aft curtain
• Canvas storage bag
• Front curtains
• Side curtains
• Windshield shades

Technical

• 120V - 240V transient voltage surge protection
• 120V / 20 amp / 12V converter
• 120V / 40 amp / 240V - 24V converter (2)
• 18-gallon 240V water heater
• 24V air horn with accumulator tank
• 24V automatic bilge pumps (2 aft, 1 forward)
• 24V bilge lights
• 24V electric bilge blowers (4) Delta T
• 24V high water bilge alarms and pumps (1 aft, 1 bilge and 1 forward)
• 24V power vents (3) - heads and galley
• 24V shower - condensate sump pump
• Dockside power with 50-foot cords
• 240V pressure water system with 24V ShurFlo pump (back-up)
• 50 amp / 12V electronics circuit with large ground plate
• 70 gallon fiberglass holding tank with macerator pump-out
• 8D batteries (4) for generator
• Aeroquipt A-1 fuel lines
• Backlit switch panel with weatherproof rocker switches, switchable circuit, remote circuit breaker panels and variable dimmer control
• Bilge freshwater hose and spigot
• Color-coded wiring with chafe protection
• Compass (large)
• Digital LCD systems monitor for engine diagnostics and pump monitoring
• Dual hydraulic gear shift and throttle engine controls
• Emergency start system for engines
• Engine drip sumps
• Emergency engine stop
• Fiberglass integral fuel tanks (2) with fuel system priming pump and electric sending units
• Freshwater washdown and dockside inlet with cockpit shower (hot and cold)
• Galvanic isolators (2)
• Glendinning cablemasters (2) with remote
• Halon system with diesel shutdown and override
• Hourmeters (2 in forward accessory room)
• Hydraulic power steering
• Macerator with seacock interlock system
• Main DC breaker panel
• Power Pac exhaust / lift system mufflers
• Racor fuel filters (3) with condition gauges
• Ship's bell
• Synchronizer
• Trolling valves
• VacuFlush head system with dockside pump-out
• Water tanks (100 gallons each) (2)
• Generator
• Remote start with muffler, freshwater cooling, fuel filter, seacock and seawater strainer
• 20.0 kW Westerbeke diesel with Soft Sound Box (240V - 60 cycle)
• Air conditioning and heating is 240V reverse cycle (40,000 BTU)
• Raytheon electronics package includes GPS
• Loran NAV398 with 112 GPS sensor and Raydata multifunction instrument with depth finder, speed and sumlog, water temperature
• VHF radio is 220 with remote speaker and 8-foot antenna

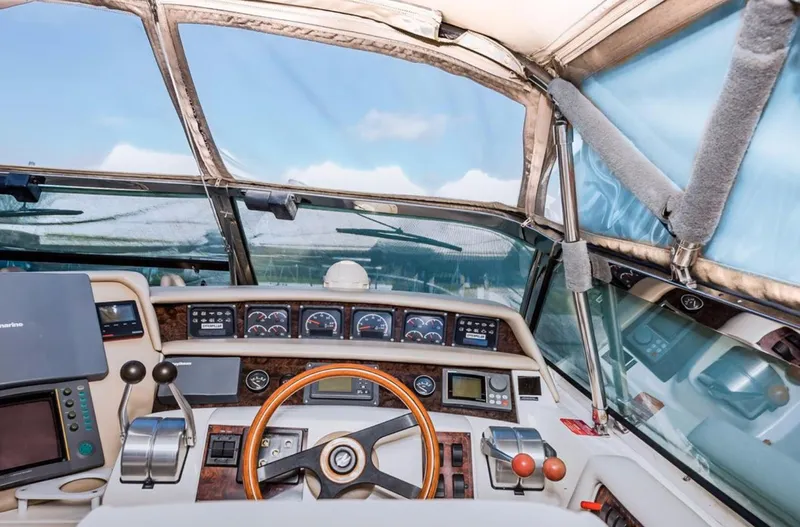

• Gauges with backlighting include fuel gauge (2), gear temperature gauge (2), oil pressure gauge (2), tachometer (2), voltmeter (2), water temperature gauge (2)

Accessory Package

• (120V - 60 cycle) or (220V - 50 cycle)
• Beam dual outlet
• C-phone with cell phone interface / antenna
• Cable television inlet
• Dual ACR spotlight (24V with single control)
• Oil changer system
• Telephones with inlet and cord (2)

Bilge Accessory Package

• Bilge ventilation system (Delta T)
• Cord reel light
• Fan
• Fire extinguishers - bilge, lazarette
• Storage racks

Underwater Gear

• 2-1/2” stainless steel propeller shaft (Aquamet 22) (2)
• 24V hydraulic trim tabs - transom mounted
• Heavy-duty dual rams with dual pumps
• Bonding system with large zinc hull plate
• Dripless shaft logs with extra seal carrier kit
• Manganese-bronze hardware
• Manganese-bronze rudders and struts
• Nibral 4-blade cup propellers
• Seacocks on all underwater fittings
• Seawater strainers

Sea Ray 630 Super Sun Sport Optional Equipment

• Generator - (220V - 50 cycle)
• 16.0 kW Westerbeke diesel with Soft Sound Box

Miscellaneous

• Air conditioning for cockpit is 24,000 BTU (2-ton)
• Options with Raytheon electronics package include autopilot (Raypilot 650) and radar (R41XX with 620XX Chart Plotter)
• Custom sculptured salon carpet inlay with clear vinyl runners
• Textured Saguaro interior carpet
• Additional 120V outlet
• Additional 220V outlet (50 cycle)
• Bow thruster
• Clear carpet runners
• Colored Sunbrella canvas in lieu of Oyster
• Desalinator (400 gpd)
• Dinette in lieu of guest stateroom
• Dinette sleeper conversion with curtain, filler cushions, sheets and pillows
• DSS satellite TV system
• Forward deck sun pad with storage bag
• Hydraulic marine lift swim platform with remote and manual pump
• Spare propellers with holders
• Spare shaft installed
• Tile head floors
• Transom davit
• Veneer wood package (cherry or bird's-eye maple)
• Water filtration system for galley

Safety Package

• 5/8” x 40-foot dock lines (6)
• Boat hook
• Fenders (4)
• Fire extinguishers (3)
• First aid kit
• Flag pole with flag
• Flare kit
• Life jackets (8)
• Ring buoy (20-inch).

At first glance, it might appear that the Sea Ray 630 Super Sun Sport was custom crafted with its unsurpassed styling, upgraded power plant, the very latest navigational technology, and incredibly durable construction. In fact, this kind of quality is part of Sea Ray's meticulous production process, which means all the benefits of owning a custom yacht at significant savings. The cabin on the 630 Super Sun Sport is lavish in its appointments--deep-pile, stain-resistant carpet and custom curtains throughout, concealed floor storage, and granite-look Corian countertops. Two elegant staterooms greet guests with first-rate sleeping quarters, including private head and shower areas with cultured marble floors, as well as TV/VCR combinations. The master stateroom also features a sound system with three Bose Acoustimass speakers with remote control. Even the crew quarters offer accommodations complete with air conditioning, twin berths, private head and shower, Beam vacuum system, and a Clarion AM-FM compact disc player with two speakers.

The highlight of the salon is an enormous leather sofa that's not only great for lounging, it also has an electrically operated slide-out bed for extra sleeping space. Guests can enjoy the entertainment center with TV, VCR and Bose Lifestyle 20 stereo system. When it's mealtime, plenty of seating is available around the high-low dining table, as well as at the galley breakfast bar. If a more spacious arrangement is preferred, an optional dinette can be added in lieu of the guest stateroom. Of course, the galley has everything imaginable from a coffee maker and trash compactor to a Sub Zero refrigerator and freezer with ice maker. The entire cabin receives warm natural light through a well-proportioned skylight, and the whole environment is climate-controlled by a 40,000 BTU reverse cycle heating and air conditioning system.

With its single-level design, the large 27-foot cockpit on the 630 Super Sun Sport is impeccably styled with a fiberglass sport spoiler that not only looks good but offers plenty of room for mounting electronics. There's spacious circular seating with wrap-around aft-facing guest seats, a circular raised deluxe sunpad with headrest, and an entertainment center with a refrigerator, ice maker and Clarion AM-FM digital cassette stereo with six-disc CD changer, subwoofer, amplifier, four speakers, and remote control. The custom tri-section stainless steel tinted glass windshield has a power vent for improved ventilation and a complete canvas package that assures everyone's comfort while underway. The helm features a custom slide/swivel seat with Euro-styled companion bench seat and an impressive wood-accent console that puts all the latest controls easily within reach--like Raytheon electronics, a comprehensive digital LCD systems monitor, and much more.

Sea Ray also offers an accessory package that includes an oil changer system, cable TV inlet and c-phone intercom system with cell phone capability. A boat of this magnitude demands an engine system worthy of the challenges presented by big water cruising. Sea Ray answers with twin 1212 horsepower CAT3412TA Caterpillars with Power Pac exhaust lift system mufflers.

A generous list of standard equipment further enhances the 630 Super Sun Sport's performance: hydraulic power steering, engine synchronizer, 20.0 kW Westerbeke diesel remote start generator, dripless shaft logs with spare shaft seal carrier kit and more.
