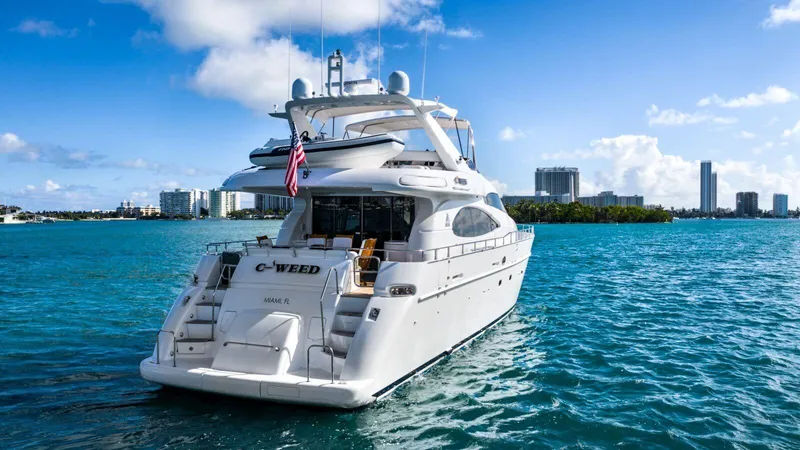

70 Azimut 2001 Yacht for Sale

• Cruising Speed: 18 kn
• Maximum Speed: 26 kn
• Beam: 18' 3''
• Hull Material: Fiberglass
• Max Draft: 5' 0''
• Fuel Tank: 2 x 1190|gallon
• Fresh Water: 1 x 400|gallon
• Cabins: 4
• Heads: 4

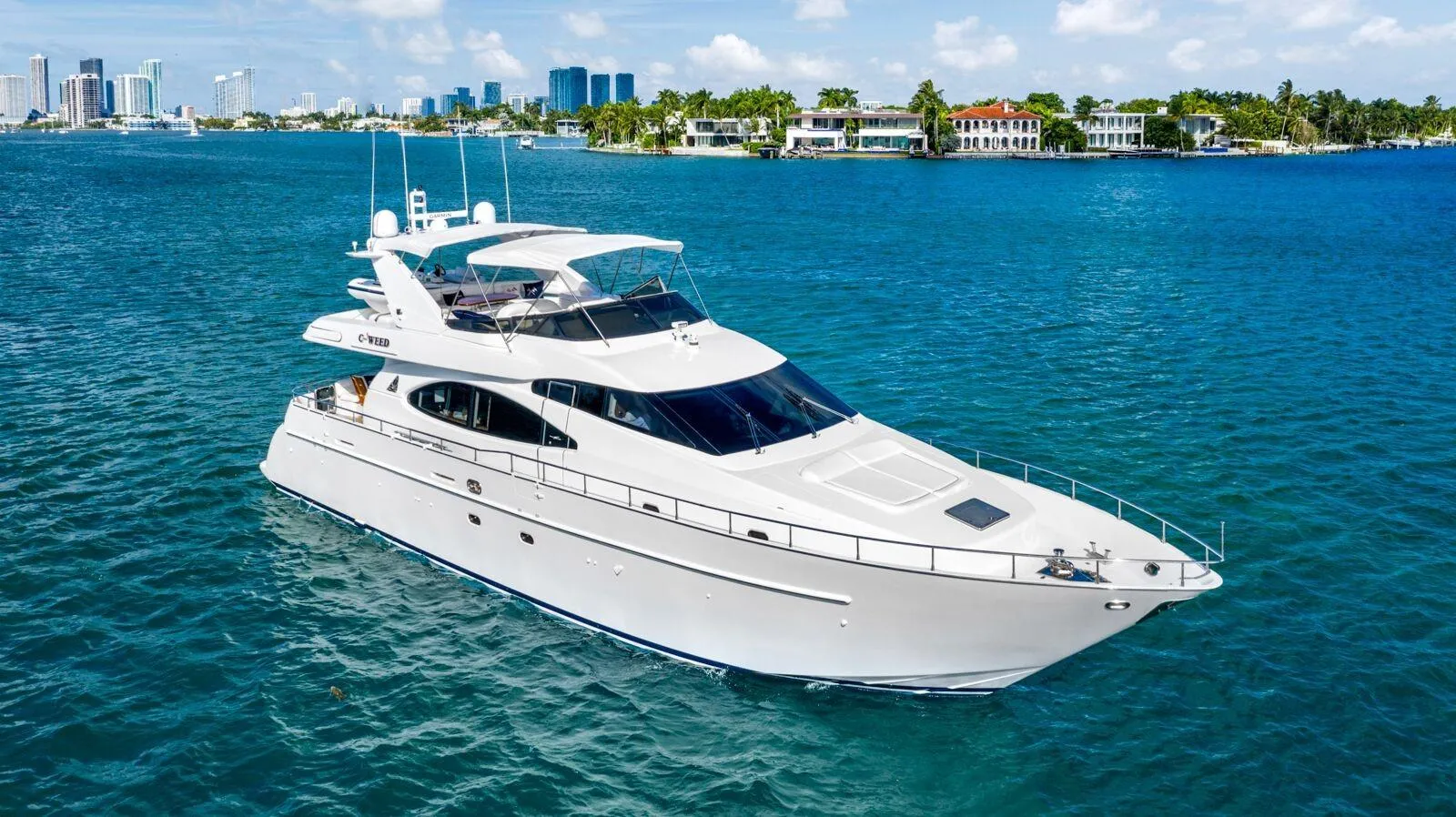

Delivered in 2001, the 70' Azimut motor yacht has fiberglass hull and superstructure.

General

Length Overall (L.O.A.): 70.00 feet (21.34 meters)

Length at Waterline (L.W.L.): 63.00 feet (19.20 meters)

Beam (molded): 18.03 feet ( 5.56 meters)

Draft (loaded): 5.00 feet ( 1.52 meters)

Tonnage: 85 gross

Capacities

Fuel Capacity: 1,190 US Gallons (4,505 liters)

Water Capacity: 400 US Gallons (1,514 liters)

Watermakers: 600 US Gallons/day (2,271 liters)

Speed Consumption per hours Range RPM

Maximum: 26. 0 knots 85 US Gallons 350 nm 2,300

Cruising: 18.0 knots 70 US Gallons 475 nm 1,900

Economical: 12.0 knots 35 US Gallons 800 nm 1,200

Main Engines

Engine Type: • (2) MTU 12V 183TE93 @ 1,150 Hp each (300 hours) SMOA 2018

Gearboxes for Main Engines: • ZF 2:1

Drive: • Straight

Generators & Electricity

Output: • 60Hz – 110 volts

Generators: • (2) Kohler 21kW generators @ 1,150 rpm each (model EKOZEDD new 2018)

Generator Fuel Consumption: • 1 gallon per hour

Shore Power: • 60Hz - 110/220 volts

Batteries: • 2 x D4 house charged

Air Conditioning

Type: • Cruisair system 88,000 BTU (5 zone air conditioning system)

Other Machinery

Watermakers: • 600 US Gallons/day

Trim Tabs/Stabilizers: • Wesmar DSP 500

Bow Thruster: • Vetus 10 HP

Steering System: • New 2020 Hyrdraulic

Fuel Separator & Filtration: • Dual Racor 2020

Sewage System: • Complete new toilet system with 4 new heads and all new hoses replaced

Fresh Water System: • 110 volt/24 volt pumps

Bilge Water Filtration: • 24 volt pumps

Communication Systems

SATcom: • KVH

VHF: • Icom M400BB Black Box Com B

Intercom: • Non-operational

Navigation Systems

Radar: • Garmin GMR Fantom 54 with 4’ array Radar

Magnetic Compass: • Ritchie

Auto Pilot: • Garmin GHP Reactor Solenoid AP

Depth Sounder: • Garmin GSD 24 Sounder FF

GPS: • (2) Garmin GPSMap 8616 16’ display

(2) Garmin GPSMap 8612 12’ display

Garmin GPSMap 742ks Navigation

Wind/Speed Log: • Garmin GXM53 Sirius/Weather Navsys ACC

Entertainment System

Video Equipment

TV’s: • 40” in Salon

20” in Master

15” in VIP

Audio Equipment

Stereo’s: • Surround sound system in salon and flybridge

Main Galley Equipment

Cooking Equipment: • 4 burner Teka range, Samsung convection oven

Refrigeration/Freezer: • 2018 Liebherr

Dishwasher: • 2018 KitchenAid Professional

Laundry Equipment

Main Laundry Equipment: • GE Washer and dryer

Tenders: • 2019 AB Rotax 330

Other: • 2018 Sea-Doo Spark

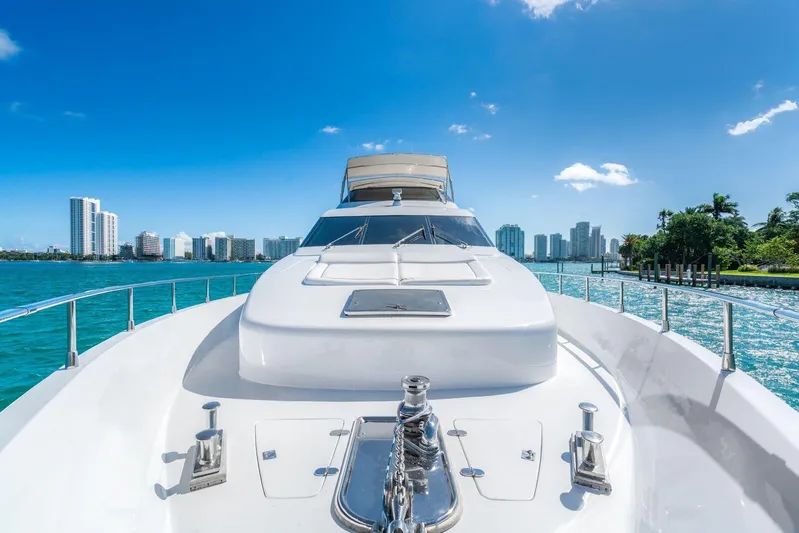

Anchor Windlass System: • Maxwell 1,500 Ultra

Aft Warping Capstans: • (2) re-chrome in 2019

Anchors: • Plough stainless anchor

Anchor Chain: • 200 ft stainless lead chain

Boat Crane and Davits: • Opacmare

Swimming Platform: • Integral

Security Equipment

CCTV System: • Yes; Custom

Cameras: • (4) Garmin GC12 Marine Camera,

MKII Axis 1-4 ch Video Encoders Camera

Monitors: • (2) Gourment Mareton

Fire Fighting Equipment

Fire Control System: • (2) Smoke detectors

Fire Extinguishers: • (3) 10 lb. ABC Recharged Fire; 2.5 lb. ABC Kidde Mariner New Extinguishers

Safety Equipment

Life Rafts: • 6 man with in-cradle with hydrostatic release

Life Rings: • 1

EPIRBS: • ARC

Flares: • Yes

Medical Equipment: • Standard field kit

GENERAL

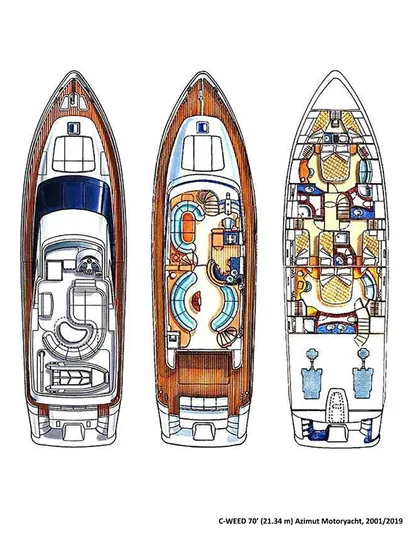

Sleeps up to 9 in the Owner's party in 4 staterooms, plus crew accommodations for up to 2 in 1 cabin.

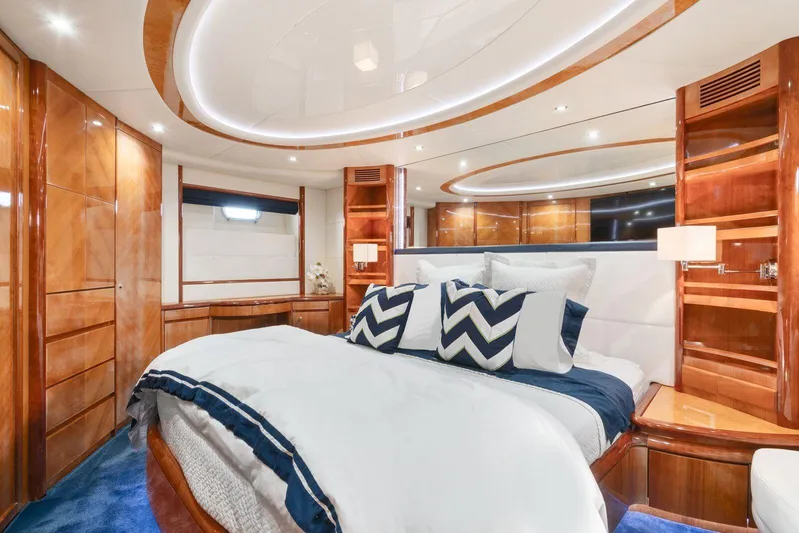

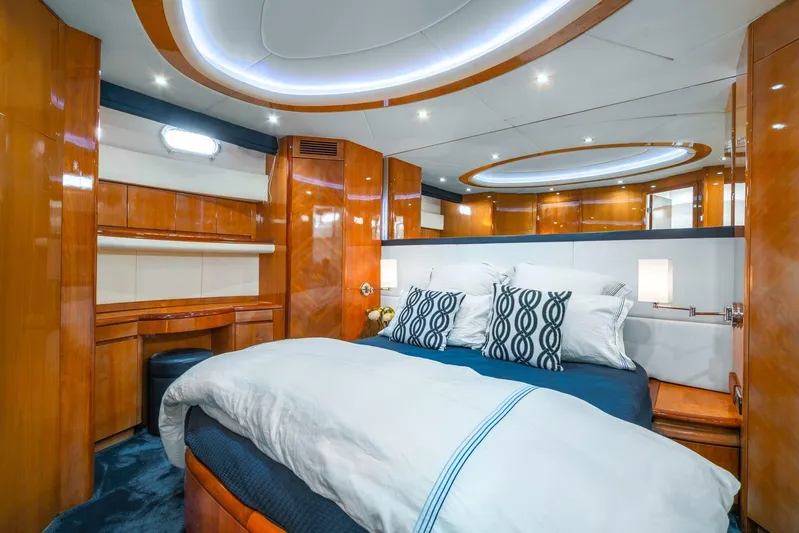

Owner’s Suite:

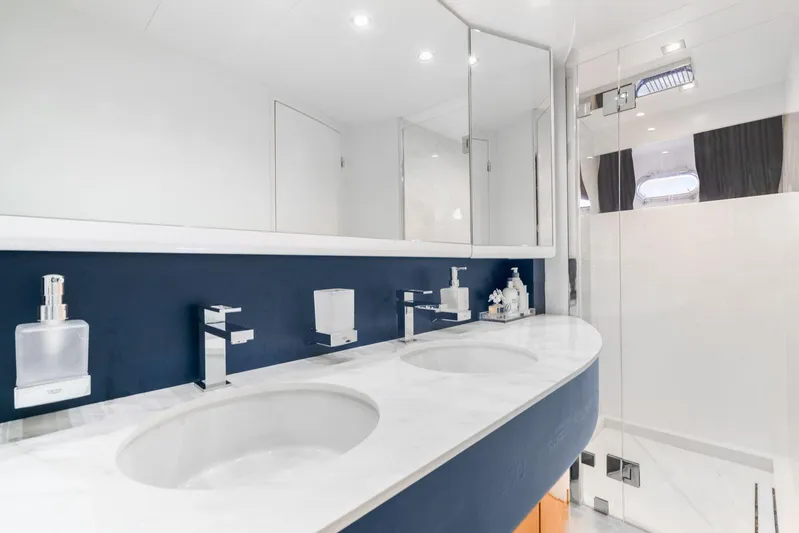

   Accessed from the main salon, located aft to starboard, the full beam master has its own private entrance.  Her master stateroom accommodates a king-size berth on center with mirrored vanity to port and a private double settee to starboard. The master stateroom benefits from having a curved bulkhead in which a TV is mounted.  The owner has upgraded the master bath with a contemporary and over-sized custom marble vanity with dual sinks, Vacu-Flush toilet and shower all recently installed.

VIP Stateroom:

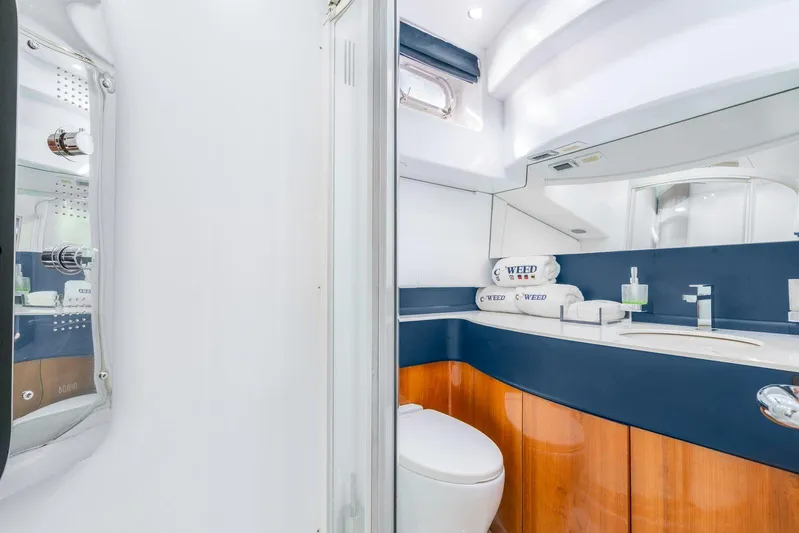

   The VIP is all the way forward and features a centerline queen berth and private en-suite head. The walls are lined material and oak cabinetry. To port side and aft is the access to the day head which is adjoining to the port side guest stateroom. It should be noted that all the bathrooms have new metal work frames in the shower compartments, new countertops, faucets and new marble floors.

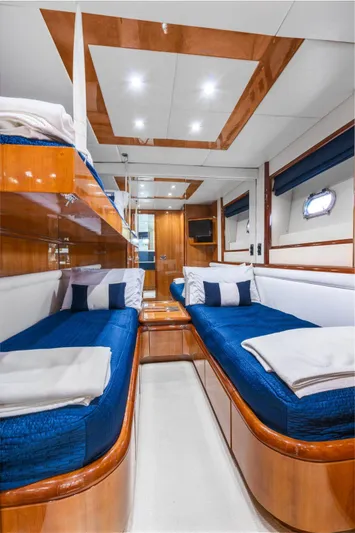

Port and Starboard Guest Stateroom:

   The port guest stateroom features two side-by-side twin beds with a Pullman in addition. Walking out of this stateroom directly across the hallway is the starboard guest stateroom which is almost identical to the port. The main difference is that this stateroom has two twin beds in a bunk configuration.

UPPER DECK

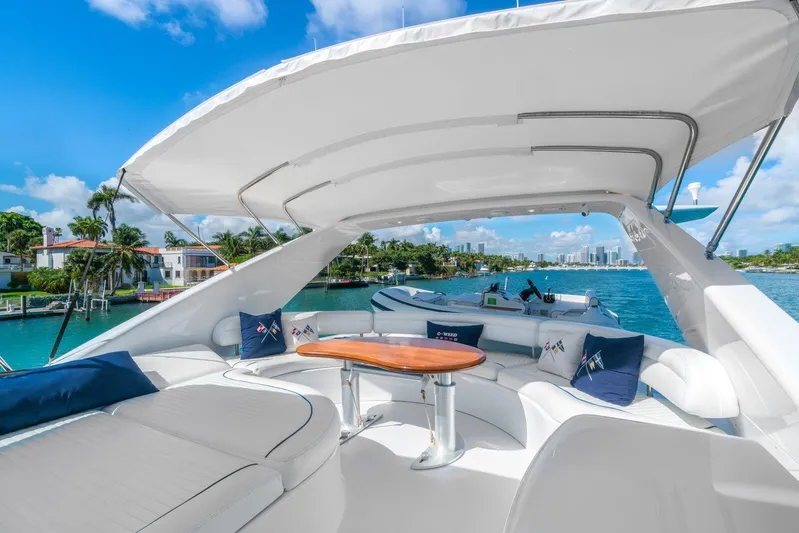

Flybridge:

   The exceptionally spacious bridge provides an amidships sunbathing area for three, a settee and 6-expandable seat table. There is also a bar with a refrigerator/freezer, sink and barbecue grill.  Custom designed sun bathing pad behind seating along with a custom AB tender with Opacmare crane.

MAIN DECK

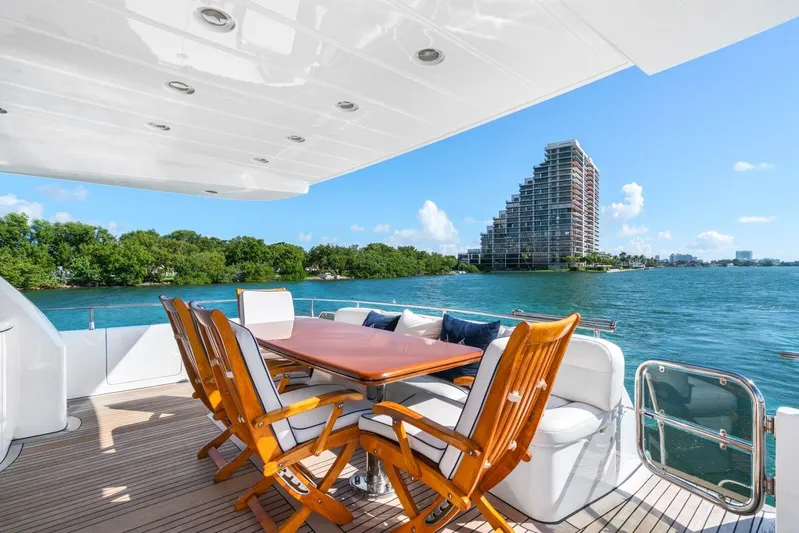

Aft deck:

   Entering the aft deck there are 4 entry points, 2 located side deck and 2 from the swimming platform. Integral swimming platform teak table with stainless base and seating for 8 custom bench seat. There is a recessed hydraulically operated swim ladder with a hand rail port and starboard Lofrans warping winches. A port side refrigerator in unique cabinet with another matching refridgerator to starboard. Fixed built in video camera with monitor overhead, port and starboard boarding gates, stainless transom boarding gates, lazarette access under port steps. There also 3 port and starboard teak steps with stainless and rails between the swimming platform and aft deck hydraulic opening "garage" door where the jet ski is located. There is port and starboard shore power cable reels, fresh water wash down system, hot and cold shower in locker on platform and dockside water connection.

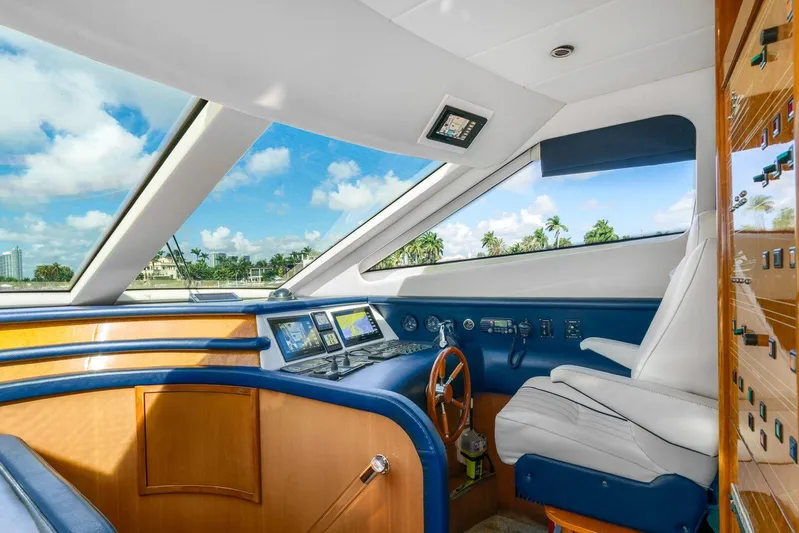

Pilot house:

   The one thing you notice when you’re piloting the vessel is that you have a very clear visible 200° view when sitting at the pilot house. This gives you the comfort of knowing where everything is in your immediate surroundings. The pilot seat is covered in a blue stitched leather chair similar to the rest of the interior leather. The main AC DC distribution panel is immediately to the port of the helm chair with display panels for easy understanding.

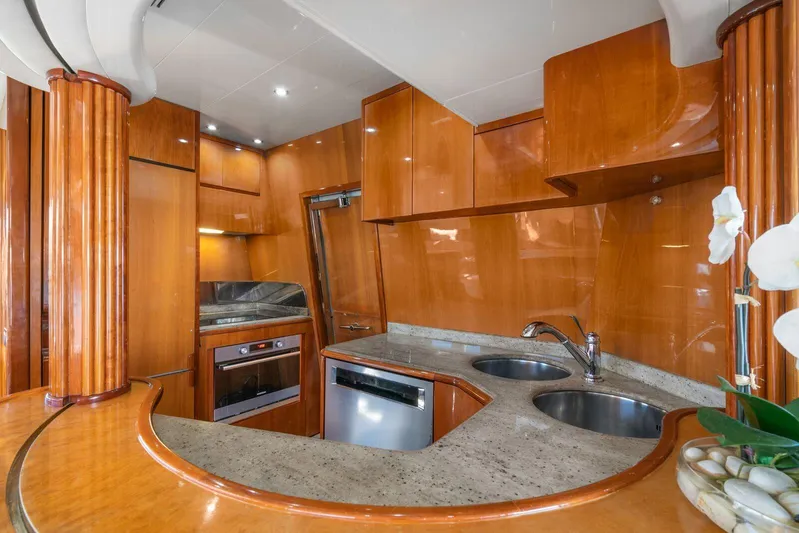

Galley:

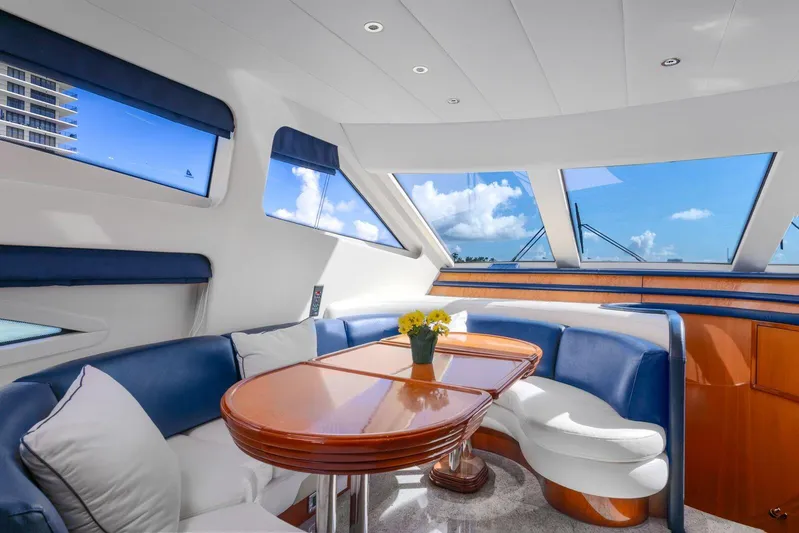

   One step down from the pilot house area, is the galley which can be completely enclosed with the door and sliding wooden blind. All the appliances have been replaced with professional grade stainless steel. Benefits of the galley are that it can be completely enclosed with the side door open to eliminate any cooking odors or when entertaining, it can be completely opened up and used as a serving bar. The floor throughout the galley, dining table and pilot house is a unique blue and gray veined granite. There is an exit from the galley to the side deck. Forward in front of the galley to the starboard side, is the lower helm which features a full array of instrumentation.

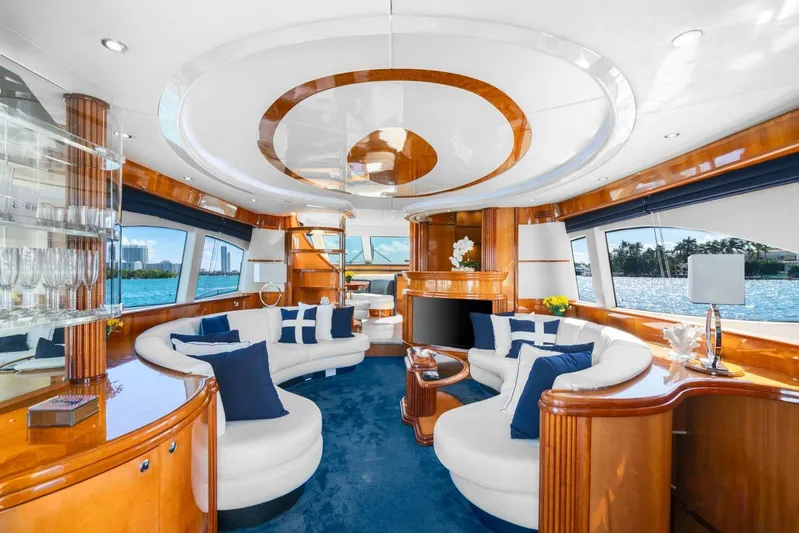

Salon:

   To the portside and the starboard side are comfortable white connolly leather sofas which are duplicated in a U-shaped dining room sofa that is to the front starboard side of the room. In the salon forward under the bar, which is incorporated into the galley, is a 50 inch Samsung HD custom fitted television. The ceiling has inlaid recessed lighting with maple inlay. All other lights have been changed along with LED and polished chrome fittings. The entire vessels joinery is high gloss cherry with some tasteful maple veneer inlays in a few places.

LOWER DECK

Engine room:

   The engine room is accessed through the portside side ladder on deck, and through the transom. Like a much larger yacht, this 70' Azimut is sensibly laid out, with top-notch ancillaries. Maintenance accessibility on everything from the Cruisair compressors, located outboard port and starboard, to the ZF V-drives; which are totally open and approachable. Two new 21 kw Kohler models capable of putting out enough power each to hold the electric load individually. Engine access is superb. You can service the engines from any angle with full-standing headroom above aluminum diamond plate decks painted blue.

The construction of the vessel is with vinyl-ester resin, a bolted fiberglass hull-to-deck joint, foam-cored fiberglass stringers, with collision firewall and other watertight bulkheads. On the Sea-Jet, Azimut has positioned air intake vents on the sides of the flybridge as far above the level of the water as possible. The approach pays off with no salt air entering into the engine room.

This 70' Azimut is without question the nicest motoryacht available in her class.

Her owner has invoices for works that include but not limited to:

• New exterior Awlgrip paint Matterhorn white  (USD 210,000 Cable Marine)
• Complete vessel ceramic coated ($10,000)
• General servicing Cable Marine (USD 46,000)
• Generators replaced in 2018 (USD 43,000)
• Complete new electronics package, including FLIR instored by Electronics unlimited (USD 62,200)
• New bathrooms marble floors, counter tops and head system (USD 38,000)
• New tender and jet skis (USD 30,000)
• Close to USD 500,000 have been spent on refit

- Exclusions include all of Owner's personal effects -

"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification."
