75 ILIAD 2025 Yacht for Sale

• Beam: 31' 4''
• Hull Material: Fiberglass
• Max Draft: 5' 4''
• Displacement: 138,891 lb
• Fuel Tank: 1 x 2641|gallon
• Fresh Water: 1 x 396|gallon
• Holding: 1 x 132|gallon
• Cabins: 3
• Heads: 5

• Hull bottom in solid GRP. Hull topsides in sandwich of GRP and PVC core (density 80-100130 kg/m3).

• Main deck and superstructure in sandwich of GRP and PVC core (density 80 kg/m3).

• Full hull lamination (shell, structures, bulkheads) with vinylester resin. All other laminates in polyester isophtalic resin. Lamination by resin infusion.

• GRP stiffeners laminated on PVC formers by hand lay-up directly to the shell laminates.

• NPG gelcoat, white color.

• Painted topsides and superstructure.

•Lower deck structural cabin sole in GRP sandwich, PVC core.

• Watertight and structural bulkheads in in sandwich of GRP and PVC core (density 80 kg/ m3). Bulkheads fastened to shell by lamination.

• Fuel tanks in aluminium 5052, with inspection ports. Water tanks in stainless steel.

• 2 x Volvo D11 725 HP

• 2 x engine rooms with dual access from hatch on main deck and watertight doors at lower decks.

• 2 x 18kw 50Hz Kohler genset with built-in parallel controls (2 x 21kw for 60Hz systems).

• ER insulation materials Pyrotek Sorberbarrier. Perforated aluminium liners.

• Bonding by copper strip 4 x 32 mm.

• 2 x shafts in duplex stainless steel. Flanged shaft seal. Flexible coupling.

• 2 x rope cutters.

• 2 x Aquadrive thrust bearing systems.

• 2 x rudders in stainless steel 316L.

• 2 x propellers, NiBrAl, 5 fixed blades.

• Seastar EPS power steering.

• Centek mufflers for main engines and generator.

• 2 x ER air inlets with moisture eliminators.

• 2 x air blowers for ER forced ventilation.

• 4 x fire dampers with remote shut-off.

• 2 x automatic fire-suppression system, Seafire. With heat sensor and alarm.

• 2 x engine fuel filter Racor 900MA30.

• Genset fuel filter Racor 500MA30.

• Fuel transfer pump Jabsco VR050-2122.

• Fuel polishing system Reverso 150 GPH.

• 8 X Marco 2000 bilge pumps with Ultra pumpswitch.

• 2 x centralised bilge pump and fire main (Gianneschi).

• Fire hydrant (cockpit).

• 2 x 80 litres water heater BX80 by Quick Spa.

• 2 x freshwater pumps.

• 4 x grey waters sump pump and tank, Whale BP2054 GW0831.

• 4 x grey water macerator pumps Jabsco 185902094.

• 4 x black water macerator pumps Jabsco 185902094.

• 3 x deck wash points (cockpit, bow, flybridge).

• 1 x hydraulic bow thruster, 1 x hydraulic stern thruster.

• 2 x hydraulic windlasses.

• Air conditioning (tropical): Climma 2 x DC90 CWS variable speed, total 180,000 btu.

• 2 x Hydrotab interceptors.

• Hydraulic tenderlift platform (vertical travel).

• Horn.

• Searchlight.

• TV antenna Glomex NASHIRA V9112AGCU

• Raymarine Autopilot with control panel.

• 3 x multifunctional display Raymarine Axiom XL 16”.

• Raymarine fishfinder sensor CP100 + CPT120.

• Radar Raymarine open array 4ft 4kW HD Color.

• Raymarine i70, echo sounder, GPS Raymarine RS130, VHF (with antenna), AIS (with antenna).

• 2 x ER cameras.

• 3 x docking cameras.

• Weather station Airmar 120WX.

• Bonded electrical system with ground plate.

• 24 VDC, 230 VAC ship systems.

• 4 x engine start batteries, 200 Ah.

• 2 x generator start batteries, 150 Ah.

• 6 x Lithium house batteries: Victron LFP 25.6V 200Ah.

• 2 x Inverter/Chargers Victron Quattro 24/5000/120.

• 2 x Converters Victron Orion 24/12-70.

• Control panel Victron Color Control GX.

• Battery management system Victron Lynx Smart BMS 500.

• 2 x DC busbar Victron Lynx Distributor 1000.

• 2 x Victron Orion-Tr Smart DC-DC Charger Isolated.

• Victron GX Touch 70 battery and tanks monitor.

• Circuit breakers and fuses BEP.

• Quick Spa interior/exterior LED lights.

• Navigation and anchor lights (Hella Marine).

• Main distribution switchboard panels AC/DC.

• Dual shore cord isolation transformer.

• 2 x shore power connection 50A (Marinco).

• 2 x shore power cord 50A (Marinco).

• Vimar panels, switches, sockets.

• Fusion system with MS-RA770, flybridge remote, amplifier, subwoofer, 10 speakers.

• 8 x Aqualuma underwater lights.

STRUCTURE

• Hull structural keel.

• Tempered glass windows hull and superstructure.

DOORS, HATCHES, PORTLIGHTS

• 4 x cabin hatches Lewmar flush hatch 2G, Size 44.

• 2 x bow compartment hatches Lewmar flush hatch 2G, Size 60.

• 10 x hull portlights in glass.

• Foredeck front pantograph door.

• Flybridge side pantograph door.

• Cockpit sliding doors, aluminium and tinted glass (Alfab).

• Flybridge sliding doors, aluminium and tinted glass (Alfab).

• 2 x flybridge windshield portlights.

• 2 x stern lockers weathertight doors.

• 2 x stern hatches to kayak storage.

• 3 x cockpit weathertight doors.

• 2 x foredeck wing hatch into lower deck.

• Flybridge stairs hatch (Lewmar).

MOORING

• 4 x stainless-steel hawse pipes with 12” cleats.

• 2 x stainless-steel cleats 13”.

• 2 x pop-up cleats 13”.

• 4 x stainless-steel bollards 17”.

• 2 x stainless-steel anchor 80kg.

• 2 x 100m anchor chain diam. 13mm.

• 2 x hydraulic capstans.

DECK FITTINGS

• 2 x hot/cold shower faucet at swim platform (Whale Twist).

• 1 x retractable telescopic swim ladder (Swissway Carina).

• 1 x additional retractable telescopic swim ladder (Swissway Carina)

• 2 x rope lockers.

• Cockpit servery with stone or corian top.

• 2 x flybridge servery with stone or corian top.

• Portuguese bridge sofa.

• 2 x foredeck sofa, teak table with high/low pedestal, infill cushion.

• Moulded FRP stairs from cockpit to flybridge, stainless steel handrail.

• Day head inside cockpit stairs, WC and sink.

OTHERS

• Stainless-steel 316L handrails.

• Stainless-steel rub-rail on hull sides and stern platforms.

• Cockpit stainless-steel rails with glass panels.

• Stainless-steel and glass cockpit gates.

• FRP mast, stainless-steel fittings.

• All outdoor cushions in Sunbrella fabric.

• All GRP non-skid areas molded into the laminate.

• Propspeed paint for rudders and propellers.

ENCLOSED FLYBRIDGE

• 2 x helm seat with electric adjustable pedestals.

• Helm station with all instruments.

• Electric TV lift for 50” television.

• Side cabinet with 90L fridge.

• Motorized blinds.

• Laminate flooring.

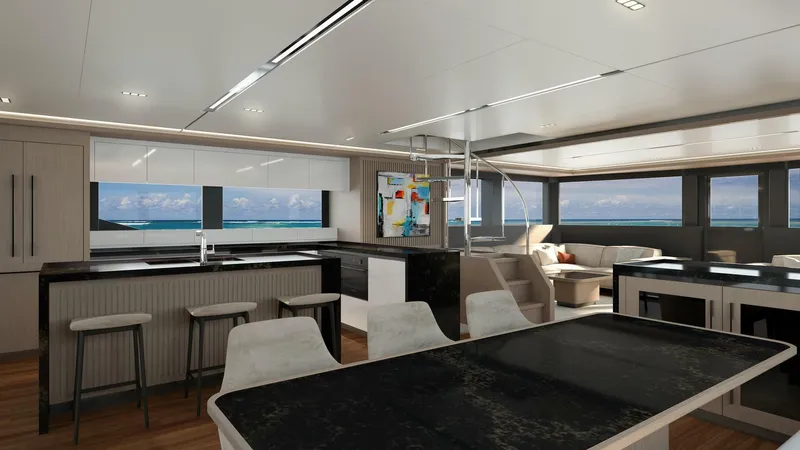

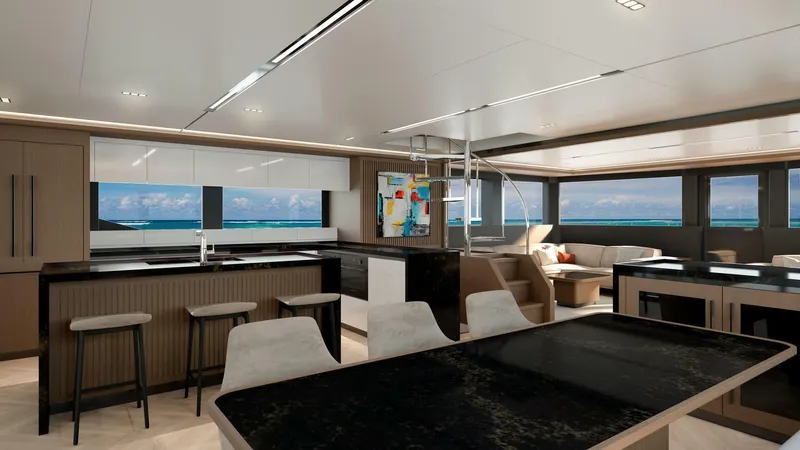

GALLEY

• Fridge-Freezer: Fisher-Paykel RS90A1 total 476L

• Cooktop: Fisher-Paykel CI704CTB1 (70cm width).

• Hood: Fisher-Paykel HP90IDCHX3 (90cm width).

• Oven: Fisher-Paykel OB60SMPTDB1 (60cm height).

• Oven/Microwave: Fisher-Paykel OM60NMTDB1 (45cm height).

• Dishwasher: Fisher-Paykel (60cm width).

•Double sink with faucet.

• Storage drawers and cupboards.

• Caesarstone waterfall benchtops.

• Motorized blinds.

• Amtico flooring.

DINETTE

• Full-height storage cabinet.

• Dining table with internal storage and Caesarstone top.

• Fixed seating area outboard side, upholstery according to design.

• 2 x side tables with Caesarstone tops.

• Servery with Caesarstone waterfall benchtop.

• Undercounter wine fridge: Fisher-Paykel RS6009V2RT1.

• Undercounter beverage center: Fisher-Paykel RS6009SBLT1.

• Liquor cabinet with glasses storage.

• Under-floor storage.

• Motorized blinds.

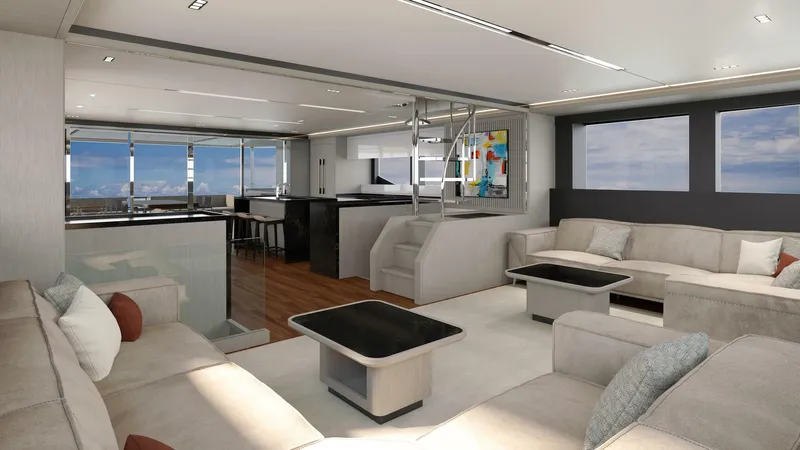

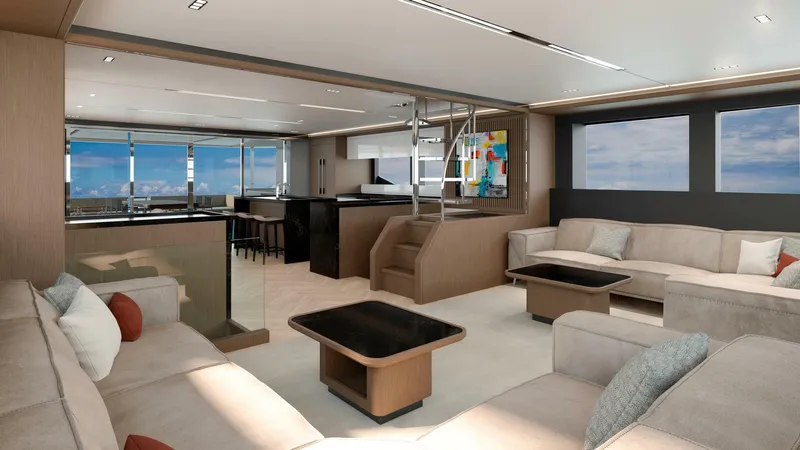

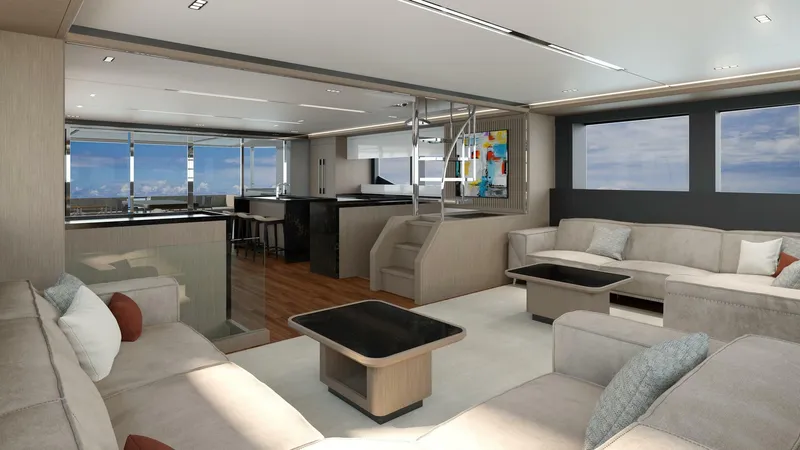

• Laminate flooring. SALOON

• Stainless-steel 316L spiral stairs to pilot house.

• 2 x coffee tables with Caesarstone tops and internal storage.

• 2 x side tables with Caesarstone tops.

• Drop-down ceiling television 65”.

• Under-floor storage.

• Motorized blinds.

• Amtico flooring.

CABINS

• 150 mm memory foam mattresses.

• Manual blinds.

• Laminate flooring.

• Carpet.

BATHROOMS

• Bathroom and shower fixtures (Kohler).

• Sintered stone walls.

•Ceramic washbasin.

• Shower glass door.

• Planus electric WC with macerator.

• Storage cabinets.

• Air extraction fan.

• Manual blinds.

GENERAL

• Stainless-steel 316L interior handrails.

• BLUM drawer systems and cabinet hinges.

• Positive hidden cabinet latches.

• Interior furniture: timber veneer and solid wood, 2-pack paint, leather, laminate and fabric according to interior design.

• Sofas and seats upholstery according to interior design.

• Safety equipment for 12 persons to CE or USCG.

• Transport cradles.

• Launching & export formalities.

• Shrink wrapping in preparation for shipping.

• Owner’s Manual.
