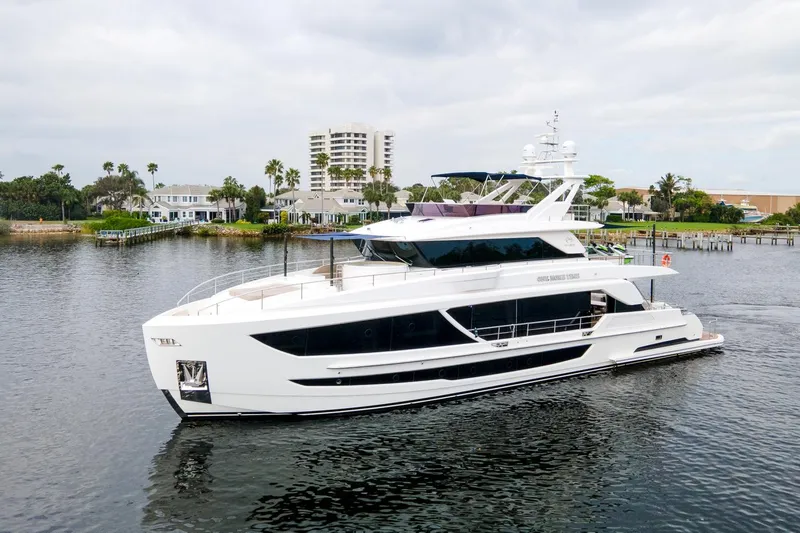

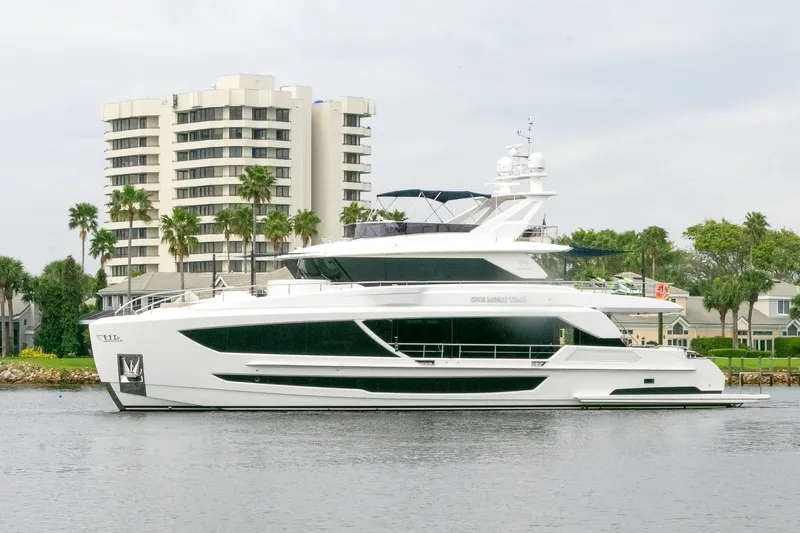

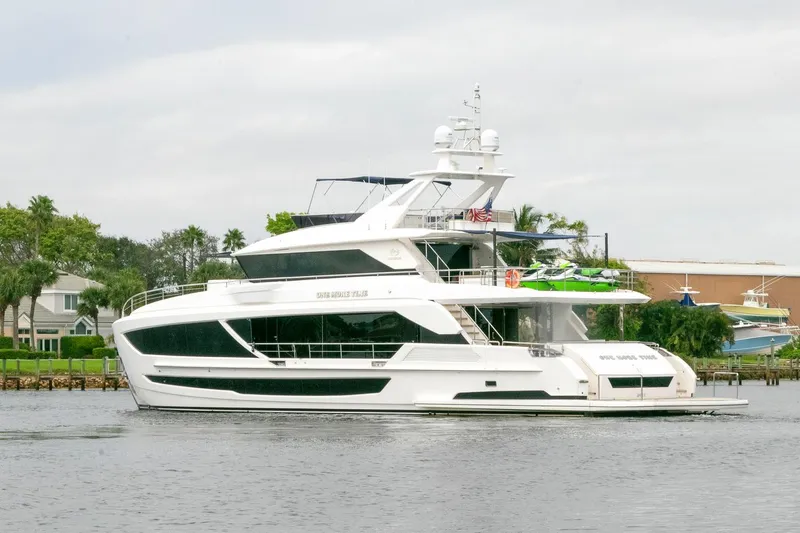

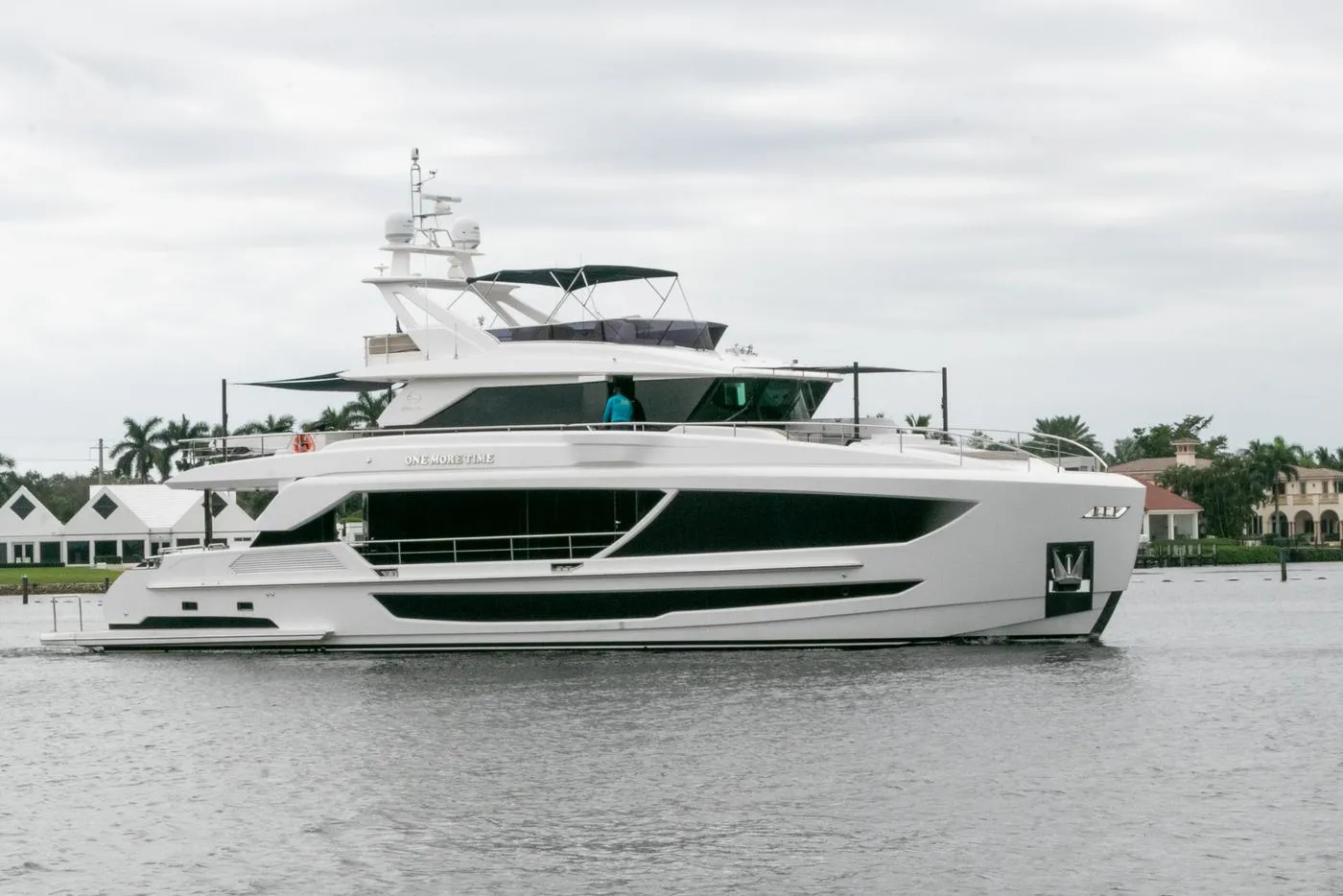

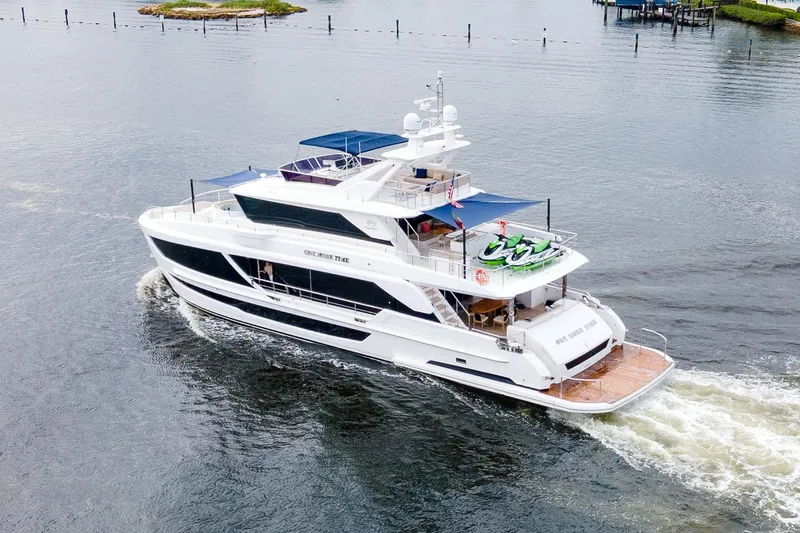

92 Horizon 2021 Yacht for Sale

• Cruising Speed: 16 kn
• Maximum Speed: 21 kn
• Beam: 23' 3''
• Hull Material: Fiberglass
• Max Draft: 6' 0''
• Fuel Tank: 1 x 3480|gallon
• Fresh Water: 1 x 600|gallon
• Holding: 1 x 200|gallon
• Cabins: 9
• Heads: 7

• Upgrade Standard 1136HP Caterpillar engines to 1900HP
• Upgrade Generators from 27kw and 29k to 40KW Generators
• Upgraded ABT Zero Speed Stabilizer (370J16X)
• Added flybridge equipment, steering system, electronics and arch
• 3' Hull Extension, (Extension was made in Salon and Skylounge)
• ASEA shore power frequency converter 50KVA W/Seamless Transfer
• Headhunter sanitary waste treatment system
• Dive Compressor (Bauer Junior II)
• Added Spot Free water system 2000gal per Day
• Added Wing Doors on main deck (aft deck to walkarounds)
• Upgrade Swim Platform capacity to 2500lbs from 1500lbs
• Upgrade Bridgedeck Crane (Davit) from 1500lbs to 2500lbs
• Added Transformer to swim platform (used as underwater ladder) to higher passerelle gangway
• Fordeck Sunshades (removable)
• Custom Aft Deck Bar, Storage Cabinet and Mini barAdded Head to Skylounge
• Upgraded from Standard Electronics
• Main engine service completed 4/2024
• CAT Platinum Plus unlimited hour warranty
• 3000 generator service completed 4/2024
• Power converter full service complete 11/2024
• 3000 gpd Spot Zero
• All UV Breathe Easy air filters with carbon filter
• Instant hot water for hot tub
• Fully detailed 6/2022
• Teak sanded and sealed 5/2022
• Props tuned at LMC 3/2022
• Spare parts for every critical system
• All new marine Sunbrella covers
• Newer navy sun shades
• Skylounge sofa and ottoman reupholstered
• Salon ottoman reupholstered
• New freshwater pumps
• Replaced swim platform hydraulic lines 8/2024

• Trideck FB level (per layout with custom-made radar arch plus NAV equipment for 3rd station)
• Upgraded to VHF 315 Marine Radio (2x@ P/H)
• GPSMAP® 8612 MFD 12" Multifunction Display (2x@ F/B)
• GHS11Wired Handset (2x@ F/B)
• Active Speaker, (VHF 315/315i) (2x@ F/B) with Fist Microphone Extension Cable as needed
• GHC 20 Marine Autopilot Control Unit (1x@ F/B)
• GMI 20 Digital Marine Instrument Display 2x @ P/H, 2x @ F/B
•  3' extensions which include 3'-0" for the hull, the deck house (for bigger salon), the skylounge (for bigger pilothouse), and trideck F/B area (longer in length) as well
• ABS/DNV type approved fiber/resin & sandwich core material applied.
• White gelcoat finish for hull above water line, exterior decks, and furniture
• One piece hull SCRIMP  cored lamination w/ deep skeg and longitudinal girders
• Hull, deck & superstructure are built with licensed process SCRIMP for improved strength and less weight
• High-density foam cored hull bottom
• High-density Divinycell or equivalent foam-cored hull sides, decks, and superstructure
• Stringers with high-density foam coring
• Interior structural components are all properly bonded to hull
• Strong collision bulkhead structure for extra safety
• International anti-fouling bottom paint w/ anti-osmosis treatment
• Prop Speed/PropGold metal paint for underwater appendages
• Tunnels for reduced draft
• High Performance Piercing Bow (HPPB) with S/S protection plates

• Wind door on each side of aft deck accessing to each side walkway
• Maxwell (2) electrical rope capstans (VC2500) on aft deck
• LED Boat Name on port, stbd and stern
• Chain counter x4
• Upgraded swim platform capacity to 2500lbs.
• Side boarding sea stairs (MARQUIPT 7-STEP) with storage cabinet
• Sink at Fwd port walkway on main deck
• Cabinet between the Fwd settee and sun pad for extra storage plus one drawer refrigerator and one combo freezer/icemaker under the counter

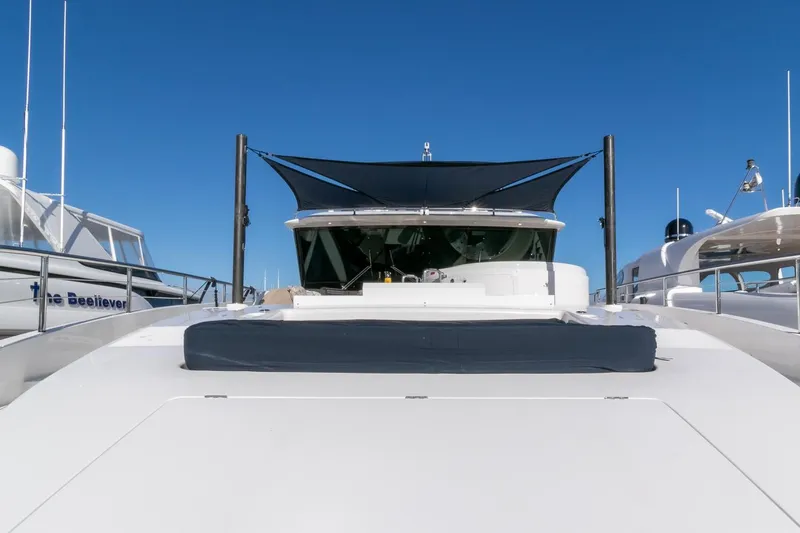

• Sunshades foredeck from PH window to the skylight to master, not to cover Fwd Sunpad
• Electric flip down 43" 4K TV on aft deck
• Under the aft deck stairs, custom mini bar with sink and refrigerator
• Shallow storage under the stern counter for deck poles, cleaning products etc.
• Two opening portholes, one at master room stbd side and one in master water closet
• Opening porthole in galley
• Four sockets for removeable handrails on swim platform
• Bow deck: 2 pop up secret lights

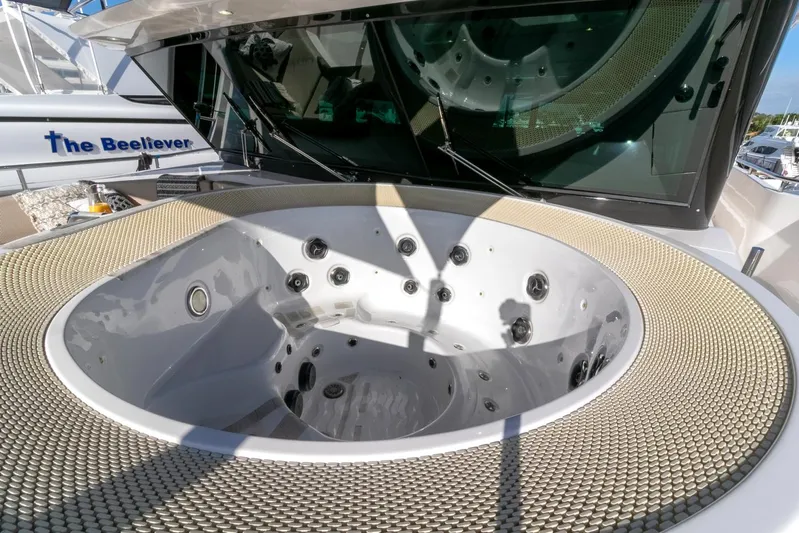

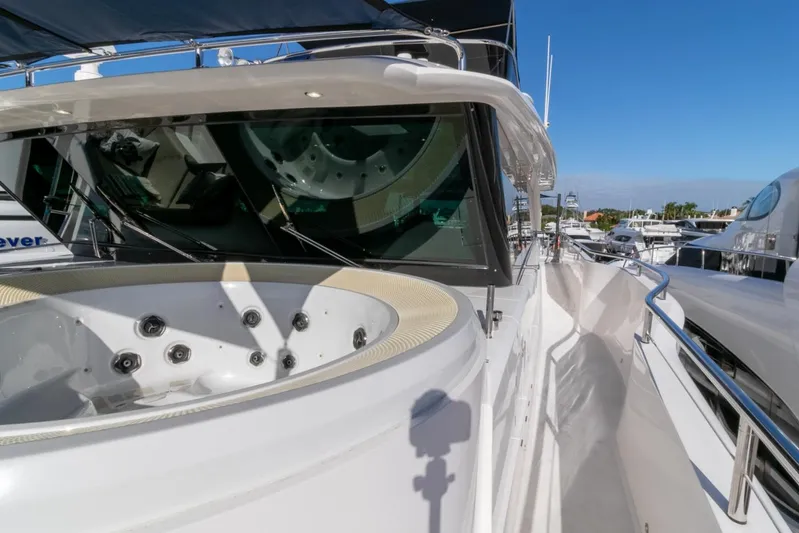

• Jacuzzi (with inline heating element) on boat deck to foredeck
• Splash guard for jacuzzi
• Custom FRP mini bar and full height storage cabinet
• Full storage for boat cleaning supplies
• Custom S/S bar stools with back rest to be about half height up the back (x4)
• Recessed steps into back end of transom area for getting from swim platform to beach club
• Added transformer to use gangway
• Fill-in cushion to make sofa in beach club into a bed
• Teak aft deck, teak swim platform and teak steps to swim platform, and steps to upper deck. Non-skid for the rest
• FRP cap rail
• Maxwell VWC3500 vertical hydraulic anchor winch (x2) /f local foot switches and remote
• 300ft high tensile 1{2" anchor chain (x2)
• 100Kg S/S anchor (x2)
• S/S rollers and chain stopper
• Heavy-duty 316 S/S cleats and fairlead w/ rollers
• Aft deck corner hawser (x2)
• Bulwarks wj flush mounted courtesy lights
• Bulwark side doors (x2) at aft deck for boarding
• Fresh water sea water anchor chain washdown system by manual operation
• 1-3/4" handrail with 1-1/2" S/S stanchions and steel cable around entire boat.
  S/S flagpole at bow
• Standard lines and Polyform F-7 fenders (x6)

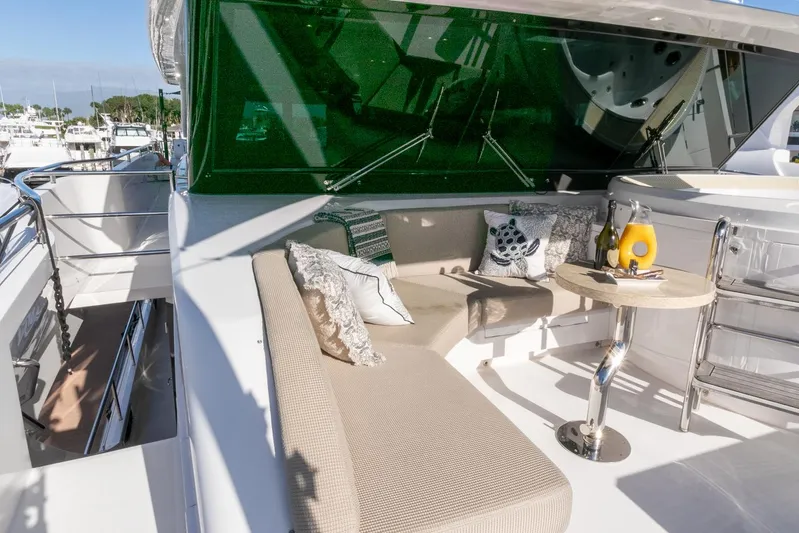

• Portuguese bridge with sofa seats as per layout

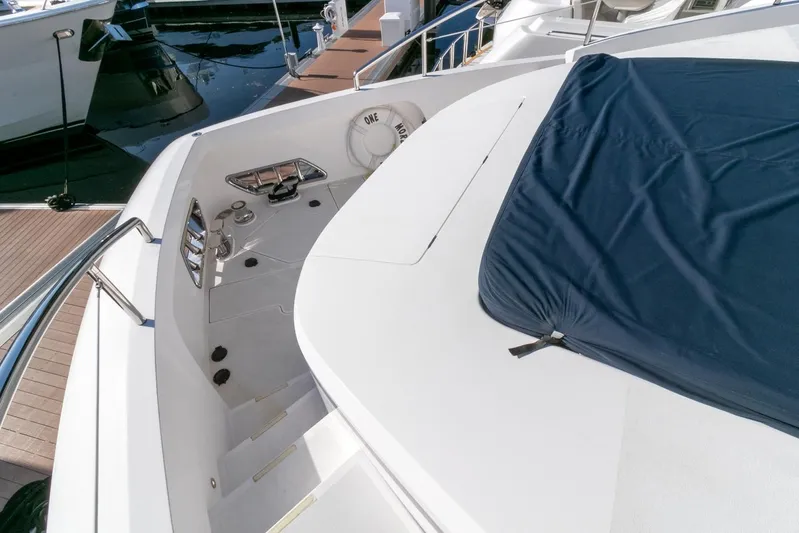

• Foredeck sunbathing cushion w/drink holders
• Frameless windows, clear tempered laminated Low-E glass for windshield
• Frameless windows tinted tempered laminated glass for side windows

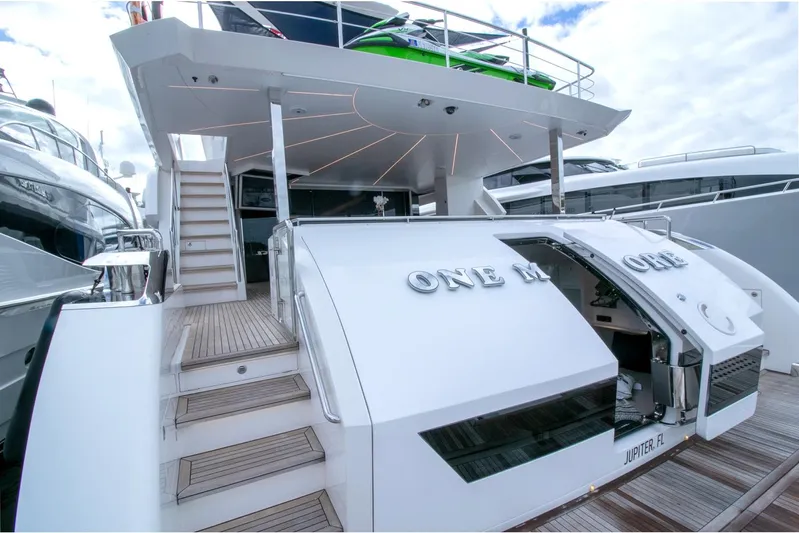

• Stairs from aft deck to swim platform with S/S gate doors and handrails
  S/S sliding saloon entrance door, selflocking
• Deckhouse side entrance door (x2), one sliding door on starboard side, and one

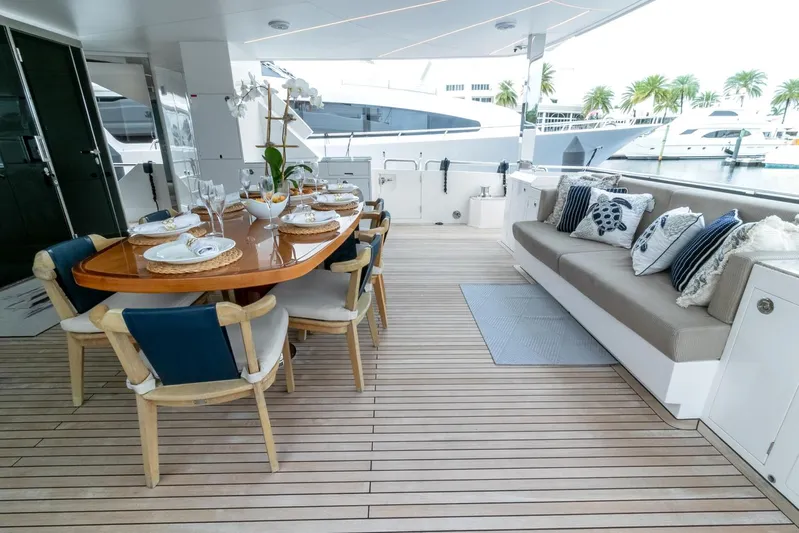

  Aft deck dining table
• Integrated stairs from aft deck to upper deck

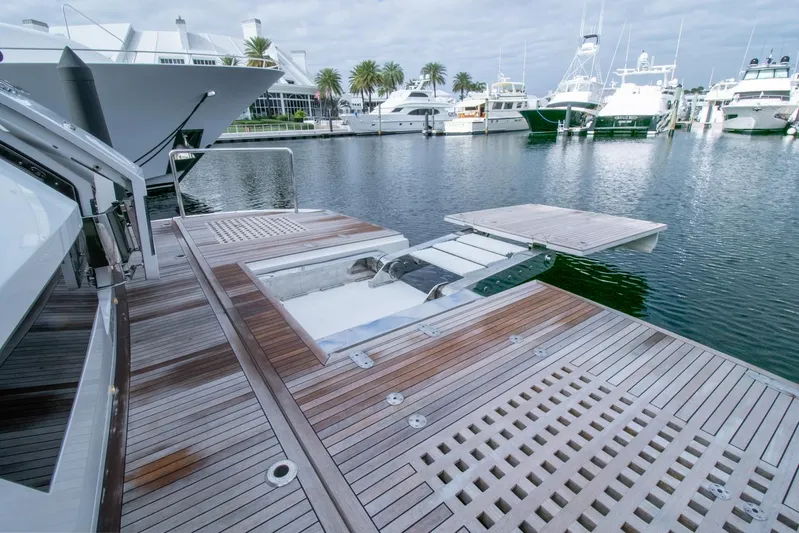

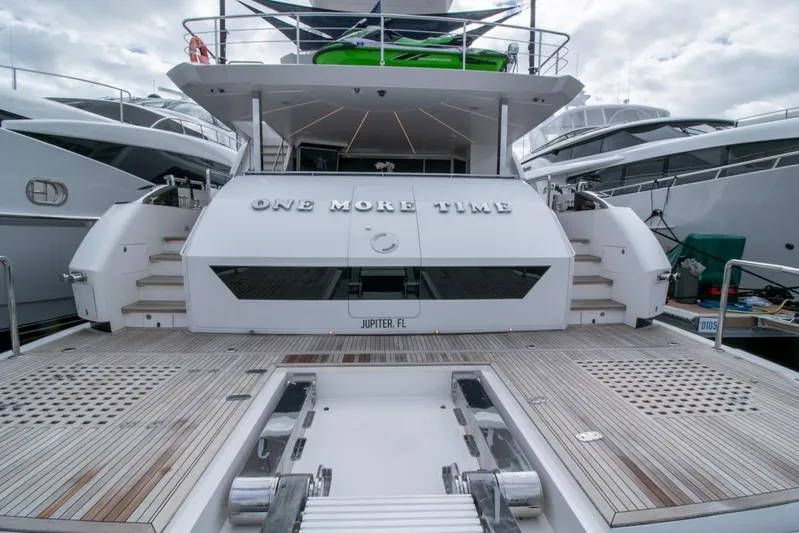

• Hydraulic Hi/Lo swim platform with function as tender lift to max 2500 lbs.
• Two pop-up cleats on Hi/Lo swim platform
• Boat hooks (x2) (ship loose)
• Built-in shower with hot cold water above swim platform
• One extractable swim ladder
• Rub rail around hull sides
• Exterior LED step lights
• Removable corner rails on swim platform

• Hydraulic door with pantograph door in the middle
• Sofa seat w/table
• Bar with S/S bar stools, sink, refrigerator, and icemaker

• Hi-lo (hidden) Propane BBQ/ Electrical BBQ
• Skylounge hatches x2
• Day head at skylounge
• Upgraded standard crane from ES1500 to ES2500

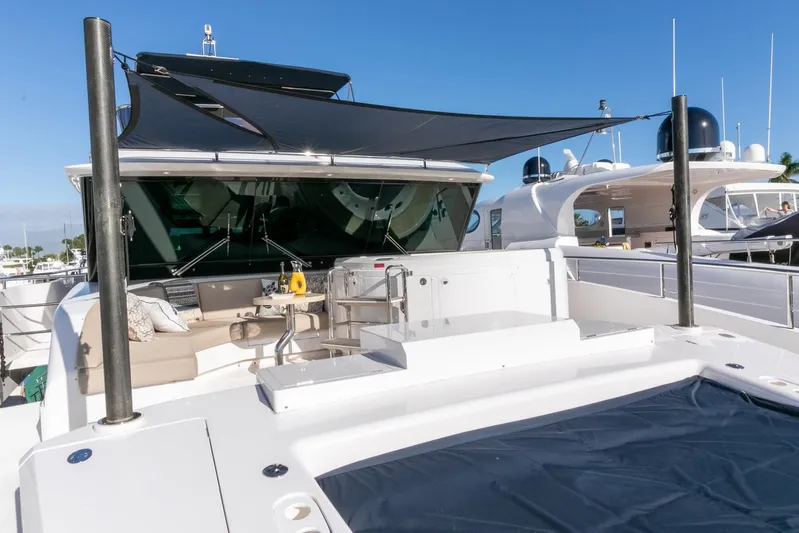

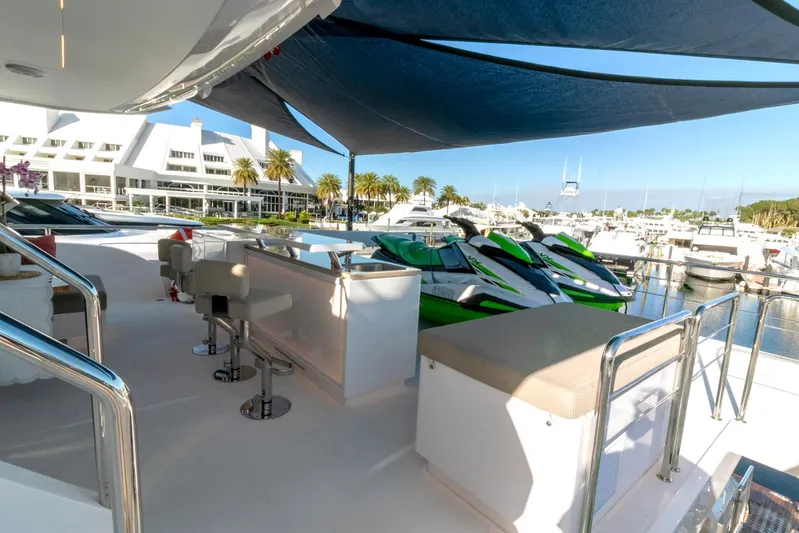

• Sunshade to the furthest aft corners of bridge as proposed drawing

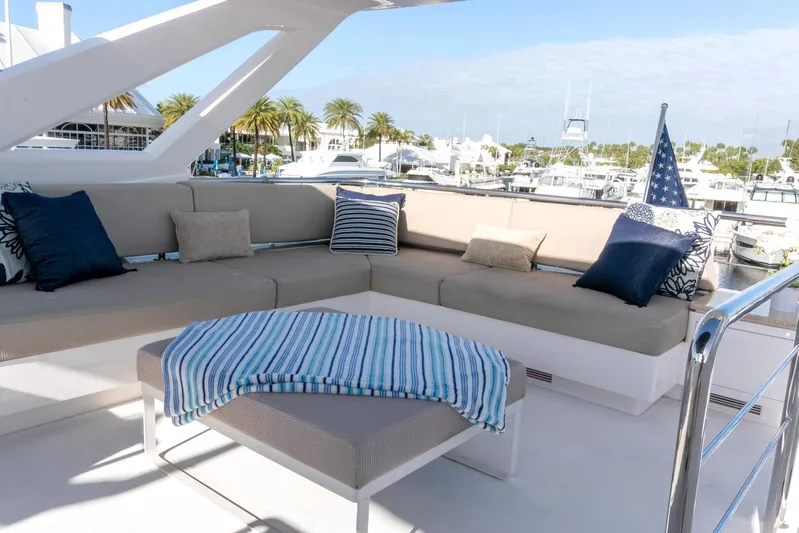

• L-shaped seating and small table on stbd boat deck
• Black mesh in front of helm station windshields
• Additional under-counter freezer into stairs going up from boat deck to FB

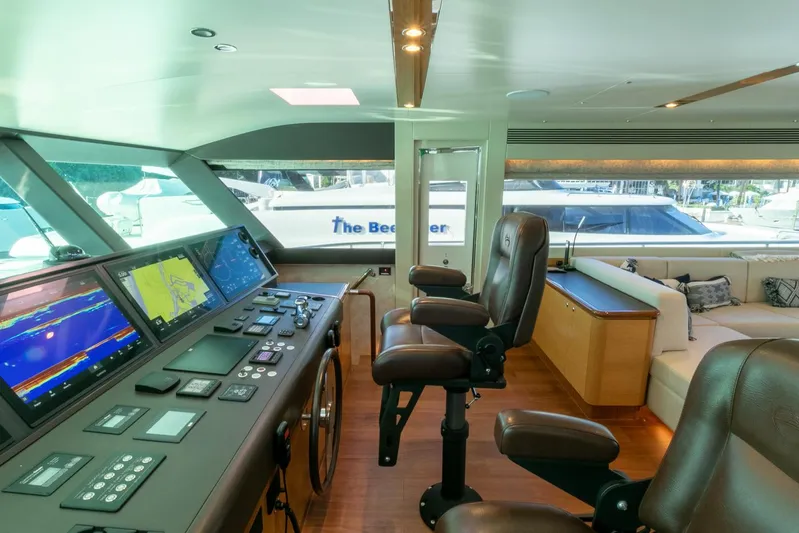

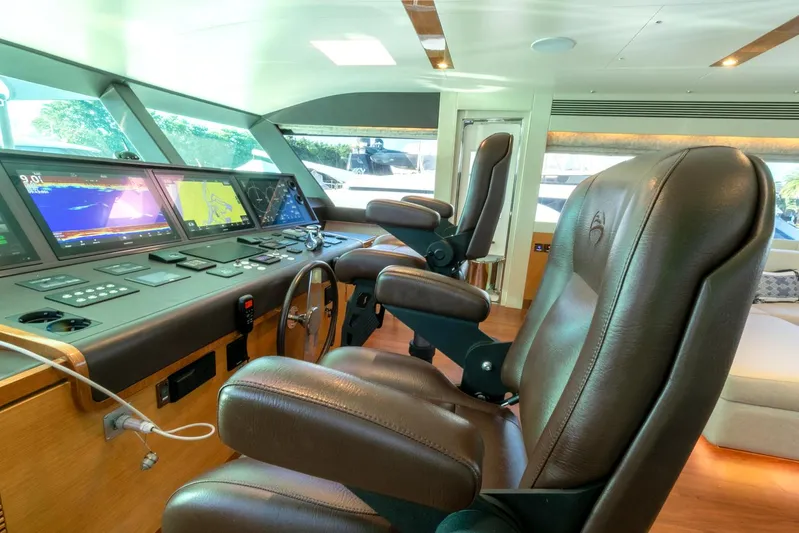

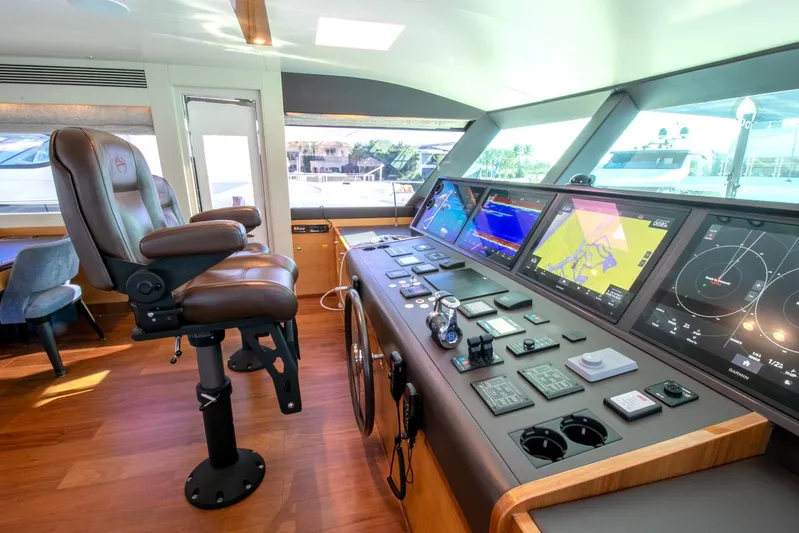

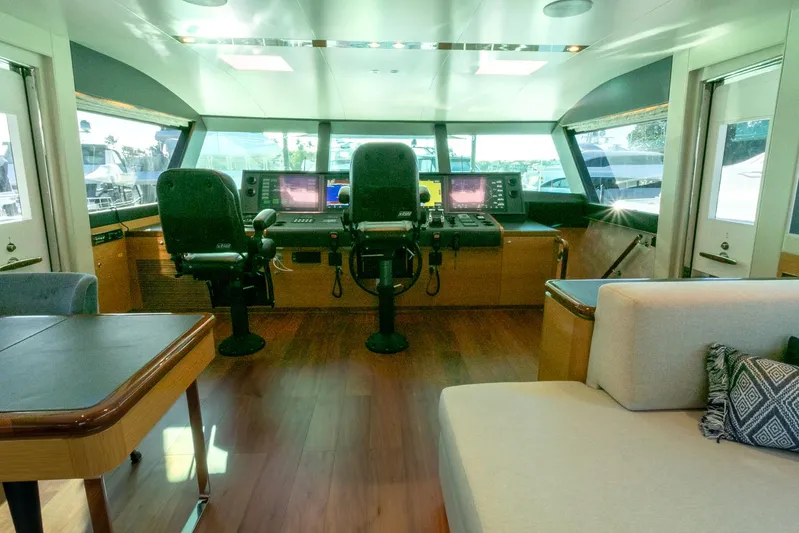

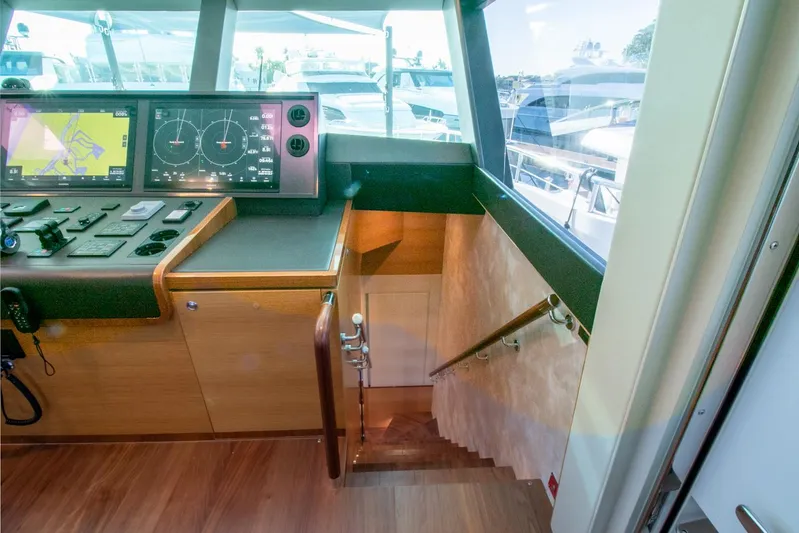

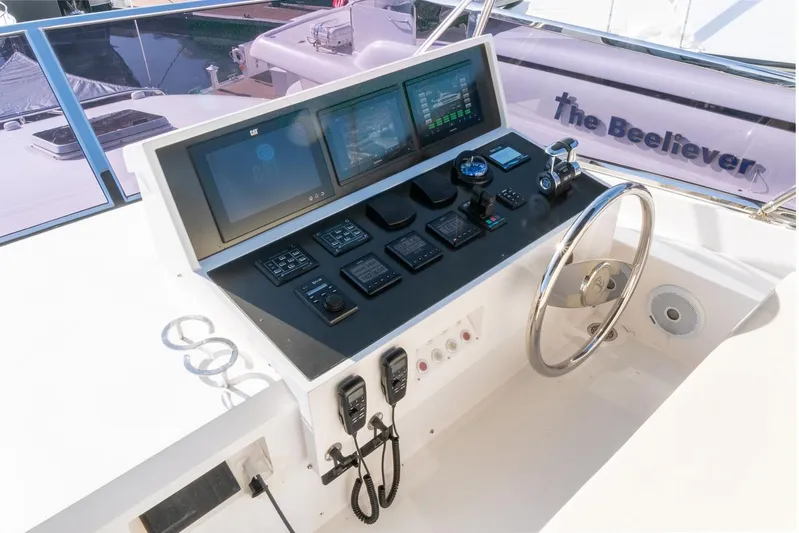

• Helm station with carbon fiber dashboard panel (as main station)
• L-shaped seats wf table as per layout

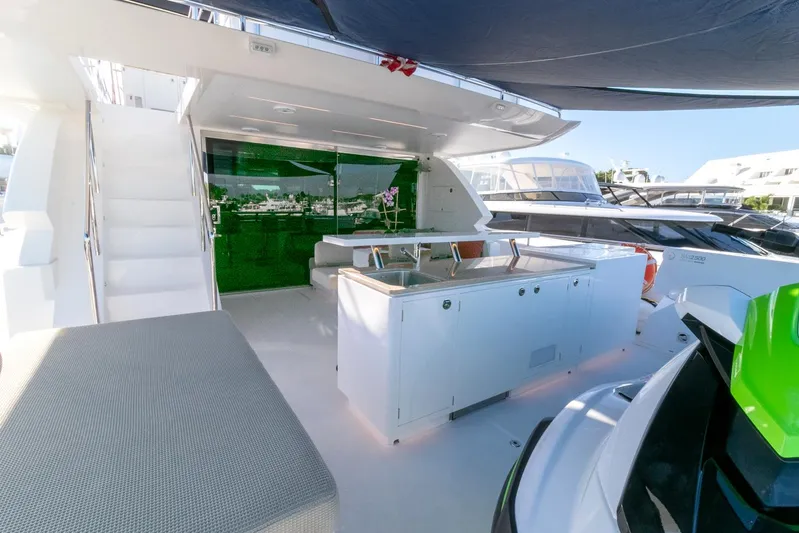

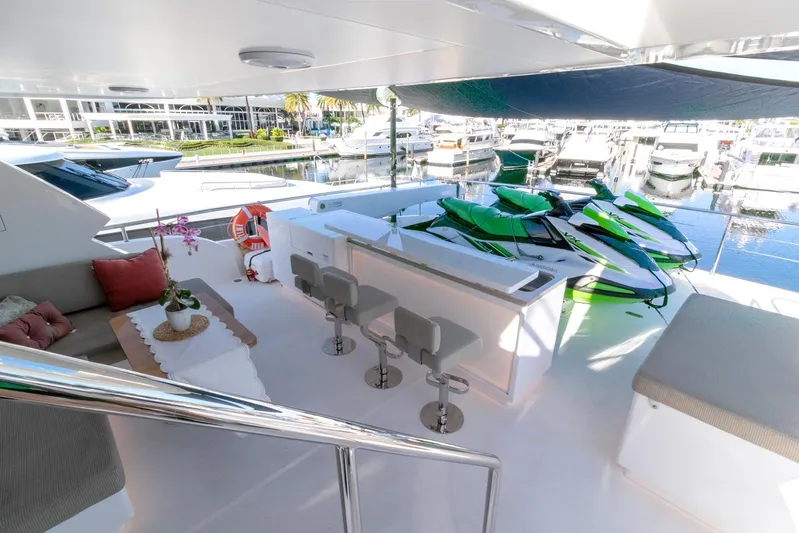

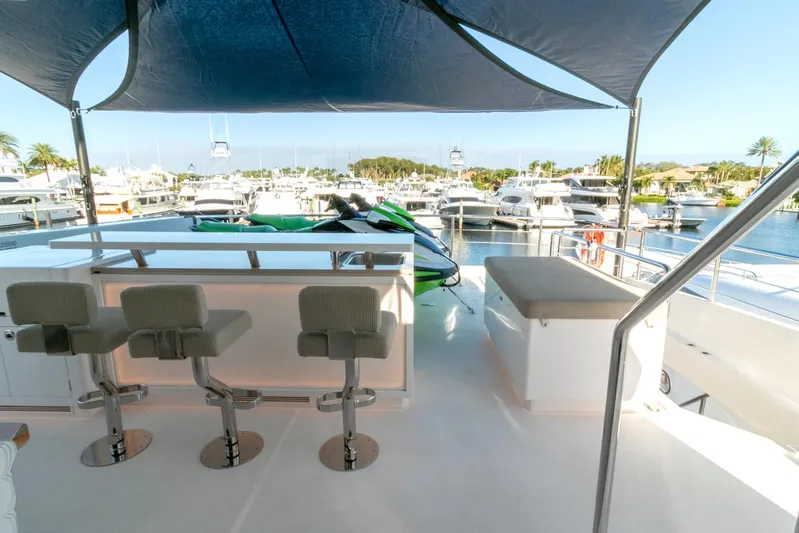

• Custom two-level bar with S/S bar stools, sink, refrigerator, and icemaker on boat deck
• Sliding door to boat deck with self-lock

• Non-skid upper deck
• Bow deck  Jacuzzi with an added heater and sun loungers (x3)
• Sunbrella canvas equipment covers for upper deck furniture, aft deck seat, windshield pad, and foredeck cushions, and seat
• Marble countertops and tabletops
• Integral S/S handrails around exterior FRP cabinet

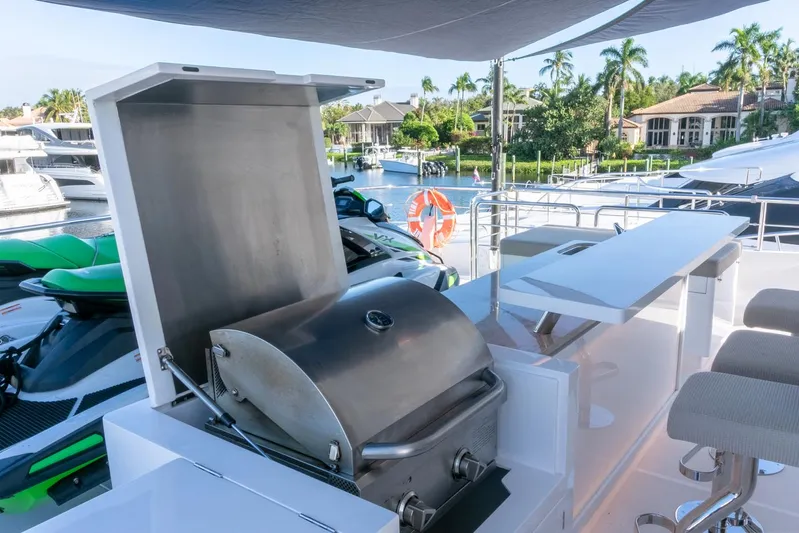

• One 24" barbecue in custom cabinet
• Oversize drains w/strainers on each corner of upper deck

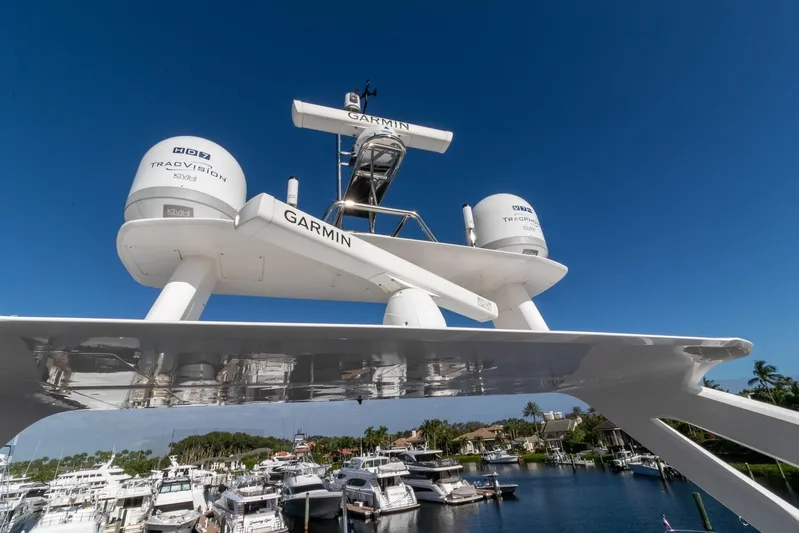

• Radar arch with antenna bracket
• Tokai Sunshine searchlight (x1)
• Chrome-plated Buell air horns on top of backing plates
• S/S flagpole at stern
• Hydraulic Steelhead davit (ES2500)
• LED white lights for Horizon logo on port control heads or Glendinning electronic & Starboard side

• Upgraded trim tab interceptors
• Main and intermediate bronze struts w/backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals or equivalent
• ZF Mathers engine controls with chrome control heads or
• Glendinning electronic engine control system at Helm Station
• Two remote handheld control plugs (with throttles, gears, and thrusters on aft deck and one in pilothouse)
• SS rudder w/zinc plates
• Underwater exhaust system for engines w/ high pass mufflers
• Bennett or equivalent heavy-duty trim tabs with indicators
• Anti-noise treatment to exhaust system
• Work bench in engine room (owner supplied toolbox)
• Engine room designed with lightweight Tubus Bauer honeycomb floor
• Engine compartment ventilation blowers
• Delta T engine room de-misters
• Engine alarm system as per engine standard for air compressor
• Trident hose or equivalent for engine exhaust hydrostatic release + custom made cradle
• 255 Ah AGM start batteries {X4)
• Engines/generators with battery chargers
• 210 Ah AGM batteries (x8) for ship's DC
• 24V service power with combined inverter chargers (x2)
• 210 Ah emergency batteries (x2) above main deck with independent battery charger (XL)
• All batteries enclosed with proper fixtures
• Vapor proof battery switch
• Octoplex multiplexing power distribution system
• Maretron monitoring and control system

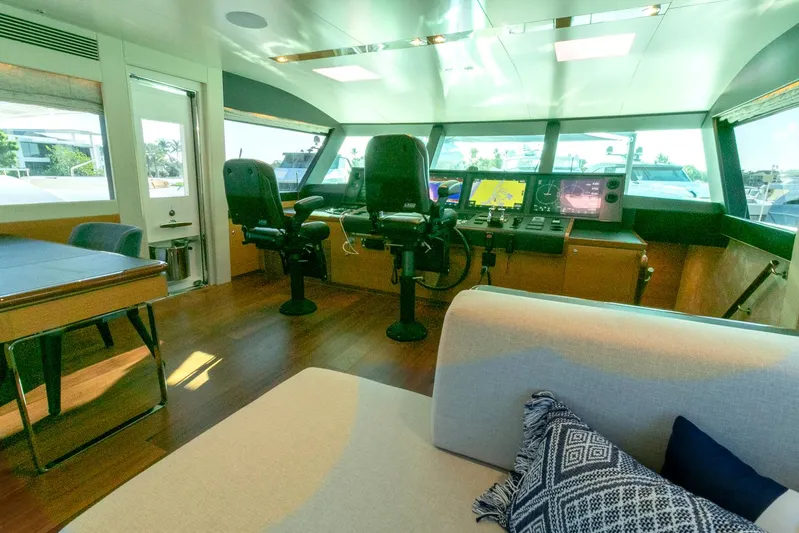

• Stidd pilot chair
• Integrated instrument panel on helm station, standard choices of wood and leather
• Sofa seat w/table
• Heavy-duty Speich SS wipers w/wiper wash system
• Variable speed control on each windshield wiper
• Danforth or equivalent magnetic compass at helm
• International LED navigation lights
• Full set of engine gauges at helm
• Electrical fuel and water level gauges
• Monitoring system for important equipment (bilge pumps, blowers navigation lights)
• Surveillance camera system (PTZ cameras at aft deck and engine room)
• DC12V receptacle
• Garmin GPS
• Garmin 72" 12kW 72nm open array radar system
• Garmin 16" (x3) multifunction displays
• Garmin fish finder and transducer
• Garmin Autopilot system
• Garmin Wind Speed Depth Temp transducers
• Garmin VHF
• Garmin AIS

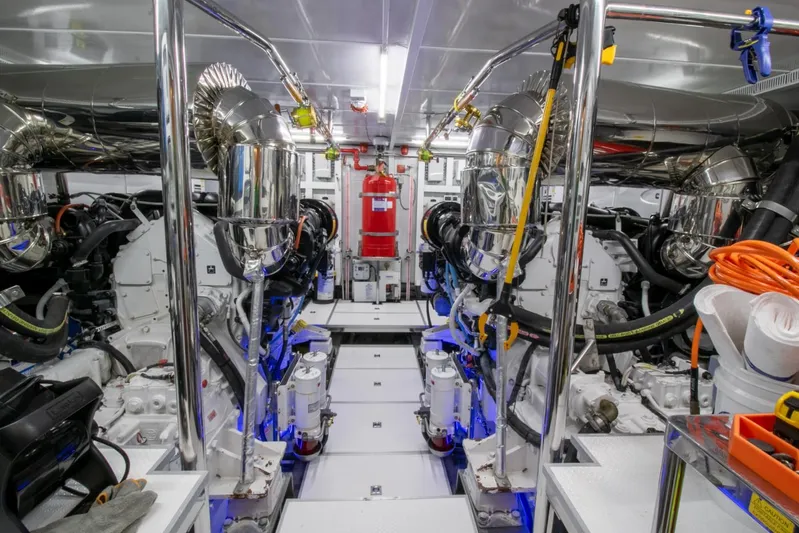

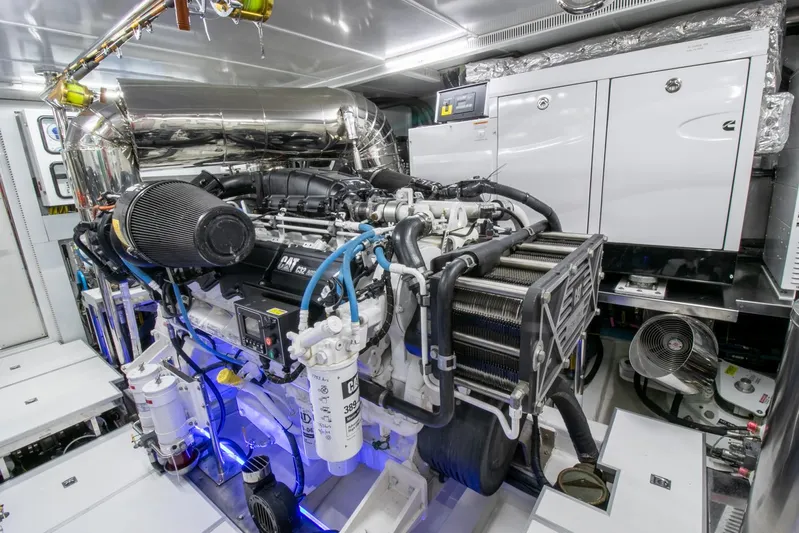

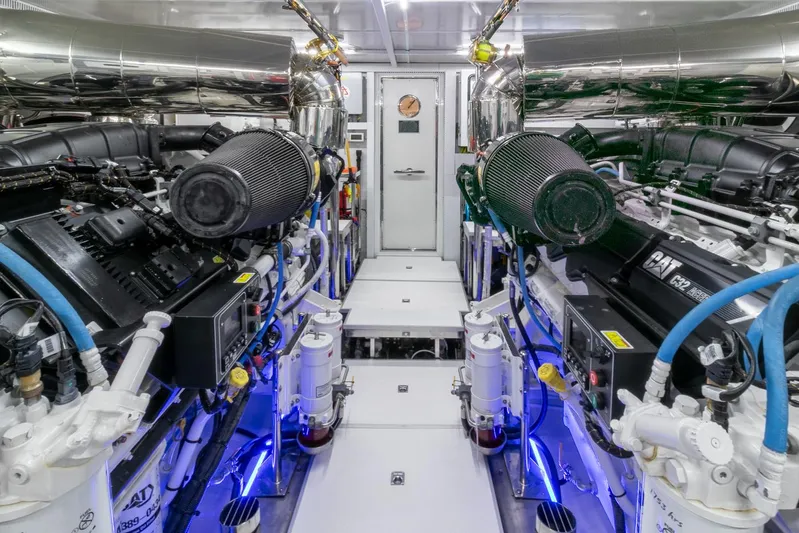

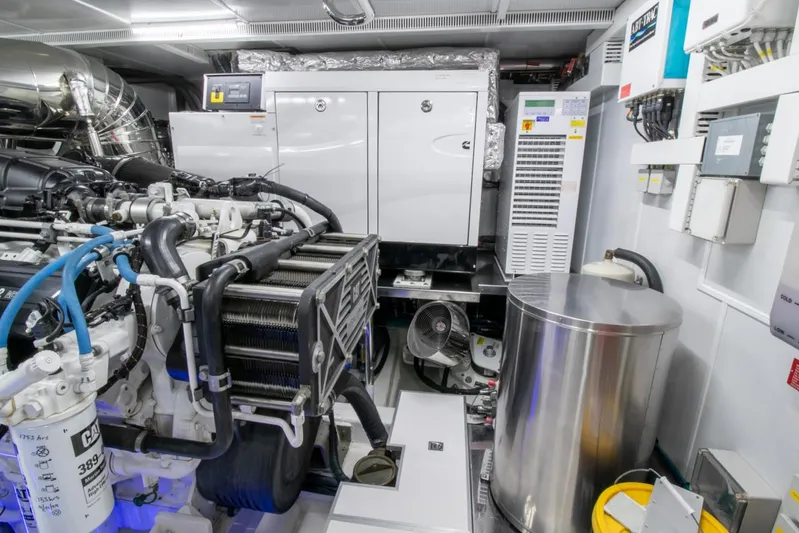

• Engines: CAT C18 Acerts 1900HP (1864 hours)
• CAT wired remote plug on the boat deck
• Upgraded generators (x2) 40kW , 6oHz) with sound shield (Port:3320.9 hours, Stbd:3697.6 hours)
• ABT Zero Speed Stabilizer
• ABT hydraulic bow and stern thrusters, 45HP
• Upgraded trim tab interceptors
• Upgraded ABT stabilizers
• S/S shafts Aqualoy 22 HS
• High-performance S class 5-blade propellers  Nibral
• Main and intermediate bronze struts w/backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals or equivalent
• ZF Mathers engine controls with chrome control heads or Glendinning electronic engine control system at Helm Station
• Two remote handheld control plugs (with throttles, gears, and thrusters on aft deck and one in pilothouse)
• Hynautic or equivalent power steering system
• SS rudder w/zinc plates
• Custom steering wheel at helm station
• Underwater exhaust system for engines w/ high pass mufflers
• Bennett or equivalent heavy-duty trim tabs with indicators
• Anti-noise treatment to exhaust system
• Workbench in engine room (owner-supplied toolbox)

• Engine room designed with lightweight Tubus Bauer honeycomb floor
• Heavy-duty insulated engine room door
• SS overhead grab rail on each side of engine
• Engine room LED ceiling lights
• Engine compartment ventilation blowers
• Delta T engine room de-misters
• Engine load distributed through flexible mountings on SS engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard for air compressor
• Trident hose or equivalent for engine exhaust
• Dyson vacuum cleaner (x2)
• Viking Cannister life rafts (Model#12847851) x2 with life raft hydrostatic release + custom made cradle

• 2nd radar (Model# GMR Fantom 54 Solid-state open array and pedestal (4-foot/50w/72nm)
• 16" Multifunction displays in P/H to GPSMAP 8624 MFD 24" Multifunction Display x3
• Maretron monitor to GPSMAP 8624 MFD 24" Multifunction Display x1
• MBB300C for inputting the Maretron info to GARMIN display to control and monitor Maretron system
• GARMIN NEW GRID 20 remote input device x1
• GARMIN Reactor AP Remote Control x1
• SAT TV (KVH TracVision HD7) + KVH TracPhone V7-IP Empty Dome (SAT phone pre-wire only) x1
• ASEA shore power frequency converter 50KVA in total (can receive 220V single phase up to 480V 3 phase, 50 or 60 HZ)
• Stern docking lights (x2)
• Extra search light
• WAVE wi-fi booster
• Second VHF same as 87209 model
• LED rope lights under the engines
• Color-coded wiring for easy identification
• Main electric panel includes AC & DC circuit breakers
• 24 volt DC monitoring and main circuit breaker panel
• Sub-panel design in each zone for electrical distribution
• Emergency power package & lighting system
• AC volt receptacles located throughout including engine room
• GFI protection for all AC outlets in exterior heads, galley and engine room
• Fiberglass water exhaust separator for generator
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc.
• Indirect lighting under valance in saloon, staterooms, skylounge, and galley
• Dimmer system for LED ceiling lights in aft deck and skylounge
• Dimmer system for LED ceiling lights in saloon, master, and VIP staterooms
• Italian Vimar switches for lighting system
• Underwater lights (8)

AC/DC Main Power System
Onan generators (x2) 40kW (6oHz) with sound shield ( 1520Hrs Stbd. 1510 Port)255 Ah AGM start batteries {X4)Engines/generators with battery chargers210 Ah AGM batteries (x8) for ship's DC24V service power with combined inverter chargers (x2)210 Ah emergency batteries (x2) above main deck with independent battery charger (XL)All batteries enclosed with proper fixturesVapor proof battery switchOctoplex multiplexing power distribution systemMaretron monitoring and control system

• 100 Amp single phase shore power
• Glendinning Cablemasters (x2) each 75' power cable (Aft)
• 2 additional Shore power plugs (x2), 100 Amp on Bow
• Shore power connection with 100 Amp ISO boost transformers wired as a polarization transformer (x2)

• Headhunter sanitary treatment system
• AC in the ER
• ER strainer plumbing  with cross over line and freshwater flush (requires monitoring and maintenance by owner)
• Upgraded to XTC SERIES Fully automatic sea water system and fully  domestic SEA EXCHANGE water maker 1800 GPD 230V
• ZTC SERIES fully automatic fresh water system(Spot Zero System) 2000 GPD 230V
• Fresh water outlet on swim platform (std), bow deck (std), boat deck, FB deck, port and stbd side deck all the way forward on the main level
• Increased water tank capacity (600 US gal)
• Fuel tanks w/sight & electric gauges and capacity specified in Principal Dimension above
• ISO grade fuel hose through entire system
• Dual Racor 75J1000 MA fuel filters water separator, each engine
• Racor soo MA fuel filters (x2), one on each generator
• Electric fuel transfer pumps (x2)
• Oil change pump system for engines, gears, and generators
• Reverso FPS210 fuel polishing system (x1)

• FRP water tank, capacity 600 gallons
• Marine grade pipelines for hot & cold water system
• 30 gallon water heaters (x2)
• High-volume Headhunter AC freshwater pressure pump and one DC pump for back up
• Sea Recovery water maker 900GPD
• Fresh water outlet & hose for filling engine and generator expansion tank
• Charcoal filters are plumbed into the freshwater line: freshwater pump, shore water inlet, galley, and crew galley
• Hot water circulation pump

• Marine Air chilled water air conditioning system
• Air handlers throughout boat
• A backup seawater cooling pump
• Backup air conditioning circulation pump

• 200 gallon holding tank w/ Y-valve and deck fittings for dockside pump out
• 100 gallon sump tank w/pumps for each shower & washer drainage area
• Headhunter toilet system
• Electric level indicators for holding tank and sump tank

• Electric Rule bilge pumps
• Manual bilge pumps (x2) in engine room and forward staterooms
• High water level bilge alarm
• Bilge exhaust ventilation fans

• Fire insulation in engine room
• Fire-resistant treatment for pipe penetrations
• Fixed fire extinguisher FM200 for engine room with remote control
• Auto shutdown system
• Automatic fire damper system
• Portable fire extinguishers
• Integrated fire alarm system in skylounge, with heat or smoke detector in each cabin

• 5 en suite staterooms and 2 crew cabins
• Upgraded TV sizes to 49" QLED in skylounge, 55"  QLED in salon, 49" QLED  in master, 43" VIPs, 32" prt + stb guest
• Fusion Stereo and speakers in fwd deck, VIPs, captain cabin, crew cabin (including USB Cable+ VIMAR 16368 USB socket for each Stereo)
• Fusion Panel Mount USB & 3.5mm AUX connector in fwd deck
• Blu-ray disc player in skylounge
• Apple TV in skylounge
• Sat. Receiver (DIRECTV) for each TVs with RF remote control kit
• Ultra Extender long-range CatX HOMI Receiver (70" 90m) for all TVs except captain cabin and crew cabins
• High grade interior/exterior package (ex. fabric and furniture)
• Upgraded skylounge ceiling in white lacquer, satin finish
• Upgraded beach club bar front in stone with backlit design
• Galley fwd full height backsplash upgraded material to stone
• Master bathroom vanity fwd wall and shower feature wall in stone/tile
• Nightstand tops in stone for master and port/stbd VIPs
• Electric single treatment curtains in salon
• Electric single roman blinds in master cabin
• Extra sub-zero (UC ? 24CI) freezer/ refrigerator in crew cabin
• Sliding bed in fwd guest cabin
• Extra full heigh 30? Sub-Zero Fridge
• Full set of Horizon logo galley tableware for 10, incl. dish holder, pots/pans, dishes, plates, knives, forks, asses, etc.
• Hi-lo screen in between salon and galley
• Skylight with electric blind in master stateroom
• Electric single treatment roman blinds in skylounge
• S/S panels with handles for ref. and freezer in galley
• U-Line wine cooler in galley
• WOLF convection microwave in beach club
• Insulation between Master wall and galley
• SUMMIT fridge in the lower cabinet of companionway for storing water
• Standard collection of wood for interior
• Standard collection of carpet except in wood floor areas
• Interior stairs from main deck to skylounge
• Standard collection of interlocking vinyl ceiling panels throughout
• Standard collection of wood or carpet floor in skylounge
• High density hotel grade pocket spring mattresses for entire boat except crew cabins and upper bunks
• Safe (x1) in master stateroom
• Upholstered headboard for master staterooms, VIP staterooms and guest staterooms
• Wood or upholstered bed frames in all cabins
• Hanging lockers in all staterooms
• Escape hatch with ladder for master stateroom
• Quick Cantaluppi or equivalent LED ceiling lighting
• Indirect lighting system under sofas, beds, valances & all stairways

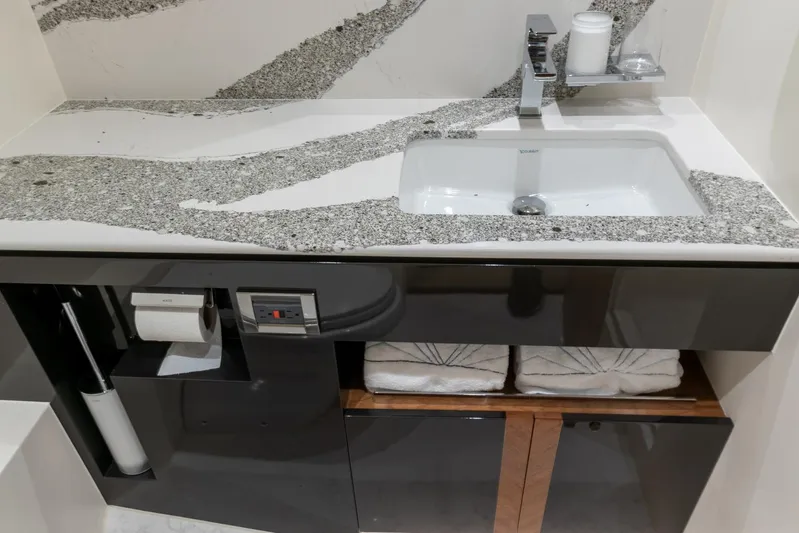

• Marble granite mosaic Corian glass quartz stone for countertop and backsplash in all heads, from shipyard collection
• Marble granite Corian wood for floors in all heads, from shipyard collection
• Seamless polyurethane finish with standard color selection in all shower stalls

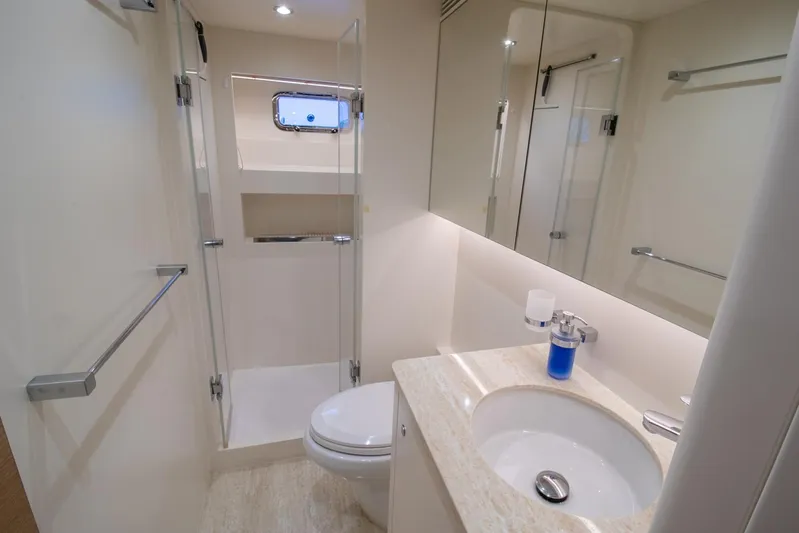

• Hansgrohe or equivalent faucets, towel bars, towel rings, cup brush soap toilet paper holders, toilet brush, in forward heads
• Exhaust blower for each head
• Kohler or equivalent basins in forward heads
• One USB charger for each cabin

• Rear accommodation arrangement includes aft quarters, efficiency galley (two-burner cooktop, microwave, sink, under-counter refrigerator), head and shower, hanging lockers, bunks, storage lockers, AC
• Satin finish wood on walls, vinyl ceiling, round-dotted vinyl floor, Corian countertop and floor in head, head hardware in Justime collection. All materials for interior fit-out are from shipyard standard choices

• Under counter ice maker (x1) or refrigerator (x1)
• Wine cooler
• S/S sink
• Garbage disposal
• Sub-Zero refrigerator (x1)
• Miele or equivalent electric induction cook top with exhaust blower above
• Miele or equivalent dishwasher
• Miele or equivalent microwave and oven or one microwave-oven
• Trash compactor
• Miele or equivalent stacked washer/dryer (x2).

• TV antenna on top of radar arch
• Cellular router System with Wi-Fi onboard
• Skylounge 32" LED TV with Fusion Marine
• Stereo (x1) and speakers (x2)
• Upper deck Fusion Marine Stereo Amplifier and speakers (x2) from skylounge Fusion Stereo
• Saloon 46" LED TV with Bose home entertainment system and separate Blu-ray disc player and Apple TV
• Aft deck Fusion Marine Stereo (x1) and speakers (x2)
• Master stateroom 40" LED TV with Bose home entertainment system and separate Blu-ray disc player and Apple TV
• VIP stateroom 32" LED TV with Fusion
• Marine Stereo (x1) and SM speakers (x2)
• Guest stateroom 22" LED TV with Fusion
