Alcazar Del Mar III Yacht for Sale | 54 Offshore Yachts Marco Island, FL

The layout is ideal. From the large aft cockpit, you enter the main salon from through dual sliding doors, the galley is forward to port and is open to both the salon and pilothouse. Two sets of stairs to starboard in the main salon, one leading down to the midship Master cabin, the other just up 3 steps to the pilothouse. Forward of the Galley, the pilothouse has 2 sets of stairs to starboard - one going forward and down to the VIP stateroom as well as the laundry. The other leads aft and up to the flybridge and tender stowage. Additionally, the pilothouse has sliding doors to easily access both the starboard and port side decks. The engine room is accessed from either a hatch in the galley’s cabin sole, the lazarette or its own dedicated hatch in the aft cockpit.

Master Stateroom: The well-appointed Master has its own entrance at the bottom of a curving stairway from the main salon. The walk around, fore and aft queen berth is located on the centerline with the ensuite master head and separate shower to starboard. Features include:

Dedicated 7,000 BTU Cruisair reverse cycle heating and air-conditioning unit.
Custom made “hinged” luxury mattress (purchased Nov 2021)
22” Samsung “Smart TV
His & Hers Cedar lined, hanging lockers.
Oversized mirrored vanity in sleeping area
Corian countertops, teak and holly sole (in head), Vacuflush head, large shower
Brondell Washlet/Bidet (installed 2019)
Torrid 20-gal Stainless Steel, high efficiency, heat exchanger/hot water heater (installed 2017)
Abundant storage in drawers and cabinets

VIP Guest Stateroom: Guests enjoy their own private entrance at the bottom of a curved staircase from the pilothouse. Like the Master Cabin, guests have a walk around, fore and aft queen berth located on the centerline with an ensuite head, vanity and separate shower. Features include:

Dedicated 7,000 BTU Cruisair reverse cycle heating and air-conditioning unit.
13” TV/VCR in cabinet
His & Hers Cedar lined, hanging lockers.
Mirrored vanity in sleeping area
Corian countertops, teak and holly sole (in head), Vacuflush head, large shower
Abundant storage in drawers and cabinets

Just outside the entrance to the guest cabin is the laundry closet with a “stacked” ASKO vented clothes dryer and washer. Also, the vessel’s chain locker and windlass can be accessed through mirrored cabinet doors at the head of the berth.

Main Salon: On the port side there is a large U–shaped sofa with tremendous storage below. A custom made, high gloss teak table with brass inlays forms the centerpiece. Its pneumatic pedestal and folding leaves allow it to serve as both a cocktail and dining table. Dual sliding doors aft and large opening windows with screens on both sides, provide unobstructed views while relaxing or dining. Covered side decks not only provide protection from the elements when docking, but also keep the mid-day sun from penetrating the salon. The salon is open to the galley and separated by a counter to port. Window furnishings include Hunter Douglas, “honeycomb”, fingertip adjustable shades. The entertainment center is located in the starboard aft corner with two-barrel chairs forward. Features include:

16,000 BTU MarinAire reverse cycle heating and air-conditioning unit which also serves the Galley area (installed Feb 2022)
Intellian i4 Satellite TV system with custom made dual mount to accommodate the radar
40” Samsung “Smart TV”
Yamaha RX-V377 Surround Sound system
Sony DVD Player
Dish ViP211K receiver
AudioSource, 100-amp selection switch for aft deck and flybridge speakers

Galley: Open to both the main salon and the pilot house, the chef enjoys the same views experienced by everyone else. The standard Corian counter tops and teak “fiddles” have been replaced with modern looking “cultured”, light-weight granite. The U-shaped galley features the following:

Scotsman CU50 “clear ice” maker (purchased 2016)
Sub-zero under counter refrigerator
Sub-zero under counter freezer
Kenyon 3-burner, black tempered glass cook top w/exhaust above
Sharp convection/microwaveoven
Waste King L-1001, “silent” garbage disposal (purchased 2021)
Separate “Indulge” galley faucet with “Insinkerator” instant hot water and cold water dispenser
High quality charcoal filter for Insinkerator dispenser
Oversized Elkay stainless steel sink
Teak and holly sole

The galley also provides unique inside access to the forward area of the engine room via a ladder thru a matching teak & holly hatch in the cabin sole.

Pilothouse: Well thought out with great visibility and layout, including opening doors port and starboard. A large, white, “ultra-leather”, “L” shaped settee aft with a “Hi-Lo” table, custom made to match table in main salon. Two Pompanette swiveling helm chairs at the helm are covered to match the settee. The sole is teak and holly. The electronics and controls are all very well positioned including an overhead console. There is a large pass through to the galley and a chart table to port. In addition to all of the normal items found in a pilothouse, there is a U-Line, 38 bottle wine cooler located to starboard. Equipment and controls include:

24,000 BTU Cruisair reverse cycle heating and air-conditioning with 2 separate evaporator/blower units
Simrad/Robertson AP20 auto pilot & plug in for AP21 remote control
Raymarine E-80 Color GPS/Chart Plotter, Tridata (depth/speed/temp) & Wind Instrument (wind direction & speed)
Azimuth 1000 Digital Compass & Furuno 2000 electronic compass for radar
2.4GHz & 5GHz WiFi via Alfa Networks Dual Band Tube-UAC2 system
Standard Horizon VHF
Furuno FR7061, 6kw, 64NM radar w/4’ open array antenna on radar arch
Dell Mini-Tower, Windows 10, HD NEC 17” monitor, wireless mouse & keyboard. “Time Zero” software and GPS antenna provides additional navigation backup and route planning backup and route planning.
Six Station intercom system
NAIAD stabilizer system & Wesmar bow thruster controls
Hynautic engine controls and power steering & Caterpillar gages
Anchor windlass & Windshield wiper controls
VDO Rudder angle indicator
Samsung 24” flat screen TV
Fireboy fire suppression system’s Shutdown/Override controls
Intellian i4 antenna ACU (control panel)
Stryker 370°Rotation with 135° Tilt, Remote Control Spotlight

Flybridge: The flybridge features a large “L” shaped settee behind two custom, Corian fixed tables. Pompanette “high gloss” teak and vinyl, swiveling helm chairs provide 1st class seating at the helm. A built-in ice chest to port and a built in sink next to a Norcold refrigerator to starboard, reduce those trips below decks. The complete electronics package is thoughtfully laid out in a master console and a Bimini with a 3-sided enclosure make this a favorite spot in any kind of weather. The tender and davit are aft of the flybridge radar arch on a spacious boat deck. Canvas below the stainless handrail surrounds the entire top deck aft of the radar arch which is ideal for the safety of dogs or small children. Features, electronics and controls include:

Raymarine E-120 color chart plotter, Tridata (depth/speed/temp) & Wind Instrument (wind direction & speed)
Furuno FMD 1920 Color Video Plotter (radar & chart plotter)
Simrad/Robertson AP20 autopilot control head & plug in for AP21 remote control
NAIAD stabilizer system & Wesmar bow thruster controls
Azimuth 1000 Digital Compass
Anchor windlass controls
Marquipt 1000 electro-hydraulic davit with “Quick” handheld remote control
Standard Horizon Spectrum VHF with RAM Microphone
Fresh and saltwater deck wash down
Norcold NR740, 1.7 cu.ft., AC/DC, Stainless Steel Refrigerator (purchased 2018)
Sunbrella SeaMark Bimini with EZ2CY & Strataglass enclosure (installed November 2022)
All weather stereo speakers & boat deck flood light on radar arch
VDO Rudder angle indicator
Storage under L shaped settee
Covers for helm seats, L shaped settee, instrument console, fly bridge door to pilot house and hatch to aft cockpit.

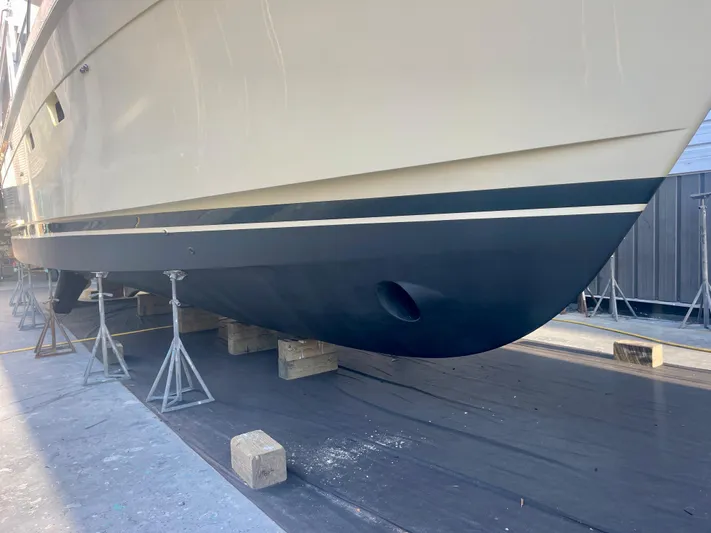

Hull and Deck: The decks are molded nonskid with no exterior teak except for the cap rail around the aft cockpit. Wide, covered side decks have inward opening doors to port and starboard for easy boarding. The bow has both fresh and salt water washdowns as well as 2 recessed lockers for additional ground tackle. The molded swim platform features hot/cold fresh water fixture, a saltwater wash down, dockside water hookup and 2 recessed lockers. Other features and equipment include:

Novurania 400 Deluxe RIB w/ offset console and 50hp Honda 4-stroke
3500 lb. Maxwell, dual direction windlass with controls at bow, pilothouse and flybridge
Dual roller anchor pulpit with 75 lb CQR anchor w/300’ of chain and 66 lb SPADE anchor w/ 25’ of chain & 200’ of ¾” “braid-on-braid”, gold & white rode
Full coverage aft cockpit Bimini (installed January 2022)
Four blade Nibral props
“Softcell” portable dock water softening and filter system
Full S/S main deck rub rails and at boat deck level
Teak framed window and hatch screens
Complete canvas covers for all exterior seating, instruments, anchor windlass, dinghy, pilothouse windows and hatches
Marquipt swim platform boarding ladder
Dockside watertight electrical, TV and phone jacks aft and forward
2- stainless rod holders at transom
Lifesling rescue system and Ships Bell

Engine Room: Accessed thru either a hatch in the galley cabin sole, aft deck hatch or the lazarette, the engine room provides good, well lit access to all equipment and stand up head room at the forward end of compartment. Fuel and water management couldn’t be easier due to convenient stainless-steel manifolds. Other features or equipment include:

Engines: Twin, Inboard 660 hp, Turbo Charged Caterpillar 3196s Hours: Starboard = 2,902.5 hrs and Port = 2,892.3 hrs

CAT engine room engine instruments and hour meters
Generators: 12KW Northern Lights with approximately 2,165 Hrs and 8KW Northern Lights with approximately 1,940 Hrs

Naiad Stabilizers actuators and hydraulic system
Fresh Water System: Main - Flotec 120v/240v, ½ HP Jet Pump with one, 19-gal, pressurized accumulator tank Two, Flojet, 12v, 4.5 gal/min with two ½ gal accumulator tanks. Backup - Two, Flojet, 12v, 4.5 gal/min with two ½ gal accumulator tanks. Water filtration system - 3 quick release, 3M Filtrete, carbon element, whole boat water filters

Bennett Trim Tabs
Dual Racor fuel filters for main engines and generators
Fireboy fire control system
Reverso Oil transfer system for engines, transmissions and generators
High-capacity engine room blowers
Color coded plumbing and piping
Shaft bonding system
Engine Battery Charger: Professional Mariner ProTech; 24v/25 Amps
Generator Battery Charger: ProMariner ProNautic 12-20P; 12v/20 Amps (installed Feb 2021)
Inverter/Charger: 2000-watt Xantrex Freedom Model 20 with Link 2000 controller
House bank alternator - 130 amp, 12v alternator on port CAT
Batteries – Each engine and generator has its own starting battery(s) as well as Battery parallel switches

Aft Cockpit

Whether fishing, eating or just lounging, this area is large enough for just about any type of furniture and arrangement the owners choose. The entire cockpit is surrounded by an 10” wide teak cap rail finished with Alwgrip’s 2 part, “Awlwood Gloss”. An aft steering station to starboard makes “backing down” and docking shorthanded a snap. To port is a large cabinet featuring a built in electric grill by Kenyon with abundant storage below. The deck of the cockpit features recessed storage lockers to port and starboard, with a large hatch in the middle to access the vessel’s lazarette. Not only does the lazarette provide tremendous storage but also convenient access to numerous pieces of mechanical equipment as well as the engine room. There is abundant Lazarette storage, transom door and molded swim platform.
