ALKEMI Boat for Sale

• Beam: 13' 4''
• Hull Material: Fiberglass
• Max Draft: 6' 6''
• Displacement: 31,000 lb
• Fuel Tank: 1 x 108|gallon
• Fresh Water: 1 x 191|gallon
• Holding: 1 x 40|gallon
• Cabins: 3
• Heads: 2

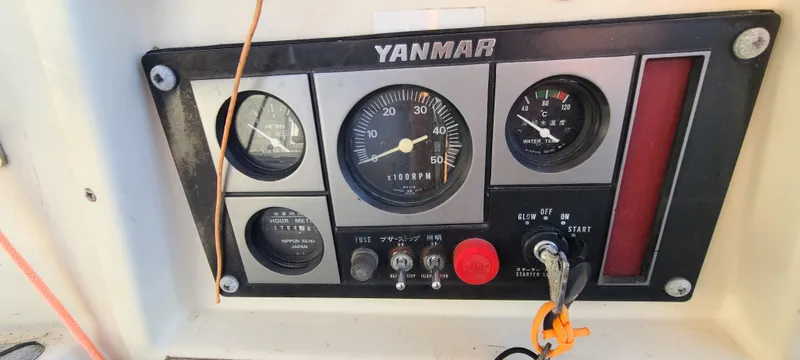

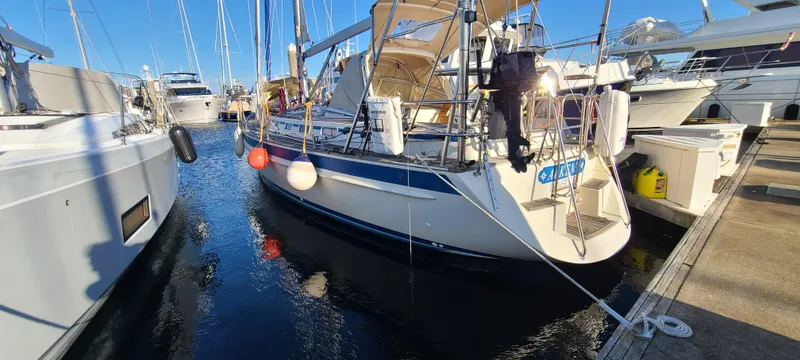

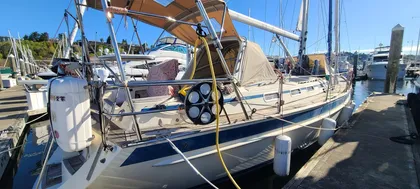

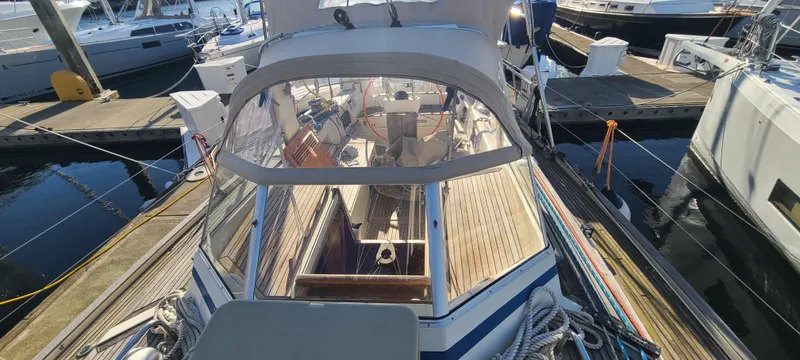

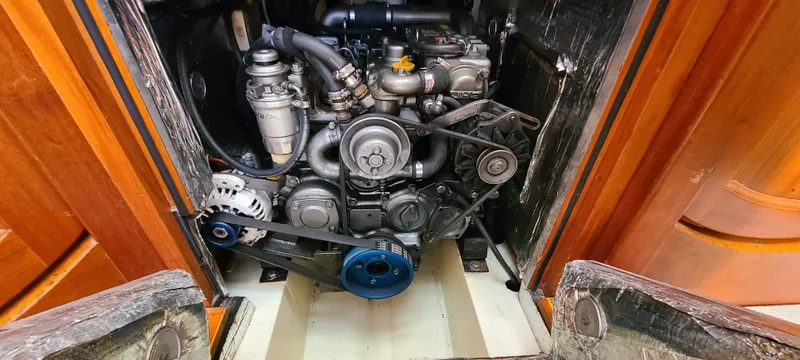

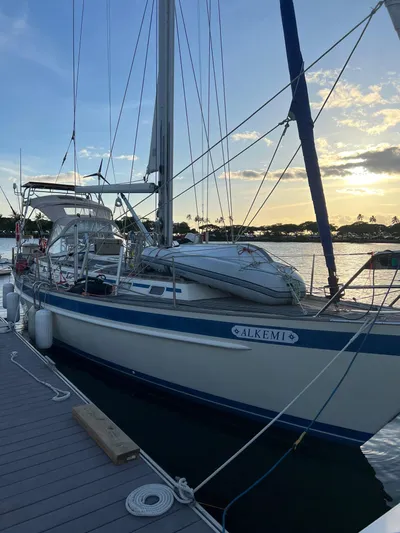

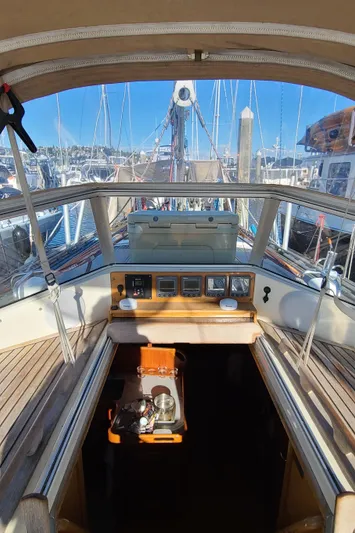

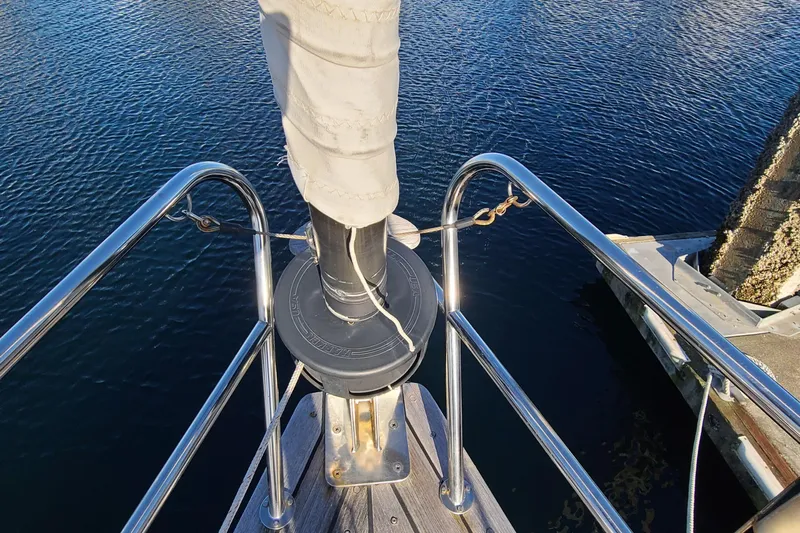

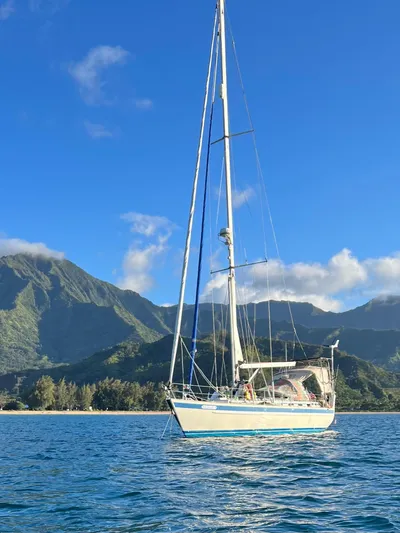

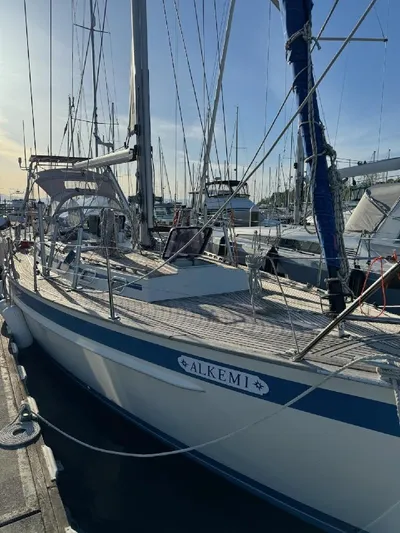

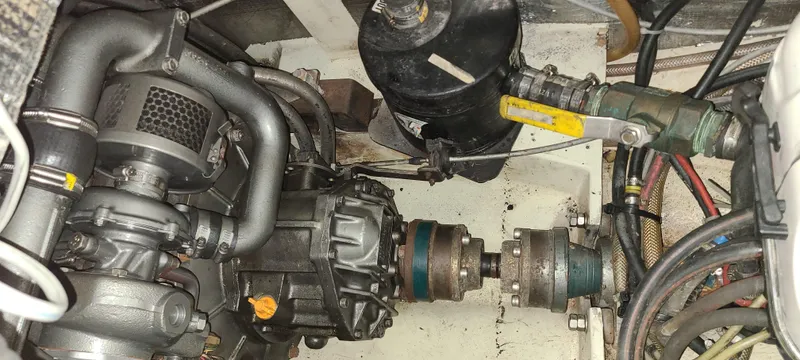

"ALKEMI" is a fiberglass constructed aft cockpit cutter rigged sailing vessel with diesel auxiliary. She has a raked bow with bow thruster, fin keel, skeg-hung rudder, and reversed transom with molded boarding platform. She has an in-furling mainmast and auxiliary power is provided by a 100 Hp Yanmar marine turbo diesel. On deck, starting forward, is a stainless steel bow railing, Harken furling unit for jib, and recessed anchor locker with enclosed electric anchor windlass. Walking aft, there is a second furling unit for the staysail and a deck hatch that opens to the forward cabin. The cabin trunk is fitted with aluminum-framed acrylic deck hatches, dorade boxes, teak handholds, flexible solar panels on top, and opening ports along the sides. The decks and cabintop surfaces have a teak overlay and there is a teak cap rail with lifeline stanchions mounted on top. All sail control lines lead aft to the cockpit. The cockpit is arranged with a pedestal-mounted wheel helm. The pedestal also supports engine throttle and gear controls, navigation electronics, and a folding cockpit table. Sail control lines lead back to the cockpit and are handled by jammer clutches and winches. The cockpit area is shielded by a wraparound windscreen and further aft is a fiberglass-covered stainless steel targa arch, then a stainless steel solar panel, and antenna arch over the transom area. The arches and windscreen support Sunbrella awnings. There is a wind generator on a stainless steel post located at the aft port corner. A centerline gate in the stern railing leads down to the molded boarding platform with built-in seats on each side and a centerline swing- down boarding ladder.

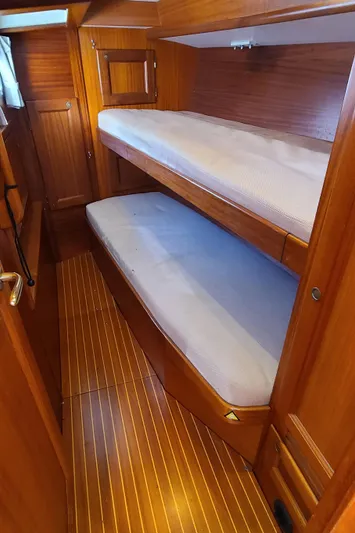

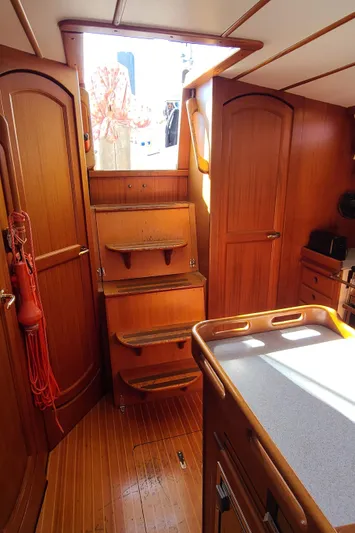

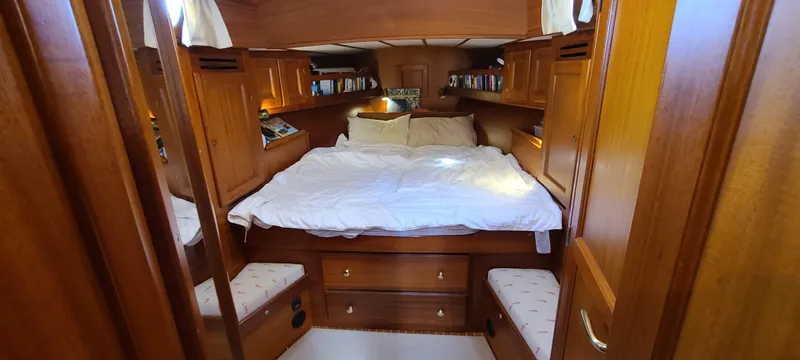

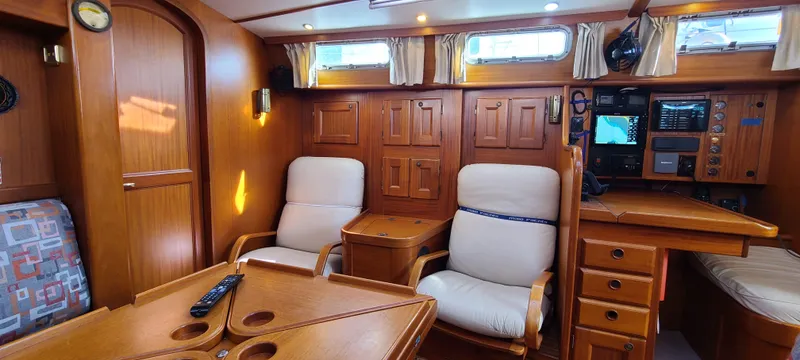

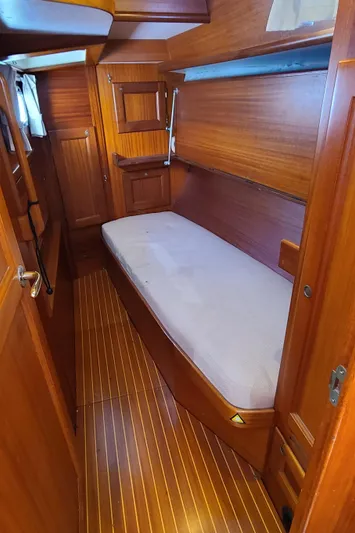

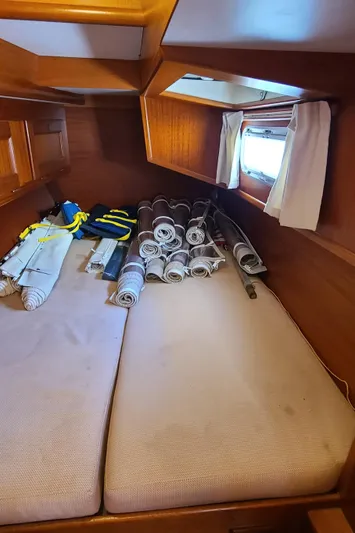

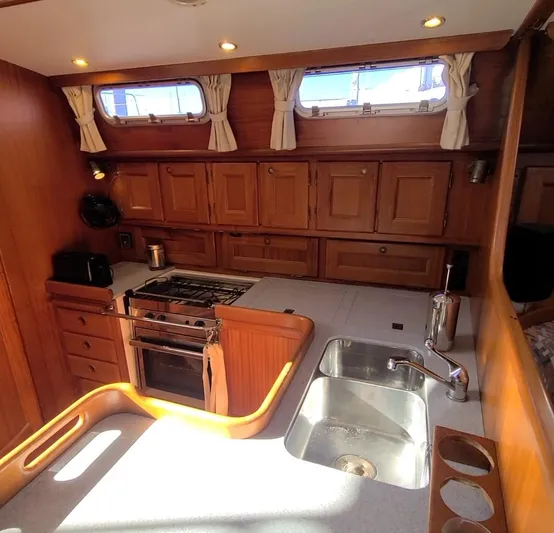

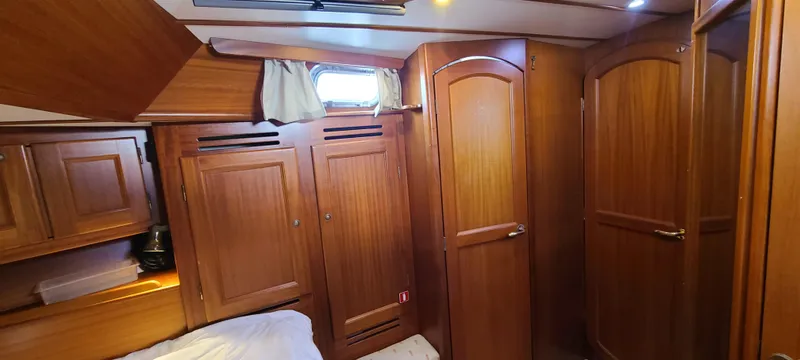

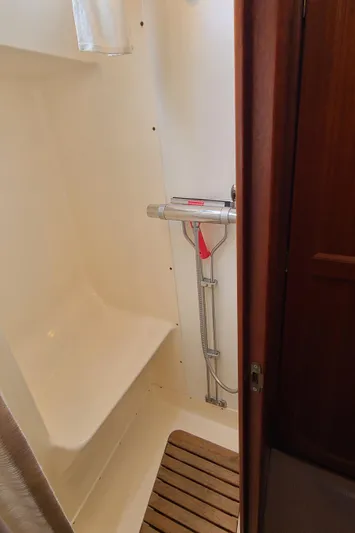

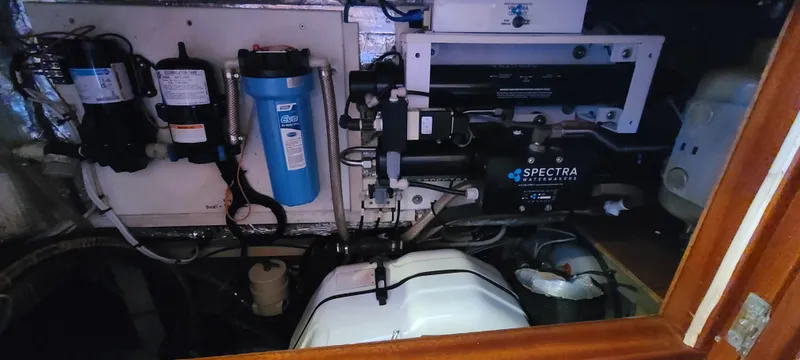

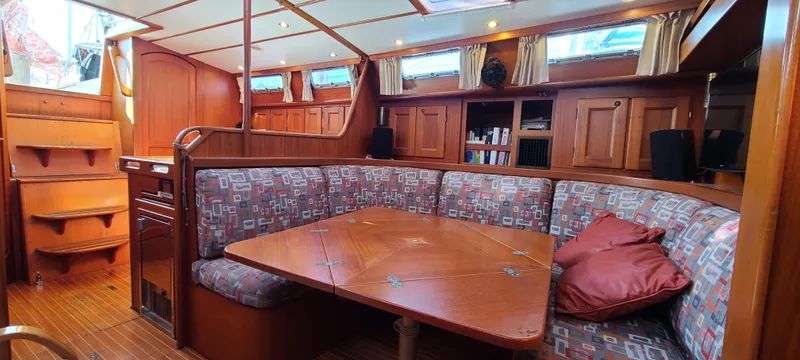

Down below, starting forward, is a private V-berth cabin, followed by an enclosed head to port and stand-alone enclosed shower to starboard. Walking aft, the main salon is arranged with U-shaped settee to port with leafed dining table that lowers and converts the settee in to a queen berth. Aft of the settee is a U-shaped galley with two-burner LPG stove with oven, top-loading reefer, and double stainless steel sink. There is a top-loading freezer under the aft outboard cushion of the dining settee. Opposite the settee to port are twin bucket seats on either side of a built-in cocktail table, and aft of this is a forward-facing navigation desk, followed by a second enclosed head. Aft of the head and galley are private quarter berth cabins. The engine compartment is located below the cockpit between each quarter berth cabin and is accessible by the swing-up companionway ladder, by removable panels on each side, or by a hatch in the cockpit well. The engine room also houses a diesel generator and a water maker.

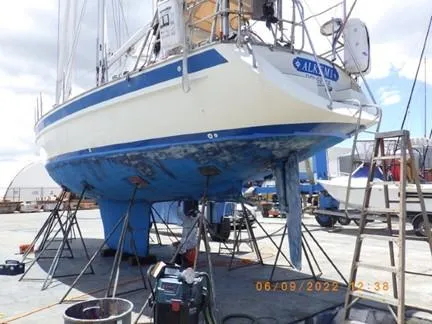

The hull, decks, and superstructures are constructed of solid and balsa-cored fiberglass reinforced plastic (FRP). The interior hull structures consist of bulkheads, frames, stringers, and built-ins. The ballast is encapsulated within the keel. The mast is deck stepped. The boat is built to Malo yachts factory specifications.

Huge Bow Thruster

12 and 24 VDC

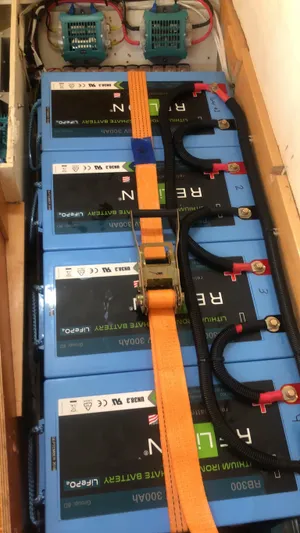

Battery system: (4) Lithium 300 AH Group 8D batteries for the 12 and 24 vdc electrical system.

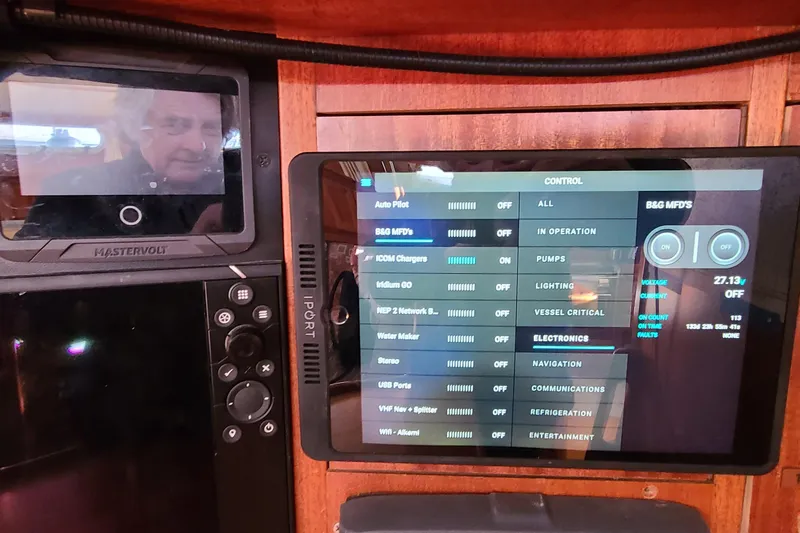

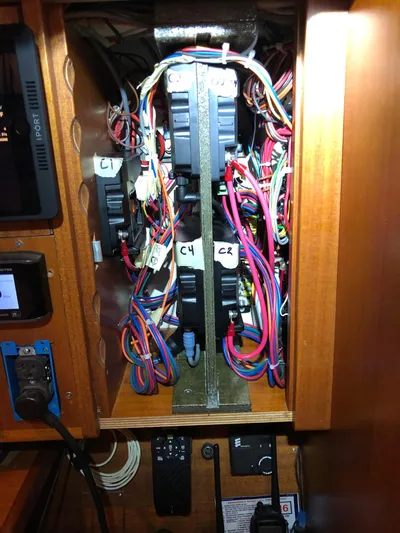

Circuit isolation fuses, installation, circuit routing, and suspension: (1) CZone fuse modules with five relay boxes (seven fuses per box); main and branch circuits controlled via an iPad mounted at the navigation desk.
Charging: (2) Mastervolt 40 amp battery chargers; (2) 100 amp (est.) flexible solar panels; (4) 80 amp (est.) rigid solar panels; (1) Silentwind wind generator;
(3) MPPT charge controllers; (1) 12 vdc belt-driven alternator; (1) 24 vdc belt- driven alternator.
Battery monitoring: (1) Mastervolt digital battery monitor.
120 VAC:
Shore power: (1) 220 vac shore power inlet.
Shore power electrical cords: (1) 50' marine grade shore power cord.

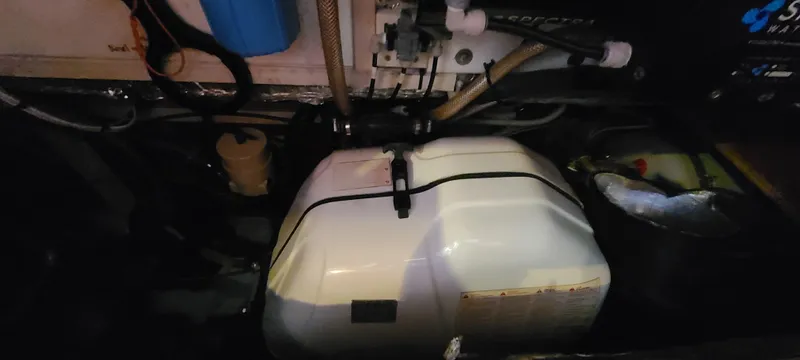

Make: (1) Panda 4000S Model PMS; KW rating: 3.6.
Fuel delivery system: Via main fuel tank.
Exhaust: Wet.
Cooling: Heat exchanger.
Mounting: In factory enclosure aft of main engine.

Make and model: (1) Webasto FCF Platinum 16,000 BTU marine air conditioning unit.

Anchors and rode:

(1) Rocna 33 Kg anchor with 300 feet of 3/8" diameter chain
(1) 15 lb claw anchor with addition chain and line for stern anchor.

(1) spare anchor - Fortress - Big - in bilge

(1) Windlass new 2020

Windlass: (1) Lofrans 24 vdc anchor windlass

Stove: (1) Force 10 2-burner with oven.
Refrigeration: (2) Isotherm top-loading reefer boxes; (1) Isotherm top-loading
freezer; (2) Isotherm water-cooled marine refrigeration units.
Sinks: Double under-mount stainless steel sink.
Counters: Corian counters.

Finish: Mahogany.
Upholstery: Cloth.

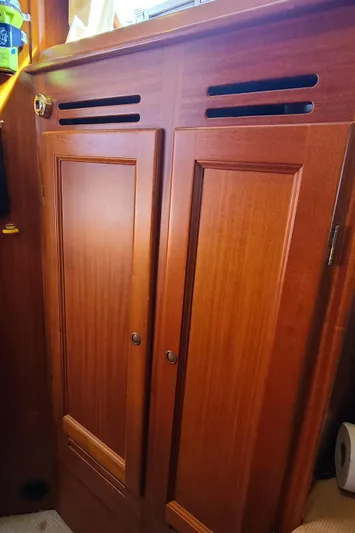

Doors: Cabin and head doors, in good condition.
Sole: Hardwood.

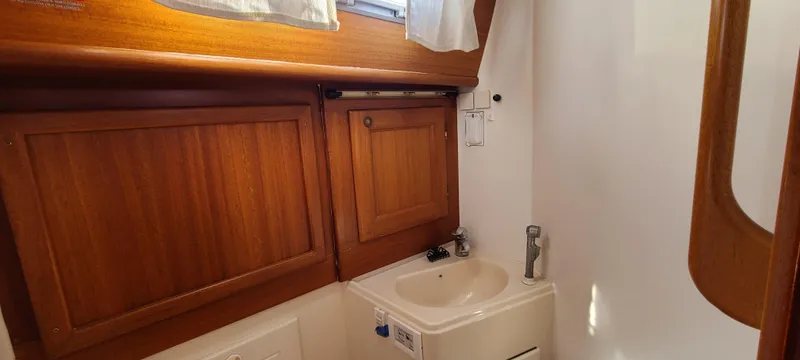

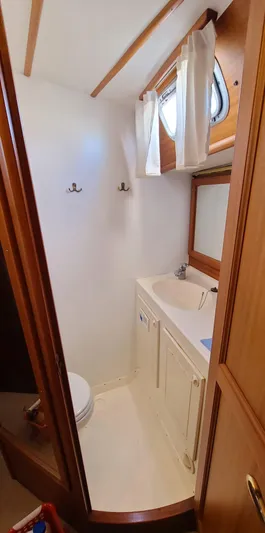

Head fixtures: In good condition.
Lighting: LED overhead and bulkhead lighting throughout.

Life raft: (1) Viking RescYou 6-person in hard canister; raft mounted in cradle
on stern railing, raft recertification was due 7/2019.
EPIRB: (1) 406 MHZ EPIRB located in starboard quarter berth; battery expires
6/2022; NOAA registration expired 2/22/22.

Personal flotation devices (PFD’s): (6) Type V (inflatable) and (4) Type I USCG
approved adult PFD’s.
Type IV throwable: (1) 24" orange life ring.
Visual distress signaling: (1) SOS light and day flag.

Man overboard recovery: Via stern ladder.
Searchlight: Hand held.
First aid kit:

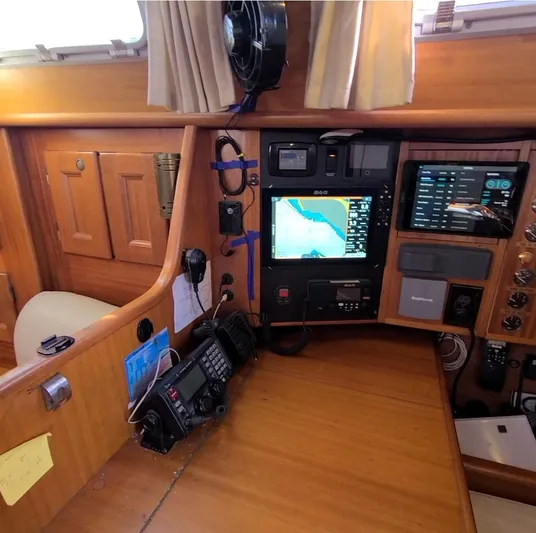

VHF: (1) B&G fixed V-50 VHF with whip antenna and H-50 wireless handset;
(1) ICOM M-73 handheld VHF; (1) ICOM M-88 handheld VHF.
SSB: (1) ICOM IC-M802 with auto tuner and antenna.
Satellite phone: (1) Iridium Go satellite phone.

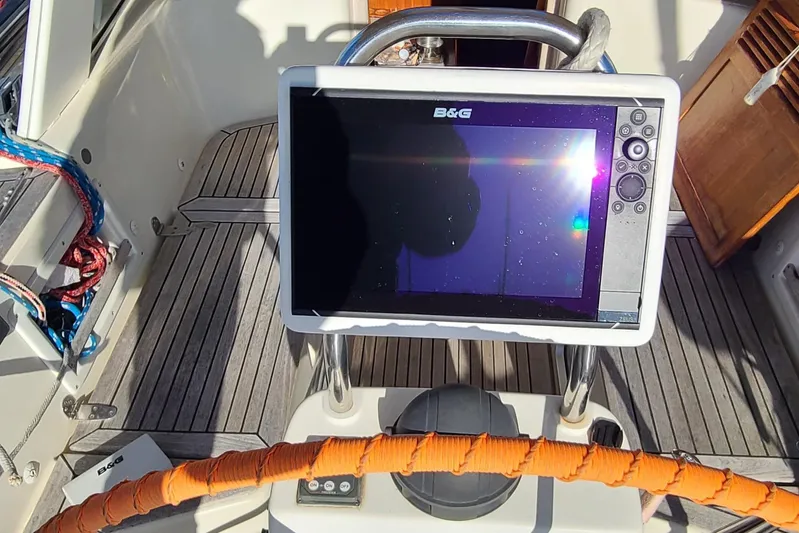

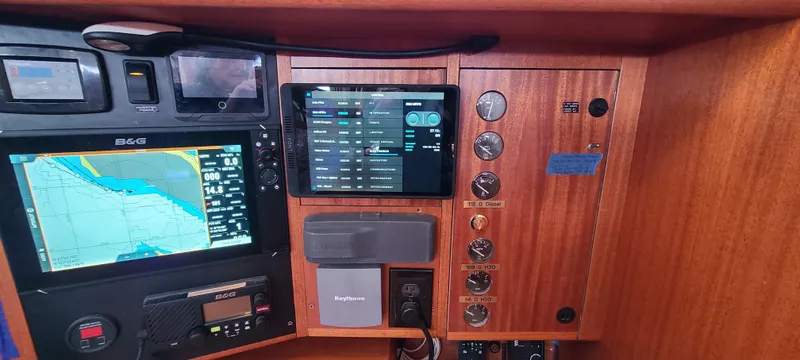

GPS: (2) B&G Zeus3 12" multifunction chartplotters.
Radar: (1) B&G broadband radar.
Navigation lights: Meets U.S. Coast Guard requirements.
Magnetic compass: (1) Plastimo 6".
Autopilot: B&G autopilot with two control heads.
Other instruments: (2) Raymarine ST-60 4" multifunction displays; (2)
Raymarine ST-60 wind direction and speed 4" displays; (1) Raymarine ST-60
speed 4" display; (1) Raymarine ST-60 depth 4" display; (1) Raymarine
heading sensor.
Sound signaling: Handheld air horn and brass bell.
Charts and publications: Extensive chart inventory.

B&G Wind new 2021+ Raymarine Wind There are 2 wind direction and speed sensors - on top of the mast

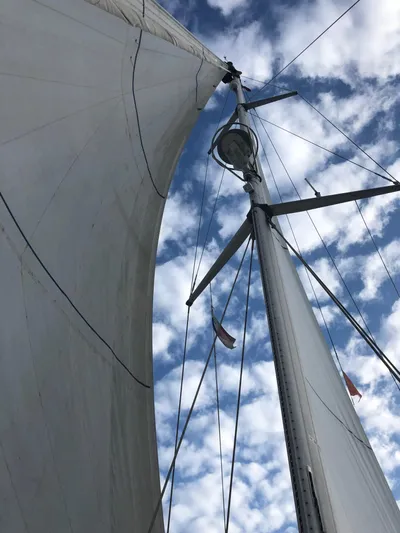

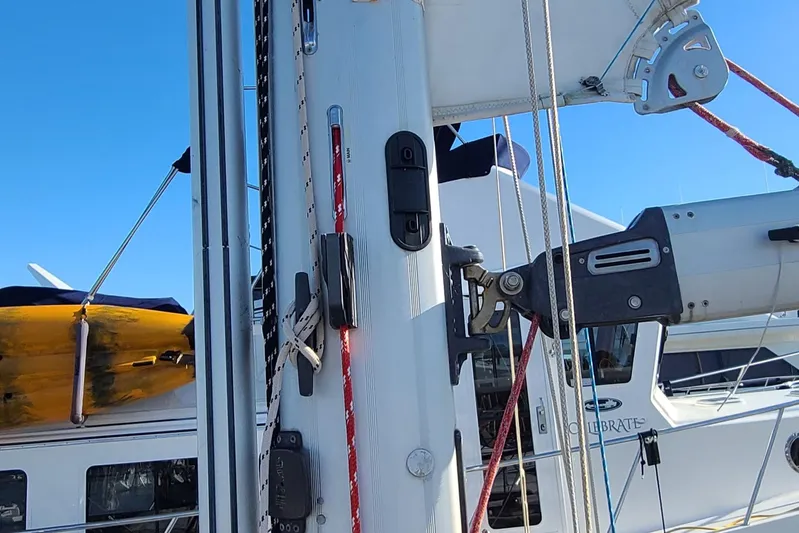

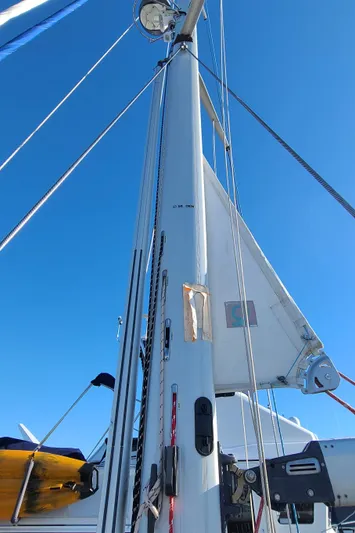

Spar: (1) Selden aluminum double swept spreader in-furling deck stepped main
mast and aluminum Selden boom; 1x19 standing rigging with swaged terminal
end fittings; the standing rigging was reportedly renewed in 2019 in Annapolis,
Maryland.

(1) Dacron roller furling genoa, sighted furled; (1) Dacron roller furling staysail,
sighted furled; (1) Dacron roller furling mainsail, sighted furled

Harken Mark III Unit 2.5 for the genoa and Harken Mark IV Unit 2 for the
staysail; Seldon Rodkicker boom vang; boom brake; Harken blocks, tracks, and
cars; sail control lines lead aft and are controlled by jammer clutches and winches
in the cockpit; high modulus sheets and halyards, in serviceable condition.

Anderson two-speed self-tailing winches in the following sizes:
(2) #58; (1) #46; (4) #40.

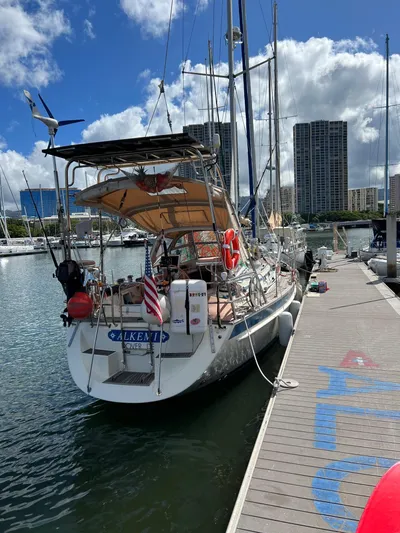

Stainless Arch and Solar

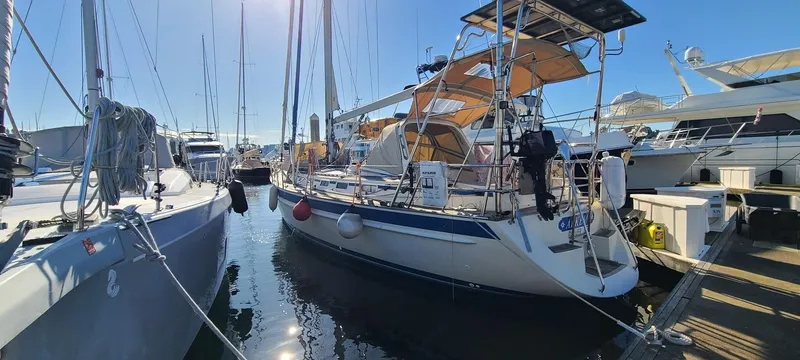

• Boat has heavy duty stainless steel cruising arch to support Dinghy
• Solar - 4 150 AMP Solana Panels on rear arch

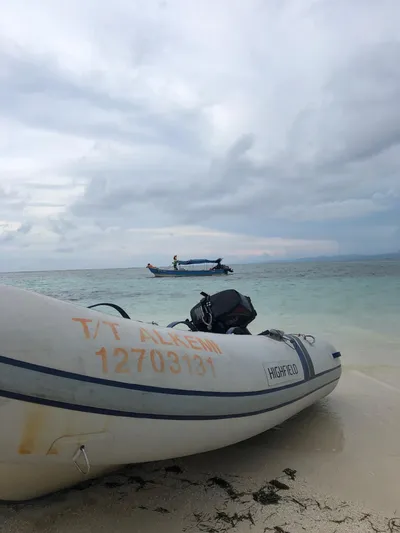

Dinghy

• Dinghy Highfield new 2020 - not used much in great almost new shape
• Dinghy OUTBOARD motor - 2 stroke 9.8 HP Tohatsu with spare prop.
• Light and easy to mount on rear rail with a 4:1 purchase lift
• Dinghy on plane with 4 ppl.
• Solar - 4 150 AMP Solana Panels on rear arch
