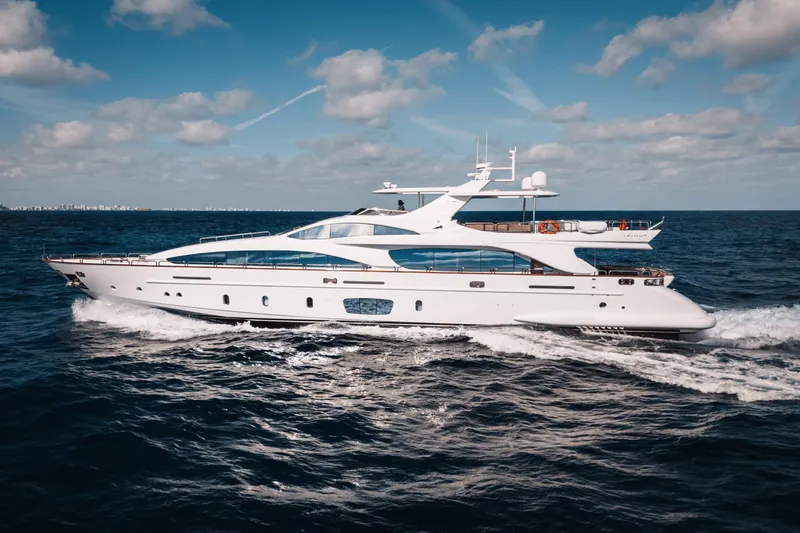

Amanecer Yacht for Sale

2023 REFIT COMPLETE LIST:

Over $2 Million Spent.

Paint entire exterior from water line
up including boot stripe/radar arch/mast - Awlcraft 2 part epoxy paint - snow white.

Paint bottom - Sea Hawk
Biocoup Antifouling

Coat props shafts and running gear with prop speed

Cap rail - Awlgrip 2 part epoxy - strip, sand, seal and rebuild the top coats - new caulking

New Custom built titanium Air Conditioning Chillers x 2 - Rebuild all pumps, renew glycol, pressure relief and make up water system. Renew insulation as needed during install.

Inspect all hull penetrations, valving and piping. Repair/replace as needed.

New Navigation Electronics – complete upgrade to Garmin package w/ Nobeltec Navigation software

Upgrade auto pilot to AP 80

Install starlink Maritime - performance version. (vsat is still currently aboard as backup data)

New non-skid vessel wide including bow brow seating area and sky deck.

Recaulk entire vessel from bulwark sides up and over - around all windows. Caprail and panels.

Repair/replace teak deck caulking forward deck seating faux caulking lines (teak completely replaced 2019)

New Veem 4 blade props - Interceptors

New gear leg for Bow Thruster – new gear oil.

New bow thruster controller sky deck

New hydraulic actuator cylinders ABT trac stabilizers. Block pin seals and upper lower bearings. 2 part epoxy wells and actuators.

New Cutlass bearings -

Pull Port and Starboard Shafts - tested for true

New dripless shaft packings and boots

Rebuild garage door hydraulic cylinders and blocks.

New shaft brushes

New Zincs.

New LED downlights exterior (+- 50)

New LED Deck. Courtesy lights exterior (+- 30)

New retractable roof material both forward and aft. Renew all rails, belts and retractable system workings.

New illuminated name board on aft door - 4 color with wifi controller to match underwater lights.

New exterior speakers - James
Loudspeakers - marinerized versions x 12

New Forward /exterior helm windshields x 3

New exterior windows - forward - main deck x 2

New exterior windows - helm port and starboard windows x 3

New exterior windows - Master - port and starboard x 3 each.

New exterior furniture. Natural teak with Charcoal mesh - armed dining chairs x 9 - lounge chairs x 3

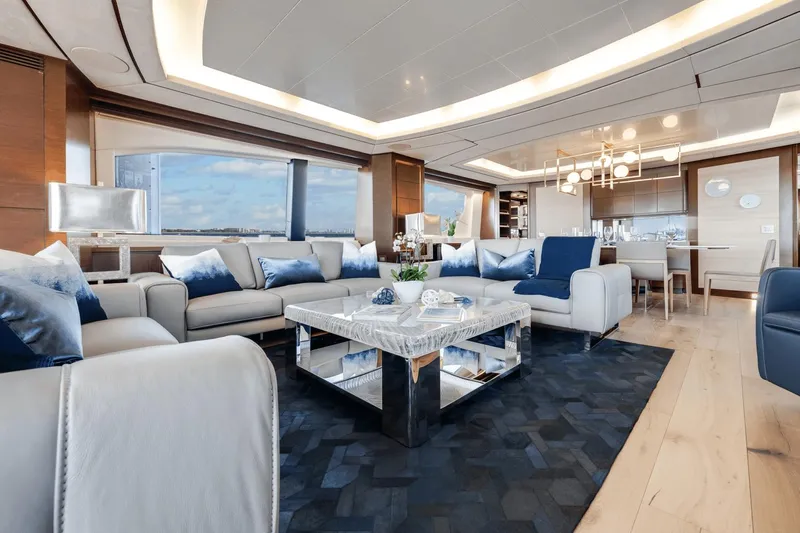

New interior furnishings Salon

New interior artwork, glassware and chaffers

Update Network hardware and backbone computers – new Apple Tv’s x 4 for streaming. Kalidescape updated and additional library added +- 400 titles aboard.

New interior Flooring Main Deck with sound down and custom moldings

New Carpet Helm and stairs from main deck companionway

New Synthetic Teak decking on Sky Deck

New Sky deck acrylic wind barriers on brow rim.

New Ventilation Fans Forward e room (big ones) and new perforated enclosures.

New watermaker booster pumps

New salon door lock

Paint E room bilges

Paint Laz bilges

Paint E room hard piping

Paint Generator enclosures - new sound proofing.

Paint Steering gears and dial all connections. Inspect seals on rudder shafts and cylinders. Inspect all cooling and hydraulic hoses and replace as needed.

Rebuild Fire pump and bilge pump

Paint Drip trays in e room with 2 part epoxy

Hard polish all exterior stainless steel.

Deep clean all interior and exterior cushions

Deep clean all interior roof panels

Deep clean all interior wall panels.

Deep clean all interior furnishings

Pull anchors - address all ground tackle and anchor locker. Paint anchor locker and windlass motors.
Derust, inspect all mechanical connections and defoul chain- paint as needed

Rebuild Jura Z9 impressa coffee maker

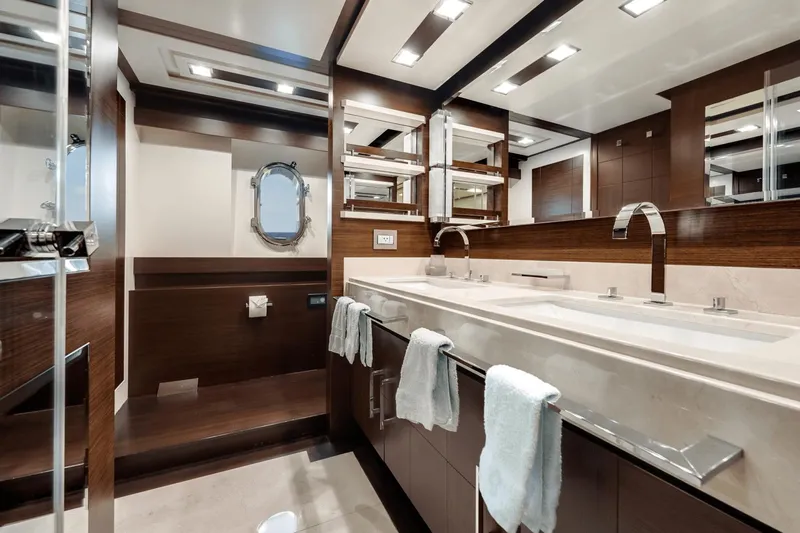

Polish Marble table tops and floors in heads.

New Hot Water heater elements and thermostats - amidship boiler

New Sanitary Sewer Lines - blackwater system manifold - guest area

New Black Water tank level sensor.
Paint and dial manifold and pump pick up system.

Pressure wash black and grey water holding tanks.

New level sensor aft grey water tank – new check valve and new ball valve on effluent side of pump.

Confirm all level sensor function

New inflatable beach club garage door seal.

New Planar Display aft deck

New Sony 45 Display Galley

New exterior deck cameras

Inspect and clean black water tank

Inspect and clean grey water tank – confirm level sensor function – clean.

New Compressor for house air

Rebuild dive compressor

Mains rebuild – In frame MTU QL4 -

Gens rebuild – In frame John Deere 10000 hour interval

Replace Perforated panels in forward section of E room

Replace 5 air handlers in main deck

Replace garage rubber flooring

Sand all teak tables

Sand all teak decks (final step)

Hard polish anchor strike plates -

New Starting battery bank mains -

New Starting batteries gens –

Key Features:

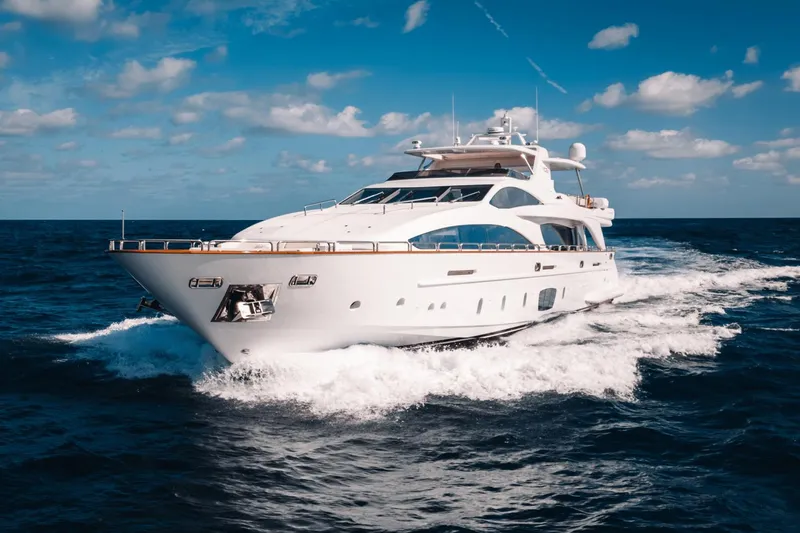

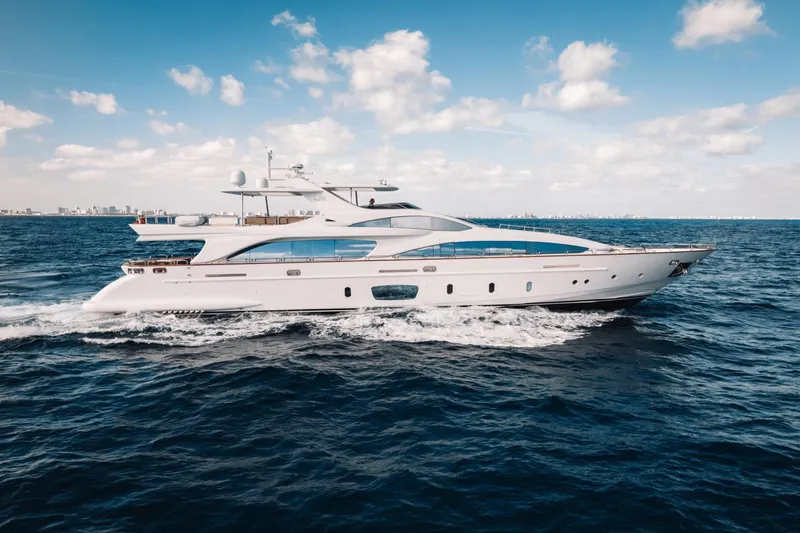

• Best Azimut 105 of its era
• Maintained to the Highest Standard
• $5M Refit in 2015

• $2M Refit in 2023. Complete Exterior Paint, Engines Rebuilt, New Props and New Main Salon
• Wildly Successful Turnkey Charter Program

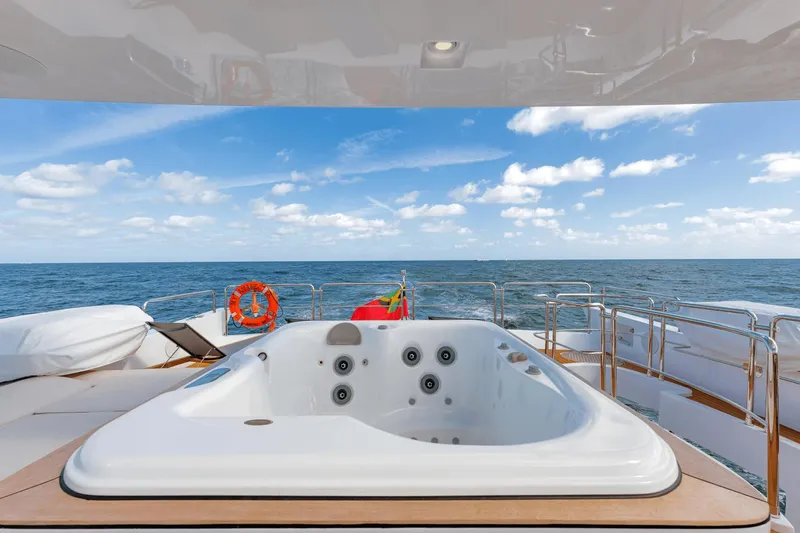

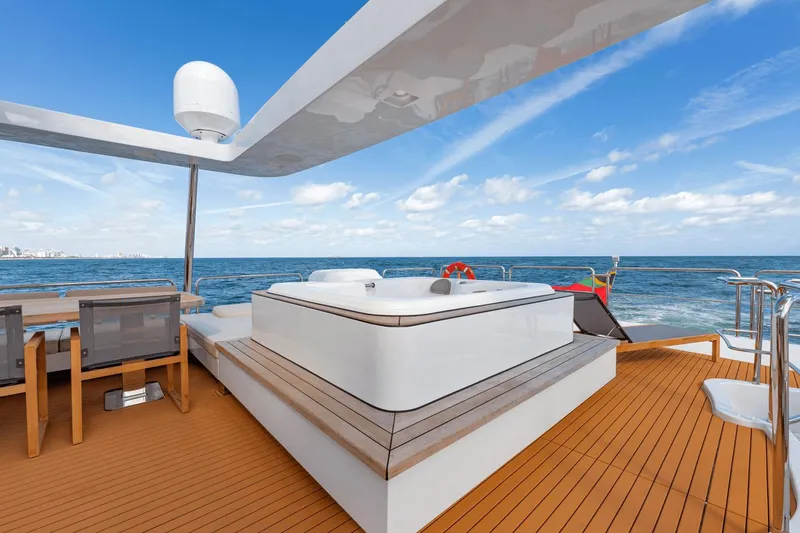

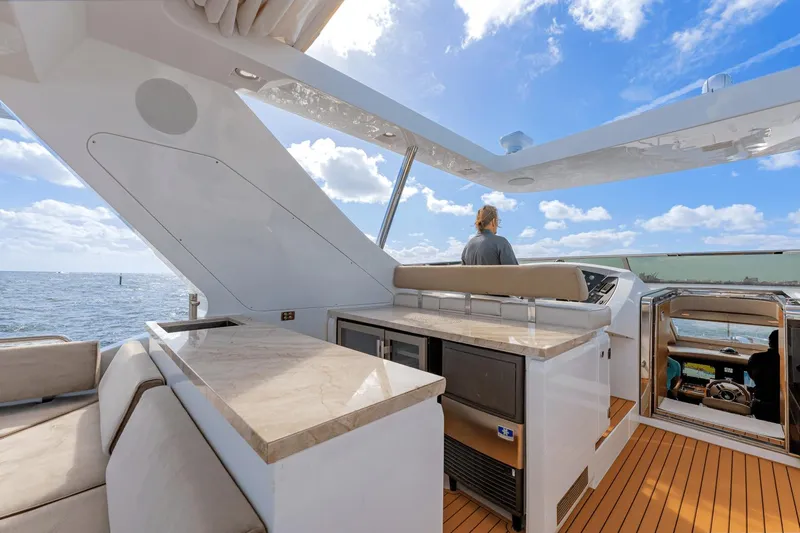

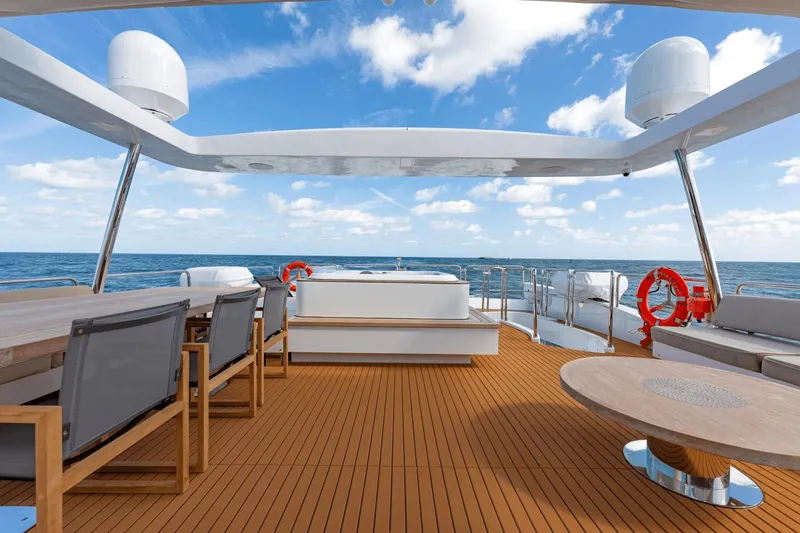

• Expansive Flybridge w/ Jacuzzi & Retractable Hardtop
• New Teak Decks 2018
• Large array of toys included
• 5th Cabin can be easily converted back into Media Room

Updates:

• New ABT TRAC Stabilization systems with zero speed stabilizers largest system ever installed on a 105'
• 22 x new HVAC air handlers and two new chillers
• New underwater lights by OceanLed
• All teak decks replaced in 2018
• All interior and exterior lighting has been upgraded to Cantalupi LED with all new switching and lighting modules
• All leather renewed through out
• All exterior seating renewed with high end European fabrics
• New interior and exterior designs by world renowned architect/designer Marmol Radziner
• Two new high capacity Sea Recovery 1400 gallons per day water makers Aquamatic XL model
• New Spot Zero water treatment system and UV sterilizers
• Every through hull valve replaced
• 2022 SeaDoo GTX260 IS Limited -Fully serviced and 30 hours

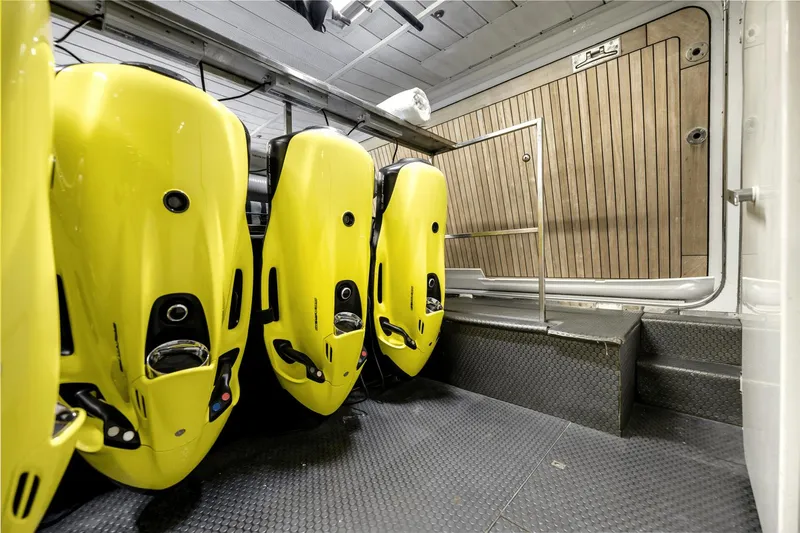

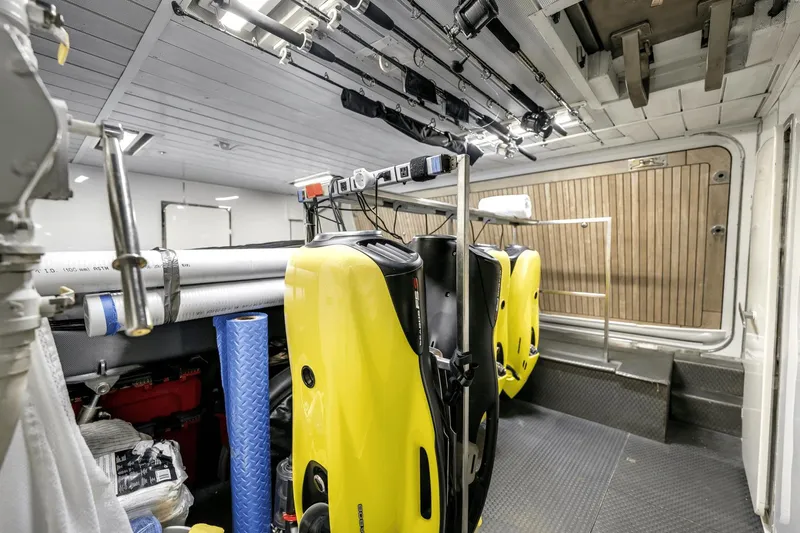

• 3 x SeaBobs - fully serviced and charter season ready
• $400,000 audio/video including State of the art Savant system and Kaleidoscape systems.
• Remote controlled electric blinds integrated into the media system
• Navionics package by SIMRAD for flybridge and pilothouse
• KVH high speed broadband Internet with full WiFi through out vessel
• 4 x DirecTV receivers Latin America and 4 x DirecTV Receivers USA
• Sodium high intensity lighting in garage and engine room
• Four Miele commercial washer/dryers

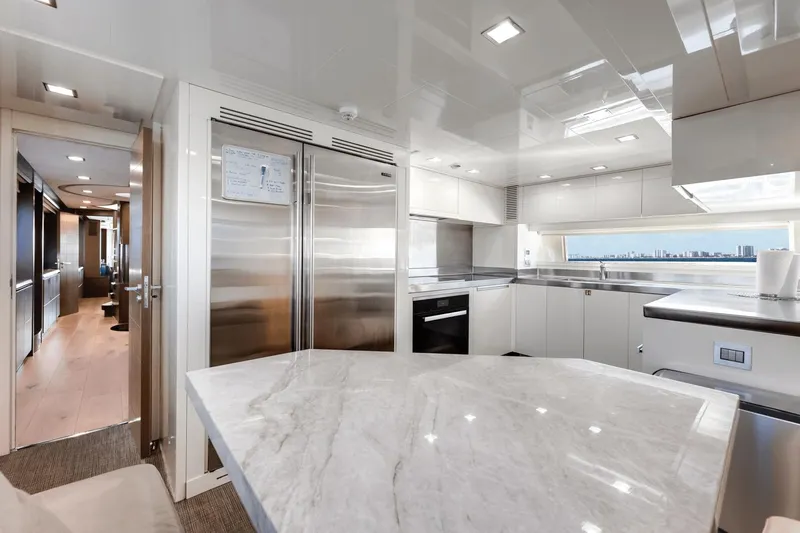

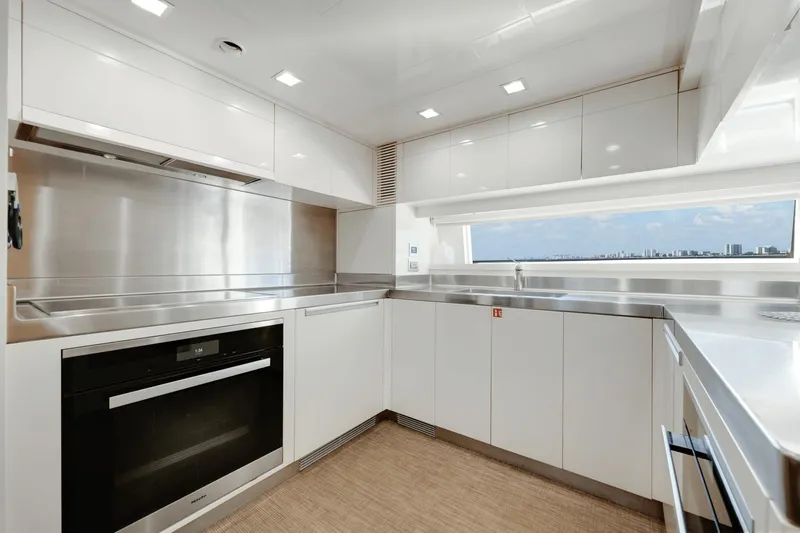

• Complete refit to galley with stainless countertops
• All new Miele appliances
• New upgraded shafts and five blade VEEM props
• All new exterior tables
• New high-end European carpets and rugs throughout
• New $200,000 furniture package
• 3 performance standup paddleboards
• New dive compressor
• Cap rail newly stripped and varnished with 20 buildup coats
• Newly air conditioned media/storage space (below pilothouse)
• Chilliwich flooring in galley and on flybridge
• 8 x Professional dive gear
• Portable infrared BBQ

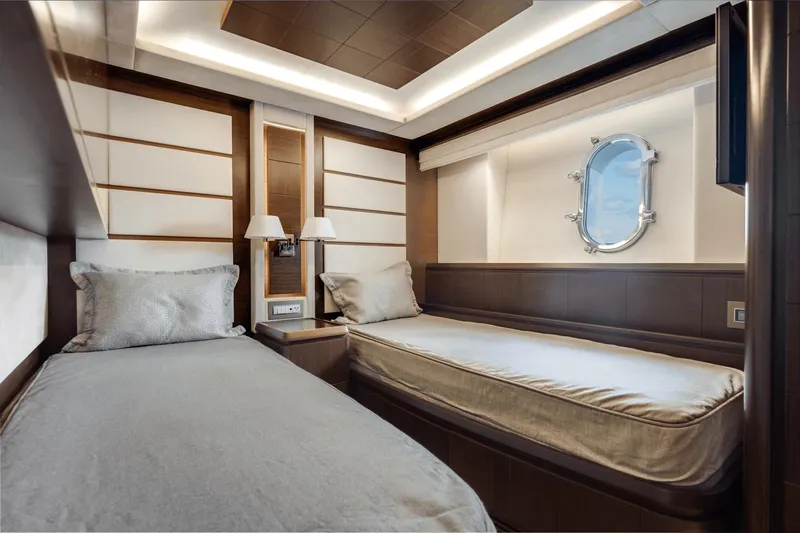

• Installed custom innerspring mattresses

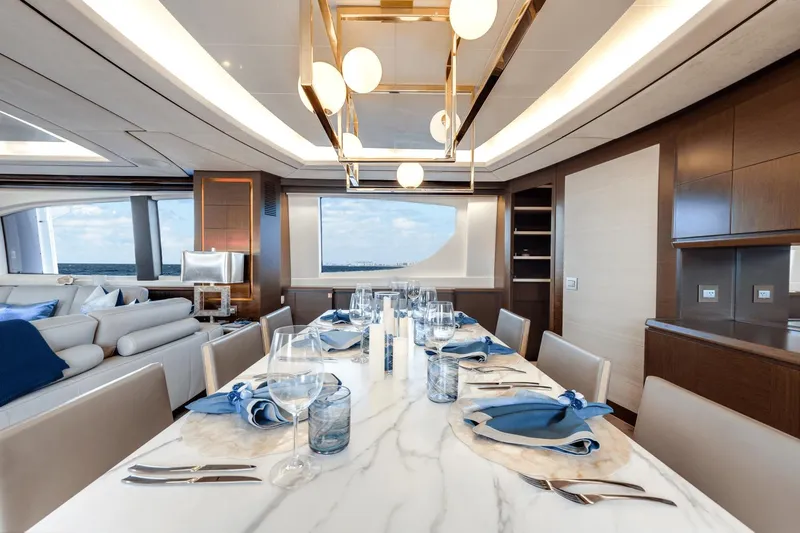

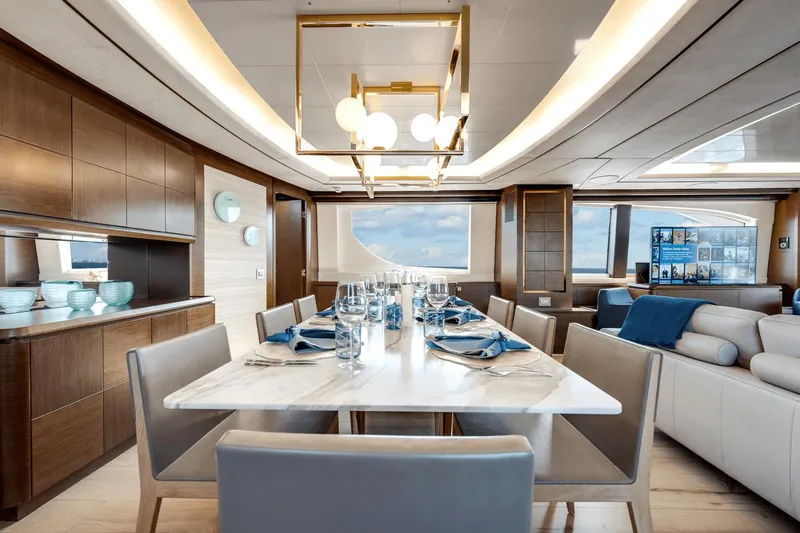

• Beautiful custom Carrera marble dining room table
• New trim tab system
• All fiberglass and gelcoat consistently maintained with SeaShield
• Stainless steel LED lit yacht mounted name letters on transom

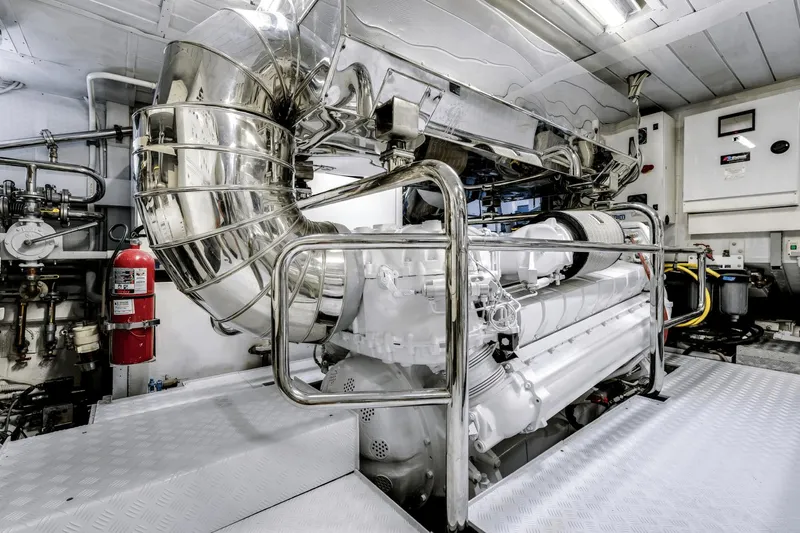

Mechanical & Engine Equipment:

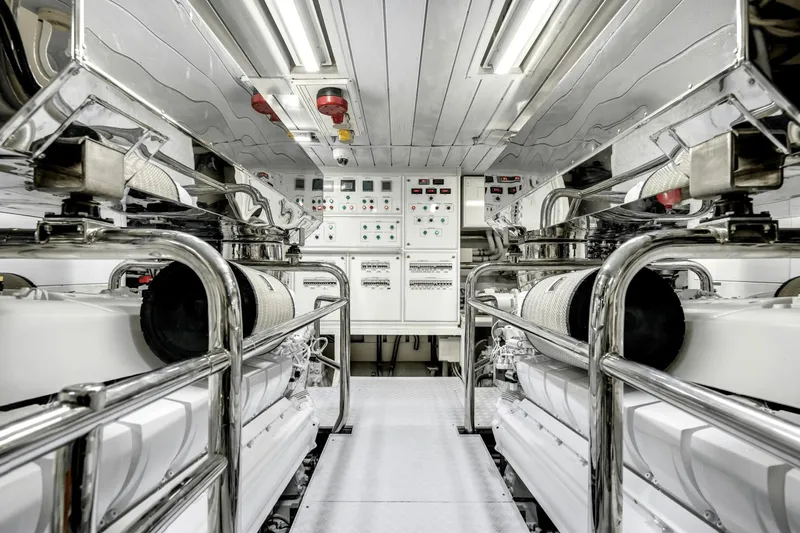

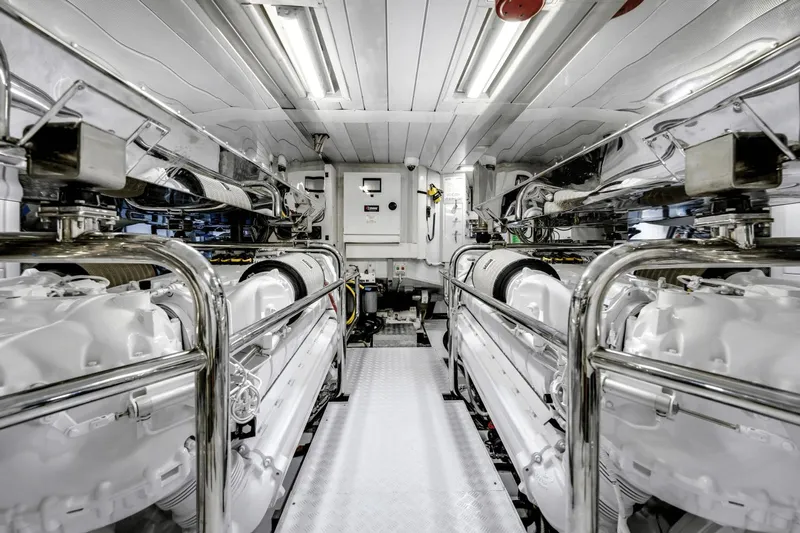

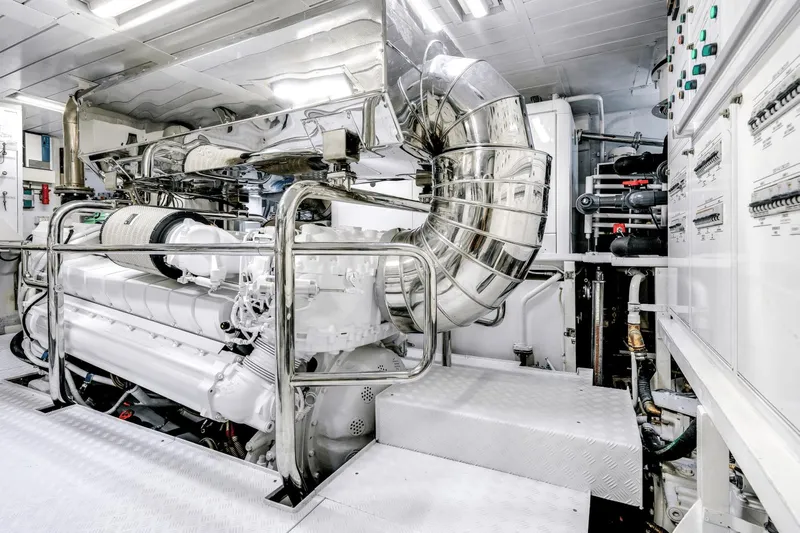

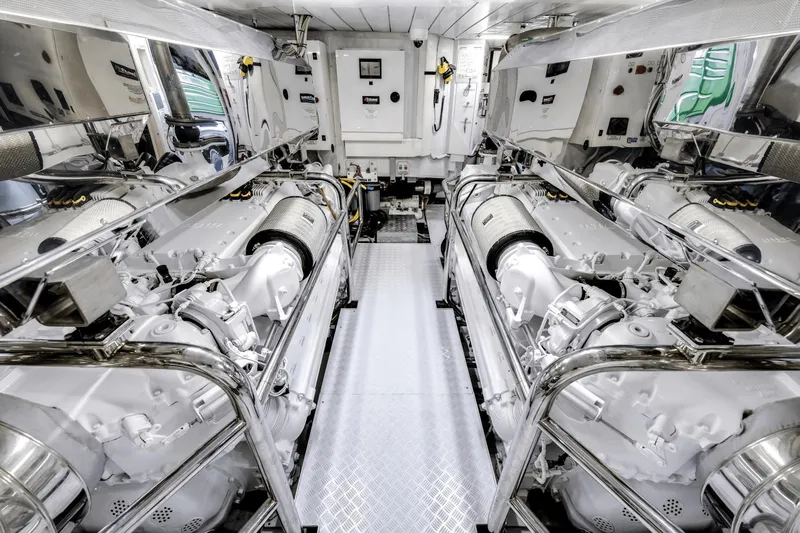

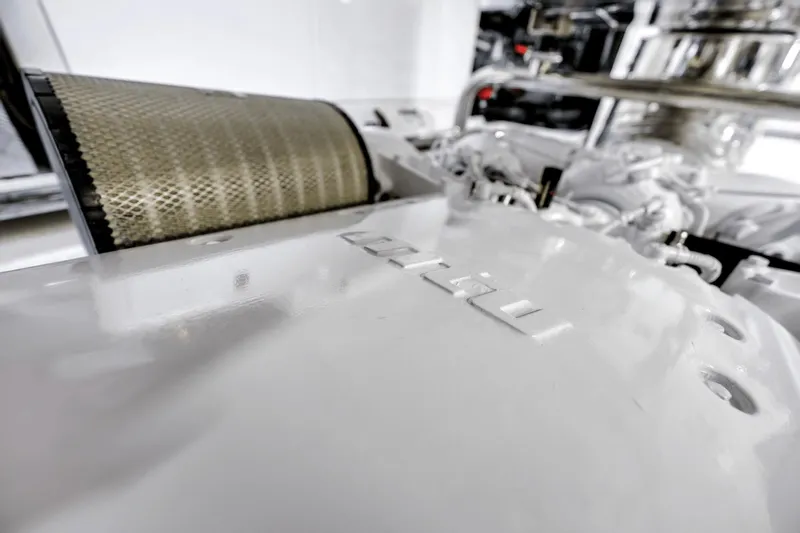

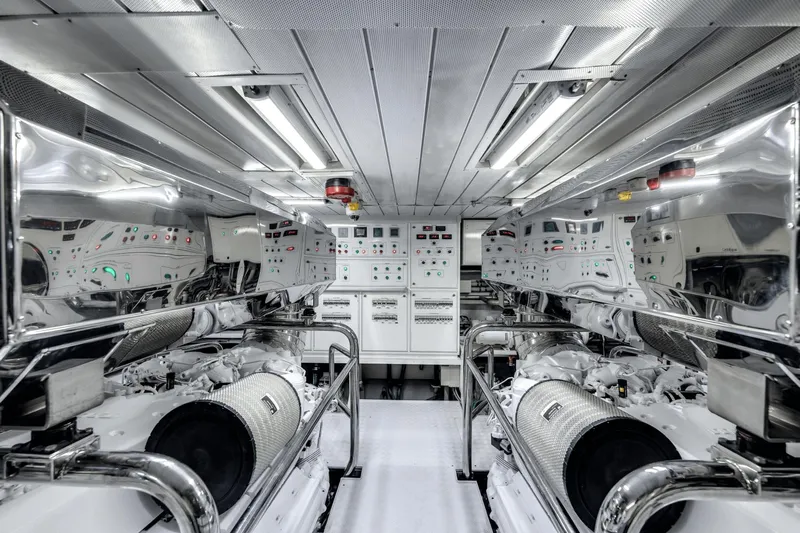

Main Engines

Rebuilt in September 2023

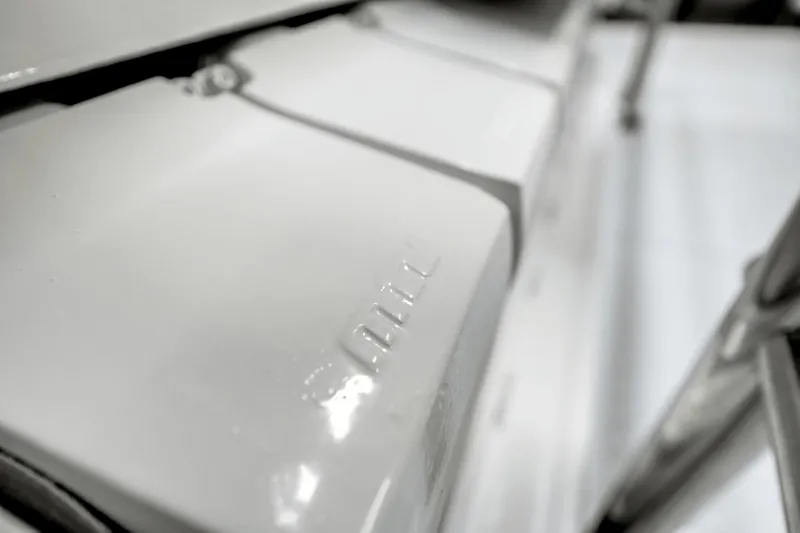

Engine Type: MTU 16V 2000 M92 2200 HP. Diesel engine sixteen V cylinders. Single piston displacement:2.23 It. stroke 156 mm, bore: 135 mm. Max. power: 1630 kW at 2450 rpm. Hour meter on engines. MTU Smart Line electronics

Main Engine Hours Port: 4880

Main Engine Hours STB: 4862

Engine Year: 2008

Engine Serial Numbers: 536 108 347, 536 108 346

Horsepower: 2200 HP Each

Gearboxes for Main Engines: ZF - Z drives with universal joint

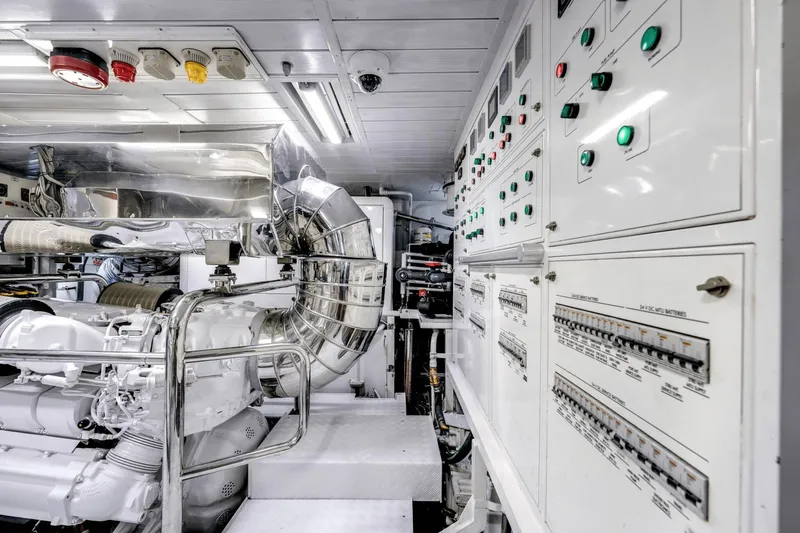

Generators & Electricity
Output: 65kW

Generators: 2 x Kohler 65KW generators. Mounted on silent blocks Sound shield box, control panel and 12V d.c. starter. With remote start.

Port Generator Hours: 9153

Stbd Generator Hours: 9247

Shore Power: 2 - 100 AMP, 208/480VAC shore power inlet with transformers to switch between 208/480 shore power sources. Alternating current power sources run to the main electrical panel in engine room provided with voltmeter and frequency meter for 3 ph power grid. Power sources are protected by calibrated fuses and their connection with the line is accomplished by remote control switches. There is double bar system only that spread current to all users. Each user is singly protected by magneto/thermal switches. Two Glendenning cable master shore cables

Batteries:
• Group of 24V gel batteries of 220Ah., for emergency (emergency lights; navigation lights; fire extinguisher syste VHF; bilge and fire extinguisher system alarms; Intercom).

• Group of 24V gel batteries 840Ah, for service (lighting, signaling and little users).

• Two groups of 24V leaded batteries 2 x 240Ah, for main engines starter.

• Group of 24V leaded batteries of 140Ah., for MTU electronics.

• Two groups of 12V leaded batteries 2 x 135Ah, for generators starter

Battery Chargers:
• 25A automatic Mastervolt battery charger for emergency batteries.

• l00A automatic Mastervolt battery charger for service batteries.

• 25A automatic Mastervolt battery charger for engines starter batteries and, in emergency, for the service batteries.

• 25A automatic Mastervolt battery charger for MTU electonics batteries.

• 25A automatic Mastervolt battery charger for generators battieries.

• Main engines alternators are charging the main engines starter batteries.

• Genset alternators are charging the generator starter batteries.

Air Conditioning:
Dometic with approx 15 ton between 2 chiller units - with color touch screen in each room/zone

Other Machinery:
Shafts: Marinox 17 steel, diam. 110 mm, supported by brass stands and stern tubes.

Tides shaft seals Propellers: 5 blade Veem props and painted with prop speed

Rudders: AISI 316 steel with 0,40 sqm of surface to ensure easy maneuvers. Rudder holes and pole of the rudders in Marinox 17. Bar and yoke in carbon steel.

Trim Tabs: AISI 316 steel, each one 650 mm wide

Water makers:Two new Sea Recovery Aquamatic 1400 compact water makers producing 58 gal / 221 lit an hour or 1400 gal / 5,300 lit per day . UV sterilizers.

Stabilizers: New ABT TRAC Zero speed stabilization at anchor {STAR) with 370 Fins the largest fins that can be fitted to a 105. Very stabile

Bow Thruster: Hydraulic system, 23.8kW (32Hp) Bow thruster tube screen

Steering System: BCS 2 station - 2 pump power steering system for 2 helms Fuel

Separator & Filtration: Racor dual manifold system for each diesel appliance Sewage

System: Holding Black & Grey Water Tank: Holding

Boilers: Gianeschi - 2 units - one for guest area - one for crew area 3 phase

Water Closets: 7 Temca - electric push button flush

Fire/Bilge Pump: Gianeschi 3 ph 208

Engine Room Bilge Pump: Gianeshci 24 vdc

HVAC: 22x HVAC air handlers and two Dometic chillers approx 15 ton - system upgraded an customized in 2015

Navigation & Communication Equipment:

• 4 x Navionics Platinum Electronic Charts
• 1 x GOST NavTracker Complete System
• 2 x ACR RCL300 HID Spotlight
• 1 x Seaview Mount for FUR
• 1 x ACR 2714 SART
• 2 x Shakepeare 23' Galaxy SSB Antennas
• 1 x Pepwave - Cellular
• 2 x Maretron NMEA2K Gateway
• 1 x Eagle Aspen Multi-Switch
• 1 x Eagle Aspen Power Supply
• 1 x Simrad NEP2 Network Expansion Port
• 1 x 40 Watt Exterior Marine Speaker
• 2 x Hatteland 17" Series X Monitors
• 1 x FUR M625L Dual Payload Thermal Imaging Camera System
• 1 x SIMRAD NSO evo2 Package with Dual 19" Monitors
• 1 x Simrad NSS9 evo2 Multi-Function Display
• 1 x Simrad NSS16 evo2 Multi-Function Display with Built in Sonar Hub
• 1 x Simrad l0kW Radar Gearbox with 6' Antenna
• 1 x Simard Broadband 4G Radar Antenna Kit
• 1 x Simrad Sonar Hub Sounder Module
• 1 x Simrad Bronze Transducer
• 1 x AIRMAR Chirp Transducer
• 1 x Simrad AP70 Auto Pilot System
• 2 x Simrad Quick Stick Controller
• 1 x Simrad Network AIS Class B Transponder
• 1 x Simrad HS70 satellite GPS Compass
• 1 x Simrad RS90 VHF Radio System
• 1 x Simrad RS35 VHF Radio System
• 1 x Shakespeare VHF Antenna
• 1 x Shakespeare 4" Galaxy VHF AIS Antenna
• 1 x Simrad Sirius Weather Module Kit
• 3 x Simrad IS40 Color LCD Multi Instrument
• 1 x Simrad IS40 Color Depth/Wind Instrument
• 1 x Simrad Go Free WiFi Module
• 2 x Simrad NEP2 Network Expansion Port
• 1 x Simrad ATlO NMEA Converter
• 1 x KVH Tracphone V7IP Vsat System Complete with Media Server
• 1 x KVH TracVision HD7 Satellite TV Antenna System with TriAm LNB
• 2 x KVH Motorola IP MobilCast Media Server
• 8 x Ocean LED Colours XFM HD LED underwater lights
• 1 x Ocean LED DMX WiFi Touch Panel Controller
• 1 x Ocean LED WiFi Router/Access Point
• 1 x Ocean LED Underwater Camera
• Bow thruster control from Side Power at both helm and flybridge steering stations
• Remote Yacht Controller v/Platinum V/3 Dual Band

Entertainment:

The entire yacht was rewired with over one mile of CAT 6 to accommodate a 100% refit of all audio video components, amplifiers, Savant control system, televisions, custom speakers, subwoofers, custom fabrication, Kaliedescape movie server, CCT Security System with DVR back up to cloud, professional wifi access points in every zone with ruckus access points.

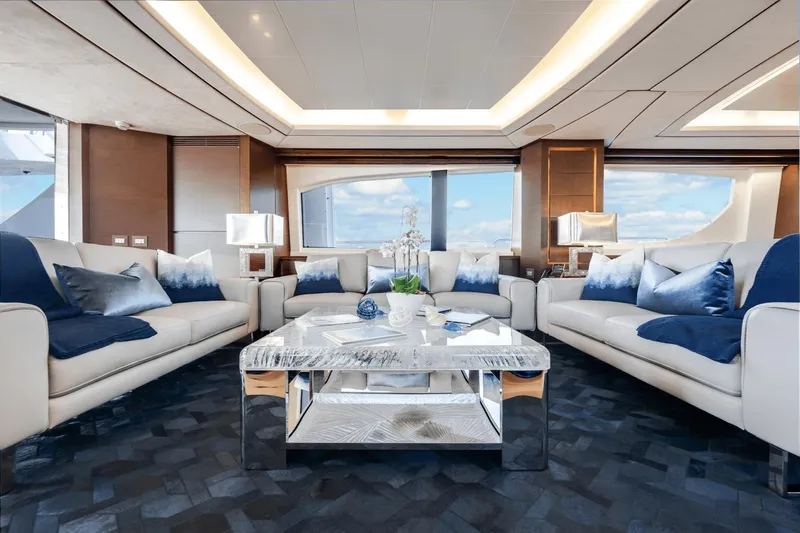

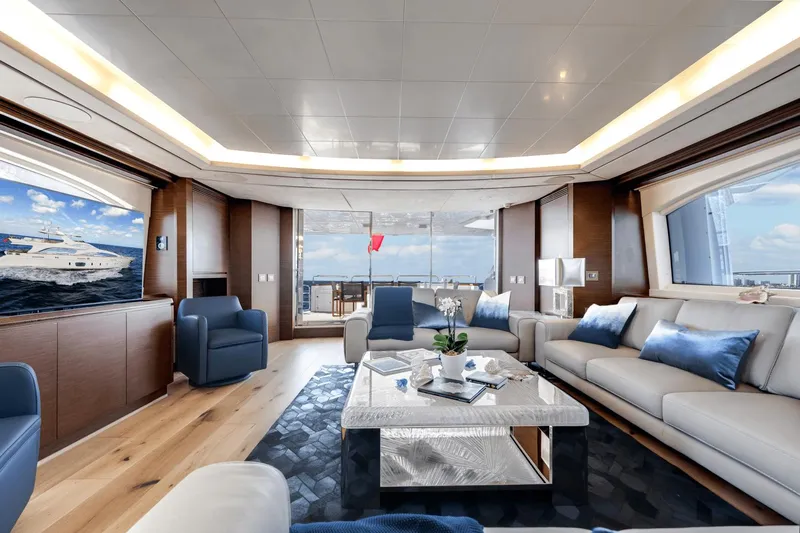

MAIN SALON
• 2 x James Loudspeakers 10" Subwoofer
• 1 x James Loudspeakers Sound Bar
• 4 x James Loudspeakers 6" Flush Mounted Ceiling Speaker
• 1 x Planar 55" Ultra Slim LED Television/Display
• 1 x Savant Smartlink HD Receiver Control Box
• 1 x Access Network Wireless Access Point (WAP)
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone

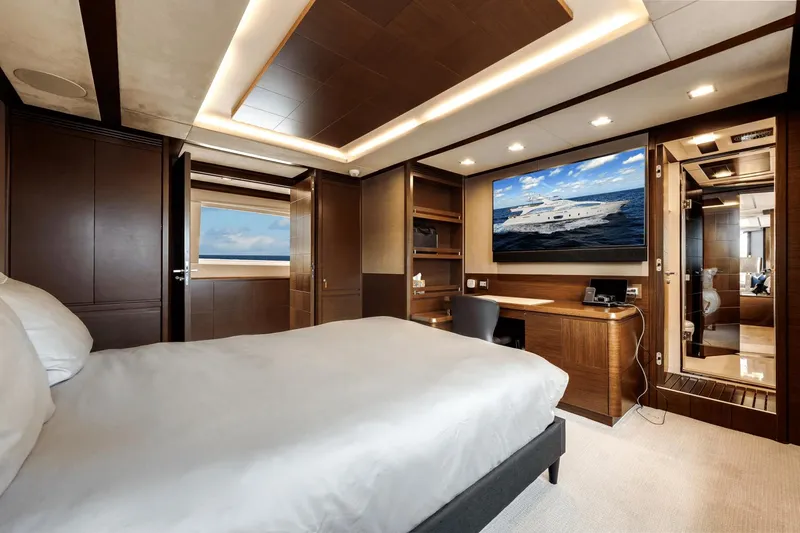

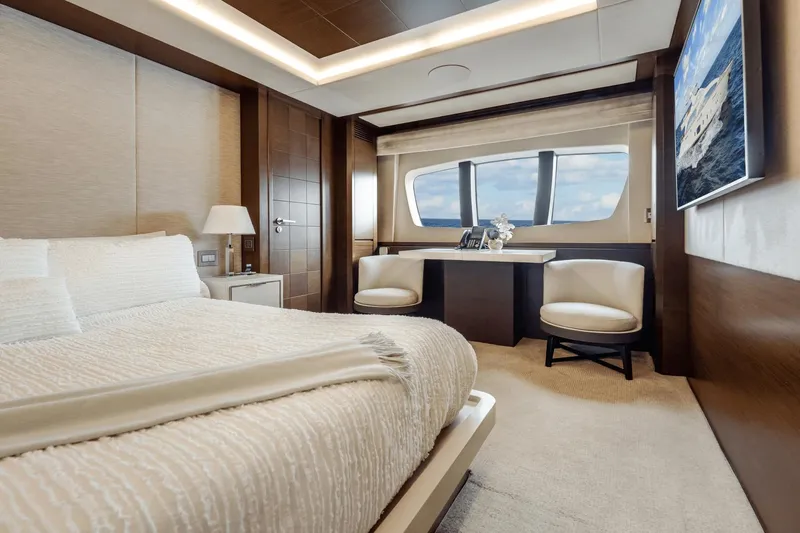

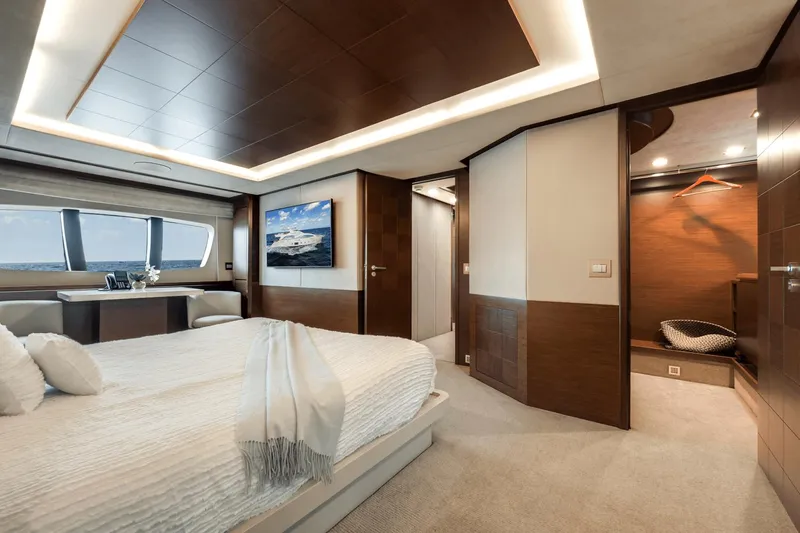

MASTER STATEROOM
• 2 x James Loudspeakers 8" Flush Mounted Ceiling Speaker
• 1 x Planar 55" Ultra Slim LED Television/Display
• 1 x Savant IRXLN0lO0 Smartlink HD Receiver Control Box
• 1 x Access Network Wireless Access Point {WAP)
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone

VIP STATEROOM
• 2 x James Loudspeakers 6" Flush Mounted Ceiling Speaker
• 1 x Planar 32" Ultra Slim LED Television/Display
• 1 x Savant IRXLN0l00 Smartlink HD Receiver Control Box
• 1 x Access Network Wireless Access Point {WAP)
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone

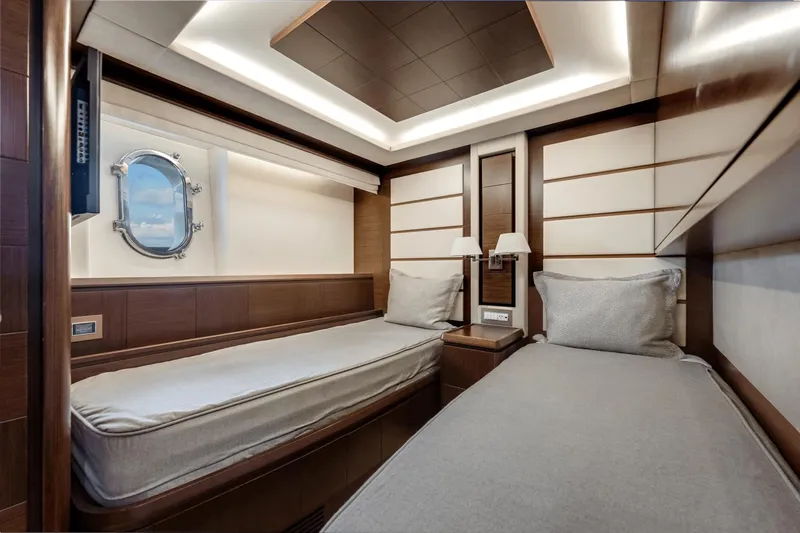

2 x TWIN GUEST STATEROOM (Each is fitted with the below)
• 1 x James Loudspeakers Narrow Aperture Speaker
• 1 x Planar 32" Ultra Slim LED Television/Display
• 1 x Savant IRXLN0lO0 Smartlink HD Receiver Control Box
• 1 x Access Network Wireless Access Point {WAP)
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone

TENDER GARAGE
• 1 x James Loudspeakers Custom Sound Bar
• 1 x James Loudspeaker 6.5" Subwoofer
• 1 x IC Realtime ICIPD1300VIR Camera
• 1 x Access Network Wireless Access Point {WAP)

GALLEY
• 1 x James Loudspeakers 6.5" Subwoofer
• 1 x James Loudspeakers Sound Bar
• 1 x IPAD Remote Control
• 1 x Planar 32" Ultra Slim LED Television/Display

• 1 x Savant IRXLN0lO0 Smartlink HD Receiver Control Box

• 1 x NEC Large LCD Phone

5th STATEROOM
• 1 x James Loudspeakers 12" Subwoofer
• 2 x James Loudspeakers 6" Flush Mounted Ceiling Speakers
• 1 x James Loudspeakers Sound Bar
• 1 x Planar 55" Ultra Slim LED Television/Display
• 1 x Savant Smartlink HD Receiver Control Box
• 1 x Access Network Wireless Access Point (WAP)
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone

MAIN DECK AFT
• 1 x James Loudspeaker 10" Custom Subwoofer
• 2 x James Loudspeaker 8" Flush Mounted Ceiling Speaker
• 1 x Planar 24" Ultra Slim LED Television/Display
• 1 x Savant Smartlink HD Receiver Control Box
• 2 x IC Realtime ICIPD1300VIR Cameras
• 1 x IPAD Remote Control

BOW LOUNGING AREA
• Two Custom Removable James Audio Speakers

PILOTHOUSE
• 2 x James Loudspeakers 4" Flush Mounted Ceiling Speakers
• 1 x IPAD Remote Control
• 1 x NEC Large LCD Phone
• 1 x IC Realtime ICIPD1330VIR Camera
• 1 x Savant HCXSLN50100 Smartlink Digital Extender
• 1 x Savant IRXLN0lO0 Smartlink HD Receiver Control Box

FLYBRIDGE
• 1 x IC Realtime ICIPD1300VIR Camera
• 8 x James Loudspeaker 8" Flush Mounted Ceiling Speaker
• 1 x James Loudspeakers 12" Passive Subwoofer
• 2 x James Loudspeaker 10" Custom Subwoofer
• 1 x Access Network Wireless Access Point (WAP)
• 1 x IPAD Remote Control

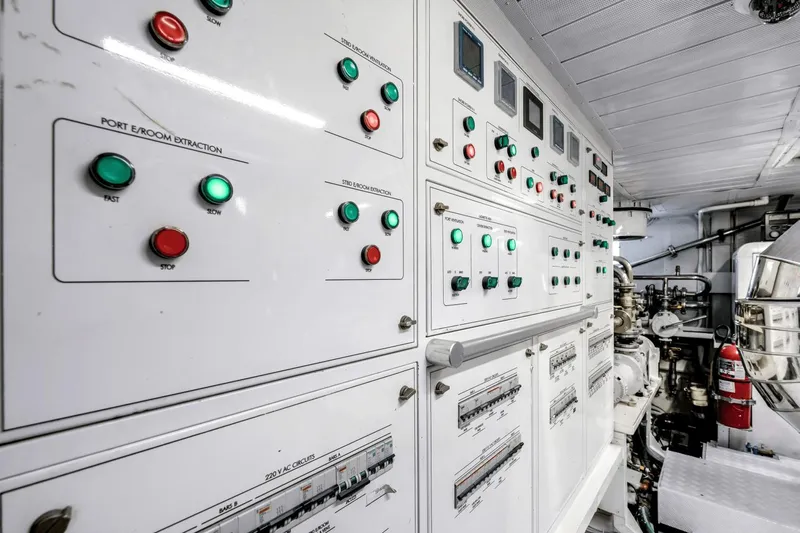

ENGINE ROOM
• 2 x IC Realtime ICIPD1300VIR Cameras

AUDIO RACK
• 2 x Audio Control Directors D4400
• 4 x James Loudspeakers 1000watt Amplifiers
• 1 x Sirius Radio Receiver
• 1 x Savant 16 Channel Stereo PreAmp
• 2 x Savant 7.1 Surround Sound and Audio Processor
• 2 x Apple TV
• 1 x BlueRay DVD Player
• 4 x DirecTV Receivers Latin America

• 4 x DirecTV ReceiversUSA
• 1 x Kaleidescape IU Server
• 3 x Kaleidescape M300 Movie Players (300 title movie and 5000 music library).
• 1 x Kaleidescape M700 Movie Vault
• 4 x Savant Digital Video Input Modules
• 1 x Savant Smartlink 2Port Video Output Module
• 2 x Savant Smartlink 4Port Video Output Module
• 1 x A/V rack Interconnect
• 1 x Panamax Power Conditioner
• 2 x Panamax UPS and Power Conditioner
• 2 x Sanus A/V rack 27 Rack Units
• 1 x Savant Redundant Pro Hosts Solid State Drives
• 1 x Savant x Smart Control 8
• 1 x Savant Matrix Switcher
• 1 x Access Networks Foundation G Network (Router, 48Port Gigabit Switch, Controller 7 WAPS)
• 1 x IC Realtime 8 Channel 1000 GB Hard Drive Camera DVR

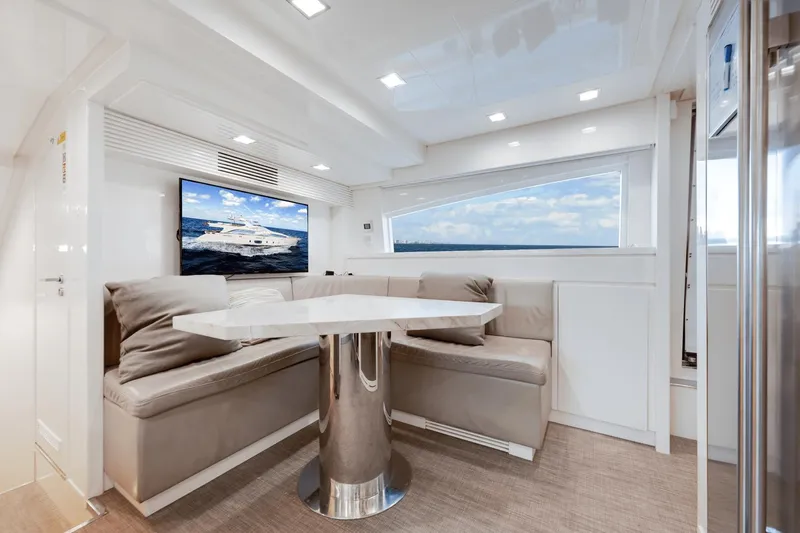

Galley:

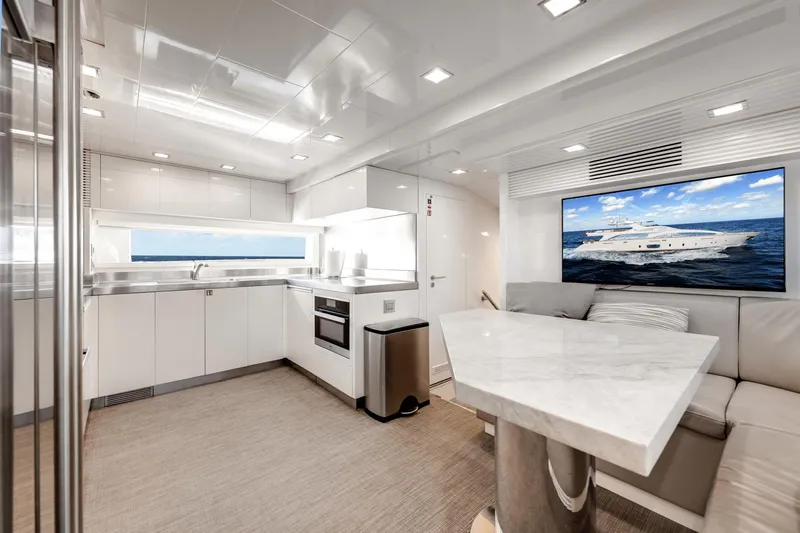

GALLEY
• Dinette with Lshaped
• settee and table
• Planar 32" Ultra Slim LED Television/Display
• Built in Cabinets
• Stainless steel countertops
• Remote controlled electric blinds integrated into the media system

GALLEY EQUIPMENT
• Miele electric four burner countertop range with pot holder
• Sub Zero refrigerator
• Miele oven
• Miele High speed oven
• Miele hood for the cooking top
• Miele dishwasher
• Microwave oven
• Stainless steel sink
• Refrigerator and freezers
• Access to staircase to crew quarters
• Chilliwich flooring
• Laundry room on portside with Miele washer and dryer and a single Pullman crew berth

Deck:

BOW
• Chain storage with drainage
• Two 160Kg Posidonia anchors in polished stainless steel
• 100m steel chains {16mm of diameter)
• Built-in stainless steel bow protections
• Two 4000W, 220V, anchor winches on bow with remote control
• Four large mooring cleats
• Chain washing with the fire extinguisher hose
• Storage for fenders inside the superstructure
• Wide sunbathing sofa on forward part of superstructure with crew escape hatch under sunbathing pad
• Cover for the sunbathing sofa
• Plug for hose to wash main deck
• Three electric wipers for forward windows
• Black mesh cover for windscreen
• Crew escape hatch under sunbathing pad
• Upper sun pad with handrails
• Teak sole

AFT DECK
• Teak Deck
• Molded staircase to the flybridge, with teak step, handrails and courtesy lights
• Fixed teak table for 8 people with 2 stainless steel bases
• Stainless steel handrails all around the sofa. Control panel in the handrail on starboard side with controls for the
• gangway, transom door and the launching/recovering system for the SeaDoo jet ski
• Two storage lockers on both sides of the cockpit sofa
• Five teak chairs
• Fiberglass cabinet on starboard side of the cockpit with sink and storage
• Fire extinguisher system controls in a storage locker on starboard side. Superstructure equipped with: one fire extinguisher hose, controls for the fire extinguisher system of the engine room, emergency stops for the engine room air intakes and fuel pump
• Two side boarding gates
• Two stainless steel gates for access to the aft cockpit
• Watertight LED lights on the ceiling
• Covers for the table and the sofa
• Two 2200W, 220V, mooring winches in aft cockpit with four large cleats
• Drainage holes
• Large tinted sliding aft deck door
• Flush mounted external TV above wet bar
• Two security cameras mounted on overhead

SIDE DECKS
• One 'AZIMUT' logo placed on each side of aft superstructure
• Teak decks
• Teak cap rail with stainless steel U-shaped handrails on bulwark
• Two recessed areas on superstructure for boat hooks storage, one each side
• Two fuel fill points on each aft side of the superstructure
• Watertight LED lights placed on the ceiling and courtesy LED lights
• Frameless windows with mirrored tempered glass
• Three doors on side of superstructure for access to engine room, main deck corridor and galley
• Two life rings with MOB device
• Drainage holes

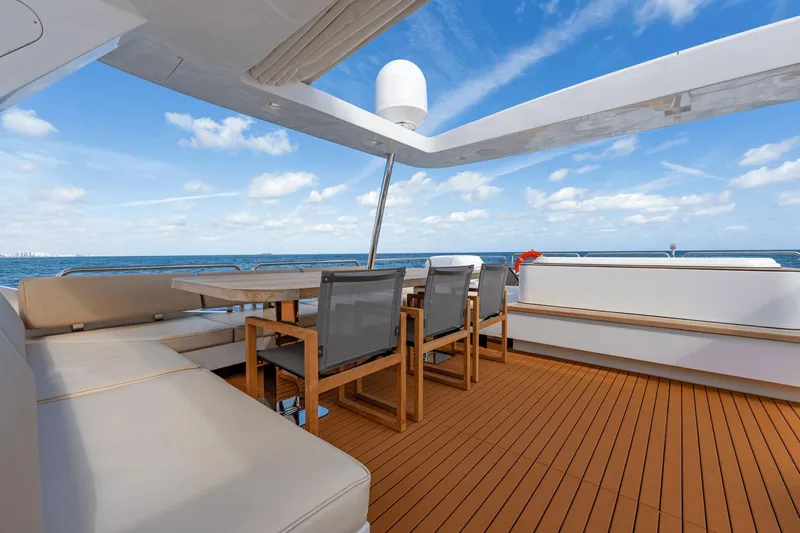

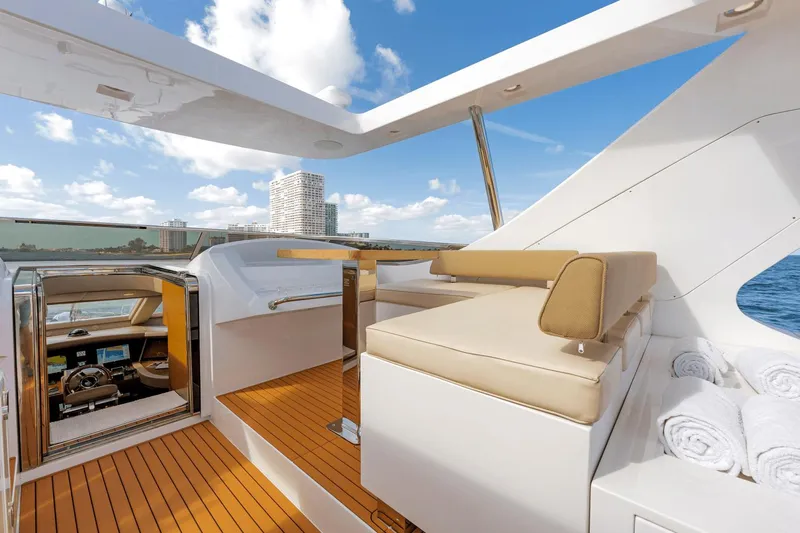

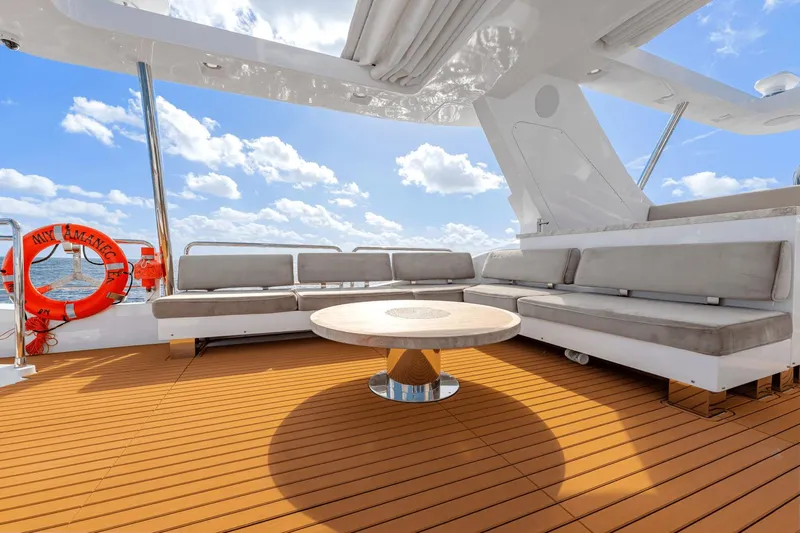

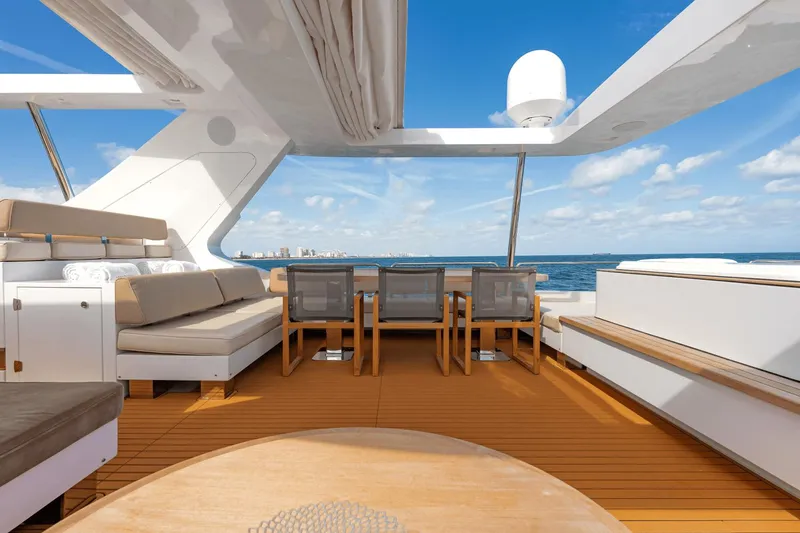

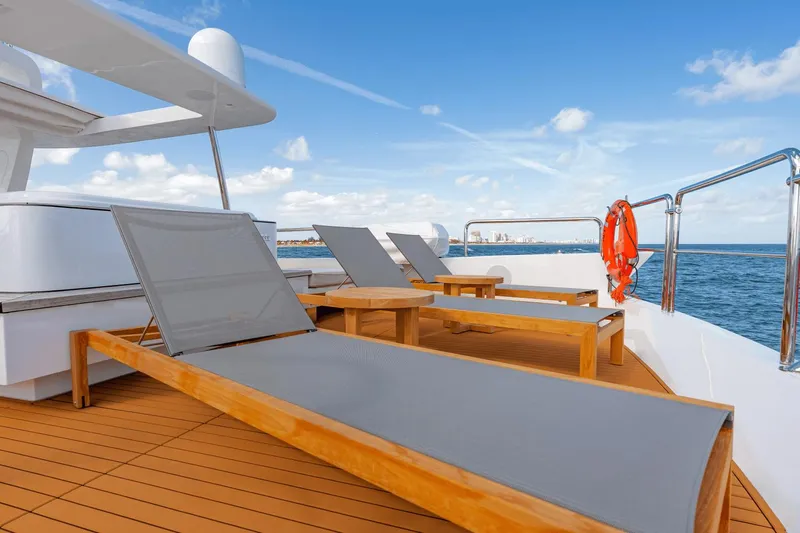

SUN DECK, FLYBRIDGE & HELM
• The wide flybridge is accessible through the internal staircase in the wheelhouse and the
external staircase in the aft cockpit
• Windscreen in plexiglass and stainless steel
• Pilot settee with three seat bench, in fiberglass with cushions and stainless steel footrest,
placed on bow portside,
• helm with steering station and navigation equipment
• Three-seat sofa with stainless steel footrest, cushions and storage, placed on bow starboard side
• Teak table on starboard side

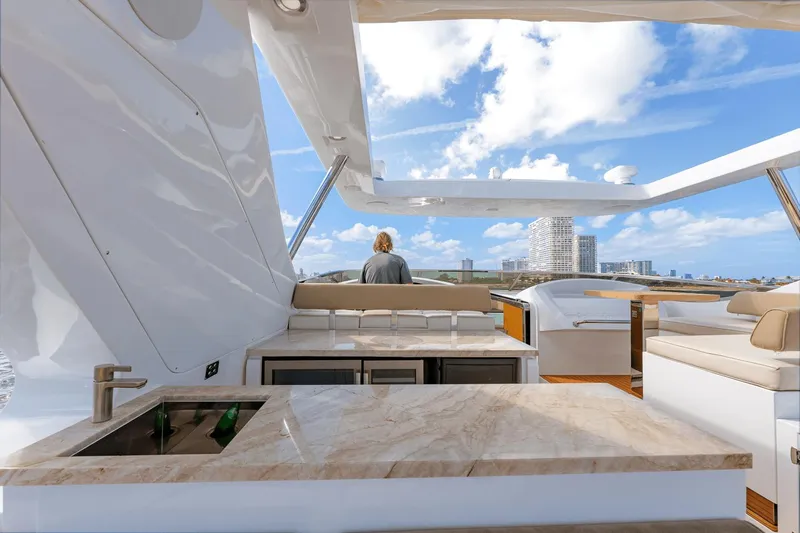

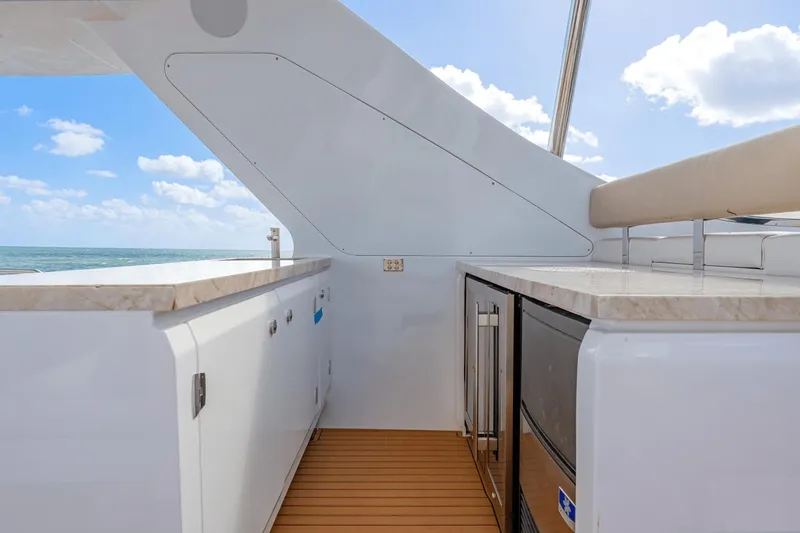

• Bar furniture in fiberglass on portside, with sink, fridge, ice maker, two doors for storage,
custom bar top in Calacatta marble
• Storage cabinet in fiberglass on starboard side
• C-shaped dining sofa in fiberglass on starboard side, with cushions and storage
• Fixed teak table for 10 people with two stainless steel bases on starboard side
• Three Italian chaise loungers
• Custom sumptuous Paola Lenti fabrics on exterior seating
• Jacuzzi tub with teak step
• Outdoor shower
• Sunbathing area on starboard side next to the Jacuzzi with cushions and storage underneath
• Fiberglass arch with navigation lights, antennas, Marco PW3 horn
• Two integrated hardtops with electrical sliding bimini placed on bow and on aft of arch
• Stainless steel handrails around aft area of the flybridge and around the staircase to the
cockpit
• Two 16person
• Zodiac life rafts (NEW IN 2015)
• Non skid flooring surface with sophisticated custom Chilliwich flooring
• Covers for flybridge console, teak tables, sofas and sunbathing cushions

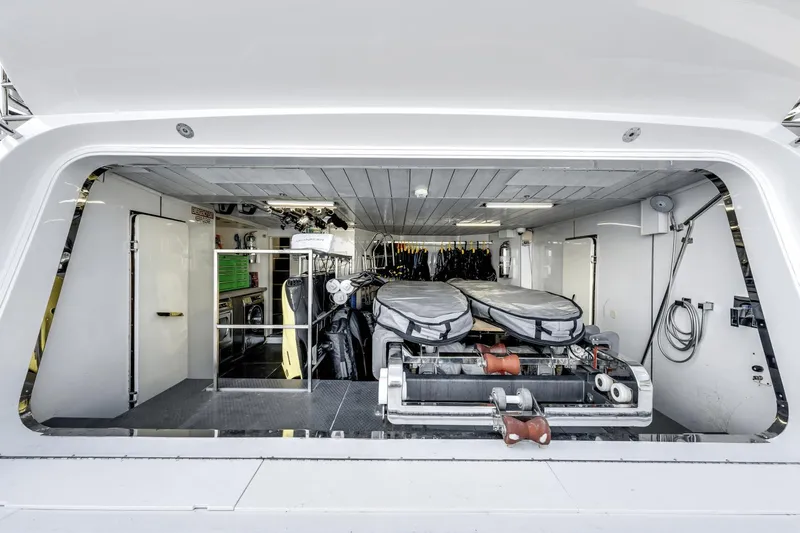

GARAGE
• Technical area on starboard side of the garage with the following equipment:
• Local air extractor
• Control panel for the garage door, passerelle and compressor for the garage door gasket
• CO2 fire extinguisher bottles
• Garage air extractor
• Bilge pump for the garage
• Technical area on portside of the garage with the following equipment:
• Local air extractor
• Transformer and electric panel for the shore power
• Hydraulic unit for the wheelhouse
• Two popup cleats on the open swim platform
• Built in Miele commercial washer and commercial dryer to port
• Mounted SnapOn Tool box with tools
• Swim ladder
• Custom shower for swim step
• Sea Doo GTX Limited IS260 Jetski 2022 with 30 hours
• 3 x Sea Bobs
• Professional dive equipment for 8 guests
• Portable infrared BBQ - Tee "zero clearance"
• 3 Performance Stand up paddle board
• Custom Charge and storage rack in Garage/Toybox for Seabobs

TRANSOM
• Garage door becomes a wide swim platform when open. Teak floor on the swim platform both in open
and closed
• positions. Electrohydraulic mechanism for the mouvement of the garage door, with emergency manual
pump and
• pneumatic gasket
• Structural staircase in fiberglass with teak steps on port and starboard sides of the garage door
for the access to
• the swim platform. Stainless steel handrail on internal side of each staircase
• Electrohydraulic passerelle with teak grating and stainless steel frame extending out from the
highest step of the starboard staircase to swim platform
• Manual swim ladder in stainless steel and teak
• Shore power connection, TV and phone shore connections placed in fiberglass storage on aft side
• Water intake, shower and fresh water hose outlet on transom, inside a fiberglass storage
• Dock connections for black and grey water discharge placed in the garage

HULL
• The structural project of the hull has been carried out according to R.I.N.A. standards.
• VINYLESTER RESIN is used for the first coats of the hand laid-up lamination below the water line.
This kind of resin is extremely effective in preventing osmosis, thanks to its chemical and
physical characteristics.
• Worldwide acknowledged quality isophtalic resin is used for all the stages of the hand laid-up
lamination process.
• High quality PVC is used for main deck and superstructure lamination.
• Engine room and collision bulkhead are laminated. All other internal bulkheads are built with
advanced composite materials.
• Keel is deep V type with 9.9° aft deadrise.
• The particular shape of the aft swim platform and transom have been designed to integrate a garage which is capable of storing a tender and a jet ski. (Tender, jet ski and remote control launching systems for jet ski are optional). The door of the garage on the transom is operable hydraulically, converting into a wide swim platform, provided with teak surface. An expanding gasket connected to a compressor placed in the garage guarantees the watertight safety when the aft transom door is closed.
• 8 x Ocean LED HD GEN2 underwater lights: 4 on aft, 2 on sides on aft (one each side), 2 underneath the master windows (one each side).

Interior:

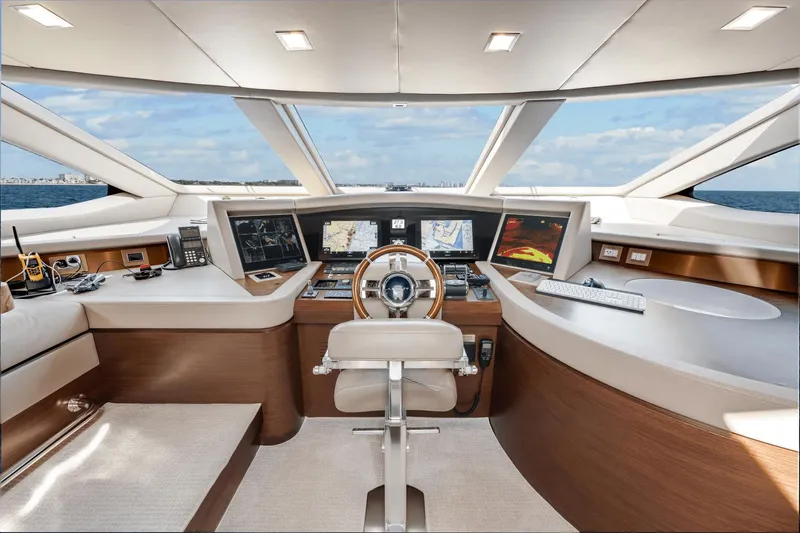

PILOTHOUSE
• Helm chair
• Fourseat
• Lshaped
• sofa on aft portside with coffee table and stainless foot rest
• Area for maps
• Cabinet with flags rack on portside
• Staircase to access to fly bridge
• All furniture in cherry wood
• Ceilings finished in cherry wood and leather
• All bulkheads finished in cherry wood and leather
• Sofa in leather
• Wheelhouse console in leather with aluminum panels
• Floor in solid doussie wood

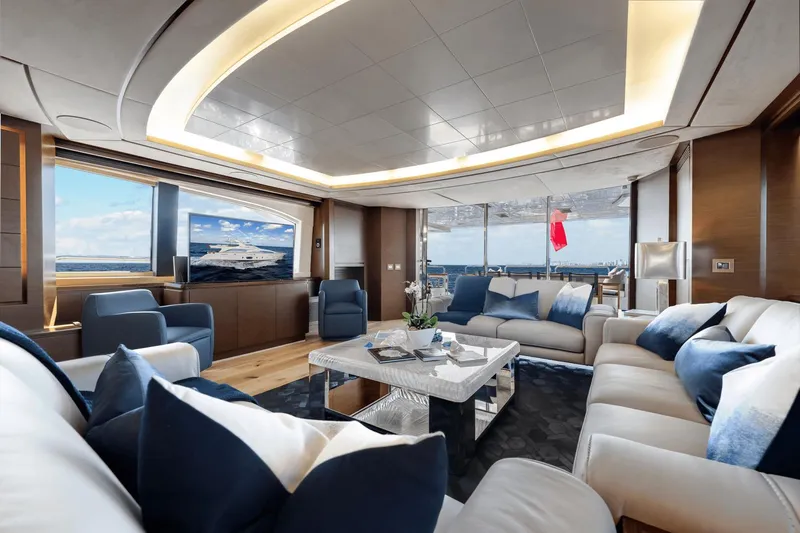

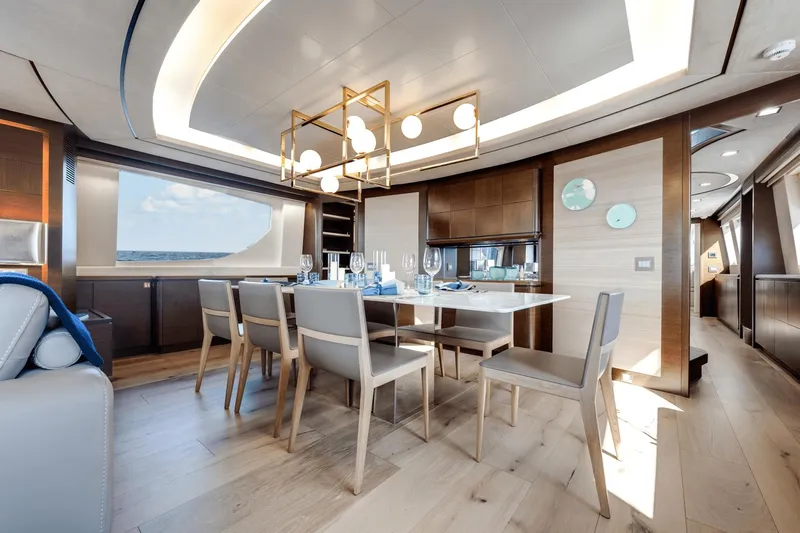

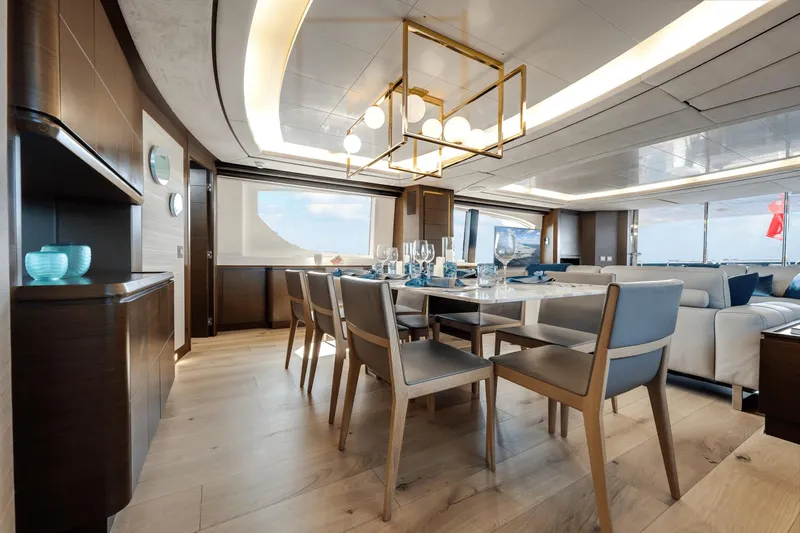

MAIN SALON & FORMAL DINING ROOM
• Bar cabinet on starboard aft side of salon with sink and ice maker. Bar cabinet with wooden bar
top and stainless steel working top.
• Glass holder and bottle holder on outboardside, behind the bar cabinet
• Dining area with custom Carrera marble table and chairs for 8 people
• Cabinets for ample storage of glassware, cutlery and dishware on sides of dining area
• 1 x four-seater
• sofa, 1 x three-seater
• sofa, 2 x arm chairs
• Coffee table
• TV cabinet on starboard side of the salon, with hilo mechanism containing Planar 55" UltraSlim

LED TV
• Glassware, cutlery and dishware for 12 people
• Remote controlled electric blinds integrated into the media system

MASTER STATEROOM
• King bed with custom innerspring mattress, bedspreads and pillows
• Fine Egyptian cotton linens and towels
• Storage underneath the bed
• Two nightstands
• Reading lights on the nightstands
• Indirect lighting on ceiling
• Indirect lighting behind the panel on the bulkhead behind the bed
• Panoramic windows on both sides of the cabin
• Two armchairs with table on port side
• Drawers and vanity with stool on starboard side
• Minibar (45 liters)
• Remote controlled electric blinds integrated
• into the media system
• Planar 55" Ultra Slim LED Television/Display

MASTER EN SUITE HEAD AND DRESSING ROOM
Large walk-in wardrobe located on starboard side of the master stateroom with lights, drawers, shelves, hanging bars and safe.
• Additional closet on port side, aft of seating

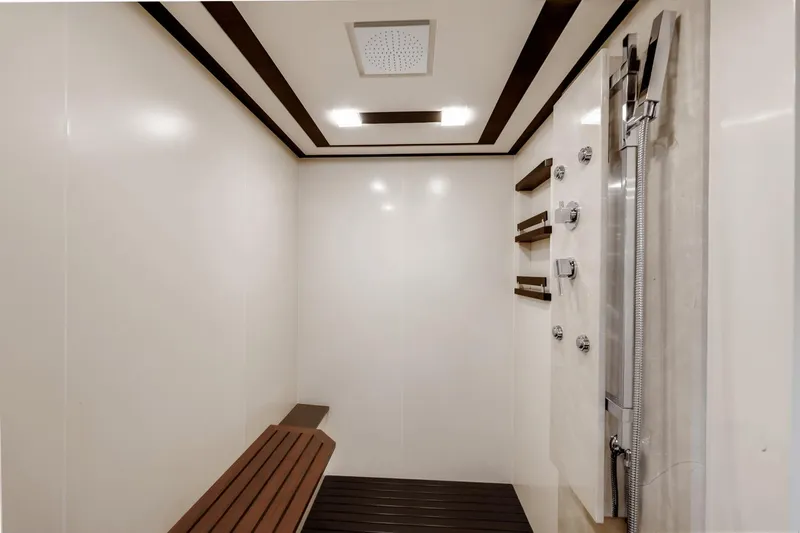

• Master head with large shower in the center complete with rain shower and body sprayers access
from starb aft side
• Tecma toilet system Bidet
•Washbasin
• Cabinets and mirror with lights
• Air extractor
• Oval porthole
• Spotlights
• Remote controlled electric blinds integrated
• into the media system

VIP STATEROOM FORWARD
• Double bed with custom innerspring mattress, bedspread and pillows
• Fine Egyptian cotton linens and towels
• Storage underneath the bed
• Planar 32" Ultra Slim LED Television/Display
• Two nightstands
• Reading lights on the nightstands
• Indirect lighting on ceiling
• Indirect lighting behind the panel on the the bulkhead behind the bed
• Two round portholes on hull side
• Wardrobes with hanging bar, light and shelves
• Remote controlled electric blinds integrated
• into the media system

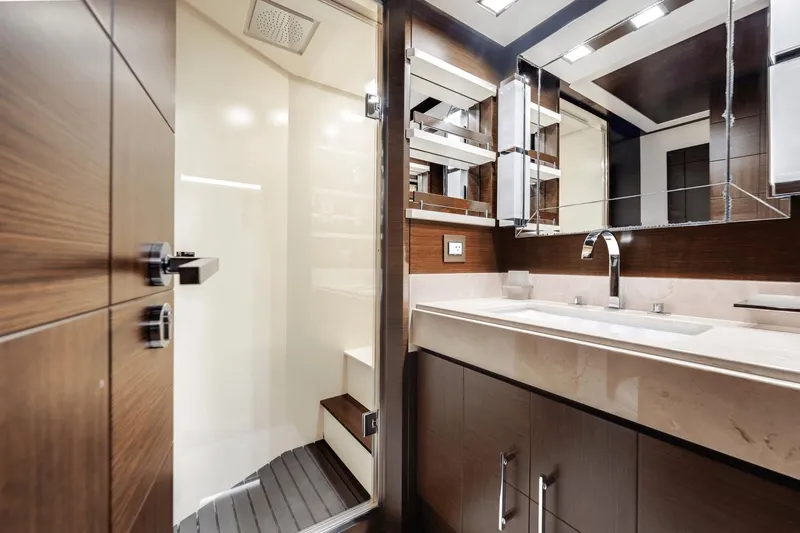

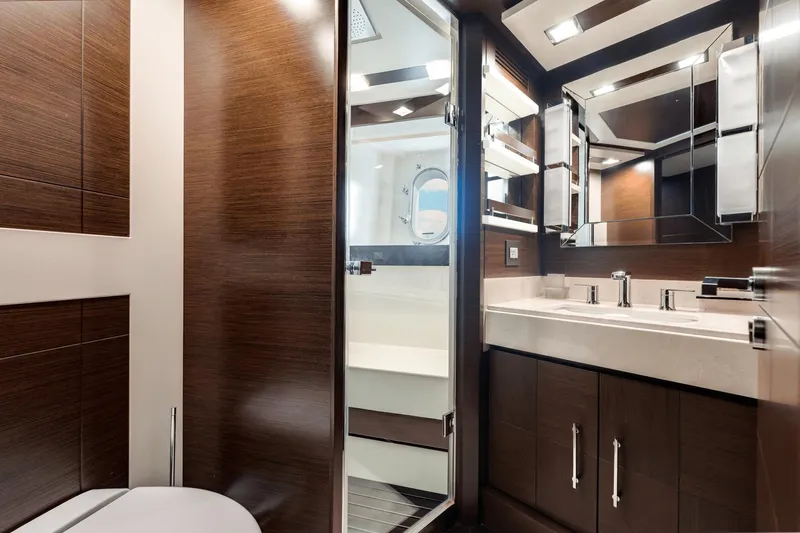

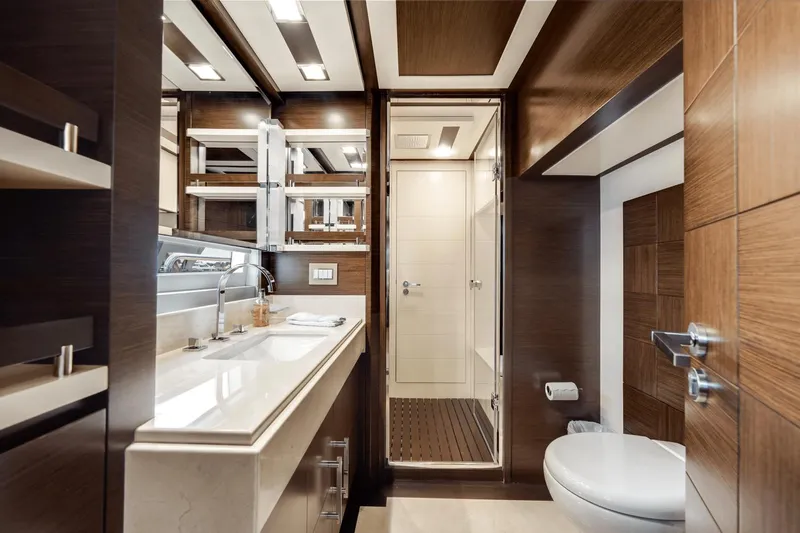

VIP EN-SUITE HEAD
• Tecma toilet system
•Washbasin
• Cabinets and mirror
• Shower with rain shower and body sprayers
• Opening porthole
• Remote controlled electric blinds integrated
• into the media system

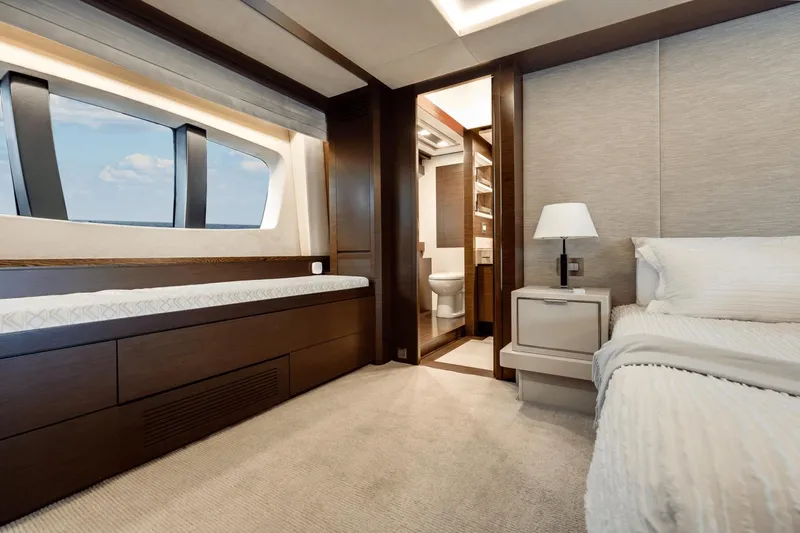

TWIN STATEROOM
• Twins berths with custom innerspring mattress, bedspreads and pillows
• Fine Egyptian cotton linens and towels
• One nightstand
• Reading light on the nightstand
• Indirect lighting on ceiling
• Indirect lighting behind the panel on the bulkhead behind the beds
• One large opening porthole
• Wardrobe with hanging bar, light and drawers
• Drawers under the outboard bed and big storage under the inboard bed
• Remote controlled electric blinds integrated into the media system
• Planar 32" Ultra Slim LED Television/Display

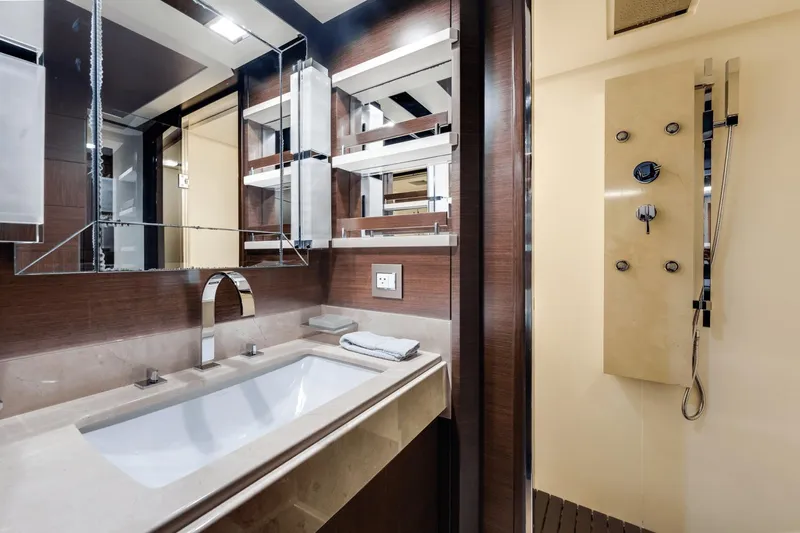

TWIN STATEROOM EN-SUITE
• Tecma toilet system
•Washbasin
• Cabinets and mirror
• Shower with rain shower and body sprayers
• One large opening porthole
• Remote controlled electric blinds integrated
• into the media system

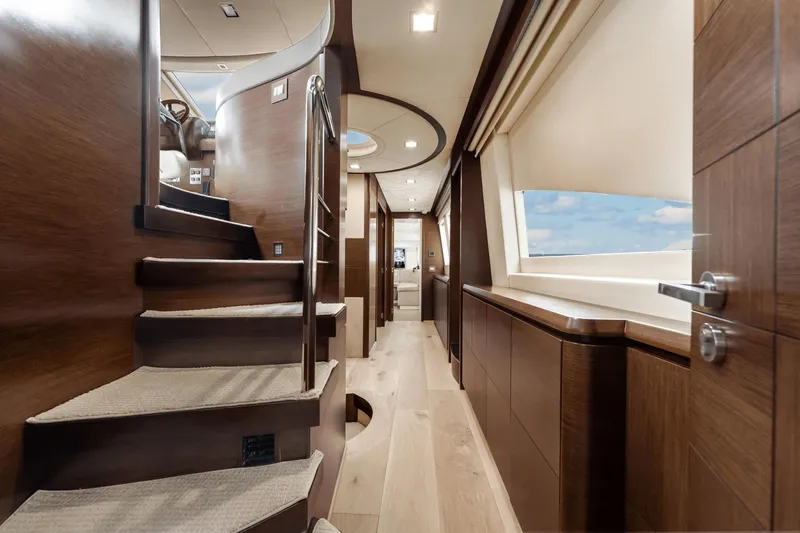

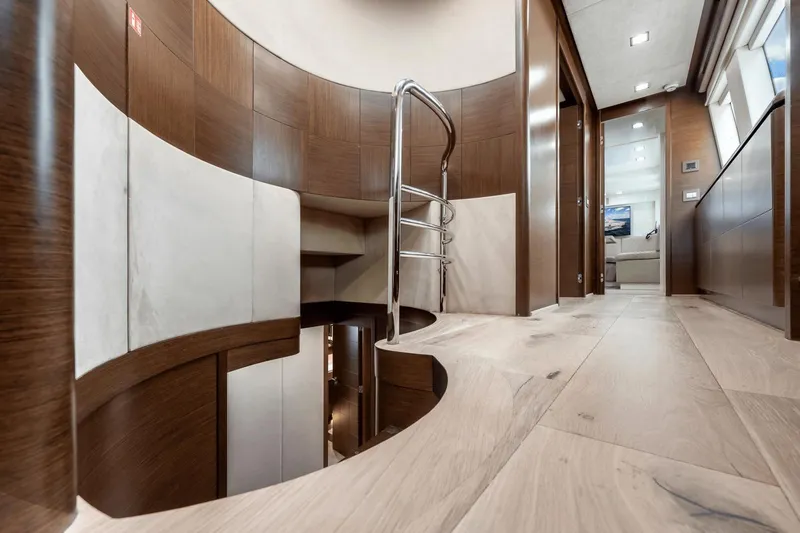

MAIN DECK LOBBY
Lobby located on starboard side forward of saloon allows access to:
• Dining area of salon
• Staircase to wheelhouse
• Technical area underneath the wheelhouse
• Staircase to lower deck
• Media room/fifth stateroom

DAY HEAD/ MEDIA ROOM EN-SUITE
• Sink cabinet with mirror
• Tecma toilet
• Shower with rain shower and body sprayers
• Access door to media room

FIFTH STATEROOM
• Access from the main deck lobby through a double sliding door
• Full/Queen Bed
• Cabinets on the aft bulkhead alongside of the desk with chair
• TV cabinet with Planar 55" UltraSlim
• LED Television/Display
• Hardwood floor with rug
• Remote controlled electric blinds integrated into the media system

CREW QUARTERS
• Access through an independent staircase from galley

2 x CREW CABINS
• Two bunk beds with foam mattresses, bedspreads and pillows
• Drawers underneath the lower bed
• LED spotlights
• Round porthole and curtains
CREW EN SUITE HEADS
• Tecma toilet system with sink, shower, Venetian blinds

Laundry:

Laundry Equipment:

Washers: 2 x Miele Washers

Dryers: 2 x Miele Dryers

Additional laundry plant installed in Garage with full commercial Miele equipment

Safety Equipment:

SOLAS Life rafts: 2 - 16 pax repacked Nov 2021

SOLAS Life rings: 4

SOLAS Life Jackets:36

SOLAS Immersion Suits: 17

Searchlights: 2 acr and 1 hand held for flagstate compliance

Medical Equipment:AED/O2/Extensive First add kit for extended range MLC/Flagstate compliant

EPRIB:1- ACR

SART: 1- ACR

Certification:As-is Disclaimer:

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Contact Information:

Contact:

Mike Bader

Cell 954-815-0147

mike.bader@marinemax.com
