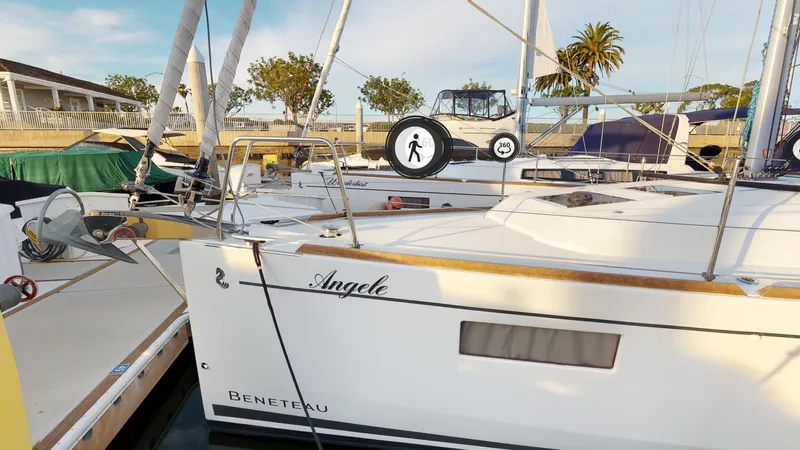

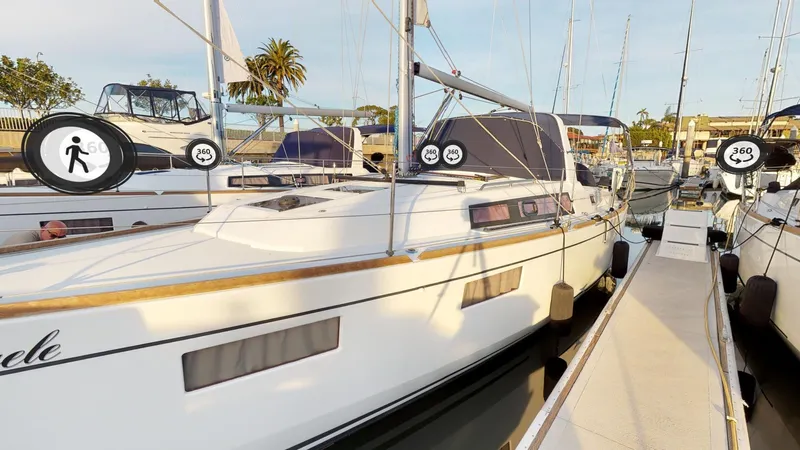

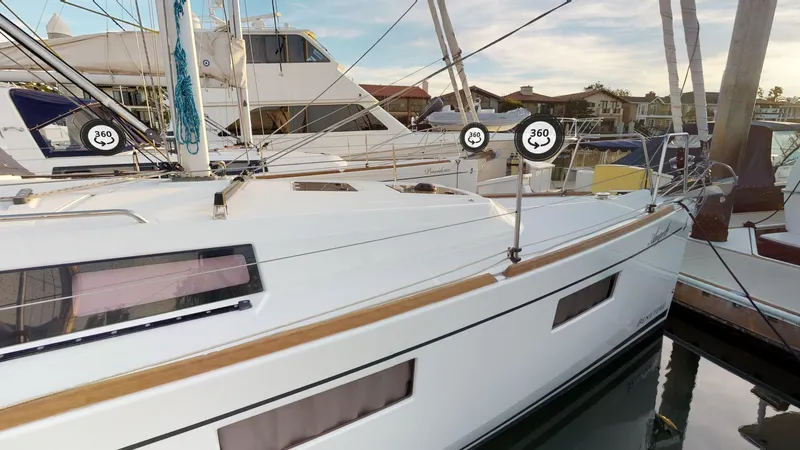

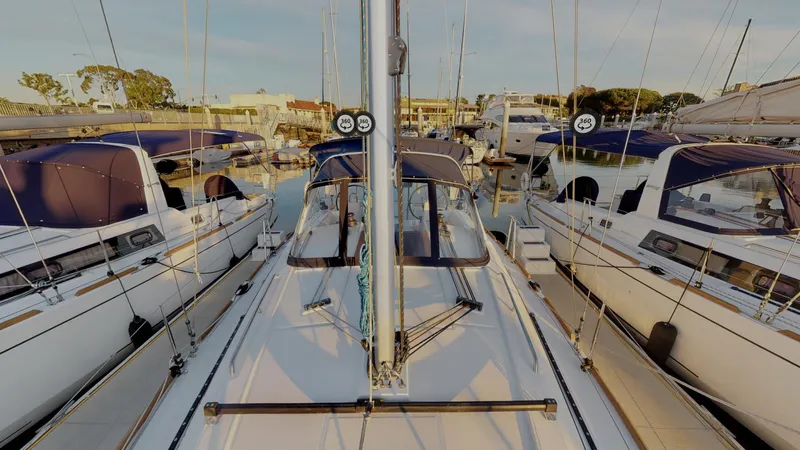

ANGELE Boat for Sale

• Cruising Speed: 6 kn
• Maximum Speed: 7 kn
• Beam: 12' 2''
• Hull Material: Fiberglass
• Fuel Tank: 1 x 34|gallon
• Fresh Water: 2 x 82|gallon
• Holding: 1 x 20|gallon
• Cabins: 3
• Heads: 1

• Design in accordance with European Directive requirements and according to CE certification
• Monolithic hull design in polyester
• Monolithic structural inner moulding bonded to the hull
• Deck injection constructed in glass fibre and Saerform foam sandwich, covered with "diamond-point" non-slip coating
• Hull-deck join screwed, bonded and trimmed with 1 bulwark
• Cast iron keel fixed with bolts and stainless steel backing plates
• 2 Underhung rudders with stainless steel stock
• White colored hull - Grey metal hull graphics

RIGGING
• Standard mast 9/10 anodized aluminium installed on the deck, 2 aft-swept spreaders
• Anodised aluminium boom
• Discontinuous stainless steel standing rigging
• 1 Backstay
• Rigid boom vang with tackle
• Genoa furling system with drum on the deck
• Rigging run back to cockpit (except boom topping lift)
• Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Code Zero sheets,
• 4 clutches, 4 Jamming cleats
• Main sheet on bridle, with fixed points on the roof
• optional extra:
- Fixed composite arch, with incorporated LED lighting
- 2 Stand-up blocks for mainsail sheet

WINCHES
• 2 Self-tailing genoa sheet winches (H40.2 STA)
• 2 Coach roof winch self tailing (H35.2 STA)
• 2 Aluminium "Speed Grip" winch handle, 2 Winch handle box

SAILS
• Furling jib with UV protective strip
• Roller Furling Mainsail (new is Q1, 2024
• Code Zero

MOORING LINES - MOORING
• Self-bailing chain locker - Clench bolt - Hatch cover
• Single stem roller
• 6 Aluminium mooring cleats - Stainless steel deck line protection

SAFETY ON DECK
• 1 Open stainless steel forward pulpit, 2 Stainless steel pushpits
• 1 Lifebuoys support bracket
• Double guardrail and stainless steel stanchions
• Openings in guardrail to port and starboard
• Ring for flag welded on pushpit

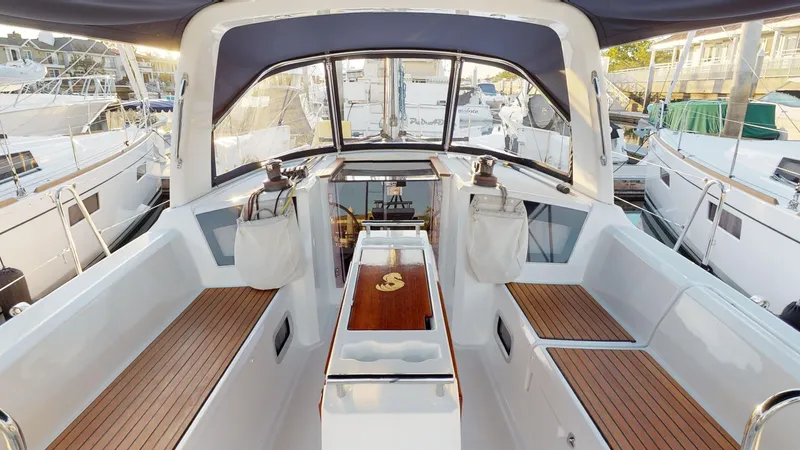

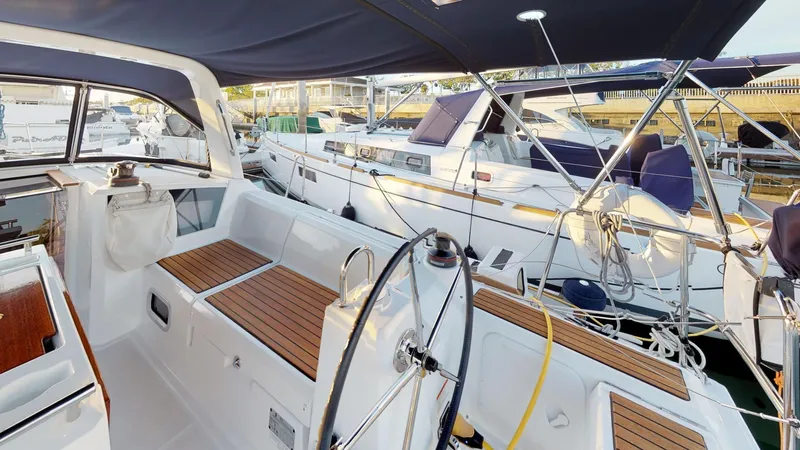

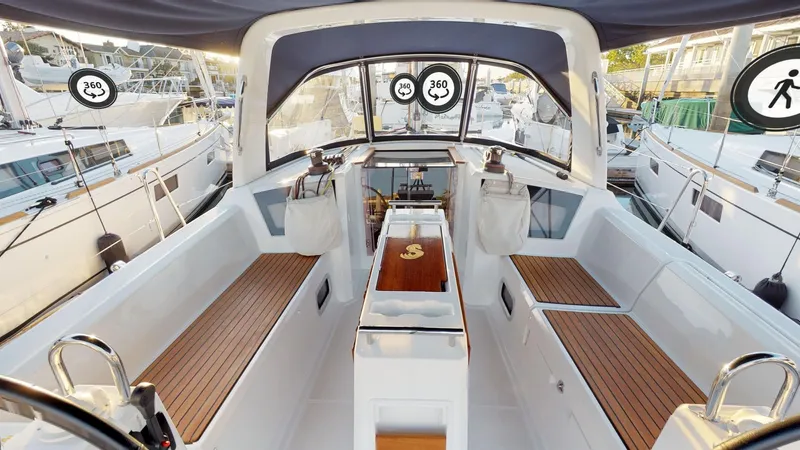

COCKPIT
• Self-draining cockpit
• 1 Cockpit locker
• 2 Lockers in cockpit bottom - Side helm's seats
• 1 Liferaft locker - aft cockpit (0,95 m x 0,59 m x 0,36 m / 3’1’’ x 1’11’’ x 1’2’’)
• Natural solid wood slatted cockpit benches (1,50 m x 0,50 m / 4’11’’ x 1’8’’)

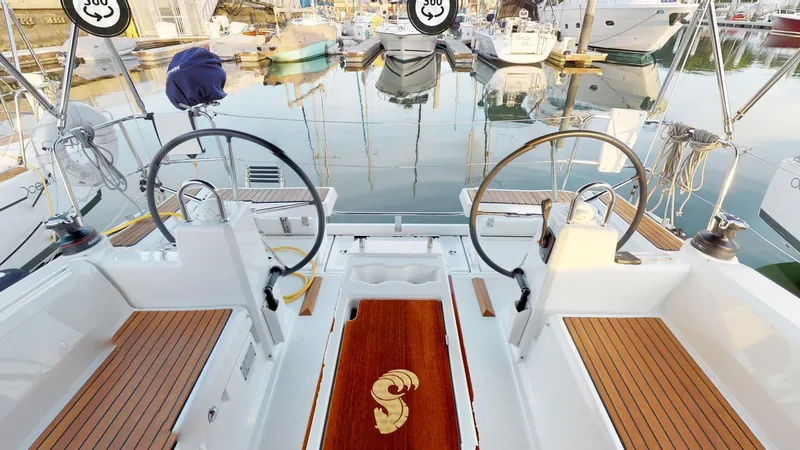

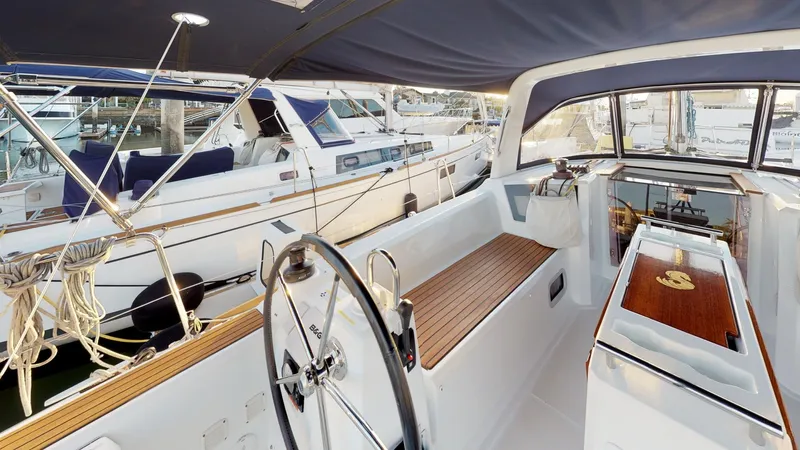

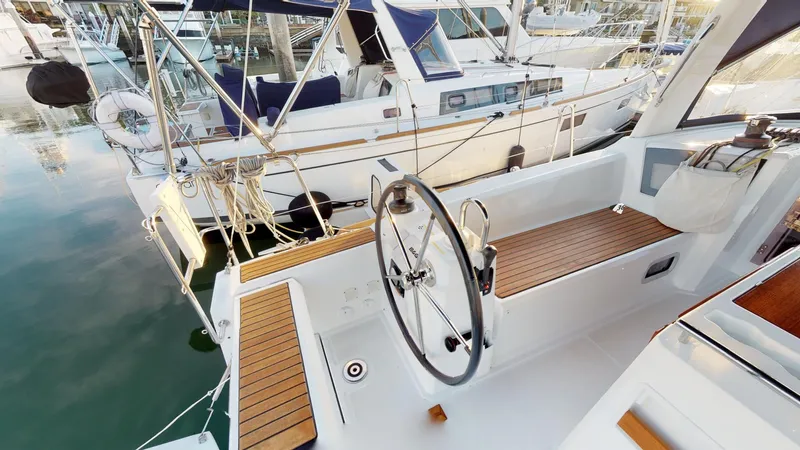

• 2 Steering wheel consoles: Stainless steel steering wheels - 800 mm diameter / 2’7’’ - Leather covered - Steering gear at the helm station - metal cable transmission system - Stainless steel handrail - navigation instrument support (optional instruments) - Cup holder
• 2 Steering compass
• 2 Deck access points to tiller system
• 1 Emergency tiller
• Portside engine control and control panel
• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA
• 1 Swimming ladder

SWIM DECK / STERN DECK (Exclusive Trim level)
• Fully opening transom, convertible to bathing platform (2,60 m x 0,70 m / 8’6’’ x 2’4’’)
• Gas strut opening (manual), 1 Stainless steel integrated telescopic swimming ladder

• Alpi Mahogany interior wood
• Parquet type laminated floors
• Fabric lined hull in saloon and forecabin
• Commando Natural upholstery, Foam density 35 kg/ m3
• Marine mattresses in the cabins ungraded with Memory Foam and covered with a decorative Sunbrella fabric

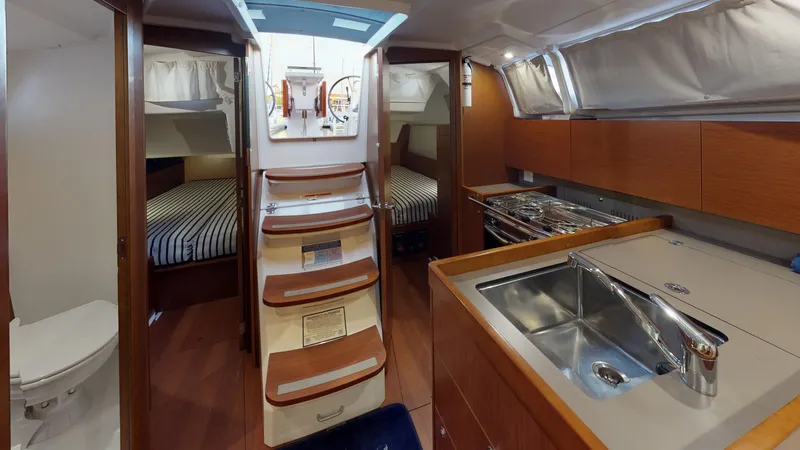

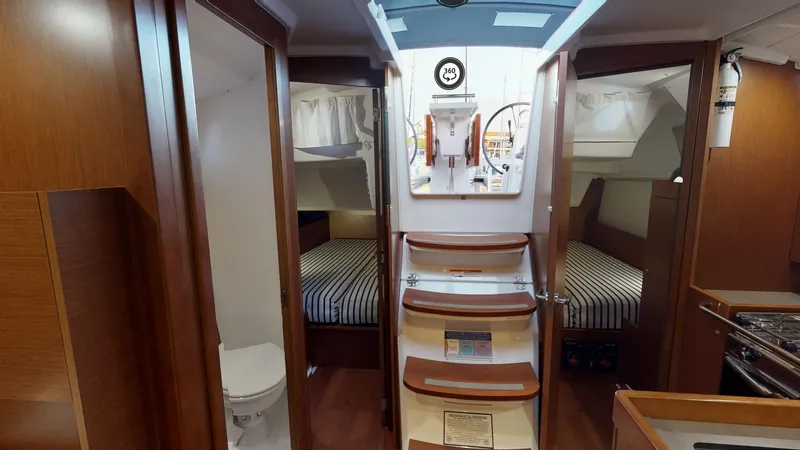

COMPANIONWAY
Headroom: 1,85 m / 6’1’’
• GRP saloon companionway coated with non-slip surface on the steps
• 2 Leather covered stainless steel handrails

HANGING LOCKER - PORT SIDE
• Beam: 50 cm / 1’8’’

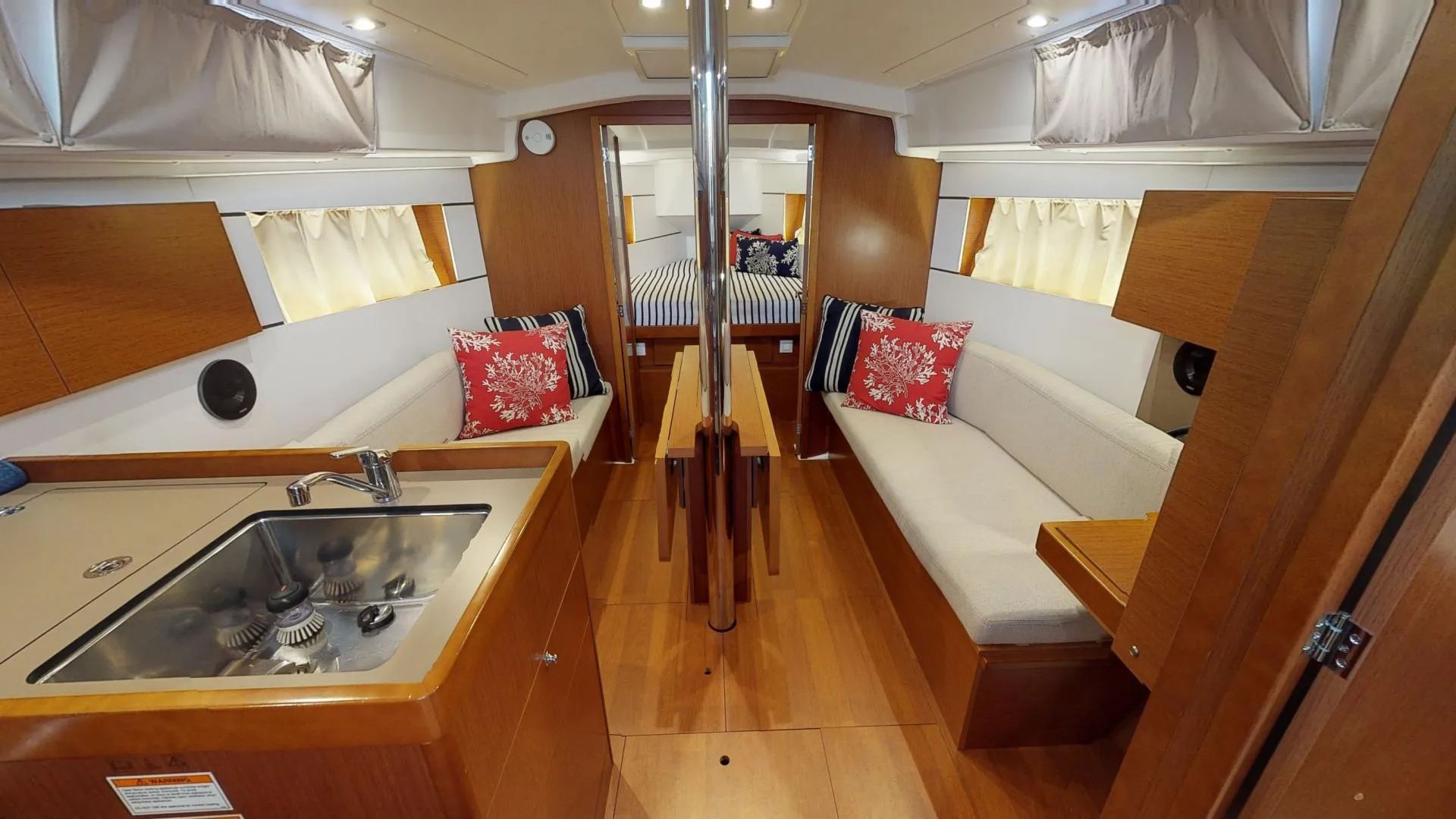

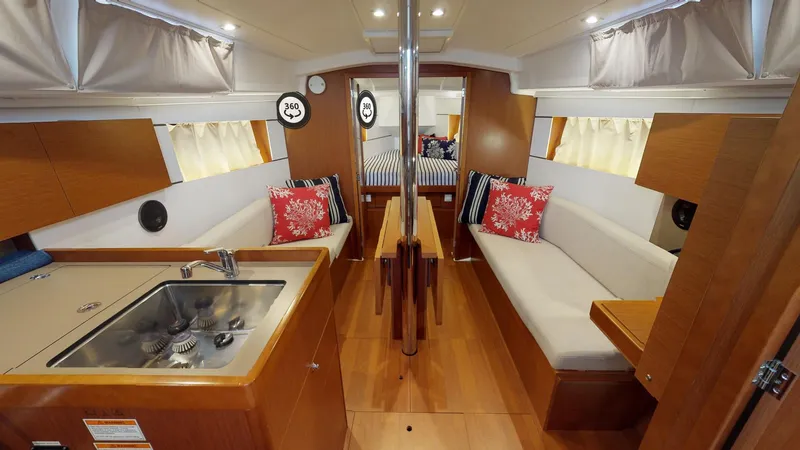

SALOON - PORT SIDE
Headroom: 1,90 m / 6’3’’

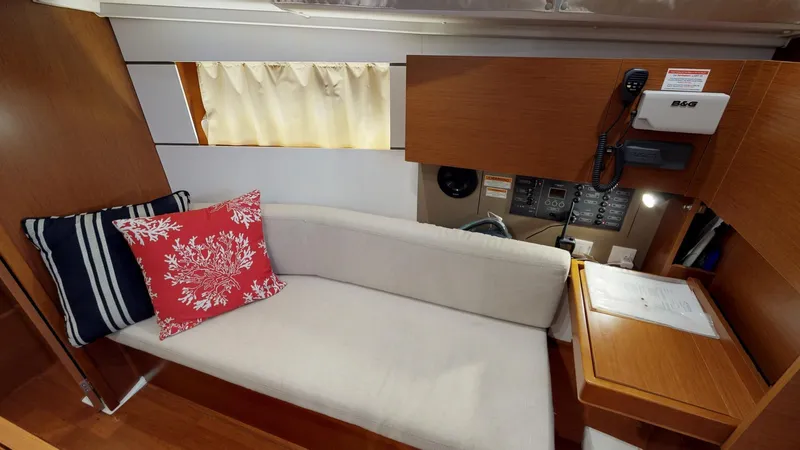

• L-shaped saloon bench seat
• Storage under bench seats
• Saloon table with one-piece wood top - 2 feet
• High, closed units

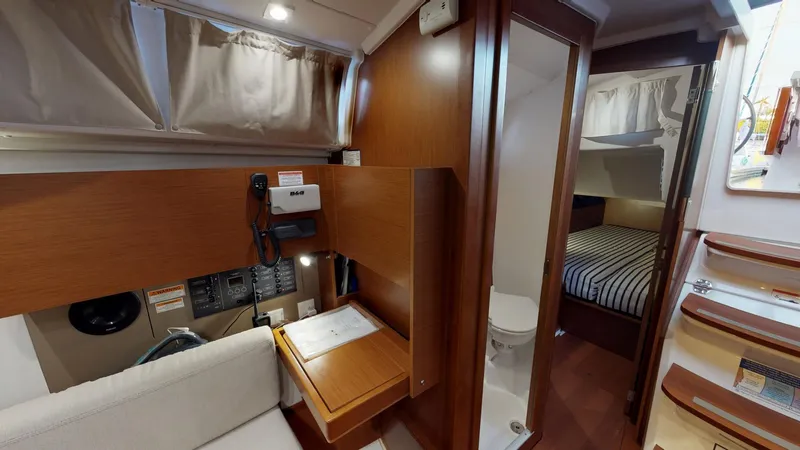

• Chart table (with opening top) - Reading light
• Shelves with fiddles
• 1 Coachroof panoramic window with curtain
• 2 Hull portholes with curtain
• 1 Opening deck hatch with mosquito blind
• 1 Opening porthole in coaming
• 6 Overhead lights

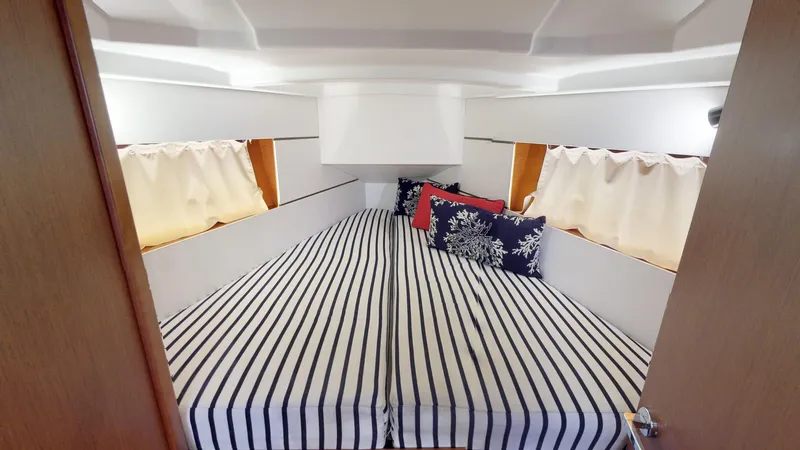

FORWARD CABIN
Headroom: 1,80 m / 5’11’’

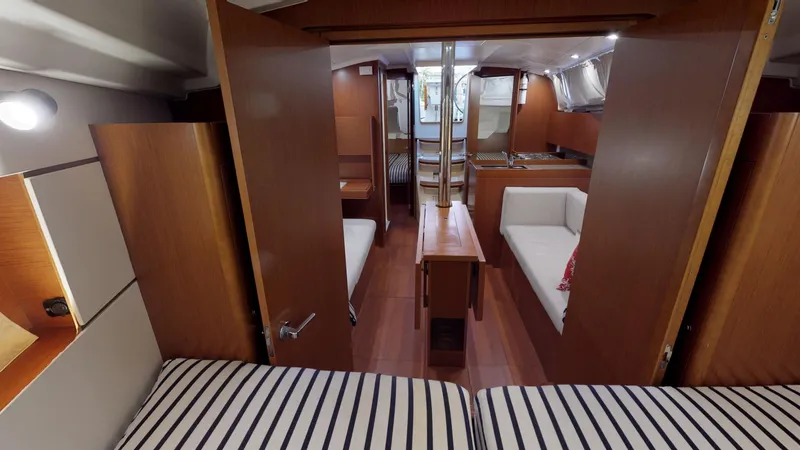

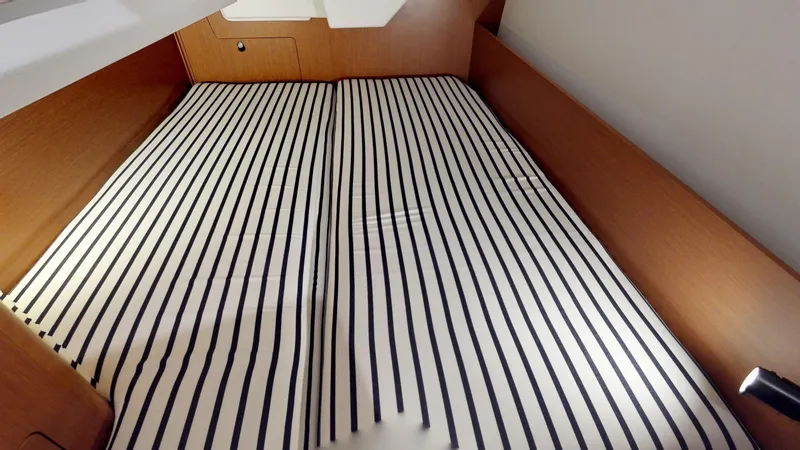

• Central double bed (1,75 m x 2,00 m x 0,45 m / 5’9’’ x 6’7’’ x 1’6’’)
• 2 Hanger closets
• Drawer under the bed
• 1 Opening deck hatch with fan, mosquito blind
• 2 Hull portholes with curtain
• 2 Reading lights

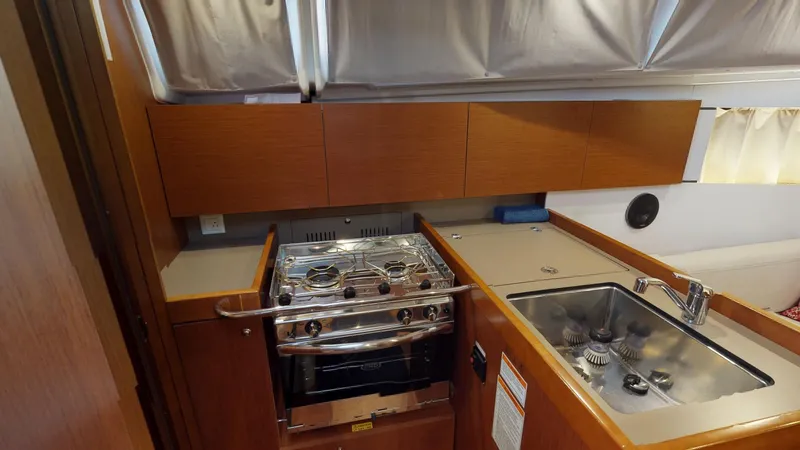

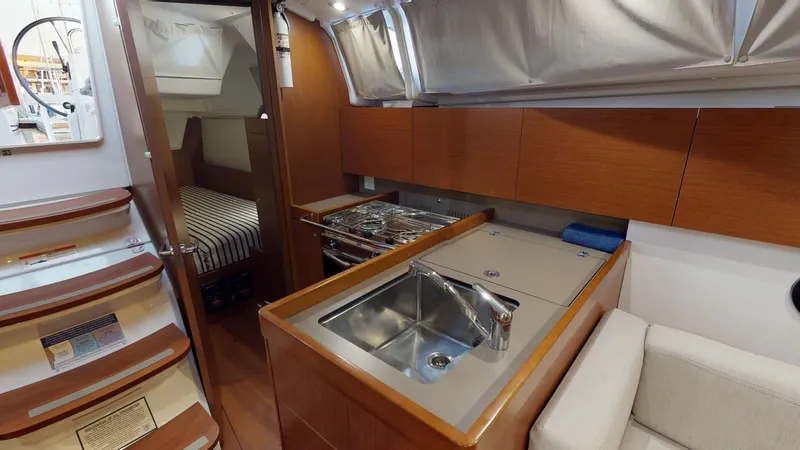

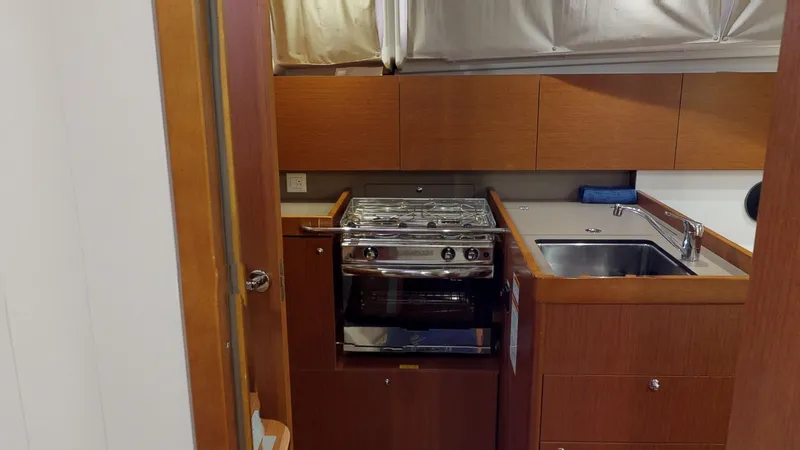

GALLEY COUNTER - PORT
Headroom: 1,90 m / 6’3’’
• Laminated worktop - Taupe
• 1 Stainless steel sink - 1 Rectangular stainless steel basin - 1 Hot/cold water mixer tap
• 1 2 hobs stainless steel gas cooker on mounting
• Unit (Drawer & Cupboards)
• Cubby hole locker, Bin
• 1 Coachroof panoramic window with curtain 2 cabins layout

PORT AFT: 1 Cabin
Headroom: 1,75 m / 5’9’’

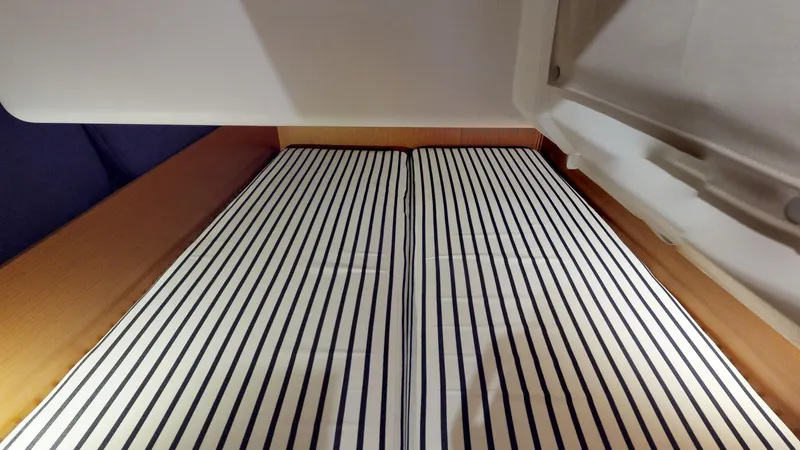

• Dimensions - Berths: 1,73 m x 1,98 m / 5’8’’ x 6’6’’
• 1 Overhead light, 2 Reading lights
• Open shelving
• Padding upholstery along the hull
• 1 Wood hanging locker
• Deck house opening porthole

3 cabins layout
Headroom: 1,75 m / 5’9’’
• 2 Aft cabins
• Dimensions - Berths: 1,45 m x 2,00 m / 4’9’’ x 6’7’’

AFT STARBOARD HEAD COMPARTMENT
Headroom: 1,90 m / 6’31’’
• Access through saloon
• 1 Basin, 1 Mixing tap hot/cold water, Shower
• 1 Manual marine toilet with 80 L / 21 US Gal rigid reserve
• Head cabinet, 1 Mirror, Toilet accessories, Peg
• 1 Overhead light
• 1 Opening portlight with curtains in side windows in the coaming

L-SHAPED GALLEY ON PORT SIDE VERSION
• Replacing the hanging locker and the chart table
• Galley with 100 L / 26 US Gal cool box instead of the 130 L / 34 US Gal fridge
• Full hull width saloon: Bench seat on port and starboard sides, Large saloon table with 2 leaves and bottle rack, Retractable chart table on starboard side

• Engine Yanmar Diesel 30 hp / 30 HP Sail Drive
• Engine control - Control panel in cockpit
• Engine compartment: Soundproofing foam - Ventilation: 2 Air intakes and 1 powered air expulsion
• 1 Alternator - 12 V / 125 Ah
• 1 Rotomoulded diesel tank 130 L / 34 US Gal - Gauge at the chart table - 1 Deck filler
• Filters: Sea water - Diesel - Water separator
• Folding three blades propeller
• 1 Engine access through companionway - 3 access to engine by the sides of the companionway

• 12 V circuit
• 3 House batteries - 1 Engine start battery
• 1 Power distributor
• 12 V electrical panel
• 1 12 V Socket
• LED navigation lights: 1 Navigation light - 1 Engine navigation light - 1 Anchor light on masthead
• Wire runs for options cables

• 1 rotomoulded freshwater tank (130 L / 34 US Gal)
• 1 Deck filler
• Water unit
• 1 80 L / 21 US Gal rigid holding tank
• Electric pump & Shower draining
• Water heater (25 L / 7 US Gal) - engine start (220 V)

• Gas cylinder locker - starboard aft cockpit (25 cm x 27 cm x 40 cm / 10’’ x 11’’ x 15’’)
• Regulator and safety tap

B&G Electronic
• B&G AC42 autopilot + Control at steering station
• B&G V50 VHF, AIS receiver function
• ForwardScan Sensor (Forward underwater vision)

Rigging - Sails
• Anodized mast furling system with Mylar - Taffetas mainsail
• Asymmetrical spinnaker rigging + Code 0 rigging + 2nd bow roller and

Bobstay
• Self-tacking jib hardware
• Code 0 on "Top Down" furling system
• Self-tacking jib (replacing genoa)
• Asymmetrical spinnaker
• 2 Flag halyards

Winches
• Code Zero sheet winches
• Port coachroof winch
• Coach roof winch to starboard

Hull - Deck - Cockpit
• Mainsail arch
• "Luxe" cockpit table
• Cockpit fixed portholes for the aft cabin(s)
• Cockpit opening porthole for aft cabin(s)
• Dodger (Blue)
• Bimini
• Dark Narval Cockpit cushions
• 3 feathering blades propeller
• Windlass control in cockpit with chain counter (fixed)
• Outboard engine (Pushpit)

Interior equipment
• Stainless steel 2 burner oven/grill cooker on mounting
• Slatted bed base
• Wooden companionway steps
• Quiet Flush electric toilet
• Additional freshwater tank (200 L / 53 US Gal)
• Additional 40 L / 11 US Gal cool box (for L-shaped galley)
• Converter 12 V
