AQUILA 36 SPORT Boat for Sale

Aquila 36 Sport Boat | 36' Aquila 2025

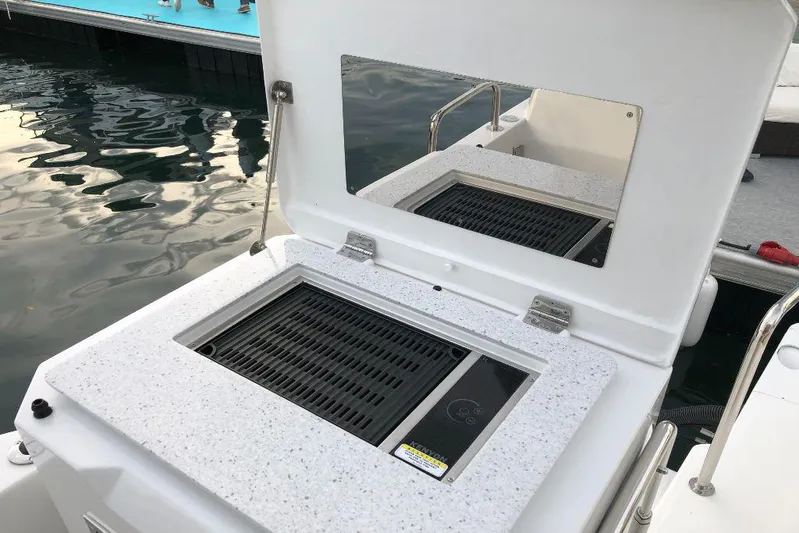

Aquila Aquila 36 Sport: On Water Price (2024)Standard- Two cabins- Two electric toilets and showers- Two white Mercury Verado V8 300HP with joystick piloting control (includes autopilot- Electric steering and skyhook) and 4" vessel view display with active trim- Windlass 1000W with handheld control- Rope(200FT)- Chain(15FT)- Stainless steel 35LBS anchor with bridle- Fan in each cabin- Retractable stainless steel swim ladderGalley and Table- Electric BBQ installed at galley - can not be ordered with cooktop at galleyCanvas- Bow seating canvas cover - blackLighting- Underwater lighting - 4 x blue LED 60DEG 2500 lumen- Premium blue LED deck lighting packageElectronics and Sound- Coastal navigation package - 1 x raymarine 12" axiom Pro S chart plotter with CPT-S thru hull transducer / raymarine ray90VHF with speaker and antennaeShipping- Delivery to the UK and commissioning

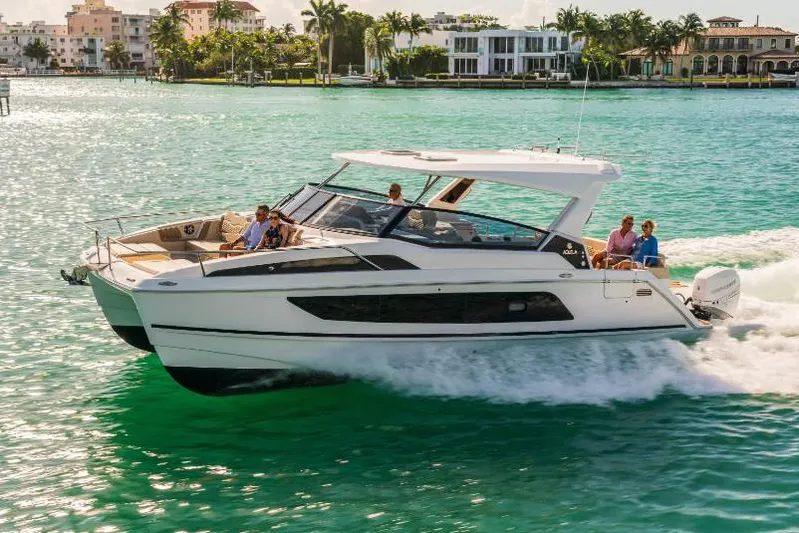

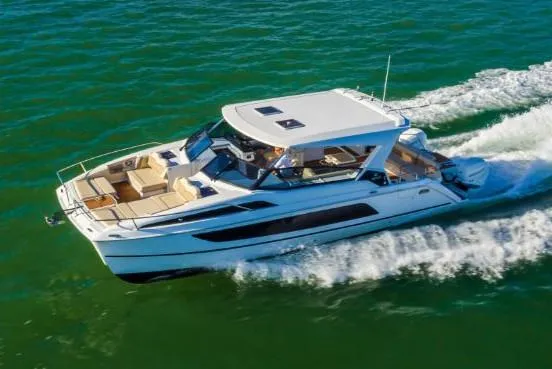

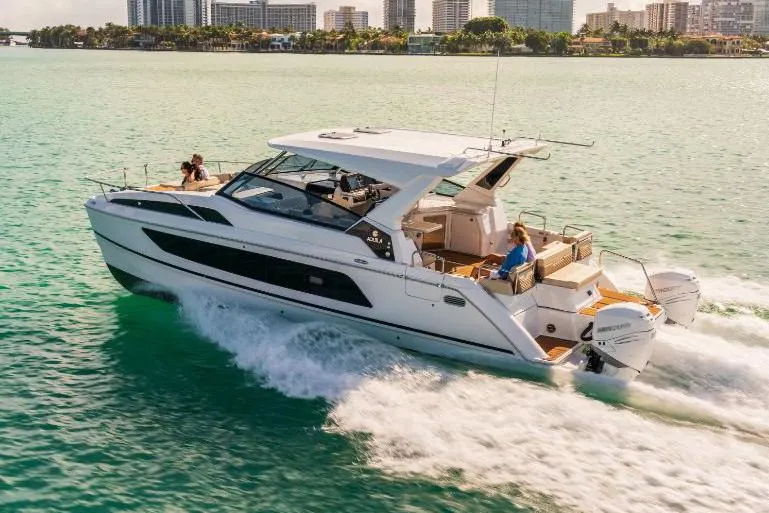

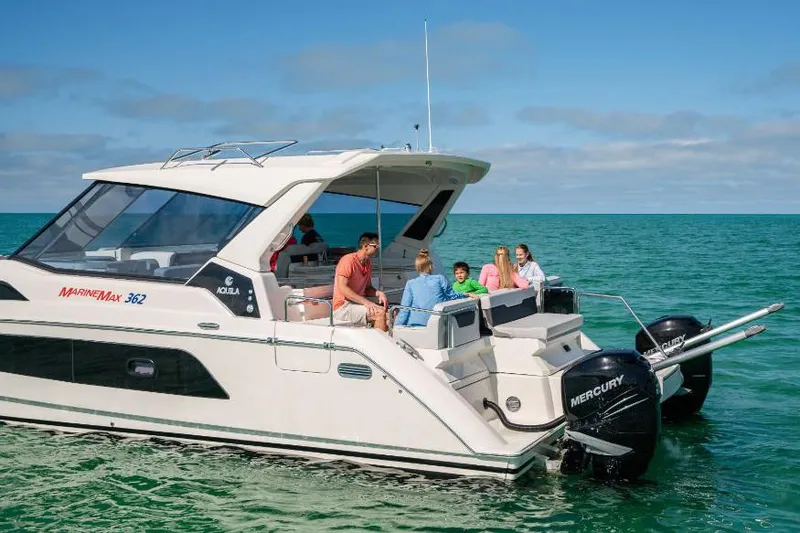

The Aquila 36 Sport Power Catamaran is a totally innovative approach to having fun on the water.An outboard propelled power catamaran that can day boat with a multitude of revellers and all their water-toys or provide complete privacy for two couples on an adventure to newfound destinations, all with a multitude of options that support everything from invigorating water sports to sportfishing.

Available with a sport windscreen, full windscreen to the hardtop or fully enclosed helm deck with air conditioning (cruiser package option), the Aquila 36 Sport can accommodate most conditions.

The controls are strategically positioned to give the operator complete command of the vessel and the Mercury Joystick Piloting option makes docking and close-in manoeuvring intuitively simple.Easily operated and safely able to manage open seas, the Aquila 36 Sport is in a class of its own.

Aquila 36 Sport

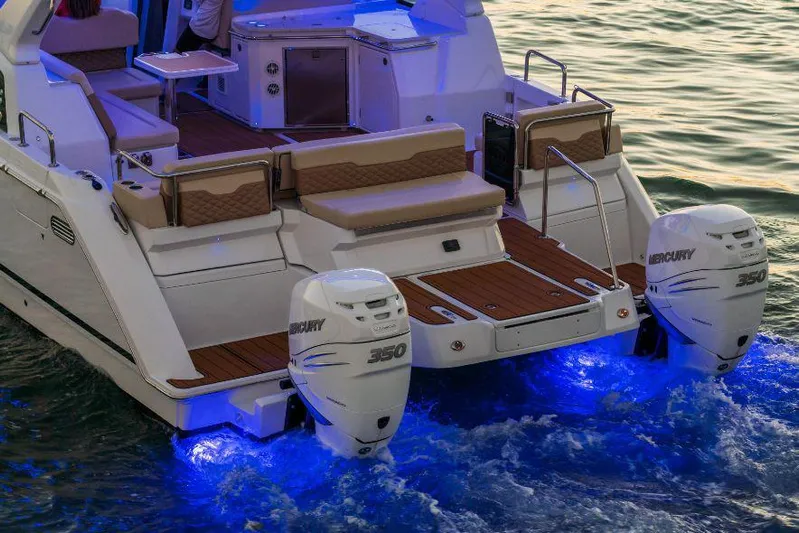

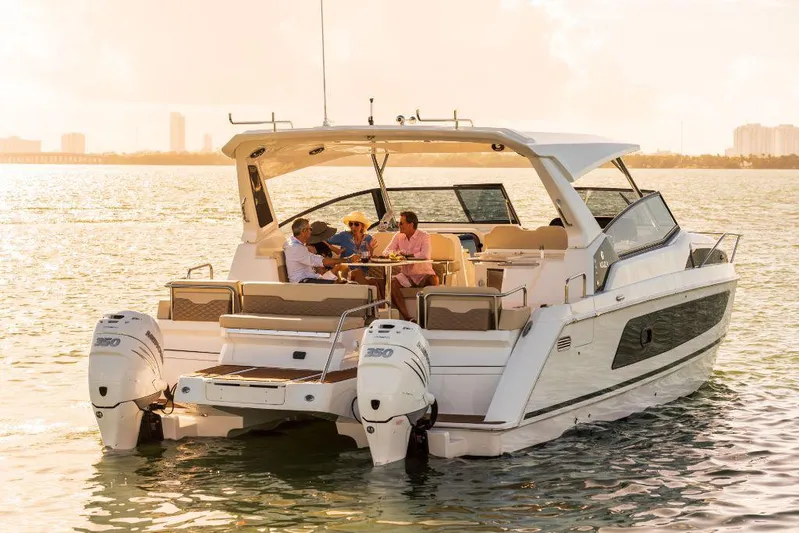

PropulsionStandard: 2 x Black Mercury Verado V6 225 HPOptional: 2 x White Mercury Verado V8 300 HP with Joystick Piloting ControlPropellers: Stainless steel

FeaturesAn exceptional performing and seaworthy hull shape providing first in class stability and fuel efficiencyExpansive areas for entertaining and social zones from bow to stern with a well appointed wet bar area with sink, refrigerator, storage and tilt out trash binThe bow seating offers optional seating configurations of your choice to either have plenty of comfortable seating for up to 8 people or fold the seats down to create large sunbed.FUSION multi-zone audio system with 6 x Fusion speakers & Bluetooth connectivityPlenty of comfortable seating throughout for up to 26 people onboardExpansive fiberglass hard top with two opening hatches providing protection from sun and weatherHigh quality living comforts within cabins and heads provide exceptional comfort for those longer voyages on boardCustom designed slide out stainless steel boarding ladder system providing easy access in and out of the water

Available Package Options:Aquila Hydro-Glide Foil System (AHG)Enhances performance, consumption and handling by up to 40% gains in fuel efficiency and 25% gain in speed versus non-foiling boat. AHG only compatible with base engine package (2X 300 HP).

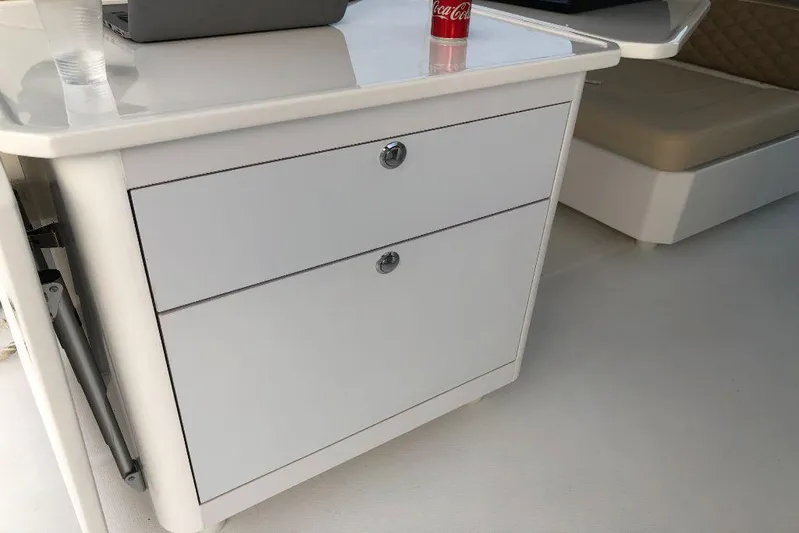

Cruiser PackageFull-height tempered glass windshield, side windows and fixed aft 3-panel sliding door. Cockpit table upgraded to folding table with additional built-in storage drawers below table. Curtains covering aft and side windows; upgraded salon/galley wood and head liner details.

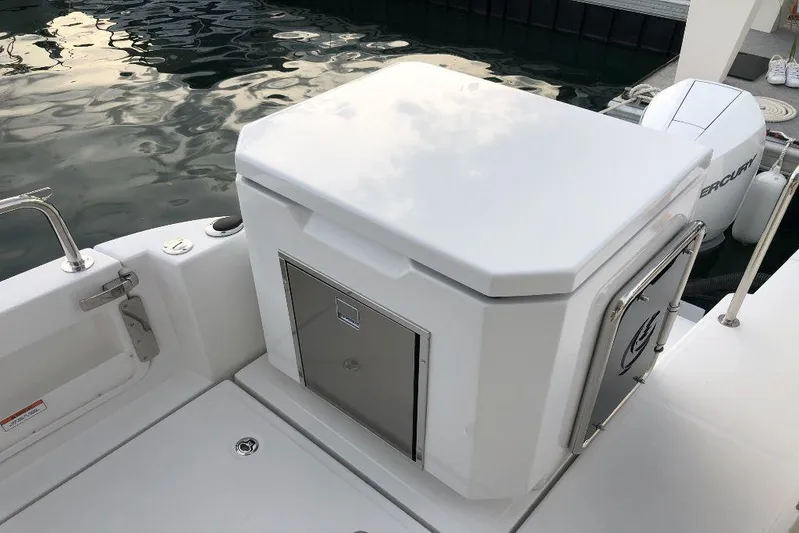

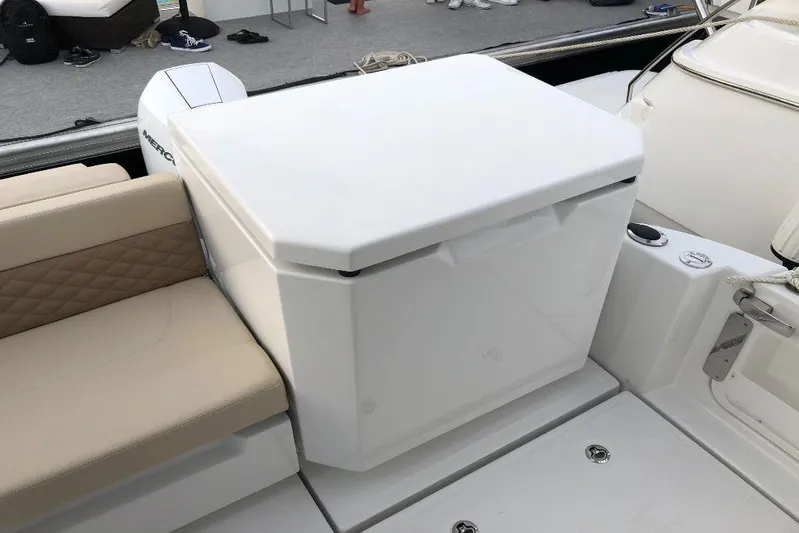

Fishing PackageStarboard aft module with electric BBQ and 42L fridge/freezer. Central aft module including four (4) fishing rod holders, large fish box/cooler with salt water wash down. Port aft module consisting of live well tank.Aft platform deck including stainless steel fold down dive ladder with wrap around railing in lieu of standard ladder.

Interior LayoutTwo (s) cabins with separated showers and fresh water electric flush toiletsPrivate lockable companionway hatch to each cabin

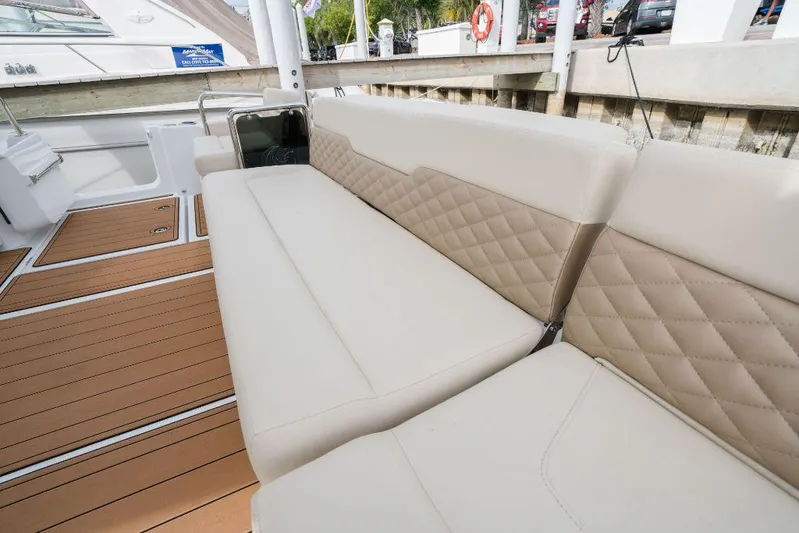

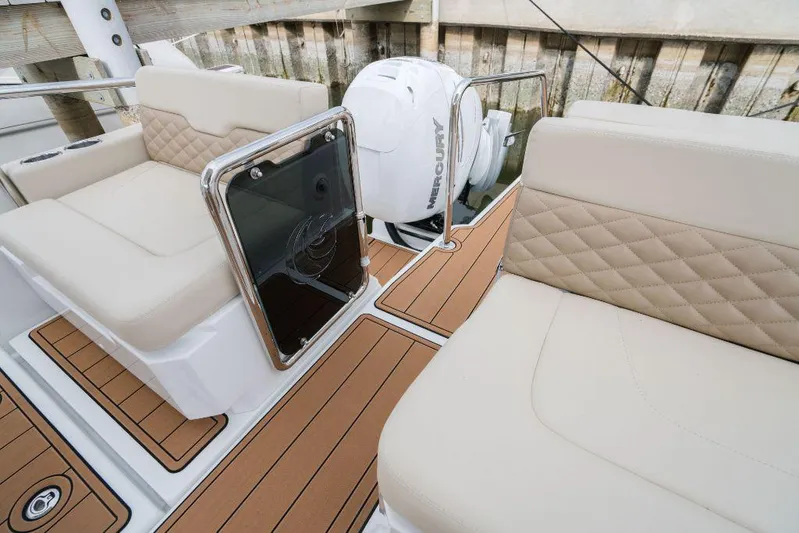

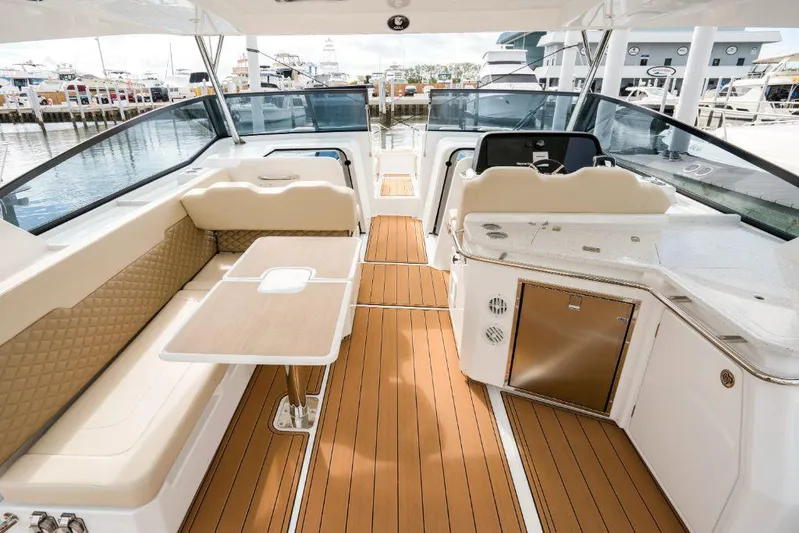

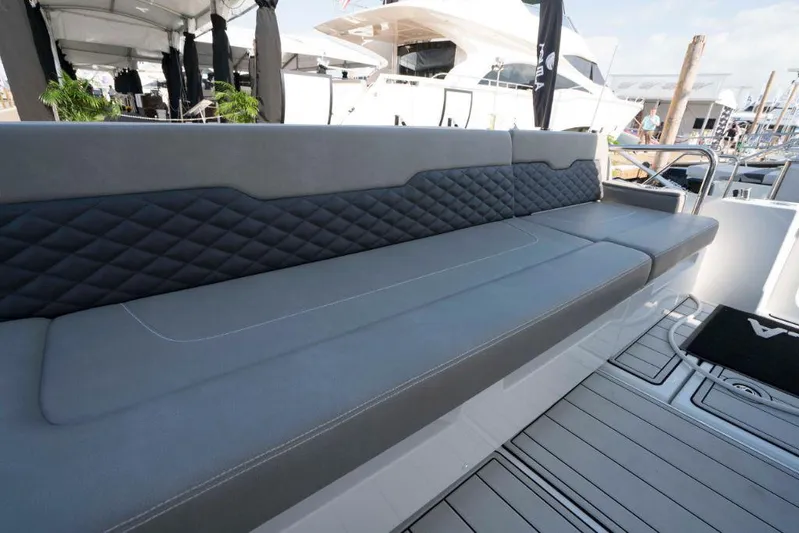

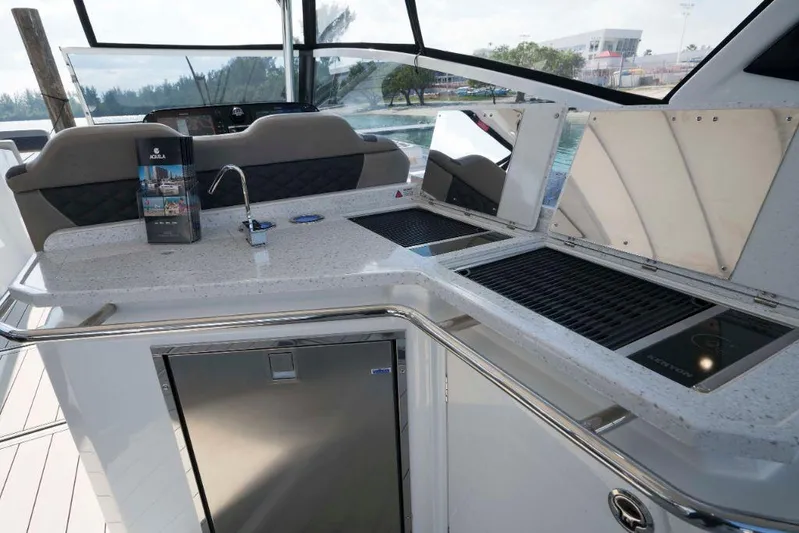

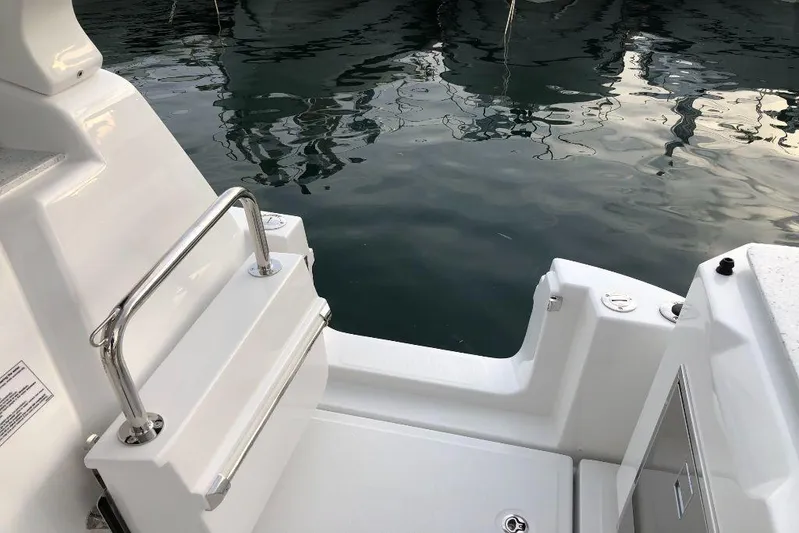

Deck LayoutComfortable forward cockpit seating that seats eight (8) - converts to two large sunbedsHelm Station to starboard with comfortable seating for two (2)Comfortable port side passenger seating for two (2)Galley to starboard with Corian surface, fridge/freezer (85 L. / 3.0 cu. ft.), storage, wash basin and AC power socketsSettee seating with folding table to portInsulated cooler and drain built into seating on port sideConvertible seating aft that converts to sunbed, faces forwards or aftForward facing seating at aft deck on port and starboard sidesEntire deck area is self draining towards aft with additional scuppers forward for drainageSide boarding doors with heavy duty hardware located port and starboard sidesStainless steel gate to large aft swim platformEasy access to forward seating via an opening in windscreen and lower doorAnchor locker hatch with separate chain locker hatchForward storage lockers in each hull with easy access from under forward seatsStorage locker under floor in forward seating area with designated drainageStorage lockers under all aft seatingLarge aft hatches for access to equipment lockersCustom stainless steel retractable swim ladder with teak steps located in large aft hatch in swim platformEasy lift gas shocks for all large hatchesIntegrated targa archHard top with stainless steel supports and two opening hatchesAll exterior upholstery designed by leading international companyAll upper deck furniture in FRP elevated off the floor for ease of cleaning and drainage

Hull and Deck EquipmentAIS316 stainless steel railings, handholds and hardwareCustom built PVC rub rail with stainless steel insert offering all around protectionTempered glass windscreen with custom aluminum frameVariable speed windscreen wiper with control mounted at helmAnchor platform and roller in stainless steelElectric windlass (12v-1000W) with handheld controlPolished stainless steel 35lb Anchor with rope (200ft), chain (15ft) and bridle attachment riggingTen (10) solid stainless steel thru-bolted pop up mooring cleatsDeck fill plates in stainless steel (1x fresh water; 2 x fuel; 2 x waste)Emergency ladderLED navigation lights (port, starboard, anchor and running light)Port and starboard integrated side boarding gates with robust stainless steel hardwareStainless steel ski tow eyeBlack boot stripe in hull (Gelcoat)Bow block off via door between companionwaysLED courtesy lightsFour (4) LED drink holders for forward cockpitTen (10) drink holders between helm and aft deck areaTow (2) shore power inlet supply plugs (30amp)LED overhead lights in hardtop for settee and galleyExterior seating upholstery finished in “Quartz” colour combination (without diamond stitching)Fusion multi-zone entertainment surround sound system with head unit and six (6) FUSION 6” speakers with Bluetooth connectivityTwo (2) fishing rod holders on port and starboard side aft quarter

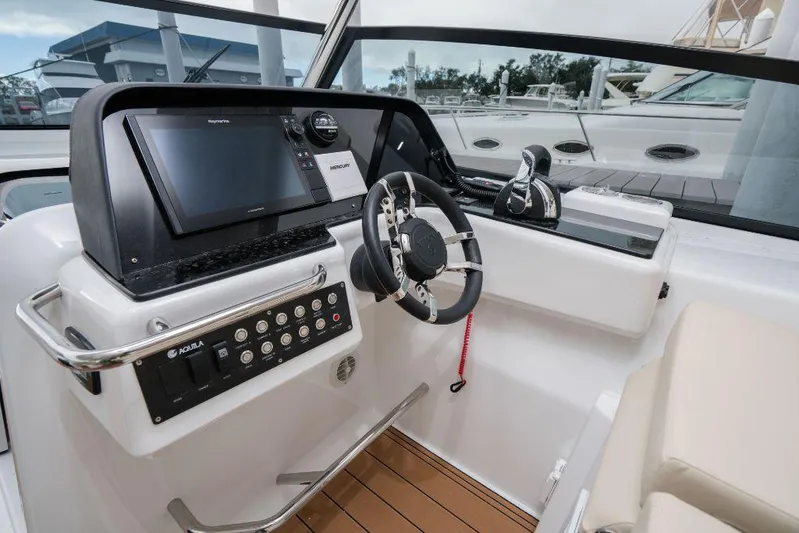

Helmsman StationComfortable, fully adjustable helm seat with individual flip up bolsters for two (2) passengersElectronic engine double lever throttle and gearshift controlMercury Joystick Piloting controlMercury VesselView 4” display with Active Trim ControlCustom Aquila variable position steering wheel in stainless steelMagnetic compassHalon fire alarm for each fuel tank areaMercury Verado power assist steeringTwo (2) cup holdersEasy of use switch panel for common itemsHorn controlUSB and 12-volt outlet at helm and port side pilot seatAC power sockets under seatingStainless steel foot rest

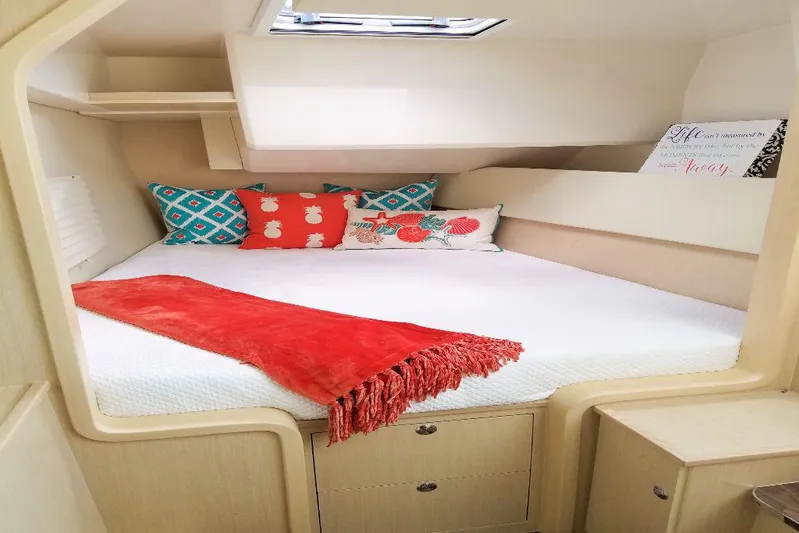

CabinsV-double berth in cabin (comfortably sleeps 4; 2 in each cabin)Memory foam mattresses with durable canvas coversWood furniture in plywood with light wood composite laminate and matching hard wood trimSynthetic wear resistant flooring offering maintenance free natural lookUpholster side and ceiling panelsStorage shelves, lockers and drawersElectric variable speed fan in each cabinDesignated microwave area with AC outletBlinds for all windows and hatchesLED overhead lightsLED reading lightAC power socketsCarbon monoxide alarmDeck hatch above bed for ventilationLarge hull windows bringing in plenty of natural light

HeadsFRP head module with upholstered sides and storage lockers in composite laminate surfaceCorian basin surfaceLow maintenance FRP finish ceiling and inboard sidesShower area with teak grateFresh water mixer faucet with pull out shower headMirrorLarge window with pull down blindsShower curtain mounted on trackElectric fresh water flush toilet with macerator (holding tank located behind air tight bulkhead)Stainless steel towel hanger above toiletLarge aft storage locker combined with hanging lockerStorage lockers on inboard sideLED overhead lightsOpening hull port light

Electrical SystemMaster Control panel for 12-volt and shore power serviceHelm station LED push button electrical panelRemote battery master switches at panelEngine parallel control remote switchTwo (2) dedicated engine start battery’s each located in aft lockerTwo (2) x 200Ah house batteriesBattery trays with mountsInverter/battery charger (12a/3000VA)Volt meter and amp meterGalvanic isolator systemReverse polarity indicatorMulti-zone entertainment system master unit located at helm stationTwo (2) shore power supply plug (30amp)

Fuel SystemFully independent heavy gauge aluminum tanks with gauge at helm station (360 gal. / 1364 L.)Manual fuel shut-off valvesFuel tank ventsNatural ventilation of locker plus forced air ventilation controlled from dash boardWater and air tight bulkhead separating cabin/head areaMercury fuel filtersAutomatic fire suppression heat activated system with alarm monitor at helm station for fuel tank area

Water and Bilge SystemFresh water tank (52 gal. / 200 L.)Automatic 12-volt fresh water pumpWater heater (1 x 10.5 gal. / 40 L.) - only operable from shore power and/or optional generatorTransom pull out shower mixerFaucet - wet barPullout sprayer in each headFour (4) automatic 12-volt bilge pumps

Grey Water SystemAutomatic grey water pump connected to shower drain for direct overboard discharge

Black Water SystemTwo (2) independent air tight black water tanks located aft of airtight bulk head (21 gal. / 80 L.)Deck evacuation or electric direct overboard pump separately controlled

Aquila 36S SpecificationsLength overall w/ swim platform excl. anchor roller 10.96 M / 36’ 0”Hull length 9.94 M / 32’ 7”Beam overall 4.45 M / 14’ 7”Length of waterline 9.3 M / 30’ 6”Height above waterline w/ hard top (excludes electrics and electronics) 3.05 M / 10’ 0”Hull draft with outboards up 60 CM / 2’ 0”Displacement dry 6,700 KG / 14,770 LBFully loaded displacement 8,800 KG / 19,400 LBCruiser package fully loaded displacement 9,200 KG / 20,280 LBCE certification B:8, C:18, D:26Sleeps (up to) 6 (2 in salon)Max passengers 26Cabins 2Heads 2Showers 3

TankageFuel tank (approx.) 2X 675 = 1350 L / 2X 178 = 356 GALWater tank standard (approx.) 200 L / 52 GALWater tank max (optional) 485 L / 128 GALHolding tank (approx.) 2X 80 L / 2X 21 GAL

ConstructionHull and deck material: InfusiCore vinyl ester resin infused throughoutBulkhead and reinforcing: InfusiCore vinyl ester resin infused throughoutCore materials (vary in density): PVCGelcoat of hull: NPGBulkheads: Water tight fore and aft
