AQUILA 54 Boat for Sale

Aquila Aquila 54 Yacht: On Water Price (2024)Standard- Three cabin- Three heads- 2 x 380 HP Volvo D6 with 7" Volvo display at helm- Rope cutters- Hard top with SS supports on flybridge with lights incl forward fixed windscreens and manual overhead opening hatches- 88LBS delta anchor with chain- Electric induction cooktop (four burner)- Inverter/chargers- Antifouling paint- Mooring kit - includes shipping cradle and shrink wrap - see base boat specifications list for additional details - FAS Shanghaiincludes shipping cradle and shrink wrapInterior Finish- Light ash interior finish with covered accented wall and ceiling upholsteryPropulsion- Bow thrusters x 2 - port and stbd hull - 8.0HP - 6.0KWFlybridge- Helm station Canvas cover - black color- Stainless steel ice maker at AFT deck wet bar installed next to 65L stainless fridgeDeck Gear- Electrical dinghy crane lifting system with fixed AFT platform for dinghy - maximum lifting capacity 1,000LBS/454kg- Hydraulic AFT lifting platform between hulls (does not go under water- Creates full width "beach deck" at lowest level on deck - replaces fixed AFT platform and can be used for dinghy storage -maximum lifting capacity 1,000LBS/454kg)- AFT docking capstans (2 x electrical winches)Electric System- Generator kohler 21KW 60HZ dual voltage (120v and 240v) with sound enclosure- Remote control and fuel transfer pump- Fully integrated fire- Heat- Carbon monoxide detection system including - 3.5” LCD monitoring screen- 8 x smoke detectors- 6 x heat detectors- 7 x carbon monoxide alarms- DishwasherWater- Dockside water connection

Comfort- Chilled water air conditioning - V77-77000 BTU chiller for three cabin- Salon and flybridge (variable speed)- Curtain on salon entry door- Washer/dryer single combo unit - ventless- Prefitting for TV with support in salon (TV not included)- Standard system in salon + single all in one bluetooth soundbar in master cabin only- Synthetic marine teak color decking covering AFT cockpit deck- Transom steps and transom - flexiteek 2G teak color with black caulking- Prefitting for TV with support in cabins - three cab version (TV's not included)Navigation- Coastal navigation package - 1 x Raymarine 16" Axiom Pro S chart plotter with CPT-S transducer / Raymarine I70smultifunction display / Raymarine 63 VHF with raymic remote station and antennae / Raymarine cam220 camera mounted toface AFT Port onto transom area / Raymarine Evolution Autopilot with P70 Rotary DisplayLighting- Blue led courtesy deck lighting package on portuguese flybridge walkway and main side deck walkways- Underwater lighting AFT x 4 blue AFTShipping- Delivery to the UK and commissioning

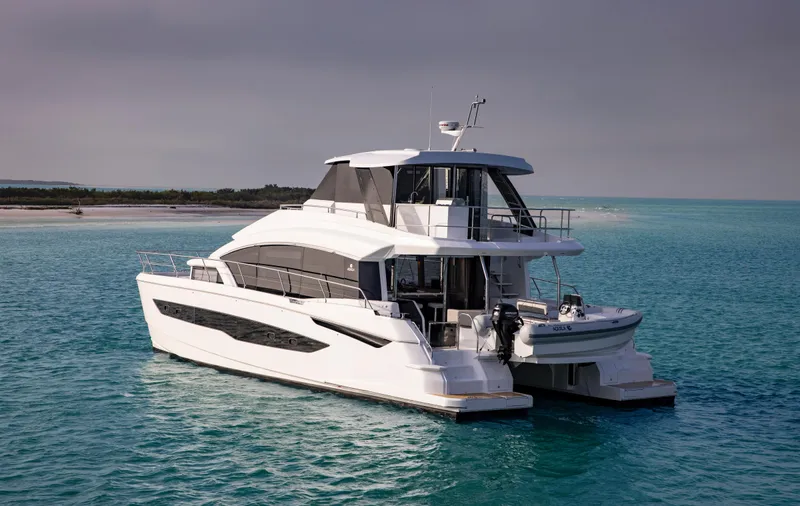

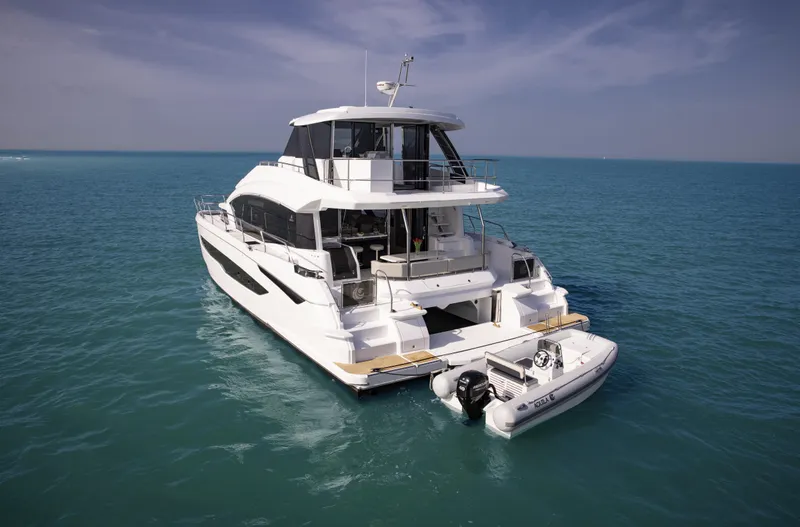

Aquila’s rapid growth and global success has challenged our international design and engineering teams to elevate expectations with a newer, larger, and more elegant cruising model. The Aquila 54 Yacht Power Catamaran embodies the reliable features and construction methods of the hundreds of Aquila yachts and boats cruising the waters of the world. This model also enhances on-board luxuries with full size refrigeration and layouts that include 3, 4, and 5 cabin options as well as skipper's quarters and “galley-down” layouts.

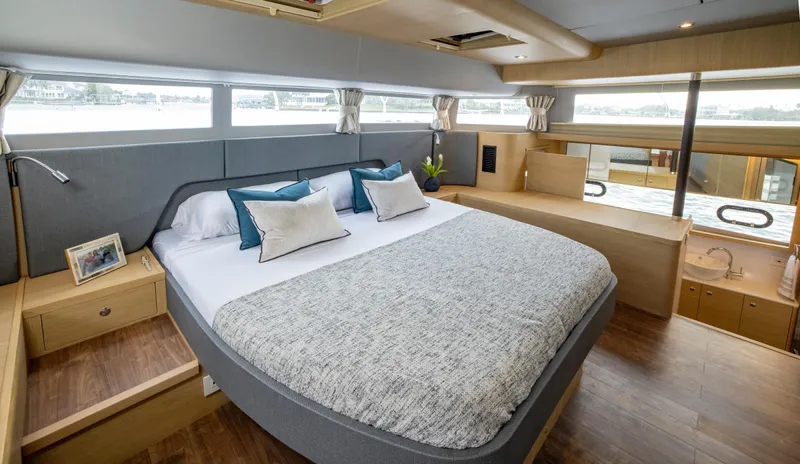

Owners will delight in panoramic views that fill the master cabin with natural light through large hull side windows, adding to the spacious feeling of the full-beam forward master cabin. Engineered with an open flybridge and solid glass front windscreen, or a completely enclosed and climate controlled flybridge, the Aquila 54 Yacht Power Catamaran features the versatility to appeal to a global audience of boating enthusiasts.

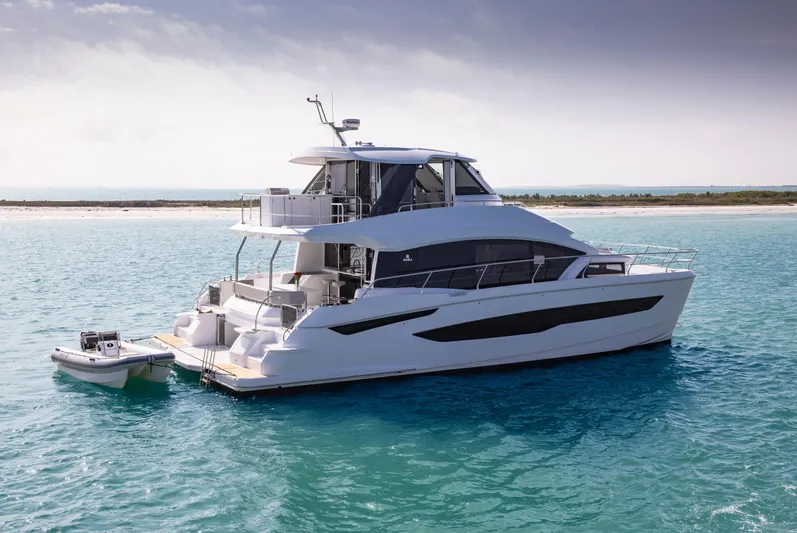

Aquila 54 Yacht Power Catamaran

PropulsionStandard: 2 x D6 380hp Volvo Penta Inboard V-DriveOptional: 2 x D6 480hp Volvo Penta Inboard V-Drive

AccommodationCabins 3 / 4 / 5Heads with separate showers 3 / 4 / 5Sleeps up to 6+Maximum Passengers 30

Features

• An exceptional performing and seaworthy hull shape providing first in class stability and comfort
• Expansive outdoor living and entertaining spaces along with luxurious interior styling and amenities
• Plenty of shade on flybridge via fiberglass hardtop with 316 polished stainless steel supports

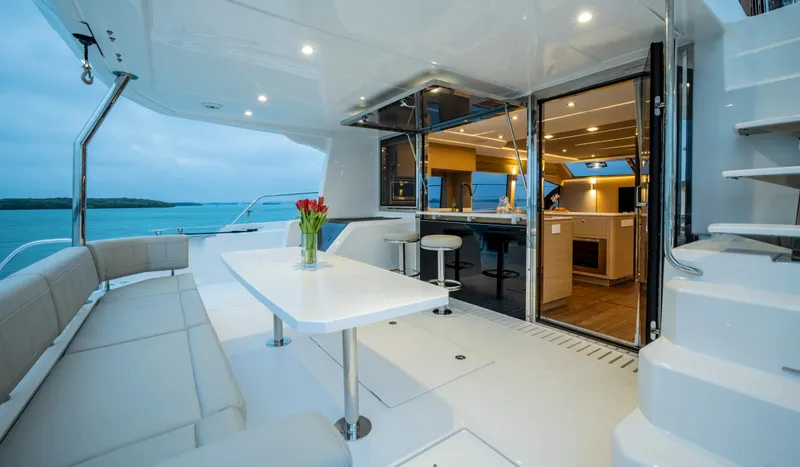

• Integrated bar area connecting social areas between aft cockpit and salon/galley
• Comfortable seating throughout for up to 30 people onboard
• Direct bow access from central steps leading from flybridge to bow area
• FUSION multi-zone audio system with Fusion speakers and Bluetooth connectivity
• Premium comforts provided by way of three (3) cabins each with their individual walk in toilet with separate shower

Interior LayoutFull beam master suite including full size closet, master head with walk in shower and fresh water electric flush toiletGuest cabins including full size head with walk in shower and fresh water electric flush toiletLarge salon area with ample comfortable seatingLarge galley area with full size refrigerator/freezer and common household amenities

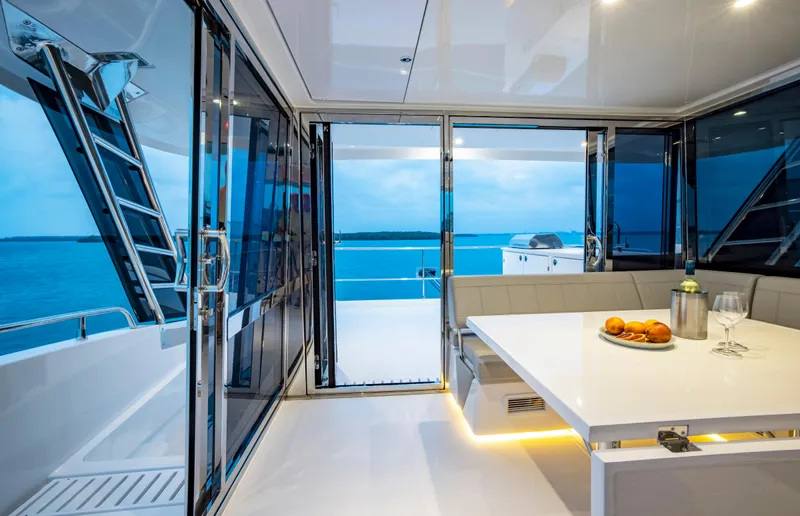

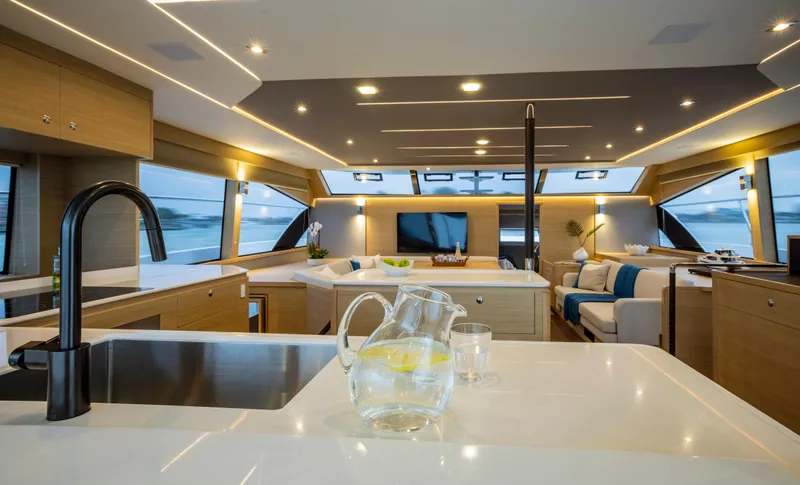

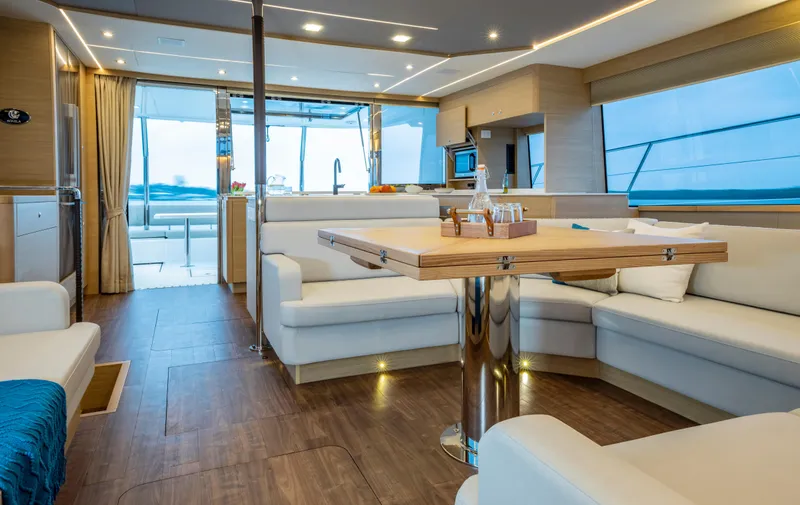

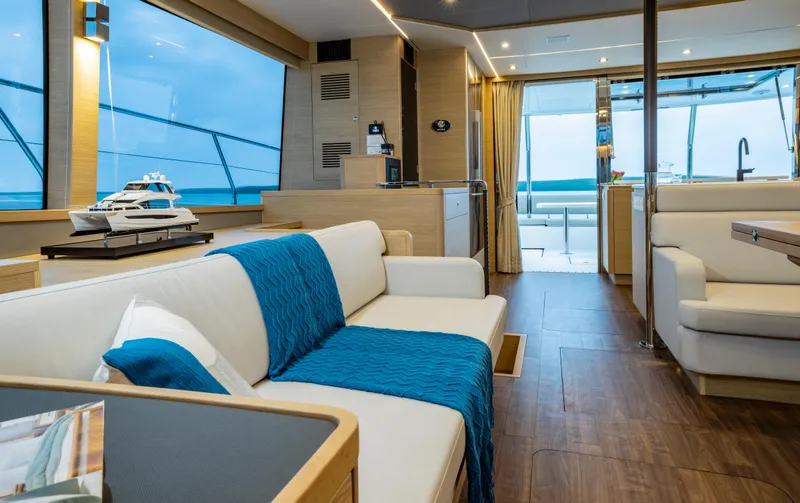

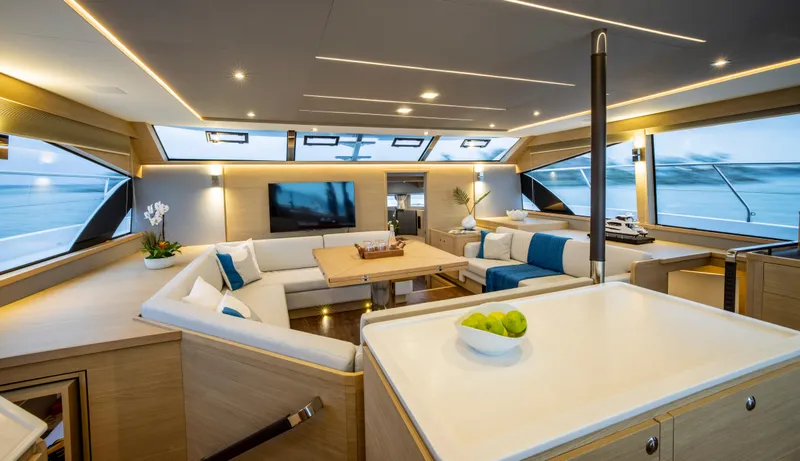

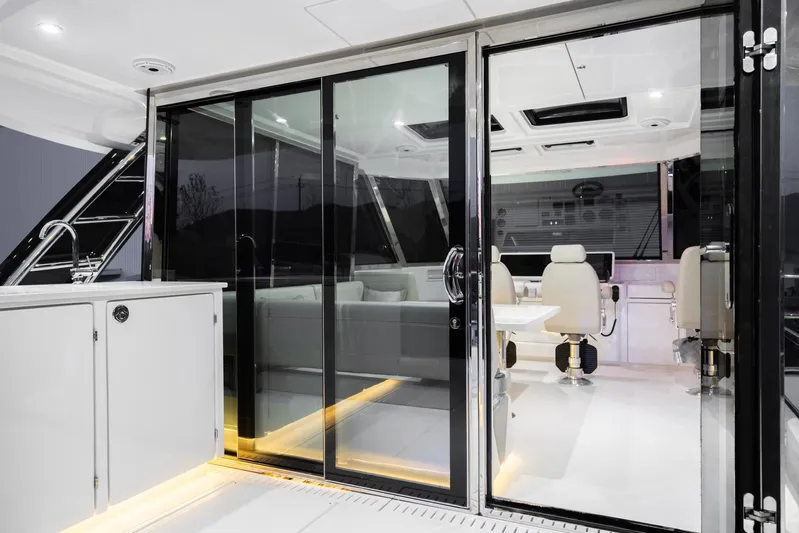

Salon AreaExcellent all around visibility from salon seatingShatter-proof windows with external overhangs offering excellent visibility and reduced direct sunlightTempered glass hinged window via tempered glass door to cockpit offers excellent ventilation and through flowLaminate finishes with solid wood trimBlinds covering port and starboard side windowsOverhead LED ceiling lights, LED mood lighting and LED courtesy lightingWall mounted LED lightsPanel ceilings with decorative solid wood trim and LED accent lightingComfortable open couch seating to starboardU-shaped salon lounge settee around salon table with seating up to eight (8) peopleSalon tableLarge shelves behind setteesCushions in soft easy clean upholsteryHidden slide out mini bar in partition (4 cabin version only)Bluetooth stereo head unit with DVD playerCeiling mounted speakers 7.7” 200w x 4 totalSalon converts into two (2) comfortable single bedsVertical 316 stainless steel handrail in salon & galleySynthetic flooring offering maintenance free natural look

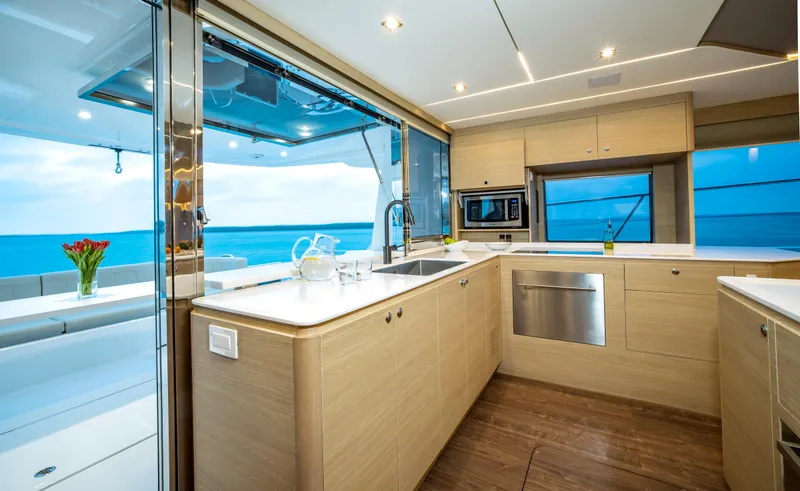

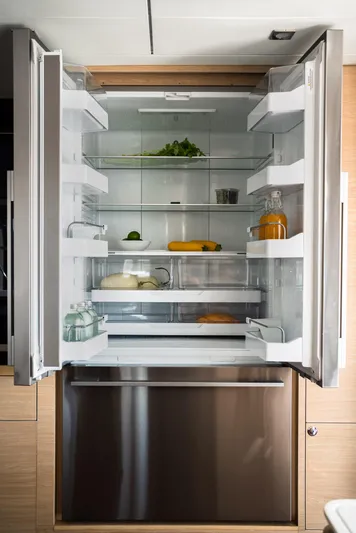

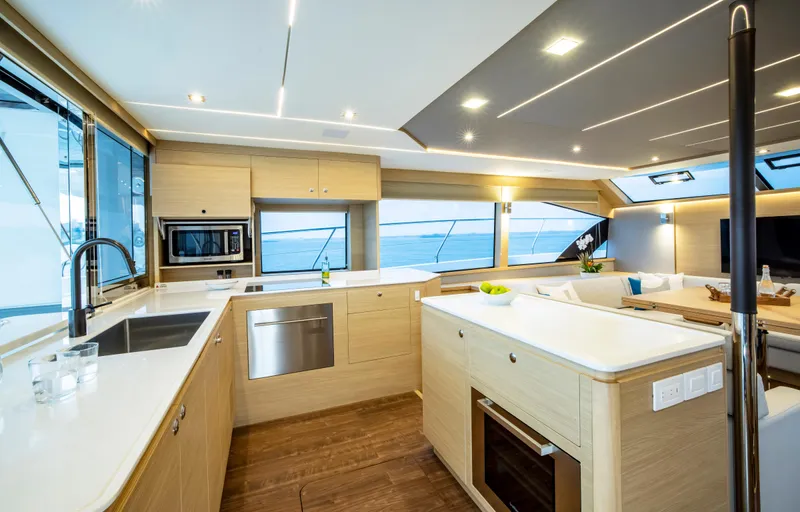

Galley AreaThree burner propane hobDedicated microwave storage location with outletLarge double door fridge/freezerSingle stainless steel sink with Corian worktop cover and single lever variable temperature faucetCentral island with storage drawers underneathStorage cupboards & drawers offering ample storage for all galley accessoriesDurable stain resistant Corian countertopSlide out garbage bin under sinkOverhead LED ceiling lights as well as mood lightingLED courtesy floor lightingSynthetic flooring offering maintenance free natural look

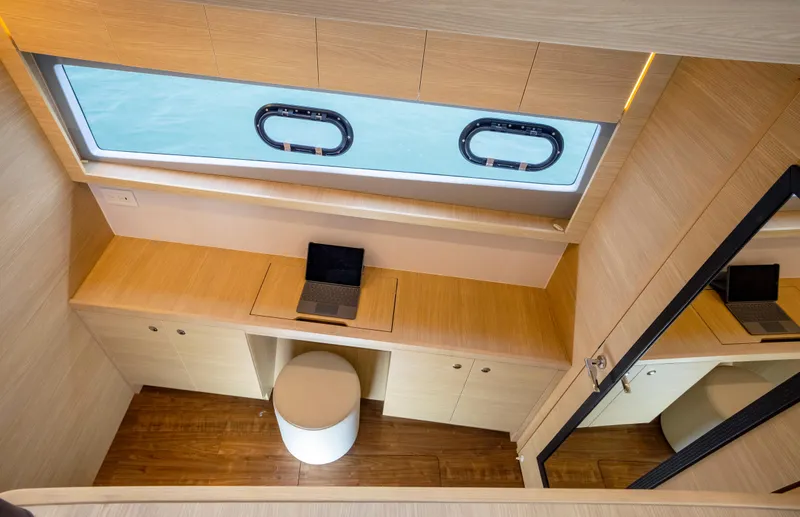

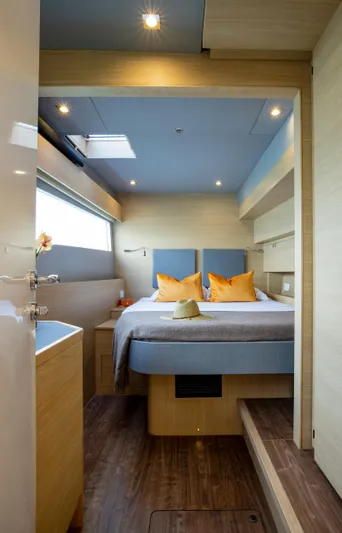

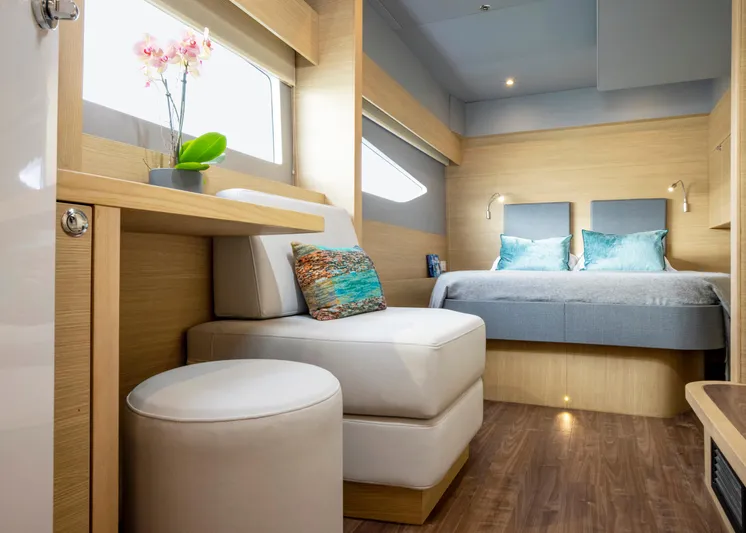

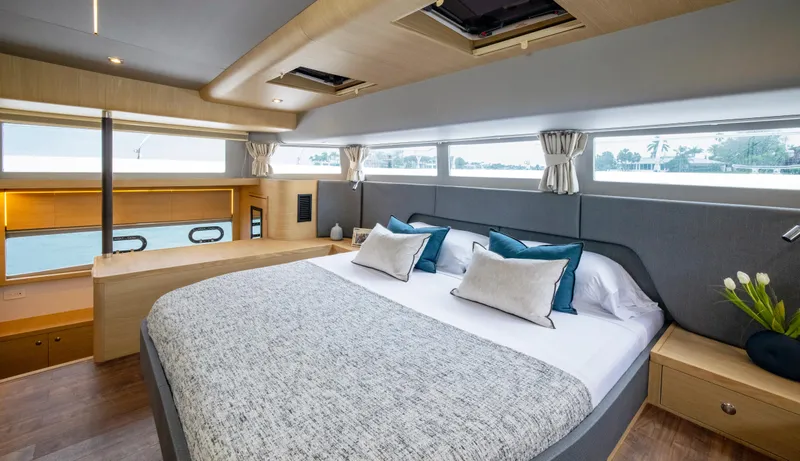

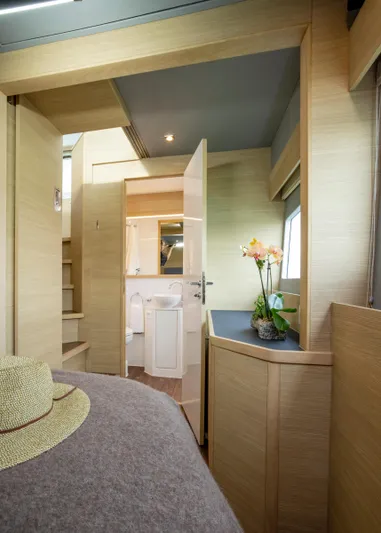

Stateroom AreasLarge windows throughout offering excellent viewsDedicated hanging lockersCustom blinds fitted on cabin hull windowsConcealed shade blind and insect screen on opening deck hatch where installedOverhead LED ceiling lighting and floor courtesy lightingOverhead LED reading lightsAft starboard stateroom offering full size bedAmple storage lockers and/or drawers under beds 150mm/6” memory foam mattressesSynthetic wear resistant flooring offering maintenance free natural wood lookLarge master stateroom mattress (60”W x 80” L / 195cm x 203cm)Aft guest cabin mattress sizes (61.5”W x 79.8” L / 156cm x 202cm)

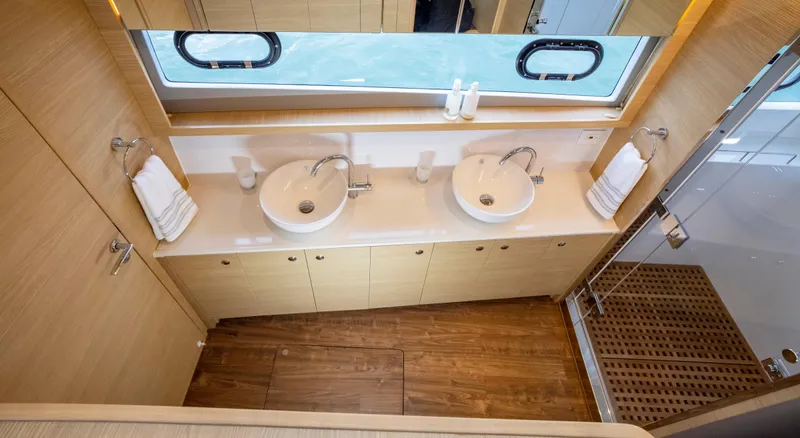

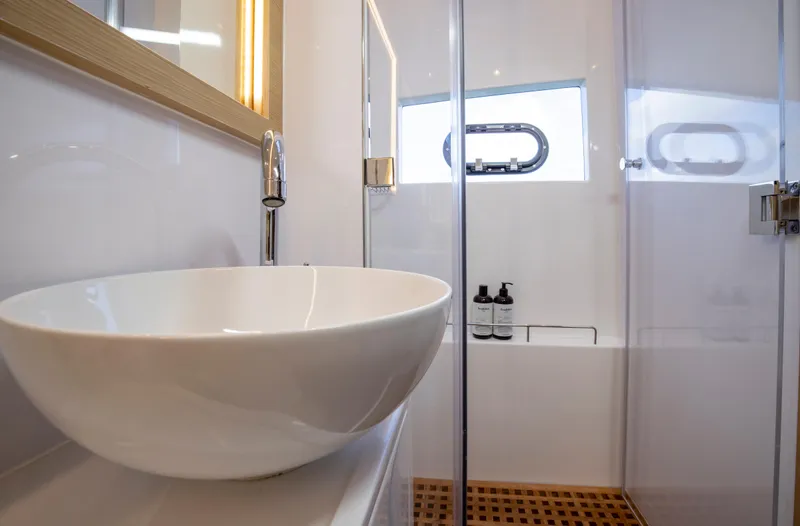

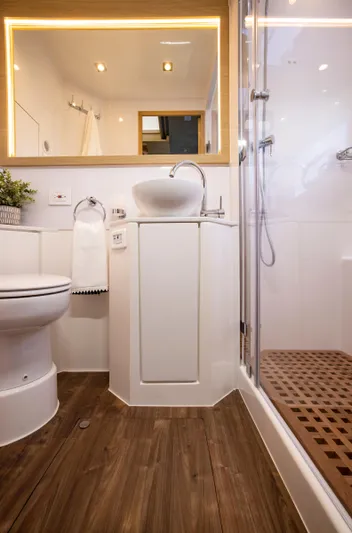

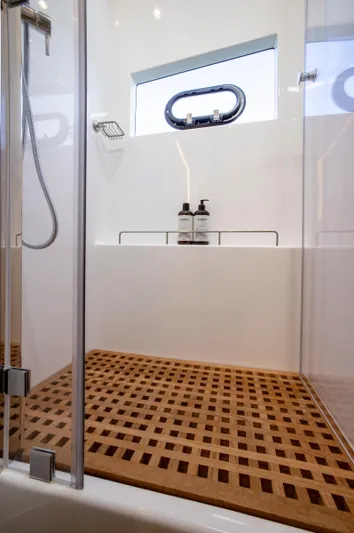

Heads and Separate Shower StallsQuiet electric push button control fresh water flush toilets with large bowlOpening deck hatch offering ample ventilationBlinds over hull windowStylish above countertop wash basins with single lever variable temperature faucetCorian countertop surrounding wash basinVanity lockers with mirrorsSynthetic wear resistant flooring offering maintenance free natural wood lookSeparate shower stall with seat and flexible shower faucet (except cabin 4 where shown)Acrylic door separating shower from the rest of the bathroom (except cabin 4 where shown)Automatic shower & sink drain via dedicated sealed sump boxOverhead LED lightingLED nightlight above wash basin

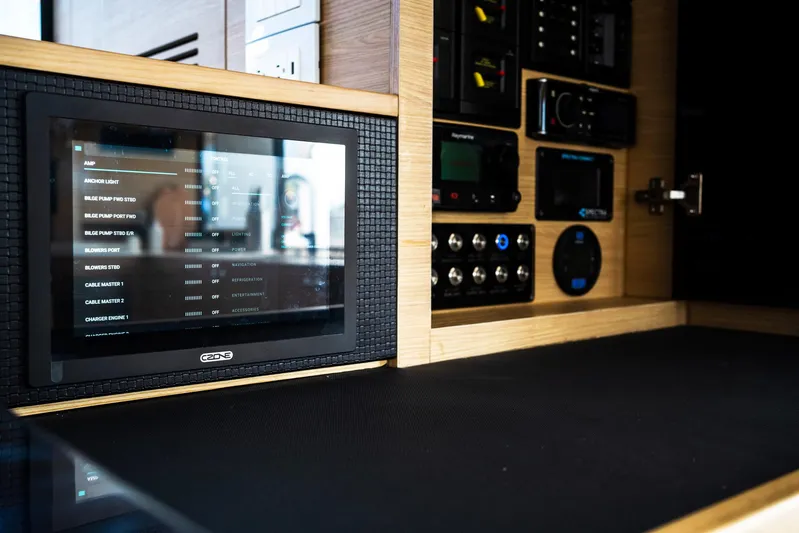

Navigation AreaAmple navigation work surface for charts & booksC-Zone digital switch panel with transfer switches for all electrical systemsDedicated service panel for optional generator, Desalinator and inverter control panelsDedicated electronics display panel offering easy access and visibility to electronic systems including optional VHF radioMultizone entertainment system master unit offering multi three (3) zone controlLight switch panel controlling all salon, galley and aft cockpit lightingRemote battery switches for all onboard batteries

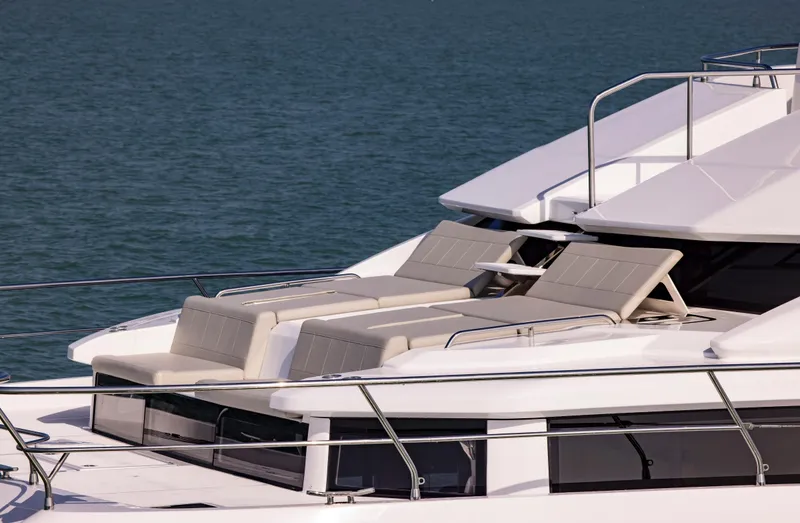

Hull and Deck FeaturesOpening deck hatches carefully positioned to enhance ventilation in cabins (6 total)Opening port hatches installed in hull side windows of heads (3 total)Custom built PVC rubrail with 316 stainless steel insert offering all around protectionCustom solid deck railings in 316 stainless steelComfortable and protected bow seats integrated into deck railing (2 total)Mooring cleats in solid 316 polished stainless steel thru bolted (10 total)Deck fill plates in 316 stainless steel (2 x water; 2 x fuel; 3 x waste)Stainless steel bow roller for secondary anchorAnchor locker with 1700 watt windlass including handheld remote control with custom chain lockWell placed ergonomic handrails in 316 stainless steel ensuring secure movement onboardForward access steps from flybridge to bowErgonomic transom steps for easy boarding and comfortable lounging off sternTransom boarding rails in 316 stainless steel; located outboard of aft stepsHigh visibility LED navigation lights, running lights and anchoring lightEngine ventilation intakes with FRP cowling coverIntegrated manual retractable swim ladder in 316 stainless steelLarge starboard and port bow lockers with easy lift gas hinges for fender or gear storage; waterproofSelf draining storage locker in aft cockpit floorAft cockpit, flybridge and side decks all self drainingAft cockpit bar area with two (2) stainless steel bar stoolsEngine access lockers with easy lift gas hinge allowing easy access to engine roomAft cockpit with expansive hinging window and door opening to galleyAft cockpit seating area with dining table which comfortably seats 10Forward bow seating for relaxing & socializingIntegrated aft side boarding step in hull with 316 stainless steel handrailLarge spacious foredeck for sunbathingLED downlighting in aft cockpitVariable temperature stern shower located at port aft steps

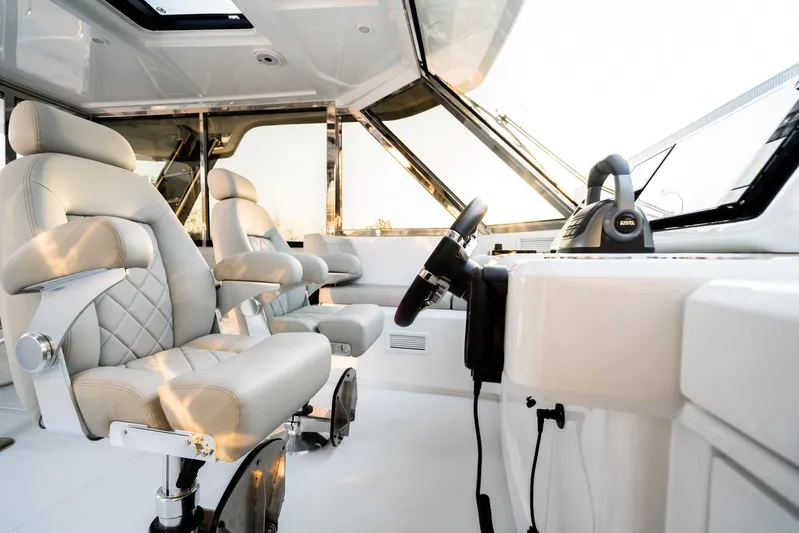

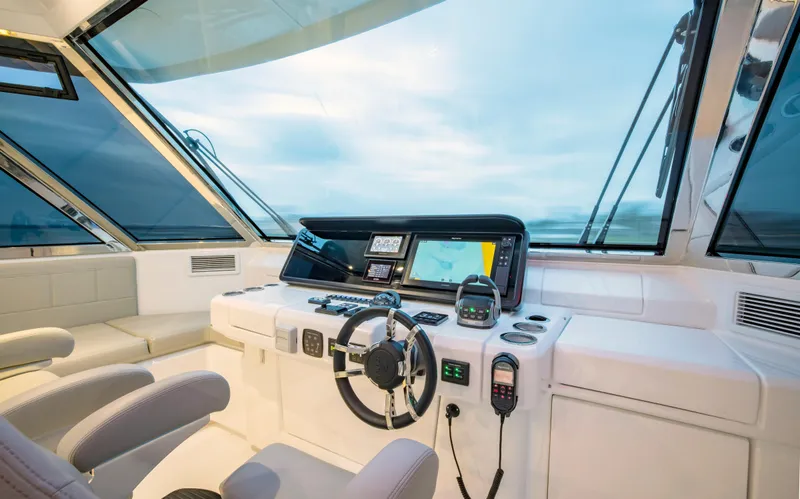

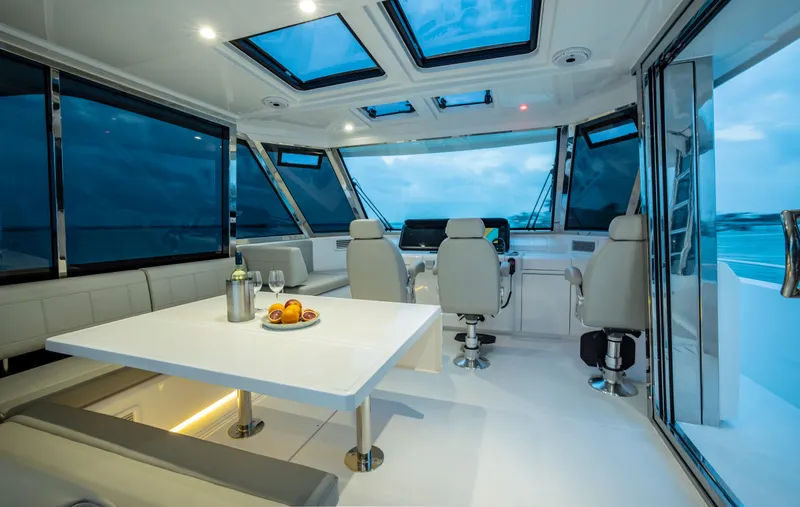

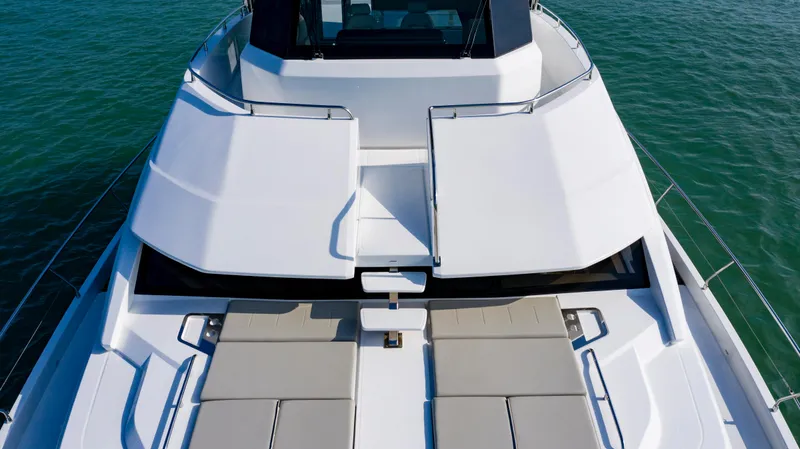

FlybridgePortuguese style flybridge with walk around forward of windscreenExceptional flybridge access from two (2) stairway locationsMain access from aft cockpitHandrails conveniently located all around flybridge for secure movementForward flybridge access via integrated stepsForward fixed glass central windscreen with 4 x tempered glass panelsWindshield wiper with fresh water supply and variable speed control at helmElectronic engine double lever throttle and gearshift controlVariable position stainless steel steering wheelHydraulic steeringCompass at helm stationMarine waterproof 6” x 200w speakers located in hardtop (4 total)Spacious & comfortable helm seat for two (2) people with upholstered seat and backrestComfortable forward facing seats port and starboard adjacent of helm stationFlybridge table with fold down extensions comfortably seating nine (9) peopleUpholstered flybridge cushions and backrestsWet bar located aft deck area incorporating Corian work surface, sink with hot & cold faucetLarge storage area under wet bar with two (2) x access doors (optional location for fridge & ice maker)Dedicated life raft storage locker at transom area with easy launchLifejacket and safety gear storage under aft cockpit seatsFourteen (14) cup holders located in various areas around flybridge

Engine RoomEngine exhaust to reduce engine emission noiseAutomatic fire suppression heat activated system with alarm monitors at helm stationEngine room insulation (50mm) flame retardant polyurethane foam covered with metalized polyester film316 stainless steel engine supportsEngine room lightingAutomatic electric bilge pump in each engine roomExcellent all around engine and systems access for ease of maintenanceTwo (2) hydraulic steering cylinders with Optimus EPS power steering pumps

Engine ControlElectronic engine double lever throttle and gearshift controlVolvo electronic vessel control (EVC) 4” display at helm stationElectronic start/stop switches at helm station with E key protection

Underwater GearEngine V-drive transmission for compact efficiencyPropeller tunnels for reduced draft and maximum efficiencyFour (4) blade bronze propellersPropeller shaft - 1.97 inch/50mm machined stainless steelRudders and tiller arm in 316 stainless steel with FRP tubeShut off valves on all salt water intakes in engine roomsSea water strainersWatertight self aligning dripless shaft seal with 316 stainless steel housing & self aligning Teflon bearingExtended bronze P-bracket for maximum propeller protectionSacrificial keel forward of drive train for added running gear protection

Technical FeaturesBilge pump warning lightsInstrument panelsSteering, tilt wheelSteering wheel, stainless steel

Water and Bilge SystemFresh water pressure pumps with accumulator tank offering equal water pressure throughoutBackup fresh water pumpTwo (2) hot water cylinders (21 gal. / 80 L.) powered by engine heat exchanges and AC powerTwo (2) connected water tanks (132 gal. / 500 L.)Water tank level gauges

Waste SystemGrey water from showers and sinks collected in two (2) sealed sump box’s with auto discharge overboardBlack water holding tanks discharged via deck pump out or overboard with macerator pumpsBlack water tank level gauges

Electrical SystemC-Zone digital switching systemMaster control panel for 12v and shore power serviceRemote battery master switches at panelHouse batteries (5 x 200 amp/hour) AGM technology in dedicated battery lockerDedicated engine batteries (2 x 200 amp/hour) AGM technologyShore side electrical systemAC power supplied by 2 x 50amp 125/250v shore power cablesGalvanic isolator protector system

Fuel SystemDiesel fuel system with Racor water separation filtersDedicated fuel tank for each engineFuel filters for each engine - RacorAluminum fuel tanks with safety shut off valves and level monitors

ConstructionHull and deck material: InfusiCore vinyl ester resin infused throughoutBulkhead and reinforcing: InfusiCore vinyl ester resin infused throughoutCore materials (vary in density): PVCGelcoat of hull: NPGAll main FRP components: Vinyl ester resin infused throughoutBulbous Bows: Moulded and attached; breakaway safetyHull and deck windows: Tempered glass meeting ISO standards

TankageFuel tank (standard) 2,200 L / 581 GALFuel tank (optional) 720 L / 190 GALWater tank (standard) 1,000 L / 238 GALHolding tank (total) 340 L / 90 GAL

SafetyAutomatic fire suppression heat activated system with alarm monitorsBulbous bows integrated into hulls with sacrificial nose coneSmall safety bulkheads bonded in close to transom as a safety barrierOwners operating manualCE Certification

CE Certification (internationally recognized)Cat. A (Ocean) 12 PAXCat. B (Offshore) 12 PAXCat. C (Coastal) 20 PAXCat. D (Inland/Sheltered) 30 PAX

Aquila 54Y SpecificationsLength overall w/ swim platform (exc. anchor roller) 16.5 M / 54’ 2”Beam overall 7.68 M / 25’ 2”Height above waterline w/ hard top(excluding electrics and electronics) 6.15 M / 20’ 2”Height above waterline w/ hard top(including light and radar mast) 7.43 M / 24’ 4”Draft including propeller(approximate - will vary depending on load) 1.37 M / 4’ 6”Bridge deck clearance(approximate - will vary depending on load) 0.96 M / 3’ 2”Light displacement with D6 Volvo Penta 23,300 KG / 52,367 LBFully loaded displacement with D8 Volvo Penta 30,000 KG / 66,138 LB
