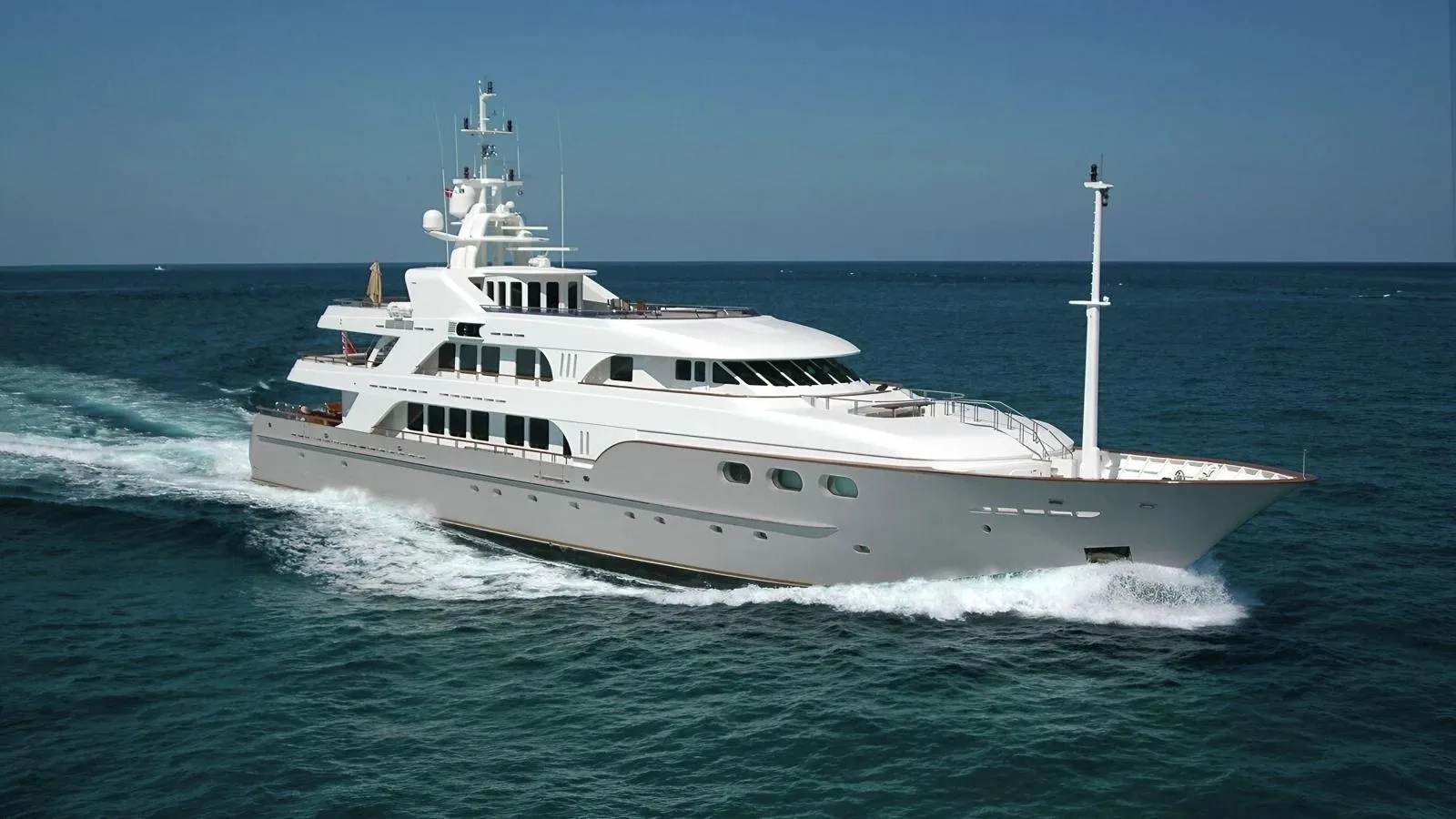

Bella Yacht for Sale

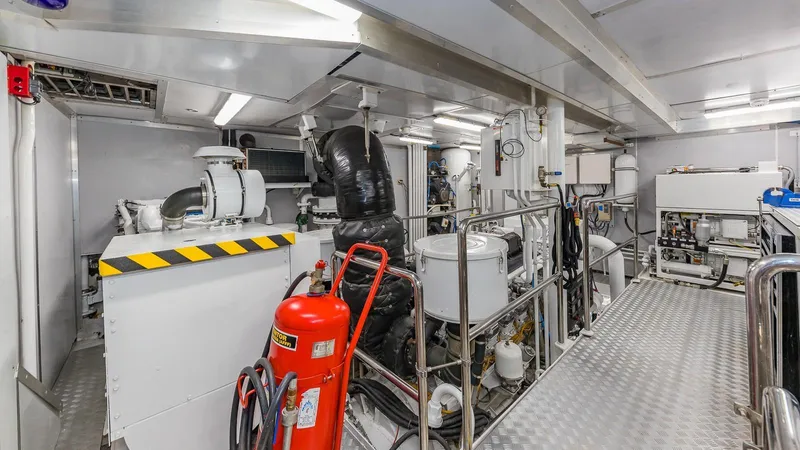

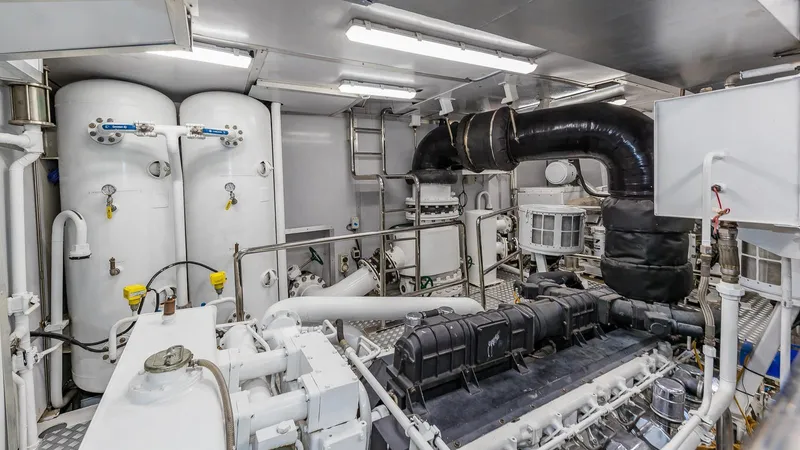

MACHINERY

MAIN ENGINES

2 x 3516-B-DITA Caterpillar engines 2,200 hp

Engine Hours (September 2024):

Port: ~ hours (following 2016 rebuild) 12,157hrs
Stbd: ~ hours (following 2016 rebuild) 12,290hrs

GEAR BOX

2 x 4.026:1 ZF reverse reduction gear boxes type BW751

SPEEDS & FUEL CONSUMPTIONS

Cruising speed – 1200 RPM - 13 knots – 26L/nm
Maximum speed – 16 knots

GENERATORS

MAIN GENERATORS

2 x 170 kw/212.5 kVA Caterpillar 3306 B diesel generators 120/208V 3Ø 60Hz with auto paralleling

GENERATOR HOURS: September 2024

Port: hours (since rebuild) 3,174hrs
Stbd: hours (since rebuild) 3,213hrs

EMERGENCY GENERATOR

1 x 65kw @1,800rpm Northern Lights M445T emergency diesel generator

ELECTRICITY

120/208v AC 30 60 Hz 4 wire grounded neutral plus ground 24v DC

SHORE POWER

2 x 100Amp 3ph cables for 480V

ATLAS CONVERTERS

New 2018

BATTERIES : New Batteries in 2023

24v DC systems
Gel batteries with Newmar chargers

Battery sets serving:

3 x generator starting
1 x electronic/radio batteries
1 x Ship’s 24 V systems service battery

ACCOMMODATION

Accommodation for 12 guests in 6 cabins

OWNER

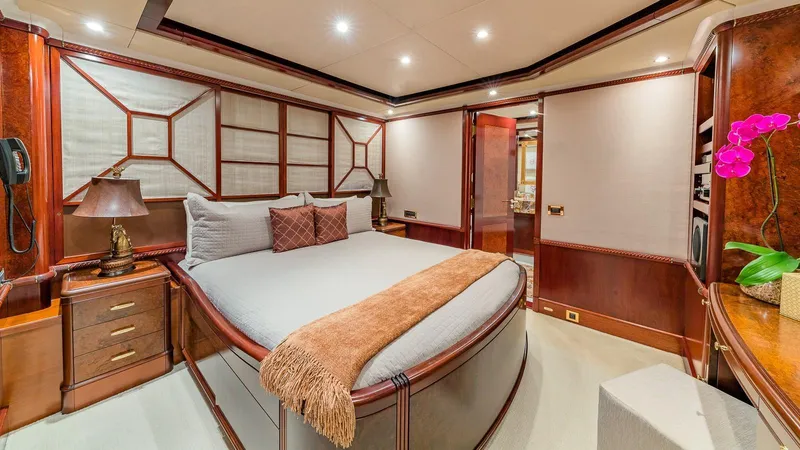

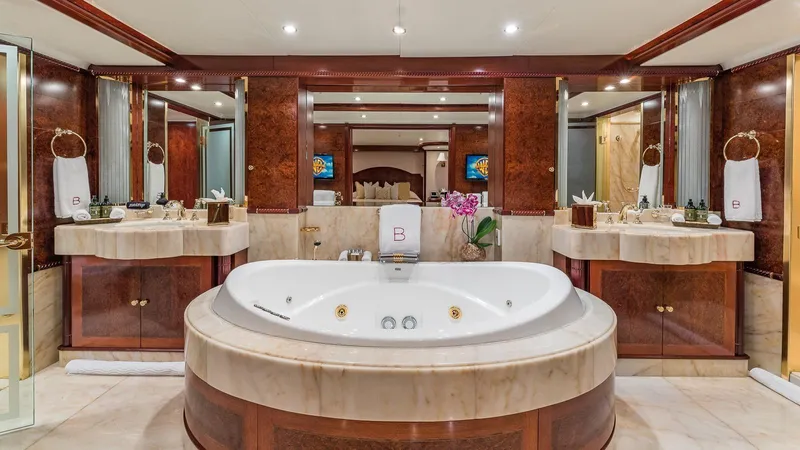

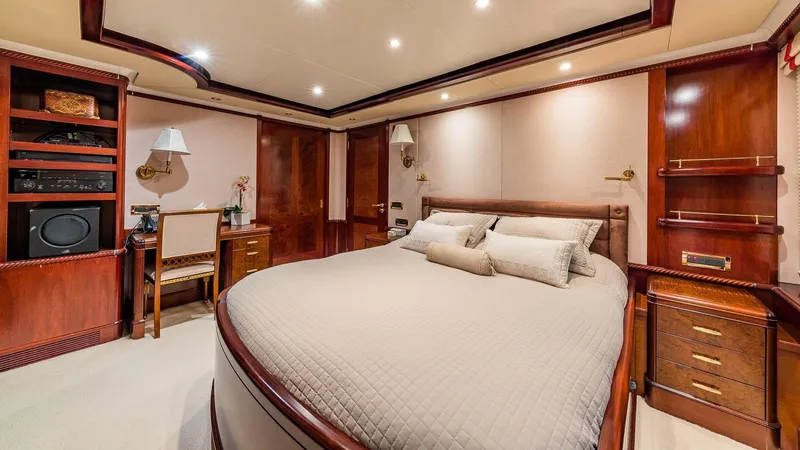

Owner’s cabin with king-sized bed, lounge area, dressing room, and en suite with bathroom with large shower & whirlpool bath

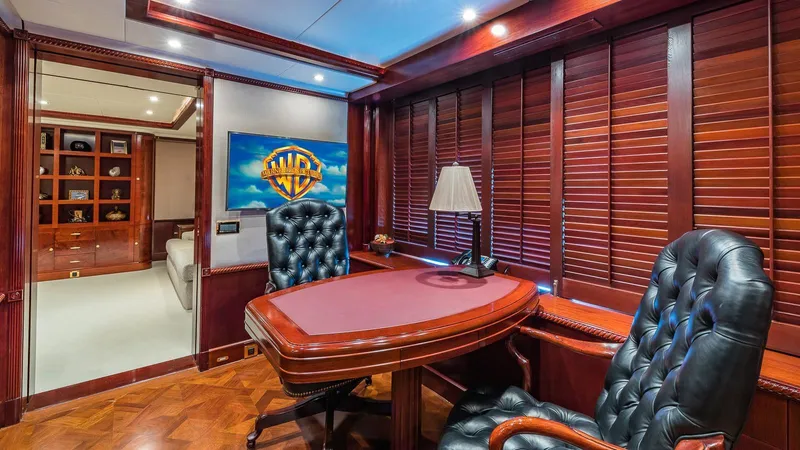

Owner’s office

GUESTS

2 x double cabin with en suite bathrooms and adjoining doors
1 x double cabin with en suite bathroom
1 x double cabin with en suite shower room
1 x twin cabin with en suite bathroom

CREW Accommodation for 11 crew in 7 cabins

Captain’s double cabin with en suite shower room
4 x twin cabins with en suite shower room
2 x single engineers cabins with en suite shower room

TANK CAPACITIES

FUEL

110,000 litres (29,000 US gallons)

WATER

26,120 litres (6,900 US gallons)

BLACK WATER

8,709 litres (2,301 US gallons)

GREY WATER

5,930 litres (1,567 US gallons)

WATERMAKERS

2 x Sea-R.O watermakers model Leviathan 5000 Gallon per day modular desalination System

SAFETY AND SECURITY

7 x Watertight bulkheads
4 x Winel electrohydraulic watertight doors
3 x Pacific Marine electrohydraulic semi-watertight doors
4 x Rocket line throwing appliances.
Full SOLAS standard flare kit
2 x 25-man RFD survival SOLAS A pack lifer rafts with automatic & manual release
8 x life rings
31 x Tuff SOLAS lifejackets (28 adult, 3 child)
24 x Intrepid marine SOLAS immersion suits
1 x Aldis 5” lamp with power supply2 x Sanshin SD mainmast searchlights with bridge controls
1 x Golight foremast spotlight with bridge & remote control

FIRE FIGHTING

Ultra Fog Sweden hi pressure fog system throughout including galley range hood plus AFFF injection system for bilge and tank top zones
2 x fireman’s outfits with Sabre Sigma breathing apparatus
Fire fighting Ring Main with 8 hydrants, hoses and nozzles
42 x Portable fire extinguishers
Fire blankets
5 x Sabre ELSA emergency escape breathing devices

ALARMS & MONITORING SYSTEMS

Autronica fire alarm system with 67 smoke and heat detectors throughout
Flammable gas detector for tender garage
LP gas detector for sun deck BBQ
Cervina/Sensation central alarm monitoring system with control/displays in wheel house, control room, and crew mess
Alarm repeaters in engineers’ cabins

SECURITY CCTV

system with 8 cameras and Unifi Matrix switchers to monitor screens in wheelhouse and crew mess

INTERNET

2 x Starling antennas with Unifi access points throughout with dual sim pep wave for back up data

ANCILLARY EQUIPMENT

STEERING SYSTEM

Wagner Hidraulic system Model LB2 4.0-35-EB4
2 x semi-balanced rudders
2 x double acting ram
Cplat control selector, FU and NFU controls
2 primary primary & 2 secondary pumps
Emergency steering position in Control room

BOW THRUSTER

125 hp Naiad model 30 type Q2314 variable

STABILISERS

2018 installed Zero Speed Quantum fins with SMC 4000 controll

FUEL FILTERS

Racor 1000 filters- 4 per engine; 2 per generator.

FUEL OIL SEPERATOR

Alfa Laval MMB 305 Solid-retaining separator.

BILGE PUMP

2x Bilge pump – 5.6 kW electric.

FIRE PUMP

2 x Fire pumps – 12kW electric.

SEWAGE TREATMENT

Headhunter TidalWave TW200B

WC's

Headhunter Royal Flush for guest including 4 x bidets
Headhunter CSBS-0-MHD for crew

AIR CONDITIONING 2023 installed new

2 x Flow Marien Compressors totaling 600,000 BTU with 53 x Individual fan coil units throughout 5 x Fresh Air Make up Units

OTHER EQUIPMENT

JACUZZI DIP POOL

Balboa 6+ person spa pool

GYM EQUIPMENT

Bowflex Ultimate alliance Fitness 900 treadmilll
Nautilus NR3000 exercise cycle gym
Walking/running machine
Dumbbells
Boxing equipment

TENDERS AND TOYS

WATERSPORTS

2 x 3 person Yamaha jet skis
2 x one person See doo jet ski

EQUIPMENT

9 x F5 Seabob

OTHER SPORTS EQUIPMENT

Snorkelling gear
Fishing gear
Assorted inflatables (bananas, donut, etc.)
Wakeboard
Stand up paddle boards.
Scuba equipment for 12 guests
Nitrox Systems Dive compressor capable of filling 2 x 12Lt Cylinders in 35min

REFIT

2023 Refit

20-year ABS Survey items
New Hi fog fire suppression Nozzle through the entire vessel
New fire detection and smoke detection sensors
Ultrasound of Hull, no issues found hull to be in excellent condition
All Running gear was removed and inspected by ABS surveyor
All Thrue hull valves was removed and inspected by ABS surveyor
New emergency batteries installed
The 20year survey was completed and passed on the 2nd of November 2023

Major Engineering and mechanical upgrades

Rebuild entire crew accommodation area including crew mess and four crew cabins
New Air conditioning plant from Flow marine with 36 new air handlers
Repainted entire bow from pilot house forward.
Rebuild Anchoring machinery
Replaced all tank sensors with Vega Bluetooth enabled.
Rebuild Watertight doors
Rebuild PLC control for Tender garage Door, David and Passarella and completely renewed elector- hydraulic system
Rebuild Black water tank
Repair and replace entire tank top for forward fuel oil tank.
Rebuild Sewage treatment plant
Rebuild Freshwater plant and install silver ion and UV filter for safer drinking water
New air compressors were installed for starting main engines
Renewed 5 x power distribution panels

Bridge upgrades

Fully compliant ECDIS. Transas Navi sailor 4000
New monitoring and Alarm system
New PMS with onboard server. Triton 5

Exterior Upgrades

New teak deck. Sundeck, All staircase, and 1inch (25mm) teak deck on Swim platform ensuring many more years of service
Antifoul, sandblasted to bare metal before applying 3 x primers and 3 x coats
All New exterior cushions and weather covers

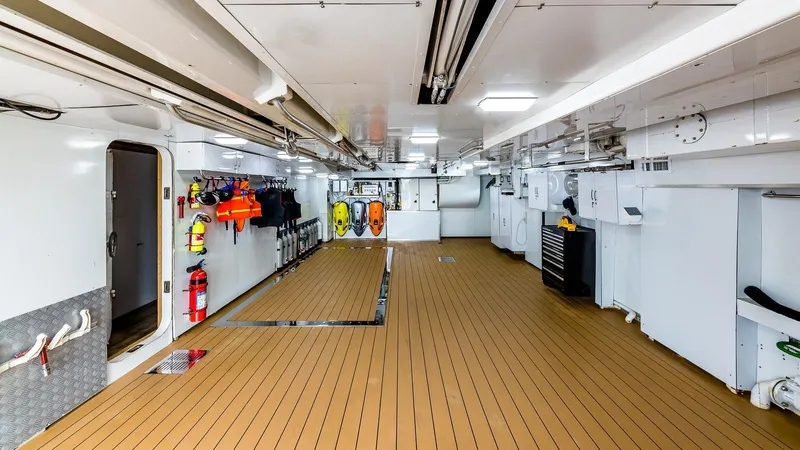

Complete Tender garage Refit

Interior Upgrades

New carpets throughout entire vessel
Recoat varnish floors in guest areas
Upgrade interior areas with LED lights replacing the holder Halogen lights

2019 Refit

15 Year ABS Survey

ItemsFire suppression systems and all lifesaving systems
Ultrasound of hull plating
New fire pumps and new Bilge pumps installed.
MCA Rescue tender David, rebuilt in accordance with current regulations for 15year.

Major Engineering and mechanical upgrades

2016 Both main Engine rebuild in accordance with manufacturers guidelines.
Both generators rebuild including new pistons, liners, cylinder heads, and injectors

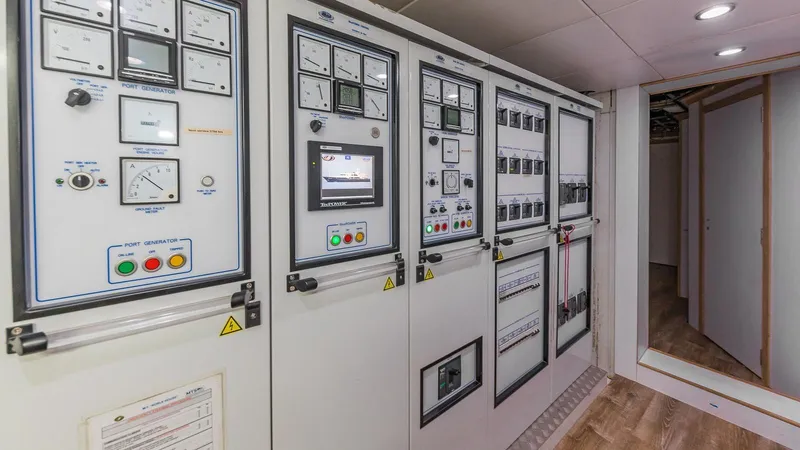

Complete rebuild of ECR Main Power Switch board.
New Quantum Zero Speed Stabilizers, with hull reinforcement.
Renewed Water makers
New Hot tub installed.
Full hull paint job
Shore power, power cables been replaced – from Garage to Atlas converters in ECR
ECR Bulge pump Switch panel renewed.
New emergency lighting systems throughout vessel
Rebuild entire bilge pumping system for steering compartment in garage, includes replacing all piping with Vega cupronickel. With ABS surveyor in presence to approve every step of this upgrade.

Exterior Upgrades

Epoxy floor in Tender garage.
Both garage david and MCA david cables upgraded and replaced with Type approved dynamo, with certified load tested hardware.
All new Exterior cushions and covers by Eclipse canvas of Florida.

Interior Upgrades
