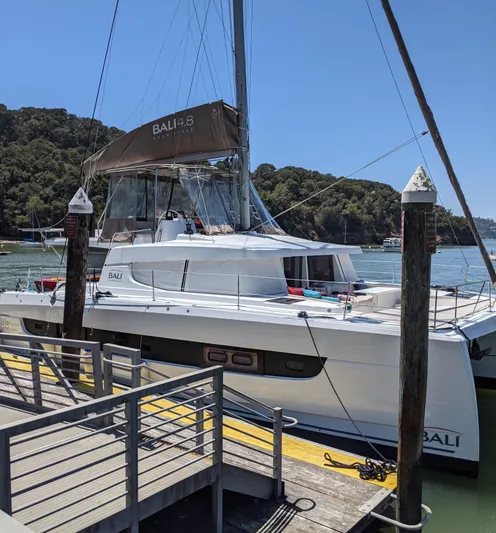

BLUREVERIE Boat for Sale

• Cruising Speed: 7.5 kn
• Maximum Speed: 14 kn
• Beam: 25' 8''
• Hull Material: Fiberglass
• Max Draft: 4' 3''
• Displacement: 33,731 lb
• Fuel Tank: 1 x 264|gallon
• Fresh Water: 1 x 264|gallon
• Cabins: 6
• Heads: 6

BluReverie Bali 4.8 Components & Specifications

• ●  Concept: Olivier Poncin

• ●  Manufacturer: Chantier Catana

• ●  Location: Canet en Roussillon 66 France

• ●  Architect: Xavier Faÿ

• ●  Designer: Lasta Design Studio

• ●  Model: Catana 2021

○ Bali 4.8

• ●  Hull Number: CATBK022I021

• ●  Hull Length: 14.86m 48.7533 feet

• ●  Waterline length: 14.07m

• ●  Mast height: 76.0 ft / 23,17 m

• ●  Maximum beam: 7.89m, 25.886 feet

• ●  Usable surface: 101.8 m^2, 1095.7661 feet ^2

• ●  Draft: 1.35m, 4.43feet

• ●  Air draft: 23.17m

• ●  Light/empty displacement: 15.3T

• ●  Maximum displacement: 22 T

• ●  Displacement: 33,731 lbs/15,300 kg (src)

• ●  Max displacement: 22,000 kg / 48,502 lbs (src).

• ●  S.A/Disp: 28.66 (src)

• ●  KSP: 0.80 (src)

• ●  Disp./Len: 153.10 (src)

• ●  Construction: GRP-infused PVC foam sandwich (src)

• ●  Maximum upwind sail area: 1862 ft2 / 173.0 m2

• ●  Mainsail: 871.9 ft2 / 81.0 m2

• ●  Jib: 595.9 ft2 / 47.0 m2

• ●  Parasail/Spinnaker Oxley BORA 17.26 CC1Sail 157m2 / Wing 23,00m2

○ - Luff/Leech = 17,26m, - SMW = 10,65m, - Foot = 8,86m

• ●  Water: 264 US gal / 1000 ltr

• ●  Water maker: 970 Watts, 40 GPH Dual Membrane Watermaker

• ●  Fuel: 264 US gal / 1000 ltr (approx 11-15 days motorning single engine)

• ●  Engines: / 2 x 45 HP (350 hours each as of 17 June 2024)

  Registrations:

• ●  USCG Vessel Number: 1312324

  • ○  51 - Simplified, Net Ton

  • ○  63 - Simplified, Gross Ton

• ●  FCC Registration Number (FRN): 0030667539

• ●  Radio Call sign and license:

• ●  DTOPS Decal Number: 21035371 Year: 2021

  Engines:

WDM2279 Expiration03/16/2031

● MMSI/Station Identity: 368186670 Expiration 03/16/2031 ● Port Side

• ○  Yanmar 4JH45 #1 (Series: 4JH4-HTE)

  • Serial/Eng no: E18681

  • Engine Family Name: RCD2-4JH57X1

  • Certification No: M140131461

  • Displacement: 2.190 liters

  • Continuous power Kw: 30.1

  • Eng Mgf Date: Jun 2020

  • Common rail technology is a digitally controlled, high-pressure fuel injection and

    sensor system that optimizes engine efficiency & performance. This results in reduced emissions, minimal noise, and peak power output, significantly improving the engine’s overall efficiency and comfort onboard.

  • Multiple sensors throughout the engine intelligently feed operating conditions and performance requirements to the ECU. The system monitors the throttle position, various temperatures, rail and pressure, intake air pressures, and both crank and cam positions. Based on the feedback from the sensors, the ECU regulates fuel from the supply pump into a single high-pressure fuel rail and digitally activated injectors. This controls precisely when and how much fuel to inject. A common rail system can supply between one and five injections to each cylinder over the course of a cycle, rather than one single injection in a mechanically controlled fuel system.

  • Yanmar’s has electronics necessary to connect directly to the boat’s NMEA2000 instrument network, as well as the VC10 electronic throttles and other controls via a J1939 CAN bus. These include the YD42 smart panel display, which will toggle through engine data such as load percentage and engine hours, as well as standard navigational data like depth and wind speed. ‘Direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display. Same counts for the 3JH40 and the rest of our common rail engine range,’ adds Gesink.

• ○  Yanmar Alternator 128990-77250

  • ●  ALT: SG10S078

  • ●  14V @ 125A

  • ●  Made in Poland

  • Date: 20-05-220 07:03:57:

  • No: C639773A

• ○  Yanmar Saildrive Transmission

  • Model SD 60-5

  • Gear Ration 2.23

  • Mgf No:

  • P/N:

  • Oil Type: SAE 15W40

• ○  DC-to-DC Converter

• Electrical Equipment
  • 16.2 KW house battery
  • 2.4 KW solar panels
  Additional Equipment
  • Includes water maker
  • 10 feet 10 inch Dinghy  w/6hp 4-stroke outboard

■ Quick ECS 162 Electronic Charge Separator

• ●  Model: ECS162

• ●  SN: 102906

• ●  WY: 43/19

● Starboard Side:
○ Yanmar 4JH45 #1 (Series: 4JH4-HTE)

• Serial/Eng no: E18687

• Engine Family Name: RCD2-4JH57X1

• Certification No: M140131461

• Displacement: 2.190 liters

• Continuous power Kw: 30.1

• Eng. Mgf Date: Jun 2020

• ○  Yanmar Alternator 128990-77250

  • ●  ALT: SG10S078

  • ●  14V @ 125A

  • ●  Made in Poland

  • Date: 20-05-220 07:03:504

  • No: C639773A

• ○  Yanmar Saildrive Transmission

  • Model: SD 60-5

  • Gear Ration: 2.23

  • Mfg No: 370932

  • P/N: 3321005081

  • Oil type: SAE 15w40

    Toilets
    ● Electric

• ○  Qty 4: Sanimarin Maxlite+S model ● Manual:

  ○ Qty2

  Batteries:

● Start - Port:

○ Qty 1: Victron AGM 130A 12VDC

● House - Starboard:

• ○  Qty 5: Meritsun 12V 200Ah, LFP200-12.8

  • 13,500 watts, bluetooth connectivity

  • 485*175*240mm 19.1” x 6.89” x 9.45”

  • 25 KG/55lbs

  • Working Temp: -20-55

  • Charge 40 Ah, discharge 40Ah

    Dinghy:
    ● TrueKit

• ○  Model: Discovery 330

• ○  3.3 meters or 10.8 Feet

• ○  SN: TKD3300096A020

  ● Engine:

• ○  Tohatsu 6 hp Outboard Motor

• ○  July 2020

• ○  Serial no: 026601BX

• ○  Family Name: L1TXM. 12322E

• ○  4-Stroke

• ○  Model: 3JE (MFS6DS)

• ○  Part Number: 3WL-72089-0

• ○  Power: 4.4 kW

• ○  Displacement: 0.123L

• ○  Made in Japan

Fresh Water Tanks Total: 900 Liters/238 Gal with display gauges at chart table

• ●  Starboard: 600 Liters/158.5 Gal

• ●  Port: 400 Liters/105.7 Gal

• ●  2 Pressurized fresh water pumps with accumulator tank, drinking water circuit

  • ○  Pressurized Bladder Tank (tank should be at 25 PSI)

  • ○  Flojet a Xylem brand

  • ○  Mod: R2840100

  • ○  SN: 20A26499

    ○

  • ○  Automatic Booster Pump

  • ○  Flojet a Xylem brand

  • ○  Mod: R2840100

  • ○  SN: 20A26499

  • ○  12 Vots, 10 Amps max, 4.5 GPM (17 LPM), 40 PSI (2.8Bar)

  • ○  Relay:

  • ○  50003R Automotive Set 5-Pin 30/40A 12V SPDT

• ●  2 x 60 L electrical water heaters connected to the engine cooling circuit

• ●  2 grey water tanks (2 x 120 L) with discharge pump and suction outlet on deck

• ●  55L Holding tanks, drain at sea or by deck outlet for all toilets

• ●  Gas installation (EU appliance) under the cockpit seat for 13 kg tanks and location for spare gas

  cylinder

• ●  4 electrical bilge pumps

○ 2 x Electric Bilge pump (12 Volts)

• 19 gallons/minute or 73 liters/minute

• The bilge pumps are activated automatically in the event of the water level being

  too high.

• ■ The pumps can be activated manually from the electrical panel. ○ 2 x Engine Room Bilge Pump (12 volts)

• 19 gallons/minute or 73 liters/minute

• The bilge pumps are activated automatically in the event of the water level being

  too high.

• The pumps can be activated manually from the electrical panel.

● 2 manual bilge pumps
○ 8 galons/min or 30 liters/min

○Diesel Fuel Tanks:

• ●  600 Liters/158.5 Gal

• ●  400 Liters/105.7 Gal

  Accommodation:

  Suites with inside entrance

• ●  Queen Size Bed 58” x 74” (6’ feet, 2” inches)

• ●  2 Suites with inside entrance

• ●  2 Electric Heads (Sanimarin Maxlite+S), freshwater

• ●  2 dry-showers with ceramic mixer tap

• ●  Countertop with basin

• ●  Storage for laundry and toiletries

• ●  Hatch for light and ventilation

• ●  USB outlet in each cabin

  Suites with double-twin beds

• ●  2 Suites with double-twin beds

• ●  2 Manual Heads (Jabsco) saltwater

• ●  2 wet-showers with ceramic mixer tap

• ●  Countertop with basin

• ●  Storage for laundry and toiletries

• ●  Hatch for light and ventilation

• ●  USB outlet in each cabin ●

  Suites with rear entrance

• ●  Queen Size Bed 56” x 78” (6’ feet, 6” inches)

• ●  2 Suites with rear entrance

• ●  2 Electric Heads (Sanimarin Maxlite+S), freshwater

• ●  2 wet-showers with ceramic mixer tap

• ●  Countertop with basin

• ●  Storage for laundry and toiletries

• ●  Hatch for light and ventilation

• ●  USB outlet in each cabin

Deck space:

• ●  Easy to move stern

• ●  Seating area with table.

• ●  Flush deck hatches.

• ●  4 x Cushions for floor

• ●  6 x Cushion for chairs

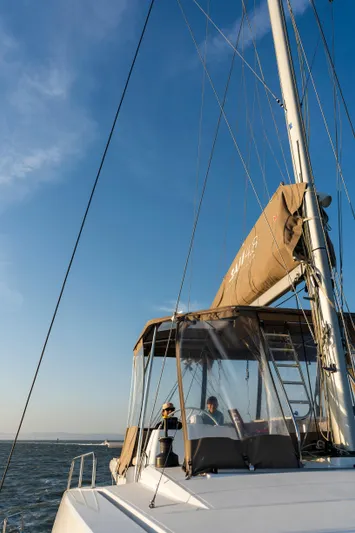

  Fly Bridge

  • ●  Soft top Bimini

  • ●  Seating area with table

  • ●  All controls brought back to the helm station.

  • ●  6 x Cushion for chairs

    Electronics Helm Station

  • ●  1 X Raymarine Axiom 12 (2020) SN: 0600036 &

  • ●  1 X Raymarine Axiom 7

  • ●  1 x Autopilot

  • ●  1 x Raymarine Digital Radar

  • ●  1 x Raymarine Ray60 VHF Remote to main Radio

    Nav/Chart Table

  • ●  Storage and bookcase

  • ●  Stool with foam seat

  • ●  12V electric panel

  • ●  Chart table flexible light

  • ●  Optional Raymarine electronic equipment: VHF and optional multifunctional display

    Electronics Nav/Chart Table

  • ●  1 x Raymarine Axiom 7” MVD Display (E70363-DISP) (2020), SN: 0400428

  • ●  1 x Raymarine AIS 700 Class B Transceiver (E70476) (2020), SN: 0400874

  • ●  1 x Raymarine i70s Multifunction Instrument (E70327) (2019) SN: 1190384

  • ●  1 x Raymarine ACU-400 (E70100) SN: 02000060

  • ●  1 x Raymarine DST800 Triducer Multisensor (A221554) SN: 60174145

  • ●  1 x Raymarine Short Arm Wind (E22078) (AE220780100395)

  • ●  1 x Raymarine Smart Controller

  • ●  1 x Raymarine 63 VHF Radio + VHF RAY MIC at steering station (E70516) (2019), SN: 1291356

  • ●  1 x Set of weather instruments

  • ●  1 x 110V AC outlet

  • ●  2 x USB outlets

  • ●  2 x 12V outlets

    Electrical/Power

● LED navigation lights

• ●  1 x ECS 162 B Charge Separator (port side)

• ●  Meritsun LiIon Bluetooth: M-12V200Ah-0127

• ●  Ruuvi F99A - AGM Battery (Port Side)

• ●  Ruuvi FDB0 - LiIon Battery (Starboard side)

• ●  4 x Solar Panels LG400N2T-J5 400W biFocal (2.024mx1.024m, 44lbs), 2400 Watts total output,

  stern mount

• ●  Victron Cerbo Gx HQ2030VVF6N PIN VRM ID: d412430b5a54

• ●  2 x MPPT Victron SmartSolar 150/85 battery charger (2400W total charging)

• ●  1 x 3000 Watts 110 VAC Victron MultiPlus 12/3000/120-50 Amp inverter & Battery Charger SN:

  HQ2042THWID, CPU 2702430.VFD

• ●  1 x 1600 Watts Victron MultiPlus 12/1600/70-16 230 V VE Bus inverter (for fridge), PN:

  CMP12162000, SN: HQ1933WP8PX

• ●  5 x House Meritsun 12V 200Ah, LifePO batteries (LFP200-12.8), 13,500 Watts total

• ●  1 x Starter Battery Victron 130A

• ●  1 x DC-DC Converter for Starter battery/port side

  Sails

• ●  83m2 Fully battened Mainsail in Dacron with 3 reefs, reinforced mainsail & solent with UV

  protection + lazy bag + lazy jacks

• ●  47m2 Self-tacking ”cross cut” Solent Jib in Dacron, on furler*

  Mainsail:

• ●  Mainsail: 871.9 ft2 / 81.0 m2

• ●  Double purchase for mainsheet

• ●  2 Stand up blocks

• ●  4 blocks on boom

• ●  Triple-purchase sheeting system

  Self-tacking solent:

• ●  Jib: 595.9 ft2 / 47.0 m2

• ●  1 sheet track on coachroof top

• ●  Sheet car on track

• ●  Sheet block on solent

• ●  Solent sheet

• ●  1 sheet jammer

• ●  Furler control line - 10mm diameter

• ●  Furler control line fairlead and jammer on deck-edge

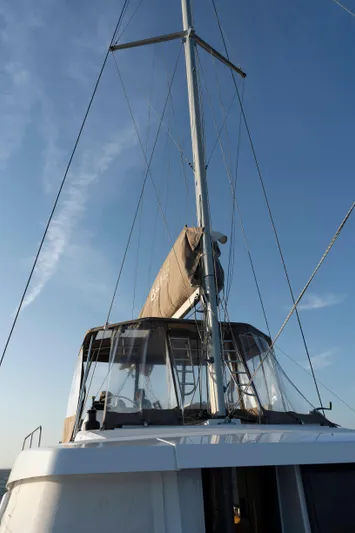

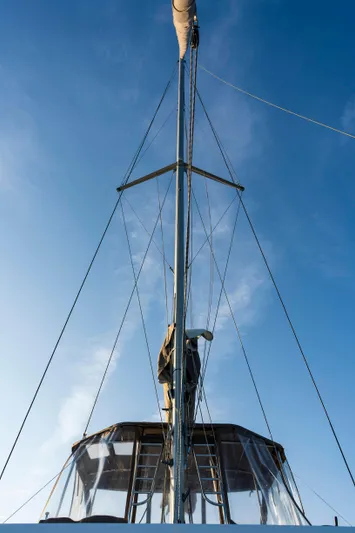

  Mast / Rigging

• ●  Anodized aluminum mast, air-draught: 23.11 m (75.8 feet)

• ●  LED anchor light

• ●  LED steaming and deck light

• ●  Outlets for main halyard, self-tacking solent halyard and topping lift

• ●  Ball bearing mainsail luff cars

• ●  Anodized aluminum boom

• ●  Solent forestay

• ●  Furler on forestay

• ●  2 Cap Shrouds in stranded stainless steel

• ●  2 lower shrouds in stranded stainless steel

• ●  Articulated bowsprit*

• ●  Oxley Bora/Spinnaker halyard

• ●  Antal Single Clutch V-Cam 814 (pressure on 3 sides, emergency opening) lines 8mm - 10 mm,

  MWL: 850kg

○ Antal-patented system for rope locking that works by exerting pressure on 3 sides of the

line with higher friction and, consequently, with lower pressure in order not to damage line covers.

Running Rigging

• ●  ▪ Mainsail halyard

• ●  ▪ Mainsail sheeting system

• ●  ▪ Self-tacking solent halyard

• ●  ▪ Self-tacking solent sheet

• ●  ▪ Solent furling line

• ●  ▪ Boom topping lift

Deck Fittings

• ●  1 x electric Lewmar EVO Electric Winches size 65 for main halyard and solent furler control,

  mainsheet and reefing lines.

• ●  1 x Lewmar EVO Winches size 65 for reefing lines and solent sheets, & mainsheet

• ●  2 x Lewmar EVO Winches size 65 for reefing lines for spinnaker/parasail

  Anchoring

• ●  1700 W Quick DYLAN N windlass vertical axis with cabled remote

  • ○  Company: Quick

  • ○  Model:P9DK17120012A01

  • ○  Series: DYLAN N

  • ○  Model: DK1712

  • ○  Power: 1712

  • ○  Voltage: 12V

  • ○  Gypey: 12MM

  • ○  SN: 100035

  • ○  Contactor Unit (Relay) MOD. T6315-12 (12V)

• ●  1x Quick electronic chain counter

• ●  Stainless steel bow roller under platform for main anchor

• ●  2 pad eyes for anchor bridle Cockpit avant

Deck Hatches:

● ● ● ● ● ● ● ●

Safety:

2 plexiglas flush hatches for forepeaks
2 T60 flush hatches in forward cabins
2 GRP engine room hatches with gas struts
1 GRP hatch for lockers under forward cockpit seat with gas struts 1 polyester hood for anchor access
1 polyester hood for locker under sunbeds
2 escape hatches under the stairs down to cabins
2 escape hatches in aft cabins* (depending on version)

• ●  Bulwarks and handrails

• ●  Stainless steel handrails on front beam with 2 built-in seats

• ●  Stainless steel handrail on aft beam

• ●  6 stainless steel stanchions

• ●  Double guard wires in stainless steel

• ●  6 large-sized aluminum cleats with SS hull protections

  Forward Cockpit

• ●  Large forward cockpit with wide lounge seats (with cushions*) and integrated storage

• ●  Forward cockpit foldable table for 8 persons

• ●  Direct access door to the cockpit

• ●  LED courtesy lighting*

  Flybridge & Helmstation

• ●  Helmstation on starboard side

• ●  Helmstation polyester seat (with cushions*)

• ●  U shape bench with dining area(with cushions seats *)

• ●  Optional bimini sunbathing area

• ●  Composite 900 mm steering wheel

• ●  Magnetic compass with correction, light and protection cover

• ●  2 balanced spade rudders with stainless steel shaft

• ●  1 emergency tiller

• ●  Hydraulic steering transmission system

• ●  Engine controls at helmstation with engines and alarms instruments

• ●  LED lighting*

  Sugar Scoops

• ●  2 transom life lines

• ●  Shower with pressurized fresh water hot/cold on the starboard transom

• ●  1 stainless deckplate for access to the emergency tiller in each sugarscoop

• ●  1 large mooring cleat on each sugar scoop

• ●  Optional inboard cleat for stern spring lines

• ●  Courtesy lighting*

• ●  1 stainless steel swim ladder on starboard transom

  ACCOMMODATIONS – OPEN NACELLE Aft cockpit full open space

• ●  Vinyl headlining in saloon

• ●  Lounger/daybed to starboard with cushions

• ●  Large storage space beneath port-side seats

• ●  12 people saloon dining table on stainless-steel legs

• ●  Tilting forward windows for aeration with locking system in ventilation mode

• ●  Tilting aft bay window with complete opening and access from the sliding door

  Galley to port, with large countertop:

• ●  Numerous storage lockers, above and below

• ●  Stainless steel 1.5 sinks

• ●  Garbage cans 2 x 35L

• ●  Mixer Tap with ceramic seals for fresh and hot water

• ●  1 x Full size Samsung refrigerator, 617 Liters (402 L chilled + 213L freezer) with icemaker and chilled water dispenser, RS65R5401SL SN: OUF44ADN400625B

• ●  1 x Electric induction stove top, single eye, 110 VAC

• ●  1 x Gas Eno Oven “Le Perigord”

• ●  1 x Eno Gas stove top 3 eye output

• ●  1 x 700 Watt Microwave 110 VAC

  Equipment and Updates

• ●  2 x Water heater shore power 110 VAC or engine heated

• ●  1 x Gray water holding tank

• ●  2 x Fire Automatic Extinguishers

  • ○  2 x Engine Room

  • ○  Capacity = 10A/68B

• ●  1 x 16m Shore power cable, adapters 50 US 3Phase (?32, 16, 12amp )

  Bottom Paint

• ●  Factory installed:

  • ○  Antifouling is SEAJET 32 Professional

  • ○  Seajet 032 Professional is a copper based antifouling for moderate fouling areas.

    For professional applicators.
    ○ https://www.seajetpaint.com/en/products/antifouling/seajet-032-professional

• ●  New antifouling paint ETA: Oct 2024
