CARMELA Boat for Sale

• Beam: 15' 7''
• Hull Material: Fiberglass
• Max Draft: 6' 0''
• Displacement: 27,765 lb
• Fuel Tank: 1 x 106|gallon
• Fresh Water: 1 x 180|gallon
• Holding: 1 x 34|gallon
• Cabins: 3
• Heads: 2

• Headroom: 1,98 m / 6’6’’

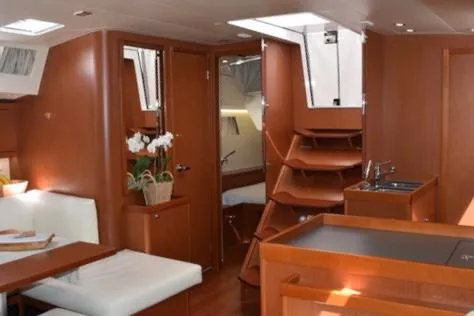

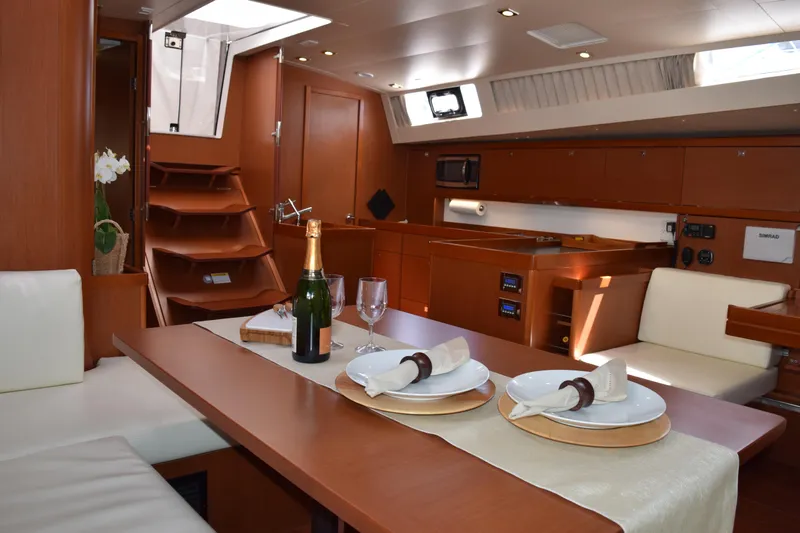

• Wooden salon companionway with molded wooden steps and non-slip surface on a 45-degree angle

• 2 Leather covered stainless steel handrails

• Headroom: 1,98 m / 6’6’’

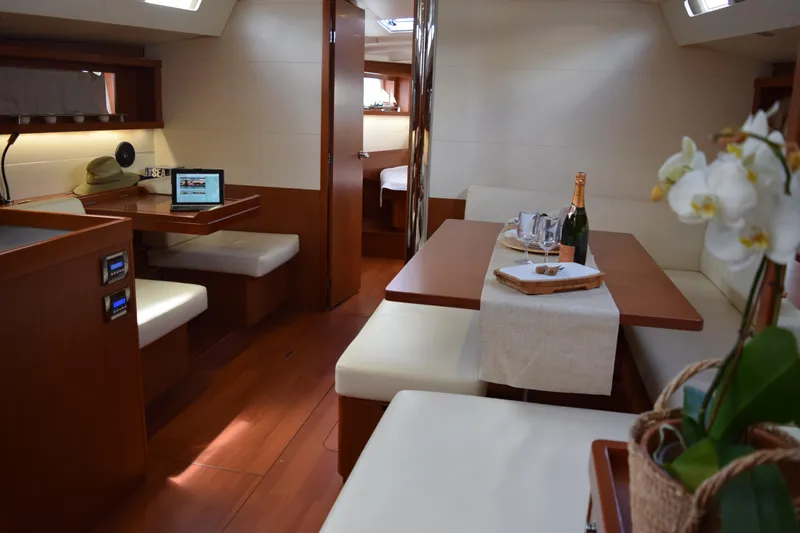

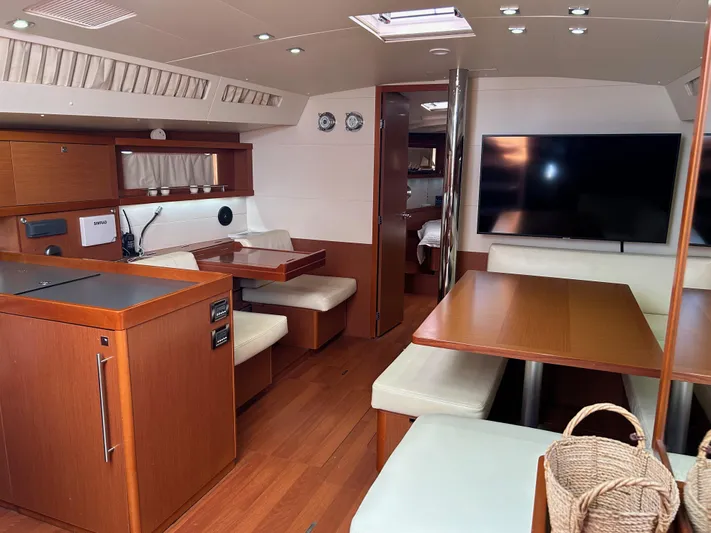

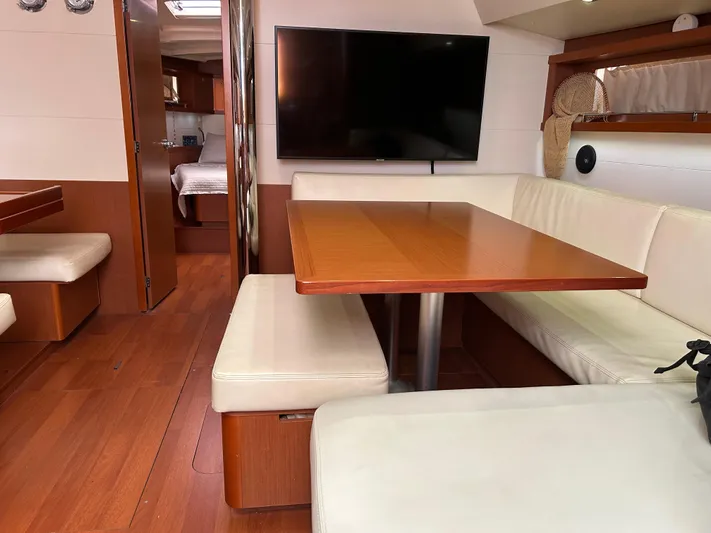

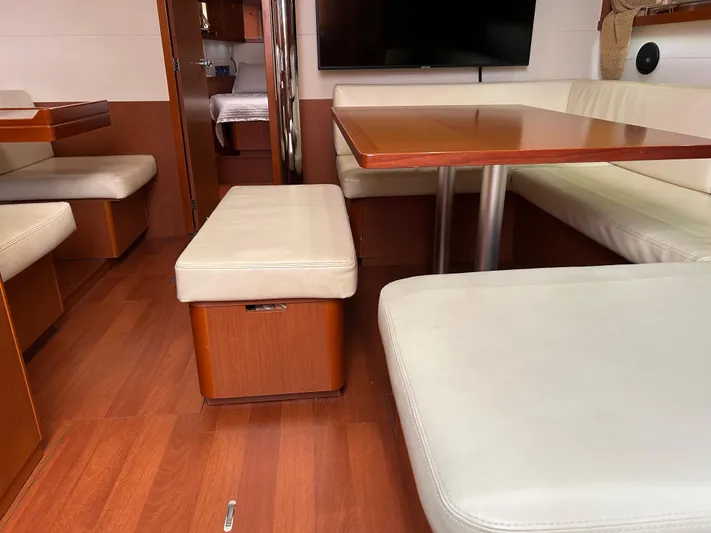

• U-shaped salon bench - Double-density foam

• Seat bench with backrest and storage inside on pantograph

• Salon table in 1 piece - Varnished wood top with inlay - Aluminum legs and shorter legs for double berth conversion

• Cupboard units - Cubby hole lockers and storage along the hull
• Storage under bench seats

• Cubbyholes with stainless steel beading

• 2 Panoramic deck house windows with concertina blinds - 2 Hull portholes with curtain

• 2 Opening portholes on coaming inside windows

• 1 Opening deck hatch with mosquito blind
• LED ceiling lights
• Air-conditioning

• Chart table slides can be configured with the armchairs - Placed against the forward bulkhead, against the galley or between the 2 mobile seats
• Table with opening lit - Molded wood fiddle

• Switch panel on bulkhead for access to electrical functions • Navigation instrument panel

• 1 Reading light

• Headroom: 6’3’’

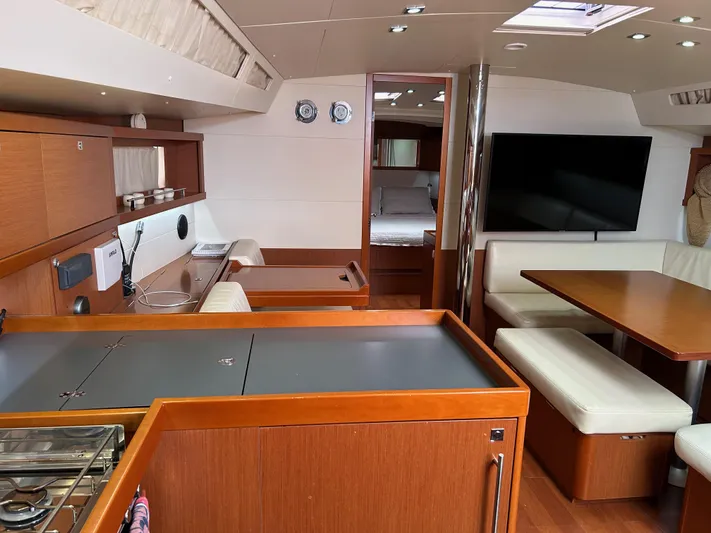

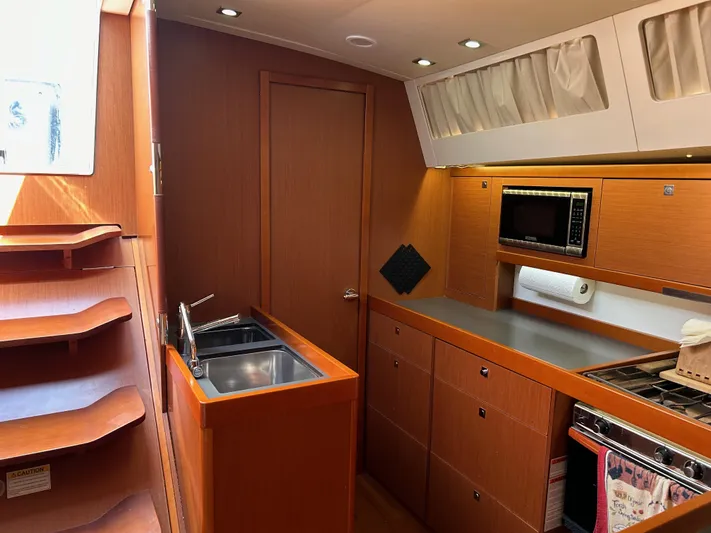

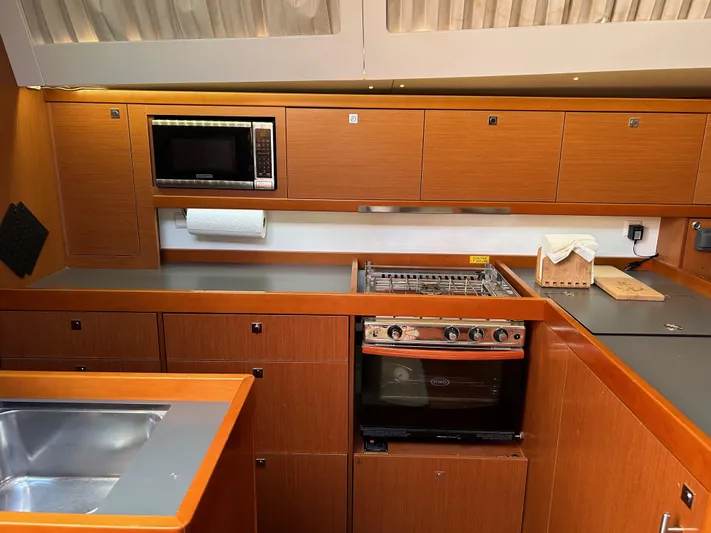

• L-shaped galley with separate sink located below companionway
• Synthetic solid surface countertop
• 1 Stainless steel sink 2 rectangular basins
• 1 Mixer tap for hot/cold water
• 3-burner gimbaled stove with oven
• Stainless steel protection handrail
• Microwave oven
• 26 US G12V top-opening freezer
• 34 US G12V front-opening refrigerator
• Fitted cupboards and closed cubbyholes
• Shelving
• Garbage bin
• 1 Lower unit 1 Drawer - 2 Shelves
• Storage space along the hull
• 2 Opening ports on coaming with curtains on side windows

• Headroom: 6’4’’

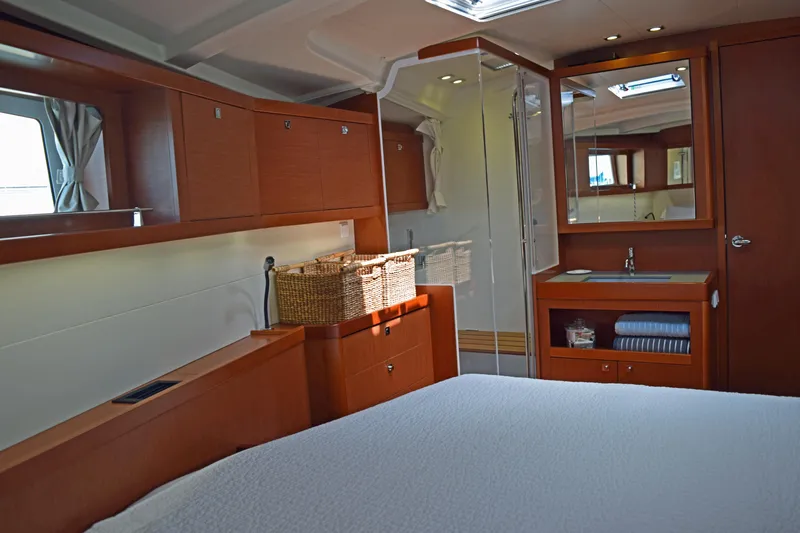

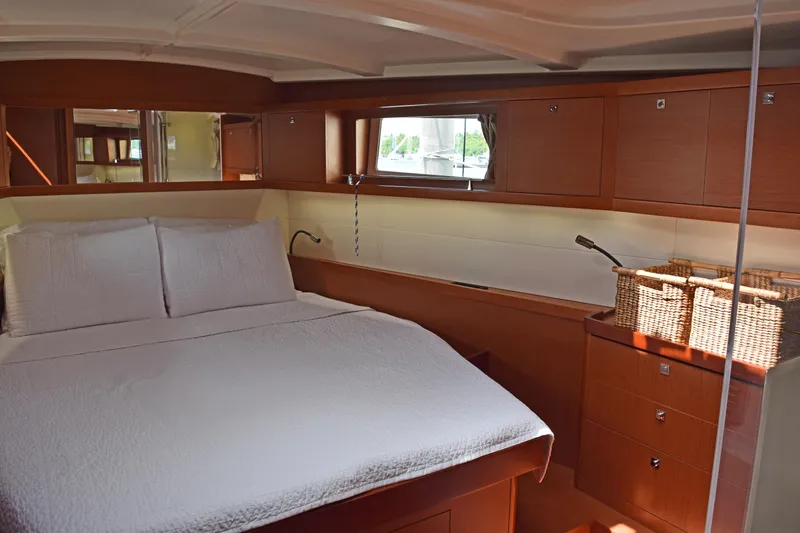

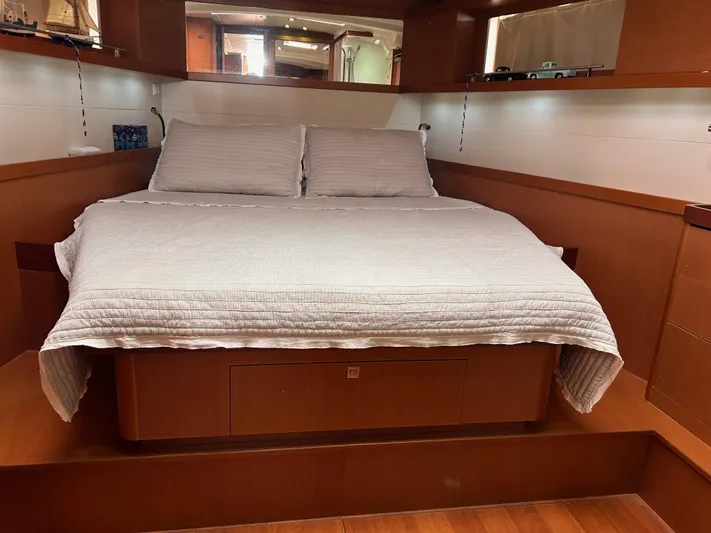

• Central double bed 6’10’’ x 5’1’’ x 3’10’’
• Hanging lockers
• Glove box
• Cubby hole locker
• Lower unit
• Storage space under bed
• 2 Flush deck hatches with mosquito screen
• 2 Hull portholes with curtain
• Air conditioning

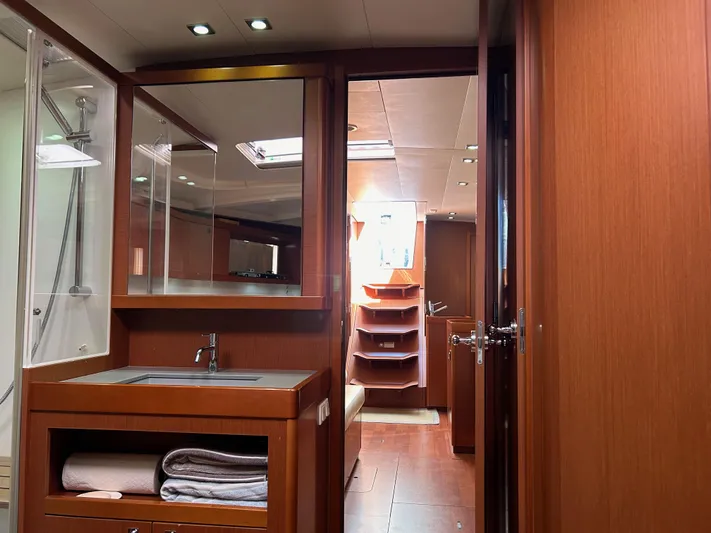

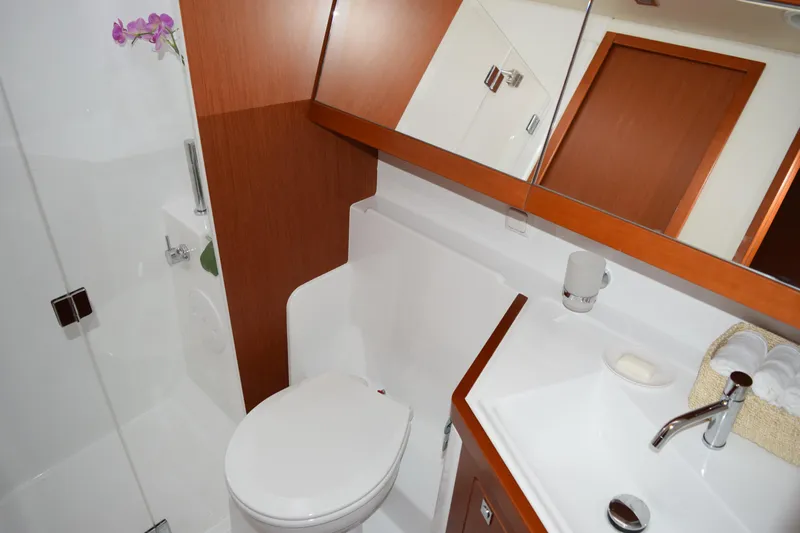

• Molded basin with grey countertop, mixing tap hot/cold water
• 1 Washroom storage cabinet
• 1 Mirror

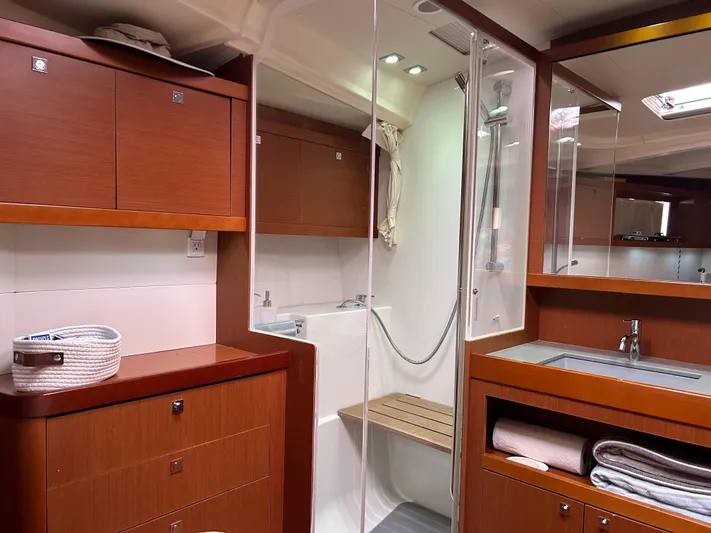

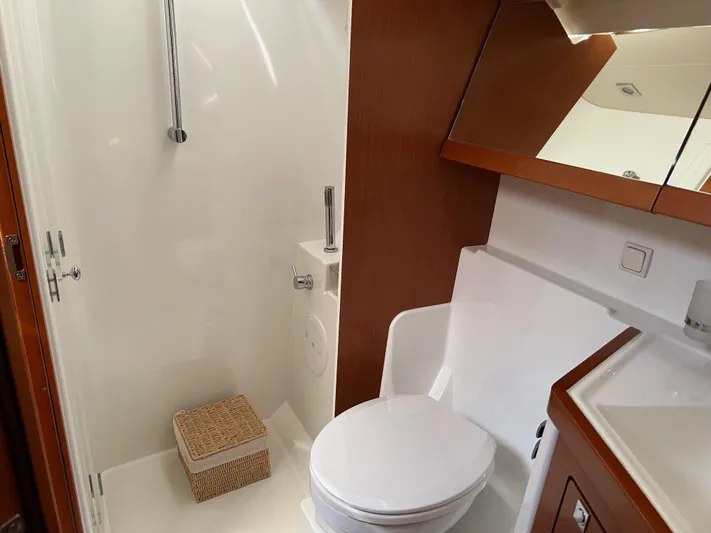

• 1 Acrylic shower cabin with flush access and storage on the bulkhead
• 1 Deck hatch with mosquito screen

• Separate electric head with fresh or saltwater flush and 17US Gal rigid holding tank
• Hand basin
• Storage space along the hull
• 1 Deck hatch with mosquito screen

• Headroom: 6’4’’
• Access from the salon or the starboard aft cabin
• Separate shower
• 1 mixing tap hot/cold water
• Storage on bulkhead

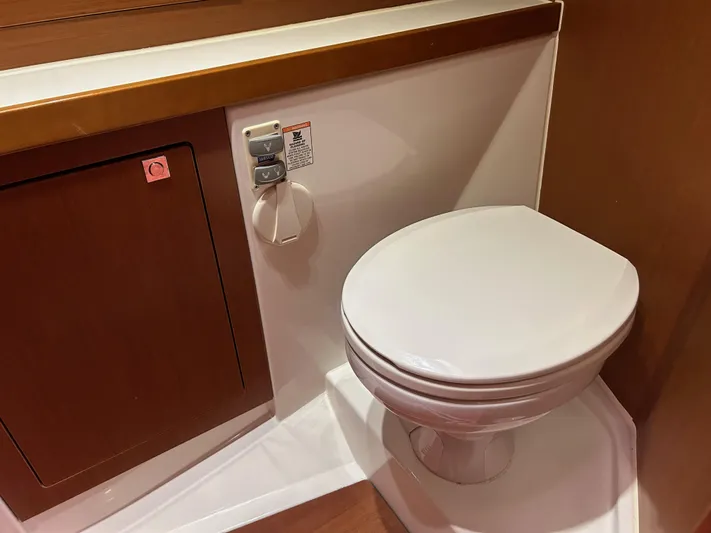

• 1 Electric marine toilet
• 17US G rigid holding tank
• Washbasin
• 1 mixing tap hot/cold water
• 2 Mirrors
• 1 Opening portlight with curtains in the coach roof side window

• Headroom: 6’1’’

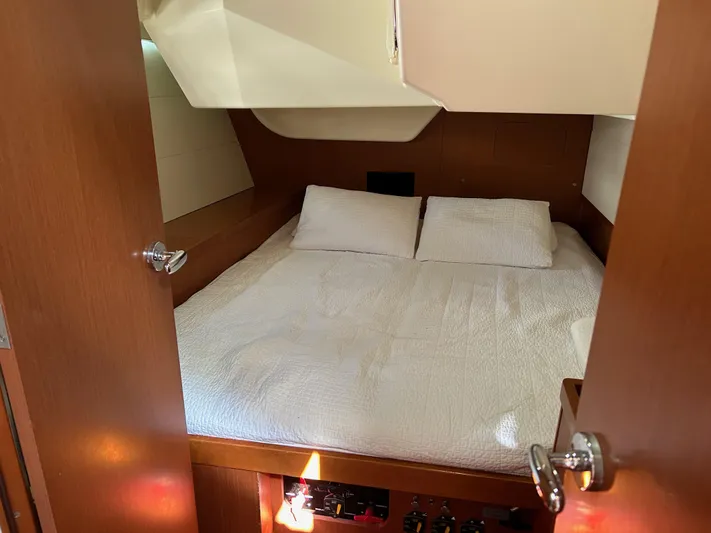

• Double bed 6’10’’x3’10’’x5’1’’
• Access door to starboard aft head
• Cupboard units
• Hanging locker
• Closed cubbyholes
• Storage each side of bed
• 1 Large size hull port with curtain
• 1 Opening deck hatch with mosquito blind
• 1 Opening cockpit port with curtain
• 1 Glazing on companionway bulkhead
• Air conditioning

• Headroom: 6’1’’
• 1 Double bed
• Cupboard units
• Hanging locker
• Closed cubbyholes
• 1 Large size hull port with curtain
• 1 Opening deck hatch with mosquito screen
• 1 Opening cockpit port with curtain
• Air conditioning

• Bow thruster
• 1500 W windlass
• 50” TV in salon

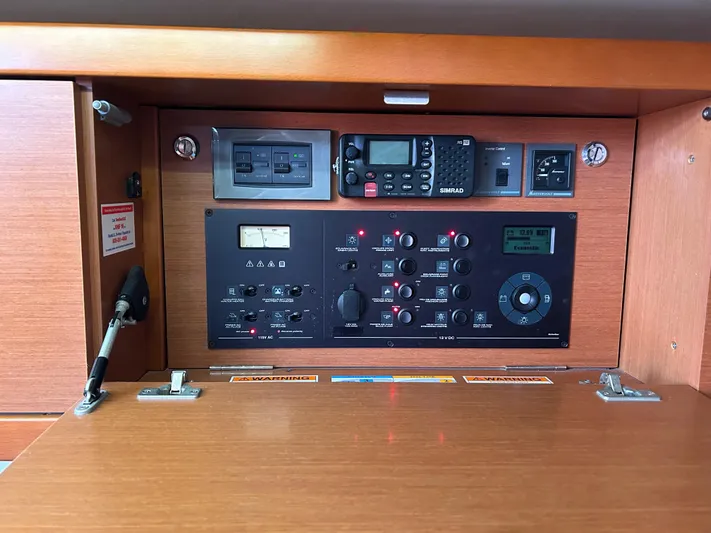

• 12 V panel with switches and circuit breaker
• Fuel level gauge, water level gauge, and battery voltage capacity, all gauges have alarm settings
• LED spotlight at the bow
• Interior LED lights
• Underwater LED lights
• 2000W inverter
• 4 AGM 4D House batteries
• 1 AGM engine start –
• 1 AGM Generator start
• 2 AGM Bow thruster
• 2 AGM windlass batteries
• 1 Load balancer
• 1 12 V Power outlets
• 110 V system
• 110V outlets all through the boat
• 3X 40 Amp Critec battery chargers
• 2 X 30 Amp Shore power cords
• 4200 Watt Lithium powered ECO flow system
• Onan generator 7.5 KW 1700 hours, maintained each year

• Simrad (B&G) Depth, Speed, Wind, and repeaters at the helm stations
• Autopilot

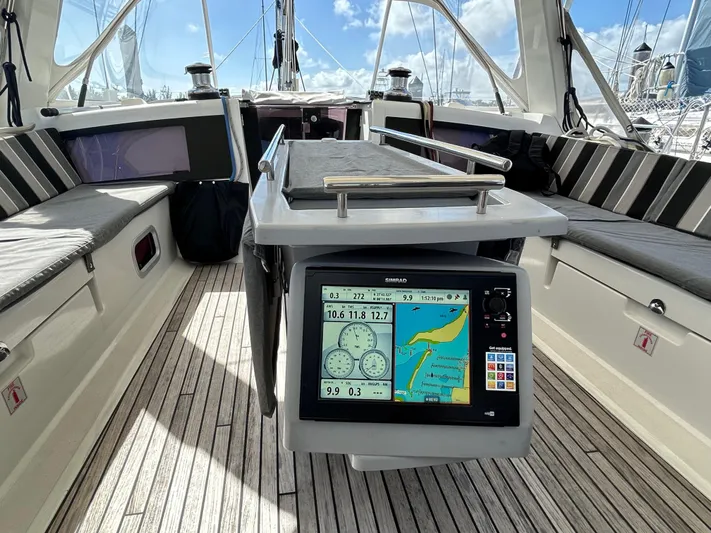

• 12” Simrad MFD on central articulated pod attached to the cockpit table
• VHF at the helm
• Two Compasses
• Dock and Go system control on helm
• Marine horn at the helm
• Fusion stereo system with speakers at galley, cockpit and foredeck

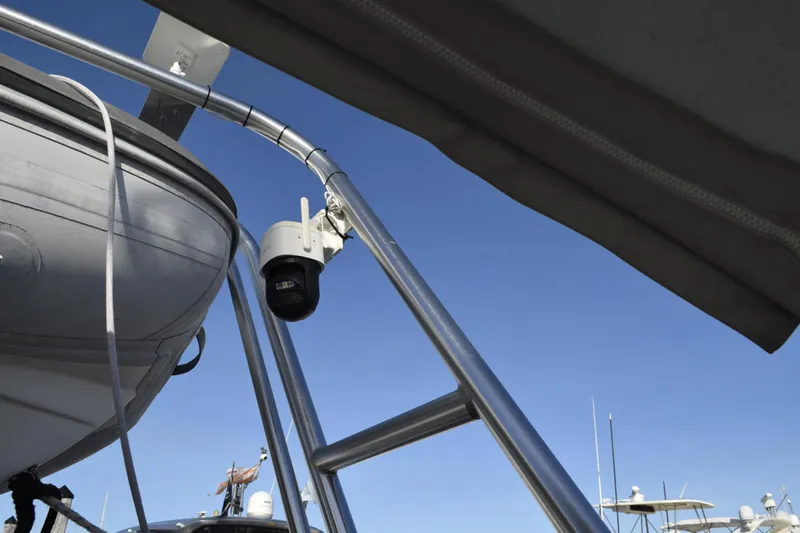

• Solar-powered security camera

• Furling mast 9/10 anodized aluminum deck stepped, 2 aft-swept spreader
• Anodized aluminum boom
• Discontinuous stainless steel standing rigging
• 2 Backstays with turnbuckles
• Rigid boom vang

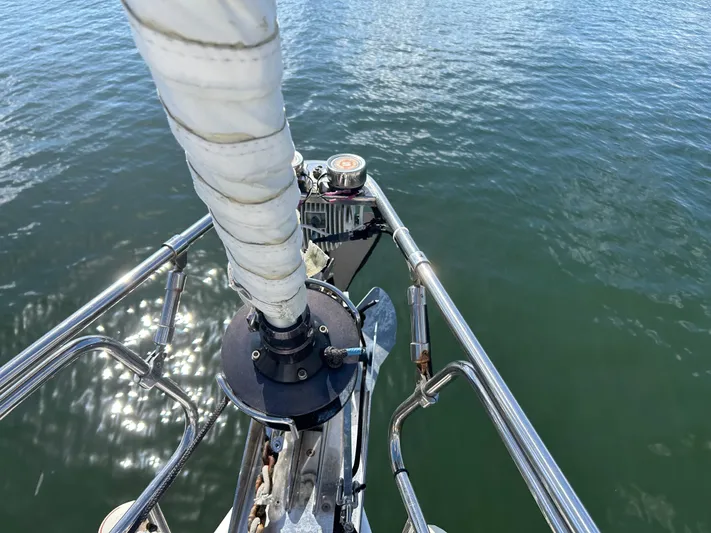

• Genoa furling system with drum on the deck
• 2 Stand Up blocks on mainsheet arch
• Running rigging run back to cockpit, except boom topping lift cleats on mast
• 10 Line clutches
• Twin halyard bags

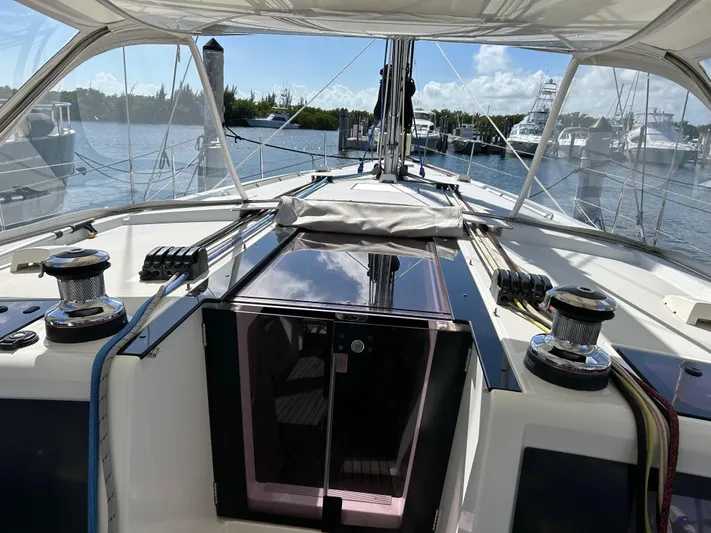

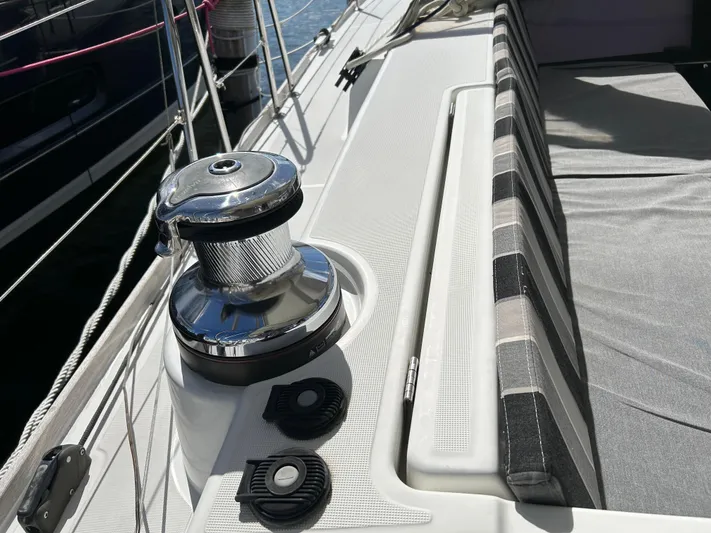

• 2 H60.2STC Harken self-tailing genoa sheet winches
• 2 H46.2 STC Harken self-tailing coach roof winches
• 2 Aluminum winch handles
• 2 Winch handle holders

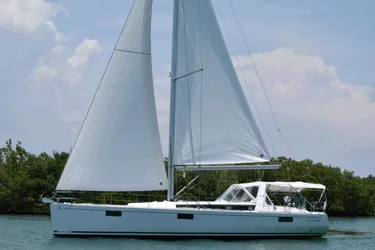

• In mast furling Main sail 474 sq. ft
• Furling genoa with UV protective strip 592 sq.ft
• Asymmetric spinnaker with sock snuffer 1600 sq.ft

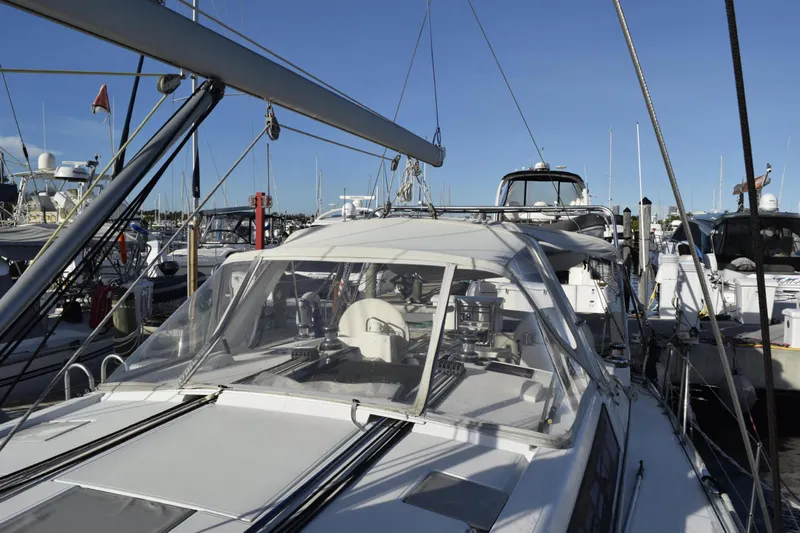

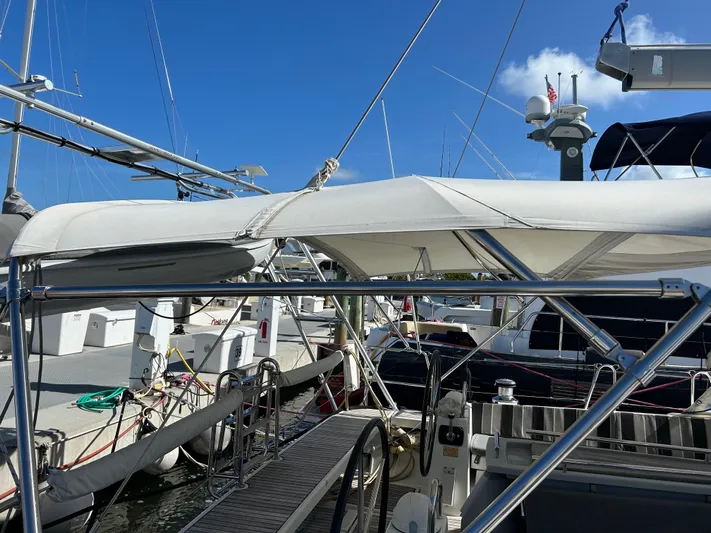

• Bimini – Dodger – custom covers for cockpit table, companionway, both helm stations and hatches

• Rub rail
• Arch with dingy davits
• Self-bailing cockpit
• 2 Cockpit locker
• 2 Lockers in cockpit sole under helm's feet
• Teak cockpit sole
• 1 Life raft locker under helm seat 2’7’’ x 1’4’’ x 1’4’’
• 1 Gas locker for bottle(s) under the port helm seat
• Natural solid wood slatted cockpit benches

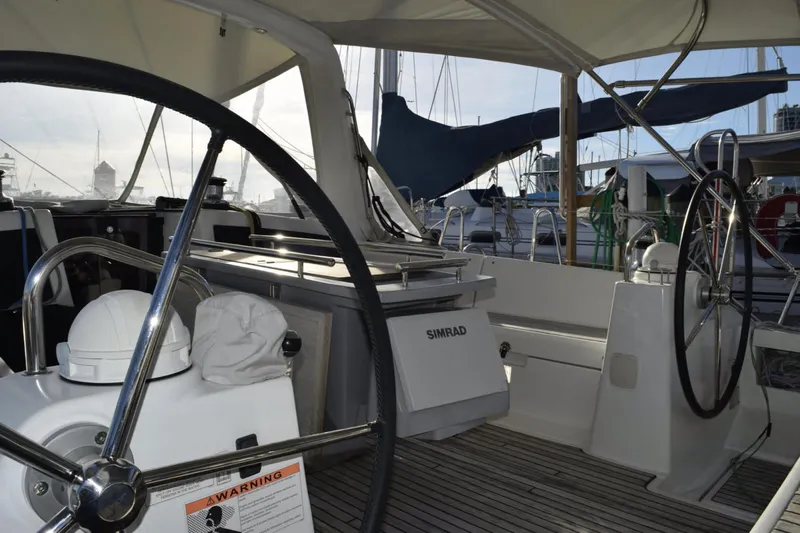

• 2 Steering wheel consoles with compasses
• Stainless steel leather-covered steering wheels
• Stainless steel handrail
• Navigation instrument pods for instruments
• Cup holder
• 1 Deck filler for access to tiller system and power supply access hatch
• 1 Emergency tiller
• Portside engine control and control panel

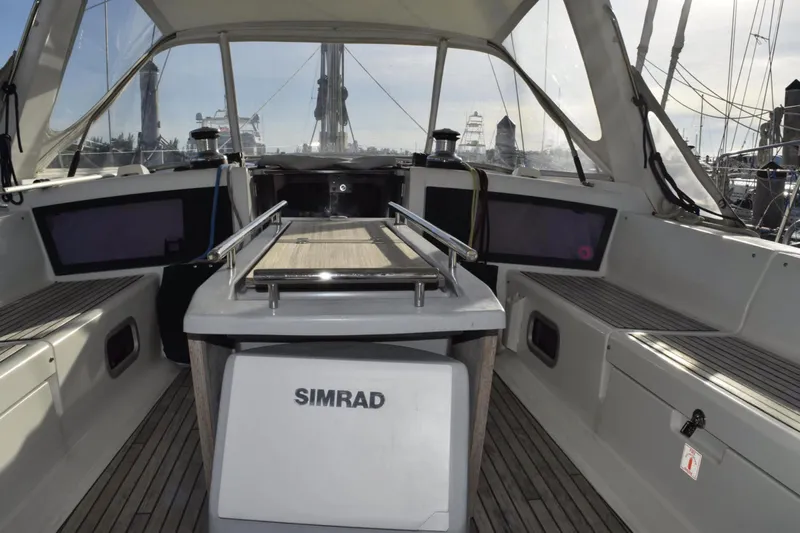

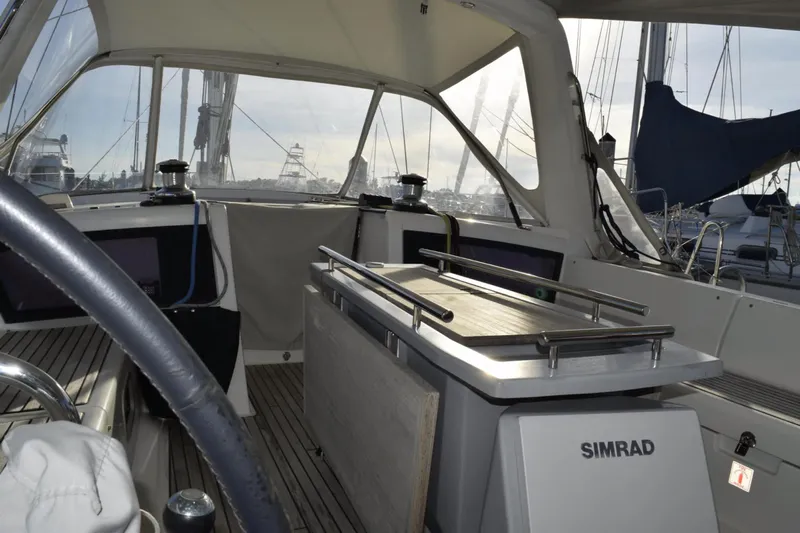

• Polyester cockpit table
• 2 Glove boxes
• 2 Large storage space
• Stainless steel handrail
• 12 V Power outlet
• Lamp with shade
• Cockpit shower
• 1 Fixed composite arch with lights

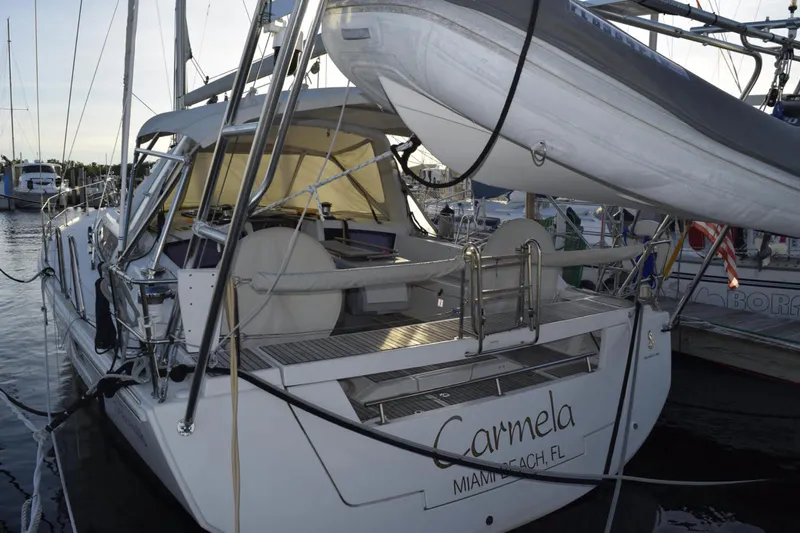

• Electrically opening transom, convertible into swim platform 9’4’’ x 2’6’’
• Natural solid wood decking on swim platform
• 1 Stainless steel swim/boarding ladder with solid wooden steps

• Self-draining chain locker
• Clench bolt Hatch cover

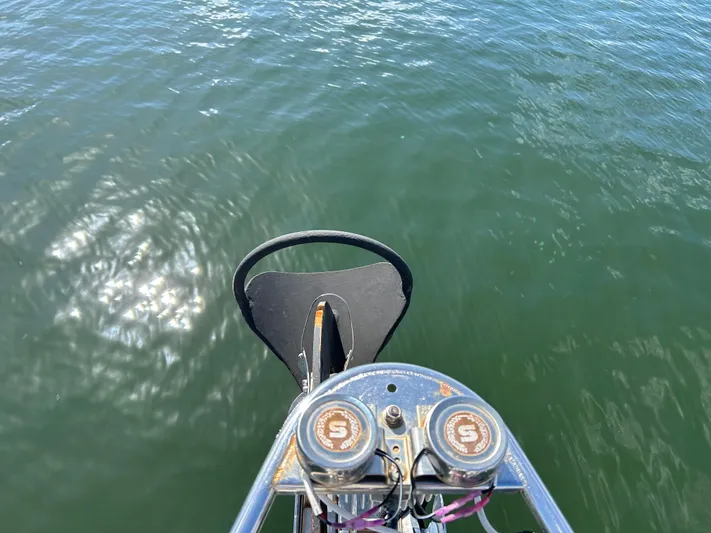

• Stainless steel bow fitting 2 rollers
• 12 V - 1500 W vertical electric windlass
• Remote control
• 6 Aluminum mooring cleats
• Stainless steel chafing plate
• 60 lb. Mason Anchor with heavy-duty swivel and 50 lb. Delta secondary anchor

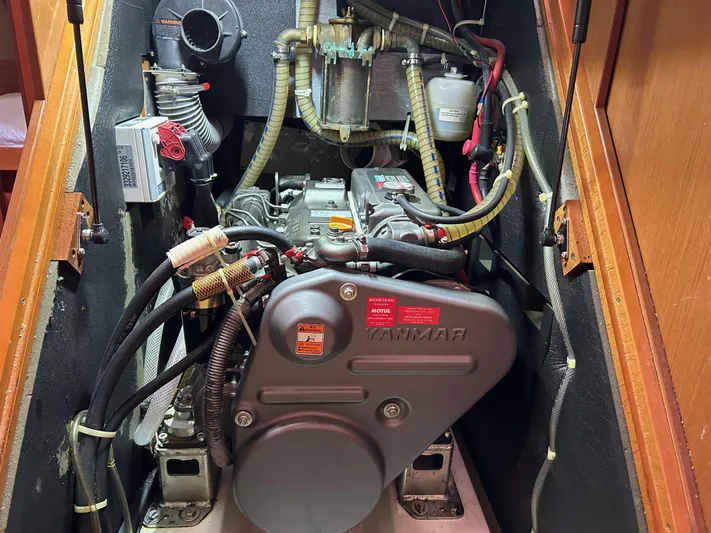

• Yanmar 4JH4-TE 75HP – Pod drive – 3-bladed bronze fixed propellor (2080 hours)
• ONAN 7.5 KW 1700 hours

• Monolithic hull in polyester
• Monolithic structural hull liner bonded to the hull
• Injection molded deck in glass fiber and balsa sandwich construction, covered with diamond pattern non-slip coating
• Deck joint screwed, bonded, and banded with solid wood bulwark
• Cast iron keel with bolts and stainless backing plates
• Rudder hung with composite rudder stock

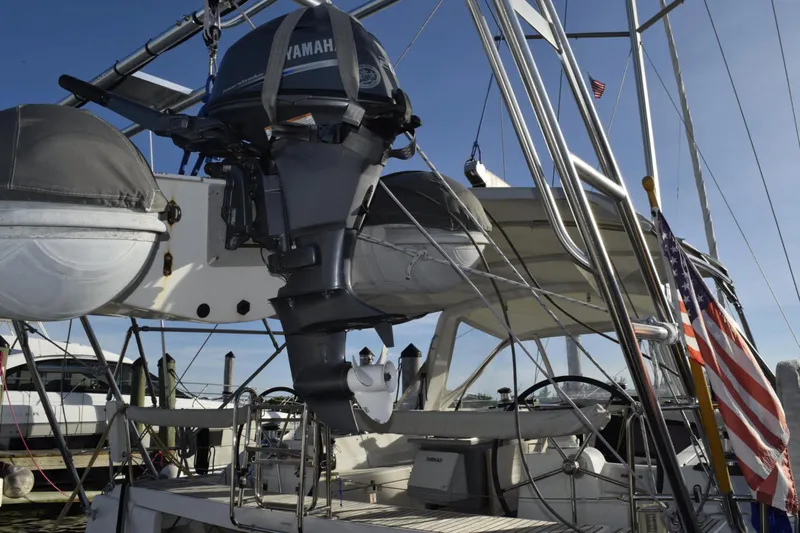

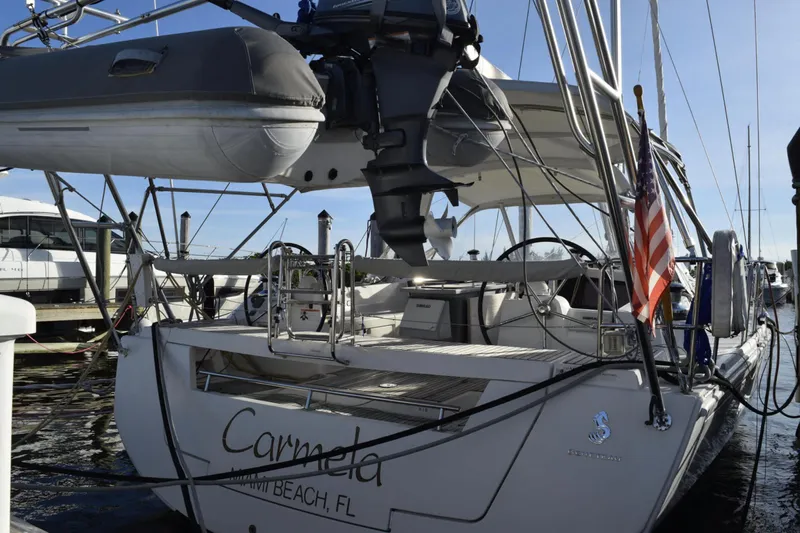

• AB 10’ 6” Dinghy RIB FG 2015 – 20HP Yamaha
• Arch with Davits and outboard crane
• LED Underwater lights with state-of-the-art solar-powered camera, Marine electric horn with switch on each helm station
• Powerful LED spotlight on the bow
• Four grouper zincs bonded to sail drive to extend zinc life
• Rub rail
• Oversized transparent strainers for engine, generator, and Air conditioning systems

• 12 Life jackets
• Flare kit
• 6 Fire extinguishers
• First aid kit

Owners personal gear such as clothing and books
