CARPE DIEM Yacht for Sale

• Cruising Speed: 15 kn
• Maximum Speed: 18 kn
• Beam: 21' 6''
• Hull Material: Fiberglass
• Max Draft: 5' 6''
• Displacement: 255,000 lb
• Fuel Tank: 1 x 4100|gallon
• Fresh Water: 1 x 1000|gallon
• Holding: 1 x 400|gallon
• Cabins: 5
• Heads: 5

Fiberglass hull and superstructure, teak deck

General

Length Overall (L.O.A.):

• 95.33 feet
• (29.05 meters)

Beam (molded):

• 21.50 feet
• (  6.55 meters)

Draft (loaded):

• 5.67 feet
• (  1.73 meters)

Tonnage: 166 gross

Displacement:  255,000 lbs

Capacities

Fuel Capacity:

• 4,100 US Gallons
• (15,520 liters)

Water Capacity:

• 1,000 US Gallons
• (  3,785 liters)

Grey Water:

• 375  US Gallons
• ( 1,419 liters)

Black Water:

• 400 US Gallons
• ( 1,514 liters)

  Speed

• Maximum:
  • 18.0 knots
  • Consumption: 125 US Gallons /hr
  • Range: 580 nm
  • RPM: 2,100

• Cruising:
  • 15.0 knots
  • Consumption: 80 US Gallons /hr
  • Range: 800 nm
  • RPM: 1,900

• Economical:
  • 12.0 knots
  • Consumption: 50 US Gallons /hr
  • Range: 1,000 nm
  • RPM: 1,500

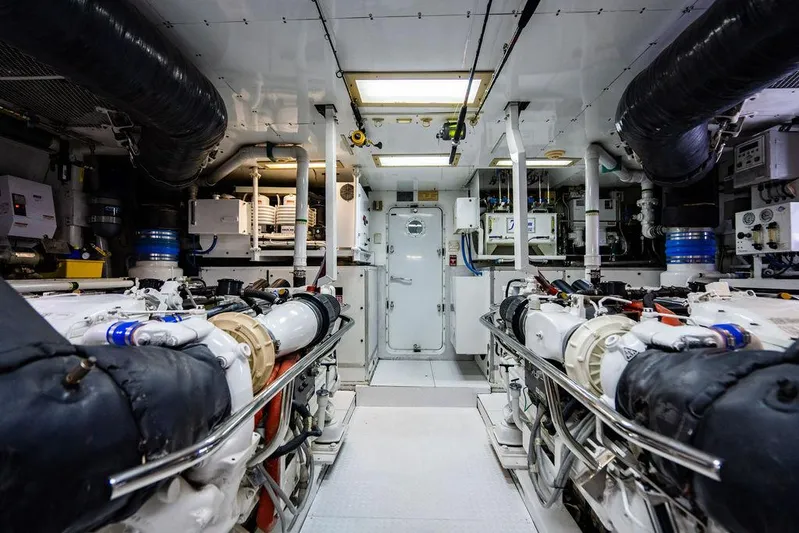

Main Engines
Engine Type: (2) MTU 12V 2000 M90 @ 1,350 Hp each
Drive: Direct drive 5 blade Nibral
Ratio: 2.48:1

Generators & Electricity
Output: 45kW
Generators: (2) Northern Lights M4450- 45 Kw
Shore Power:

• 120/240 volts / 187 Max Amps
• (2) Glendinning

Batteries:

• (4) 6 volt Deka (NEW)
• (2) 12 volt 4D lead acid
• (4) 24 volt belt driven alternators
• Sentry 24 colt, 60 Amp + 24 volt / 40 amp & Sentry 24 volt 30 amp
• (1) NEW Battery charter

Air Conditioning
Type: (2) Aqua Air 144,000 Btu

Other Machinery
Watermakers: FCI NEW MEMBRANES AND TOTAL REBUILD
Trim Tabs/Stabilizers: Yes REBUILD AND NEW HOSES
Bow Thruster: Naiad, hydraulic REBUILD
Steering System: Jastram Hydraulic REBUILD AND NEW HOSES
Fuel Separator & Filtration: Detroit Diesel Sea Pro 300
Sewage System: Headhunter
Fresh Water System: (2) Headhunter Mach 5 115 volt REBUILD

Communication Systems

SATcom: Inmarsat

SSB: SEA 234 radio with remove mic

VHF: (2) Icom IC-605

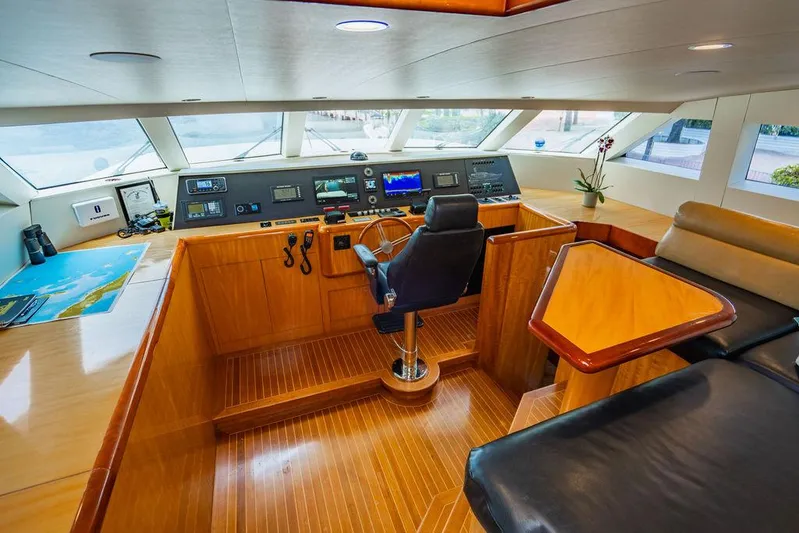

Navigation Systems

Radar: Furuno 96 mile

Magnetic Compass: 5” Ritchie magnetic compass

Auto Pilot: (2) Simrad ASP20 (upper and lower helm)

Depth Sounder: Data marine multi-link digital

GPS:

• (3) Garmin GPS Map 8616
• (1) Garmin AIS 800
• (1) Airmar B744VL-8G

Chart Plotter: Raymarine

Wind/Speed Log: Datamarine multi-link

Navtex:

• (2) Raymarine G Series (upper and lower helm)
• Furuno Navtex NX-500

  Entertainment System:

• Video Equipment

• • All new Samsun TVs with Bose 900 sound bars
  • (4) Garmin cameras GC 200

• Audio Equipment

• • (3) Panasonic Stereo
  • (3) Fusion MS-RA770 with JL Audio speakers
  • Sony soundbar

• Wi-Fi Equipment
  • Starlink w/ 6 wireless access points Mikok router
  • (2) Pepwave20G

Main Galley Equipment

Cooking Equipment:

• 5 burner electric stovetop
• Whirlpool oven
• GE microwave

Refrigeration/Freezer: Samsung

Dishwasher: Maytag

Additional Galley Equipment

Cooking Equipment:

• (2) Icemaker (Salon & Aft deck)
• Jenn-Air dual burner (flybridge)

Refrigeration/Freezer:

• Avanti refrigerator (captain’s cabin)
• Sub-Zero refrigerator (flybridge)
• Premium chest freezer (flybridge)

Other: GE trash compactor

Laundry Equipment

Main Laundry Equipment: Electrolux

Tenders: Novurania 460 Honda 90 Hp

Anchor Windlass System:

• Maxwell 4500 24 volt w/ wild cat & capstan drum

Anchors:

• Fortress FX125 with approx. 300’ of chain
• Fortress FX85

Anchor Chain: Approx. 300’ of chain

Boat Crane and Davits: Marquipt Hydraulic 1,500 lbs.

Swimming Platform:

• Fiberglass with non-skid
• Courtesy lights at steps
• Stainless steel handrails at steps
• Pantograph centerline engine room door
• (7) removable stainless steel hoop rails
• Back-lit stainless steel boat name
• (2) 100 amp Glendinning cord inlets
• Shore water hook-up
• Ring camera at engine room entrance

Underwater Lights: (4) Lumitec

Security Equipment

CCTV System: (3) Aft deck

Cameras: Ring Camera

Fire Fighting Equipment

Fire Control System: Kiddle Clean Agent FM-200

Fire Extinguishers:

• (6) Type B:C size I
• (5) Type B:C size II
• (2) Co2

Safety Equipment

Life Rafts: (2) Duarry 12-persion (new)

Life Rings: (2) USCG approved

EPIRBS: ARC Global Fix

Flares:

• (4) Red Handheld
• (4) Cartridges + gun

Horns: Dual Kahlenberg

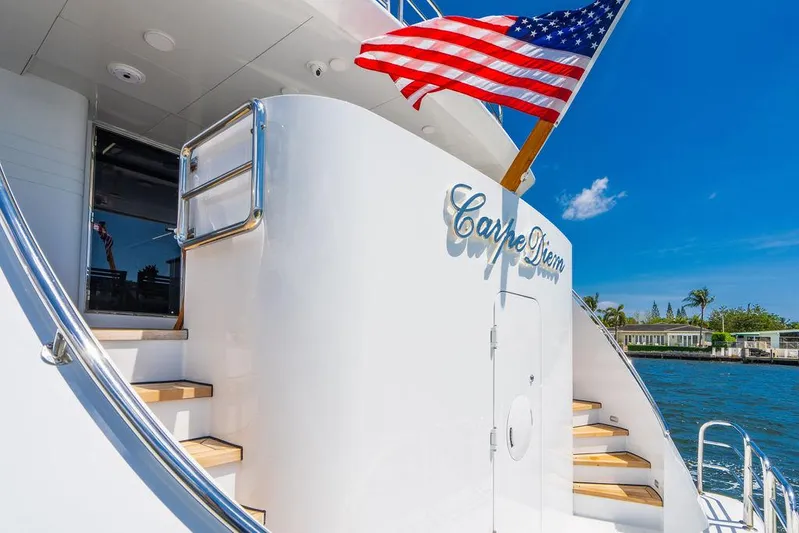

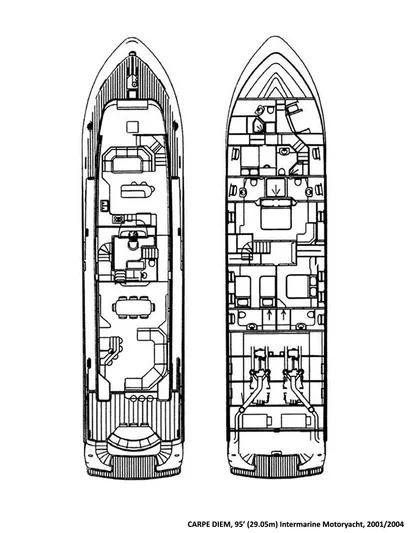

Boarding from a fixed dock is possible via the midship Marquipt Tide Ride ladder on either the port or starboard side. If boarding from a floating dock, access is available to the swim platform, with steps leading up to the aft deck.

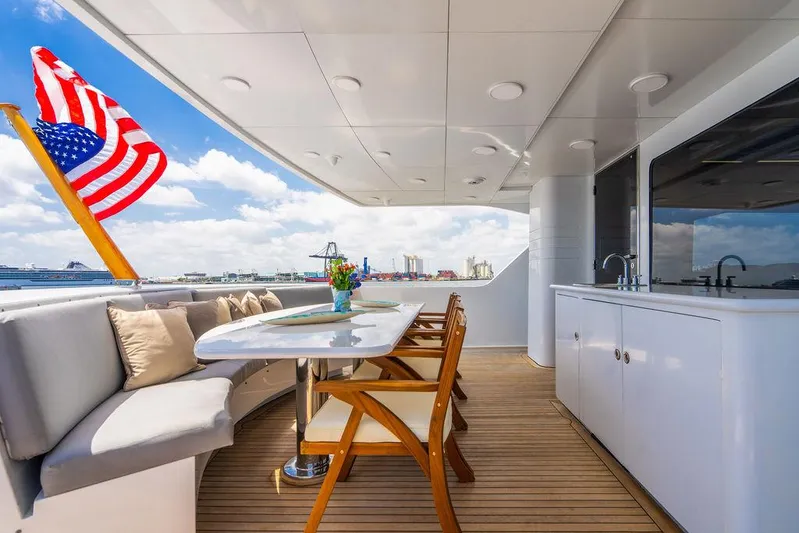

The aft deck features both loose and fixed seating, protected by a full boat deck overhang. A bar with a sink, fridge, and icemaker is located forward.

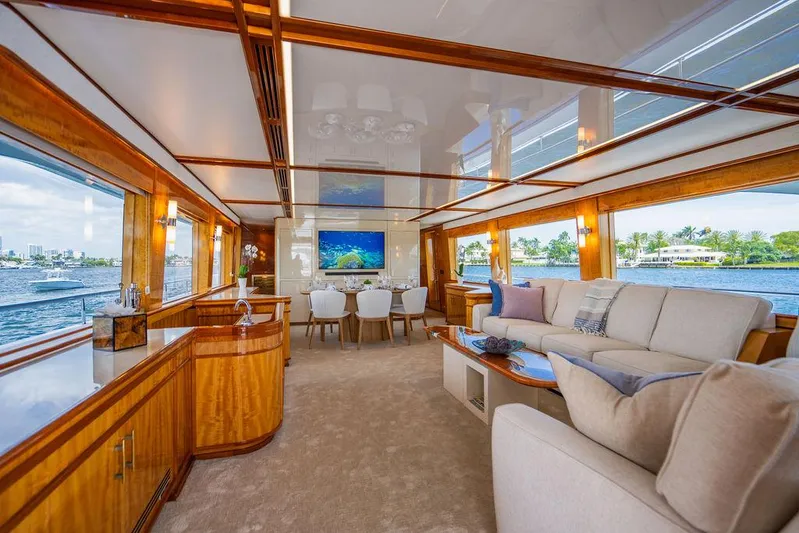

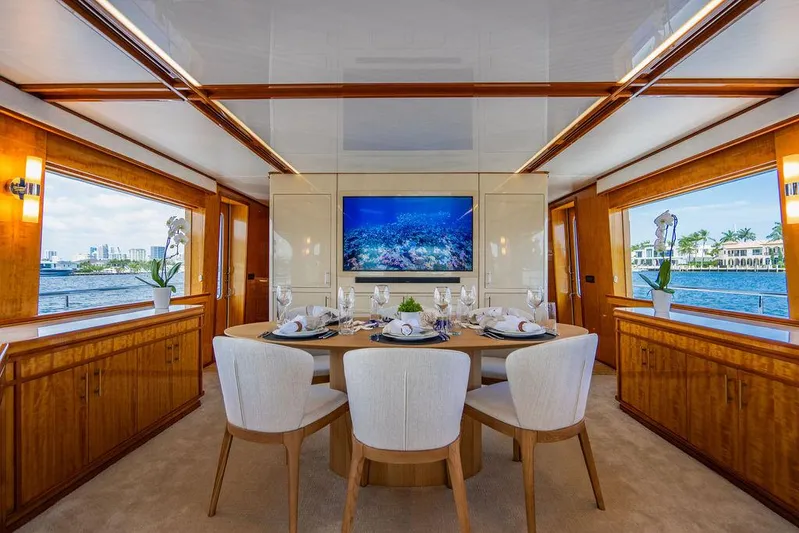

Offset to the port side is the hinged tinted glass door leading to the salon, which offers ample natural light through its large side windows. To the port side, there's a walk-behind bar, while to the starboard side, there's a white leather sectional with a coffee table in front. A four-place dining table is situated forward, accompanied by a 55” TV on the forward bulkhead.

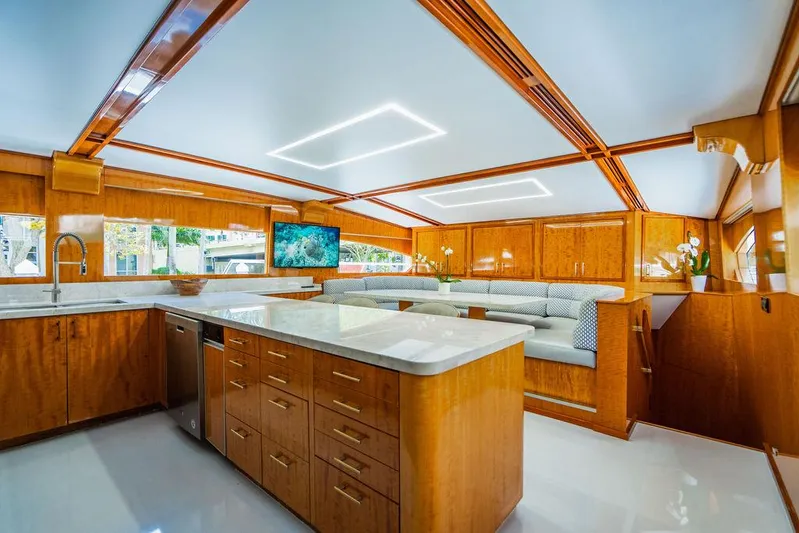

The accommodations foyer is located to the port side, while the pilothouse, galley, and crew area are to starboard. Moving forward on the starboard side, you'll find the day head, steps leading to the pilothouse, and a spacious country kitchen with updated appliances, stone countertops, and a large dining table forward.

Curved steps to starboard lead to the crew area, with the ensuite double cabin to port often used for guests, featuring a queen-size berth and a private head with a stall shower. In the Vee, there's a crew cabin with upper and lower berths and a private head with a stall shower.

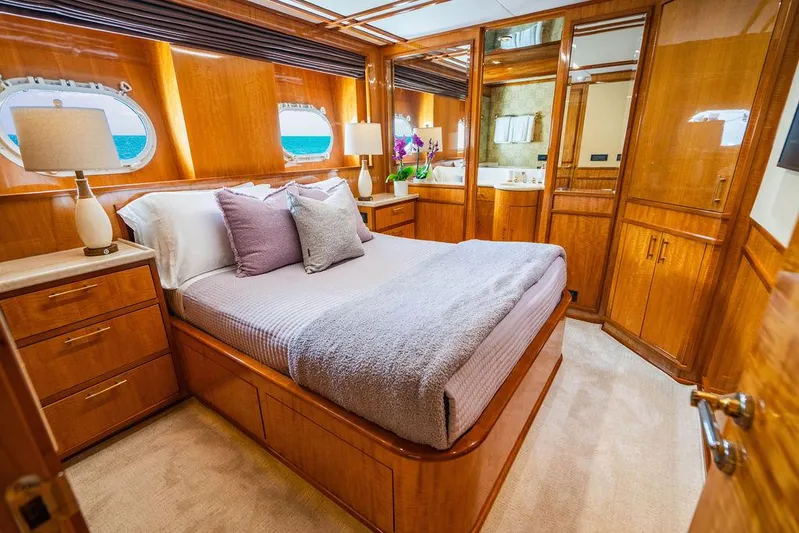

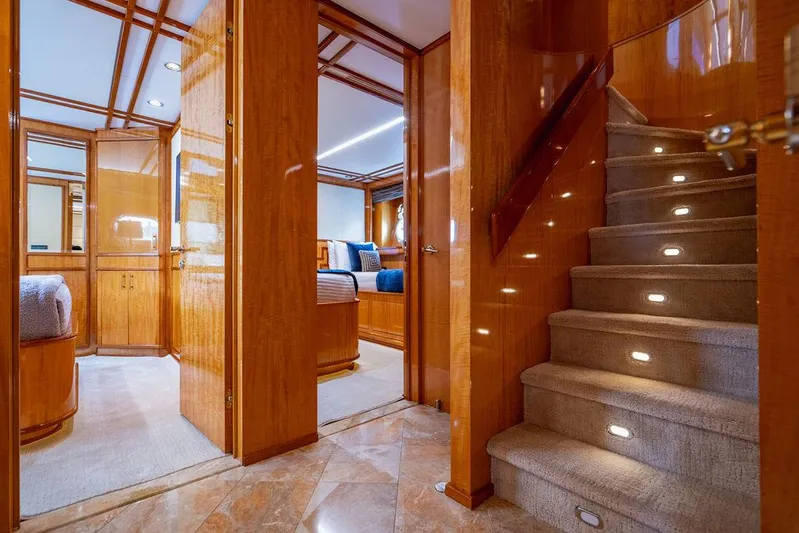

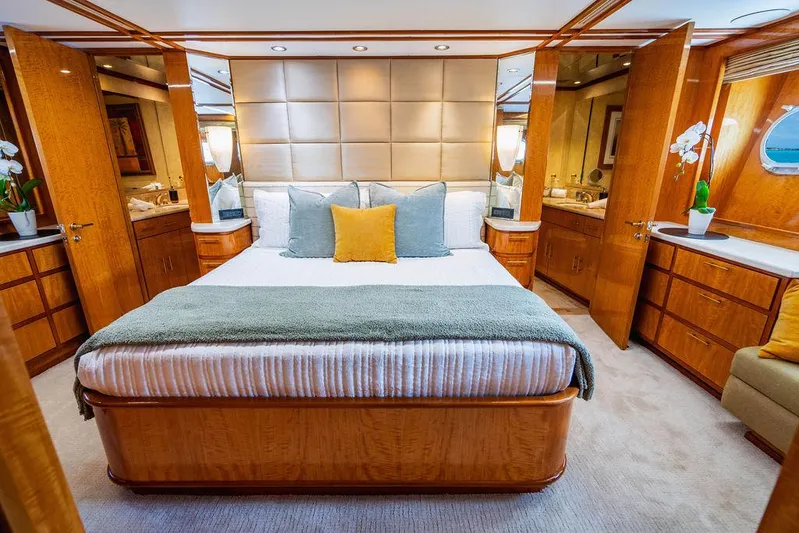

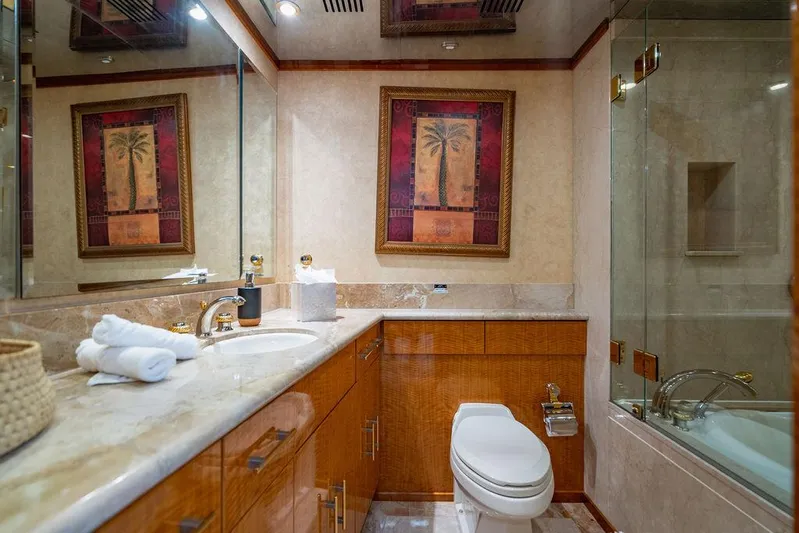

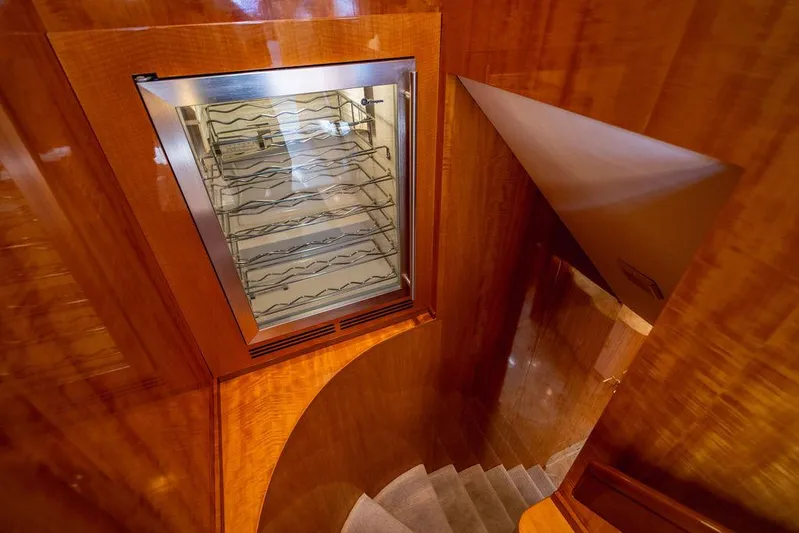

Descending curved steps from the port side of the salon, you'll find the master cabin forward, featuring a centerline queen berth and his-and-her heads separated by a large tub/shower.

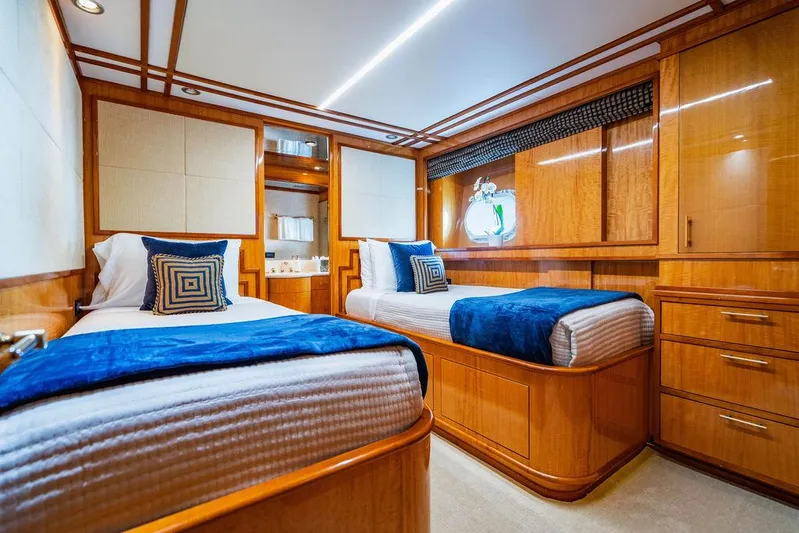

Aft from the centered foyer with a second laundry area are two guest cabins: one to the port side with an athwartships queen bed and a private head, and the other to the starboard side with twin berths and a private head.

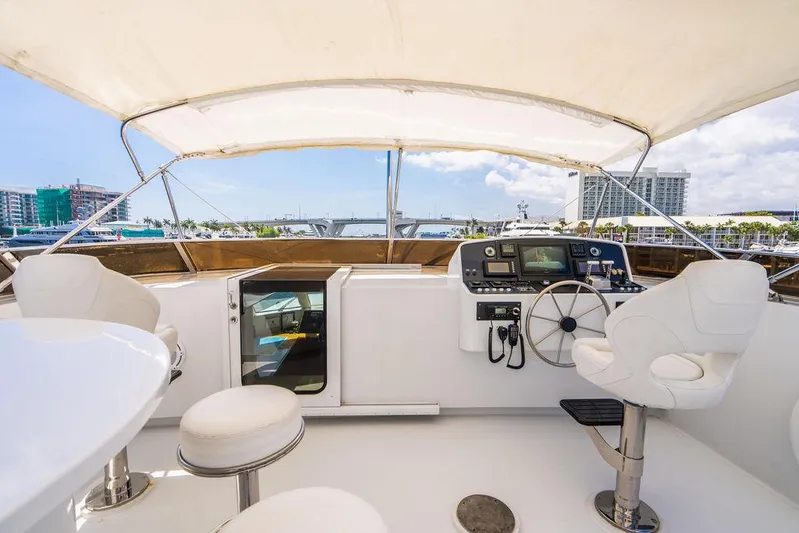

The spacious flybridge is accessible via the pilothouse and offers a bar, dining area, starboard-side helm, and the tender located aft.

2024 NEW EQUIPMENT:

• CALIFORNIA AIR COMPRESSOR
• (2) NEW LIFE RAFTS 12 PERSON
• NEW GENERATOR STARTERS
• MAIN ELECTRICAL PANEL 24 VOLT BREAKERS
• HYDRAULIC HOSES THROUGHOUT THE BOAT
• BATTERY CHARGER
• ALL NEW BATTERIES
• GALLEY AC SYSTEM
• CAPT. CABIN AC SYSTEM
• ANODES
• ANTIFOUL PAINT
• (2) NEW ICE MAKERS
• ALL NEW ENTERTAINMENT SYSTEM
• ALL NEW NAVIGATION SYSTEM
• ALL NEW COMMUNICATION SYSTEM
• ALL NEW CCTV SYSTEM
• ALL NEW LED LIGHTS INTERIOR AND EXTERIOR
• NEW ANCHOR
• JACUZZI
• AQUA BANA, PARTY BANA
• NEW HEADLINER THROUGHOUT
• NEW MAIN SALON!!!
• ALL NEW BEDDING
• UPPER DECK NEW PAINT
• STERN, NEW PAINT
• NEW TEAK STAIRS
• NEW CARPET THROUGHOUT
• NEW GALLEY FLOOR
• SHAFT SEALS
• NEW STABILIZER SEALS AND HOSES
• NEW AFT DECK TEAK CHAIRS
• (2) NEW CIRCULATION PUMPS

2024 REBUILD EQUIPMENT:

• ALL THE RUNNING GEAR
• THRUSTER
• STABILIZER
• STEERING
• WATERMAKER
• ENGINE ROOM VENTILATION
• UNDERWATER LIGHTS
• AIR HANDLERS THROUGHOUT
• LOTS OF CARPENTRY

SUMMER 2023:

• 24 new injectors
• 24 rebuilt EVP’s (Injector pumps)
• Adjusted valve lash and replaced valve cover gaskets
• Replaced coolant and pressure tested system
• Cleaned, pressure tested and painted both, changed air coolers, installed with new seals, hoses and clamps
• Replaced starboard engine hydraulic exhaust flap and gasket
• Changed oil and oil filters
• Changed MTU primary fuel filters
