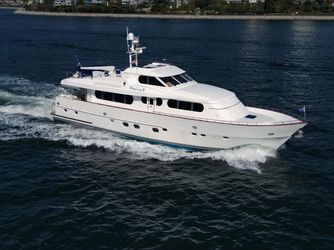

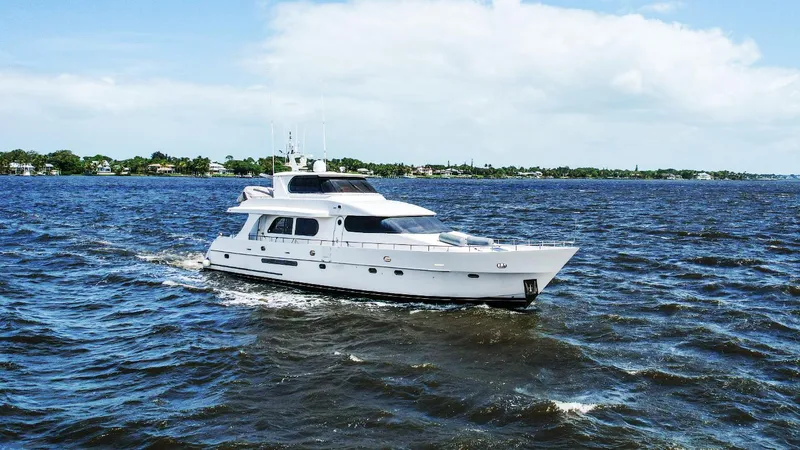

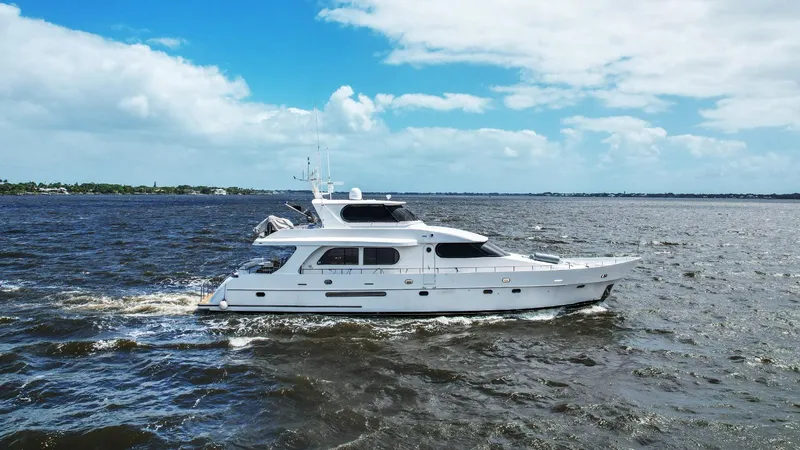

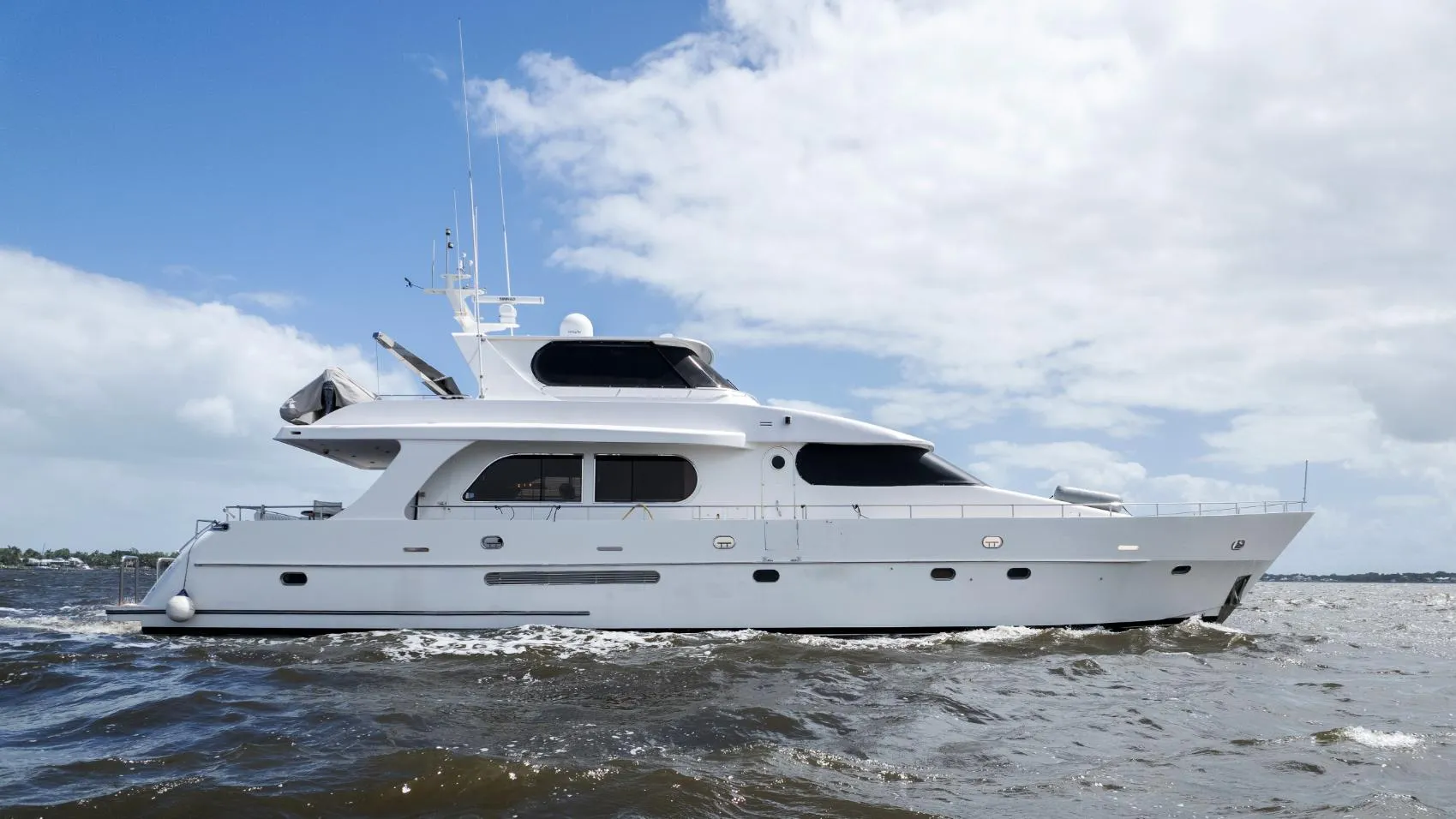

CINNABAR VI Yacht for Sale

• Cruising Speed: 16 kn
• Maximum Speed: 21 kn
• Beam: 19' 0''
• Hull Material: Fiberglass
• Max Draft: 5' 5''
• Displacement: 188,000 lb
• Fuel Tank: 1 x 2100|gallon
• Fresh Water: 1 x 400|gallon
• Cabins: 3
• Heads: 5

• Stainless steel trimmed sliding glass door
• Upholstered sectional sofa
• Burlwood end table
• Table lamp
• Arm chair upholstered to match the couch
• Panasonic 32" T.V.
• Cabinet with pull out cd/dvd storage
• Base subwoofer
• Sony digital Audio/Video control center
• 2 x Direct TV satellite receivers
• Cherry countertop with a brass lamp and artwork
• Wood blinds
• Sliding salon windows
• Valances with both direct halogen mini spots and indirect rope lighting
• Full height storage cabinet
• Burlwood dining table
• 3 loose upholstered chairs
• An upholstered bench seat forward
• Twin sconce lights flank the bench seat forward
• Six storage cabinets
• Digital ac controls
• Dimmable halogen mini spots

• Large day head to port with a marble table And matching marble countertop
• Vanity with two doors below
• Hammered brass sink with brass fixture
• 3 drawers and 2 storage cabinets
• Vaccuflush toliet
• Wood blinds
• Over head lighting

• GE Monogram stainless dishwasher
• GE Monogram stainless steel trash compactor
• GE Monogram stainless steel built in microwave
• Kitchenaid superba stainless steel refrigerator
• Gaggenau 4 burner Ceran cooktop
• White Corian countertops
• Stainless steel under mount sink
• Grohe single handle removable spray faucet
• Insinkerator garbage disposal
• Stainless steel handrail at edge of countertop
• (9) Cherry cabinet doors
• (14) Cherry & burl wood drawers
• Pantry storage with 8 cabinet doors
• 23 halogen mini spots above

• Full beam
• King size berth
• Upholstered headboard
• Six drawer bureau (more than nightstands)
• 2 x table lamps above each bureau
• Panasonic cordless phone
• Intercom
• Panasonic AM/FM cassette player
• Digital AC control
• Ship's amp meter
• Cane front shoe locker
• Large settee to seat three behind the settee
• Opening screened porthole with blackout panel
• Two sconce lights and indirect lighting behind cherry panels
• Full size hanging locker with cedar lining
• Ship safe
• Auto light
• Panasonic 8 disc CD changer
• Additional bureau of six drawers
• Vizio 26" LCD TV
• Sony DVD player
• Double door hanging locker with cedar lining and auto light
• Vanity with swing out stool, two large drawers and eight small drawers
• A free standing beveled mirror
• Four open book shelves
• 19 halogen mini spots, dimmable

• Marbe tile sole
• Vanity with six cabinet doors and four drawers
• Under mount sink with two tone fixtures
• Three beveled mirror panels
• Sconce lights flank sink
• Jabsco Jet Flush toilet
• Stall shower with clear tempered safety door, two clear side lights, marble tile walls and sole
• Wall mountable or handheld fixture
• A shelf with a frosted opening porthole above
• Magnifying mirror
• Reading light
• Variable speed exhaust fan
• Six overhead halogen mini spots

• Analog MTU mechanical engine gauges w/start stop buttons
• (2) Chilled water Marine Air AC compressor
• Discharge, supply & return gauges for AC compressor
• (3) Engine Room cameras
• De Angelo (Ft.Lauderdale) marine exhaust elbows
• Mylar silicone exhaust hoses
• Underwater exhaust w/bypass tubes
• (2) Centek generator exhaust gear separators & mufflers
• Naiad 254 stabilizer system
• Engine Room freshwater spigot & hose
• Dual Racor 500 fuel filters for each generator plus vacuum gauges
• Dual Racor 75/900 fuel filters for each engine plus vacuum gagues
• Generator coolant expansion tank
• Lift up aluminum diamond plate decking
• (2) 5 lb. ABC Kidde portable fire extinguishers
• 9 Station intercom
• 60 lb. Fireboy Engine Room fire suppression system
• Hynautic hydraulic steering pressure system
• (2) 110 volt Engine Room blowers
• Engine driven bilge pump w/4 valve positions
• Sea Recovery 1200 GPD watermaker w/ remote at Lower Captain's Station
• 28 Gallon Seaward stainless steel water heater
• 11 Gallon Seaward stainless steel water heater
• Selector switch for choice of water heater
• Fuel tanks Engine Room forward w/site gauges
• (2) Wing fuel tanks w/site gauges
• Secondary mechanical gauges including transmission temp & pressure
• Floscan fuel monitoring system
• (4) Position fuel manifold
• Color coded Engine Room piping
• Rack mounted generators
• (2) AC fluorescent lights
• (4) DC incandescent lights
• Quick release oil change hose plus hand pumps
• 24 Volt fuel transfer pump
• 24 Volt oil change pump
• (2) 24 Volt Engine Room blowers
• Soft pad type Engine Room hatches
• Nobels bow thruster w/gel battery

• Onan 27 kw generator in sound shield w/3695 hours
• Onan 17.5 kw generator in sound shield w/2821 hours
• (4) 8D Batteries in fiberglass battery boxes
• (2) 4D Batteries in fiberglass battery boxes for generator
• (2) Guest battery switches for main engines
• Guest battery switch for main engine battery paralleling
• Cole Hersy battery switch for battery system
• Perko battery switches for generator
• Perko battery switch for generator battery paralleling
• Guest battery switch to forward bow thruster
• BlueSea battery switch for inverter
• Newmar 24 volt 80 amp converter for house batteries
• Heart Interface Freedom 25 charger/inverter
• 24V 40 amp Charles Industries battery charger for bow thruster
• 30 amp 12 volt charger for generators & electronics
• Source 1 & 2 four position selecter switches
• Two position Engine Room panel volt meter
• Analog amp meters at Engine Room panel
• Crew Cabin electrical panel w/AC & DC volt meter
• Crew Cabin electrical panel w/(10) DC 24V protected circuits
• Crew Cabin electrical panel w/(10) AC 110V panel circuits
• 24V Engine Room electrical panel w/(16) breaker protected circuits
• 110V Engine Room electrical panel w/(10) breaker protected circuits
• 220V Engine Room electrical panel w/(8) breaker protected circuits

• 24 Volt amp meter
• 24 Volt volt meter
• (2) 110V volt meters
• 220 Volt volt meter
• AC inverter system volt meter
• Total amp consumption meters
• 24V DC panel w/(32) breaker protected circuits
• 110 Volt AC panel w/(28) breaker protected circuits
• 110 Volt inverter boss panel w/(24) breaker protected circuits
• 220 Volt AC panel w/(12) double pole breaker protected circuits
• (2) Tankwatch tank monitors for waste tanks

• Cole Hersey batter selector switch for Skylounge or Engine Room 12 volt battery
• 2 Position analog DC volt meter
• Perko battery switch for 24 volt system in Skylounge
• 110 Volt volt meter
• (15) Breaker protected 12V DC circuits
• (20) Breaker protected 24V DC circuits
• (10) Breaker protected 110V AC circuits

• Fiberglass non skid decks
• Raised bulwarks w/stainless steel handrails
• Avon 8 person hydrostatic release life raft
• GFCI outlet
• (2) Rear facing spotlights
• (2) DC arch lights
• Life sling man over board retrieval system
• ACR EPIRB w/hydrostatic release
• 4 Step swim ladder for platform
• All stainless steel tender davit
• Avon 360 DL RIB tender w/40 hp Yamaha engine 4 stroke
• Console steering w/compass, depth gauge, bilge pump & lifting harness
• Stainless steel tender cradle
• Mounted deck box for tender supplies
• Hinged radar mast on hardtop w/(4) blue spotlights aimed at mast

• NuTeak decks
• Built in U shaped seat at forepeak with storage below
• High fiberglass bulwarks w/welded stainless steel bow rails
• Deck cleats w/stainless steel fairleads
• Maxwell 3500 lb above deck windlass
• (2) Maxwell deck switches
• (2) Chain locks
• Twin stainless steel anchors, one w/450' chain, one w/250'
• Deck hatch into chain locker
• Stainless steel removable pennant staff
• Large deck hatch into VIP Cabin
• (2) Large dunnage boxes built into cabin sides, connect below center locker
• Large centerline sun bed w/removable cushions, large locker below & (9)
• stainless steel
• drink holders
• Stainless steel wrap around windshield
• Starboard side cabin entry door
• Port & starboard Glendinning cable masters 50 amp 220V
• Port & starboard hinged (rail & bulwarks) boarding gate
• (3) Port & (3) starboard spring line cleats
• Port & starboard fuel & water fills
• PAR dockside water inlet w/pressure regulator
• (2) Marineco cable & telephone inlets
• Textulene windshield cover
• (6) Overhead side deck lights
• Stainless steel framed sliding cabin side windows

• Teak sole
• Stainless steel electric BBQ grill in fiberglass cabinet on starboard side of Aft Deck, separate gas bottle locker w/seaward electric solenoid
• Starboard side nav station w/clutch & throttle controls, start stop switches, bow thruster, rudder angle indicator, Santo bulkhead compass & Robertson AP 21 remote autopilot
• Port & starboard 24 volt Maxwell docking winches & cleats under hinged top seats
• Deck controls for Port & starboard winches
• Varnished teak oval table w/padded cover
• (2) Loose Tiffany resin deck chairs w/removable cushions
• Curved aft bench seat to seat (4)
• (6) Stainless steel drink holders
• Built in ventilated storage box aft to port
• (2) Stainless steel rod holders
• (5) Place stainless steel rocket launchers
• (11) Overhead halogen mini spots
• Aft facing security camera
• Stainless steel sink to port w/hot & cold tap
• Storage cabinet below sink
• Manual bilge pump
• Closed circuit camera
• 7 7/8" Chrome bell
• Hinged access gate to swim platform
• Stainless steel framed Lexan wing doors
• 5’ Wide teak integral swim platform
• Large starboard side storage locker at swim platform
• (4) Teak steps to Aft Deck on starboard side w/step lights
• (4) Stainless steel handrails
• Stainless steel trimmed Pantograph door to Crew Area
• (2) Pop up tender cleats
• (2) Removable hoop rails
• (2) Large under deck storage weels
• Hot & cold shower
• 30 Gallon built in gasoline storage tank for tender

• Twin upper lower berths
• Each berth has a reading light
• Four drawers below lower berth
• Two large lockers at the foot of the bed
• Cabinet with two doors and four drawers
• Samsung 26" LCD TV
• Pioneer DVD player
• Full size cedar lined hanging locker with an auto light
• Seven halogen mini spots
• Digital AC controls
• Panasonic phone
• Panasonic AM/FM/cassette
• Panasonic 8 disc CD changer

• Marble sole
• Bow front vanity with three cabinet doors below
• Under mount sink on a marble vanity top above
• Large beveled mirror
• Sconce light
• Three additional storage cabinets are above
• Stall shower has a clear tempered glass door and sidelight
• Handheld fixture or wall mountable
• Six overhead mini spots
• Variable speed exhaust fan

• Centerline queen berth
• A paneled headboard
• Five dimmable halogen mini spots
• Built in bookshelves that double as nightstands
• Two door cabinets.
• Two large drawers at foot of berth
• 2 x cedar lined auto lit hanging lockers
• 26" Vizio LCD TV with a Direct TV receiver and a Sony DVD player
• Panasonic AM/FM/cassette player
• Panasonic eight disc CD changer
• Digital AC controller
• Intercom
• Panasonic phone
• Sliding panel to darken the room or screen the hatch if open
• Eighteen overhead mini spots
• Indirect rope lighting
• Two opening portholes with blackout covers

• Marble tile
• Bow front vanity with two cabinet doors below
• Under mount sink in the marble vanity top
• A large beveled mirror cabinet above the sink
• Four additional storage lockers
• Jabsco Jet Flush toilet
• Marble tiled shower with side light, a seat, a shelf
• Opening porthole
• Two lights
• Handheld or wall mountable fixture
• Four overhead halogen mini spots
• Variable speed exhaust fan
• Dressing mirror on the inside of the door

• Stainless steel countertops w/built in sink
• Removable spray faucet
• GE Monogram 2 burner Ceran cooktop
• GE Turntable microwave oven
• Exhaust fan
• GE Combo washer/dryer
• GE Under counter refrigerator
• Stainless steel island countertop
• (11) Maple cabinet doors
• (6) Maple drawers
• GFCI outlets
• Marine Air digital AC controls
• Opening stainless steel screened porthole
• Intercom
• Full size hanging locker
• (15) Overhead halogen mini spots
• GE built in deep freezer
• Pantograph door to swim platform
• Lift up steps to center Lazarette
• (2) Cabinet doors accessing port & starboard Lazarette

• Two athwarthship berths
• Fold down nav desk with drawer storage
• Digital amp meter monitoring yacht’s power demands
• Simrad IS 15 multi meter
• Pioneer AM/FM/CD stereo
• High water bilge alarm
• Hanging locker
• Drawer under the bed for storage.
• The private Crew Head with maple bow front vanity
• A marblevanity top with under mount sink
• Mirror above
• Jabsco Jet Flush toilet
• Stall shower with mounted or handheld fixture, a light, a shelf , and stainless Steel porthole

• Ritchie 5" compass
• Start/stop panels for each generator
• Hart Systems tank tender for (5) tanks (fuel & water)
• Simrad Touch Screen Color Plotter NSS EV03
• Globalstar sat phone
• 15" HP LCD monitor
• HP 6210 all in one printer/fax/scanner
• HP Pavillion computer tower w/slide out keyboard
• Heart Interface Freedom inverter control panel
• (2) 5 Position digital battery monitors
• (5) Weema analog fuel & water gauges
• Sea Recovery water maker control panel
• Simrad IS 15 remote for data/depth
• Furuno RD 30 GPS display
• MTU tachometers
• Icom M602 VHF
• Icom M802 SSB
• KVH Tracphone handset
• Panasonic house phone
• Furuno weather fax
• Xaxero weather via Pactor II/III via SSB radio & Pactor II USB modem
• Sailmail via Icom M802 SSB & Pactor II USB modem
• Worldphone Mini M voice/fax/data on the PBX
• (2) New Pentum 4 computers for captain & Bridge/navigation
• Telular SX5e for cellular voice on the PBX
• New Panasonic PBX system

Equipment in the Helm Area includes:

• 15” VEI color monitor for the ship’s computer
• (2) Flow Scan meters
• Furuno RD 30 GPS
• Simrad Touch Screen Color Plotter
• Simrad IS 15 electric digital & analog compass
• Simrad IS 15 electric digital depth
• Simrad IS 15 electric digital & analog wind meter
• Simrad AP25 autopilot
• ZF Electronic clutch & throttle controls
• Icom M602 VHF
• Full VDO MTU analog gauges for each engine
• Digital pyrometers for each bank of each engine
• Audio/visual alarms for each engine
• ITT Jabsco searchlight controls
• Bow thruster controls
• Fuel & water tank level gauges
• Naiad stabilizer controls
• Maxwell windlass controls
• (3) Windshield wipers/washers
• Horn button
• Hynautic trim tab controls
• 7 Position bilge pump switches w/indicator lights
• Digital Marine Air AC controls
• 12 Volt outlet
• Everplex camera switching device
• 6 Chart drawer (full size)
• Cordless Panasonic telephone
• VDO rudder angle indicator
• Also in this area are sconce lights aft
• (15) Overhead mini halogen lights
• Small opening skylight hatch
• Full exterior Sunbrella windshield shades
• Opening side windows
• (3) fixed aft facing windows
• Huge under helm storage area
• Wifi enhanced antenna
• Textulene window covers & Sunbrella storage covers for Skylounge wrap around windows
