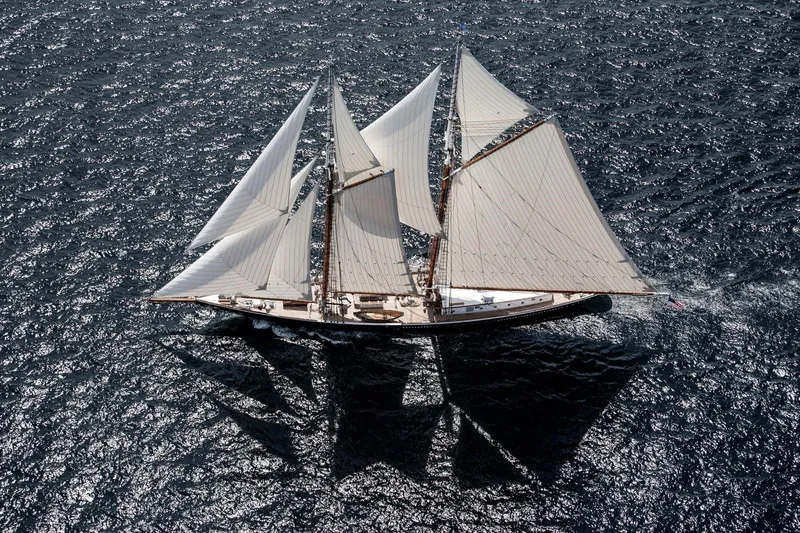

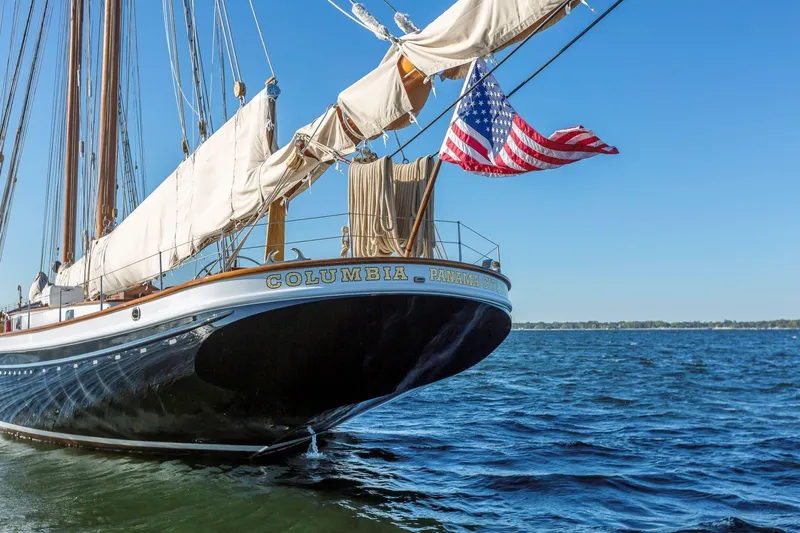

COLUMBIA Yacht for Sale

The vessels hull, superstructure and underwater gear are designed and constructed in accordance with the Lloyds Registry Rules for Building and Classing Steel Vessels

HULL CHARACTERISTICS & SUPERSTRUCTURE DETAILS:

• Hull & Superstructure Construction ..............................Steel, ABS Grade A-36
• Main Deck Plate ...........................................................1/4”
• Side Shell Plate ............................................................5/16”
• Bottom Plate.................................................................5/16”
• Watertight Bulkheads ...................................................1/4”
• Hull Non-Watertight Bulkheads ....................................1/4”
• Bulwark Plate ..............................................................1/4”

MACHINERY & DELIVERY SYSTEM DETAILS:

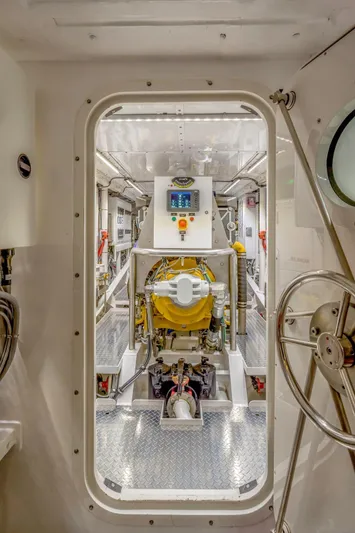

• Main Engine ......................One (1) Caterpillar C-18 587 HP @ 1,800 RPM, Tier 1
• Main Reduction Gear ........One (1) Hundested CPG32 CP Reduction Gear, 3.07:1 Reduction
• Tail Shaft ...........................One (1) Hundested CP 120mm Tail Shaft
• Propeller............................One (1) Hundested CP (4) Blade Full Feathering Propeller 1200mm Dia. Material Ni-Al-Bz
• Tail Shaft Bearings............Cutless Strut & Stern Tube Bearings
• Tail Shaft Gland ................One (1) Simplan Dripless Seal
• Bow Tunnel Thruster.........One (1) Key Power KP-16, 70HP @ 1,500 RPM
• Electro-Hydraulic PTO Driven off of Main Engine
• Main Rudder......................One (1) Eastern Shipbuilding Group, Foil Type
• Rudder Bearings ...............Thordon SXL Bearings
• Steering System................One (1) Pine Hill Equipment Electra-Hydraulic
• Steering System w/ 2x10HP HPU’s.
• Steering Rams ..................Two (2) Pine Hull Equipment Hydraulic Cylinders
• Steering Controls ..............One (1) Electro/Hydraulic w/Manual Backup
• Propulsion Control.............One (1) Hundested Electronic
• Bow Thruster Control ........One (1) Key Power Electronic
• Generator Engines ............Two (2) TAW Power Systems – Northern Lights 65kW Gensets@ 1,800 RPM
• Generator Rating...............Two (2) 65kW each Continuous Rating 120/208 VAC 3 Phase, 60Hz @ 1,800 RPM Marine Generators
• Shore Power Converter...…...One (1) Asea 35kW (2019)
• Electrical Installation..........Eastern Shipbuilding Group
• Main Switchboard..............One (1) TAW Power Systems - Parallel Operation
• Switchboard, 208VAC, 65kW 60Hz, 3 Phase
• Distribution Panels ............Ward Electronic- 208/120VAC 60Hz, 3 Phase Primary Distribution Panels
• Engine Cooling..................Heat Exchanged, Raw-water Cooled
• Fire Pump..........................Two (2) MP Pump, Inc. 5 HP #36085
• Freshwater Pump..............Two (2) Mach 5, #3380SWTH
• Hot Water Heaters.............Ten (10) On-demand Electric Hot Water Heaters
• Hubbell, MTX018-3R
• Bilge Pumps ......................One (1) MP Pump, Inc. 5 HP #36085
• Transfer Fuel Pump...........One (1) Oberdorsen, 1.5 HP T63261
• Fuel Filter/Separators........Three (3) Racor Duplex Filter – Diesel Engines
• Fueling Stations ................One (1) Vessel Fueling Station
• Sewage Treatment............One (1) Domestic Sanitation 42 Gallon MSD Unit
• Sewage Pump...................One (1) Domestic Sanitation 24V
• Toilets................................Seven (7) Domestic Sanitation – Touchpad Controls

•

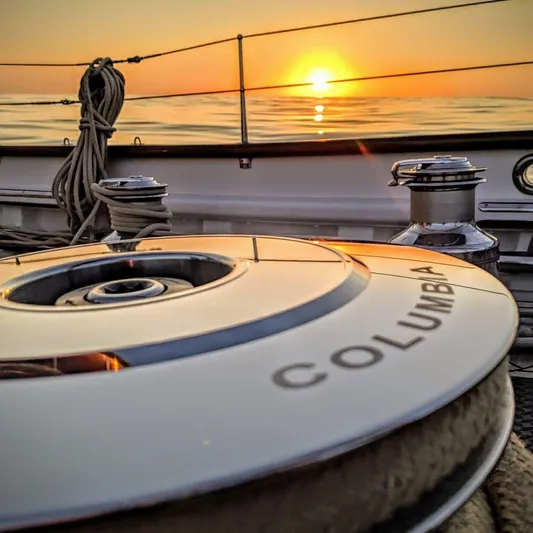

  Bow Capstan / Anchor Winch....................One (1) Electro/Hydraulic - Ridderinkhof #R-AMW-H 20.5

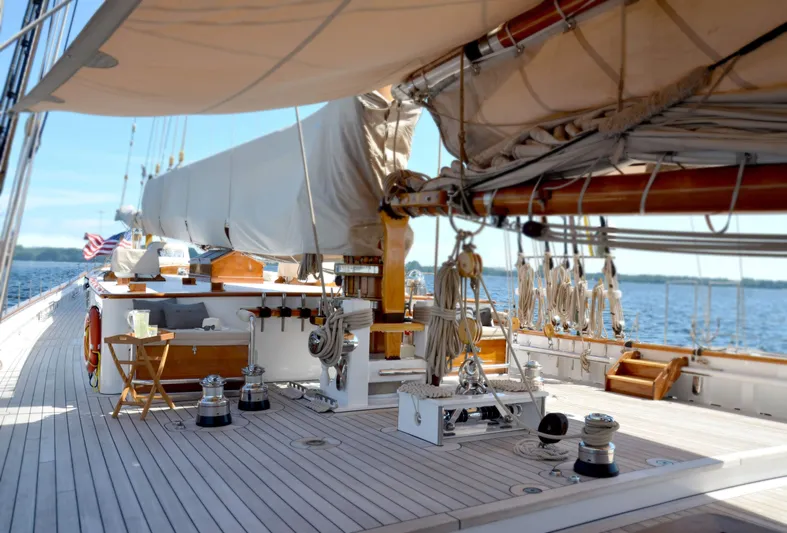

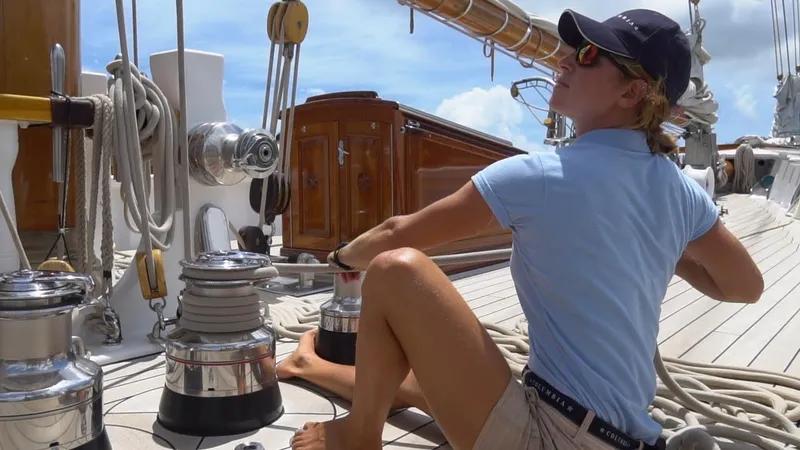

• Sail Winches .....................Ten (10) Hydraulic (4-Fwd, 4 Mid-ship, 2-Aft) –Harken #74
• Sail Winch .........................One (1) Hydraulic (Aft) –Harken #980
• Sail Winch .........................One (1) Hydraulic (Main Sheet) –Harken Custom 3-Speed
• Sail Winches ..................... Eight (8) Manual - Harken
• Manholes...........................Pacific Coast Marine
• Watertight Doors ...............Pacific Coast
• MarinePortlights ...........................Pacific Coast Marine
• Deck Hatches....................Pacific Coast Marine
• Deck Prisms ......................Marine Skylights
• Supply Ventilation .............One (1) Delta-T Fan
• Exhaust Ventilation............Exhaust Ventilation............One (1) Delta-T Fan
• HVAC & Ductwork.............One (1) LeBlanc & Associates, Cruisair 20T Unit
• RIB ..................…………...Williams Jet Tender
• Sailing Dory.......................Two (2) 13’ with sail

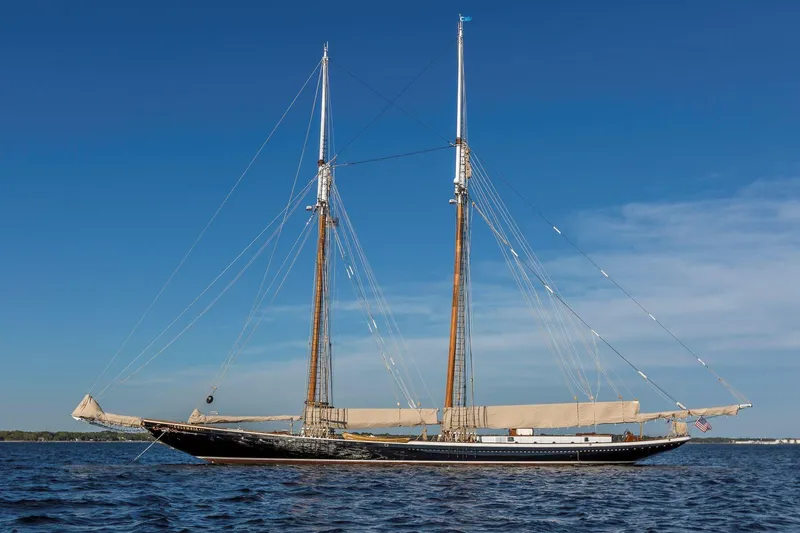

• Main Mast .........................One (1) 17” x 124’-10”, Covey Island Boatworks, Douglas Fir Laminated Lower. Sitka Spruce Laminated Top Mast
• Foremast ..........................One (1) 17” x 115’-7”, Covey Island Boatworks, Douglas Fir Laminated Lower. Sitka Spruce Laminated Top Mast
• Spars.................................Covey Island Boatworks, Sitka Spruce Laminated
• Standing Rigging...............Covey Island Boatworks, Traditional Gaff-Rigging 6x19 &
• 6x36 Parceled & Served, Lignum Vitea Deadeyes
• Running Rigging................Covey Island Boatworks, Traditional New England
• Rope’s Vintage “Sta-Set” Double Braided Lines
• Blocks................................Covey Island Boatworks, A.Dauphinee & Sons
• Sails ..................................Michelle Stevens Sailloft LTD. Oceanus Ship’s Cloth (10,400 sft.)

• Total Fuel Oil................................................................ 6,000 USG
• Fixed Ballast ................................................................Lead (47 Tons)
• Potable Water .............................................................. 2,000 USG
• Gray Water #1..............................................................200 USG
• Gray Water #2..............................................................150 USG
• Dirty Oil ........................................................................ 650 USG
• Sewage Holding ...........................................................150 USG

• Radar #1 ...........................B&G Broadband 36 nm, 4G Radar, 24” Radome
• Radar #2 ...........................B&G Broadband 36 nm, 4G Radar, 24” Radome
  AIS System .......................Simrad NAIS-400, Class-B AIS w/GPS Antenna
  6
• Chart Plotter ......................Four (4) B&G ZEUS 12” Color Displays w/Sail Software
• GPS...................................Three (3) B&G ZG50 GPS
• Navigation Displays...........Three (3) B&G 20/20HV Displays
• Graphical Function
  Display ..............................B&G Hercules Base Back- GFD H3000/CPU HYDRA
• Echo Sounder ...................Simrad GFD H3000Interface, Flanged Transducer
• Speed Log.........................Simrad, GFD H3000 Interface, Flanged Speed Sensor
• Speed Display ...................B&G H3000 AWA 360 Display w/SimNet Interface
• Autopilot ............................Simrad AP20, WR20 Remote Commander w/ SimNet Wireless Interface
• GPS Compass ..................Simrad HS70 w/SimNet Wireless Interface
• Course Computer..............Simrad AC12, w/SimNet Wireless Interface
• Rudder Feedback..............Simrad RF300
• Wind Sensor......................B&G Vertical Masthead Pack-1050mm
• VHF Radios.......................Two (2) ICOM Radio/Hailer, 25W 12VDC w/NEWMAR Hailer Deck Horn
• VHF Handheld...................Two (2) ICOM IC-M604A
• Weather Station ................One (1) Simrad Weather Module
• Security Camera System...Two (2) Orlaco Compact Color HR Cameras with LED Lights
• Underwater Lighting ..........LUMISHORE Color Change Lighting
• Navigation Lights...............COLREGS/USCG Approved LOPO 3nm LED
• Ships Bell ..........................One (1)
• Ships Clock .......................One (1) Chelsea
• Ships Barometer ...............One (1)
• Ships Whistle ....................One (1) Federal Single # 41X 24VDC

• LIFESAVING EQUIPMENT DETAILS:
• EPIRB ...............................One (1) A5 406 Mhz Unit
• SART.................................Two (2) S4 9GHz X-Band Search and Rescue Transponders
• Life Rafts ...........................Four (4) USCG Approved 15 Man Throw-overboard, Inflatable Rafts
• Life Jackets .......................Thirty (30) USCG Approved Adult Life Jackets
• Ring Buoys........................Two (2) 30” Ring Buoys w/Lights & Lines
• Fire Stations ......................Two (2) Main Deck
• First Aid Kit........................One (1)
• Flares ................................Ten (10) Rocket Parachute Flares

• Engine Alarm System........Local Monitoring, by Caterpillar & TAW Power Systems
• Fire/Smoke Detection........One (1) USCG Approved, Smoke & Heat Detection
• General Alarm System ......One (1) w/two (2) Contact Makers
• Fire Extinguishers..............Two (2) Co2 - Machinery Space
• Four (4) Dry-Chemical - Accommodation Spaces
• Fire Axe.............................One (1)

• Joiner Fabrication..............Eastern Shipbuilding Group, Inc.
• Overhead Sheathing .........Traditional V-Bead Wood - Painted
• Bulkhead Sheathing ..........Traditional V-Bead Wood - Painted

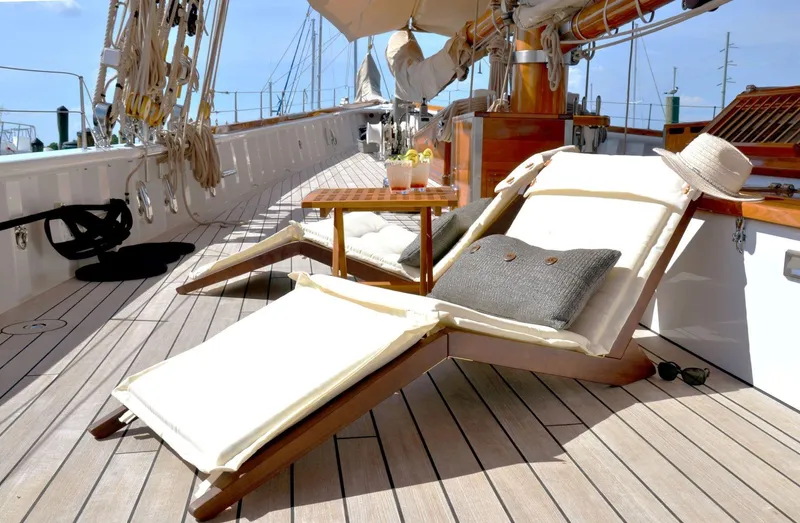

• Exterior Deck Soles .....Teak Deck Systems - Teak Wood w/Holly Strips
• Cabin Deck Soles.......Teak Deck Systems - Teak Wood w/Holly Strips
• Furnishings........................Mahogany Custom Cabinetry - Wood Hand Crafted, Bunks, Lockers, Desks, Leather Settee and Tables
• Thermal Insulation..............4” Rock Wool
• Noise/Sound Insulation .....Soundown
• Exhaust Insulation.............2” Insulated Blankets

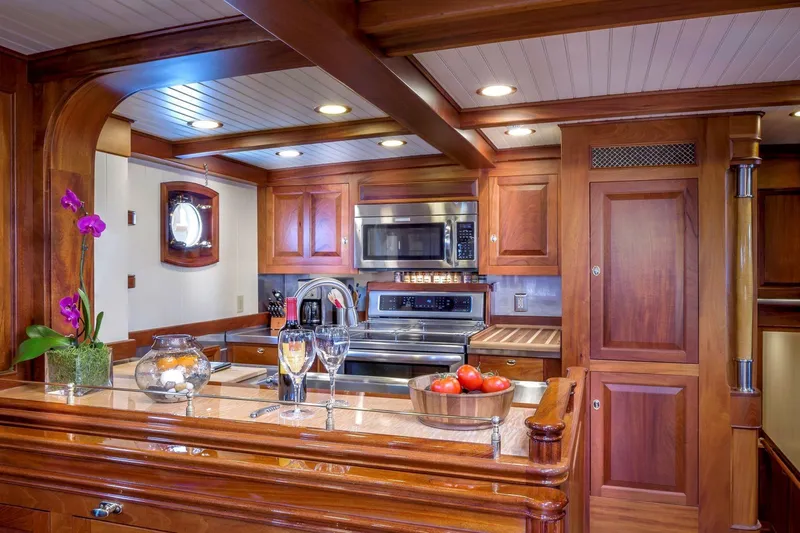

• Refrigerator .......................Kitchen Aid, 28 Cubic Foot – Stainless Steel #KSC24C8EYP02
• Freezer..............................Cospolich Refrigerator, Co. Built-in Unit
• Range................................Kitchen Aid, Electric Four Burner #W10524726A
• Range Microwave Hood....Kitchen Aid, #W10249655A
• Ice Maker ..........................Kitchen Aid, #KUIC15PLXS3
• Trash Compactor ..............Eletrolux, #E15TC75HPS
• Dishwasher .......................Kitchen Aid. #KUDE70FXSS5
• Washer/Dryer ....................Two (2) LG, 24” All-in-one, Combo-units, #WM3455HS
• Galley/Mess Countertops..Stainless Steel
• Mess Area Tabletop ..........Tiger Maple & Mahogany Wood

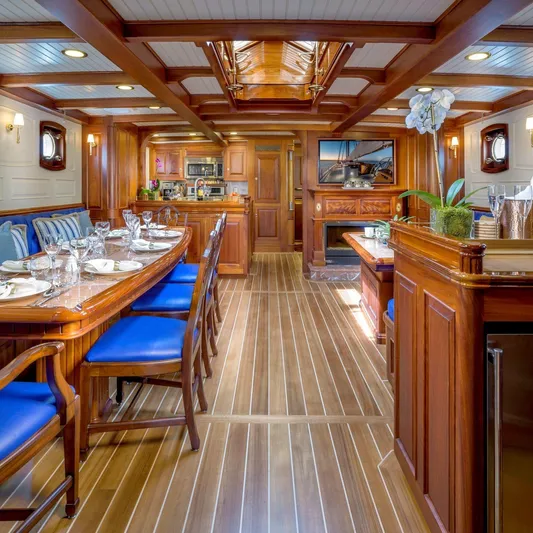

• Main Saloon Tabletop .......Tiger Maple & Mahogany Wood – Retractable
• Wet Bar .............................Tiger Maple & Mahogany Wood w/Sink
• One (1) Maxx Ice Refrigerator #MCR3U
• One (1) Maxx Ice Icemaker #MIM5C-0
• One (1) Maxx Ice Wine Cooler #MCWC28-0
• Main Saloon Fireplace .....One (1) Electric Dimplex #DWF36PG
• Galley Sink ........................Single, Stainless Steel Sink

• VSAT.................................KVH V3 w/M5 Dome, Mini-VSAT Phone/HDTV/Internet System
• Marine TV Antenna ...........Shakespeare SeaWatch Marine Antenna, 14” Diameter
• Television..........................One (1) Samsung 46” Smart HD TV
• Television/DVD Players.....Six (6) RCA 22” HDTV/DVD Combo-units
• Radio/CD System..............Crestron/Boston Acoustic & JBL

• All Plate & Shapes..................Wheelabrated with Carboline 8703: Pre-construction Primer
• Exterior Coating below WL..... ALEXSEAL- Primer 161
• ALEXSEAL- Fairing Compound 202
• ALEXSEAL- Super Build 302
• ALEXSEAL- Finish 442
• Exterior Coating above WL .... ALEXSEAL- Primer 161
• ALEXSEAL- Fairing Compound 202
• ALEXSEAL- Super Build 302
• ALEXSEAL- Finish 442
• Potable Water Tank Coating .. International Paint- Interline 925
• Void Tank Coating.................. International Paint- Intershield 300V
• Interior Superstructure ........... International Paint- Intershield 300V
• International Paint- Interthane 990
• Machinery & Storage Spaces. International Paint- Intershield 300V
• Fuel, Lube Oil & Dirty Oil
• Tank Coating.......................... None

• Impressed Current System..... Cathelco, Miniteck ICCP System
