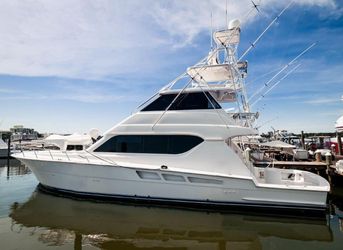

Danielle Yacht for Sale

Beam: 22' 6''
Hull Material: Fiberglass
Max Draft: 6' 3''
Fuel Tank: 1 x 5125|gallon
Fresh Water: 1 x 840|gallon
Max Passengers: 10
Cabins: 7
Heads: 5

General

Length Overall (L.O.A.): 100.00 feet (30.48 meters)

Beam (molded): 22.00 feet ( 6.71 meters)

Draft (loaded): 6.50 feet ( 1.98 meters)

Tonnage: 184 GT

Weight: 270,000 lbs.

Capacities

Fuel Capacity: 5,125US Gallons (19,400 liters)

Fresh Water: 840 US Gallons ( 3,179 liters)

Black Water: 440 US Gallons ( 1,666 liters)

Lube Oil: 110 US Gallons (416 liters)

Waste Oil: 110 US Gallons (416 liters)

Speed, Consumption, Range & RPMs

Maximum: 22.0 knots

Cruising: 20.0 knots

Watermakers:
500 gpd watermaker with new membranes
New SEA-RO 1500 Gal per day

Stabilizers:
Naiad 302’s with 16' square fins: 34” x 62”
Nadiad Yacht Controller

Spot Zero system:
New ZTC 11

Bow Thruster:
American, hydraulic with Simrad bow thruster interface
Nadia 65 HP with 5 blade propellers

Steering System:
Hynautic / Sea Star hydraulic steering

Fuel Separator & Filtration:
Racor

Water Heaters:
(2)

Waste Treatment System:
Headhunter waste treatment system,
200 GPD “Tidal Wave”

Sewage System:
Headhunter Tidal Wave

Fresh Water System:
(2) Grundfos SCALA2 pumps

Fan System:
Delta T air purification system with reversible fan system

Other:
Electro SEA Chiller cleaner
Air compressor
PTO’s off both main engines
Fuel Transfer System
Tank Sentry System

Electrical Equipment

Air Conditioning:
120/240-volt 60Hz
Switch board – crew area
(2) Glendenning 100-amp single phase retractable

A/C Chillers:
(3) Cruisaire Dometic A/C chillers- 72,000 BTU - 6 tons each

Receptacles:
(2) 100-amp shore power cords, forward recepticals
Batteries: 8D Batteries for main engines and generators

Battery System:
12 Volt with 24 V-Battery charges shore cords, aft with 2 new 70’ cords

Battery Charges:
(2) New Dolphin Pro 2480 Battery Chargers
(2) Jefferson Shore Power Transformers

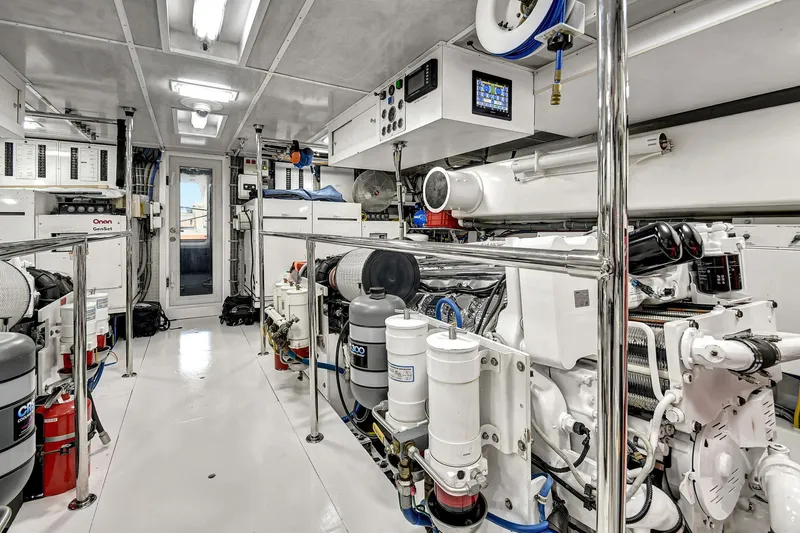

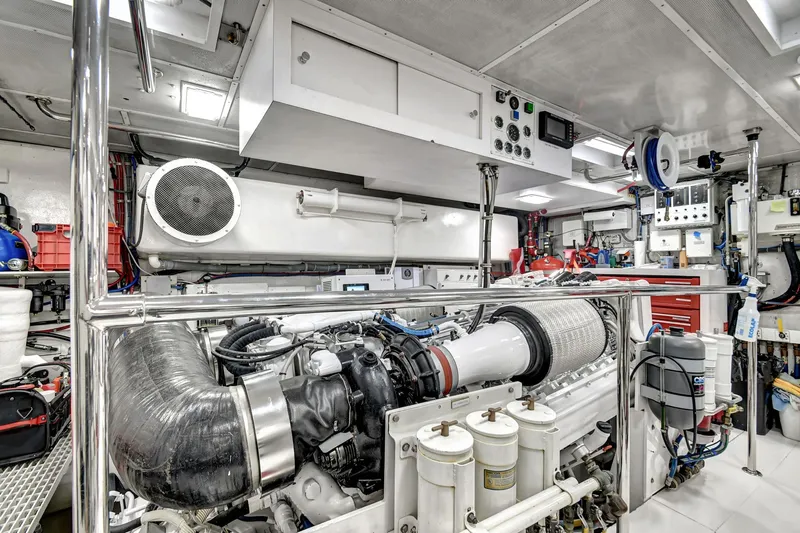

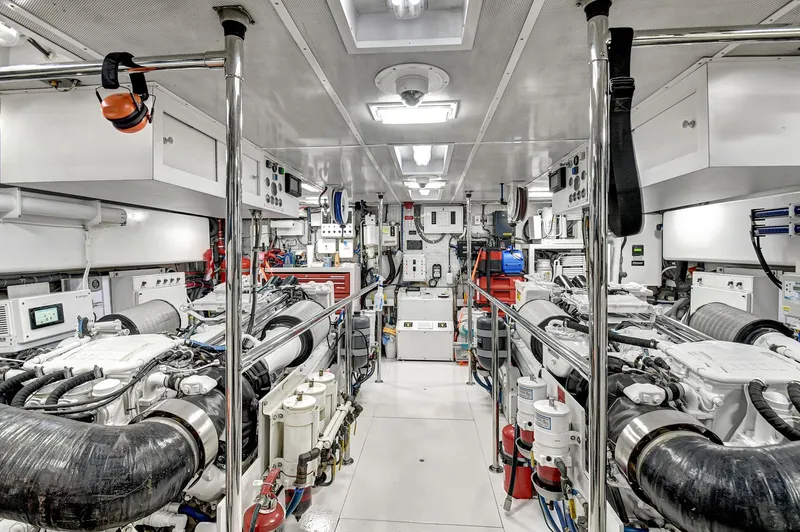

Engine and Mechanical Equipment

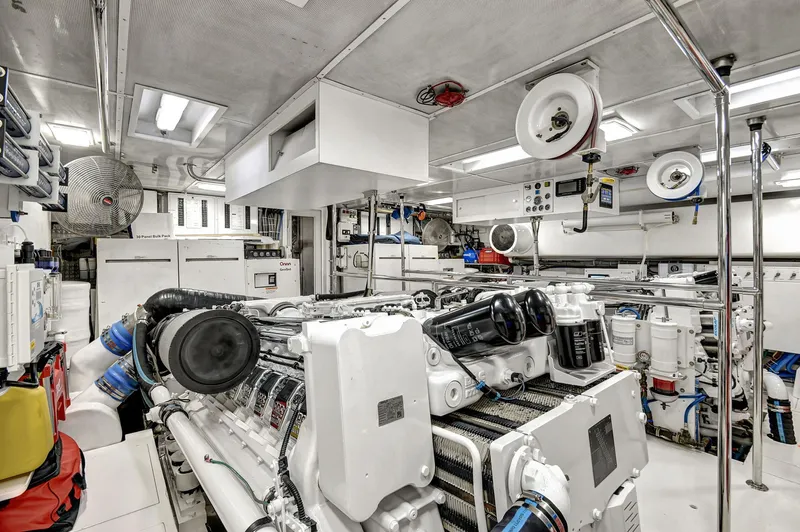

Engines:
(2) MTU M91 @ 1,800 Hp each
Port Engine Serial #: 536 200 2713
Stbd. Engine Serial #:536 200 2715
Engine Hours: 387 Hrs. SMO in 2023 (7,037 Total engine Hrs.)
Engine Room Light: LED lighting
Engine Room Paint: Recently

Engine Performance:

Economical Consumption:
RPM: 1,200
Load: 25 %
Fuel Burn per Engine: 11.5
Speed: 12

Cruising Consumption:
RPM: 1,800
Load: 62 %
Fuel Burn per Engine: 48
Speed: 16.1

Maximum Consumption:
RPM: 2,300
Load: 100 %
Fuel Burn per Engine: 98
Speed: 22

Communication Systems
Starlink
KVH TracVision HD 7
PepWave 4G

Navigation Systems

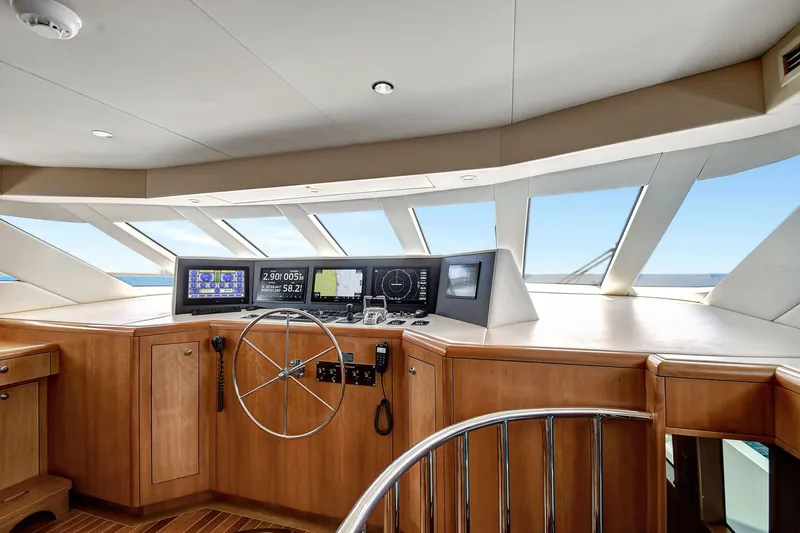

Pilothouse:
Radar: (3) 17” Garmin 8,616 Radars/Plotters with speed and depth
Magnetic Compass: Ritchie 5”
Auto Pilot: SIMRAD AP70
GPS: Garmin 12” GPS, wind, speed
Systems Monitors: Hatteras systems monitors
CTV Cameras: (10) CCTV Cameras
Stabilizers: Naiad controllers

Other:
FLIR Night Vision
(3) Kahlenberg Airhorns
Fushion MS-UD650 Stereo
Fuel transfer switches
Windlass controls
New headliner and upholstery
AIS transducer Furuno – FA 150
(2) Icom VHF's, Helm
HM 195 GB
ICOM 604
(3) ACR Controls
MTU Emergency Controls on dash

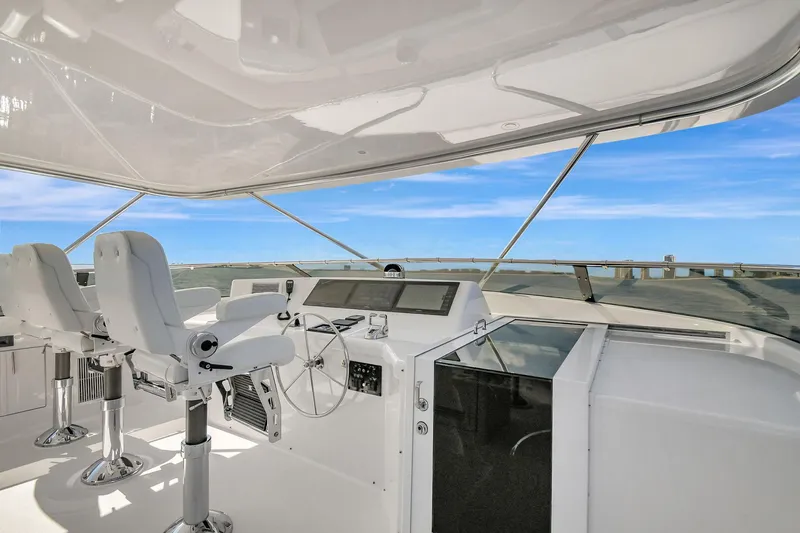

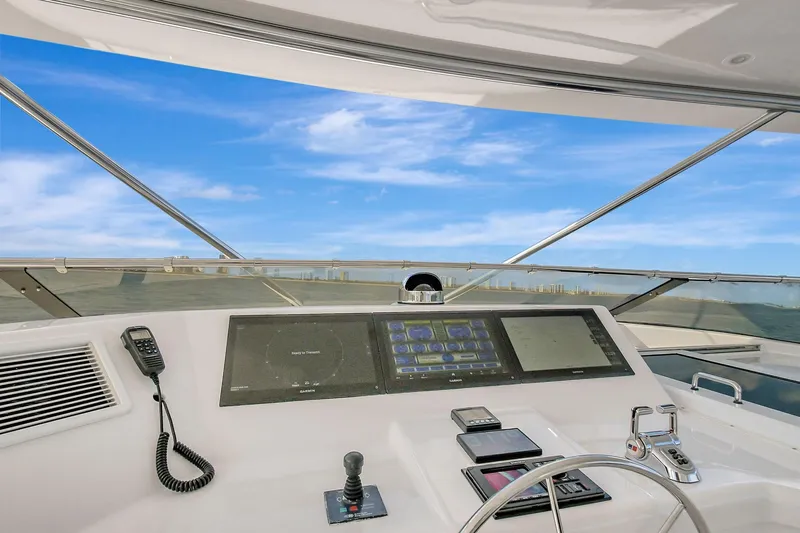

Flybridge Helm

Radar Plotters: (3) 19” Garmin 9,219 Radar, Plotters, Depth and Speed
Compass: 5” Richie Compass
Simrad: Simrad AP 70 MK2
VHF: ICOM MH 195 GB VHF

Other:
(2) Wing Controls
(3) Captain Chairs
Apple T.V. and music streaming through Starlink
Apple Ipad Controllers
Drop down 30” T.V. in ceiling
A/C on Flybridge

Entertainment Systems
Video Equipment: HD T.V.’s with Apple T.V. in all rooms throughout

Audio Equipment
Sonos music system throughout
New speaker system throughout

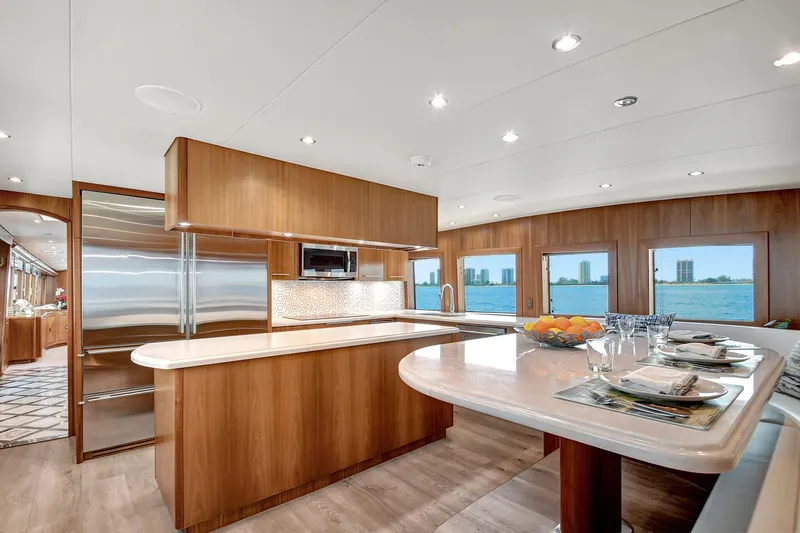

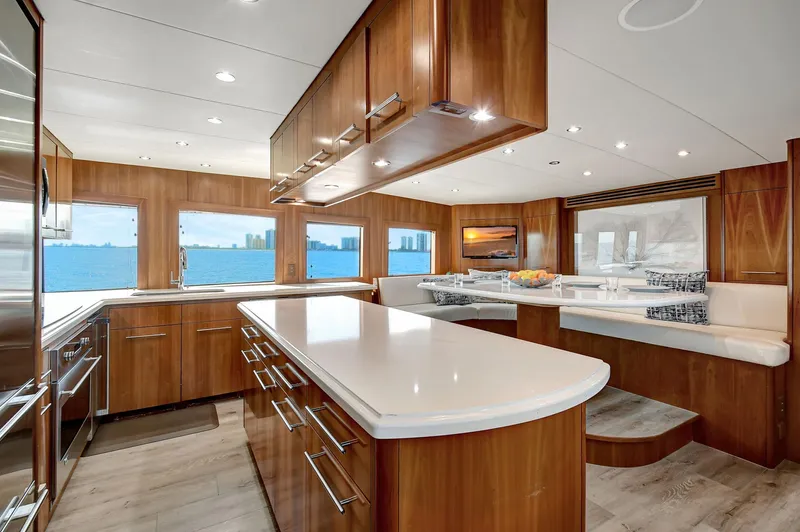

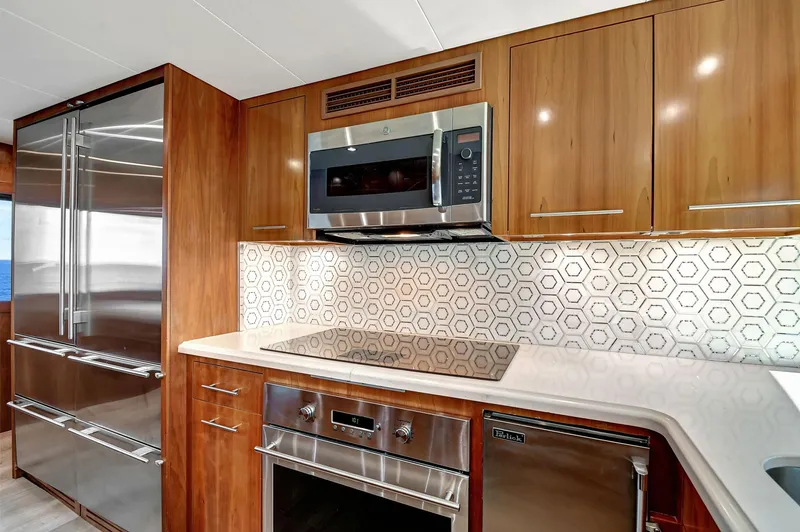

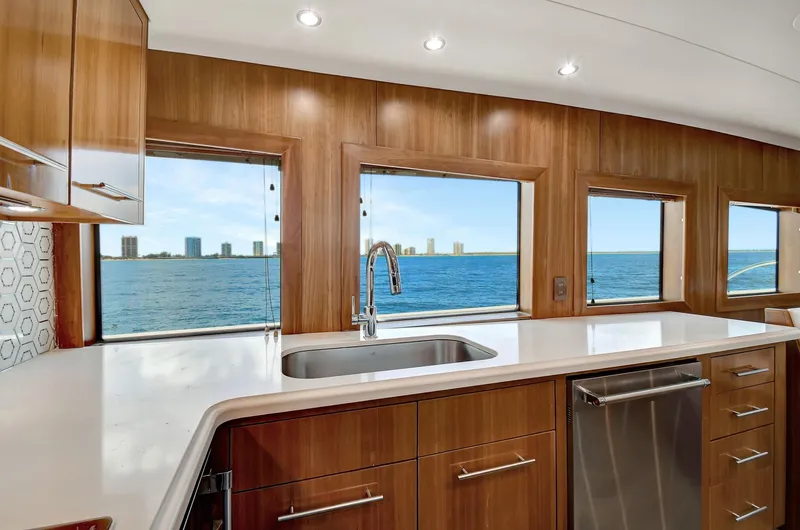

Main Galley Equipment:
Cooking Equipment: GE Monogram 5 burner cooktops
GE Monogram 30” x 20” convection oven
Refrigerator/Freezer: (2) Sub Zero 700 TR and 700 TF – Both with 2 freezers
Dishwasher: KitchenAid
Icemaker: Perlick
Sink: Oversized 27”

Other:
Garbage disposal
New Vinyl flooring
32” x 87” Center Island with 4 drawers & 4 cabinets below and 4-above center island cabinets
(4) Large windows, starboard and port
New headliners with LED lights

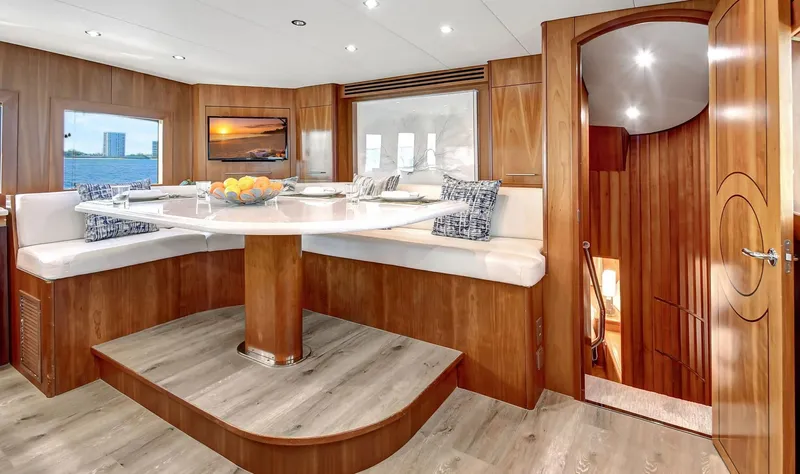

110” Large L-shaped dinette with 73” x 45” table

Crew Galley/Mess Equipment:
Bench for 4 - converts to a bed to make a 3rd crew with cabin32” T.V.
Refrigerator
GE Microwave
Sink
Master Chef Freezer 33” x 25” x 21”

Laundry Equipment:
New Miele washer and dryer - Main laundry equipment located on the lower guest companion way
New Bosch washer and dryer located in the crew hallway

(2) Jetskiis (Not included in the sale)

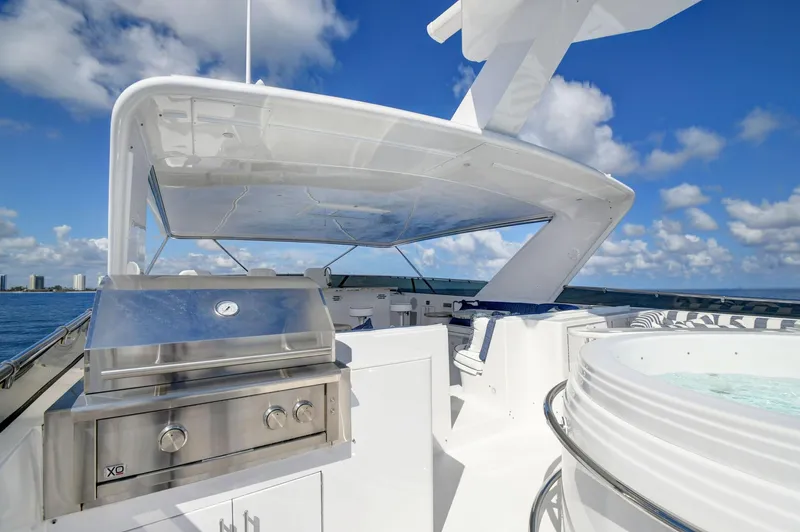

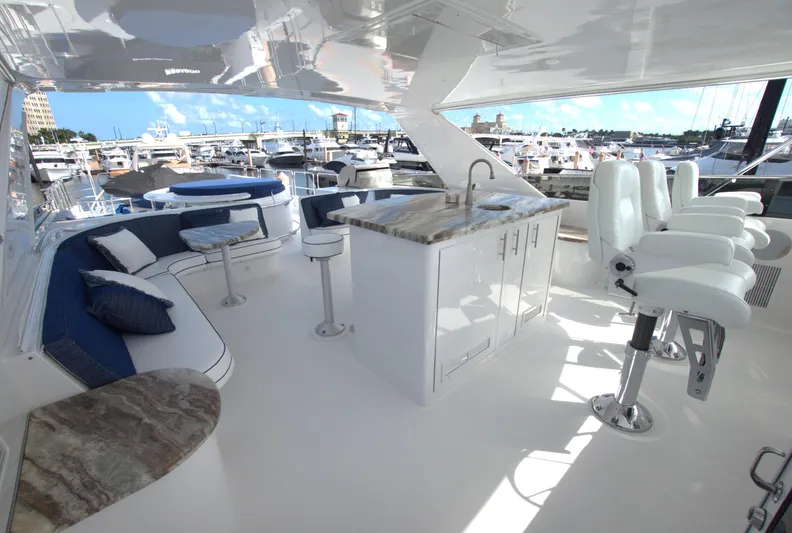

Flybridge

Pipe welders custom hardtop with lights and drop-down 40” T.V.
(2) A/C units
Fiberglass nonskid decks
(3) Stidd 500 series adjustable helm chairs
Full helm and wing stations
Euro-style plexi windscreen

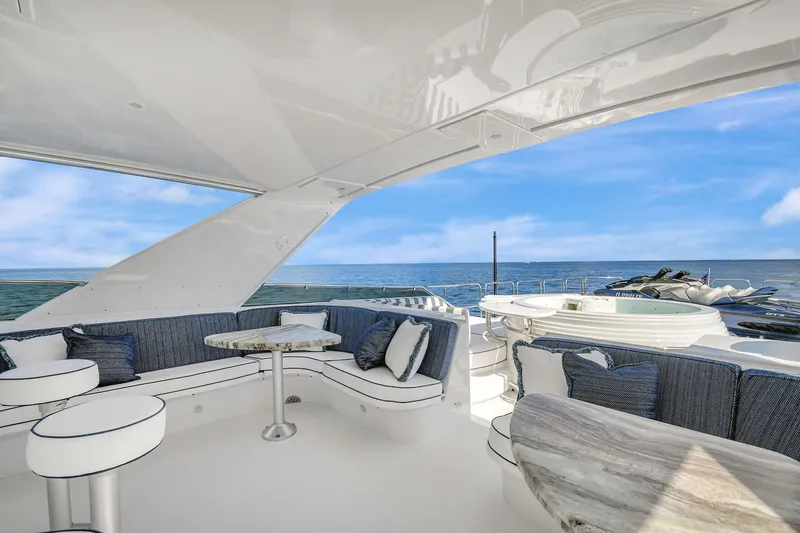

(2) L-shaped lounges with custom cushions, port and starboard
(2) Triangular 30” granite top tables on stainless pedestal, port & starboard
Perlik refrigerator and storage cabinets

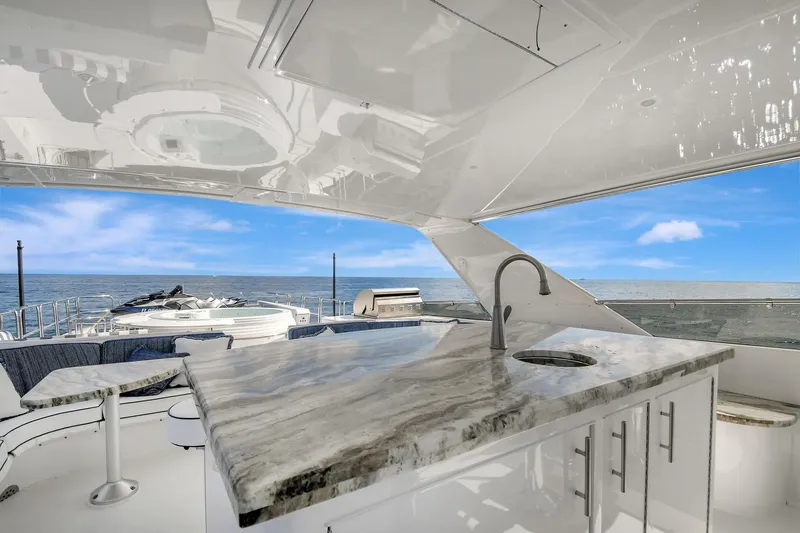

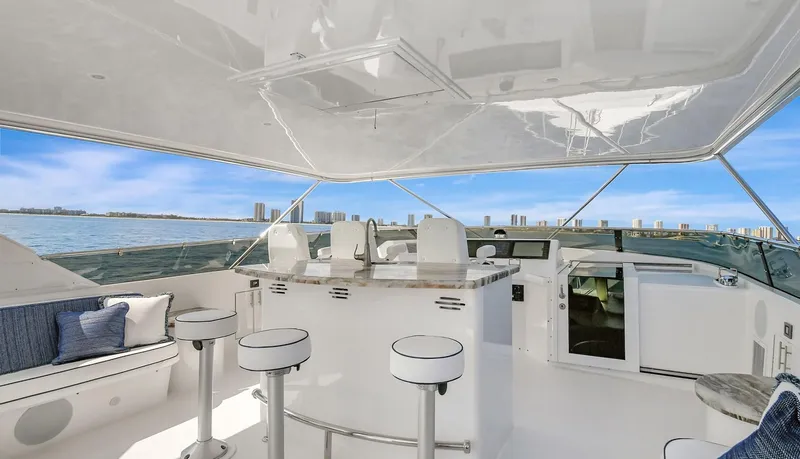

Centerline island bar with a 66” x 44” granite countertop, sink, Scotsman clear icemaker
Custom overhead lighting
(3) Timeless stainless steel bar stools with footrests
Hot tub Jacuzzi with new padded canvas cover
Large sunpads with new padded canvas cushions
Installed custom sunshade with carbon fiber supports
Stainless steel safety and handrails around deck
Forward and lower stairs to lower deck
BBQ Grill

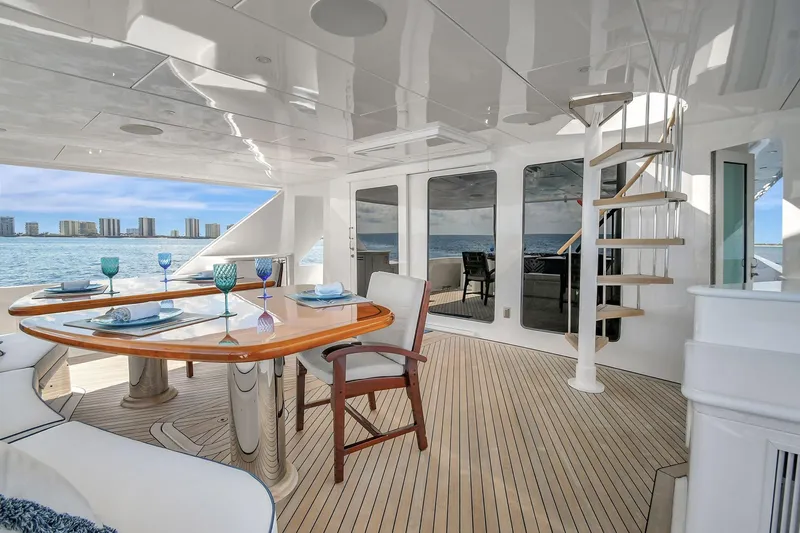

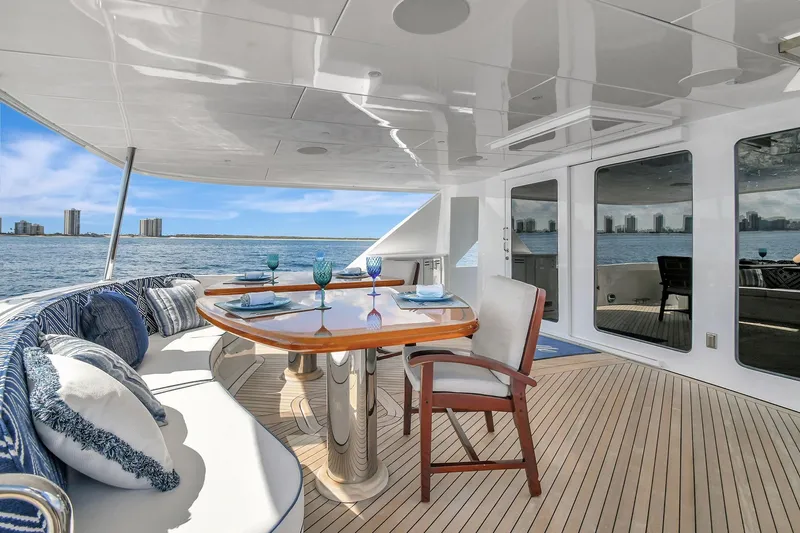

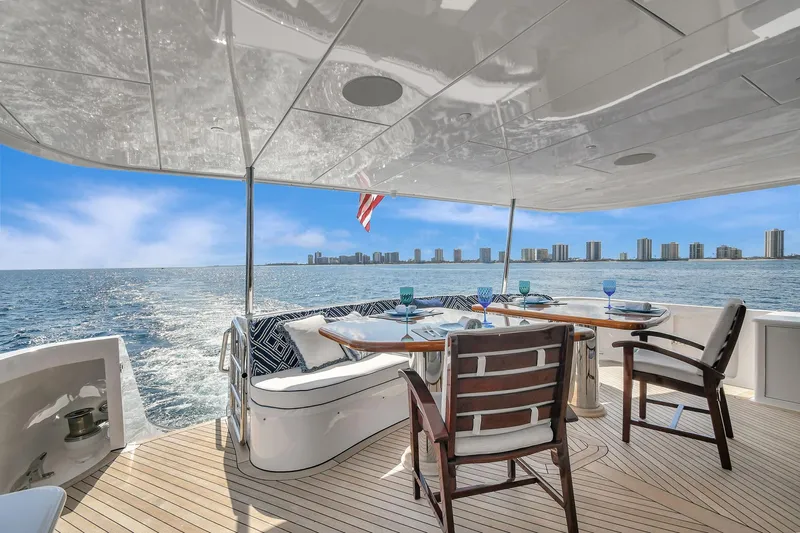

Aft Deck Equipment

Built-in seating bench for four with storage and new upholstered cushions
(2) Teak chairs with Sunbrella cushions
Pacific Coast sliding door to salon and
(3) floor-to-ceiling windows
(4) Side boarding gates: Port, starboard aft deck, and midship
Teak decks
Stainless ladder to flybridge
2-split aft deck tables (Mahagony) with 4-person bench
Cockpit teak flooring (Hearingbone Design) with
(2) custom varnished chairs with cushions
Swim platform in fiberglass with non-skid, and stainless safety guard rails
Aft deck teak stairs to teak landing platform and swimming platform
Custom build-in storage cabinets – port and starboard
HO Glass front refrigerator
Custom Aft deck air conditioning
Wing doors that lead to walkaround side decks
Drop down T.V. Box from ceiling with 40” T.V.

Other Equipment

Nautical structures low profile 2,500 lbs. davit

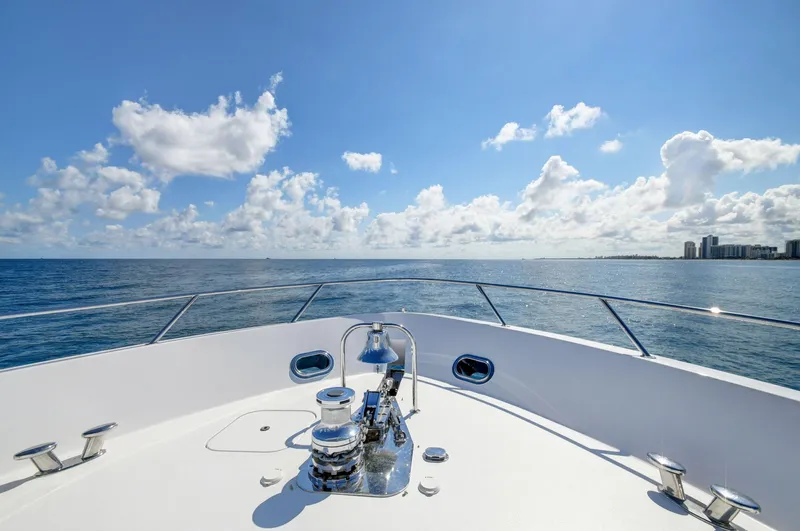

Maxwell 6,000 windlass, fore deck with 300’ of chain (G4)
(2) Maxwell 3,500 capstans, aft deck
(2) Revere Elite 6-man life rafts
(11) Underwater LED lights
Marquipt sea stairs
Anchor washdown system
Window tinting and caulking of all windows

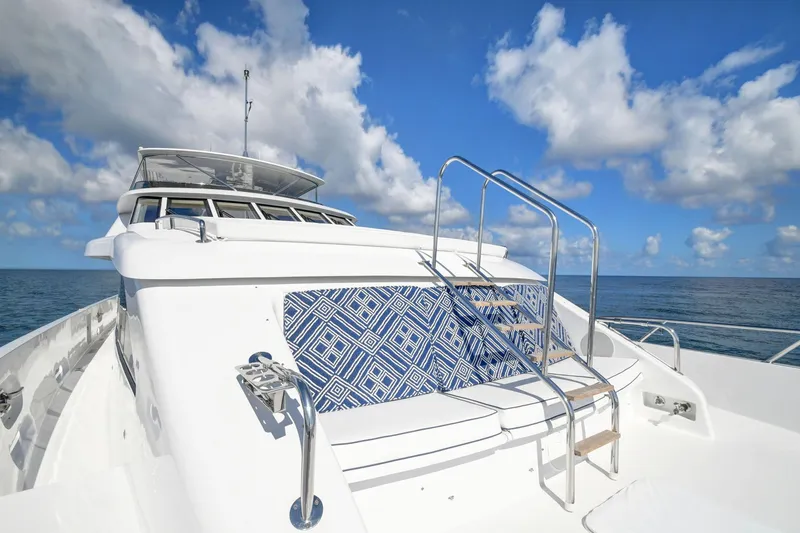

Forward bow seating, sun pad, railing, stairs and covers
8-step carbon fiber tide ride with teak steps

Security Equipment

10 CCTV Cameras
FLIR Night Vision
(3) Kahlenberg Airhorns
Garmin + LTS

Fire Fighting Equipment

Fire Control System: Sea-Fire FM 200
Fire Extinguishers: (12) Fire extinguishers
Alarms: Hatteras Ships System

Safety Equipment

Life Rafts: (2)
Life Rings: (1)
EPIRBS: (1)
Flares: Yes
Medical Equipment: First Aid Set

General

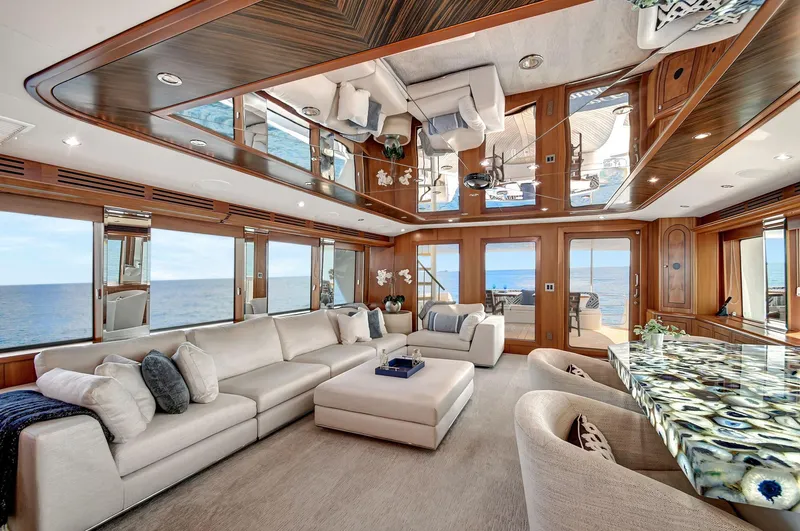

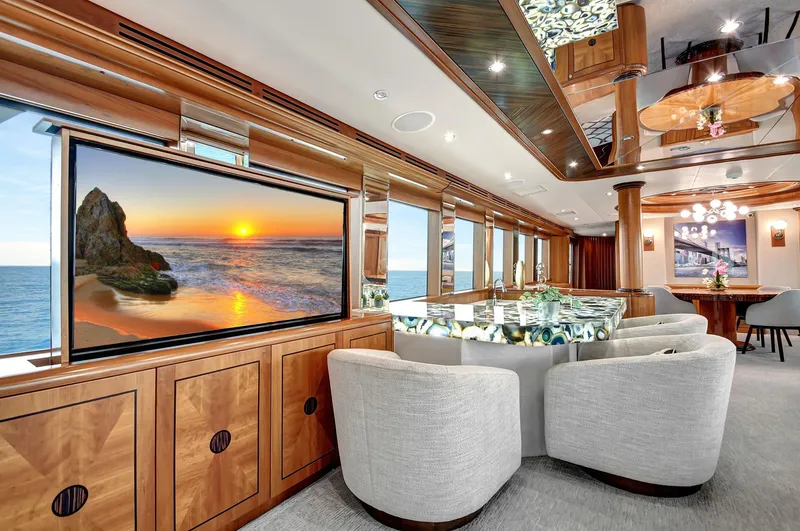

Main Salon

Cherry wood joinery with satin finish throughout
Cherry wood radius cabinetry & doors with inlays
Custom 4-seat sofa with L-shaped armchair
(1) End tables between sofa and chair
New custom carpeting throughout
55” LG Pop-up T.V. aft of bar with Apple T.V. through Starlink

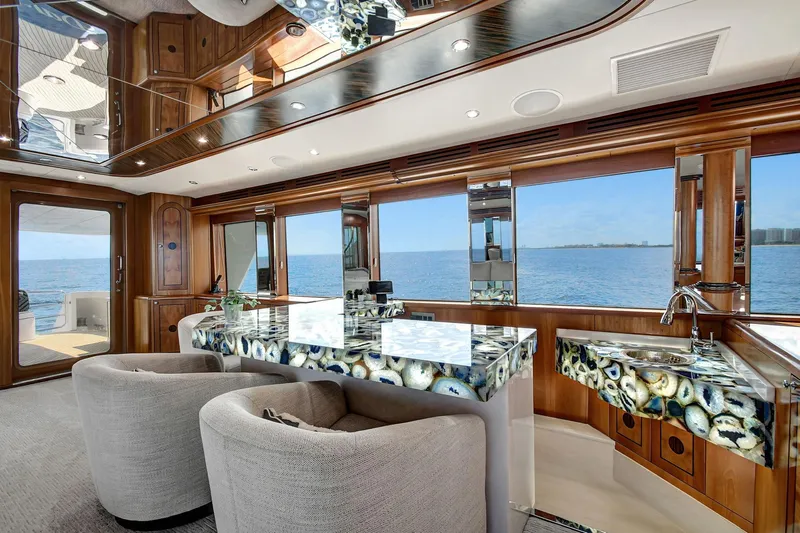

Bar with lit onyx/marble countertops and onyx sink
(3) Custom upholstered barrel chairs at the bar
(4) Dining chairs
New York artwork on forward bulkhead
Buffet cabinets with cherry wood top and storage below

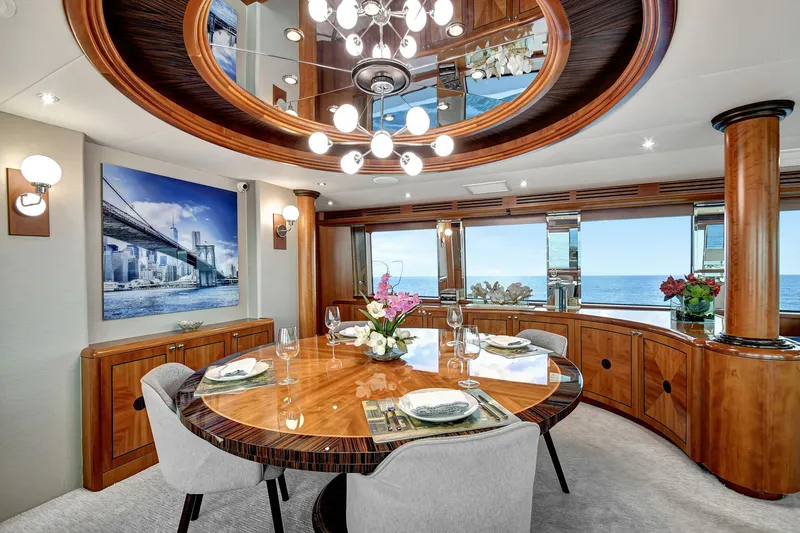

Dining Area

Dining area separated from the saloon with two cherry wood columns
Custom overhead mirrored soffit with LED lighting
Hunter Douglas blinds
New Whisperwall headliner
New Custom carpeting throughout
72” custom round dining table with 4-barrel chairs
Custom chandelier
½ Moon custom buffets with 12 doors
Forward bulkhead storage cabinet with 2 wall squance lights
Portside hallway to lower accommodations

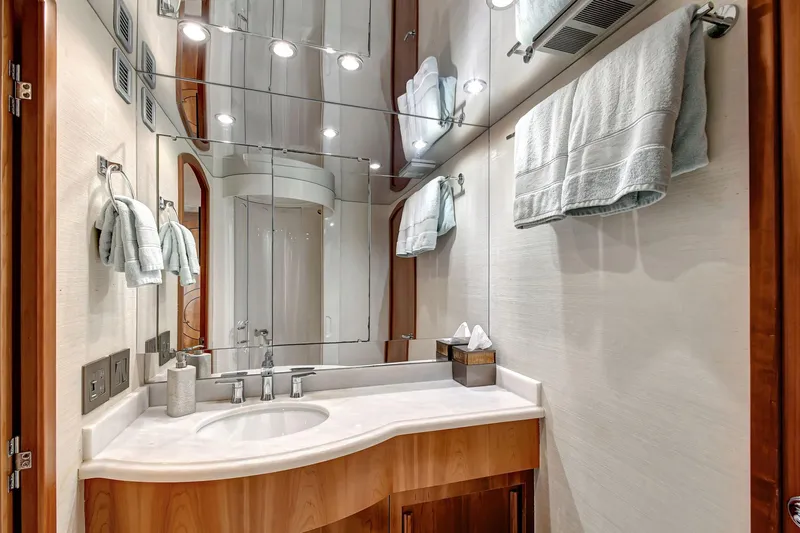

Day Head

Full size day head with custom marble countertop
44” custom mirror
Headhunter toilet
AC and Vent

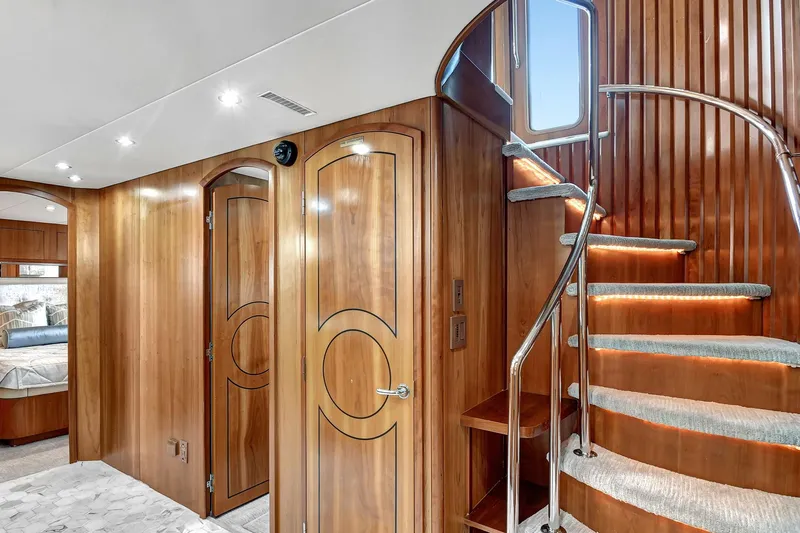

Main Foyer

Starboard side with full glass doors
Full-size closet
Stairs to pilot house
Large crawling doghouse for AV and storage

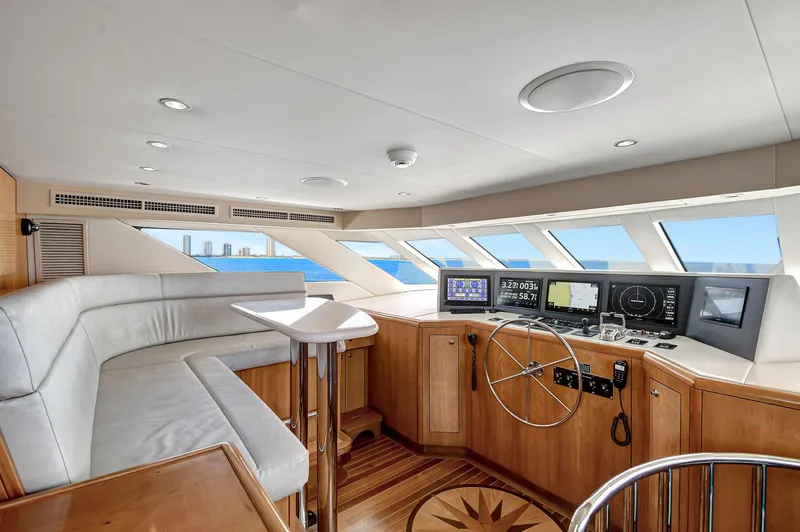

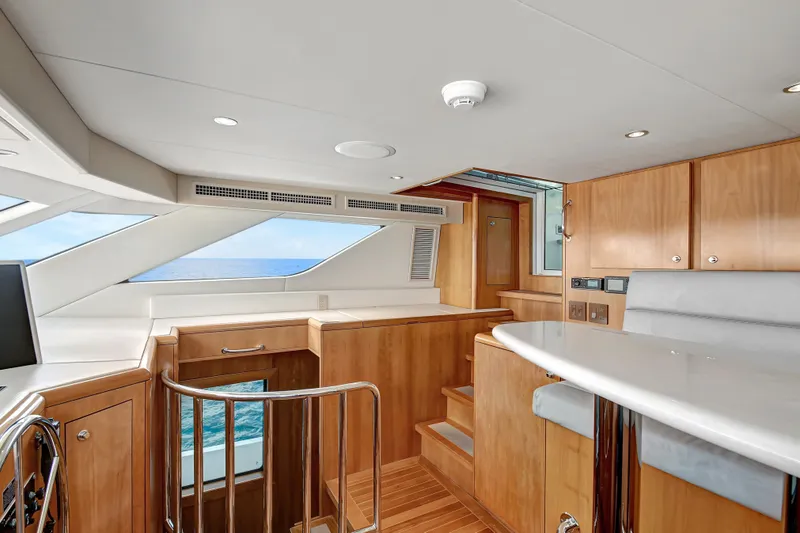

Pilothouse Equipment

L-shaped leather settee
Custom AJ originals high gloss table with stainless pedestal
Chart desk/drawer
Custom cherry floor with compass rose inlay
Steps up to flybridge

Owner

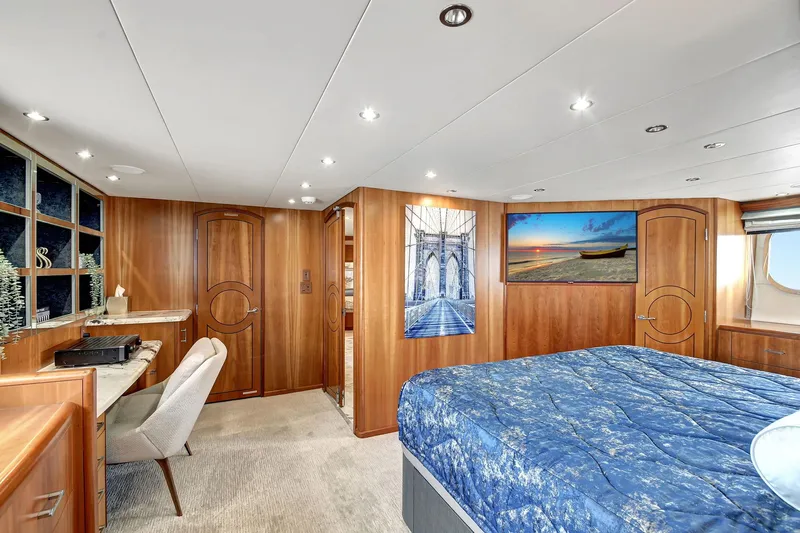

Master Stateroom:

Master Stateroom with a 76” x 72” King size bed
Decorative upholstered headboard with surround mirrors
Custom overhead soffit with LED lighting
(2) Nightstands with decorative table lamps, dressers, port and starboard
Built-in desk and chair
Cedar-lined closets, port and starboard
(1) 50” Samsung T.V.
(3) 29” x 21” oval portholes on each side, port and starboard
Double side door entrance
New carpet

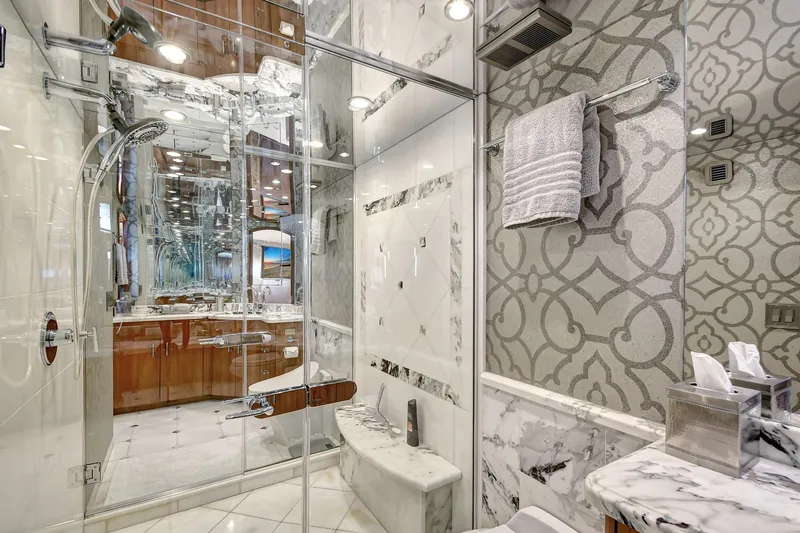

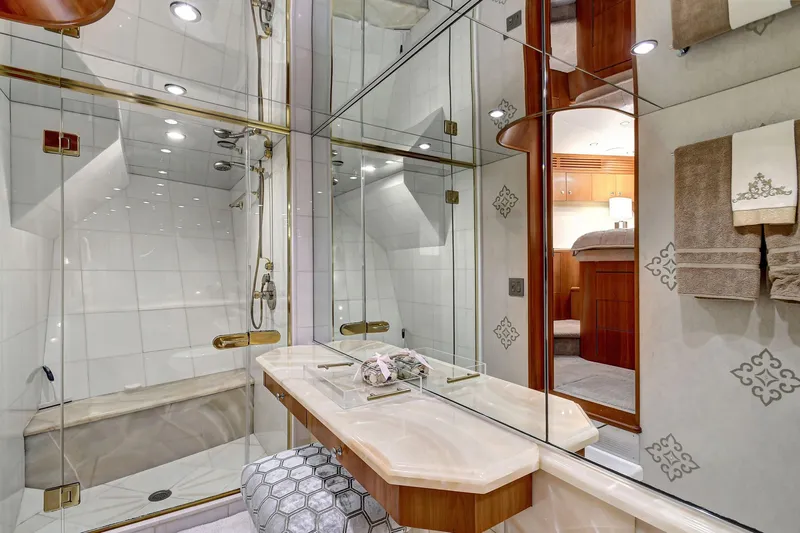

Master Bath:

His and hers cherry cabinetry with marble vanity top
(2) Decorative sinks with silver fixtures
Large walk-in marble shower with 55” x 48” glass enclosure with custom fixtures and marble bench seat
Mirrored medicine cabinets
Overhead mirror
New custom wallcovering
(2) Headhunter heads

Guests

4 Guest staterooms
4 Guest heads
1 Day head

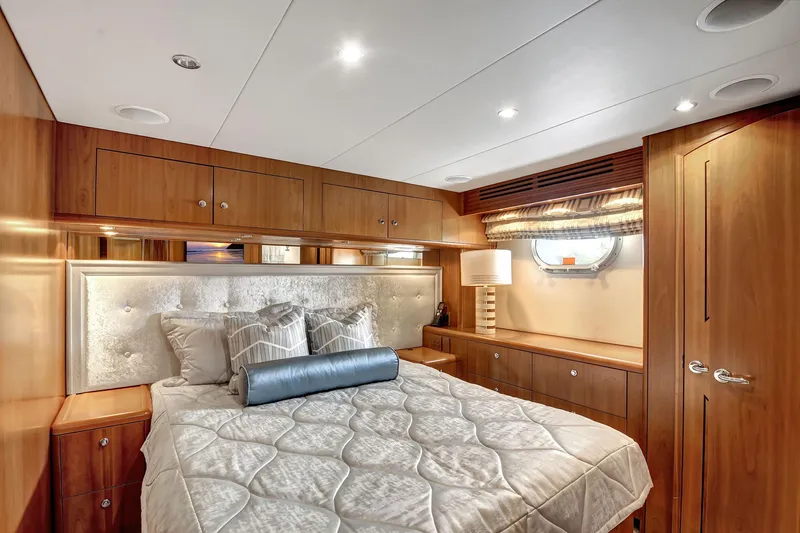

VIP Guest Stateroom (Forward)

Queen berth with custom spread & shams
Storage below berth
Custom upholstered headboard
Cedar-lined hanging locker
Overhead LED lighting with new headliner
(1) Decorative lamps, port & starboard
(1) 40” T.V.
New Carpet
Private step-down bath with onyx vanities and backsplash, large shower with frameless door and marble floor

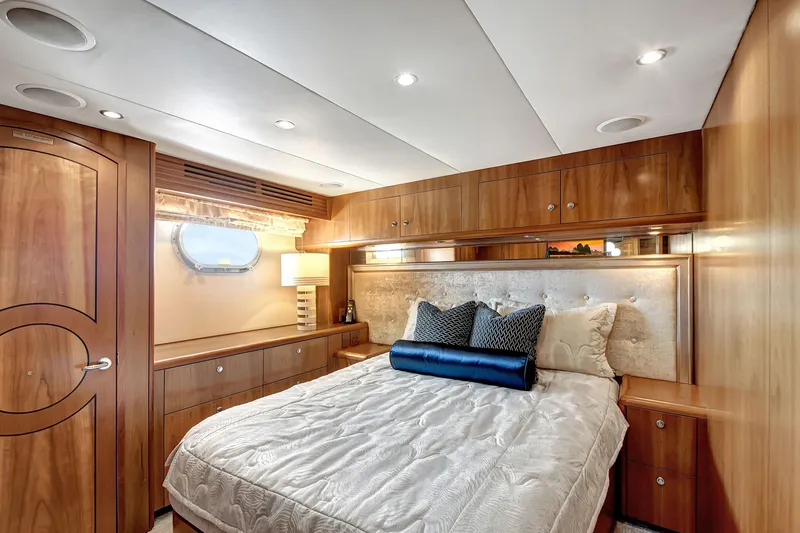

Queen Aft Guest Staterooms (Portside & Starboard)

Starboard stateroom with queen berth
Port stateroom with queen berth which can convert to single berths
Each guest stateroom has a 30” Samsung T.Vs.
Custom spread, shams and pillows
Upholstered headboards
(2) Built-in nightstands
Built-in dressers
Shades and blinds
Cedar-lined hanging lockers
Starboard guest bath features shower with tub and whirlpool jets

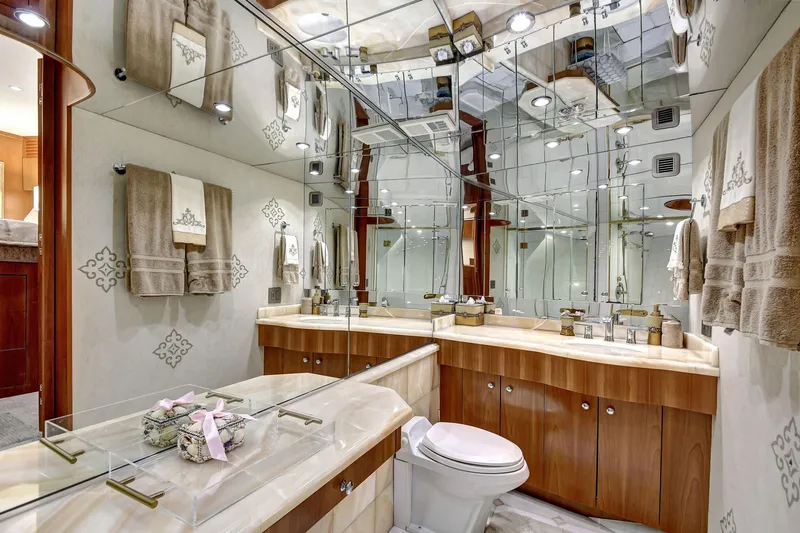

Guest bath to port with marble vanity top, circular shower,
and granite/onyx flooring
Custom wallcovering and headhunter toilets

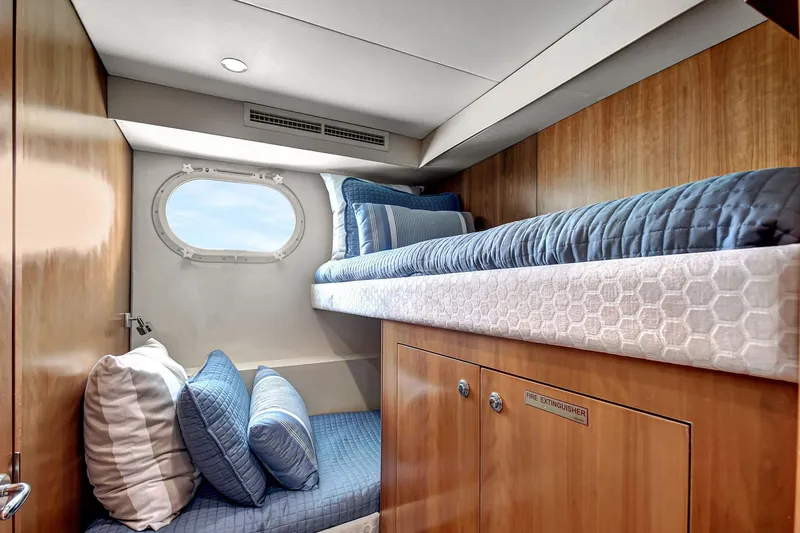

5th Guest Stateroom (Amidship)

Twin berths over and under perpendicular to each other
Drawer storage
Cedar-lined hanging locker
Shade with blinds
Shared guest bath

Lower Companionway

New headliner with LED lighting
Custom marble flooring
New under counter Miele washer and dryer
Storage area

Crew

Captain's stateroom to starboard with double berth, storage drawers, cherry wood bulkheads, cedar-lined hanging locker, and port light
Crew cabin with upper and lower berths and ensuite head Crew lounge with Scotsman icemaker, refrigerator,
LG 19' LCD T.V.
Additional berth, in crew lounge, can be made by lowering the table electrically

2024

Completely repainted by Jarrett Bay
Fresh bottom paint
New multi-color LED lighting throughout the exterior
All storage spaces repainted
All bilges repainted
New watermaker
New built-in Spot Zero
New aft deck countertops
All new hydraulic hoses
New Salon furniture
All new soft goods inside and out
New Electra-Sea AC Anti-Barnicle System for A/C compressors
New windscreen
A/C system completely rebuilt and insulated
New main hydraulic system pump and manifolds
All new exterior cushions and canvas covers
New pumps and valves in Jacuzzi
Complete bridge crane rebuild
New underwater lights
New underwater camera
New handheld controller: engine/trans/thruster
(8) New Garmin chart plotters
New Garmin long range and short-range radars
New Simrad autopilot controllers
New Sea-tronics monitor for cameras and ship monitoring system
New Gost DVR system
New speaker system throughout
New through hulls and ball valves
New carbon fiber boarding ladder
All new hardtop panels for aft and side deck overhang
Many misc. hoses replaced in bilges
New cutlass bearings
New rudder shaft seals
New Zincs
New tanks senders for monitoring system
Replaced all smoke/carbon dioxide sensors

2023

New LED lighting – June
Both engines with 387 Hrs. SMOH – February
New carpet throughout the vessel, waterproof padding – Approx $33,000.00
Refinished transom area including engine door and frame
New exterior cushions and covers – January

2022

Complete new nonskid decks throughout. Approx.: $43,000.00 – December
Rebuild shore power transformer -December
(2) New 100 AMP Shore Cords - November
Complete fuel tank cleaning – July
Complete engines and transmissions repainting - June
