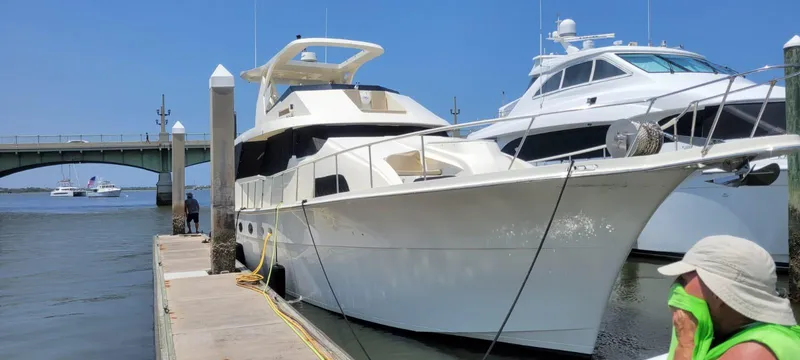

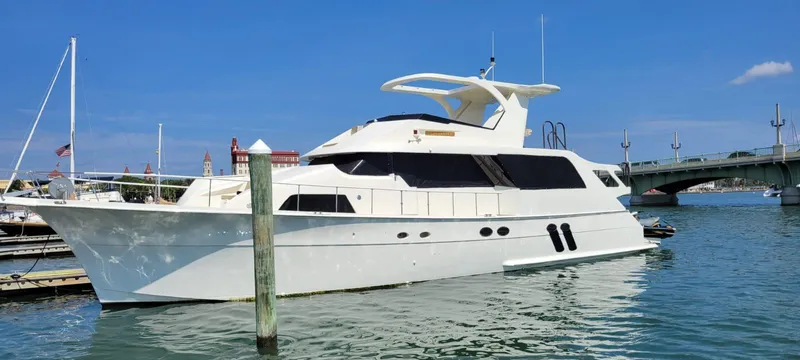

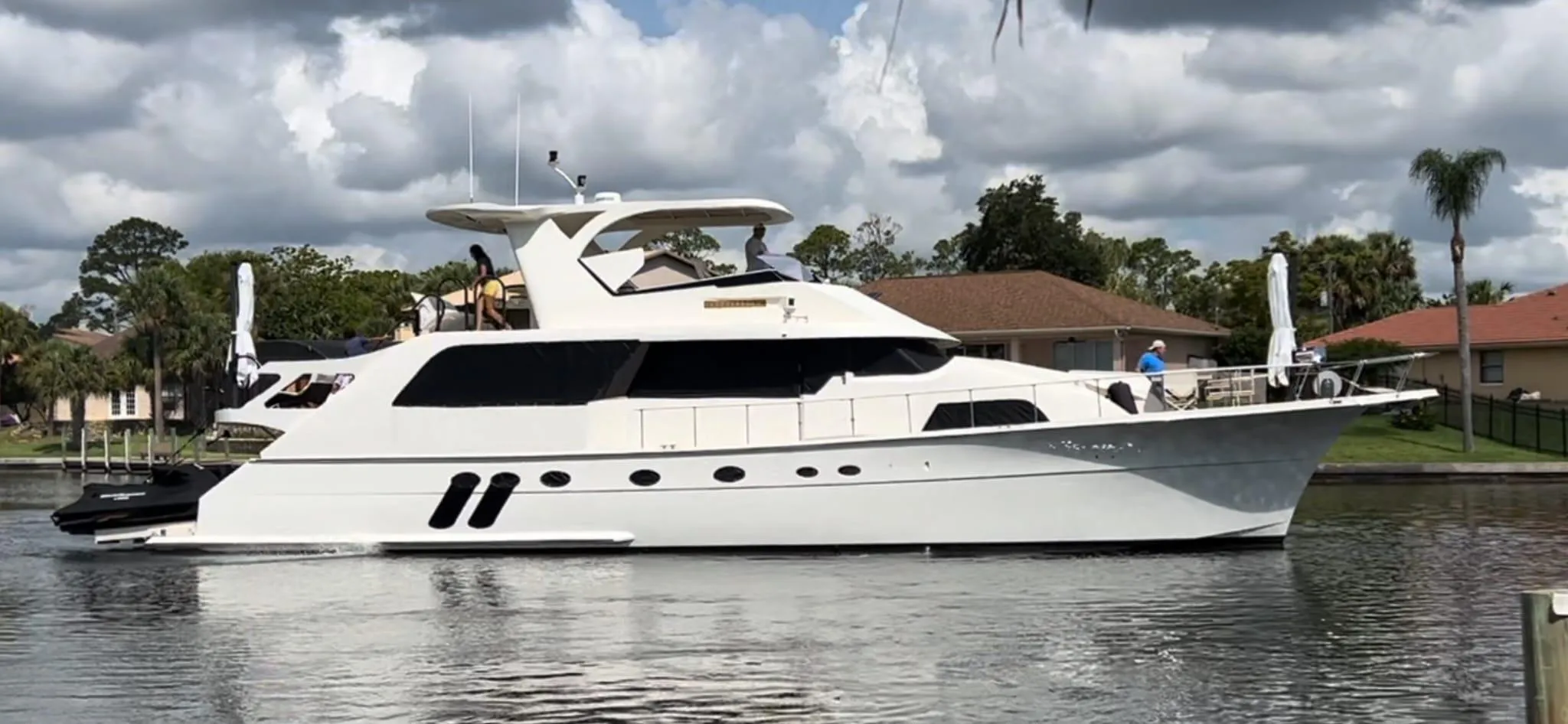

Danube Yacht for Sale

HULL MATERIAL: STITCHED 2415 BIAXIAL FIBER REINFORCED WITH VINYLESTER PLASTIC RESINS, FRP FIBERGLASS ENCAPSULATED WOOD & AKUME MARINE PLYWOOD CORING STRUCTURE, SOLID EXTENDED WET AREA. KEVLAR RESINS USED AROUND STRESS AREAS & AROUND HULL TO EXTENSION.

CRUISE SPEED: 14-16 KNOTS, 18-20 KNOTS TOP SPEED @ 2350 RPM DESIGNER: J. HARGRAVE, N.A.

DISPLACEMENT: WEIGHTED MEASURED 61,000 LB. HULL DESIGN: MODIFIED VEE/MODIFIED EXTENDED STRAKES

LENGTH OVERALL: 72’1” LWL: 63’ 9” BEAM: 15” 10” DEADRISE AFT: 14 DEGREES AFT FREEBOARD: 8’2”

DRAFT: 5’2” INCLUDES 2/3 FULL LENGTH KEEL BRIDGE CLEARANCE: 20.6’ ANTENNAS DOWN

MAIN ENGINE: DETROIT, 8V71-TI, 2 STROKE, TWIN TURBO, INBOARD STRAIGHT DRIVES, 435 HP @ 2300 RPM

ENGINE HOURS: METERS SHOWING; PORT: 18.9 , STBD. 18.5, PER FLO-SCAN FUEL MANAGEMENT METERS,

https://www.dieselhub.com/specs/detroit-71-series-two-stroke-diesel.html

AUX POWER: “NEW” PHASOR, JUNE 2022, 12.5 KW @ 1800.RPM, 60 HZ, I PHASE, 137.5AMP@120VAC. HOURS: 2.0

SHORE POWER 30 KVA TRANSFORMERS, VICTRON 12 & 24 VDC BATTERY CHARGERS, W/VICTRON BATTERY SYSTEMS MONITORING. 75 AMP ALTERNATORS ON EACH ENGINE, XANTREX 3000-WATT INVERTER W/130AMP 12 VDC CHARGER, 50 AMP SHORE POWER CONNECTORS ON BOTH SIDES W/LINE SELECTOR. 6 EA. 120-WATT FLEX SOLAR PANELS, VICTRON 150/70 CONTROLLER W/8 EA. VICTRON 200-AMP AGM BATTERIES FOR HOUSE SERVICE.

2 EA. VICTRON BLUE POWER ECHO CHARGERS.

LAYOUT & ACCOMMODATIONS: 3 EA. STATEROOMS, 3 EA. JOINING HEADS, MASTER BERTH AFT, CENTER SALON W/ LOUNGER SOFA & 2 EA. LOUNGER CHAIRS. HIDE AWAY ENTERTAINMENT CENTER, FULLY EQUIPPED GALLEY INCLUDING DISH WASHER, STACKABLE WASHER/DRYER, AFT DECK W/AFT ENTRANCE AFT AND SIDE ENTRANCE INTO CABIN, BRIDGE W/CANVAS OVER CUSTOM EXTENDED FIBERGLASS HELM COVER, AFT SEATING W/ STORAGE ON BRIDGE, NEW CUSTOM HYDROQUIP JACUZZI ON BOWS, WASH SINK PREP AREA W. REFRIGERATOR W/ CARPET FLOORING, TEAK & CHERRY WOOD & CUSTOM TILE INTERIOR, CUSTOM CENTER HELM STATION. WHITE HULL WITH BLACK ANT-FOULING ABLATIVE PAINT, GOLD/BRONZE TRIM THROUGHOUT. TELEVISION & STEREO IN EACH STATEROOMS. 8 EA. INFRARED SECURITY SYSTEM. SECURITY KEYED SAFE, ACCOMMODATES 8-10 PERSONS.

STRUCTURAL

BULKHEADS: ATHWARTSHIPS REINFORCEMENT ENHANCED BY LAMINATED AKUME WOOD/FIBERGLASS BULKHEADS, BONDED TO THE HULL WITH FIBERGLASS TABBING, BULKHEADS TABBING AND TAPING APPEARS FULLY IN CONTIGUOUS, APPEAR WATERTIGHT. NO UNWANTED MOVEMENT OR DECAY. MEET STANDARDS WHERE VISIBLE. KEEP LIMBERS CLEAR

STRINGERS: HULL STIFFNESS AUGMENTED BY HEAVY FIBERGLASS ENCASED WOODEN LONGITUDINAL STRINGERS, SCANTLING’S ALIGNMENT APPEARS CORRECT FOR THE GIVEN APPLICATION, NO EVIDENCE OF UNWANTED ENGINE MOVEMENT NO DECAY OR DELAMINATION NOTED, CONTINUITY OF FIBERGLASS TAPING APPEARS TO BE INTACT. MOISTURE READING WERE TAKEN WHERE EASILY REACHED, APPEARS NORMAL

HULL & DECKS: MOLDED FIBERGLASS WITH NON-SKID OVERLAY SURFACE, NO EVIDENCE OF VOIDS & DELAMINATION. NORMAL MOISTURE & SOUNDINGS, FRESHLY PAINTED FINISHES.

KEEL/WET AREA: AN ENCASED SOLID BALLAST TYPE FIBERGLASS KEEL EXTENDS APPROX. 48” DOWNWARD ABAFT OF MID-SHIPS CENTERLINE, AND TAPPERS FORWARD, FAIRS INTO FOREFOOT, SHARP WATER ENTRY, NO SIGNS OF STRUCTURAL COMPROMISE AROUND GARBOARD AREAS. BLACK ABLATIVE ANTI-FOULING PAINT IN FAIR TO GOOD CONDITION, NO OSMOTIC BLISTERS, RUNNING GEAR IS NORMAL.

TRANSOM: RAKED AND ROUNDED, WOOD/FIBERGLASS, WITH NO SIGNS DELAMINATION AROUND COCKPIT SOLE OR GUNWALES. MOLDED SCUPPERS, WITH ENGINES EXHAUST PASS THROUGH, TRANSOM DOORS, GOOD CONDITION, SWIMPLATFORM W/SUPPORT BRACKETS, W/HIDE AWAY LADDER, BENNETT TRIM TABS, BOMAR HATCHES, ACCESS LADDER TO AFT DECK, DROP DOWN SWIM LADDER. CUSTOM 24 VDC JET SKI DAVIT ON TRANSOM W/LIFTING WINCHES. CUSTOM MOLDED FIBERGLASS STEPS & SUNNING AREA AROUND TRANSOM.

FITTINGS: VARIOUS CHROME ON BRASS, BRONZE ALLOY, STAINLESS STEEL, ALL APPEAR ADEQUATE.

STAINLESS SCREWS ON STAINLESS STRIKER PLATES. GOOD CONDITION.

FASTENINGS: HULL TO DECK HAS OVERLAPPING FLANGE CONSTRUCTION WITH 1/4” STAINLESS MACHINE

FASTENERS ON APPROX. 6” CENTERS, SHOE BOX CONSTRUCTION, AND TABBED, VISIBLY BEDDED IN MARINE GRADE ELASTOMERIC COMPOUND, NO OVERT EVIDENCE OF STRUCTURAL COMPROMISE, TORSION DAMAGE, OR SEPARATION, COVERED WITH TEAK & STAINLESS STRIKER PLATES, FENDER TRACKS ON RUB-RAILING

ENGINE BEDS: FIBERGLASS LAMINATE (WOVEN ROVING) ON WOODEN FORMED STRINGERS, APPEAR ADEQUATE, STEEL/RUBBER REINFORCED ENGINE BED MOUNTS, ON STEEL FRAMING TO SUPPORT ENGINES. NO SIGNS OF UNWANTED MOVEMENT. STEEL ENGINE MOUNTS & CRADLES. GOOD CONDITION. CLEAN CATCH AREAS.

ATTACHED STRUCTURE: CUSTOM FIBERGLASS OVER BRIDGE AREAS WITH 3” FIBERGLASS & STAINLESS FRAMING. DESIGNER 24 VDC WINDLASS ON PULPIT THRU-BOLTED INTEGRATED ONTO STEM WITH STAINLESS SINGLE ROLLER DAVIT, PERMANENT STEPS ON COCKPIT FOR ENTRANCE ONTO BRIDGE, CUSTOM HELM CHAIRS ON CENTER HELMS, DINGHY STORAGE MOUNTS ON AFT BRIDGE DECK W/800LB. LIFTING DAVIT 120VAC, TESTED GOOD, DOCK STORAGE BOXES ON BOWS, HIDE AWAY SWIM LADDER, ENTRANCE GATE W/HAND RAILING, BOWS HAVE CUSHIONS ON FWD. SETTEE, CUSTOM JACUZZI ON BOWS, STORAGE BOXES ON AFT DECK. OUTDOOR FURNITURE ON AFT DECK. 2 EA. LOUNGER CHAIRS ON BRIDGE, DESIGNER GRANITE COUNTER TOPS

GRILL & PREP AREA ON AFT BRIDGE W/REFRIGERATOR & ICE MAKER. CUSTOM PULPITS AROUND AFT BRIDGE & AROUND TRANSOM FOR SAFETY. VARIOUS GRAB & SAFETY RAILING THROUGHOUT. “NEW” SIDE POWER BOW & STERN THRUSTERS, W/GRATES, 24 VDC W/DEDICATED BATTERIES. BRAZILIAN HARDWOOD FLOORING W/VARIOUS THROW RUGS THROUGHOUT VESSEL.

DECK FITTINGS AND CONSTRUCTION

RAILS: STAINLESS STANCHIONS, STAINLESS WELDED CONSTRUCTION. VARIOUS GRAB RAILS & LIFE-LINES, ALL APPEARS FIRMLY AFFIXED AND PROPERLY BOLTED. SIDE ENTRANCE GATES, HOLD & GRAB RAILING THROUGHOUT VESSEL. FRESH FINISHES ON MAHOGANY RAILING

HATCHES/WINDOWS/PORT LIGHTS: 3 EA. FIXED WINDSHIELDS W/TEXTILENE COVERS, EMERGENCY EXIT CUSTOM BOMAR DECK HATCHES ON STEM & STERN, WITH EMERGENCY EXIT/PASS THROUGH WITH LATCHES, FIXED OPENING WINDOWS THROUGHOUT SUPERSTRUCTURE, VARIOUS PORT LIGHTS WITH SCREENS & LATCHES. VARIOUS SUNSCREENS & COVERS, WINDOW TRACKS NEED CLEANING, FRESH PAINT ON WINDOW FRAMES. SUGGEST REBEDDING ALL EXTERIOR ATTACHMENTS, STANCHIONS, HATCHES, PORT LIGHTS, CLEATS, ETC. AS ROUTINE MAINTENANCE.

CHAIN LOCKER: THE CHAIN LOCKER IS FORWARD AND ACCESSIBLE THROUGH A HATCH IN THE FORWARD BERTH, LOCKER DRAINS OVERBOARD, DRY, DIVIDED, ADEQUATE FOR INTENDED PURPOSE.

BOWSPRIT/PULPIT: INTEGRATED FIBERGLASS PULPIT WITH SINGLE ROLLER ANCHOR DAVIT BOLTED ONTO PULPIT, TEAK INLAY TRIM, PULPIT TESTED WITH ADULT WEIGHT, NORMAL MOISTURE READING. GALLEY MAIN CHAIN STOPPER TO PREVENT AN ACCIDENTAL ANCHOR DROP.

TOE RAILS: MOLDED WOOD & FIBERGLASS APPROX. 2-4” HIGH, PART OF DECK LAY-UP, LITTLE WEEPING AND CRACKING WERE EVIDENT, REPAIR AS WANTED, CLEAN FINISHES.

SCUPPERS: DECKS DRAIN OVERBOARD VIA DECK MOLDED SCUPPERS; MARGIN WALKWAYS DRAIN OVERBOARD. AFT COCKPIT SCUPPERS, ALL SCUPPERS APPEAR FREE OF DEBRIS

CHOCKS AND CLEATS: 4 EA.18” CLEATS ON STERN GUNWALES & HULL, 4 EA. 18” CLEATS MIDS. 4 EA. 18” CLEATS ON STEM, WITH CHOCKS. ALL CLEATS APPEAR ADEQUATE FOR MOORING POINTS FOR THE GIVEN APPLICATION. ALL APPEAR PROPERLY BOLTED AND SIZED

ANCHORS AND RODE: 1 EA. 65LB.30KG POLISHED STAINLESS PLOW ANCHOR, W/APPROX. 50’ 3/8”/10m” STAINLESS HIGH TENSILE CHAIN, & 150’ ¾ 3 BRAID ROPE. USES CHAIN STOPPER & WINDLASS AS LINE STOPPER MOUNTED ON DECK TO PREVENT ACCIDENTAL ANCHOR DROP, DECK PIPES, TIE CLEAT, SPARE 85LB. PLOW ANCHOR IN LAZERETTE W/RODE.

SNUG WINCHES/WINDLASS: SEACHOICE, 1500 LB. CAPACITY, STAINLESS 316 HORIZONTAL DRUM, FREE FALL, ROPE & CHAIN CAPSTAN, 24 VDC, FOOT CONTROLS & HELM CONTROLS, TESTED GOOD, MAIN BREAKER IN CHAIN LOCKER,

THRU-HULLS: 11 EA. BRONZE THRU-HULLS ABOVE THE WATER LINE, 7 EA. BELOW THE WATERLINE, 2 EA. ENGINE, 1 EA. A/C, 2 EA. WASTE, 1 EA. GENERATOR, 3 EA, TRANSDUCERS. ALL SUPPLIES HAVE SEA STRAINERS AND/OR SCREENS, ABOVE AND BELOW THRU-HULLS HAVE BALL-TYPE VALVES, INSPECT AND SERVICE ON A REGULAR BASIS, COCKS & STRAINERS NEED REGULAR MAINTENANCE, INSPECT BONDING SYSTEM, TERMINALS, BUSSES, WIRING, ETC. SOME HANDLES HARD TO MOVE, INSPECT & SERVICE. STBD. AFT IN MASTER STATEROOM HAS A THRU HULL THAT NEEDS SECURING. CAP-OFF. GOOD CONDITION

CANVAS AND COVERS: CUSTOM FIBERGLASS & STAINLESS FRAMED OVER ON BRIDGE, DESIGNER HARDTOP EXTENSION OVER AFT BRIDGE. VARIOUS SUNBRELLA CANVAS COVERS, HELM, CHAIRS, WINDSHIELDS, ETC. OVERALL INTERIOR & EXTERIOR UPHOLSTERY IS CLEAN. VERY NICE CONDITION.

PROPULSION / MACHINERY

MANUFACTURER: DETROIT DIESEL MARINE, WATER COOLED CLOSED SYSTEMS, EMERGENCY ENG. SHUTDOWN

MANUAL ENGINE MONITORING & CONTROLS, NEW GAUGES AT HELMS & ENGINE SPACES

TYPE AND MODEL: M/N: 8V-71TI, 70823001, TWIN TURBO W/NEW HEAT BLANKETS OIL CHANGE SYSTEM

SERIAL NUMBER: PORT: 8VA242304, STBD. 8VA226142 AIRSEP AIR CLEANERS

HORSEPOWER RATING: 435 HORSEPOWER EA. @ 2300 RPM ENGINE SPACE LIGHTS ENG. BLOCK HEATERS

HOURS: FLO SCAN METERS SHOWING: PORT: 18.9, STBD. 18.5, CANNOT PROVE ACCURACY

A SEATRIAL WAS PERFORMED, INSTRUMENTATION TESTED GOOD, THE ENGINES MADE MAXIMUM POWER WITHOUT OVER HEATING. THE VESSEL WAS EASILY HANDLED & PERFORMED PER MANUFACTURER SPECIFICATIONS. TRANSMISSION: ALLISON, REVERSE MARINE GEAR, M/N: M20, PORT SERIAL: 6883370 STBD. NOT LEGIBLE, RATIO: 2:1

STEEL BOLTED COUPLING, OIL LEVELS WERE CORRECT & CLEAR, SOME RUST ON HOUSINGS, CLEAN & PAINT

PROPELLERS/SHAFTS: 4-BLADE BRONZE PROPELLERS, MEASURED 28 X 30.9, STRAIGHT & TRUE.

CUTLASS TYPE STRUTS, 2.0” ARMCO AQUAMET # 22 STAINLESS SHAFTS. W/MUFF JOINTS, FLAX COMPRESSION LOGS,INTERMITTING BEARING SUPPORTS, GOOD CUTLASS BEARINGS. 2 SINGLE & 1 DOUBLE ARM STRUTS.

LINE CUTTING SPURS. SPARE SET OF PROPELLERS STOWED IN LAZERETTE

FUEL SYSTEM: RUBBER A-1 TYPE FUEL HOSES AND COOPER SUPPLY LINES, DIRECTIONAL FUEL MANAGEMENT MANIFOLD SYSTEM, WITH A WATER SEPARATOR IN TWIN RACOR 1000, AS PRIMARY FILTERS. MANUFACTURES CARTRIDGE ELEMENTS ON ENGINES AS SECONDARY. WITH GAUGES, INTEGRATED FIBERGLASS TANKS WITH LEVEL GAUGES, STAINLESS LABELED DECK FILLS, DIRECTIONAL MANIFOLD VALVE SYSTEM W/CUTOFF VALVES ON TANKS. FUEL PRIMING, CAPACITY 550-GAL, FUEL POLISHING SYSTEM, ALL NEW HOSES, NEW TRANSFER PUMP, TESTED GOOD

EXHAUST: 8-10” EXHAUST WITH RUBBER, STAINLESS AND FIBERGLASS JOINTS, DOUBLED CLAMPED, WET RISER AND MANIFOLDS, EXHAUST EXITS VIA TRANSOM AFT & UNDERWATER. PROPERLY SECURED, MANIFOLDS & RISERS IN SERVICEABLE CONDITION.

COOLING TYPE: RAW WATER, CLOSED SYSTEMS, HEAT EXITING THROUGH WET EXHAUST, TEMPERATURE READING WERE TAKEN, DURING SEATRIAL, TEMPERATURES WERE NORMAL, TEMPERATURE GAUGES ARE SLOW TO READ, INSPECT & SERVICE PUMP IMPELLERS AND SEA STRAINERS REGULARLY. TESTED GOOD

STEERING: SINGLE STATION, HYNAUTIC, HYDRAULIC RACK AND PINION STEERING SYSTEM. RESERVOIR IN ENG. SPACE, HOLDING 45 PSI, CUSTOM STAINLESS PILOT TYPE STEERING WHEELS WITH STAINLESS STEEL & BRONZE STEERING HARDWARE, 21.5 X 14 BRONZE UNBALANCED SPADE TYPE RUDDERS, COMPRESSION FLAX RUDDER LOGS IN GOOD CONDITION.

ENG/TRANS. CONTROLS: THE VESSEL IS EQUIPPED WITH TELEFLEX CABLE MANUAL DUAL FUNCTION, PUSH/PULL SHIFT BY CABLE CONTROLS, NO BINDING OR STIFFNESS, NEW CABLES

FUEL SYSTEM: TWIN RACOR, MA1000 W/GAUGES, NEW FUEL HOSES & TRANSFER SYSTEM, FUEL POLISHING SYSTEM, NEW LABELED DIRECTION MANIFOLD VALVES, FUEL MANAGEMENT SYSTEM. 550 FUEL CAPACITY.

TRIM TABS: BENNETT, SINGLE CYLINDER, ROCKER CONTROLS AT HELM, 12X36” INTEGRATED TABS, THE OIL PRESSURE RESERVOIR IS LOCATED UNDER LAZERETTE, TESTED GOOD

VENTILATION: THE MACHINERY SPACES HAVE NATURAL VENTILATION, & 2 EA. 12 VDC BLOWERS

ADEQUATE FOR GIVEN APPLICATION. THE CABIN AREA HAS WINDOWS & HATCHES, WITH HVAC, 60,000 BTU

GENERATOR

6/2022 PHASOR DIESEL GENERATOR, 12.5 KW, M/N: K4-12.5, S/N: 110040, MAIN BREAKER ON GEN SET & MAIN DISTRIBUTION PANELS W/LINE LOCKOUT, FRP MUFFLER, DEDICATED M-24 BATTERY W/ON/OFF SWITCH W/CIRCUIT PROTECTION, RACOR 500 FUEL FILTER, HOURS: 2.0, 60 HZ, SOUND SHIELD, REMOTE START PANEL.

NEW FRP MUFFLER, TESTED GOOD

ELECTRICAL SYSTEM

OVERALL WIRING CONDITION: ABOVE AVERAGE CONDITION THROUGHOUT, MEETS REQUIREMENTS OF CODES OF FEDERAL REGULATIONS NUMBER: 33CFR183.425. ALL WIRING SIZES AND BUNDLES APPEAR ADEQUATE.

BATTERY SELECTOR AND BATTERIES: THE VESSEL IS EQUIPPED WITH 12 & 24 VDC SYSTEMS, 8 EA. 5/2022 VICTRON 200 AMP AGM BATTERIES HOUSE SERVICE, 5/2019 4 EA.12 VDC AGM BATTERIES FOR ENGINE SERVICE, 1 EA. GROUP 24 BATTERY FOR GENERATOR. 2 EA. VICTRON 200 AMP BATTERIES FOR WINDLASS & THRUSTERS, LOCATED IN GALLEY SOLE, ON/OFF SWITCHES ARE LOCATED IN THE PORT FWD. ENG. SPACE BULKHEAD, PARALLEL SWITCHING VIA SWITCHES. ELECTRONICS HAVE A DEDICATED 12 VDC SYSTEMS. DEDICATED BREAKER PANELS WITH ON/OFF SWITCHES, CIRCUIT PROTECTION THROUGHOUT . NEW BLUE SEAS ELECTRICAL PANELS, PROPERLY LABELED

VOLTAGE TYPES: 1 EA. 50 AMP/1 EA. 50 AMP, 125 VOLT ON VAC SYSTEM, 12 & 24 VOLT ON VDC SYSTEM.

CIRCUIT PROTECTION AND PANELS:

VDC: MAIN DISTRIBUTION PANEL IN ENGINE SPACE WITH ON/OFF SWITCHING, 4 EA. SWITCHES

MAIN ACCESSORY CONTROL IN ENGINE SPACES W/ 1 EA. MAIN BREAKER WITH BRIDGE BREAKER PANEL UNDER HELM, NEWMAR 32 TO 12 CONVERTER UNDER HELM FOR ELECTRONICS

DC PANEL IN CABIN: THE MAIN ACCESSORY PANEL HAS THERMAL BREAKERS, 23 EA. BRANCH LINES.

MAIN ENGINE BREAKERS ON PANEL. VOLT AND AMP LOAD GAUGES. SELECTOR SWITCH FOR

BATTERY TESTER. MONITORING SYSTEM ON ENGINE MONITORING GAUGES, ENGINE SYSTEMS ARE 24 VDC HOUSE & SERVICE ARE 24 VDC SERVICE, ISOLATED SYSTEMS. SUB PANELS UNDER HELM FOR ELECTRONICS

VAC: AC PANEL CABIN: 1 EA. 50 AMP MAIN SUPPLY BREAKER ON PANEL, MAIN BREAKERS AT

POWER CONNECTORS: SEPARATED 220 BRANCH LINES.120 VAC BRANCH LINES WITH DEDICATED &

LABELED PANEL, SHORE/GENERATOR LOCKING SELECTOR, VOLT, AND AMP GAUGES. POLARITY

INDICTORS, GENERATOR: MAIN ON/OFF BREAKER ON PANELS W/LINE SELECTOR SWITCHES.

SHORE CORDS/CONNECTORS: 125/220 VOLT /50 AMP, MARINCO SHORE CONNECTORS ON PORT & STBD. AMIDSHIPS WITH 50 AMP FUSES AT SHORE CONNECTORS, SHORE 50 AMP MAIN BREAKERS ON PANEL. MARINCO TV/TELEPHONE, TESTED GOOD

AUXILIARY CHARGING: “NEW” PHASOR, JUNE 2021, 12.5 KW @ 1800.RPM, 60 HZ, I PHASE, 137.5AMP@120VAC. HOURS: 2.0, SHORE POWER 30 KVA TRANSFORMERS, VICTRON 12 & 24 VDC BATTERY CHARGERS, W/VICTRON BATTERY SYSTEMS MONITORING. 75 AMP ALTERNATORS ON EACH ENGINE, XANTREX 3000-WATT INVERTER W/130AMP 12 VDC CHARGER, 50 AMP SHORE POWER CONNECTORS ON BOTH SIDES W/LINE SELECTOR. 6 EA. 120-WATT FLEX SOLAR PANELS, VICTRON 150/70 CONTROLLER W/8 EA. VICTRON 200-AMP AGM BATTERIES FOR HOUSE SERVICE.

2 EA. VICTRON BLUE POWER ECHO CHARGERS.

ANODES AND BONDING: THE OVERALL BONDING SYSTEM APPEARS ADEQUATE, HOWEVER NEEDS SERVICE, SOME TERMINALS AND CONNECTORS HAVE CORROSION INSPECT AND REPAIR/CLEAN AS NEEDED. ANODES ARE LOCATED ON TRANSOM, RUDDERS & SHAFTS, #8 GREEN BONDING WIRE THROUGHOUT USED AS LIGHTENING PROTECTION. DEDICATED DYNA GROUNDING PLATES FOR ELECTRONICS. SERVICE THE ENTIRE BONDING SYSTEM.

FRESH WATER SYSTEM

THE FRESH WATER SYSTEM USES AN EVER BUILT 120-VAC, AND 24 VDC TWIN PUMPS, FRESH WATER PUMP W/ACCUMULATOR TANK LOCATED ENGINE SPACE, WATER IS AVAILABLE FOR THE SINKS, HEADS, AND FRESH WATER WASH DOWN, ALL NEW APEX PLASTIC PLUMBING UTILIZED THROUGHOUT. A JABSCO WATER CONNECTOR/REGULATOR ON COCKPIT, 2 EA. WATER HEATERS 30-GAL. TOTAL, 120 VOLT & PORT ENGINE, INLINE OMNI CARTRIDGE WATER FILTERS. SEA RECOVERY, RO#13 WATERMAKER, 600 GPD, S/N: Q18530C0914, TWIN MEMBRANES, CAT II 120 VAC PRESSURE PUMP, 5 & 25 MICRON FILTERS, PICKLED

MSD (MARINE SANITATION DEVICES)

THE VESSEL IS EQUIPPED WITH 3 EA. ELECTRIC RARITAN ELEGANCE WASTE SYSTEMS, CHINA TOILETS, TYPE II WASTE SYSTEM WITH “Y” VALVES FOR DISCHARGE VIA DISCHARGE COCK, OR TO TANKS, 165-GAL. FIBERGLASS WASTE TANK W/DISCHARGE MACERATOR PUMP, DECK FILLS, FOR DOCK SIDE CLEAN OUT, THE SHOWER DRAINS INTO 3 EA RULE 2000 SUMP AND DISCHARGED OVERBOARD, FRESH WATER FLUSH HEADS. TESTED GOOD

TANKS FUEL WATER WASTE

CAPACITY: 2 EA. 550-GAL. (F) 4 EA. TANK, GALS. 395 TOTAL (F & P) 2 EA. APROX. 165 GALS. (F)

LOCATION: UNDER COCKPIT & CENTER BILGES FWD. BILGES OUTBOARD IN ENG. SPACE

ALL TANKS MEET USCG [33CFR183.510 (a)] REGULATIONS, FILLING LINES AND VENTS MEET ABYC STANDARDS,

ALL TANKS, AND FILLS, HAVE GROUNDING, BONDING PROTECTION, SECURED, AND LABELED. W/ LEVEL GAUGES

GALLEY/DOMESTICS

LOCATION: PORT AMIDSHIPS MATCHING DESIGNER MARBLE & GRANITE COUNTER TOPS

REFRIGERATION: FRIGIDAIRE FULL SIZE DOUBLE DOOR REFRIGERATOR/FREEZER, REFRIGERATOR/ICEMAKER ON AFT BRIDGE DECK, AVANTI REFRIGERATOR IN SALON.

STOVE: EURO 2-BURNER, ELECTRIC GLASS COOKTOP STOVE, KENYON ELECTRIC GRILL ON BRIDGE, TESTED GOOD

MICROWAVE: 1600-WATT APPLIANCE CORP, COFFEE MAKER, BLENDER

SINK: FULL SIZE STAINLESS SINK, WITH STAINLESS NOZZLE MIXER GFI 102 VAC OUTLETS INVENTORY OF KITCHEN WARE HAND PORTABLE VACUUM CLEANER

KITCHEN UTENSILS, POTS AND PANS, PLATES, KENMORE UNDER COUNTER DISHWASHERSAFETY EQUIPMENT REQUIRED BY U.S.C.G.

FIRE EXTINGUISHERS:

TYPE LOCATION QUANTITY

1: KIDDE 10-BC SIZE I, BRIDGE/ENTRANCE/SALON/ENG SPACE 6 EA.

2: ENGINE SPACE, HC227-B, 750 CF, 47.3 LB. AUTO SUPPRESSION SYSTEM, 3 EA.

NOTE: ALL FIRE EXTINGUISHERS NEED TO BE INSPECTED ON A YEARLY BASIS, NO CURRENT DATED SERVICE LABELS

LABEL LOCKER IF EXTINGUISHERS ARE STOWED IN LOCKER “EXTINGUISHERS INSIDE”

MANUAL FIRE PULL IN SALON.

PERSONAL FLOATATION DEVICE

TYPE LOCATION

14 TYPE I & II JACKETS, ADULT FWD. SALON

2 EA. TYPE IV THROWABLE RING BRIDGE

3 EA. TYPE IV CUSHION BRIDGE

VISUAL DISTRESS DEVICES

OLIN COASTAL KIT, AERIALS & HANDHELDS SIGNALING DEVICES, ALL EXPIRED

SUGGEST USING AN USCG APPROVED LOCATE LIGHT

NAVIGATION LIGHTS & HOUSE LIGHTING

THE VESSEL IS EQUIPPED WITH THE REQUIRED NAVIGATIONAL LIGHTS, YELLOW WORK LIGHTS

THE VESSEL IS EQUIPPED WITH COLOR CHANGING LED ROPE, INDIRECT & DIRECT LIGHTING THROUGHOUT

FLAGS/PLACARDS

THE VESSEL IS EQUIPPED WITH THE REQUIRED OIL DISCHARGE AND MARPOL DISCHARGE PLACARDS

DID NOT SEE TRASH/GARBAGE MANAGEMENT CRITERIA, REQUIRED TO DISPLAY

3X5” US FLAGS, QUARANTINE FLAG

AIR CONDITIONING

TOTAL 4 EA. MARINE AIR SYSTEMS, 64,000 BTU MARINE A/C, W/ REVERSE HEAT, COMPRESSOR UNITS IN ENG. SPACE, ALL 220 VAC, 220 VAC 4 LINE A/C CIRCULATING PUMP WITH SEA STRAINER/FILTER LOCATED IN AFT ENG. SPACE, WITH MANIFOLD LINE DISTRIBUTION, ELECTRONIC CONTROLS, TESTED GOOD,

SEVERAL PORTABLE DEHUMIDIFIERS

ELECTRONICS AND EQUIPMENT

GAUGES: THE VESSEL IS EQUIPPED WITH A FULL COMPLIMENT OF FARIA ANALOG ENGINE MONITORING GAUGES TACHOMETERS, WATER TEMPERATURE, OIL PRESSURE. EMERGENCY ENGINE SHUT-DOWNS, WARNING AUDILE ALARM SYSTEM, KEYED IGNITION, FLO SCAN FUEL MANAGEMENT SYSTEMS

VFH: SIMRAD, RS-40 GPS/DSC, 25-WATT VHF RADIOS, BOTH HELMS, 2 EA. 8’ ANTENNAS ON QUICK RELEASE MOUNTS ON EXTENSIONS, 2 EA. STANDARD HORIZON HX300 HANDHELD 5-WATT VHF , SIMRAD WIFI NETWORK EXPANDER

PLOTTER/GPS: SIMRAD, NSS-EVO3 20.2 VERSION, S/N: 119149143, GPS/PLOTTER, WITH NAVIONICS BUILT-IN US TOPOGRAPHIC COASTAL CHARTS, W/DEPTH & RADAR, W/BUILT-IN COASTAL CHARTS, INVENTORY OF PAPER CHARTS & WATERWAY GUIDE, CHART TABLE AT HELMS,

RADAR: SIMRAD, SAME DISPLAY AS GPS, 36 MILE, 4 HD KW, RADOME ANTENNA, TESTED GOOD

AUTO PILOT: SIMRAD, AP44, LINEAR DRIVE, WORKS, NEEDS CALIBRATION

ELECTRONICS AND EQUIPMENT CONTINUED

DEPTH FINDER: SIMRAD, MULTI-LINK GRAPHIC, SPOT SOUNDINGS IN PLOTTERS,

COMPASS: RITCHIE POWERDAMP ON BOTH HELMS

SEARCH LIGHT: JABSCO HANDHELD SEARCH LIGHT, YELLOW WORK LIGHTS ON ALL CORNERS

SAFETY LINES: APPROX. 800 FT. INCLUDING DOCK LINES, IN GOOD CONDITION, ROPE STORAGE LOCKER ON BOWS

SOUND PRODUCING DEVICES: DUAL AIR BLAST HORNS, COMPRESSOR IN ENG. SPACE, TESTED GOOD

FENDERS: VARIOUS AIR-FILLED FENDERS WITH LINES, WITH TRACKS MOUNTS, RACKS ON BOWS

BILGES PUMPS: 4 X RULE 2000, WITH AUTO FLOAT SWITCHES, IN ENG. SPACE, FWD. SPACE, RULE 2000 IN LAZERETTE & FWD BERTH, 3 EA. RULE 2000 SHOWER SUMP SYSTEMS, VESSEL SYSTEMS MONITORING W/AUDILE ALARM AT HELMS, TESTED GOOD.

CARBON MONOXIDE DETECTORS: SUGGEST INSTALLING WORKING CARBON MONOXIDE & SMOKE DETECTORS

FIRST AID: LARGE INVENTORY OF FIRST-AID KIT, ADEQUATE

ENTERTAINMENT: 55” SONY FLAT SCREEN TELEVISION IN MASTER W/DVD PLAYER & SOUNDBAR, 60” SAMSUNG TELEVISION IN SALON, W/HIDE AWAY LOCKER, 32” SAMSUNG IN VEE BERTH, 23” TELEVISION IN QUARTER BERTH,

JL AUDIO STEREO ON BRIDGE, NEW SPEAKERS THROUGHOUT. 2 EA. JL AUDIO AMPLIFIERS TESTED GOOD,

ONKYO STEREO IN SALON, BOSE SURROUND SYSTEM, DÉCOR BRASS CLOCK. & BARO
