DELMAR Boat for Sale

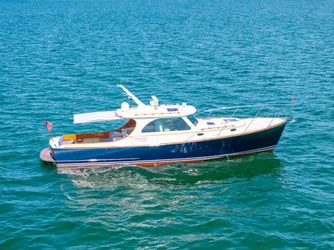

HULL AND DECK:

• Flag Blue Awlgrip Topsides
• Light Cream Gelcoat Cabin house and deck non-skid
• Double Snow White Boot Stripe
• Red Bottom

Construction:

Hinckley DualGuard composite construction of the hull is Kevlar E-glass hybrid and balsa core, SCRIMPed with vinyl-ester resin.  Deck and cockpit is E-glass and balsa core, molded with polyester resin.  The deck has a molded-in nonskid pattern and the pilothouse/cockpit sole is teak.

• Molded-in nonskid on deck
• Stainless steel half-round on fiberglass molded rub rail
• Foredeck Anchor Locker - Flush anchor locker has a pneumatic strut that holds open the anchor locker hatch and a Hinckley-designed stowaway stainless steel anchor roller

• Mid-deck molded-in locker to stbd. for additional storage
• Teak varnished handrails on aft end of roof and on port and stbd. sides of rooftop
• Swim Platform has teak cockpit sole, stainless steel bracket and half round, and a stainless steel telescoping 3-step folding swim ladder
• Full-length stainless-steel bow rail
• Stainless-steel handle on transom, painted to match hull, mounted horizontally. Chafe strips across transom.
• Boarding handrail/step

DECK FEATURES:

• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Three varnished teak handrails, one aft edge of roof and two portside of rooftop
• Four (4)opening elliptical ports with screens
• Hinckley-styled mast on pilothouse top, painted to match deck
• ACR remote spotlight mounted on mast, painted to match deck
• Cockpit floodlight is mounted on the pilothouse top mast, painted to match deck
• Five (5) low profile Lewmar opening aluminum hatches
• Custom Hinckley 316L stainless steel bow chocks
• Bow and stern 316L stainless steel mooring cleats
• Wichard padeyes with chafe strips to hang fenders and fender lines have Wichard clips
• Stern seat with teak apron and legs
• Rupp rod holders under coaming
• Six (6) additional stainless steel cup holders
• Binocular box on main bulkhead
• Trash storage receptacle

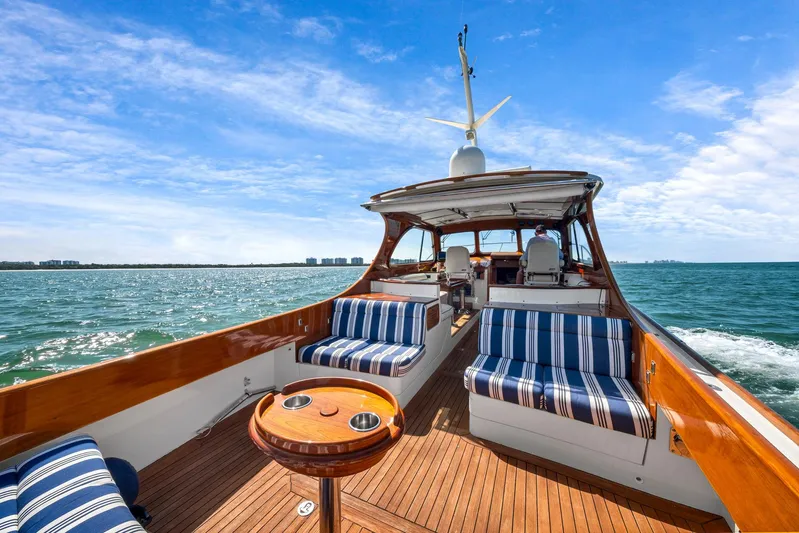

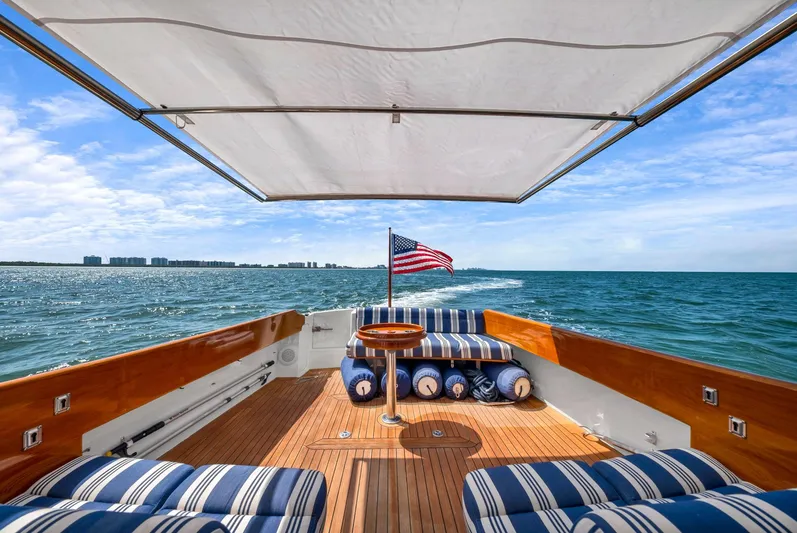

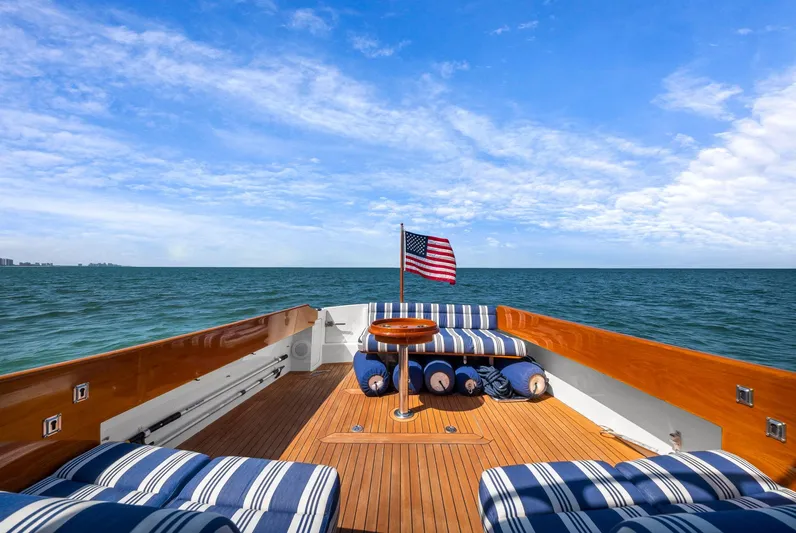

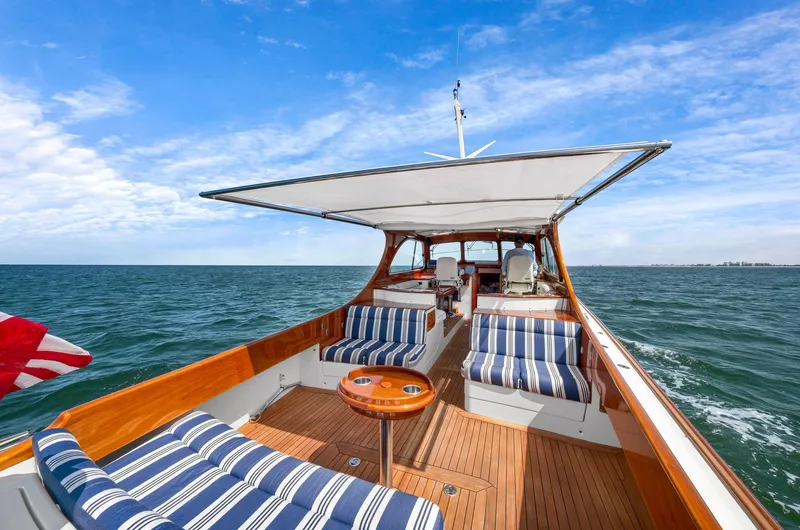

COCKPIT:

• Teak cockpit sole / teak sole in bridge deck area
• Varnished teak cockpit coaming
• Aft-facing seating is built into the port and starboard engine boxes. These seats are covered in Ralph Lauren Patio Stripe. Backs are topped with varnished teak and separate the cockpit from the pilothouse.
• Forward-facing seating at transom end of cockpit cushioned bottom and back covered in matching fabric

• Inboard-facing teak louvered doors provide access to large storage areas in each seatback
• The engine boxes are hinged and have electric lifts to provide easy access to the engine room

• Hinged transom door
• Transom chafe strip SS half round to prevent dock lines from rubbing transom

• Teak side-deck boarding step
• Cockpit boarding step platform has fittings on port and starboard sides

• (1) Pair stereo speakers mounted under side decks on fader control in pilothouse
• Courtesy step-light in pilothouse entry and courtesy lighting under the side decks
• Shore cord inlet - with Glendenning reel system w/ remote
• Cockpit shower/water outlet - with hot and cold mixing valve
• Deck shower - with cockpit spigot with a hot and cold mixing valve

• Insulated and drained cooler/fish box in transom, plumbed as live well

• Chrome-plated scupper grates - provide direct overboard drainage

• Center deck hatch - provide storage space and access to service mechanical
• Rod holders (4)- installed port and starboard on side decks. – dual-function as shore power cord and grill holders and boarding rail holders.
• Stamoid Ivory weather covers
• Stamoid Ivory cockpit cover
• Magnum Stainless Steel Grill (removable)
• Removable Cockpit umbrella that mounts into teak table with Stamoid table cover

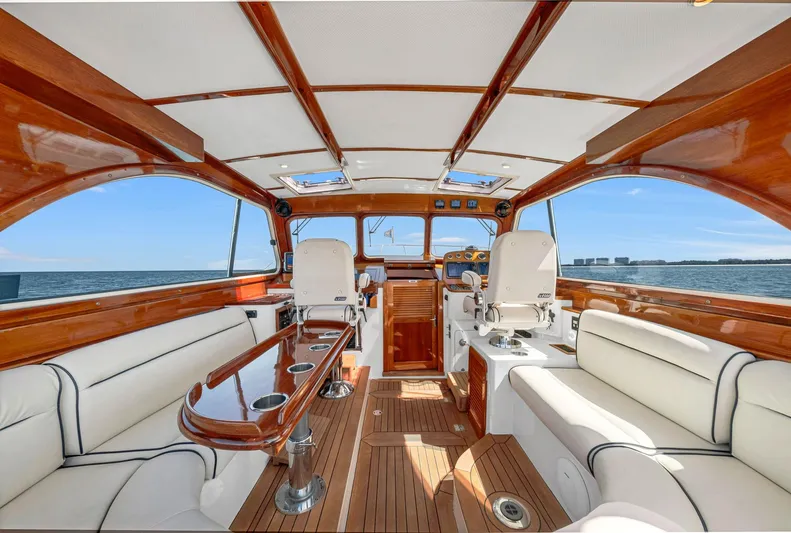

PILOTHOUSE:

• Varnished teak pilothouse upper side-liners and dash.
• Varnished teak table with padded cover.  Table lowers to make a pilothouse berth with Kravet Charter/Glacier cushion.
• (5) Five pilothouse windows: -Two green-tinted sliding side windows and three fixed forward windows.
• Forward pilothouse windows have heavy-duty, self-parking, intermittent windshield wipers with fresh water washers.
• Interior window sun covers - for all five pilothouse windows (Ivory Stamoid).
• Insulated white overhead - for sound attenuation.
• Two (2) overhead opening hatches with OceanAir Skyscreens-blinds/bug screens.
• Overhead illumination is low-voltage halogen lights with a dimmer switch. A separate circuit is provided with dimmer switch for the light over helm.
• Two (2) stereo speakers in pilothouse - with fader control.
• Two (2) Hella fans - mounted in pilothouse forward overhead outboard, port and starboard.
• Teak locking companionway door.
• (2) Varnished teak handrails in pilothouse overhead.
• Additional pilothouse stowage is accessed through the centerline hatch.
• A speaker is mounted in the settee base both port and starboard.
• Stamoid tan drop curtains with Eisenglass windows provide a fully enclosed pilothouse.
• Chart locker in the dash; locking lid

Helm Seats:

• Stidd helm and passenger seats finished in Porcelain Ultraleather with Blue Heron piping and powder-coated pedestal bases
• Port helm seat is adjustable manually for height and has an integrated footrest
• Starboard helm seat is adjustable manually fore and aft and its footrest is mounted on the forward bulkhead

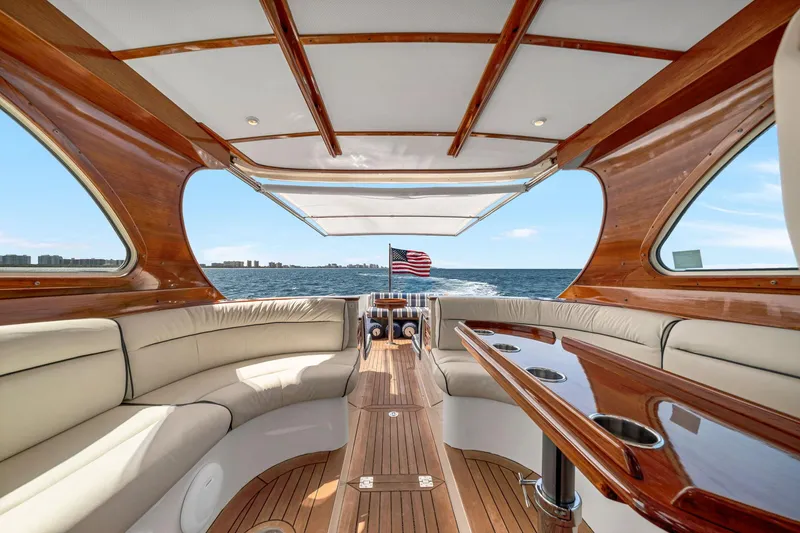

Aft Pilothouse:  Pilothouse aft has additional seating with two (2) curved settees, each with a varnished teak shelf rim outboard.

• Settees face inboard and forward and have back and bottom cushions.  They are covered in Kravet Charter/Glacier
• There is locker stowage beneath the port and starboard settees.

• Custom varnished teak table converts to extra bunk. Padded cover is provided for protection.

Forward Passenger Area (to port) has a varnished teak shelf with fiddle rail:

• AC/DC electrical panel is below the shelf

• Goose-neck chart light above DC panel
• Air conditioning vent
• (1) Integral cup-holders – stainless steel
• 12-volt outlet
• 110-VAC GFI outlet

Helm Station (Starboard):

The Helm Station has a varnished teak instrument pod with continuing shelf outboard and aft.

• Stainless steel 14” steering wheel with varnished wood rim,
• Hinckley “Jet Stick®” which integrates forward and aft control, steering, and bow thruster into a single joystick.

• Dual engine controls and gauges (Digital).
• ACR Spotlight control remote pad.
• Exalto windshield wiper control pad on dash.
• Trim tab position indicators (Lenco).
• Raymarine St 6001+ Autopilot control unit.
• Separate fuel gauges for each fuel tank.
• MarineAir Air Conditioning digital control pad.
• Ignition key switches and stop switches to starboard of helm seat.
• Manual back up for JetStick®.

• Under the helm seat is a teak louvered door with a storage shelf
• I-pod docking station

Helm Electronics and Navigation Equipment:

• Raytheon ST-6002 Autopilot - with rate sensor interfaced to GPS
• (2) Raytheon E-120 color 12” multi-function displays - networked Radar/GPS/AIS with Raystar 125 WAAS GPS antenna. Radar 4-Kw array is painted to match deck color.
• Standard Horizon PS2000 VHF
• Danforth Constellation high-speed Compass, varnished laminated binnacle mounted.
• Raymarine SR100 Sirius satellite weather receiver for the E-series Raymarine navigation system
• Three (3) Raymarine 12" screen Chart Plotters, 2 at helm and one port side
• Bose stereo/DVD system

ACCOMMODATIONS & LAYOUT:

Companionway Entry:  From the pilothouse, on center are the teak companionway steps to the accommodations below.  The lower step is top opening for stowage. The top-opening second step houses the master disconnect switches to the electrical systems.

The varnished teak companionway door has a louvered upper half with removable folding varnished teak hatch top.  There is a varnished teak handrail on the starboard side.

INTERIOR BELOW:

The Interior is finished in a satin-varnished cherry wood with insulated white overhead with cherry trim. The cabin sole is varnished teak and tulipwood and has a custom cabin sole cover.  All cabin locker doors are louvered with radius corners on the frames. There is a safe with a keypad under port hanging locker.

• (4) Opening ports below (including head and galley) with removable screens
• (3) opening overhead hatches with Ocean Air Skyscreen-blinds/bug screens
• Interior overhead lights and step lights
• Marine Air reverse-cycle heat/air conditioning
• Magazine rack on the forward side of both hanging lockers; false bottom on each rack for additional storage of eyeglasses, etc.

• XM radio system
• Alpine CDA-9886 Stereo system with amplifier and CD/DVD changer.  3-pair of MB Quartz speakers, each with volume adjustment: 1-pair in Forward Cabin, 1-pair in the Pilothouse, 1-pair in the Cockpit. Forward pair can be faded independently.  Remote control.

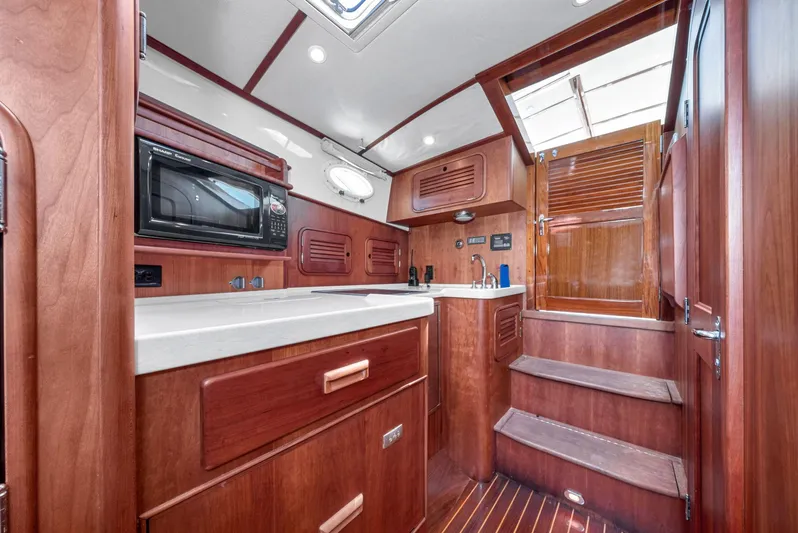

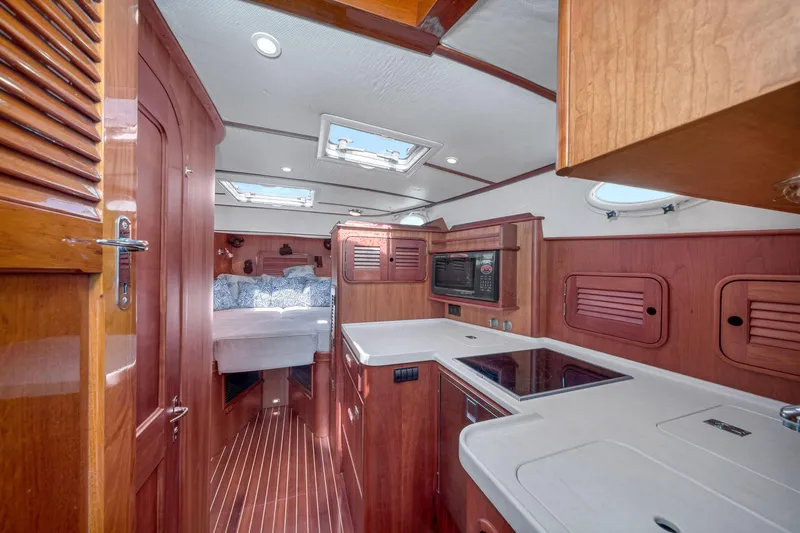

GALLEY:

The Galley is immediately starboard, with satin-varnished stained cherry woodwork and a Ecru Corian countertop.

• Optional Corian (bone white) deep single bin sink (with countertop color cover) and a single lever Grohe Faucet with hot and cold pressure water
• Undermounted soap dispenser at sink
• Seagull water filter for faucets and icemaker
• marine two burner stove
• Microwave oven with glass/mug rack on top
• Dishwasher
• Wine bottle storage
• Cutting board for sink in Ecru Corian with clear rubber feet
• 12-volt DC refrigeration/freezer with a shelf is top-accessed through the countertop which is stainless steel construction
• Storage outboard and above the galley countertop
• Ample storage throughout

The sink is forward.  Next to the sink is a countertop accessed waste bin, aft is a two burner (countertop mounted) electric cooktop and a large locker below with microwave.  Three additional storage lockers with louvered cherry doors and a fiddled shelf are over and outboard the stove. Dish and glass storage locker is on the aft bulkhead above the refrigeration.   The refrigeration is top accessed through the countertop which is aft on counter surface.

• Inverter/charger control panel
• Generator control panel
• Fresh water tank gauge

• 110-volt GFI dual outlet, mounted on aft bulkhead
• 12-volt light is mounted under the locker over the refrigeration
• Two halogen lights in overhead above galley are dimmable
• Step light in galley
• Opening port with screen
• Opening overhead hatch screen with SkyScreen-blind/bug screen

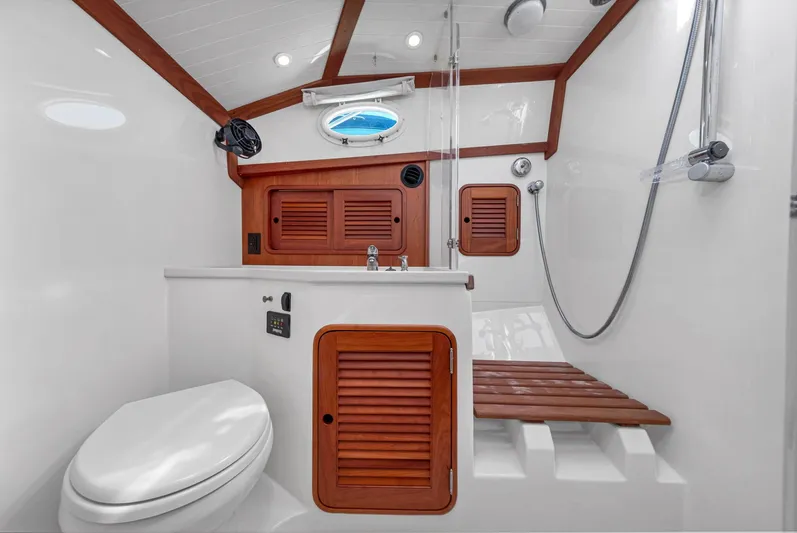

HEAD (Port):

To port is a private Head with a solid cherry door. The head is finished in molded white gelcoat with varnished cherry vertical louvered lockers and doors. The molded head sole has molded-in non-skid with drain.

• Solid Ecru Corian countertop has a bone white Corian sink with single-lever Grohe faucet
• Hot and cold water pressure
• Separate shower area with clear Plexi-glass folding doors has Grohe shower fixtures.  There is a teak seat and a storage locker outboard in the shower stall with a varnished teak louvered door.  There is a separate switched light.
• Two additional hooks in shower; one double hook on the back of head door and one double hook in the shower
• Retractable clothesline in shower
• Cherry framed mirror on back of head door.
• (2) Recessed 12-volt halogen lights
• Opening port with screen
• Opening hatch overhead in shower with OceanAir Skyscreen blind/bug screen system
• Sealand Vacu-flush marine head is fresh water and plumbed to the holding tank
• Stainless steel towel bar and robe hooks
• 110-volt GFI dual outlet
• Hella fan
• Reverse-cycle AC/heat vent
• Toilet paper holder is mounted inside the vanity louvered door
• Storage is provided in a lined-locker above and outboard the countertop with sliding, louvered cherry doors
• Louvered varnished cherry door locker under the vanity
• Countertop trash receptacle with cover in the aft end of the vanity
• Tankwatch holding tank monitor panel

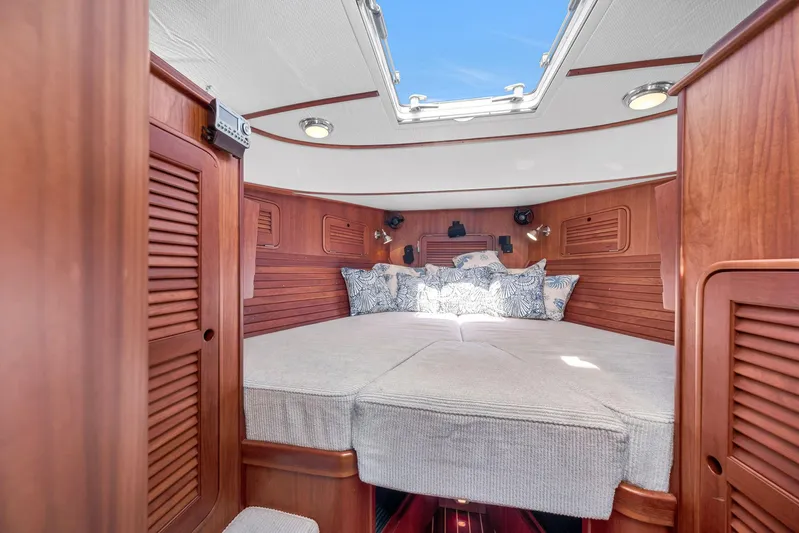

SLEEPING ACCOMMODATIONS:

• Double berth is formed with the V-berth insert with adjustable height and cushion. Lower position is sitting height
• Cushions are upholstered in Chella Venetian fabric
• Frigast light w/dimmer on both sides of forward end
• Sharp 20” LCD-TV in custom hinged locker mounted onto the forward bulkhead with Bose 38 surround sound system
• Additional 12 volt outlets for charging cellphones, etc.

Features:

• Access to forepeak/anchor rode storage. This area has a caged light
• Two Hella fans mounted on forward bulkhead
• Two stereo speakers – flush mounted port and starboard on forward bulkhead.
• Two recessed halogen lights in overhead on dimmer control
• Two chrome Frigast 12-volt lights are mounted on the aft bulkhead port and starboard
• Flush lockers are outboard and above V-berth

Aft of the V-berth to port is a large cedar-lined hanging locker with fiddled shelf storage over.  There is a small cushioned seat in front of the hanging locker.

• Starboard is another locker/pantry with a fiddled top and interior removable shelves, storage space and a light.  This locker separates the forward sleeping area from the galley.
• There is a cabin MarineAir heat/AC control

ELECTRICAL SYSTEM:

12/24-volt DC electrical system:

• (2) Lifeline GPL-31 starting battery for each main engine and includes generator
• (2) 12-volt DF-4D 210-amp/hr Service batteries for a total of 840-amps for house accessories
• Vanner battery equalizer- to supply both 12-VDC and 24-VDC house loads
• 80-amp alternators charge the start and house batteries
• Heavy-duty battery parallel switches also allow emergency starting

110/240-volt 50-amp AC electrical system:

• 50-A 125/250-volt AC shore power inlet, relay and 50-amp shore power cord with Glendenning shore cord reel system
• 80-amp battery charger
• Mastervolt 3.0 50-amp 24-volt power inverter/battery charger for house batteries
• 30-amp charger for start batteries
• 110-volt outlets

Onan 13.5-Kw generator with sound shield.

• 35-amp alternator on generator
• Generator control panel in galley includes:  Start/stop controls, pre-heat switch, and lighted warning panel

Low-resistance, heavy copper and sacrificial zinc anode electrical bonding system throughout boat.

• Bass AC/DC electrical panel

MECHANICAL EQUIPMENT & ENGINE DETAILS:

Twin (2) Volvo D-6 common-rail diesel 435-hp engines, with SeaKey emergency service.

• Hamilton 322 Jet Drive
• ZF transmission
• Vetus 24-volt 7” reversible bow thruster
• Teak-rimmed stainless steering wheel
• Volvo throttle/transmission control with synchronizer
• Hinckley “Jet Stick®” control system is integrated with the bow thruster
• Dual cylinder trim tab is below each jet with controls and displays at helm
• Racor fuel/water filters with water sensor and drain petcocks
• Digital Volvo engine info displays – rounded gauges
• Custom wet exhaust muffler system
• Oil transfer pump for engines, generator, and transmissions.
• Manual hydraulic steering pump
• (3) Electric 3700-gph 12-volt bilge pumps with float switches
• Whale emergency bilge pump mounted below cabin sole
• Saltwater deckwash with anchor locker spigot
• In-line 12-volt automatic shower sump pump
• Fireboy - Xintex automatic fire system for engines and generator with automatic engine shutdown
• (2) 2.5# Dry chemical fire extinguishers
• (3) Aluminum fuel tanks with transfer pump – (1) 180-gallons and (2) 80-gallons saddle tanks.
• Stainless steel 10-gallon hot water heater – engine or electrically heated
• Aluminum 38-gallon holding tank with Y-valve and macerator pump to overboard discharge
• MarineAir 16,000 and 24,000 BTU reverse-cycle marine air conditioners with outlets in main cabin, head and pilothouse
• Sink with hot and cold water on STBD engine box with a teak hinged cover to fit over sink

ADDITIONAL EQUIPMENT:

• Varnished teak burgee staff
• Stern mounted 4 ft. varnished teak ensign pole & socket
• Bell
• Dock lines
• Fenders
• Life jackets
• Handheld flare kit
• 12-volt trumpet air horn with switch on dash
• Masthead and running lights
• Muir electric Windlass package:  Flush foredeck anchor locker houses a Muir VR1250 24-volt DC electric windlass with polished stainless steel 22# anchor + 25” stainless steel chain + 200’ x 5/8” anchor rode and stainless steel bow roller.  The windlass can be operated from the helm station or a handheld remote at anchor locker.
• Saltwater deckwash with spigot in anchor locker.
