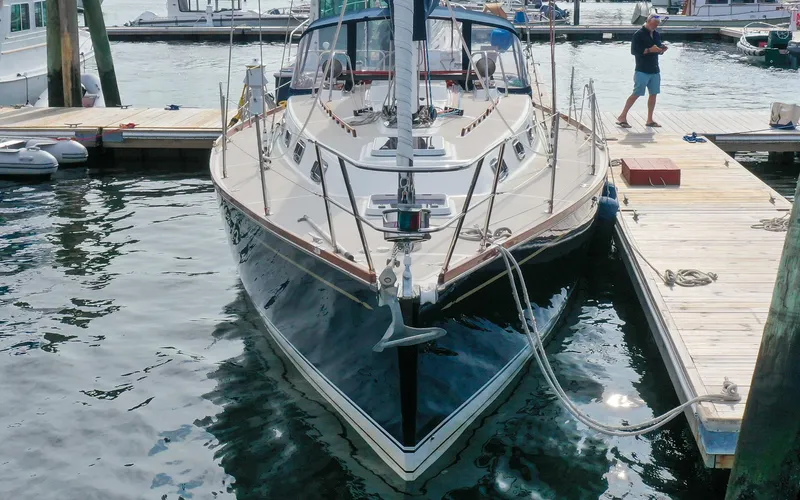

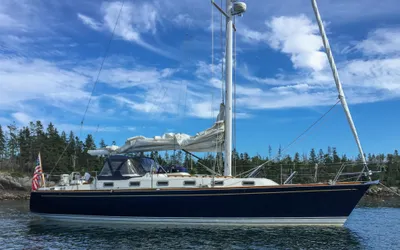

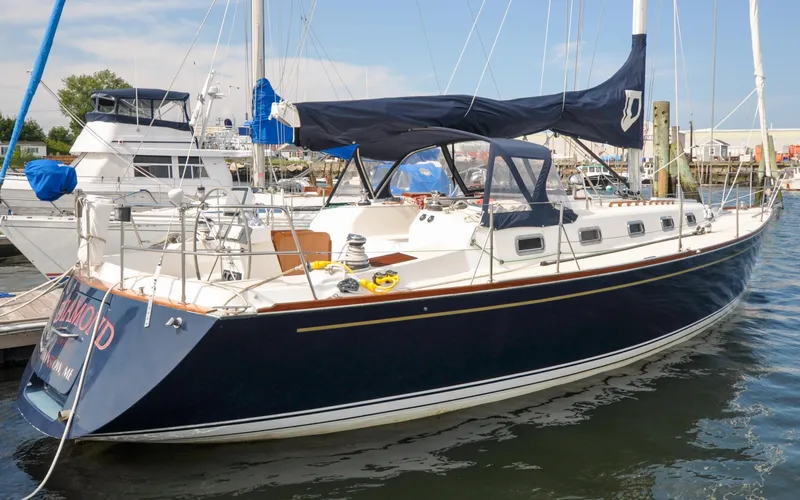

DIAMOND Boat for Sale

• Beam: 13' 6''
• Hull Material: Fiberglass
• Max Draft: 5' 4''
• Displacement: 21,000 lb

Diamond Build Packages

• Base boat - varnished cherry
• Luxury interior package
• Dockside convenience package
• Premium deck and rig package
• Watermaker

Hull

     Standard Options Diamond

• Dark hull color - Awlgrip
• Boot stripe - double white
• Sheer stripe - white
• Rod vang, led aft
• 2nd Genoa halyard, led aft
• Spinnaker padeyes
• Heart Freedom 20 inverter

     Hull

• White NPG/ISO gelcoated hull, hand laminated with alternating layers of strand mat and uni-directional "E" glass locally reinforced
• Fully Baltek balsa cored for stiffness with solid glass at all thru hull, chain plate and keel installations
• Gelcoat backup layer is laminated and chemically bonded using a 4 mm barrier coat of vinvlester anti- corrosive resin for blister resistance
• 90 Degrees throw flush thru-hull fittings
• Bulkheads and floor timbers are directly taped to the hull skin while in the mold
• Built to meet ABS Plan Certification

     Keel/Ballast

• 8,000 Pound lead Beavertail bulb keel thru-bolted to hull with stainless steel bolts

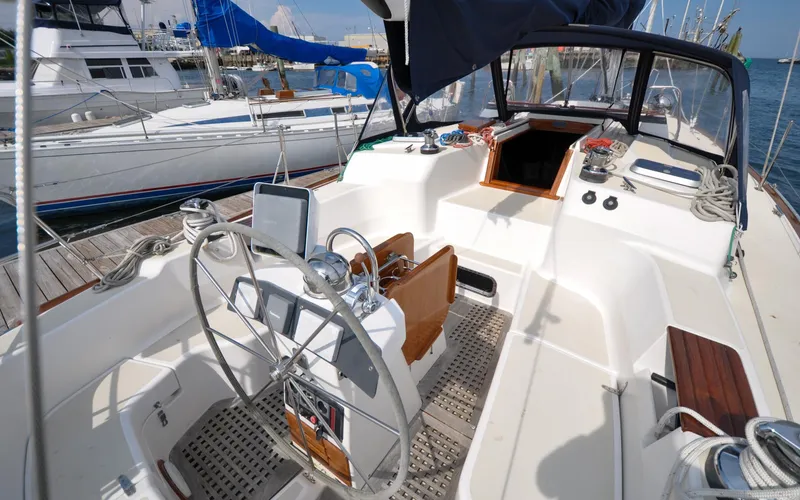

Rudder/Steering System

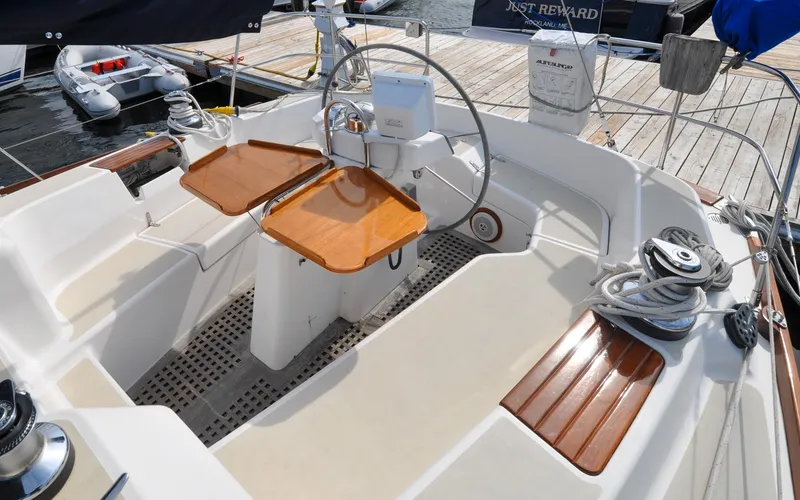

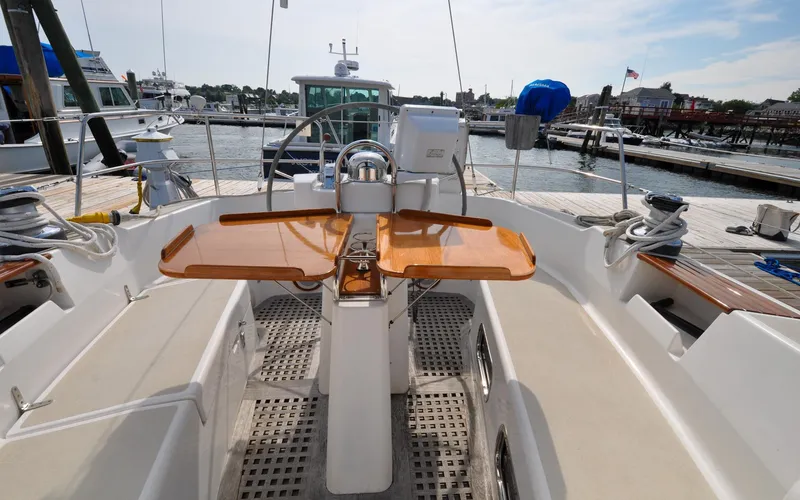

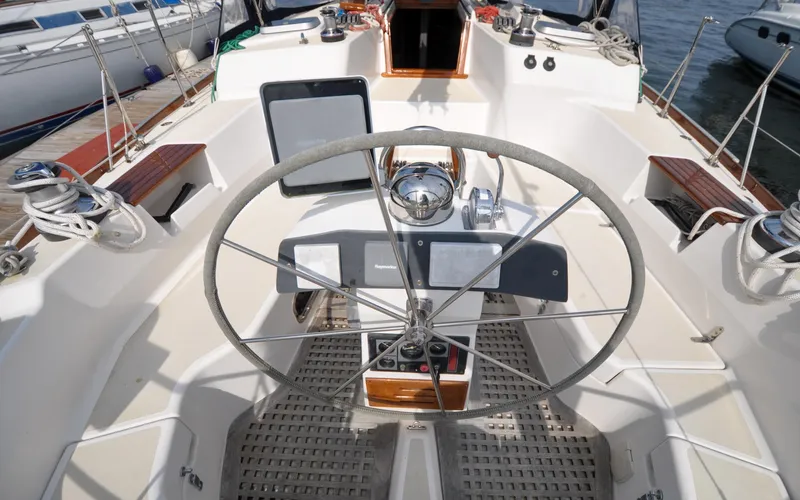

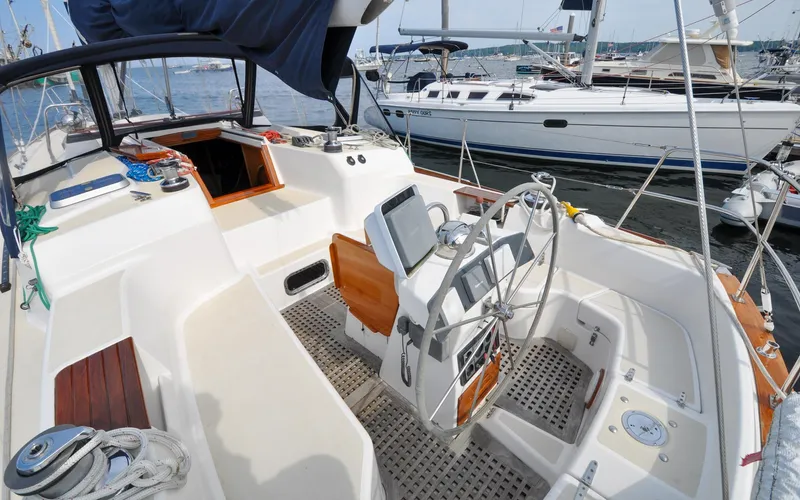

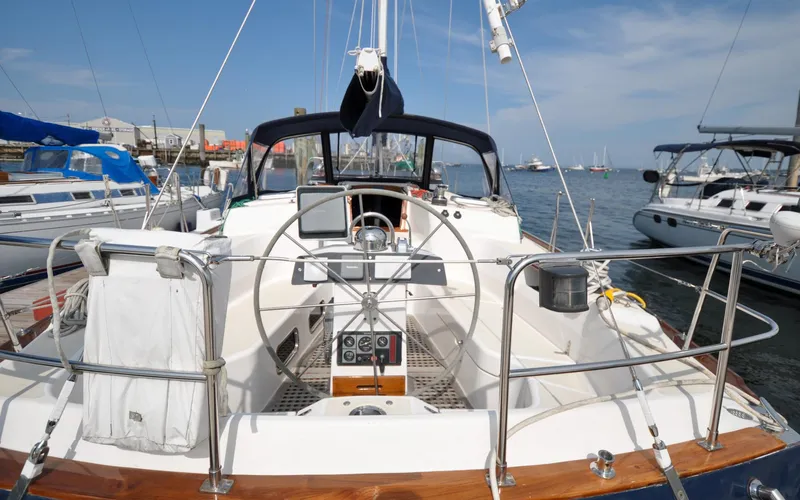

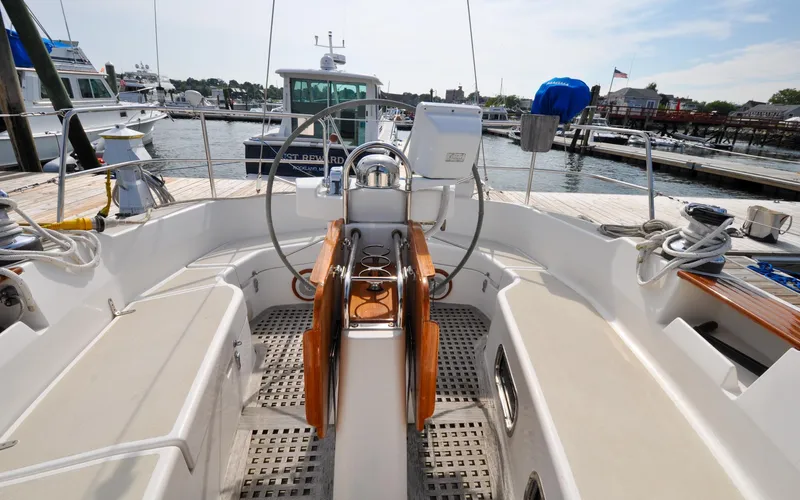

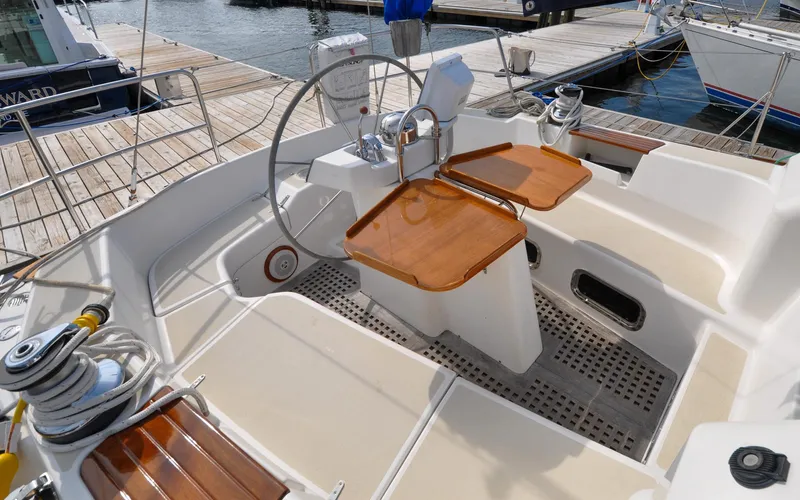

• Pedestal console steering with 44" stainless steel destroyer wheel
• Foam cored elliptical rudder blade with uni-directional FRP skins
• 3 1/2" Oversized 304 stainless steel rudder post
• Ritchie 6" binnacle mounted compass
• Emergency tiller

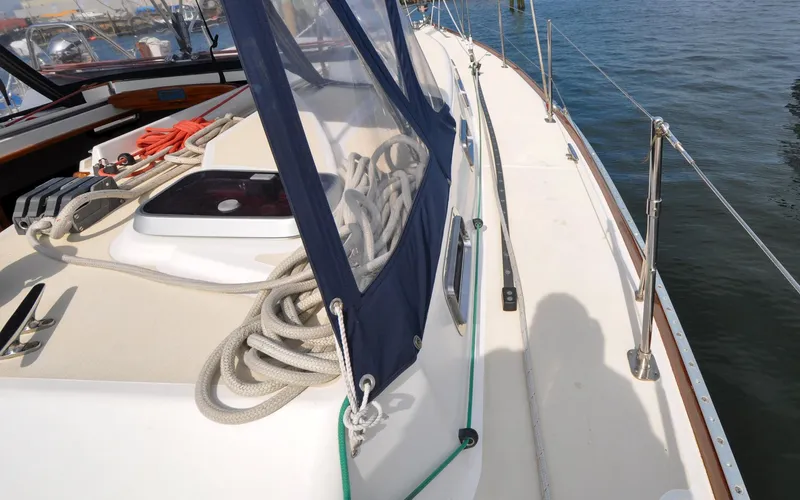

Deck

     Diamond Deck Options

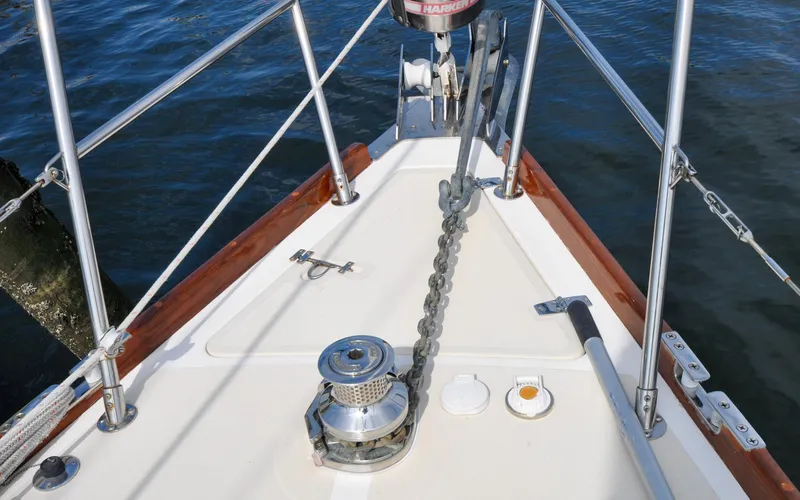

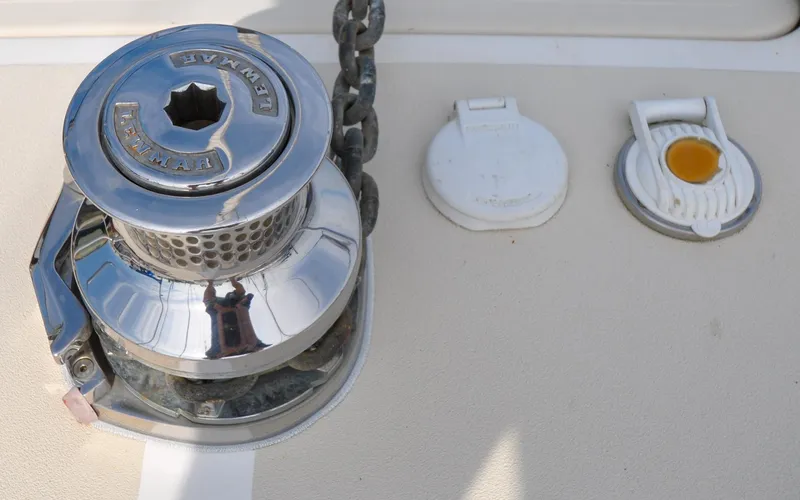

• Simpson Lawrence horizon windlass
• Electric main halyard winch
• External teak was stripped and varnished with Awlwood ~ 2022

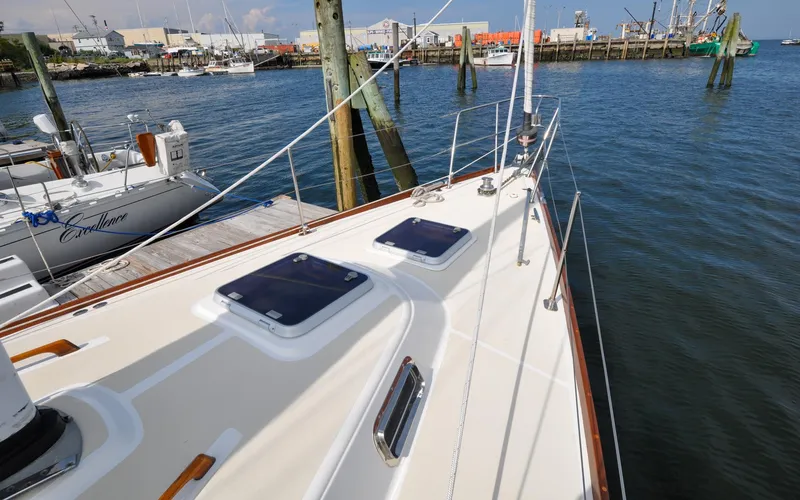

• Additional deck hatch
• (2) Anchors

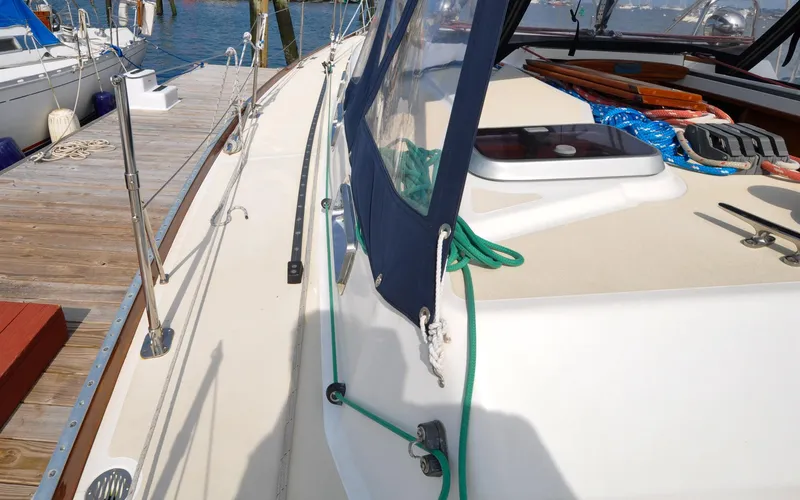

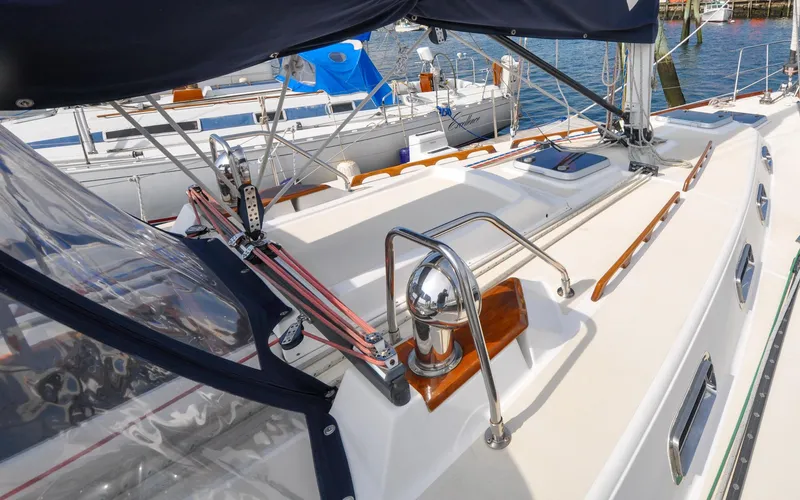

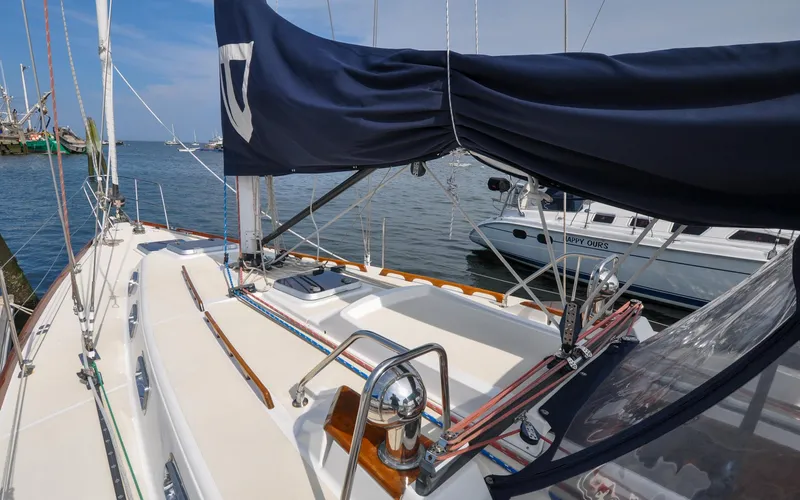

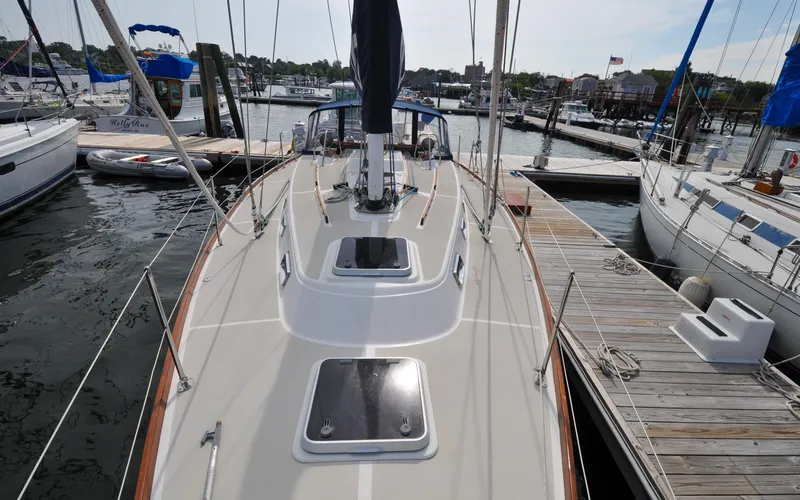

     Deck Construction

• White, off-white or sand gel-coated deck with patterned non-skid
• Hand laminated sandwich composite of polyester resin unidirectional "E" glass and end grain balsa core
• All hardware installation points are solid glass backed with 1/4" aluminum or FRP backing plates
• Joined to hull using stainless steel fasteners that are drilled and tapped into aluminum backing plates molded into the hull flange
• Bonded with 5200 sealant

     Hardware

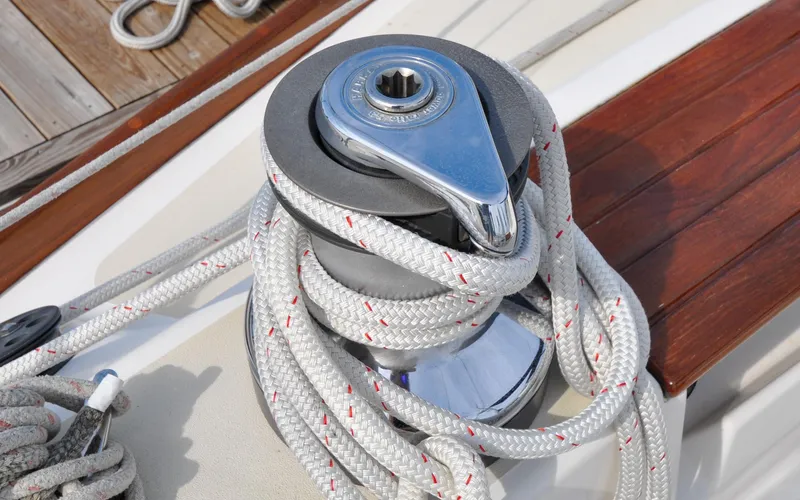

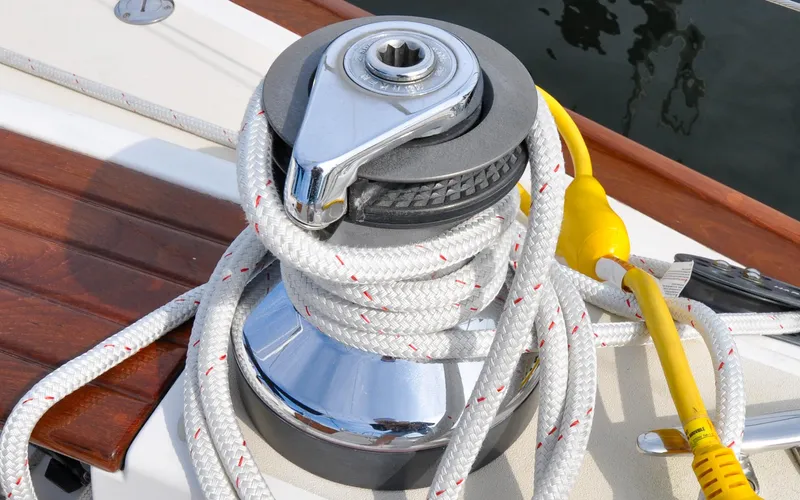

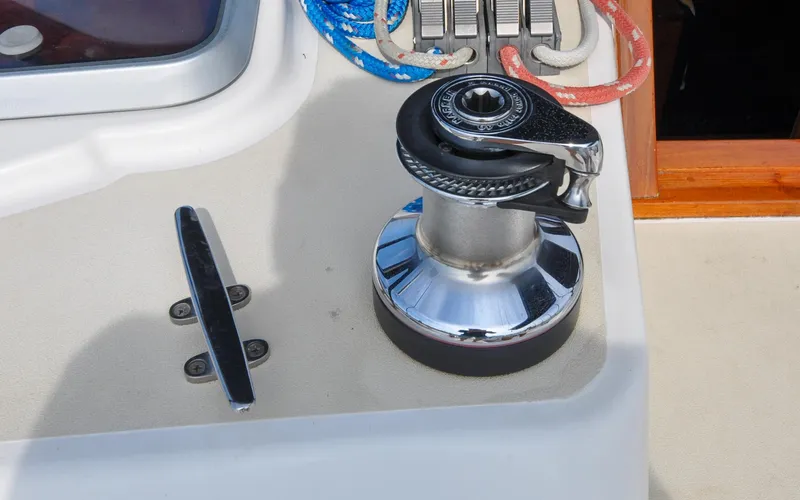

• (2) Harken 53 STC (self-tailing chrome) primary winches

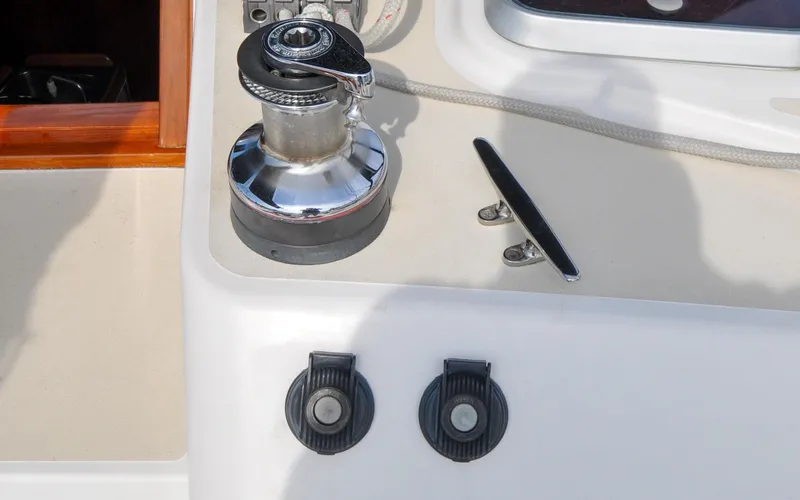

• (1) Harken 40 STC (self-tailing chrome) mainsheet winch - electric
• (1) Harken 40 C genoa halyard winch on spar27 Inch double stainless-steel bow and stern rails
• Four-hole mount stanchion bases with backing plates
• 27 Inch double lifelines
• Boarding gates port and starboard
• Custom stainless-steel stem plate with tack fitting

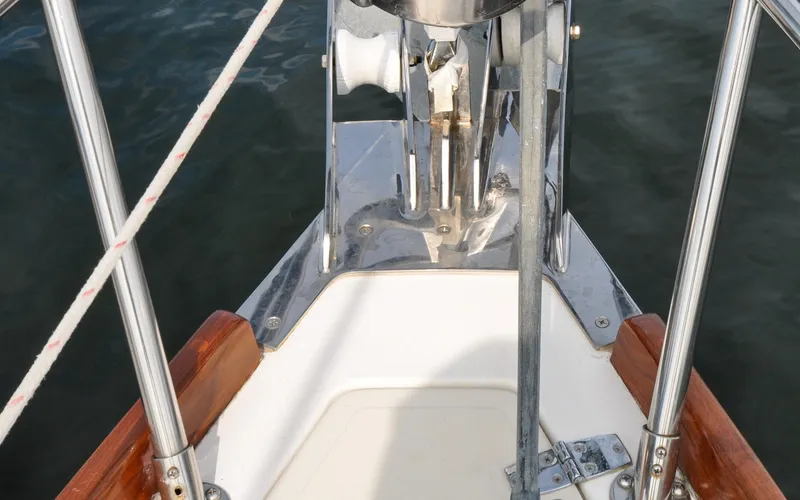

• Stainless-steel bow mooring chocks with rollers and stainless-steel cleats
• Solid 2 1/4" high teak toe rails
• Teak taffrail
• Inboard genoa track with (2) wide sheave cars
• Harken winch handles
• Harken deck turning blocks for aft led halyards
• 4-Part Harken mainsheet system lead to winch

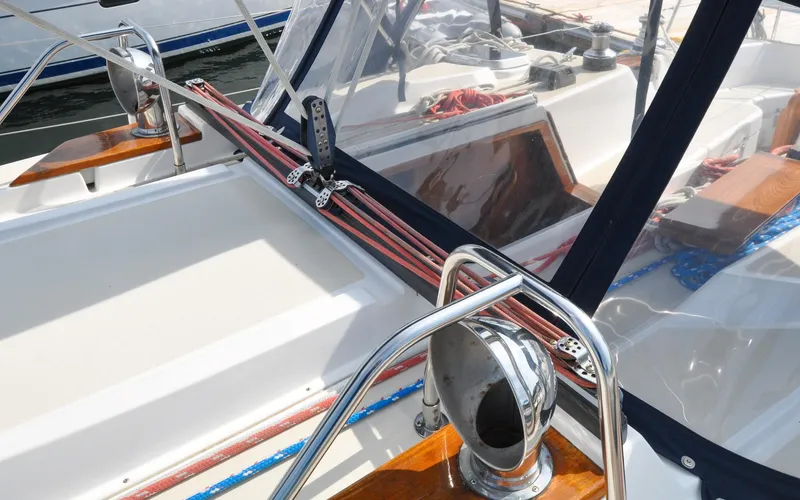

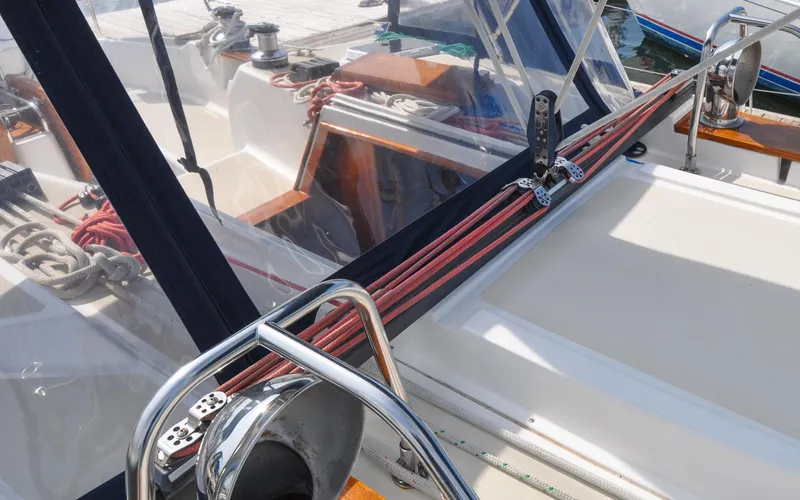

• Harken mainsheet traveler with tagline adjustment
• Cast aluminum mast collar with stainless halyard organizer plates
• On deck drains to water outlet below the waterline
• Housetop teak handrails
• Manual cockpit mounted bilge pump
• Offshore ready, match molded gasketed cockpit hatch
• Cockpit shower

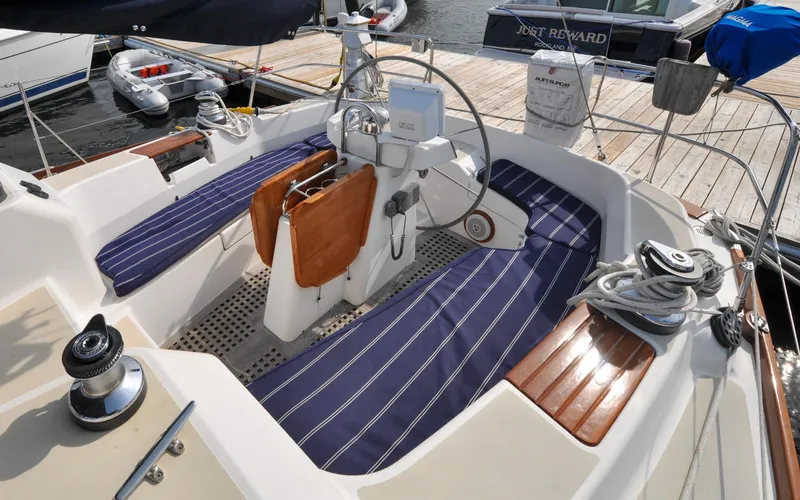

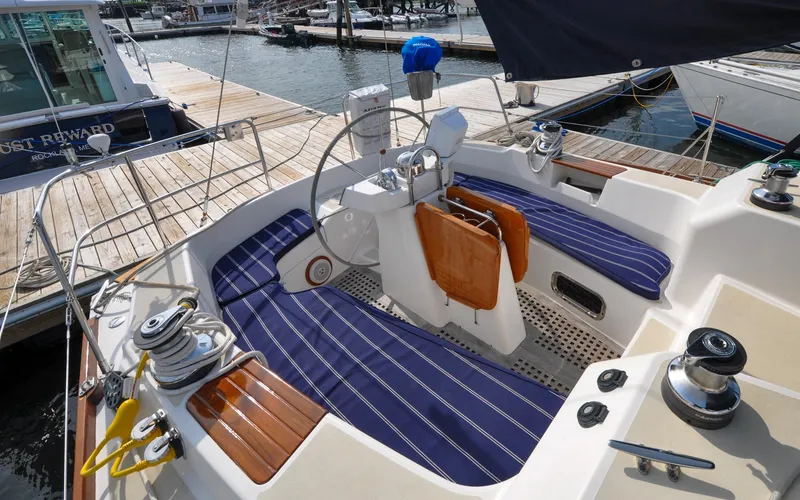

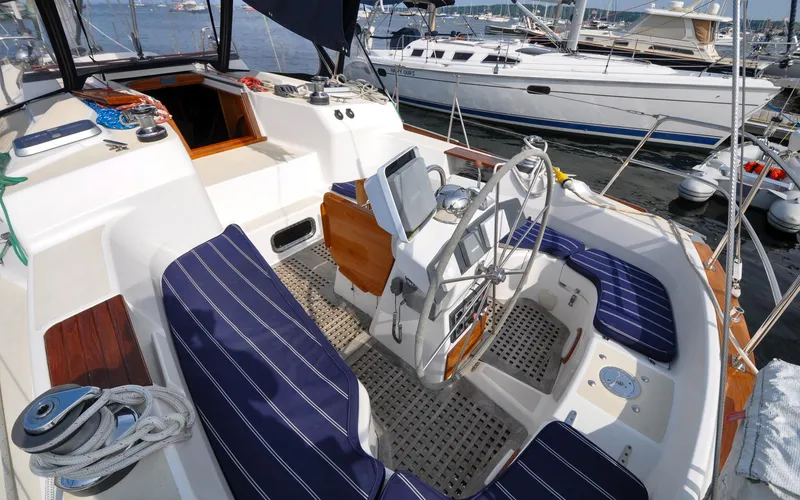

• Teak floor grate in cockpit

Electronics

     At Helm

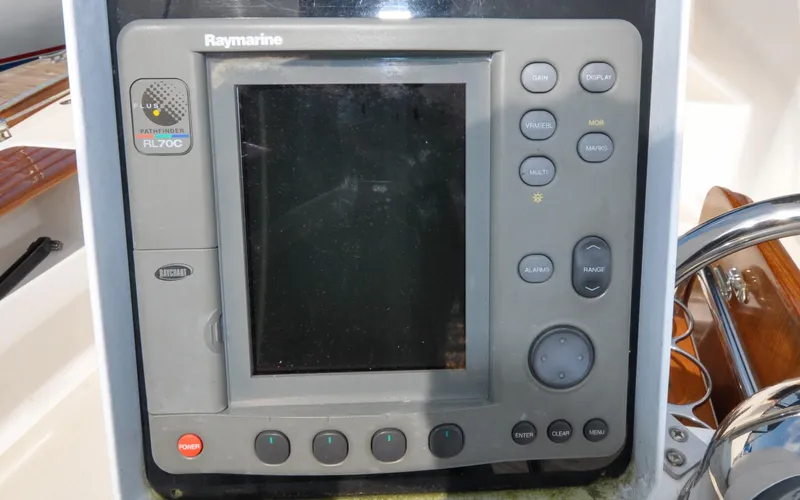

• Raymarine Pathfinder RL70C Plus multifunction display
• Raymarine Autohelm ST7000 autopilot

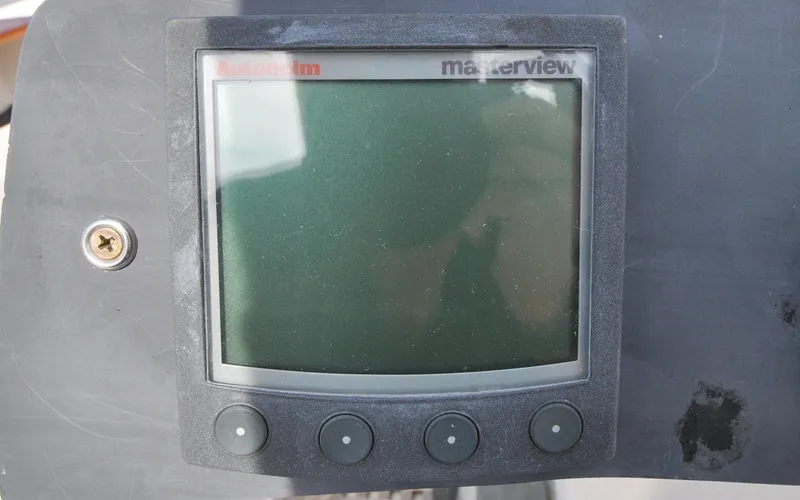

• Autohelm ST80 Master View (will display speed/depth, wind and pilot at helm)

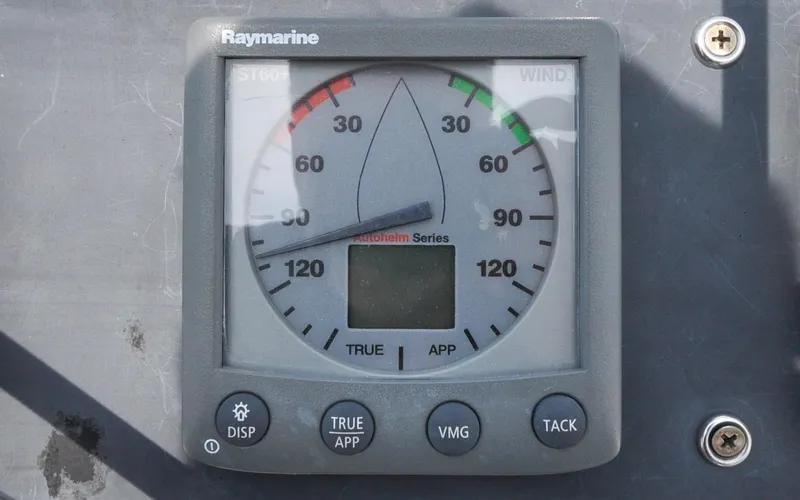

• Raymarine ST60+ Wind display

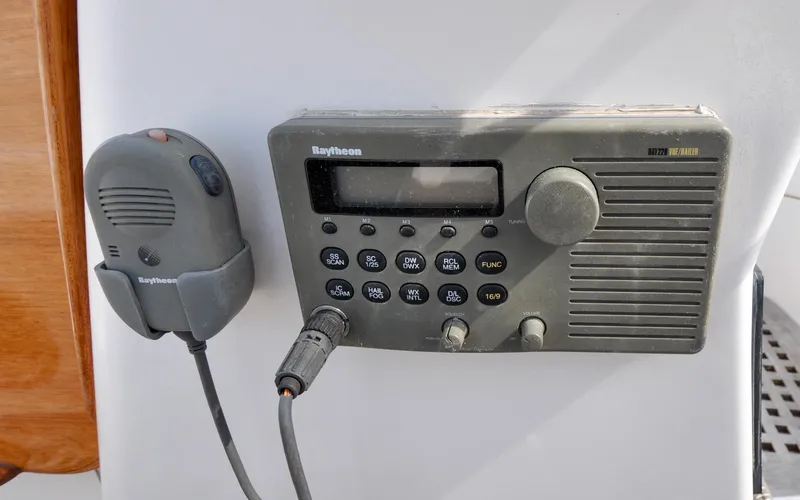

• Raytheon Ray 220 VHF/Hailer marine VHF

     On Pushpit

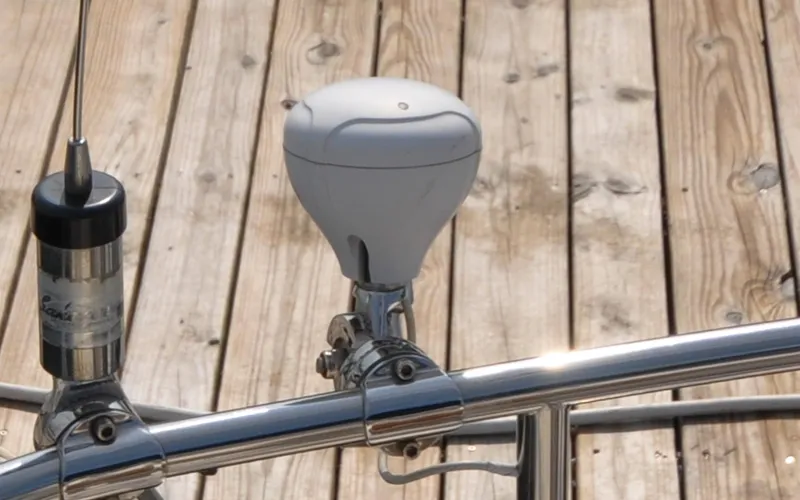

• DGPS receiver and antenna

     On Mast

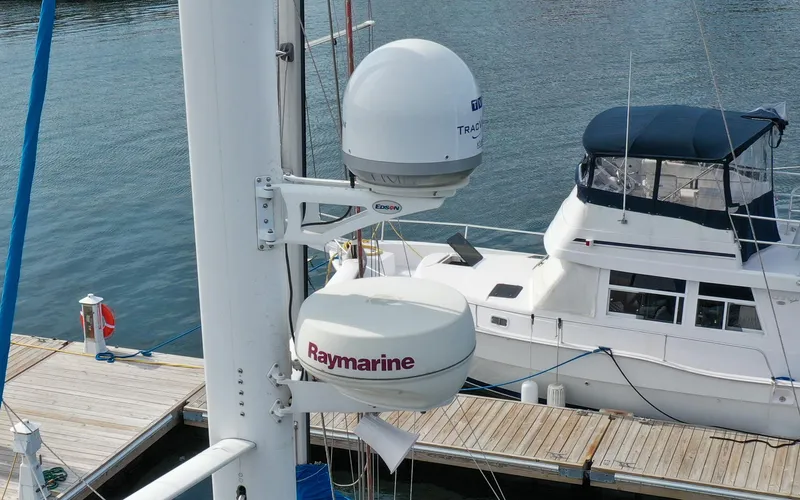

• Raytheon closed array radar dome
• Track Vision dome
• Loudspeaker

     At Navigation Station

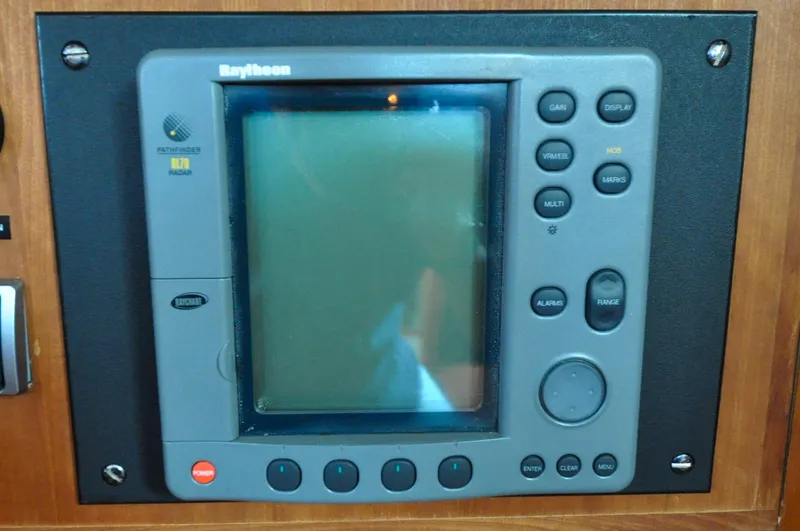

• Raymarine Pathfinder RL70 radar display

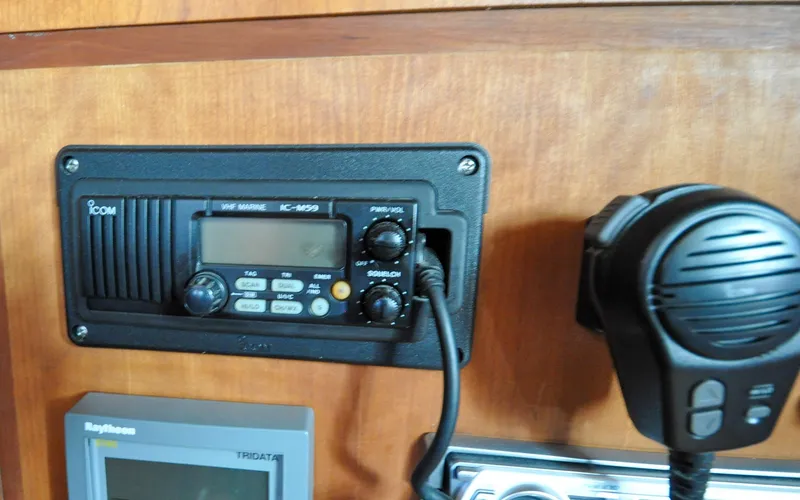

• ICom IC M59 marine VHF
• Raytheon ST60 Tridata display

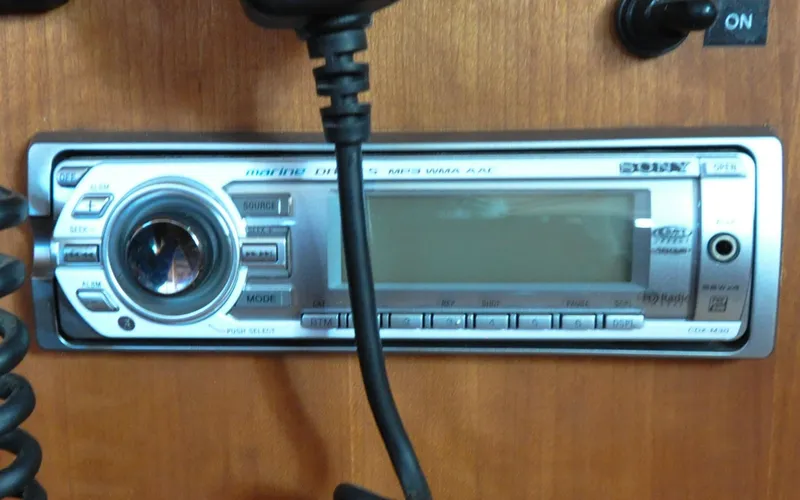

• Sony marine stereo receiver

Spars/Rigging

     Diamond Option

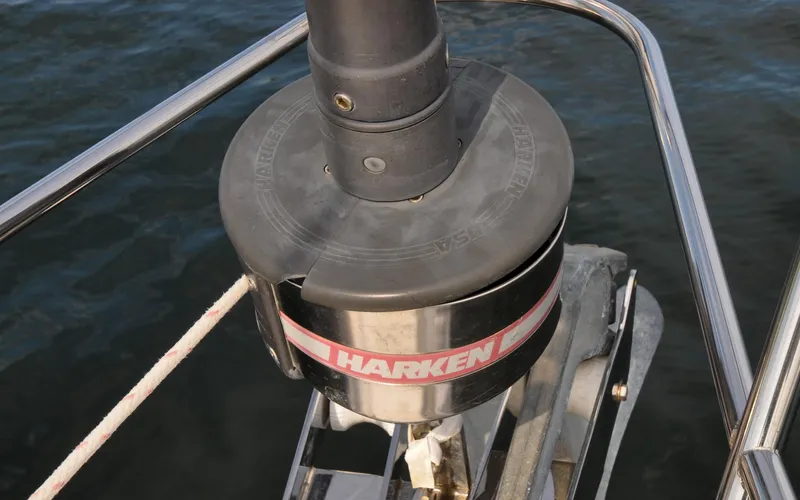

• Harken roller furling

     Mast

• White double spreader tapered aluminum mast
• Keel stepped
• I" × 19" Stainless steel standing rig with open body turnbuckles
• Bow light with foredeck illumination light

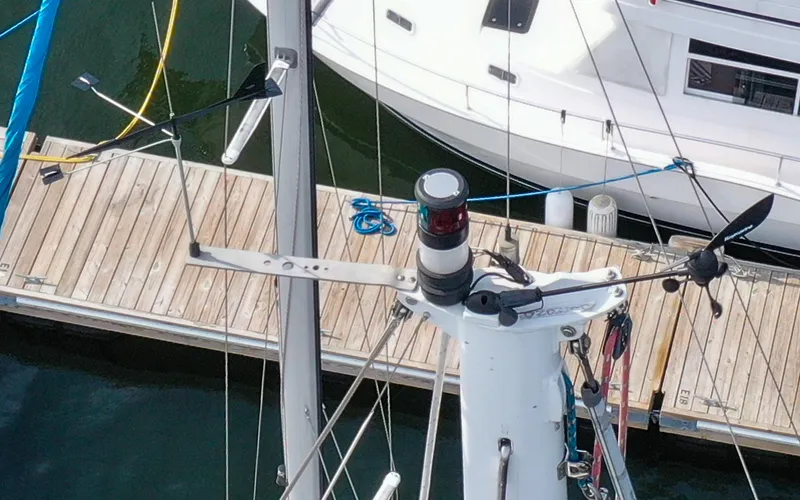

• Masthead light
• Mast wiring conduit
• Internal main and genoa halyards

     Boom

• White aluminum boom
• (2) Reefs
• Internal 4:1 outhaul
• (4) Sheave outboard endcaps
• (4) Sheave inboard endcaps
• 2-Part boom topping lift

     Running Rigging

• (1) Low stretch genoa halyard
• (1) Low stretch main halyard
• (2) Dacron genoa sheets
• (1) Dacron mainsheet
• (2) Traveller taglines
• (2) Reef lines

Sails

• I - Foretriangle: 54'0"
• J - Foretriangle: 15'0" o
• P - Mainsail Luff: 47'0"
• E - Mainsail Foot: 17'0"
• Bridge Clearance: 58'6"
• Ballast Displacement Ratio: 40% varnished cherry
• Displacement/Length Ratio: 197.97
• Sail Area/Displacement: 17.37
• Range of Positive Stability: 125 degrees

     Sail Inventory

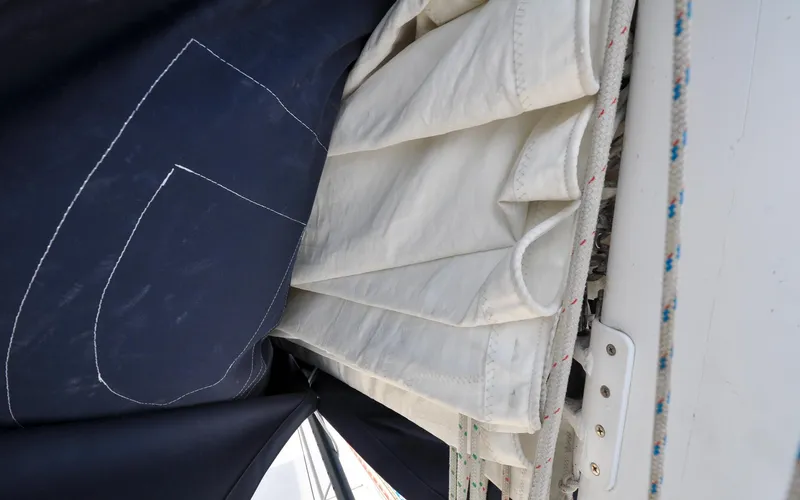

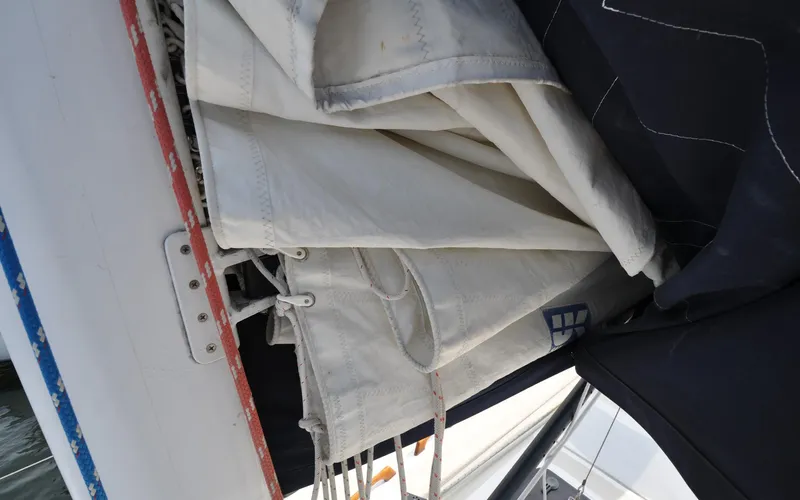

• UK main sail
• Pope 135% genoa sail
• Pope gennaker with sock

Interior

     Diamond Interior Options

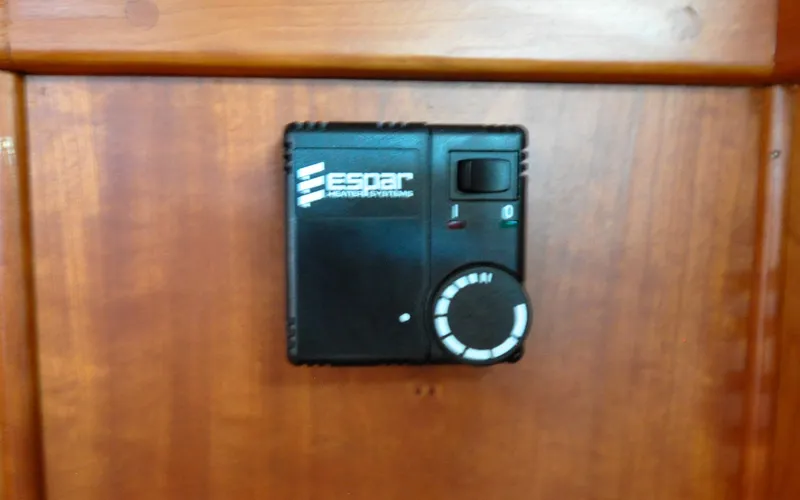

• Espar heating system with duct work in all cabins
• Ultra leather (main cabin only)
• Custom made Ultra Suede mattress covers with custom made fitted sheets in forward cabin
• Hatch screens/deck hatches
• Additional fuel tank

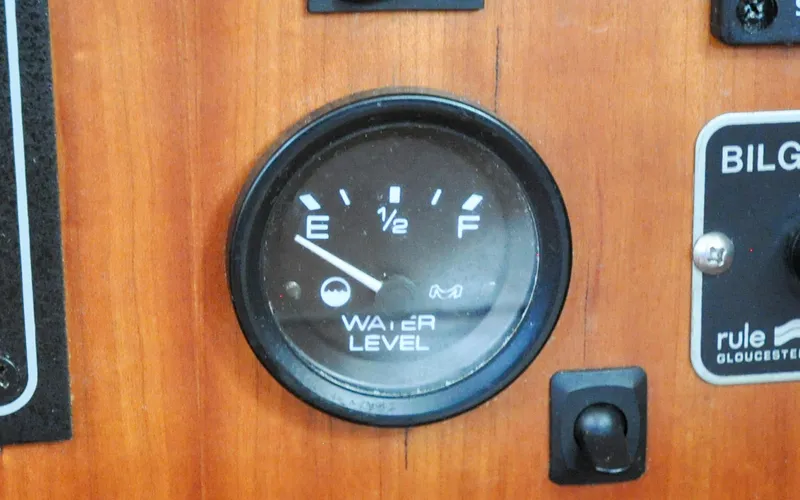

• Additional water tankage

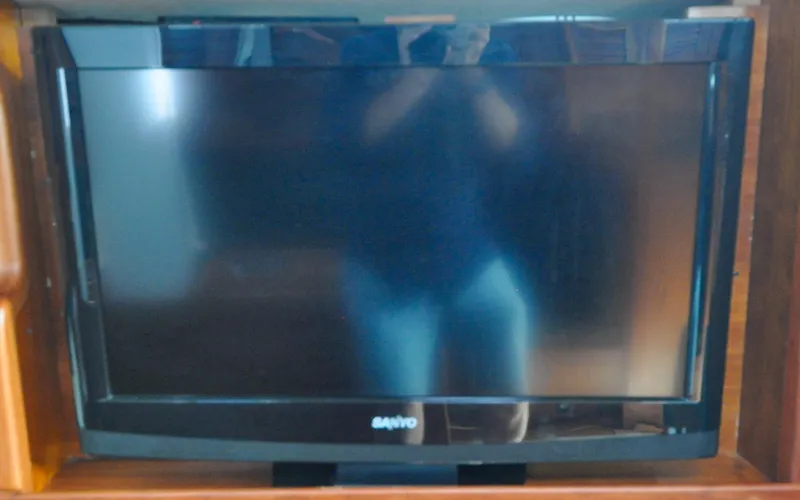

• Sanyo flat VHF TV

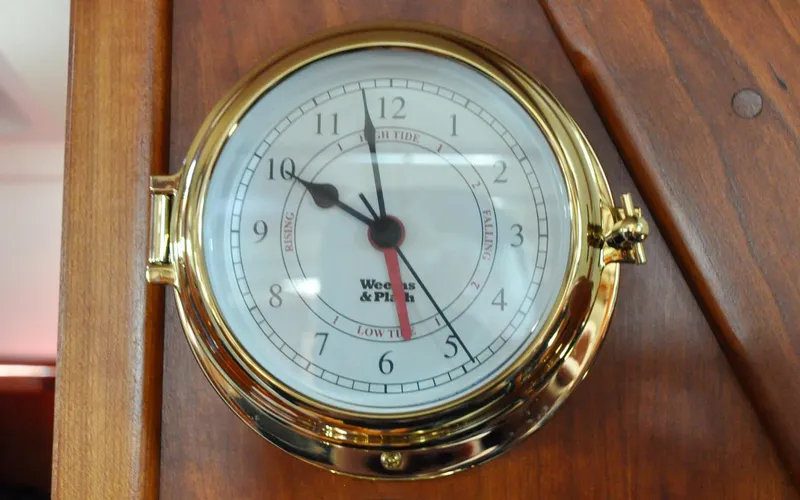

• Weems & Plath ships clock

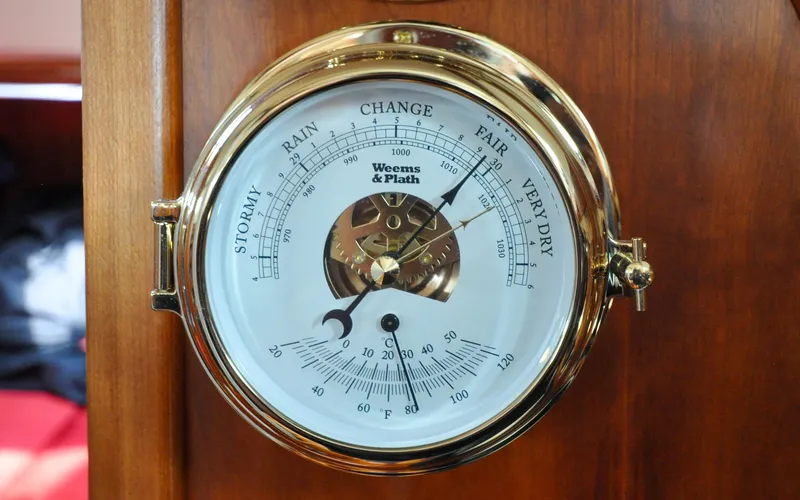

• Weems & Plath barometer

     Construction

• Structural fiberglass timbers bonded to hull
• Structural bulkheads glass taped to hull and deck
• Bulkheads and risers are pressure laminated or veneered plywood

• 304 stainless steel strap chainplates bolted to the deck and an all fiberglass integral molded pod grounded to keel
• Cabinetry and trim in varnished cherry
• Cabin sole in teak and holly
• Overhead liner is cherry battened FRP with strategically placed access panels

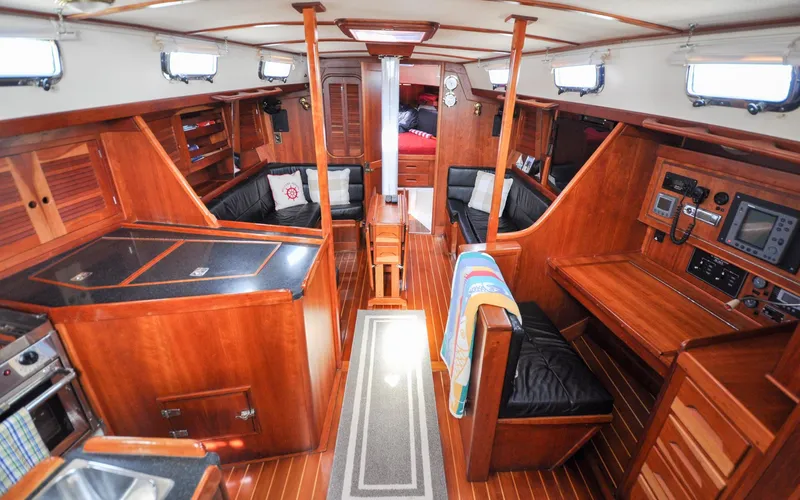

     Accommodations/Storage

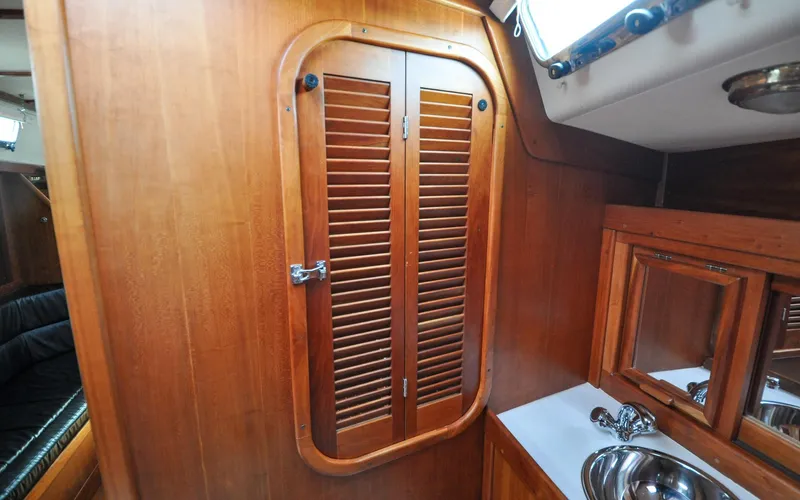

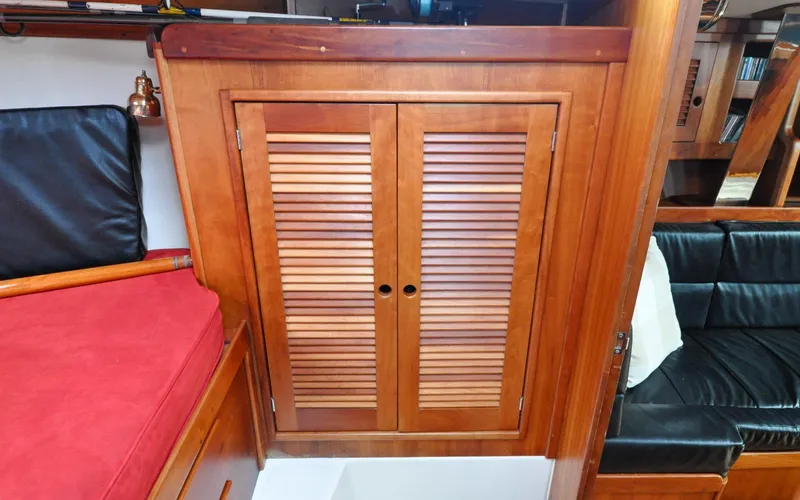

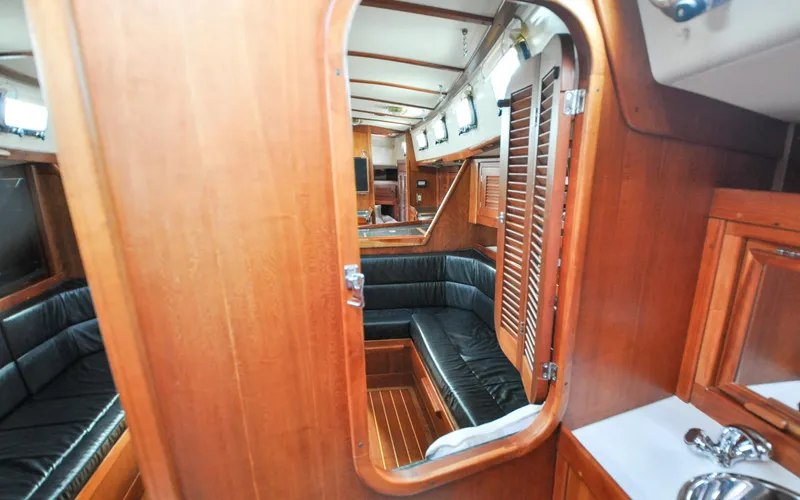

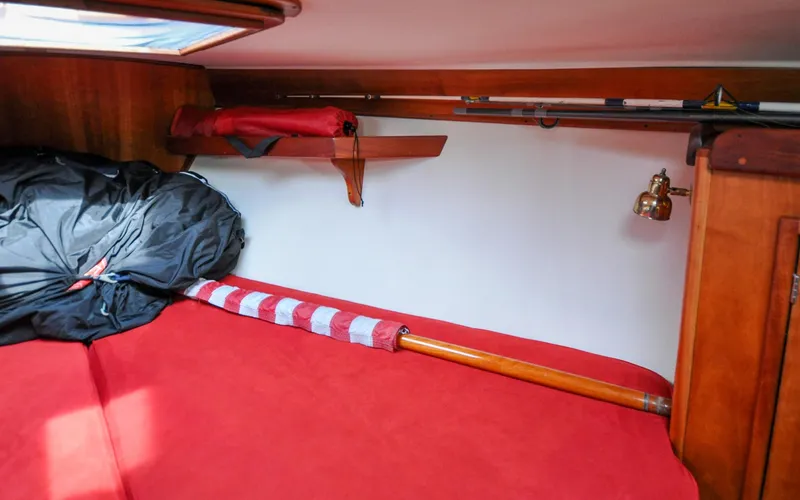

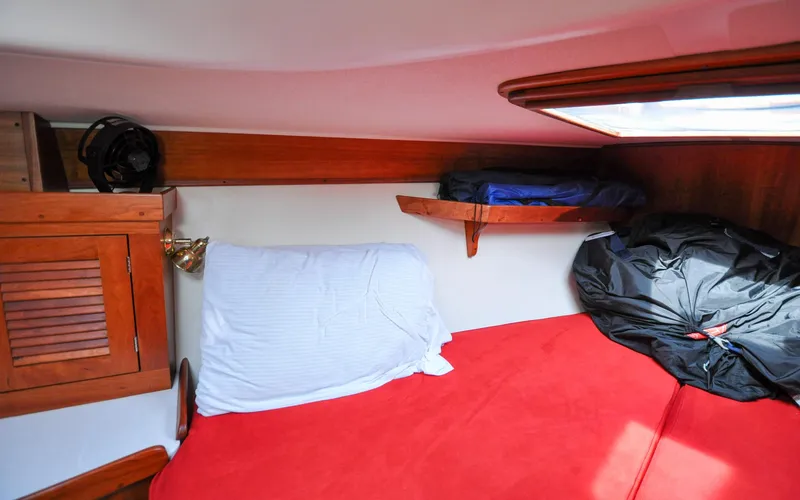

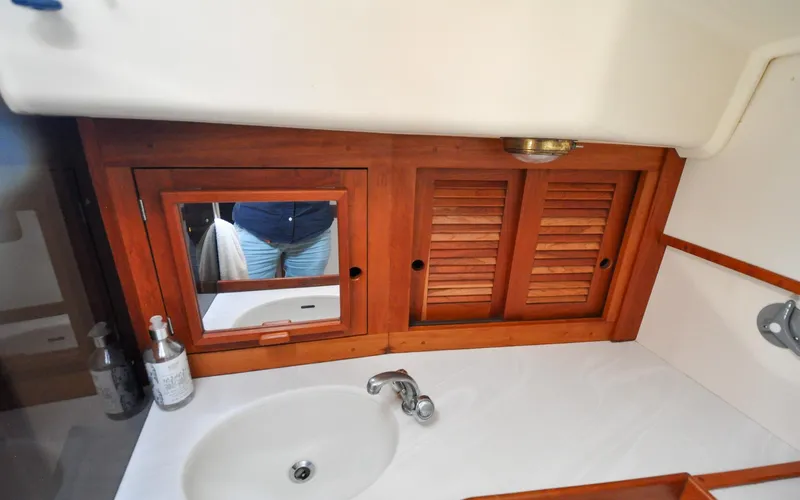

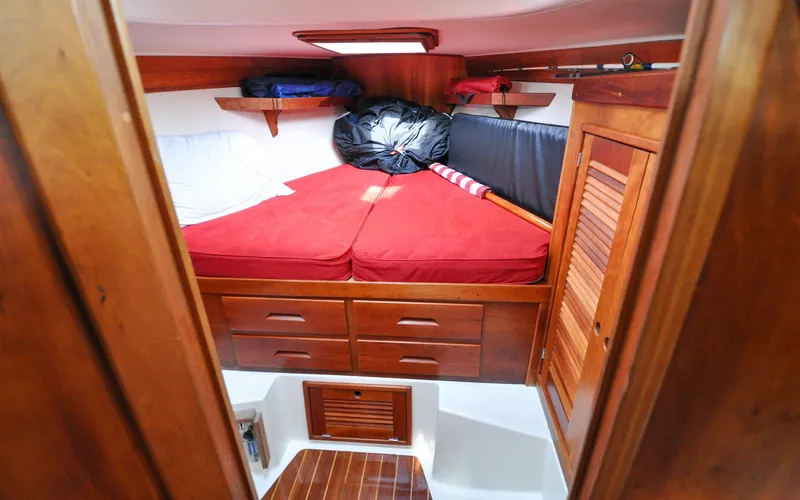

• Forecabin with vanity and sink, lockers, hanging locker and (4) drawers
• Large forward berth with mattress

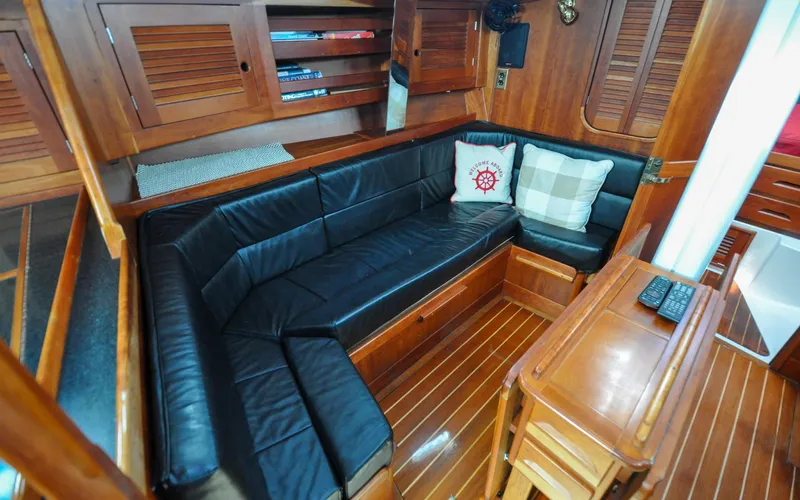

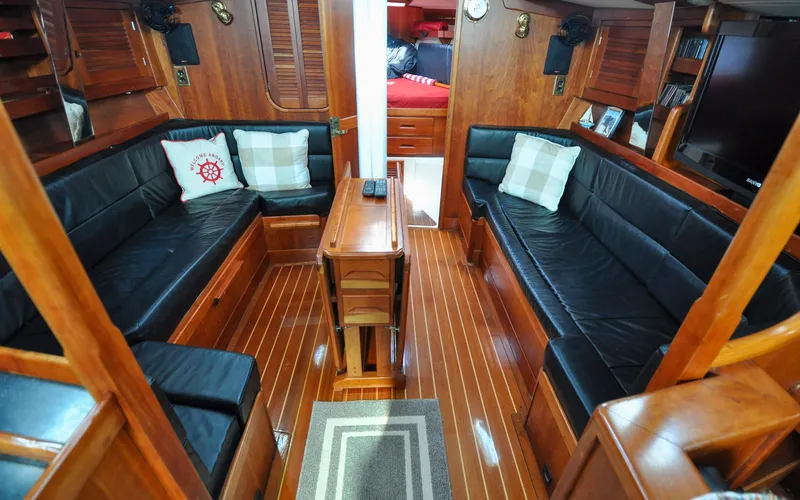

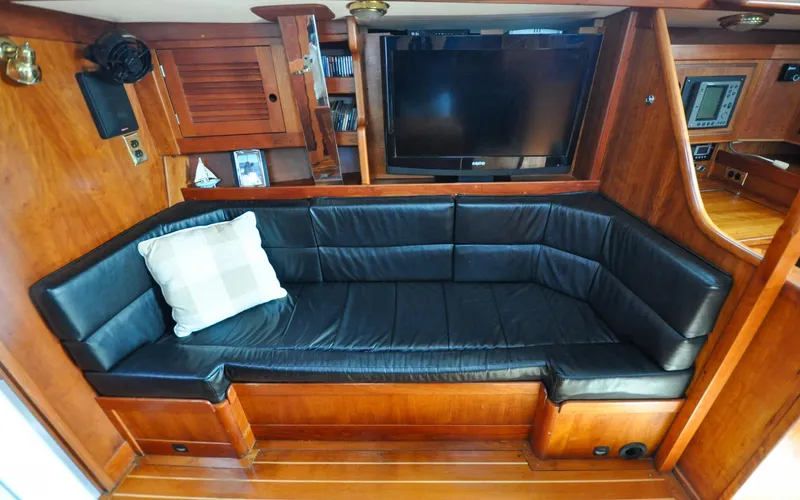

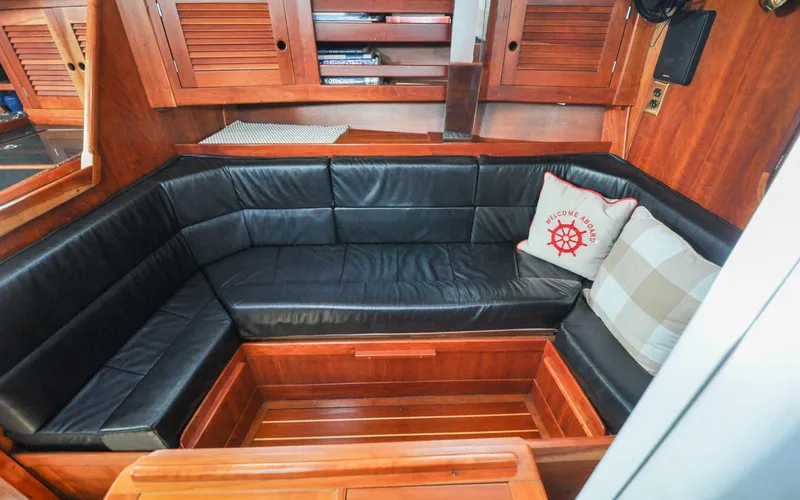

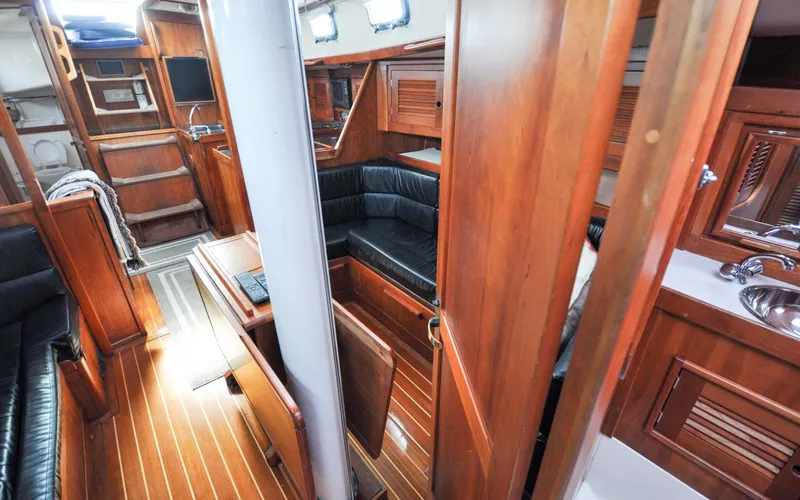

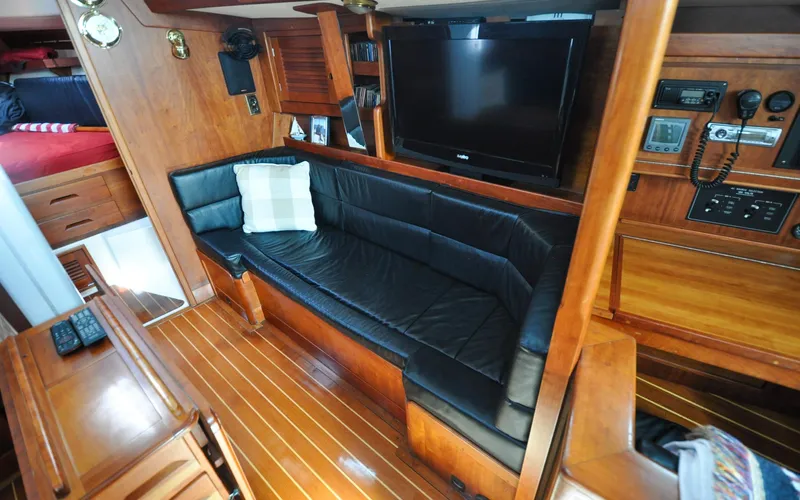

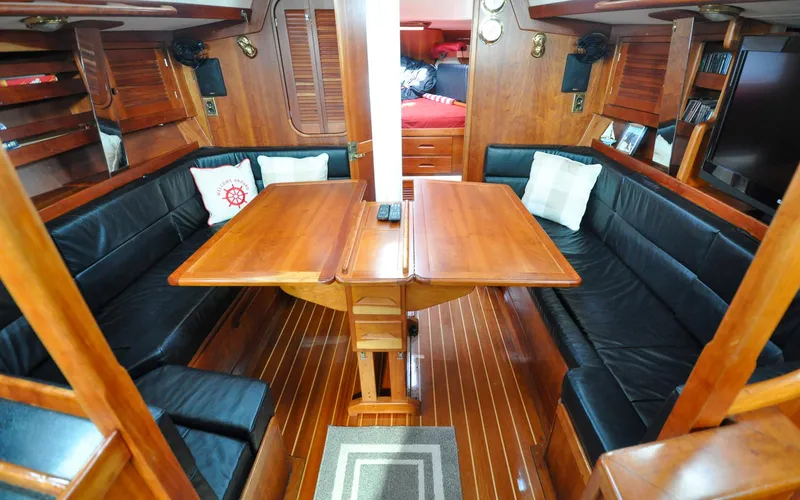

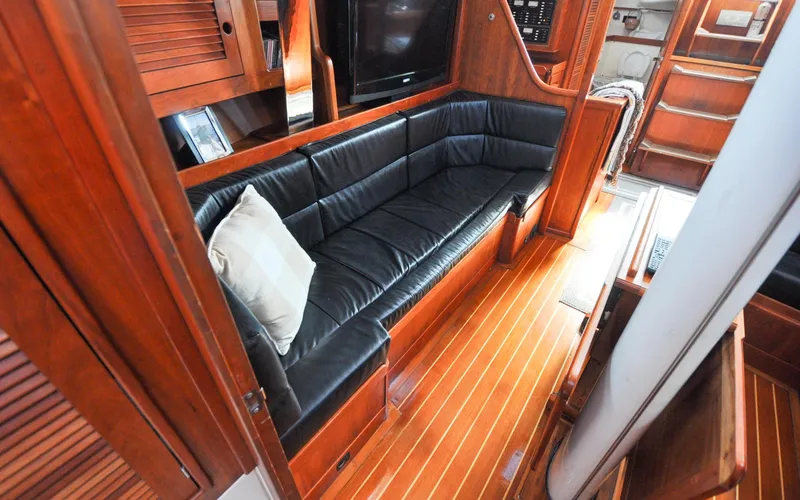

• Furniture grade main cabin settees and seats with contoured cushions
• Main cabin with cherry hardwood cabinets throughout

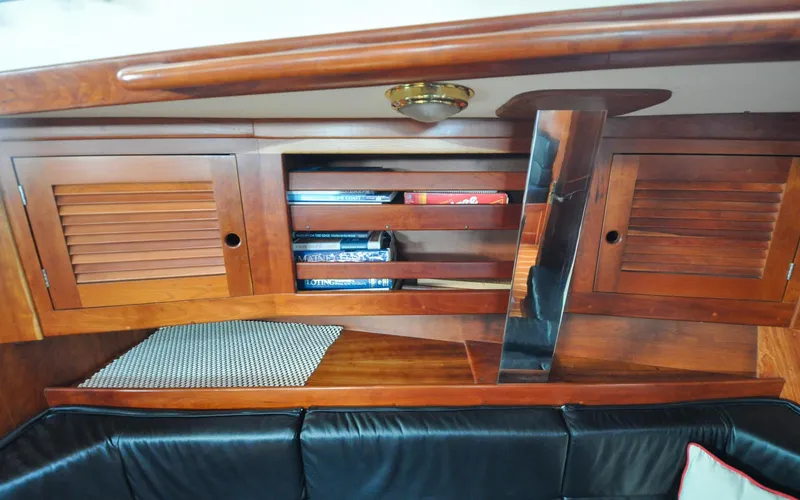

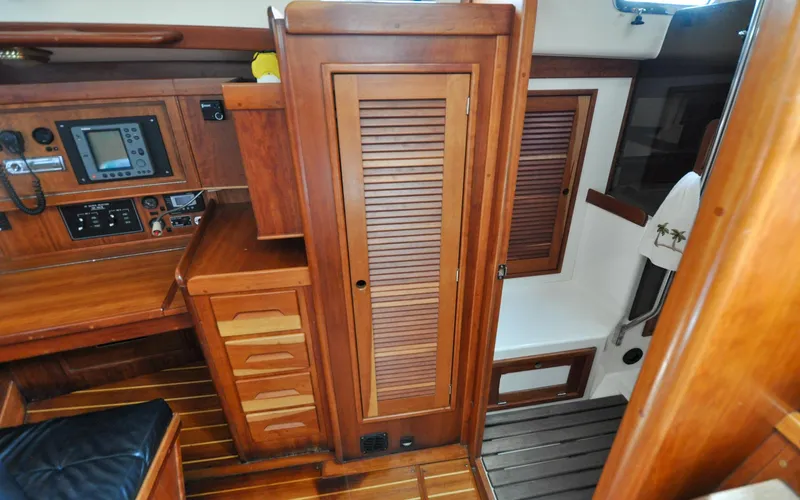

• Large storage outboard of main cabin seatback
• Drop-leaf centerline table with (2) drawers and storage bin

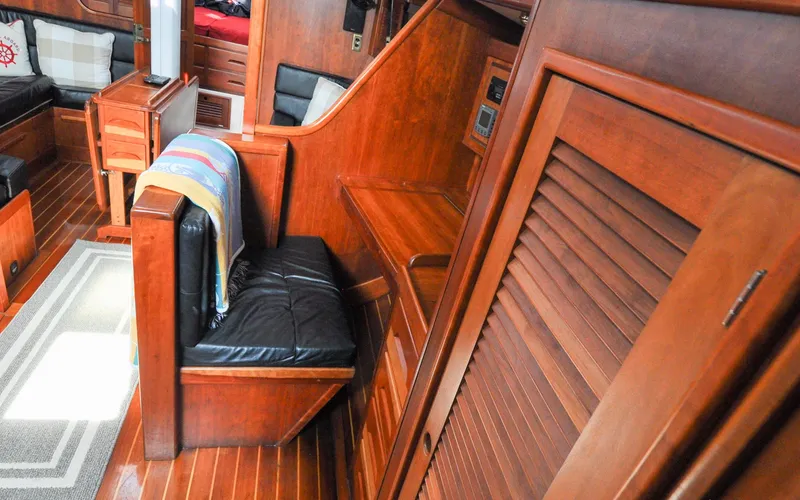

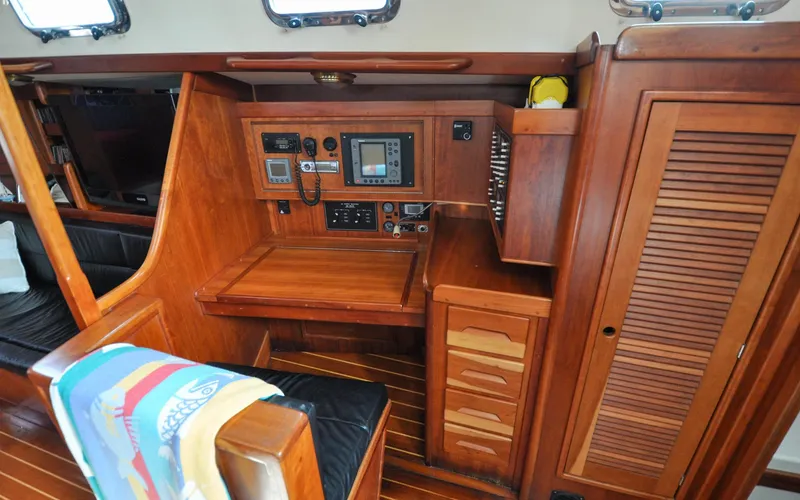

• Full navigation station
• Navigation lockers with storage space for extensive electronic installation

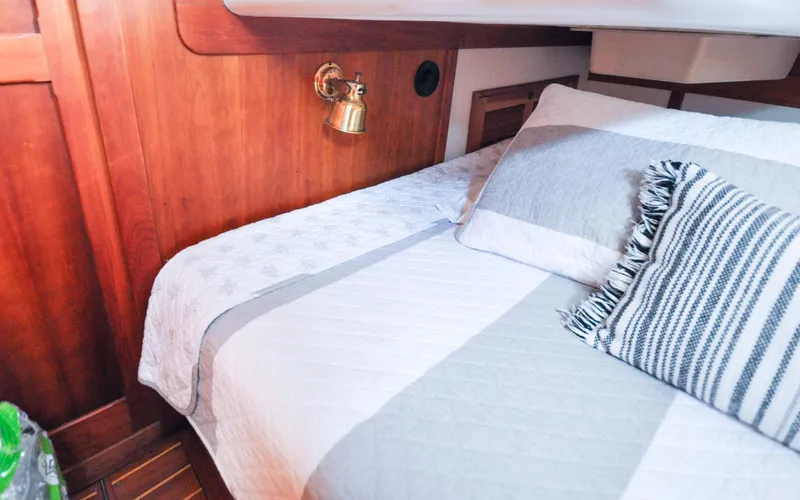

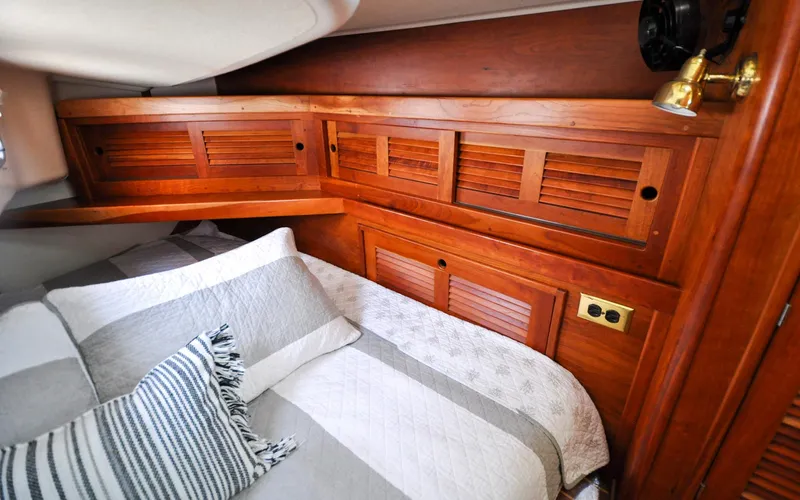

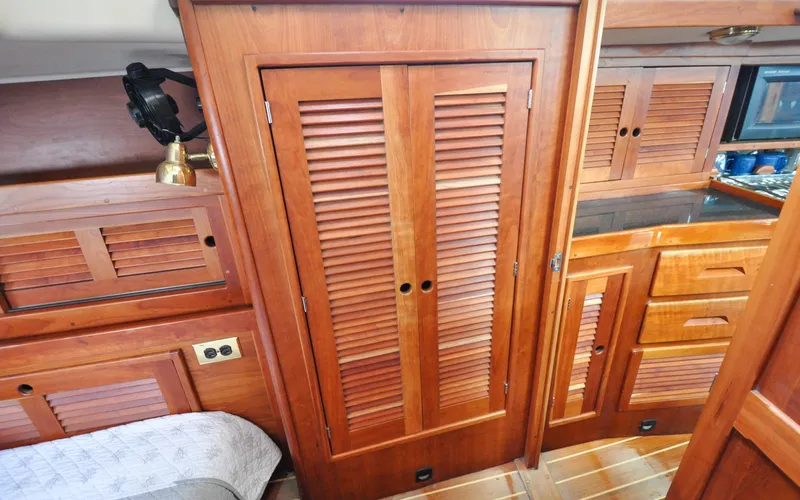

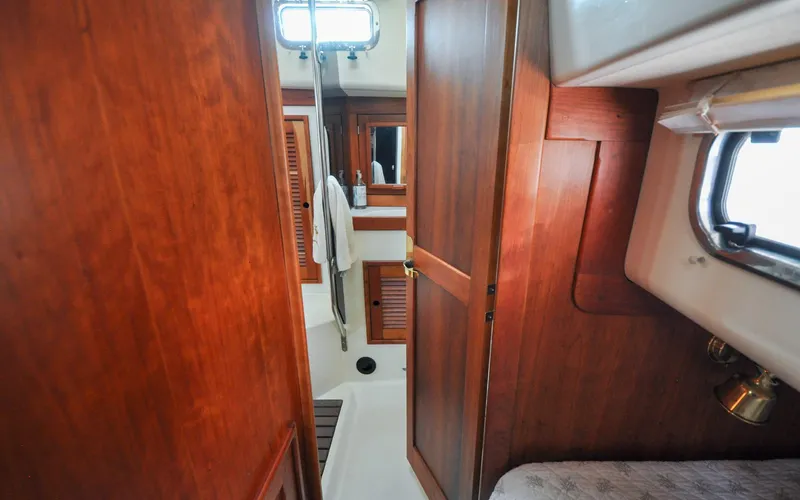

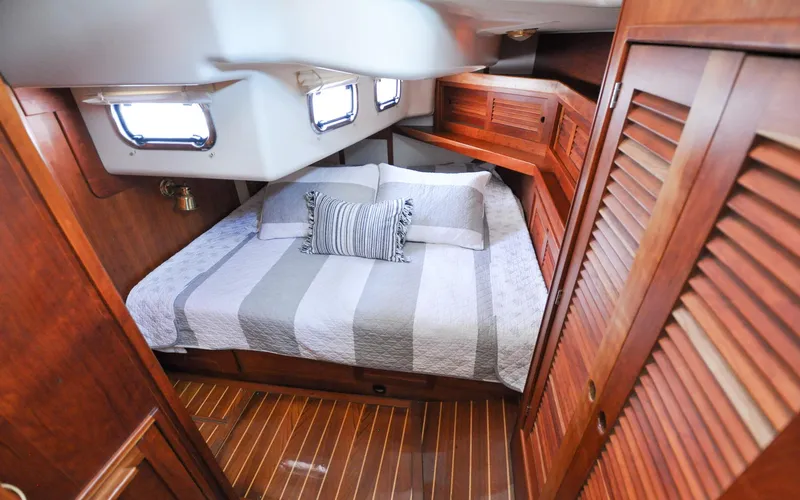

• Aft cabin with queen optional fore-aft berth, nightstand, hanging locker and shelves
• Storage below berths
• Cockpit seat locker starboard
• Cockpit lazzerete port and starboard
• Propane gas storage for two tanks portside

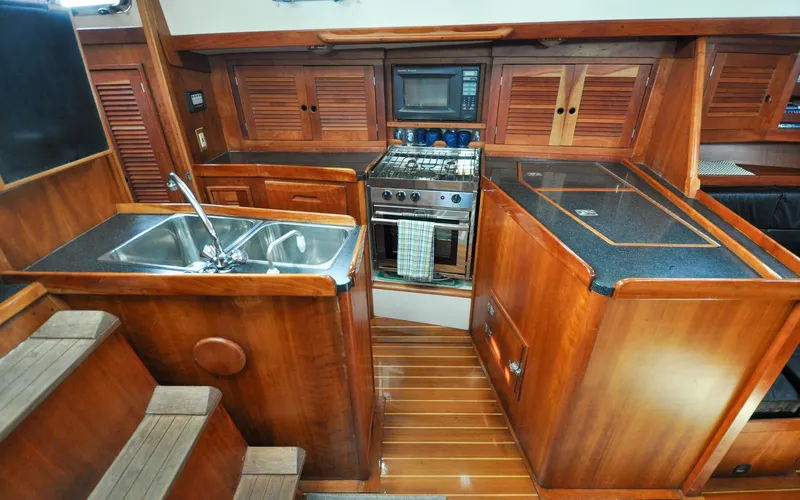

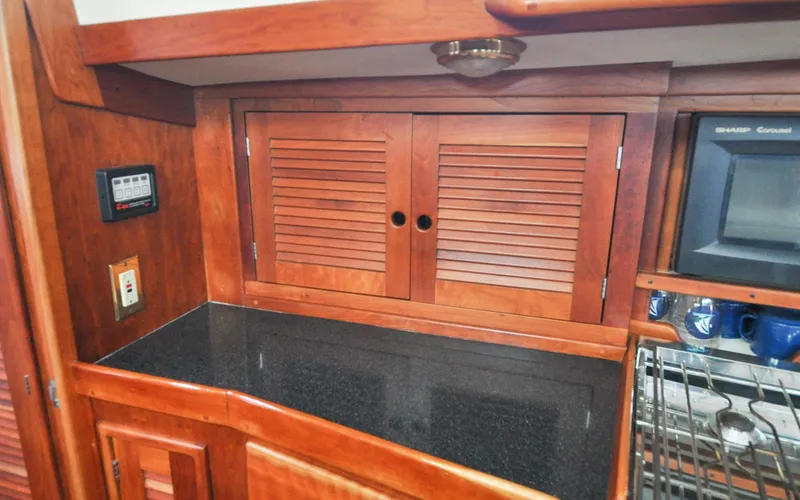

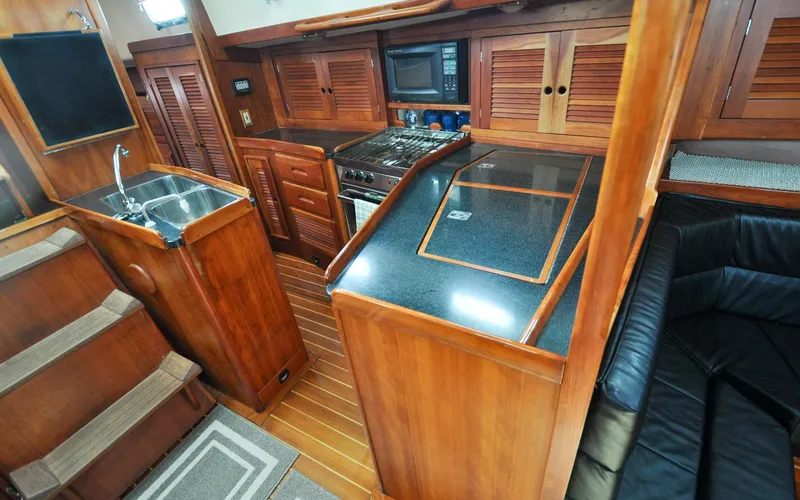

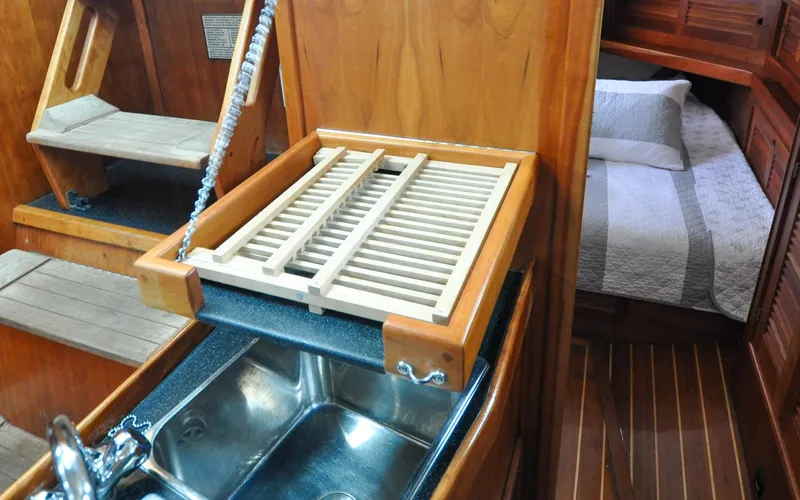

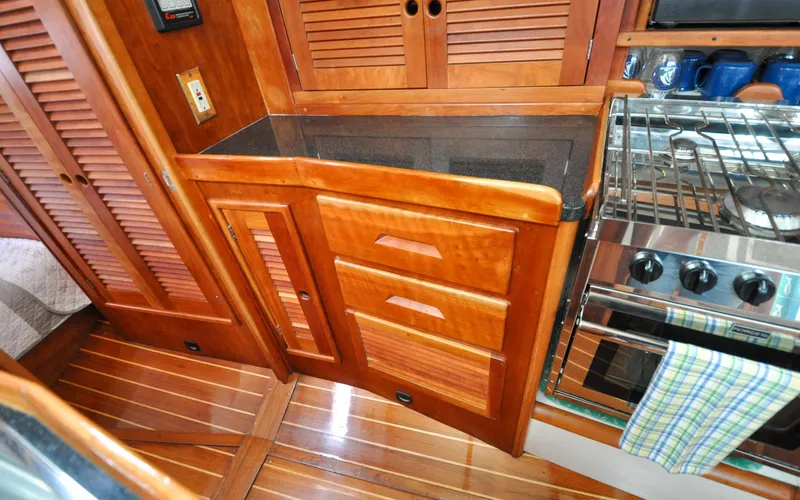

     Galley

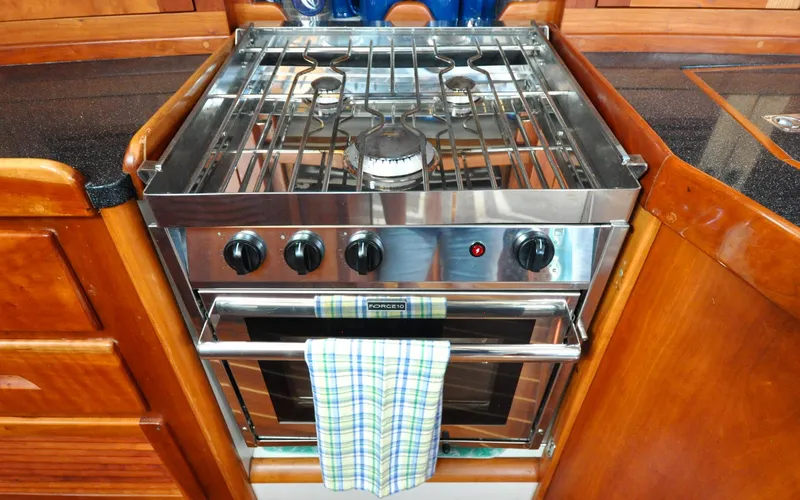

• 3 Burner Force 10 gimballed LPG stove with oven and broiler

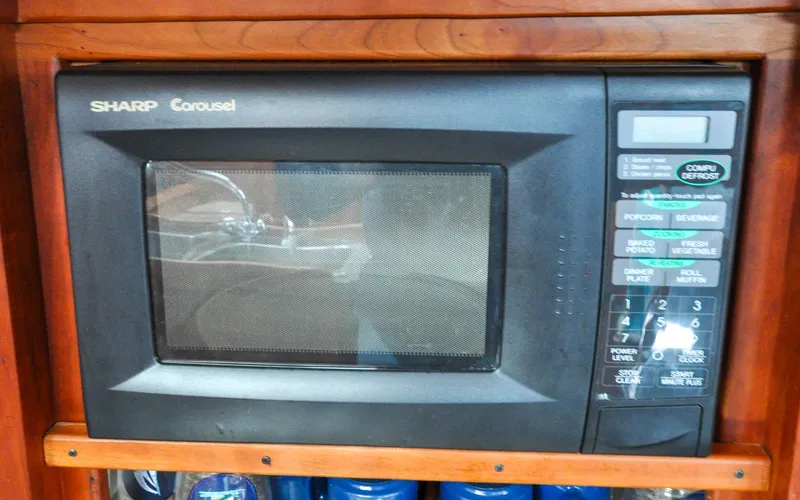

• Built-in 6 cubic foot microwave

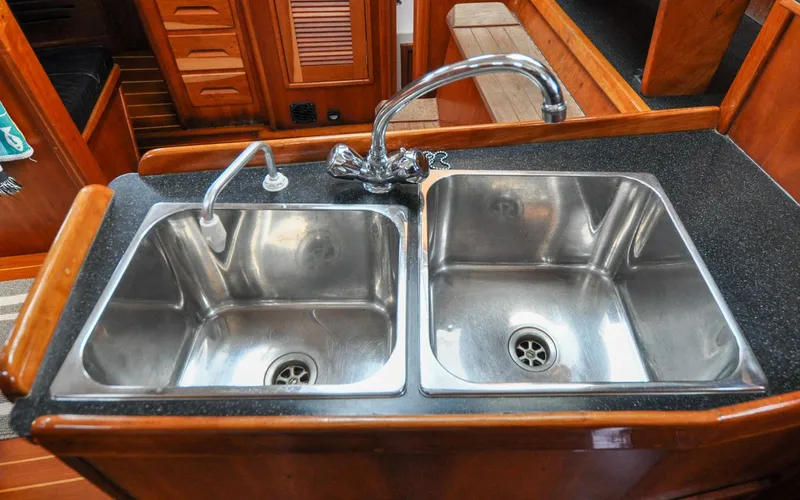

• Double stainless steel galley sinks - 9" deep

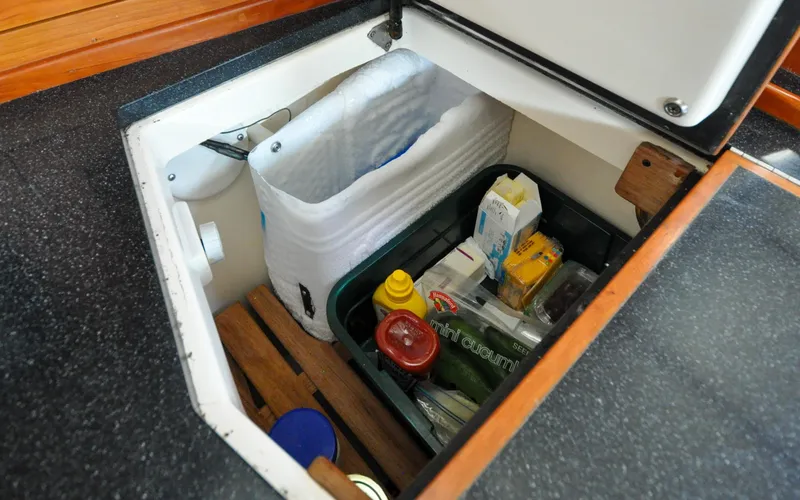

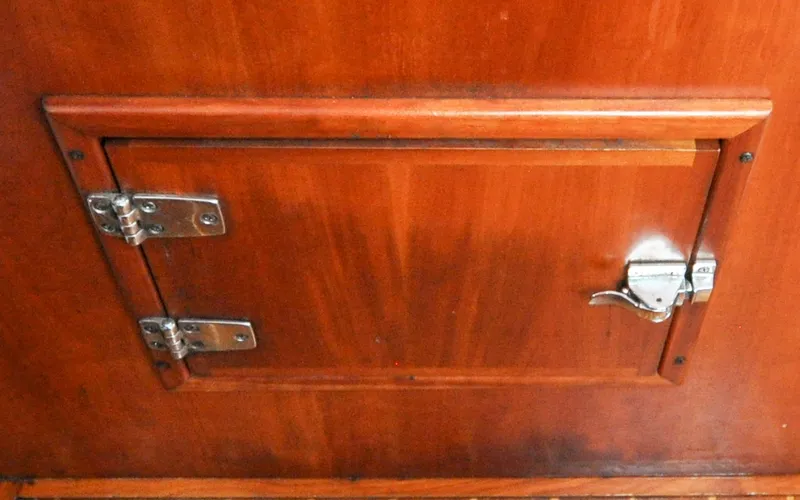

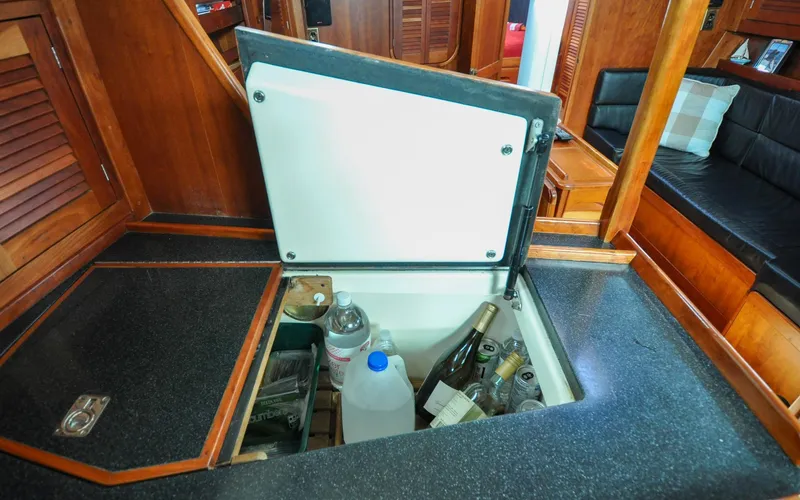

• Molded top and front load ice box, 4" foam insulated
• Built-in trash bin
• Hot and cold pressure water and manual freshwater pump
• (2) 100 Gallon freshwater tanks
• Extensive lockers, shelves and drawers

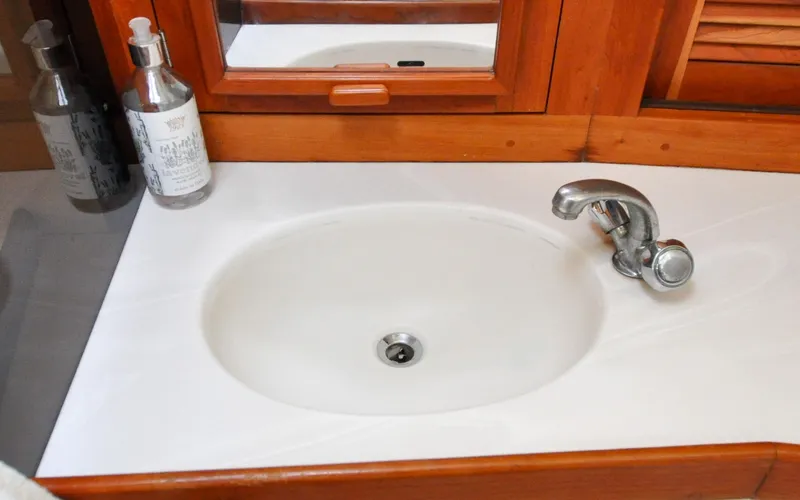

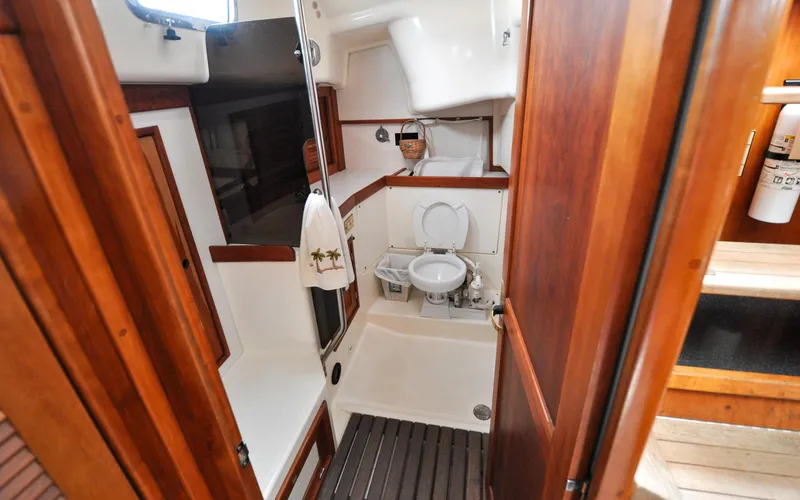

     Head

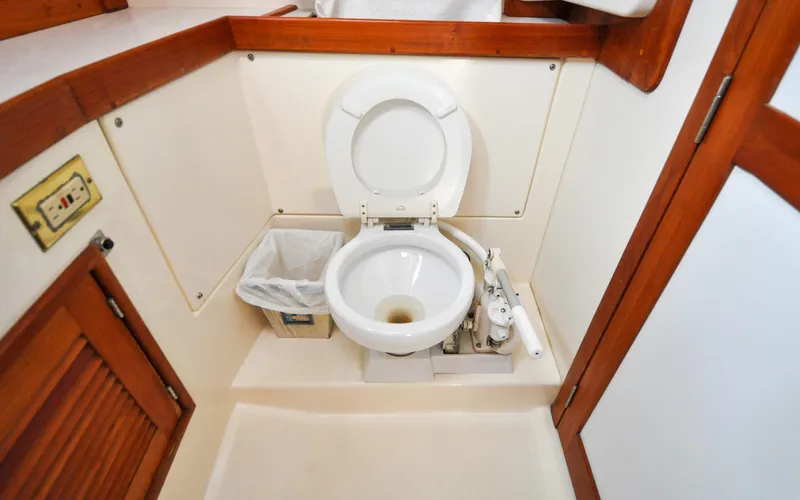

• (1) Marine head with 24 gallon holding tank with deck pumpout

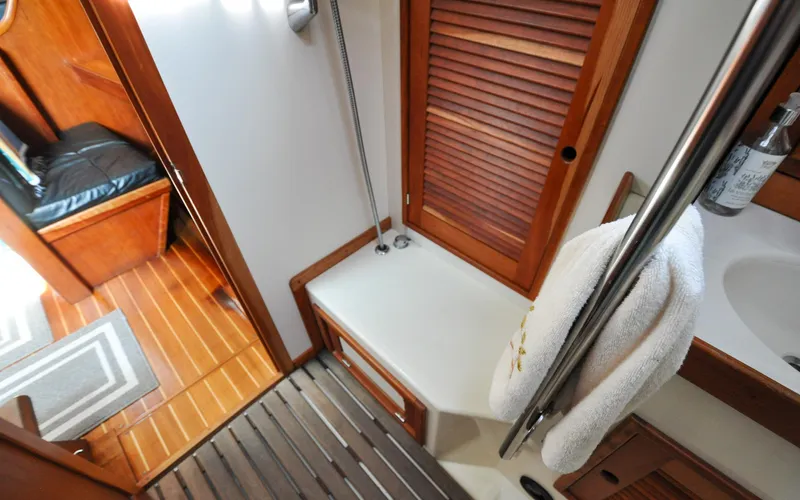

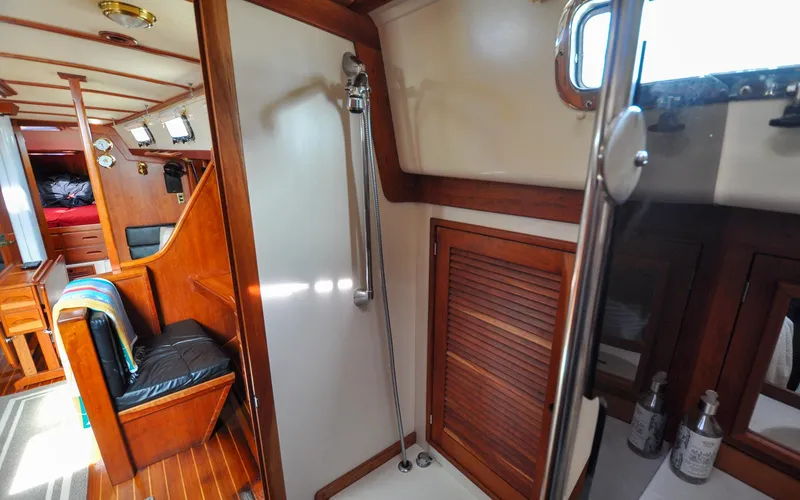

• (1) Shower stall in head with drain to sump

     Ventilation

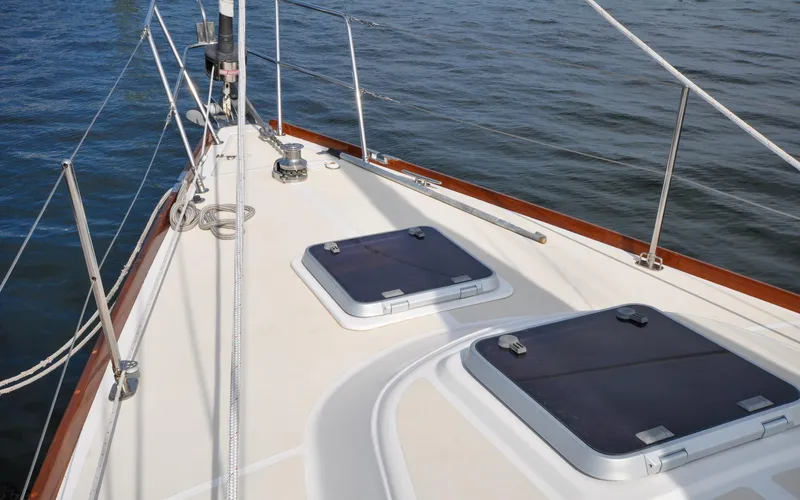

• (4) Hood deck hatches
• (12) Stainless steel Hood opening ports with screens

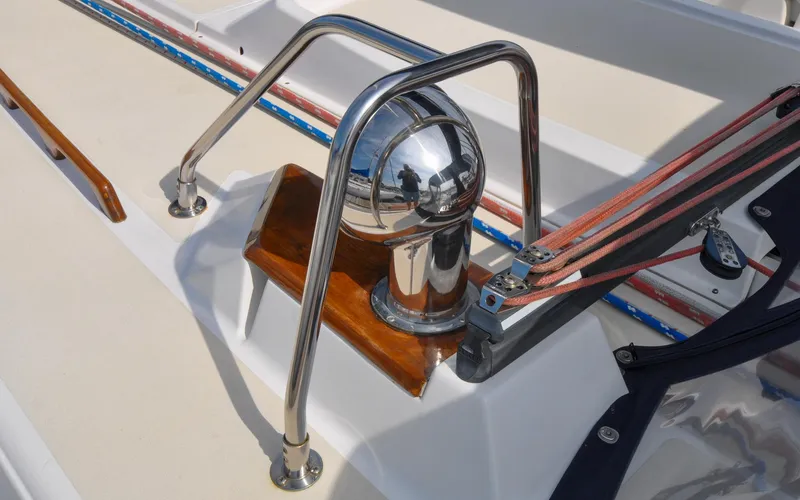

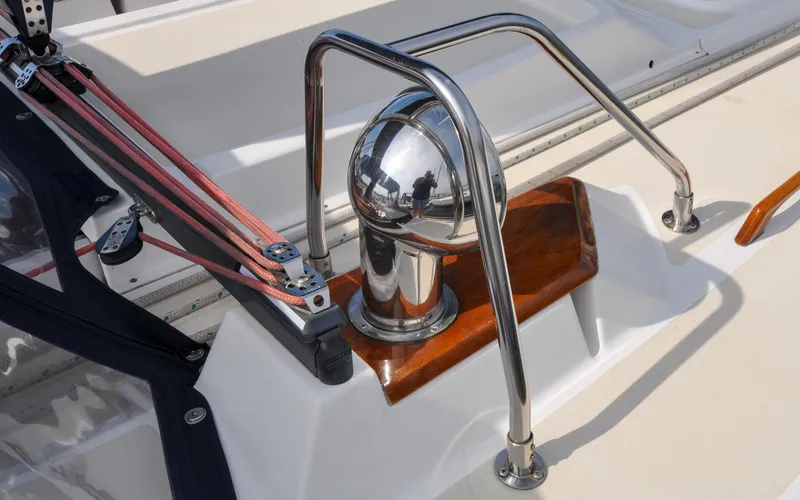

• (2) 4" chrome dorade vents

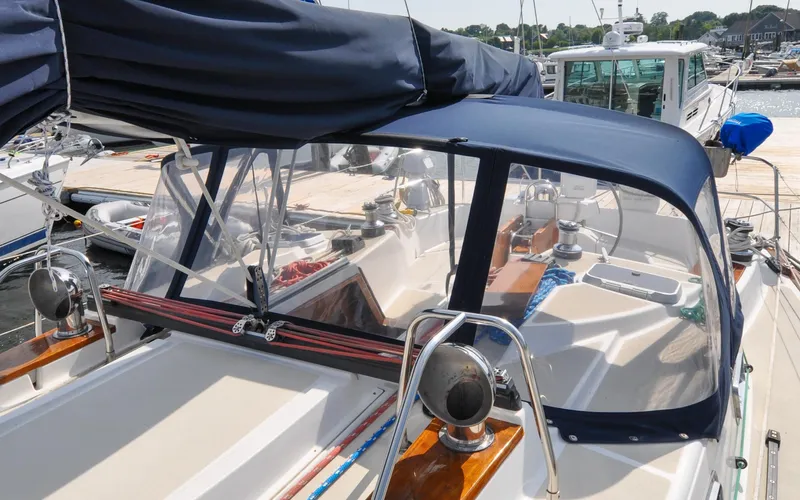

• Lexan sliding companionway hatch with fiberglass spray hood and solid teak hatch boards

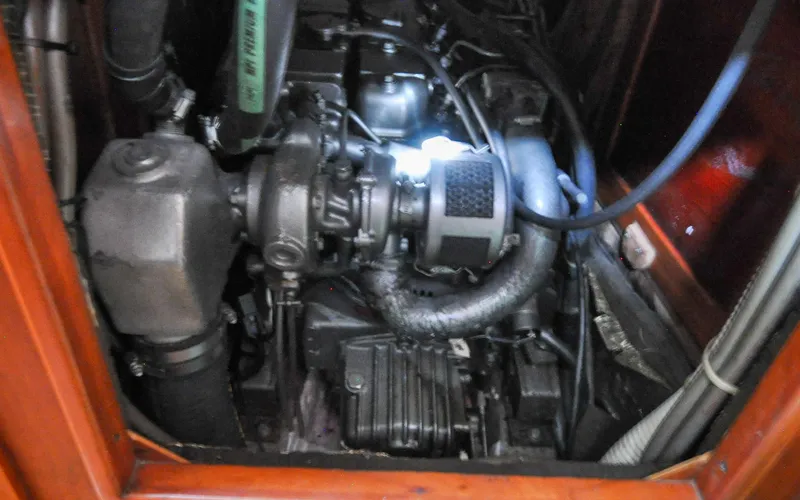

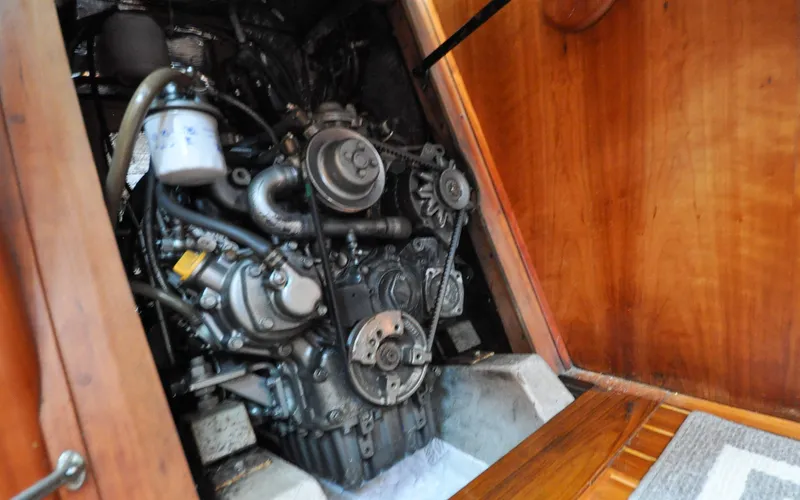

Engine/Electrical

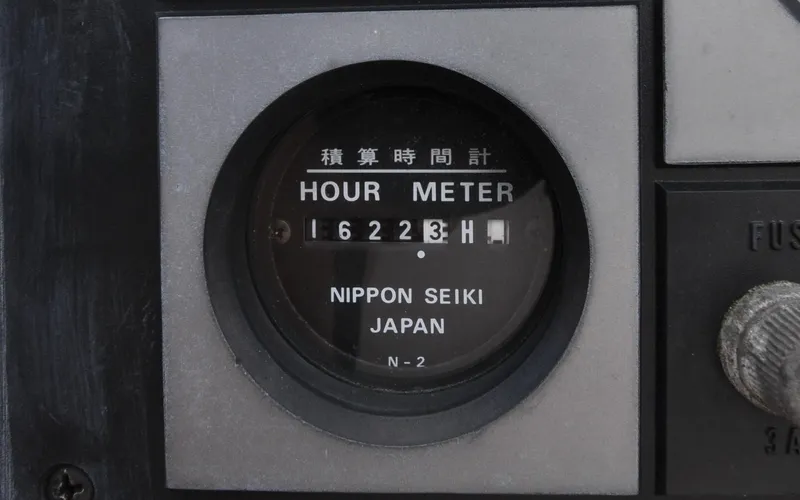

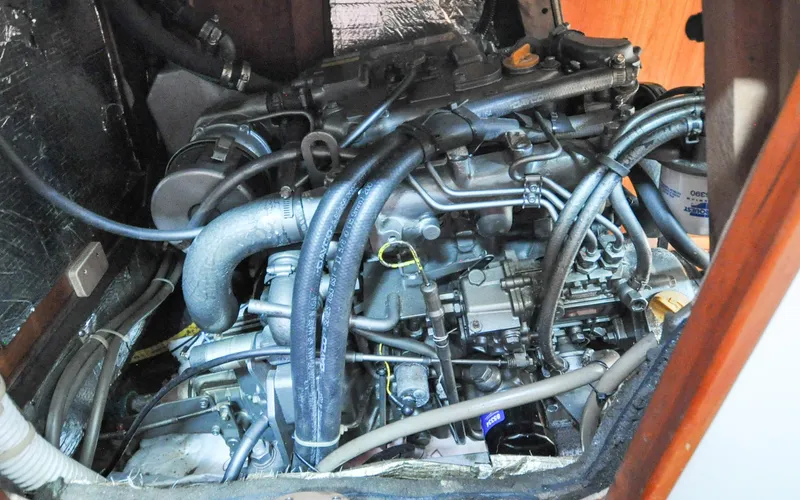

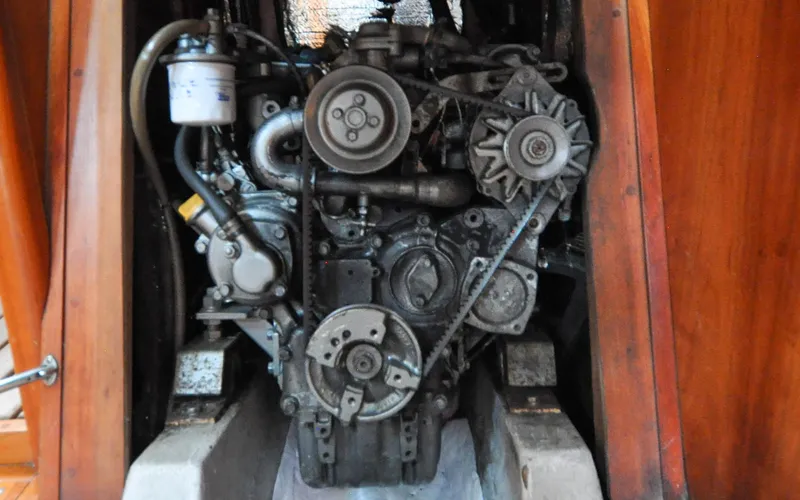

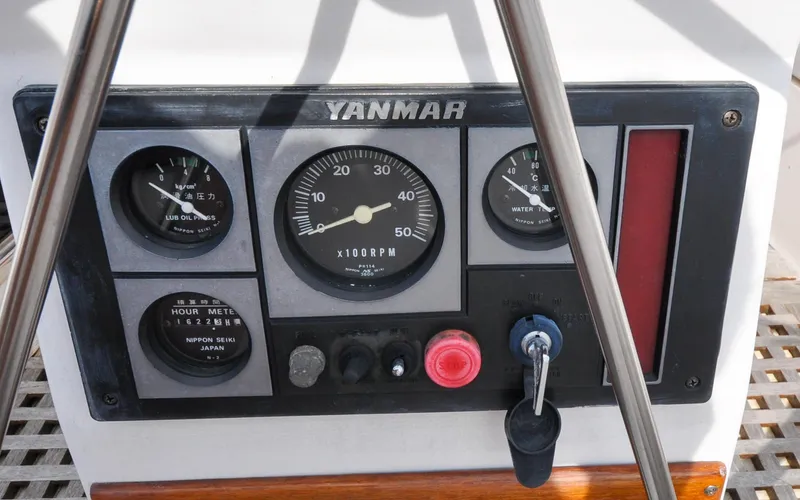

• 47 Hp diesel with console mount controls and instrument panel with gauges

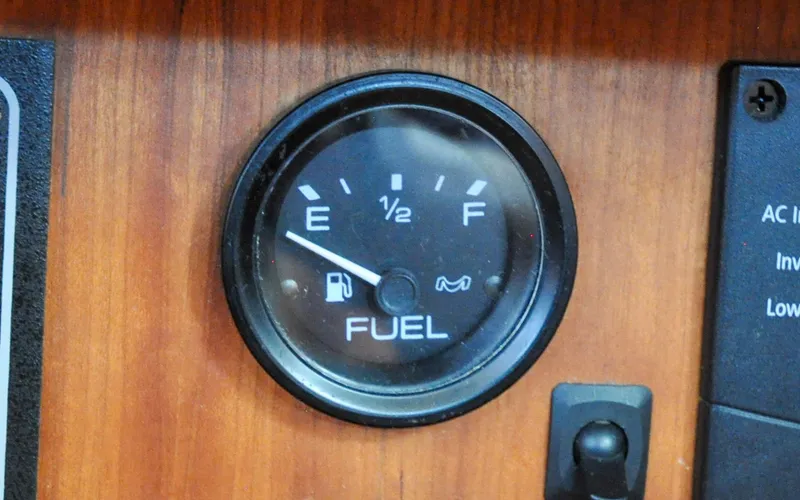

• 65 Gallon fuel capacity ((2) tanks: 40 gallons and 25 gallons) with remote gauge
• 72 Amp alternator
• Fixed 3-blade propeller on stainless shaft
• Brass interior cabin d o m e lights and directional lights
• Navigation lights
• Electric sump pump
• Electric bilge pump

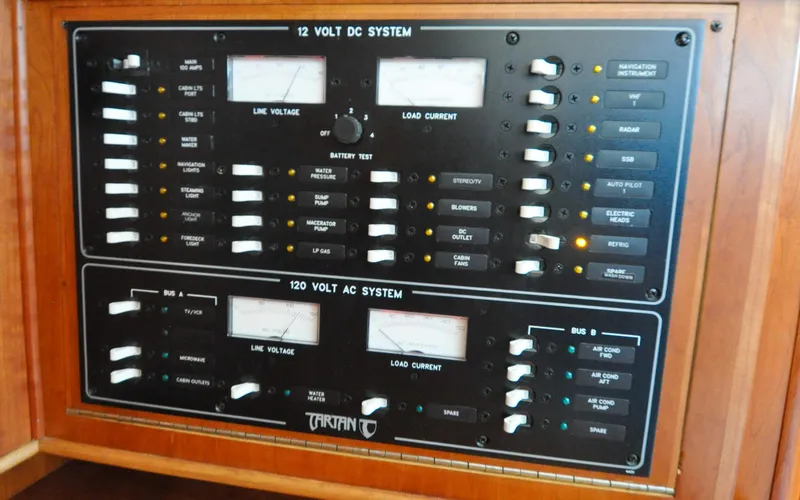

• 12 Volt DC metered panel

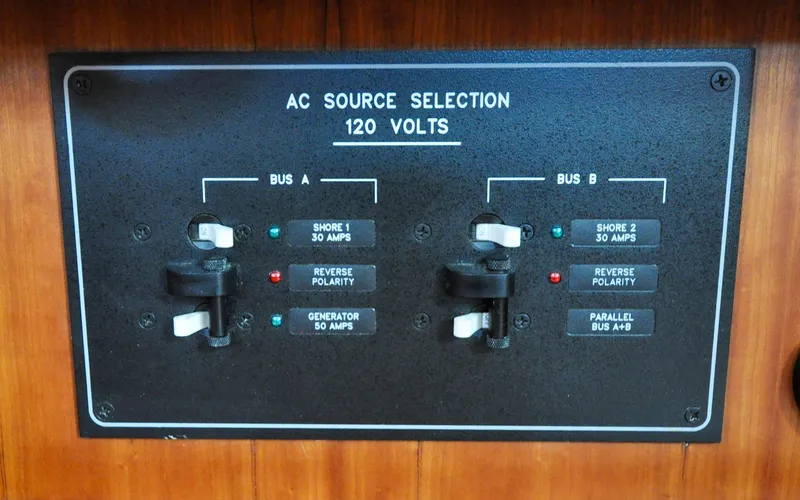

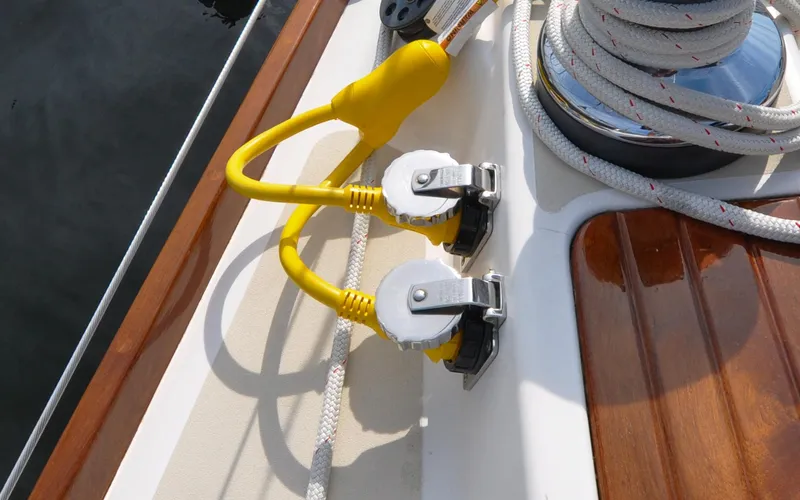

• 110 Volt AC shore power with distribution panel
• 50 Foot shore power cord
• 10 Gallon stainless steel hot water heater
• Size 27 engine starting battery
• (1) Size 27 house battery
• Electrical bonding system
• UL approved stranded, tinned copper ABYC color coded wiring throughout

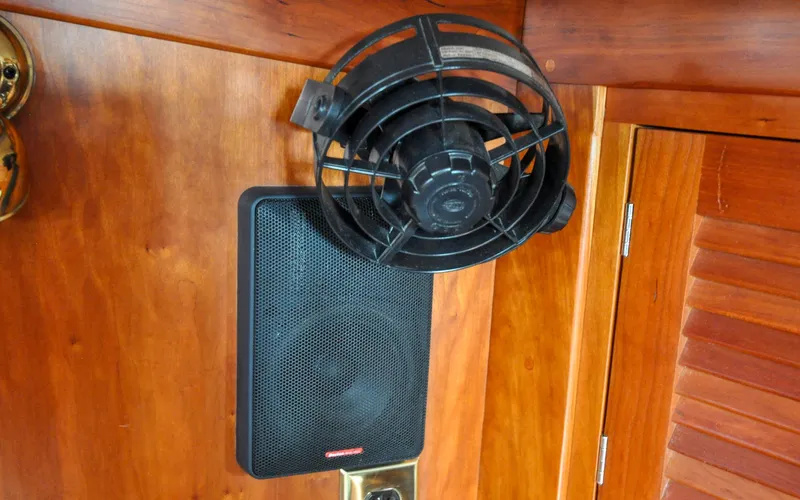

• (4) Cabin fans
• (2) Additional 12volt outlets
