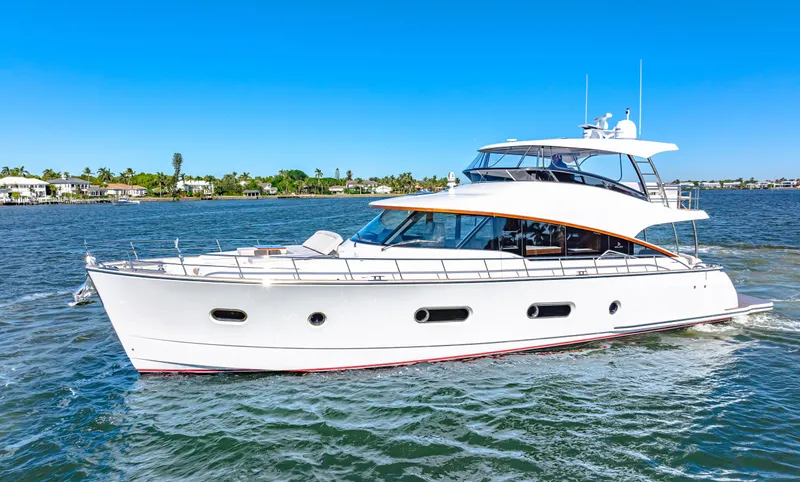

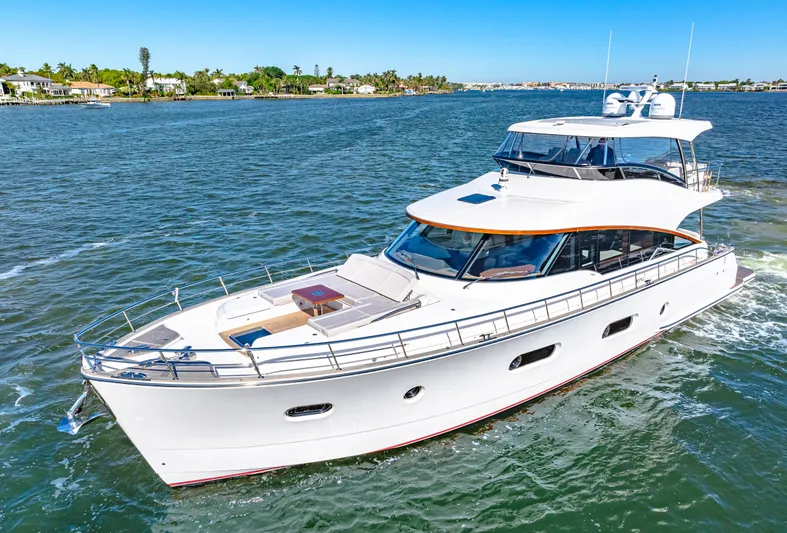

DOG HOUSE Yacht for Sale

 Luxury marque Belize has commenced the build of the latest in its line of classically-styled motor yachts, the Belize 66. The model builds on the heritage, first unveiled in 2011, of a luxury motor yacht that evokes the styles of a bygone era of yachting, of gleaming hand-crafted interiors and, most importantly, of individuality. The original Belize 54 quickly attracted owners who, after many years of boating, knew exactly what they wanted and had found a passionate team who could help them create their ultimate motor yacht. Now Belize has taken the concept of a semi-custom motor yacht to a new level with the Belize 66, a vessel that delivers a new sense of space, comfort and luxury and offers an unmatched level of customization and bespoke elements. Available in sedan or daybridge models, the Belize 66 offers three or four cabins with a large space between the midship master stateroom and the engine room that can be optioned for a wide range of purposes.

HULL, DECK, and HARDTOP CONSTRUCTION

• Hand laid, molded fiberglass hull, deck and superstructure construction. Solid fiberglass hull bottom, keel and chines from transom to forward engine room bulkhead. Cored hull bottom forward of forward engine room bulkhead to bow.
• Hull stiffened with longitudinal and transverse stringers, foam cored, and GRP sheathed, supported by transverse bulkheads and deck
• Entire hull shell laminate in vinylester resin with Balsa core topsides for added stability. Hull shell also post cured prior to detailing for best possible surface stability
• Independent compartments throughout hull structure for safety
• Watertight stepped collision bulkhead and anchor locker forward
• Main bulkheads and forward floor are resin infused composite construction using foam core with layers of fiberglass laminate for weight efficiency
• Hull anti-foul in black over epoxy undercoat, prospered applied to Volvo IPS 3 drives and propellers
• Non-skid finishes on hard top areas for grip when washing down, foredeck, side decks on foredeck as standard
• Teak decking applied to cockpit, swim platform, side steps, raised anchor area on bow and aft warping winch lids center sunbed area as standard
• Teak decking applied to seated area sole on foredeck

HULL & DECK FITTINGS

• Stainless steel anchor protection plate fitted at the bow shaped to the hull
• Camera mounted into bow plate above anchor
• LED (white) 12v search light fitted to teak bulwark capping on bow including hard wired remote to dashboard and wireless remote
• Five (5) round stainless steel opening portholes with alarms and fly screens (2 port and 3 starboard)
• Two (2) oval fixed port lights to VIP cabin forward
• Two (2) large oval port lights with integrated circular opening ports with alarms and fly screens. One port and one starboard master cabin
• One (1) large oval port light with integrated circular opening port with alarm and fly screen to port guest cabin
• One (1) medium sized oval port light with integrated circular opening port with alarm and fly screen to starboard forward Master bathroom.
• One (1) stainless steel square deck hatch, forward end of foredeck over VIP cabin, roller blinds and fly screen
• One (1) stainless steel square deck hatch, in front of windscreen under seating for emergency escape. No blind or fly screen required
• Bow rail on main deck built in 60mm elliptical stainless top rail, 32mm upright stanchions, solid mid rails to be 25mm forward with white plastic covered stainless steel wires running aft
• A removable stainless steel burgee holder is fitted on the forepeak of the bow rail
• Two (2) 350mm custom stainless-steel cleats for foredeck, one (1) port and (1) starboard
• Two (2) stainless steel custom bow mounted fairleads. Each fitted to teak bulwark capping, one (1) port and (1) starboard
• Four (4) 350mm custom stainless-steel cleats amidships, two (2) each side as springer cleats. Each fitted to teak bulwark capping
• Two (2) 350mm custom stainless-steel cleats on aft deck quarters, one (1) port and one (1) starboard with custom stainless-steel fairleads to each cleat aft
• Two (2) custom 275mm stainless steel cleats on aft deck quarters, one (1) port and one (1) starboard to be mounted on curve aft leading to swim platform
• One (1) custom 275mm stainless steel cleat alongside anchor winch for attaching the snubber
• Build in recess to accommodate aft warping winches to port and starboard aft quarters with outboard cockpit corner rope storage lockers and teak laid lids

EXTERIOR FITTINGS

• Forward curved 3-piece clear glass windscreens including standard black breezeway windscreen cover. Thickness to meet CE requirements
• Windscreen upgraded to Ezone monolithic as standard, to increase heat resistance
• Three (3) fuel fillers and three (3) fuel breather vents, two (2) port side to fill balanced wing tanks and center tank and one (1) starboard to fill balanced wing tanks. This accommodates the filling of the center tank separately to the balanced wing tanks. Fillers and breathers to be recessed into the cabin sides just above side decks.
• Two (2) freshwater deck fillers with two (2) stainless steel breather vents, one (1) x port and one (1) x starboard
• One (1) dockside pump-out point for black water in the anchor locker port side as well as discharge through macerator pump overboard
• One (1) comet high pressure freshwater deck wash installed with outlet points - one (1) on aft deck, one (1) in anchor locker. Ball valves to be fitted to each outlet
• Three (3) freshwater outlets (quick connect) one (1) in Starboard aft flip up step, one (1) in anchor locker and one (1) in engine room
• One (1) Reels hose reel in engine room
• Blue LED courtesy lights for exterior. Cockpit, foredeck seated area, anchoring area, side decks and Daybridge
• Eight (8) (4 left hand and 4 right hand) stainless steel hinges fitted to outboard sun pad rolls to convert to lower back lumber support in seating area on foredeck
• Blue LED courtesy strip lights 10mm x 10mm stella to be installed down both port and starboard aft steps, one of which fits all the way across the garage door
• One continuous blue 10mm x 10mm stella LED strip light under the brow continuing the full extent of the top window line from port side, around windscreen and down starboard side of main deck
• Spectrum color changing lumitec mirage LED exterior ceiling lights with stainless bezel
• LED navigation lights
• Dual trumpet kahlenburg air horn package
• Dark tinted 6mm tempered glass for side windows
• One (1) 6mm dark tinted sliding starboard side saloon window
• Pantograph side access door to port side of saloon with manual locking mechanism and manual blind installed
• Dark tinted tempered glass in the stainless steel framed aft deck bulkhead with sliding door and hopper window opening outward over cockpit with integrated manual blinds. Black glass to be installed on port side fixed windowpane
• Large usable foredeck seating area including collapsible foredeck table and convertible to sun bed. Upholstery in Sunbrella exterior fabric and cushions with reticulated foam
• Port & starboard built in ice box at the forward end of the foredeck seating area
• Cockpit speakers and amplifier driven from Zone 2 of saloon Yamaha AV receiver
• Cockpit Four (4) audio 7.7" speakers with classic white grills
• Cockpit One (1) audio 10" subwoofer with classic white grill fitted to aft face of the port BBQ cabinet
• Cockpit One (1) audio 12V amplifier powered from mastervolt 24/12V converter
• Foredeck speakers and amplifier driven from Zone 3 of saloon Yamaha AV receiver
• Four (4) audio 7.7" speakers with white classic grills. One (1) port and one (1) starboard in vertical inboard faces of the seating area aft of the ice boxes, two (2) mounted in windscreen brow
• One (1) audio 12V amplifier powered from master Volt 24/12V converter
• Navigation mast manufactured from painted aluminum to accommodate all navigation and communication equipment. Mast painted as standard to match the gelcoat hull
• Teak and polished stainless steel flag pole with two (2) aft sockets, one on each aft transom to enable choice of location best boarding
• Belize port and starboard logos printed behind side glass aft with back lighting
• 22mm natural teak bulwark capping rail (raw finished as standard)
• ANCHOR & MOORING EQUIPMENT
• High quality custom stainless steel bow roller
• High-quality high-pressure saltwater anchor wash down injection from both sides of the rollers on the anchor launch system.
• Camera to be mounted in polished stainless steel bow plate over anchor
• 24V electric winch, vertical chain anchor winch with rope and chain capstan. Winch and chain gypsy are mounted to work effectively with the fairleads
• Handheld lanyard remote control at bow for local up/down control of anchor and anchor wash on/off functions
• Winch remote at main helm station for up and down control with chain counter
• One (1) 45kg ultra polished stainless-steel anchor and ultra swivel
• 70m of 13mm short link galvanized anchor chain
• 13mm chain stopper and devils claw arrangement
• Anchor locker compartment dividers installed for chain, lines and fender stowage
• Two (2) anchor locker hatches with positive lock stainless steel catches
• Four (4) fender light weight, four (4) fender lines, black mooring lines, 2x8m and 2x18m and one (1) boat hook
• Anchoring area raised for ease of operation
• Snubber supplied as standard to unload rollers for quieter nighttime anchoring
• Port and starboard aft warping winches for stern to winching with single foot switch recessed onto vertical face for each side

ENGINES, DRIVE TRAIN & STEERING

• Forward facing twin contra rotating propellers with through leg exhaust aft
• Volvo line cutters
• Four (4) joystick docking locations - one (1) at the Daybridge main helm in starboard arm rest of captain’s helm seat and one (1) in starboard console of lower helm for use as joystick steering and maneuvering, one (1) port side aft in cockpit and one (1) starboard side aft in cockpit
• Dynamic Positioning System
• Volvo auto and manual interceptor trim tabs
• Volvo/Garmin glass bridge navigation system
• 2 x 22" and 1 x 17" screens at helm to Daybridge helm
• Engines painted high gloss white
• Active corrosion protection system
• Dual Racor fuel filters/water separator for each engine

ENGINE ROOM

• Acoustic and heat insulation throughout engine room bulkhead and ceiling
• Light weight GRP cored panel or similar light weight material to be fitted over the inboard face or each of the port and starboard freshwater tanks to provide insulation against heat to the fresh water
• White powder coated aluminum perforated insulation panels throughout engine room bulkhead and ceiling
• Grey vinyl, non-slip Pirelli flooring
• Engine room has two (2) x DC air-in fans, one (1) port and one (1) starboard. Two (2) x DC air out fans fitted in the upper port and starboard aft quarters and ducted out through the port and starboard molded recesses adjacent to garage door
• One freshwater hose reel in the engine room (manual)
• Engine room access via watertight door (with small round window) from crew cabin through forward engine room bulkhead (fore and aft) to port of center line
• Two (2) GRP molded deck hatches port and starboard cockpit for access to pods with ladder steps for easy entry
• One (1) GRP molded deck hatch through center line lounge seat forward in cockpit for access to utility room (or crew quarters if optioned). In this case the access to engine room which is isolated from owner’s bathroom
• One (1) GRP molded deck hatch directly outside of sliding bulkhead entry door in cockpit for ease of access to engine room for tools and oils
• Stainless steel gas strut marine struts to all deck hatches
• Polished stainless steel safety rails around both engines
• One (1) x duplex AC receptacle on forward bulkhead
• Eight (8) LED DC lights in engine room
• Fire system with alarm and manual release (see details in fire/emergency section)
• Oil changer system 24v

ELECTRICAL

• Generator - Onan Generator: One (1) MDKDS at 29kW/60Hz two line
• Generators to be fresh water cooled with a sound shield, hour meter, remote stop/start at the galley with diagnostic capability. Racor fuel filter, muffler with gas and water separator - exhaust to transom and water outlet below the waterline.
• Vessel wired using BEP Czone system of digital switching
• BEP Czone digital networked control and monitoring system with Czone 5" control screens at the main helm and lower helm for control of all AC & DC equipment
• One (1) iPad charging dock in the master stateroom on port bedside for AC and DC switching and vessel monitoring (iPad not included)
• All hanging lockers have access panels to Czone and other service items, lift out panels NO tools needed
• Four (4) 12V/930CCA low maintenance batteries for individual engine start banks at 24V 930CCA
• Two (2) 12V/930CCA low maintenance battery for auxiliary and generator starting at 24V 930CCA
• Three (3) 24/5000/180AH Lilon ultra batteries providing 24V 540AH (432AH usable) for house bank
• Emergency bilge pump in locker under BBQ aft
• Emergency battery coupling system permits engine start battery banks to link
• One (1) mastervolt charge master 24/30-3 battery charger for engine start batteries and auxiliary
• One (1) Mastervolt CM24/100A battery charger. Product code: 440210000 for house batteries
• One (1) Mastervolt 24/4000W/100A mass combi inverter/charger for charging house bank and for TV, sound systems, Blu-ray player, icemaker and all outlets onboard. Note: power is limited when using outlets during inverter operation, care should be taken not to overload
• Total of four (4) individual alternators, one (1) additional 110A per main engine dedicated to charging each battery bank
• 24v to 12v converters as follows:
• 1x50A DC/DC converter for 12VDC Czone submain supply to COI-09 mastervolt 24/12 50A mastervolt
• 2x50A DC/DC 24/12 converter for powering foredeck and cockpit JL Audio amplifiers mastervolt
• 1x6A DC/DC converter for 12VDC supply to czone network and ACMI's mastervolt DC master 24/12-6 mastervolt
• 1X6A DC/Dc converter for 12VDC supply to czone display interfaces and wireless interface supply mastervolt DC master 24/12-6 mastervolt for 12V equipment
• Two (2) x 50Amp 110/220V 60Hz Glendenning shore power cables. Both to be 80ft long
• DC 24v lumitec mirage LED lights throughout, warm white lighting and dimmable through Czone control
• 2 x USB outlets are installed at main helm station in aft upstand of side console for Daybridge and lower helm stations
• Six (6) x lumitec seablaze spectrum underwater lights (4 x transom, 1 x port, 1 x stbd)
• Emergency fuel shut off under crew floor
• Wireless Glendinning Remote

FUEL SYSTEM

• A total of 1189 US gallons (4,500 liters) of fuel capacity across three (3) fuel tanks, one (1) under the stateroom (2000 liters), one (1) port wing tank (1250 liters) and one (1) starboard wing tank (1250 liters) forward of utility room
• All tanks are pressure tested and certified
• Electronic fuel gauges at main helm via engines to navigation screens
• Manual fuel shut off valves outside of the engine room
• Two (2) fuel sight gauge fitted to forward engine room bulkhead.
• One (1) for combined balanced wing tanks and one (1) for center tank.
• Fuel transfer pump (primary and back up) fitted to aft vertical face of center tank under master bathroom vanity for transfer from center tank to balanced wing tanks

BILGE SYSTEM

• Engine room: two (2) automatic rule 1x3700 and 1x2000 24v electric bilge pumps (2000 for high level) with manual override at CZone screen and helm switches
• Under crew cabin sole directly in front of forward engine room watertight bulkhead: one (1) automatic rule 2000 24v electric bilge pump with manual override at CZone screen and helm switches
• High water level alarm with audible and visual indication on CZone screens
• All bilge pumps to discharge overboard through anti-syphon loops to skin fittings in boot stripe
• All hoses double hose clamped on all underwater fittings and bilge systems
• One (1) manual bilge pump for engine room with handle located remotely in aft end of BBQ locker
• All grey water and storm water overboard discharge is at the transom, port and starboard through common drains
• Under companionway sole directly aft of the black holding tank: one (1) automatic rule 2000 24v electric bilge pump with manual override at CZone screen and helm switches
• Forward: two (2) automatic rule 2000 24v electric bilge pumps (one high level) with manual override at CZone, under companionway sole at the front of black tank
• Rule float switches fitted to all bilge pumps high and low level

SEA WATER SYSTEM

• High quality groco sea water inlet strainers for all inlets with visual sights to check if clear of debris
• Bronze through hull fittings all bonded to passive electrolytic protection system
• High-quality high-pressure saltwater anchor wash-down injection from both sides of the rollers on the anchor launch system. This is to be manually switched from the anchor locker remote pendant

FRESH WATER SYSTEM

• 185 US gallons (700 liters) fresh water in 2 x 350-liter plastic tanks which is pressure tested. Both in engine room one (1) port and one (1) starboard outboard of main engines and fitted with 1" balance line. Removable light weight panel with heat insulation to be fitted over the inboard face or each of the port and starboard freshwater tanks to provide insulation against engine heat
• One (1) 24v DC high quality freshwater pump
• One (1) 24v DC high quality freshwater pump as back up pump. Pump plumbed into the system with "Y" valve. Power to be switched over at the Czone screens
• Two (2) x quick hot water compact HXS 80-liter 1200W 220V
• Aft end of each water tank to be left visibly unobstructed to allow sighting of water level through plastic tank material
• One grunfos hot water circulating pump fitted to the hot water ring main in aft of engine room
• Water level indicator through CZone displayed on all Czone screens including galley 10" screen
• One (1) city/shore water inlet with pressure regulator at transom fold up step
• Sea recovery aquamatic 700-1 water maker 220v/230v 50Hz/60Hz producing 700 Gal/2650 liters per day with auto freshwater flush. Includes product carbon filter
• Remote operation panel for sea recovery aquamatic 700-1 water maker mounted in galley area local to Czone 10" screen for quick reference to freshwater levels

BLACK & GREY WATER SYSTEM

• 132 US gallons (500 liters) GRP holding tank with indicator and macerator pump from holding tank for overboard discharge through macerator pump or jetty suction through deck fitting
• Pump out switch at each Czone display
• Holding tank level gauge monitor at each Czone display
• Three (3) tecta silence plus 24v electric toilets with dual switch control panels, white toilet seats and lids
• Two (2) whale 8 liter (2.2 gal) multi-port grey waste systems, one (1) located under floor in master cabin aft bathroom and one (1) located in bilge space under forward companionway sole
• Two (2) whale gulper 220 waste pumps, one (1) for each grey waste sump

AIR CONDITIONING & HEATING SYSTEM

• Air conditioning unit 24,000 BTU installed under helm to supply air through dash vents (intention is to run cool breeze not to cool the area)
• Cruise air direct expansion / remote air conditioning / reverse cycle heating system with air handlers throughout
• Main Deck Saloon / Galley / Helm
• One (1) x 16,000 BTU port side helm, One (1) x 16,000 BTU starboard side helm under dash, One (1) x 16,000 BTU over galley
• *Two (2) digital controllers (1) helm and (1) galley
• *One (1) x 30,000 BTU and One (1) 16,000 BTU compressor in the engine room
• Master Stateroom Two (2) x 12,000 BTU. One (1) port hanging locker, one (1) hanging locker starboard side - split to bathroom
• *One (1) x 24,000 BTU compressor in engine room
• *Single digital controller
• Crew aft one (1) x 8000 BTU air handler installed and ducted to grill overhead
• *One (1) x 8,000 BTU compressor in engine room
• *Single digital controller
• VIP Stateroom One (1) x 16,000 BTU. Split to ensuite
• *One (1) x 16,000 BTU compressor in engine room
• *Single digital controller
• Port Guest Cabin One (1) x 8,000 BTU, split to ensuite
• *One (1) x 8,000 compressor in engine room
• *Single digital controller
• Full system 220v 60Hz / 1 phase
• Smart starters applied to the 24,000 BTU compressors

EMERGENCY & FIRE FIGHTING EQUIPMENT

• Sea Fire fire extinguisher system with manual release at the cockpit to be sized accordingly
• Sea Fire monitoring system to be a stand-alone system powered from the auxiliary battery bank with local smoke detectors and audible alarms. Smoke detectors to be located in companionway forward, utility / crew room, saloon and galley. A single main panel discretely mounted in a forward cabinet at the main helm station with a single feed to the czone screen. On alarming, the czone screen will show a fire alarm page alarm notification. It will also activate the emergency lighting.
• Five (5) handheld fire extinguishers mounted accordingly (type dependent of vessel destination) and fire blanket in galley
• Manual bilge pump to engine room, mounted in BBQ cabinet port side aft

COCKPIT DECK FEATURES

• Teak decking to cockpit deck, swim platform, sidestep treads and warping winch / stowage locker lids
• Cockpit speakers and amplifier driven from Zone2 of saloon Yamaha AV receiver
• Cockpit Four (4) audio 7.7" speakers with classic white grills
• Cockpit One (1) audio 10" subwoofer with classic white grill fitted to aft face of the port BBQ cabinet
• Cockpit one (1) audio 12V amplifier powered from mastervolt 24/12V converter
• Self-draining cockpit deck with deep gutters to all hatches. All hatches have rubber seals
• One (1) folding leaf teak tabletop on fixed stainless pedestal
• Two (2) x electric BBQ built into the cabinet located at the portside of the cockpit deck with gas strut marine struts, micro switch on lid for safety power shut off, oval stainless rail around and LED lighting. To include one (1) DW100 Vitri Frigo 24V drawer fridge in cabinet forward of BBQ unit, vitri frigo IM classic hydro P ice maker stainless steel - spray type 115v/60Hz for USA and additional storage
• All exterior seating to include storm covers
• Storage under L shaped lounge on starboard side
• Access to toy garage through aft seat
• Cooler box under aft seat
• Molded port and starboard side transom stairways with teak step treads and courtesy 24v IP68 10x10mm stella strip lights mounted under step noses, both port and starboard sides, allowing access to swim platform form the cockpit
• Elliptical stainless steel safety rail around garage door and aft seat
• Two (2) stainless steel stylish transom gates in elliptical stainless-steel tube
• One (1) freshwater high pressure wash down connection point and ball valve in step riser locker starboard side
• Overhead exterior lumitec mirage spectrum LED lighting to cockpit
• Clear toughened glass triangular wind brake panes to port and starboard sides between GRP structure and curved polished stainless steel oval posts
• Maxilume spot/floodlight on aft targa mast
• Targa up lights in hard top to light up wing and mast 3 x Hella 24v white plastic rim.
• Polished stainless steel awning frame with oval rails over aft seated area with laced canvas awning fabric in Belize style
• Lighting in aft stainless steel integral boxes to be four (4) lumitec rail 2, brushed finish, spectrum

SWIM PLATFORM

• Teak laid swim platform including hull sponsons with one (1) x fixed height section on the starboard side including 60mm stainless steel rub rail. Two thirds of the swim platform electro-hydraulic high/low mechanism (max capacity 400kg) to aid in dinghy launch and retrieval. Hydraulic power pack in engine room
• High-quality stainless-steel swim ladder housed in a locker on the swim platform in the fixed piece starboard side
• Pull out hot and cold shower set into the starboard side outer aft quarter for ease of use on the fixed swim platform
• Port and starboard built in lockers housing two (2) x shore power inlets and one (1) dockside city water inlet with regulator

TOY GARAGE

• Electric opening Toy garage door with twin actuators
• Two (2) internal 24v DC LED lights and one (1) Hella Seahawk XLR with white light and white housing 24v DC floodlight fitted to underside of garage door
• Large soft patch to Toy garage sole above (optional) Gyro location for service access. Soft patch sealed shut and emergency service to gyro only

INTERIOR FURNISHINGS

• Quarter sawn American Walnut wood throughout with grain filled satin varnish finish
• Euro designed custom timber blended with fabrics, leathers & 2 Pac finishes
• Indirect warm white LED strip lighting affect to all beds and step noses
• Indirect warm white LED strip lighting effect to selected interior pelmets
• All interior lighting in warm white 24VDC LED
• All decor bedding supplied and fitted with a choice of four (4) packages
• All interior overhead lighting in a new range of warm white lumitec mirage LED fittings

MAIN DECK SALOON

• Belize standard v-jointed teak solid teak flooring with non-slip throughout, helm raised platform and galley areas. Carpet to saloon area with teak grate inside port side pantograph door with drainage under
• Saloon lounges with choice of five (5) high quality Italian leathers standard colors
• Dining table satin finished walnut with polished stainless-steel legs
• Storage for glassware in saloon lounge ottoman with acrylic inserts.
• Storage spirits in saloon forward starboard drawer with acrylic inserts
• 55" LG OLED Smart TV
• Electric TV lifter including handheld remote control
• 4K Ultra-HD Blu-ray disk player (also plays DVD's & CD's)
• Yamaha RX-A2080 AV receiver surround sound system
• Five (5) Kef Ci100qs flush mount speakers
• One (1) KEF T2 subwoofer
• One (1) Apple TV HD 32Gb
• AV rack - to contain AV receiver, BR player, Apple TV, Network LAN switch and SAT TV decoder if optioned
• One (1) Netgear DSG-1016D 8 port network data switch (LAN)
• Wireless router for local network (LAN) connection (does not include 3G/4G modem)
• Sat TV KVH TV6 dome with dedicated installation space in AV rack for (owners supplied) decoder boxes split to main deck saloon and master stateroom
• Cat 6 data (LAN) from AV rack switch to all TV's
• FM aerial fitted and cables to all stereos
• Free to air antenna fitted inside dummy dome and cabled to all TV's
• Electric blinds to saloon side windows

GALLEY

• Overhead storage cupboards with built in Miele range hood
• Euro inspired and designed cabinetry and fittings
• Miele combi microwave convection oven
• Vitrifrigo marine refrigeration
• *One (1) DW360 BTX full height upper refrigerator and lower freezer/freezer drawers hinged on aft left-hand style
• *One (1) DW180 two drawer fridge - installed under bench port side forward galley
• Miele induction cooktop 3 burner includes cookware
• Miele slimline fully integrated dishwasher installed into the aft (forward facing) galley cabinetry under bench
• Galley sink to be one and a quarter bowl stainless steel underslung sink with Hansgrohe talis S2 variarc sink mixer
• Insinkerator installed to half bowl sink waste
• Caesar stone to Galley Benchtop in a choice of Classico or Supernatural color range
• Large garbage receptacle via drop in through hinged bench top lid outboard aft corner
• Electric blinds port and starboard
• One (1) 10" Czone TM touch screen in galley area for control of all AC & DC equipment along with monitoring
• Magic Corner unit, arena classic installed into forward outboard corner of galley cabinetry
• Stainless steel appliances, all fitted into cabinetry in set locations
• One (1) toaster,
• One (1) blender,
• One (1) kettle &
• One (1) waffle iron
• Crockery, cutlery and glassware supplied, and dish pegged with Belize logos to crockery and mugs to suit 10 people
• One (1) Onan generator start/stop panel mounted in galley area
• One (1) iPad docking station for connection to Czone portside (iPad not included)
• Remote operation panel for standard sea recovery aquamatic 700-1 water maker mounted locally to the galley starboard side aft

COMPANIONWAY

• Stairway from helm to companionway featuring teak stairs and teak companionway flooring with oval stainless-steel rail with hand stitched leather on straights and warm white LED lighting under step noses
• At the lower landing (starboard side), a stacked Miele washing machine 110V 60Hz, Miele dryer 110V 60Hz and one (1) Miele stacking kit all fitted behind full height door.
• An emergency drain tray is built in underneath the machines which drains to the grey sump
• Bulkheads finished in a combination of quarter sawn walnut and euro fabric
• One (1) Miele 60Hz under bench wine storage system under staircase on starboard side
• Entry doors throughout euro inspired design and fittings in high quality finishes
• Emergency escape hatch to foredeck concealed behind the deck head ceiling panel on center line forward
• Access panels to underside to helm/electrical systems in guest cabin ceiling

MASTER CABIN

• Air conditioned via two (2) 12,000 BTU air handler. One (1) installed in the top of the port hanging locker, one (1) installed in the top of the starboard hanging locker.
• Single digital air conditioner controller on the aft face of the starboard hanging locker
• Carpeted floors throughout with quality underlay
• Euro design bed surrounds and bedhead area
• Queen size bed with 8" innerspring mattress
• Nightstands with drawers in grey 2 Pac and soft touch leatherette finish
• Decor pack including sheets, bedspreads & pillows (choice of 4 packages)
• Starboard side L shaped desk finished in Quarter sawn walnut timber with soft touch leatherette top insert
• Cedar lined hanging locker to port and starboard sides finished in quarter sawn walnut. Full length mirror on inside face of centerline storage cabinet door, behind entry door with internal LED lighting on auto switch
• Two (2) LED reading lamps
• Electric porthole blinds
• Large oval port lights with integrated circular opening ports with alarms and fly screens. One (1) port and One (1) starboard master cabin
• Under bed warm white LED lighting
• 40" smart LED TV
• Fusion Apollo 670 stereo with blue tooth and ant remote
• Two (2) Fusion FM series 7.7" 200W flush mount marine speakers
• Safe concealed in cabinetry
• Nautilus door furniture with privacy lock to cabin door

MASTER BATHROOM STARBOARD - PRESIDENTIAL LAYOUT

• Fully molded bathroom with full perimeter drains removable teak floors and warm gelcoat finish
• Bathroom running fore and aft on the starboard side of the master cabin with sliding entry door. Direct access from master cabin starboard side
• Air Conditioning split from master cabin starboard side unit
• Large walk-in shower with frameless glass shower door and chrome rail Methven escape Mk II handheld shower

VIP CABIN

• Two (2) GPO outlets including USB installed to the outboard sheds of the bed as far forward as possible
• Air conditioned 16,000 BTU and split to the head
• Flooring carpeted and with quality underlay
• Queen size island bed forward with 8" innerspring mattress
• Euro design bed surrounds and bed head area
• Decor pack including sheets, bedcover and pillows (choice of 4 packages)
• Storage under island bed
• Nightstands finished in timber, grey 2 Pac and leather
• Two (2) LED reading lamps
• Under bed warm white LED lighting
• Two (2) cedar lined wardrobes one (1) port and one (1) starboard with internal auto switched LED lighting
• Two (2) fixed oval shaped portlights and electric blinds
• One (1) Manship stainless square deck hatch with blind and fly screen
• 24" smart LED TV
• Fusion Apollo 670 stereo with Bluetooth installed in top of starboard hanging locker with ANT remote
• Two (2) Fusion FM series 7.7" 200W flush mount marine speakers
• Port side makeup dresser and mirror including swing out seat
• Two (2) GPO outlets including USB installed to the outboard sides of the bed as far forward as possible
• Teak steps x 2 port and starboard side of bed
• Nautilus door furniture with privacy lock to cabin door

VIP BATHROOM

• Direct access from VIP cabin
• Air conditioning split from VIP cabin
• Tecma silence plus 2G DC toilet with white seat and lid
• Molded bathroom with full perimeter drain, removable teak floor and warm gelcoat finish
• Large walk-in shower with frameless glass shower door, removable teak floor and chrome shower rail Belize mixer shower single lever
• Vanity cupboard with mirror and lower vanity cupboard finished in quarter sawn walnut
• One (1) above counter basin with one (1) Belize single lever high faucet bench mounted on aluminum backed lightweight marble vanity bench top
• 24V DC ladder style heated towel rail and separate hand towel rail
• Toilet roll holder and accessories
• One (1) extractor fan
• Opening porthole with alarm and flyscreen
• Opaque glass fitted to all port lights in shower recesses
• Nautilus door furniture with privacy lock to cabin door

GUEST CABIN PORTSIDE

• Air conditioning 8,000 BTU air handler and control
• Direct access from companionway and day head
• Two (2) single beds are approx. two meters long with 6" mattresses
• Inboard bed drives electrically outboards to create double bed and reveals hidden bedside nightstand
• Decor pack of sheets, bedcovers and pillows (choice of 4 packages)
• Carpeted floor with quality underlay
• Single nightstand with drawer in timber, grey 2 Pac and leather finish
• Cedar lined hanging locker to port side finished in quarter sawn walnut. Internal auto switched LED lighting
• Belize large size oval port light with integrated circular opening ports with alarms and fly screens
• Under bed warm white LED lighting
• Two (2) LED reading lights
• Nautilus door furniture with privacy lock to cabin door

GUEST CABIN PORTSIDE BATHROOM/DAYHEAD

• Vanity cupboard with mirror and lower vanity cupboard finished in quarter sawn walnut
• Direct access from port cabin and companionway forward (day head)
• Air conditioning split from port guest cabin
• Tecma silence plus 2G DC toilet with white seat and lid
• Molded bathroom with full perimeter drain, removable teak floor and warm gelcoat finish
• Large walk-in shower with frameless glass shower door, removable teak floor and chrome shower rail methven escape MKII Belize mixer shower single lever
• One (1) above counter basin with one (1) Belize single lever high faucet bench mounted on aluminum baked lightweight marble vanity bench top
• One (1) single towel rail
• Toilet roll holder and accessories
• One (1) extractor fan
• Opening porthole with alarm and fly screen
• Opaque glass fitted to all port lights in shower recesses
• Nautilus door furniture with privacy lock to cabin door

GENERAL

• Comprehensive Owner's manual
• Heat resistant treatment installed to the inside of the glass windscreen for heat reduction
• Opaque glass fitted to all port lights in shower recesses
• All hanging lockers have access panels to Czone and other service items, lift out panels NO tools needed
• Siren 3 Pro config includes:
• - First 24-month subscription included (ongoing subscription thereafter at owners’ discretion, Siren marine will contact for renewal)
• - Siren Marine uses the 4G network dependent on the region. Monitoring only works while in-network coverage
• - Siren 3 Pro module
• - Shore Power Relay Fitted inside the ACMI panel to detect power on the House Charger circuit.
• - Wireless Temperature Sensor Fitted in one of the Saloon aircon return ducts, within reach when you remove the grill. Remove the detachable temperature probe.
• - Wireless Bilge Sensor Connected to the Engine Room Bilge Pump.
• - Wireless Bilge Sensor Connected to the Aft Accommodation Bilge Pump.
• - Wireless Bilge Sensor Connected to the FWD Bilge Pump directly in front of the Black tank
• - Infrared Motion Sensor Installed above the aft bulkhead door, inside the saloon/galley

STORM COVERS

• Day Bridge dash storm cover
• Three (3) individual helm seat storm covers
• Wet Bar storm covers x 2
• Lounge Covers x 2
• Day Bridge Table Cover
• Dash Storm cover
• Breezeway windscreen cover
• Forward sunbed cover
• Cockpit table cover
• Cockpit aft seat cover and L shaped lounge cover

DAY BRIDGE

• Teak and Stainless-steel easy access stair way to Day Bridge from port side adjacent to galley
• Stainless steel hatch over stairway to Day Bridge from port side of galley with blacked out panel
• Non-skid finished flooring throughout Day Bridge with hemmed edge exterior carpet installed to sole from aft of helm seats to wet bar cabinets aft
• Oval stainless steel safety rails installed around Day Bridge wet bar and in logical locations
• Two (2) comfortable L-shaped lounges
• Hard top fitted with blue/white lumitec mirage spectrum LED lighting with stainless bezels
• Webasto electric retractable canvas roof (approx. 10' (3m) long by 8' (2.4m) unit) in hard top over helm
• Sure Shade electric retractable aft awning integrated into the hard top to provide shade over aft deck space when required
• Day Bridge table to port side lounge on single leg fixed pedestal with folding gloss finished teak top including drink holders and grab rail under
• Large wet bar including:
• *wo (2) 24v Vitro Frigo Drawer fridges, one portside and one starboard
• *Ice maker vitro frigo IM classic hydro (220v 50Hz) or IM classic hydro (115v 60Hz)
• *Sink with hot and cold fold down faucet
• *Drop in style removable garbage bin
• *One drawer to starboard side wet bar cabinet over fridge
• *Staron solid surface inset to both port and starboard wet bar cabinets
• One (1) single London Captains helm chair including electric polished stainless-steel pedestal with up/down, fore, aft and recline functions. Finished in ultra leather with fold down footrest and Joystick steer to starboard arm rest
• Easy walk-through access between the main helm seat and starboard side passenger seating
• Large and effective wind deflecting windscreen with polished stainless steel oval top capping
• Lumitec spot/floodlight on aft of mast
• One (1) freshwater outlet faucet under wet bar inside the locker
• Blue LED courtesy lights around day bridge. Warm white LED to internal day bridge stairs
• Air conditioning unit 24,000 BTU installed under helm to supply air through dash vents (intention is to run cool breeze not to cool the area)
• Teak deck laid to helm area under helm seats
• Two (2) London Helm seats mounted on two fixed height polished stainless steel pedestals. Finished in ultra leather and fold down footrests

DINING and SALOON AREA

• - Large (subtle) air conditioning outlet through dash flat to maximize airflow over dining area
• - Large dining lounge with two additional dining chairs (3 total including Master desk)
• - Walnut folding dining table (for easy access when not in dining mode) with 4 polished oval stainless steel legs
• - 55" Smart TV on the port side at the base of the day bridge stairs
• - Electric TV lifter plus hand held remote control
• - AV rack to contain AV receiver, BR player, apple TV, Network LAN switch & SAT TV if optioned to be installed under the day bridge stairs forward of drawer fridge on port side
• - Starboard lounge to have ottoman
• DAY BRIDGE - HELM ON BRIDGE
• Two (2) MFD 8422 (22") Garmin Glass Bridge screens to port and starboard dash facia
• One (1) MFD 8417 (17") Garmin Glass Bridge screen on center line dash facia with full engine instrumentation
• Cameras through glass bridge MFD screens
• *One (1) Iris IR dome in Engine room
• *One (1) Iris IR dome on Cockpit forward bulkhead
• *One (1) flush mounted in the polished stainless steel bow plate over anchor
• *One (1) Iris IR dome mounted on the structural overhang aft Cockpit to view swim platform
• *All cameras will connect to an AXIS IP server as standard, powered from 12V camera power supply
• Garmin 315 VHF second handset with 8' Shakespeare antenna and stainless-steel mount on hard top
• Czone 5" control screen for AC and DC switching and vessel monitoring
• Muir winch chain counter and remove control fitted
• Engine stop/start switches
• Ergonomic dash layout incl drink holders and switching. Dash to be painted dark grey to match lower deck windscreen frame in high gloss
• Overhead light switching
• Courtesy light switching
• High quality Belize steering wheel
• Electronic controls and joystick (including joystick steering on starboard captain’s helm seat arm rest)
• JL Audio stereo, four (4) JL audio speakers, 10" subwoofer and controller
• One (1) electric captain's seat with fore and aft, up and down and reclining functions
• Garmin remote input device (GRID) mounted on the left of captain's seat with throttles
• Horn control
• Golight LED 24V search light hard wired control panel and wireless controller bracket at helm station
• Two (2) round tachometers, for port and starboard RPM monitoring and system alarms on upper center of dash
• Backlit Belize logo in front of round center gauges on dash panel
• Appropriate hemisphere magnetic compass is installed dependent on the vessel's destination - with night lighting
• Garmin GMR424xHD2 4kW 72nm open array radar through Garmin glass bridge screen
• Easy walk-through access to dash between captain and passenger seats
• Bilge pump audible alarms with manual override individual switching
• All push button switches are backlit
• Sea fire extinguisher system with alarm and test panel
• Integrated alarm monitoring through Volvo glass bridge instrumentation
• Two twin USB outlets installed in dash port and starboard
• Garmin GPS Auto Pilot
• Garmin GSD 26 chirp Sounder through glass bridge screens
• Garmin B265LM Transducer

BACK UP STATION - HELM IN SALOON

• Stylish retro helm station with leatherette/soft touch and stitched features - easy access to dashboard controls
• One (1) leather London helm chair by Selto with arm rests mounted on cabinet including fold down footrest
• Cameras through Glass Bridge Screens
• One (1) IP dome in Engine room
• One (1) IP dome on Cockpit forward bulkhead
• One (1) flush mounted in the polished stainless bow plate over anchor
• One (1) IP dome mounted on the structural overhand aft cockpit to view
• Garmin remote input device (GRID)
• Two (2) x 16" Garmin glass bridge screen to dash facia
• Beveled footrest under helm dashboard
• Volvo main engine start/stop panel
• Muir anchor windlass control with chain counter
• Horn control
• Golight LED 24V search light hard wired control panel and wireless controller bracket at helm station
• Garmin 315 VHF radio AIS 300 unit with remote handset at helm
• Lighting switches for over helm area with warm white LED and red LED for night running
• All push button switches are backlit
• Backlit Belize Logo
• Bilge pump audible alarms with manual override individual switching
• Sea fire extinguisher system with alarm and test panel
• Integrated alarm monitoring through Volvo glass bridge instrumentation
• Three (3) Exalto windscreen wipers with 255BS motors and fresh water wash down system. Wipers are equipped with intermittent control facility
• One (1) twin USB outlet installed in starboard control flat
• Two (2) custom polished stainless rimmed eyeball style air conditioning outlets
• Six (6) additional black air outlets for windscreen demisting
• Garmin GPS and Auto Pilot
• Garmin GSD 26 chirp sounder through glass bridge screens
• Garmin B265LM transducer
• One (1) Leather London Helm Chair by Selto with Armrests mounted on swivel with fold down footrest

DISCLAIMER

• All 2Pac painting is done to a high standard using professional spray painters. The painting is not undertaken in an automotive controlled environment and is therefore not guaranteed to be finished to an automotive standard. Fiberglass finishes are affected over time by high heat levels, with darker colors being impacted more than lighter colors. It is therefore recommended that lighter colors be chosen to minimize the impact of heat. Surface movement will occur over time for all colors, which is not covered under Riviera’s structural warranty.

WARRANTY

• Riviera will, at its discretion and subject to the terms and conditions set out in the Riviera Limited Warranty, replace or repair defects caused by faulty workmanship or materials during the first 2 years or 800 hours (the earlier of) for Non-Structural warranty and 7 years or 2,800 hours (the earlier of) for Structural warranty after the date of delivery to the first retail purchaser

ENGINES, DRIVE TRAIN & STEERING

• Twin Volvo IPS D13 1350 Diesel (735kw/1000hp) inc. low speed mode, DPS, Autopilot, ACP, twin lever controls (to each helm Station) & joystick controls x4. Glass Bridge displays with GRID controller for each helm station, clear wake exhaust & auto trim
• Volvo Penta 5 year/2000hrs warranty package (refer VP website for details)

OPTIONS

• Side power SEP250 TCi proportional speed control DC bow thruster 24V. Twin counter rotating 5-blade props. Sealed gear-leg. 300mm tunnel. Controls at helm/s and port & starboard rear stations via Joystick S-Link control panel with hold function & LCD Display 12/24V

TOY GARAGE

• Tender not to exceed 3.8M/12 ft 6 in overall length & Maximum loaded weight of 360kg/795lbs
• Tender Cradles:
• 1 Set of 316 Mirror Polished removable tender cradles on athwartships sliding rails with spring loaded stop locks and levers to suit Owner supplied Brig Falcon 380 tender. Includes flush deck fittings for swim platform.
• Hull Profile of intended Tender to be confirmed at Build list submission, if optional sliding chocks are selected (these are custom made)

LAYOUT OPTIONS

• Grande Presidential Layout 3 Cabins with lower Saloon, Master Bathroom AFT
• - Tecma silence plus 2G DC toilet with white seat and lid
• - One (1) 8,000 BTU air handler installed and ducted to grill overhead
• - Vanity cupboard with mirror and lower vanity cupboard finished in quarter sawn walnut with aluminum backed lightweight marble bench top on centerline
• - Two (2) round opening portholes with alarm and flyscreen. One (1) port and one (1) starboard
• - Manual blind over porthole to starboard
• - Opaque glass fitted to all port lights in shower recesses
• - Molded bathroom with full perimeter drain, removable teak floor and warm gelcoat finish
• - One (1) above counter basins with one (1) Belize mixer basin single lever high faucet on aluminum backed lightweight marble vanity bench top
• - One (1) x 24V DC ladder style heated towel rails mounted to aft bulkhead
• - Toilet roll holder and accessories
• - Two (2) extractor fans
• - Nautilus door furniture with privacy lock to bathroom doors fore and aft
• - Large walk-in shower with frameless glass shower door, removable teak floor and chrome rail with handheld shower
• - One (1) large sized oval port light to starboard lower Saloon with integrated circular opening Port alarm & Flyscreen
• - Washer & Dryer to be located behind full beam Master

DISCLAIMER

• The specifications in this document are not complete or definitive and are subject to change without notice and may not be current. Riviera Australia Pty Ltd will not be liable (in contract, tort or otherwise) for any loss resulting from the inaccuracy of any information contained in this document.
• Jurisdiction Warning: this vessel will be built for use in the Country in which it is sold and may not comply with regulatory requirements or be suitable for use in other jurisdictions.
• Delivery is FOB Kaohsiung
• AC Power Management is the responsibility of the vessel owner, taking into account the number, type and voltage of devices in use at any given time. Riviera will not be held liable for power supply issues caused by inadequate Power Management. Riviera provides further detail on Power Management in the Owner’s Manual including the effects of loads on battery use, load shedding and optimum generator use.

GARMIN

• AIS
• Garmin AIS 800 Transceiver including GA 38 GPS/GLONASS Antenna - Receive and transmit AIS with internal VHF aerial splitter (MMSI number must be supplied)

LIGHTING

• Underwater Lighting
• Lumitec SeaBlaze X2 Blue/White (4 x Transom, 1 x port, 1 x stbd)

CUSTOM OPTIONS

• Webasto Deluxe Electric Fabric Sunroof - Daybridge Sunbrella Plus natural 4604-0000 outside fabric
• Bath Robes 2 x Hotel Kimono Waffle Robes - Grey KASSATEX
• Beach Towels 2 x block Stripe Fouta KASSATEX 1 x Indigo 1 x Linen
• Induction Cookware Package
• Cutlery & Dinnerware - 10 person setting
• Flybridge Helm Chairs Upholstery - Coast Dolphin 640-6508 piped in Distressed Stone 421-3578 Ultra leather
• Bed Surrounds - Demo Putty & Distressed Stone Ultraleather
• Wall Lining & Bedheads - Demo Putty
• Heads Benchtops - Crema Marfi Marble
• Install Seakeeper M18 Gyro
• Toweling to be SAND
• Interior Helm Chair - CANAPA 199 Leather with PLUSH MOREL Vinyl Piping - Stitch Color Armann Serafil 324
• Caesar stone to Galley Benchtop - BIANCO DRIFT
• Flybridge Benchtops Corian - RIVER PEARL
• Cockpit External Benchtop Caesarstone - BIANCO DRIFT
• Rear storage area - Modify to suit Kayak storage with Stainless steel support bar
• Dock Assist to be installed including bow thruster integration
• All hardtop electronics to be left WHITE - Not painted
• Install 1 x additional fuel sender in each wing tank for reading fuel levels via C-Zone screen. Add auto shut down of both transfer pumps #1 and #2 at 95% full on either sender. These are independent of the Volvo Network Fuel senders.
• Interior Carpet - TRANSPIRE FASCINATE
• Interior Saloon PORT Side Lounge Upholstery - CANAPA 199
• Interior Saloon STBD Side L Shape Lounge and Ottoman Upholstery - PALAZZO SILVER
• Interior Lower Lounge Upholstery - PALAZZO SILVER
• Master Cabin - Port Side storage cabinet finished in 2 Pac grey and satin walnut doors with soft touch leatherette top insert
• Master Cabin Desk Chair Upholstery - CANAPA 199
• FWD Cabin Stool Upholstery - CANAPA 199
• Handrails wrapped in CANAPA 199 Leather
• Cockpit Upholstery L Shape & Transom - Border: PANAMA BONE / Insert: ESQUIRE BONE
• Daybridge Upholstery 2 x L Shape - Back Rest & Knee Roll: PANAMA BONE / Base Insert: ESQUIRE BONE
• Fwd Deck Upholstery U Shape - Border: PANAMA BONE / Insert: ESQUIRE BONE
• Daybridge Carpet - SILVER PLANK
• Master Cabin - King Size Bed with 8 inch Mattress
• COASTAL Soft Furnishings & Custom Exterior Scatter Package - Part # 85217

CUSTOM ITEMS INSTALLED AFTER DELIVERY

• ElectroSea Clearline 430
• DockMate Vector Wireless Remote Docking
• Garmin XM Satellite Weather
• Starlink Flat Mount High Performance Internet Kit
• Siren Marine Remote Security and Telematics
• IPad remote connection (while aboard boat)
• FLIR HD Night Vision and Color Day Vision
• Custom Boarding Ladder
• Two Custom Boarding Ramps
