A DIVA OF THE SEA
Understated allure, seductive forms, and a sophisticated lightness of touch blend in a harmony as delicate as the rippling of a wave. Navetta 33 is a sublime mix of styles, a luminous equilibrium of beauty that dances over the water.
AN ESSENTIAL MASTERPIECE
A unique creation, where cruising meets your dreams. Navetta 33 is a semi-displacement yacht that turns true sophistication into absolute luxury. This is a superyacht with a chic, essential aesthetic that is not afraid to reveal her high-tech side. The ingenious bulbous bow assures best-in-class stability and seaworthiness with a range of around 2,000 nautical miles.
CHARACTER DOESN’T LIE
Inside, every space is an affirmation of the Navetta 33 vision and her owner’s unique character. The areas dedicated to the family and their guests open up on all 4 decks – from the wide-body master suite forward on the main deck to the 4 guest cabins below. And the stylistic watchword is elegance.
CRUISING IS EASY

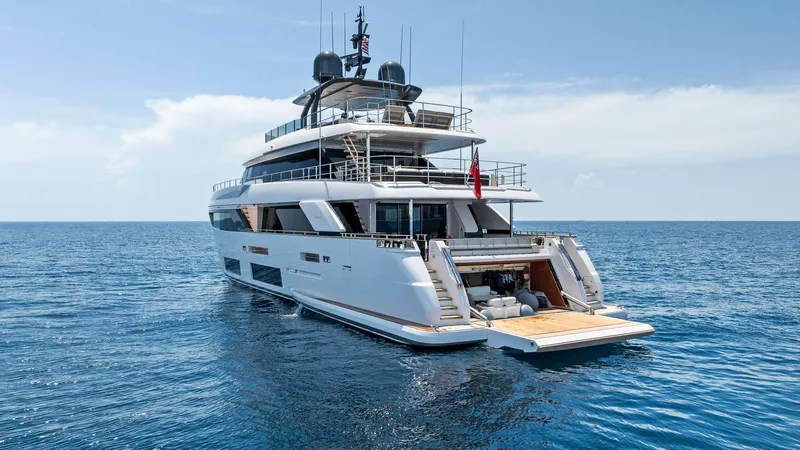

Custom Line’s advanced technology assures comfort and stability, whatever the conditions. Navetta 33 is a state-of-the-art masterpiece, and her patented Dual Mode Transom (DMT) system expands the living and entertainment spaces for the owner and guests to enjoy the stern area to the full.
THE FUTURE, IS IN YOUR HANDS

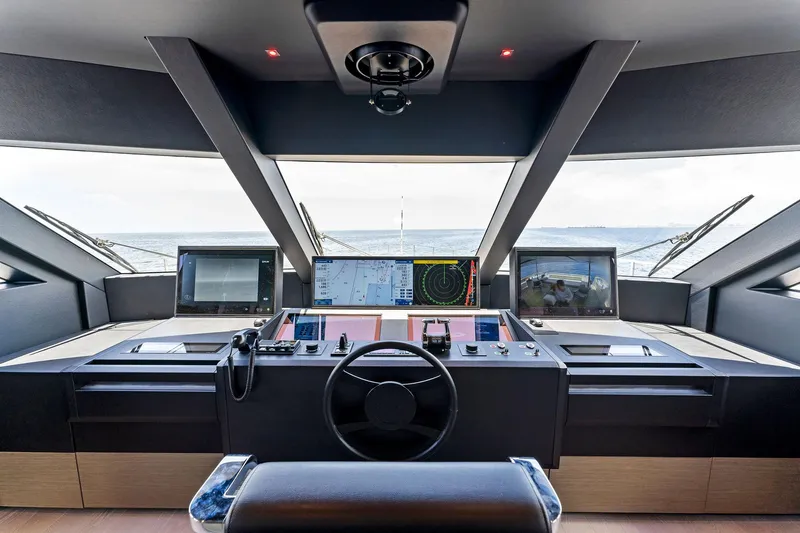

On board, living is even easier thanks to the VOTIS software, which controls the infotainment systems. And with the integrated helm station, all the systems can be monitored at a glance, for total safety.
A YACHT YOU CAN TRUST, ALWAYS
Light as a ripple, steady as a rock. On Navetta 33, absolute comfort is assured even at anchor and when mooring. The electro-hydraulic stabilizing fins with zero-speed function and the pair of Seakeeper gyroscopic stabilizers combine to ensure that everyone can enjoy the view and the onboard experience both while cruising and when at rest.
Specifications:
- Custom Line Yachts brand of Ferretti Group SpA
- LOA: 108'3"
- Beam: 24'8"
- Draft: 7'2"
- Lightship: 352,740 lbs
- Full Load Displacement: 401,241 lbs
- Gross Tonnage: 262
- Fuel capacity: 4940 gallons
- Fresh water capacity: 819 gallons
- Grey water capacity: 317 gallons
- Black water capacity: 317 gallons
- Maximum speed: 15 knots
- Cruise speed: 12 knots - 1200 n.m. range
- Range at 10 knots: 1850 n.m.
- Accommodations for Owners and Guests: 5
- Accommodations for Crew: 5
- Technical & Naval Project: Ferretti Group Engineering Department
- Exterior and layout project Design: Zuccon International Project
- Interior Design: Ferretti Group Project Architect & Engineering Dept. Interior Design
Features:

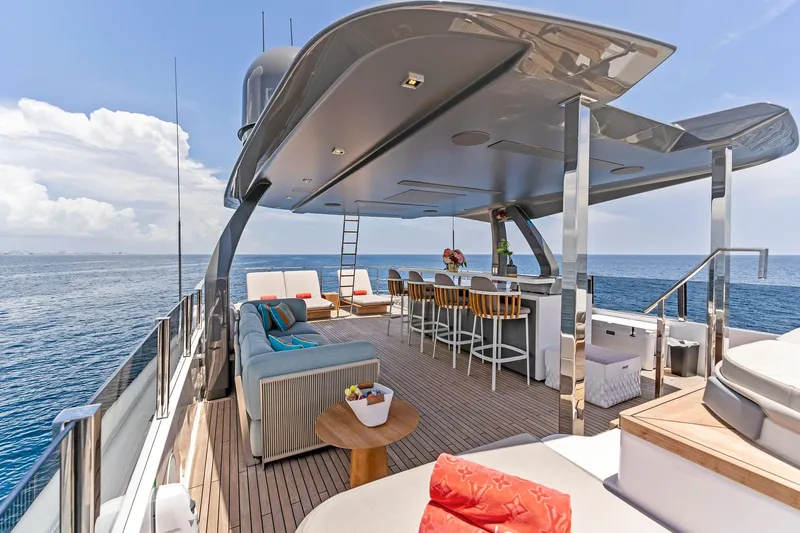

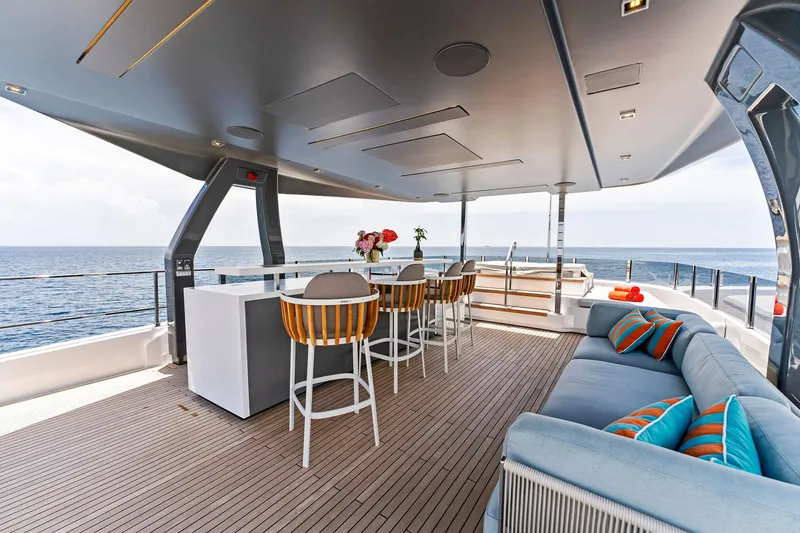

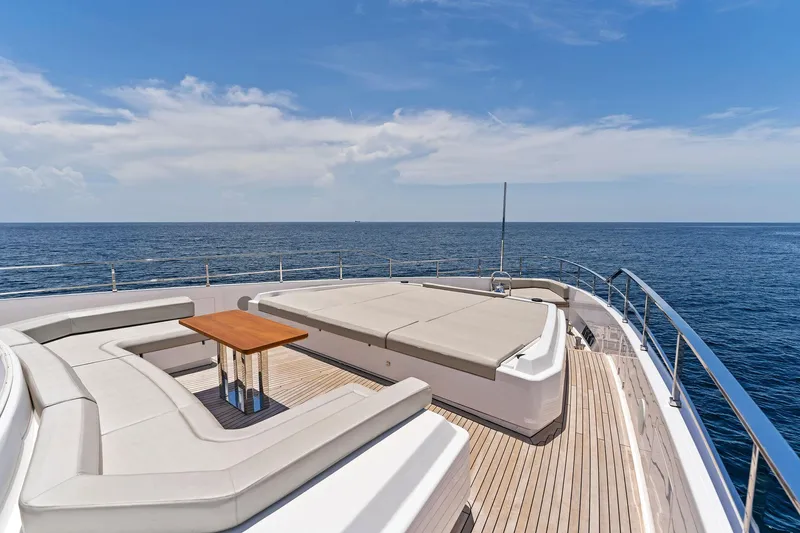

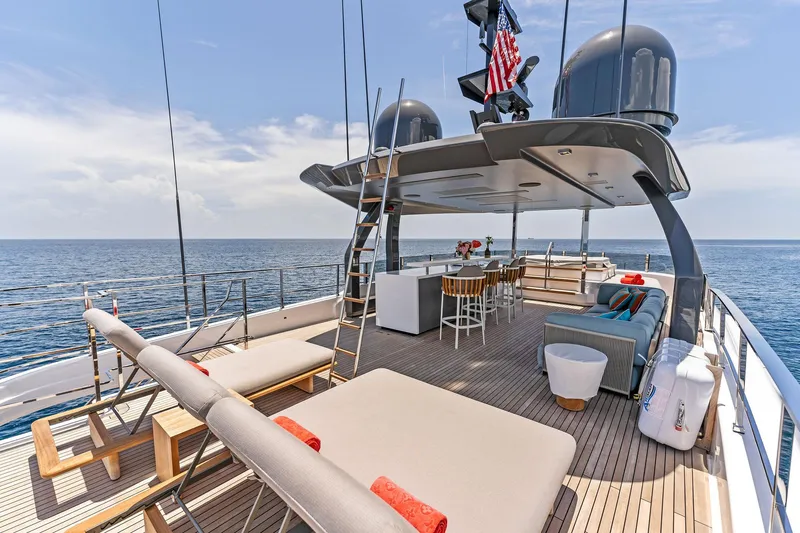

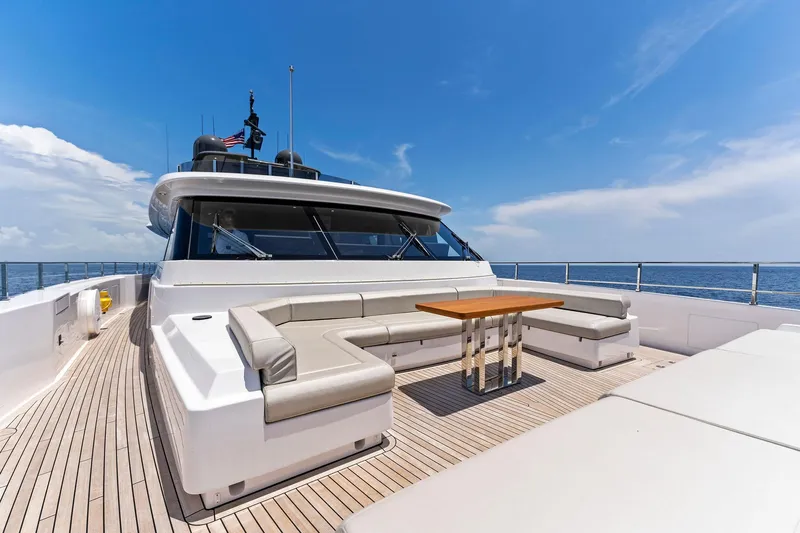

- Decks: Sun deck, upper deck, main deck, lower deck

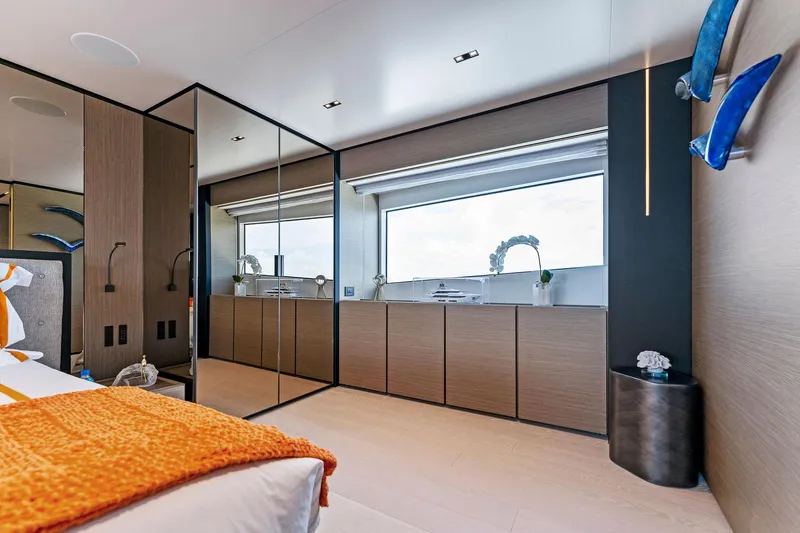

- Owner Suite: 1 - capacity 2

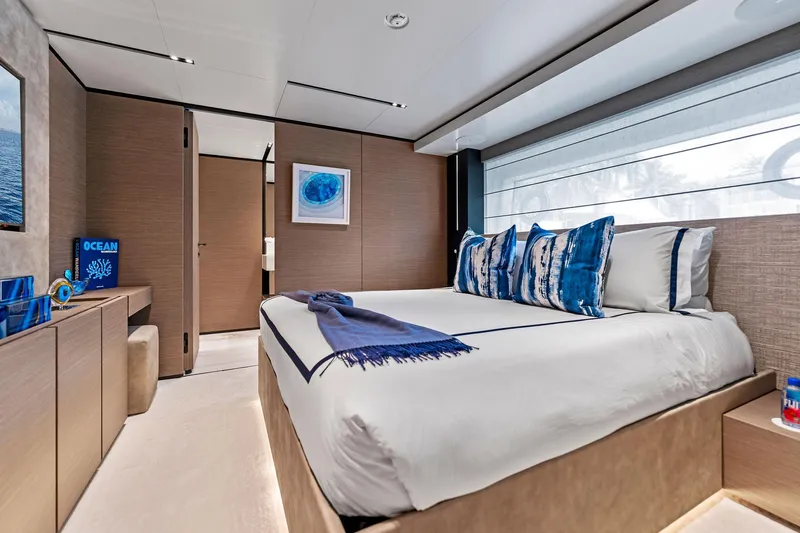

- Guest Suites: 4 - capacity 8

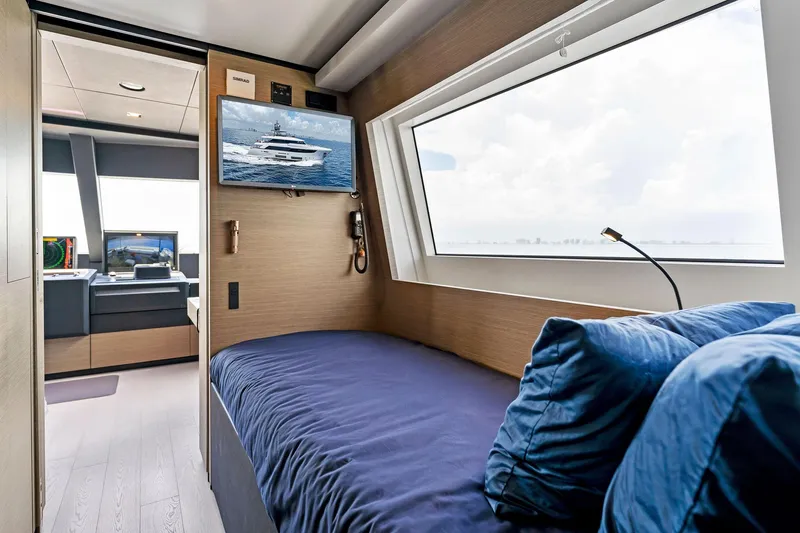

- Captain Cabin: 1 - capacity 1

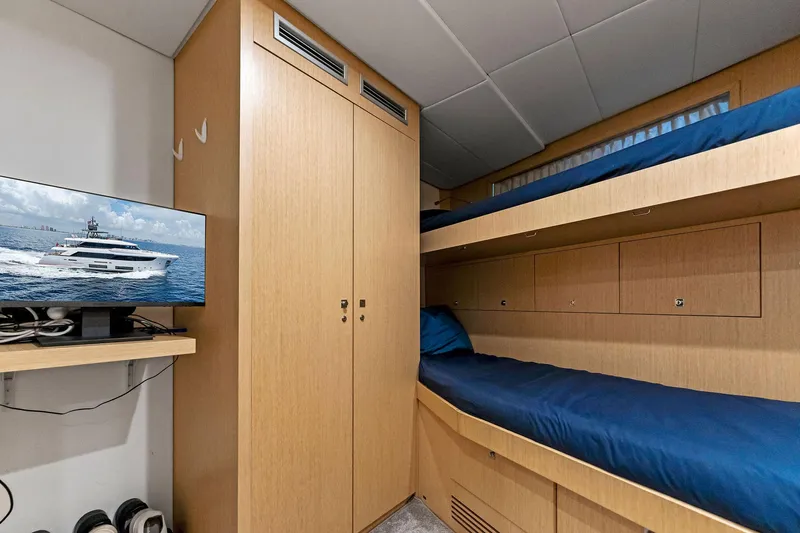

- Twin Crew Cabin: 2 - capacity 4
- Single Crew Cabin: 1 - capacity 1

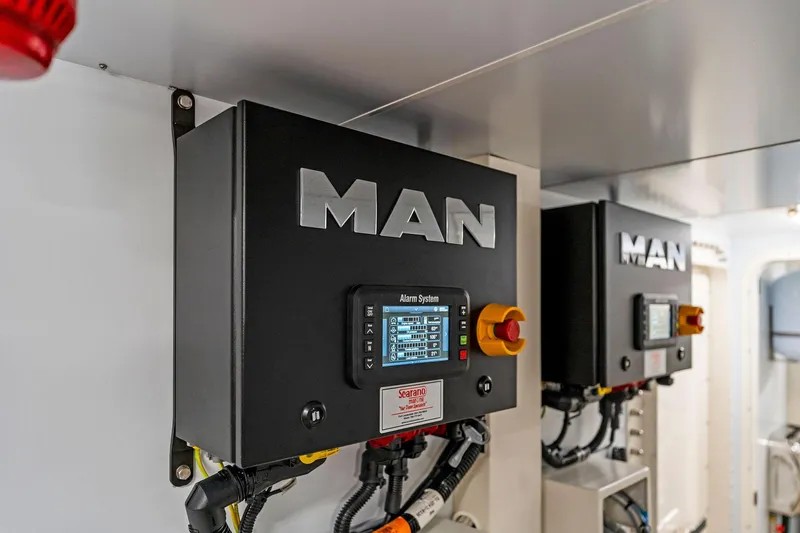

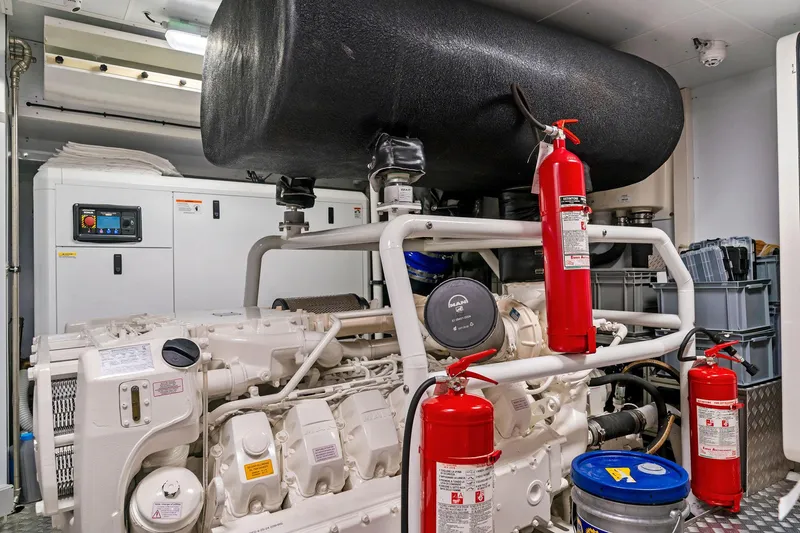

- Engines: MAN V12 LE446, 1400HP
- Standard Equipment:
- XF 3050 gear boxes for each engine
- Sea water lubricated bearings for each propulsion shaft line
- Two skewed propellers, 6 blades, designed for h
- High efficiency and low noise
- Two spade rudders with drive by wire steering control
- Electrohydraulic steering
- Bow thruster
- Two electro hydraulic stabilizer fins
- Two interceptors installed on the transom edge actuated by servo units connected with control units, governed by a control panel in wheelhouse

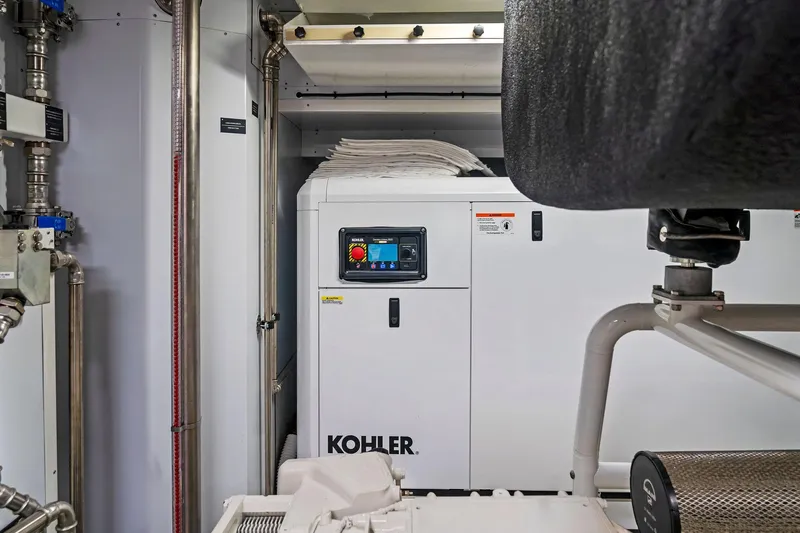

- Two (2) Kohler 44kw generators
- Bilge and fire fighting system: bilge pump, fire fighting pump, emergency diesel motor pump
- Fuel oil system
- Fresh water system
- Sewage system
- Fire extinguishing system
- Compressed air system
- Scuppers and drainage system
- Sea water cooling system
- Air vent lines
- Hydraulic system: steering gear, transom shell door and lift, gangway, stabilizer fins, forward garage shell door
- Main engines gas exhaust system
- A/C systems: A/C and ventilation, main chiller unit (144,000 BTU), heat pump, fan coils, chiller sea water pumps, chiller water pumps, fans and extractors, air treatment units, A/C piping

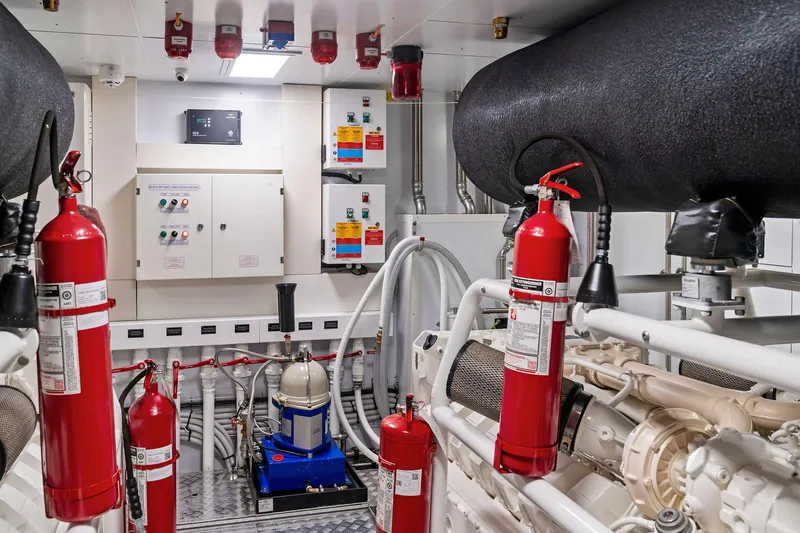

- Engine room ventilation system: engine room fans, engine room fire dampers, technical space ventilation

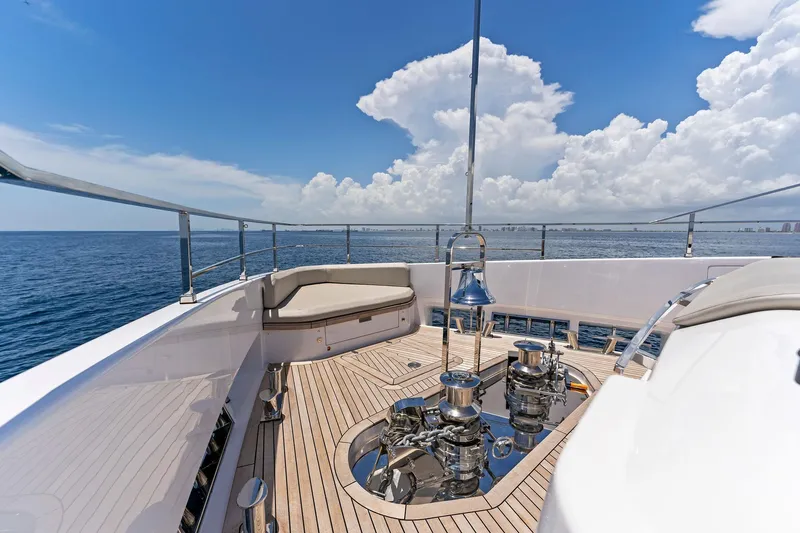

- Anchor and mooring equipment: windlass, capstans, mooring bollards, fairleads, fenders and whips, docking lines
- Gangway
- Swimming ladder
- Stern garage
- Forward Storage
- Windows and portholes
- Watertight doors
- Bulwark doors and aft gates
- Exterior doors and hatches
- Handrails, caprails, pillars and external non structural stairs
- Side embarkation ladder
- Wind screen protection
- Teak deck lining
- Safety equipment
- Tender cradles
- Side Trackways
- Flagpole
- Sun Awnings
- Window Wipers
- Electrical systems: power supply system, distribution system, lighting system, alarm system
- Shore connection

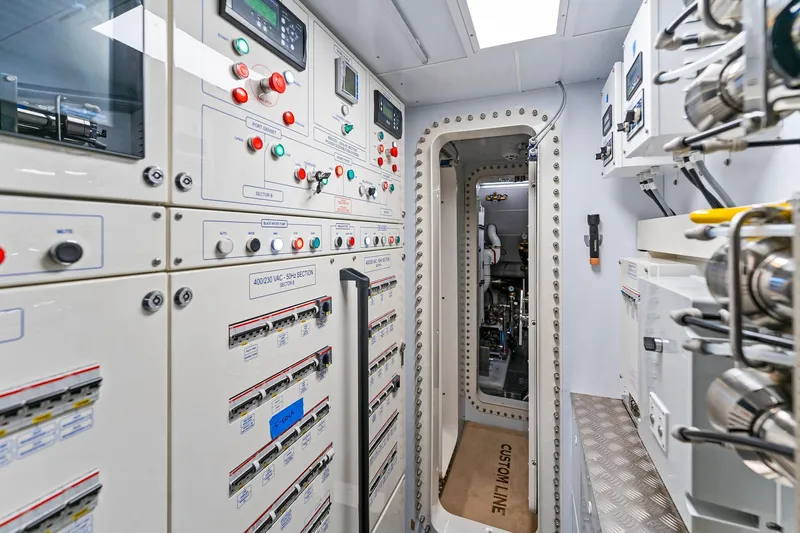

- Main switchboard installed in the engine control room
- Distribution and Emergency switchboards
- Batteries
- Electrical motors and starters
- LED lighting: ceiling spot lights, floor spot lights, stair step lights, light tubes
- Searchlight
- Underwater lights
- Emergency lights
- Fixed fire detection and alarm system

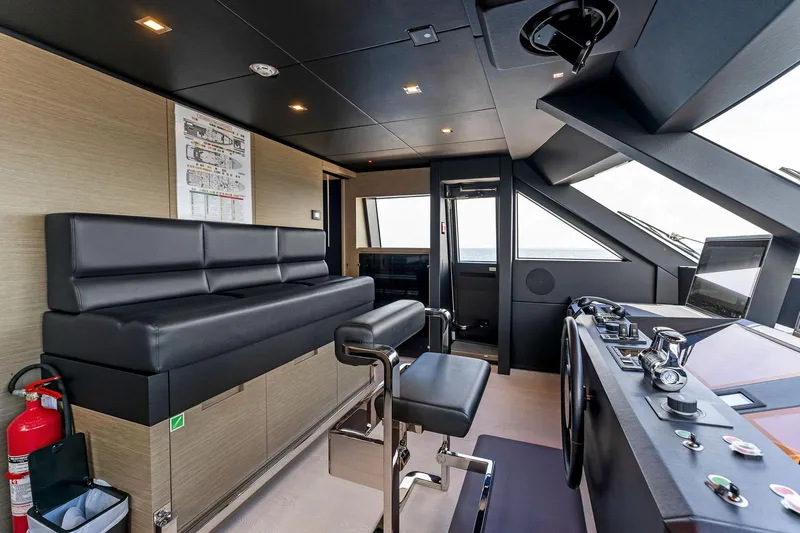

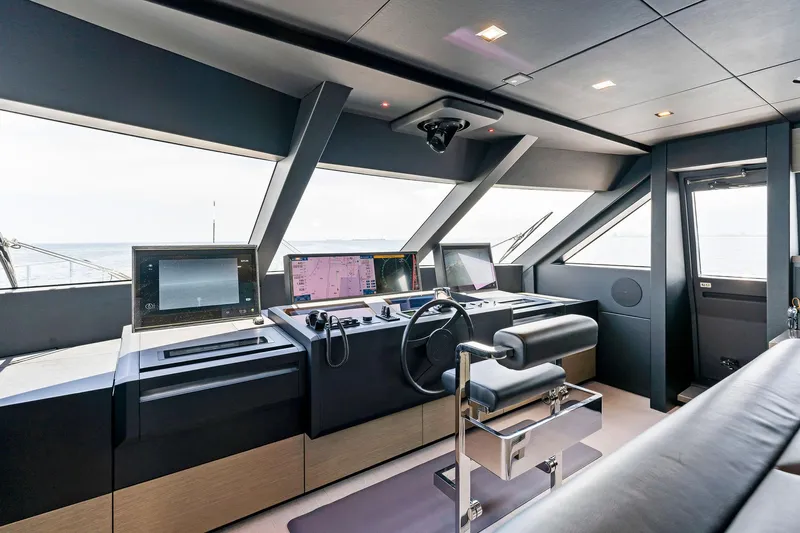

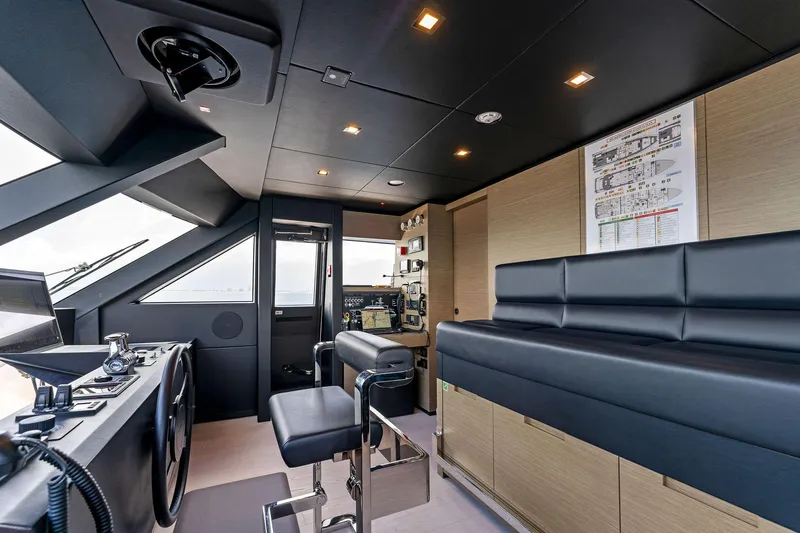

- Navigation system wheelhouse dashboard: 3 x 15” displays, vertical, Jog system control, Bow thruster control lever, main engines throttles, Main engines start/stop buttons and alarm signals + emergency stop buttons, Main engines key, Autopilot, 2 VHF (class D DSC), Alarm buzzers
- Navigation equipment: 1 autopilot system, 1 echo-sounder, 1 wind station 1 multifunctional transducer (Depth, Speed, Temperature) Navigation sensors including: 1 radar, 6kW Furuno, open array, X-Class antenna, 3 GPS, 1 Flux gate system, 1 magnetic compass, 1 Weather station, Charting plotter system including: 2 independent processor black box
- Wing stations
- Alarm and Monitoring System (AMS): 1 integrated in the dashboard in wheelhouse (15”), 1 touch screen in the crew mess (15”), 1 in the engine control room (15”)
- Communication System: 1 VHF radiotelephones with DSC GMDSS class A, 1 VHF radiotelephones with DSC GMDSS class D with 3 handsets (Wheelhouse, Captain’s Cabin, Crew Dinette) 2 portable VHF GMDSS apparatus, 1 radiotelephone SSB GMDSS – DSC, 1 NAVTEX receiver, 1 EPIRB 406MHz, GMDSS, with hydrostatic release, 1 radar transponder, GMDSS (SART)
- Network System: LAN network and dedicated WIFI network
- Intercom system
- CCTV system
- Salon Entertainment system: TV 55’’ LED with electric ceiling system, Home Theatre system with amplifier tuner (5+1) connected to central server unit, Apple-TV, I-pad mini control system for entertainment, TV SAT receiver common interface, HDMI Aux input
- Owner Cabin Entertainment system: TV 49’’ LED smart tv, Home Theatre system with amplifier tuner (2+1), connection to central server unit, Apple-TV, I-pad mini control system for entertainment, TV SAT receiver common interface, HDMI Aux input
- Salon appliances: 1 drawer fridge

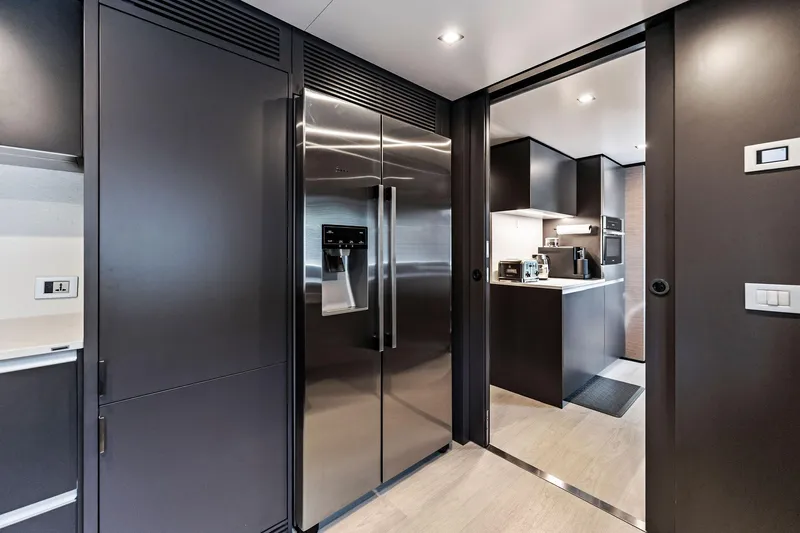

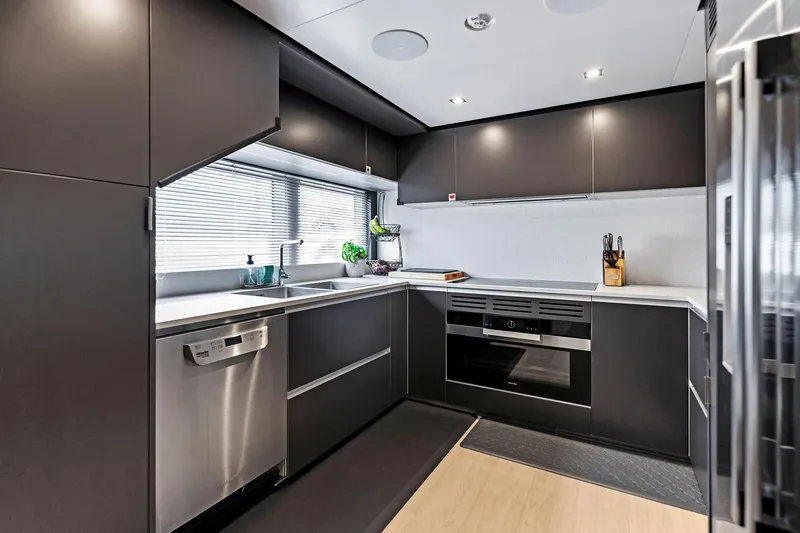

- Galley appliances: 1 electric glass/ceramic 5-burner cooking top, oven, hood, dishwasher, freezer, side-by-side refrigerator, trash compactor
- Pantry appliance: microwave oven
- Upper deck appliance: icemaker

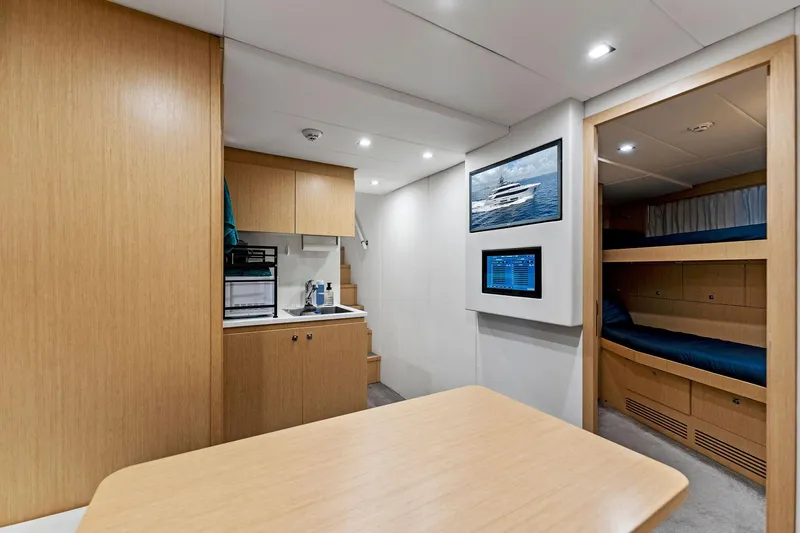

- Crew mess appliances: microwave oven, fridge/freezer

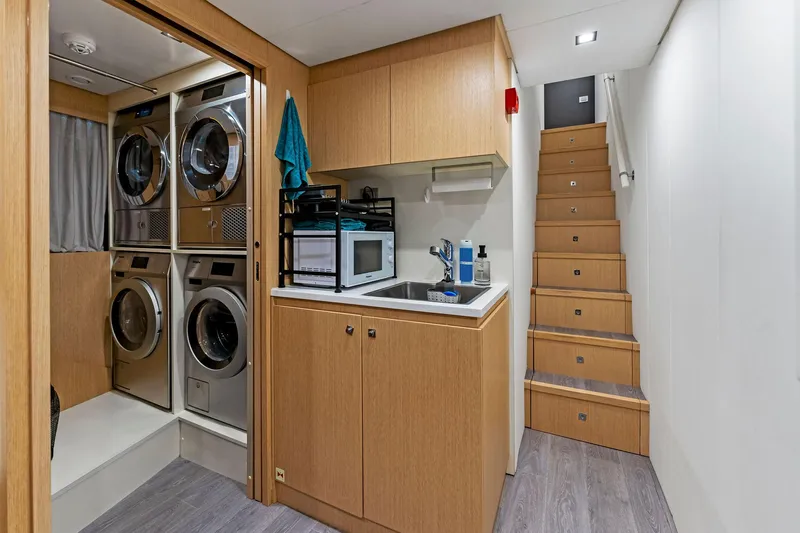

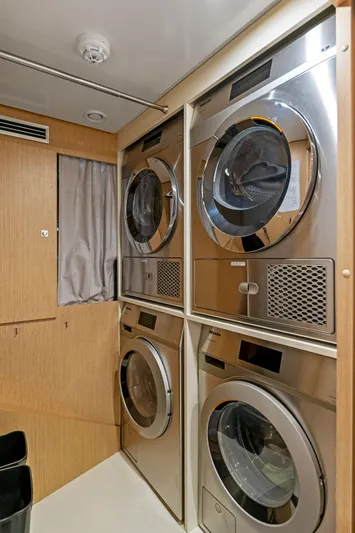

- Laundry appliances: dryer, washer

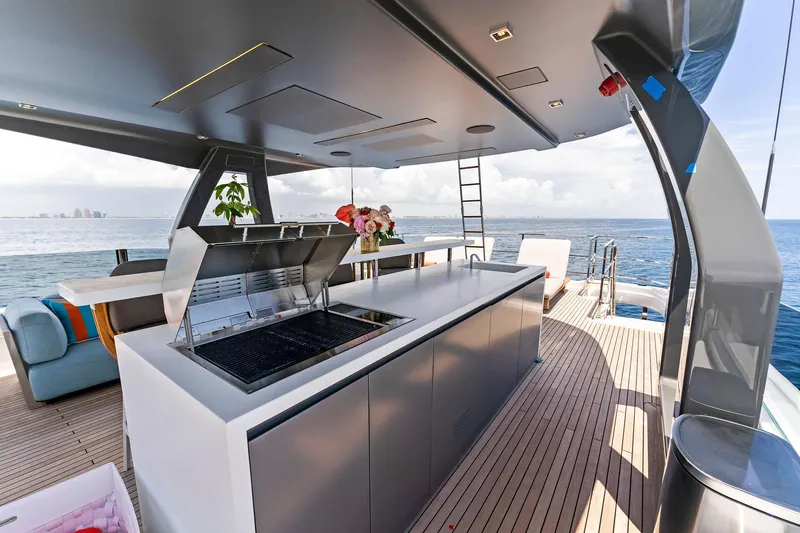

- Sun deck appliances: fridge and grill
Upgrades:
- Waste mincer in the galley sink
- Miele galley appliances
- Texan grill in sun deck
- Washer anddryer Miele Professional
- Treatment system for black water

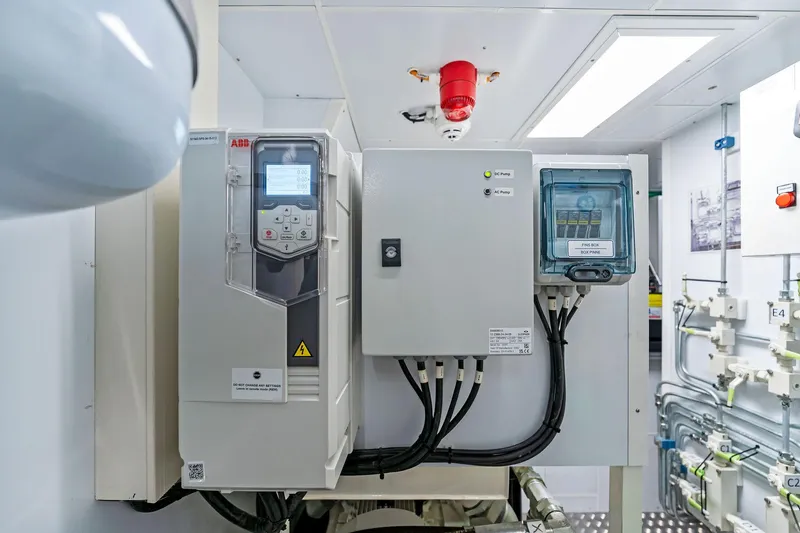

- Frequency converter S0hz
- Kohler main and auxiliary genset 55 kW upgrade
- Automatic parallel system amongst gensets
- Air conditioning "Comfort" Tropical with UTA upgrade
- Watermaker: ldromar 500 1/h (duplex 250/2501/h)
- Centralized system for engine/inverters/generators oil change
- Active carbon filter
- Water softener
- Drinking water UV sterilizer
- Fuel oil filling station in garage for diesel tender
- ldrostop system for shaft line seals
- Fuel oilfilter
- Anchor chain with 16 mm diameter and 150 mt length upgrade
- Crane with maximum loading 500 Kgs in bow garage
- Underwater lights - 4 oneach side and 2 on aft
- Bimini for dinette at bow (manual)
- Aft upper deck removable bimini top
- Bimini with 2 poles in sun deck at stern
- Dimmer lights for exteriors
- Courtesy lights anddimmers for interiors
- Furniture with hydromassage bathtub with constant temperature control
- Teak covering with black caulking on tender area
- Floor teak covering with black caulking on sun deck and forward triangle area
- Window with porthole in galley
- Crew call system
- Curtains: electrical raising for lower deck (4 cabins)
- Electrical raising of curtains in upper deck salon
- Automatic opening for glass aft door in upper salon

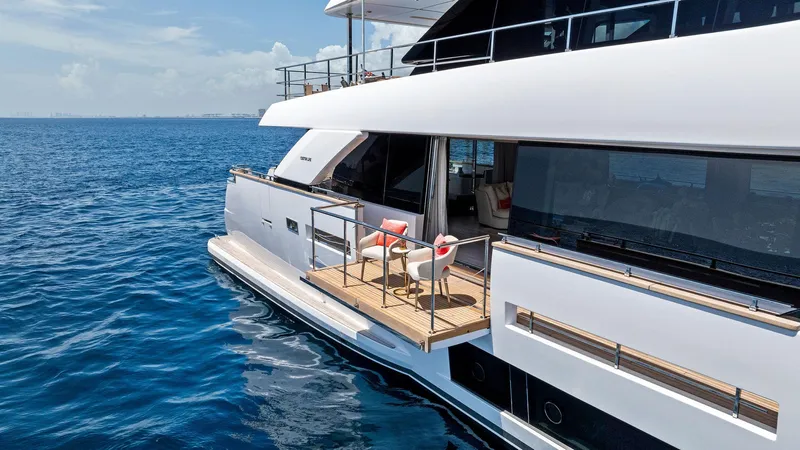

- Balcony on starboard side main deck
- Automatic opening for aft glass door
- Pullman bed in starboard side guest cabin
- Siding beds in portside guest cabins
- Fridge in upper deck cockpit
- Icemaker in sundeck
- Hand shower: hot/cold fresh water at bow
- Fresh water outlet for washing inside bow garage
- Hand shower with removable pole
- Wine cooler under counter in pantry upper deck
- Stern thruster 58hp hydraulic
- 5G PLATINUM internet connection
- Super premium integrated bridge upgrade
- FLIR camera night vision
- Auto identification system AIS Furuno Class B (TX-RX FA 50)
- A/V Package Premium
- TV Samsung 28" in Captai cabin
- TV Samsung THE FRAME (43" in starboard guest cabin. 50" in VIP cabins and port guest cabin)
- Frame TV 65" in master cabin
- TV Samsung 55" in upper salon
- Aft garage celling electrohydraulic travel for hauling and launching jet ski (saddles included)
- Charter (MCA) Compliance
- Gyro stabilizers
- Columns- upholstered in leather Masfrotto
- Multistranded sockets
- Predisposition of TV-SAT HDI I DOME
- Bar furniture
- Additional compressed air outlets (inside bow garage and in SD)
- LD bathrooms in wavy Calcutta marble

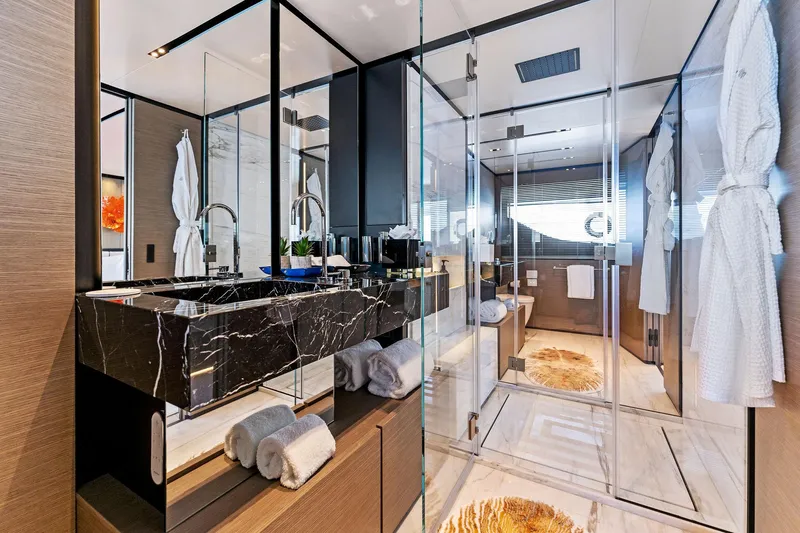

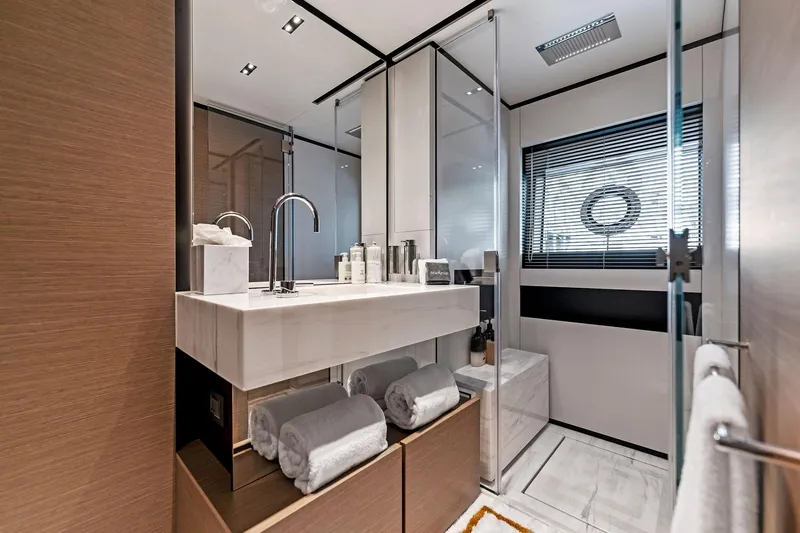

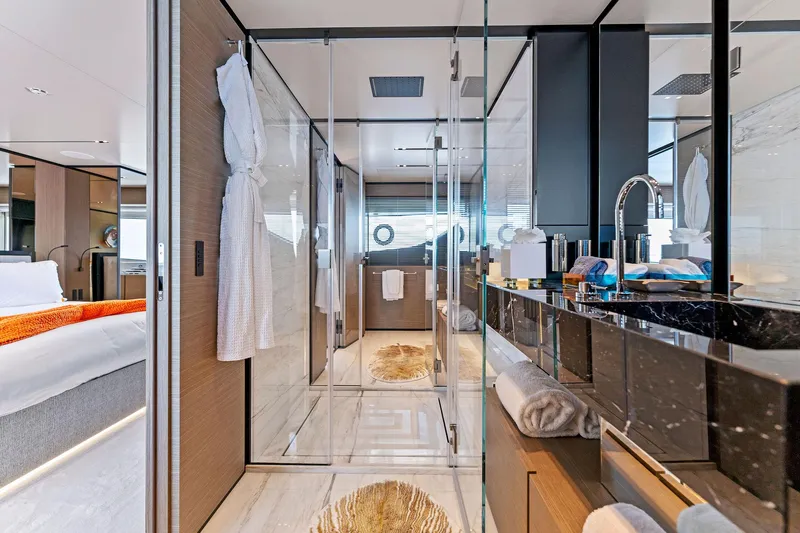

- Master cabin bathroom (top and built-in sink in marble nero marquinia. shower wall, shower bench, shower floor and bathroom floor in wavy Calcutta marble

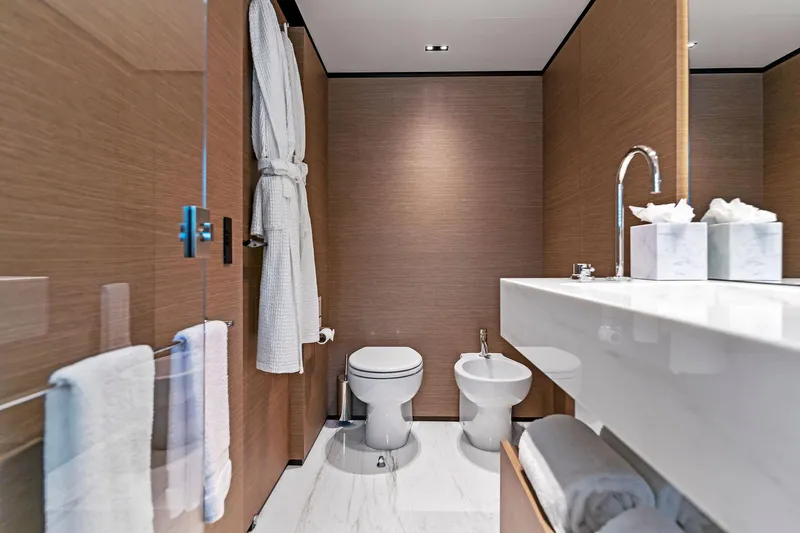

- Day toilet in glossy wavy Calcutta marble
- Armchair and coffee table in master cabin Drawers cabinet master cabin
- Rug in master cabin
