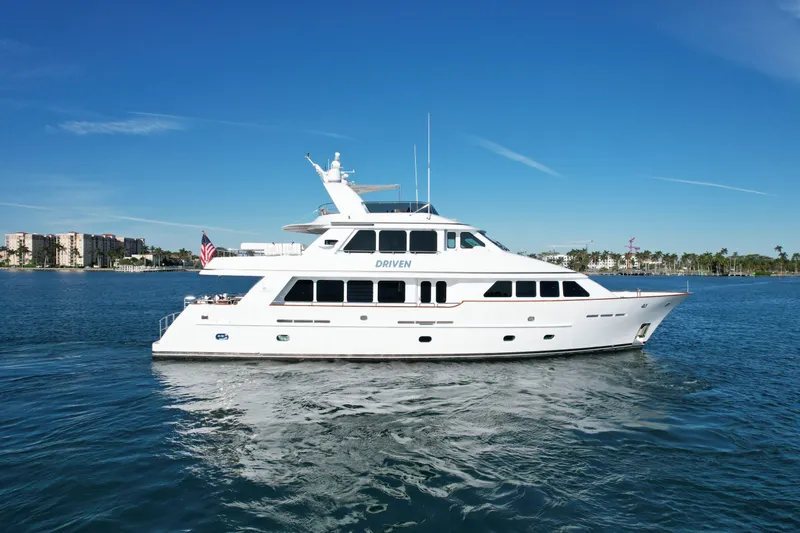

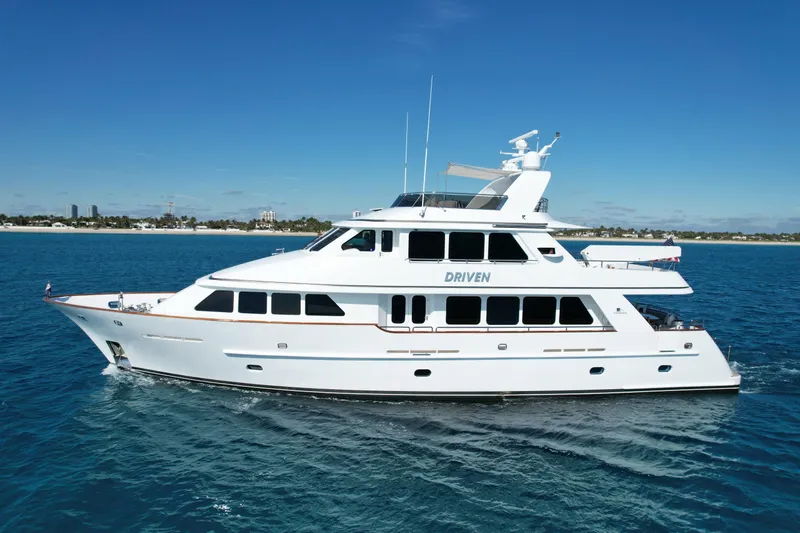

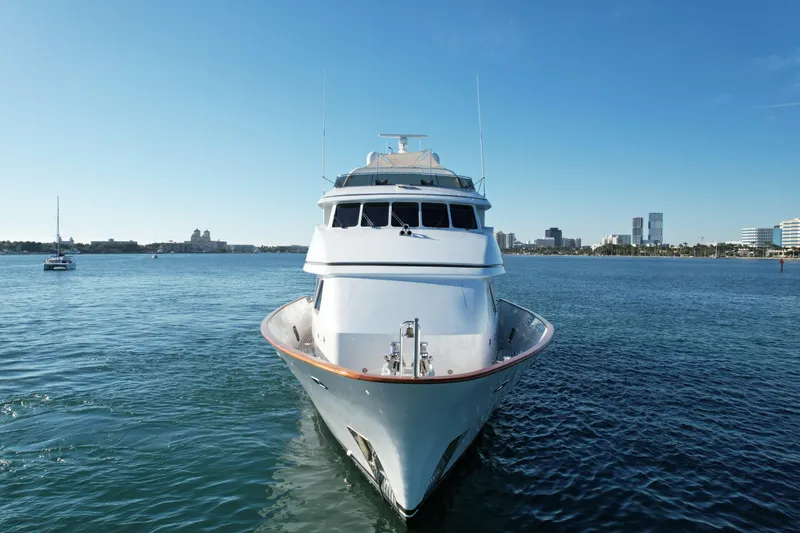

DRIVEN Yacht for Sale

• Cruising Speed: 11 kn
• Maximum Speed: 13 kn
• Beam: 23' 0''
• Hull Material: Steel
• Max Draft: 7' 2''
• Fuel Tank: 1 x 8981|gallon
• Fresh Water: 1 x 818|gallon
• Holding: 1 x 1452|gallon
• Cabins: 4
• Heads: 7

• Over $2,400,000 spent during yard period (Invoicing available upon request)
• Originally built to Lloyd's & MCA classification
• Generators surveyed and all recommendations and services completed
• Main engines surveyed and all recommendations and services completed
• All Interior American Cherry Wood veneer, cabinetry, and night stands refinished
• New wall coverings throughout
• All lighting upgraded to Dimmable LED with new fixtures and sconces throughout
• New carpeting with treadmore padding throughout the entire vessel
• New Amtico flooring in galley
• New Teak flooring in bridge
• New custom sectional sofa with storage in main salon
• (2) New custom club chairs in main salon
• New custom coffee table in main salon
• New Roman shade throughout
• Custom stitched diamond leather helm chairs in bridge
• Full A/V upgrade throughout (detailed list below)
• Anchor windlass system rebuilt
• Bridge deck tender davit rebuilt
• New Water maker (1850GPD) / dockside fill combo unit installed
• New Custom cabinetry with 50” Samsung QLED on lift mechanism salon
• Fully automated Scuba Tank fill system installed
• Renewed thrust bearings and new bearing seals
• Install new shaft seals plus 1 spare per shaft
• Hull blasted to bare steel, sounded, new plating added to bows section in chain locker
• New anti-foul system from steel, barrier coat, prime coat, 2.5 coats anti fouling
• All new Zinc anodes
• (4) new Clima VFD Chiller plants
• (2) new raw water pumps.
• (2) new chilled water pumps.
• New plumbing from hull to supply and returns.
• New electrical panel and pump switching panel for a/c plants
• All air handlers removed pressure tested and replaced as recommended
• Electrosea barnacle preventer for A/C raw water feed
• Generators service, new injectors, new exhaust elbows and vent hoses and fuel lines
• New sound insulation for generators
• Refit workshop and bosuns stores areas
• New black water, grey water, and MSD transfer pumps
• New main deck, side deck, bow and platform teak installed including new sloped inner margin boards for drainage
• New acrylic wind screen on sundeck
• All exterior deck storage cabinets rust treated and new barrier and top coatings applied
• Lazarette / steering flats painted and teak deck plating replaced
• (2) new water heaters and water circulation pump
• Stern passarelle rebuilt
• Anchor windlass / system rebuilt
• Tender davit rebuilt
• Full A/C duct cleaning with all blowers and air handlers serviced
• All lighting upgraded to LED throughout
• Starlink single antenna and 4g/5g cellular antenna installed
• All soft goods professionally cleaned
• Mast to waterline polished and wax
• Renew bridge deck aft awning frame w extra supports

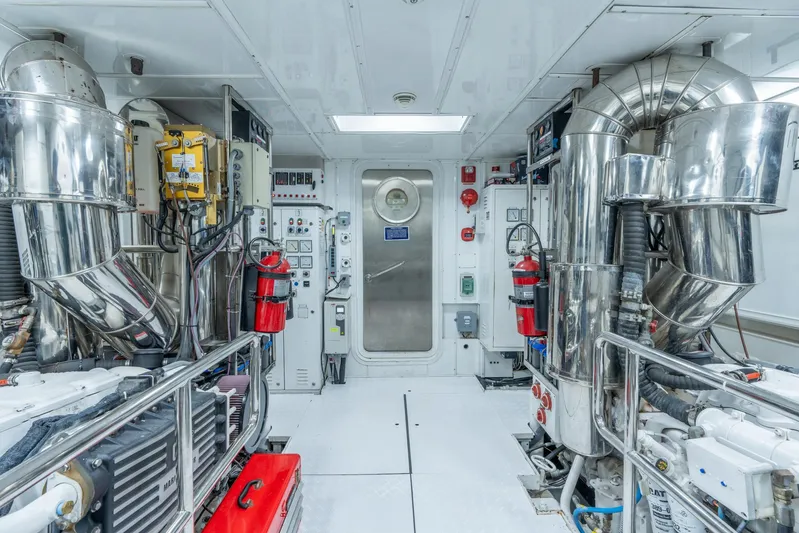

• Renew raw water inlet piping in engine room
• Ceramic coat entire seachests and inside coated with antifouling new seals and hardware installed
• Engine room bilges, treated, sealed, primed and painted
• Main engine service completed
• New delta t inlet / exhaust fans for engine room
• New 12v LED lighting in engine room
• New 24v emergency lighting in engine room
• Installed fresh air make up system in wheel house dog house
• All boarding door hinges rust treated, primed and painted
• Installed zero speed stabilizer system and replaced all hydraulic hoses and fittings
• Installed tidewater rudder shaft seals
• (2) new mach 5 water fresh water pumps
• New seals on all exterior hatches
• New Watchdog camera system for remote monitoring
• All ballast removed, renewed and reinstalled on fresh painted and rubber protected bracketing in lazarette
• New fresh water tank suction manifold with custom stainless steel
• New fuel lines for port generators and main engines replaced as needed

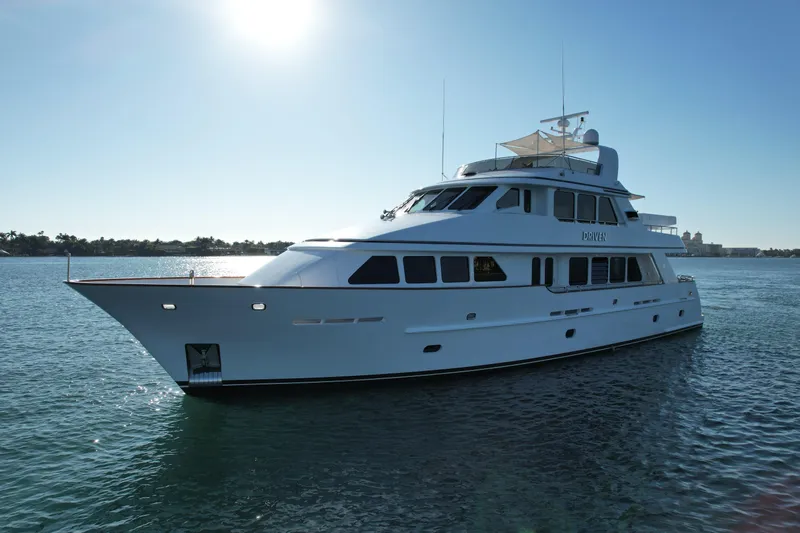

MAIN CHARACTERISTICS

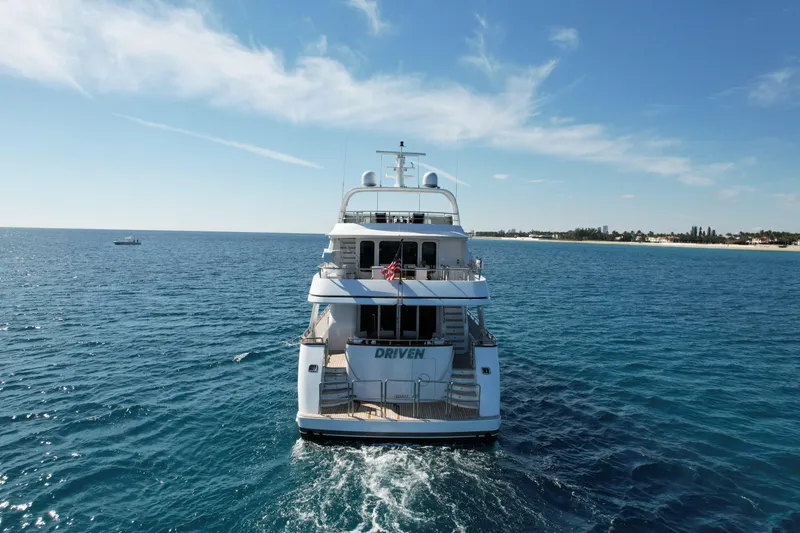

• TYPE: Full Displacement Motor Yacht
• HULL NO.: DLZ14343L513
• BUILDER: Conrad
• EXTERIOR DESIGN: Dixon Yacht Design
• INTERIOR DESIGN: Dixon Yacht Design
• YEAR: 2005
• CLASSIFICATION: N/A
• CONSTRUCTION: Steel Hull, Aluminum Superstructure
• FLAG: USA
• CREW: 2 + Captain
• ENGINES: 2 x CAT 3406E 600hp / 448kw
• GT: 195

DIMENSIONS

• LOA: 88’ 7” / 27.00m
• BEAM: 22’ 12” / 7.00m
• DRAFT: 7'2" / 2.184m

SPEED & RANGE UNDER POWER

• MAXIMUM SPEED: 13 knots
• CRUISING SPEED: 11 knots

CAPACITIES

• ACCOMMODATION: 8 x Guests in 4 cabins
• CREW: 1 x Crew Cabin + Captain Cabin
• FUEL: 8981 US gal / 34,000 liters
• FRESH WATER: 818 US gal / 818 liters
• BLACK WATER: 1452 US gal / 5500 liters

ACCOMMODATION

• GUESTS:

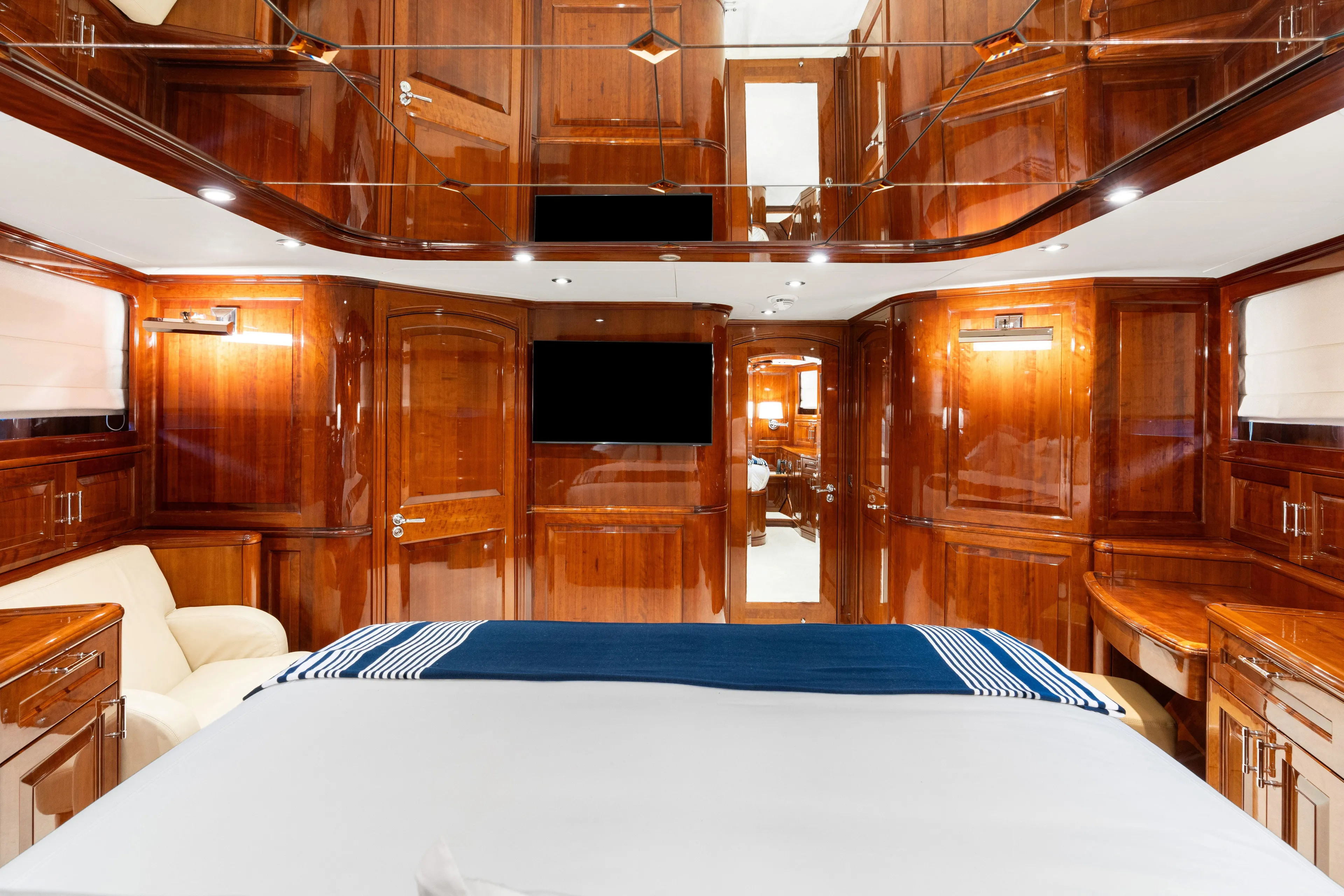

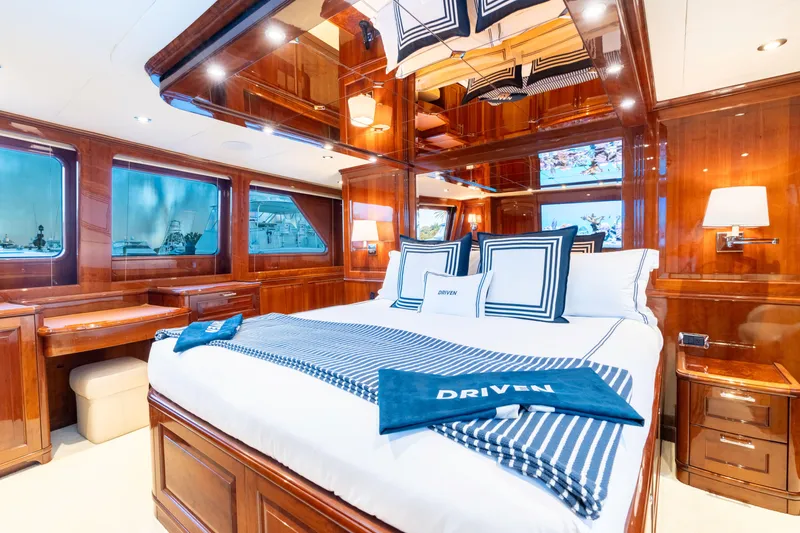

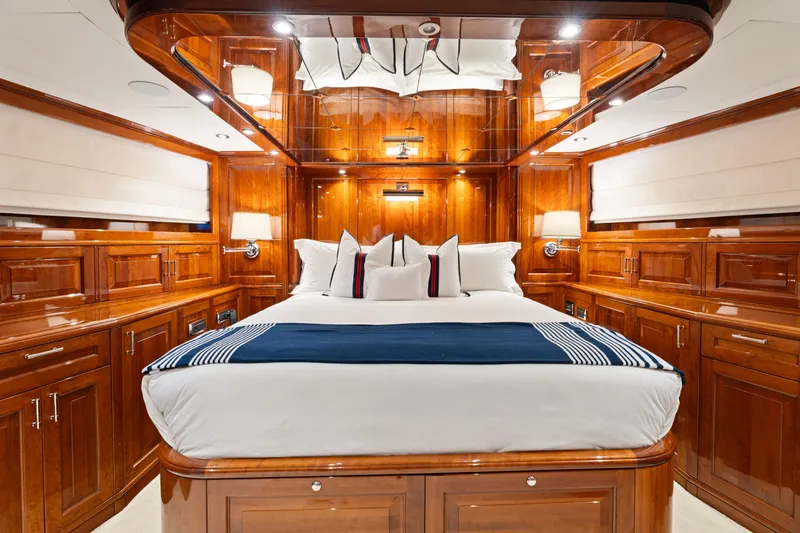

          1 x Master cabin on Main deck

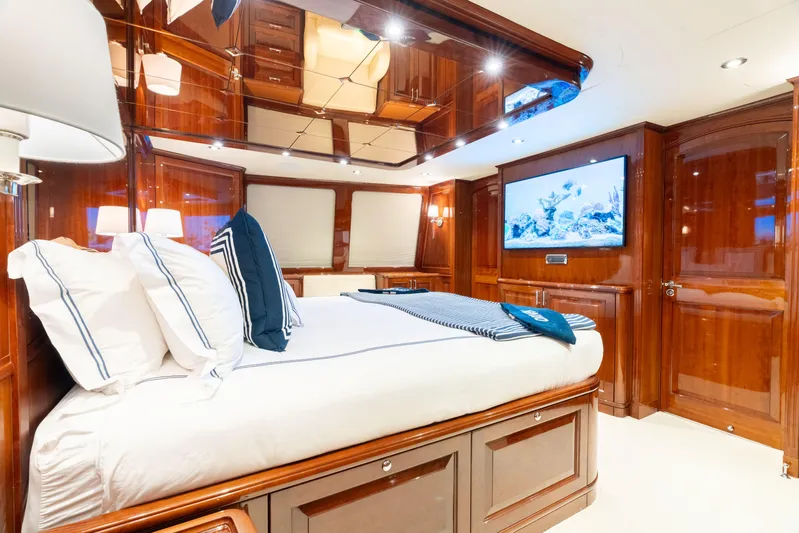

          1 x VIP cabin on lower deck

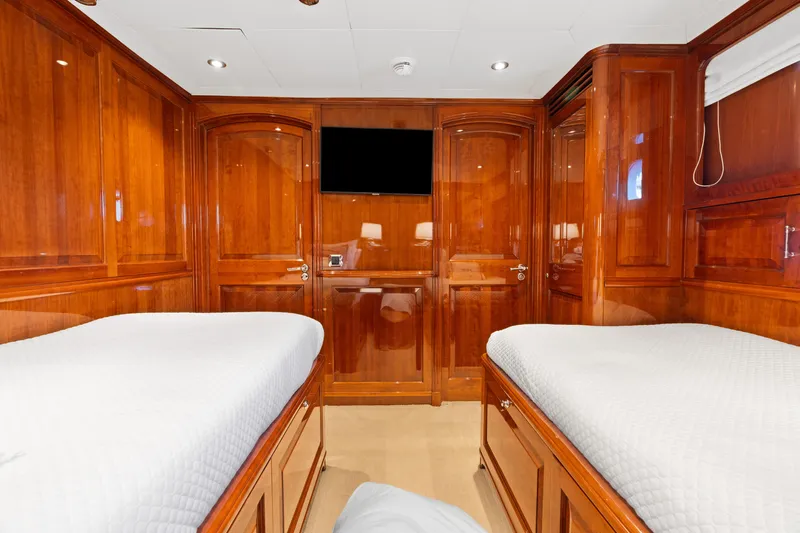

          2 x Convertible twin cabins on lower deck

• CREW:

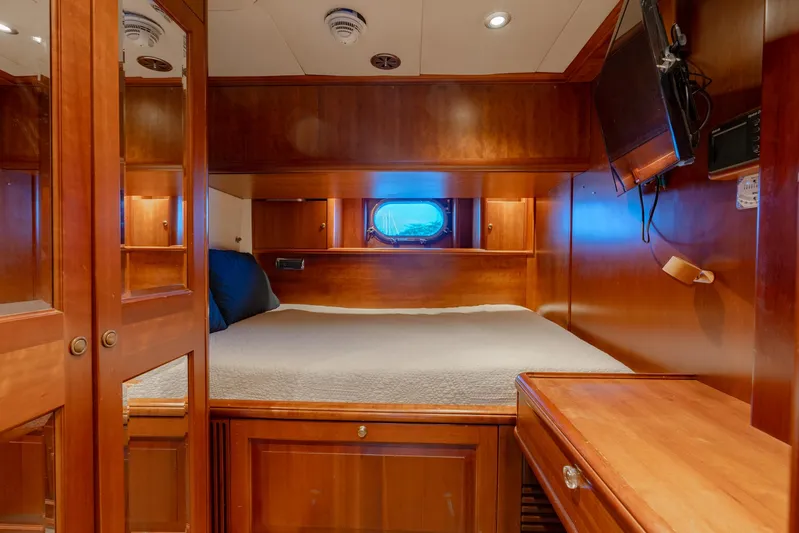

          1 x Captain's cabin aft

          1 x Crew 2-bunk cabins aft

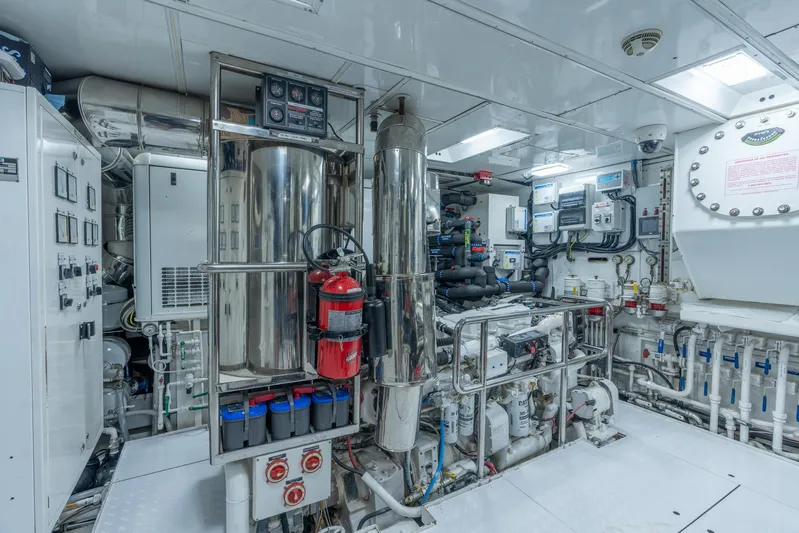

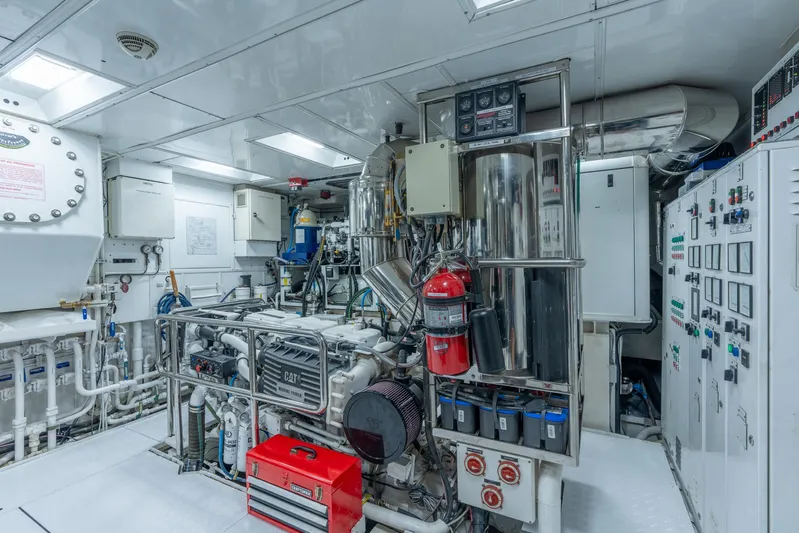

MECHANICAL EQUIPMENT

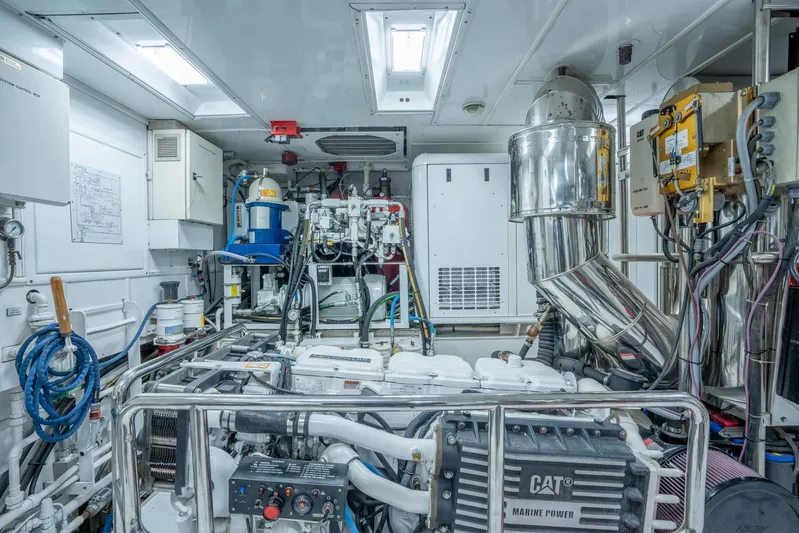

• ENGINES: 2 x CAT 3406E 600hp / 448kw
• ENGINE HOURS: Port: 4555 hours Stbd: 4592 hours
• STABILISERS: 2 x ABT-TRAC Stabilizer fins underway & zero speed
• GENERATORS: 2 x Northern Lights MP44T - 55kW 60Hz
• GENERATOR HOURS: Port: 13,262 hours Stbd aft: 12,256 hours (rebuilt @ 9525hrs)
• CONVERTERS: ASEA
• WATER MAKER: Water maker / Dockside fill combo unit 1850GPD
• TOILET SYSTEM: Headhunter
• FUEL SEPARATOR: Alfa Laval

NAVIGATION EQUIPMENT

• AIS: 1 x Simrad AIS
• GPS: 2 x Simrad
• Navigation Equipment: 3 x Simrad 19" monitors

                                            1 x Simrad EVO3S

                                            1 x Furuno TZ

                                            1 x Simrad Autopilot

                                            1 x Simrad IS20 Wind display

                                            1 x Simrad TXL-10 10kW Radar with 4 ft Open Array

                                            1 x Simrad TXL-25 25kW Low Emission Radar

                                            1 x 50/200 Khz Stainless Steel Transducer

                                            1 x Plastic Thru-Hull Transducer

                                            1 x Sirius XM Receiver

• CCTV: 4 x Cameras Digital watch dog

                    1 x PTZ

COMMUNICATION EQUIPMENT

• Sat TV:   1 x KVH HD7 TRACVISION
• Internet: 1 x Starlink

                        1 x 4g/5g Cellular

• Cellular: 1 x Cell Phone Booster
• VHF: 2 x ICOM VHF
• Satellite Phone: 1 x Handheld
• Phone: 1 x IP PBX Telephone System

                     5 x Panasonic KX-TPA60 Handsets

                     4 x KX-TGP600 SIP phone & base

                     1 x Majicjack VOIP

A/V EQUIPMENT

• SALON: 1 X 50" SAMSUNG QLED

                      1 X APPLETV

                      1 X Bluetooth Receiver

                      1 x URC Remote

                      1 x Roku Ultra

                      1 x Denon Receiver

                      1 x Sling Receiver

                      1 x DirecTV Receiver

                      1 x UPS Power Supply

• Dining: 1 x 55" Samsung Frame OLED

                      1 x AppleTV

                      1 x Bluetooth Receiver

                      1 x Roku Ultra

                      1 x Denon Receiver

                      1 x UPS Power Supply

                      1 x DirecTV Receiver

• Master: 1 x 50" Samsung Frame OLED

                      1 x AppleTV

                      1 x Bluetooth Receiver

                      1 x URC Remote

                      1 x Roku Ultra

                      1 x Sling Receiver

                      1 x DirecTV Receiver

                      1 x Sirius XM

                      1 x UPS Power Supply

• Skylounge: 1 x 40" Samsung Frame OLED

                           1 x AppleTV

                           1 x Bluetooth Receiver

                           1 x URC Remote

                           1 x Roku Ultra

                           1 x Denon Receiver

                           1 x Wireless Subwoofer

                           1 x Sling Receiver

                           1 x DirecTV Receiver

                           1 x Sirius XM

• VIP Guest: 1 x 43" Samsung QLED

                           1 x AppleTV

                           1 x URC Remotes

                           1 x Roku Ultra

                           1 x Bluetooth Receiver

                           2 x DirecTV Receivers

• Lower Guest: 2 x 32" Samsung QLED

                              2 x AppleTV

                              2 x URC Remotes

                              2 x Roku Ultra

                              2 x Bluetooth Receivers

                              2 x DirecTV Receivers

DECK EQUIPMENT

• Anchors: 2 x Galvanized stud link, 13mm diameter, 360ft
• Passarelle aft: 1 x Hydraulic telescoping 12’ reach
• Cranes: 1 x Marquipt tender crane
• Covers: External seats and fixed tables, sun pads

GALLEY & LAUNDRY EQUIPMENT

• GALLEY

          1 x GE Monogram 5 burner cook top

          1 x Whirlpool side x side refrigerator

          1 x GE Monogram Oven

          1 x Range extraction

          1 x GE Microwave / Convection oven

          1 x Whirlpool trash compactor

          1 x KitchenAid Dishwasher

          1 x Ice maker

• Cockpit sofa with upholstered cushions
• Teak dining table
• Chairs
• Teak deck throughout (new 2024)
• Stairs to bridge deck
• LED spotlights and LED panel lights (new 2023)
• Stern gates in stainless steel
• Electric sliding door to main salon
• New Waterproof speakers

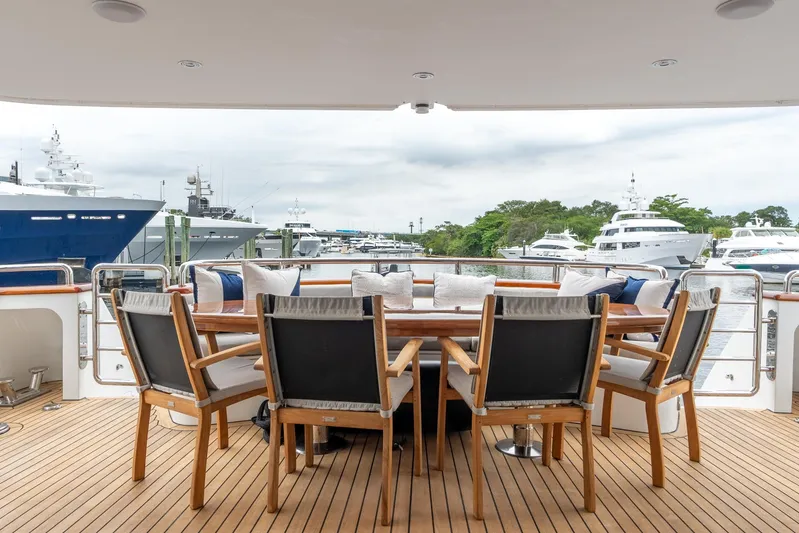

• Teak dining table
• (6) Chairs
• New Teak decking throughout
• New awning frame with upgraded supports (2024)
• Marquip crane (rebuilt/serviced)
• New Perlick fridge
• New Perlick ice maker
• Portable coffin deep freezer
• New LED spotlights and LED panel lights
• New Waterproof speakers

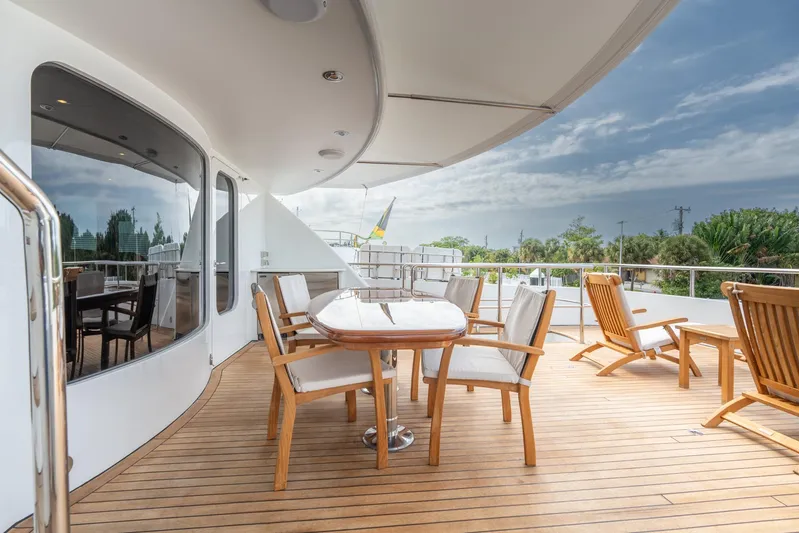

• Molded Sun pad aft with storage
• Molded sofa with upholstered cushions with storage
• Non-skid decking throughout
• Wrap around Acrylic windshield (new 2024)
• All storage lockers refinished (2024)
• New Waterproof Speakers
• New LED spotlights and LED panel lights

• Bosun Storage locker with wash basin and work bench (refinished 2024)

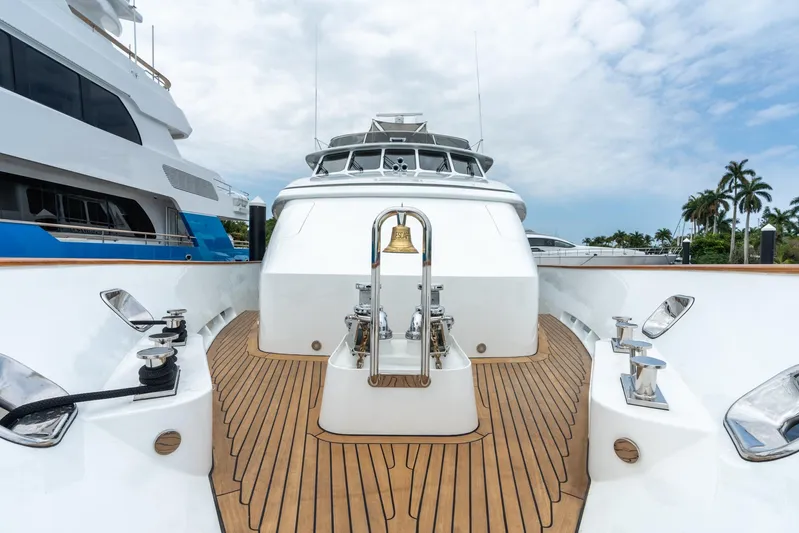

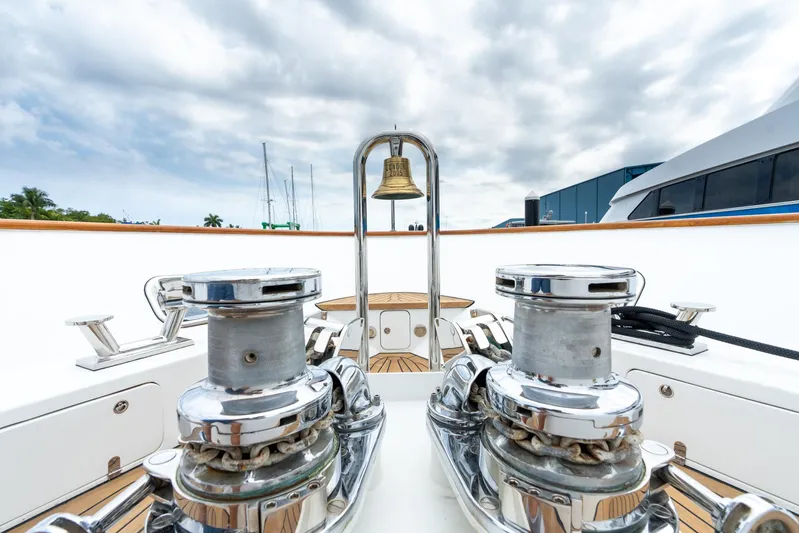

• Anchor system (rebuilt/serviced)
• Bell

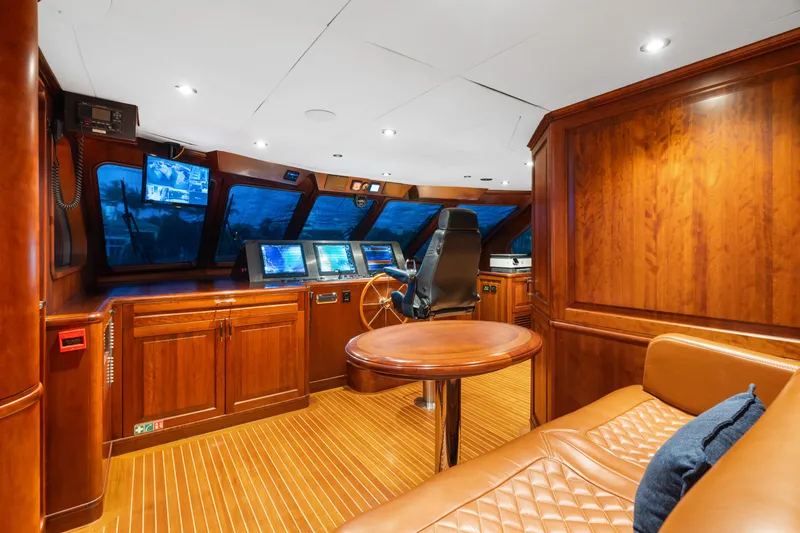

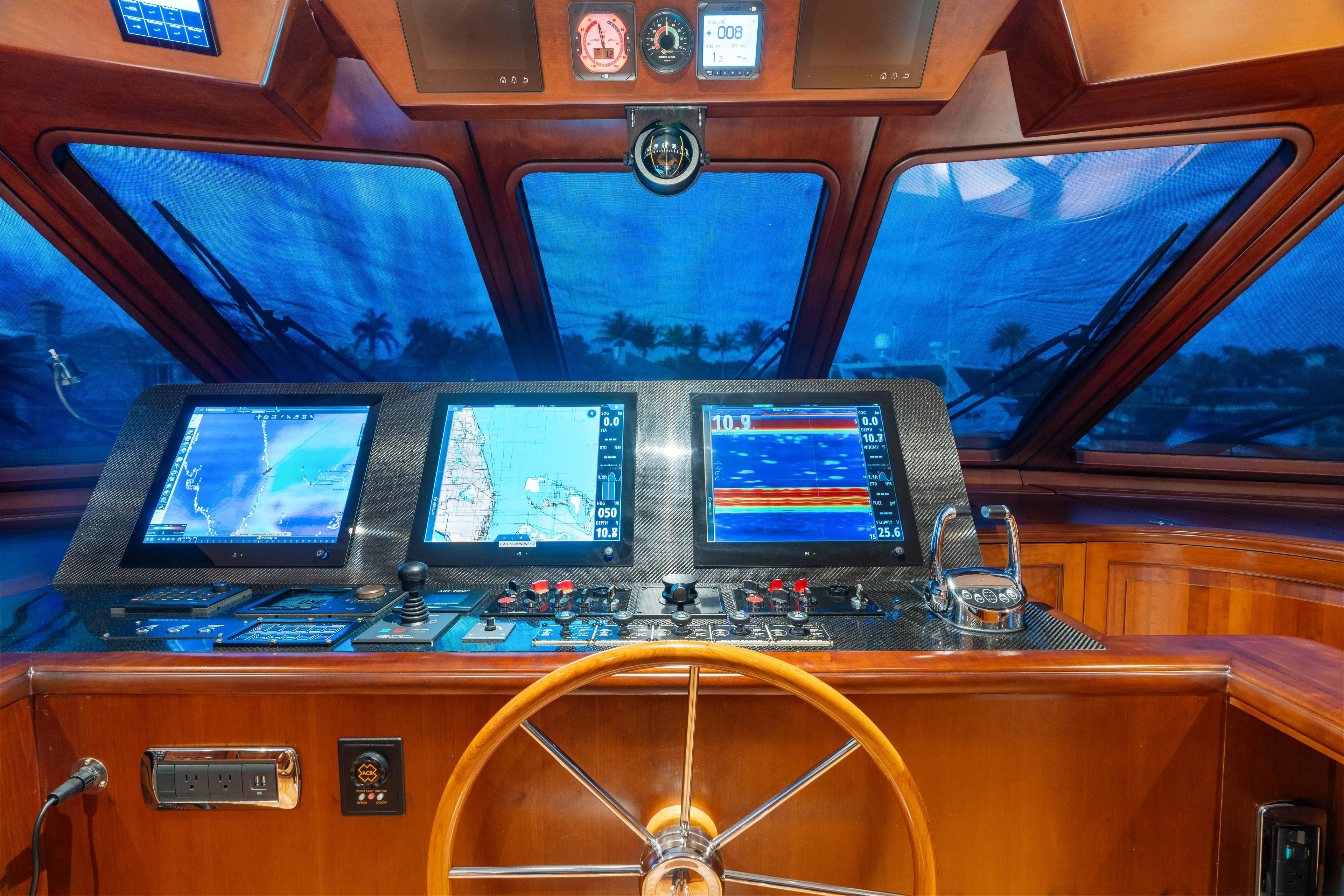

• New custom carbon fiber helm station with varnished steering wheel
• New teak flooring throughout
• Custom stitched diamon leather helm chairs in bridge
• New V-Kool window film throughout
• New fresh air makeup system installed
• Sofa seating reupholstered with new foam and table
• Bilge monitoring system
• Auto pilot
• rudder angle indicator
• Digital Watch Dog CCTV monitoring
• Clock, barometer with hygro-thermometer
• Echo-sounder
• Bow thruster control panel with joystick
• ABT-Trac Zero-speed stabilizer control
• Electric outlet
• Electro-hydraulic steering system
• Engine controls
• Fire detection system control panel
• Integrated dashboard with 3 x 19” multitouch display with radar, chart plotter, GPS, echo sounder, monitoring, CCTV
• Inter-com
• High gloss ceiling
• Leather covered Recaro pilot seat
• New LED lighting throughout
• Magnetic compass overhead
• Searchlight control panel
• Port and starboard doors with access to wing stations
• New Panasonic Phone System

• High gloss American cherry wood walls and cabinetry through out refinished
• New Carpet flooring through out with Treadmore padding
• New LED Lighting and fixtures installed throughout
• New wall covering
• New custom coffee table with (2) storage ottomans
• New custom made sectional sofa with storage
• (2) New customer club chairs
• New custom cabinetry with 50" Samsung QLD on lift mechanism to starboard
• All new A/V equipment and speakers

• Leather upholstery overhead panels
• New roman shade installed

• Refinished High gloss American cherry wood walls throughout
• Refinished Marble counter tops on custom cabinetry

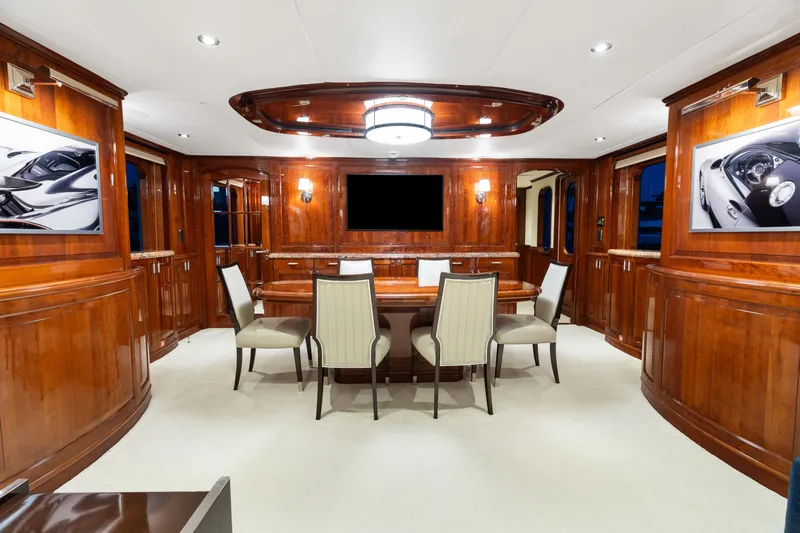

• High gloss dining table
• New roman shade installed
• New Carpet flooring through out
• New wall covering
• New Samsung 55" Samsung Frame TV on forward bulk head
• All new A/V equipment and speakers
• Custom leather dining chairs
• New LED lighting and fixtures throughout
• Plexiglass housings for cutlery and tableware
• Storage cabinets on forward bulk head in high gloss American cherry wood with marble tops
• Storage cabinets to port and starboard in high gloss American cherry wood with marble tops
• High gloss American cherry wood celling above dining table
• Access to galley Portside
• Access to foyer and master Starboard side

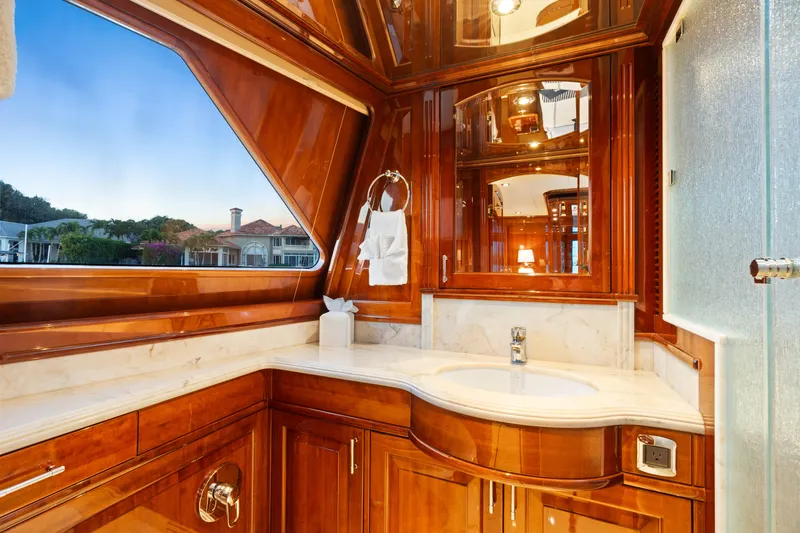

• Electric toilet in ceramic
• Marble floor
• New Wash basin with marble counter top
• New Mirror behind wash basin
• New upholstered overhead panels
• New wall coverings
• New bathroom accessories; faucet, towel bar, toilet paper holder

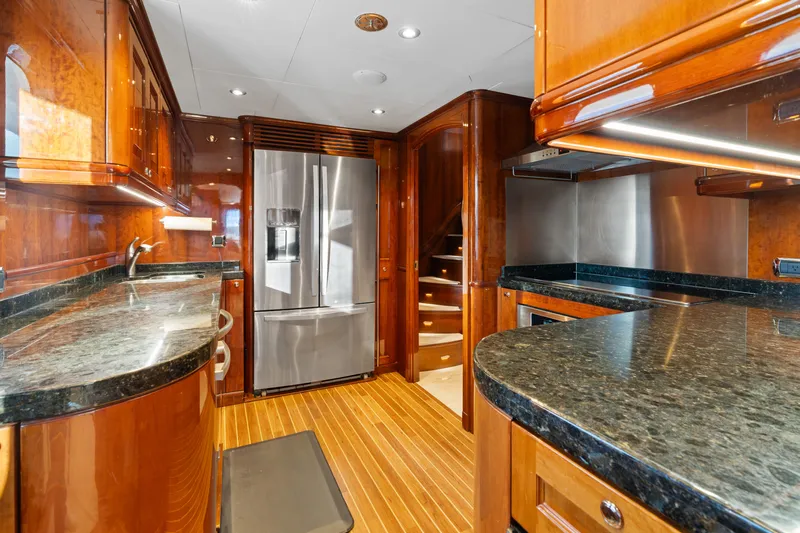

• Located on maindeck
• Refinished High gloss American cherry wood throughout
• New Amtico flooring throughout
• New LED lighting throughout
• Ample storgae
• Sink with garbage disposal
• Whirlpool side x side refrigerator
• GE Monogram Oven
• Range extraction
• GE Microwave / Convection oven
• Whirlpool trash compactor
• KitchenAid Dishwasher
• Ice maker

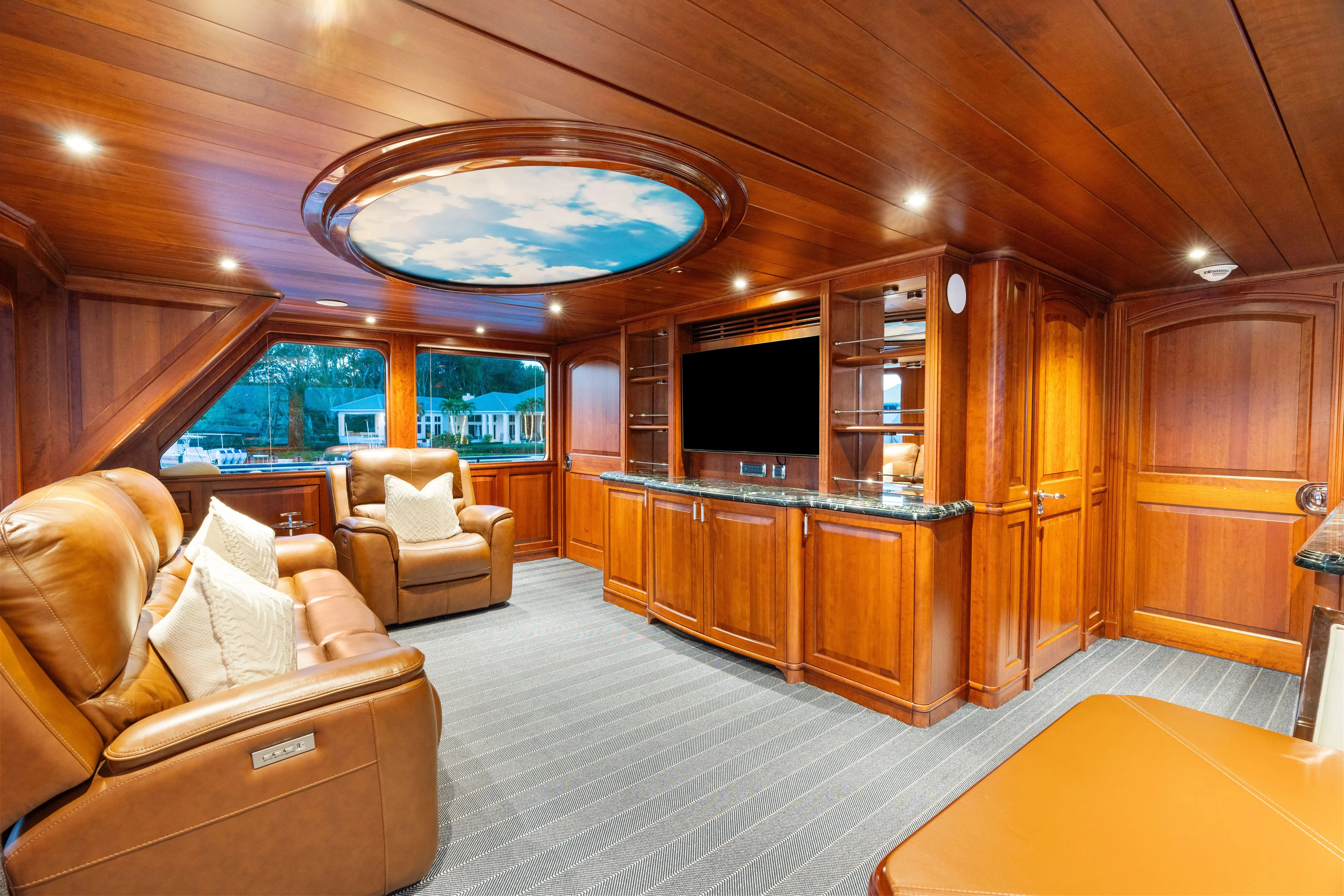

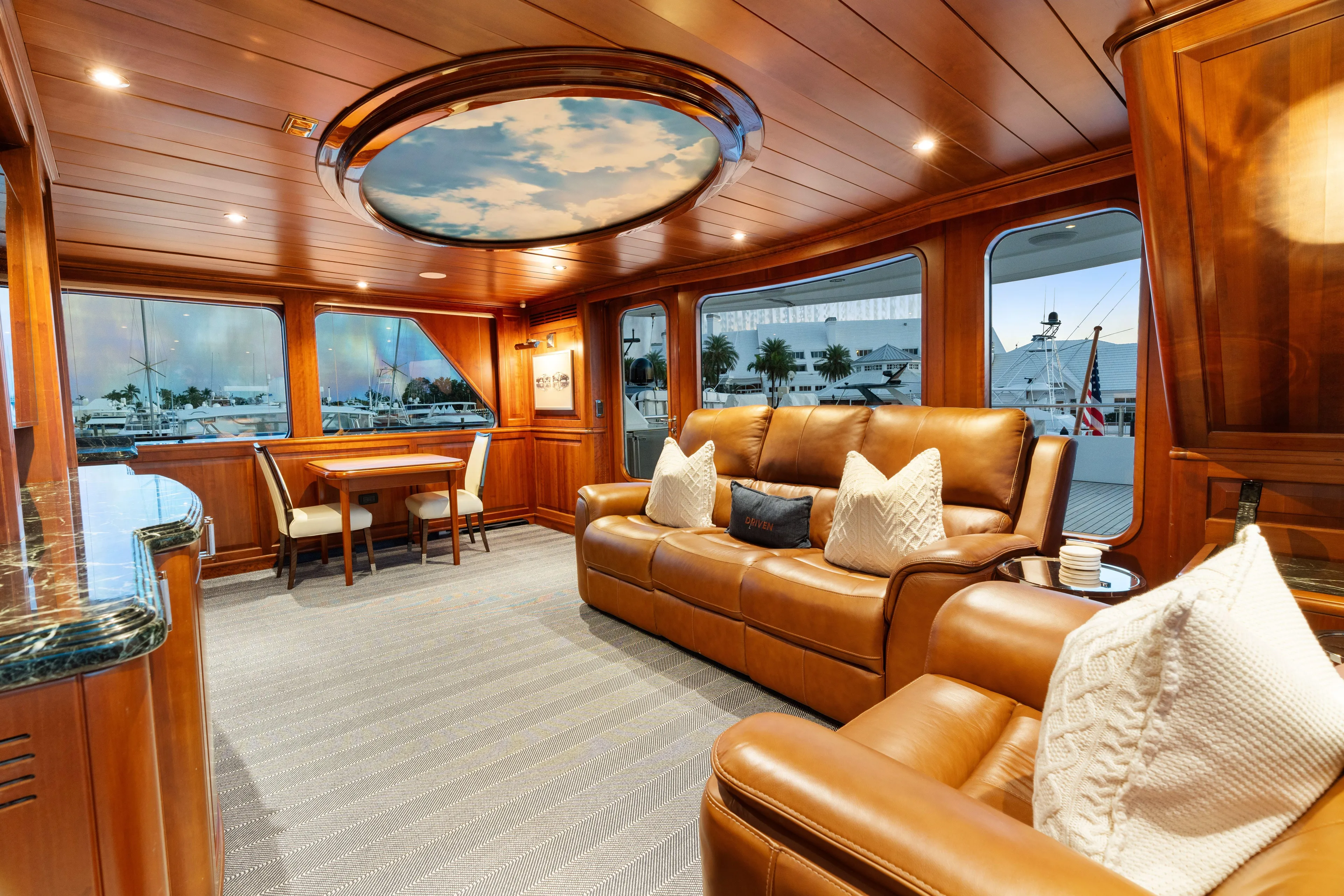

• New Custom Leather sofa
• New Custom recliner arm chair
• V-grove cherry wood celling throughout
• Refinished Satin American cherry wood throughout
• New wall covering throughout
• V-Kool window treatment throughout
• New LED lighting throughout
• New roman shade installed
• Neww 50" Frame OLED TV on forward bulk head with storage and marble counter tops beneath
• All new A/V equipment and speakers
• Wet bar to port with storage and marble counter top
• Wine fridge
• Coffee Table
• Custom mural in center of ceiling

• Electric toilet in ceramic
• Marble floor
• New washbasin with marble counter top
• New Mirror behind wash basin
• New upholstered overhead panels
• New wall coverings
• New bathroom accessories; faucet, towel bar, toilet paper holder

• On-deck full beam master suite
• King size bed with storage beneath
• Bulkhead in leather
• High gloss American cherry wood throughout
• Leather upholstery overhead panels
• New Carpet flooring throughout
• New wall covering
• New LED lighting throughout
• New sconces light
• New roman shade installed
• New Samsung 50" Frame OLED TV
• All new A/V equipment and speakers
• Safe
• Vanity unit with chair to port
• Sofa chair to starboard
• Wardrobe with hanging rail and courtesy lights
• Refinished High gloss Wooden nightstand (2) with storage and marble tops
• Refinished High gloss Wooden cabinet storage on port and starboard side

• Full beam His & Hers ensuite with central shower
• Bathroom accessories: towel rail, toilet brush holder, soap dispenser, glass holder, toilet paper holder
• Exhaust fan
• 110v Electric outlet
• Electric toilet in ceramic
• New LED Lighting throughout
• Marble floor
• Marble washbasin with marble counter top
• New Mirror installed
• Shower unit with glass door
• Refinished High gloss American cherry wood throughout

• King size bed with storage beneath
• Refinished High gloss American cherry wood throughout
• Leather upholstery overhead panels with center mirror inserts
• New Carpet flooring throughout
• New wall covering
• New LED lighting throughout
• New roman shade installed
• New 43" Samsung OLED TV
• All new A/V equipment and speakers
• Reading lights (2)
• Safe
• Vanity unit with chair to port
• Sofa chair to starboard
• Wardrobe with hanging rail and courtesy lights
• Refinished High gloss Wooden nightstand (2) with storage and marble tops
• Refinished High gloss Wooden cabinet storage on port and starboard side

• Bathroom accessories: towel rail, toilet brush holder, soap dispenser, glass holder, toilet paper holder
• Electric ceramic toilet
• exhaust fan
• 110v Electric outlet
• New LED lighting throughout
• Marble floor
• Washbasin with marble counter top
• Mirror with storage behind
• Refinished High gloss American cherry wood throughout
• Refinished High gloss Wooden cabinet storage
• Shower with glass door
• Storage cabinet unit under wash basin


• Convertible twin beds
• New Carpeted floor throughout
• New wall covering
• Drawers under the bed
• 110v Electric outlet
• High gloss wood nightstand with drawer marble top
• New LED lighting throughout
• New roman shade installed
• New 32" Samsung OLED TV
• All new A/V equipment and speakers
• Reading lights (2)
• Wardrobe with courtesy light
• Refinished High gloss American cherry wood throughout
• leather upholstery overhead panels
• Safe

• Bathroom accessories: towel rail, toilet brush holder, soap dispenser, glass holder, toilet paper holder
• Electric ceramic toilet
• exhaust fan
• 110v Electric outlet
• New LED lighting throughout
• Marble floor
• Washbasin with marble counter top
• Mirror with storage behind
• Refinished High gloss American cherry wood throughout
• High gloss Wooden cabinet storage
• Shower with glass door
• Storage cabinet unit under wash basin

• Convertible twin beds
• New Carpeted floor throughout
• New wall covering
• Drawers under the bed
• 110v Electric outlet
• High gloss wood nightstand with drawer marble top
• New LED lighting throughout
• New roman shade installed
• New Samsung 32" OLED TV
• All new A/V equipment and speakers
• Reading lights (2)
• Wardrobe with courtesy light
• Refinished High gloss American cherry wood throughout
• leather upholstery overhead panels
• Safe

• Bathroom accessories: towel rail, toilet brush holder, soap dispenser, glass holder, toilet paper holder
• Electric ceramic toilet
• exhaust fan
• 110v Electric outlet
• New LED lighting throughout
• Marble floor
• Washbasin with marble counter top
• Mirror with storage behind
• Refinished High gloss American cherry wood throughout
• Refinished High gloss Wooden cabinet storage
• Shower with glass door
• Storage cabinet unit under wash basin

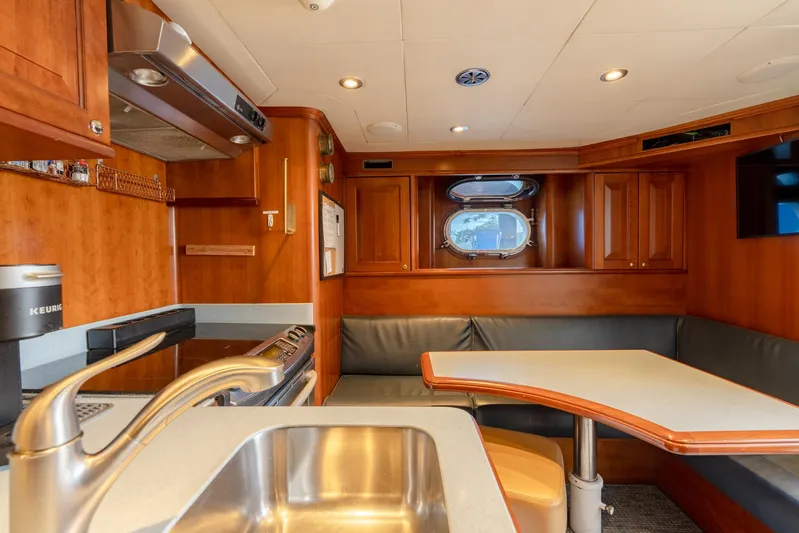

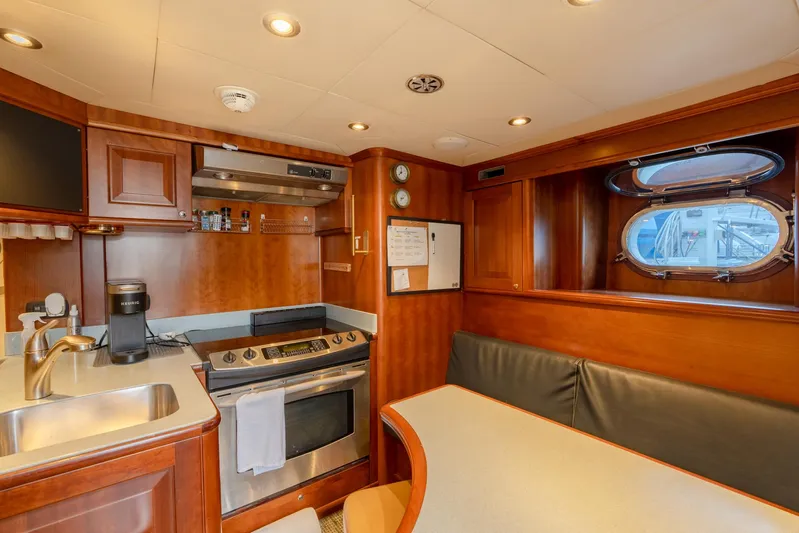

• New flooring throughout
• New wall covering throughout
• Settee reupholstered
• Alarm monitoring
• Electric 4 burner cook top
• Electric oven
• Range extraction
• Washing machine
• Dryer machine
• Fridge
• (2) New 19" TV
• Laminated countertop
• LED lighting throughout
• Sink in stainless steel
• Sofa with wooden table on high low
• Upholstered ceiling
• 110v electrical outlets
• Wall cabinets with doors and shelves

• Carpeted flooring throughout
• Double bed with storage underneath
• Office desk
• LED TV
• 110v Electric outlet
• LED lighting throughout
• Reading light
• Upholstered ceiling
• Wardrobe

• Bunk beds
• Carpeted flooring throughout
• Electric 110v outlet
• LED lighting throughout
• Reading lights (2)
• Wardrobe

• Bathroom accessories: towel rail, toilet brush holder, soap dispenser, glass holder, toilet paper holder
• Cupboards with mirrored doors and shelves
• Electric ceramic toilet/bidet
• Electric exhaust fan
• Electric 110v outlet
• LED lighting throughout
• Shower with plexiglass door
• Wash basin with mixer tap

• Two (2) Caterpillar 3406E, 600HP diesel engines surveyed and all services and recommendations up to date (port 4555hrs stbd 4592hrs)
• Two (2) Northern Lights MP44T, 4 cylinder 55kW surveyed and all services and recommendations up to date; New injectors, new exhaust elbows, vent hoses and fuel lines, new sound shield insulation Port: 13,262 hours Stbd aft: 12,256 hours (rebuilt @ 9525hrs)
• New shaft seals plus spare per shaft (2024)
• New tidewater rudder shaft seals (2024)
• (4) New Clima VFD chiller plants (2024)
• (2) New raw water pumps (2024)
• (2) New chilled water pums (2024)
• Alfa Laval – Fuel polishing
• Zero-speed stabilizer hydraulics
• ASEA shore power converter
• New Water maker (1850GPD) / dockside fill combo unit installed
• New plumbing from hull to supply and returns
• New electrical panel and pump switching panel for a/c plants
• Electrosea barnacle preventer for A/C raw water feed
• New black water, grey water, and MSD transfer pumps March 2024
• (2) New water heaters and water circulation pump installed
• All Engine room bilges de rusted, treated, sealed, primed and painted
• New Delta T inlet / exhaust fans in engine room
• New 12v & 24v LED lighting throughout
• Double Racor filters to main engine
• Electric bilge pump
• Electric fire pump
• Electro-hydraulic control unit for bow thruster
• Fire extinguishing system
• Light alloy antiskid flooring
• Racor filter to generators
• Smoke detector
• Soundproof watertight fore and aft bulkhead
• Bilge/fire extinguishing pump
• Day/night CCTV color camera
• Electro-hydraulic control unit for gangway
• Hydraulic emergency steering

• Boat name
• Artwork
• "Driven" branded material and items
• Personal property
• Tools
• Plex Server
