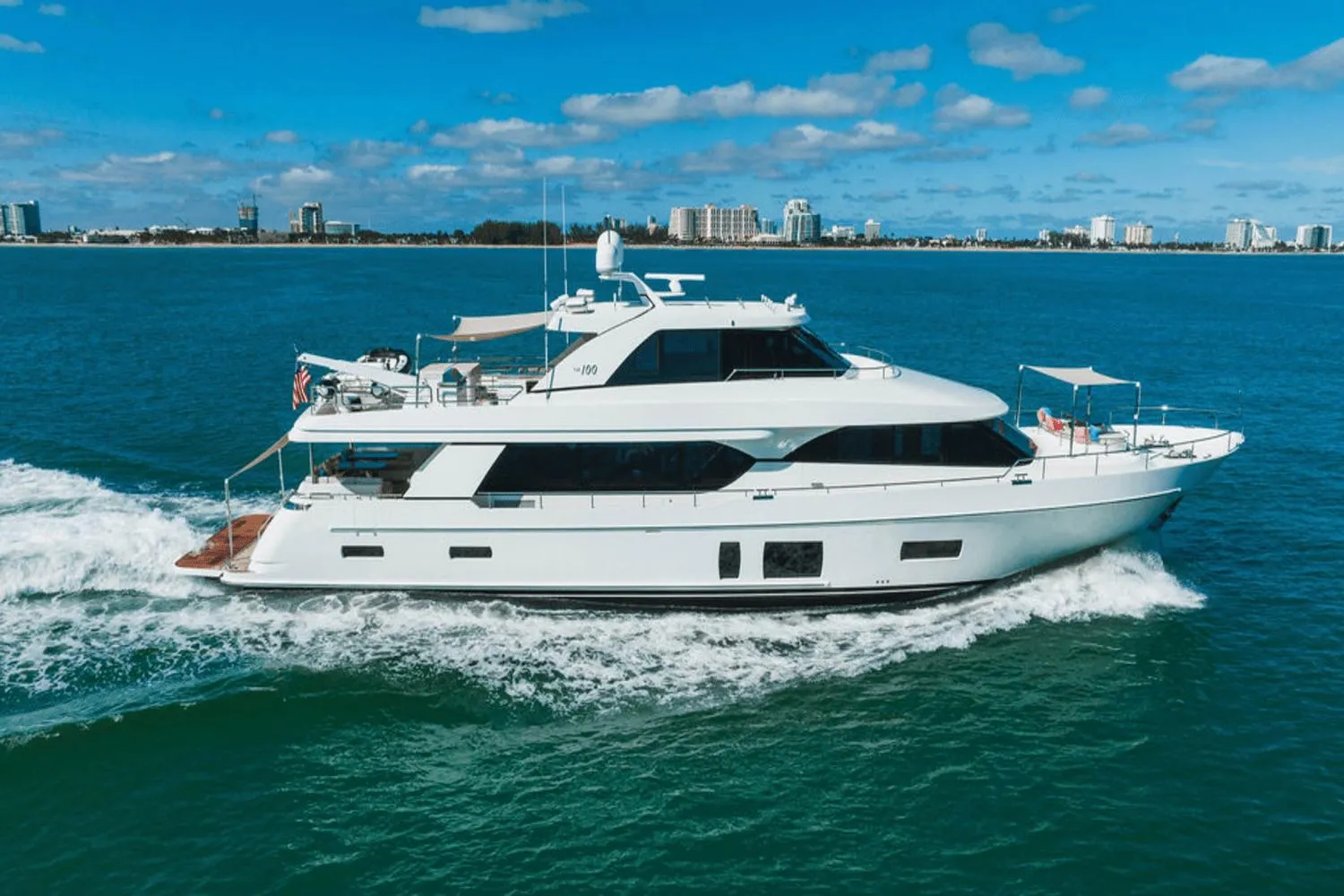

FAR NIENTE Yacht for Sale

• Cruising Speed: 22 kn
• Maximum Speed: 26 kn
• Hull Material: Fiberglass
• Fuel Tank: 1 x 4000|gallon
• Fresh Water: 1 x 650|gallon
• Holding: 1 x 200|gallon

Additional Specifications For Ocean Alexander:

LOA: 100' 0"
(30.48m) Year:
Mfg:­ 2018

Mode: ­2018

Beam: 23' 0" (7.01m)

Builder: OCEAN ALEXANDER

Min Draft: 5' 6" (1.68m)

Model: Motor Yacht

Max Draft: 6' 5" (1.96m)

Type: Top: Motor Yacht

Hull Material:

Fiberglass Top:

Hull Config:

Speed: Cruising 18 Knots Max 24 Knots

Hull Designer:

Deck Material:

Engines: 2600 HP, Twin, Inboard,

Diesel, 16V2000, MTU

Tonnage:

Range:

Int Designer:

Staterooms: 5

Ext Designer: Sleeps: 10

Fuel Capacity: 4,000 g
(15,142 l) Heads: 10

Water Capacity: 650 g (2,461 l) Crew: 3

Holding Tank: 200 g (757 l)

Quarters:

Flag: New Build Price:
Price On Application

Location: Fort Lauderdale, Florida Crew Berths:

United States

Captain Cabin: No
Classifications:

MCA: None ISM: None

General

Vinylester resin with high­density
structural foam. High density allows for high temperature resistivity and
particular advantage in thermal and acoustic insulation. (Usually only found in
vessels 100’+)

Longitudinal and lateral fiberglass
stringers filled with high­density foam

Ocean Alexander employs various
techniques to reduce sound and vibration. Focusing on providing a quiet and
comfortable yachting environment through various proprietary techniques of
controlling sound and noise

transmission. Some of these
techniques include, multiple insulation barriers including reflective
materials, absorptive materials, dampening materials, air pockets and flexible
and isolation mounts. Ultimately resulting in vibration/sounds levels that are
industry leading and at times 1/2 to 1/10 of ISO­6954 requirements. (Unique OA
feature)

Sylomer floating floor system
(Unique OA standard, usually found on 130’+ vessels)

Fiberglass with infusion lamination
manufacturing technology

Reinforced collision bulkhead
frameless windows

All exterior hardware to be S/S 316
or to manufacturer requirements

Weather­tight bulkheads with
further sound and temperature insulation

Painted exterior surface with
professional grade Alexseal polyurethane paint and epoxy based primers. Highest
gloss and color retention compared with gelcoat or other paint brands.
Guarantee color match by

Alexseal. No fading, yellowing andminimum maintenance with no annual compounded necessary on exterior paint. Forfirst 3 years just use soap and water (Unique OA standard feature, not an optional
upcharge like competitors). Marinegrade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while
underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature) Use of cross­knit directional carbon fiber in high stress area for added structural integrity and torsional strength. Fiberglass staircase from cockpit to FB w/teak steps.

Construction hull / bottom

Black boot top stripe

Interior structural components all
bonded to hull

Three coats of Seahawk™ primer,
hi­build epoxy barrier coat and covered with three coats of Seahawk
selfpolishing bottom paint (Unique OA feature, optional on competitors)

Fiberglass rub rail w/ S/S striking
plate

Bronze through­hull fitting

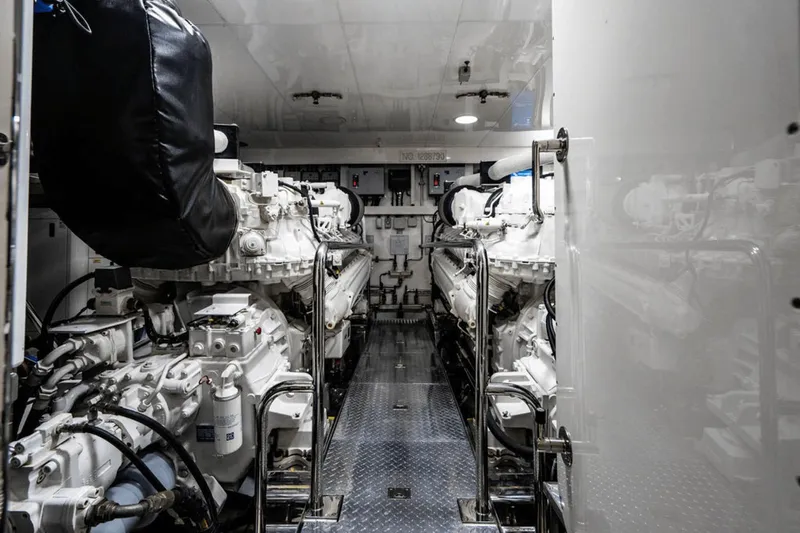

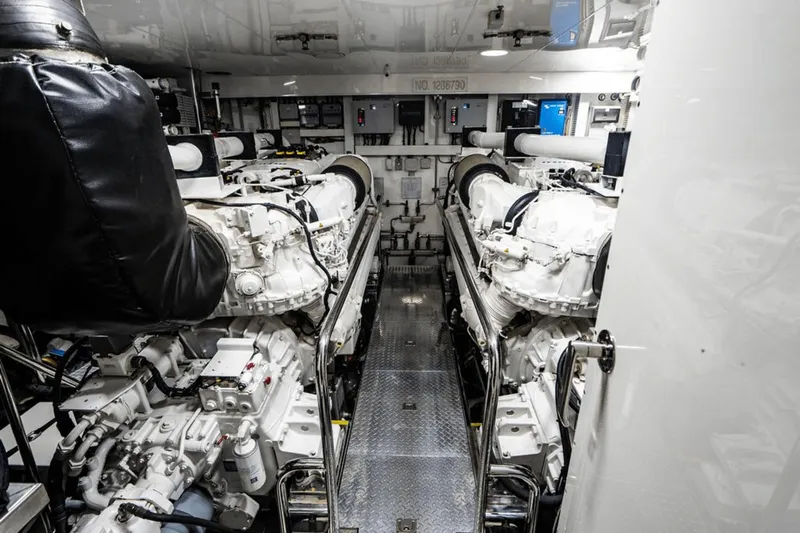

Mechanical Main Engines

MTU® 16V2000 2600HP engine includes
24­month warranty

Engine alarm system, for low oil
pressure and high water temperature

S/S engine beds

Lube oil change system for
engines/generators with approximately 45­gallon lube tank. Allows for oil
change during cruise w/o need to stop & locate oil change service centers.
(Normally found on 135’+ yachts, unique OA feature)

Automated computerized Delta­T®
intake/exhaust fans with variable frequency drives shall be mounted to
facilitate the pushing and/or pulling of air through the machinery spaces and
the providing of a high rate of air exchange. Ducts shall have fire dampers
installed with manual/ automatic triggering that shall be tied into the
machinery shut down circuits. Ducts in way of interior living space shall be
insulated and soundproofed. System of water separator grills used on intake and
exhaust sides of system

Adjustable/Reversible Delta­T® fans
for engine exhaust located on superstructure instead of hull side. Maximizes
water protection and salt spray, resulting in safer and lower maintenance
ownership (Unique OA feature)

Stabilizer with power take­off from
both engines to provide redundancy (Unique OA feature)

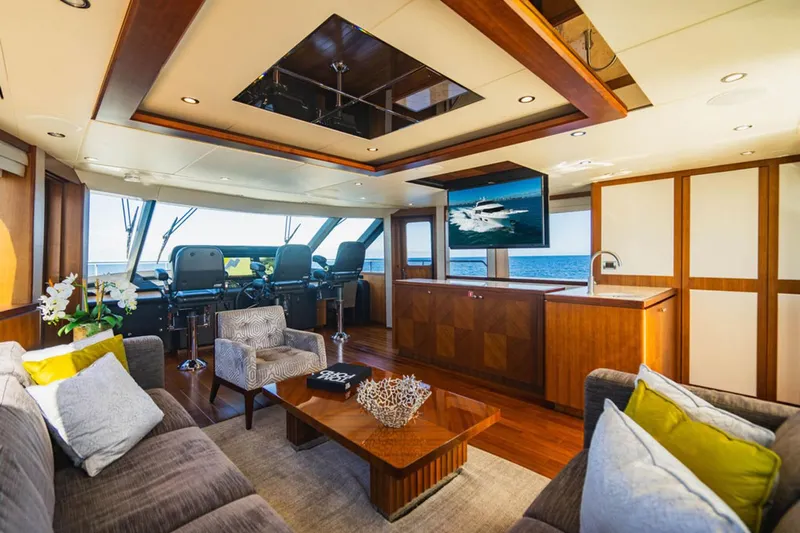

One fixed control stations at
skylounge, with complete engine instrumentation with lighted, modern switches.

Ocean Alexander employs aerospace
grade “autoclave” to make “hard coat” exhaust with AL­6XN alloys (used in
Saturn V rocket nozzle). Ocean Alexander is unique in utilizing Military
standards that ensures optimum and sustained performance in its exhaust
system.)

Steering / Control

JASTRAM Hydraulic steering system

Steering control station with
complete instrumentation

S/S rudders w/integrated zinc
plates

Dripless seal for rudder post

High performance computer designed
and machined NiBrAl propeller

Skylounge steering wheel
Ultraleather wrapped

Maintenance free “dripless” seals
for engine shaft packing glands

Propeller shaft Aqua 22HS. 22HS is
a high­grade austenitic alloy stainless steel that provides superior corrosion
resistance (comparable to Aqua 22) along with excellent toughness and high
strength (comparable with Aqua 17). A no­compromised approach adopted by navies
around the world Stidd® electrical helm
seats x3

Windlass / Mooring

Dual Hydraulic windlasses,
VWCLP4000

Dual stainless steel anchors 350
lbs. from hull sides w/ 300ft anchor chain (1/2" HT) & chain stoppers.

Integral roller and chain stopper
with anchor winch

Two vertical electric rope winches
for Aft Deck,VC2500 (Standard versus competitors’ optional) Reinforced anchor
platform and anchoring system

Chain counter

Hands­free anchor chain wash system
– allows for cleaning of chain during anchor operation (Unique OA feature)

Thruster / Stabilizers

Sidepower™ Vector Fin (DAME 2013
award winner) 15 ft2 hydraulic stabilizer find with zero speed stabilization
function.

Sidepower’s patented “curved” fin
design not only provides lift underway it is also unique in the industry with
active “predictive” inertia control.

55HP bow and 40HP stern thrusters

Above included as standard versus
competitors’ optional

Other

Stainless steel rails on side of
engine and stainless steel engine mounting plates (Unique Ocean Alexander
engineering affords industry leading torsional rigidity and engine alignment
assurance. Further reducing vibration and high torque pressures)

Color­coded piping system for easy
identification

Hydraulic 2500 lbs. yacht crane

Fire extinguisher system with
engine­shutdown feature

Sea Recovery 1400G/Day water maker
w/auto fresh water flush operation, PH Neutralizer, UV sterilizer and

Commercial Pre­filter (US Coast
Guard 14 person unit, Standard versus competitors’ optional)

Kahlenberg™ heavy­duty horn

All engine room and bilge spaces
shall be primed and top coated with polyurethane paint system. Heavy­duty
commercial grade pantograph windshield wipers & washers w/ intermittent
function Detailed stringers in engine room

Ocean Alexander proprietary “dry
bilge ventilation system” with dedicated bilge exhaust to outside. This
provides constant airflow to keep the bilges dry and mildew free. Any moisture
from condensation is evacuated outside the yacht to keep a clean and healthy
cruising environment.

Ocean Alexander design in oversized
shafts, rudder and other drive train systems typically one­class larger than
competition. Superior handling, longevity is ensured with Ocean Alexander
drive­train systems. Compressed air in engine room and Aft deck cabinet

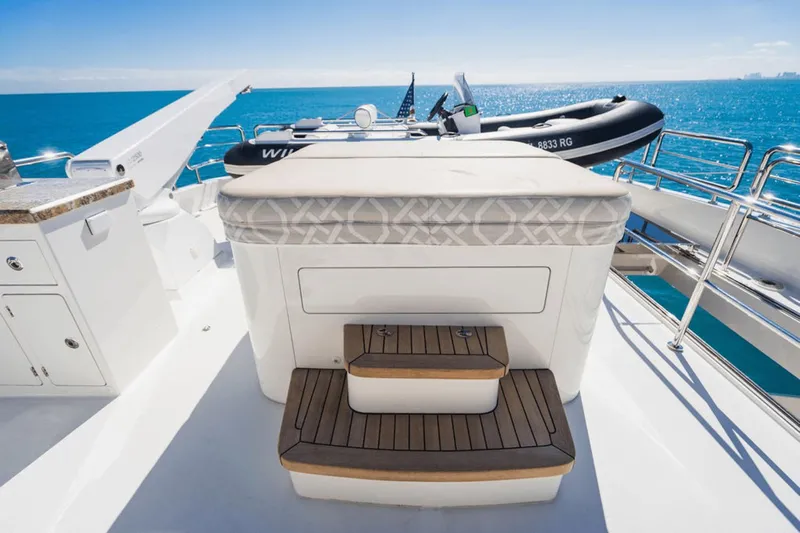

Pre­plumbing and wiring for jacuzzi

Plumbing Fresh Water System

2mm thickness 316 S/S water tank w/
sight gauge Headhunter™ pressure fresh­water system

Fresh­water outlet with hose for
engines & generators

Cold fresh­water wash down at bow,
stern and boat deck

Dockside water connection

Two 40­gallon water heaters with
high density fiberglass insulation w/ dual high efficiency heating element that
speeds heating by 50%

Fuel System

Sight gauges for all tanks

4.5mm thickness 5052 Aluminum fuel
tanks with

sight gauges and tested to
International Standards 33CFR 510(a) w/ high and low fuel level alarm system

Dual Racor® fuel/water separator
with Y­valves for engine & generator

Gulfcoast™ Fuel polishing system

Dual MTU® fuel filter w/ remote
readout of filter performance. (Unique OA standard, usually found on 150’+
vessels)

Holding Tank System

ECOmar™ waste treatment system
(600Gal/day)

Bilge / Discharge

Oversized drains to overboard

Automatic bilge pump ­ The vessel
shall be outfitted with automatic bilge pump with manual and automatic switches
in each space as divided by weather­tight bulkheads. High water alarms will be
mounted in each of these bilge zones

AC outlets throughout

All primary AC & DC electrical
wiring is appropriately labeled throughout the yacht

GFI (110V) AC outlet in potential
“wet” areas. In addition, entire boat is dual protected via ELCI Octoplex
breakers. (OA is unique in the industry to provide dual protection GFCI &
ELCI) 24 Volt system

High water bilge alarm at every
Rule® bilge pump station

Dry bilge area arrangement in
center engine room

Lighted bilge with built­in (when
necessary) S/S ladder (Unique OA Feature) 100 AMP Chargers

Heavy­duty batteries

Battery paralleling system w/
control switch

Service battery switch

Bonding system throughout

The vessel's bonding and grounding
systems shall include copper straps secured to the hull and running the full length
of the vessel parallel to centerline. Engines, generators, metallic through
hulls, strainers, and pump bodies shall be connected to the bonding strap using
8 AWG wire minimum or equivalent Engine battery isolation switches

AGM Batteries with 40°F to 140°F
operating temp and industry leading low self­discharge rates 1 to 3%

Electrical

Octoplex NMEA 2000 Monitor Network
electrical control system

Based on aerospace technology for
remote activation, control and status reporting of AC and DC breakers. Monitors
power sources (AC and DC) for voltage, frequency and amperage abnormalities and
provide visual and audio alerts. Includes enhanced circuit breaker
functionality with no­load indication, dimming and usage information with touch
screen monitor that is user reconfigurable. Brown­out configurable control
through auto load shedding is included where operator designated equipment
(e.g. navigation and other essential systems) remains powered­on while
automatically switching other systems off. Octoplex NMEA 2000 Vessel system
monitor system. Provides main access doors, tank level, bilge level and battery
monitoring of current, voltage and temp. (Unique OA standard feature, not an
optional upcharge like competitors)

Air Conditioning

Dometic® chilled water system air
conditioning system, rated for “Extreme Tropical Climates” (with reverse cycle
for operation down to 40°F water temp)

Refrigerant type is accepted
worldwide under the

Montreal Protocols

Dedicated engine room air
conditioning

Where possible A/C exits from
custom made ceiling panels hidden from view. Shortens A/C ducting thus
improving efficiency and speed of cooling by over 20%. Also reduces dB reading
by over 7 dB (Design cues from 135) LIGHTING

24V LED lights (Aerospace quality,
specially tuned color temperature for Ocean Alexander Convenience lights

International navigation lights

High output LED underwater lights
x8 (four at stern­aft, two each at MSR­sides)

ACR searchlight (RCL100) and
spreader lights for swim platform and FB deck

Navigation Package

Garmin 8600 Series Black Box on
Skylounge with Three 24” Touch screens

Garmin GRID remote input device
installed on helm chair

Garmin 25KW Open Array Radar

Garmin Autopilot GHC20

Garmin VHF and Card Reader

Garmin Blackbox sounder

Garmin AIS with NMEA GPS

Garmin Marine Camera (2 in engine
room and 1 aft deck)

Triband HD7 with DIRECTTV®
receivers

Ritchie Compass 5"

iPad with built­in Garmin App for
navigational control/viewing via iPad Navigational electronics standard versus
optional with competitors

Power Convert Package

Atlas 50/60 Hz
Power Converter. Allows for automatic marina connection irrespective of 60 Hz
(USA) or 50 Hz(European) standards.

Other

Onboard intranet, driven by
commercial­grade 4G SIM card capable Wi­Fi router. Allows outside 4G Internet
card and/or internal intranet net connection via supplied iPad to Systems
monitoring, Garmin and other onboard equipment apps. (Unique OA feature)

Vimar™ switches and outlets
(without lazaret) Panasonic Intercom System – includes Panasonic phone system
and Digital Panasonic Phones for MSR, Port & STBD VIPs, Port & STBD
Guest Staterooms, Crew, Salon, Galley, Skylounge.

Accommodations / Interior, Audio / Video

These security/safety automatic
monitoring and alert abilities include using Apple iPad or Android for wireless
access to operate, view, and alarm Octoplex data and navigation system with a
fully customizable screen layout, and remote notification (cell phone)
capability.

These monitoring abilities include:
Main Engines and Generators, AC Monitoring, DC House Bank Battery

Monitoring, Engine Room
Weather­tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level
(High­water), Exterior Door Sensors(Unique OA standard feature, not an optional
upcharge like competitors)

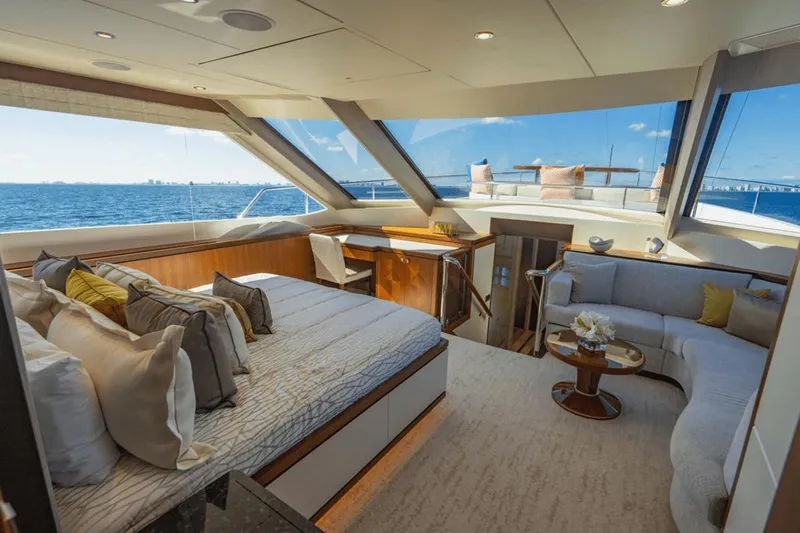

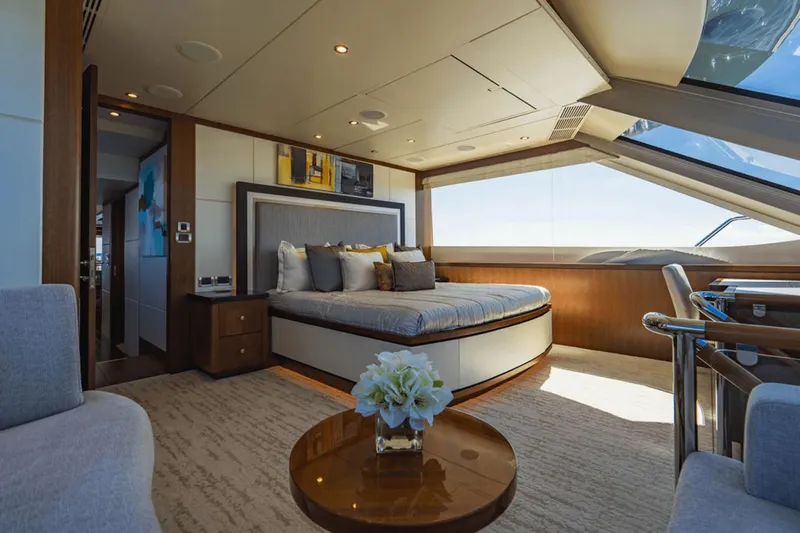

Master Stateroom

LED 50” flip­down TV with A/V
System

King­sized berth (with
independently coiled his & her sections to ensure minimal transfer of
movement) Two nightstands with stone countertops

Vanity on port, sofa with table on
starboard

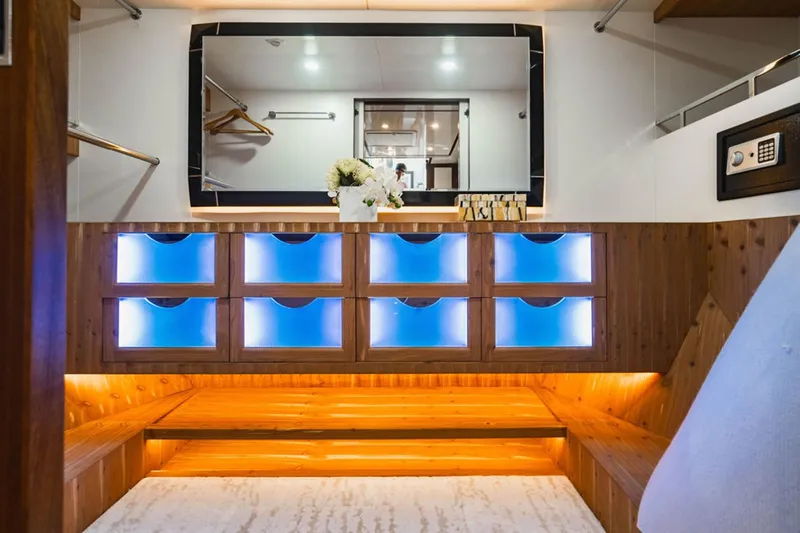

Hidden safe in hanging locker

Walk­in closet Dayhead

Wide­opened curved window with
custom engineered solution incorporating aluminum beams allows greatest
visibility and incoming light

Custom headboard with recessed
indirect lighting

Cedar­lined

Heated stone floors in Master
bathroom

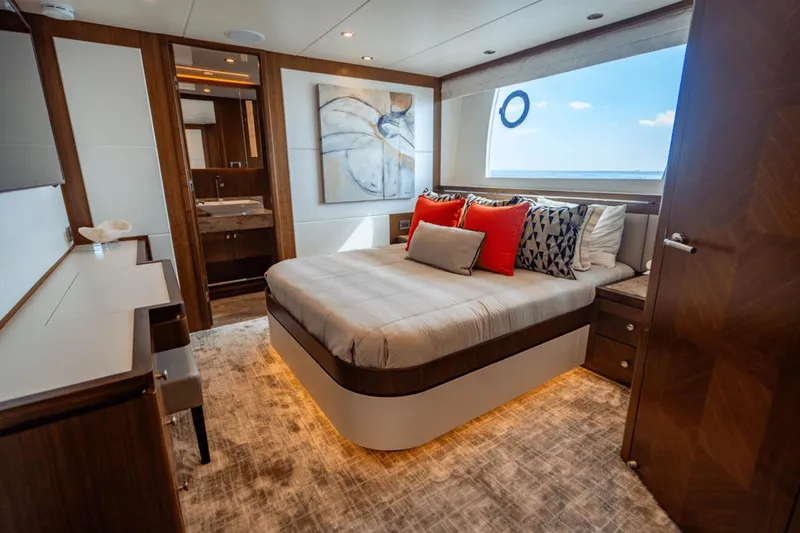

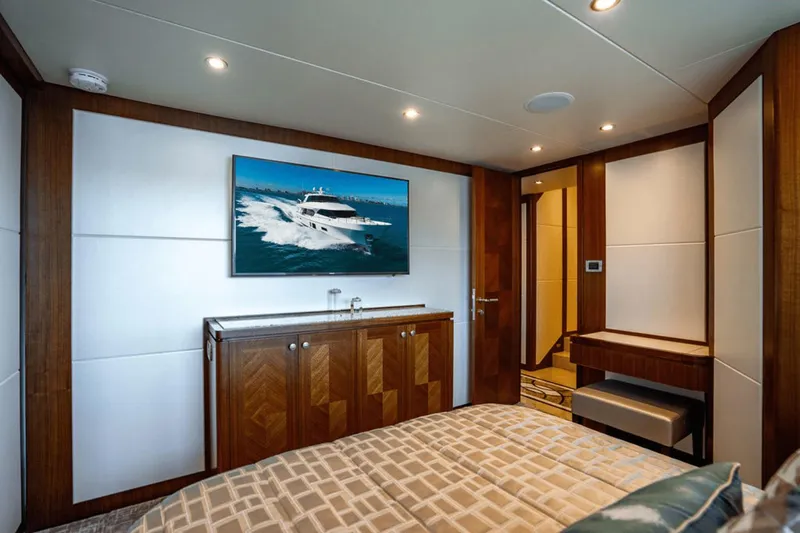

Twin Vip Stateroom

LED 50” TV

Double berth

Two nightstands with stone
countertops

Vanity table with chair

Walk­in closet

Storage cabinet with lighting

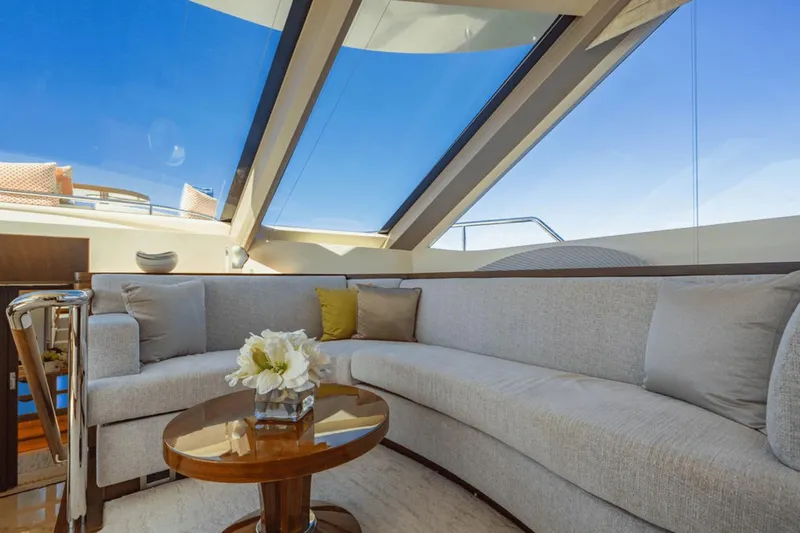

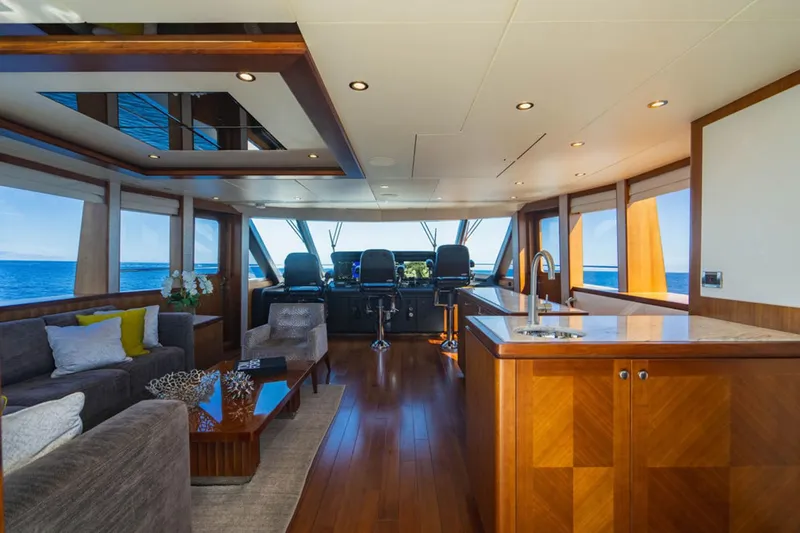

Skylounge

LED 50” flip­down TV with A/V
System

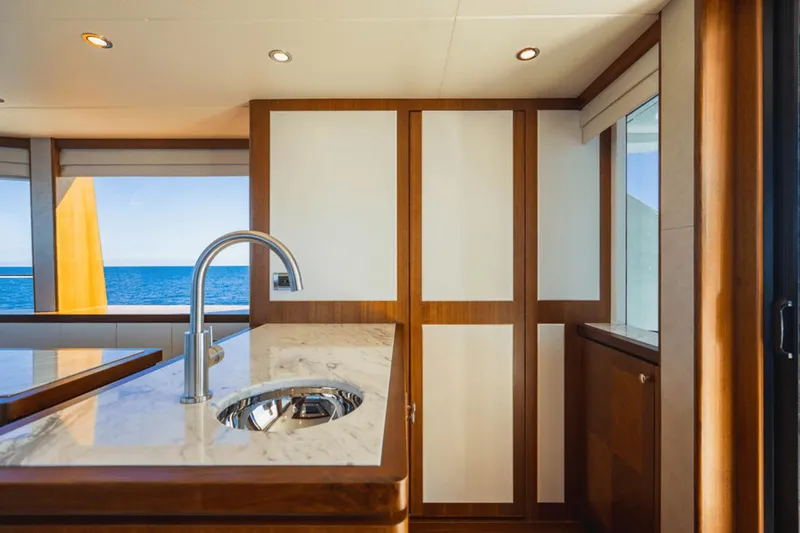

Cabinet including wet bar, Jennair™
drawer fridge w/solid panel door and storage

Wood valance board Wood desk

Settee with table

Day head

Chart locker

Phantom screen (for insects +
pollen protection) with dedicated wood box for door Electric Stidd helm seats
x3

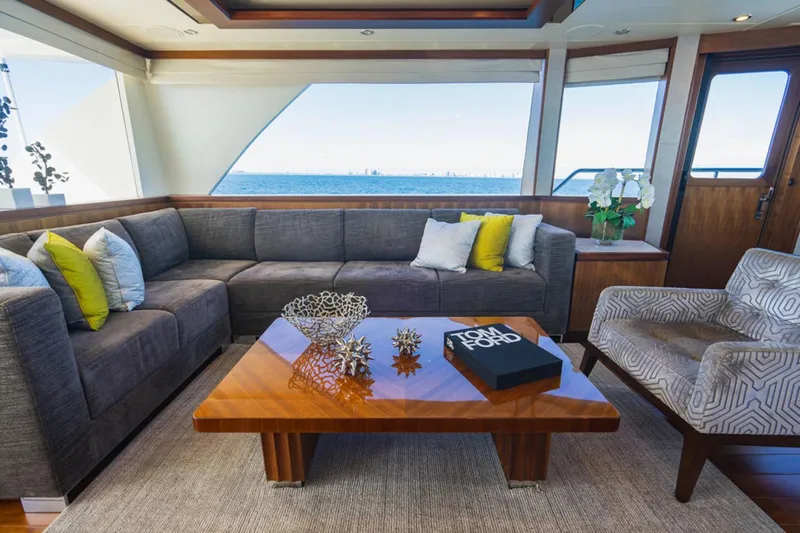

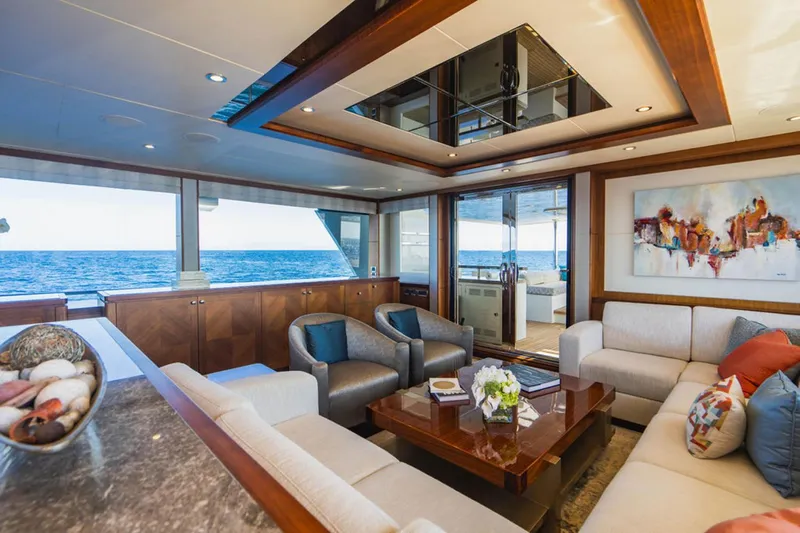

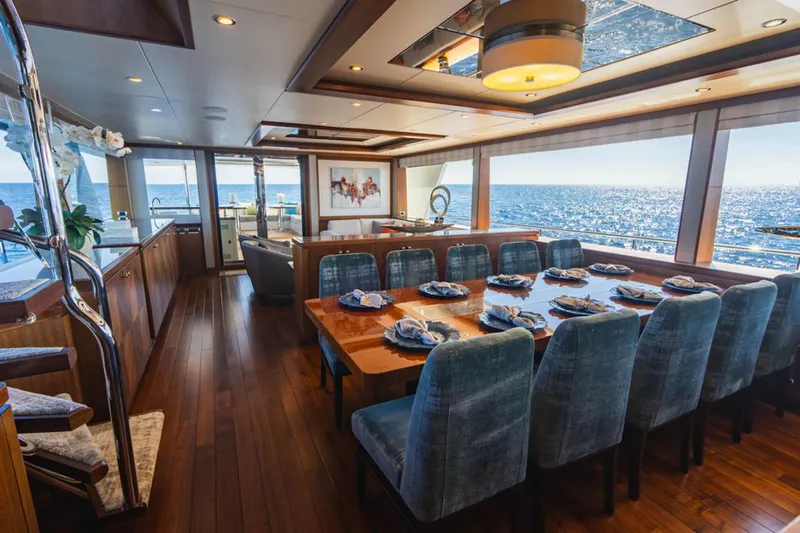

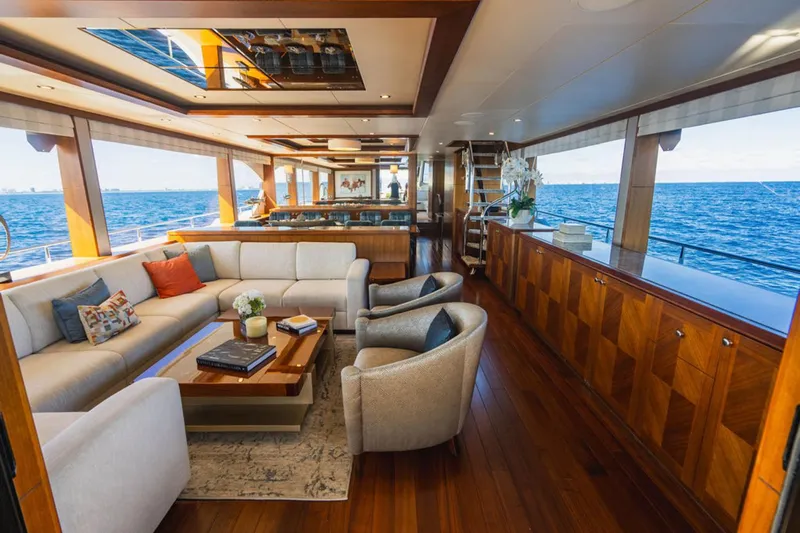

Salon

LED 60” flip­down TV with Blu­Ray
A/V system

Wood paneling and cabinetry

Evan K Marshall custom design salon
furniture and sofa.

Stone countertop at wet bar,
cabinet, and dining room divider cabinet

Custom designed window mullion

Decorative ceiling treatment

Phantom screen (for insects +
pollen protection) with dedicated wood box for door

Enlarged windows in salon with
custom engineered solution incorporation marine grade aluminum beams allowing
for industry leading window expanse. Incorporate (where possible) A/C outlet
from ceiling, provides unobstructed view to outside (Design cues from 135,
improved for 2016)

Sylomer floating floor and wall

Sub Zero™ refrigerator

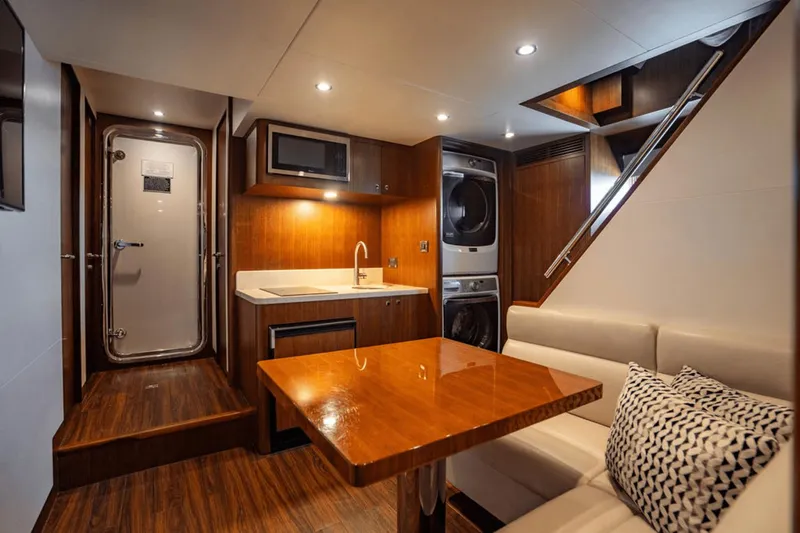

Crew Quarters

Largest crew quarters in its class
with Ocean

Alexander’s unique design, the crew
quarters doubles as a Cabana. Allows for day head and rest/eat area for
swimming/out of water activities without needing to access salon/main deck
interiors.

Captain room

Cedar­lined hanging
locker with automatic lighting

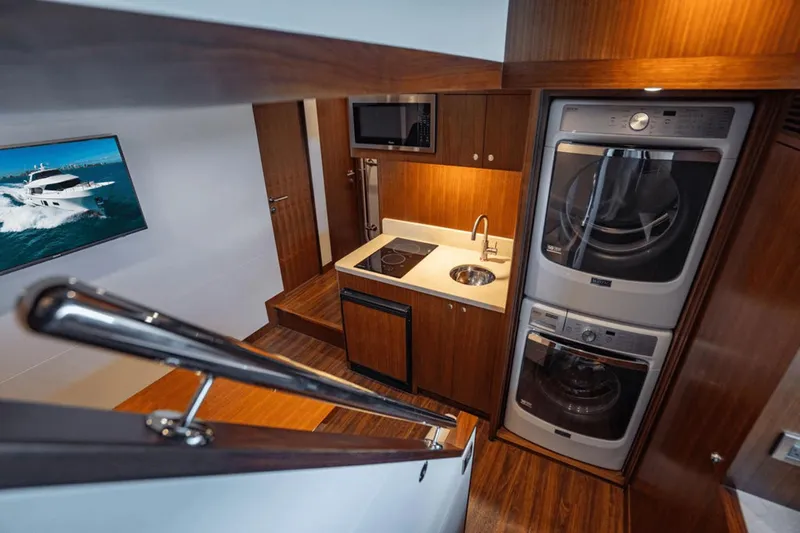

Kitchenette (sink, microwave,
cooktop and refrigerator/icemaker)

Storage locker

Drawers under bunk

LED 32” TV & DVD with Satellite
Receiver(Captain)

LED 40” TV & DVD with Satellite
Receiver(Lounge)

Captain quarters includes N2KView
linked Apple iPad for systems diagnostics/alerts/settings. Full height hanging
closet and queen size berth with storage under

Dedicated stainless work bench and
Snap­on tool chest. Also includes a wet locker (with ventilation and separate
water drain) and storage compartment. All staterooms fully air­conditioned

Interior Décor

Wood paneling and cabinetry in
semi­gloss

Interior ceiling panels removable
and finished with

Diamond faceted edging. Provides a
sharper and

structured tailored look. (Design
cues from 135)

Evan Marshall designed interior
pilot station and display pod. With matching wood/Ultraleather and

“floating” display pod.
Ergonomically designed and laid out to enhance pilot experience/performance.

(Design cues from 135)

Custom designed and water jet cut
granite with stainless steel insert in lower foyer and master bathroom. (Design
cues from 135)

Carbon monoxide and smoke detectors
Air extraction in each head shall be by low noise extraction fans, switched
separately from lights

High quality European door locks

Cedar­lined, hanging locker with
auto lighting(crew without Cedar­lined)

Fabric covered walls for lower
walkway walls

Concealed hinges throughout
interior cabinets

Ergonomically designed mattresses
and settees

Washer/ dryer (Commercial quality,
Energy star washer/dryer) in lower foyer

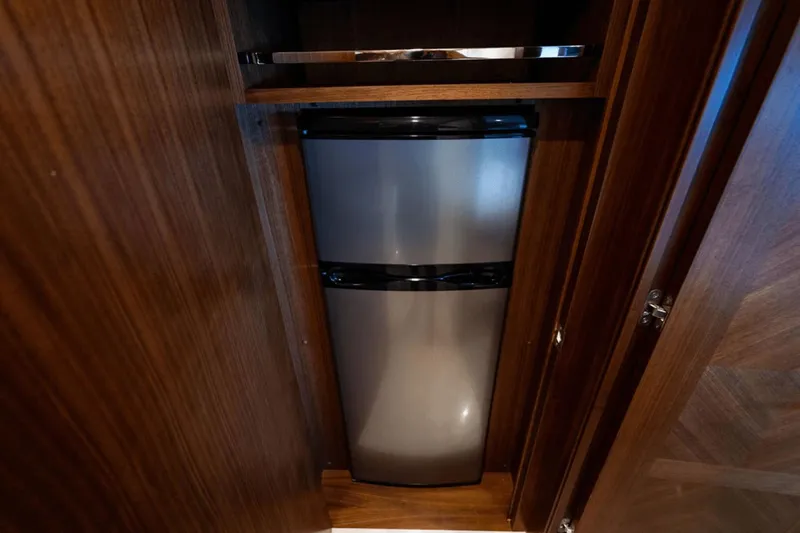

Danby refrigerator in lower foyer

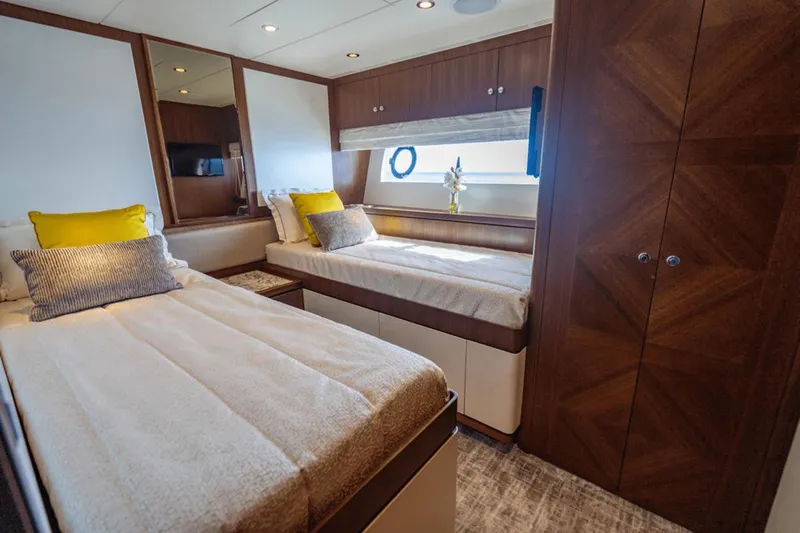

Port & STBD staterooms
side­by­side berths can slide together and convert to single queen berth.
Electrical blinds for Salon, Dining, and Master (excluding heads) and skylounge
(excluding dayhead)

USB power plug inside MSR port
nightstand, and skylounge console desk

Ocean Alexander wood floor is
custom made in Kentucky with solid wood top surface with the same wear capacity
as solid ¾’’ wood flooring. It uses 7 layers of European birch assembled in a
cross­grain

direction with a top layer of
exotic hardwood to match the interior of the boat. (Unique Ocean Alexander
Feature) Crestron audio/video package

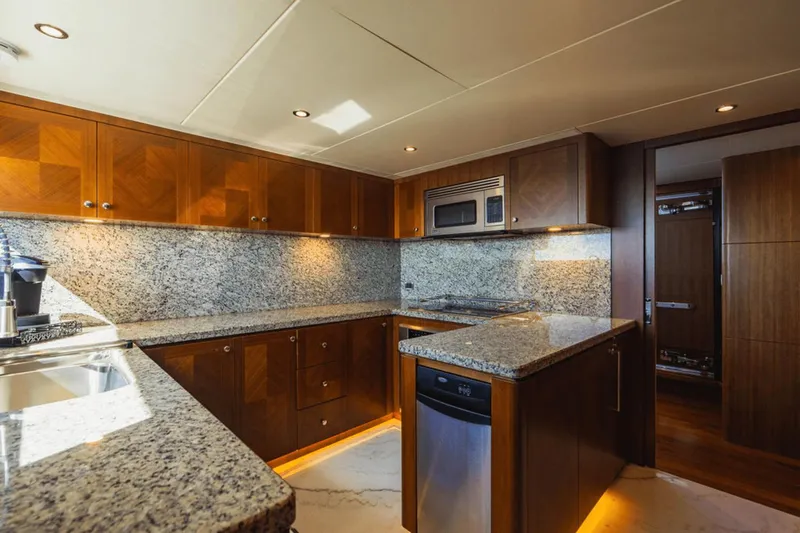

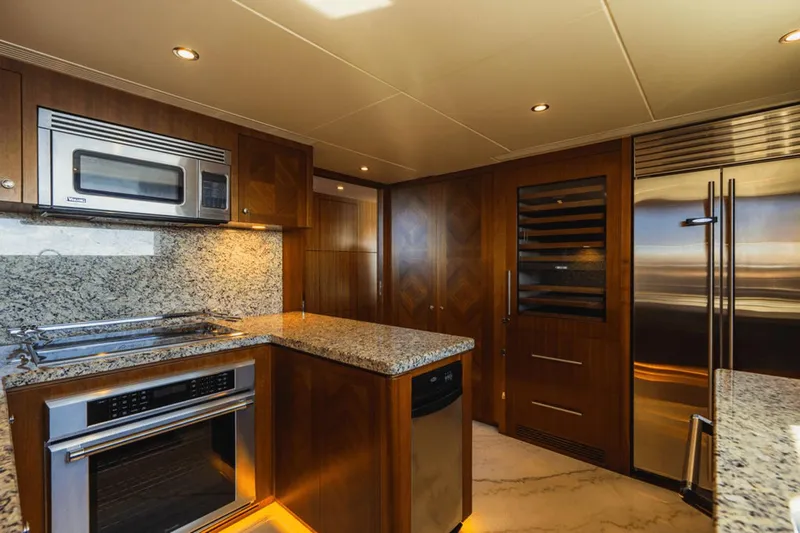

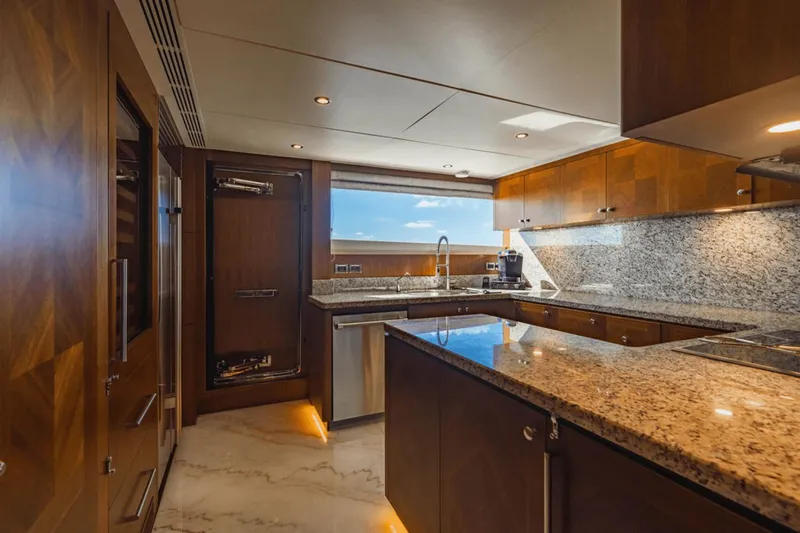

Galley

Wood panel and cabinetry with
positive­latch doors or proprietary drop­lock drawers. Provides containment of
stored objects while underway (Std. feature often ignore by competitor)

Galley storage cabinetry w/hidden
hinges

Stone countertops

Stone floor in galley

Elkay™ professional series kitchen
sink w/ pull out tap

Overhead dish locker fwd & aft

30” Thermador™ electric cook top

30” Thermador™ electric oven

Sub­Zero® Refrigerator/ freezer

Sub­Zero® ice maker

Sub­Zero® wine cooler

Whirlpool™ garbage disposal

30" Viking™ Over­the Range
Microwave with exhaust

Thermador™dishwasher

15” Whirlpool™ trash compactor

Seagull™ water purifier (ADEX design
award winner w/filtration to 0.1 microns & EPA certification for
microbiological purification)

Custom S/S potholder for cook­top
for securing pots while cooking underway

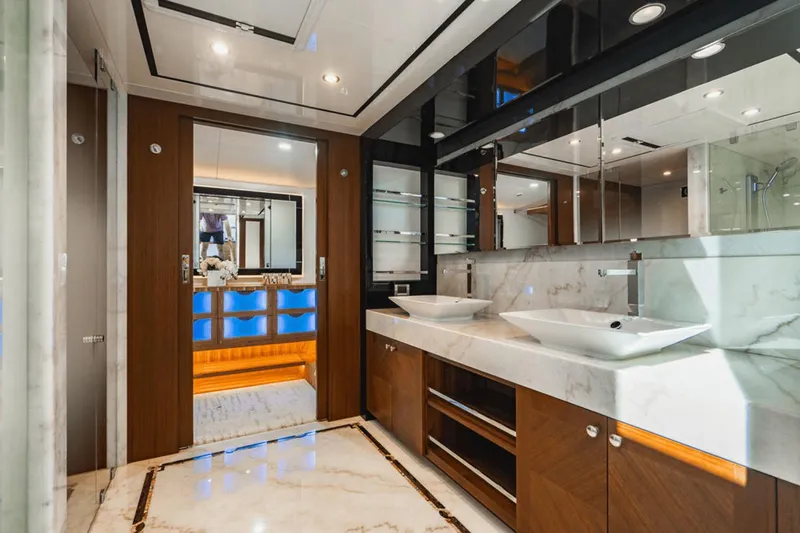

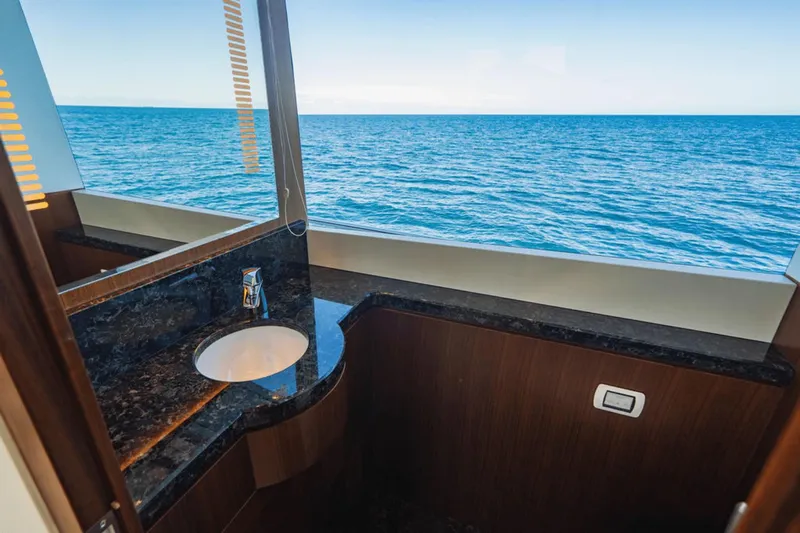

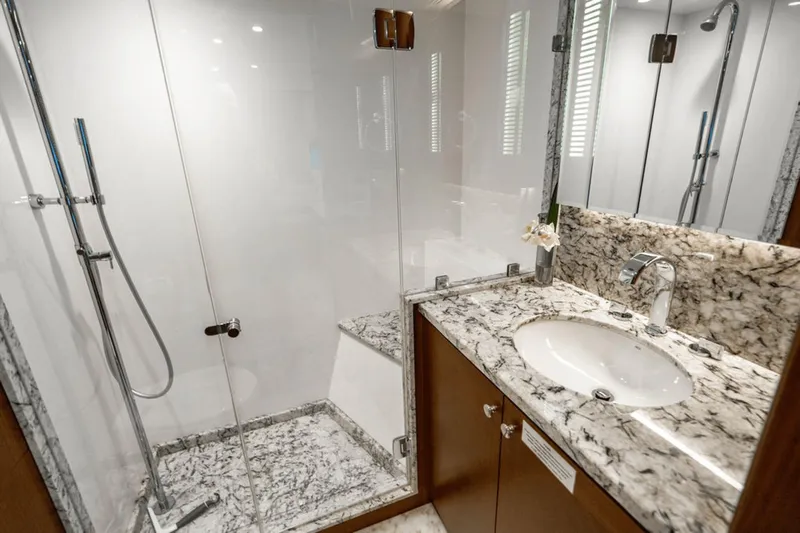

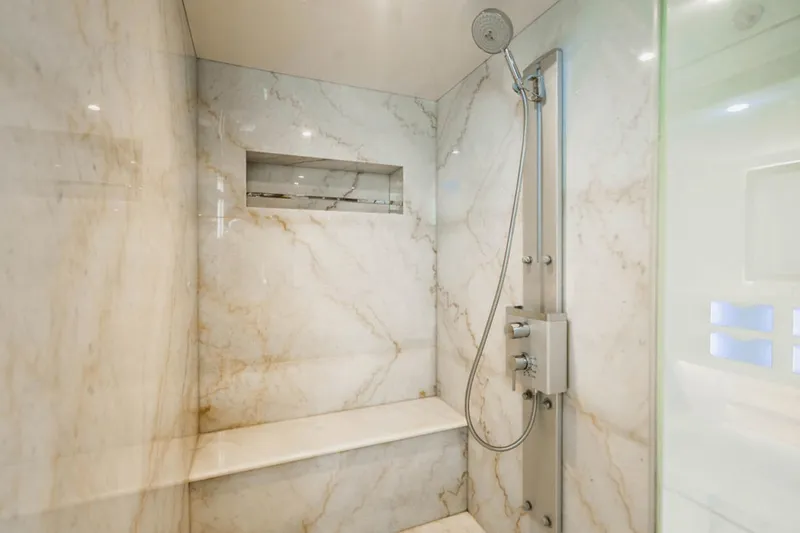

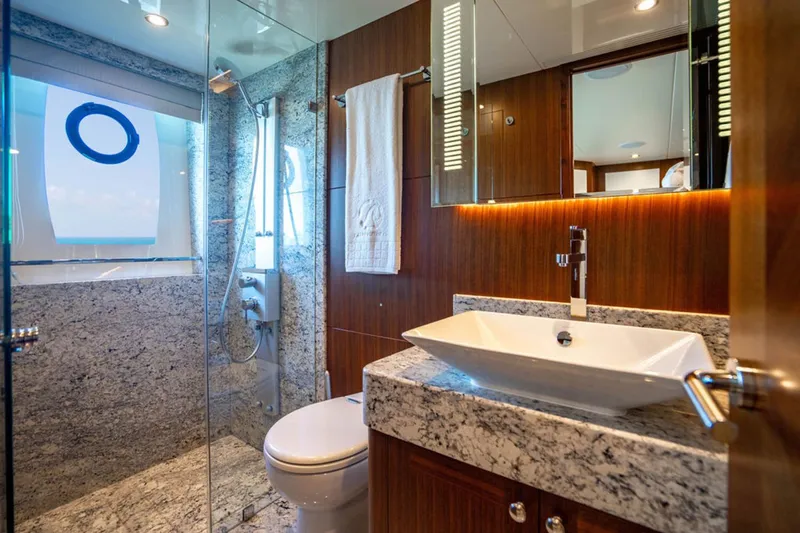

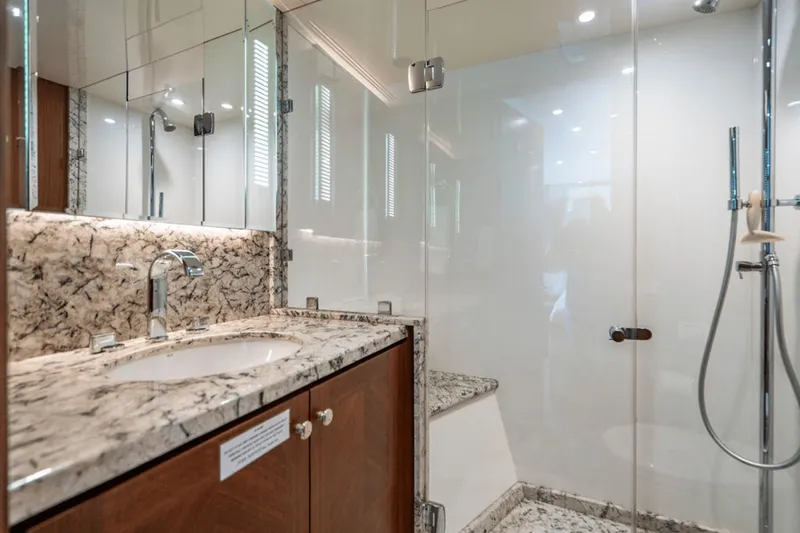

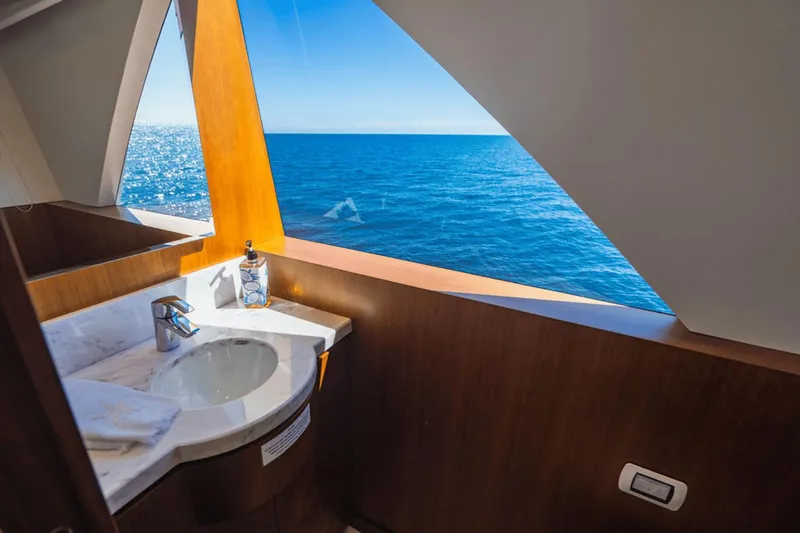

Heads

Wood paneling and cabinetry

Stone countertops with china sink

Seamless fiberglass stall shower w/
one­piece glass door. Industry leading seamless one­piece shower stall design
provides long term protection against moisture, water intrusion behind the
shower panels leading to foul odors and water damage (Unique OA feature)

Shower door shall use “crystal
clear” glass custom made for Ocean Alexander. Providing superior transparency
and reflectiveness. Together with custom made for Ocean Alexander “minimalist
and

transparent water strips” provides
a unique Ocean Alexander proprietary “Crystal Shower”

Cabinet with mirror door above sink
(without salon and skylounge dayhead)

Air extraction in each head shall
be by low noise extraction fans

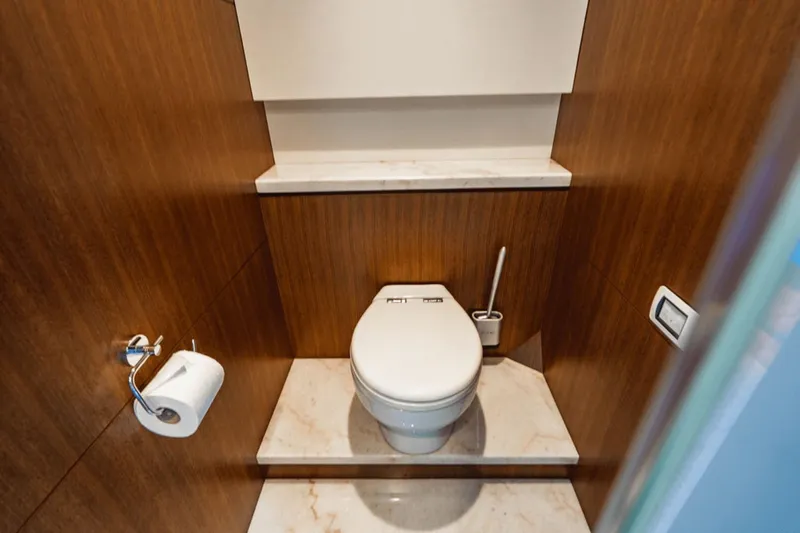

Planus™ toilet system throughout
with unique Ocean Alexander proprietary “Toilet lock out” system. Provides
“lock out” of flushing when holding tank is full. Prevents accidental spillage
or “blow back” often found on competitor yachts. Tankage status and alarm is
standard via N2KView monitoring system.

Custom bathroom fixtures

Stone countertops and back splash
in heads with china sink

Crew quarters w/private head,
shower

Exterior

Dedicated custom S/S ladder to
navigational electronics

(Standard versus optional with
competitors)

2” elliptical 316L Stainless steel
handrails & stanchions, main deck 1­1/2” on FB. Elliptical conforms better
to human grip than traditional round rails. Provides greater “grip strength”
for safety and comfort (Unique OA feature)

316 stainless­steel cleats

Elec. stainless­steel sliding doors
for salon and skylounge with safety light curtain that senses obstruction and
protect for grandkids/pets. Also includes “foot­kick button” control for
operation when both hands with full food trays/other items.

Two S/S flag poles, fore and aft.

Teak and stainless swim ladder,
foldable

Weather­tight door on transom for
access to engine room/ crew quarters

White non­skid fly bridge &
fore deck

32” Electri­Chef™ electric barbecue
custom­made for OA using

316 S/S, versus competitors’ 304
materials. Flybridge seat w/storage underneath and stone table

Fiberglass stairway up to Flybridge
from cockpit w/teak steps

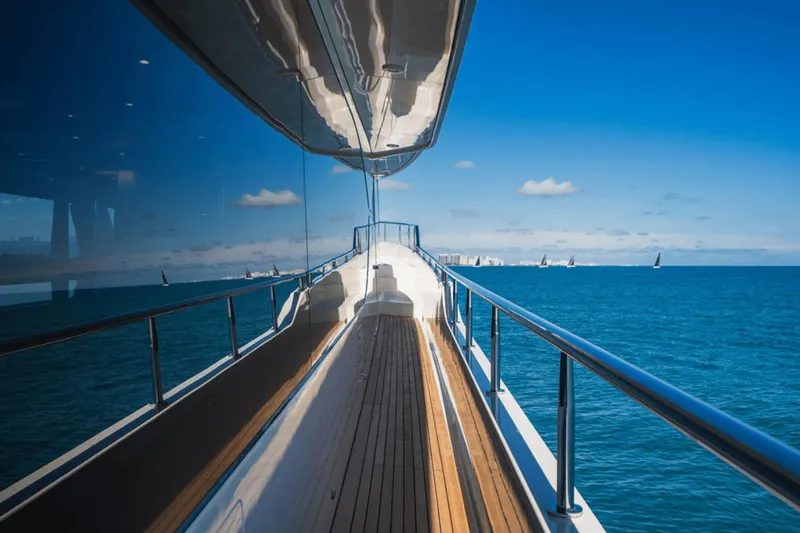

Teak deck for aft deck and walkway
to midship

Teak swim platform w/ teak steps
High bulwark w/deck lights

Side boarding gates in cockpit

Recessed boarding ladder on
starboard gunnel with OA logo teak steps (Unique Ocean Alexander standard
feature.Competitors either optional or not available)

Exterior ceiling panels removable
and finished with Diamond faceted edging. Provides a sharper and structured
tailored look. Also allows for easy service of navigational electronics and
plumbing runs. (Design cues from 135)

Custom designed fender storage at
bow/chain locker/lazarette

Aft Skylounge: Flip down 32’ TV
with Satellite Receiver & speakers aft Deck: Flip down 40’ TV with
Satellite Receiver & speakers

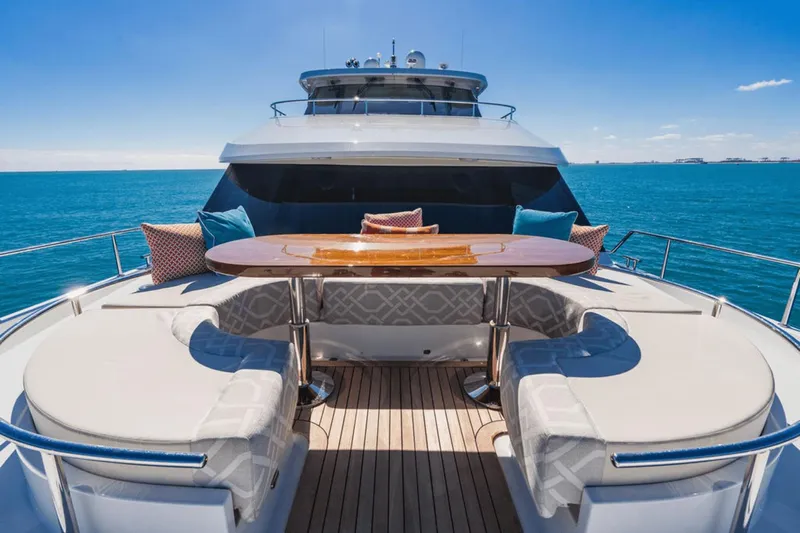

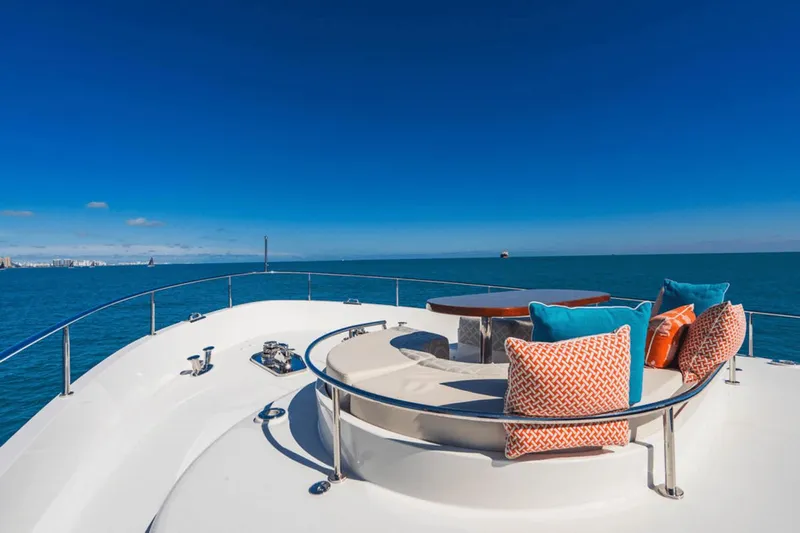

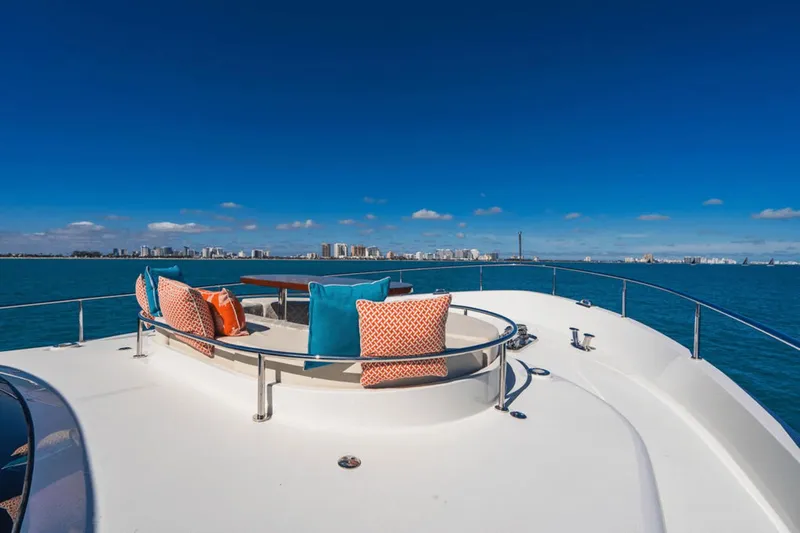

Bow seating with concealed pop­up
lighting and hi­low table converts to sun pad

Manual awning for Bow with custom
made S.S. poles and marine­grade exterior “Batyline Crème” Ferrari mesh fabric

Manual awning for Flybridge with
custom made S.S. poles and marine­grade exterior “Batyline Crème” Ferrari mesh
fabric

Manual awning for Swim platform with
custom made S.S. poles and marine­grade exterior “Batyline Crème” Ferrari

mesh fabric

Aft­deck custom ceiling feature

S/S transom gates for pets/children
protection from Aft­deck to swimstep

Boat deck sliding hatch

High output LED underwater lights
(eight)

Custom exterior protection canvas
and windshield mesh cover for exterior seating and BBQ

Turn Key

Full fuel tanks upon initial
delivery

Safety first aid kit

Fenders, lines, flare kit, throw
ring, fire extinguishers, bell

Wheel Puller for ship propellers

Chocks

8­man life raft in valise bag x2

2 sets of bed linens on all berths
with pillows and towels

Dinner china including
dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish,
salt & pepper shakers

Flatware including steak knife,
dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons and
forks

Table placemats, napkins,
water/white/red/champagne wine glasses.

Galley cookware/pans.

Toaster, mixer, measuring cup,
rubber/metal/ plastic spatulas, mixing bowls, juicer Chef knives, cutting
boards, coffee machine, iron

Vessel Support (Unique OA Standard feature)

Orientation: Prior to deliver, the
owner and/or captain is provided with dockside orientation on the operation of
vessel systems by Ocean Alexander personnel.

Customer Support: OA customer
support is on­call 24/7 to support owner and crew.

Custom Package

Spare Parts Package

Spare parts include:

Spare: Bilge pump, LED light,
Engine/ Generator filter, Wiper blades, Touch up paint, Fuses, Engine manuf. Spare parts kit, Generator
manuf. spare parts kit, Sump pump box, Float switch, Vimar outlet, GFI outlet, Vimar switch,
Wood veneer

Install on yacht as back­up “dual”:
A/C sea water circulation pump,fresh water pump, treatment system, water maker

International ISO charter
regulation safety gear

Disclaimer

The Company offers the details of
this vessel in good faith but cannot guarantee or warrant the accuracy of this
information nor warrant the condition of the vessel. A buyer should instruct
his agents, or his surveyors, to investigate such details as the buyer desires
validated. This vessel is offered subject to prior sale, price change, or
withdrawal without notice.
