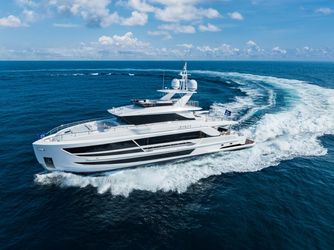

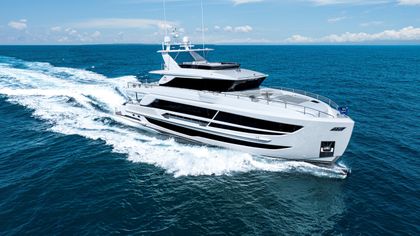

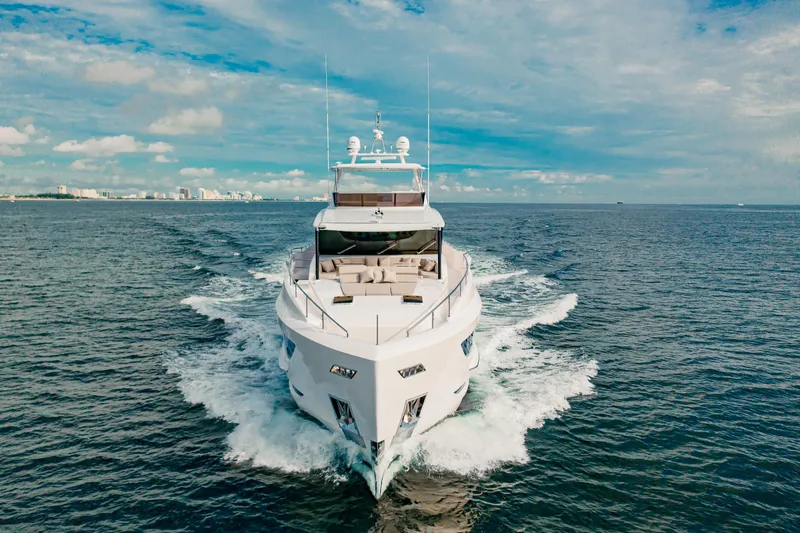

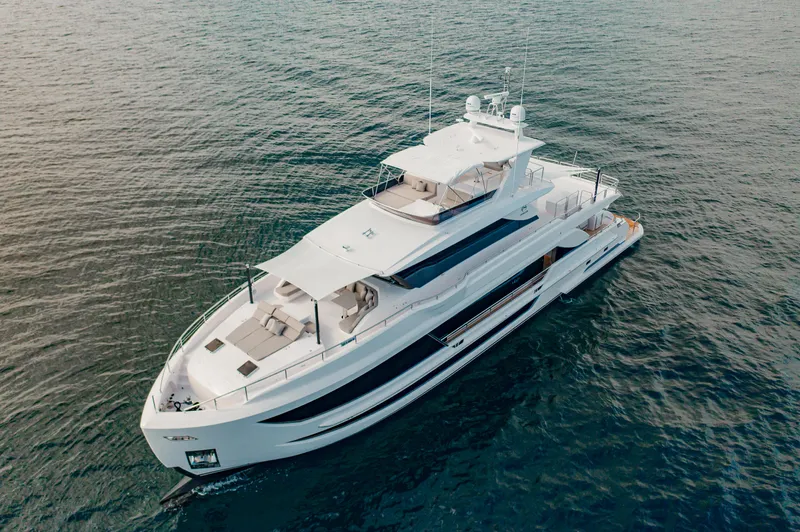

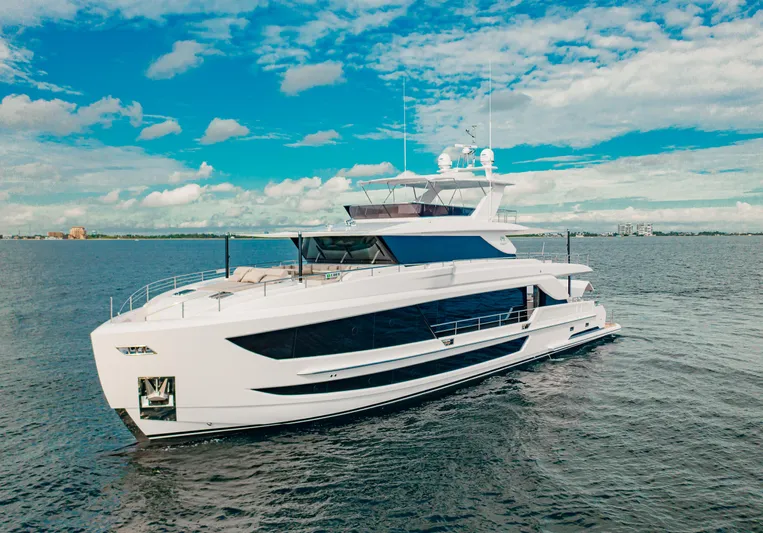

FD100-908 - IN PRODUCTION Yacht for Sale

• Cruising Speed: 17 kn
• Maximum Speed: 21 kn
• Beam: 23' 4''
• Hull Material: Fiberglass
• Max Draft: 6' 4''
• Fuel Tank: 3 x 4000|gallon
• Fresh Water: 1 x 400|gallon
• Holding: 1 x 200|gallon
• Single Berths: 6
• Cabins: 5
• Heads: 7

(2) High tensile ½" 300ft anchor chains
(2) Maxwell anchor chain counters
(2) S/S 100kg anchors
(2) S/S rollers & chain stopper
(2) Maxwell VC2500 electrical rope captstan on aft deck
Freshwater/seawater anchor chain washdown
Heavy-duty S/S 1 3/4" handrail w/ 1-1/2" stanchions & steel cable
Frameless windows, tinted Low-E tempered glass for windshield
Frameless windows, tinted tempered laminated glass for side windows

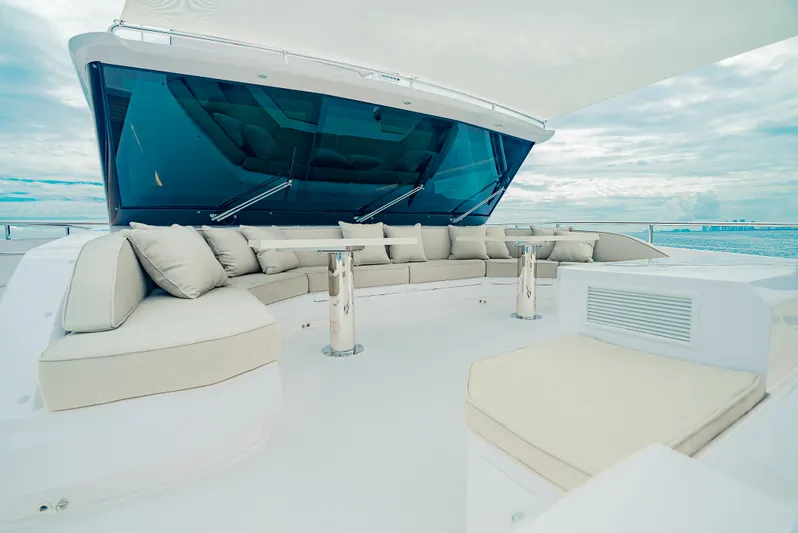

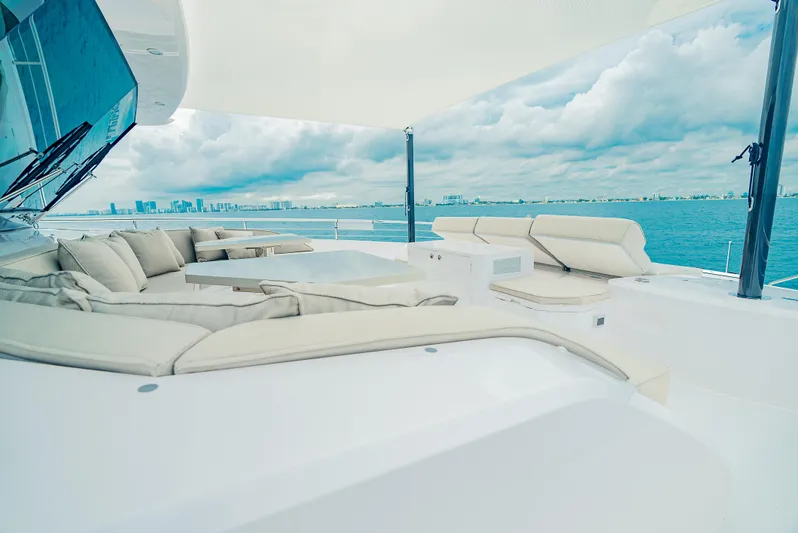

Portuguese bridge w/ U-shaped seating, sunpads & storage per layout
Roll top cushions for sun pads on forward deck
Sunshade for bow deck area, per layout
Cabinet at fwd settee w/ fridge w/ freezer & icemaker
Sink & faucet, per layout
Teak aft deck and teak steps
(2) FRP aft bulwark side boarding doors
Wind doors on each side of aft deck, to side walkway

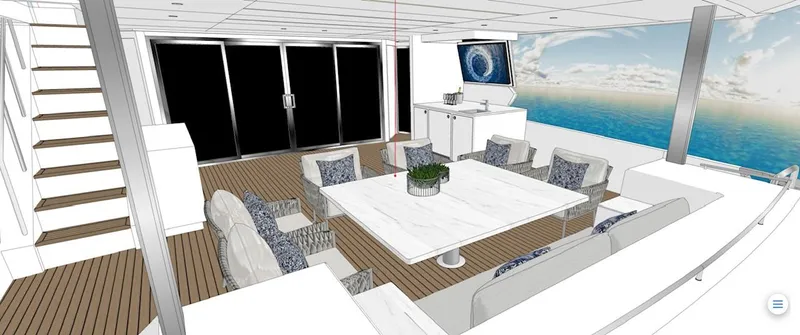

Aft deck built in sofa  + hi/lo table, per layout
Built-in side storage tables on port and stbd side of aft sofa
Aft deck wet bar with Corian Countertop
Added electric flip down 43" LED TV at aft deck and boat deck
S/S sliding door for main salon, self-locking
Marquipt 8-step side boarding sea stairs
Pre-wire for boat name on port & stbd sides
(2) pop up secret lights (bow)
Two pop-up cleats on Hi/Lo swim platform Upgrade Hi-lo swim platform lifting capacity to 2500lb

Unique to this build, 4 pane glass transom door arrangement with 2
  sliding glass doors.
Sofa and bar area w/ fridge/freezer
43" Samsung LED TV
Hydraulic Hi/Li swim platform w/ 2500lb capacity
(4) sockets for removable handrails on swim platform
Built-in retractable shower head w/ hot/cold water at swim platform

Skylounge design w/ L-shaped sofa, day head, desk, (3) STIDD helm
  chairs & LED 55" ceiling mounted drop down TV w/ Sonos Interior wet bar in skylounge
Samsung Blu-ray player + Apple TV
Roman blinds
Custom designed helm w/ full set of engine gauges, monitoring system
  for important equipment, fuel & water gauges, Ritchie Supersport
  magnetic compass, surveillance camera system (PTZ cameras for aft
  deck & engine room), bilge pump panel & nav lights
(2) Hatches above helm

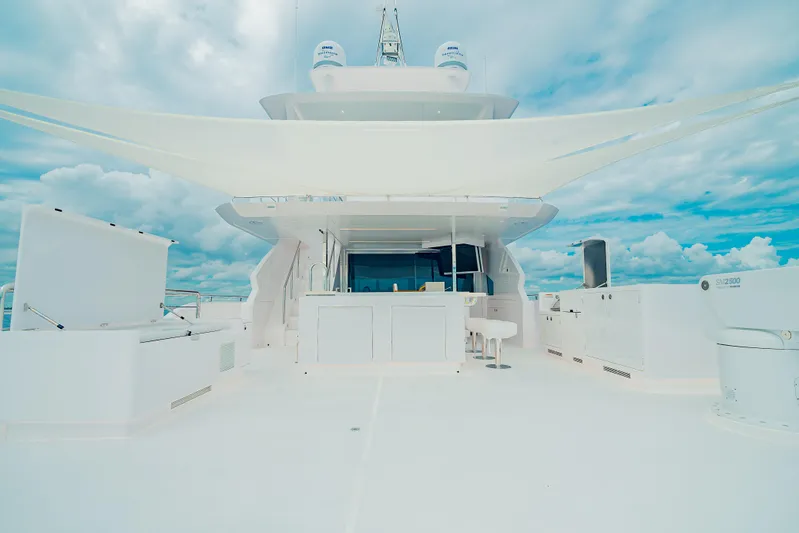

Non-skid boat deck
Removable S/S rails around boat deck
Oversize drains w/ strainer on each corner w/ internal overboard drains
Full bar w/ icemaker, fridge & 3 barstools

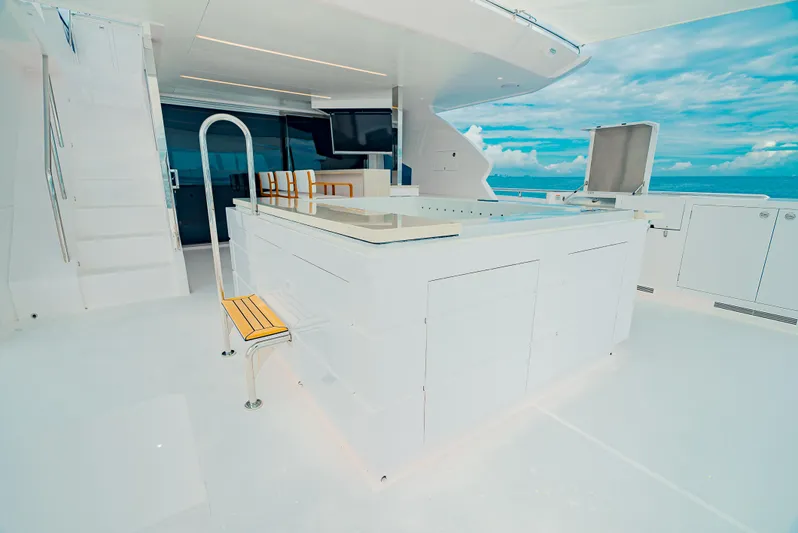

3 person Jacuzzi
43" TV on stbd side of boat deck
Sunshade for boat deck area, per layout

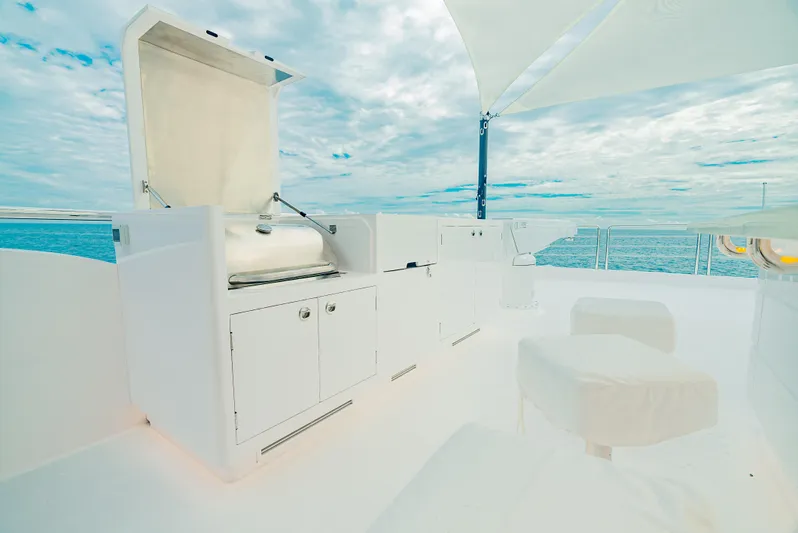

Hi/Lo 24" propane BBQ in FRP cabinet
Boat Deck pre-engineered for 2500lb Davit
(4) Flood lights for mast & boat deck
(2) Tokai Sanshin search lights
(2) Zodiac 10-person life raft with custom brackets
Marine stereo system w/ speakers

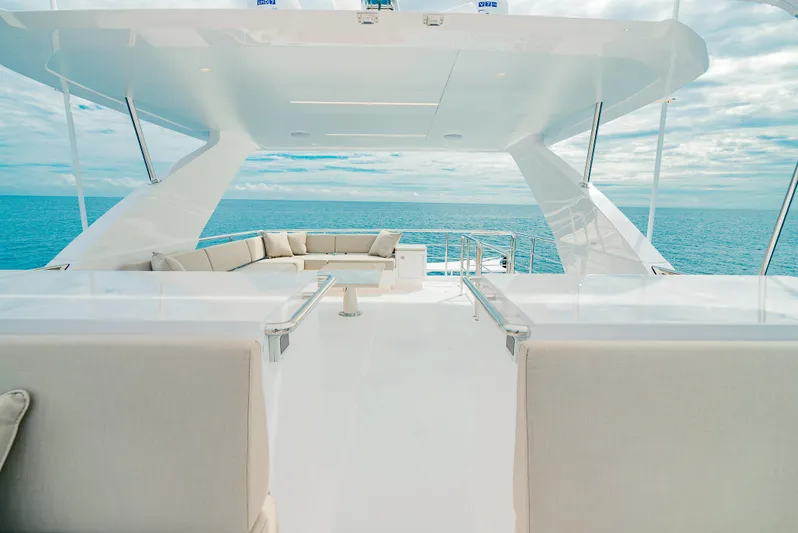

Upgraded enlarged Carbon fiber reinforced hardtop over tri-deckNon-skid deck

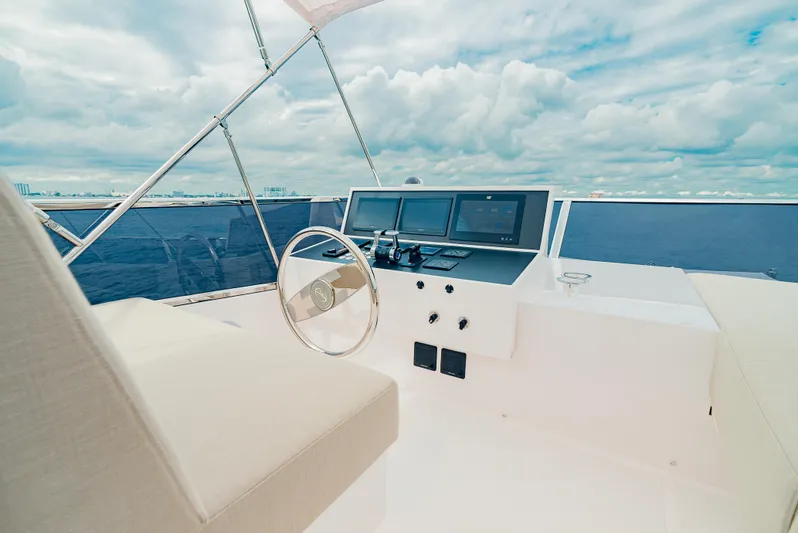

Helm station w/ integrated panel w/ engine controls, engine start/stop,
  (2) Garmin 8612 screens, autopilot, repeaters for speed/wind/depth,
  VHF, search light control, windlass control, magnetic compass & horn
Radar arch w/ antenna bracket
Windshield w/ S/S frame & S/S rails
Stairwell from upper deck to Flybridge

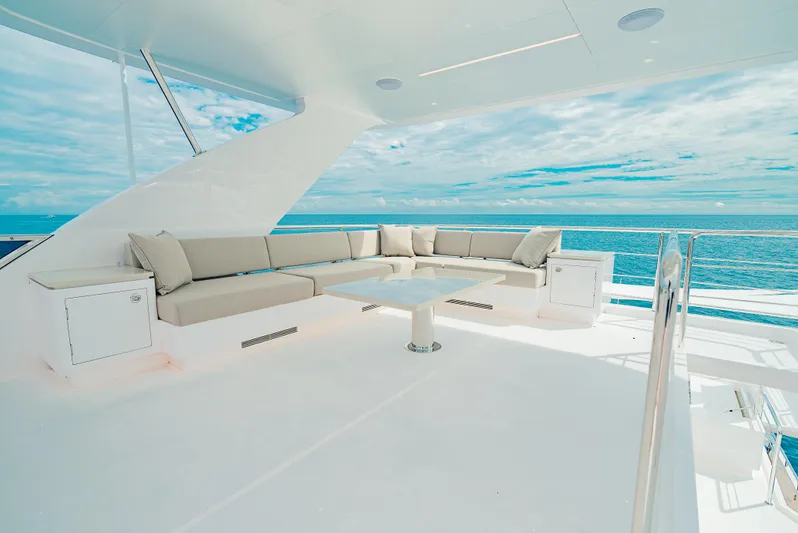

Large L-shaped sofa w/ coffee table
Wet bar w/ sink, refridgerator drawers & icemaker
Bench seating, stbd side w/ sunpad cushion

Twin CAT C32 ACERT Engine 1900hp
S/S shafts Aqualoy 22HS
High performance S-class 5 Blade propellers
Bronze struts w/ backing plates
Shaft & rudder packing glands w/ Tides Marine seals
ABT Zero Speed Stabilizers (370/16X)
ABT hydraulic bow and stern thrusters, 45HP
Delta-T engine room ventilation system
(2) FRP foil balanced blade rudder w/ S/S rudder stock
S/S emergency tiller in rudder cabin
Hypro Steering System
Underwater exhaust system for engines w/ bypass mufflers
Anti-noise treatment to exhaust system
Upgraded to Zipwake interceptor from standard Bennett trim tabs
Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
ER clean design w/ upgraded diamond plated floor panels
S/S overhead grab rail on each side of engine
Engine room LED ceiling lights & LED lights under engines
Engine alarm system for low oil pressure & high-water temp
Bauer Junior II dive compressor
Air compressor
Air conditioning in ER
Workbench w/ sink & vice
S/S Drawers for tools

MECHANICAL SYSTEMS

Chilled water Marine Air air conditioning
Backup A/C circulation pump (ship loose)
Backup A/C sea water cooling pump (ship loose)
A/C Engine Room
Fuel tanks w/ sight & electrical gauges
Dual Racor 75/100 MA fuel filters/water separator, each engine Racor 500 MA fuel filters, one each generator
(2) Electric fuel transfer pumps
Reverso FPS210 fuel polishing system
Oil change pump system for engines, gears, & generators
400 Gallon FRP water tank
Dometic Seaxchange watermaker 1,800 GPD + Spot Zero 2000 GPD
High-volume Headhunter AC freshwater pressure pump & back up DC
pump
Fresh water charcoal filters in main supply pipe & galley
Fresh water hose for filling engine and generator expansion tank
Marine grade lines for freshwater system
(2) 30 Gallon water heaters
Hot water circulation pump
Headhunter sanitary waste treatment system (TW-HMX 6001LP)
Headhunter Bravo toilets
200 Gallon holding tank w/ macerator pump
100 Gallon sump tank
Sump pumps system for grey water
Electric level indicators for holding tank & sump tank
Electric Rule bilge pumps
(2) Manual bilge pumps in ER & forward staterooms
High water level bilge alarm
Bilge exhaust ventilation fans
Seafire fixed fire extinguisher (FM200) for ER w/ remote control
Fire insulation in engine room
Fire resistant treatment for pipe
Auto shutdown system
Automatic fire damper system
(5) Portable fire extinguishers in recessed lockers
Integrated fire alarm in skylounge w/ heat & smoke detectors in each
cabin
Fire Pump w/ outlets and hydrants

LED lighting system throughout interior & exterior
Maretron monitoring & control system
(2) Onan 40kW/60Hz generators w/ sound shields
100A shore power system w/ ISO Boost transformers 100A (2) & (2) 100A Cablemasters
Ignition protected battery switch
(4) 255AH AGM start batteries for engines/gens w/ (2) battery chargers
(8) 210Ah Lifeline AGM batteries for boat?s DC 24V service power
   w/ (2) combined inverter/chargers
(2) 210Ah Lifeline emergency batteries w/ independent battery charger
Main electric panel includes AC & DC circuit breakers
Emergency power package & lighting system
AC volt receptacles located throughout including engine room
GFI protection for all AC outlets in heads, galley & ER
Octoplex multiplexing power distribution system
Electrolysis bonding system
Cathodic protection w/ zinc anodes for shafts, struts, etc.
(8) Underwater lights
Stern docking lights
Extra LED searchlight

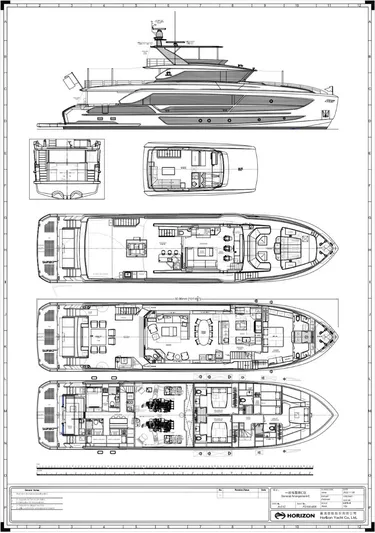

Guest accommodations include on-deck master stateroom, fwd VIP
  cabin, port & stbd VIP cabins & twin guest room, all ensuite
Crew area has 3 staterooms, 2 heads, crew galley & access from aft
  deck & transom
carpet for all lower guest staterooms, hardwood in master.
Cadorin Rock oak for saloon, master room, dining, P/H, foyer, stairs
Cambria stone Smithfield For dayheads, galley, fwd. bathrooms
Stacked washer/dryer in guest & crew companionway (total of 2)
Fridge in guest companionway

Dayhead in main salon stbd aft corner

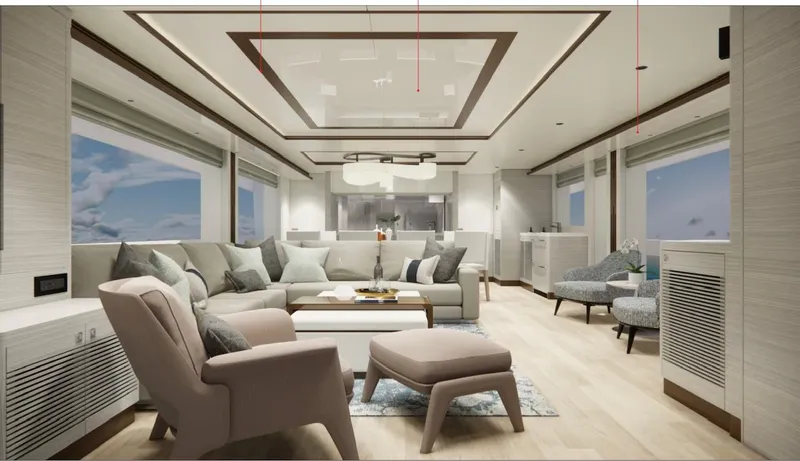

L-shaped sofa, custom coffee table w/ ottomans per layout
(2) Loose chairs & side table to stbd
Custom area rug
Custom convertible dining table w/ hi-lo chairs, per layout
Electric single treatment curtains
Custom liquor cabinet with display glass and pull-down door
Hinged doors to port and sliding doors to stbd of main salon
55" LED TV
Home theater system
Sony Blu-ray player + Apple TV

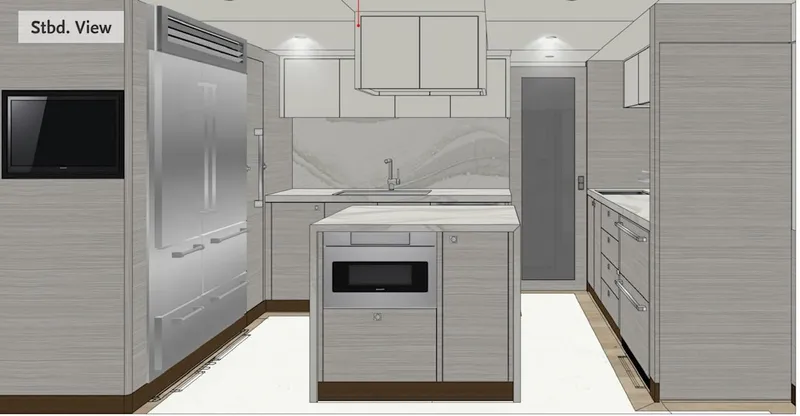

Professional Galley with full height pantry + extensive storage per layout
Settee with flip up table
Direct port side deck access into Galley
Cambria quartz countertops & floor
Full height 48" Pro Sub-Zero fridge + full-height freezer w/ icemaker
Under Counter refrigerator/freezer drawers w/ ice maker
Miele 5 burner cooktop, oven and hood
Under Island Microwave
GE Trash compactor
S/S double sink w/ disposal
U-Line wine cooler
S/S pot & pan holders over cooktop
Hi/Lo screen & privacy doors to enclose galley
Opening porthole on port side

King bed w/ storage drawers & nightstands
Stbd side love seat  Port Side dresser drawers
Extra hatch in Master head with ladder
Ensuite his & hers head w/ sink, toilet & storage on each side, middle
  shower w/ rain shower head
(2) towel racks
2 hanging lockers (port & stbd)
Electric roman shades
(2) Portholes that open
Bose home theater system
50" LED TV
Blu-ray player + Apple TV

Queen bed w/ nightstands
Large hanging locker on stbd side
Ensuite head w/ sink, shower w/ rain shower head & toilet
43" LED TV

Mirrored staterooms w/ Queen bed, storage drawers & nightstand
Large hanging lockers
Ensuite head w/ sink, shower w/ rain shower head & toilet
Escape hatch in port stateroom
43" LED TV

Twin beds, one fixed + one sliding
Hanging locker
Ensuite head w/ sink, shower & toilet
32" LED TV

Captain's cabin w/ hanging locker, 32" LED TV & ensuite head
(2) Bunk crew rooms w/hanging locker
Shared head w/ sink & shower
Crew galley w/ sink, convection microwave & cooktop
Pocket door to separate the crew mess and the stern stairs

SAT TV KVH TracVision UHD7 + Dummy Dome + SAT phone
  pre-wire only
Wave wifi booster
(5) Panasonic PBX Telephones with intercom feature
Exterior connector for shore phone and cable TV
Surveillance camera system (PTZ cameras at aft deck and engine room)
Fusion Marine Stereo speakers in guest staterooms, main exterior areas,
   beach club & crew cabins
Upgraded AV system to Sonos in skylounge, salon and master stateroom
TV antenna on top of radar arch

Full Garmin Nav system includes:
(3) Garmin GPSMAP 8624 24" multifunction display
Garmin GMR 1226 72" 12kW 72nm open array radar system
GMR Fantom 54 solid-state open array & pedestal
MBB300C for inputting Maretron info to Garmin display
Garmin Grid 20 remote input device
(2) Garmin VHF 315
Garmin AIS
Garmin Reactor Autopilot control system
Garmin instrument display w/wind transducer and Airmar Ultrasonic
  speed & temp transducer
Garmin fishfinder
Garmin satellite weather antenna
