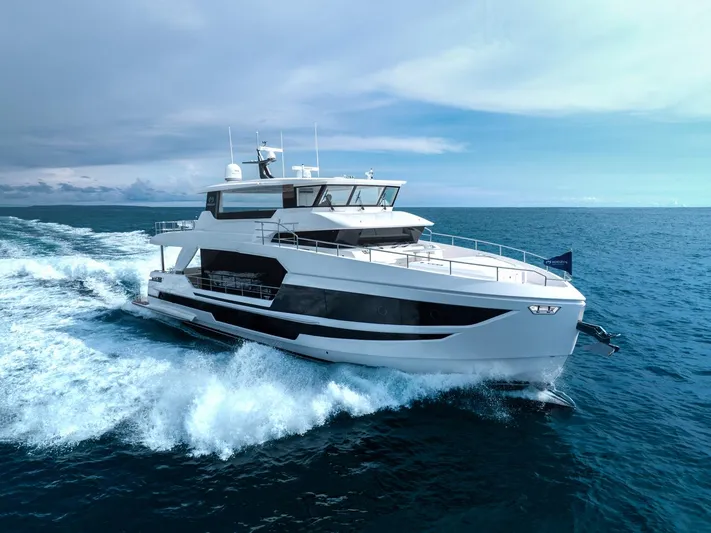

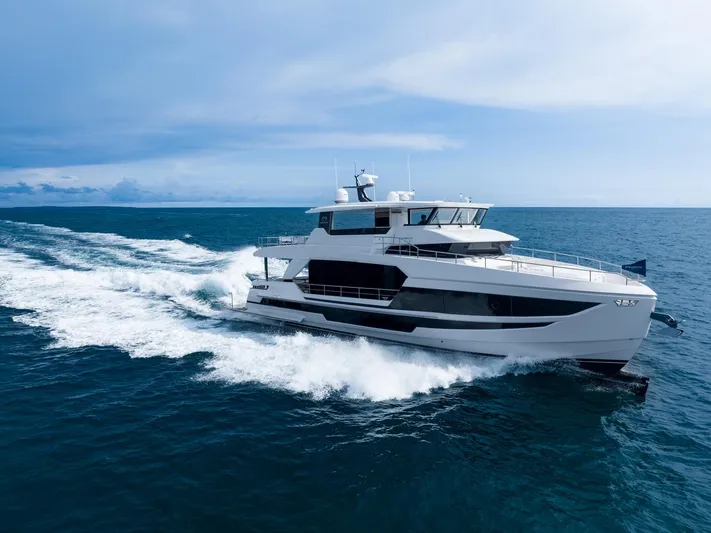

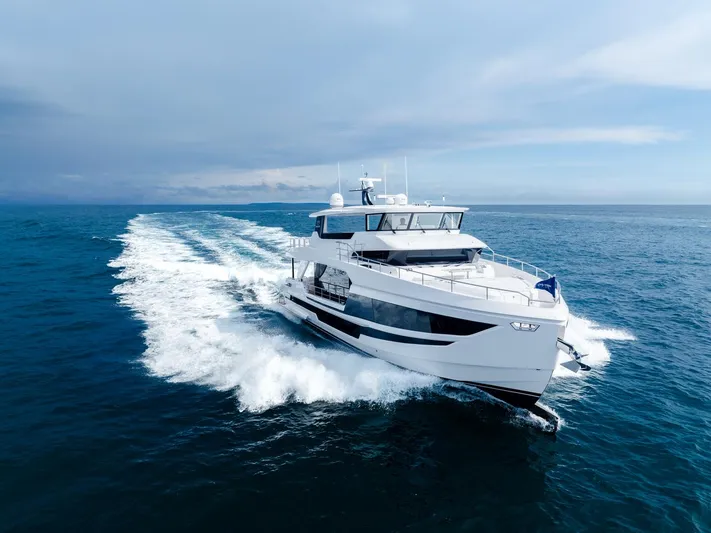

FD75-709 Yacht for Sale

• Beam: 20' 4''
• Hull Material: Fiberglass
• Displacement: 149,760 lb
• Fuel Tank: 1 x 2400|gallon
• Fresh Water: 1 x 300|gallon
• Cabins: 4
• Heads: 5

QUICK SPECS                                                                                                  Hydraulic swim platform 1,500 lbs
Open flybridge w/ dayhead & A/C
1,500 lbs davit on flybridge
Dometic SeaXchange & Spot Zero water maker + water purifier
(2) 100A shore power & (2) 50A shore power w/ 1 cable masters
Wireless Yacht Controller
ABT zero speed stabilizer
ABT bow & stern thrusters
Custom Garmin navigation system

SPECIFICATIONS
White gel coat finish
One piece hull SCRIMP™cored lamination w/ deep skeg and longitudinal girders
Hull, deck & superstructure-built w/ SCRIMP™ for improved strength & reduced weight
High density foam cored hull bottom, sides, decks & superstructure
Stringers w/ high density foam coring
Strong collision bulkhead structure
International anti-fouling bottom paint w/ anti-osmosis treatment
Tunnels for reduced draft
High Performance Piercing Bow (HPPB) with S/S protection plates

FORWARD & AFT DECKS
Non-skid FRP side decks & bow deck
Sunpad on fwd deck w/ drink holders, pop up LED lights
Sunshades for bow seating
Forward deck seating w/ backrests, folding table & storage lockers
Heavy-duty S/S #316 2" handrail w/ 1 1/4" stanchions
(10) Heavy-duty 316# S/S cleats & fairlead w/rollers
FRP cap rail
Frameless windows, tinted & tempered safety glass
LED exterior courtesy, bulwark & nav lights
(1) Vertical hydraulic anchor winch MAXWELL VWC3500C
(1) 80 kg S/S anchor
(1) 300 Feet high tensile 1/2" anchor chain
S/S rollers & chain stopper
(1) Chain counter
Custom-designed RGB fiber lighting package around bow & spotlight on HPPB bow
Teak deck on aft deck, swim platform & stair steps
(1) Deckhouse side entrance door, per layout
S/S portholes w/ screens
S/S manual folding & sliding door for main salon
Built-in aft deck seating w/ hi/lo table & loose chairs
Boarding gates on port & stbd sides
Marquipt side boarding stairs w/ handrail & two flush mounts
Manual S/S swim ladder
S/S transom gates from aft deck to swim platform
Hi-lo swim platform at stern, lift capacity 1,500 lbs
(2) Swim platform removable S/S corner rails
Watertight door from swim platform to crew quarters
Built-in shower with hot/cold water
Wiring for boat name on transom

FLYBRIDGE & BOAT DECK
Non-skid FRP flybridge & boat deck
Teak deck in F/B
Air conditioning in F/B (two 18K units, total 36,000 BTU)
Custom-designed fixed front windshield w/ S/S frame & (2) wipers, per layout
Integrated instrument panels w/ (2) Garmin 17" GPSMAP 8617 screens; Garmin autopilot; trim tab screens; compass; full set of engine gauges; stabilizer screen; chain counter screen; bow/stern thrusters; VHF
C-Zone monitoring system for impt equip (fuel & water gauges, generators, navigation
lights, bilge, sump pumps, ER blowers, etc.)
(2) STIDD helm chairs
One hatch on F/B hardtop, above console
L-shaped sofa w/ folding table
(4) Valdenassi folding director’s chairs
Wet bar w/ sink, U-line refrigerator/icemaker & custom S/S swivel bar stools
Custom FB starboard balcony w/ opening gate & safety rail & teak floor
Dayhead on port side
Sun awning with carbon posts on boat deck
Per layout, Custom cabinet w/ Corian top & propane 24" BBQ, w/ automatic electric cutoff switches
(1) GE chest freezer w/ Corian top to stbd
Oversize drains w/ strainers on each corner of deck & internal overboard drains
Folding 43" outdoor TV in FB
Hydraulic Steelhead ES1500 davit

ENGINE & PROPULSION DETAILS
Twin CAT C-18A 1136HP engines w/gearboxes
5-Blade propellers
Hypro electronic command steering system w/ backup pump
S/S AQUA TECH #22 HS shafts
Shaft & rudder packing glands w/maintenance free seals
Main & intermediate bronze struts w/backing plates
Emergency steering
S/S rudder w/zinc plates
Hydro tab trim tabs w/indicators
Hydraulic ABT zero speed stabilizer (300/9X') w/one PTO at generator
Exhaust system for engines w/mufflers
TRIDENT hose for engine exhaust
S/S covers for engine exhaust pipes
FRP water/exhaust separator for generator
One SEAFIRE automatic/manual fire extinguisher for ER w/panel in helm station
Integrated fire alarm system in pilothouse with smoke detector in each zone
Auto SEAFIRE shutdown system
Manual fire damper system

MECHANICAL SYSTEMS
2,400 Gallon aluminum fuel tanks w/ heavy duty sight gauges & self-closing control valve
Dual RACOR 75/1000MA fuel filters/water separator, each engine
RACOR 500MA fuels filter on generator
Oil change pump system for engine, gears & generator
MARINE AIR chilled water air conditioning system
Extra A/C water circulation pump (ship loose)
Built-in FRP water tank, 300 Gallons
Dometic SeaXchange & Spot Zero XZII1200/2000Z water maker + water purifier w/ 7" screen control on helm High-volume
AC freshwater pressure pump & one DC pump for back up
Fresh water charcoal filters in main supply pipe
Marine grade lines & color-coded piping for freshwater system
(2) 20 Gallon water heaters
Hot water circulation pump
Freshwater hose for filling engine & gen expansion tank
Freshwater & sea water anchor chain, manual wash-down
Aft freshwater deck washes
Built-in FRP 120 gallon holding tank w/ macerator pump
Electric level indicators for holding tank
Y valve for holding tank dockside pump out
Spare holding macerator bypass pump
Electric flush toilet in each head
Sump pumps for drains overboard
Electric RULE bilge pumps
High water bilge alarm
(1) Manual bilge pump in engine room
One bilge exhaust blower
Air compressor

ELECTRICAL SYSTEMS
LED interior & exterior lighting, per plan
(2) ONAN 29kW/60HZ generators
FRP water/exhaust separator for generator
Remote wired control station w/ engines & thrusters (2 outlets in raised pilot house
and aft deck)
BEP battery switch
(2) Inverter 3kW
(1) 24V DC to 12V DC step down 40A transformer
One 60A battery charger for engine & generator start up batteries
(2) 80A battery chargers with control panel for service batteries
(4) 210A/12V batteries for engine & gen start up
(8) 400A/6V batteries for ship service power
Select switch for AC power supply
All batteries enclosed with proper fixtures
Vapor proof battery switch
(1) Glendinning shore power cable masters 50Amp w/75' power cables
(2) ANG12.5KVA transformer for each 50amp shore power connection
Main electric panel includes AC & DC circuit breakers
Italian VIMAR switches for lighting switches & receptacles
USB charger outlets in each cabin (2), salon (1) & pilothouse (1)
AC volt duplex receptacles located throughout including engine room
GFI protection for all AC outlets in exterior, heads, galley, & engine room
24 Volt DC monitoring
Electrolysis bonding system
Two zinc anodes on transom
(6) Blue underwater lights
(2) LED stern docking lights
(1) LED Tokai SANSHIN search light
Dyson vacuum cleaner w/outlets in cabinet, per layout

ELECTRONICS
SAT TV (KVH HD7 + 5 receivers, one dummy dome)
Upgraded AV system per drawing
WAVE wifi booster
Pepwave 4G
(2) PTZ cameras

PILOTHOUSE
(2) STIDD helm chairs
Leather sofa
Integrated instrument panel w/ steering wheel, trim tab controls; compass; full set of engine gauges & MMC control; stabilizer screen; chain counter screen; sea fire display; bow/stern thruster control; wiper control; card reader; reading light; C-Zone 10" touchscreen w/ monitoring system (lights, tank levels, battery levels, smoke alarms, start/stop gens & more)
Electric air horn
Upgraded Garmin navigation package, including:
(3) 17" GPSMAP 8617 screens
VHF wired handset each station
GMX54 weather station
Garmin Autopilot
Garmin GPS
Garmin 48" 12kW 72nm open array radar system
Garmin Autopilot system
Garmin Wind/Speed/Temp/Depth transducers
Garmin VHF w/built-in loudhailer
Garmin AIS
Dimmer switch for ceiling lights

INTERIOR DÉCOR & EQUIPMENT
Guest accommodations include on deck master stateroom, full beam VIP, (2) twin
guest staterooms, all ensuite
Crew quarters offers (2) twin beds, head w/shower & countertop workspace
Custom interior package for stone, soft goods, and lighting
Glasses for wine sets (champagne, martini, double rock and burgundy, 8 each)
Internal stairs from P/H to F/B
Miele stacked washer/dryer in lower-level companionway

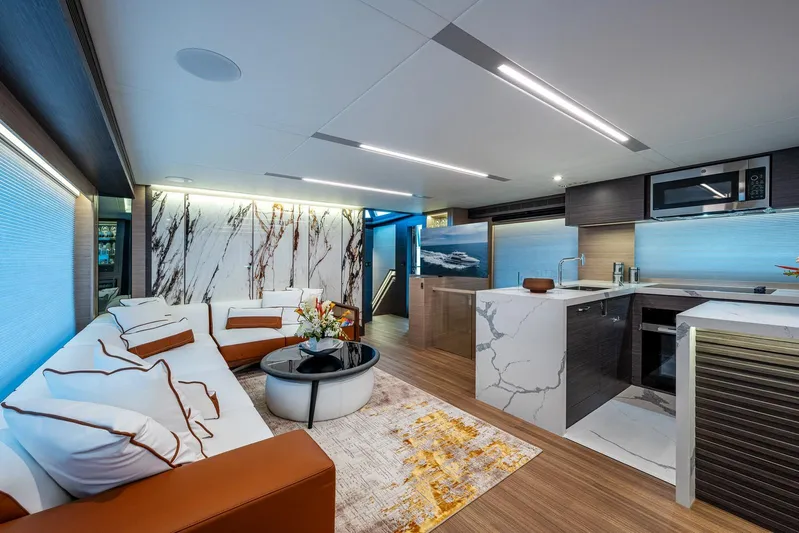

SALON
U-shaped leather sofa
Custom-design coffee table w/ storage
Custom area rug
Removable folding dining table w/six chairs
Electric blinds (for two main windows)
Custom design marble wall behind pilothouse in salon
Samsung 55" LED TV in half height cabinet w/ hi/lo lift mechanism & manual rotation
Home theater system

GALLEY/DINETTE
Storage per layout
Jenn-Air cook top
Miele oven
GE microwave
Bosch panel ready dishwasher
Fisher & Paykel panel ready refrigerator
Subzero double freezer drawers
Kitchenaid trash compactor
S/S Hansgrohe sink & faucet w/ GE disposal
U-line icemaker

MASTER STATEROOM
King-size bed w/ nightstands
High-density hotel grade pocket spring mattresses
Fully equipped head w/ toilet, shower & dual sinks
Vanity w/ seat to port
Leather lounge chair to stbd
(3) Hanging closets
Owner’s safe
50" LED TV w/ electric fold-down cabinet in ceiling

VIP STATEROOM
Queen size bed w/nightstands
High-density hotel grade pocket spring mattresses
Hanging locker
Vanity to stbd
Fully equipped head w/ shower, sink & toilet
43" LED TV
Marine speakers

PORT TWIN GUEST STATEROOM
(2) Twin beds
Storage under inboard bed
Hanging locker
24" LED TV
Marine speakers

STBD TWIN GUEST STATEROOM
(2) Twin beds, inboard bed slides manually
Nightstand
Hanging locker
32" LED TV
Marine speakers

CREW STATEROOM
(2) Single beds + hanging locker
(1) 24" TV in crew cabin
Countertop/workspace w/ storage
Vitrifrigo fridge
Head w/ sink, shower & toilet
Marine speakers
