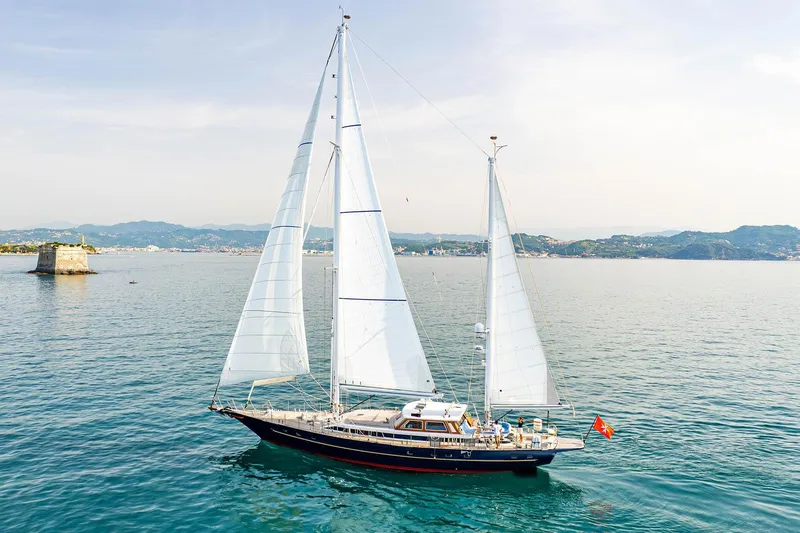

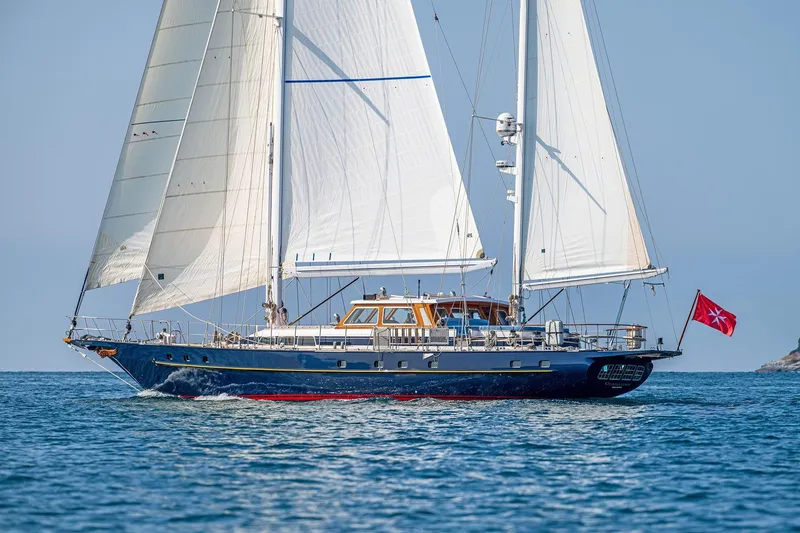

GUADALUPE Yacht for Sale

• Cruising Speed: 9 kn
• Maximum Speed: 10.5 kn
• Beam: 21' 4''
• Hull Material: Steel
• Max Draft: 10' 6''
• Displacement: 211,643.77 lb
• Fuel Tank: 1 x 6000|liter
• Fresh Water: 1 x 3500|liter
• Holding: 1 x 2000|liter
• Cabins: 5
• Heads: 4

Type: Cruising Ketch

Model: Jongert 25ds

Shipyard: JONGERT BV, Holland

Naval architect: Doug Peterson

Interior designer: Peter Sijm

Year: 1984 complete refit 2021

Registry: Malta

Hull material: Steel

Length O. A.:  28.6m (93'10")

Length W. L.:  23.99m (68'3")

Length O. D.:  25.5m (83'8" )

Beam: 6.5m (21'4")

Draft: 3.2m (11'2")

Displacement: 96 t

Engine: 1x MERCEDES 320 HP

Accommodation: 6/10 guests in 3 cabins

4 crew in 2 cabins

CONSTRUCTION

Hull: in 2021 the hull was ultrasound tested and all parts with less than 5 mm steel

replaced, Hull was repainted in blue/gold, Antifouling renewed.

Anodes renewed in 2021, new Antifouling application in 07/2023

Deck: Teak

In 2021 the old deck was completely removed, the metal inspected, repainted, marine plywood applied for levelling and a beautiful new teak deck installed.

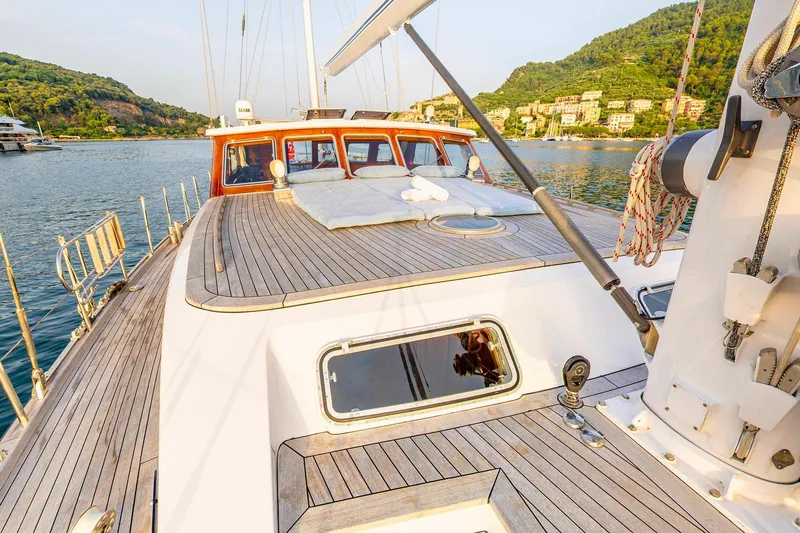

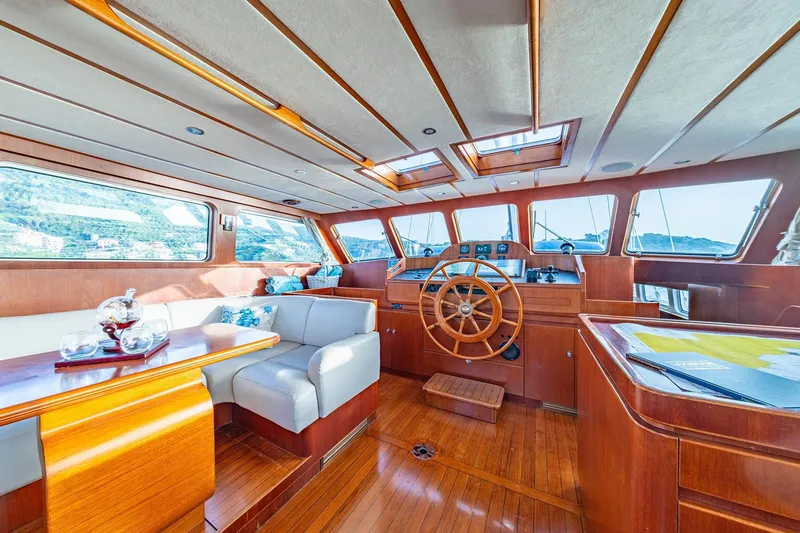

Deckhouse: In 2021 a new beam installed for main sail traveller, revarnished and repainted

Deckhouse revarnished in 2022.

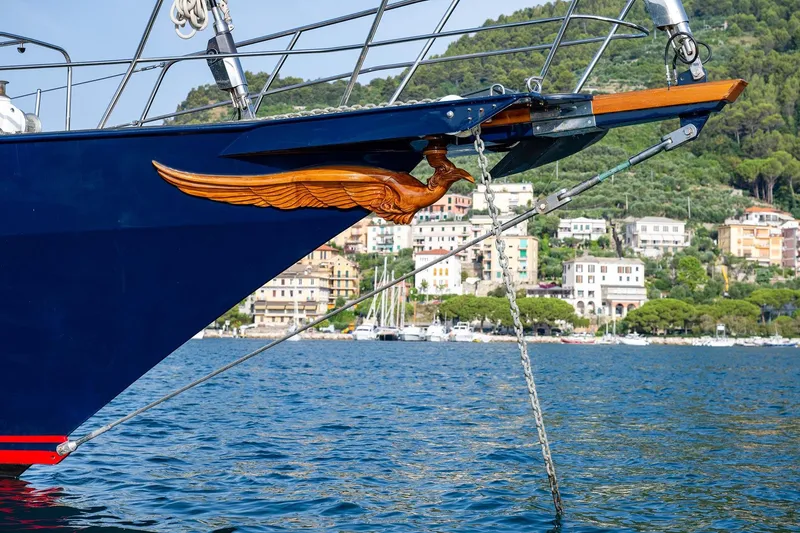

Bowsprit: Overhaul of bow sprit and Phoenix figure under bow sprit, wood revarnished

________________________________________________

RIGGING & SAILS

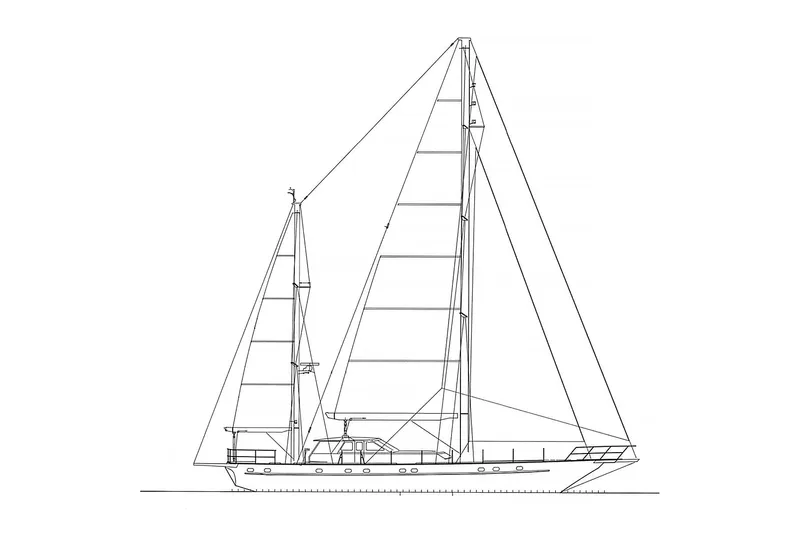

Sailplan: Ketch

Standing Rigging: In 2021 all standing rigging was x-rayed

Running Rigging: Running rigging and several sheets renewed in 2022

Masts: RONDAL, in mast furling, in 2021 both masts x-raid, checked and repainted, new indirect LED deck lights and mast lights as well as a LED anchor light and Tri-color lantern installed. Furlers were removed and serviced.

EVODIS lightning protection system installed in 2021.

Booms: RONDAL, repainted in 2021.

Reefing systems: RECKMAN electro-hydraulically operated roller-furling, in 2021 both genoa and

staysail furlers fully serviced

Foresails: 1 x staysail, made by Quantum Sails in 2009

1 x yankee replaced with a good-as-new Doyle sail in 2022

Option to purchase an additional furling Gennacker, new

Mainsail : 1 x new mainsail, Dacron, made by UK Sailmakers in 2022

Mizzen: 1 x mizzen sail by Quantum Sails in 2009

Winches: all LEWMAR, self-tailing, all serviced in 2021 and in 2022

2 x 90 st hydr. 3 speed

2 x 70 st electr. 3 speed

5 x 55 st manuel, 3 x 48 st manuel,

2 x 46 st manuel, 1 x 43 st manuel,

1 x 55 st electr., newly installed in 2021 to hoist the Jetboat or Gennacker/Spinnacker

________________________________________________

DECK EQUIPMENT

Windlass: 1, electrical motor renewed in 2021

Anchor & chains: 2x 180 lbs, in 2021 new 120m anchor chain added

Deck wash system: with fire hose (salt water) or normal hose (fresh water)

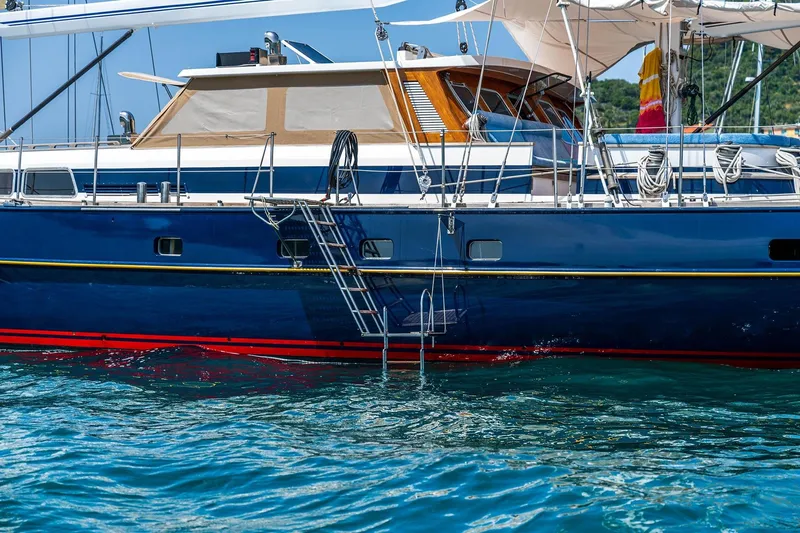

Side platform: JONGERT bathing platform, stairs and ladder

New removable teak/metal dinghy chocks custom made in 2021

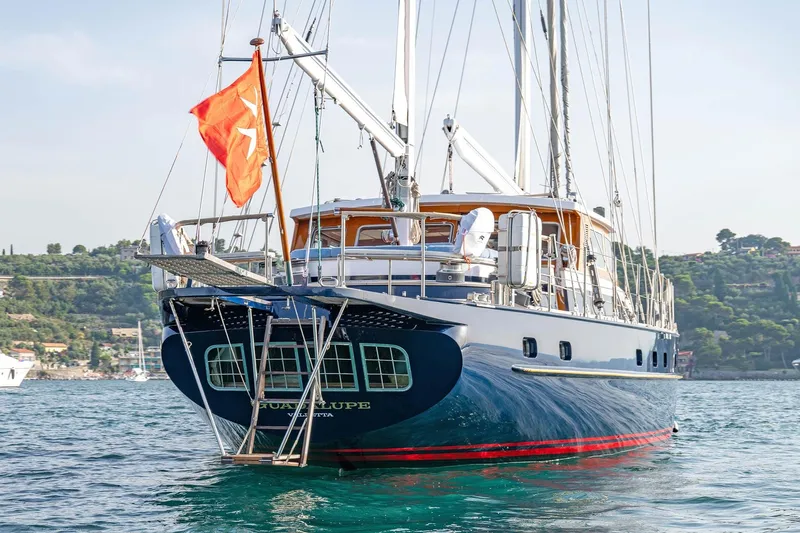

Boarding gangway: integrated in aft platform with second access ladder to swim platform

Capstans: integrated into windlass

Deck shower: By the bathing ladder/platform

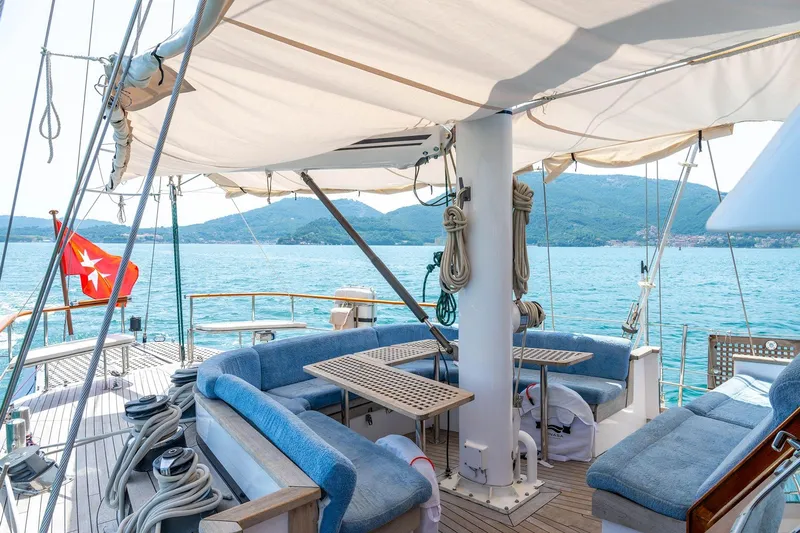

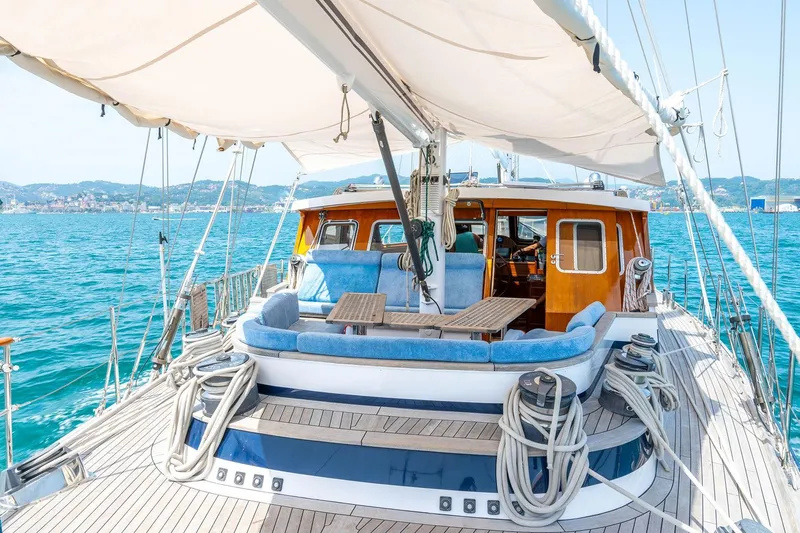

Cushions: Full set of newly fitted cushions for the aft seating area on board. Three newly fitted sun matrices with cushions for the fore deck. All awnings, cushions and matrices as well as the large outside teak table can be stowed in a waterproof storage bag on the wheelhouse roof (new 2021)

Awnings : Full set of new awnings in 2021: Rear deck, wheelhouse/foredeck and the

forepeak/bow can be separately covered. In addition, a new set of translucent Sunbrella window covers for the wheelhouse windows was tailored in 2023

________________________________________________

MACHINERY

Main Engine: MERCEDES-BENZ MARINE DIESEL 320 hp (237 kW) 10 cylinders

fully serviced in 2021, with new oil bypass filters to decrease oil use and service intervals, oil and filter change and all belts changed

Alternator of 125A and raw water pump new in 2023

Prop Shaft: inspected in 2021, regularly maintained and greased

Propeller: CUSTOM SCHAFFRAN, polished and painted in 2023

Monitoring: digital VDO Ocean Link touchscreen system in main console

NMEA2000 bus with WiFi-Access

Generators: 2 x FISCHER PANDA IX-Series, 27 kVA, separately capsuled for noise and vibration insulation. New in 2021, with a new silent exhaust system separating water and gases, leading to nearly inaudible generator operations. New wiring in 2021, parallel connection box for more performance with 2 new hydraulic PTO that can be combined or independently power the bow thruster, with new oil bypass filters to decrease oil use and service intervals.

Bowthruster: hydraulic, 50 hp, independent of main engine

________________________________________________

TANK CAPACITY

Fuel tank: 6’000 lt. in four tanks

Fresh water tank : 3’500 lt. in two connected tanks, repainted in 2021

Black water tank : 2’000 lt.

Upgrades: In 2021 all tanks were emptied, cleaned and sensors serviced

Engine room and bilges completely repainted in 2021 and 2022

________________________________________________

AUCILLARY MACHINERY

Toilets: 4x new Jet Vacuum toilets installed in 2021

2 x new Jet Vacuum pumps for black water installed in 2021

Fresh water: 2 x new freshwater pumps with separate filter installed in 2021

Bilge: New automatic bilge pump system installed in 2021

Air compressor: Service of air compressor in 2021 with new hot pressure pipes and water separation valves

Dive compressor: 1 x new COLTRI MCH 13 SMART dive compressor with 235l/h capacity installed in

2021. Control box in the fore peak with four separate connections for simultaneous charging of bottles. Very short charging time of 12 min per bottle.

Water maker HEM 300 l/h, serviced 2021. Membranes and filters continuously replaced.

Has been in constant operation and is extremely reliable.

Air conditioning WEBASTO Blue cool V50M (x2) with two independent compressors, new in 2021. Up to 50.000BTU @ 14.5 kW.

Heating: Additional WEBASTO TTP150 diesel heating system for very low temperatures, new in 2021

Water treatment New filters in 2021, Remineralization of desalinated water

Ventilation System Jongert Fancoils in every cabin and bathroom including crew cabins, double fancoils in owner’s stateroom, wheelhouse and lower saloon and galley area. In addition, all cabins feature hatches or portholes that can be opened, and indirect air flow from the deck.

________________________________________________

PERFORMANCE

Max. speed: under power 10.5 knots

under sail 11.5 knots

Cruising speed: under power 8 knots at 1200 rpm, 9 knots at 1400 rpm

under sail 8-10 knots

Range: 3000 nm at 8 knots

Consumption: about 15-20 lt./hour @ 1100rpm, @ 15-20l @ 1200-1400rpm (main engine)

About 4 lt./hour (generator)

________________________________________________

ELECTRICAL SYSTEMS

Inverter (V/W): 2x 3kW, Victron, for full 230V supply without generators

Battery banks: SONNENSCHEIN DRYCELL in two banks, 3,200 Amp.

Additional starter batteries for main engine and generators.

Battery charger: 3 x VICTRON 380V + 220V

Shore power: 380V + 220 V

Lightning: EVODIS lightning diffusors on both masts, new in 2021

________________________________________________

NAVIGATION EQUIPMENT

Navigation system: New in 2021: B&G ZEUS 3 black box and H5000 Hydra with 2x 19’ N190KGE ultra-

brilliant touch screen panels, ZC2 controller and three B&G glass helm substations in owner’s and both crew cabins. Remote control for autopilot and radar.

Access to the B&G system from any tablet via the B&G app. 3x digital H5000 Hydra separately programmable information displays.

Autopilot: B&G H5000 Autopilot with controller and RF-remote controller, hydraulics serviced

and updated in 2021

Compass: 9-axis Fluxgate compass

GPS / chart plotter: B&G with digital charts in all substations, plus FURONO GP 32 backup GPS.

Navigation computer at chart table with 21’ touchscreen and separate Furuno TZT-Navigator chart and navigation program, connected to NMEA2000 bus. Separate digital chart system in Jetboat.

Radar: B&G 24‘ HALO digital dual Radar

Navtex: FURUNO NX500 and Inmarsat Fleet One

Chart system: NAVIONICS charts for North Atlantic, Europe and Greenland, Furuno TZ Navigator

with mega wide chart

Sumlog: B&G new in 2021

Wind speed & direction: B&G station on main mast new in 2021

Echo sounder: B&G new in 2021

Close hauled & running: B&G new in 2021

Rudder angle indicator: VDO, new in 2021

Depth sounder: B&G

AIS: EM-TRAK Class B, with switch to temporarily disable transmissions for security

purposes (piracy)

Searchlight: Accastilage Diffusion LED

Horn: Original Jongert on mizzen mast, pneumatic

Extras: Central control area completely redesigned and updated in 2021, with new custom

laser-cut and engraved panels, buttons and touchscreens.

________________________________________________

COMMUNICATION EQUIPMENT

Internet/Satcom: 1. Starlink High Performance antenna for in-motion use with 300-500 Mbps ultra-low latency connection anywhere on the globe. Current cost is EUR 230/month for full internet coverage on coasts, with 2€/GB for full ocean coverage. Newly installed in 2023.

2. KVH V7 HTS 70cm GEO-Stationary satellite system with up to 20MBps and two phone lines with local numbers in each country. Two handheld phones on board. Newly installed in 2021

3. Backup: Inmarsat Fleet One satellite system with NAVTEX receiver

VHF radio telephone: SIMRAD RS 35 plus AIS, B&G VHF V-60 handheld, new in 2021

GMDSS-HF RADIO SYSTEM: ICOM IC-M 803

SSB radio telephone: ICOM GMDSS ICM803

Computer: Nav Computer i7, 19’ bright touch screen

Telephone: Two portable telephones connected to KVH

________________________________________________

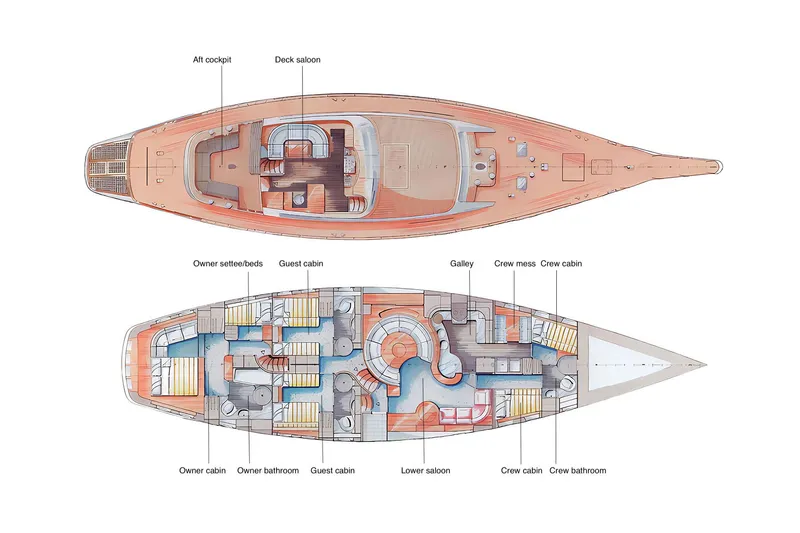

ACCOMMODATION

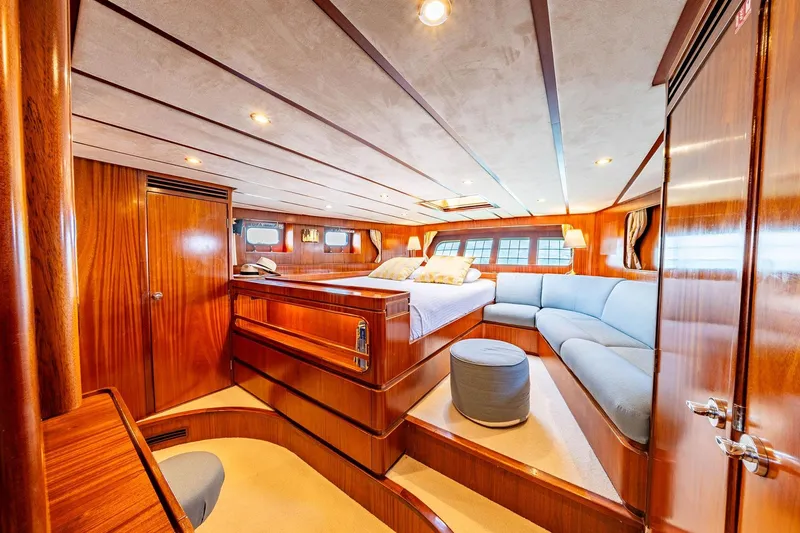

Owner: Cabins 1

Berths double berth + 2 single berths on two sofas

Bathrooms 1 ensuite bathroom with shower and bathtub + bidet /toilet

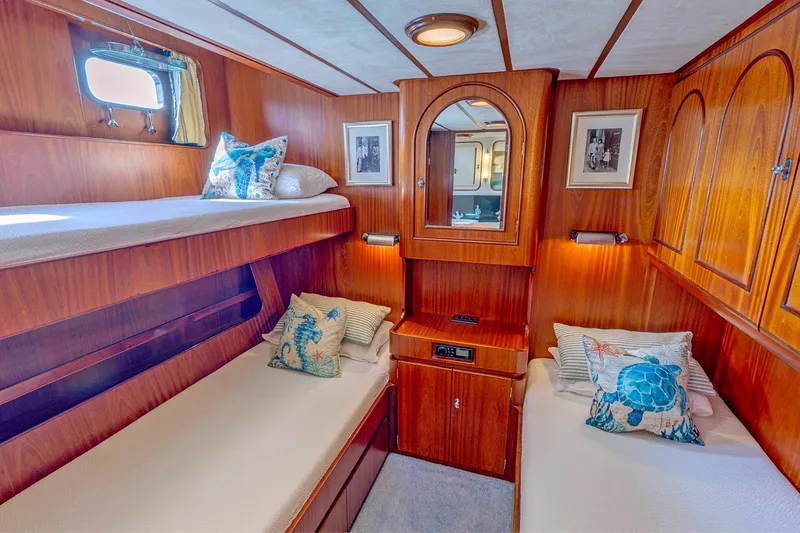

Guests: Cabins 2

Berths 4 + 2 berths (each cabin has a foldable third berth)

Bathrooms 2 ensuite bathrooms with full height shower/toilet

Crew: Cabins 2

Berths 4

Bathrooms 1 bathroom with full height shower/toilet

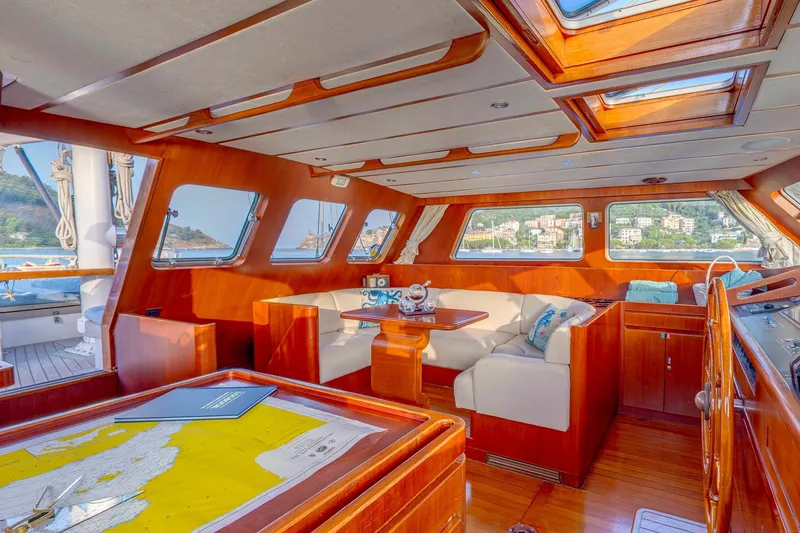

Saloon: 1 deck saloon, 1 lower saloon with bar

Galley: 1

Crew mess: 1

Upgrades: in deck saloon, main saloon and owner’s cabin new detachable sealings with Alcantara installed in 2021

All carpet floors deep cleaned in 2021

New mattresses and linen in 2021

All lightning changed for LED throughout the yacht

Multiple 220V and also multiple USB outlets installed in each cabin

________________________________________________

ENTERTAINMENT

TV/video: 2x Apple TV with wireless home sound system in owner’s cabin and lower salon

DVD/CD player: radio with Bluetooth speakers in guest cabins

Entertainment: Multi-Area SONOS System for streaming Spotify into main salon, deck salon, aft deck and owner’s cabin installed in 2021.

Portable SONOS move player for music on fore deck.

________________________________________________

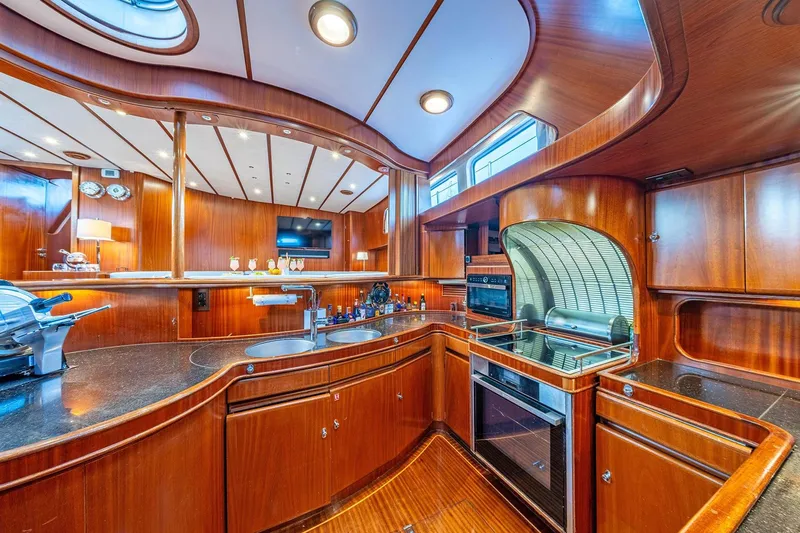

GALLEY / LAUNDRY

Refrigerator: 2x Frigonautica C 160-C 24V (new in 2021)

Additional large vegetable/drink fridge in bilge

Deep freezer: 2x Frigonautica FR160RC, 24V (new in 2021)

Icemaker: Vitrifpigo 180W Ice machine (new in 2021)

Hob/oven: NEFF circotherm, new in 2021

Stove: NEFF induction stove, new in 2021

Dish washer: Miele G 5023 SC Front, new in 2022

Washing machine: Miele W-2839, new in 2021

Dryer: Miele T-4839C

Microwave/grill: Whirlpool 6th sense

________________________________________________

TENDER & TOYS

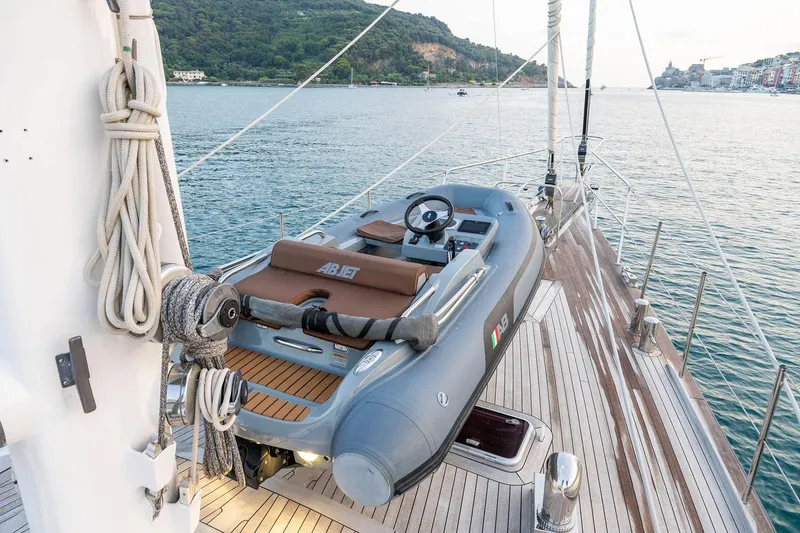

Tender: AB jet 350, 100HP Jet boat carrying up to 6 persons, new in 2021, fully serviced in 2023 with underwater lights / digital charts and 3D echosounder

Tender engine: ROTAX 100HP

Diving gear: COLTRI, new in 2021 with 4 x dive bottles, 6 x new wet suits and jackets

(S/M,M/L,L/XL), 4 x B/C,

Full diving equipment in various sizes, all new in 2021

Toys: Inflatable Catamaran, new in 2021

________________________________________________

SAFETY, SECURITY EQUIPMENT & FIRE PROTECTION

Life raft: 2 x 8 persons BFA, inspection in 2023

Life jackets: 10 + 1, CO2 inflatable

Life belts: Yes

Bilge alarm: Yes

Fire-extinguishing system: New automatic foam extinguishing system installed in the engine room in 2021

Fire-extinguishers: 12x, serviced in 2023

EPIRP: ACR

Surveillance camera: 2x Axis – M5525 PTZ-Cameras with QVR-monitor installed in mast

________________________________________________

WORKS & REFIT

Refit 2006:

- galley refit (all appliances made by Miele): oven, dishwasher, dryer, washing machine, coffee machine, steamer, new granite counter throughout

- bathroom refit throughout: granite counters, showers, light fitting, faucets

- navigation station refit: B&G H3000, Simrad autopilot, Simrad radar 48 nm, Simrad AR 78 gyro repeater, Sanshin HR 1012 remote control search light

- satellite TV in all cabins and saloon

- roller furling (Rondal) replaced: forestay with foil, inner forstay with foil

- complete set of new battery banks (1600 amp hrs and 1400 amp hrs)

Refit 2008:

- replaced 1 x boiler forward (daarlderop)

- toilet system completely re-plumbed

- all grey and black water tanks opened, cleaned and sandblasted

- painted and replaced 6 plates

- replaced plates in the bow

- new sails (all by QUANTUM): mizzen, main, staysail, jib (Dacron)

- deck sanded throughout

- black tank pump, bilge pum and freshwater pump replaced

- 2 battery chargers replaced

- bow thruster overhauled

Refit 2012:

- superstructure and topsides repainted in blue

- new carpets: Saloon, guest cabins and crew quarters

- 1 x new boiler for aft (daarlderop)

- shaft coupling

- fresh water tank opened, cleaned out and primed

- 2 x plates replaced at water tank

- hull sandblasted, primed and finished with 3 coats of antifouling

- anchor windlass overhauled

- anchor chain and both anchors galvanized

Refit 2017:

- start battery bank replaced

- rebuild & rewired Kohler generator inclusive new exhaust system

- new lightning in engine room

-rebuild seawater pump refrigerator

-Electronic equipment replaced

-Segatron Autopilot repaired

Refit 2021: complete refit whereas all realised works are mentioned in the specification above

________________________________________________
