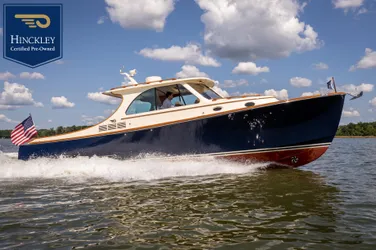

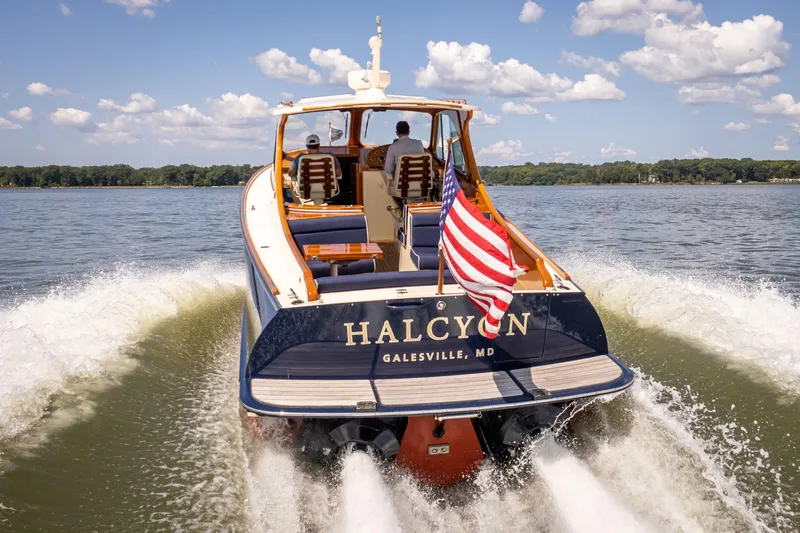

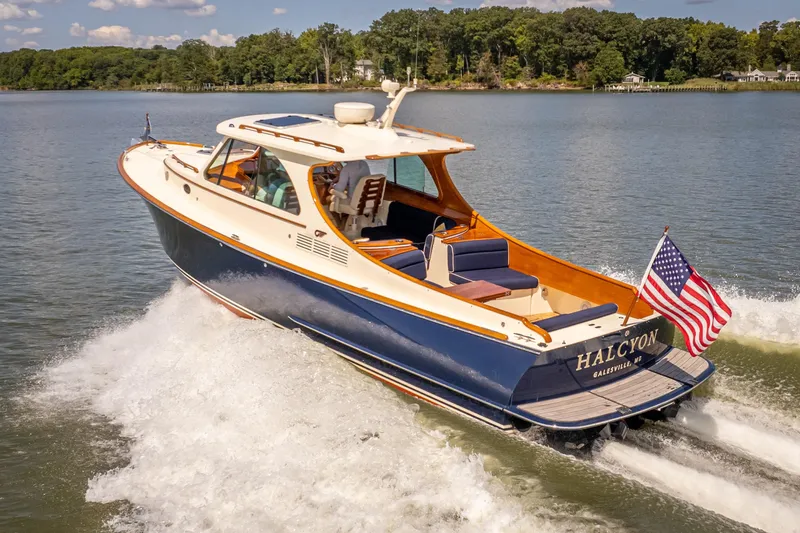

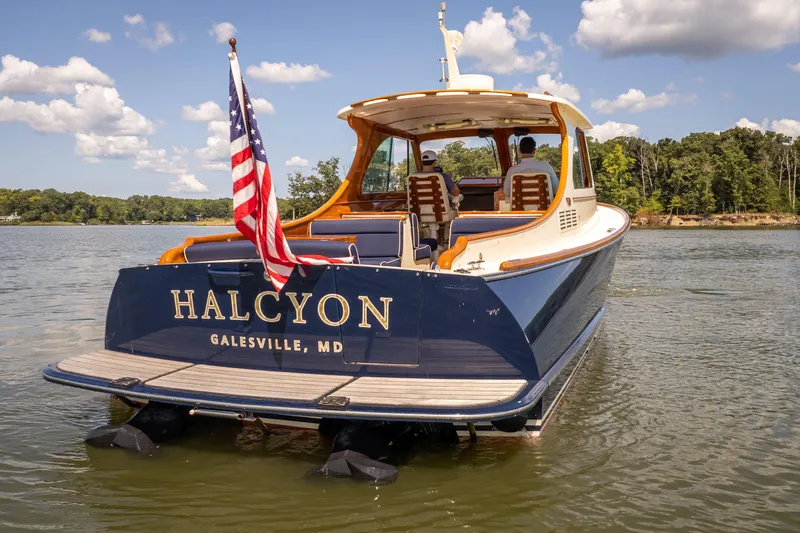

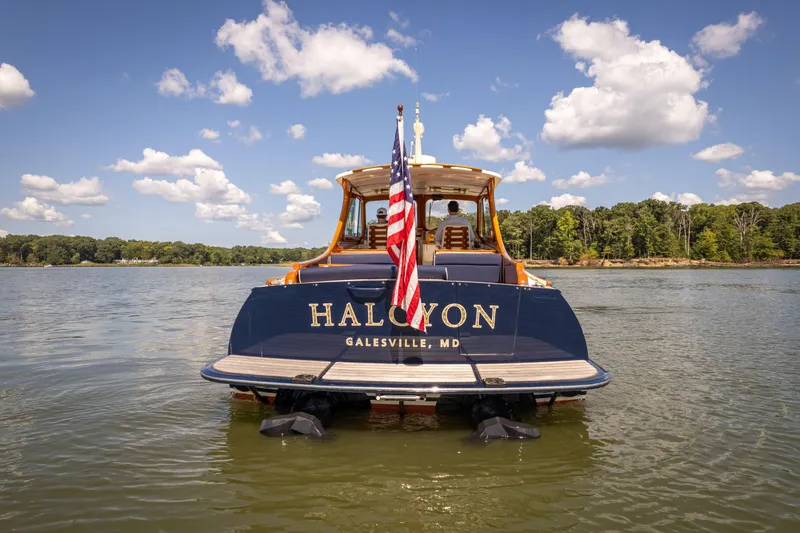

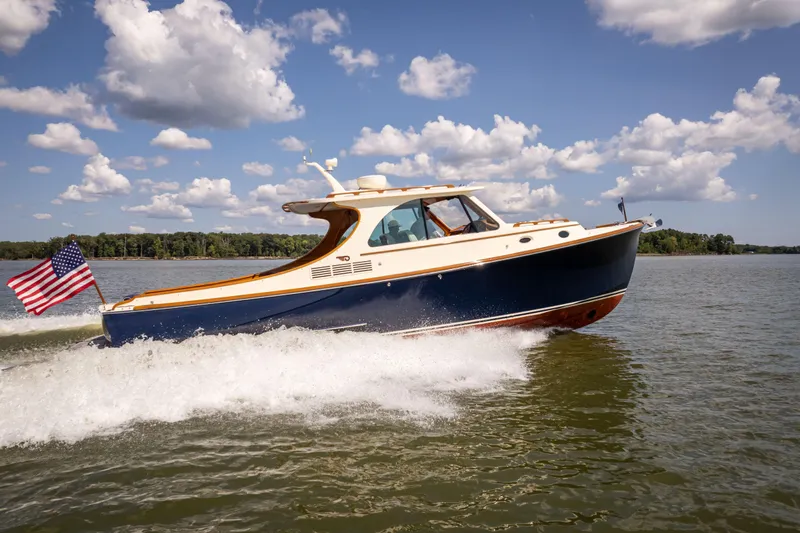

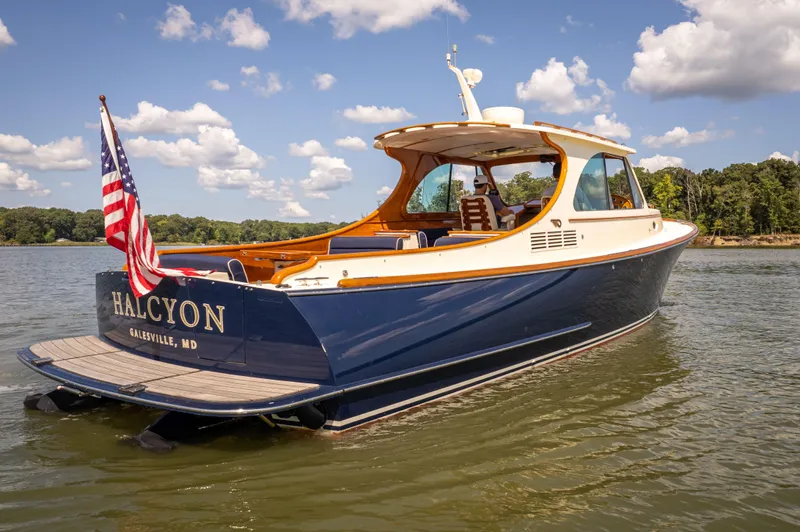

HALCYON Boat for Sale

• Cruising Speed: 25 kn
• Maximum Speed: 32 kn
• Beam: 11' 0''
• Hull Material: Composite
• Max Draft: 1' 10''
• Displacement: 14,400 lb
• Fuel Tank: 1 x 160|gallon
• Fresh Water: 1 x 35|gallon
• Holding: 1 x 28|gallon
• Cabins: 1
• Heads: 1

HALCYON’S Significant Features Include:

• Flag Blue Awlgrip hull
• Teak sole in pilothouse and cockpit
• Full varnished teak package
• Varnished teak handrails
• Teak swim platform
• Varnished teak cockpit table
• Upgraded Raymarine electronics- e125 multifunction display, AIS, and autopilot
• Custom Hinckley teak ladderback pilothouse chairs
• Anchor roller with windlass
• Certified Pre-Owned warranty- one year of Silver coverage

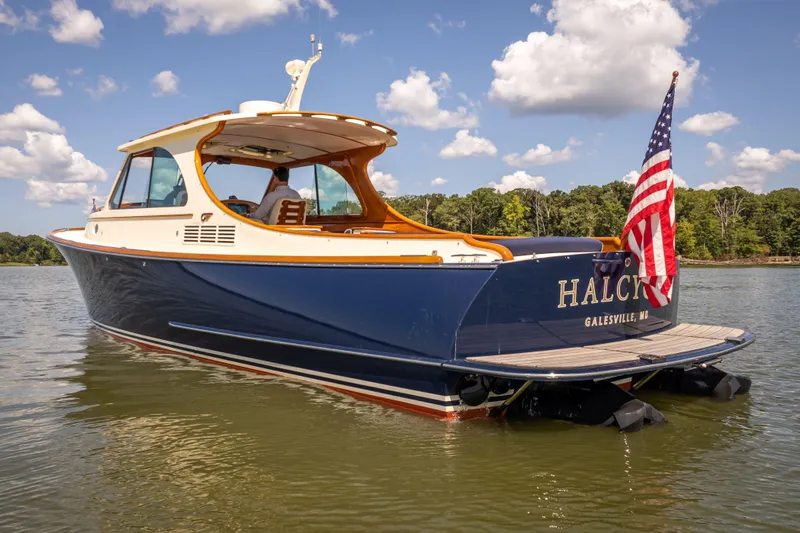

HULL AND DECK

• Flag Blue Awlgrip topsides
• Light cream gelcoat cabin house and deck
• Double cream boot stripe
• Red bottom paint

Hull:  Hinckley DualGuard Plus® Composite Construction- Aramid fiber/E-glass outer skin. Corecell M Foam for core. Carbon fiber/e-glass internal structure. Laminated with vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).

Deck:  E-glass outer and inner skin with Corecell M Foam for core. Laminated using Seaman Composite Resin Infusion Molding Process (SCRIMP®).

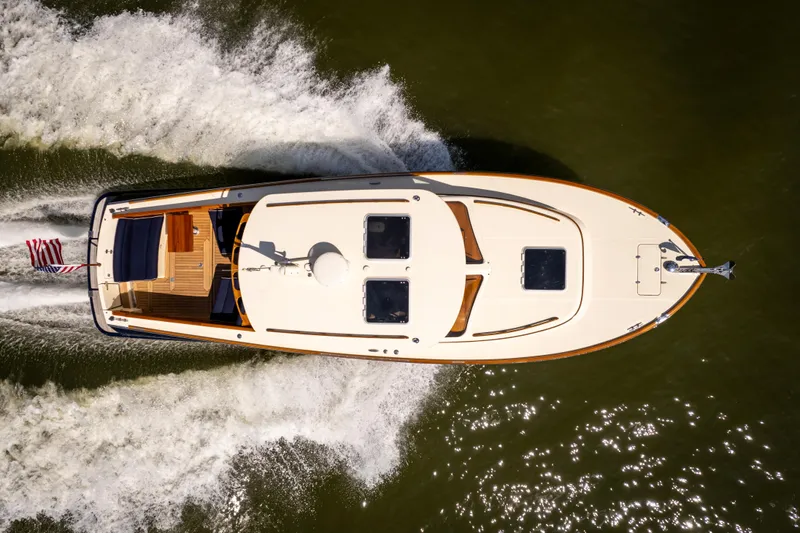

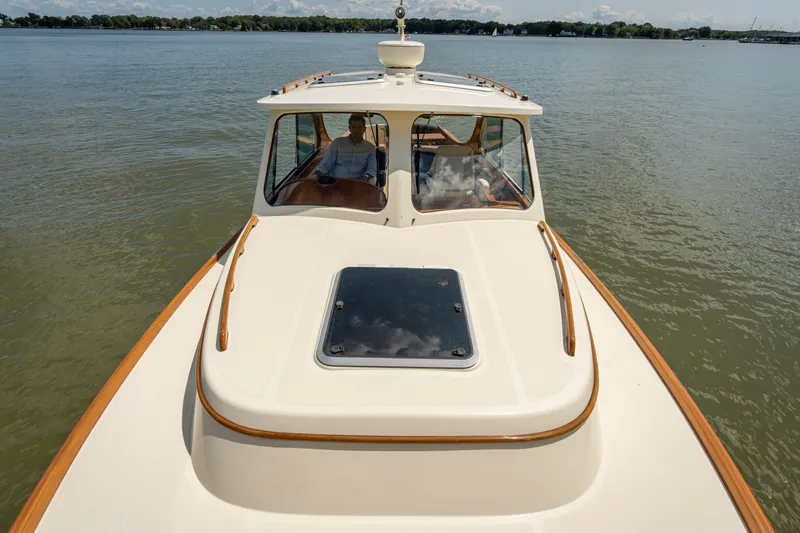

Deck features

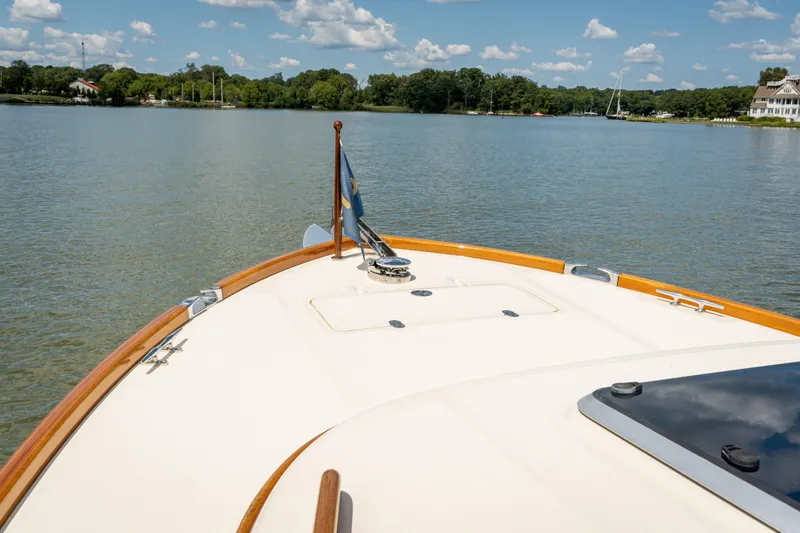

• Flush foredeck anchor locker with hinged hatch
• Polished stainless steel anchor roller with 12v windlass
• Stainless steel half round on fiberglass molded rub rail
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Hinckley designed heavy-duty fiberglass swim platform painted Flag Blue to match hull color with teak treads, stainless steel supports and half round

• Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Stainless Steel Swim handle on transom, painted to match the hull
• Transom mounted tow eye

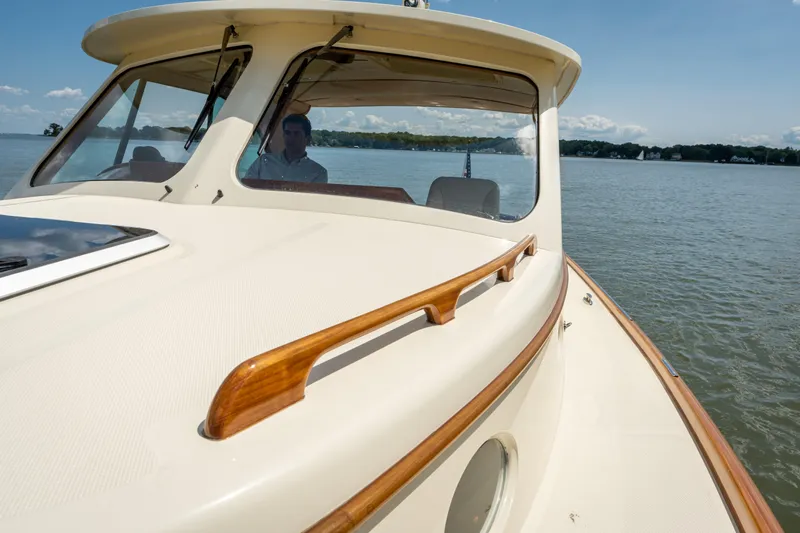

• Stainless steel handrails on cabin house, pilothouse top and across aft end of pilothouse
• Varnished teak eyebrow molding around cabin top
• Custom Hinckley 316L stainless steel bow chocks
• Bow and stern fixed 316L stainless steel mooring cleats and “Pull-Up” mid-rail cleats
• Fender padeyes with chafe strips on toe rail
• Two stainless steel rod holders mounted on the port and starboard side decks
• Pilothouse top with Hinckley designed fiberglass mast with radome and GPS antenna painted to match deck color
• Three fixed ports on cabin house sides and one opening port in the head
• One oversized low-profile stainless-steel hatch in cabin house

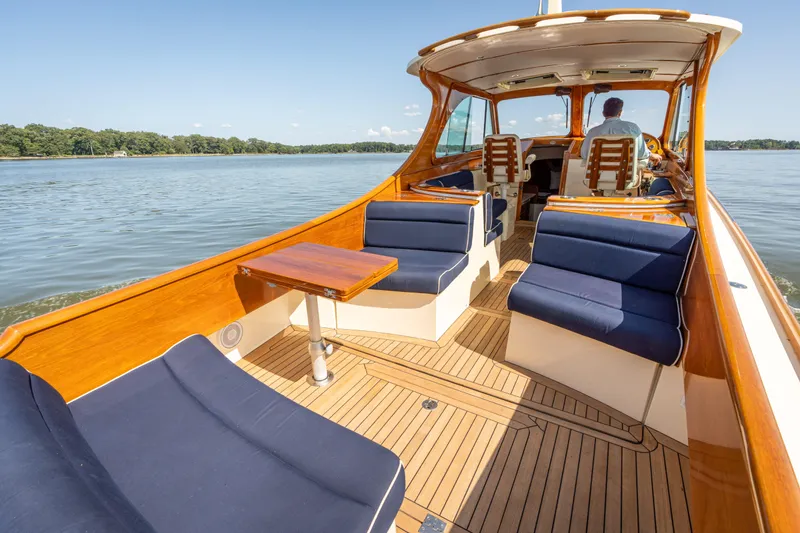

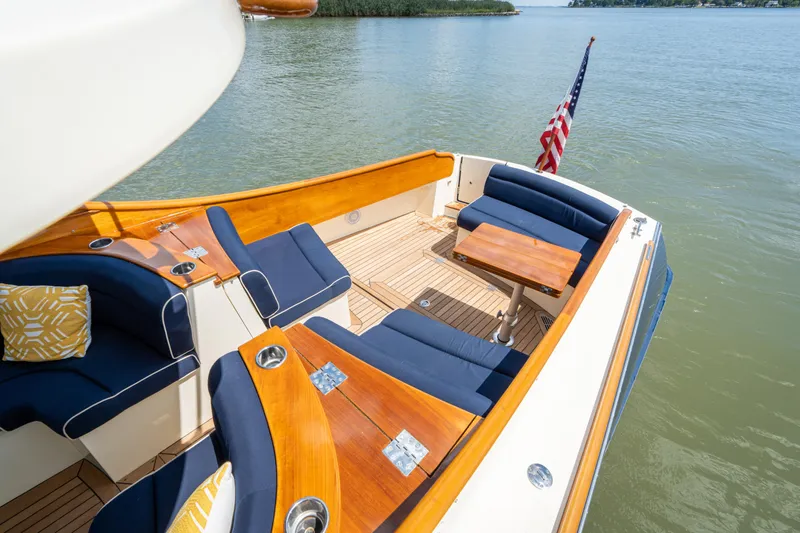

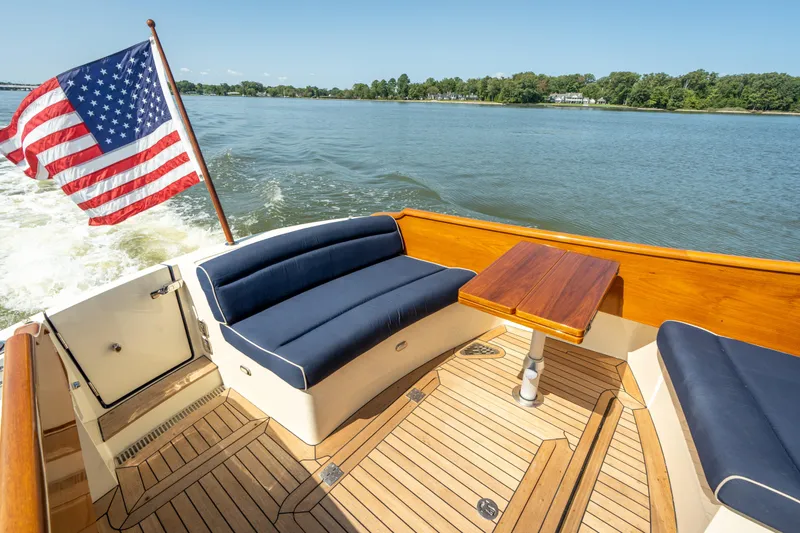

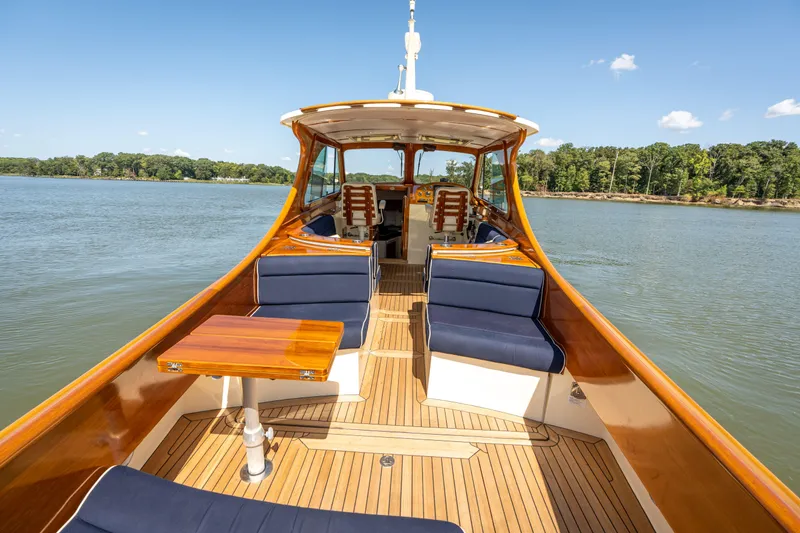

COCKPIT

The cockpit features comfortable and spacious seating with both forward and aft facing seats. A transom door provides easy access to the swim platform and makes boarding easy.

Cockpit features

• Cushions covered in Sunbrella Navy with Vellum Piping
• Natural teak sole with black caulk

• Varnished teak coaming cap and coamings

• Starboard transom door from swim platform
• Hinckley custom built teak step box to aid boarding on port or starboard side
• Freestanding varnished teak table with folding leaf top
• Removable pedestal table base in cockpit sole, adjustable height
• Cockpit shower with hot and cold mixing valve at transom door
• Insulated transom ice chest
• Courtesy lights
• Polished stainless steel scuppers for self-bailing cockpit
• Transom storage locker
• Ivory Stamoid cockpit cover (new 2024)

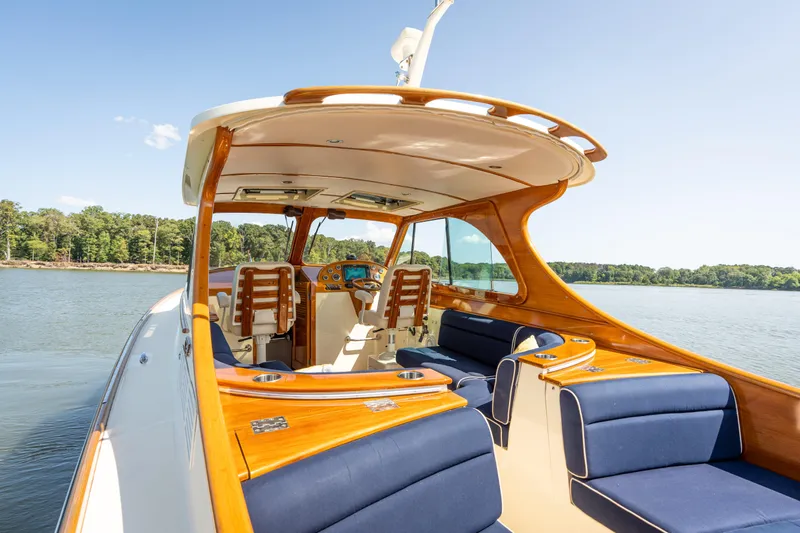

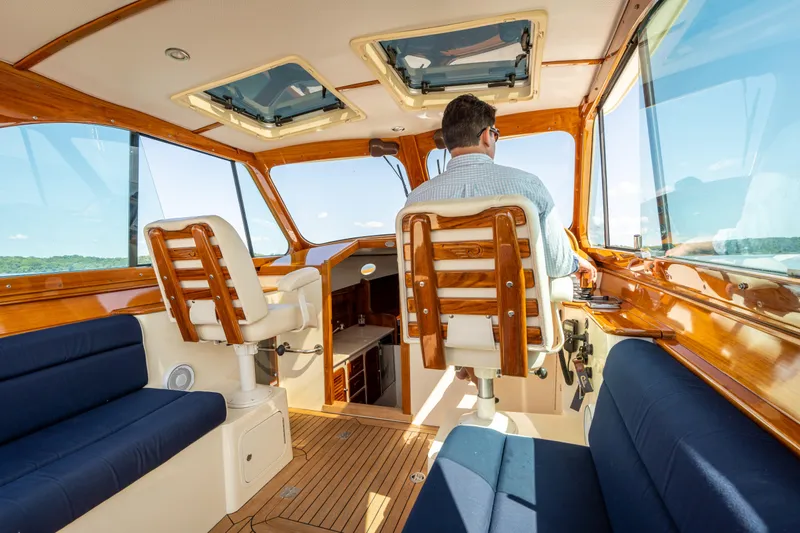

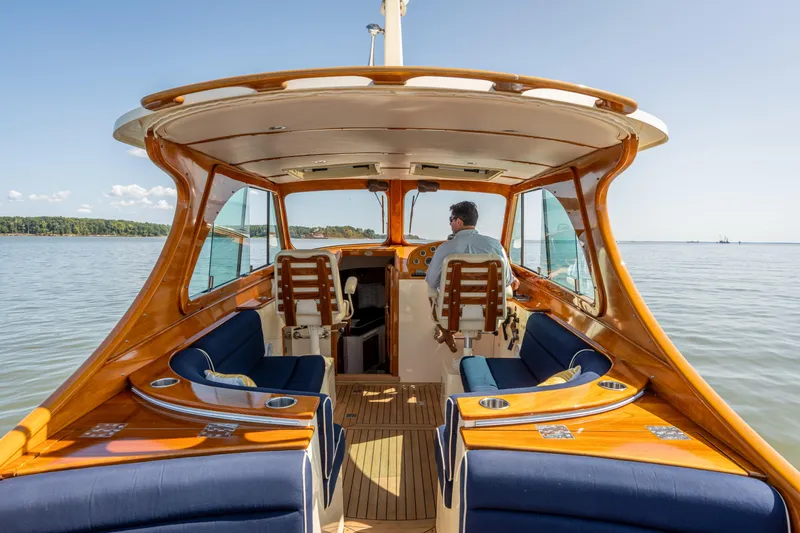

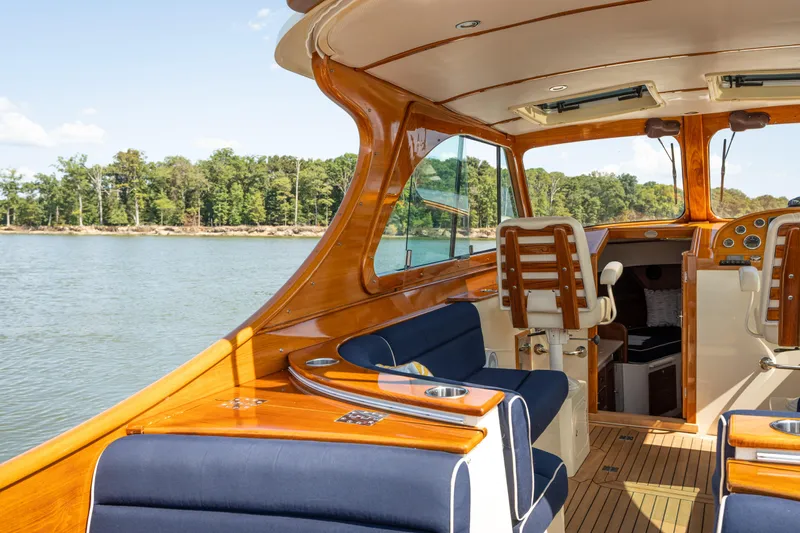

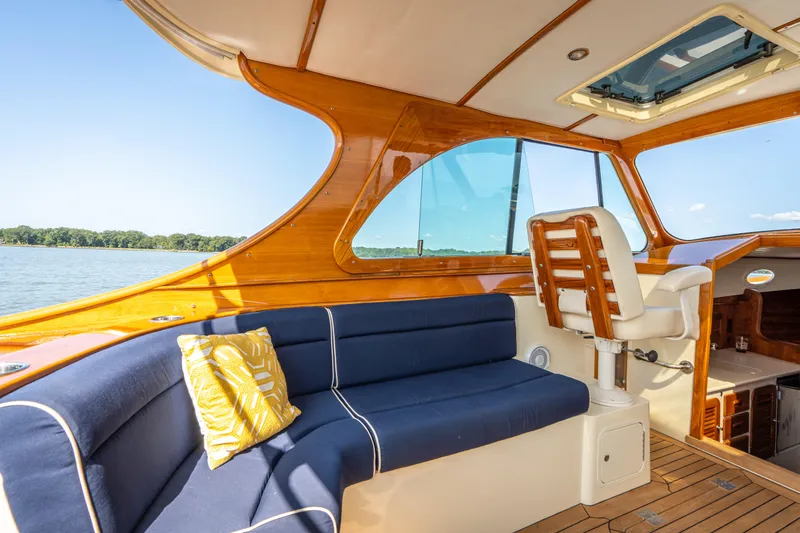

THE PILOTHOUSE

• Gloss varnished teak package- pilothouse liners, dash instrument pod, and window frames
• Natural teak sole with black caulk
• Four (4) Hinckley custom oversized frameless pilothouse windows- two fixed front windows and two manual sliding side windows
• Pilothouse front windows have heavy duty, self-parking, intermittent windshield wipers and freshwater washers
• Two (2) manual oversized aluminum hatches on pilothouse top; adjustable arm allows hatches to be held open when boat is underway for outstanding ventilation

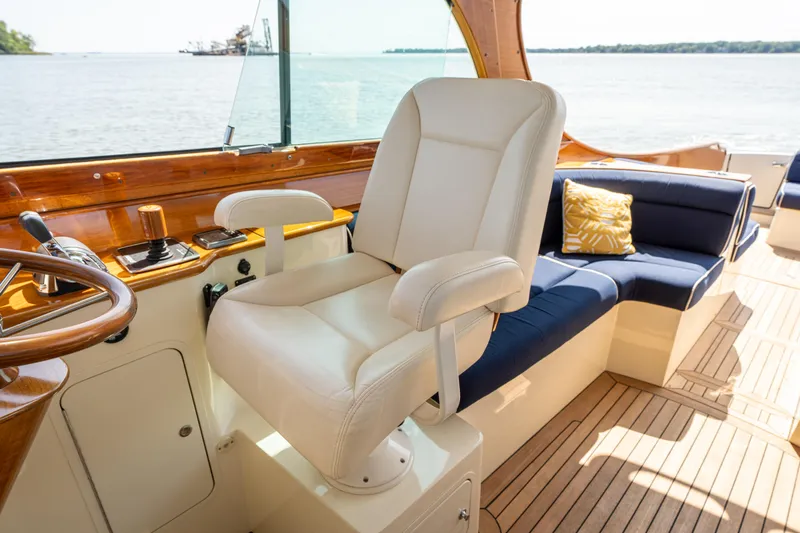

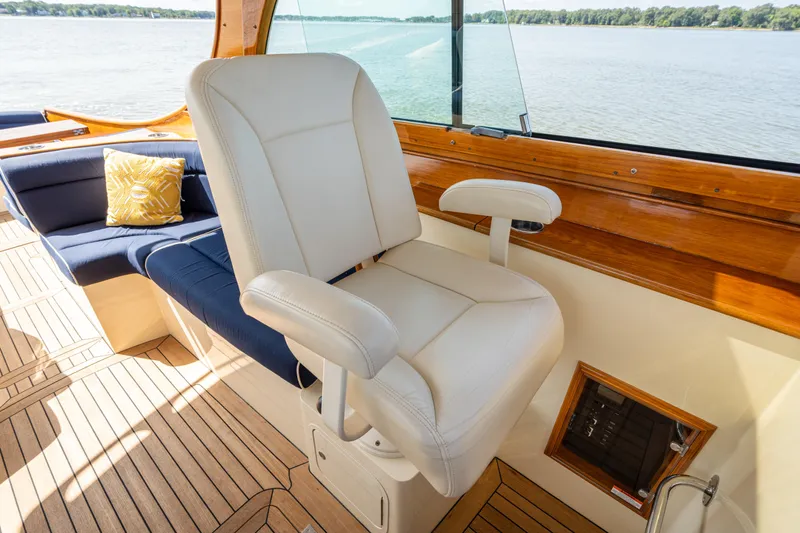

• Two Hinckley custom manually adjustable ladderback seats port and starboard upholstered with Ivory Ultraleather
• Cushioned settees port and starboard covered in Sunbrella Navy Blue with Vellum piping
• Lightweight sound-dampening headliner with varnished battens
• Five (5) overhead low-voltage halogen lights on dimmers
• Storage under pilothouse settees, port and starboard
• (6) cup holders in the pilothouse and helm area
• Varnished teak locking companionway door (hinged top removes and stores in head locker)

• Stamoid 3-piece drop curtains with Isinglass windows
• Stamoid window covers for pilothouse side and front windows

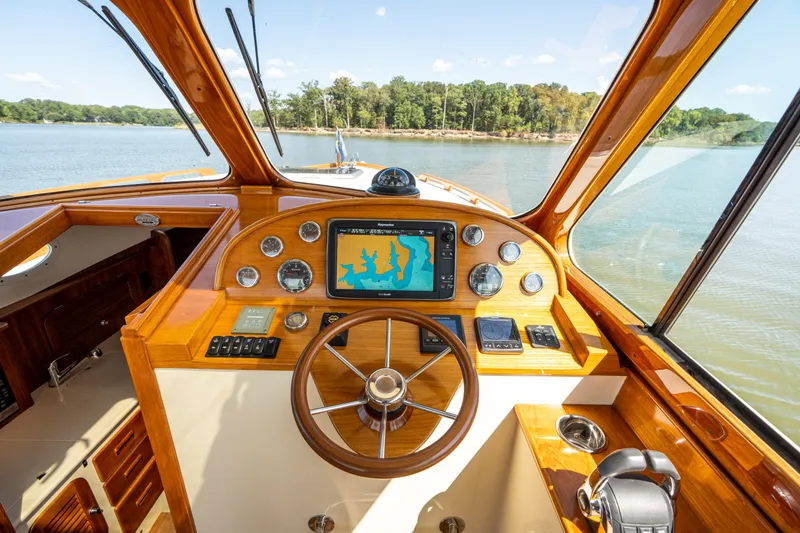

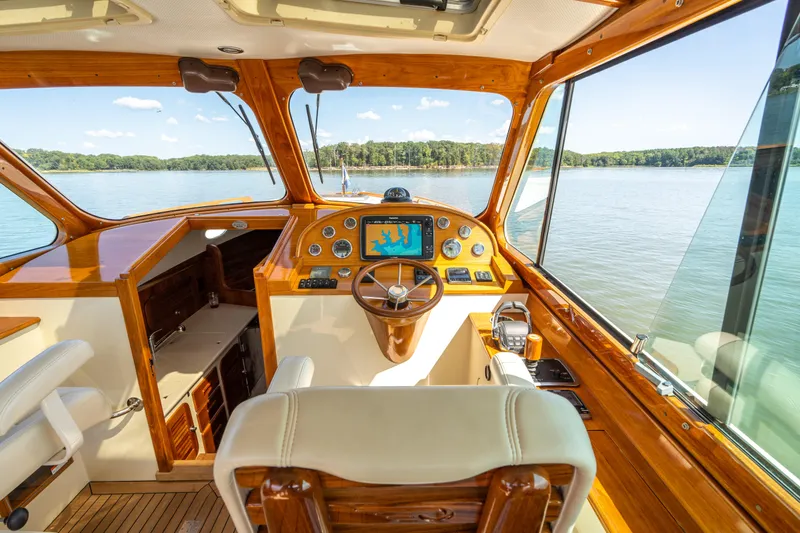

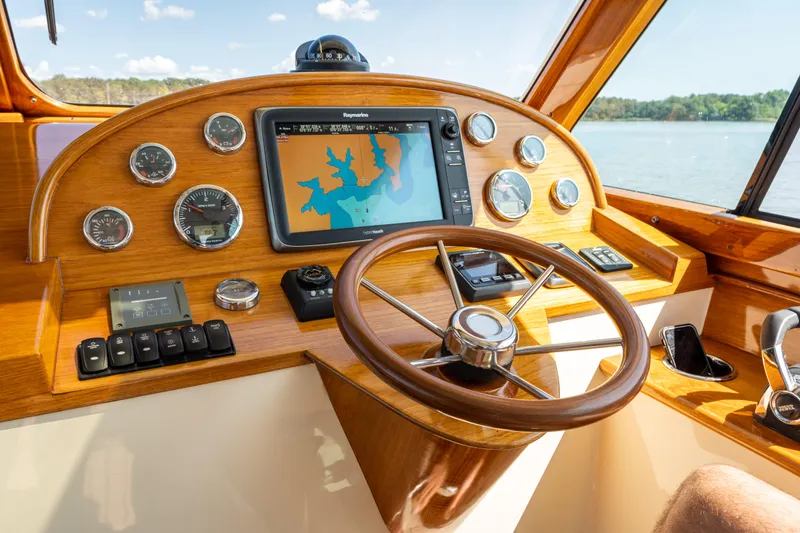

Helm Station (Starboard)

• Varnished teak instrument pod and dash
• Stainless steel steering wheel with varnished wood rim
• Hinckley JetStick II® which integrates forward and aft motion, steering, and bow thruster into single joystick
• Volvo dual throttle and shift control binnacle
• Engine gauges, tachometer with digital engine data display, oil pressure, cooling water temperature and fuel level
• Glove box to starboard for storage of small items
• Storage compartment under helm seat with door on inboard face
• Manually operated sliding side window and overhead hatch
• 12-volt cigarette style outlet in helm glove box and outboard of helm seat
• Stainless steel cup holder at forward end of starboard shelf

Helm Station (Port)

• Manual sliding side window and overhead hatch
• Storage compartment under port helm seat with door on inboard face
• Hinckley custom helm seat to match starboard
• Glove box for storage of small items
• Vessel shore power selection and breaker panel

Helm Electronics and Navigation Equipment

• Upgraded Raymarine e125 12.5” HybridTouch multifunction display with radar/chart plotter
• 4kw digital radar, differential GPS antenna painted to match deck
• Raymarine p70 Autopilot interfaced to GPS/Chartplotter
• Raymarine i70 data display panel
• Raymarine AIS 650 system
• Standard Horizon VHF radio with RAM mic, mounted inside helm access door
• ACR remote spotlight on stainless steel mount on mast
• Lenco dual stainless steel electric tab system
• Exalto heavy duty wiper system control panel with integrated wash function
• Fireboy fire suppression system override panel
• Ritchie compass mounted at helm

Entertainment Electronics

• Clarion M508 marine stereo receiver with Bluetooth input (new 2024)
• One pair of speakers in the pilothouse
• One pair of speakers in the aft cockpit
• One pair of speakers in the cabin

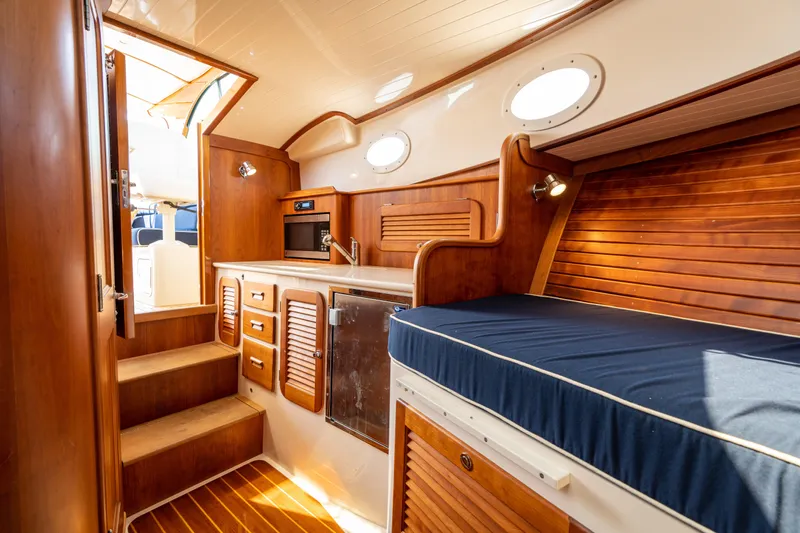

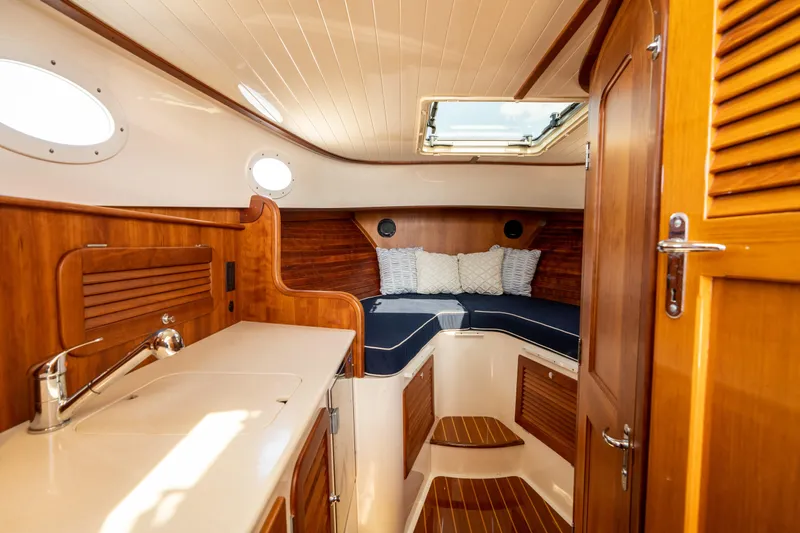

INTERIOR BELOW

Entry to the cabin below is through the pilothouse companionway and down two steps. The galley to port, private head to starboard and the V-berth accommodations forward. The interior is finished in satin-varnished cherry. The cabin sole is varnished teak and tulipwood. Louvered cherry locker doors and multiple bulkheads and lights add to the cabin ambience. An opening hatch and three fixed and one opening port light add natural light and visibility, and ventilation when desired.

The companionway door is louvered and the top folds out of the way and removes easily from the bullet hinges for easy storage in the head.

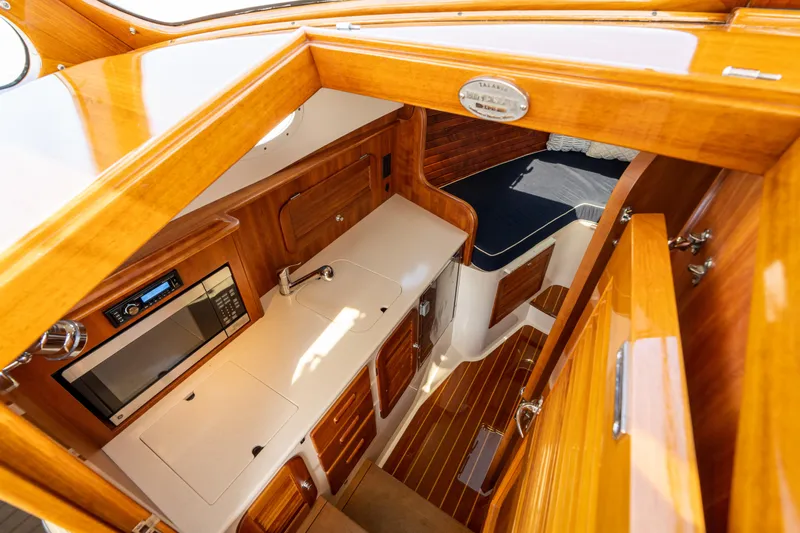

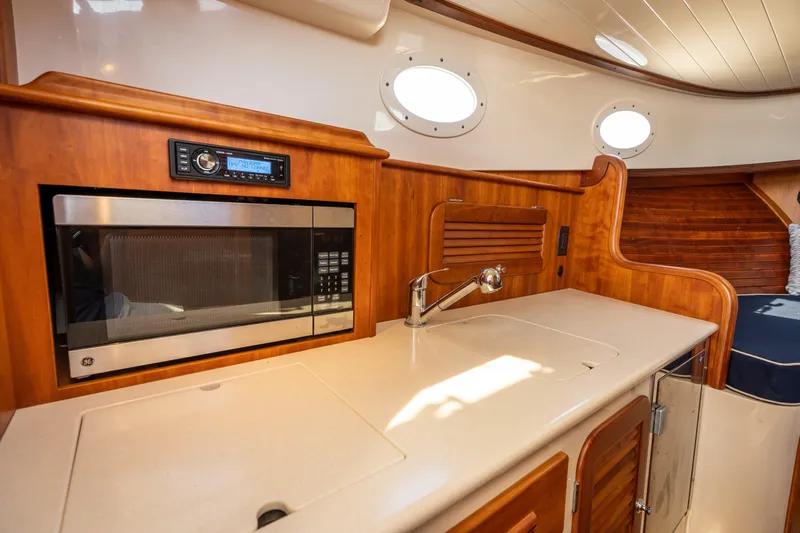

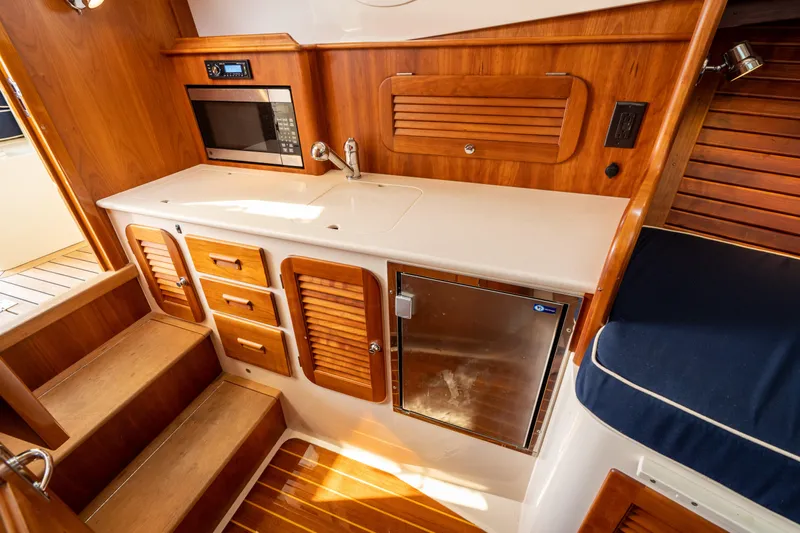

GALLEY (Port)

• Abalone Corian countertop
• Single under mounted polished stainless-steel bowl with Corian cover
• Single lever faucet with integrated sprayer nozzle
• Hot and cold pressure water

• Stainless-steel front-loading refrigerator
• 110 VAC microwave
• 110-volt outlet
• 12v outlet

• (3) Cherry pullout drawers
• Large pantry locker outboard with cherry door

• Additional storage outboard and under the galley sink
• Red step-light in galley
• Companionway steps are hinged to access storage space below
• Trash bin mounted below cooktop behind cherry door aft in galley
• Fixed port light
• Bulkhead mounted 12V led light

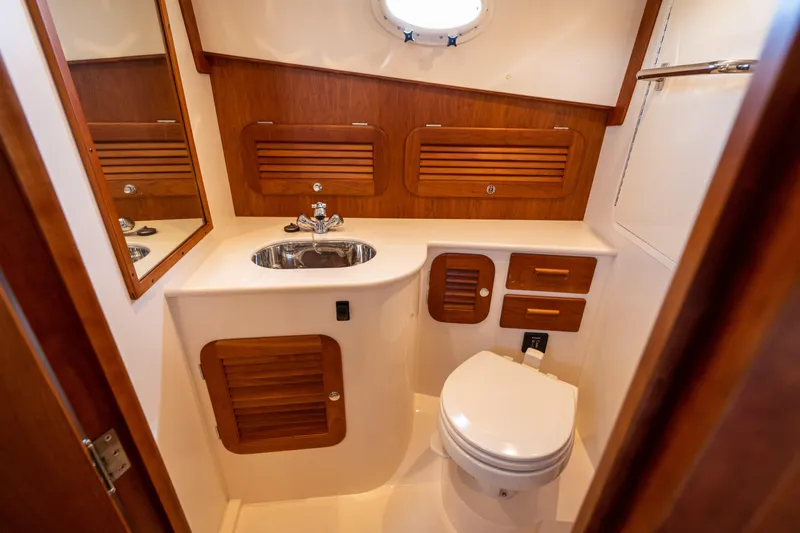

HEAD (Starboard)

• Solid cherry paneled door
• Molded fiberglass sole for easy cleaning
• Abalone Corian countertop with under-mounted stainless-steel sink
• Grohe faucet/handheld shower provides hot & cold pressure water
• Vacu-Flush electric marine head is plumbed to a 28-gallon polyethylene integrated holding tank with deck fitting
• Holding tank level indicator
• Mirror on the forward bulkhead with cherry frame
• Storage in cherry faced lockers above and below counter
• Hanging locker and drawer storage aft and inboard
• Opening port with screen
• (2) overhead lights with dimmer
• Towel bar
• Storage for companionway hatch hanging locker

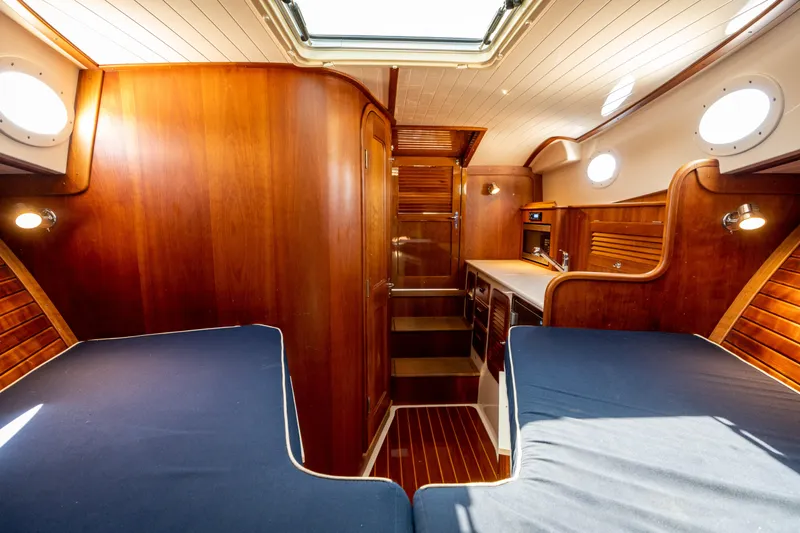

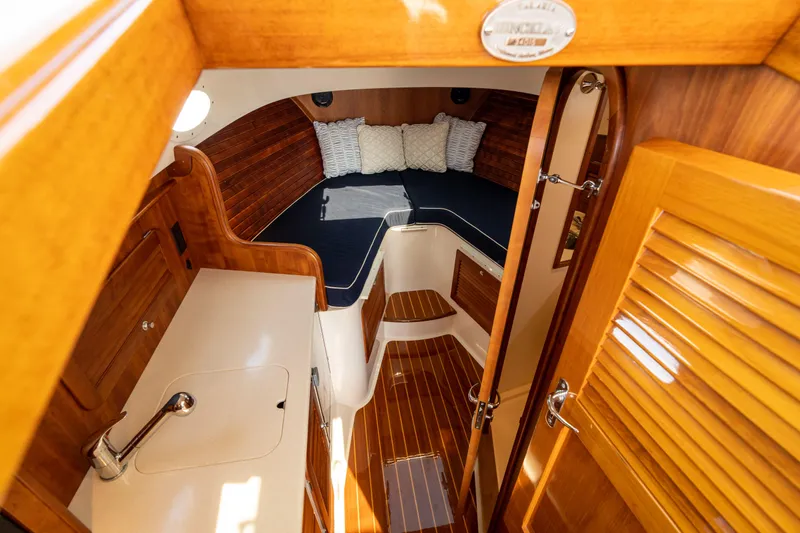

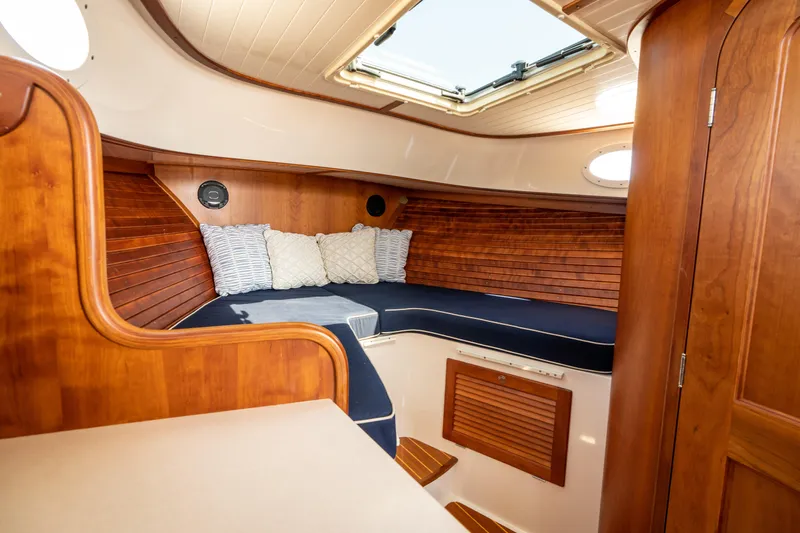

V-BERTH (Forward)

• V-berth upholstered in Sunbrella Navy with Vellum piping
• Insert forms comfortable double-size berth
• Storage lockers under V-berth has easy-access cherry drop-front doors
• Large storage compartments located mid and forward areas of the berth
• Overhead opening hatch
• Two (2) entertainment speakers mounted at head of berth with independent zone control

• Two (2) bulkhead mounted lights

ELECTRICAL SYSTEM

Low resistance, copper wire and sacrificial zinc anode bonding system.

12-volt system:

• Start – Two 12-volt AGM Group 31 batteries with 880 CCA capability each
• House – Two 12-volt AGM GPL-4DA – 210-amps each
• Heavy-duty battery parallel switch allows emergency starting
• Two 150-amp 12 Volt D.C. alternators, one for house batteries and one for starting batteries
• 12-volt distribution panel using thermal-magnetic breakers with volt and amp meters

120-volt system:

• 30-amp – 110v shore power cord
• Victron 12/2500-100 combination inverter charger
• Victron 30a start battery charger

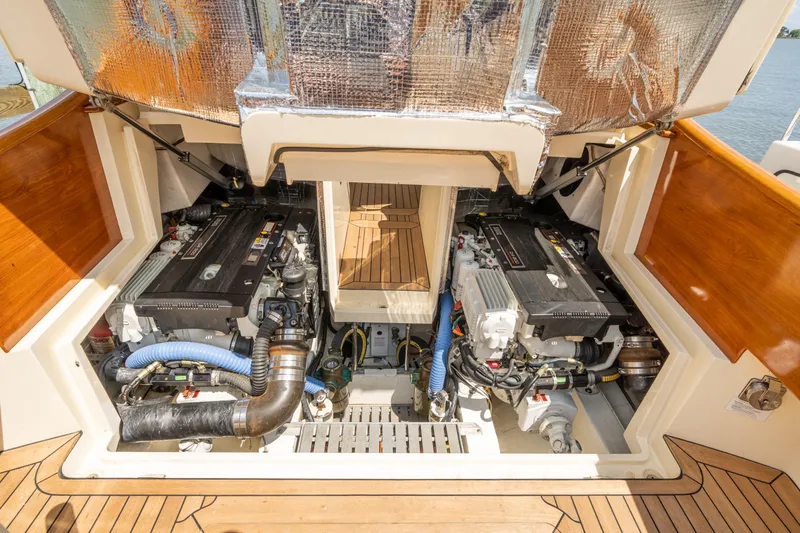

MECHANICAL EQUIPMENT

• Optional twin Volvo D4 300hp diesel engines
• Starboard engine replaced by Hinckley in 2023 @ 573 hours

• Hamilton 242 Jet Drives
• Twin ZF 63c transmissions
• Hinckley custom JetStick II ® control system with heading lock is integrated with the proportional electric bow thruster
• Proportional electric 7” bow thruster
• Dual cylinder stainless steel trim tabs with indicator controls at helm
• Analog fuel, oil pressure, and water temperature gauges
• Digital multi-function engine display
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure

• Power assist hydraulic steering system
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high-water alarm
• Whale emergency bilge pump - mounted in engine room and accessible through the day hatch
• In-line 12-volt automatic shower sump pump
• 28-gallon polyethylene holding tank
• 3-gallon stainless steel hot water heater – shore power and engine heated
• 35-gallon polyethylene water tank
• 160-gallon polyethylene fuel tank
• Mylar-faced acoustical foam-lined insulation in engine room and on bridge deck hatch
• Engine room forced-air exhaust fan
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shutdown

ADDITIONAL EQUIPMENT

• Varnished bow burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole & flush socket
• Boat hook - mounted under side deck
• Dock lines
• Fenders with fleece covers
• Cockpit shower/water outlet with hot & cold mixing valve
• Life jackets
• Fire extinguishers
• 12-volt air horn with switch on dash
• Hinckley teak boarding step

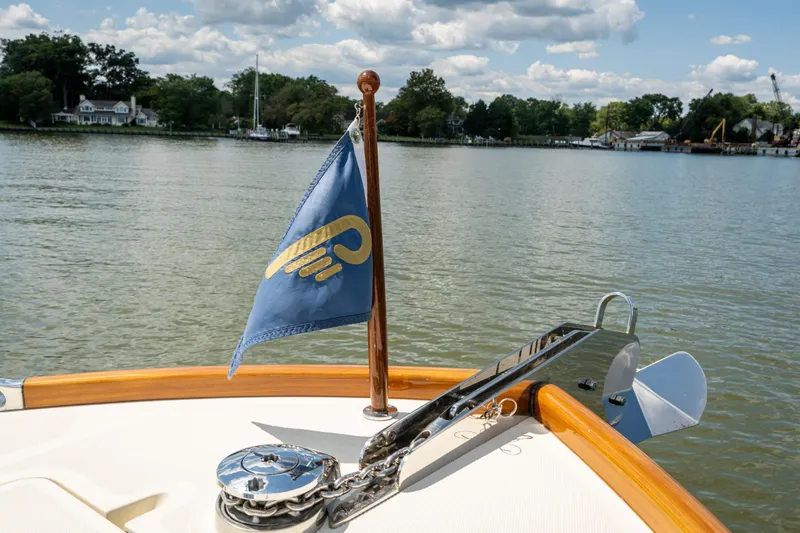

Ground Tackle System

• Maxwell electric windlass package
• Foredeck anchor locker with electric windlass
• Polished stainless steel Delta 22# anchor + 25’ stainless steel chain & 150’ anchor
• The windlass can be operated from the helm station or a handheld remote
