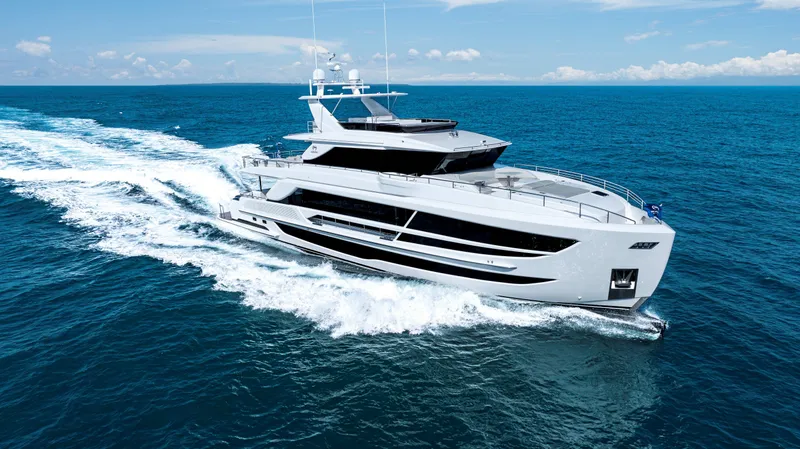

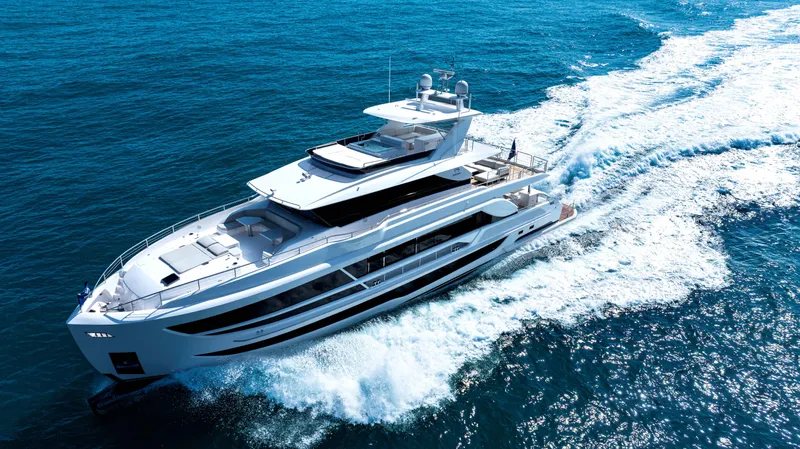

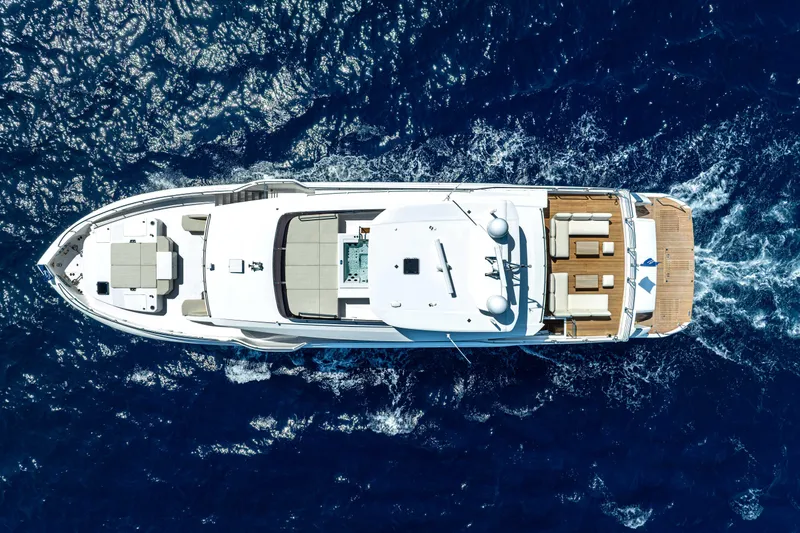

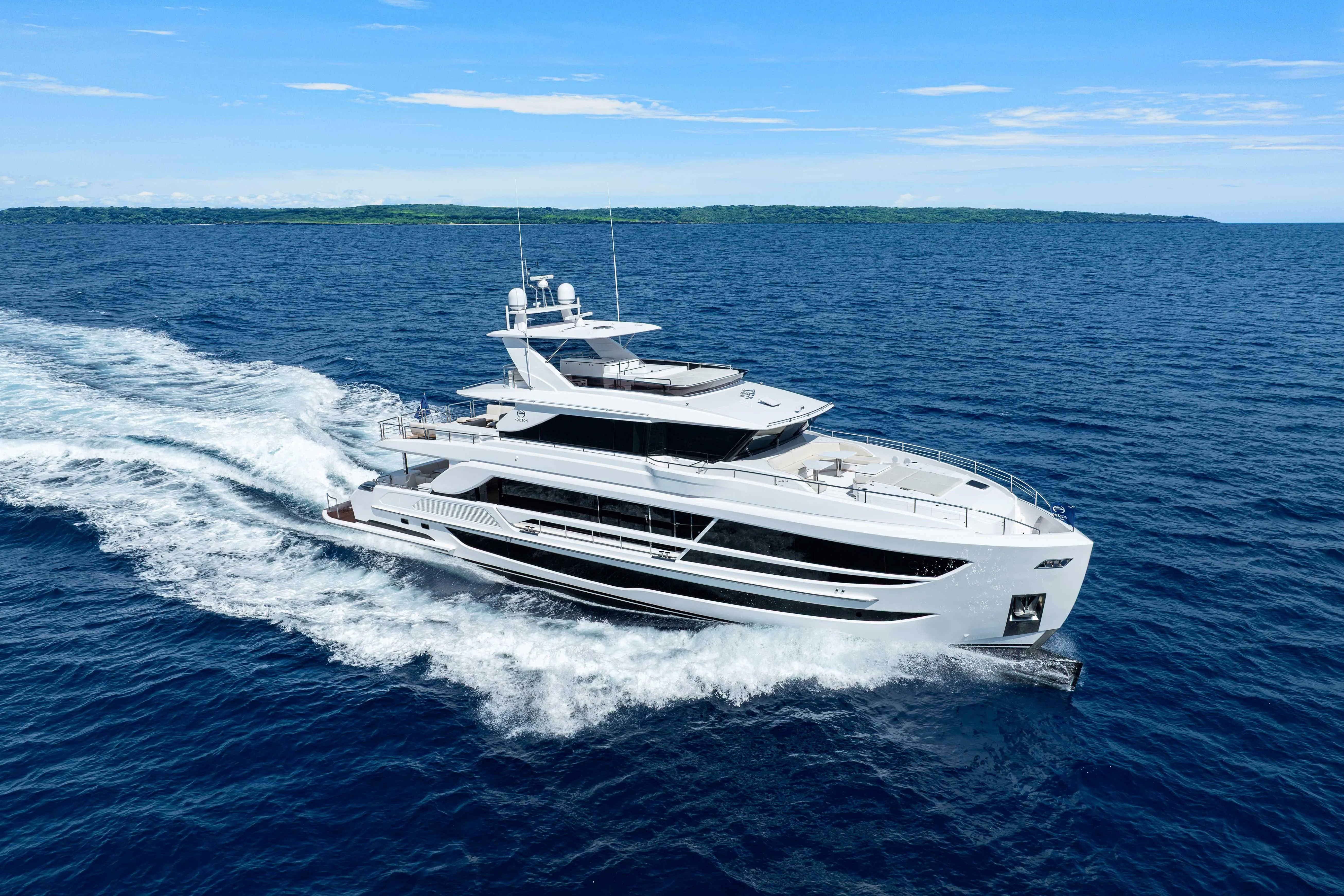

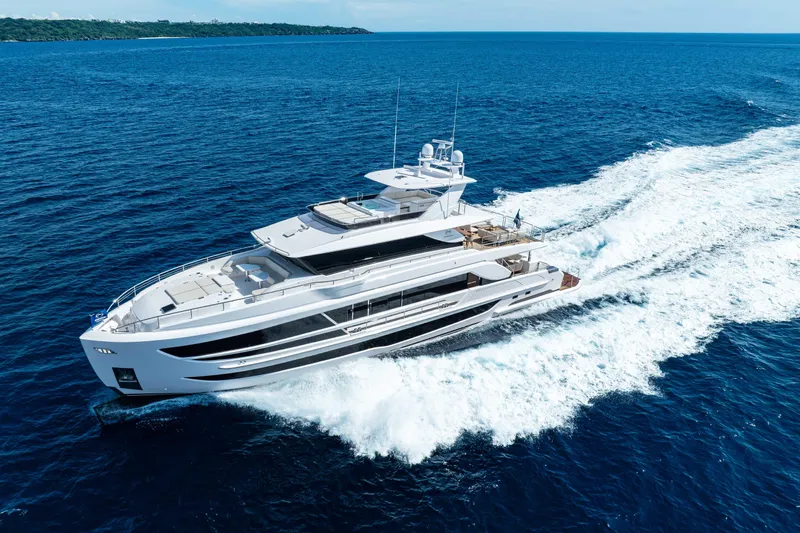

HORIZON FD100-914 Yacht for Sale

White gel coat finish

One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers

Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density Divinycell or equivalent foam cored hull sides, decks & superstructure

Stringers with high-density foam coring

Interior structural components all properly bonded to hull

Strong collision bulkhead for extra safety International brand anti-fouling bottom paint w/ anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump-out design at PORT and STBD side

Asymmetrical skylounge design for wider beam to STBD side

Teak aft deck & non-skid foredeck

(2) ACCO 1/2” High tensile 350’ anchor chains

(2) 110kg S/S anchors

(2) Maxwell VWC 3500 windlasses

Frameless windows, slightly tinted tempered laminated Low-E glass for windshield

Frameless windows, tinted tempered laminated glass for side windows

Foredeck accessed from STBD staircase/walk around on main deck

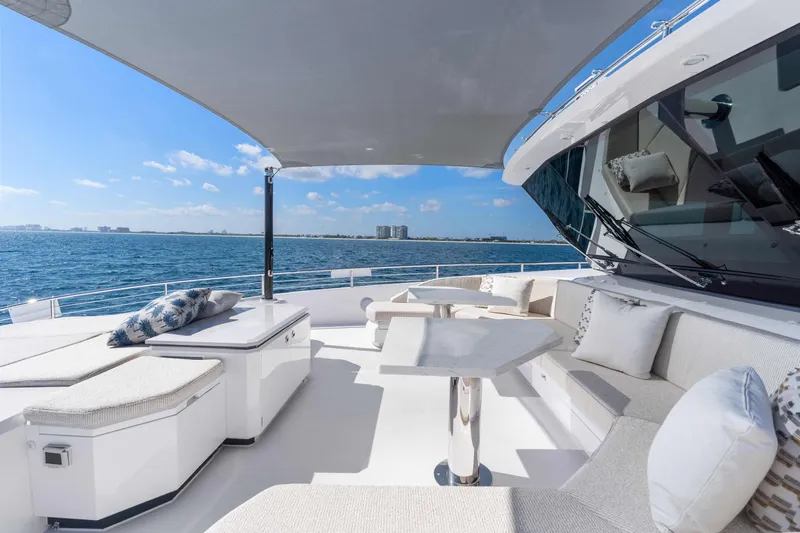

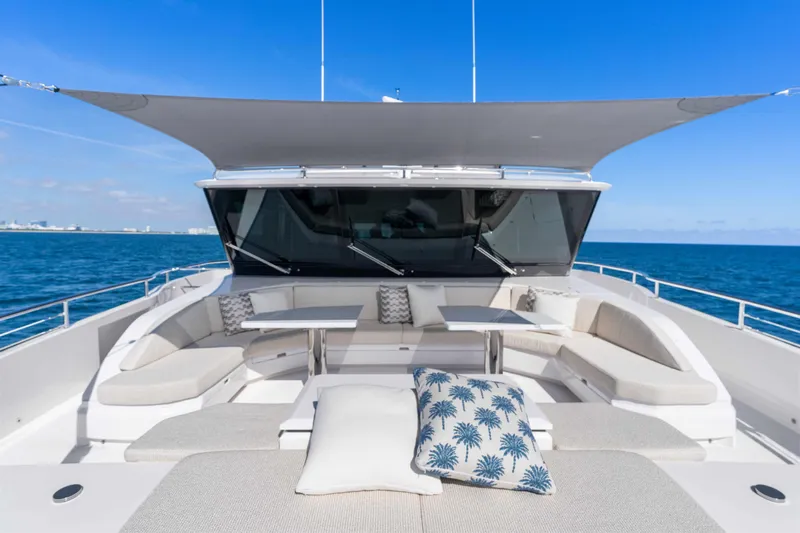

Foredeck built-in U-shaped seating w/sliding tables

Foredeck sun pad w/ fold-up backrest and drink holders

Sunshades for foredeck seating, per layout

Freshwater & seawater anchor chain washdown system

(2) Maxwell VC2500 electrical rope capstan on aft deck

(2) Chain counter in pilothouse

(2) Bulwark side doors close to aft deck for boarding

Wind/weather door on each side of the aft deck leading forward to the side decks

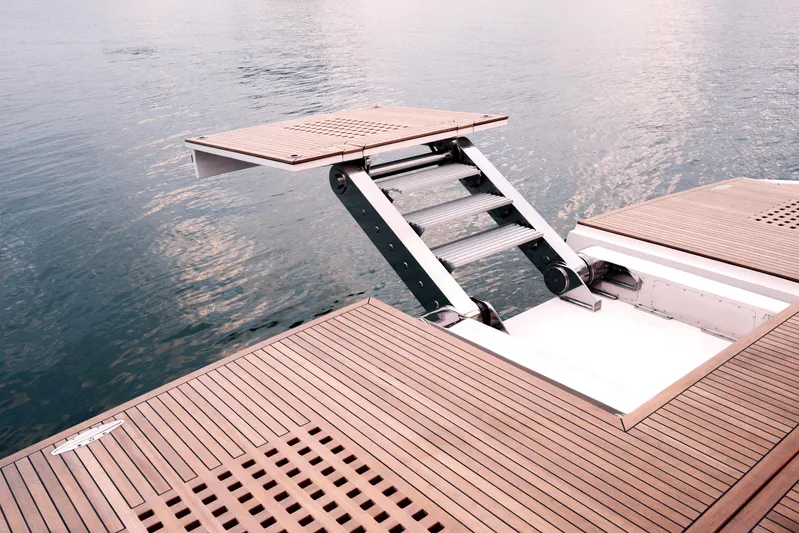

MarQuipt 7-step side boarding sea stair

43" electrical flip-down TV to the aft deck

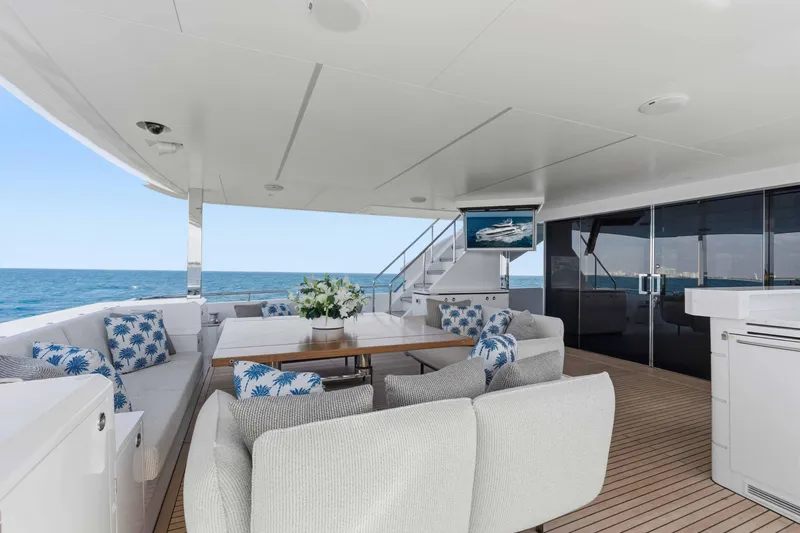

Teak floor w/ wet storage & wet head

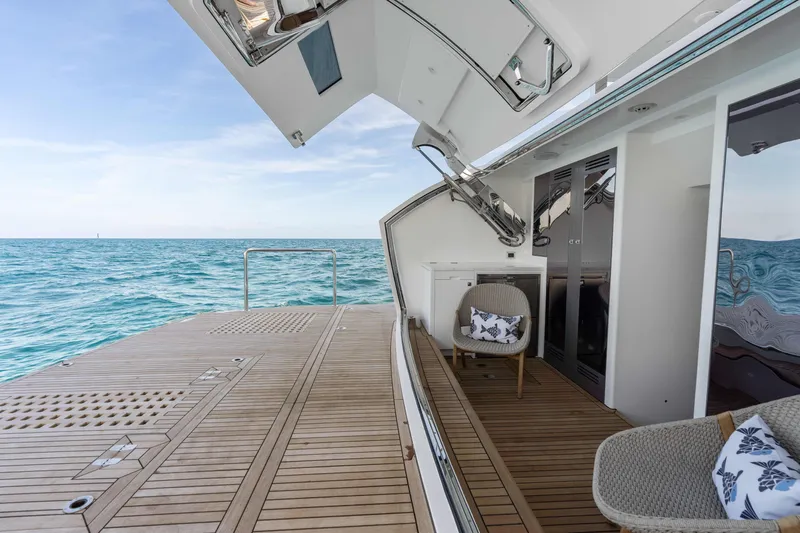

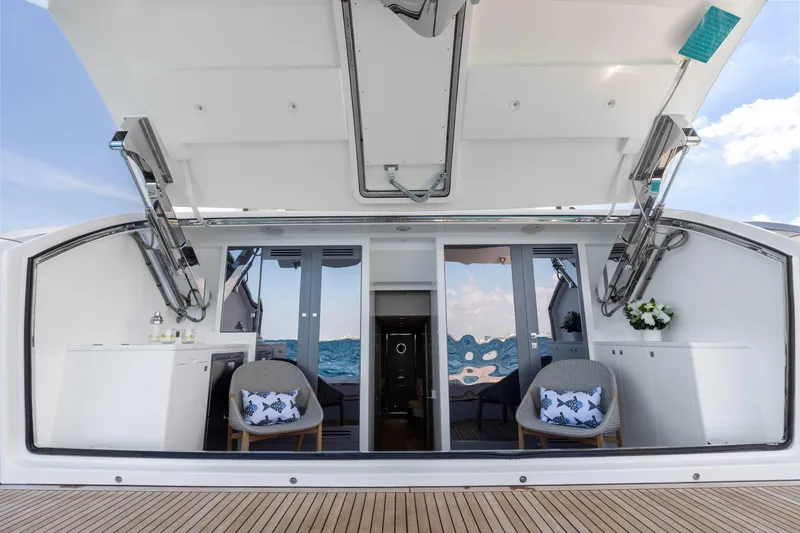

Hydraulic door w/ a rain shower underside of the door & a pantograph door in the middle

Teak steps to swim platform

Hydraulic Hi-Lo swim platform (1,500lbs lifting capacity) w/ custom transformer (440lb lifting capacity)

(2) Removable corner rails w/ extra sockets

Enclosed skylounge w/ separated pilothouse forward

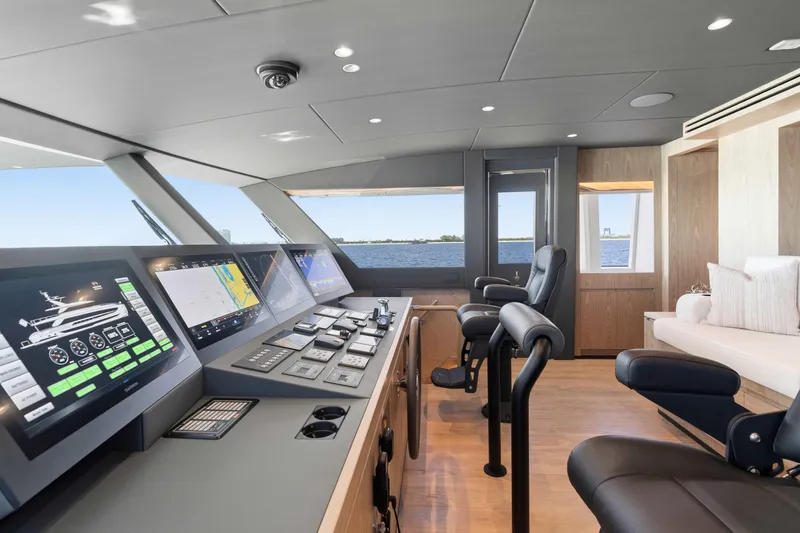

Pilothouse w/sofa, (2) helm chairs, and leaning post (incl. pre-engineer for 3rd helm chair

for future installation)

Custom-designed helm w/ full set of engine gauges, monitoring system for important equipment,

fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system, bilge pump panel & navigational lights

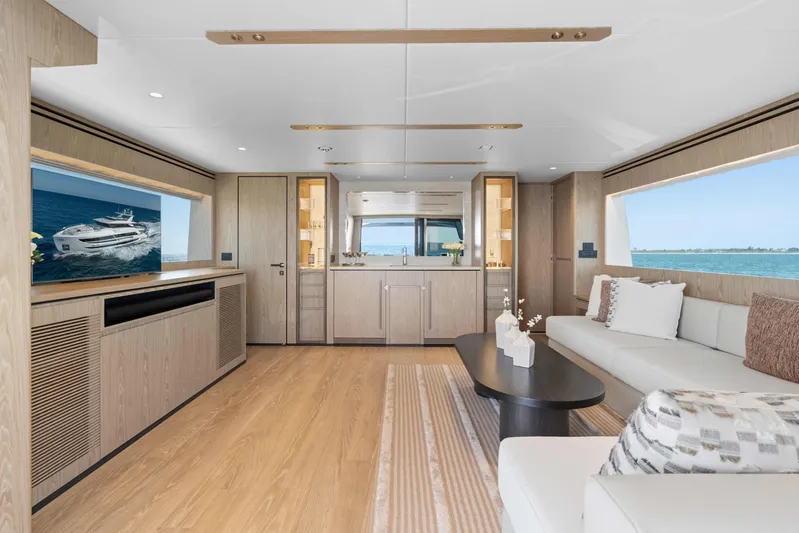

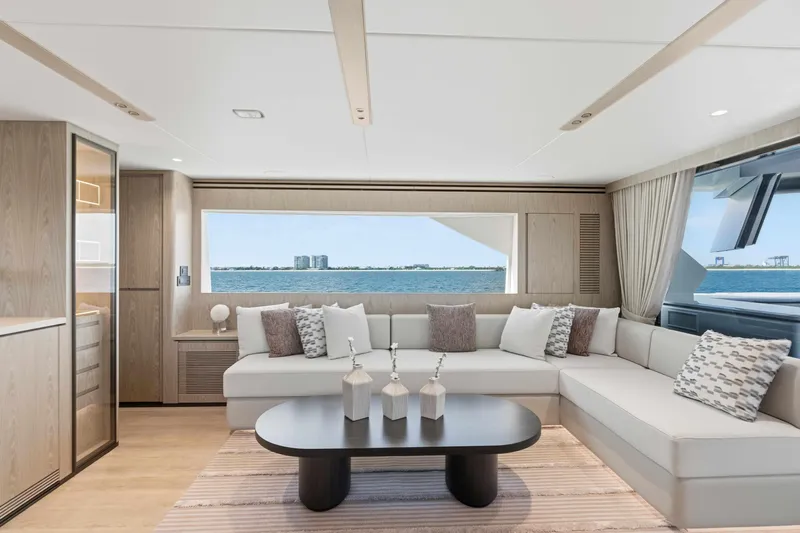

Skylounge w/ L-shaped sofa, wet bar, sink, (2) SubZero under-counter refrigerator/freezer, and two glass lockers

Day head

Walk-around bridge design—PORT side leads forward to bow deck

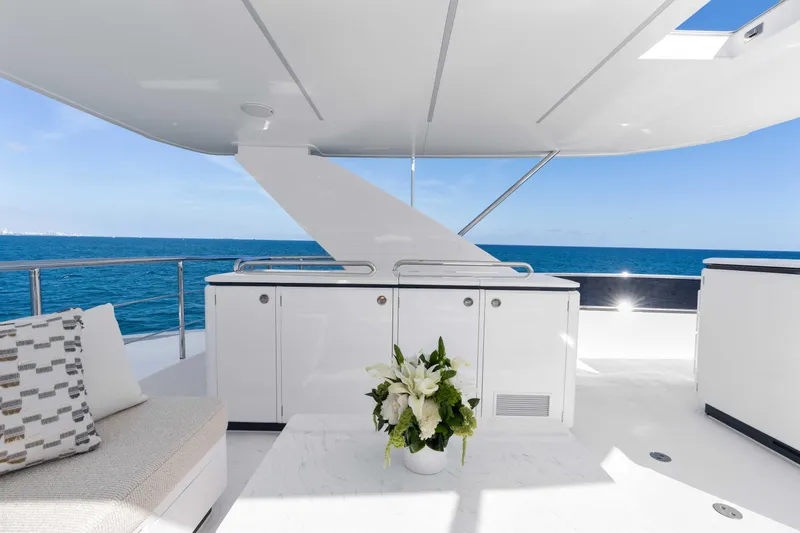

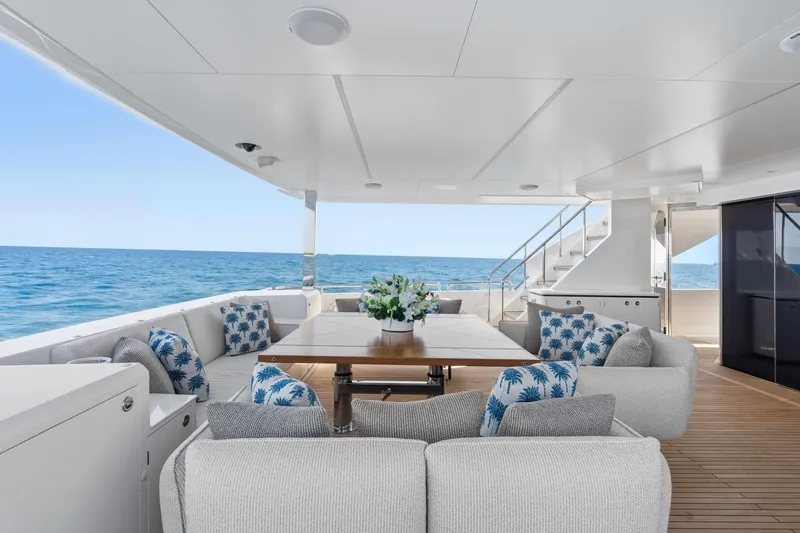

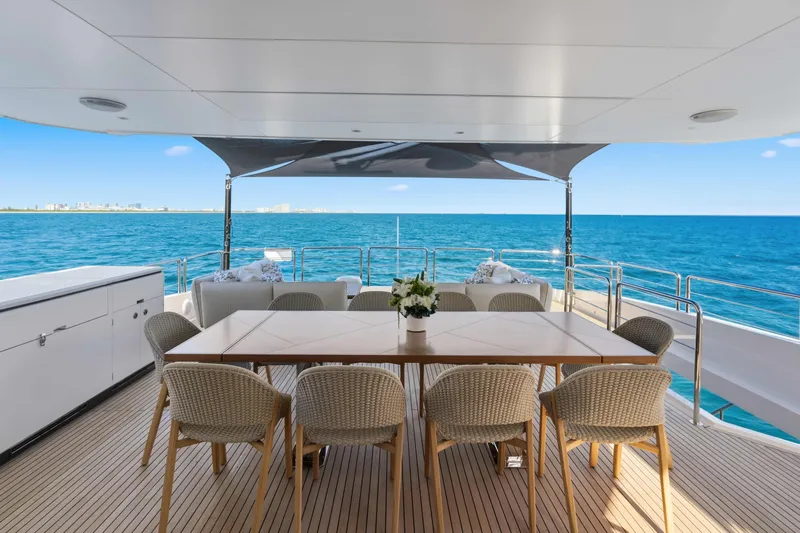

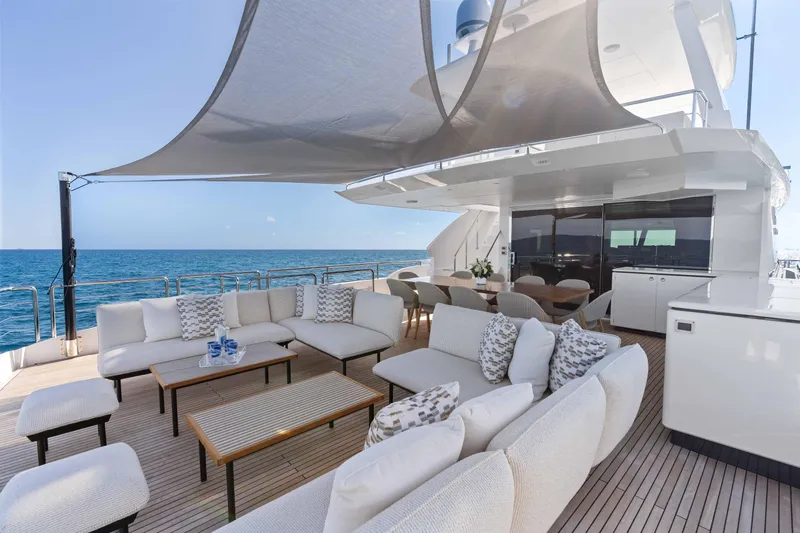

Teak boat deck w/ dining table & chairs (for max 10), rear full-beam U-shape sofa, STBD wet bar w/ sink, refrigerator, ice maker, 24” propane BBQ, and 43” electrical fold-up TV

Pre-engineer for future Davit installation (2,500lb capacity) at STBD rear corner

Sunshade for boat deck area, per layout

Non-skid deck

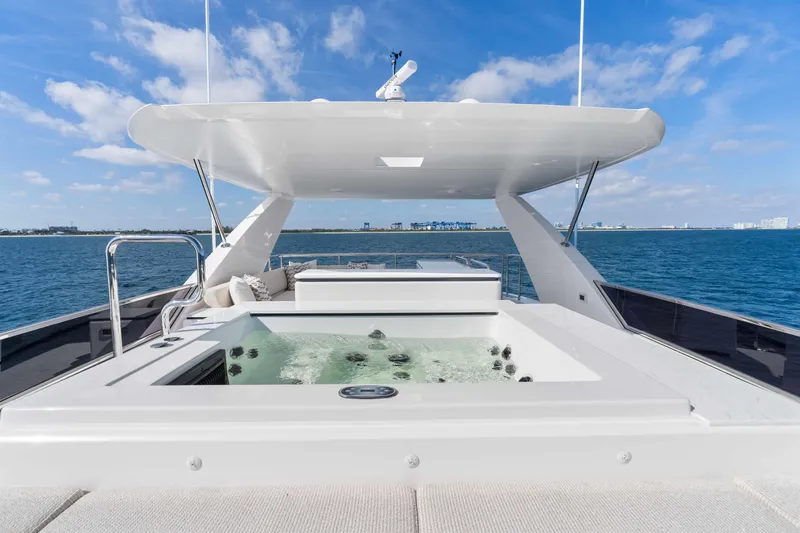

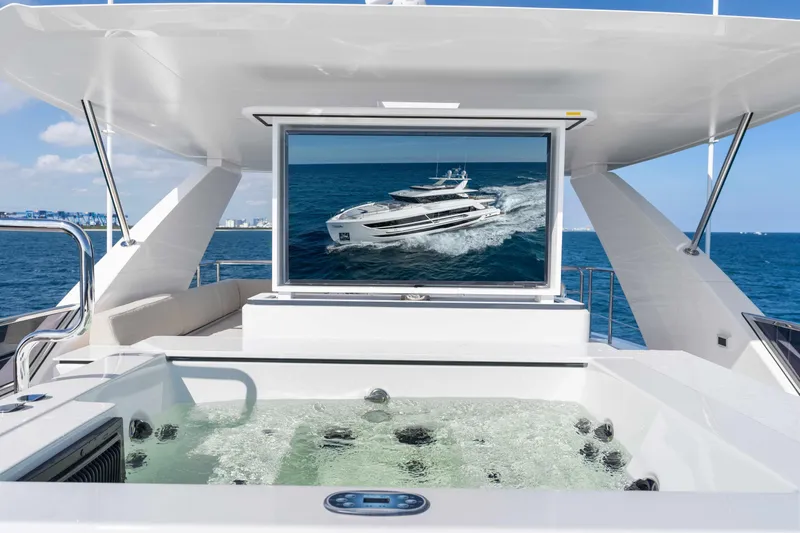

Jacuzzi w/ 55” Hi-Lo TV aft and sunpad w/ fold-up backrest & safety rails forward

Wet bar with sink, fridge, ice maker

Aft FRP seat w/ a table

Radar arch with antenna bracket

Windshield with S/S frame

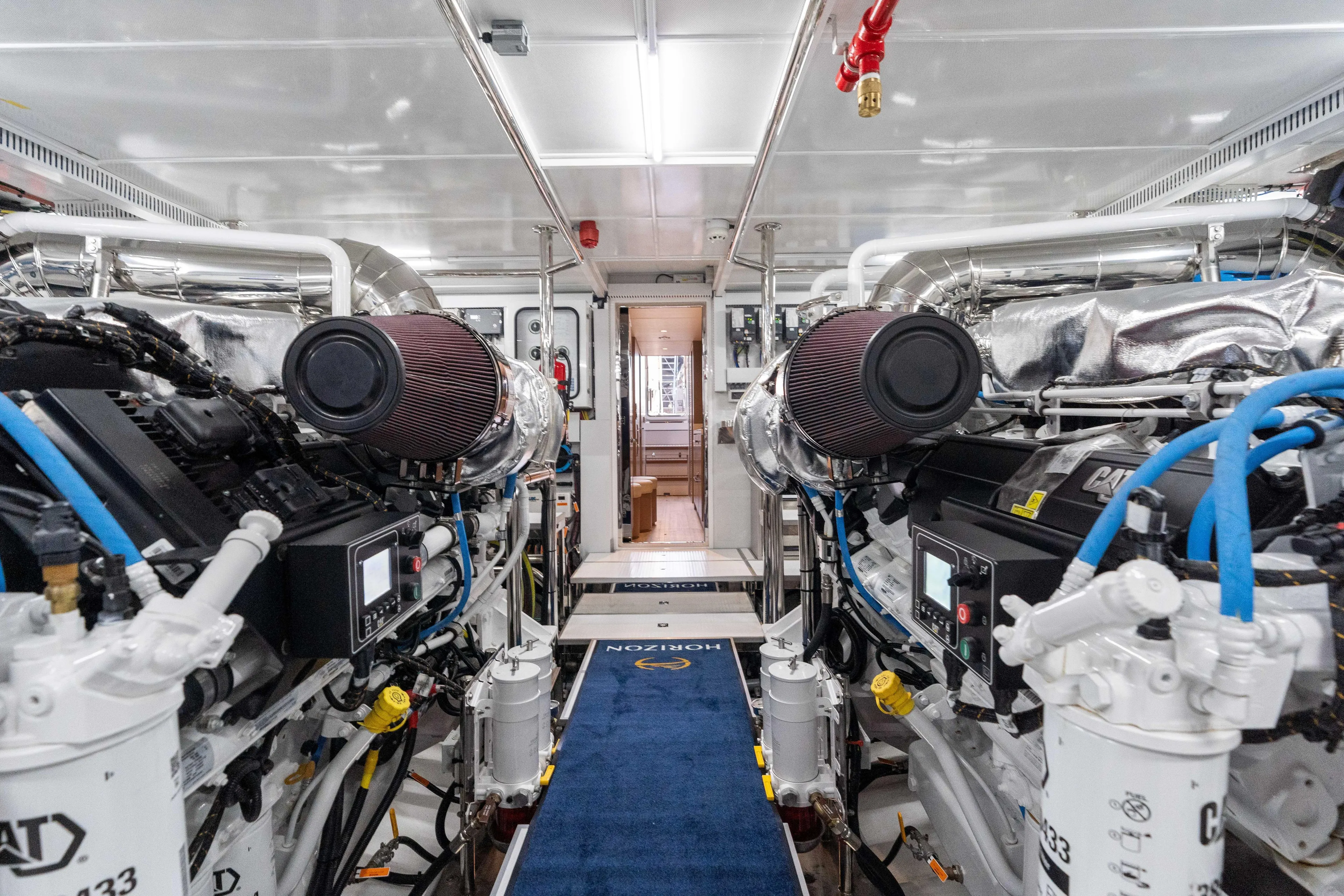

Twin CAT C32A 1,900HP (no SCR)

Side Power SPS96B/VF1950 stabilizers

Side Power SH770 bow thruster + SH550 stern thruster

Zipwake interceptor system

Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

High-performance S-class 5-blade propellers

Bronze struts w/ backing plates

Shaft and Rudder packing glands w/ Tides Marine dripless seals

Tethered remote handheld controller w/ 4 plugs (location: tri-deck, aft deck, pilothouse & boat deck)

Seastar Optimus Steering System

Underwater exhaust system for engines w/ bypass mufflers

Engine room clean design with lightweight honeycomb floor

Heavy-duty Insulated engine room door

S/S overhead grab rail on each side of the engine

Anti-noise treatment to exhaust system

Delta-T engine room demisters

Air compressor

4,000 US gals (15,140 ltrs) fuel tanks w/ sight & electrical gauges

(2) Racor 500 MA fuel filters, one on each generator

(2) Electric fuel transfer pumps

Fuel polishing system (210GPH)

400 US gals (1,500 ltrs) FRP water tank

(2) 30-gal water heaters

High-volume AC freshwater pressure pump & back up DC pump

Spot Zero SeaXchange XTC II 1200 & Spot Zero ZTC II 2000 watermakers

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

Marine Air VFD air conditioning system

Headhunter toilet system

200 gals holding tank & deck fitting for dockside pump-out

Sump pump system for greywater

Electric level indicators for holding tank

Headhunter sanitary treatment system

Electric Rule bilge pump

High water level bilge alarm

Bilge exhaust ventilation fans

Fire insulation in the engine room

Fire-resistant treatment for pipe penetrations

Automatic fire damper system

(5) Portable fire extinguishers

Integrated fire alarm system in pilothouse, with a heat or smoke detector in each cabin

Prewire for diving compressor

(5) Honeywell dehumidifiers

GFI protection for all AC outlets in exterior, heads, galley, and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

LED lighting system throughout interior & exterior

(8) Underwater light

(2) Onan Generators 40kW (60Hz) with sound shield

Pre-wired for wireless yacht controller

Maretron monitoring and control system

Single phases 100A Auto-boost shore power transformer (x2) &100A Cable master (x2) & shore power inlet (male) 100A (x2)

(2) LED searchlight

Pre-wired for LED boat name on the stern, PORT, & STBD skylounge sides

Prewire for future FLIR M364C night vision

Sonos stereo system

AV system w/ Control4 system (for tri-deck, foredeck, Skylounge, boat deck, aft deck, Saloon, and Master stateroom)

Guest accommodations include an on-deck master stateroom, fwd. VIP stateroom, STBD & PORT VIP stateroom, PORT guest stateroom, all ensuite; low deck enclosed laundry w/ washer & dryer

Aft crew w/ 3 crew cabins (2 ensuite) w/ access to port aft deck

Customized interior package for interior décor & lighting

Full set of Wedgwood (GIO) tableware for 10, including dish holders, pot/pans, dishes, plates, knives, forks, glasses, etc.

Miele washer/dryer (x2, stacked unit at forward cabin & Crew quarter)

Extra set of bed sheets for all guest cabins, including crews

4-panel S/S electric sliding entrance door & manual sliding door to each side of the main salon

Dayhead in main salon aft

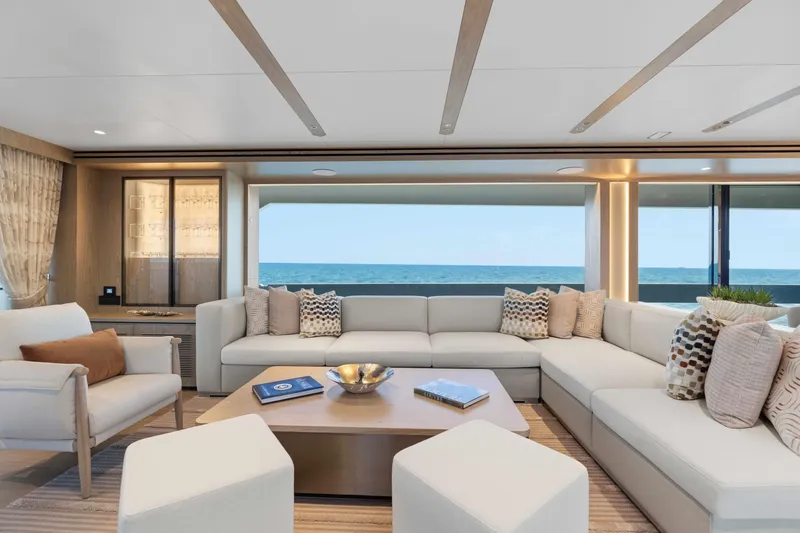

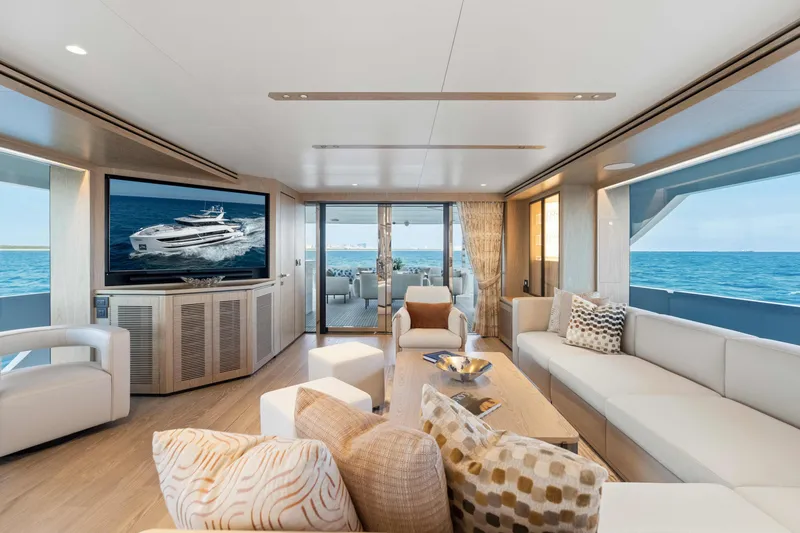

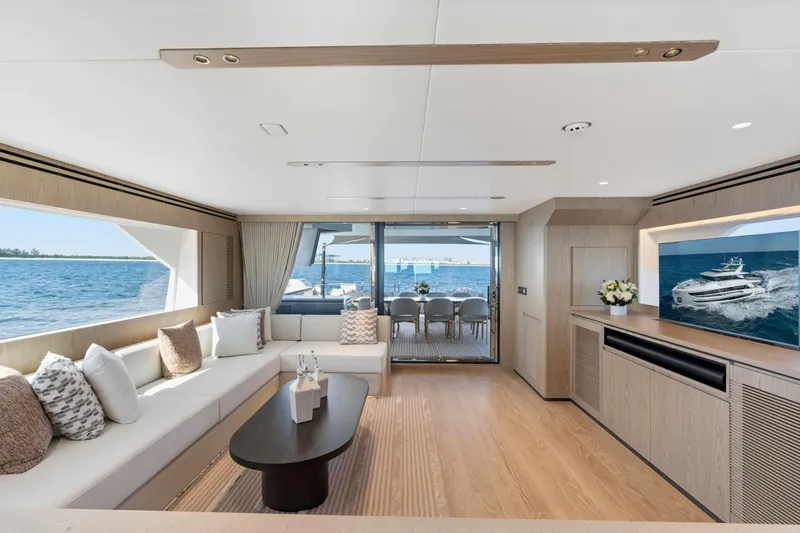

L-shaped sofa w/table, armchair, and ottomans

(2) Armchairs & side table to STBD

Custom area rug

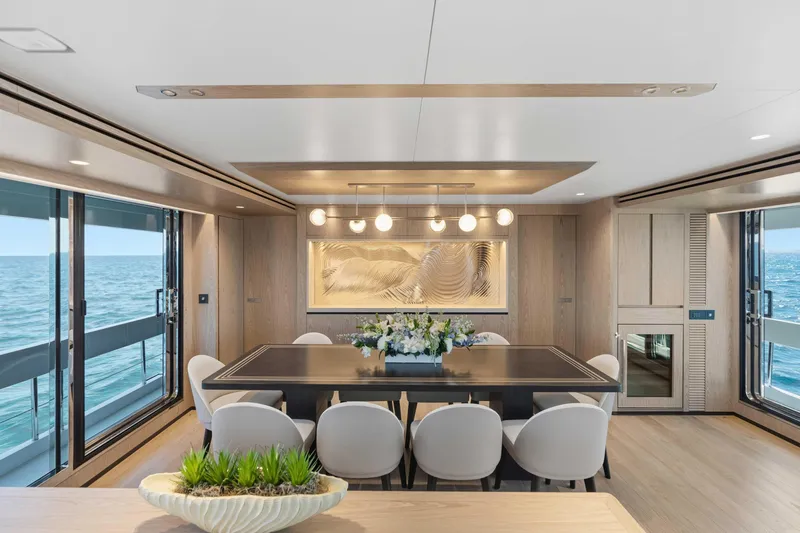

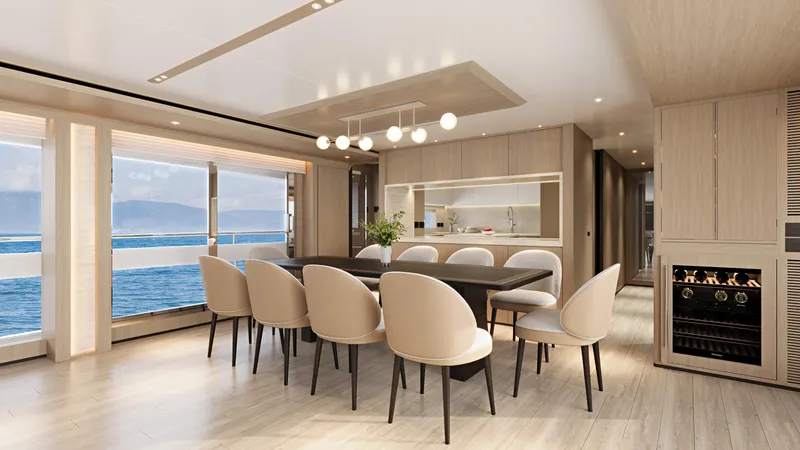

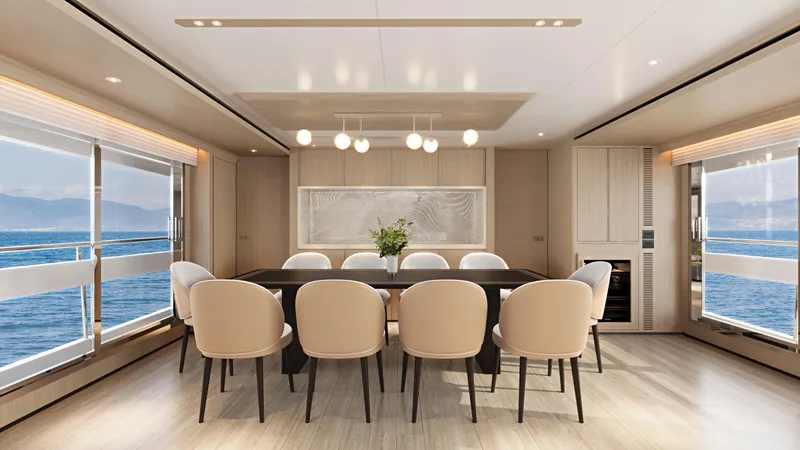

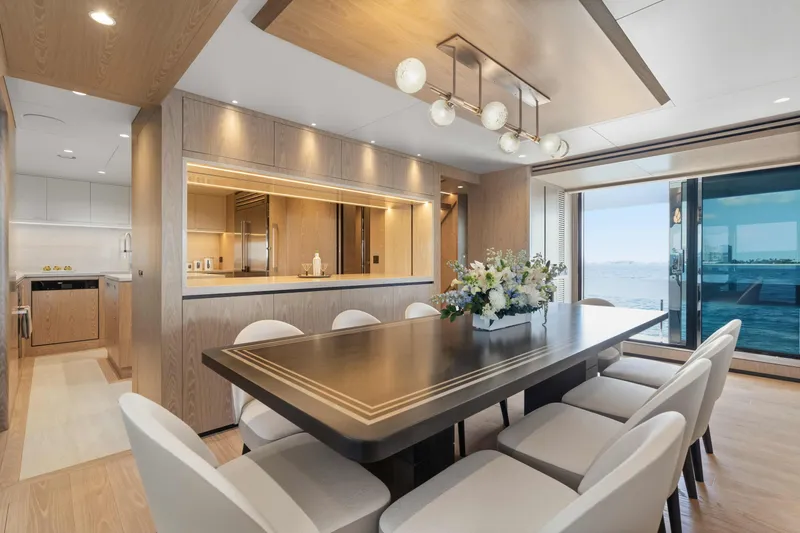

Formal dining table & chairs for 10

Free-standing custom storage cabinet

Electric curtains

65" TV

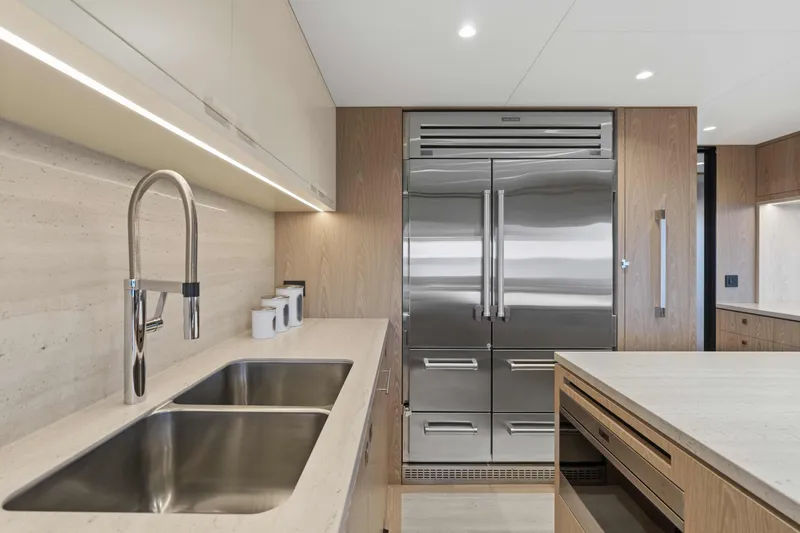

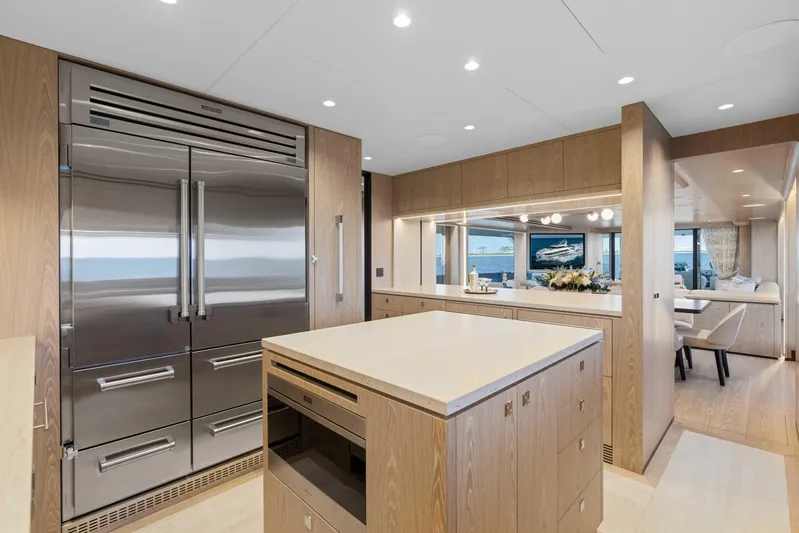

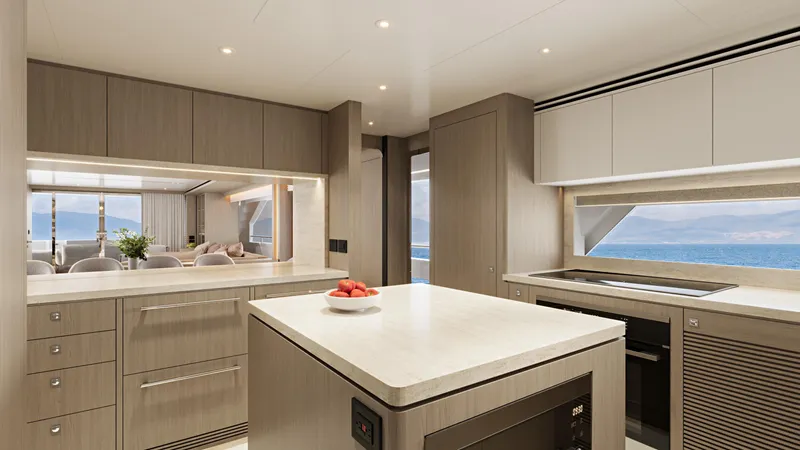

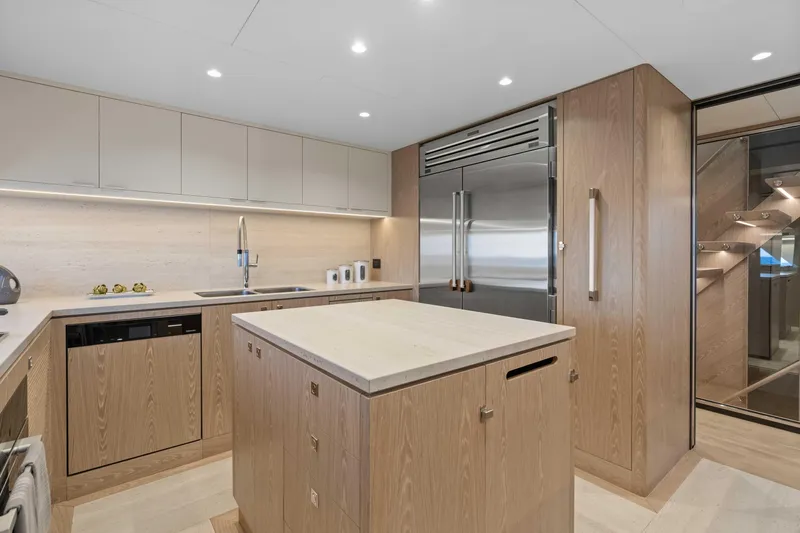

Enclosed galley w/ Hi-Lo screen & kitchen island

Professional galley + extensive storage per layout

Subzero 48" refrigerator/freezer PRO4850 (x1), 24" drawer type under counter fridge ID 24-R (x1), and 24" drawer type under counter freezer ID-24F (x1)

Miele cooktop, oven & dishwasher, GE range hood, and WOLF microwave oven

U-line wine cooler

(1) Opening porthole to PORT

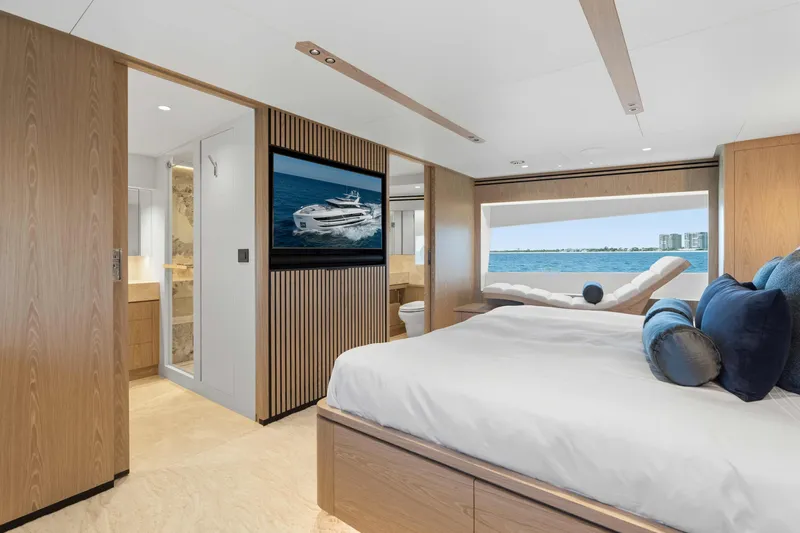

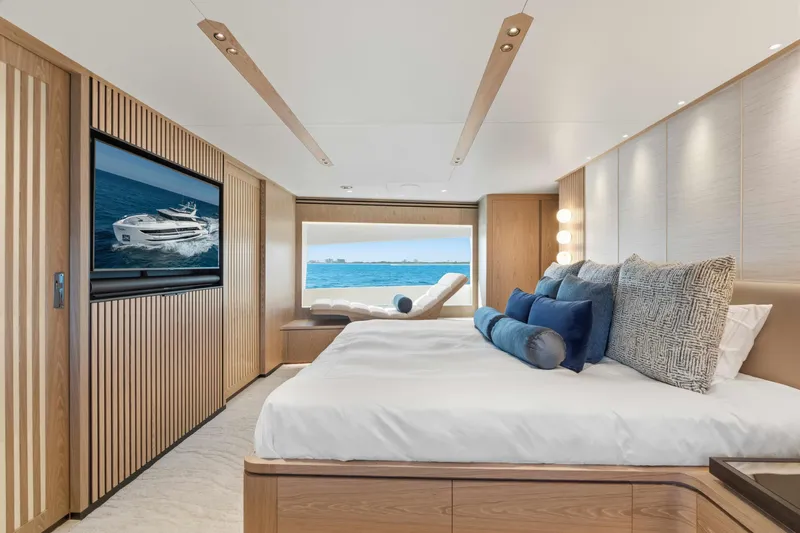

King bed w/ storage drawers & nightstands, safe

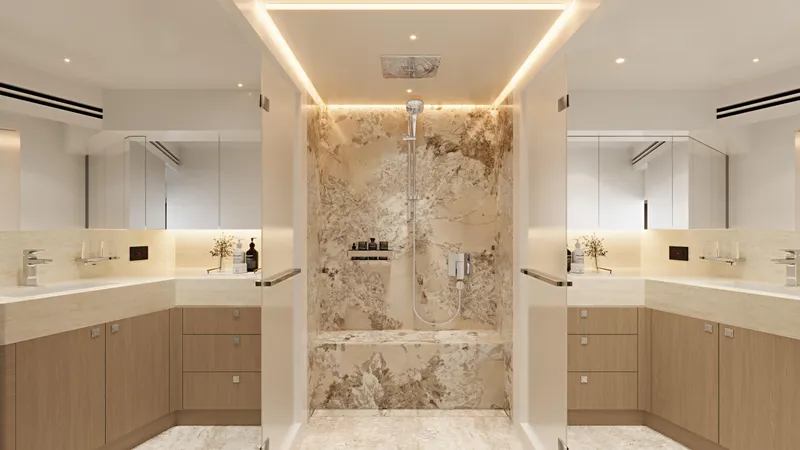

His and Hers head w/sinks & rain shower

Electric Roman Shades

(2) Opening portholes to each side

50" TV

Escape hatch in Master with ladder

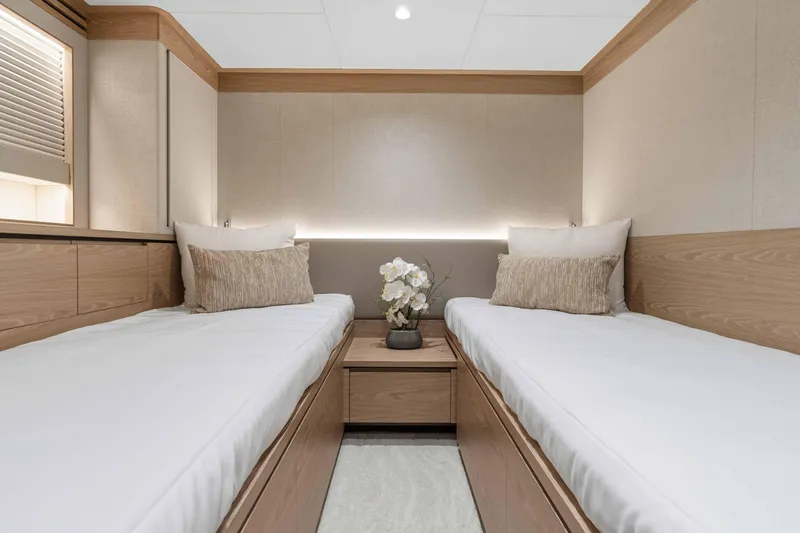

(2) Twin beds, w/ rotating function to create queen, drawers underneath

Large hanging lockers STBD

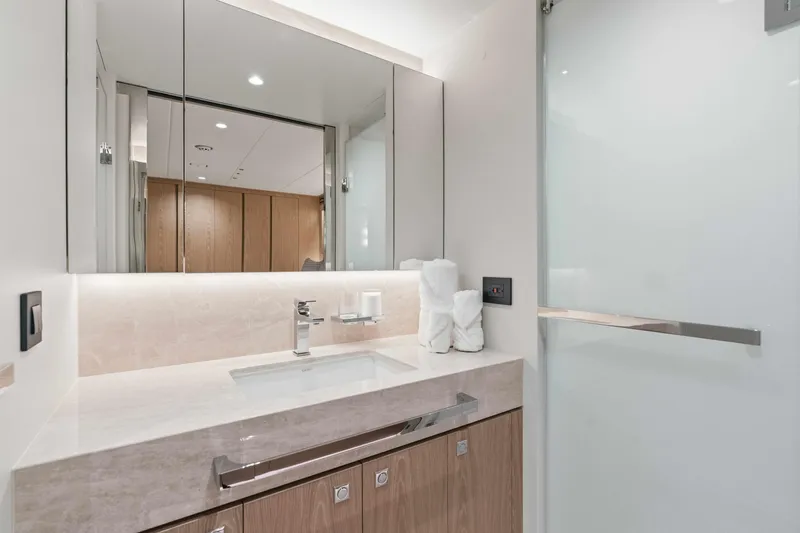

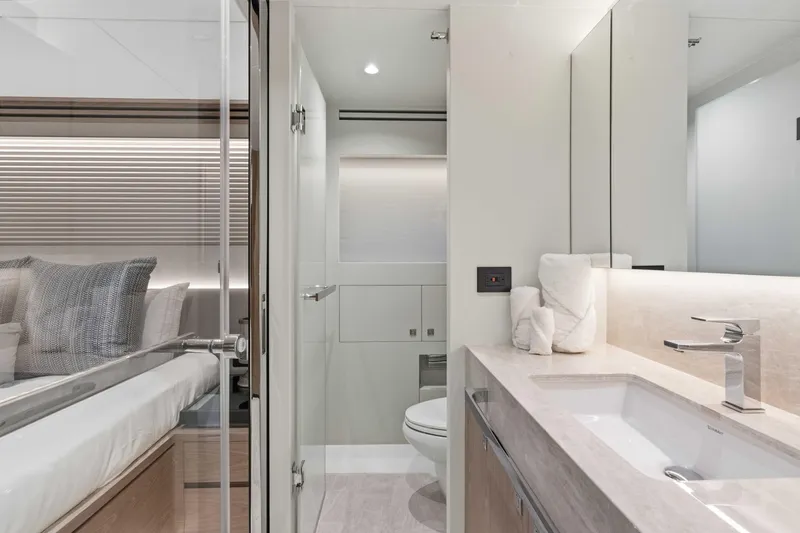

Ensuite head w/ sink, shower & toilet

43" TV

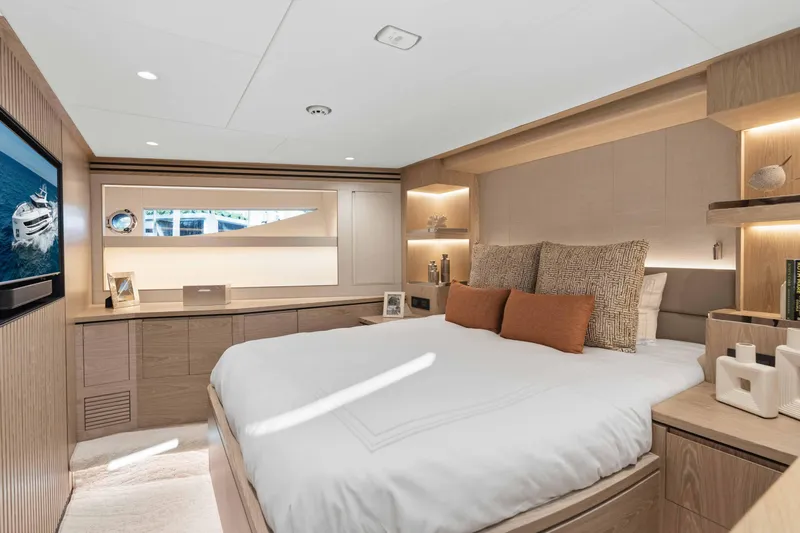

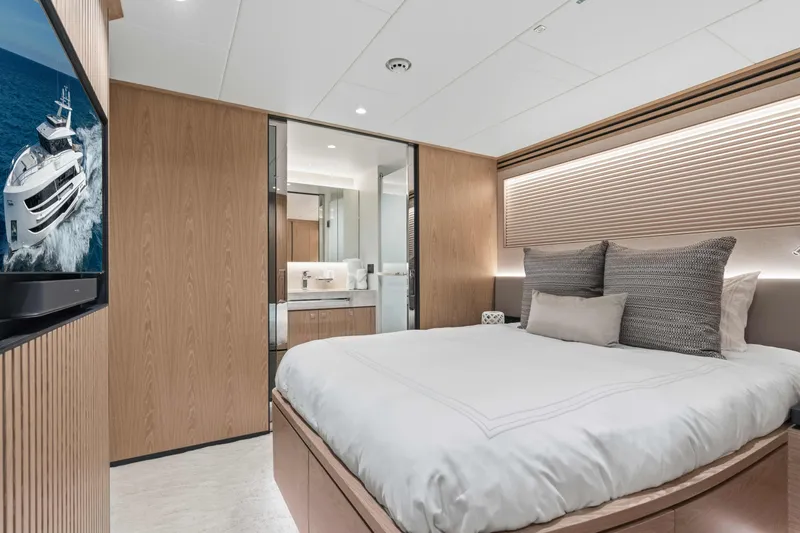

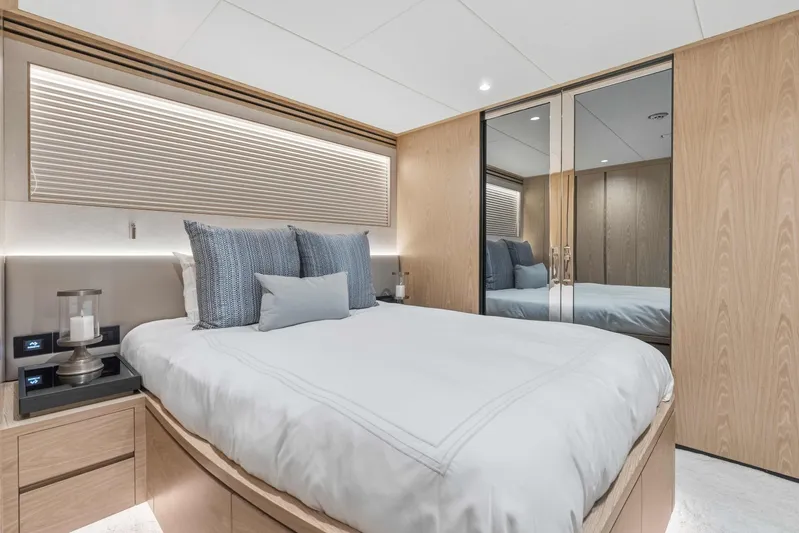

Queen bed w/ nightstands

Ensuite head w/ sink, shower & toilet

43" TV

Escape hatch up to salon with ladder in Port

PORT captain cabin w/ queen bed, ensuite

(2) STBD Bunk crew room

Shared head w/ sink, shower & toilet

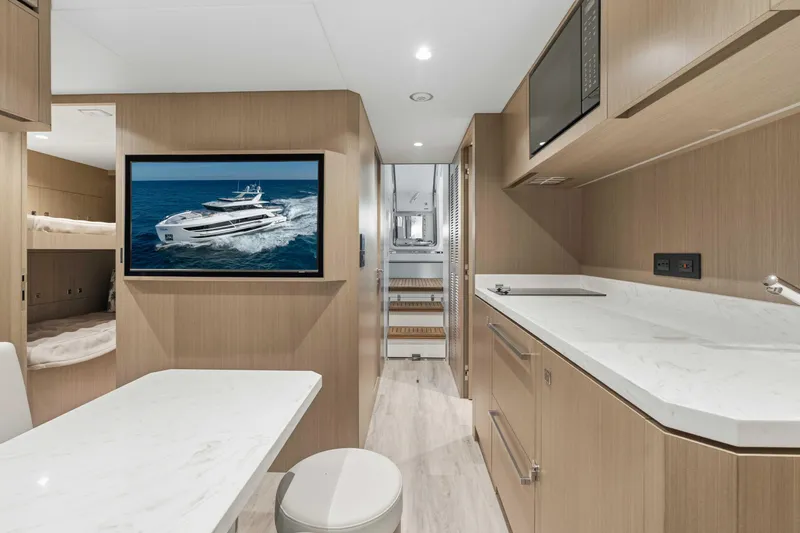

Crew mess w/ burner, Miele washer/dryer,

refrigerator/freezer,  ,

storage

43” TV

SAT TV antenna with a symmetric dummy dome

& prewire for SAT phone

Starlink maritime flat high performance

satellite internet kit

4G/5G Cellular router system with WiFi on board

Exterior connector for shore phone and cable TV

Full Garmin navigational system includes

(1) Garmin GMR™ 1236 xHD3 Open Array Radar

plus (1) GMR Fantom 54

(4-foot/50W/72nm) radar

(1) Garmin Fish Finder

(4) Garmin GPSMAP 9224 - 24"

multifunction displays

Garmin GPS

Garmin Autopilot system

Garmin Wind / Speed / Temp / Depth transducer

(2) Garmin VHF with built-in loudhailer

Garmin AIS

Garmin GRID 20 remote input device

Garmin Reactor AP Remote Control
