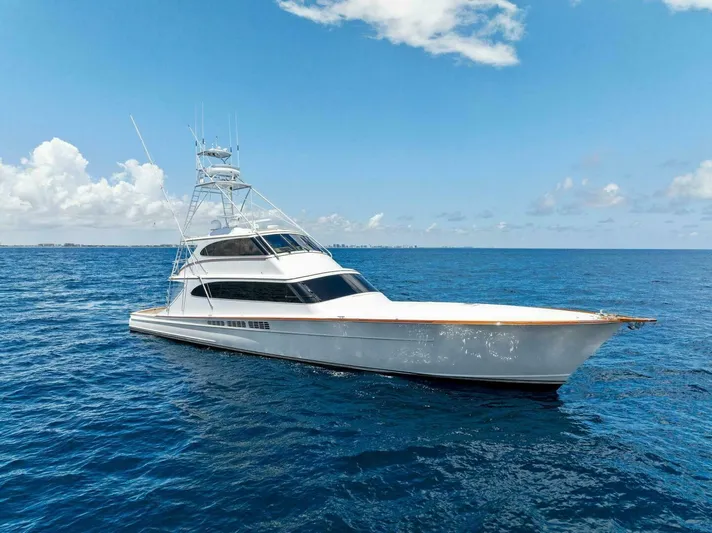

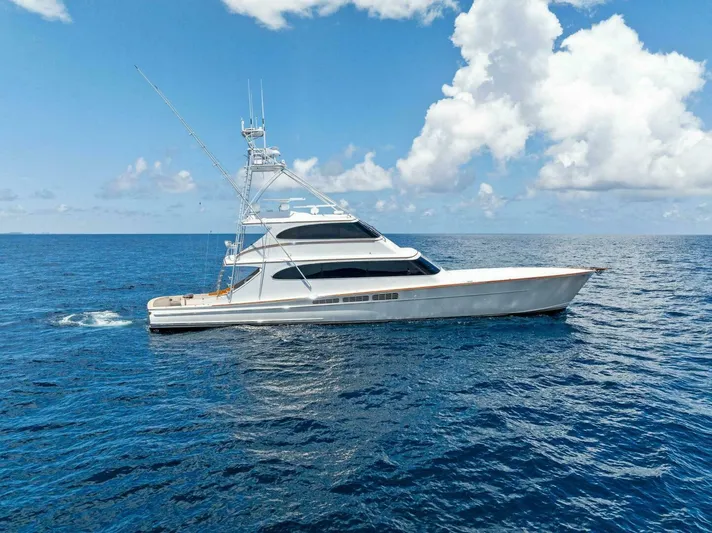

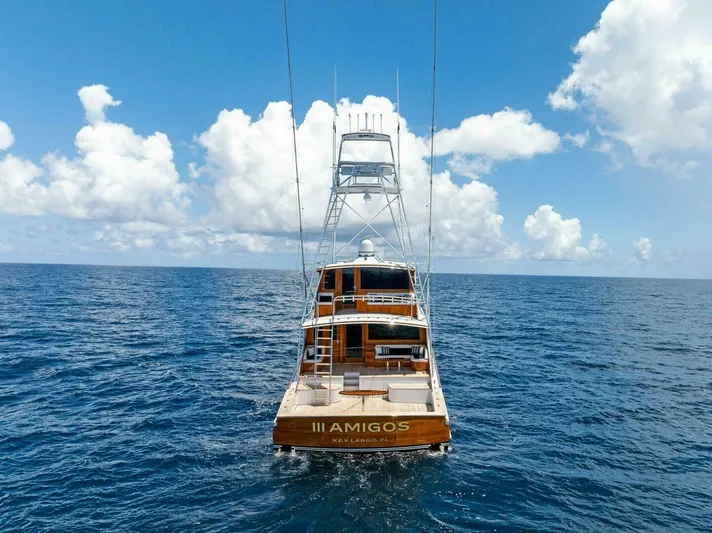

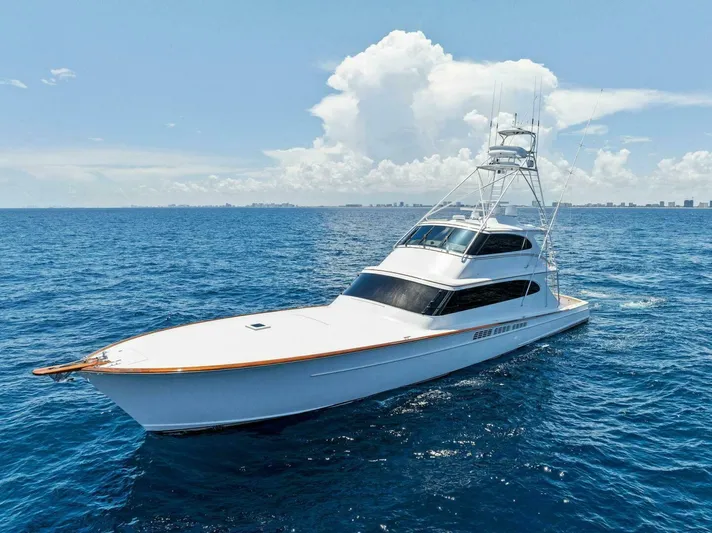

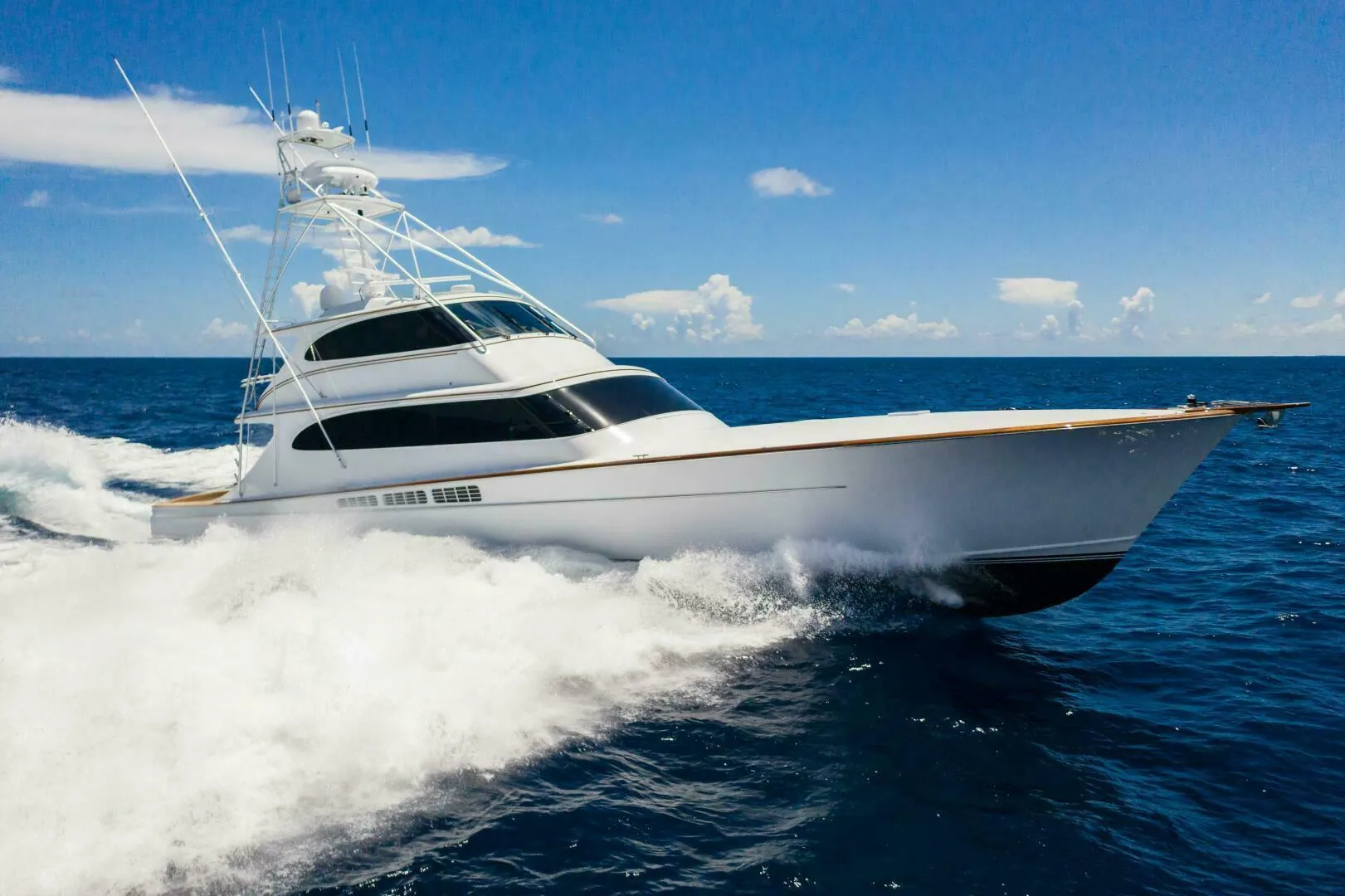

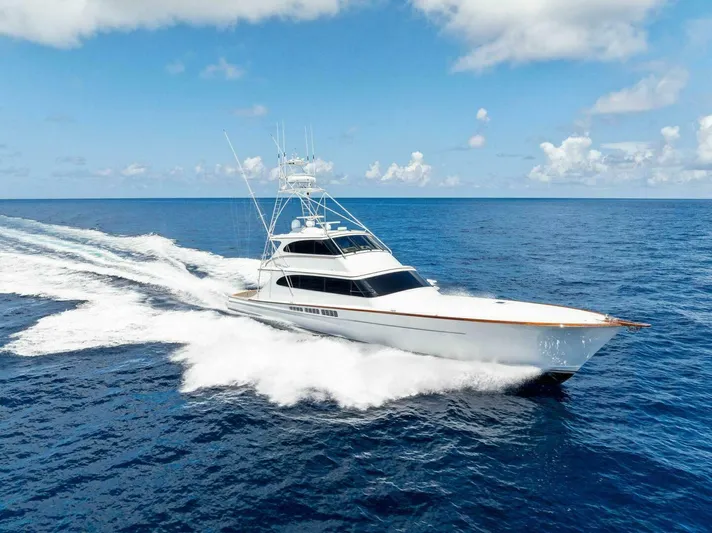

III AMIGOS Yacht for Sale

• Beam: 22' 0''
• Hull Material: Other
• Max Draft: 6' 0''
• Displacement: 165,000 lb
• Fuel Tank: 1 x 4200|gallon
• Fresh Water: 1 x 600|gallon
• Holding: 1 x 350|gallon
• Cabins: 5
• Heads: 7

• Custom Design by Patrick Knowles Designs
• Custom Fabrication by Metrica of Germany
• Made from the Highest Quality of Materials with Specifics to be Light Weight
• Lutron Lighting System
• Custom Marble and Accenting Throughout
• Interior Wood Scheme Made Up of the Finest Materials Including: Lime finished Oak, Eucalyptus, Jewel Boxed Redwood Burl, Teak, and Wenge
• Highest Quality Hardware throughout with self-closing, fully extendable drawer slides, and concealed hinges
• Full Height Doors with Custom Thickness
• Custom Tongue and Groove Paneling Overhead
• Laser Soffits with LED Rope Lighting
• Custom Upholstered Panels
• Sound Down Under Custom Carpet Installations
• Custom Wallpaper and Installation to the Finest Detail

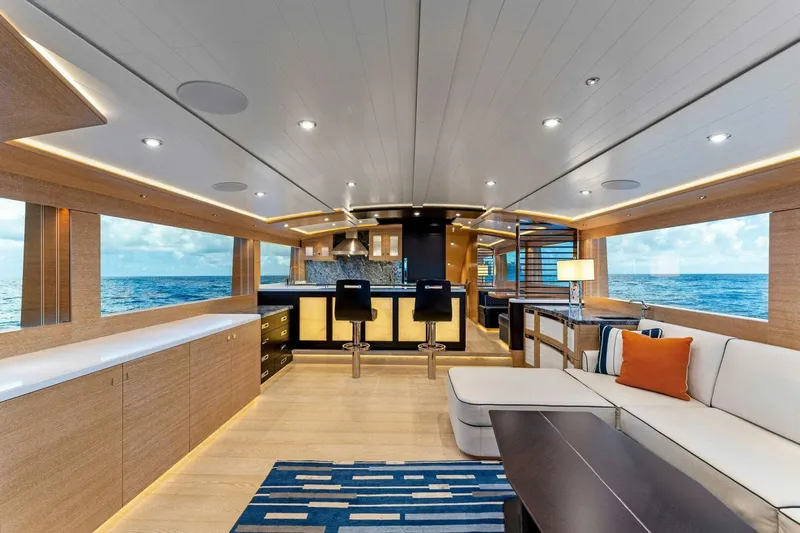

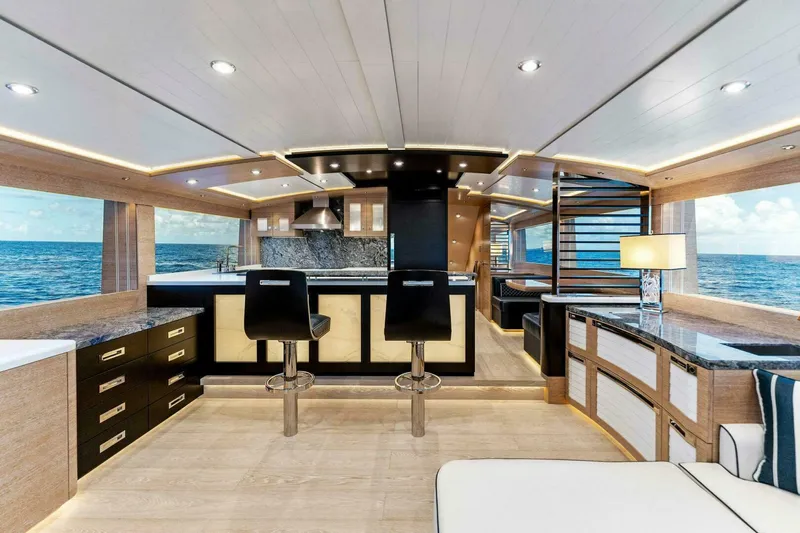

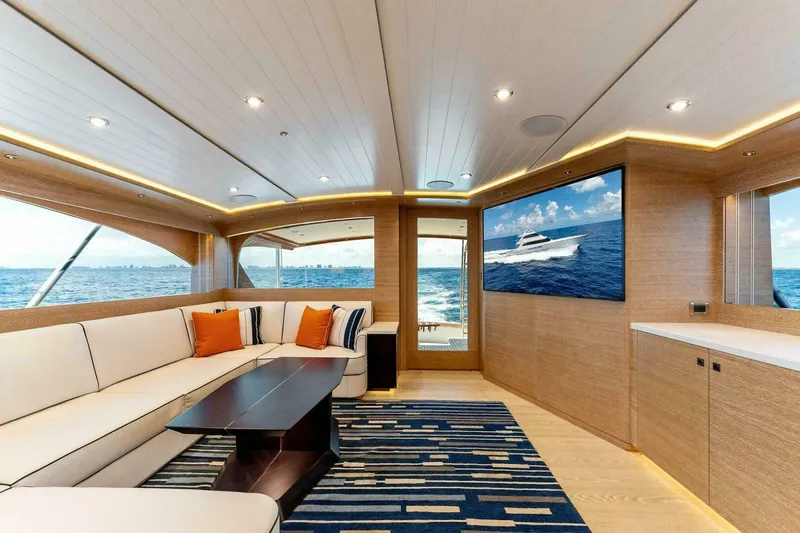

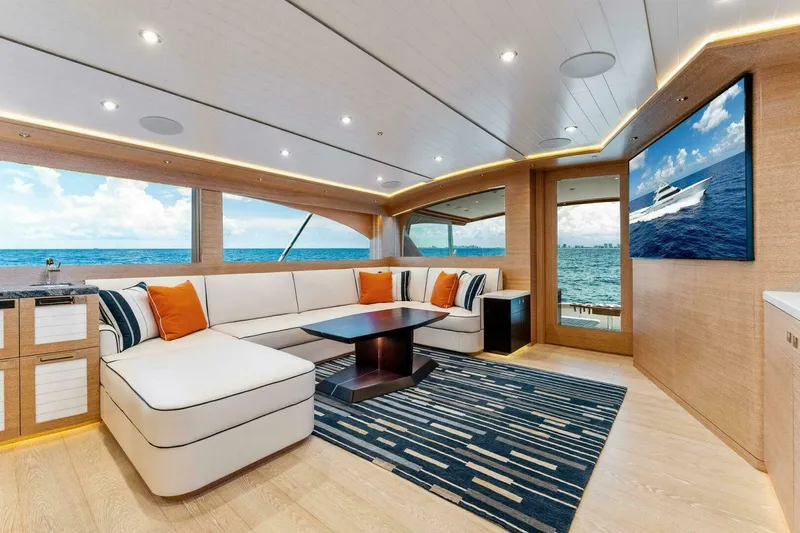

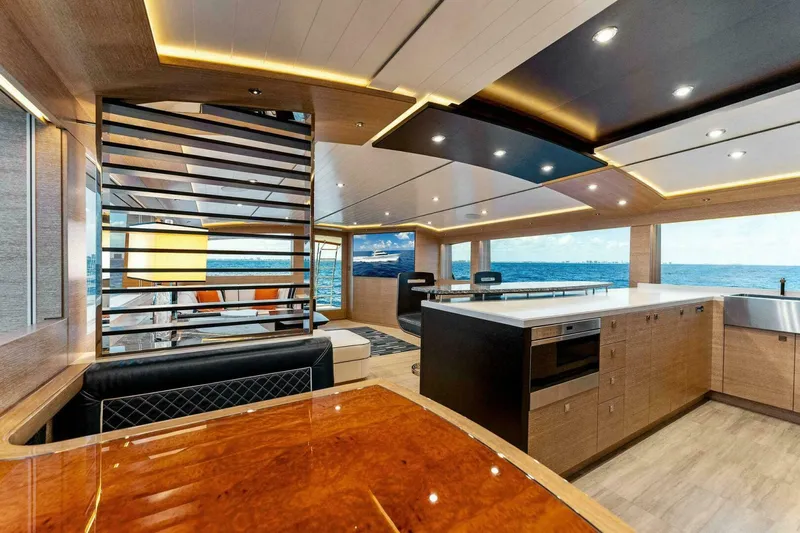

• U-Shaped Sofa with Storage Underneath
• 65 inch TV and AV Package
• Cocktail Table
• Additional Seating
• Bar Area with Subzero Drawers and Sink
• Custom Accent Lighting
• Wine Cooler
• Custom Air Conditioning Duct Work

• Custom Alligator Barstools at Bar Top

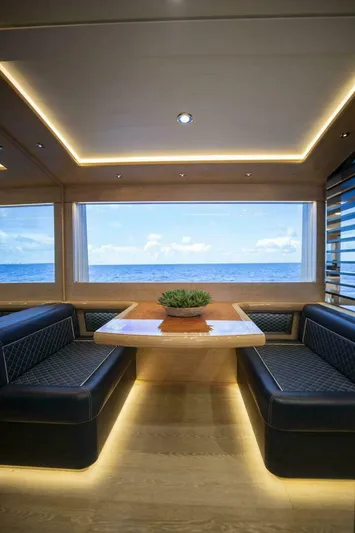

• Fully Cantilevered Dinette Table
• Ferrari Cockpit Inspired Dinette Seating

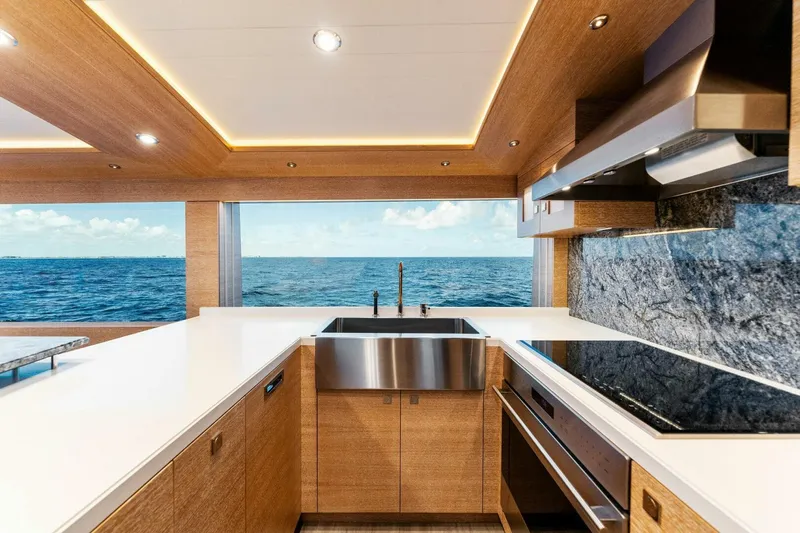

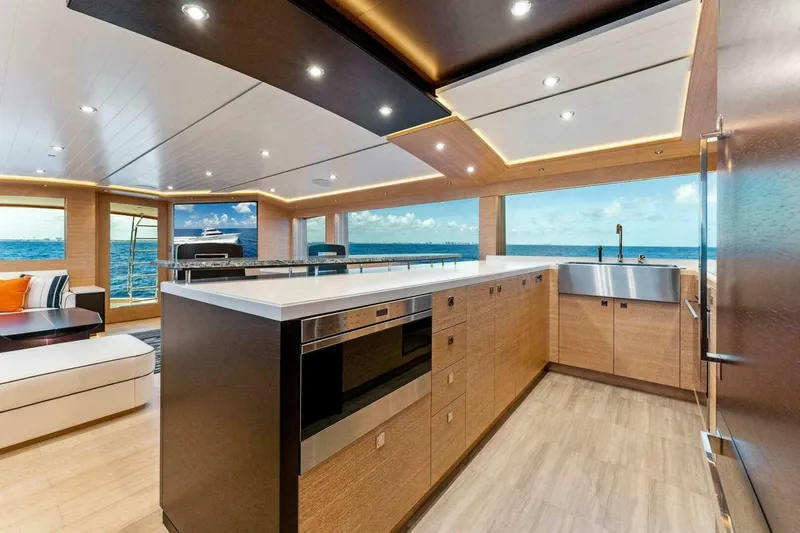

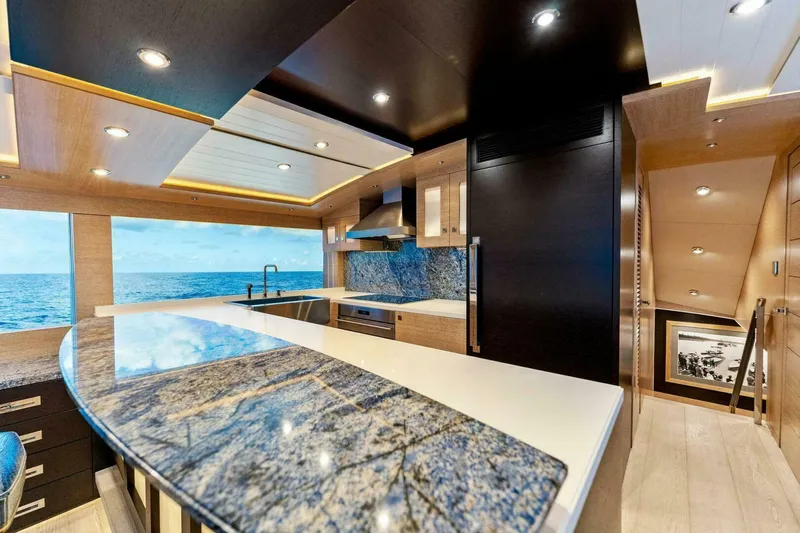

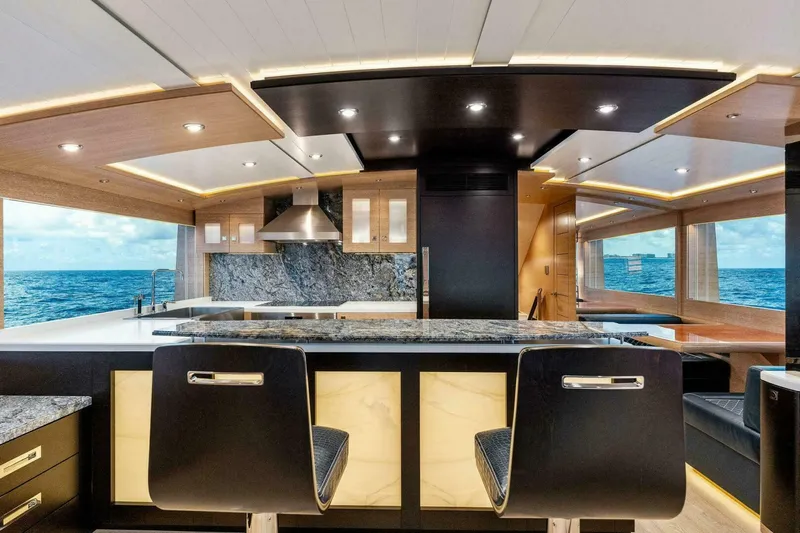

• Full Size SubZero Refrigeration and Freezer
• Wolf Range and Oven
• Microwave Drawer Oven
• Exhaust Hood to Fully Extract Odors
• Stainless Sink

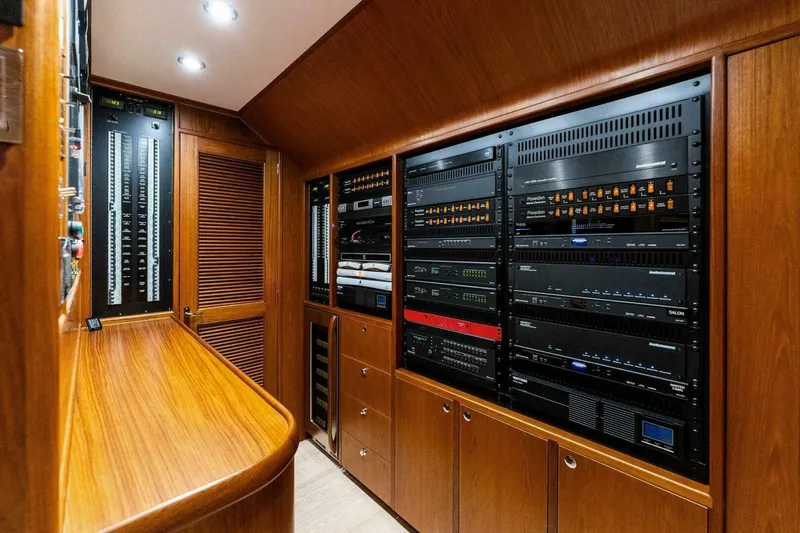

• Electronics and A/V Equipment Room Forward of Galley
• Pantry Storage
• Additional SubZero Freezers
• Dishwasher

• Accessed through Cockpit Mezzanine Deck
• Air Conditioning
• LED Lighting
• Custom Stone, Finishes and Fixtures

• Custom Thicker Stateroom Doors

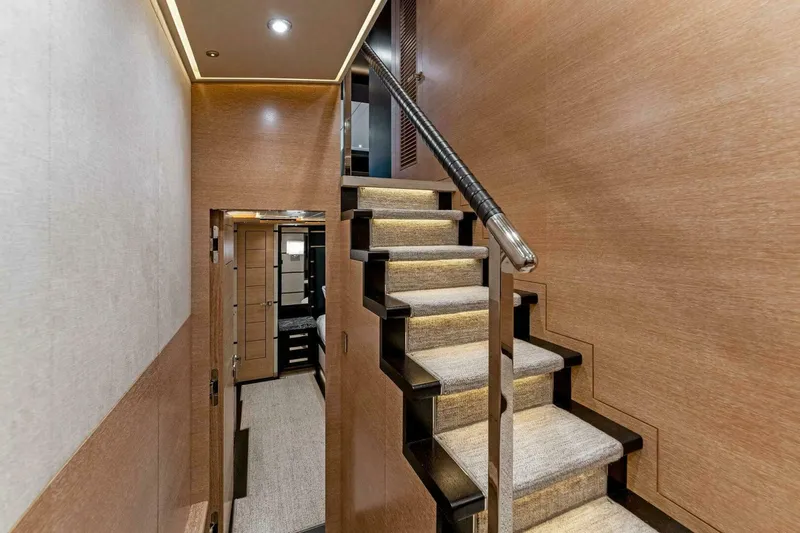

• Access to Staterooms
• Laundry Room
• Linen Closets

• Full Beam Layout
• Custom Hull Side Windows

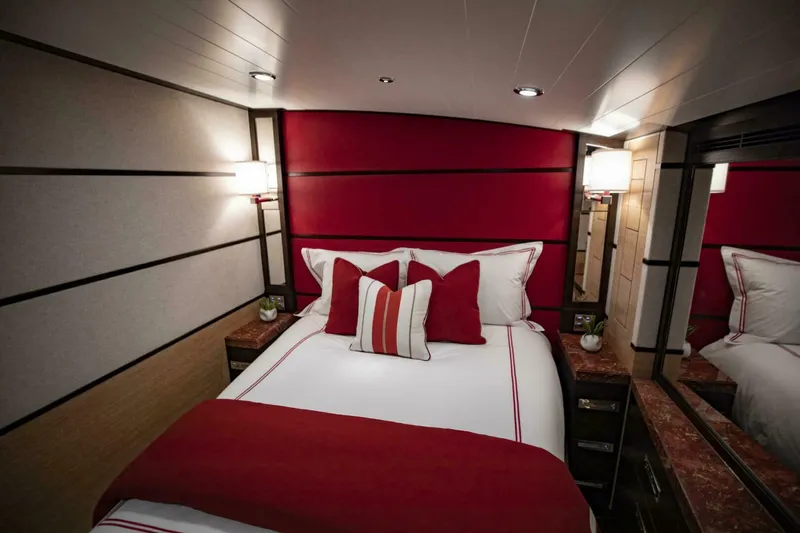

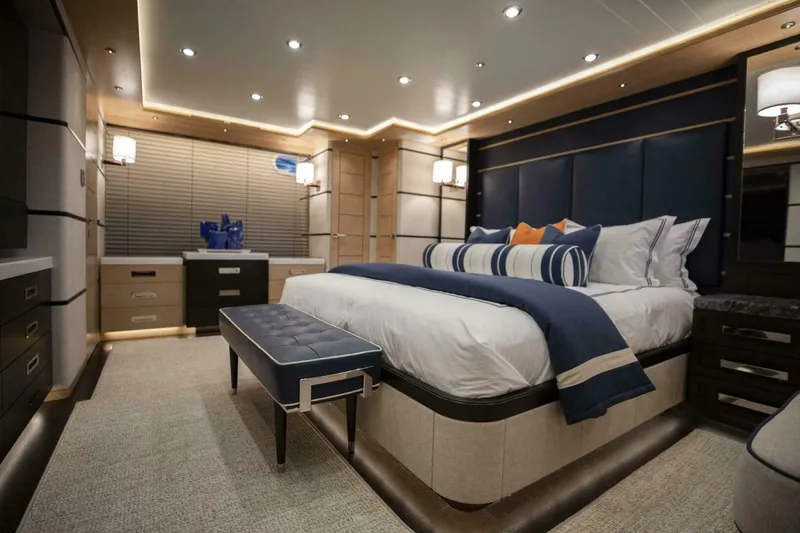

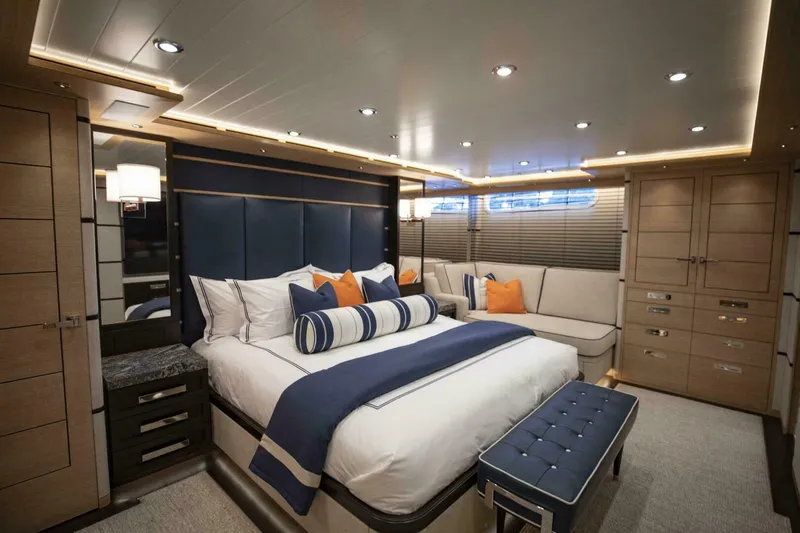

• King Bed with Drawer Storage
• Custom Nightstands
• Seating to Port
• Plentiful Storage and Closets
• Valet Closet to Starboard
• Dresser Storage
• 65 Inch TV with AV Package
• Custom Window Treatments
• Refrigeration Storage

• Incredibly Spacious

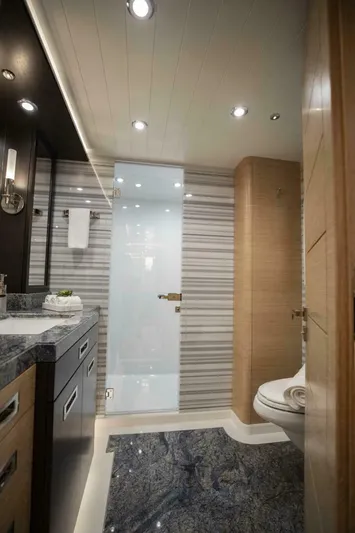

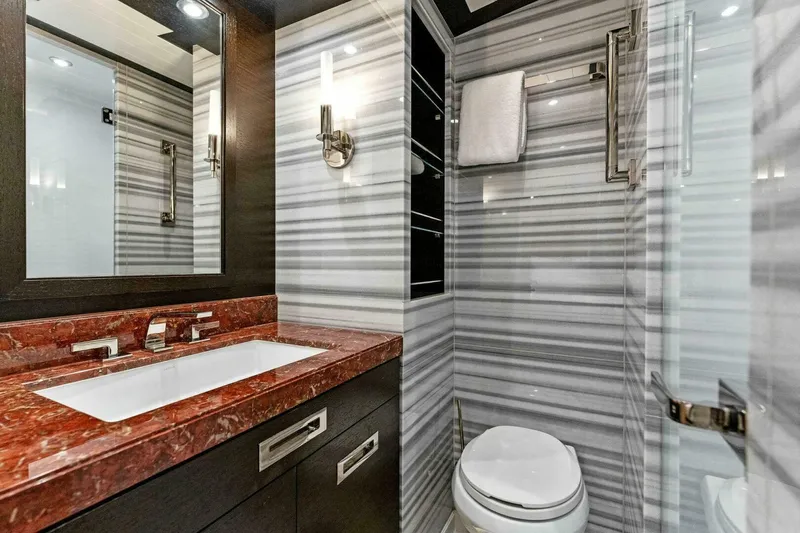

• Heated Floors with Custom Stone
• Azul Bahia Finish

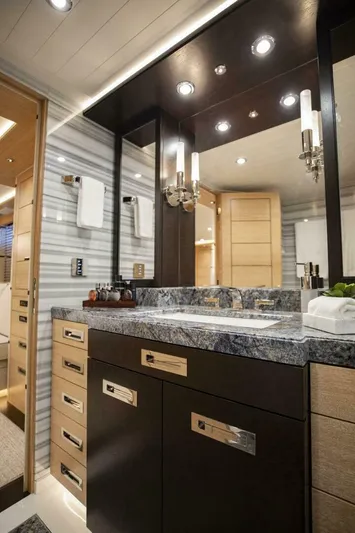

• Vanity Cabinet
• Linen Locker
• Custom Décor and Fixtures

• Located to Port
• Private Head
• TV and AV Package
• Nightstand
• Dresser Storage
• Hanging Locker

• Custom Stone Flooring
• Custom Décor and Fixtures
• Storage

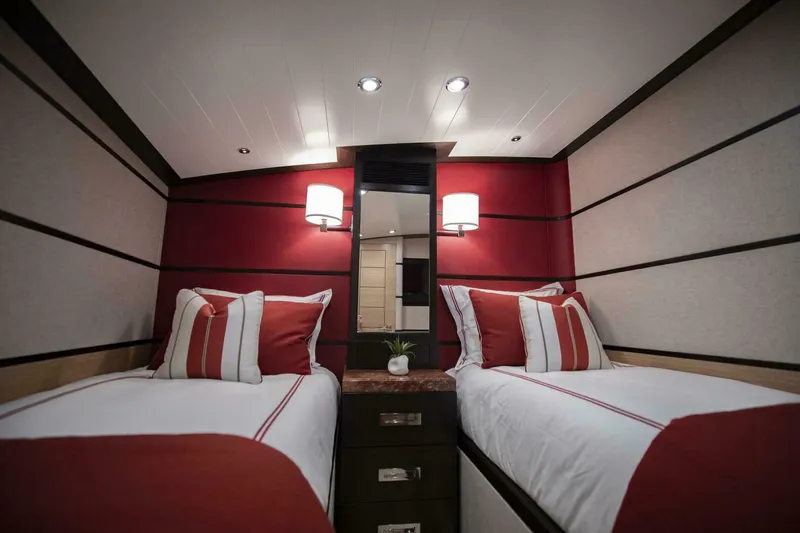

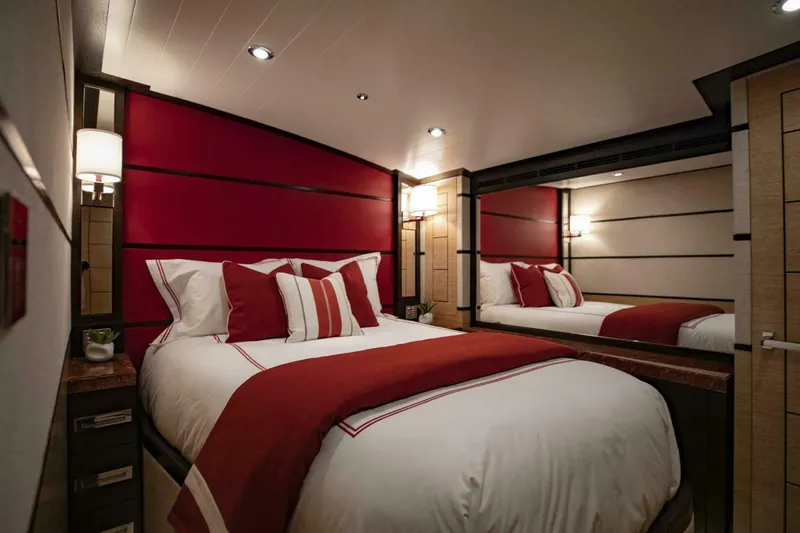

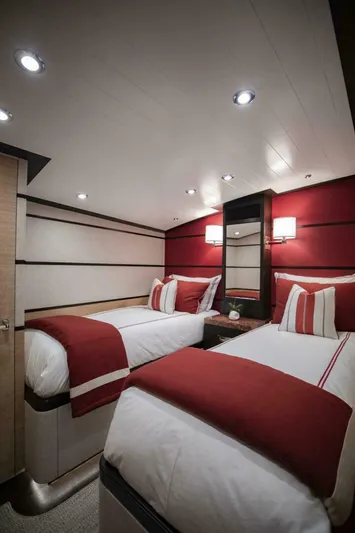

• Double Twin Berths
• Private Head
• TV and AV Package
• Hanging Locker

• Custom Stone Flooring
• Custom Décor and Fixtures
• Storage

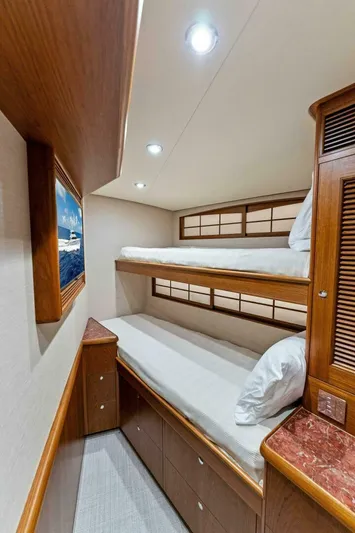

• Upper and Lower Berths
• Teak Finishes
• Private Head
• Abundant Storage
• TV and AV Package

• Upper and Lower Berths
• Teak Finishes
• Private Head
• Abundant Storage
• TV and AV Package

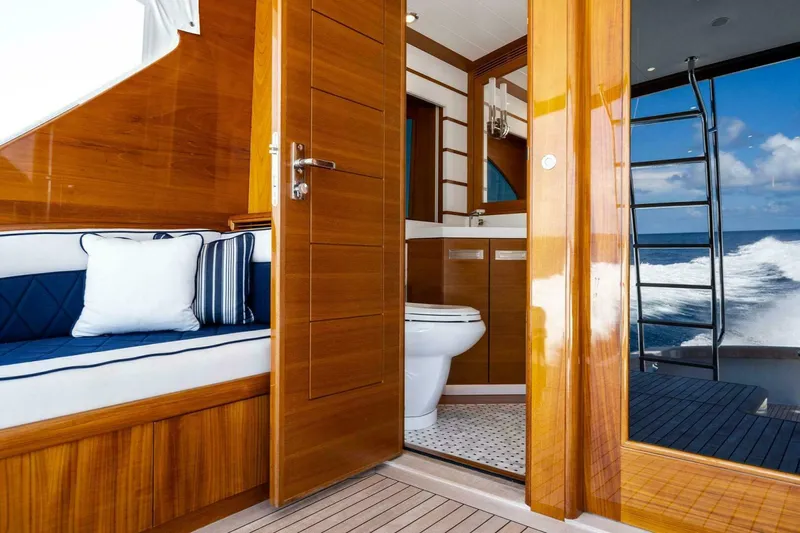

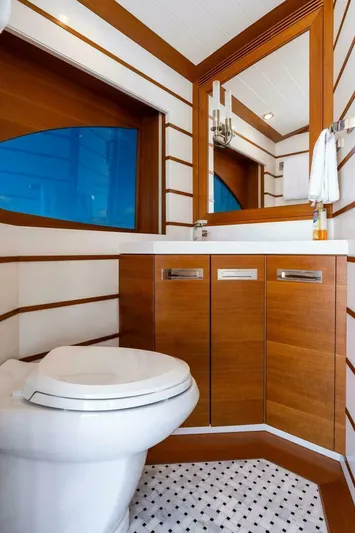

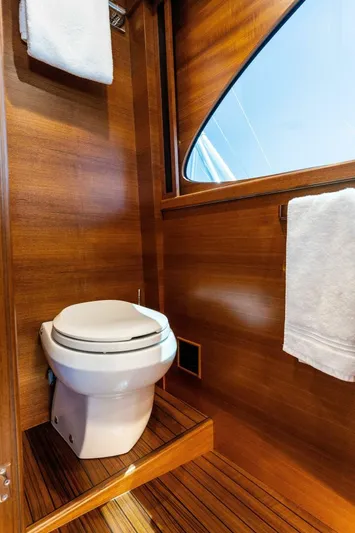

• Day Head with Window
• Teak Bulkhead

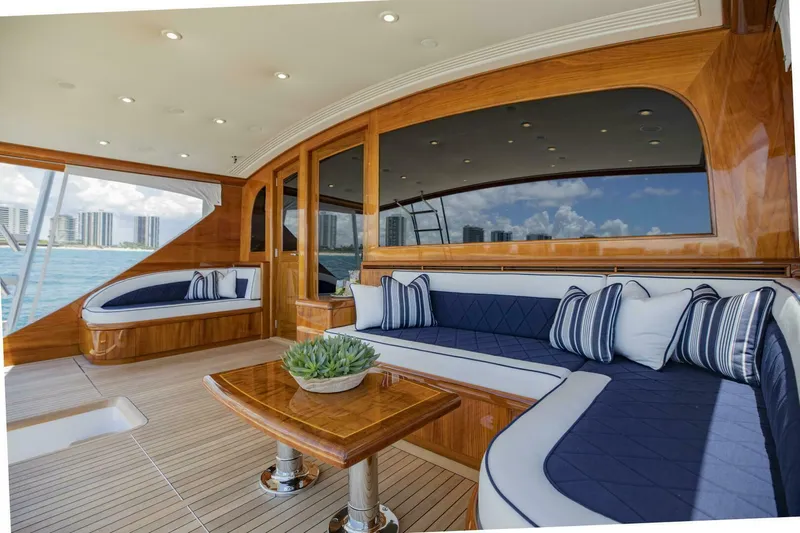

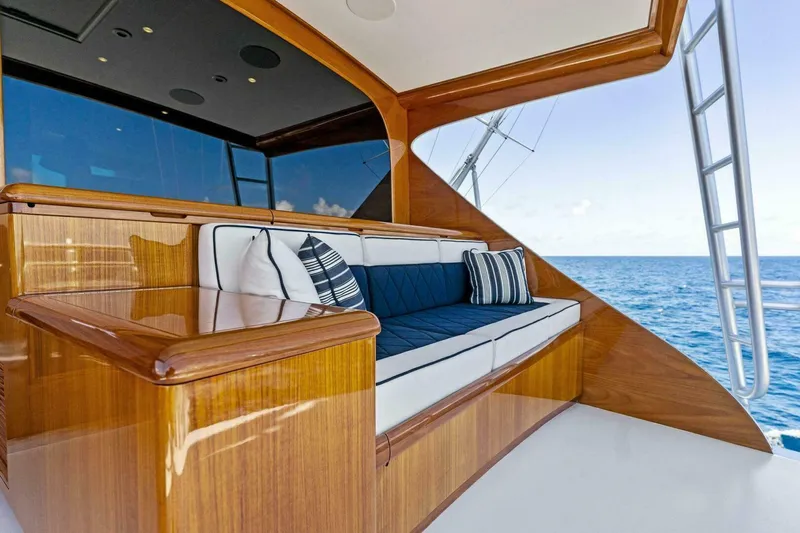

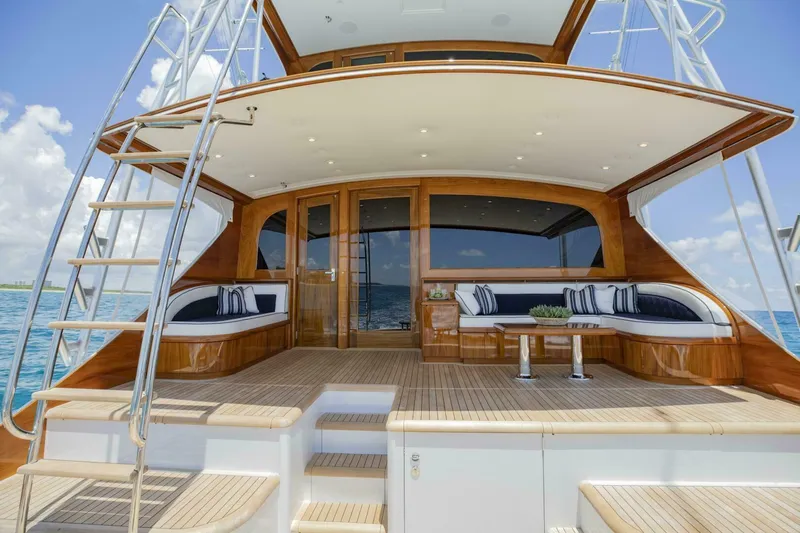

• Lounge Seating with Air Conditioning
• Table for Mezzanine Seating
• Large Drink Box in Seating Armrest
• Bait Freezers
• Livewell or Large Fishbox Storage
• Custom Lead and Tackle Storage
• Bluewater Fighting Chair

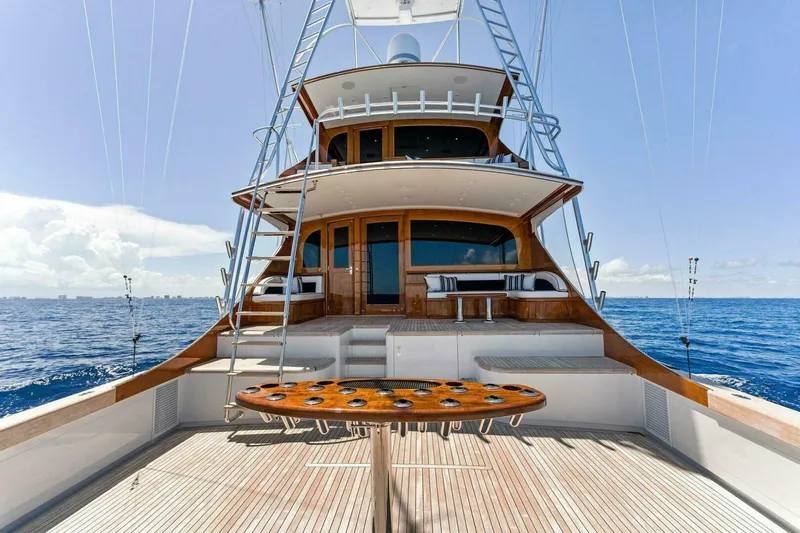

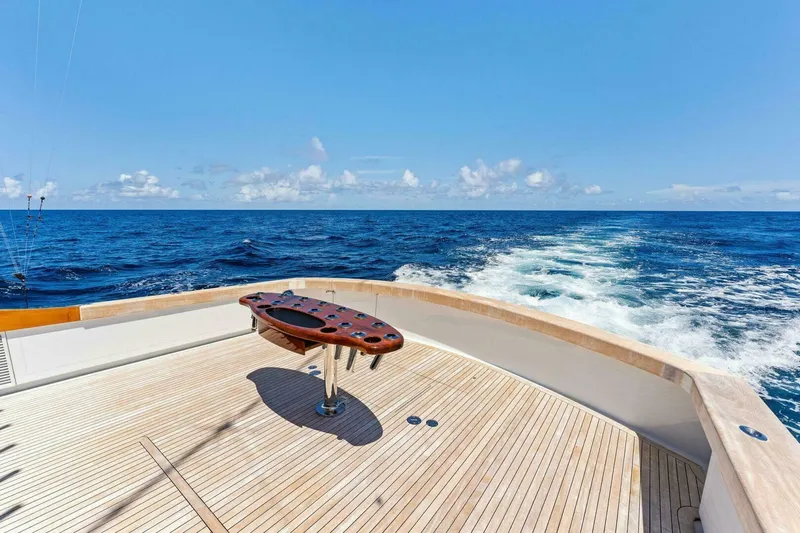

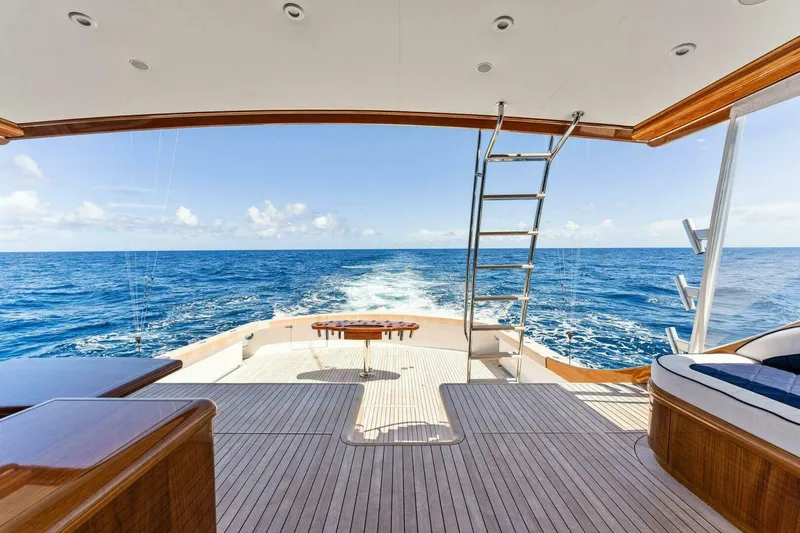

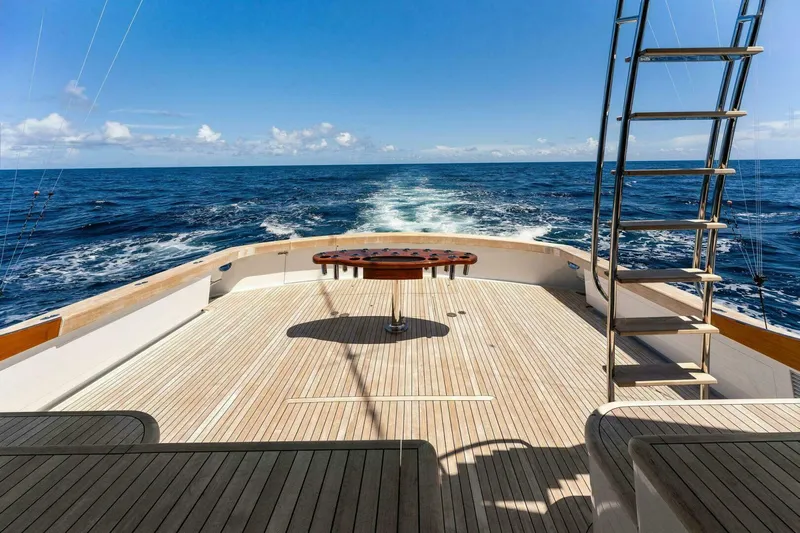

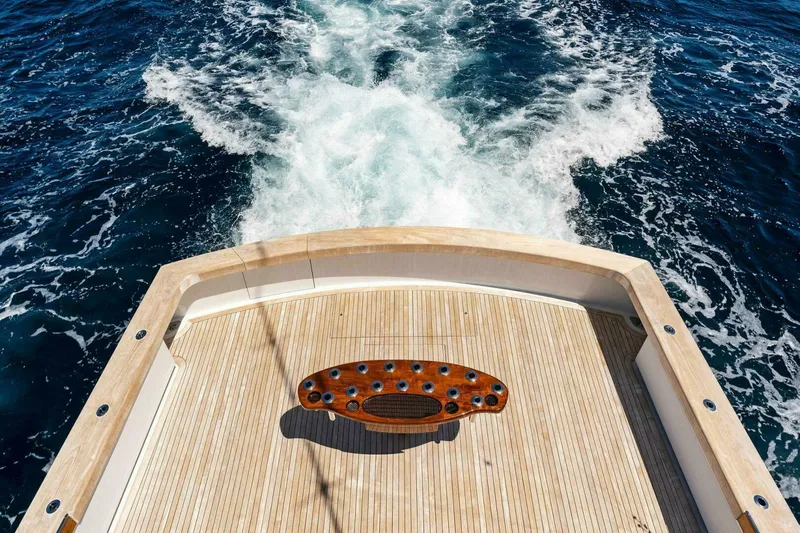

• Teak Decks
• Teak Coaming and Covering Boards
• In Deck Fittings for On Deck Livewells
• Sea Chest in Lazarette with Air Lock Ability
• (3) Eskimo Ice Chippers
• Under Gunnel Storage Boxes
• Overhead Lighting at Mezzanine
• Overhead Speakers at Mezzanine
• Freezer Under Mezzanine Seating
• Dual 100amp Shore Power with Glendinning Retractors
• Fresh Water Washdown

• Custom Hull Side Window for Master Incorporated with Engine Room Vents
• Painted in Awlcraft 2000, Matterhorn White
• Teak Toe Rail
• Teak Transom
• Puplit
• Hydraulic Windlass and Anchor
• Freshwater Washdown
• Air Outlet with Quick Disconnect for Filling Fenders
• Anchor Locker Light
• Dock Line Hangers in Anchor Locker
• Bow Deck Hatch
• Lumishore Under Water Lights
• Aquamet Shafts
• Veem Props

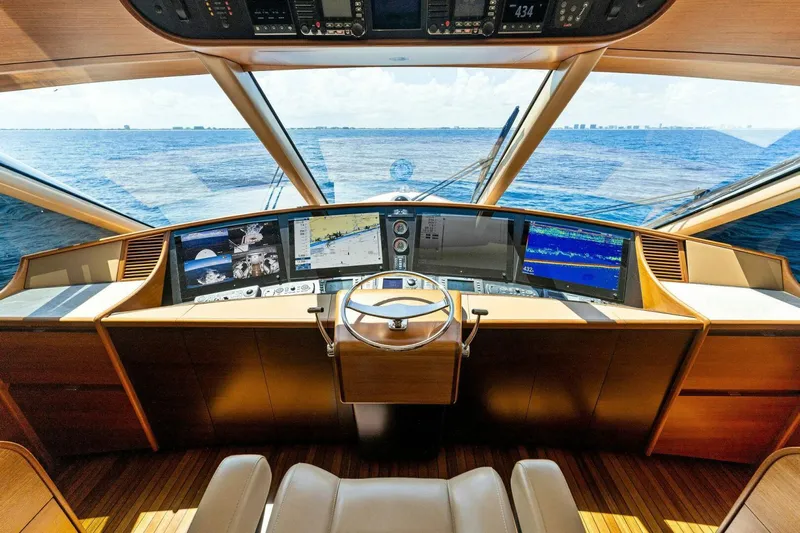

• Custom Island Design Main Helm with Teak Control Pod and Palm Beach Style Single Lever Controls
• Electronics Boxes
• Water Makers Control

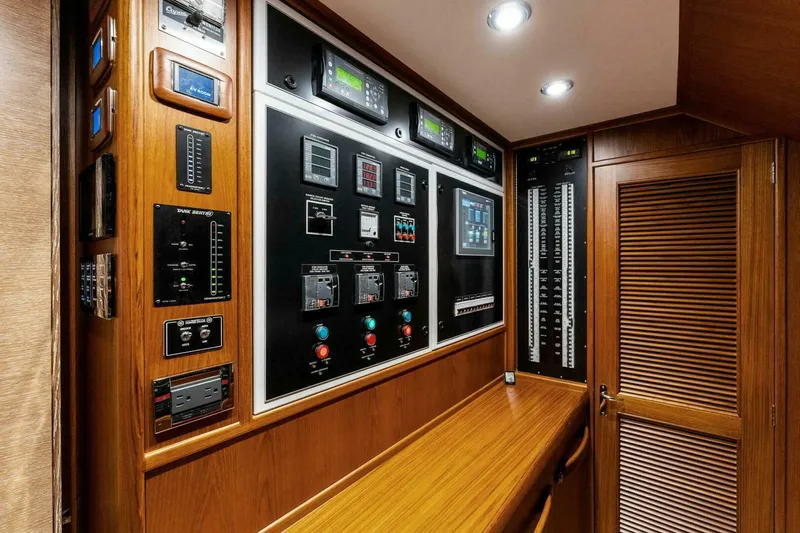

• Breaker Panel

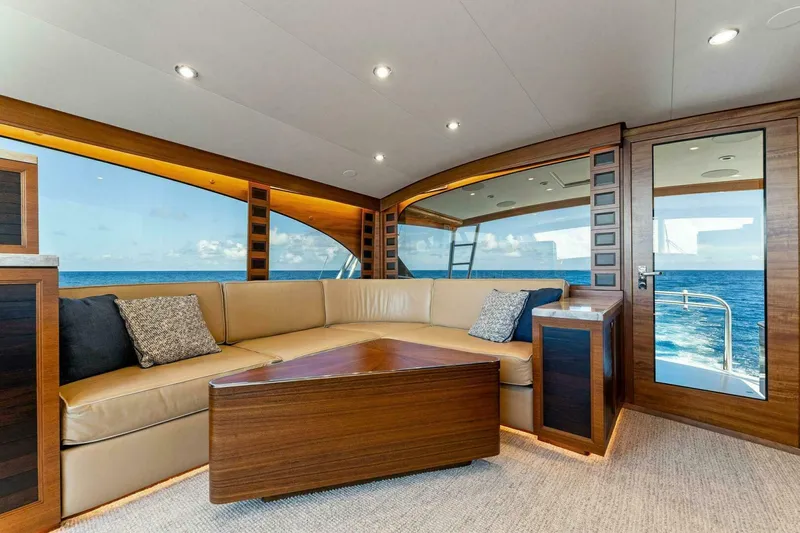

• L-Shaped Sofa with Rod/Reel Storage Underneath
• Pop-Up 55 inch TV

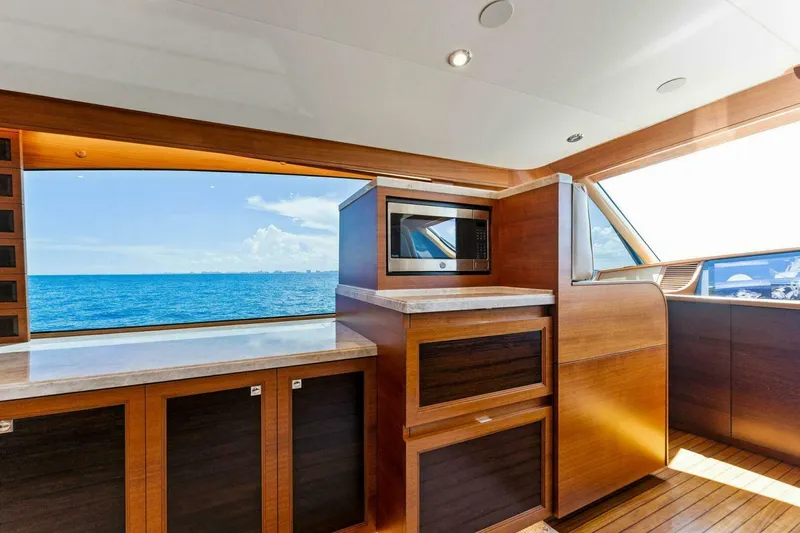

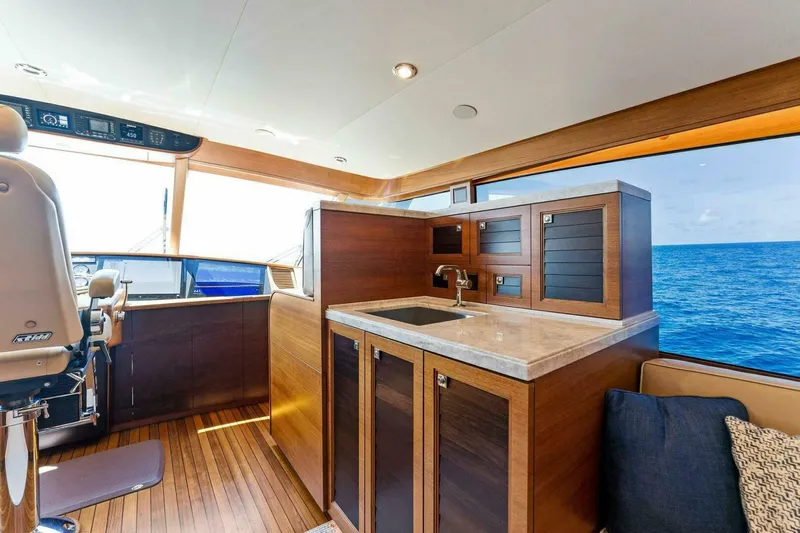

• Galley and Appliances
• SubZero Refrigeration Drawers
• Day Head In Enclosed Bridge

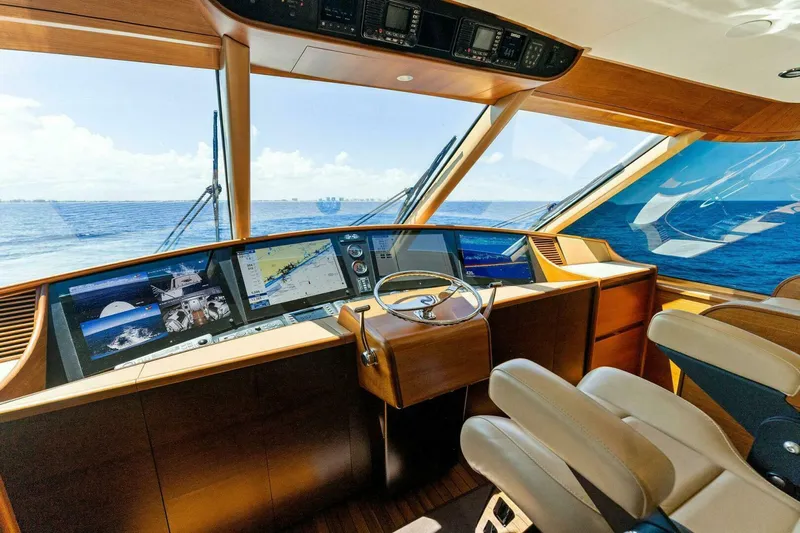

• Helm and Companion Seating
• Custom Helm and Electronics Layout

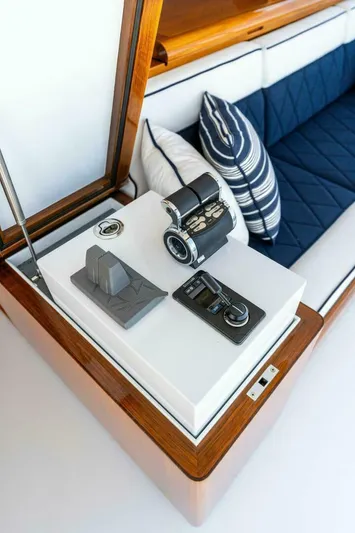

• MTU Joystick for Dynamic Positioning System
• Cocktail Table with Storage

• Aft Facing Lounge Seating

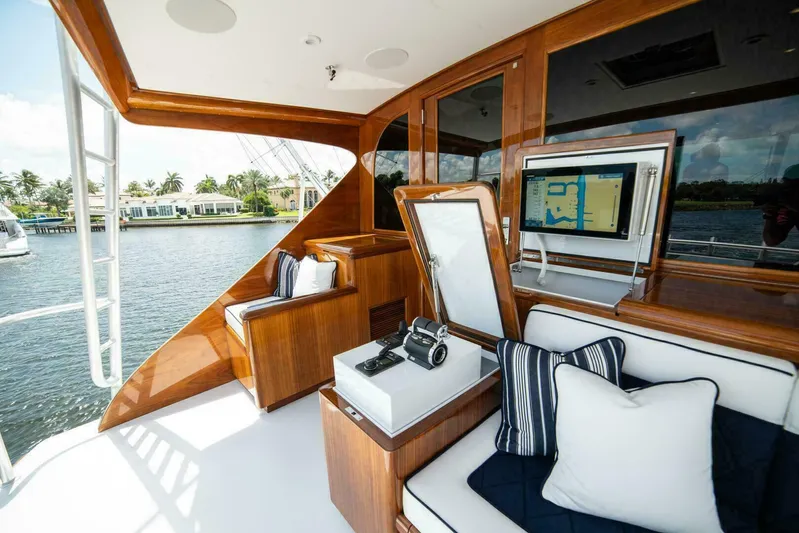

• Pop Up Navigation Station with Furuno NavNet3 Touch Screen
• Teak Bulkhead

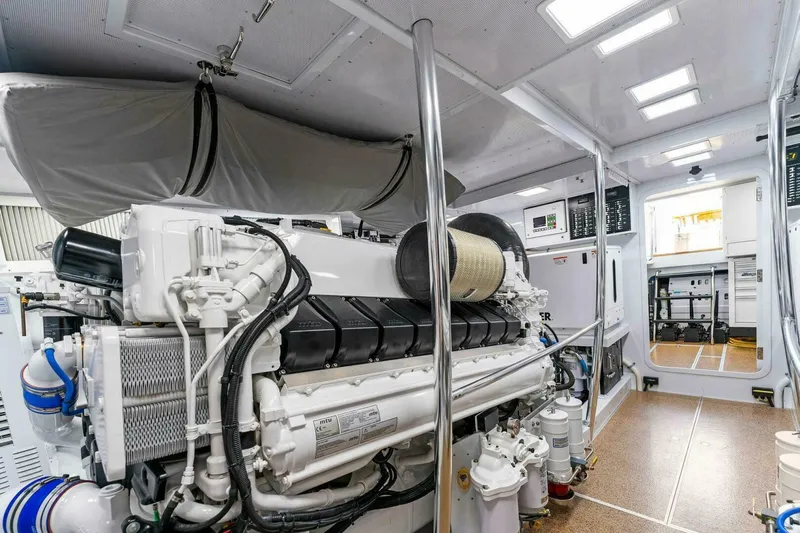

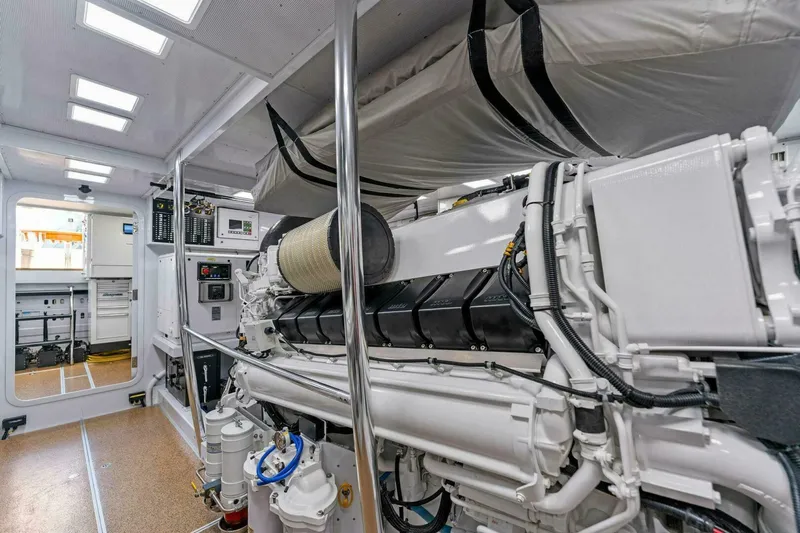

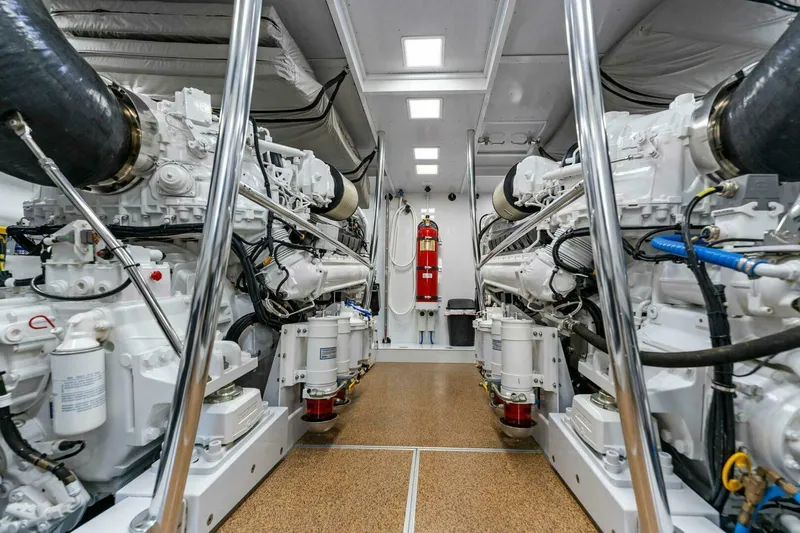

• MTU M96L 2635 HP Engine Package
• ZF Transmissions

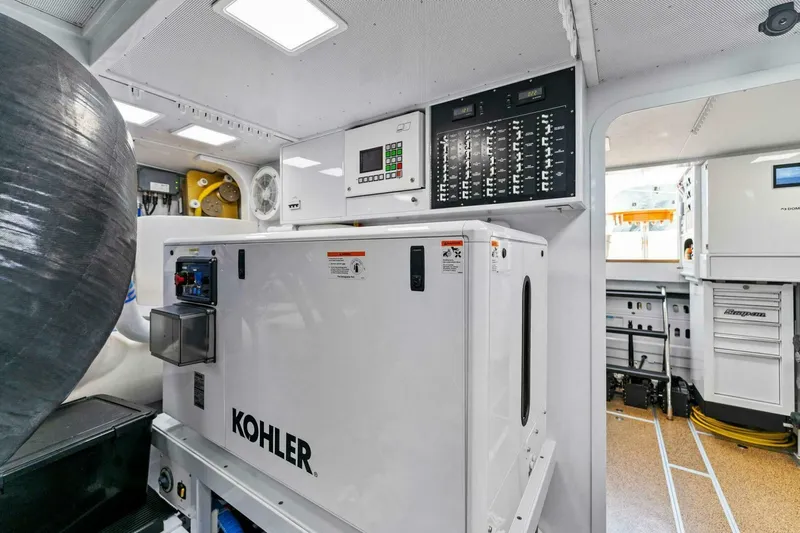

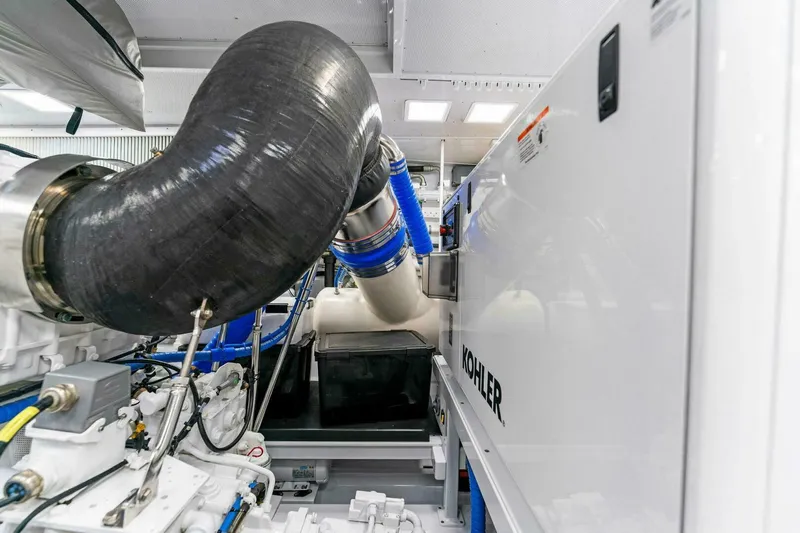

• (2) 40 kW Kohler Generators

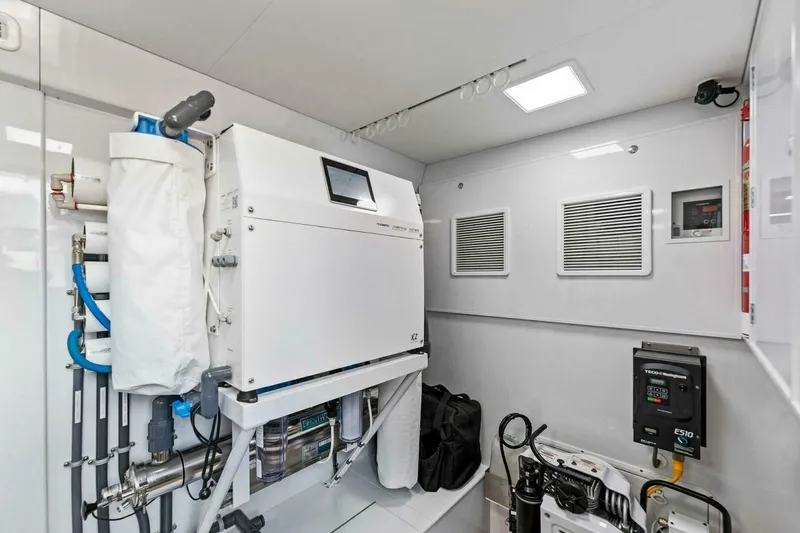

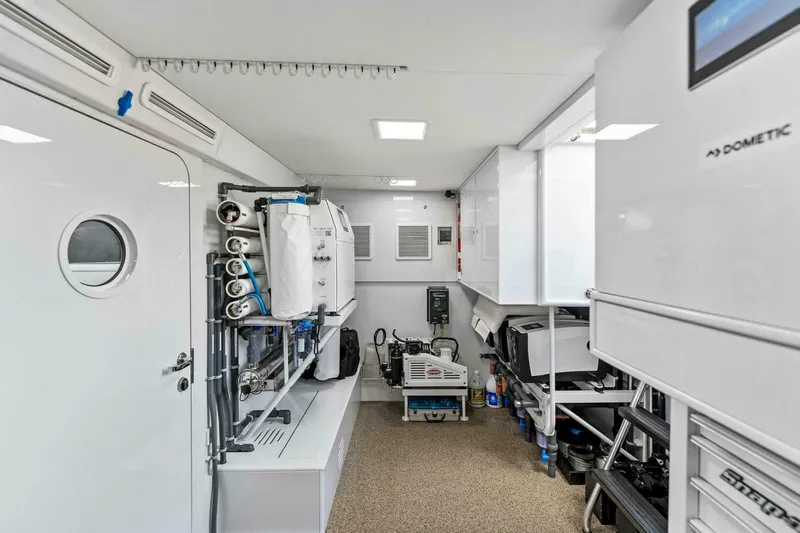

• (2) 2,200 GPD Dometic SeaXchange SpotZero Watermaker Combo Units
• Seakeeper 30 HD
• Mounted Tool Box
• ASEA Power Systems CONVERRER
• Alfa Laval Fuel Centrifuge

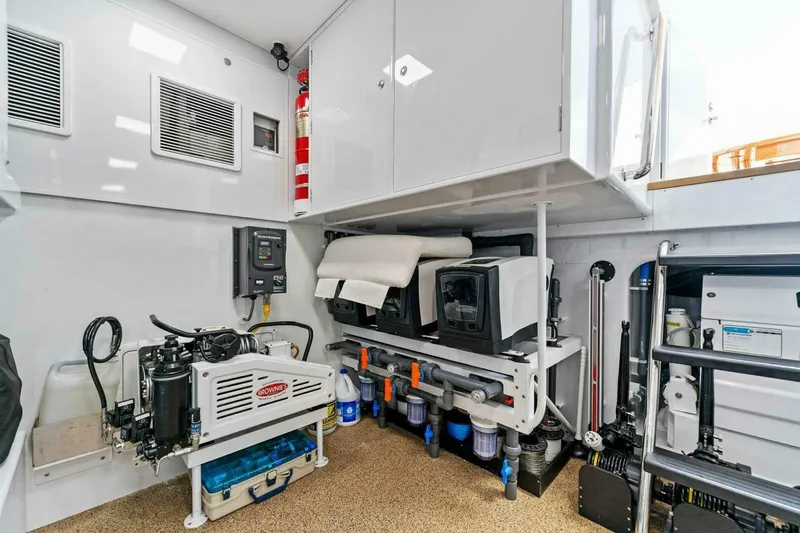

• Air Compressor
• Delta T Engine Room Ventilation
• Fireboy Fire Suppression System
• Asea Frequency Converters
• Dometic Chiller System
• UV Light Post Water Tank
• Headhunter Fresh Water Pumps

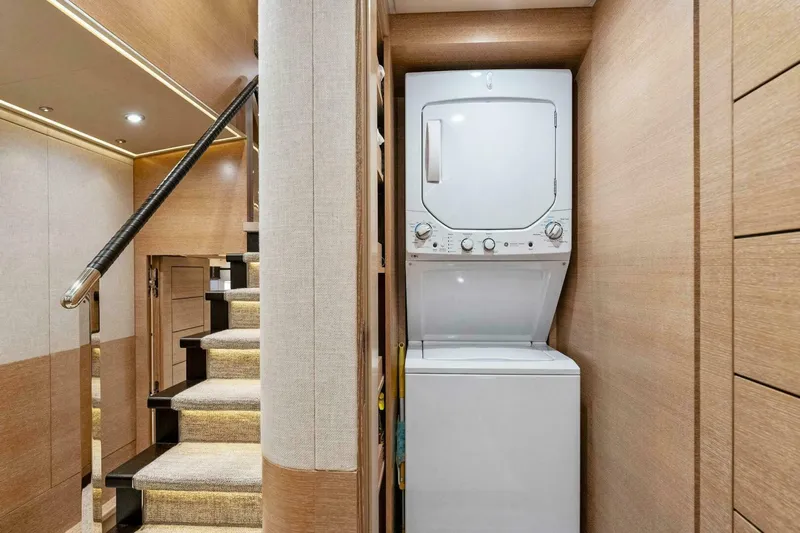

• Stacked Washer Dryer
• Hoshizaki Ice Machine

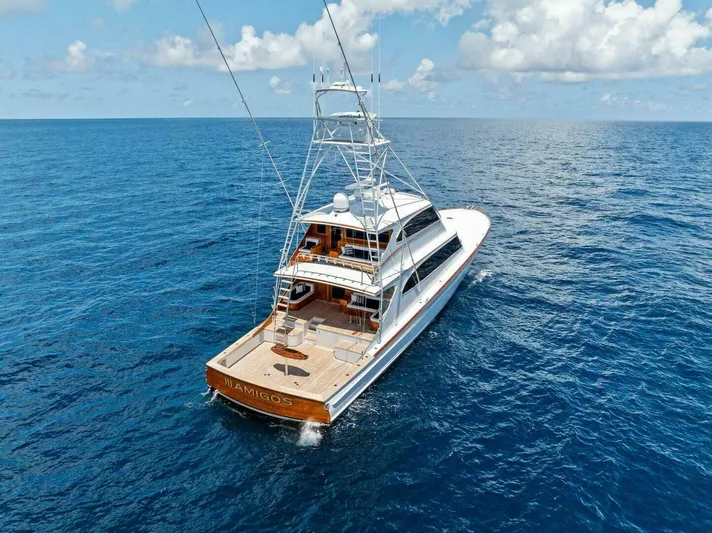

• Full Tuna Tower
• Seats

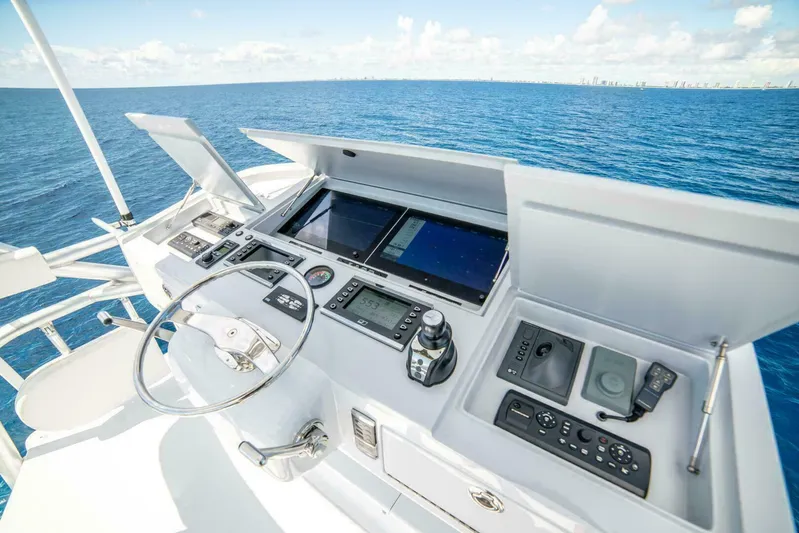

• Custom Large Helm Pod Console
• Belly Band
• Dual Seatronx Multifunction Displays
• Satin Finished Aluminum
• MTU Engine Displays
• Palm Beach Style Controls with Bow Thruster Controls in Handles
• Autopilot
• Sonar Remote
• MTU Joystick for Dynamic Positioning System
• Furuno Electronics
• FLIR Controller
• Hatch Lids to Protect Electronics
• Hydraulic Outriggers
• Teaser Reels in Buggy Top
• Trim Tab Switches
• Rupp Rigger Switches
• Freshwater Washdown

• Impeccable Wiring and Attention to Detail

Radars

• Furuno S-Band 30kw Radar FAR2238BB
• Furuno 8’ S-Band antenna SN24CF/ANT8
• Furuno X-Band 25kw Radar FAR2228BB
• Furuno 8’ X-Band open array antenna for FAR3000 & FAR22X8 series

Navnet TZT2BB Units

• (2) Furuno TZT2BB Navnet TZtouch2 black box chart plotter/fish finder
• (2) Furuno MCU005 keyboard for TZT2BB
• (2) Furuno HUB101 dedicated interswitch hub for Navnet3D
• (2) Furuno GP330B gps/waas sensor

Nav. Video Switching System

• (7) Creston DM-NVX-E30C NVX digital media 4k HDR network AV encoder card
• (2) Creston DM-NVX-351C digital media 4k HDR network AV decoder card w/downmixing
• (1) Crestron DMF-CI-8 digital media card chassis for DM-NVX-C 8 slots
• (7) Crestron DM-NVX-351 digital media room box
• (1) Crestron 7” TSW-760 TFT active matrix color LCD touch screen control panel

Enclosed Bridge Monitors

• (4) Seatronx 24” SRT series sunlight viewable glass bridge monitor

Navigation Computer

• PME small form factor navigation computer optimized for Transas/Nobletec
• Nobeltec Trident Navigation Software Suite
• Seatronx 3 button panel mount trackball w/ scroll wheel
• Simrad A2004 Autopilot pack w/A2004 controller, AC70 autopilot computer, and HS70 GPS compass
• Simrad precision-9 compass
• Simrad RF70 medium-duty rudder position sensor

Class A AIS

• Furuno FA170 Class A AIS transponder w/ a 4.3” color lcd display
• Comrod AV51P VHF/AIS 4’ antenna
• Actisense NGW-1-AIS NMEA0183 to NMEA 2000 gateway

Primary Echosounder

• Furuno FCV1900B black box CHIRP echosounder
• Airmar PM411C-LWM dual element 2KW CHIRP wide beam transducer for keel

Furuno Navnet Echosounders

• Furuno DFF3 external black box echosounder module for Navnet
• Airmar CM599C-LHW pocket mount CHIRP transducer
• Furuno DFF3D multi-beam commercial-grade, wide angle 3D Sonar/Echosounder black box module
• Furuno 165T-CM54 pocket/keel mount transducer w/ motion sensor for DFF3D

Night Vision System

• FLIR M617CS stabilized thermal/visible camera w/JCU (NTSC, 30Hz) next generation thermal core and optics

Instruments

• (2) Simrad IS42 Digital display
• Airmar DT820SV-235-N2 235kHz depth smart transducer
• Airmar 220WX weather station instrument

Tower Navigation

• (2) Seatronx 19” SRT series sunlight viewable glass bridge monitor
• (2) Furuno MCU005 keyboard for TZTL12F, TZTL15F, and TZT2BB
• Furuno RCU016 21x7 series radar trackball control w/ power switch
• Simrad FU80 Follow Up steering lever w/ LCD & take command buttons
• FLIR standard dual station accessory kit for M-Series
• Furuno FCV1902 control unit for FCV1900 series echosounder

Aft Flybridge Station

• Seatronx 19” SRT series sunlight viewable glass monitor
• Simrad FU80 follow up steering lever
• Furuno MCU004 remote control for NavNet TZtouch

VHF Radios

• (2) Standard Horizon GX6000 fixed mount VHF
• (2) Standard Horizon GX6000 remote mic kit
• (2) Comrod AV90/2 BI-R 16’ VHF antenna
• (2) Standard Horizon ram mic3 second VHF station (tower)

VSAT

• KVH TracPhone V7-HTS Ku-Band antenna
• StarLink Marine

Iridium Satellite Phone

• ASE MC08-H Iridium ComCenter II indoor voice terminal w/ privacy handset

Amplified Marina WIFI Repeater

• Aigean Networks AN-7000 high power, dual-band WiFi client

Wireless Network

• Kerio Control NG300 (unlimited users) appliance
• (3) Ruckus zoneflex R610 dual-band wave 2 wireless access
• Araknis networks 310 series L2 managed gigabit switch w/ full PoE+

CCTV Cameras

• Luma Surveillance 510-Series 8 Channel DVR
• (8) Orlaco compact color camera w/LED light
