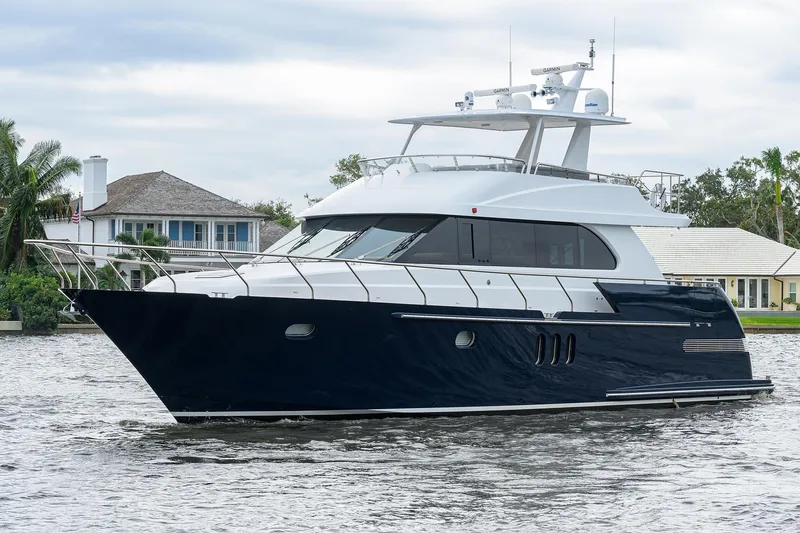

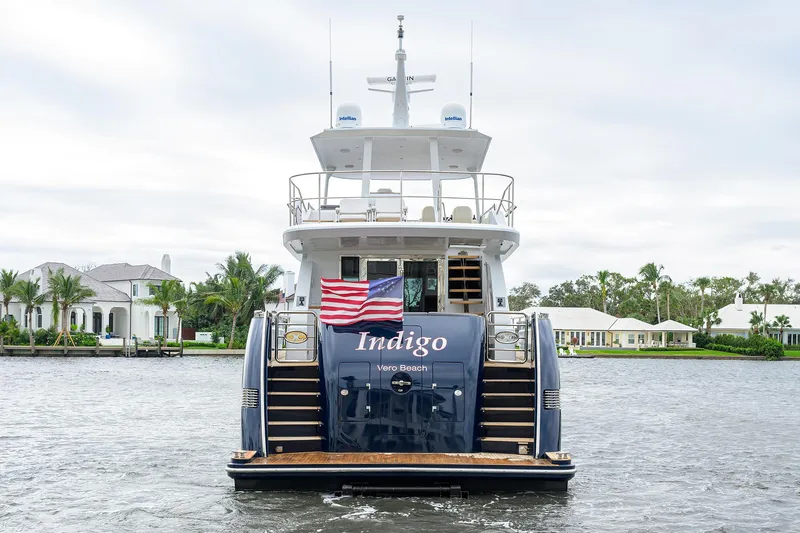

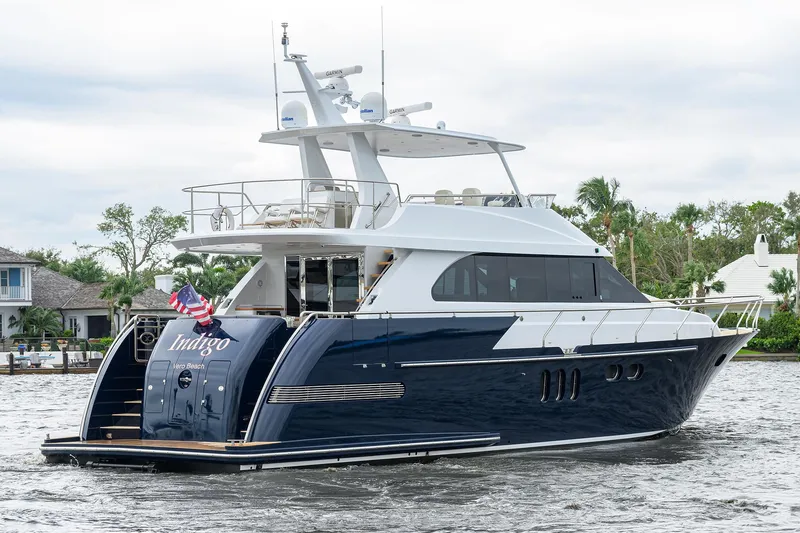

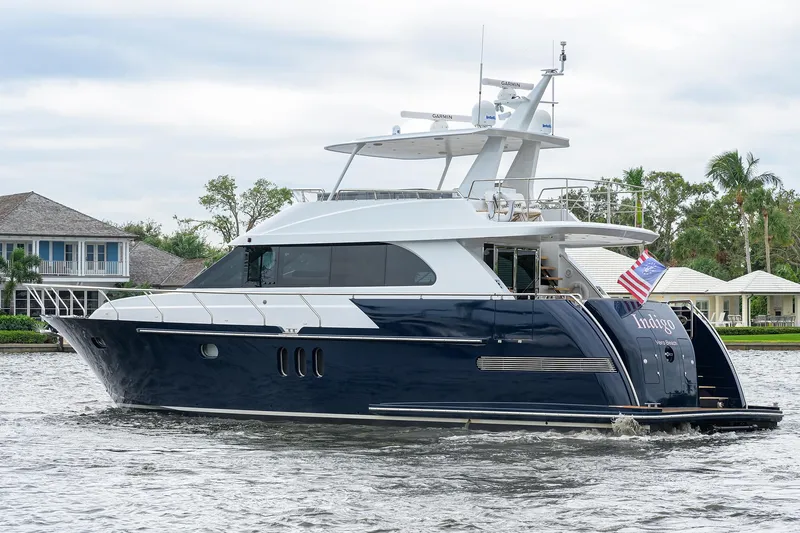

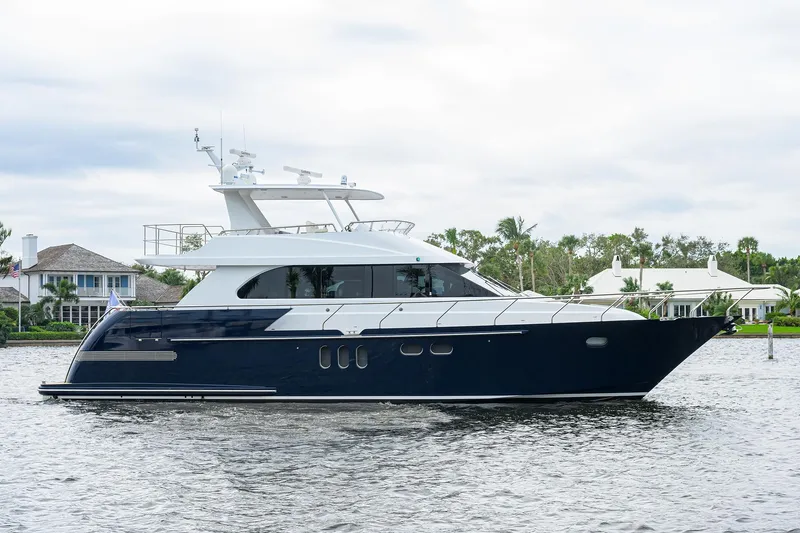

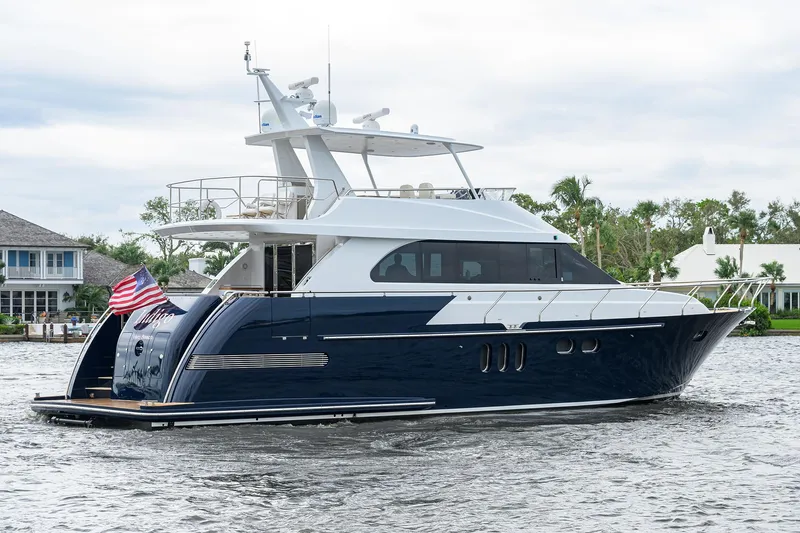

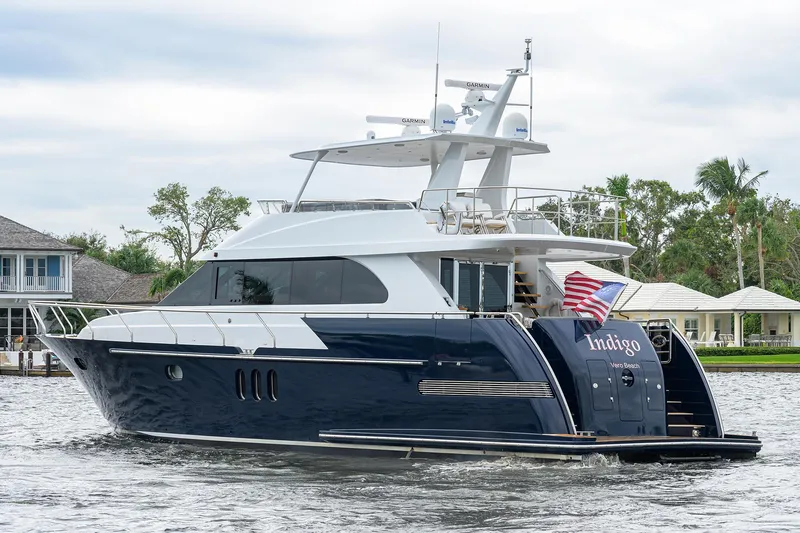

INDIGO Yacht for Sale

• Cruising Speed: 26 kn
• Maximum Speed: 30 kn
• Beam: 16' 11''
• Hull Material: Aluminum
• Max Draft: 5' 0''
• Displacement: 78,900 lb
• Fuel Tank: 1 x 1330|gallon
• Fresh Water: 1 x 220|gallon
• Holding: 1 x 125|gallon
• Cabins: 3
• Heads: 3

• Gregory C. Marshall Naval Architects, Ltd. Design
• CE Category B rating
• The hull, decks, superstructure and framing materials are all marine grade 5083-H116 aluminum alloy
• Welding procedures include aluminum Mig and Tig welding

• Sound dampening methods including isolation tiles and coatings applied to hull, bulkheads and superstructure
• Soundown insulating panels installed on bulkheads, deck heads and walls in machinery spaces
• Polyurethane foam insulation on all internal aluminum surfaces provide thermal insulation

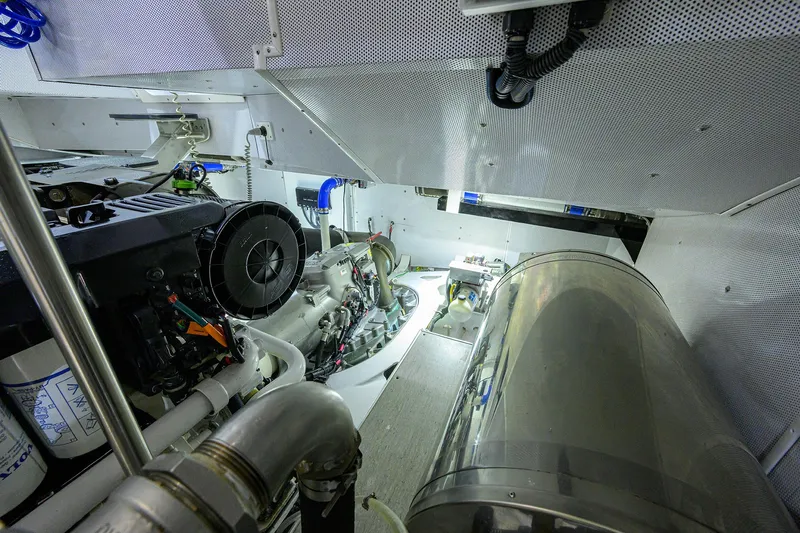

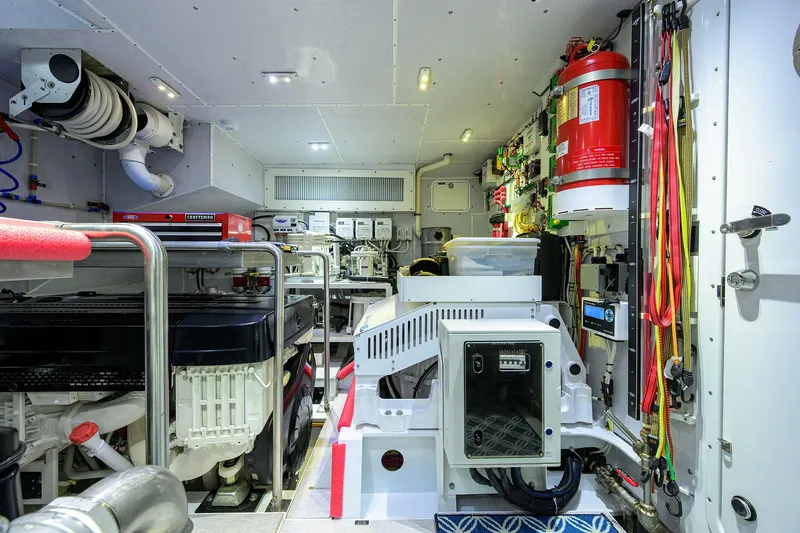

• Engine space insulation includes insulated panes with powder coated perforated aluminum protective skins
• Nidacore panels are used throughout finishing construction and provide excellent insulating characteristics

• Awlgrip Yacht Paint System
• Paint system includes finishing all exterior surfaces as well as mechanical etching, etch primer, primer, fairing, final primers and topcoats.  Lockers and mechanical spaces included.
• International Micron CSC bottom paint

• All exterior deck fittings and fasteners are 316 stainless steel
• 2" stainless steel bow rails around perimeter of main deck and boarding stairwells
• Eight 12" stainless steel cleats including two on swim platform

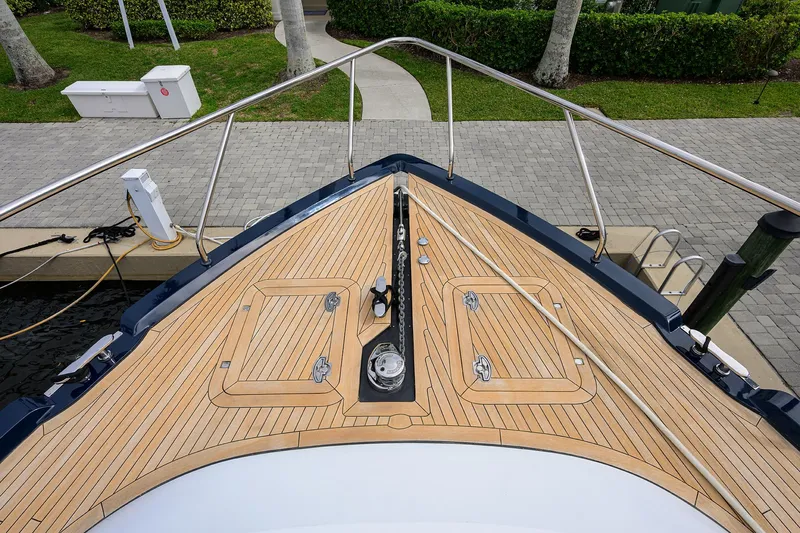

• Anchor pocket and roller assembly (Mounted through raised Bulwarks)
• Stainless steel grill fixtures mounted in hull side recess on both port and starboard side (Note:  Dissimilar metals isolation practices applied on all fasteners and hardware).

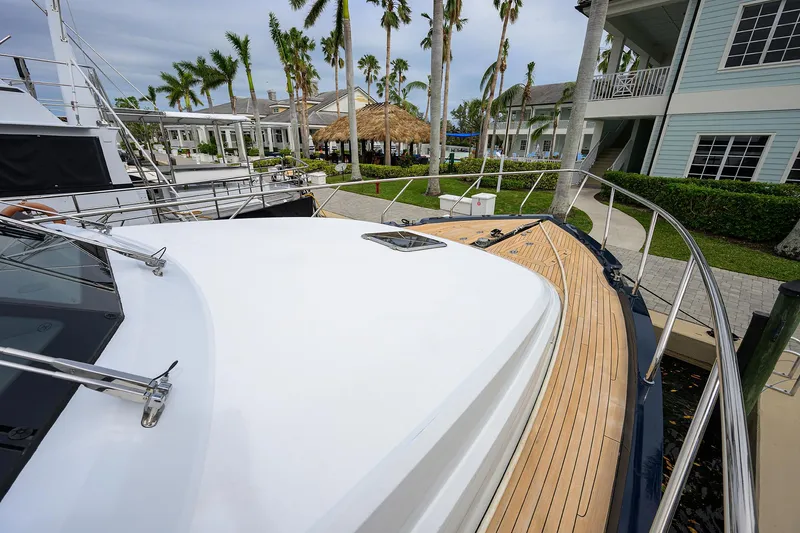

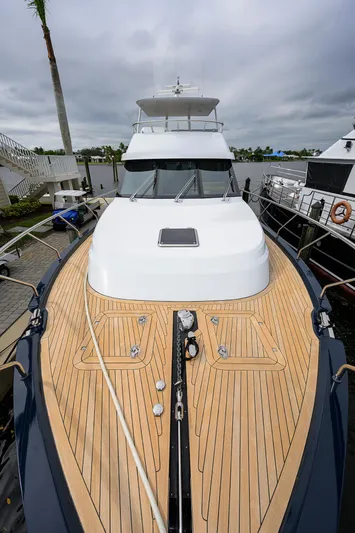

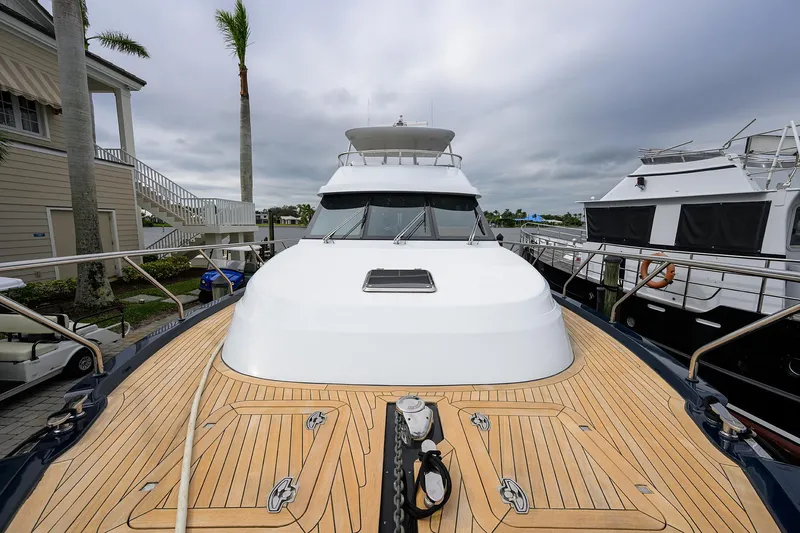

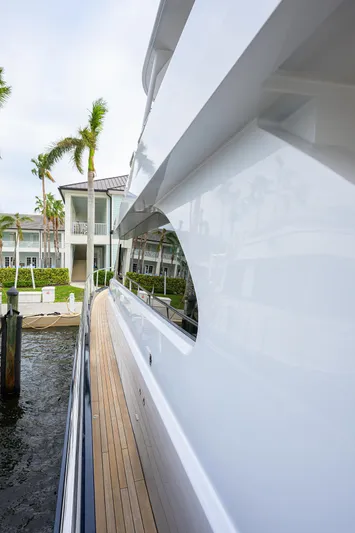

• Exterior 3/8" teak decking on all exterior decks including swim platform

• Lewmar CPX5 (24V) anchor windless (up/down and free fall) (3 station remote -- lower and upper helm and foredeck)
• UA45 (99lbs) Ultra anchor (stainless steel) with a stainless anchor swivel
• The anchor rode consists of 200' x 3/8" anchor chain spliced to 300' x 1/2" anchor rope
• Anchor stay

• Fritted glass - forward windshield panels (12mm)
• Fritted glass - cabin side windows, tinted (8mm)
• Two opening side windows

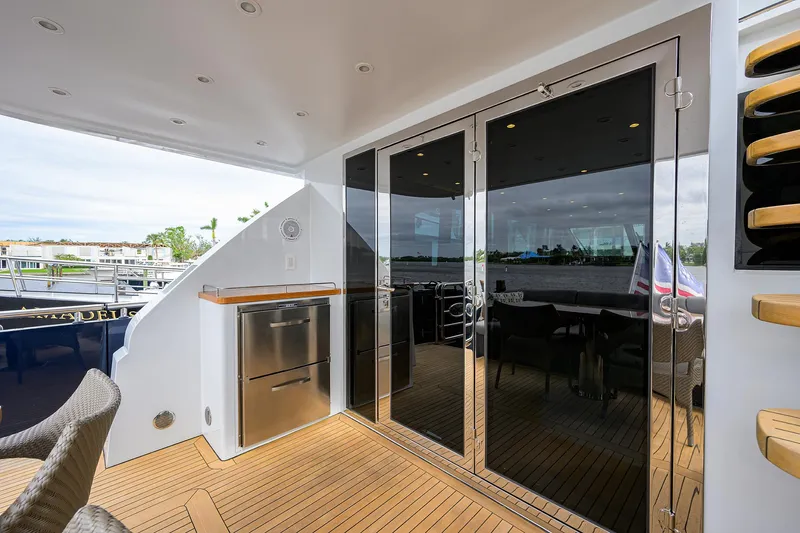

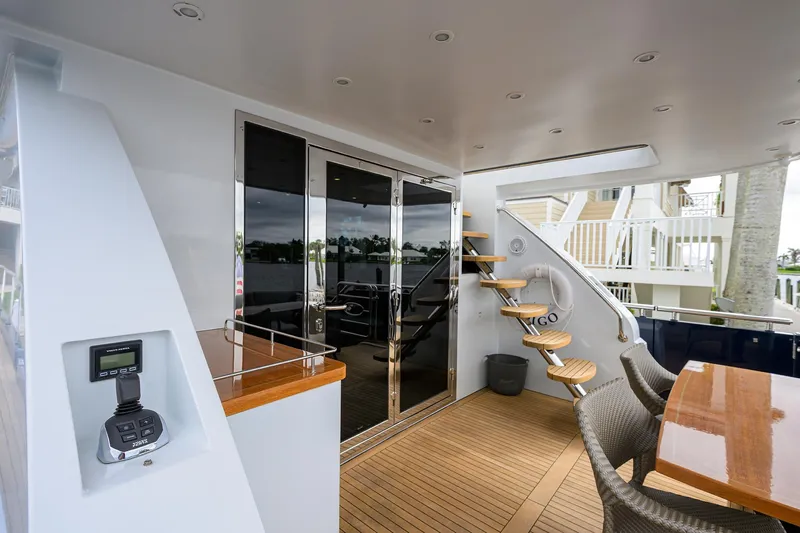

• Stainless steel double hinged salon entry door, tinted
• Eleven (11) port lights (various sizes, shapes and locations)

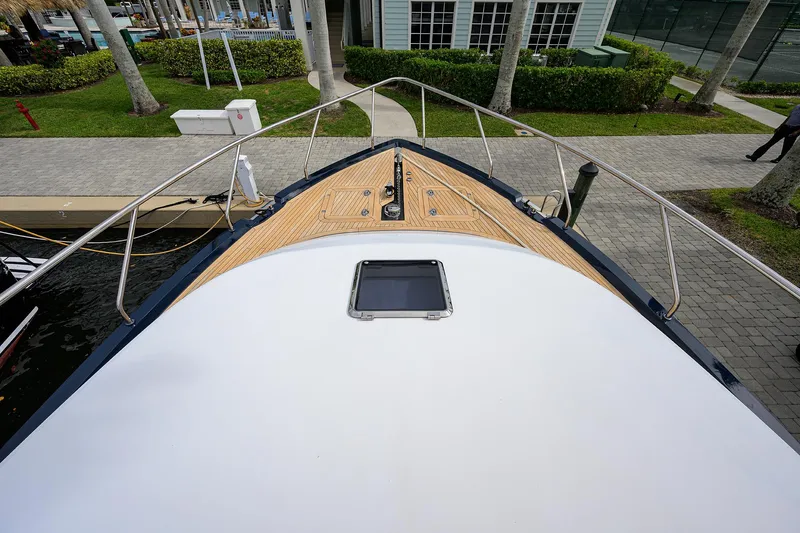

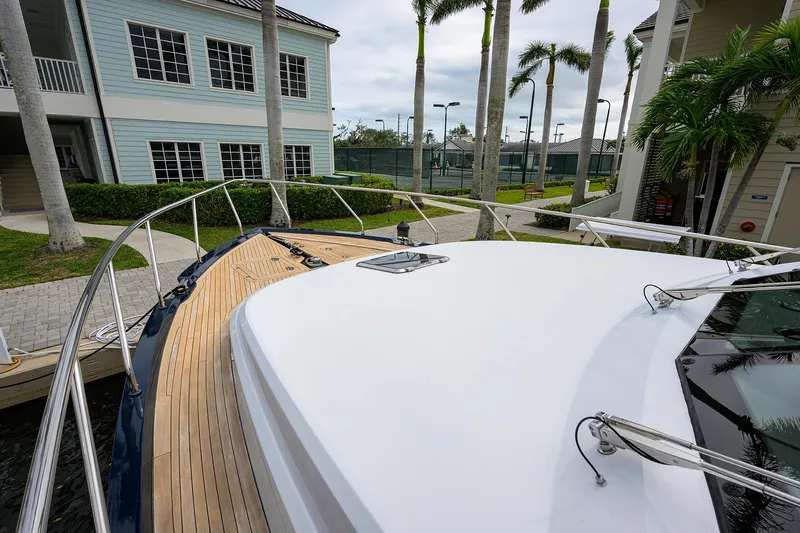

• "Manship" stainless steel deck hatch (24" square) in foredeck with "OceanAir" screen/shade assembly

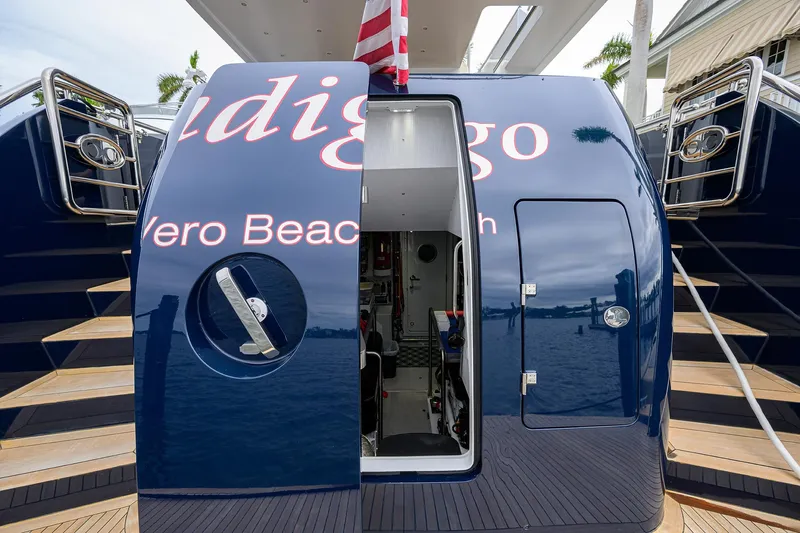

• Pantograph watertight transom door
• Two (2) watertight transom locker doors

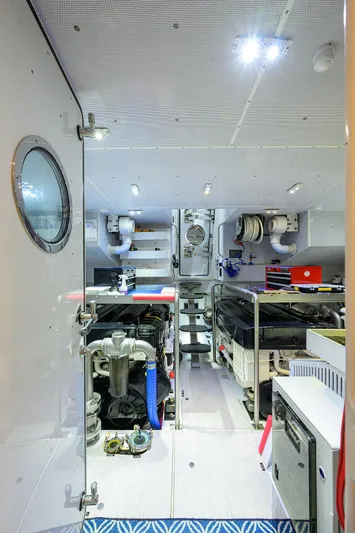

• Watertight engine room man door into lower deck accommodation space

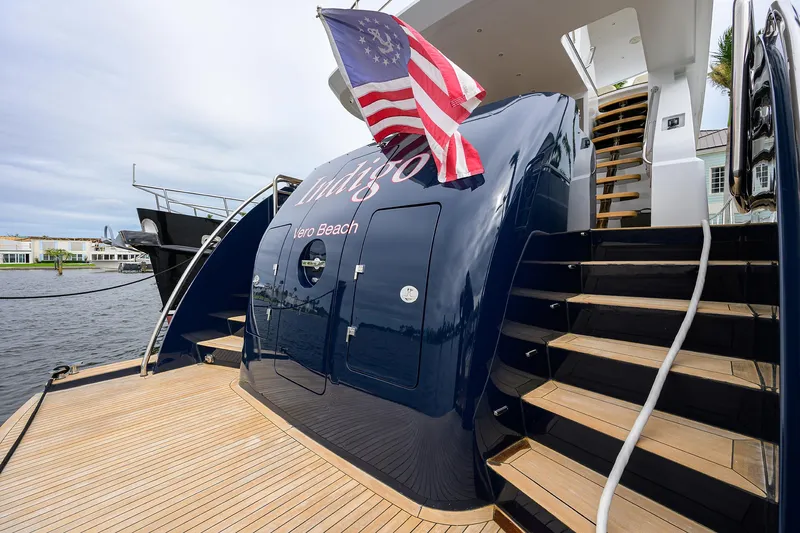

• 60" deep swim platform (full width) with port and starboard boarding stairwells onto aft cockpit deck area

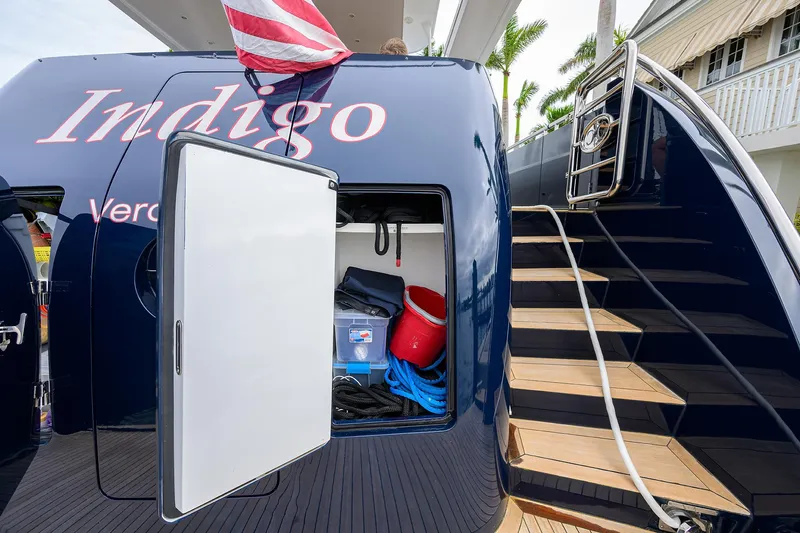

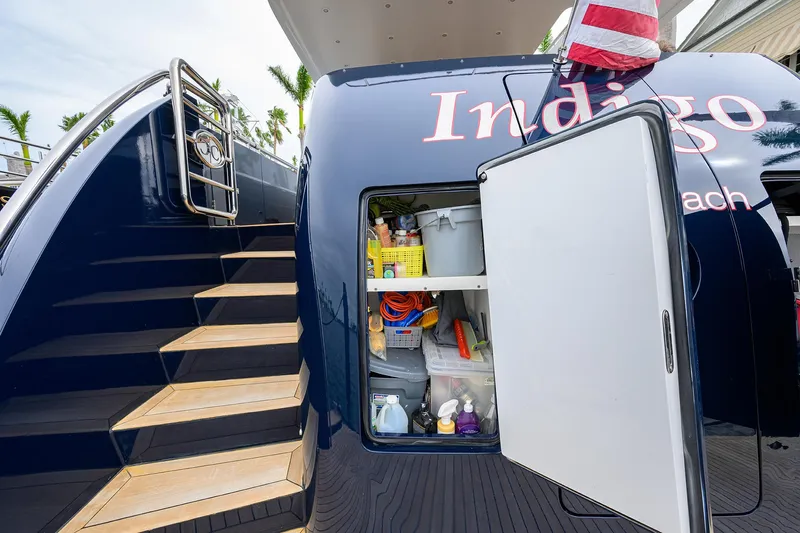

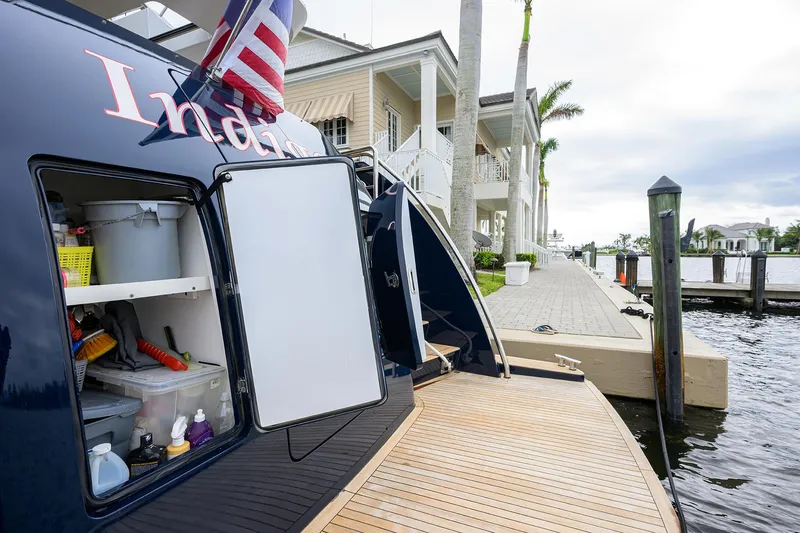

• Two (2) transom lockers with flush locker doors
• Glendinning HoseMaster with 75' fresh water hose and transom hot and cold shower
• Glendinning 240/50A CM-7 CableMaster (75' cord)
• A welded aluminum rub rail extends around the perimeter of the swim platform and 12' forward on either side, capped with a 2" x 3/8" stainless steel finishing rub strip.
• Two (2) port and starboard Garelick boarding ladders (four step) that are recessed into hull beneath swim platform
• Five (5) Imtra LED courtesy lights (deck level) on inside of port and starboard hull wings and in the transom

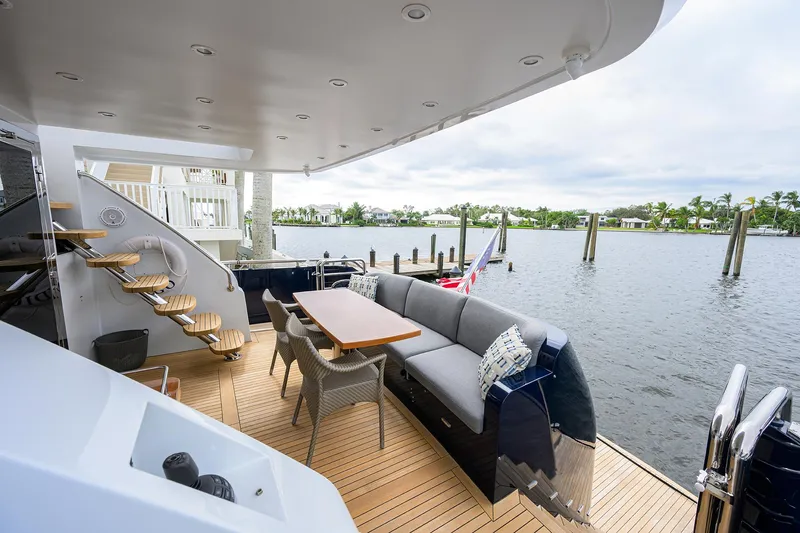

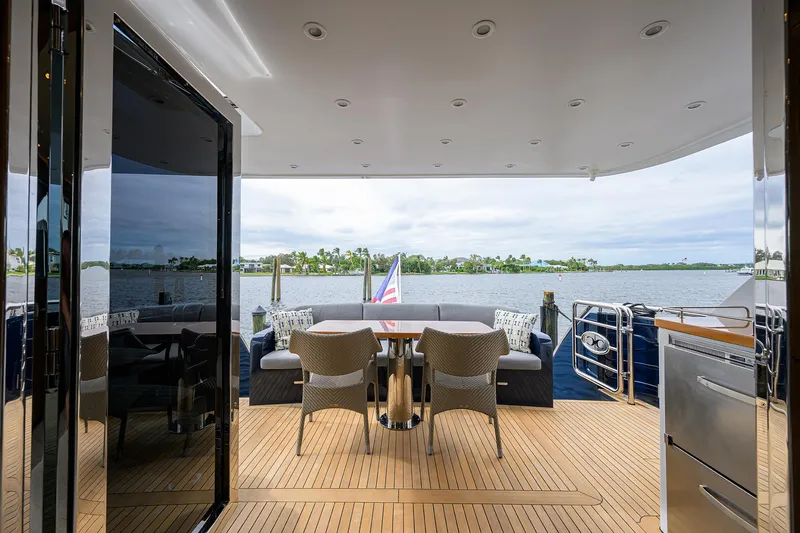

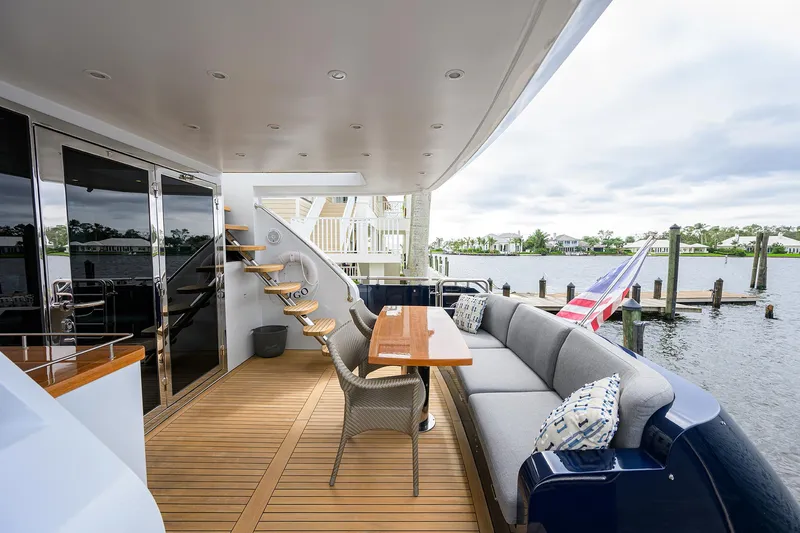

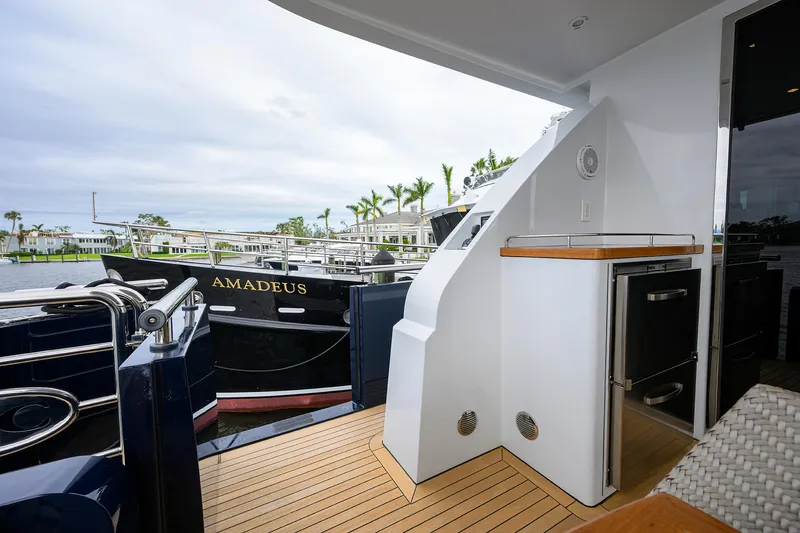

• Hardtop extends the length of the cockpit deck (inline with aft seating) with (18) Imtra LED down lights (recessed) with dimmer function
• Two Volvo joystick controls (starboard and port side) provide docking convenience and ease

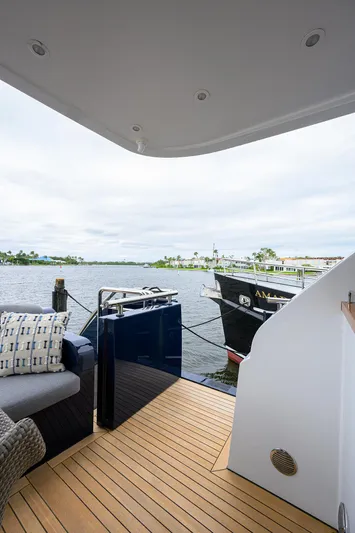

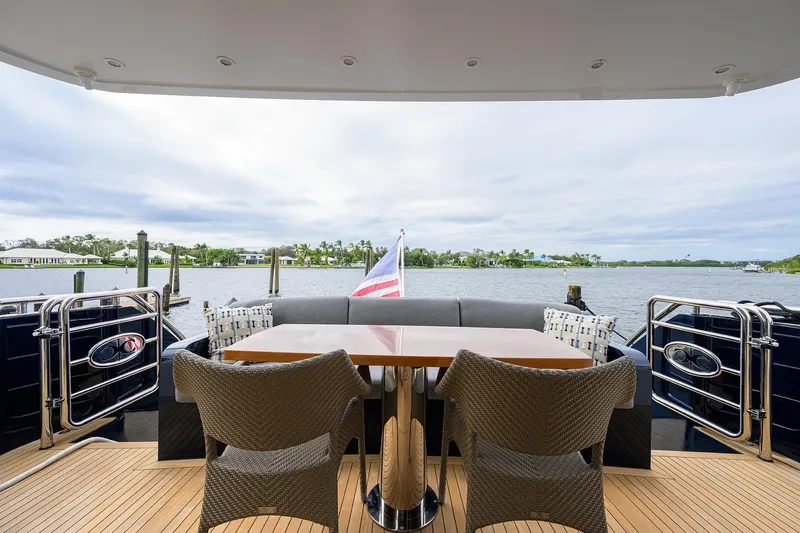

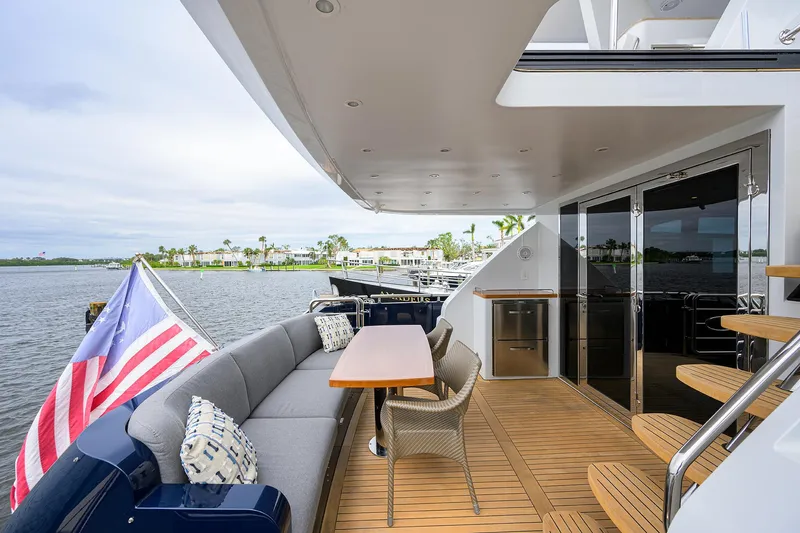

• The aft cockpit deck is self-bailing with deck scupper drains

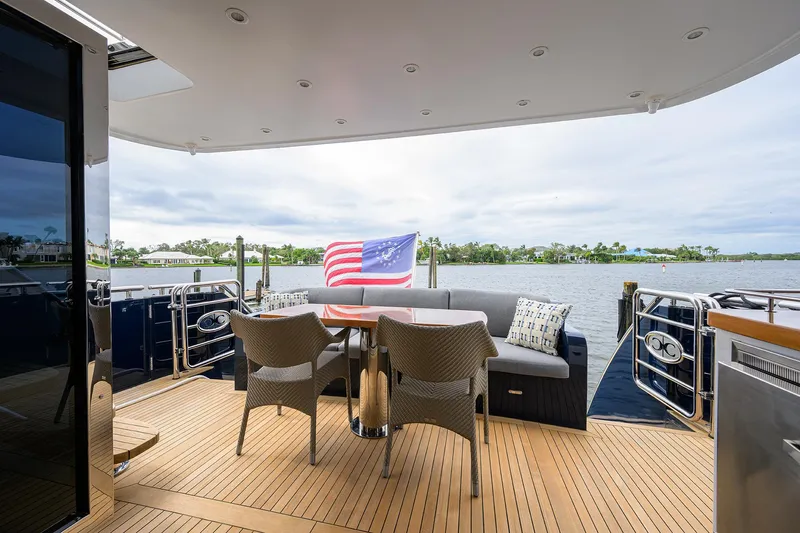

• Cockpit settee upholstered in Sunbrella upholstery fabric with a Sunbrella canvas cover.  The oval settee/dining table is high gloss teak with inlay border with stainless steel pedestal with Sunbrella cover
• Two (2) Fusion waterproof speakers
• Two (2) Gost video cameras (see navigation equipment)

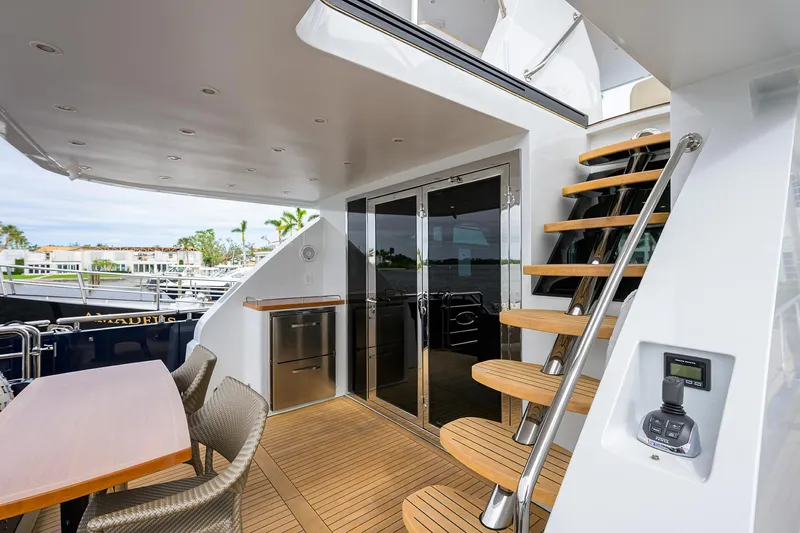

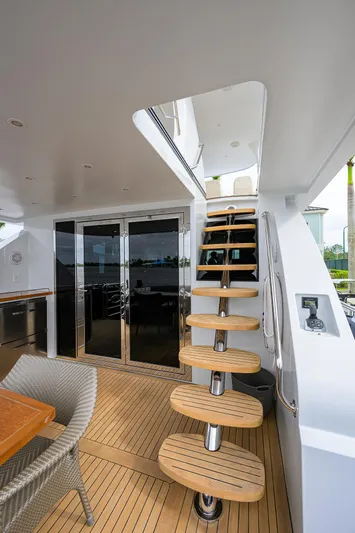

• Stainless steel fly bridge stairs with teak stair treads

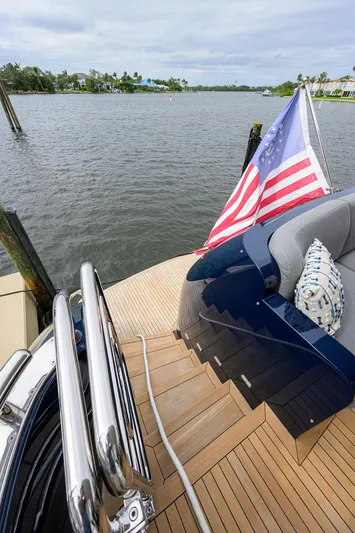

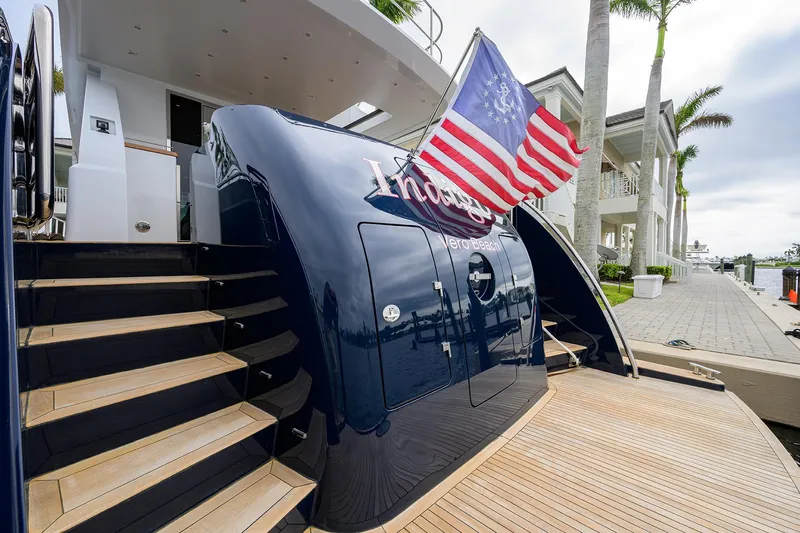

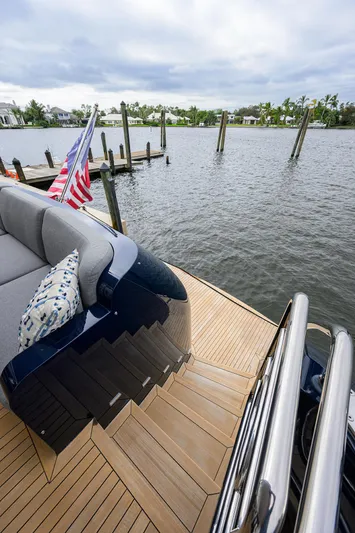

• Port and starboard boarding stairs leading down to swim platform with hinged stainless steel gates at top of stairs
• Port side mini-bar with Isotherm Inox 160 combo fridge / freezer with ice maker

• Anchor locker with access deck hatch (latched)
• Self-launching anchor roller assembly and fairlead

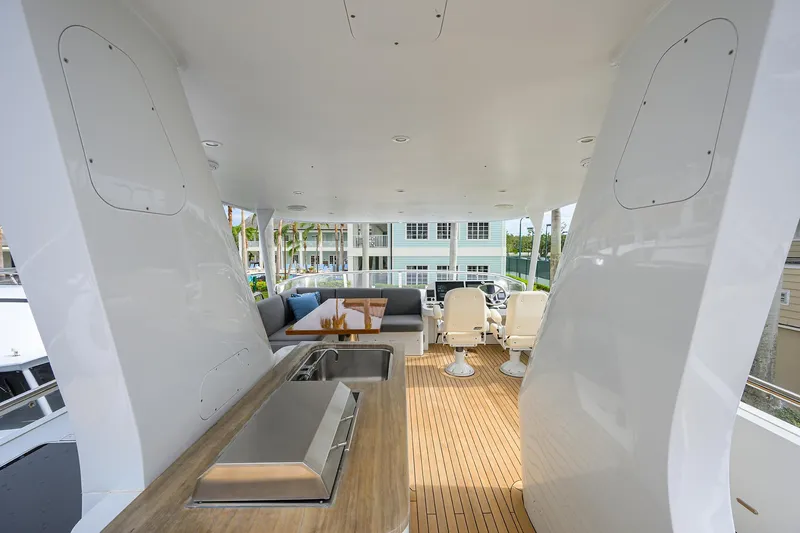

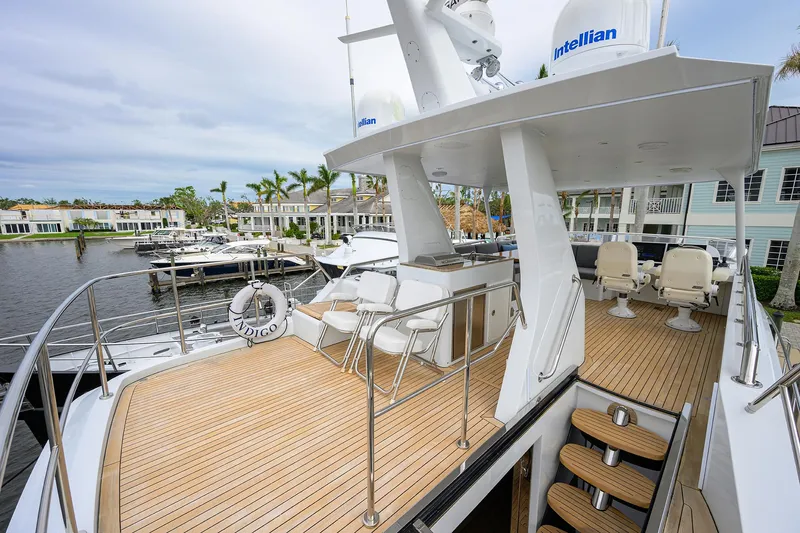

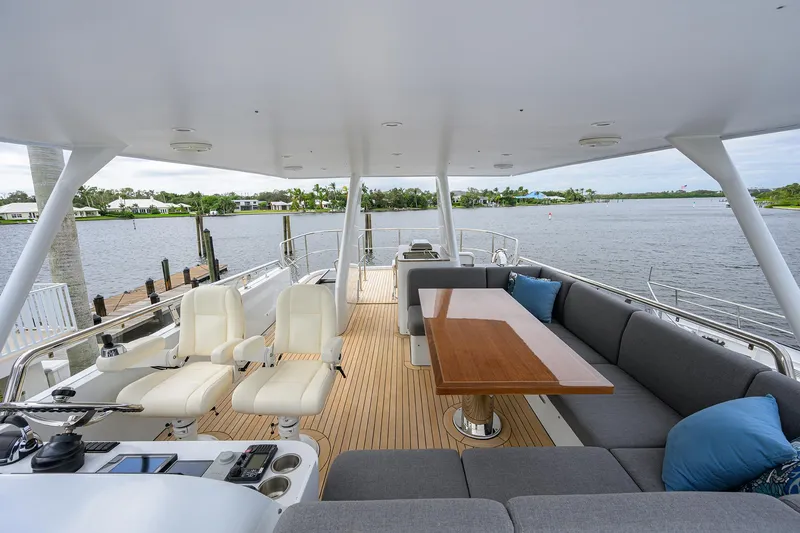

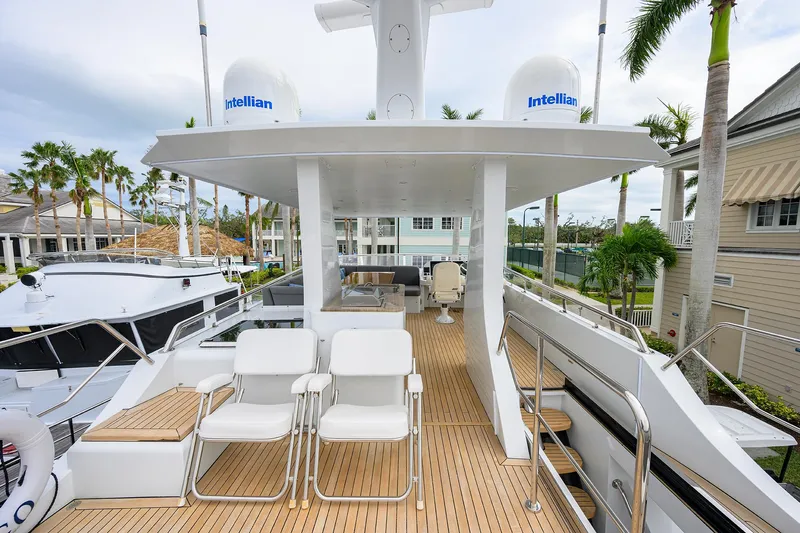

• Hardtop with integrated radar tower, (9) Imtra down lights and (4) Fusion waterproof speakers
• Tower accommodations radar scanner, satellite TV dome, satellite dummy dome, GPS sensors, VHF antennas, GSM antennas
• Upper deck drains (port and starboard)

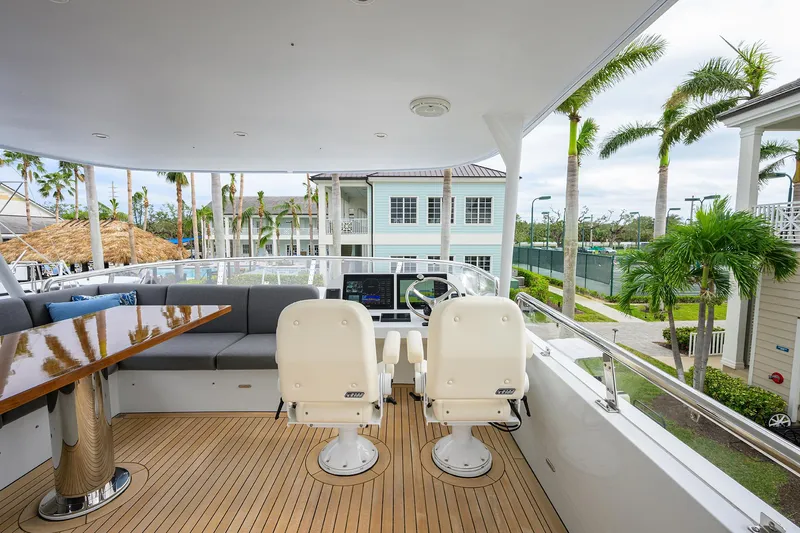

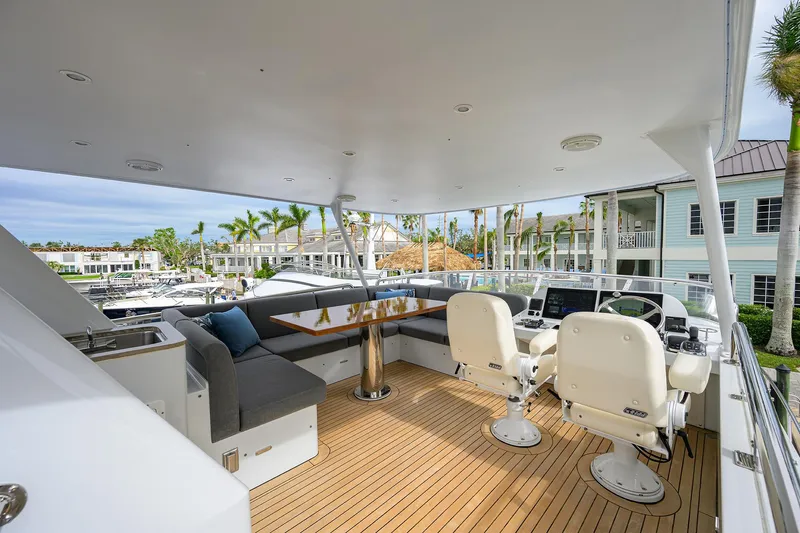

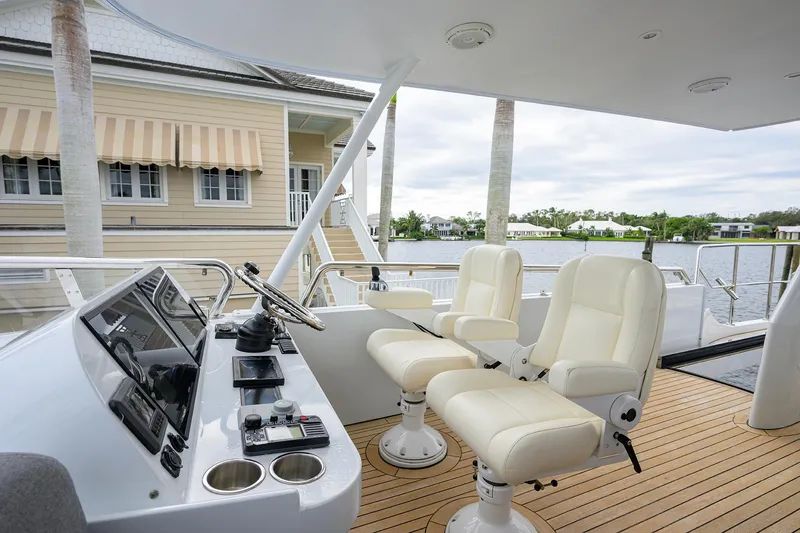

• Two (2) Stidd helm seats with armrests

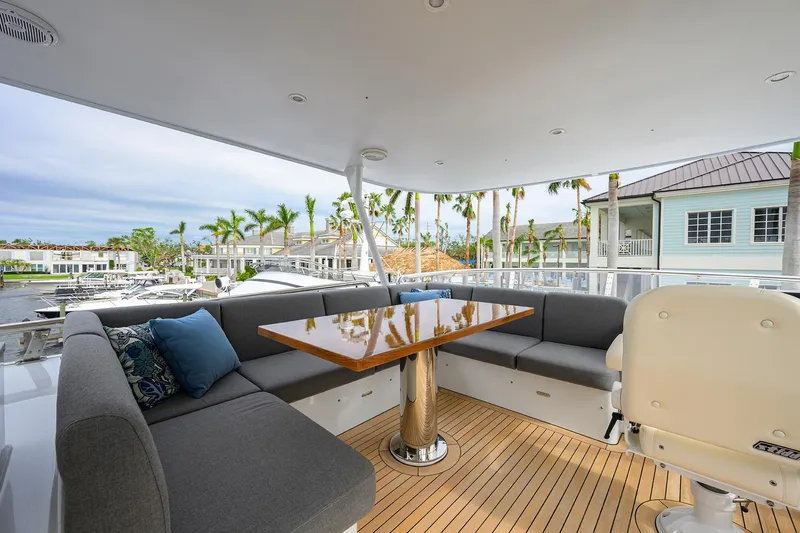

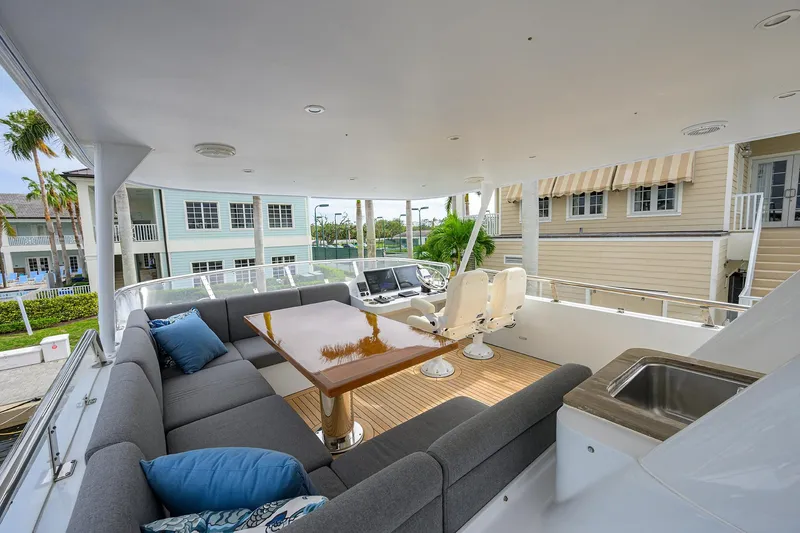

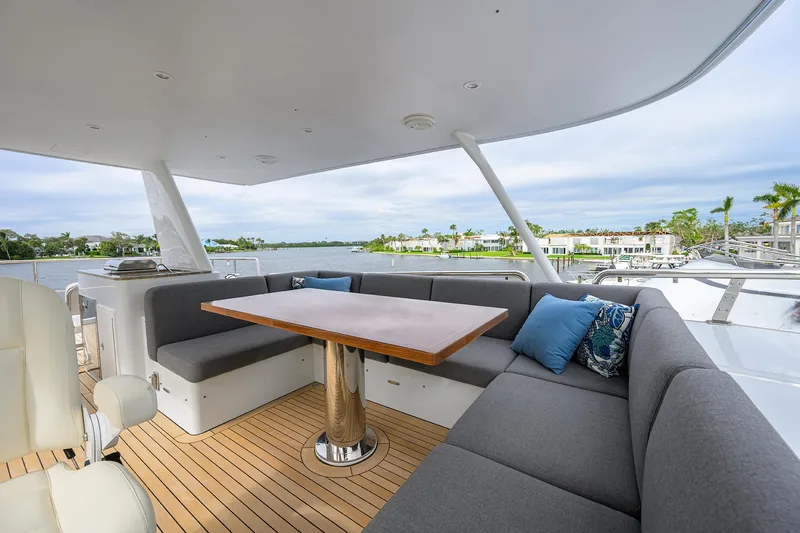

• U-Shaped settee with seating for 5 (storage beneath) upholstered with outdoor fabric.  Teak table with stainless steel pedestal

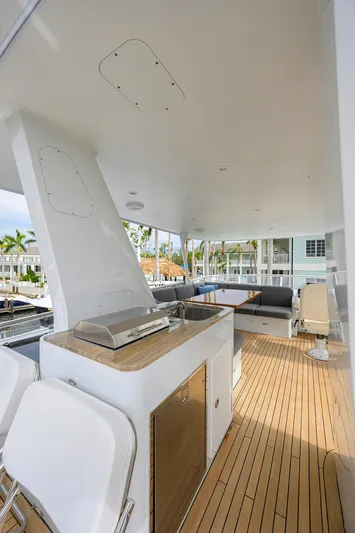

• Summer kitchen cabinet with Isotherm Inox 85 combo fridge, freezer and bar sink

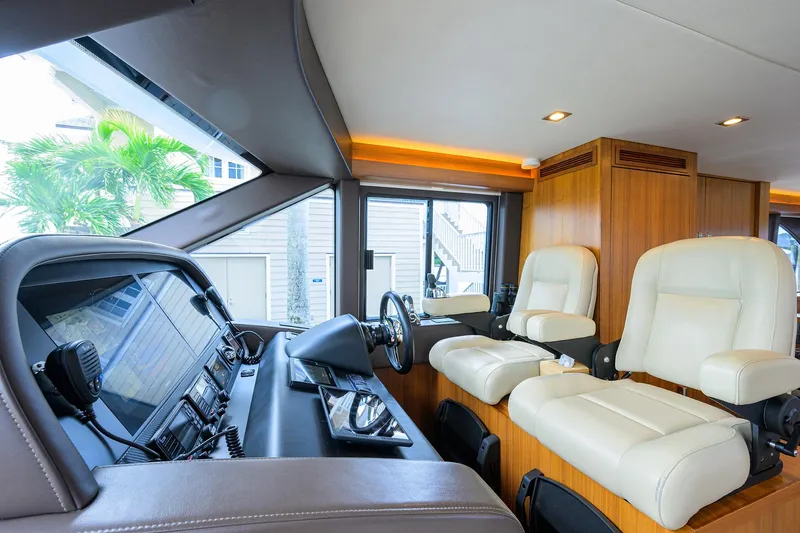

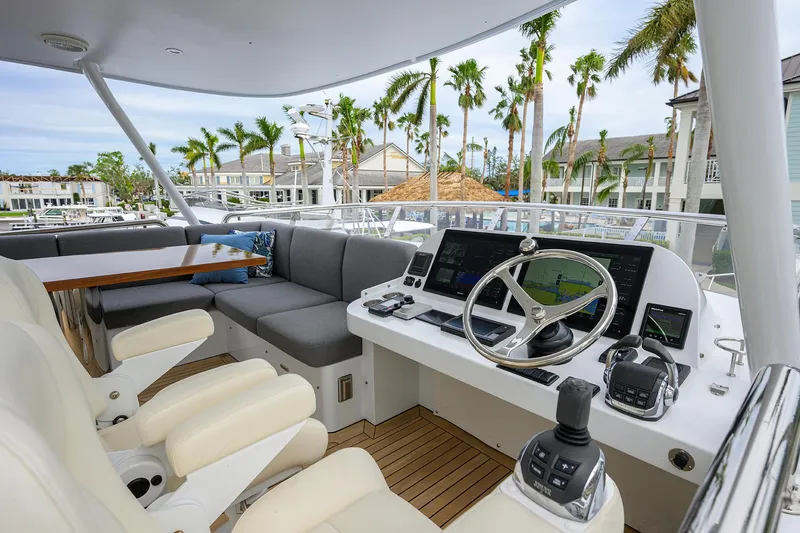

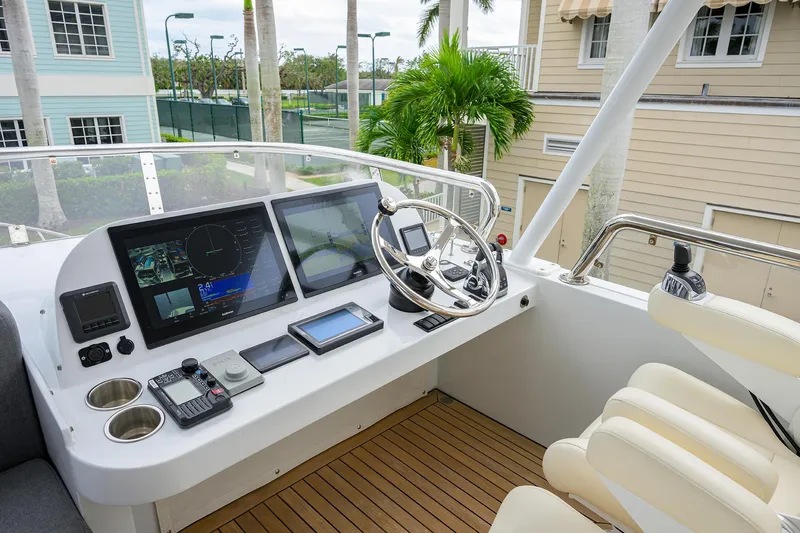

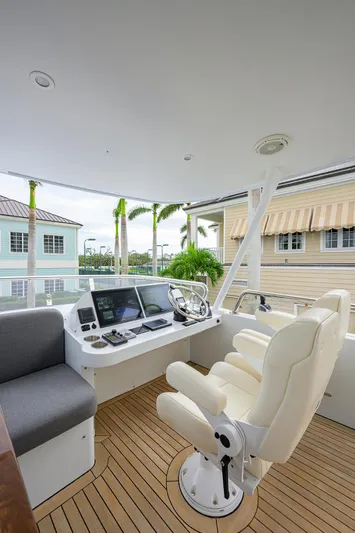

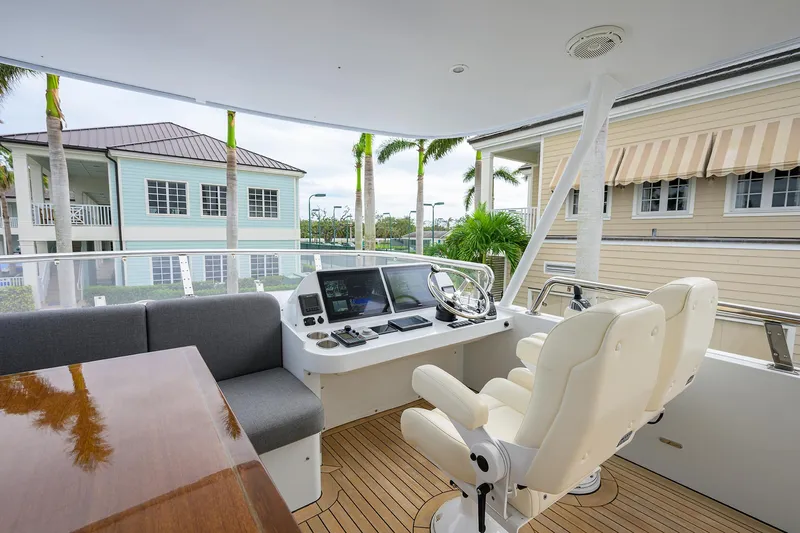

• The upper helm / driving station includes an ergonomic and comfortable driving position

• Volvo IPS tilt steering helm with Edson steering wheel
• Volvo dual engine binnacle mounts
• Volvo joystick controls
• Volvo 7" color engine management panel
• EVC panel
• Volvo remote start/stop panel
• Humphfree Interceptor trim system control panel
• Remote searchlight controls
• Garmin GHC10 VHF Radio
• Two (2) Stainless Steel cup holders
• Sunbrella Cover
• Two (2) Garmin 8617 MFD 17" touch screen displays
• Volvo Autopilot Control Unit

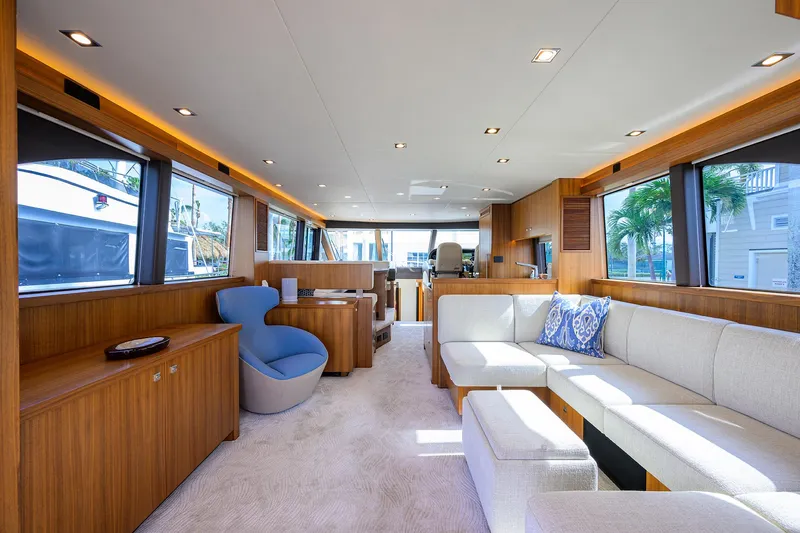

•  Interior cabinets and selected joinery finished in Black Walnut
• Carpet flooring with underlay through main salon, teak flooring in galley and at entry
• Majilite upholstered wall and ceiling panels

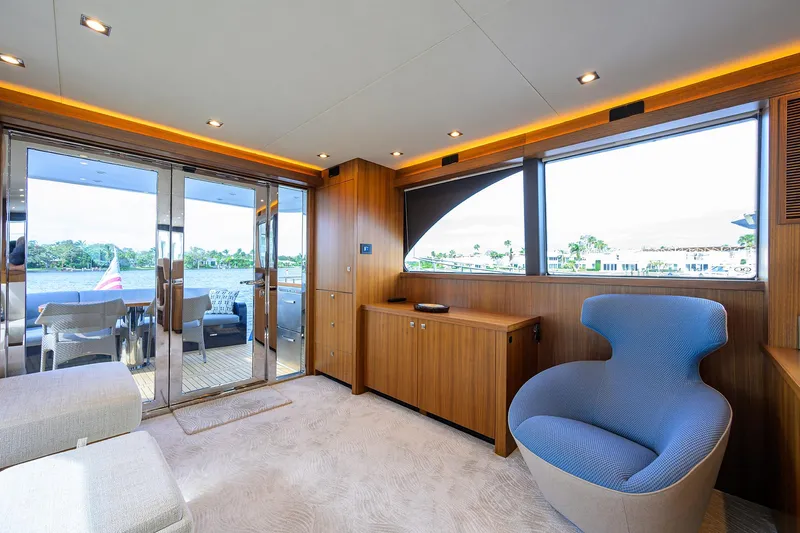

• Entry through rear double-hinged rear salon door

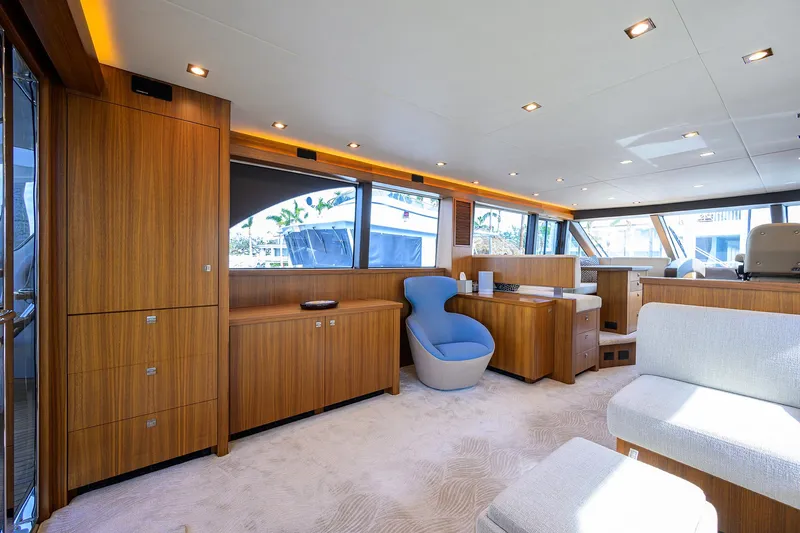

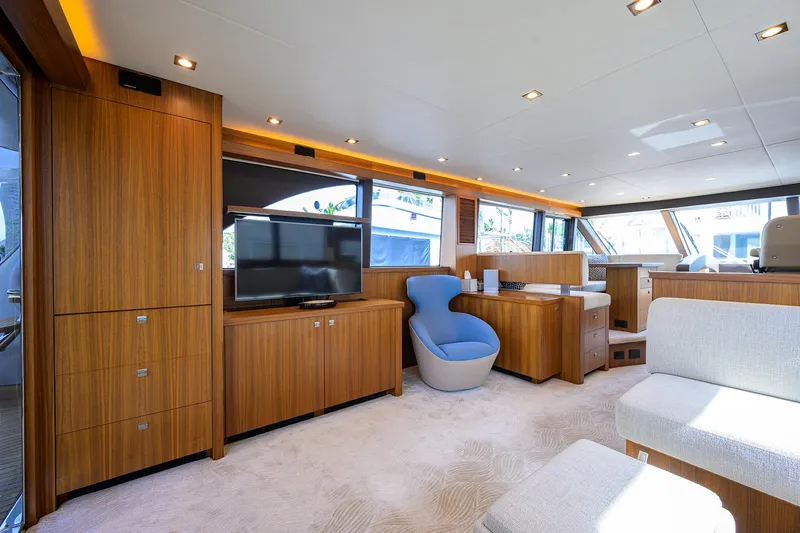

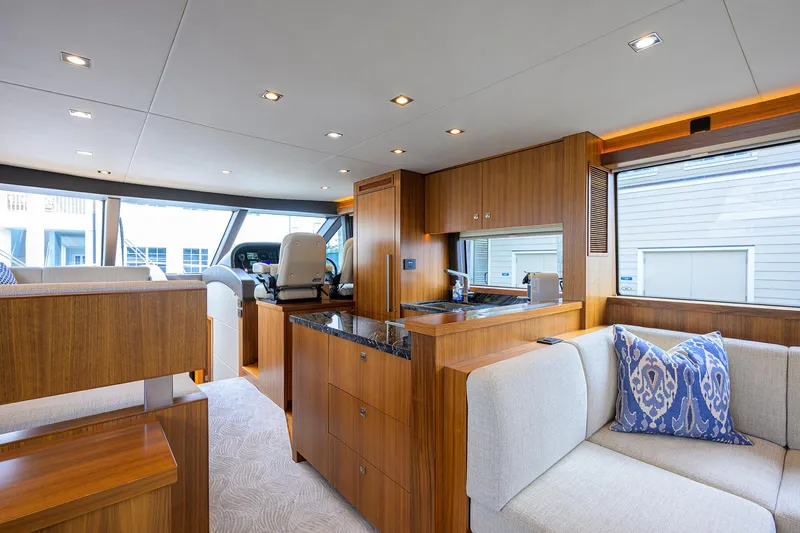

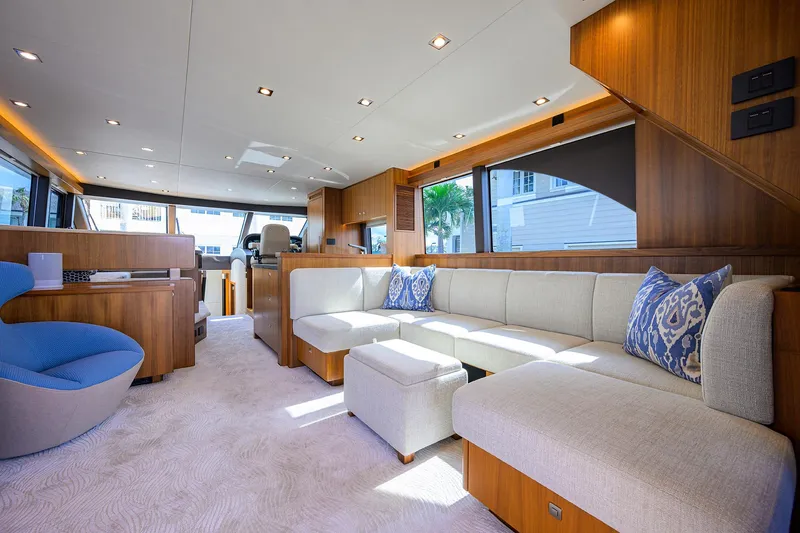

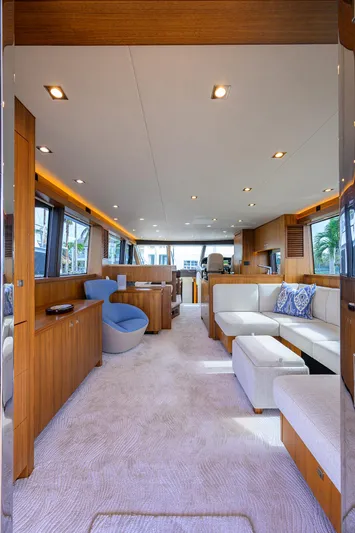

• Port-Side Configuration

           - Aft:   coat / storage closet

           - Aft:   TV/entertainment cabinet

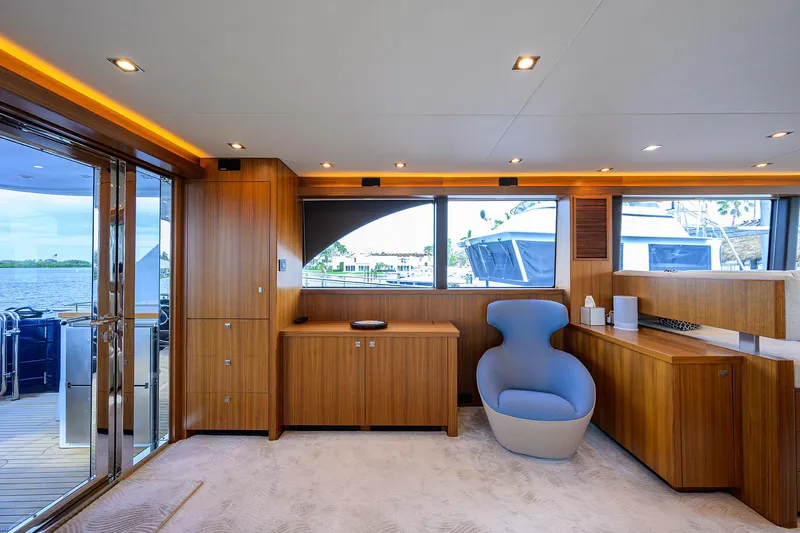

           - Mid:  club chair

           - Mid:  cabinet with pull out pantry

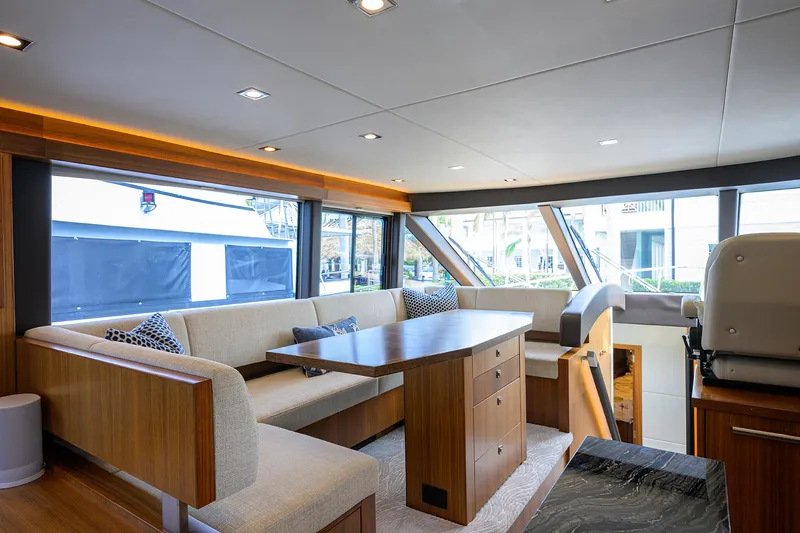

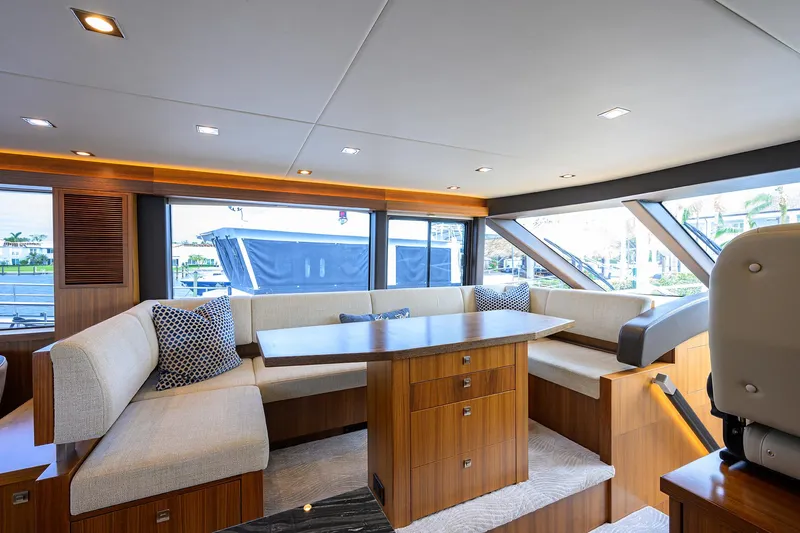

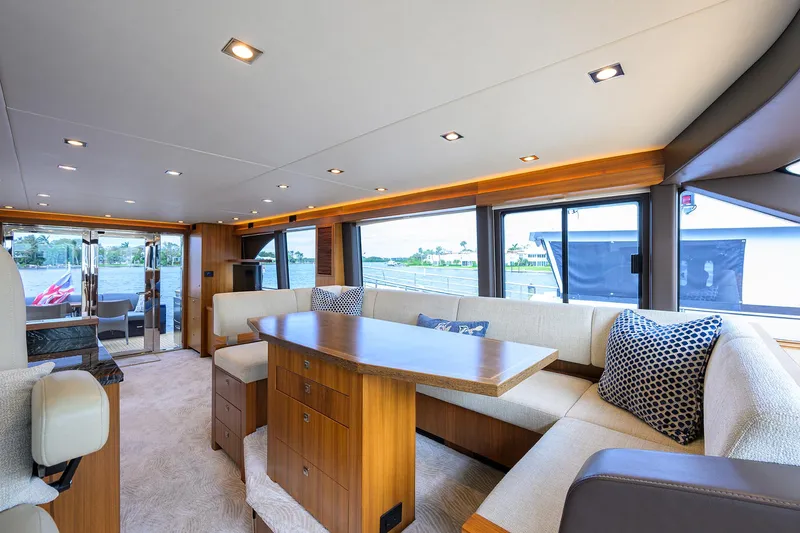

           - Fwd:  U-Shaped dinette settee with table (seating for 6)

• Starboard-Side Configuration

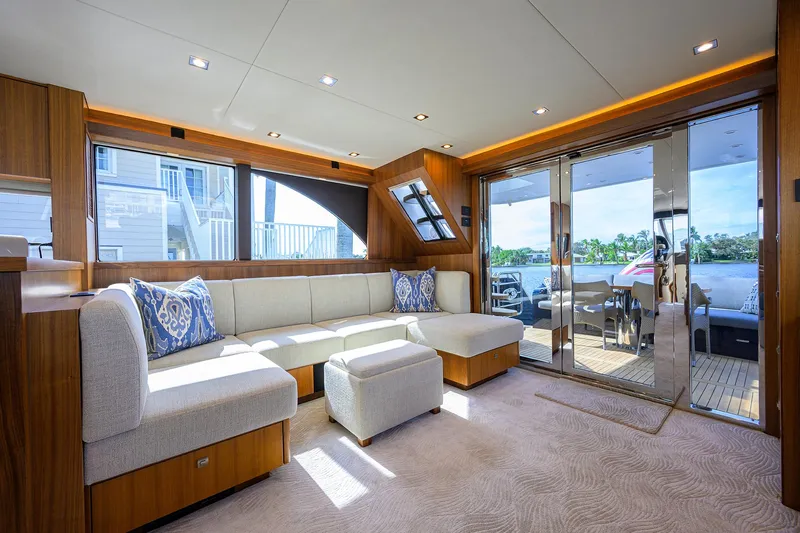

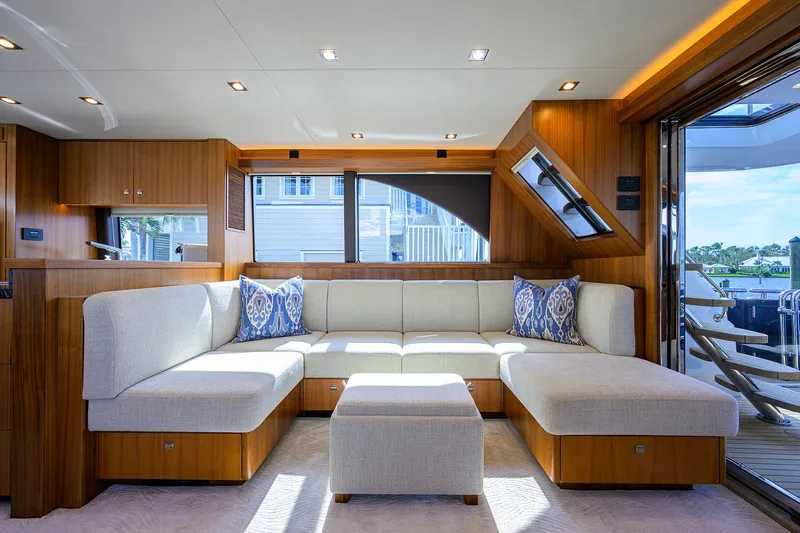

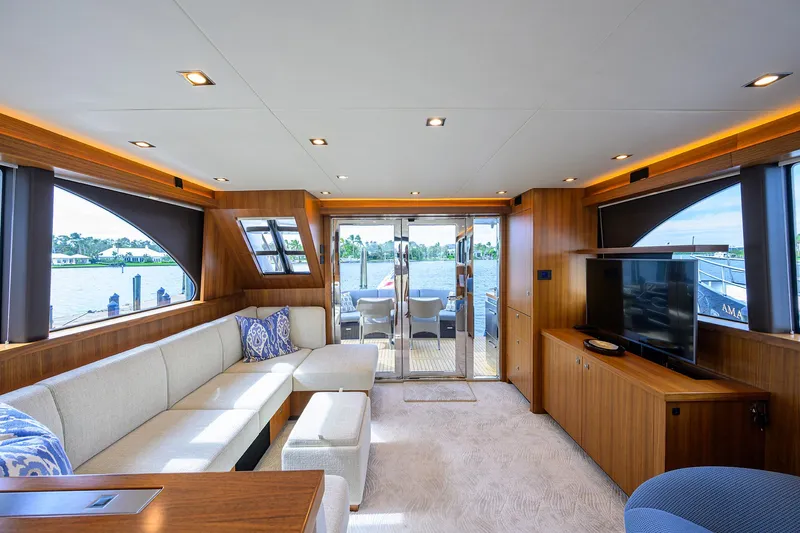

           - Aft:  U-Shaped lounge seating with coffee table

           - Mid: U-Shaped galley (see detailed description)

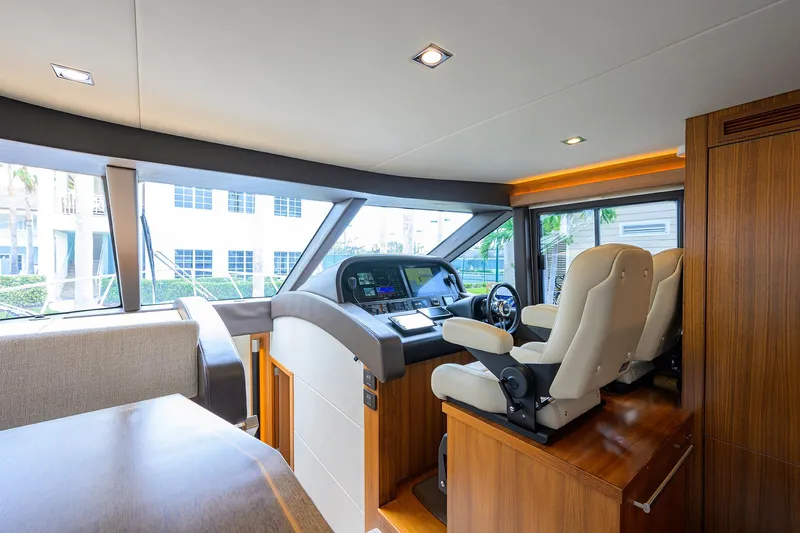

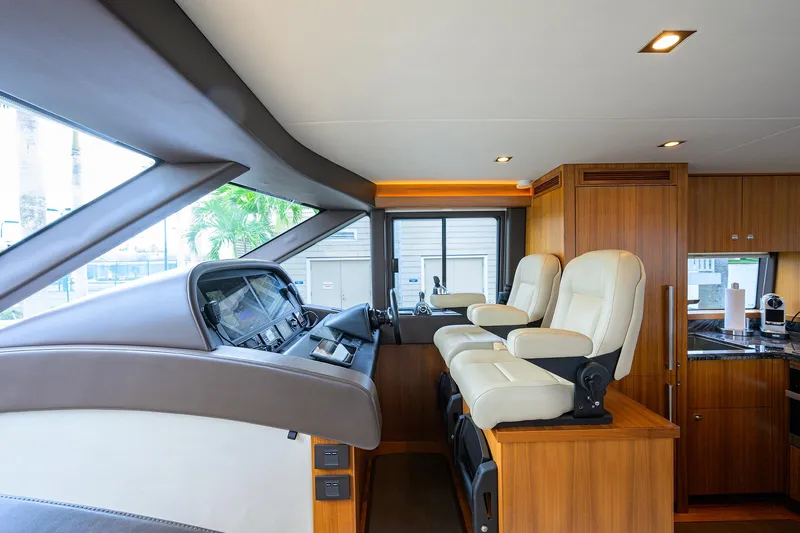

           - Fwd:  Helm position with 2-Stidd seats / position mounted on cabinet with

             storage beneath.

• Companionway stairs to lower deck between helm seat and port settee on center line.

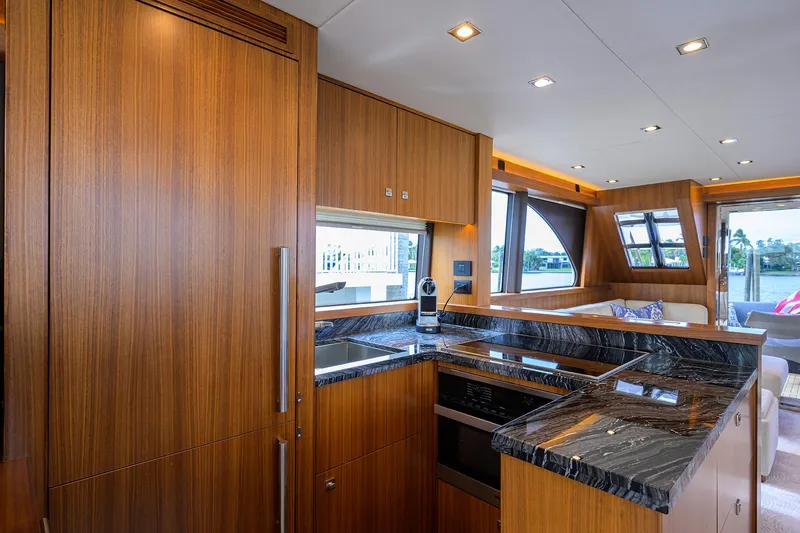

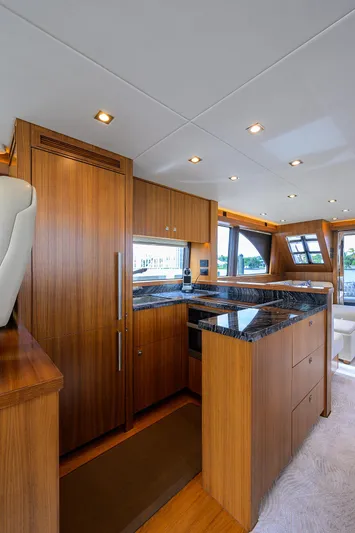

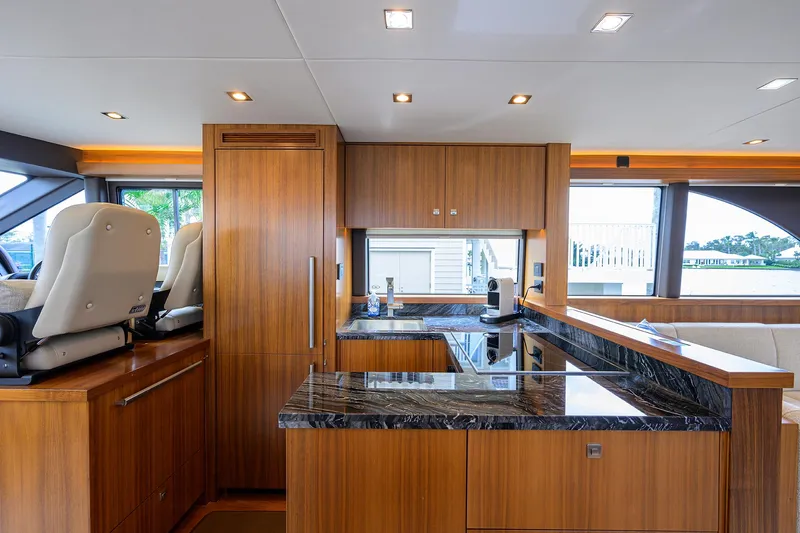

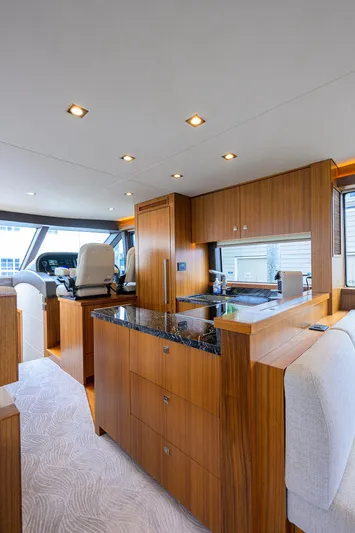

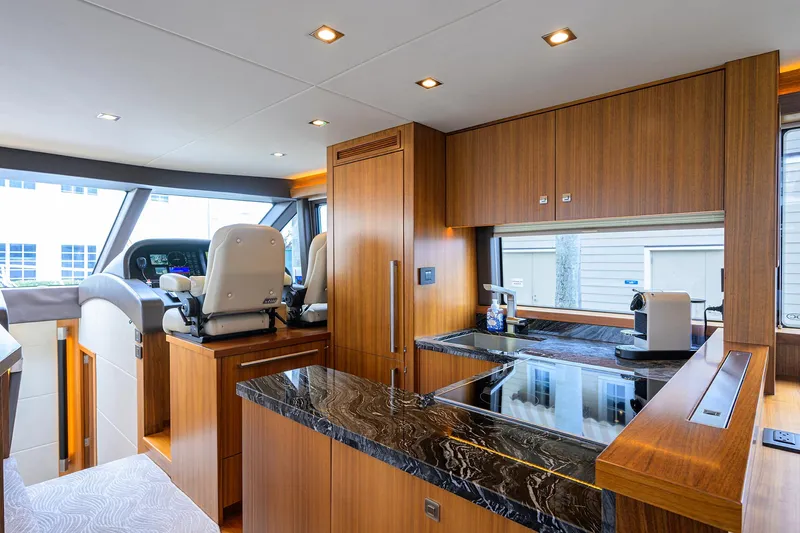

• Includes upper and lower cabinets.  U-Shaped cabinets with partial full height bulkhead between galley and helm

Lower cabinets include:

• Drawers and cupboards with stainless steel flush latches
• Granite countertops and back splash
• Miele 24"d x 24" w x 69"h fridge / freezer
• Miele 24", three burner induction cooktop
• GE down draft extraction fan
• Miele built-in stainless steel convection microwave
• Fisher & Paykel DishDrawer 2-drawer dishwasher
• Blanco Radius 10 stainless steel undercount sink
• Blanco Silhouette single lever, pull out stainless galley faucet
• Four duplex AC outlets

Upper cabinets with cupboard doors

• Interior cabinets and selected joinery finished in Black Walnut
• Wool carpet floor covering
• Majilite wall and ceiling panels with select accent wood wall panels
• Imtra LED down lights
• Imtra LED alcove lighting
• Wall-mounted 42" LCD HD flat screen TV with Blu-ray Disc player and Apple TV

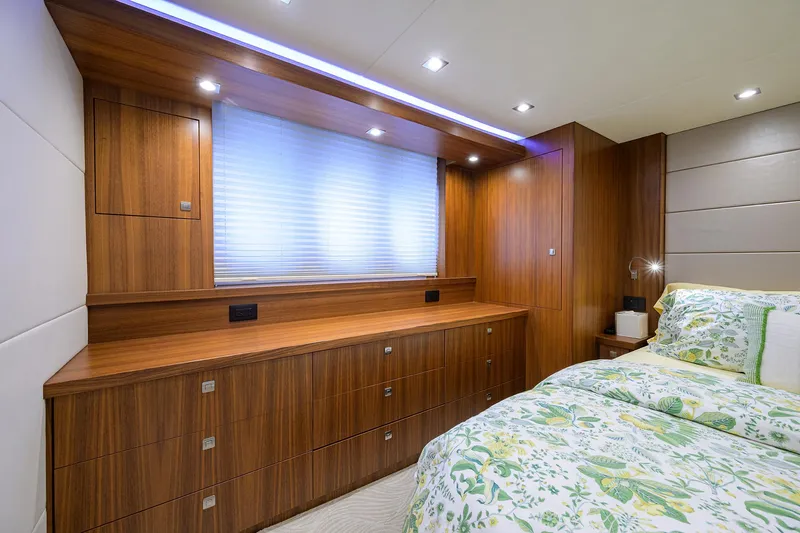

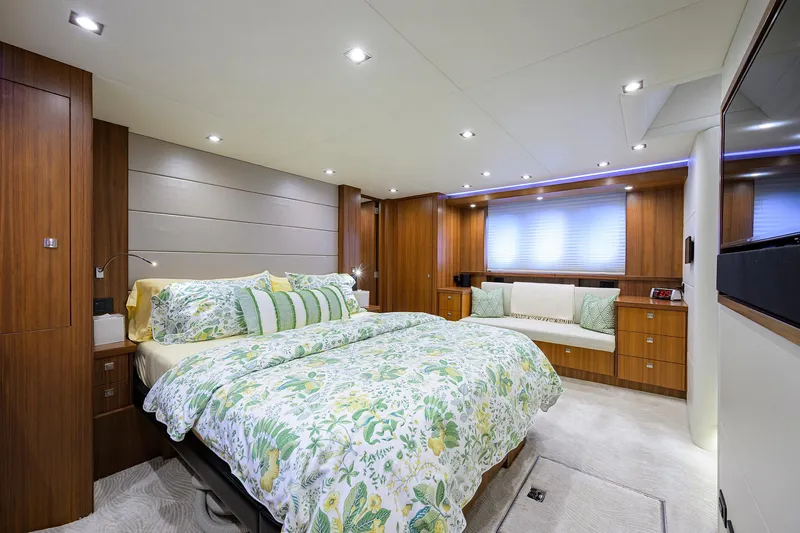

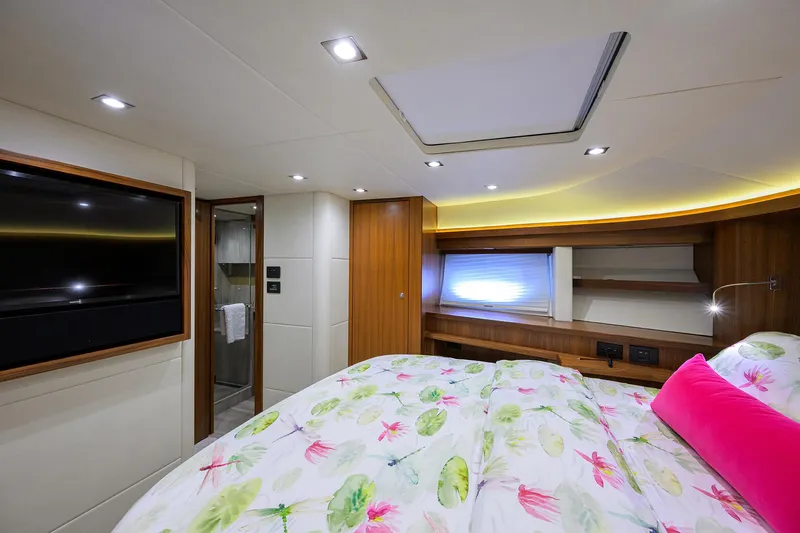

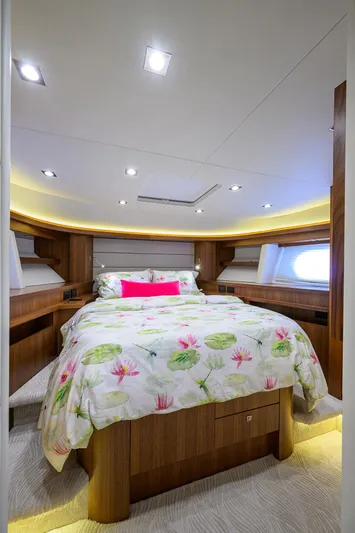

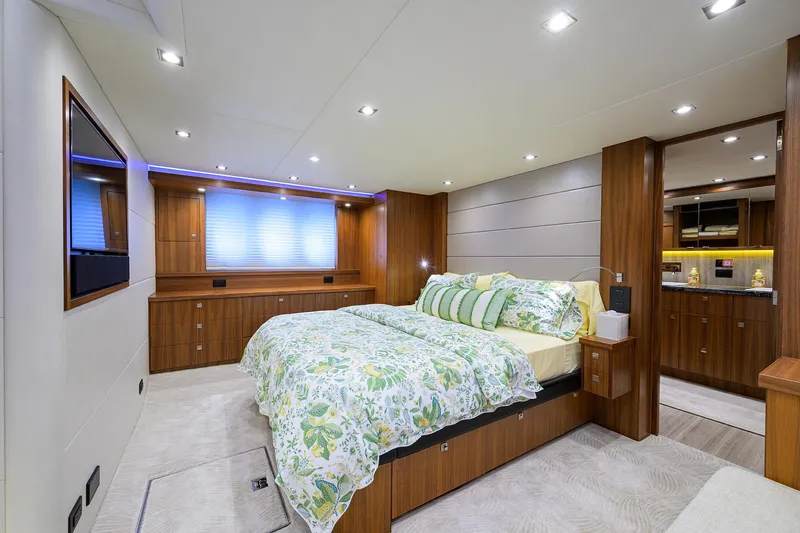

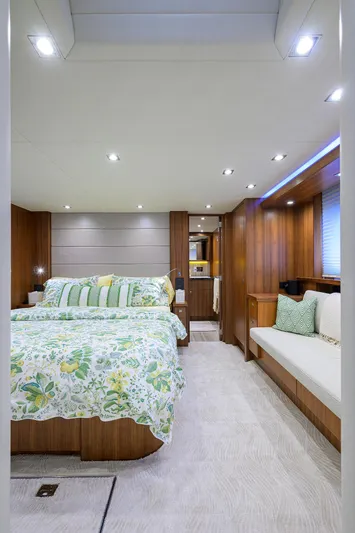

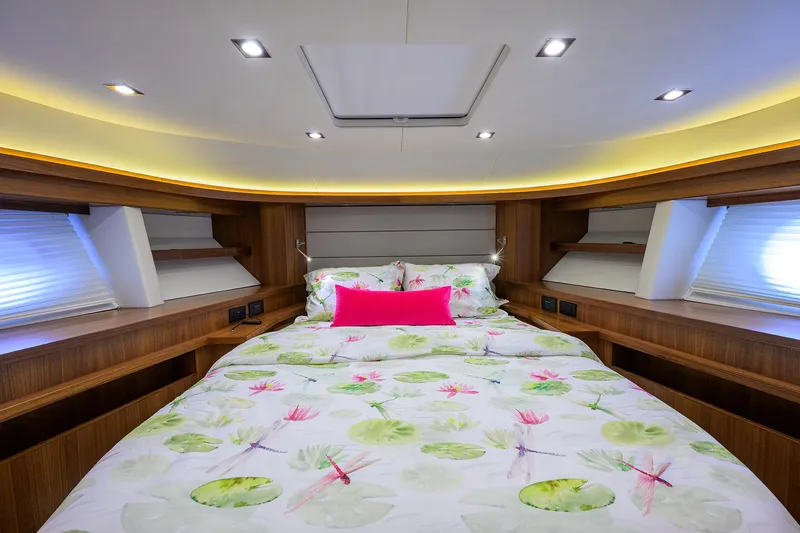

Cabin layout includes:

• Entry door located forward end of cabin slightly offset to port side

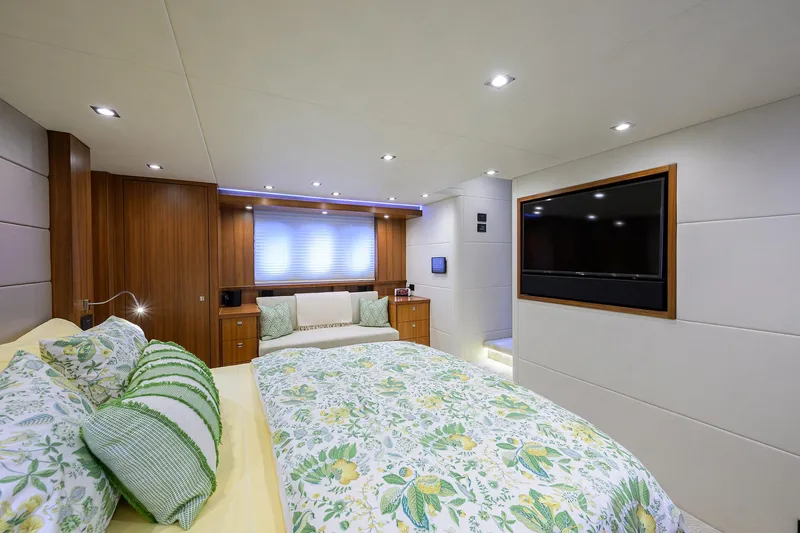

• Island king (68" x 80") bed frame and platform (headboard aft against ensuite bulkhead).  Drawers integrated into bed frame.
• Built-in headboard with port and starboard night stands with drawers
• Wall mounted lights positioned above each night stand
• Upholstered / quilted headboard insert above bed
• Built-in starboard side lounge with drawers beneath
• Aft hanging locker, full height
• Built-in port side cabinet with nine drawers, window height
• Aft hanging locker
• Vertical oval port and starboard side "port lights" with framed valance and privacy screen / blind

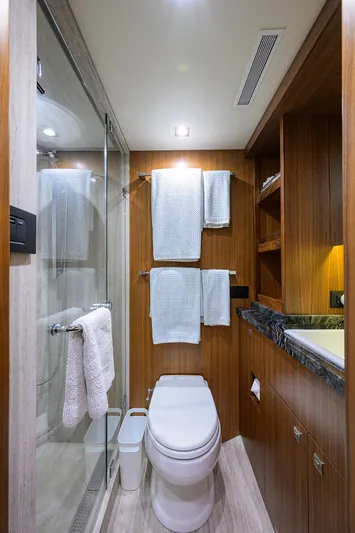

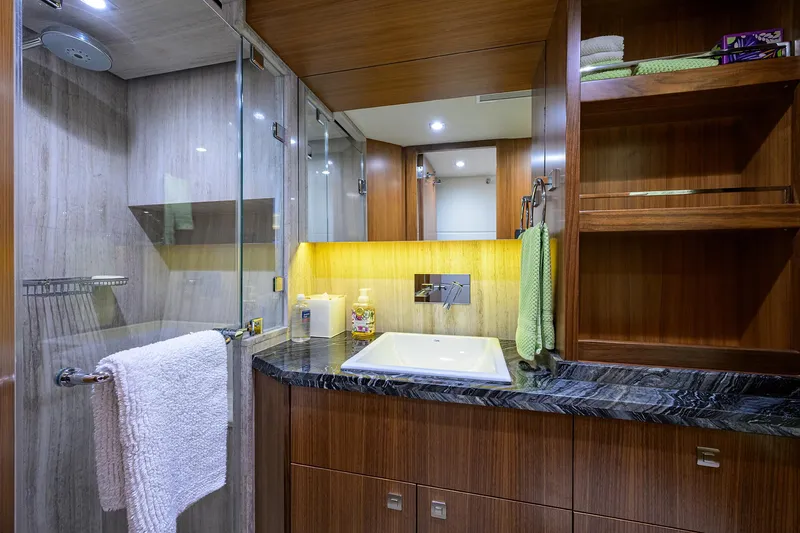

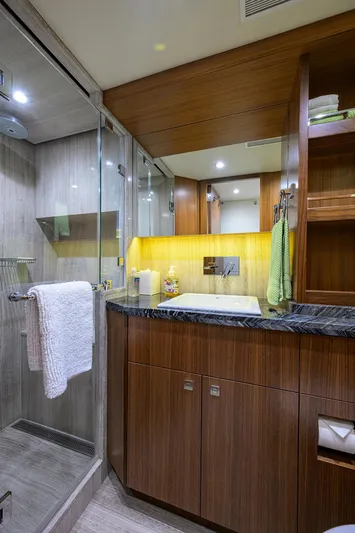

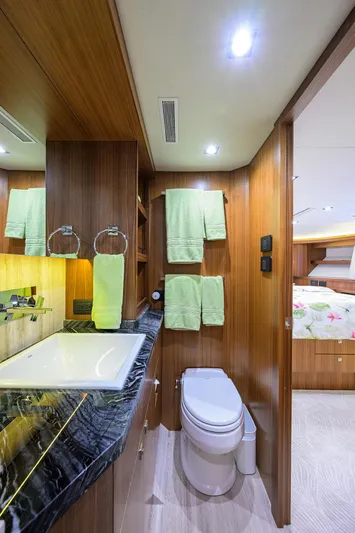

• Interior cabinets and selected joinery finished in Black Walnut
• Full height hanging locker located mid ships in Head
• Head walls finished in Black Walnut

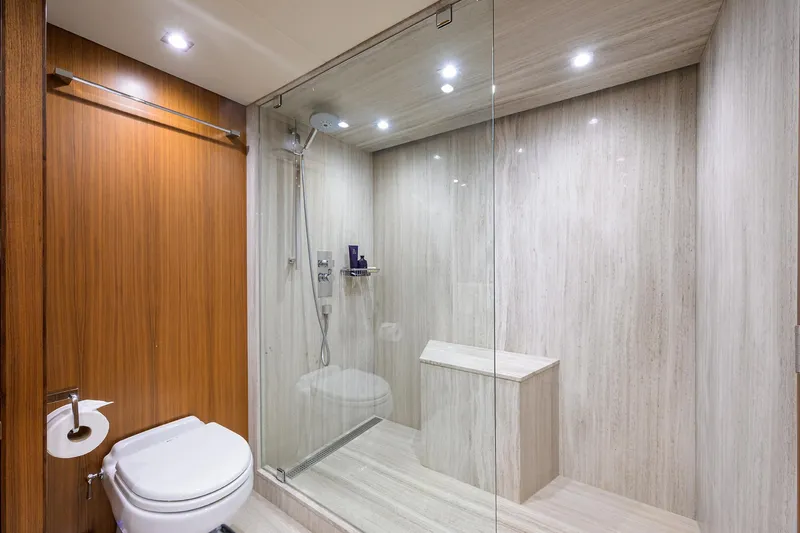

• Shower floors, walls and ceiling finished in Forastone marble panels
• Linear shower drain

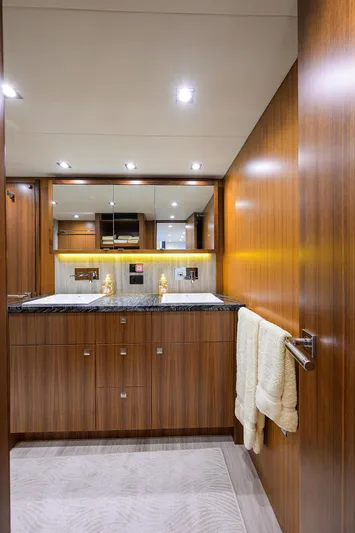

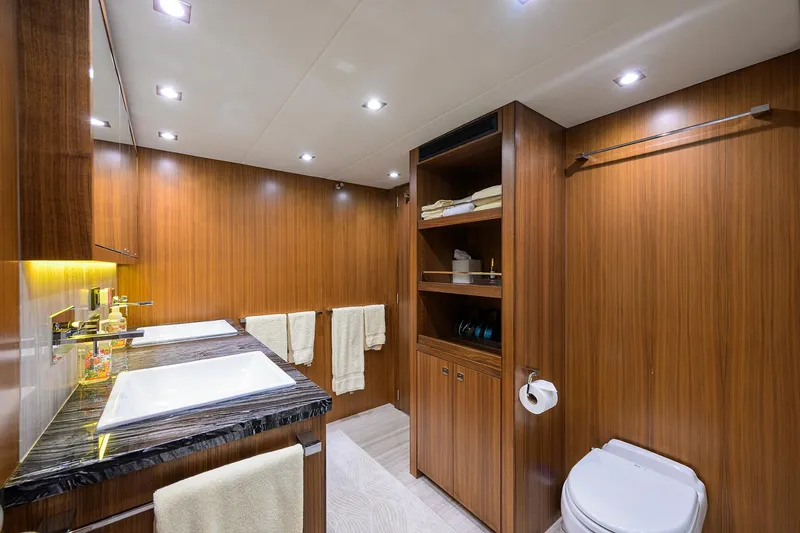

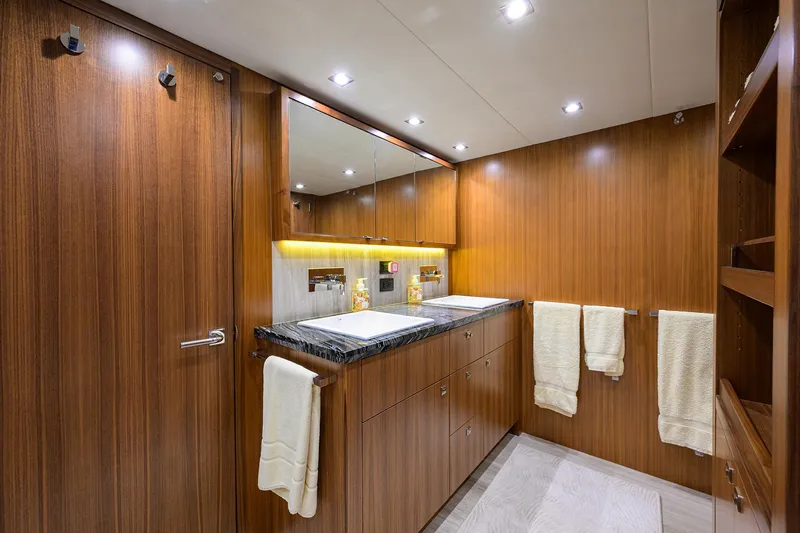

• Marble vanity countertops with double vanity sinks
• Wall mounted faucets
• Lower vanity cabinet includes drawers and cupboards
• Upper vanity cabinet includes mirrored doors with storage
• Two AC receptacles
• Two towel bars
• Dometic 8700 MasterFlush Toilet

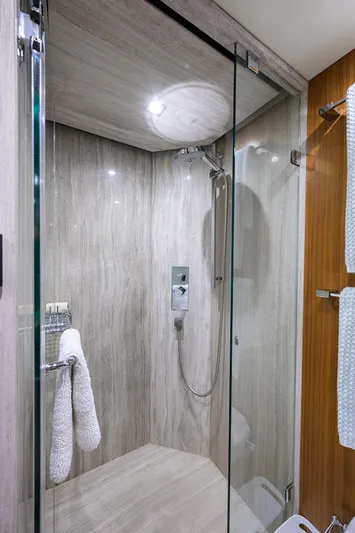

• Shower with glass partition includes:  Rainshower shower head with temperature control valve and on/off valve.

• Interior cabinets and selected joinery finished in Black Walnut
• Wool carpet flooring
• Majilite ceiling and wall panels

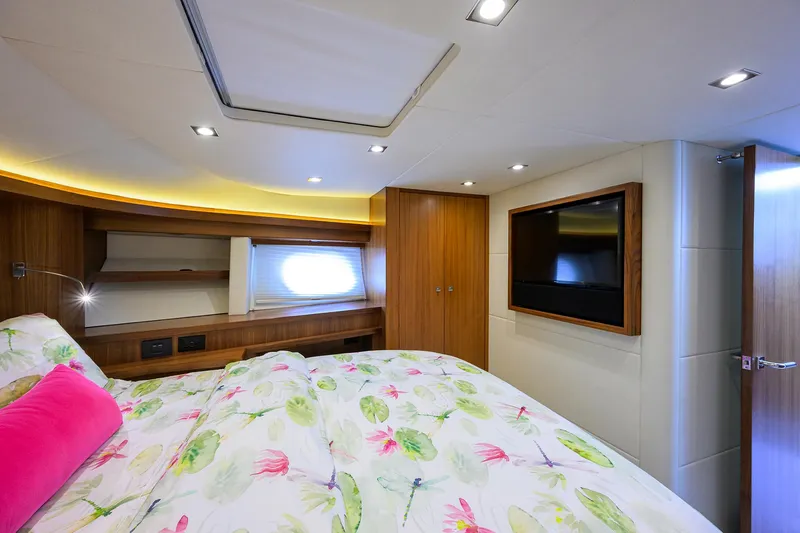

• VIP Stateroom Cabin layout includes:

           - Entry door to aft of cabin

           - Queen V-berth with step up platforms on each side

           - Port and starboard nightstands with wall mounted lights

           - Port and starboard full-height hanging lockers

           - Port and starboard side "port lights" with framed valance and privac screen/blind

           - Ensuite entry door located aft and to port of cabin

           - Wall-mounted 32" LCD HD Flat Screen TV with Blu-ray and Apple TV

           - Stainless steel Manship deck hatch (26") with OceanAir screen/ shade

           - Imtra LED ceiling down lights, Alcove lighting and Cantalupi reading lights

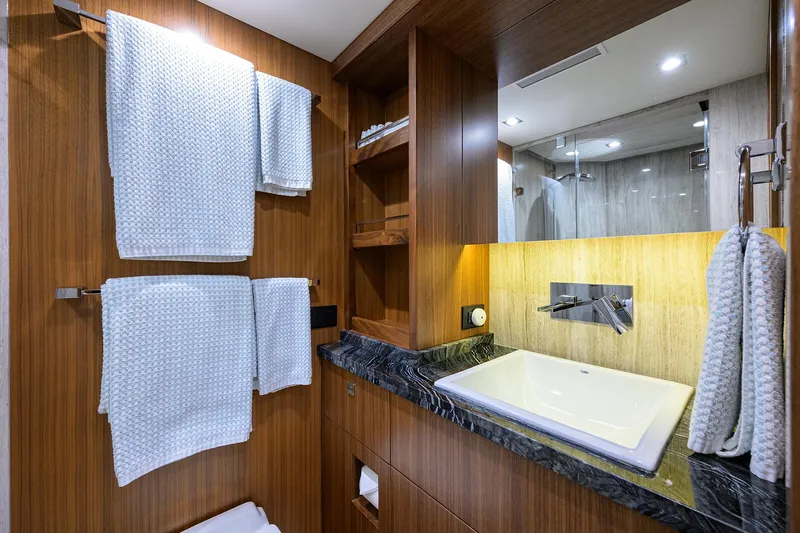

• Interior cabinets and selected joinery finished in Black Walnut

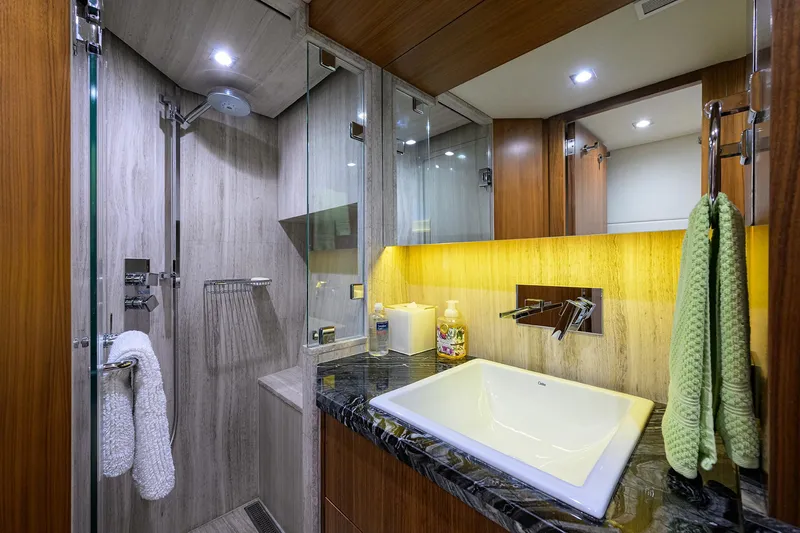

• Head walls finished in Black Walnut
• Shower walls and ceiling finished in Forsastone marble panels
• Linear shower drain
• Marble vanity countertops with ceramic vanity sink
• Wall mounted vanity faucets
• Lower vanity cabinet includes drawers and cupboard
• Upper vanity cabinet includes mirrored doors (full width)

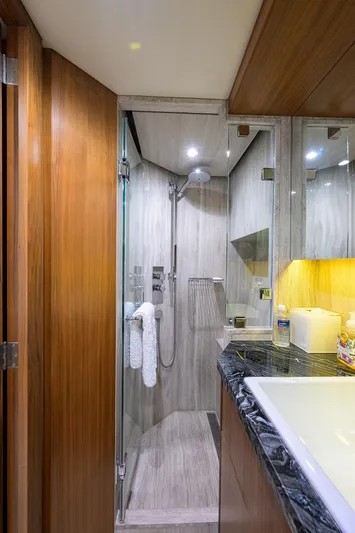

• Shower with glass enclosure and door
• Majilite ceiling panel in Head portion only
• Dometic 8700 MasterFlush toilet
• AC receptacle
• Towel Bar
• Extraction Fan

• Interior cabinets and selected joinery finished in Black Walnut
• Wool carpet flooring
• Majilite ceiling and wall panels
• Wall mounted 32" LCD HD flat screen TV

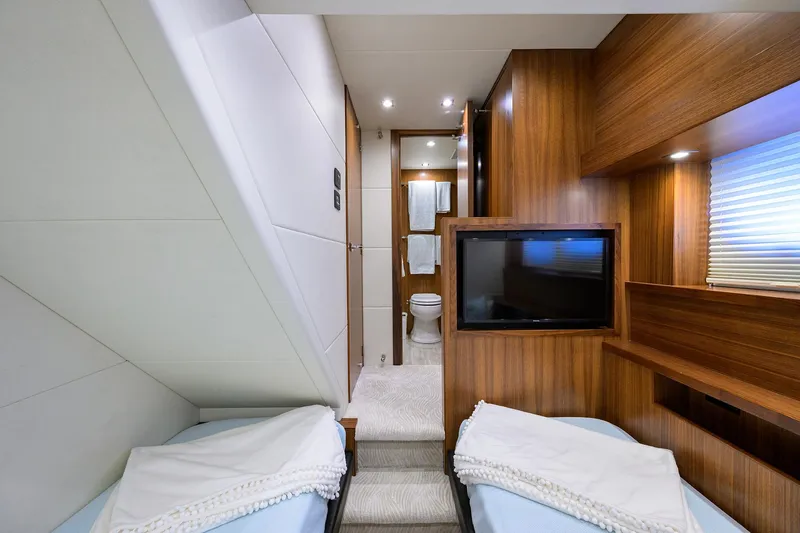

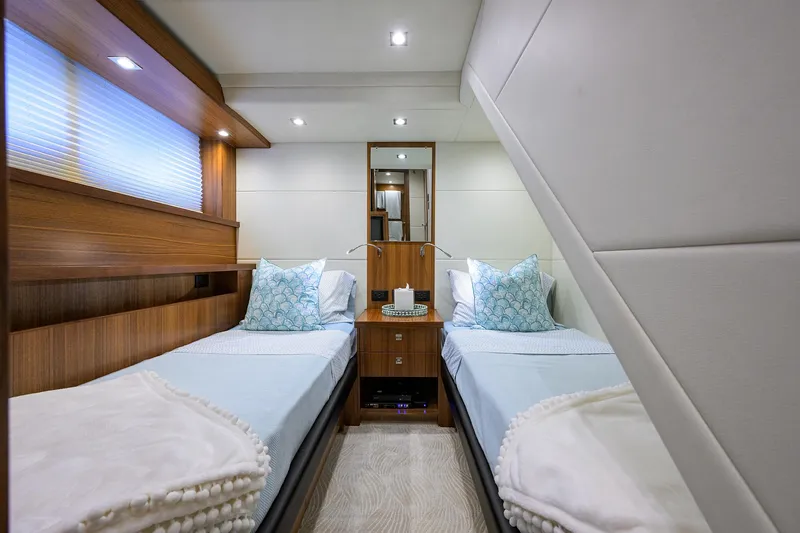

• Guest Stateroom cabin layout includes:

           -Entry door on starboard side of cabin from companionway hall

           -Two single berths (30"x78") with a center walkway between

           -A center nightstand with AC receptacle and lower drawers

           -Full-height hanging locker located on outboard side of cabin at forward end of berth

           -Two horizontal oval "Port Lights" with framed valance and privacy screen/blind (outboard wall).

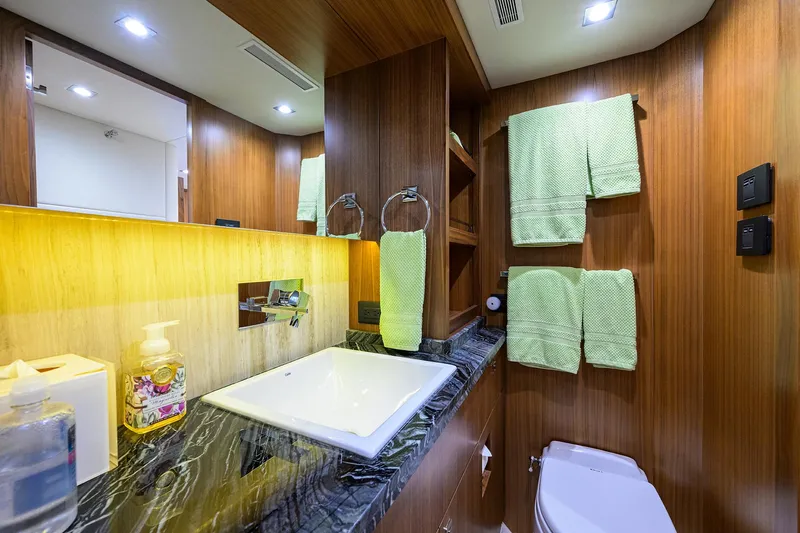

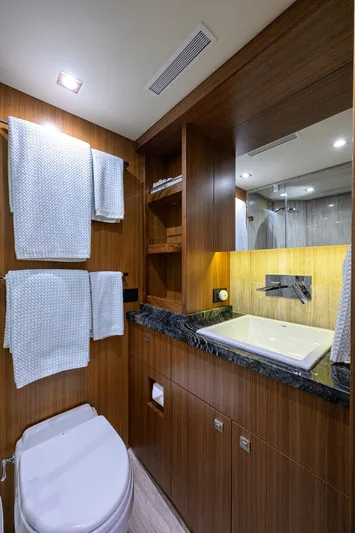

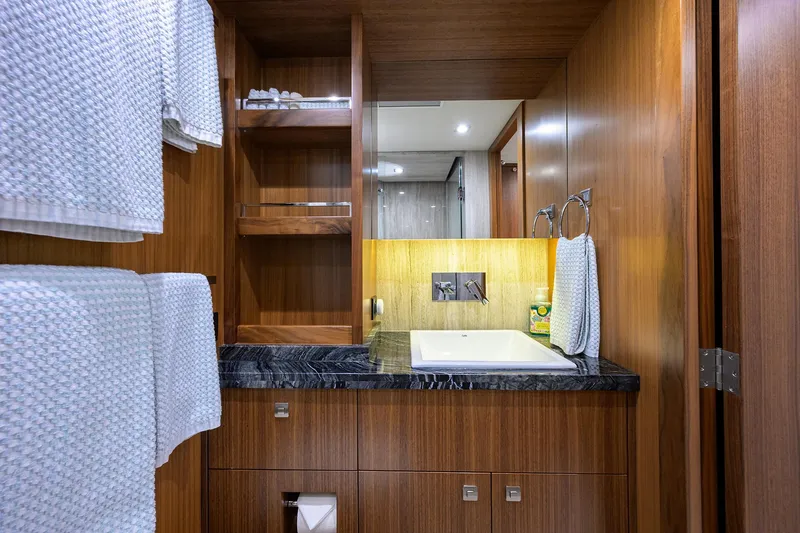

• Interior cabinets and selected joinery finished in Black Walnut
• Head walls finished in Black Walnut
• Shower floors, walls and ceiling finished in Forsastone marble panels
• Linear shower drain
• Marble vanity countertops with ceramic under mount sink
• Wall mounted vanity faucets
• Mirrored upper medicine cabinet
• Aquabrass niu 67714 vanity faucet
• Blanco Quadris 401043 soap dispenser
• Dometic 8700 MasterFlush toilet
• AC receptacle
• Towel Bar
• Extraction Fan

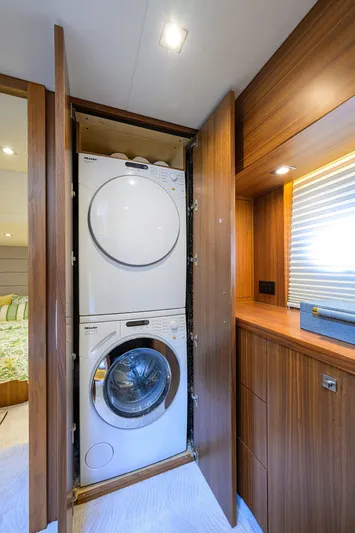

• Miele Washer
• Miele Dryer

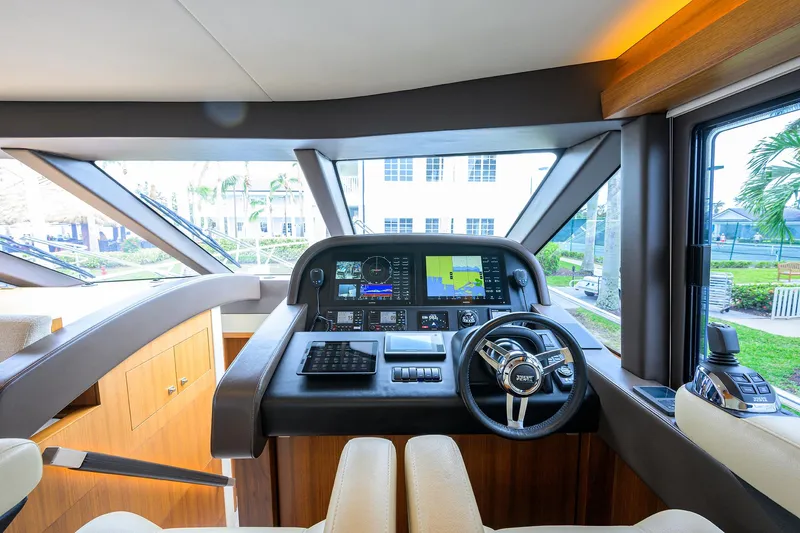

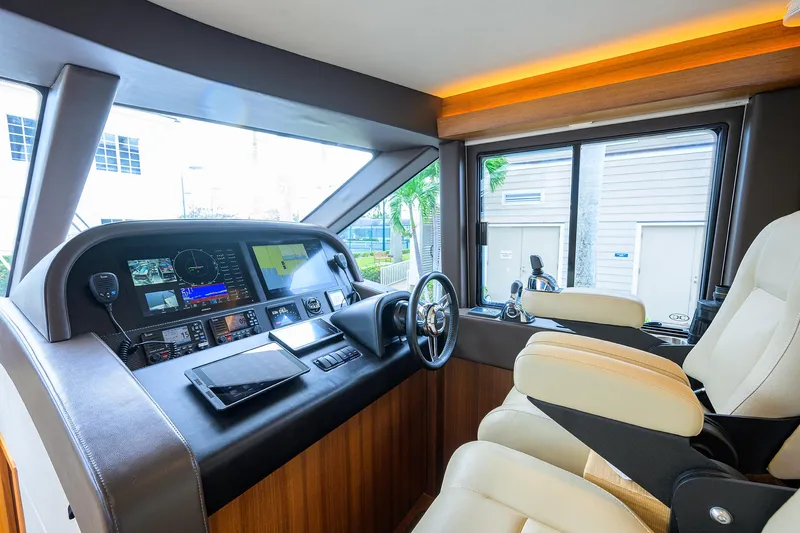

• Two Volvo electronic engine controls
• Volvo EVC Panel
• Volvo engine management panel (7" color display)
• Volvo joystick control
• Two Garmin 8015 MFD touch screen (See Navigation Electronics)
• Volvo Autopilot Control Unit (See Navigation Electronics)
• iPlex / iPad Vessel Control Panel
• Garmin VHF 200 radio and Garmin GHS 10 VHF remote (See Navigation Electronics)
• Humphree Trim Tab Control Panel
• Compass

• Two Volvo electronic engine controls
• Volvo EVC panel
• Volvo engine management panel (7" color)
• Volvo joystick control
• Two Garmin 8015 MFD touch screen (see navigation electronics)
• Volvo Autopilot Control Unit (see navigational electronics)
• iPlex / iPad vessel control panel
• Garmin VHF 200 radio and Garmin GHS 10 VHF remote (see navigational electronics)
• Humphree trim tab panel
• Compass

Salon:

• Samsung 42" 1080p LED TV mounted inside media cabinet with TV lift unit
• Elite 3D capable Blu-Ray Disc Player
• Apple TV with AirPlay
• Apple Airport Express
• Five ceiling mounted speakers (5.1 surround sound)
• 8" Sub Woofer
• Crestron Control

Master Stateroom:

• Samsung 42" 1080p LED TV
• Elite 3D capable Blue-Ray Disc Player
• Apple TV

Guest Staterooms (x2):

• Samsung 32" 1080 LCD TV
• Elite 3D capable Blue-Ray Disc Player
• Apple TV

Flybridge:

• Four (4) JL speakers with wall mount controls

Cockpit:

• Two (2) JL speakers with wall mount controls
• Iridium 14 Satellite TV Antenna

• Four Garmin 8617 MFD with 17" touch screen display (2 at main helm / 2 at upper)
• Canadian and US charts pre-loaded
• Garmin GMR 604 x HD 48" (6kW) Open Array Digital Radar (72 NM)
• Garmin AIS 600 transceiver
• Garmin GPS 19x GPS sensor
• Garmin GXM 51 XM weather
• Garmin GSD 25 digital sounder module
• Two (2) Airmar thru hull transcucer
• Three (3) Gost dome video cameras (one located in engine compartment and two under mounted to rear edge of hardtop
• Volvo IPS autopilot with two control units.  (Main and Upper Helms)
• Garmin VHF 300 with Morad Antenna and GHS 20 wireless remote (lower) and GHS 10 wired remote (upper)
• Garmin VHF 200 (lower) with Morad Antenna

Exterior aft deck, swim platform, boarding stairwells, side decks and foredeck settee:

• Imtra Viken LED courtesy lights (cool white)
• Imtra Ventura LED down light (recessed) with dimming function (warm white)

Flybridge:

• Imtra Viken LED courtesy lights (cool white)
• Imtra Ventura LED down light (recessed) with dimming function (warm white)

Salon Cabin:

• Imtra Ventura LED down light (recessed) with three zone dimming functions (warm white)
• Alcove lighting (Imtra LED strip lighting)

VIP Guest Cabin:

• Imtra Ventura LED down light (recessed) with two zone dimming function (warm white)
• Cantalupi LED reading lights
• Alcove lighting (Imtra LED strip lighting)

VIP Head and Shower:

• Imtra Ventura LED down light (recessed) with dimming function

Mid-Guest Cabin:

• Imtra Ventura LED down light (recessed) with two zone dimming function

Master Cabin:

• Imtra Ventura LED down light (recessed) with dimming function
• Cantalupi LED reading lights - Master Head / Shower
• Imtra Ventura LED down light (recessed) with dimming function

Companionway Halls and Laundry:

• Imtra Ventura LED down light (recessed) with dimming function
• Imtra Andromeda G1 LED courtesy lights (deck level) (warm white)

Engine Compartment and Mechanical Area:

• Imtra F16 LED utility light

All Closets and large storage lockers to have LED lighting (hatch switching)

• Humphree Interceptor trim system (1050mm tabs) with ActiveRide
• Beam built-in central vacuum with three outlets

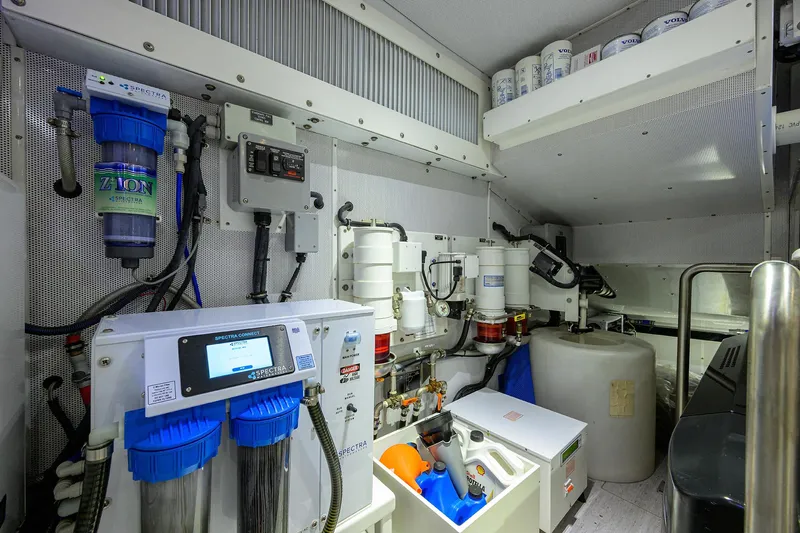

• Spectra Newport 1000MK water maker with Z-ION System
• Two (2) Racor 1000MA (dual) fuel/water filters (volvo engines)
• Racor FG500 (dual) filters (generator)
• Central extraction fan system plumbed to vents in each Head (switched with programmable timer function)
• ESI "CFS-1000FRE" Fuel Polishing System (120v)

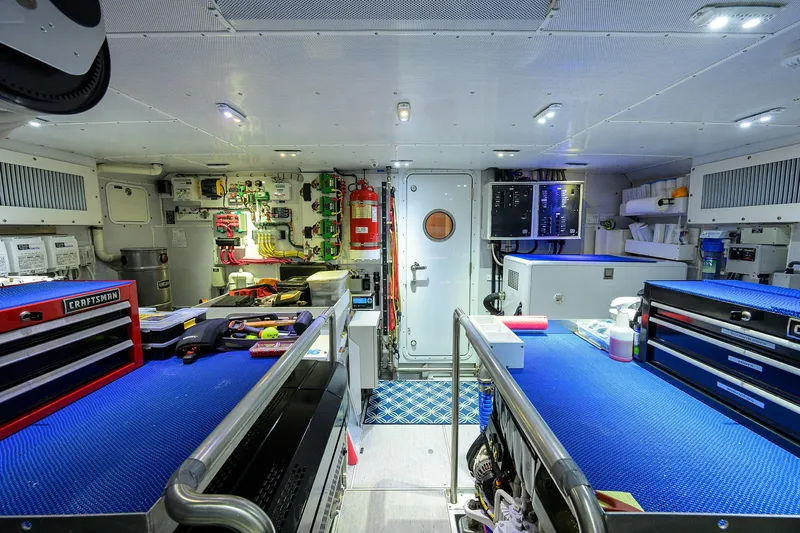

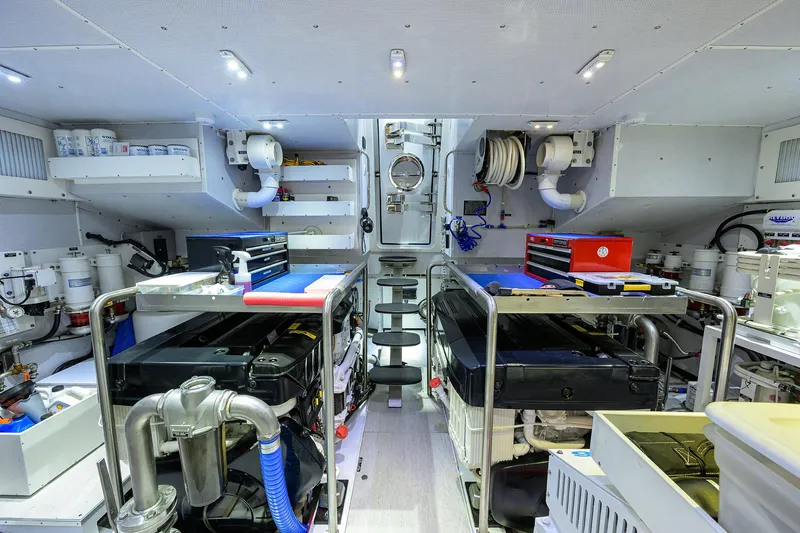

• Engine room workbench with stainless steel top, vise and mechanics tool chest beneath
• Reverso electric oil change pump plumbed to main engines and generators
• Delta Moisture Eliminator engine room air intake system with two 4" exhaust fans

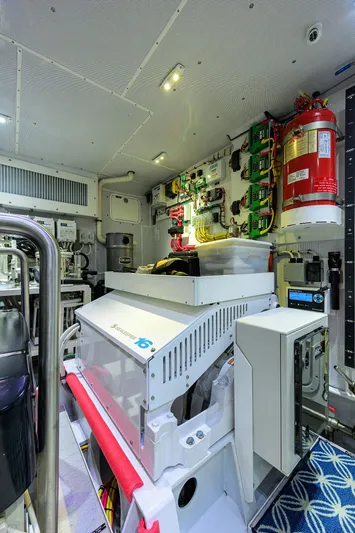

• SeaKeeper 16 Gyro Stabilizer

• (2) Headhunter Mach5 domestic water pump (240V)
• (1) Mako black water discharge pump (24V)
• (2) Grey water discharge pumps (24V)
• Glendinning HoseMaster (1/2" hose x 75' long) manual/electric). Fresh water outlet located in transom locker with manual select manifold onboard/shore supply.
• Glendinning HoseMaster (1/2" hose x 50' long, manual/electric) located in bow locker

Bilge Pumping:

• Engine Compartment - Two Rule 4000 GPH pumps with float switch to run in auto/manual mode.
• Mid Cabin - Rule 4000 GPH pump with float switch to run in auto/manual mode
• Forward Cabin - Rule 4000 GPH pump with float switch to run in auto/manual mode
• Three Dometic 8700 MasterFlush standard height toilets with 139 USG black water tank and discharge pump

• Two 665 US gallon (1330 US gallon total) aluminum fuel tank (integral) with pressure sender level indicator
• 220 US gallon stainless steel domestic water tank level sender
• 125 gallon stainless steel black water tank with level sender
• 30 USG domestic hot water heater

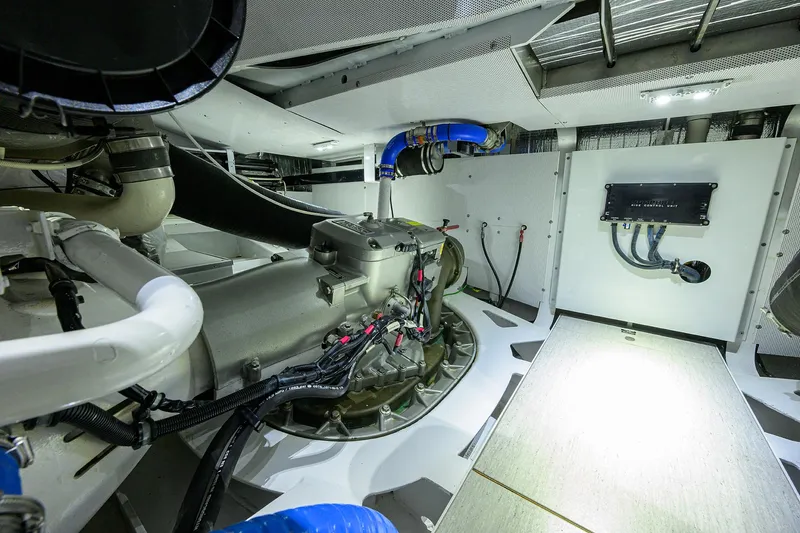

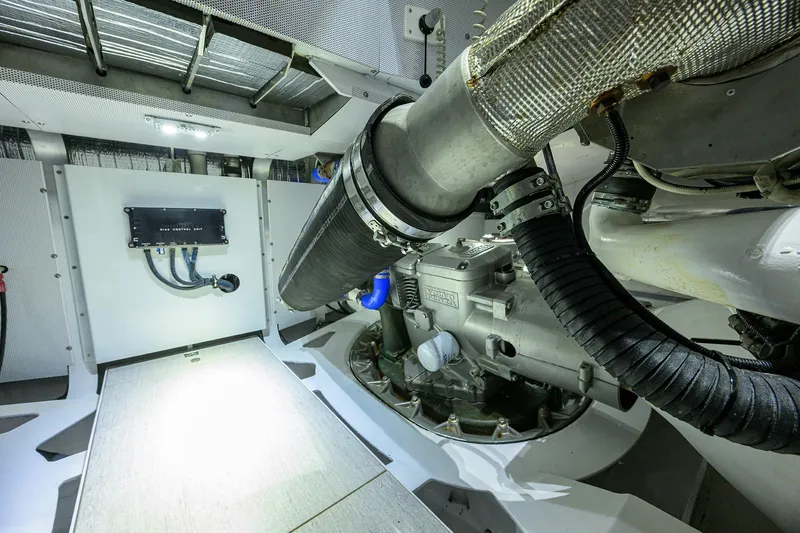

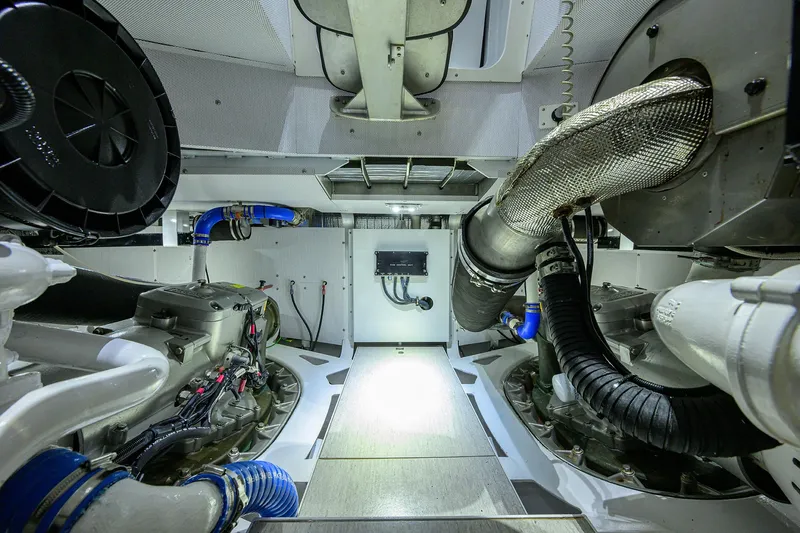

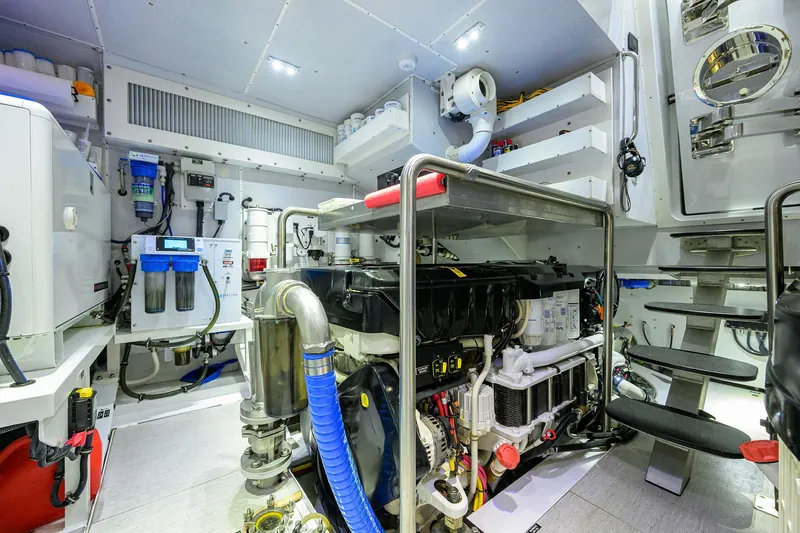

• Twin Volvo IPS1200 (D13-900) diesel engines with IPS3 drives)
• Two Volvo engine management panels with 7" color screens
• Four station Volvo joystick controls located at main helm, upper helm, port and starboard cockpit stations
• Volvo Dynamic Positioning System (DPS)
• Slow maneuvering option
• One additional Volvo alternator (24v) 115 AMPS (total of three)
• Volvo IPS Protective Anode kit
• Volvo Clear Wake Exhaust
• Engine Spare Parts Kit

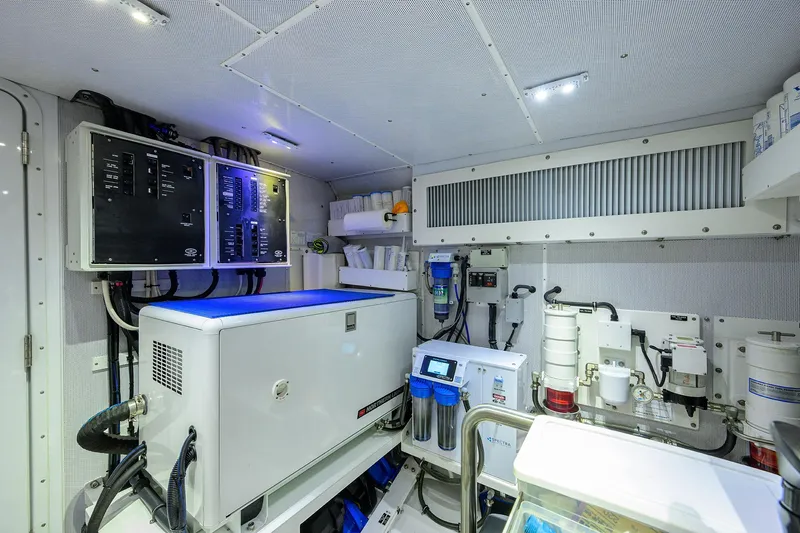

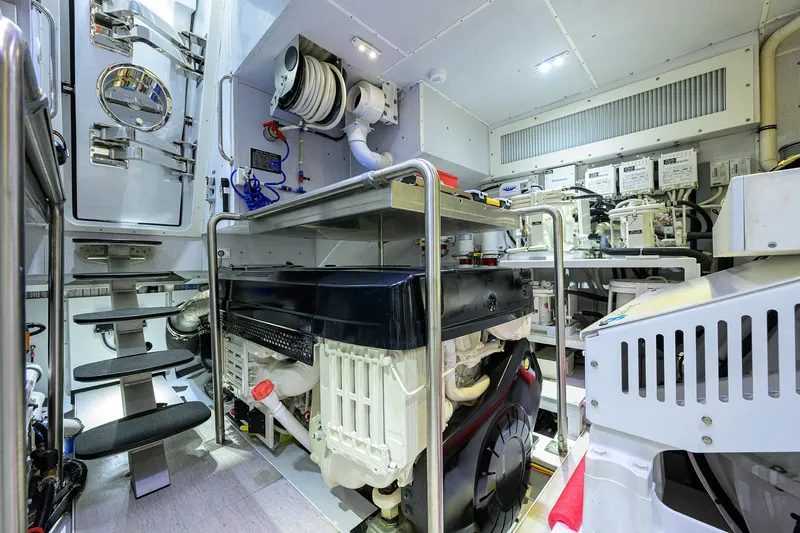

• Northern Light 21.5 kW generator with sound enclosure

• 24v DC to 12v DC Converter

Batteries:

• House batteries:  Lithium-Ion 24v Cell (6x180AH - 1080 AH)
• Engine batteries:  (2 Bank) 24v AGM (Lifetime GRP31)
• Generator batteries:  (1 Bank) 24v AGM (Lifetime GRP24)

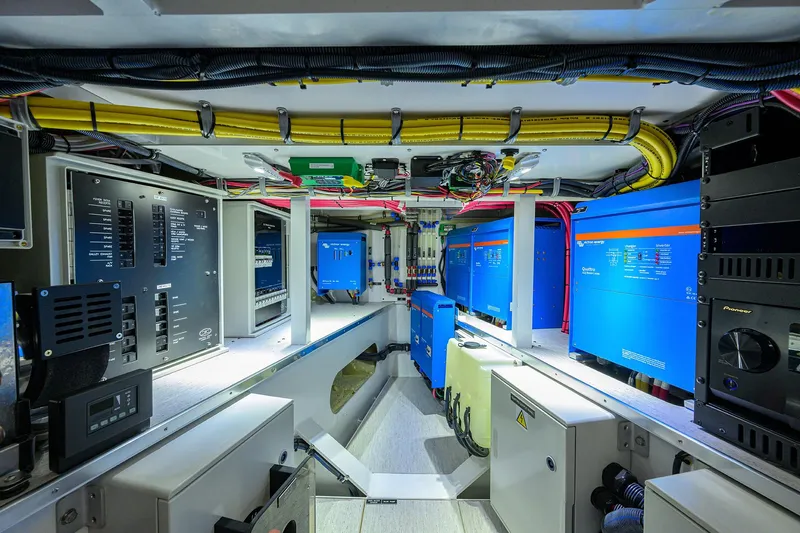

Battery Charger / Inverter(s):

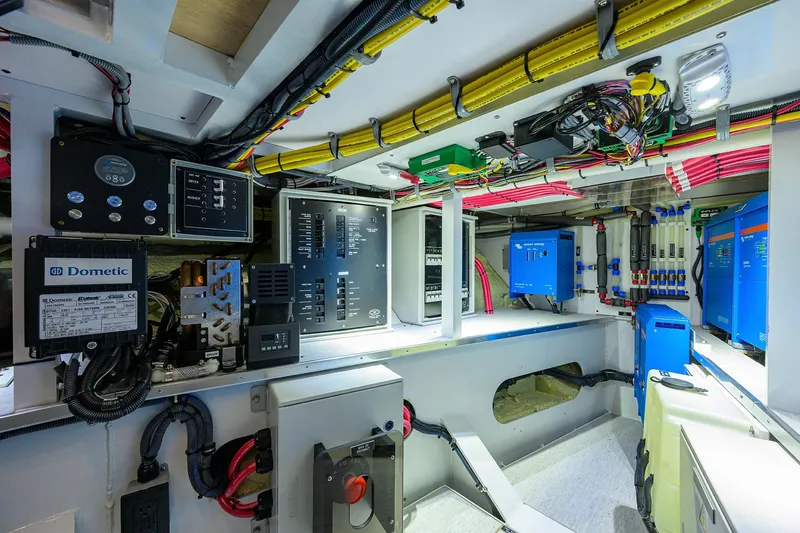

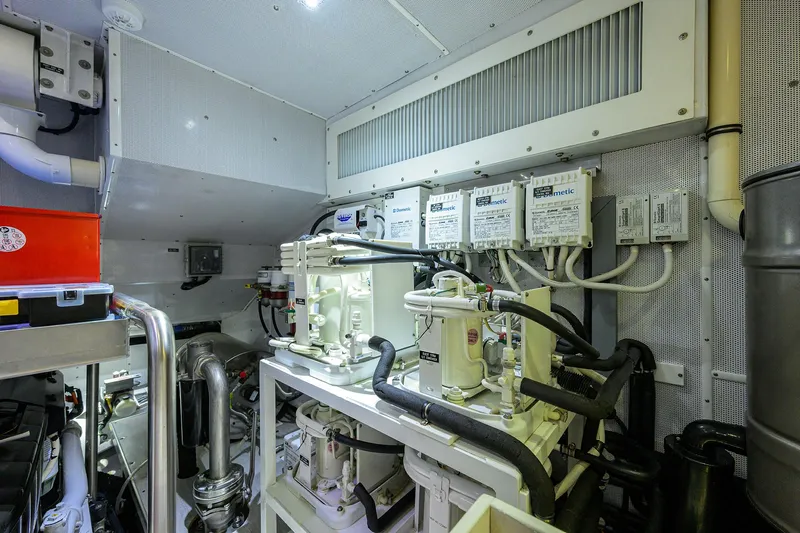

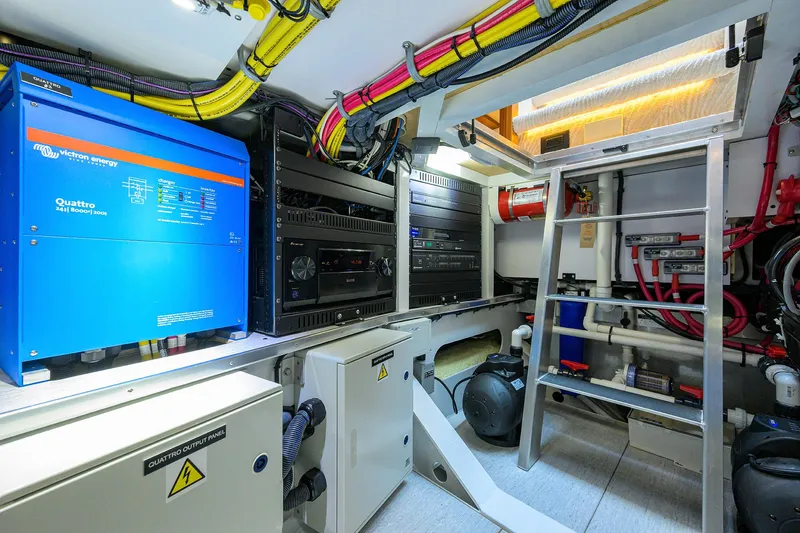

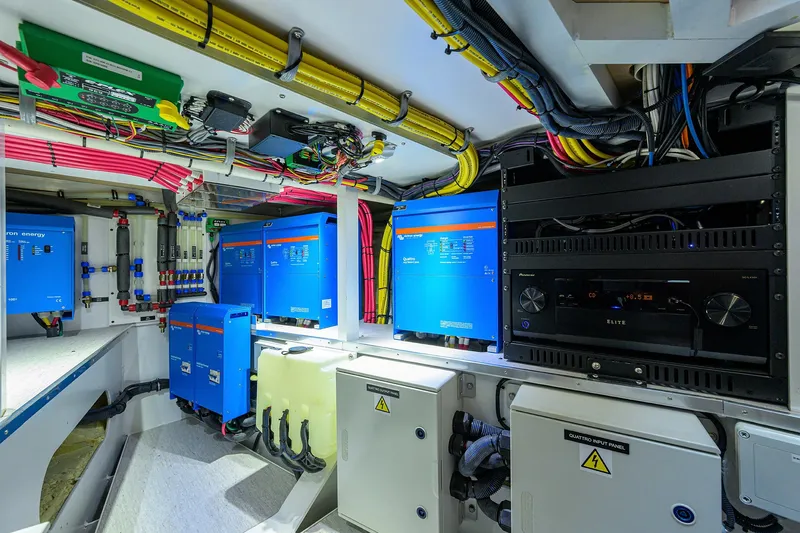

• (3) Victron Quattro 24/8000/200-100/100 (8000 watt inverter and 200 amp charger)
• (1) Victron Skylla Battery Charger (100 amp)
• (2) Pronautic 24/20P Battery Charger (engine and generator batteries)

Shore Power (240V / 50A and 120V / 30A):

• 240V / 50A shore power service
• Glendinning CM-7 CableMaster (Stern-100')
• Charles Iso-Boost 50

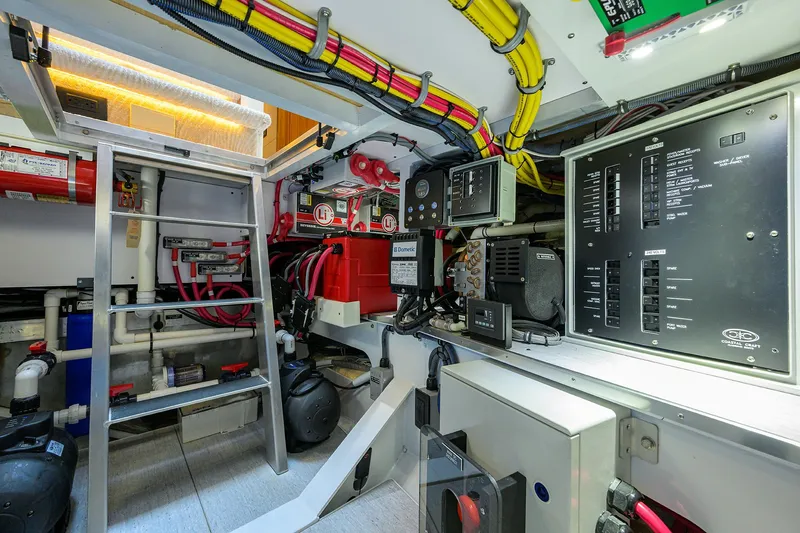

• Eplex distributed power system with network switching and monitoring of all DC and AC systems.

• Three Speich windshield wiper motors with SS Pantographic arms and blades (multi speed with delay and self-parking)
• Windshield washer system
• Kahlenberg D-1 dual trumpet air horn
• ACR RCL-100D (white) remote searchlight (200,000 candlepower, 24v) with controls at both helm stations
• LED navigation lights and anchor light as per vessel requirements up to 50m

• Three high water bilge alarms in engine, mid cabin and forward cabin bilge compartments
• Two high temperature resettable alarms in engine room
• (2) carbon monoxide sensors with alarms
• Five smoke detector sensors with alarms
• Two fire suppression systems (auto/man) in engine room and electrical compartment with auto engine shut down
• CCG approved fire bucket and six alb handheld fire extinguishers
• Four Z4A hull zinc anodes

• Cruisair Pilothouse windshield defroster, two speed exchanger
• Dometic Cruisair R-410A five zone air conditioning system with reverse heat controlled via E-plex network

           -  Salon:  Two 27,000 BTU

           -  Master Stateroom and Head:  18,000 BTU

           -  VIP Stateroom and Head:   8,000 BTU

           -  Guest Stateroom and Head:  8,000 BTU

           -  Machinery Compartment:   8,000 BTU

• Freedom Lift Swim Platform Davit

• Eight boat fenders with sock and fender lines
• Eight Samson mooring lines
• Life ring, throwing lines, fire bucket, flares, first aid kit, flag staff and stainless steel deck socket
• Vessel owner's manual and systems drawing package
• Onboard tool kit and basic spares kit
• NOTE: Dinghy is excluded from the sale
